Quick Setup Guide

NS-L7HTV-10A TV

Congratulations on your purchase of a high-quality
Insignia product. Your TV is designed for reliable and
trouble-free performance. Use this guide for initial
setup of your TV. See your User Guide for more
information on using your TV.

Package contents

• Remote control with battery

• AC adapter

• Vehicle adapter

• AV cable

• User Guide

• Quick Setup Guide

AC adapter

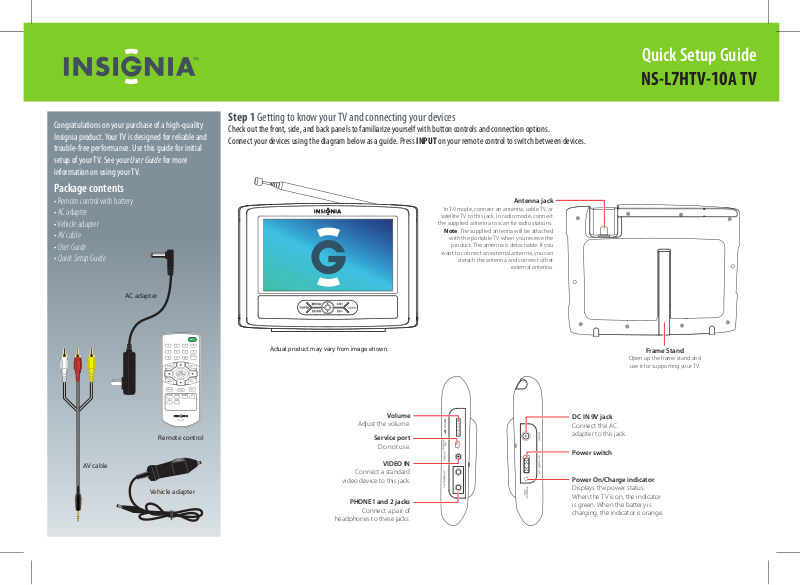

Step 1 Getting to know your TV and connecting your devices

Check out the front, side, and back panels to familiarize yourself with button controls and connection options.
Connect your devices using the diagram below as a guide. Press INPUT on your remote control to switch between devices.

Antenna jack

In TV mode, connect an antenna, cable TV, or

satellite TV to this jack. In radio mode, connect

the supplied antenna to scan for radio stations.

Note: The supplied antenna will be attached

with the portable TV when you receive the

product. The antenna is detachable. If you

want to connect an external antenna, you can

detach the antenna and connect other

external antenna.

Actual product may vary from image shown.

Frame Stand

Open up the frame stand and

use it for supporting your TV.

AV cable

Remote control

Vehicle adapter

Adjust the volume.

Volume

Service port

Do not use.

VIDEO IN

Connect a standard

video device to this jack.

PHONE1 and 2 jacks

Connect a pair of

headphones to these jacks.

DC IN 9V jack

Connect the AC
adapter to this jack.

Power switch

Power On/Charge indicator

Displays the power status.
When the TV is on, the indicator
is green. When the battery is
charging, the indicator is orange.

Step 2 Install the remote control battery

Remove the battery holder from the back of the remote control by inserting a ngernail into the groove and
pulling out the holder. Place a CR2025 battery with the + side up on the holder. Insert the holder into the
remote control.

1

2

Note: The coin-shaped battery is already in the remote control. The first time you use the remote
control, remove the plastic sheet from the bottom of the battery to activate the remote.

Step 3 Connect the AC adapter

Connect the AC adapter into the DC IN jack on the right
side of your unit, then connect the AC adapter to a
100-240V power outlet.

Step 4 Charging the built-in battery

Note: There is no standby mode for this TV, because it runs on a rechargeable battery.

Turn o your TV before charging the battery. Connect the supplied AC adapter. Charging starts, and the POWER
ON/CHG indicator is red. When the charging is completed, the indicator turns o.

Note: On initial use of the TV, charge the battery for 6 hours.

Step 5 Establish a signal

Make sure that the included rod antenna or a stronger HDTV antenna (not included) is attached to the input at the
top of the TV. Extend the antenna rod and move the TV to a location where it can receive the strongest signal, free
of obstructions and interference from other devices. Press TV on your remote control to ensure you are in TV mode.

Step 6 Scan for channels

Note: See your User Guide for more information on connecting your TV
directly to cable or satellite service and for scanning for radio stations.

To scan for channels when the TV signal source is Antenna

Press MENU on the remote control, using the buttons to
highlight (channel icon). The Channel menu opens. Press
OK/ENTER or to enter the Channel menu. Press the buttons
to select Auto Channel Search, then press OK/ENTER or to enter
the Auto Channel Search menu. Start to Scan is highlighted. Press
OK/ENTER or to start the scan.
If the Automatic Channel Search does not locate the channels you were expecting, try moving the TV to a location
where you can pick up a stronger signal, then try rerunning the search.

Antenna/Cable Antenna

Auto Channel Search

Add/Skip Channels

Favorites

Channel No.

Channel Label

Select OK:Enter Menu:Exit

80.3

PBS1DTV
