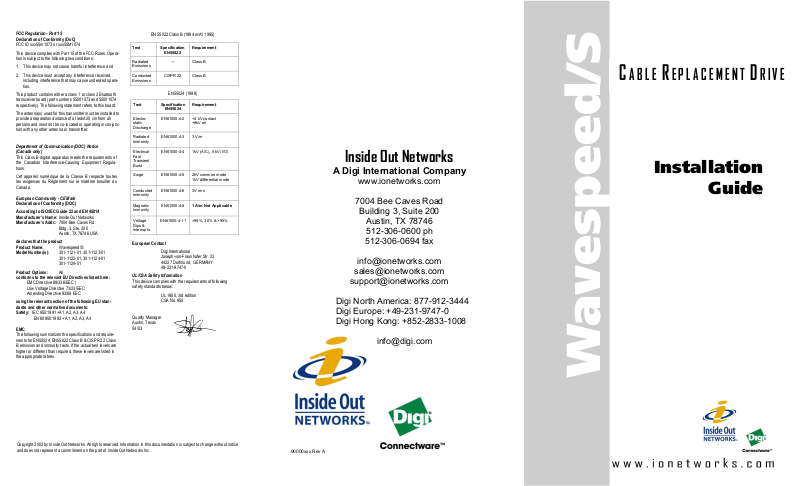

Page 1
FCC Regulation - Part 15
Declaration of Conformity (DoC)
FCC ID xxx55m1073 or xxx55M1074
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received,
including interference that may cause undesired operation.
This product contains either a class 1 or class 2 Bluetooth
transceiver board (part numbers 55001073 and 55001074
respectively). The following statement refers to this board:
The antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
Department of Communication (DOC) Notice
(Canada only)
This Class B digital apparatus meets the requirements of
the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la Classe B respecte toutes
les exigences du Règlement sur le matériel brouiller du
Canada.
European Community - CE Mark
Declaration of Conformity (DOC)
According to ISO/IEC Guide 22 and EN 45014
Manufacturer’s Name: Inside Out Networks
Manufacturer’s Addr.: 7004 Bee Caves Rd.
Bldg. 3, Ste. 200
Austin, TX 78746 USA
declares that the product
Product Name: Wavespeed/S
Model Number(s): 301-1121-01, 301-1123-01
301-1122-01, 301-1124-01
301-1124-01
Product Options: All
conforms to the relevant EU Directives listed here:
EMC Directive 89/336/EEC |
Low Voltage Directive 73/23/EEC
Amending Directive 93/68 EEC
using the relevant section of the following EU standards and other normative documents:
Safety: IEC 950:1991 +A1, A2, A3, A4
EN 60950:1992 + A1, A2, A3, A4
EMC
The following summarizes the specifications and requirements for EN55024, EN55022 Class B & CIS PR 22 Class
B emission and immunity tests. If the actual test levels are
higher or different than required, these levels are listed in
the appropriate tables.
EN 55022 Class B (1994 w/A1 1995)
Test Specification
Radiated
Emissio ns
Conducted
Emissio ns
Test Specification
Electrostatic
Discharge
Radiated
Immunity
Electrical
Fast
Transient
Burst
Surge EN61000- 4-5 2kV common mode
Conducted
Immunity
Magnetic
Immunity
Voltage
Dips &
Interrupts
European Contact
UL/CSA Safety Information
This device complies with the requirements of following
safety standards below:
UL 1950, 3rd edition
CSA No. 950
Quality Manager
Austin, Texas
04/03
EN55022
CISPR 22 Class B
EN55024
EN61000-4-2 +4 kV contact
EN61000-4-3 3 V/m
EN61000-4-4 1kV (A/ C), .5kV (I /O)
EN61000-4-6 3V rms
EN61000-4-8
EN61000-4-11 >95%, 30% & >95%
Digi International
Joseph-von-Fraunhofer Str. 23
44227 Dortmund, GERMANY
49-231-9747-0
Requirement
— Class B
EN55024 (1998)
Requirement
+8kV air
1kV differential mode
1 A/m Not Applicable
Inside Out Networks
A Digi International Company
www.ionetworks.com
7004 Bee Caves Road
Building 3, Suite 200
Austin, TX 78746
512-306-0600 ph
512-306-0694 fax
Digi North America: 877-912-3444
Digi Europe: +49-231-9747-0
Digi Hong Kong: +852-2833-1008
C
A B L E R E P L A C E M E N T D R I V E
Installation
Guide
Copyright 2003 by Inside Out Networks. All rights reserved. Information in this documentation is subject to change without notice
and does not represent a commitment on the part of Inside Out Networks Inc.
Wavespeed/S
90000xxx Rev A
Page 2
Wavespeed/S
The Wavespeed/S provides an easy-to-use serial cable replacement solution targeted for legacy and future applications that use RS-232 via a serial
cable to transfer data between devices. The serial cable between two
pieces of hardware can be replaced with a Bluetooth wireless link. The conversion to the wireless link is transparent to the software applications. The
Wavespeed/S, following initial configuration using a Windows-based Configuration Wizard, will take on the specified DTE or DCE personality and
port settings. Data and control signals on the hardware’s COM port will be
transmitted between the two Wavespeed/S, which will then simulate the
appropriate signals on their external COM port.
Using the Configuration Wizard, a Wavespeed/S can be configured to run in
Server mode. In this mode, the device does not require a companion
Wavespeed/S to operate. The device will make a serial port profile (SPP)
server port available for any SPP-capable Bluetooth device to connect to.
Installing the Configuration Utility
When in use, the Wavespeed/S devices can be connected to any type of
device with RS-232 connections, but during configuration, one of the devices must be connected to a COM port of a Windows PC or laptop. During
the configuration process, this is referred to as the local device. The other
device must be within the Bluetooth operating range (approximately 10 meters) of the PC-connected device. During the configuration process, this is
referred to as the remote device. The switch on both devices must be in the
CONFIG position.
1. Insert the CD-ROM into the CD-ROM drive.
2. Using the File Manager, go to the CD-ROM drive. Begin the installation
process by double-clicking on the file SETUP.EXE. Follow the on screen
instructions.
3. Once the installation is complete, select the Configuration Wizard icon
from the Start button to start the wizard.
Configuring the Wavespeed/S
The first screen of Configuration Utiltity gives a general overview of the
tasks needed to configure the devices. Select “Next” to begin the configuration process.
PC/Laptop COM Port Selection
1. Specify to which COM port the local Wavespeed/S device is attached.
The COM port can be selected in one of two ways. One, if you know
which COM port the local device is attached to, select the port from the
combo box and select the Set COM Port Selection button. Two, if you
are unsure which port the local device is attached to, click the Auto De-
tect button.
2. After the Configuration Wizard has verified that it can communicate
with the local device, select the Next button to move to the next step of
the configuration process.
Remote Device Discovery and Bonding
Device Discovery and Bonding pairs two Wavespeed/S devices by creating
a unique bond that ensures that, following the configuration procedure,
those two devices will transfer information only to each other.
This screen detects and lists all of the Wavespeed/S devices within the operating range (approximately 10 meters). The Bluetooth Address
(BD_ADDR) and product name of the detected devices are displayed in the
Device Selection list.
The following steps complete the Device Discovery and Bonding process:
1. Select the Search button. The Configuration Wizard fills in the list box
with the Wavespeed/S devices that are in the area. If you do not see the
desired device in the list box, continue searching by selecting the Search
button.
2. If you do not know the address of the remote device that you want to
pair with, select a device address from the list and select the Ping button.
The green LED on the selected device will light for 5 seconds. Continue
selecting addresses and selecting the Ping button until you find the correct device.
3. Select the address of the device you want to pair with from the list and
select the Bond button. The Configuration Wizard will bond with the selected device and give you an indication of the status of the procedure.
4. The Configuration Wizard automatically notifies you that the bonding
was successful. If the procedure fails, retry the bonding process.
5. Select the Next button when bonding is complete.
Configuring Local Device Port Settings
The next step in the configuration process is to specify the local device’s
port emulation settings and type. In this step, you will specify how the
Wavespeed/S device communicates over the COM port to the TARGET
application with which it will be interfacing (not how it communicates with
the PC or laptop). In other words, if your application currently sends data at
9600 baud with 8 data bits, 1 stop bit, no parity, and software flow control,
you need to specify those settings for the Wavespeed/S device. In addition,
you must determine if the TARGET application is a DTE or DCE device.
The Wavespeed/S device must be set to the opposite device type of the
device to which it will be attached. One of the Wavespeed/S devices must
be a DTE device and the other must be a DCE device. You may need to
use a NULL modem adaptor on one of the devices.
1. For each port setting, select the desired value.
2. When all settings are specified, select the Set Port Configuration
button to send the settings to the local device.
3. After viewing the confirmation message, select the Next button.
Configure Remote Device Port Settings
The next step in the configuration process is to specify the remote device’s
port emulation settings and type. In this step, you specify how the remote
Wavespeed/S device will communicate over the COM port to the TARGET
application with which will be interfacing. In other words, if your application
currently sends data at 9600 baud with 8 data bits, 1 stop bit, no parity, and
software flow control, you need to specify those settings for the remote
Wavespeed/S device. In addition, you must determine if the TARGET application is a DTE or DCE device. The Wavespeed/S device should be set to
the opposite device type of the device to which it will be attached. DTE/DCE
Determination, for a detailed discussion of this topic. One of the
Wavespeed/S devices must be a DTE device and the other must be a DCE
device. You may need to use a NULL modem adaptor on one of the devices.
In most cases, the port settings, such as baud rate, data bits, et cetera, are
the same as those set in the local device configuration. Therefore, the Configuration Wizard initialises the settings to those values.
1. For each category, select the desired value.
2. When all selections are specified, select the Set Port Configuration
button to send the settings to the remote device.
3. After viewing the confirmation message, select the Next button.
Save Configuration Settings
The final step in the configuration process is to have the Wavespeed/S devices save the configuration parameters.
1. While in the Save Configuration Settings, select the Save button to
store the settings. Until reconfigured, the devices use the settings
that you selected.
Regulation and Other Information
Inside Out Networks and the Inside Out Networks logo are trademarks of Inside Out Networks, Inc. Digi, Digi International,
the Digi logo, Waveport/S, Edgeport, and Hubport are either trademarks or registered trademarks of Digi International, Inc.
All other trademarks or registered trademarks are the property of their respective owners.
Information in this documentation is subject to change without notice and does not represent a commitment on the part of
Inside Out Ne tworks Inc.
Inside Out Networks provides this document “as is,” without warranty of any kind, either expressed or implied, including,
but not limited to, the particular purpose. Inside Out Networks may make improvements and/or changes to this documentation or to the product(s) and/or program(s) described in this documentation at any time.
Inside Out Networks assumes no responsibility of any errors, technical inaccuracies, or typographical errors that may
appear in this documentation, nor liability for any damages arising out of its use. Changes are made periodically to the
information herein; these changes may be incorporated in new editions of the publication.
For U.S. Government use:
Any provision of this document and associated computer programs to the U.S. Government is with “Restricted Rights.”
Use, duplication, or disclosure by the government is subject to the restrictions set forth in, subparagraph (c) (1) (ii) of the
Rights in Technical Data and Computer Software clause of DFARS 52.277-7013.
For non-U.S. Government use:
These programs are supplied under a license. They may be used, disclosed, and/or copied only as supplied under s uc h
license agreement. Any copy must contain the above copyright notice and restricted rights notice. Use, copying, and/or
disclosure of the programs is strictly prohibited unless otherwise provided for in the license agreement.
Federal Communications Commission (FCC) Regulatory Information (USA only)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver .
• Connect the equipment into an outlet that is on a circuit different from the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: The connection of a non-shielded interface cable to this equipment will invalidate the FCC Certification
for this device.
This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order
to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with nonapproved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned
that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority
to operate this equipment.
Loading...
