© Inscale Ltd. 2011
IBC SERIES
Pn. 700660168, RevisionC, August 2011
© Inscale Ltd. 2011
Easy Reference:
Model name of the scale:
Serial number of the unit:
Software revision number
(Displayed when power is first turned on):
Date of Purchase:
Name of the supplier and place:
© Inscale Ltd. 2011 p a g e
1
CONTENTS
1.0
INTRODUCTION............................................................................................ 3
2.0 SPECIFICATIONS ............................................................................................ 5
3.0 SAFETY PRECAUTIONS ................................................................................... 6
4.0
INSTALLATION OF THE IBC SERIES .............................................................. 7
5.0 DISPLAY ......................................................................................................... 8
5.1
WEIGHT DISPLAY.......................................................................................... 8
5.2
UNIT WEIGHT DISPLAY ................................................................................. 8
5.3 TOTAL DISPLAY ............................................................................................. 8
6.0 KEY DESCRIPTIONS ........................................................................................ 9
7.0 WEIGHING ..................................................................................................... 9
7.1
BEFORE WEIGHING....................................................................................... 9
7.2 WEIGHING .................................................................................................... 9
7.3 ZEROING THE DISPLAY .................................................................................. 9
7.4 TARING ....................................................................................................... 10
7.5 PARTS COUNTING....................................................................................... 10
7.6 ACCUMULATION WHEN IN PARTS COUNTING .......................................... 12
7.7 BACKLIGHT FOR LCD .................................................................................. 12
8.0 FUNCTION SETTING ..................................................................................... 12
8.1 ENTERING THE FUNCTION SETTING MODE ................................................. 12
9.0 CALIBRATION............................................................................................... 14
10.0 ERROR MESSAGE................................................................................... 15
© Inscale Ltd. 2011 p a g e
2
© Inscale Ltd. 2011 p a g e
3
1.0
INTRODUCTION
•
The IBC models are supplied with a power supply adapter, to charge the
internal rechargeable battery operation.
•
Four models: 3kg X 0.1g, 6kg X0.2g, 15kg X 0.5g, 30kg X 1g
•
Large LCD with backlight
•
3 weighing units: g, kg, lb
•
Indicators for Stable, zero, net weight, and low battery functions
•
Stainless steel pan with ABS case and pan support
•
Sealed Membrane keypad
•
Overload Protection
•
Spirit level and leveling feet
•
Auto calibration, zero tracking and tare
© Inscale Ltd. 2011 p a g e
4
© Inscale Ltd. 2011 p a g e
5
2.0 SPECIFICATIONS
model IBC-3 IBC- 6 IBC-15 IBC-30
capacity 3Kg 6Kg 15Kg 30Kg
Readability 0.1g 0.2g 0.5g 1g
Repeatability 0.1g 0.2g 0.5g 1g
Linearity ± 0.2g 0.4g 1g 2g
Units kg / g / lb
Stabilization
time
2s 2s 2s 2s
Operating
temperature
0ºC to 40ºC
32ºF to 104ºF
Power supply
12VDC @ 800mA adapter
6V4.5Ah rechargeable battery
Calibration External calibration
Calibration
Weights
User Selectable
Display 6 digits 24mm LCD
© Inscale Ltd. 2011 p a g e
6
3.0 SAFETY PRECAUTIONS
Caution:
Please use only the original DC adapter supplied with the scale. Other cords or
adapters may damage the scale.
Notice:
•
Avoid extremes of temperature. Do not place in direct sunlight or near
air conditioning vents.
•
Battery should be removed if the scale is not used for a long period of
time.
•
Do not stack material on the scale when it is not in use.
•
Avoid high humidity that might cause condensation, and keep away
from direct contact with water.
•
Static may influence the weighing result. To reduce the static wipe the
pan and the scale with anti-static wipes.
•
When the battery is lower than 5.7v, the low battery will show to
indicate the low battery; when it is lower than 5.4v, the scale will turn
off automatically.
© Inscale Ltd. 2011 p a g e
7
4.0
INSTALLATION OF THE IBC SERIES
•
The IBC Series comes with a stainless steel platform packed separately.
•
Place the platform in the locating holes on the top cover.
•
Do not press with excessive force as this could damage the load cell
inside.
•
Level the scale by adjusting the four feet. The scale should be adjusted
such that the bubble in the spirit level is in the centre of the level and
the scale is supported by all four feet.
•
Attach the power supply cable to the connector on the right side of the
scale base. Plug in the power supply module. The power switch is
located at the right side of the scale base.
•
The scale will show the battery voltage “vol-X.X” in the “Unit Weight”
display .
•
Next a self-test is followed. At the end of the self-test, it will display “0”
in all three displays, if the zero condition has been achieved.
© Inscale Ltd. 2011 p a g e
8

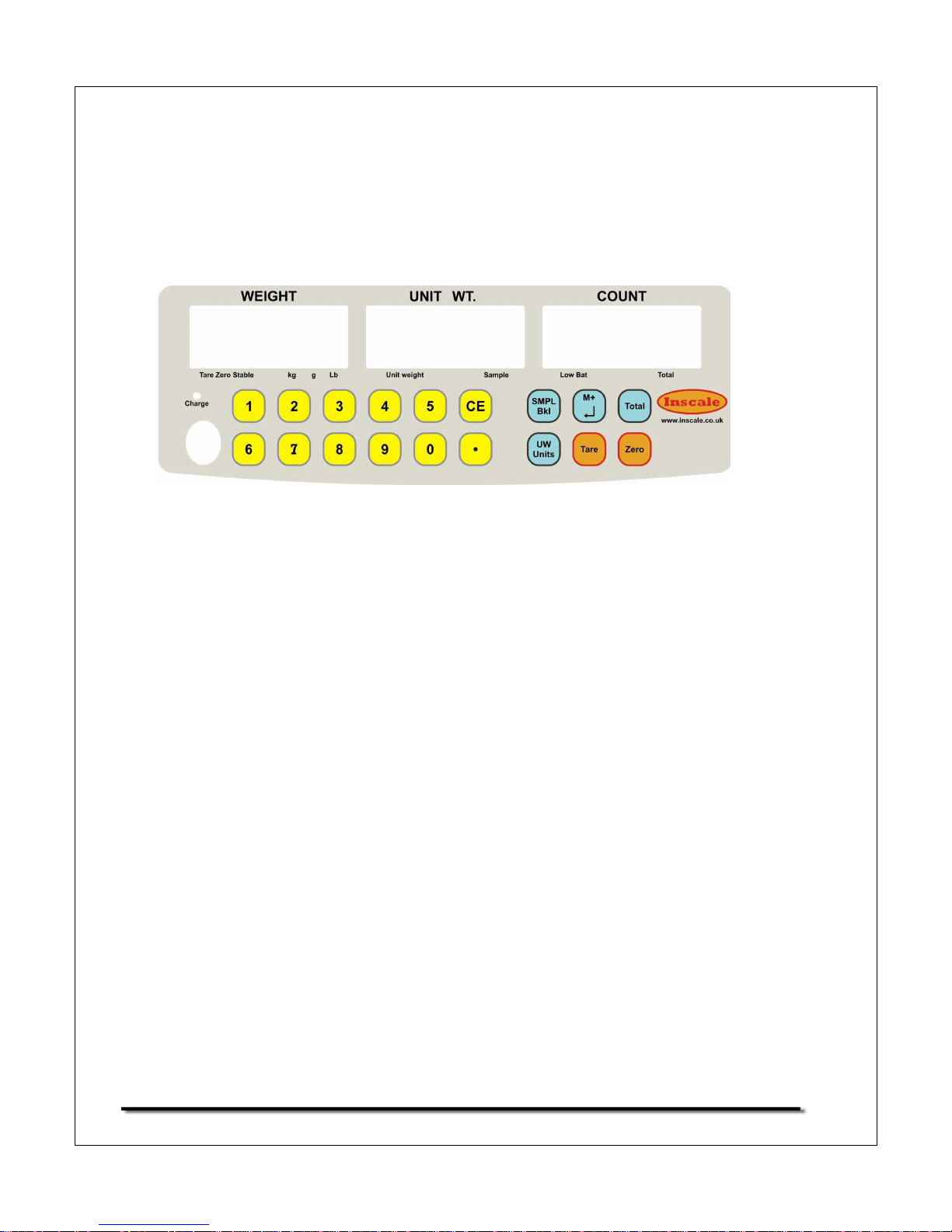

5.0 DISPLAY
The scales have three digital display windows. These are “Weight”, “Unit Weight”
and “Total”.
5.1 WEIGHT DISPLAY
It has 5-digit display to indicate the weight on the scale. Arrows above symbols will
indicate the following:
•
Tare indicator, “Tare”
•
Zero indicator, "Zero"
•
Stability indicator, "Stable"
•
Indicators for the changed units, "kg","g","lb".
5.2
UNIT WEIGHT DISPLAY
•
This display will show the unit weight of a sample. This value is either input by
the user or computed by the scale.
•
The arrow indicator will be seen above "Sample" when there is insufficient
number of samples to accurately determine the count.
5.3 TOTAL DISPLAY
This display will show the number of items on the scale or the value of the
accumulated count.
Indicator:
•
Low battery, LO-BAT
© Inscale Ltd. 2011 p a g e
9
6.0 KEY DESCRIPTIONS
Keys Functions
[0-9, .] Numeric entry keys, used to manually enter unit weight
[CE] Used to clear the unit weight or an erroneous entry.
[M+/
↵↵↵↵
]
Add the current count to the accumulator. Up to 99 values or full capacity
of the weight display can be added. Also prints the displayed values when
Auto print is switched off.
[Sample/blight
]
Used to input the number of items in a sample.
Toggle the backlight
[UW/Units] Used to enter the weight of a sample manually.
[Tare] Tares the scale. Stores the current weight in memory as a tare value,
subtracts the tare value from the weight and shows the results. This is the
net weight. Entering a value using the keypad will store that as the tare
value.
[Zero] Sets the zero point for all subsequent weighing. It shows zero.
7.0 WEIGHING
7.1
BEFORE WEIGHING
Check the setting of the auto shut off function, see section 6.0 If the auto shut off
function is on, the scale will shut off after a period of time if the scale is not used
and it has a stable reading.
7.2 WEIGHING
Press [UW/Unit] to select units from "g" / "Kg" / "lb".
7.3 ZEROING THE DISPLAY
You can press the [Zero] key at any time to set the zero point from which all other
weighing and counting is measured. This will usually be necessary only when the
platform is empty. When the zero point is obtained the “Weight” display will show
the indicator for zero.
© Inscale Ltd. 2011 p a g e
10
7.4 TARING
•
Zero the scale by pressing the [Zero] key if necessary. The indicator above
“Zero” will be on.
•
Place a container on the platform, a value for its weight will be displayed.
•
Press the [Tare] key to tare the scale. The weight that was displayed is stored
as the tare value and that value is subtracted from the display, leaving zero on
the display. The indicator above “Tare” will be on.
•
As a product is added only the weight of the product will be shown. The scale
could be tared a second time if another type of product was to be added to
the first one. Again only the weight that is added after taring will be displayed.
7.5 PARTS COUNTING
In order to do parts counting it is necessary to know the average weight of the items
to be counted. This can be done by weighing a known number of the items and
letting the scale determine the average unit weight or by manually inputting a
known unit weight using the keypad.
Weighing a sample to determine the Unit Weight
•
To determine the average weight of the items to be counted it will be
necessary to place a known quantity of the items on the scale and then to key
in the number of items being weighed.
•
The scale will then divide the total weight by the number of items and display
the average unit weight.
© Inscale Ltd. 2011 p a g e
11
•
Zero the scale by pressing the [Zero] key if necessary. If a container is to be
used, place the container on the scale and tare as discussed earlier.
•
Place a known quantity of items on the scale. After the weight display is stable,
enter the quantity of items using the numeric keys followed by pressing the
[Sample/Blight] key.
•
The number of units will be displayed on the “Total” display and the
computed average weight will be shown on the “Unit Weight” display.
•
As more items are added to the scale, the weight and the quantity will
increase. If the function “ASPL” is enabled (see section 6.1) the unit weight
will be automatically recalculated when an additional mass less than the
current count is added.
•
If the scale is not stable, the calculation will not be completed. If the weight is
below zero, the “Total” display will show negative count.
Entering a known Unit Weight
•
If the unit weight is already known then it is possible to enter that value using
the keypad.
•
Enter the value of the unit weight using the numeric keys followed by pressing
the [U W/Units] key. The “Unit Weight” display will show the value as it was
entered.
•
The sample is then added to the scale and the weight will be displayed as well
as the quantity, based on the unit weight.
© Inscale Ltd. 2011 p a g e
12
7.6 ACCUMULATION WHEN IN PARTS COUNTING
•
When in parts counting mode, the values (weight and count) shown on the
display can be added to the values in the accumulator by pressing the [M+/
↵↵↵↵
]
key. The “Weight” display will show the number of times. The “Total” display
will show the total accumulated count.
•
More products can then be added and the [M+/
↵↵↵↵
] key to be pressed again.
This can continue for up to 99 entries or until the capacity of the “Weight”
display is exceeded.
•
To observe the total stored times and count value, press the [Total] key.
•
Press the[M+/
↵↵↵↵
] key will return to the normal weighing .
7.7 BACKLIGHT FOR LCD
•
The backlight of the LCD can be set to be light or dark.
•
When in normal weighing mode press the [Sample /Blight] key to change the
state of the backlight.
8.0 FUNCTION SETTING
8.1 ENTERING THE FUNCTION SETTING MODE
•
To enter the parameter menu, hold [Zero] and press the [Tare] key when in
normal weighing mode.
•
The display will show the revision number in the “Weight” display ,The “Unit
Weight” display will show "- - - - " requesting the password number to be
entered.
•
The default password is "0000" but other numbers can be set using the
parameter menus. Press the [0] key four times. The display will jump to the
first parameter. "FILt ?" with the Unit weight window showing the current
filter setting.
© Inscale Ltd. 2011 p a g e
13
•
The Parameter menu has 9 functions. To set the value for any parameter
press [Tare] to decrease or [Zero] to increase the parameter and press [M+/
↵↵↵↵
]
to save and move to the next setting
Weight Display Description
FILt
Set a value for the amount of filtering to be done ranging
from 1 to 7. A larger number means more filtering and a
slower response. The default setting is 3.
StAb
Set a value to be used to determine balance stability, set a
value of 0.5d,1d, 2d, or 4d.
A larger number corresponds to a larger stable zone. Default
is 1.
ZtrC
Set a value to be used to determine zero tracking range of
0.5d,1d,2d,4d or Off, A larger number means larger range of
zero tracking and a worse repeatability. the default is 1d
CodE Use the keypad to set a new password. The default is “0000”
bLIg
Setting the backlight
Options:
On
OFF
AUTO (default)
A SPL
In counting mode, this function allows the scale to
recalculate the unit weight automatically after the first unit
weight calibration. Recalculation of the unit weight is
beneficial because errors may occur as the counting
accumulates. The option is on and off.
CALI UNIt
To set the default unit. The option is g,kg,lb.
ZErO
To get the zero AD count.
CALI
See detail in section 10.0
To return to weighing after setting any parameter press the [Total] key to return to normal
weighing.
© Inscale Ltd. 2011 p a g e
14
9.0
CALIBRATION
Remove all weight from the pan before beginning.
•
When in the normal weighing mode, hold [Zero] and press the [Tare] key to
enter the parameter menu as shown in section 9.0..
•
The display will show the revision number in the “Weight” display ,The “Unit
Weight” display will show "- - - - " requesting the password number to be
entered.
•
The default password is "0000" but other numbers can be set using the
parameter menus. Press the [0] key four times. The display will jump to the
first parameter. "FILt ?" with the Unit weight window showing the current
filter setting.
•
Press [M+/
↵↵↵↵
] 8 times until the display shows ““““CALI”. Note that the display will
also show ““““CALI” “Unit ?” “ xx” for selecting the unit of weight to be used
when calibrating after 6 presses. Ignore this function unless yu want to
change the weighing unit during calibration.
•
Press the numeric keys to enter the calibrate mass value. For kilograms and
pounds enter the value as a number, for example “3” for 3 kilograms. For
grams enter the weight in grams, i.e. “1000” grams.
•
Place the calibration mass on the weighing platform.
The suggested calibrate values for all model :
However any whole value of weight can be used by entering the correct value.
•
Press the [M+/
↵↵↵↵
] key,
•
The display will show “PASS”,
•
Press the [M+/
↵↵↵↵
] key to return to normal weighing.
•
If the calibration is outside of the previous calibration value by more than
5% ,it will show “FAIL L” or “FAIL H” indicating the new calibration weight
was too low(FAIL L) or too high (FAIL H) in respect to the previous
calibration value.
LBC 3 LBC 6 LBC 15 LBC 30
2kg or 3kg 5kg or 6kg 10kg or 15kg 20kg or 30kg
5lb or 6lb 10lb or 12lb 20lb or 25lb 40lb or 50lb
© Inscale Ltd. 2011 p a g e
15
10.0 ERROR MESSAGE
Z-ERR-
A/D counts are too high or low
EEEEE
Overload 9d
Arrow above Lo-Bat
Low battery indication
© Inscale Ltd. 2011 p a g e
16
© Inscale Ltd. 2011 p a g e
17
Manufacturer’s Declaration of Conformity
This product has been manufactured in accordance with the harmonised European
standards, following the provisions of the below stated directives:
Electro Magnetic Compatibility Directive 2004/108/EC
Low Voltage Directive 2006/95/EC
Inscale Ltd.
Unit 2, Hazel House
78 London Road
Bexhill-on-Sea
East Sussex TN39 3LE, UK
FCC COMPLIANCE
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. The
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Shielded interconnect cables must be employed with this equipment to insure compliance with the
pertinent RF emission limits governing this device.
Changes or modifications not expressly approved by Inscale Ltd could void the user's authority to
operate the equipment.
WEEE COMPLIANCE
Any Electrical or Electronic Equipment (EEE) component or assembly of parts intended to be
incorporated into EEE devices as defined by European Directive 2002/95/EEC must be recycled or
disposed using techniques that do not introduce hazardous substances harmful to our health or the
environment as listed in Directive 2002/95/EC or amending legislation. Battery disposal in Landfill Sites
is more regulated since July 2002 by regulation 9 of the Landfill (England and Wales) Regulations 2002
and Hazardous Waste Regulations 2005. Battery recycling has become topical and the Waste Electrical
and Electronic Equipment (WEEE) Regulations are set to impose targets for recycling.
© Inscale Ltd. 2011 p a g e
18
Inscale Ltd. products are predominantly designed for the Laboratory, Educational, Medical,
retail and Industrial Segments. The product range can be described as follows:
-Analytical and Precision Balances
-Compact and Portable Balances
-High Capacity Balances
-Moisture analysers / balances
-Mechanical Scales
-Counting Scales
-Digital Weighing/Check-weighing Scales
-High performance Platform Scales
-Crane scales
-Medical Scales
-Retail Scales for Price computing
For a complete listing of all Inscale products visit our website at www.inscale.co.uk
© Copyright by inscale Ltd. All rights reserved. No part of this publication may be reprinted or
translated in any form or by any means without the prior permission of Inscale Ltd.
Inscale Ltd. reserves the right to make changes to the technology, features, specifications and
design of the equipment without notice.
All information contained within this publication is to the best of our knowledge timely, complete
and accurate when issued. However, we are not responsible for misinterpretations which may
result from the reading of this material.
The latest version of this publication can be found on our Website.
www.inscale.co.uk
Loading...
