TB-FMCH-DP3 Hardware User’s Manual
1
Rev.1.03
TB-FMCH-DP3
Hardware User’s Manual
Rev.1.03
TB-FMCH-DP3 Hardware User’s Manual
2
Rev.1.03
Revision history
Revision
Date
Description
Publisher
Rev.1.00
2015/10/29
Initial Release
Ueda
Rev.1.01
2016/03/25
4.7.1 Modify value of data to R31
Modify Table.4-6
Amano
Rev.1.02
2016/06/15
Add description of board Rev.2.2
Amano
Rev.1.03
2017/04/21
Table 4-7 Pin Assign Modify
Goto
TB-FMCH-DP3 Hardware User’s Manual
3
Rev.1.03
Table of Contents
1. Related Documents and Board Accessories ............................................................................... 8
2. Overview ...................................................................................................................................... 8
3. Feature ........................................................................................................................................ 8
4. TB-FMCH-DP3 Function ............................................................................................................. 9
4.1. Block Diagram ............................................................................................................................ 9
4.2. External View of the Board ....................................................................................................... 10
4.3. Board Specification .................................................................................................................... 11
4.4. Power Supply ........................................................................................................................... 12
4.4.1. IO Voltage ......................................................................................................................... 12
4.5. Source(TX) Block ..................................................................................................................... 13
4.6. Sink(RX) Block ......................................................................................................................... 14
4.7. Clock circuit .............................................................................................................................. 16
4.7.1. Operation example of PLL ................................................................................................ 17
4.8. FMC connector for stacking ..................................................................................................... 18
4.9. Pin Assignment of CN4 ............................................................................................................ 18
4.10. FMC connector for expanded Board (CN3) .......................................................................... 29
TB-FMCH-DP3 Hardware User’s Manual
4
Rev.1.03
List of Tables
Table 4-1 Signals of Source Circuit .................................................................................................. 13
Table 4-2 DP130 I2C Address .......................................................................................................... 13
Table 4-3 Signals of Sink Circuit ...................................................................................................... 14
Table 4-4 DP159 I2C Address .......................................................................................................... 15
Table 4-5 signals of PLL circuit......................................................................................................... 16
Table 4-6 PLL Resister settings (Step3) ........................................................................................... 17
Table 4-7 CN4 Pin assign (To carrier board) .................................................................................... 19
Table 4-8 CN3 Pin assign (For expanded Board) ............................................................................ 30
List of figures
Figure 3-1 High-pin Count Pin assignment ........................................................................................ 8
Figure 4-1 TB-FMCH-DP3 Block Diagram ......................................................................................... 9
Figure 4-2 Top view .......................................................................................................................... 10
Figure 4-3 bottom view ..................................................................................................................... 10
Figure 4-4 TB-FMCH-DP3 Dimension Diagram ................................................................................ 11
Figure 4-5 Block diagram of Power Circuit ...................................................................................... 12
Figure 4-6 Voltage level shifter ......................................................................................................... 12
Figure 4-7 Block Diagram of Source circuit...................................................................................... 13
Figure 4-8 Block Diagram of Sink circuit .......................................................................................... 14
Figure 4-9 Block Diagram of PLL Circuit .......................................................................................... 16
Figure 4-10 Signal connection of stacking two boards. ................................................................... 18
Figure 4-11 Stacked boards ............................................................................................................. 18
TB-FMCH-DP3 Hardware User’s Manual
5
Rev.1.03
Introduction
Thank you for purchasing the TB-FMCH-DP3 board. Before using the product, be sure to carefully
read this user manual and fully understand how to correctly use the product. First read through this
manual, then always keep it handy.
SAFETY PRECAUTIONS Be sure to observe these precautions
Observe the precautions listed below to prevent injuries to you or other personnel or damage to property.
Before using the product, read these safety precautions carefully to assure correct use.
These precautions contain serious safety instructions that must be observed.
After reading through this manual, be sure to always keep it handy.
The following conventions are used to indicate the possibility of injury/damage and classify precautions if
the product is handled incorrectly.
Indicates the high possibility of serious injury or death if the product is handled
incorrectly.
Indicates the possibility of serious injury or death if the product is handled
incorrectly.
Indicates the possibility of injury or physical damage in connection with houses or
household goods if the product is handled incorrectly.
The following graphical symbols are used to indicate and classify precautions in this manual.
(Examples)
Turn off the power switch.
Do not disassemble the product.
Do not attempt this.
Danger
Warning
Caution
!
TB-FMCH-DP3 Hardware User’s Manual
6
Rev.1.03
In the event of a failure, disconnect the power supply.
If the product is used as is, a fire or electric shock may occur. Disconnect the power supply
immediately and contact our sales personnel for repair.
If an unpleasant smell or smoking occurs, disconnect the power supply.
If the product is used as is, a fire or electric shock may occur. Disconnect the power supply
immediately. After verifying that no smoking is observed, contact our sales personnel for
repair.
Do not disassemble, repair or modify the product.
Otherwise, a fire or electric shock may occur due to a short circuit or heat generation. For
inspection, modification or repair, contact our sales personnel.
Do not touch a cooling fan.
As a cooling fan rotates in high speed, do not put your hand close to it. Otherwise, it may
cause injury to persons. Never touch a rotating cooling fan.
Do not place the product on unstable locations.
Otherwise, it may drop or fall, resulting in injury to persons or failure.
If the product is dropped or damaged, do not use it as is.
Otherwise, a fire or electric shock may occur.
Do not touch the product with a metallic object.
Otherwise, a fire or electric shock may occur.
Do not place the product in dusty or humid locations or where water may
splash.
Otherwise, a fire or electric shock may occur.
Do not get the product wet or touch it with a wet hand.
Otherwise, the product may break down or it may cause a fire, smoking or electric shock.
Do not touch a connector on the product (gold-plated portion).
Otherwise, the surface of a connector may be contaminated with sweat or skin oil, resulting
in contact failure of a connector or it may cause a malfunction, fire or electric shock due to
static electricity.
Warning
!
! ! !
!
!
!
TB-FMCH-DP3 Hardware User’s Manual
7
Rev.1.03
Do not use or place the product in the following locations.
Humid and dusty locations
Airless locations such as closet or bookshelf
Locations which receive oily smoke or steam
Locations exposed to direct sunlight
Locations close to heating equipment
Closed inside of a car where the temperature becomes high
Staticky locations
Locations close to water or chemicals
Otherwise, a fire, electric shock, accident or deformation may occur due to a short circuit or heat
generation.
Do not place heavy things on the product.
Otherwise, the product may be damaged.
■ Disclaimer
This product is an evaluation board for Displayport interface. Tokyo Electron Device Limited assumes no
responsibility for any damages resulting from the use of this product for purposes other than those
stated.
Even if the product is used properly, Tokyo Electron Device Limited assumes no responsibility for any
damages caused by:
(1) Earthquake, thunder, natural disaster or fire resulting from the use beyond our responsibility, acts by
a third party or other accidents, the customer’s willful or accidental misuse or use under other
abnormal conditions.
(2) Secondary impact arising from use of this product or its unusable state (business interruption or
others)
(3) Use of this product against the instructions given in this manual.
(4) Malfunctions due to connection to other devices.
Tokyo Electron Device Limited assumes no responsibility or liability for:
(1) Erasure or corruption of data arising from use of this product.
(2) Any consequences or other abnormalities arising from use of this product, or
(3) Damage of this product not due to our responsibility or failure due to modification
This product has been developed by assuming its use for research, testing or evaluation. It is not
authorized for use in any system or application that requires high reliability.
Repair of this product is carried out by replacing it on a chargeable basis, not repairing the faulty devices.
However, non-chargeable replacement is offered for initial failure if such notification is received within
two weeks after delivery of the product.
The specification of this product is subject to change without prior notice.
The product is subject to discontinuation without prior notice.
Caution
!
!
TB-FMCH-DP3 Hardware User’s Manual
8
Rev.1.03
1. Related Documents and Board Accessories
Related documents:
All documents relating to this Board can be downloaded from our website. Please refer to attached paper
of the products.
Board Accessories:
- Spacer set : x1
2. Overview
The TB-FMCH-DP3 provides test environment for DisplayPort Standard Version1, Revision 2a.
It supports below features
4 Lane of 1.62Gbps, 2.7Gbps and 5.4Gbps
It uses TI SN75SP130 for Source(TX) and SN65DP159 for Sink(RX)
AUX Communication.(FAUX is not supported)
Also, it could stack up two TB-FMCH-DP3 for expand more channels.
Notice: This board is used with Xilinx’s Displayport IP core.
Some points are not tested because IP does not use.
Question for IP core and reference design, please contact to Xilinx.
3. Feature
DisplayPort Driver IC: Texas Instruments, SN75DP130SS
DisplayPort Redriver IC: Texas Instruments, SN65DP159RGZ
PLLIC: Texas Instruments, LMK04906
DisplayPort connector: JAE, DP1RD20JQ1R400 or Molex, 47272-0024
FMC connector: Samtec, ASP-134488-01 / ASP-134486-01
Figure 3-1 High-pin Count Pin assignment
TB-FMCH-DP3 Hardware User’s Manual
9
Rev.1.03
4. TB-FMCH-DP3 Function
4.1. Block Diagram
The following figure shows the block diagram of this Board.
CN4 is mounted to bottom side and it will connect to FPGA Evaluation boards.
Please see more detail of each circuit.
LMK04906
OSC
27MHz
DisplayPort
RX Connector
DisplayPort RX
SN75
DP130SS
Level Shifter
DisplayPort
TX Connector
VCO
27MHz
Level
Shifter
PLL
FMC (CN4)
Level
Shifter
Microwire
Status
CLKOUT0
Clean clock(27MHz)
SINK_LANE(x4)
CLK_OUT
I2C
EN
SINK_HPD
SINK_AUX
SOURCE_LANE(x4)
SOURCE_AUX
EN
Other(CAD,DDC,etc)
RST
I2C
SOURCE_HPD
FMC
(CN3)
DisplayPort TX
Stack Board I/O Signal
SN65
DP159RGZ
Figure 4-1 TB-FMCH-DP3 Block Diagram
TB-FMCH-DP3 Hardware User’s Manual
10
Rev.1.03
4.2. External View of the Board
The following figures show the external views of the Board.
RX
TX
PLL
DisplayPort
Equalizer/Driver
FMC-HPC
for stacked board
FMC (CN3)
DisplayPort
Connector
Figure 4-2 Top view
FMC-HPC
for Platform 基板
FMC (CN4)
Figure 4-3 bottom view
TB-FMCH-DP3 Hardware User’s Manual
11
Rev.1.03
4.3. Board Specification
External Dimensions: W:78.8mm x H:69.0mm
Number of Layers: 8 Layers
Board Thickness: 1.6mm
Material: MEG-6(R-5775) or same specification.
Figure 4-4 TB-FMCH-DP3 Dimension Diagram
TB-FMCH-DP3 Hardware User’s Manual
12
Rev.1.03
4.4. Power Supply
This board generates required voltage(1.1V) of DP139 from +3.3V is coming from FMC Connector.
Following is block diagram of power circuit.
BUF IC
(Level conversion)
VADJ to 3.3
BUF IC
(Level conversion)
3.3 to VADJ
+3.3V
Power IC
3.3V to 1.1V
DisplayPort
RX IC
1.1V
(RX IC Core Power)
+3.3V
DisplayPort
TX IC
VADJ
+3.3V
PLL
+3.3V
I/O
Signal
Input
Signal
Output
Signal
BUF IC
(Level conversion)
VADJ to 3.3
Input
Signal
Figure 4-5 Block diagram of Power Circuit
4.4.1. IO Voltage
This board has a voltage level shifter for required signals.
FPGA IO voltage should be connected via FMC_VADJ on Carrier board.
Figure 4-6 Voltage level shifter
TB-FMCH-DP3 Hardware User’s Manual
13
Rev.1.03
4.5. Source(TX) Block
Following figure shows block diagram of Source circuit. DP130 keep signal integrity before transfer
signal via cable and it can change swing level and pre-emphasis by AUX communication.
SN75DP130SS
Level Shifter
DisplayPort
TX Connector
SOURCE_LANE(x4)
SOURCE_AUX
SOURCE_EN
Other(CAD,DDC_SCL/SDA,DDC_EN)
SOURCE_RST
SOURCE_I2C(SCL/SDA)
SOURCE_HPD
Singl to
LVDS
SOURCE_AUX_RX
Level
Shifter
SOURCE_AUX_TX
SOURCE_AUX_DE
FMC (CN4)
JP1
DP_
PWR

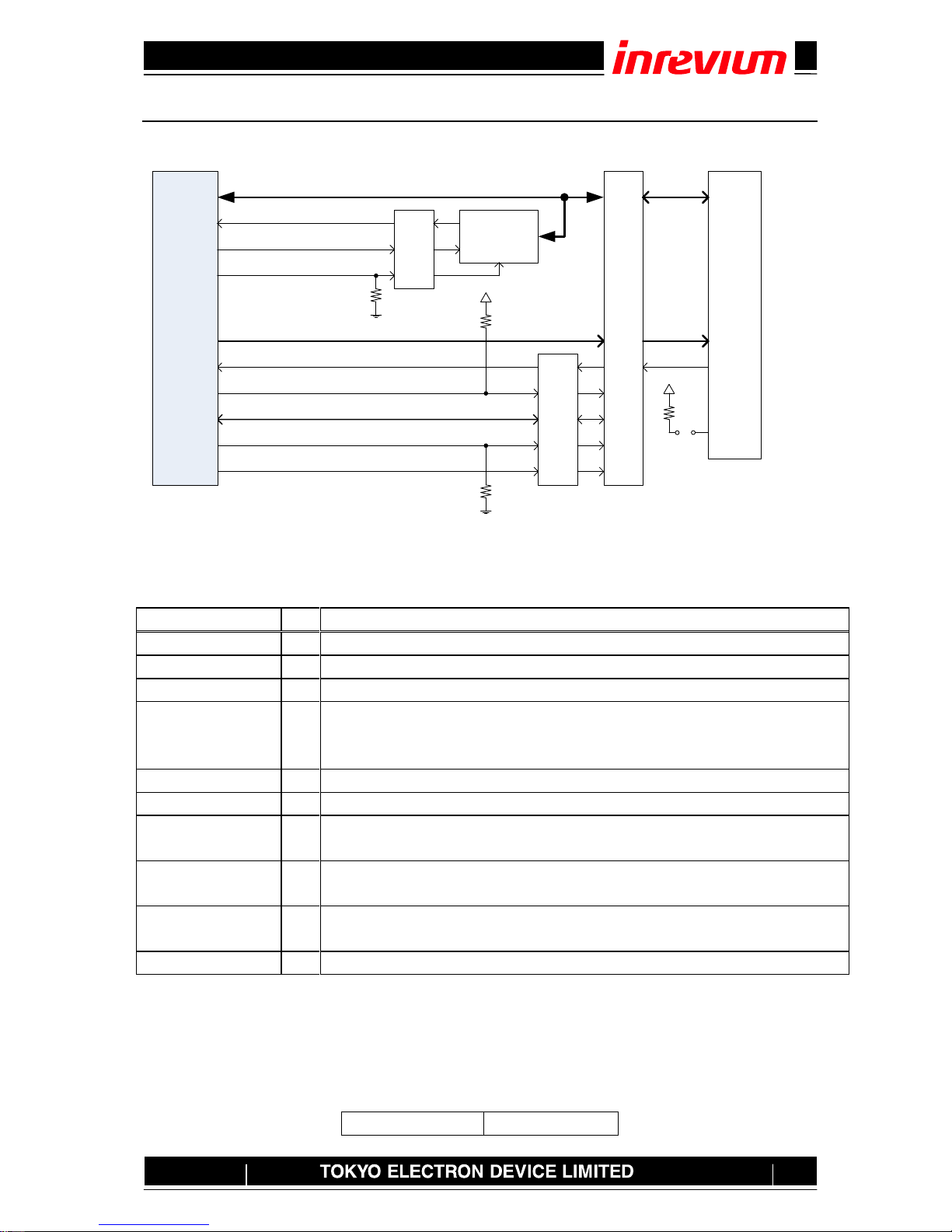

Figure 4-7 Block Diagram of Source circuit.
Table 4-1 Signals of Source Circuit
Signal Name
I/O
Description
SOURCE_AUX
IO
AUX signal. Bi-direction, Differential signals. Normally use this signals.
SOURCE_AUX_RX
I
Optional signal. Use when FPGA carrier board can not use LVDS signals.(*)
SOURCE_AUX_TX
O
Optional signal. Use when FPGA carrier board can not use LVDS signals.(*)
SOURCE_AUX_DE
O
Control signal for SOURCE_AUX_RX/TX.
High: Active SOURCE_AUX_TX
If using SOURCE_AUX signals, set Low.
SOURCE_LANE
O
Main link of displayport
SOURCE_HPD
I
Hot Plug Detect Signal
SOURCE_EN
O
This is enabling DP130. It has pull-up register on the board.
Enable: High(1)
SOURCE_I2C
IO
I2C signals for DP130. It is control interface without AUX communication.
Normally, it is not required to controlling.
SOURCE_RST
O
Reset Signal of DP130. It has pull-down register on the board.
Reset: High(1)
Other
-
CAD_DDC，SCL/SDA，DDC_EN（not tested）
(*) SOURCE_AUX_RX/TX signals are added from board Rev2.2.
Accessing to DP130 via I2C interface.
It is possible to accessing DP130 via I2C interface. About I2C address please refer to below table.
Note: Basically, it is controlled by AUX communication. I2C access is not required.
Table 4-2 DP130 I2C Address
I2C Address(7bit)
010 1110 (0x2E)
TB-FMCH-DP3 Hardware User’s Manual
14
Rev.1.03
4.6. Sink(RX) Block
Following figure shows block diagram of Sink circuit. DP159 keep signal integrity as swing level and
jitter.
FMC (CN4)
DisplayPort
RX Connector
Level
Shifter
SINK_LANE(x4)
CLK_OUT
SINK_I2C(SCL/SDA)
SINK_EN
SINK_HPD
SINK_AUX
Singl to
LVDS
SINK_AUX_RX
Level
Shifter
SINK_AUX_TX
SINK_AUX_DE
JP2
DP_
PWR
SN65DP159RGZ
Figure 4-8 Block Diagram of Sink circuit
Table 4-3 Signals of Sink Circuit
Signal Name
I/O
Description
SINK_AUX
IO
AUX signal. Bi-direction, Differential signals. Normally use this signals.
SINK_AUX_RX
I
Optional signal. Use when FPGA carrier board can not use LVDS signals.(*)
SINK_AUX_TX
O
Optional signal. Use when FPGA carrier board can not use LVDS signals.(*)
SINK_AUX_DE
O
Control signal for SINK_AUX_RX/TX.
High: Active SINK_AUX_TX
If using SINK_AUX signals, set Low.
SINK_LANE
I
Main link of displayport
SINK_HPD
O
Hot Plug Detect Signal
SINK_I2C
IO
I2C signals for DP159. It is control interface from Xilinx IP. DP159 required
control from I2C because DP159 does not have AUX interface.
SINK_EN
O
This is output enable for DP159 It has pull-up register on the board.
Enable: High(1)
CLKOUT
O
This is CDR clock output. Frequency is depended on DP159 internal PLL
setting.
It is related Xilinx Displayport IP control.
HBR2(5.4Gbps): 270MHz
HBR (2.7Gbps): 135MHz
RBR (1.62Gbps): 81MHz
(*) SINK_AUX_RX/TX signals are added from board Rev2.2.
TB-FMCH-DP3 Hardware User’s Manual
15
Rev.1.03
Accessing to DP159 via I2C interface.
It is possible to accessing DP159 via I2C interface. About I2C address please refer to below table.
Note: It is required to access DP159 via I2C. setting is depended on AUX communication.
Xilinx Displayport IP supports DP159 and I2C control.
Table 4-4 DP159 I2C Address
I2C Address(7bit)
101 1110 (0x5E)
TB-FMCH-DP3 Hardware User’s Manual
16
Rev.1.03
4.7. Clock circuit
Following block diagram shows PLL circuit.
PLL device is TI “LMK04906” to generating reference clock of FPGA
LMK04906
OSC
27MHz
VCO
27MHz
Level
Shifter
Microwire
Status
CLKOUT0
Clean clock(27MHz)
FMC (CN4)
Figure 4-9 Block Diagram of PLL Circuit
Table 4-5 signals of PLL circuit
Signal Name
I/O
Description
Microwire
IO
Interface of LMK04906 internal resister.
Please refer to data sheet of LMK04906.
Status
IO
Status signals. Status meaning is depended on resister settings.
CLKOUT0
O
Output clock. It is possible to use reference clock of FPGA.
Clean clock
O
Not Tested
TB-FMCH-DP3 Hardware User’s Manual
17
Rev.1.03
4.7.1. Operation example of PLL
This section described how to set resister of PLL for generating 135MHz, 81MHz, 162MHz and 270MHz.
1) Enable resister change: Write 0x0000001F to R31
2) Reset to PLL: write 0x00200000 to R00
3) Set following settings to each resister.
Table 4-6 PLL Resister settings (Step3)
Resister
Address[5:0]
Data[31:6]
Note
R 00*
0x00
0x0000009
Disable reset of PLL. CLKOut0 : 270MHz
0x000000F
Disable reset of PLL. CLKOut0 : 162MHz
0x0000012
Disable reset of PLL. CLKOut0 : 135MHz
0x000001E
Disable reset of PLL. CLKOut0 : 81MHz
R 01*
0x01
0x0000009
CLKOut1 : 270MHz
0x000000F
CLKOut1 : 162MHz
0x0000012
CLKOut1 : 135MHz
0x000001E
CLKOut1 : 81MHz
R 02*
0x02
0x0000009
CLKOut2 : 270MHz
0x000000F
CLKOut2 : 162MHz
0x0000012
CLKOut2 : 135MHz
0x000001E
CLKOut2 : 81MHz
R 03
0x03
0x400_0001
Same setting, even different frequency.
R 04
0x04
0x400_0000
Same setting, even different frequency.
R 05
0x05
0x400_0000
Same setting, even different frequency.
R 06
0x06
0x088_8000
Same setting, even different frequency.
R 07
0x07
0x088_8000
Same setting, even different frequency.
R 08
0x08
0x088_8000
Same setting, even different frequency.
R 09
0x09
0x2AA_AAAA
Same setting, even different frequency.
R 10
0x0A
0x08A_0200
Same setting, even different frequency.
R 11
0x0B
0x02C_0881
Same setting, even different frequency.
R 12
0x0C
0x0D8_600B
Same setting, even different frequency.
R 13
0x0D
0x1D8_0003
Same setting, even different frequency.
R 14
0x0E
0x091_8000
Same setting, even different frequency.
R 15
0x0F
0x000_0000
Same setting, even different frequency.
R 16
0x10
0x00A_A820
Same setting, even different frequency.
R 24
0x18
0x000_0006
Same setting, even different frequency.
R 25
0x19
0x008_0030
Same setting, even different frequency.
R 26
0x1A
0x07D_4000
Same setting, even different frequency.
R 27
0x1B
0x080_0002
Same setting, even different frequency.
R 28
0x1C
0x000_8002
Same setting, even different frequency.
R 29
0x1D
0x000_002D
Same setting, even different frequency.
R 30
0x1E
0x010_002D
Same setting, even different frequency.
*This resister setting is depended on what frequency is required.
4) Disable resister change: write 0x0000003F to R31
For more detail, please refer to data sheet.
TB-FMCH-DP3 Hardware User’s Manual
18
Rev.1.03
4.8. FMC connector for stacking
This board has two FMC connectors. One is connecting to FPGA Evaluation board and other is stacking
same TB-FMCH-DP3 board.
In this section, it shows that lower FMC is “base board” and upper FMC is “stack board”.
Following figure shows signal connection when stacking two boards.
Signal of stack board will connect CN3 of base board then signal name is changed as “EX_***”.
“EX_***” signals connect to FPGA carrier board via CN4 of base board.
An exception, PLL control signal and clock are not connecting to FPGA carrier board via base board.
SINK_LANE(x4)
EX_SINK_LANE(x4)
SOURCE_LANE(x4)
EX_SOURCE_LANE(x4)
・・・
DisplayPort I/O
Microwire
Starus
CLKOUT0
Clean clock(27MHz)
PLL
FMC (CN4)
FMC (CN3)
FMC (CN4)
FMC (CN3)
Base
Board
Stack
Board
etc ...
Figure 4-10 Signal connection of stacking two boards.
Base Board
Stack Board
Figure 4-11 Stacked boards
Cation: Please confirm the notice of TB-FMCH-DP3.
4.9. Pin Assignment of CN4
Table 4-7 CN4 Pin assign (To carrier board) shows FMC pin assignment.
Signal direction is assigned as follows:
-“I”: The signal came from carrier board to TB-FMCH-DP3.
-“O”: The signal came from TB-FMCH-DP3 to carrier board.
Blue Character signal are connected to CN4 FMC Expansion connector.
TB-FMCH-DP3 Hardware User’s Manual
19
Rev.1.03
Table 4-7 CN4 Pin assign (To carrier board)
A row in HPC pin assignment (CN4)
#
FMC signal
I/O
Signal in schematic
Note
1
GND - GND
GND
2
DP1_M2C_P
O
SINK_ML_LANE1_P
SINK MainLink LANE1 (Positive)
3
DP1_M2C_N
O
SINK_ML_LANE1_N
SINK MainLink LANE1 (Negative)
4
GND - GND
GND 5 GND - GND
GND
6
DP2_M2C_P
O
SINK_ML_LANE2_P
SINK MainLink LANE2 (Positive)
7
DP2_M2C_N
O
SINK_ML_LANE2_N
SINK MainLink LANE2 (Negative)
8
GND - GND
GND
9
GND - GND
GND
10
DP3_M2C_P
O
SINK_ML_LANE3_P
SINK MainLink LANE3 (Positive)
11
DP3_M2C_N
O
SINK_ML_LANE3_N
SINK MainLink LANE3 (Negative)
12
GND - GND
GND
13
GND - GND
GND
14
DP4_M2C_P
O
EX_SINK_ML_LANE0_P
SINK MainLink LANE0 from expanded
board(Positive)
15
DP4_M2C_N
O
EX_SINK_ML_LANE0_N
SINK MainLink LANE0 from expanded
board (Negative)
16
GND - GND
GND
17
GND - GND
GND
18
DP5_M2C_P
O
EX_SINK_ML_LANE1_P
SINK MainLink LANE1 from expanded
board(Positive)
19
DP5_M2C_N
O
EX_SINK_ML_LANE1_N
SINK MainLink LANE1 from expanded
board (Negative)
20
GND - GND
GND
21
GND - GND
GND
22
DP1_C2M_P
I
SOURCE_ML_LANE1_P
SOURCE MainLink LANE1 (Positive)
23
DP1_C2M_N
I
SOURCE_ML_LANE1_N
SOURCE MainLink LANE1 (Negative)
24
GND - GND
GND
25
GND - GND
GND
26
DP2_C2M_P
I
SOURCE_ML_LANE2_P
SOURCE MainLink LANE2 (Positive)
27
DP2_C2M_N
I
SOURCE_ML_LANE2_N
SOURCE MainLink LANE2 (Negative)
28
GND - GND
GND
29
GND - GND
GND
30
DP3_C2M_P
I
SOURCE_ML_LANE3_P
SOURCE MainLink LANE3 (Positive)
31
DP3_C2M_N
I
SOURCE_ML_LANE3_N
SOURCE MainLink LANE3 (Negative)
32
GND - GND
GND
33
GND - GND
GND
34
DP4_C2M_P
I
EX_SOURCE_ML_LANE0_P
SOURCE MainLink LANE0 (Positive,
expanded board)
35
DP4_C2M_N
I
EX_SOURCE_ML_LANE0_N
SOURCE MainLink LANE0 (Negative,
expanded board)
36
GND - GND
GND
37
GND - GND
GND
38
DP5_C2M_P
I
EX_SOURCE_ML_LANE1_P
SOURCE MainLink LANE1 (Positive,
expanded board)
39
DP5_C2M_N
I
EX_SOURCE_ML_LANE1_N
SOURCE MainLink LANE1 (Negative,
expanded board)
40
GND - GND
GND
TB-FMCH-DP3 Hardware User’s Manual
20
Rev.1.03
B row in HPC pin assignment (CN4)
#
FMC signal
I/O
Signal in schematic
Note
1
RES1 - -
N.C
2
GND - GND
GND 3 GND - GND
GND 4 DP9_M2C_P - -
N.C 5 DP9_M2C_N - -
N.C 6 GND - GND
GND 7 GND - GND
GND 8 DP8_M2C_P - -
N.C 9 DP8_M2C_N - -
N.C
10
GND - GND
GND
11
GND - GND
GND
12
DP7_M2C_P
O
EX_SINK_ML_LANE3_P
SINK MainLink LANE3 (Positive,
expanded board)
13
DP7_M2C_N
O
EX_SINK_ML_LANE3_N
SINK MainLink LANE3 (Negative,
expanded board)
14
GND - GND
GND
15
GND - GND
GND
16
DP6_M2C_P
O
EX_SINK_ML_LANE2_P
SINK MainLink LANE2 (Positive,
expanded board)
17
DP6_M2C_N
O
EX_SINK_ML_LANE2_N
SINK MainLink LANE2 (Negative,
expanded board)
18
GND - GND
GND
19
GND - GND
GND
20
GBTCLK1_M2C_P
O
CLK_OUT_P
DP159 CDR Clock (Positive)
21
GBTCLK1_M2C_N
O
CLK_OUT_N
DP159 CDR Clock (Negative)
22
GND - GND
GND
23
GND - GND
GND
24
DP9_C2M_P - -
N.C
25
DP9_C2M_N - -
N.C
26
GND - GND
GND
27
GND - GND
GND
28
DP8_C2M_P - -
N.C
29
DP8_C2M_N - -
N.C
30
GND - GND
GND
31
GND - GND
GND
32
DP7_C2M_P
I
EX_SOURCE_ML_LANE3_P
SOURCE MainLink LANE3 (Positive,
expanded board)
33
DP7_C2M_N
I
EX_SOURCE_ML_LANE3_N
SOURCE MainLink LANE3 (Negative,
expanded board)
34
GND - GND
GND
35
GND - GND
GND
36
DP6_C2M_P
I
EX_SOURCE_ML_LANE2_P
SOURCE MainLink LANE2 (Positive,
expanded board)
37
DP6_C2M_N
I
EX_SOURCE_ML_LANE2_N
SOURCE MainLink LANE2 (Negative,
expanded board)
38
GND - GND
GND
39
GND - GND
GND
40
RES0 - -
N.C
TB-FMCH-DP3 Hardware User’s Manual
21
Rev.1.03
C row in HPC pin assignment (CN4)
#
FMC signal
I/O
Signal in schematic
Note
1
GND - GND
GND
2
DP0_C2M_P
I
SOURCE_ML_LANE0_P
SOURCE MainLink LANE0 (Positive)
3
DP0_C2M_N
I
SOURCE_ML_LANE0_N
SOURCE MainLink LANE0 (Negative)
4
GND - GND
GND 5 GND - GND
GND
6
DP0_M2C_P
O
SINK_ML_LANE0_P
SINK MainLink LANE0 (Positive)
7
DP0_M2C_N
O
SINK_ML_LANE0_N
SINK MainLink LANE0 (Negative)
8
GND - GND
GND 9 GND - GND
GND
10
LA06_P
I
SINK_HPD
SINK Hot Plug Detect signal
11
LA06_N
I
SINK_EN
SINK DP159 Enable signal
12
GND - GND
GND
13
GND - GND
GND
14
LA10_P
I/O
SINK_I2C_SCL
SINK DP159 I2C SCL signal
15
LA10_N
I/O
SINK_I2C_SDA
SINK DP159 I2C SDA signal
16
GND - GND
GND
17
GND - GND
GND
18
LA14_P
I/O
SINK_AUX_P
SINK bi-direction AUX signal(Positive)
19
LA14_N
I/O
SINK_AUX_N
SINK bi-direction AUX signal(Negative)
20
GND - GND
GND
21
GND - GND
GND
22
LA18_P_CC
O
SINK_AUX_RX
SINK single-end AUX, receiver signal
23
LA18_N_CC
I
SINK_AUX_TX
SINK single-end AUX, transfer signal
24
GND - GND
GND
25
GND - GND
GND
26
LA27_P
I
SINK_AUX_DE
SINK single-end AUX, data enable signal
27
LA27_N
I
EX_SINK_AUX_DE
SINK single-end AUX, data enable signal
(expanded board)
28
GND - GND
GND
29
GND - GND
GND
30
SCL
-
2Kb_EEPPROM_SCL
I2C SCL signal for 2Kbit EEPROM
31
SDA
-
2Kb_EEPPROM_SDA
I2C SDA signal for 2Kbit EEPROM
32
GND - GND
GND
33
GND - GND
GND
34
GA0
-
2Kb_EEPPROM_E0
Address setting of 2Kbit RRPROM
35
12P0V - +12V
12P0V
36
GND - GND
GND
37
12P0V - +12V
12P0V
38
GND - GND
GND
39
3P3V - +3.3V
3P3V
40
GND - GND
GND
TB-FMCH-DP3 Hardware User’s Manual
22
Rev.1.03
D row in HPC pin assignment (CN4)
#
FMC signal
I/O
Signal in schematic
Note
1
PG_C2M - -
N.C
2
GND - GND
GND 3 GND - GND
GND 4 GBTCLK0_M2C_P
O
GCLK0_P
PLL Clock output 0(Positive)
5
GBTCLK0_M2C_N
O
GCLK0_N
PLL Clock output 0(Negative)
6
GND - GND
GND 7 GND - GND
GND 8 LA01_P_CC
I
EX_SINK_HPD
SINK Hot Plug Detect signal(expanded board)
9
LA01_N_CC
I
EX_SINK_EN
SINK DP159 Enable signal(expanded board)
10
GND - GND
GND
11
LA05_P
I/O
EX_SINK_I2C_SCL
SINK DP159 I2C SCL(expanded board)
12
LA05_N
I/O
EX_SINK_I2C_SDA
SINK DP159 I2C SDA(expanded board)
13
GND - GND
GND
14
LA09_P
I/O
EX_SINK_AUX_P
SINK bi-direction AUX signal
(Positive, expanded board)
15
LA09_N
I/O
EX_SINK_AUX_N
SINK bi-direction AUX signal
(Negative, expanded board)
16
GND - GND
GND
17
LA13_P
O
EX_SINK_AUX_RX
SINK single-end AUX, receiver signal
(expanded board)
18
LA13_N
I
EX_SINK_AUX_TX
SINK single-end AUX, transfer signal
(expanded board)
19
GND - GND
GND
20
LA17_P_CC
I
PLL_REFCLKIN_P
PLL reference clock input(Positive)
21
LA17_N_CC
I
PLL_REFCLKIN_N
PLL reference clock input(Negative)
22
GND - GND
GND
23
LA23_P
I/O
EDID_I2C_SCL
EDID ROM I2C SCL signal
24
LA23_N
I/O
EDID_I2C_SDA
EDID ROM I2C SDA signal
25
GND - GND
GND
26
LA26_P
I/O
HDCP_I2C_SCL
HDCP ROM I2C SCL signal
27
LA26_N
I/O
HDCP_I2C_SDA
HDCP ROM I2C SDA signal
28
GND - GND
GND
29
TCK - -
N.C
30
TDI - -
N.C
31
TDO - -
N.C
32
3P3VAUX
-
+3.3V_AUX
3P3VAUX
33
TMS - -
N.C
34
TRST_L - -
N.C
35
GA1
-
2Kb_EEPPROM_E1
Address setting of 2Kbit RRPROM
36
3P3V - +3.3V
3P3V
37
GND - GND
GND
38
3P3V - +3.3V
3P3V
39
GND - GND
GND
40
3P3V - +3.3V
3P3V
TB-FMCH-DP3 Hardware User’s Manual
23
Rev.1.03
E row in HPC pin assignment (CN4)
#
FMC signal
I/O
Signal in schematic
Note
1
GND
-
GND
GND
2
HA01_P_CC
- - N.C 3 HA01_N_CC
- - N.C 4 GND
-
GND
GND 5 GND
-
GND
GND 6 HA05_P - -
N.C 7 HA05_N - -
N.C 8 GND
-
GND
GND 9 HA09_P - -
N.C
10
HA09_N - -
N.C
11
GND
-
GND
GND
12
HA13_P - -
N.C
13
HA13_N - -
N.C
14
GND
-
GND
GND
15
HA16_P - -
N.C
16
HA16_N - -
N.C
17
GND
-
GND
GND
18
HA20_P - -
N.C
19
HA20_N - -
N.C
20
GND
-
GND
GND
21
HB03_P - -
N.C
22
HB03_N - -
N.C
23
GND
-
GND
GND
24
HB05_P - -
N.C
25
HB05_N - -
N.C
26
GND
-
GND
GND
27
HB09_P - -
N.C
28
HB09_N - -
N.C
29
GND
-
GND
GND
30
HB13_P - -
N.C
31
HB13_N - -
N.C
32
GND
-
GND
GND
33
HB19_P - -
N.C
34
HB19_N - -
N.C
35
GND
-
GND
GND
36
HB21_P - -
N.C
37
HB21_N - -
N.C
38
GND
-
GND
GND
39
VADJ
-
FMC_VADJ
VADJ Power
40
GND
-
GND
GND
TB-FMCH-DP3 Hardware User’s Manual
24
Rev.1.03
F row in HPC pin assignment (CN4)
#
FMC signal
I/O
Signal in schematic
Note
1
PG_M2C
- - PG_M2C
2
GND
-
GND
GND 3 GND
-
GND
GND 4 HA00_P_CC
- - N.C 5 HA00_N_CC
- - N.C 6 GND
-
GND
GND 7 HA04_P
- - N.C 8 HA04_N
- - N.C 9 GND
-
GND
GND
10
HA08_P
- - N.C
11
HA08_N
- - N.C
12
GND
-
GND
GND
13
HA12_P
- - N.C
14
HA12_N
- - N.C
15
GND
-
GND
GND
16
HA15_P
- - N.C
17
HA15_N
- - N.C
18
GND
-
GND
GND
19
HA19_P
- - N.C
20
HA19_N
- - N.C
21
GND
-
GND
GND
22
HB02_P
- - N.C
23
HB02_N
- - N.C
24
GND
-
GND
GND
25
HB04_P
- - N.C
26
HB04_N
- - N.C
27
GND
-
GND
GND
28
HB08_P
- - N.C
29
HB08_N
- - N.C
30
GND
-
GND
GND
31
HB12_P
- - N.C
32
HB12_N
- - N.C
33
GND
-
GND
GND
34
HB16_P
- - N.C
35
HB16_N
- - N.C
36
GND
-
GND
GND
37
HB20_P
- - N.C
38
HB20_N
- - N.C
39
GND
-
GND
GND
40
VADJ
-
FMC_VADJ
VADJ Power
TB-FMCH-DP3 Hardware User’s Manual
25
Rev.1.03
G row in HPC pin assignment (CN4)
#
FMC signal
I/O
Signal in schematic
Note
1
GND - GND
GND
2
CLK1_M2C_P
O
CLK1_P
PLL Clock output2 (Positive)
3
CLK1_M2C_N
O
CLK1_N
PLL Clock output2 (Negative)
4
GND - GND
GND 5 GND - GND
GND 6 LA00_P_CC
I/O
SOURCE_DDC_SDA
Please fixed to High(1)
7
LA00_N_CC
I/O
SOURCE_DDC_SCL
Please fixed to High(1)
8
GND - GND
GND 9 LA03_P
O
SOURCE_HPD
SOURCE Hot Plug Detect signal
10
LA03_N
O
SOURCE_CAD
SOURCE Cable Adapter Detect signal
11
GND - GND
GND
12
LA08_P
I
SOURCE_RST
SOURCE DP130 reset signal(Active High)
13
LA08_N
I
SOURCE_EN
SOURCE DP130 Enable signal(Active High)
14
GND - GND
GND
15
LA12_P
I/O
SOURCE_I2C_SDA
SOURCE DP130 I2C SDA signal
16
LA12_N
I/O
SOURCE_I2C_SCL
SOURCE DP130 I2C SCL signal
17
GND - GND
GND
18
LA16_P
I/O
SOURCE_AUX_P
SOURCE bi-direction AUX signal(Positive)
19
LA16_N
I/O
SOURCE_AUX_N
SOURCE bi-direction AUX signal(Negative)
20
GND - GND
GND
21
LA20_P
O
SOURCE_AUX_RX
SOURCE single-end AUX, receiver signal
22
LA20_N
I
SOURCE_AUX_TX
SOURCE single-end AUX, transfer signal
23
GND - GND
GND
24
LA22_P
I
SOURCE_DDC_EN
Not used
25
LA22_N
I
SOURCE_AUX_DE
SOURCE single-end AUX, data enable
26
GND - GND
GND
27
LA25_P
I/O
STATUS_HLD
PLL Status: default is Read Back signal
28
LA25_N
I/O
STATUS_LD
PLL Status: default is Lock signal
29
GND - GND
GND
30
LA29_P
I/O
STATUS_CLK0
PLL Status: default is CLKin select signal
31
LA29_N
I/O
STATUS_CLK1
PLL Status: default is CLKin select signal
32
GND - GND
GND
33
LA31_P O -
N.C
34
LA31_N O -
N.C
35
GND - GND
GND
36
LA33_P I -
N.C
37
LA33_N I -
N.C
38
GND - GND
GND
39
VADJ
-
FMC_VADJ
VADJ power
40
GND - GND
GND
TB-FMCH-DP3 Hardware User’s Manual
26
Rev.1.03
H row in HPC pin assignment (CN4)
#
FMC signal
I/O
Signal in schematic
note
1
VREF_A_M2C
-
N.C
2
PRSNT_M2C_L
- - N.C 3 GND - GND
GND 4 CLK0_M2C_P
O
CLK0_P
PLL Clock output1 (Positive)
5
CLK0_M2C_N
O
CLK0_N
PLL Clock output1 (Negative)
6
GND - GND
GND 7 LA02_P
I/O
EX_SOURCE_DDC_SDA
Please fixed to High(1)
8
LA02_N
I/O
EX_SOURCE_DDC_SCL
Please fixed to High(1)
9
GND - GND
GND
10
LA04_P
O
EX_SOURCE_HPD
SOURCE Hot Plug detect signal
(expanded board)
11
LA04_N
O
EX_SOURCE_CAD
SOURCE Cable Adapter Detect signal
(expanded board)
12
GND - GND
GND
13
LA07_P
I
EX_SOURCE_RST
SOURCE DP130 reset signal
(expanded board)
14
LA07_N
I
EX_SOURCE_EN
SOURCE DP130 enable signal
(expanded board)
15
GND - GND
GND
16
LA11_P
I/O
EX_SOURCE_I2C_SDA
SOURCE DP130 I2C SDA
(expanded board)
17
LA11_N
I/O
EX_SOURCE_I2C_SCL
SOURCE DP130 I2C SCL
(expanded board)
18
GND - GND
GND
19
LA15_P
I/O
EX_SOURCE AUX_P
SOURCE bi-direction AUX signal
(Positive, extended board)
20
LA15_N
I/O
EX_SOURCE_AUX_N
SOURCE bi-direction AUX signal
(Negative, expanded board)
21
GND - GND
GND
22
LA19_P
O
EX_SOURCE_AUX_RX
SOURCE single-end AUX, receiver signal
(extended board)
23
LA19_N
I
EX_SOURCE_AUX_TX
SOURCE single-end AUX, transfer signal
(extended board)
24
GND - GND
GND
25
LA21_P
I
EX_SOURCE_DDC_EN
Not used
26
LA21_N
I
EX_SOURCE_AUX_DE
SOURCE single-end AUX, data enable
(extended board)
27
GND - GND
GND
28
LA24_P
I/O
STATUS_CLK2
PLL Status: default is CLKin select signal
29
LA24_N
I
STATUS_DIR
Direction control of Status_X
30
GND - GND
GND
31
LA28_P I LE_WR
Mircowire: Enable signal
32
LA28_N
I
CLK_WR
Microwire: Clock signal
33
GND - GND
GND
34
LA30_P
I
DATA_WR
Microwire: Data signal
35
LA30_N - -
N.C
36
GND - GND
GND
37
LA32_P - -
N.C
38
LA32_N - -
N.C
39
GND - GND
GND
40
VADJ
-
FMC_VADJ
VADJ Power
TB-FMCH-DP3 Hardware User’s Manual
27
Rev.1.03
J row in HPC pin assignment (CN4)
#
FMC signal
I/O
Signal in schematic
note
1
GND
-
GND
GND
2
CLK3_M2C_P
- - N.C 3 CLK3_M2C_N
- - N.C 4 GND
-
GND
GND 5 GND
-
GND
GND 6 HA03_P
- - N.C 7 HA03_N
- - N.C 8 GND
-
GND
GND
9
HA07_P
- - N.C
10
HA07_N
- - N.C
11
GND
-
GND
GND
12
HA11_P - -
N.C
13
HA11_N
- - N.C
14
GND
-
GND
GND
15
HA14_P
- - N.C
16
HA14_N
- - N.C
17
GND
-
GND
GND
18
HA18_P
- - N.C
19
HA18_N
- - N.C
20
GND
-
GND
GND
21
HA22_P
- - N.C
22
HA22_N
- - N.C
23
GND
-
GND
GND
24
HB01_P
- - N.C
25
HB01_N
- - N.C
26
GND
-
GND
GND
27
HB07_P
- - N.C
28
HB07_N
- - N.C
29
GND
-
GND
GND
30
HB11_P - -
N.C
31
HB11_N
- - N.C
32
GND
-
GND
GND
33
HB15_P
- - N.C
34
HB15_N
- - N.C
35
GND
-
GND
GND
36
HB18_P
- - N.C
37
HB18_N
- - N.C
38
GND
-
GND
GND
39
VIO_B_M2C
- - N.C
40
GND
-
GND
GND
TB-FMCH-DP3 Hardware User’s Manual
28
Rev.1.03
K row in HPC pin assignment (CN4)
#
FMC signal
I/O
Signal in schematic
note
1
VREF_B_M2C
- - N.C
2
GND - GND
GND 3 GND - GND
GND
4
CLK2_M2C_P
O
VCXO_OUT_P
PLL VCXO Output (Positive)
5
CLK2_M2C_N
O
VCXO_OUT_N
PLL VCXO Output (Negative)
6
GND - GND
GND 7 HA02_P - -
N.C 8 HA02_N - -
N.C 9 GND - GND
GND
10
HA06_P - -
N.C
11
HA06_N - -
N.C
12
GND - GND
GND
13
HA10_P - -
N.C
14
HA10_N - -
N.C
15
GND - GND
GND
16
HA17_P_CC
- - N.C
17
HA17_N_CC
- - N.C
18
GND - GND
GND
19
HA21_P - -
N.C
20
HA21_N - -
N.C
21
GND - GND
GND
22
HA23_P - -
N.C
23
HA23_N - -
N.C
24
GND - GND
GND
25
HB00_P_CC
- - N.C
26
HB00_N_CC
- - N.C
27
GND - GND
GND
28
HB06_P_CC
- - N.C
29
HB06_N_CC
- - N.C
30
GND - GND
GND
31
HB10_P - -
N.C
32
HB10_N - -
N.C
33
GND - GND
GND
34
HB14_P - -
N.C
35
HB14_N - -
N.C
36
GND - GND
GND
37
HB17_P_CC
- - N.C
38
HB17_N_CC
- - N.C
39
GND - GND
GND
40
VIO_B_M2C
- - N.C
TB-FMCH-DP3 Hardware User’s Manual
29
Rev.1.03
4.10. FMC connector for expanded Board (CN3)
From next page, Table 4-8 CN3 Pin assign (For expanded Board) shows FMC pin assignment.
Signal direction is assigned as follows:
-“I”: The signal came from carrier board to TB-FMCH-DP3.
-“O”: The signal came from TB-FMCH-DP3 to carrier board.
TB-FMCH-DP3 Hardware User’s Manual
30
Rev.1.03
Table 4-8 CN3 Pin assign (For expanded Board)
A row in HPC pin assignment (CN3)
#
FMC signal
I/O
Signal in schematic
Note
1
GND - GND
GND
2
DP1_M2C_P
I
EX_SINK_ML_LANE1_P
SINK MainLink LANE1
(Positive, extending board)
3
DP1_M2C_N
I
EX_SINK_ML_LANE1_N
SINK MainLink LANE1
(Negative, extending board)
4
GND - GND
GND 5 GND - GND
GND
6
DP2_M2C_P
I
EX_SINK_ML_LANE2_P
SINK MainLink LANE2
(Positive, extending board)
7
DP2_M2C_N
I
EX_SINK_ML_LANE2_N
SINK MainLink LANE2
(Negative, extending board)
8
GND - GND
GND
9
GND - GND
GND
10
DP3_M2C_P
I
EX_SINK_ML_LANE3_P
SINK MainLink LANE3
(Positive, extending board)
11
DP3_M2C_N
I
EX_SINK_ML_LANE3_N
SINK MainLink LANE3
(Negative, extending board)
12
GND - GND
GND
13
GND - GND
GND
14
DP4_M2C_P - -
N.C
15
DP4_M2C_N - -
N.C
16
GND - GND
GND
17
GND - GND
GND
18
DP5_M2C_P - -
N.C
19
DP5_M2C_N - -
N.C
20
GND - GND
GND
21
GND - GND
GND
22
DP1_C2M_P
O
EX_SOURCE_ML_LANE1_P
SOURCE MainLink LANE1
(Positive, extending board)
23
DP1_C2M_N
O
EX_SOURCE_ML_LANE1_N
SOURCE MainLink LANE1
(Negative, extending board)
24
GND - GND
GND
25
GND - GND
GND
26
DP2_C2M_P
O
EX_SOURCE_ML_LANE2_P
SOURCE MainLink LANE2
(Positive, extending board)
27
DP2_C2M_N
O
EX_SOURCE_ML_LANE2_N
SOURCE MainLink LANE2
(Negative, extending board)
28
GND - GND
GND
29
GND - GND
GND
30
DP3_C2M_P
O
EX_SOURCE_ML_LANE3_P
SOURCE MainLink LANE3
(Positive, extending board)
31
DP3_C2M_N
O
EX_SOURCE_ML_LANE3_N
SOURCE MainLink LANE3
(Negative, extending board)
32
GND - GND
GND
33
GND - GND
GND
34
DP4_C2M_P - -
N.C
35
DP4_C2M_N - -
N.C
36
GND - GND
GND
37
GND - GND
GND
38
DP5_C2M_P - -
N.C
39
DP5_C2M_N - -
N.C
40
GND - GND
GND
TB-FMCH-DP3 Hardware User’s Manual
31
Rev.1.03
B row in HPC pin assignment (CN3)
#
FMC signal
I/O
Signal in schematic
Note
1
RES1 - -
N.C
2
GND - GND
GND 3 GND - GND
GND 4 DP9_M2C_P - -
N.C 5 DP9_M2C_N - -
N.C 6 GND - GND
GND 7 GND - GND
GND 8 DP8_M2C_P - -
N.C 9 DP8_M2C_N - -
N.C
10
GND - GND
GND
11
GND - GND
GND
12
DP7_M2C_P - -
N.C
13
DP7_M2C_N - -
N.C
14
GND - GND
GND
15
GND - GND
GND
16
DP6_M2C_P - -
N.C
17
DP6_M2C_N - -
N.C
18
GND - GND
GND
19
GND - GND
GND
20
GBTCLK1_M2C_P - -
N.C
21
GBTCLK1_M2C_N - -
N.C
22
GND - GND
GND
23
GND - GND
GND
24
DP9_C2M_P - -
N.C
25
DP9_C2M_N - -
N.C
26
GND - GND
GND
27
GND - GND
GND
28
DP8_C2M_P - -
N.C
29
DP8_C2M_N - -
N.C
30
GND - GND
GND
31
GND - GND
GND
32
DP7_C2M_P - -
N.C
33
DP7_C2M_N - -
N.C
34
GND - GND
GND
35
GND - GND
GND
36
DP6_C2M_P - -
N.C
37
DP6_C2M_N - -
N.C
38
GND - GND
GND
39
GND - GND
GND
40
RES0 - -
N.C
TB-FMCH-DP3 Hardware User’s Manual
32
Rev.1.03
C row in HPC pin assignment (CN3)
#
FMC signal
I/O
Signal in schematic
Note
1
GND - GND
GND
2
DP0_C2M_P
O
EX_SOURCE_ML_LANE0_P
SOURCE MainLink LANE0
(Positive, extending board)
3
DP0_C2M_N
O
EX_SOURCE_ML_LANE0_N
SOURCE MainLink LANE0
(Negative, extending board)
4
GND - GND
GND 5 GND - GND
GND
6
DP0_M2C_P
I
EX_SINK_ML_LANE0_P
SOURCE MainLink LANE3
(Positive, extending board)
7
DP0_M2C_N
I
EX_SINK_ML_LANE0_N
SOURCE MainLink LANE3
(Negative, extending board)
8
GND - GND
GND 9 GND - GND
GND
10
LA06_P
O
EX_SINK_HPD
SINK Hot Plug Detect signal
(extended board)
11
LA06_N
O
EX_SINK_EN
SINK SP159 enable signal
(extended board)
12
GND - GND
GND
13
GND - GND
GND
14
LA10_P
I/O
EX_SINK_I2C_SCL
SINK DP159 I2C SCL(expanded board)
15
LA10_N
I/O
EX_SINK_I2C_SDA
SINK DP159 I2C SDA(expanded board)
16
GND - GND
GND
17
GND - GND
GND
18
LA14_P
I/O
EX_SINK_AUX_P
SINK bi-direction AUX signal
(Positive, expanded board)
19
LA14_N
I/O
EX_SINK_AUX_N
SINK bi-direction AUX signal
(Negative, expanded board)
20
GND - GND
GND
21
GND - GND
GND
22
LA18_P_CC
I
EX_SINK_AUX_RX
SINK single-end AUX, receiver signal
(expanded board)
23
LA18_N_CC
O
EX_SINK_AUX_TX
SINK single-end AUX, transfer signal
(expanded board)
24
GND - GND
GND
25
GND - GND
GND
26
LA27_P
O
EX_SINK_AUX_DE
SINK single-end AUX, data enable
signal (expanded board)
27
LA27_N - -
-
28
GND - GND
GND
29
GND - GND
GND
30
SCL - -
N.C
31
SDA - -
N.C
32
GND - GND
GND
33
GND - GND
GND
34
GA0 - -
N.C
35
12P0V - +12V
12P0V
36
GND - GND
GND
37
12P0V - +12V
12P0V
38
GND - GND
GND
39
3P3V - +3.3V
3P3V
40
GND - GND
GND
TB-FMCH-DP3 Hardware User’s Manual
33
Rev.1.03
D row in HPC pin assignment (CN3)
#
FMC signal
I/O
Signal in schematic
Note
1
PG_C2M - -
N.C
2
GND
-
GND
GND 3 GND
-
GND
GND 4 GBTCLK0_M2C_P
- - N.C 5 GBTCLK0_M2C_N
- - N.C 6 GND
-
GND
GND 7 GND
-
GND
GND 8 LA01_P_CC
- - N.C 9 LA01_N_CC
- - N.C
10
GND
-
GND
GND
11
LA05_P - -
N.C
12
LA05_N - -
N.C
13
GND
-
GND
GND
14
LA09_P - -
N.C
15
LA09_N - -
N.C
16
GND
-
GND
GND
17
LA13_P - -
N.C
18
LA13_N - -
N.C
19
GND
-
GND
GND
20
LA17_P_CC
- - N.C
21
LA17_N_CC
- - N.C
22
GND
-
GND
GND
23
LA23_P - -
N.C
24
LA23_N - -
N.C
25
GND
-
GND
GND
26
LA26_P - -
N.C
27
LA26_N - -
N.C
28
GND
-
GND
GND
29
TCK - -
N.C
30
TDI - -
N.C
31
TDO - -
N.C
32
3P3VAUX
-
+3.3V_AUX
3P3VAUX
33
TMS - -
N.C
34
TRST_L - -
N.C
35
GA1 - -
N.C
36
3P3V
-
+3.3V
3P3V
37
GND
-
GND
GND
38
3P3V
-
+3.3V
3P3V
39
GND
-
GND
GND
40
3P3V
-
+3.3V
3P3V
TB-FMCH-DP3 Hardware User’s Manual
34
Rev.1.03
E row in HPC pin assignment (CN3)
#
FMC signal
I/O
Signal in schematic
Note
1
GND
-
GND
GND
2
HA01_P_CC
- - N.C 3 HA01_N_CC
- - N.C 4 GND
-
GND
GND 5 GND
-
GND
GND 6 HA05_P - -
N.C 7 HA05_N - -
N.C 8 GND
-
GND
GND 9 HA09_P - -
N.C
10
HA09_N - -
N.C
11
GND
-
GND
GND
12
HA13_P - -
N.C
13
HA13_N - -
N.C
14
GND
-
GND
GND
15
HA16_P - -
N.C
16
HA16_N - -
N.C
17
GND
-
GND
GND
18
HA20_P - -
N.C
19
HA20_N - -
N.C
20
GND
-
GND
GND
21
HB03_P - -
N.C
22
HB03_N - -
N.C
23
GND
-
GND
GND
24
HB05_P - -
N.C
25
HB05_N - -
N.C
26
GND
-
GND
GND
27
HB09_P - -
N.C
28
HB09_N - -
N.C
29
GND
-
GND
GND
30
HB13_P - -
N.C
31
HB13_N - -
N.C
32
GND
-
GND
GND
33
HB19_P - -
N.C
34
HB19_N - -
N.C
35
GND
-
GND
GND
36
HB21_P - -
N.C
37
HB21_N - -
N.C
38
GND
-
GND
GND
39
VADJ
-
FMC_VADJ
VADJ Power
40
GND
-
GND
GND
TB-FMCH-DP3 Hardware User’s Manual
35
Rev.1.03
F row in HPC pin assignment (CN3)
#
FMC signal
I/O
Signal in schematic
Note
1
PG_M2C
- - PG_M2C
2
GND
-
GND
GND 3 GND
-
GND
GND 4 HA00_P_CC
- - N.C 5 HA00_N_CC
- - N.C 6 GND
-
GND
GND 7 HA04_P - -
N.C 8 HA04_N - -
N.C 9 GND
-
GND
GND
10
HA08_P - -
N.C
11
HA08_N - -
N.C
12
GND
-
GND
GND
13
HA12_P - -
N.C
14
HA12_N - -
N.C
15
GND
-
GND
GND
16
HA15_P - -
N.C
17
HA15_N - -
N.C
18
GND
-
GND
GND
19
HA19_P - -
N.C
20
HA19_N - -
N.C
21
GND
-
GND
GND
22
HB02_P - -
N.C
23
HB02_N - -
N.C
24
GND
-
GND-
GND
25
HB04_P - -
N.C
26
HB04_N - -
N.C
27
GND
-
GND
GND
28
HB08_P - -
N.C
29
HB08_N - -
N.C
30
GND
-
GND
GND
31
HB12_P - -
N.C
32
HB12_N - -
N.C
33
GND
-
GND
GND
34
HB16_P - -
N.C
35
HB16_N - -
N.C
36
GND
-
GND
GND
37
HB20_P - -
N.C
38
HB20_N - -
N.C
39
GND
-
GND
GND
40
VADJ
-
FMC_VADJ
VADJ Power
TB-FMCH-DP3 Hardware User’s Manual
36
Rev.1.03
G row in HPC pin assignment (CN3)
#
FMC signal
I/O
Signal in schematic
Note
1
GND - GND
GND
2
CLK0_M2C_P - -
N.C 3 CLK0_M2C_N - -
N.C 4 GND - GND
GND 5 GND - GND
GND 6 LA00_P_CC
I/O
EX_SOURCE_DDC_SDA
Please fixed to High(1)
7
LA00_N_CC
I/O
EX_SOURCE_DDC_SCL
Please fixed to High(1)
8
GND - -
GND
9
LA03_P
I
EX_SOURCE_HPD
SOURCE Hot Plug detect signal
(expanded board)
10
LA03_N
I
EX_SOURCE_CAD
SOURCE Cable Adapter Detect signal
(expanded board)
11
GND - -
GND
12
LA08_P
O
EX_SOURCE_RST
SOURCE DP130 reset signal
(expanded board)
13
LA08_N
O
EX_SOURCE_EN
SOURCE DP130 enable signal
(expanded board)
14
GND - -
GND
15
LA12_P
I/O
EX_SOURCE_I2C_SDA
SOURCE DP130 I2C SDA
(expanded board)
16
LA12_N
I/O
EX_SOURCE_I2C_SCL
SOURCE DP130 I2C SCL
(expanded board)
17
GND - -
GND
18
LA16_P
I/O
EX_SOURCE_AUX_P
SOURCE bi-direction AUX signal
(Positive, extended board)
19
LA16_N
I/O
EX_SOURCE_AUX_N
SOURCE bi-direction AUX signal
(Negative, expanded board)
20
GND - -
GND
21
LA20_P
I
EX_SOURCE_AUX_RX
SOURCE single-end AUX, receiver signal
(extended board)
22
LA20_N
O
EX_SOURCE_AUX_TX
SOURCE single-end AUX, transfer signal
(extended board)
23
GND - -
GND
24
LA22_P
O
EX_SOURCE_DDC_EN
Not used
25
LA22_N
O
EX_SOURCE_AUX_DE
SOURCE single-end AUX, data enable
(extended board)
26
GND - GND
GND
27
LA25_P - -
N.C
28
LA25_N - -
N.C
29
GND - GND
GND
30
LA29_P - -
N.C
31
LA29_N - -
N.C
32
GND - GND
GND
33
LA31_P - -
N.C
34
LA31_N - -
N.C
35
GND - GND
GND
36
LA33_P - -
N.C
37
LA33_N - -
N.C
38
GND - GND
GND
39
VADJ - FMC_VADJ
VADJ power
40
GND - GND
GND
TB-FMCH-DP3 Hardware User’s Manual
37
Rev.1.03
H row in HPC pin assignment (CN3)
#
FMC signal
I/O
Signal in schematic
Note
1
VREF_A_M2C
- - N.C
2
PRSNT_M2C_L
- - N.C 3 GND
- - GND
4
CLK0_M2C_P
- - N.C 5 CLK0_M2C_N
- - N.C 6 GND
-
GND
GND
7
LA02_P
- - N.C 8 LA02_N
- - N.C 9 GND
-
GND
GND
10
LA04_P
- - N.C
11
LA04_N
- - N.C
12
GND
-
GND
GND
13
LA07_P
- - N.C
14
LA07_N
- - N.C
15
GND
-
GND
GND
16
LA11_P
- - N.C
17
LA11_N
- - N.C
18
GND
-
GND
GND
19
LA15_P
- - N.C
20
LA15_N
- - N.C
21
GND
-
GND
GND
22
LA19_P
- - N.C
23
LA19_N
- - N.C
24
GND
-
GND
GND
25
LA21_P
- - N.C
26
LA21_N
- - N.C
27
GND
-
GND
GND
28
LA24_P
- - N.C
29
LA24_N
- - N.C
30
GND
-
GND
GND
31
LA28_P
- - N.C
32
LA28_N
- - N.C
33
GND
-
GND
GND
34
LA30_P
- - N.C
35
LA30_N
- - N.C
36
GND
-
GND
GND
37
LA32_P
- - N.C
38
LA32_N
- - N.C
39
GND
-
GND
GND
40
VADJ
-
FMC_VADJ
VADJ power
TB-FMCH-DP3 Hardware User’s Manual
38
Rev.1.03
J row in HPC pin assignment (CN3)
#
FMC signal
I/O
Signal in schematic
Note
1
GND
-
GND
GND
2
CLK3_M2C_P
- - N.C 3 CLK3_M2C_N
- - N.C
4
GND
-
GND
GND 5 GND
-
GND
GND 6 HA03_P - -
N.C 7 HA03_N - -
N.C
8
GND
-
GND
GND 9 HA07_P - -
N.C
10
HA07_N - -
N.C
11
GND
-
GND
GND
12
HA11_P - -
N.C
13
HA11_N - -
N.C
14
GND
-
GND
GND
15
HA14_P - -
N.C
16
HA14_N - -
N.C
17
GND
-
GND
GND
18
HA18_P - -
N.C
19
HA18_N - -
N.C
20
GND
-
GND
GND
21
HA22_P - -
N.C
22
HA22_N - -
N.C
23
GND
-
GND
GND
24
HB01_P - -
N.C
25
HB01_N - -
N.C
26
GND
-
GND
GND
27
HB07_P - -
N.C
28
HB07_N - -
N.C
29
GND
-
GND
GND
30
HB11_P - -
N.C
31
HB11_N - -
N.C
32
GND
-
GND
GND
33
HB15_P - -
N.C
34
HB15_N - -
N.C
35
GND
-
GND
GND
36
HB18_P - -
N.C
37
HB18_N - -
N.C
38
GND
-
GND
GND
39
VIO_B_M2C
- - VIO_B_M2C
40
GND
-
GND
GND
TB-FMCH-DP3 Hardware User’s Manual
39
Rev.1.03
K row in HPC pin assignment (CN3)
#
FMC signal
I/O
Signal in schematic
Note
1
VREF_B_M2C
- - N.C
2
GND
-
GND
GND 3 GND
-
GND
GND 4 CLK2_M2C_P
- - N.C 5 CLK2_M2C_N
- - N.C
6
GND
-
GND
GND 7 HA02_P - -
N.C 8 HA02_N - -
N.C
9
GND
-
GND
GND
10
HA06_P - -
N.C
11
HA06_N - -
N.C
12
GND
-
GND
GND
13
HA10_P - -
N.C
14
HA10_N - -
N.C
15
GND
-
GND
GND
16
HA17_P_CC
- - N.C
17
HA17_N_CC
- - N.C
18
GND
-
GND
GND
19
HA21_P - -
N.C
20
HA21_N - -
N.C
21
GND
-
GND
GND
22
HA23_P - -
N.C
23
HA23_N - -
N.C
24
GND
-
GND
GND
25
HB00_P_CC
- - N.C
26
HB00_N_CC
- - N.C
27
GND
-
GND
GND
28
HB06_P_CC
- - N.C
29
HB06_N_CC
- - N.C
30
GND
-
GND
GND
31
HB10_P - -
N.C
32
HB10_N - -
N.C
33
GND
-
GND
GND
34
HB14_P - -
N.C
35
HB14_N - -
N.C
36
GND
-
GND
GND
37
HB17_P_CC
- - N.C
38
HB17_N_CC
- - N.C
39
GND
-
GND
GND
40
VIO_B_M2C
- - N.C
TB-FMCH-DP3 Hardware User’s Manual
40
Rev.1.03
Inrevium Company
URL: http://solutions.inrevium.com/
E-mail: psd-support@teldevice.co.jp
HEAD Quarter: Yokohama East Square, 1-4 Kinko-cho, Kanagawa-ku, Yokohama City,
Kanagawa, Japan 221-0056
TEL: +81-45-443-4031 FAX: +81-45-443-4063
Loading...
