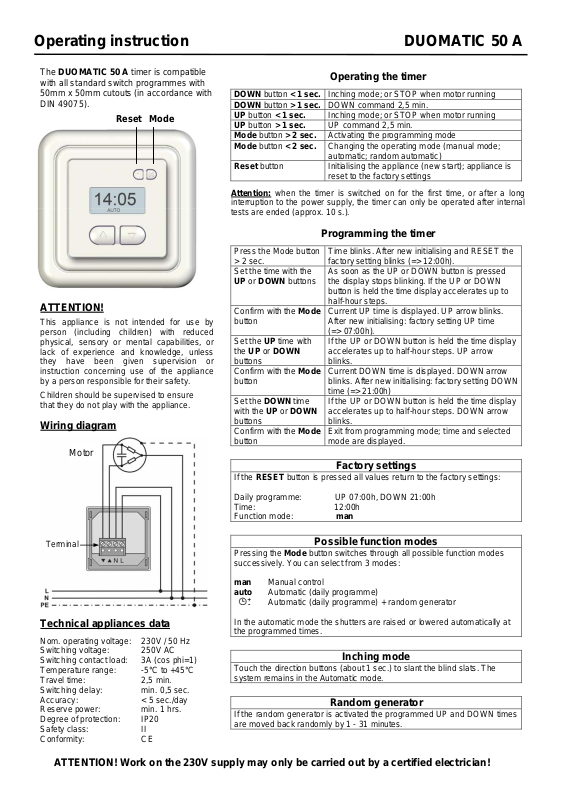

Operating instruction DUOMATIC 50 A
The DUOMATIC 50 A timer is compatible
with all standard switch programmes with
50mm x 50mm cutouts (in accordance with
DIN 49075).
Reset Mode
ATTENTION!
This appliance is not intended for use by
person (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
Wiring diagram
Motor
DOWN button < 1 sec.
DOWN button > 1 sec.
UP button < 1 sec.
UP button > 1 sec.
Mode button > 2 sec.
Mode button < 2 sec.
Reset button
Attention: when the timer is switched on for the first time, or after a long
interruption to the power supply, the timer can only be operated after internal
tests are ended (approx. 10 s.).
Press the Mode button
> 2 sec.
Set the time with the
UP or DOWN buttons
Confirm with the Mode
button
Set the UP time with
the UP or DOWN
buttons
Confirm with the Mode
button
Set the DOWN time
with the UP or DOWN
buttons
Confirm with the Mode
button
Operating the timer
Inching mode; or STOP when motor running
DOWN command 2,5 min.
Inching mode; or STOP when motor running
UP command 2,5 min.
Activating the programming mode
Changing the operating mode (manual mode;
automatic; random automatic)
Initialising the appliance (new start); appliance is
reset to the factory settings
Programming the timer
Time blinks. After new initialising and RESET the
factory setting blinks (=> 12:00h).
As soon as the UP or DOWN button is pressed
the display stops blinking. If the UP or DOWN
button is held the time display accelerates up to
half-hour steps.
Current UP time is displayed. UP arrow blinks.
After new initialising: factory setting UP time
(=> 07:00h).
If the UP or DOWN button is held the time display
accelerates up to half-hour steps. UP arrow
blinks.
Current DOWN time is displayed. DOWN arrow
blinks. After new initialising: factory setting DOWN
time (=> 21:00h)
If the UP or DOWN button is held the time display
accelerates up to half-hour steps. DOWN arrow
blinks.
Exit from programming mode; time and selected
mode are displayed.
Factory settings
If the RESET button is pressed all values return to the factory settings:
Daily programme: UP 07:00h, DOWN 21:00h
Time: 12:00h
Function mode: man
Terminal
Technical appliances data
Nom. operating voltage: 230V / 50 Hz
Switching voltage: 250V AC
Switching contact load: 3A (cos phi=1)
:
Temperature range
Travel time: 2,5 min.
Switching delay: min. 0,5 sec.
Accuracy: < 5 sec./day
Reserve power: min. 1 hrs.
Degree of protection: IP20
Safety class: II
Conformity: CE
-5°C to +45°C
Pressing the Mode button switches through all possible function modes
successively. You can select from 3 modes:
man Manual control
auto Automatic (daily programme)
Automatic (daily programme) + random generator
In the automatic mode the shutters are raised or lowered automatically at
the programmed times.
Touch the direction buttons (about 1 sec.) to slant the blind slats. The
system remains in the Automatic mode.
If the random generator is activated the programmed UP and DOWN times
are moved back randomly by 1 - 31 minutes.
Possible function modes
Inching mode
Random generator
ATTENTION! Work on the 230V supply may only be carried out by a certified electrician!
Operating instruction DUOMATIC 50 A
Wall plate
Combination frame
Duomatic 50 A
Compatibility list (colour: ultra white, RAL 9010)
Manufacturer Switch programme DIN subframe Colour
Carat / Solo / Future Central disc Studio white 1746/10-84
Busch-Jaeger
Berker
GIRA
Merten
JUNG
Hager
presto vedder
PEHA
ELSO
Popp
Impuls Central disc Alpine white 1746/10-74
Reflex SI Central disc Alpine white 1746-214-101
alpha nea / exclusive Central disc Alabaster/studio white 1746/10-24G
Modul 2 Intermediate ring Polar white 1109 09
S.1 / B.1 / B.3 / B.7 Glas Adapter ring Polar white 1109 19 89
K.1 / K.5 Adapter ring Polar white 1108 71 09
Arsys Intermediate ring Polar white 1108 01 69
Standard 55
E 2 / E22 / Event / Esprit
Flaechenschalter Intermediate plate Pure white N0282 112
S-Color Intermediate plate Pure white 0282 40
Artec Intermediate ring Polar white 5160 99
M1 / Atelier Intermediate ring Polar white 517119
M-SMART / M-STAR Intermediate ring Polar white 518119
M-PLAN / M-ARC Intermediate ring Polar white 518119
CD 500 Intermediate frame Alpine white CD 590 ZA WW
A 500 / AS 500 / A plus Intermediate frame Alpine white A 590 Z WW
LS-design Intermediate frame Alpine white LS 961 Z WW
Kallysto.pur / .stil / .art Intermediate frame Brilliant white WYA550
Regina Cover Ultra white 7030 R UW
Alessa Cover Ultra white 2030 R UW
Fiorena Cover Ultra white 3030 R UW
Standard Central plate Pure white 219711
Dialog Central plate Pure white 819511
Aura Central plate Pure white 117511
RIVA / Scala / Fashion Combination frame Pure white 203084
Novia Combination frame Pure white 283164
Forever Intermediate frame Pure white 729811
Pallas Intermediate frame Pure white 729842
Intermediate plate Pure white 0282 03
Intermediate plate Pure white 0282 03
The appliance's mounting dimensions of 50x50 mm enable it
to be installed in most standard switch programmes from
leading switch manufacturers.
For this purpose the timer's combination frame has to be
replaced by the respective manufacturer's DIN subframe or
cover frame.
The following table contains a selection of matching
intermediate subframes.
Because all manufacturers have their own colour ranges
slight difference in shade between the appliance and the
subframe / cover frame may occur.
Information for the electrician!
Please use a deep switch box to install the timer. Make
sure that the cables do not stop the appliance from
clicking in place correctly.
Manufacturer’s
art. no.
DUOMATIC 50 A_Rev_2_ENG
