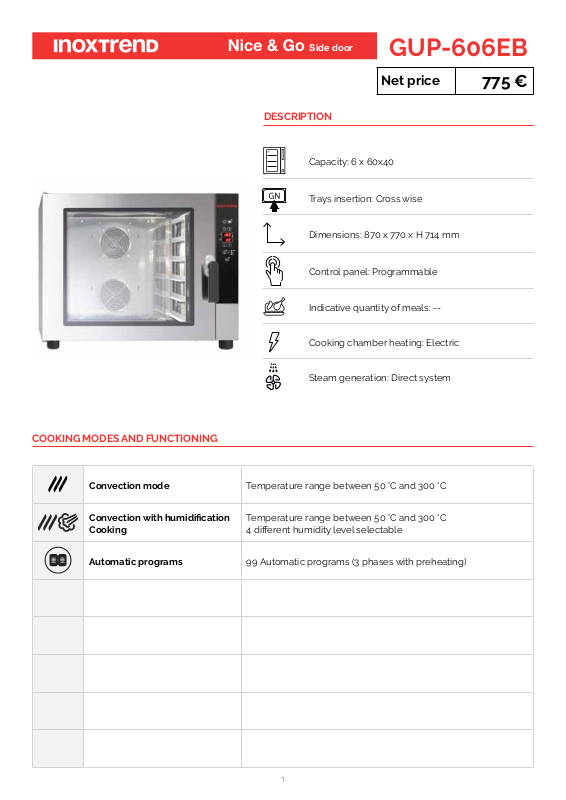

Page 1
Side door
GUP-606EB
DESCRIPTION
Capacity: 6 x 60x40
Trays insertion: Cross wise
Dimensions: 870 x 770 x H 714 mm
Control panel: Programmable
Indicative quantity of meals: --
Cooking chamber heating: Electric
Net price
775 €
COOKING MODES AND FUNCTIONING
Convection mode Temperature range between 50 °C and 300 °C
Convection with humidication
Cooking
Automatic programs 99 Automatic programs (3 phases with preheating)
Steam generation: Direct system
Temperature range between 50 °C and 300 °C
4 dierent humidity level selectable
1
Page 2
Side door
GUP-606EB
COMPONENT DESCRIPTION ON THE
PROGRAMMABLE CONTROL PANEL
ON/OFF button
Temperature display
Time display
Cooking chamber temperature selection
Time selection
Program phases
Humidication selection
MANUFACTURING FEATURES
- Heating system located on the back side of the cooking chamber;
- Waterproof cooking chamber in stainless steel AISI 304;
- Cooking chamber with external welding;
- External covering panels made of satin stainless steel;
Increase value button
Reduce value button
Automatic programs
Start/stop button
- Base chassis made of stainless steel;
- Heating elements made of stainless steel Incoloy 800;
- Thermal insulation of the cooking chamber in ceramics bre;
- Cooking chamber fans made of stainless steel;
2
Page 3
OPTIONAL ACCESSORIES
Code Description
S-31G Stand
S-31G8 Stand H 85 cm
SG-31G8 Stand with tray holder
Side door
GUP-606EB
DIMENSIONS
OVEN PACKAGE
Width 870 mm 908 mm
Depth (with
door handle)
Height 714 mm 902 mm
Weight 85 kg
770 mm 782 mm
POWER SUPPLY
Model GUP-606EB
WATER SUPPLY
Water supply coupling Ø ¾” gas
Water pressure 1.5 - 2.5 bar
Water hardness 4 - 12 °f = 40 - 120 ppm
Water conductivity 50 e 2000 µS/cm
Chlorine concentr. Cl2 < 0.2 mg/litre
Chloride concentration < 150 mg/litre
Water drain coupling Ø 32 mm
Power loading 11.4 kW
Chamber power 11.0 kW
Grill power --
Power of the motors n° 2 x 100 W
Max. power loading 11.4 kW
Voltage 380 - 415 V +3N ~ 50/60 Hz
Absorbed current 20.0 A
Feed cable section n° 5 x 4.0 mm
Capacity 6 x 60x40
Pitch between trays 75 mm
2
3
Page 4
Side door
GUP-606EB
770
255615
A
C
12048810061
B
120630120
870
585
491
101
17639
58
A Electrical cables connection
B Water inlet Ø 3/4” gas
C Water drain coupling
D Cooking chamber release valve
61
647
C
B
4
A
277
D
708
691 17
770
414
1435
61
INOXTREND declines all responsibility due to errors and/or misprints.
