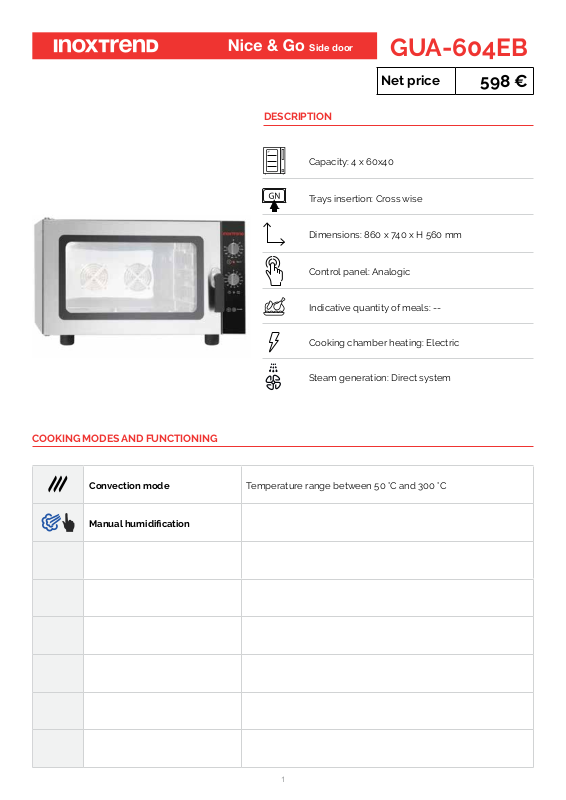

Side door
GUA-604EB
DESCRIPTION
Capacity: 4 x 60x40
Trays insertion: Cross wise
Dimensions: 860 x 740 x H 560 mm
Control panel: Analogic
Indicative quantity of meals: --
Cooking chamber heating: Electric
Net price
598 €
COOKING MODES AND FUNCTIONING
Convection mode Temperature range between 50 °C and 300 °C
Manual humidication
Steam generation: Direct system
1
Page 2
Side door
GUA-604EB
COMPONENT DESCRIPTION ON THE
ELECTRONIC CONTROL PANEL
Cooking chamber thermostat
Heating cooking chamber ON pilot light
0
50
300
275
250
225
200
120
110
100
90
80
75
100
125
150
175
Temp ˚C
0
10
20
30
40
50
60
70
Oven
Timer
Humidity
Timer
Timer ON pilot light
Manual humidication
MANUFACTURING FEATURES
- Heating system located on the back side of the cooking chamber;
- Waterproof cooking chamber in stainless steel AISI 304;
- Cooking chamber with external welding;
- External covering panels made of satin stainless steel;
- Base chassis made of stainless steel;
- Heating elements made of stainless steel Incoloy 800;
- Thermal insulation of the cooking chamber in ceramics bre;
- Cooking chamber fans made of stainless steel;
2
Page 3
Side door
OPTIONAL ACCESSORIES
Code Description
S-31G Stand
S-31G8 Stand H 85 cm
SG-31G Stand with tray holder

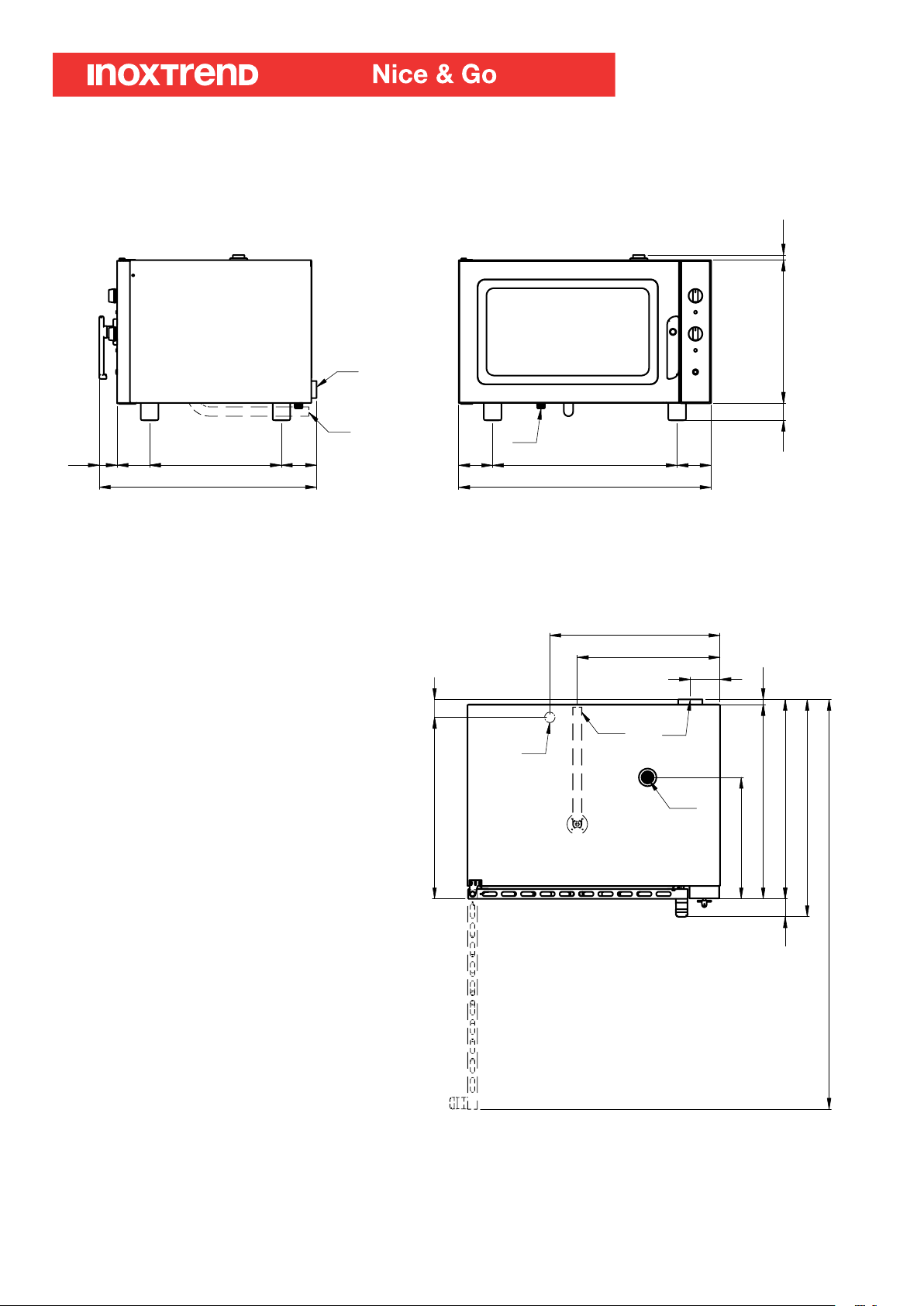

DIMENSIONS WATER SUPPLY
GUA-604EB
OVEN PACKAGE
Width 862 mm 900 mm
Depth (with
door handle)
Height 564 mm 752 mm
Weight 59 kg
742 mm 760 mm
POWER SUPPLY
Model GUA-604EB
Power loading 6.4 kW
Chamber power 6.0 kW
Water supply coupling Ø ¾” gas
Water pressure 1.5 - 2.5 bar
Water hardness 4 - 12 °f = 40 - 120 ppm
Water conductivity 50 e 2000 µS/cm
Chlorine concentr. Cl2 < 0.2 mg/litre
Chloride concentration < 150 mg/litre
Water drain coupling Ø 32 mm
Grill power --
Power of the motors n° 2 x 100 W
Max. power loading 6.4 kW
Voltage 380 - 415 V +3N ~ 50/60 Hz
Absorbed current 11.0 A
Feed cable section n° 5 x 2.5 mm
Capacity 4 x 60x40
Pitch between trays 75 mm
2
3
Page 4
Side door
A
GUA-604EB
17
489
742
C
12045011061
61
619
B
116630116
862
581
487
101
C
B
A
D
58
17
680
663
742
414
A Electrical cables connection
B Water inlet Ø 3/4” gas
C Water drain coupling
D Cooking chamber release valve
1399
61
INOXTREND declines all responsibility due to errors and/or misprints.
