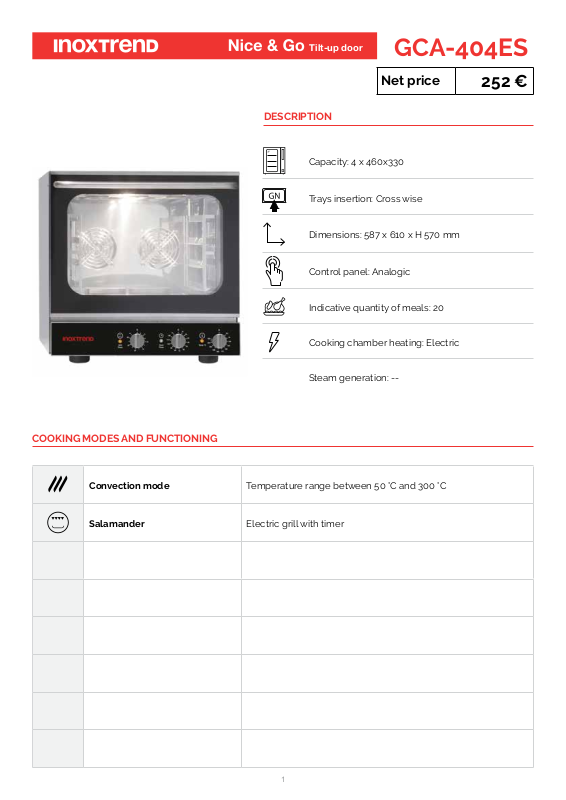

Page 1
Tilt-up door
GCA-404ES
DESCRIPTION
Capacity: 4 x 460x330
Trays insertion: Cross wise
Dimensions: 587 x 610 x H 570 mm
Control panel: Analogic
Indicative quantity of meals: 20
Cooking chamber heating: Electric
Net price
252 €
COOKING MODES AND FUNCTIONING
Convection mode Temperature range between 50 °C and 300 °C
Salamander Electric grill with timer
Steam generation: --
1
Page 2
Tilt-up door
COMPONENT DESCRIPTION ON THE ELECTRONIC CONTROL PANEL
GCA-404ES
F
Cooking chamber thermostat
Heating cooking chamber ON pilot light
Timer
Timer ON pilot light
Grill timer
Grill timer ON pilot light
DE
C
AB
MANUFACTURING FEATURES
- Heating system located on the back side of the cooking chamber;
- Waterproof cooking chamber in stainless steel;
- Cooking chamber with external welding;
- External covering panels made of satin stainless steel;
- Base chassis made of stainless steel AISI;
- Heating elements made of stainless steel Incoloy 800;
- Thermal insulation of the cooking chamber in ceramics bre;
- Cooking chamber fans made of stainless steel;
2
Page 3
Tilt-up door
OPTIONAL ACCESSORIES
Code Description
S-33G8 Stand
SG-33G8 Stand with tray-slides
DIMENSIONS WATER SUPPLY
GCA-404ES
OVEN PACKAGE
Pallet 12 units
Width 587 mm 1.200 mm
Depth (with
door handle)
Height 570 mm 2.000 mm
Weight 40 kg
610 mm 1.350 mm
POWER SUPPLY
Model GCA-404ES
Power loading 3.5 kW
Chamber power 2.8 kW
Water supply coupling --
Water pressure
Water hardness
Water conductivity
Chlorine concentr. Cl2
Chloride concentration
Water drain coupling --
Grill power 0.7 kW
Power of the motors n° 2 x 50 W
Max. power loading 3.3 kW
Voltage 220-240 V 1N ~ 50/60 Hz
Absorbed current 5.0 A
Feed cable section Electric cable included
Capacity 4 x 460x330
Pitch between trays 70 mm
3
Page 4
631
Tilt-up door
78
D
50
A
GCA-404ES
547
570
404
23
583
63 50
23
88382888142547
587
A
D
30
55348
631
A Electrical cables connection
D Cooking chamber release valve
INOXTREND declines all responsibility due to errors and/or misprints.
4
