DRAFT VERSION
Adding a FA5230–Meter Pair to the System
Making the Hardware Connection
Each water meter in the TapWatch syst em is paired with an
FA5230 Pulse Meter Transmitter.
The f un c tion of the F A5230 is t o c ount r eed swit ch c losures from th e m eter magn et, digitiz e th is
count in an Inovon ic s formatted RF m es s age and broadcas t it at 900MHz.
Fi gure 1a: FA5230 f its i nside th e met er housing…
Fi gure 1b: FA5230 is not visible w ith meter in st alled.
97789
2000 Inovonics Corporation.
All rights reserved.
Revised 4/25/ 00
DRAFT VERSION
Programming the FA5230—M eter Pair
1. Confirm t hat th e bat tery is installed in th e FA5230.
2. Go to the ‘Registered Meters’ tab of the Site Information editor.
3. Click ‘Add’ on the ‘Registered Meters’ page making sure that the desired building is selected
in the drop-down box.
4. Complete the ‘Add New Meter To...’ form when it appears.
5. Clic k the ‘Register’ bu tton.
6. When prom pt ed, pres s th e r es et b utton on t he F A5230 b eing registered and wait for
con firmation th at the F A5230–Meter pair has been logg ed t o th e system.
7. Repeat steps 1- 6 to ad d add ition al FA5230–Meter pairs to the system.
Clicking the ‘Add’ button on the Registered Meters page initiates the software for adding a
FA5230–Meter p air to the b uild ing that is s elected in t he drop-d own box.

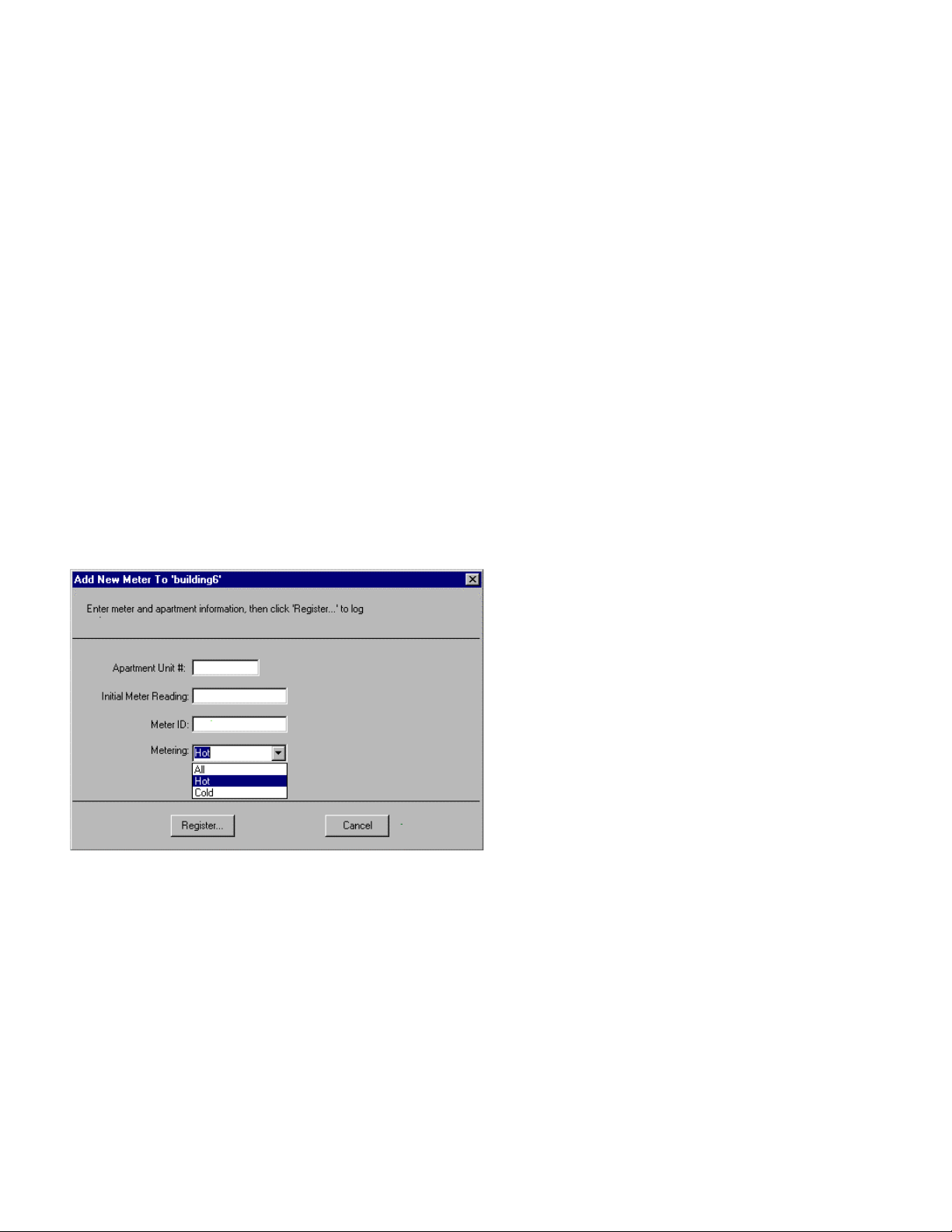

For exampl e, Figu r e 2 s hows th e s c r een t hat appears when th e Ad d bu tton is press ed.
Figure 2: Add New Meter
Apartment #
Initia l Meter
Reading
Meter ID
Metering
Five-character (or less)
alphanumeric identifier f or
the location of the FA5230—
Meter pair.
The number that appears on
the meter dial at registration
time.
An alphanumeric identifier for
the meter (optional).
A drop-dow n box indicating
whether the meter is
monitoring hot, cold, or all
water.
When all text boxes are filled properly, click ‘Register’ to enter the registration mode. A registration
box then appears, prompting you to press the reset button on the transmitter.
Once the t r ansm itter ’s r es et mess age is r ec eived by t he F A403 receiver, it is passed t o th e P C. The
FA5230–Meter p air is logged into th e syst em and reg istration is complete.
97789
Pag e 2 4/25/ 00
