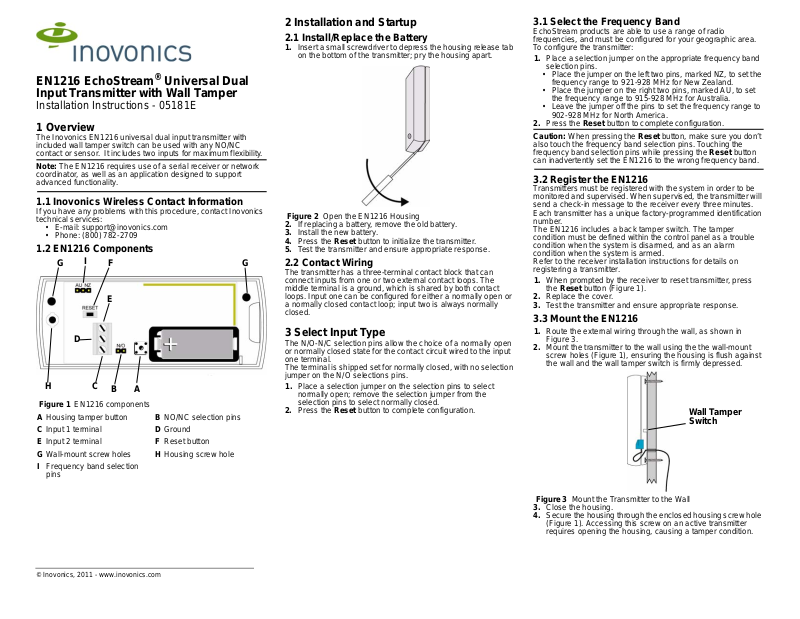

EN1216 EchoStream® Universal Dual

A

B

C

F

G

G

H

I

E

D

Wall Tamper
Switch

Input Transmitter with Wall Tamper

Installation Instructions - 05181E

1 Overview

The Inovonics EN1216 universal dual input transmitter with
included wall tamper switch can be used with any NO/NC
contact or sensor. It includes two inputs for maximum flexibility.

Note: The EN1216 requires use of a serial receiver or network
coordinator, as well as an application designed to support
advanced functionality.

1.1 Inovonics Wireless Contact Information

If you have any problems with this procedure, contact Inovonics
technical services:

• E-mail: [e-mail]

• Phone: [phone]

1.2 EN1216 Components

Figure 1 EN1216 components

A Housing tamper button B NO/NC selection pins
C Input 1 terminal D Ground
E Input 2 terminal F Reset button
G Wall-mount screw holes H Housing screw hole
I Frequency band selection

pins

© Inovonics, 2011 - www.inovonics.com

2 Installation and Startup

2.1 Install/Replace the Battery

1. Insert a small screwdriver to depress the housing release tab

on the bottom of the transmitter; pry the housing apart.

Figure 2 Open the EN1216 Housing

2. If replacing a battery, remove the old battery.

3. Install the new battery.

4. Press the Reset button to initialize the transmitter.

5. Test the transmitter and ensure appropriate response.

2.2 Contact Wiring

The transmitter has a three-terminal contact block that can
connect inputs from one or two external contact loops. The
middle terminal is a ground, which is shared by both contact
loops. Input one can be configured for either a normally open or
a normally closed contact loop; input two is always normally
closed.

3 Select Input Type

The N/O-N/C selection pins allow the choice of a normally open
or normally closed state for the contact circuit wired to the input
one terminal.
The terminal is shipped set for normally closed, with no selection
jumper on the N/O selections pins.

1. Place a selection jumper on the selection pins to select
normally open; remove the selection jumper from the
selection pins to select normally closed.

2. Press the Reset button to complete configuration.

3.1 Select the Frequency Band

EchoStream products are able to use a range of radio
frequencies, and must be configured for your geographic area.
To configure the transmitter:

1. Place a selection jumper on the appropriate frequency band
selection pins.

• Place the jumper on the left two pins, marked NZ, to set the
frequency range to 921-928 MHz for New Zealand.

• Place the jumper on the right two pins, marked AU, to set
the frequency range to 915-928 MHz for Australia.

• Leave the jumper off the pins to set the frequency range to
902-928 MHz for North America.

2. Press the Reset button to complete configuration.
Caution: When pressing the Reset button, make sure you don’t

also touch the frequency band selection pins. Touching the
frequency band selection pins while pressing the Reset button
can inadvertently set the EN1216 to the wrong frequency band.

3.2 Register the EN1216

Transmitters must be registered with the system in order to be
monitored and supervised. When supervised, the transmitter will
send a check-in message to the receiver every three minutes.
Each transmitter has a unique factory-programmed identification
number.
The EN1216 includes a back tamper switch. The tamper
condition must be defined within the control panel as a trouble
condition when the system is disarmed, and as an alarm
condition when the system is armed.
Refer to the receiver installation instructions for details on
registering a transmitter.

1. When prompted by the receiver to reset transmitter, press
the Reset button (Figure 1).

2. Replace the cover.

3. Test the transmitter and ensure appropriate response.

3.3 Mount the EN1216

1. Route the external wiring through the wall, as shown in

Figure 3.

2. Mount the transmitter to the wall using the the wall-mount
screw holes (Figure 1), ensuring the housing is flush against
the wall and the wall tamper switch is firmly depressed.

Figure 3 Mount the Transmitter to the Wall

3. Close the housing.

4. Secure the housing through the enclosed housing screw hole

(Figure 1). Accessing this screw on an active transmitter
requires opening the housing, causing a tamper condition.

4 Specifications

Dimensions: 3.5x1.7x0.9" (89x43x23 mm)
Weight: 3 oz (85g)
External contacts: NO or NC
Distance, external contact to EN1216: 10feet (3 meters)

maximum

Typical battery life: 3-5 years
Battery type (BAT604): Panasonic CR123A or equivalent
Operating environment: -20 to 60°C (-4 to 140°F),

noncondensing
Note: Specifications and data are subject to change without

notice.

5 Television and Radio Interference

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and
receiver.

• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician
for help.

part of the warranted Product. Inovonics will not be responsible
for dismantling and/or reinstallation charges. To exercise the
warranty, the User ("User", "Installer" or "Consumer") must work
directly through their authorized distributor who will be given a
Return Material Authorization ("RMA") Number by Inovonics.
Details of shipment will be arranged directly through the
authorized distributor.
This warranty is void in cases of improper installation, misuse,
failure to follow installation and operating instructions, alteration,
accident or tampering, and repair by anyone other than
Inovonics.
This warranty is exclusive and expressly in lieu of all other
warranties, obligations or liabilities, whether written, oral,
express, or implied. There is no warranty by Inovonics that
Inovonics product will be merchantable or fit for any particular
purpose, nor is there any other warranty, expressed or implied,
except as such is expressly set forth herein. In no event shall
Inovonics be liable for an incidental, consequential, indirect,
special, or exemplary damages, including but not limited to loss
of profit, revenue or contract, loss of use, cost of down time, or
interruption of business, nor any claim made by distributor's
customers or any other person or entity.
This warranty will not be modified or extended. Inovonics does
not authorize any person to act on its behalf to modify or extend
this warranty. This warranty will apply only to Inovonics Products.
Inovonics will not be liable for any direct, incidental or
consequential damage or loss whatsoever, caused by the
malfunction of Product due to products, accessories, or
attachments of other manufacturers, including batteries, used in
conjunction with Inovonics Product.

6 FCC Part 15 and Industry Canada
Compliance

This device complies with part 15 of the FCC Rules and Industry
Canada license-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le
fonctionnement.

7 Warranty and Disclaimer

Note: Changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority
to operate the equipment.

Inovonics Wireless Corporation ("Inovonics") warrants its
EchoStream products ("Product" or "Products") to conform to its
own specifications and to be free of defects in materials and
workmanship under normal use for a period of thirty-six (36)
months from the date of manufacture. Within the warranty
period, Inovonics will repair or replace, at its option, all or any

© Inovonics, 2011 - www.inovonics.com
