Page 1

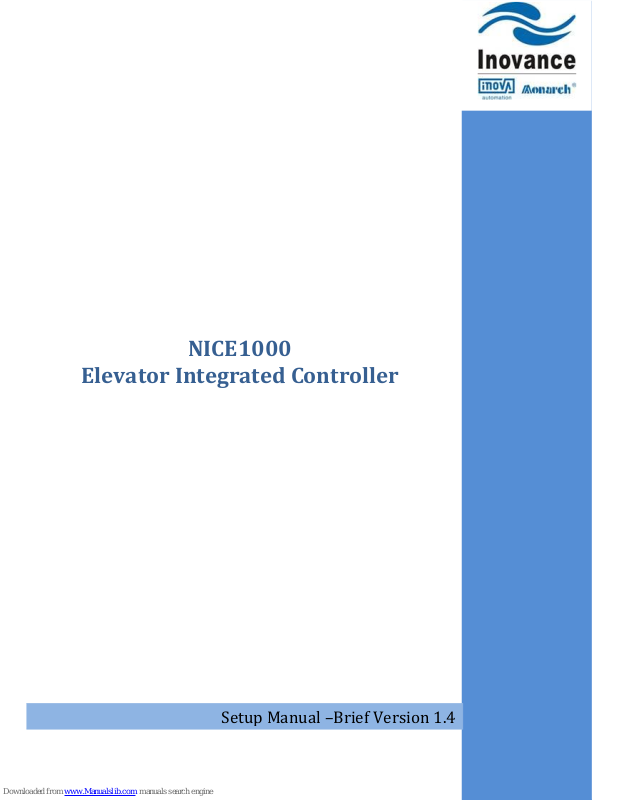

Setup Manual

–

Brief Version 1.

NICE1000

Elevator Integrated Controller

Page 2

Page 1 of 49

Version : 1.4 Date of issue : 03-07-14

Content

Sr. No

Subject

Page

1 Safety Information and Precautions --------------------------------------------------------

2 2

NICE1000 Product Details --------------------------------------------------------------------------

7 2.1

NICE 1000 Product Information --------------------------------------------------------------------

2.2

Dynamic Brake Resistor (DBR) for NICE 1000 --------------------------------------------------

9 2.3

Electrical Wiring of NICE 1000 ---------------------------------------------------------------------

2.3.1 Power Terminal Connection and Terminal Function --------------------------------------

2.3.2 MCTC-MCB-A main control panel wiring instruction -----------------------------------

2.3.3 MCTC-KZ-B Expansion Board Details -----------------------------------------------------

2.3.4 Motor shaft Feedback device (Encoder) wiring details -----------------------------------

14 3

Operating LED keypad for NICE 1000 system ---------------------------------------------------

17 3.1

Viewing and operation instruction of Function Code using operating Keypad ---------------

3.2

Groups of function parameters ----------------------------------------------------------------------

18 4

Identify the NICE 1000 control Panel components -----------------------------------------------

19 5

Initial Start Up procedure ----------------------------------------------------------------------------

21 5.1

Verification of different voltage level sources ----------------------------------------------------

5.2

Input and Output functional sequence of MCTC-MCB-G of NICE 1000 ---------------------

24 5.3

Software version verification --------------------------------------------------------------------

24 5.4

Sequence for Input terminal functions while Initial Lift start-Up --------------------------

25 5.5

NICE 1000 Parameter Adjustment -----------------------------------------------------------------

26 5.6

Motor Tuning process --------------------------------------------------------------------------------

5.7

Inspection Running -----------------------------------------------------------------------------------

Normal/High Speed operation ----------------------------------------------------------------------

30 6.1

Elevator Shaft Learning Process -------------------------------------------------------------------

30 6.2

Proceed for Door operator commissioning -----------------------------------------------

6.2.1 For Auto Door ---------------------------------------------------------------------------------

6.2.2 For Manual Door Setup Procedure ----------------------------------------------------------

35 6.3

Normal operation & its signal verification --------------------------------------------------------

36 6.4

Floor Level Adjustment -----------------------------------------------------------------------------

37 6.5

Car & Landing Calls configuration ----------------------------------------------------------------

37 7

Floor display Setting ------------------------------------------------------------------------------

39 8

ARD function using UPS ready -----------------------------------------------------------------

40 9

Load Weigh Function ----------------------------------------------------------------------------

Ride Comfort Fine Tuning -----------------------------------------------------------------------

10.1

Starting Jerk -------------------------------------------------------------------------------------------

10.2

Vibration While Starting ----------------------------------------------------------------------------

10.3

Vibration or Jerk during running -------------------------------------------------------------------

11 Fault codes – Causes – Remedies -----------------------------------------------------------

Page 3

Page 2 of 49

Version : 1.4 Date of issue : 03-07-14

1. Safety Information and Precautions

In this manual, the notices are graded based on the degree of danger:

DANGER indicates that failure to comply with the notice will result in severe personal injury or even

death.

WARNING indicates that failure to comply with the notice will result in potential risk of severe

personal injury or even death.

CAUTION indicates that failure to comply with the notice will result in minor or moderate personal

injury or equipment damage. In addition, NOTE appearing in other chapters indicates that an unintended result or situation may occur if the notice is not complied with. The notices in this manual you have to observe are aimed at guaranteeing your personal safety, as well as to prevent damage to the controller or the parts connected to it. Read this manual carefully so that you have a thorough understanding and perform all operations by following the notices in this chapter. Monarch will assume no liability or responsibility for any injury or loss caused by improper operation.

1.1 Safety Precautions

USE

STAGE

SAFETY

GRADE

PRECAUTIONS

Warning

WARNING

 This controller has hazardous high voltage and the controlled motor

is a dangerous rotating device. Failure to comply with the notices may result in personal injury or damage to the property.

 Transportation, installation, operation and maintenance of the

controller can be performed only by qualified personnel after they get familiar with the safety information in this manual. This is the prerequisite of safe and stable running of the equipment.

 Do not open the front cover or touch the power terminals on the

main circuit within 10 minutes after the controller is powered off. The capacitor on the DC circuit still has residual high voltage even after power-off. Failure to comply will result in electric shock.

During Installation

DANGER

 Do not install the equipment if you find water seepage,

component missing or damage upon unpacking.

 Do not install the equipment if the packing list does not conform

to the product you received.

 Install the equipment on incombustible objects such as metal, and

keep it away from combustible materials. Failure to comply may result in a fire.

Page 4

Page 3 of 49

Version : 1.4 Date of issue : 03-07-14

WARNING

 Do not loosen the fixed screws of the components, especially the

screws with red mark.

 Do not install the controller on vibrating parts. Failure to comply

may result in damage to the equipment or unexpected accidents

CAUTION

 Handle the equipment with care during transportation to prevent

damage to the equipment.

 Do not drop wire end or screw into the controller. Failure to

comply will result in damage to the controller.

 Do not use the equipment with damaged or missing components.

Failure to comply will result in personal injury.

 Do not touch the components with your hands. Failure to comply

will result in static electricity damage.

 Install the controller in places free of vibration and direct

sunlight.

At Wiring

DANGER

 Wiring must be performed only by qualified personnel under

instructions described in this manual. Failure to comply may result in unexpected accidents.

 A circuit breaker must be used to isolate the power supply and

the controller. Failure to comply may result in a fire.

 Ensure that the power supply is cut off before wiring. Failure to

comply may result in electric shock.

 Tie the controller to ground properly by standard. Failure to

comply may result in electric shock

WARNING

 Never connect the power cables to the output terminals (U,V, W)

of the controller. Pay attention to the marks of the wiring terminals and ensure correct wiring. Failure to comply will result in damage to the controller.

 Never connect the braking resistor between the DC bus terminals

(+) and (-). Failure to comply may result in a fire.

CAUTION

 Ensure that the cabling satisfies the EMC requirements and the

regional safety standard. Use wire sizes recommended in the manual. Failure to comply may result in accidents.

 Use a shielded cable for the encoder, and ensure that the shield is

reliably grounded at one end.

 Use a twisted cable with twisted distance of 20−30 mm as the

communication cable, and ensure that the shield is reliably grounded.

During running

DANGER

 All peripheral devices must be connected properly according to

the circuit wiring instructions provided in this manual. Failure to comply will result in accidents.

 Cover the controller properly before power-on to prevent electric

shock.

 Do not open the controller’s cover after power-on. Failure to

comply may result in electric shock.

 Do not touch the controller and peripheral circuits with wet hand.

Failure to comply may result in electric shock.

 Do not touch any I/O terminal of the controller. Failure to comply

may result in electric shock.

 The controller performs safety detection on external strong power

circuits automatically at the beginning of power-on. Do not touch the U, V, W terminals of the controller or the motor terminals at

Page 5

Page 4 of 49

Version : 1.4 Date of issue : 03-07-14

the moment. Failure to comply may result in electric shock.

 Do not touch the fan or the discharging resistor to check the

temperature. Failure to comply will result in personal burnt.

 Signal detection must be performed only by qualified personnel

during operation. Failure to comply will result in personal injury or damage to the controller.

WARNING

 Do not touch the rotating part of the motor during the motor auto-

tuning or running. Failure to comply will result in accidents.

 Check that the following requirements are met  The voltage class of the power supply is consistent with the rated

voltage class of the controller.

 The input terminals (R, S, T) and output terminals (U, V, W) are

properly connected.

 No short-circuit exists in the peripheral circuit.  The wiring is secured. Failure to comply will result in damage to

the controller.

CAUTION

 For synchronous motor, ensure that motor auto-tuning is

performed successfully. Perform trial running before resuming the steel rope so as to make the motor run properly.

 Avoid objects falling into the controller when it is running.

Failure to comply will result in damage to the controller.

 Do not perform the voltage resistance test on any part of the

controller because such test has been done in the factory. Failure to comply will result in accidents.

 Do not change the default settings of the controller. Failure to

comply will result in damage to the controller.

 Do not start/stop the controller by opening or closing the

contactor. Failure to comply will result in damage to the controller. Failure to comply will result in damage to the controller.

During maintenance

DANGER

 Do not repair or maintain the controller at power-on. Failure to

comply will result in electric shock.

 Repair or maintain the controller when its voltage is lower than

36 VAC, about two minutes after the controller is powered off. Otherwise, the residual voltage in the capacitor may result in personal injury.

 Do not allow unqualified personnel to repair or maintain the

controller. Failure to comply will result in personal injury or damage to the controller.

WARNING

 Repair or maintenance of the controller may be performed only

by the centre authorized by Monarch or qualified personnel. Failure to comply will result in personal injury or damage to the controller.

 Power supply must be cut off before repair or maintenance of the

controller.

CAUTION

Set the parameters again after the controller is replaced. All the pluggable components must be plugged or removed only after power-off. Strictly obey the laws and regulations and repair and maintain the elevator

Page 6

Page 5 of 49

Version : 1.4 Date of issue : 03-07-14

equipment periodically. Only timely troubleshooting can ensure the safety of passengers.

Disposal

CAUTION

The packaging materials, screws and terminal blocks can be re-used and it is suggested that you keep them well for future use.

WARNING

The electrolytic capacitors on the main circuits and PCB may explode when they are burnt. Poisonous gas is generated when the plastic parts are burnt. Treat them as ordinary industrial waste.

1.2 General Precautions

1. Motor insulation test

Perform the insulation test when the motor is used for the first time, or when it is reused after being stored for a long time, or in a regular check-up, in order to prevent the poor insulation of motor windings from damaging the controller. The motor must be disconnected from the controller during the insulation test. A 500-V megaOhm meter is recommended for the test. Ensure that the insulation resistance is not less than 5 MΩ.

2. Thermal protection of the motor

If the rated capacity of the motor selected does not match that of the controller, especially when the rated power of the controller is greater than that of the motor, adjust the motor protection parameters on the operation panel of the controller or install a thermal relay for the motor circuit for protection.

3. Motor heat and noise

The output of the controller is pulse width modulation (PWM) wave with certain harmonic wave, and therefore, the motor temperature rise, noise, and vibration are slightly greater than those at running with the power frequency (50 Hz).

4. Voltage-sensitive device or capacitor on the output side of the controller

The controller outputs PWM waves, and therefore, do not install the capacitor for improving power factor or lightning protection voltage-sensitive resistor on the output side of the controller. Otherwise, the controller may suffer transient overcurrent or even be damaged.

5. Contactor on the input and output sides of the controller

When a contactor is installed between the input side of the controller and the power supply, the controller must not be started or stopped by opening or closing the contactor. When a contactor is installed between the output side of the controller and the motor, do not open or close the contactor when the controller has output. Otherwise, modules inside the controller may be damaged.

6. Use outside the rated voltage

The controller must not be used outside the allowable voltage range specified in this manual. Otherwise, components inside the controller may be damaged. If required, use a corresponding voltage step-up or stepdown device.

Page 7

Page 6 of 49

Version : 1.4 Date of issue : 03-07-14

7. Surge suppressor

The controller has a built-in voltage dependent resistor (VDR) for suppressing the surge voltage generated when the inductive loads (electromagnetic contactor, electromagnetic relay, solenoid valve, electromagnetic coil and electromagnetic brake) around the controller are switched on or off. If the inductive loads generate very high surge voltage, use a surge suppressor for the inductive load or also use a diode.

Note

Do not connect the surge suppressor on the output side of the controller.

8. Altitude and de-rating

In places where the altitude is above 1000 m and the cooling effect reduces due to thin air, it is necessary to derate the controller. Contact Monarch for technical support.

9. Adaptable motor

The controller is adaptable to squirrel-cage asynchronous motor or AC PMSM. Select a proper controller according to motor nameplate. The default parameters configured inside the controller are squirrel-cage asynchronous motor parameters. It is still necessary to perform motor auto-tuning or modify the default values based on actual conditions. Otherwise, the running effect and protection performance will be affected. For PMSM, motor auto-tuning must be performed.

10. Precautions on selecting residual-current circuit breaker (RCCB)

Tripping may be caused if an improper RCCB is selected when the controller drives the motor. This is because the output wave of the controller has high harmonics and the motor cable and the cable connecting the controller and the motor produce leakage current, which is much larger than the current when the motor runs at power frequency (50 Hz). Thus, it is necessary to determine the proper RCCB sensitivity based on the general leakage current of the cables and the motor. The leakage current is dependent on the motor capacity, cable length, insulation class and wiring method. Generally, the leakage current on the output side of the controller is three times of the current when the motor runs at power frequency (50 Hz).

1.3 Protective Functions

Adopting different protective functions for different levels of faults, the NICE1000 provides the elevator running system with full abnormality protection. For detailed solutions to the faults, Faults of the controller are classified as follows:

1. Speed abnormal

The controller monitors the encoder feedback speed and output torque. Once the feedback speed exceeds the limit or the deviation between the torque limit and the speed feedback is too large, the controller performs protection immediately, reports an alarm and prohibits running.

2. Drive control abnormal

The related faults include drive overcurrent, overvoltage/under voltage, power input/ output phase loss, overload, and storage abnormality. If such a fault occurs, the controller performs protection immediately, stops output, applies the brake and prohibits running.

Page 8

Page 7 of 49

Version : 1.4 Date of issue : 03-07-14

3. Encoder abnormal

The related faults include encoder phase loss, direction reversing, wire-breaking, and pulse interference. If such a fault occurs, the controller performs protection immediately to avoid unexpected accidents. If pulse interference is large, the controller reports an alarm immediately. If pulse interference is small, the controller performs position correction every time it receives a levelling signal and clears the accumulative error.

4. Levelling sensor abnormal

The related faults include sensor failure or sensor stuck. The controller judges whether a fault occurs based on the levelling signal change. If the levelling signal does not change within the set time, the system reports an alarm.

5. Floor data abnormal

The system stores the floor information through the shaft auto-tuning. If the floor data is abnormal, the system prompts the fault information at the first-time running. During actual running, the controller continuously compares position information input by Dis with the stored floor data. If the deviation is large, the system reports an alarm.

Note:-

This commissioning setup manual is to be referred along with the NICE1000 Electrical Drawing and User Manual.

2. NICE1000 Product Details:

 NICE 1000 is an Integrated Elevator Controller.  Adapts complete parallel modes for signal transfer and combines the advantage of high

stability, easy using, free of debugging.

 NICE1000 is suitable for speed up to 1m/sec.  Standard NICE1000 supports the full selective application for 6 floors  With Expansion board it can support up to 9 Floors full selective application.

Separate NICE 1000 Integrated Controller models are available for both Synchronous and Asynchronous Lift Hoist Motor. As it is a closed loop system, feedback device (Motor Shaft Encoder) is must for the function.

Page 9

Page 8 of 49

Version : 1.4 Date of issue : 03-07-14

2.1 NICE 1000 Product Information: Name Designation Rules & Nameplate: Applies to both Asynchronous/Synchronous Motor.

Name Designation Rules: For example,

NICE – L – G – 40 11

Structure number ‘G’ represents for Asynchronous motor (Induction motor)

‘V’ represents for Synchronous motor

NICE series Integrated

Controller

Only applied to Lift

Applicable motor power

3-phase 440V

Structure number

Page 10

Page 9 of 49

Version : 1.4 Date of issue : 03-07-14

Nameplate:

For example Asynchronous motor Nameplate:

Synchronous Motor Nameplate:

2.2 Dynamic Brake Resistor (DBR) for NICE 1000:

External DBR is to be connected between PB and + terminals in NICE1000

System Model

Average Power of the

Braking Resistor(W)

Maximum Resistance

()

Minimum Resistance

()

NICE-L-G/V-2002

1100

130

NICE-L-G/V-2003

1600

NICE-L-G/V-4002

650

230

150

NICE-L-G/V-4003

1100

135

100

NICE-L-G/V-4005

1600

NICE-L-G/V-4007

2500

NICE-L-G/V-4011

3500

NICE-L-G/V-4015

4500

NICE-L-G/V-4018

5500

NICE-L-G/V-4022

6500

NICE-L-G/V-4030

9000

Model NICE-L-G-4005 Power 5.5KW INPUT 3PH AC380V 14.8A 50HZ/60HZ OUTPUT 3PH AC380V 13A 0~90HZ S/N Suzhou MONARCH Control Technology Co., Ltd.,

Model NICE-L-V-4005 Power 5.5KW INPUT 3PH AC380V 14.8A 50HZ/60HZ OUTPUT 3PH AC380V 13A 0~90HZ S/N Suzhou MONARCH Control Technology Co., Ltd.,

Page 11

Page 10 of 49

Version : 1.4 Date of issue : 03-07-14

2.3 Electrical Wiring of NICE 1000 Electrical wiring includes Power terminal, DBR, Main Control Board wirings, Extend board (If

present) and PG card (for Feedback device, Encoder) wirings

2.3.1 Power Terminal Connection and Terminal Function:

a) Power Circuit:

b) Terminal Function:

Terminal

Name

Description

R,S,T

3-Phase power input terminal

Input 3-phase AC415V

(+), (-)

Positive and Negative terminals of DC bus - (+), PB

Terminal for brake resistor

To connect External Brake Resistor

U,V,W

Controller Output Power Terminal

To connect the 3 phase hoist Motor

Grounding Terminal

To be connected with Earth Bus bar

 Controller output cables of U, V and W should be routed in separate metal pipe with Grounding and

apart from the Control circuit cables and Encoder cable.

 If the cables between the motor and controller are too long, Electrical resonance may occur which make

the NICE controller go into protective status.

 Grounding terminal must be connected to proper Earth point; the grounding cable should be thick and

short. The recommended grounding cable should be Yellow-Green cable above 4sq.mm with multi strand copper cores.

 Grounding resistance should be less than 4. Don’t share the earth with neutral line of the main supply.

Page 12

Page 11 of 49

Version : 1.4 Date of issue : 03-07-14

2.3.2 MCTC-MCB-A main control panel wiring instruction

a) Main Control Board Details:

Terminal Details of NICE 1000’s Main Control Board (MCB)

ER, OK, MOD LED indicator

CN6

(LED Keypad)

J11 (Expansion/PG

card)

X1~X24 Input

LED indicators

CN10, CN11

(X1~X24 Input

Terminals)

J5, J6, J8 (Jumpers)

S1 Button for

Shaft Learning

CN4, CN5

(Y6~Y22 Output

Terminals)

CN3

(XCM, X25~X27

Input Terminals)

CN3

(Y0, M0)~ (Y3,

M3) Terminals

CN2

(Encoder Input

Terminal)

CN8

(L1-L20 Call

Button Function)

L1~L20

LED indicator

Y0~Y22 Output

LED indicators

Page 13

Page 12 of 49

Version : 1.4 Date of issue : 03-07-14

Terminal functions of NICE 1000’s Main Control Board (MCB)

Page 14

Page 13 of 49

Version : 1.4 Date of issue : 03-07-14

b) Indicator light instruction of MCB:

Terminal

Name

Instruction

Error Indicator

When error occurs, ER indicator LED lit (Red)

OK indicator

When system ok, OK indicator Lit (Green)

MOD

MODBUS communication

indicator

When expansion board MODBUS communication is good, indicator lit (Green)

X1~X27

Input signal indicator

When corresponding external input is given, the corresponding indicator glows (Green)

L1~L20

Button signal collective/feedback

indicator

When call button input is given and responding the signal output, indicator lit(Green)

Y0~Y3,

Y6~Y22

Output signal Indicator

When system gives output signal, indicator lit (Green)

c) Power connection Instruction for Connector CN8 and CN10:

Terminal

Name

Description

24V

External DC24V

Input

Provide MCTC-MCB-A Main Control Board and MCTC-KZ-B Expansion Board with DC24V, for input and output circuit

COM

d) Plug-in connector CN10, CN11 and CN3 Details:

Terminal

Name

Description

X1~X24

24 V dc Digital

signal input function

selection

Digital terminal function is decided by Parameter F5-01~F5-24

XCM

External power input

Shared contact by safety circuit and lock feedback circuit, can bear the voltage ranging from AC95V~AC125V

X25~X27

110V ac Safety and

Lock feedback input

Safety circuit and lock feedback circuit can bear the voltage ranging from AC95V~AC125V. Terminal function is decided by Parameter F5-25~F5-27

Y0~Y3

Relay output

The relay outputs 5A, 250VAC or 5A, 30VDC. Terminal function is decided by Parameter F7-00~F7-03

M0~M3

Relay output

(Y0~Y3) shared

contact

M0~M3 are shared contact of corresponding to Y0~Y3

e) Plug-in connector CN4 and CN5 Details:

Terminal

Name

Description

Y6~Y22

Relay output

The relay outputs 5A, 250VAC or 5A, 30VDC and its terminal function is decided by the Parameter F7-06~F7-22

YM1~YM3

Relay output shared contact

YM1 is the shared contact for Y6~Y9, YM2 is the shared contact for Y10~Y16 and YM3 is the shared contact for Y17~Y22

f) Plug-in connector CN8 and CN9 details

Terminal

Name

Description

L1~L20

Call Button function

Button input signal connection and button light output for call registration

Page 15

Page 14 of 49

Version : 1.4 Date of issue : 03-07-14

2.3.3 MCTC-KZ-B Expansion Board Details:

The Expansion Board mainly is used for floor input call button expansion, relay out expansion, analogue weighing expansion and MODBUS communication expansion.

a) Appearance of Expansion board

The Expansion board is placed on the connector J11 of Main Control Board (MCB)

b) Connector CN12 and CN13, indicator and Jumper details of Expansion board

Terminal

Name

Description

L21~L26

Expansion call button function selection and corresponding indicators

Expansion call button input signal connection and call button registration light output

MOD+,MOD-

MODBUS communication signal

Used for MODBUS communication

Ai, M

Analog weighing input signal

0~10V analog weighing input, M is shared contact

Y4,Y5 and Y23

Additional Relay outputs with output indicators

The relay outputs 5A, 250VAC or 5A, 30VDC and corresponding function code is decided by F7-04~F7-05 and F7-23

M4,M5 and YM4

Relay output shared contacts

M4 is shared contact of Y4 and M5 is the shared contact of Y5 and YM4 is the shared contact

2.3.4 Motor shaft Feedback device (Encoder) wiring details

a) Following steps should be followed in encoder wiring:

 PG wire should be laid separately in pipe and metal enclose should be grounded and keep

distance from the control circuit and driver circuit

 PG wire should be shield wire and shield layer should connect to PE near controller. In order

to avoid being disturbed, only one side of the PG Grounding wire should be connected to the ground

b) Encoder Wiring Details:

1. Encoder connection for increment Push-Pull and Plough collector outputs

MCTC-MCB-G equipped with push-pull encoder trans-connection card, the encoder connection is as follows

Page 16

Page 15 of 49

Version : 1.4 Date of issue : 03-07-14

Connector CN2 in MCTC-MCB-A of NICE1000

2. Encoder Type Sin/Cos encoder wiring details

Page 17

Page 16 of 49

Version : 1.4 Date of issue : 03-07-14

2.2 Encoder Pin connections for ECN 413/1313 with MCTC-PG-F1 card

Synchronous Machine

B-

A+

A-

GND

B+

M5V

CLK+

CLK-

DATA+

DATA-

U5V

Red/Black

Green/Black

Grey

Yellow/Black

Yellow

Violet

Brown/Green

Blue/Black

White/Green

White

ECN413

/1313

Pin Solder side

‘D’ Type

15Pin Connector

Page 18

Page 17 of 49

Version : 1.4 Date of issue : 03-07-14

3. Operating LED keypad for NICE 1000 system:-

Key

Name

Function

Program Key

Enter or Exit the program menu

Enter Key

Enter the menu level and confirm the changed parameter value

Up/Increase Key

Increase the data and the function code

Down/Decrease Key

Decrease the data and the function code

Shift Key

Shifts the cursor to the right when in edit mode Scroll the displaying parameters circularly when the Drive is in active operation

Run Key

Enable user to starts the Drive operation when in keypad control mode

Stop/Reset Key

Enable user to stop the Drive operation when in keypad control mode Used to reset a setting or fault

Quick Key

Enter and EXIT quick function menu

Multi-function Key

Display and error trip code Clear error trip code

PRG

ENTER





RUN

STOP

QUICK

MF.K

Program Key

Quick Key

Run Key

Multifunction Key

STOP/RESET Key

Up Key

Down Key

SHIFT Key

ENTER Key

LED Function Indicators

Unit Indicators

Hz : Frequency A : Current V : Voltage RPM : Speed % : Percentage

5 Digit ‘7 Segment’

display

Page 19

Page 18 of 49

Version : 1.4 Date of issue : 03-07-14

3.1 Viewing and operation instruction of Function Code using operating Keypad:-

NICE 1000 adopt three level menu to conduct the parameter setting. Three level menu include:

Function Parameter Group (First Level) Function Code (Second Level) Function Code Setting (Third Level) Operation procedures are as follows

Example: Change function code F0-06 from 50.00Hz to 15.00Hz

Display in Stop

In the three level menu, if the parameter has no flash bit, it means the function code can’t be changed and the possible reasons are

 The actually detected parameter value and running record parameter value  Some Function code parameter value can’t be modified while the NICE 1000 is running

3.2 Groups of function parameters

Press button and then or button, display will show the first level menu, which are group of function. They are F0 Basic Parameter F1 Motor Parameter F3 Running Control Parameter F4 Floor Parameter F5 Terminal Input Parameter F6 Elevator Basic Parameter F7 Terminal Output Parameter F8 Build-up function Parameter F9 Time Parameter FA Keyboard setting Parameter FB Door Function Parameter FF Factory Parameter FP User Parameter

PRG

 

0.000

F0-00

F0-05

50.00

10.00

50.00

10.00

15.00

PRG

ENTER

ENTER ENTER





Page 20

Page 19 of 49

Version : 1.4 Date of issue : 03-07-14

4. Identify the NICE 1000 control Panel components:

4.1 Switch off all the control panel breakers to avoid an unexpected controller power up

4.2 Select the ‘Controller INS ’ selector switch to inspection mode

Controller INS

NICE 1000 series

Contactors

SMPS & Relays

Transformer & Choke

Power Terminals

Breakers & PFR

Control Terminals

EIS/ERO

INS

NOR

OFF

Page 21

Page 20 of 49

Version : 1.4 Date of issue : 03-07-14

4.3 Control Panel and Field Wiring verification:

4.3.1 Check all Field Wiring (Machine Room, Controller, Hoist-way, Car top, COP and LOP) are

connected as per the given Electrical Drawing

4.3.2 Check controller wiring and field wiring for loose connection.

4.3.3 Check control panel wiring for short circuit using Multi meter (Field and control panel wiring)

(OR)

 R S T with respect to Earth (PE)  U V W with respect to Earth (PE)  ±24VDC with respect to Earth (PE)  Encoder power supply with respect to Earth (PE)  Safety circuit and Door Lock circuit with respect to Earth (PE)  All other Field Control circuit with respect to Earth(PE)

4.3.4 Check Controller power terminal U V W are correctly connected corresponds to the Motor U V W

terminal.

4.3.5 Check the Machine Brake wiring is done correctly as per the requirement

4.3.6 Confirm that the main power supply source MCCB is OFF. Now Connect the Controller Power

terminal R S T to the main power supply source.

4.4 Connect the Encoder wires to the NICE 1000 system; for connection wiring, follow the earlier

mentioned steps (2.3.4) for Geared/Gearless machine.

FROM POWER SOURCE

FROM EARTH SOURCE

Page 22

Page 21 of 49

Version : 1.4 Date of issue : 03-07-14

5. Initial Start Up procedure:

5.1 Verification of different voltage level sources:-

5.1.1 Before Control Panel Power Up, Disconnect all the Control Terminal wiring which are connected to

MCTC-MCB-G of NICE 1000

5.1.2 Switch on the main power supply Circuit Breaker; check the incoming voltage level between R vs S, S

vs T, T vs R and R S T with respect to N at Lift Control Panel using Multi meter

MULTIMETER

5.1.3 Make sure that the Incoming Voltage level satisfies the specification

5.1.4 Turn ON the Control Panel Circuit Breakers one by one and check the voltage level simultaneously;

Make sure that the voltage levels are within specified limits (Refer Electrical Drawing)

Page 23

Page 22 of 49

Version : 1.4 Date of issue : 03-07-14

5.1.5 Verify that the following voltage levels are OK and within the limit

 240VAC Level  ± 24VDC Level  110VAC Level  ±110VDC Level (If present)

5.1.6 After confirming the correct voltage level, switch OFF the Control Panel Circuit Breakers

5.1.7 Connect the Control terminal wiring on MCTC-MCB-G of NICE 1000

 Connected the Safety circuit wiring to the field as per the Electrical drawing. Safety circuit terminal

starts from 101 and ends at 132 terminal

 Connected the wiring for Up/Down terminal floor Limit and slowdown switches  The distance for terminal floor slowdown should be 1300mm~L/2 from the floor level and the distance for

terminal floor direction limit switches should be 30 to40 mm above the floor level in top terminal/ below the floor level in bottom terminal LTerminal floor height

 For terminal slowdown, it can be calculated as follow

Slowdown distance (S) > (F0-04 * F0-04) / (2 * F3-08) (Default: S=1500mm for 1mps)

OFF

Page 24

Page 23 of 49

Version : 1.4 Date of issue : 03-07-14

Terminal floor switches mounting position:

5.1.8 Verify the connection and Elevator control Panel Earthing once again before power ON.

Now TURN ON the control panel Circuit Breakers

Up direction terminal slowdown

switch fixed on shaft guiderail

with distance ‘S’

Up direction Final safety switch fixed on shaft guiderail

Up direction limit switch fixed

on shaft guiderail

(≤40mm above the floor level)

Page 25

Page 24 of 49

Version : 1.4 Date of issue : 03-07-14

5.2 Input and Output functional sequence of MCTC-MCB-G of NICE 1000

 After switching ON the controller MCBs, the Safety Contactor (SC), Door Lock

Contactor (DLC) and JT relay will get ON if Safety Circuit is properly closed

 Once SC contactor ON, the three phase power supply will be given to the Main NICE

drive(Note: If SC is OFF, then there would not be any display on Drive on board

Display)

 Input terminal points X1~X24 of MCB located left side of the Board are Positive

Logic Signal Inputs which needs +24VDC positive power supply for enabling and

disabling the any given input signal

 High Voltage Input terminal Points (X25~X27) of MCB which located bottom side of

the Board are Active High Inputs which needs Phase (P) of 110VAC power supply for enabling and disabling the safety circuit function.

 The 110VAC voltage safety points (X25~X27) are very significant and most priority

inputs in the NICE1000 Lift controller

 Err41 will be displayed if the Safety circuit feedback LED X25 is OFF. The safety

circuit wiring should be followed as per the NICE1000 Electrical drawing.

 Err35 will be displayed on every power ON until the Learn Run/Shaft Tuning is done.

Err35 will not affect the Inspection Run

 For PMSM Gearless machine, Err20 will be displayed if Machine Encoder is not

connected with suitable PG-E card on NICE unit, Encoder Parameter is not set properly (F1-00=0) and also if the encoder signal wiring sequence is wrong/improper

 If all the power supply connections and field wirings are ok, then the corresponding

Green LED’s on the Main Control Board (Located above the Drive) will glow.

5.3 Software version verification

Parameter FA-04 is for software version

Software

Synchronous Machine (Gearless)

Asynchronous Machine (Geared)

Latest version for Auto door Cum Manual Door

7.0170

70170

Page 26

Page 25 of 49

Version : 1.4 Date of issue : 03-07-14

5.4 Sequence for Input terminal functions while Initial Lift start-Up

Type of Input

Input

Terminal

LED

status

Parameter

Value

Contact

Type

Remarks

Running Contactor Feedback (SW)

F5-02=104

If X2 LED off, then the drive gives Err36

Brake Contactor Feedback (BY)

F5-03=105

If X2 LED off, then the drive gives Err37

Inspection mode input signal

OFF

F5-04=109

OFFInspection mode ONNormal Mode

Inspection mode UP signal

OFF

F5-05=10

For UP direction command in INS mode

Inspection mode DOWN signal

OFF

F5-06=11

For DOWN direction command in INS mode

UP direction limit signal

F5-09=115

UP and Down Limit and Slow down Switches must be connected for Inspection run and for motor tuning

Down direction limit signal

X10

F5-10=116

Up terminal slowdown signal

X11

F5-11=117

Down terminal slowdown signal

X12

F5-12=118

FX-Shorting Contactor Feedback signal

X19

F5-19=

Applicable for high power PMSM Gearless machine. Err29 if X19 LED is OFF

RCR- Manual Door Retiring Cam Contactor Feedback signal

X20

F5-20=143

Applicable for Manual Door only

ARD function-UPC contactor Feedback Signal

X22

F5-22=133

Applicable for only

Safety Circuit feedback signal

(110VAC Input)

X25

F5-25=01

If all the field safety circuits are not ok and

X25 LED is OFF, then

the display shows Err41

Door lock safety circuit feedback

signal1(Car Door) (110VAC

Input)

X26

F5-26=02

If Car door is safely closed, then X26 LED gets ON

Door lock safety circuit feedback signal2(Landing Door) (110VAC

Input)

X27

F5-27=03

If All landing doors are safely closed, then X27 LED gets ON

Page 27

Page 26 of 49

Version : 1.4 Date of issue : 03-07-14

5.5 NICE 1000 Parameter Adjustment :-

Connect the Operation LED Keypad as shown in below figure

5.5.1 Take down the motor parameter and encoder details; enter the following actual Parameter value in

NICE1000 using LED keypad.

Description

Parameter

Set actual value

Remarks

Motor Parameter Details

Rated Power (KW)

F1-01

Enter the correct Motor nameplate

value in to the corresponding Drive

Parameter

Rated Voltage (V)

F1-02

Rated Current (I)

F1-03

Rated Frequency (F)

F1-04

Rated Speed (RPM)

F1-05

Encoder Parameter Details

Encoder Type Selection

F1-00

0Syn 2Asyn

Enter the correct Encoder details

Pulse Per Revolution (PPR)

F1-12

Elevator Running Speed Parameter Details

Rated speed of Elevator

F0-04

(Enter the Elevator

Rated speed in m/s)

Enter the Rated speed of the elevator Max speed of Elevator

F0-03

(Enter the required

Max. speed in m/s)

Enter the Max speed of the Elevator (Limited by Rated speed setting F0-04)

Slow speed

F3-11

Used for Inspection speed

Page 28

Page 27 of 49

Version : 1.4 Date of issue : 03-07-14

5.6 Motor Tuning process:-

Actual motor parameters (F1-01~F1-05) must be set before start the motor tuning process

5.6.1 For Asynchronous Motor (Geared Machine-Induction Motor):

F1-11

Tuning Selection

Default Value

Setting Range

0No tuning

1Static Tuning

3Shaft Auto Learning

0, 1, 3

Step 1: Set F0-01=0, now the control mode is selected to the operating LED keypad control

Step 2: Make the NICE1000 Drive output contactor (SW) permanently ON or bypass the output contactor

which makes the NICE 1000 U V W terminals directly connected to Machine Motor’s U V W terminals

Step 3: Verify the parameter (F1-01~F1-05) values are correctly set to the actual motor nameplate

Step 4: Set the parameter F1-11=1 and press button , operating LED keypad display shows ‘TUNE’,

then press button on Keypad. Now the tuning process starts and NICE 1000 calculate the following parameters during the tuning process

F1-06Stator Resistance F1-07Rotor Resistance F1-08Leakage Inductance F1-09Mutual Inductance F1-10No-Load Excitation Current

Once the tuning process is over then the operating LED keypad displays the normal status

Step 5 : After successful motor tuning, set back the F0-01=1(Elevator Logic Control)

5.6.2 For Synchronous Motor(Gearless Machine-PMSM):

F1-11

Tuning selection

Default Value

Setting Range

0No Tuning 1Tuning with Load 2Tuning without Load

0, 1, 2, 3

5.6.2.1 Tuning with Load on Hoist Motor

Caution: On-Load tuning is to be carried out by well-trained Engineer & very carefully. Tuning should not be carried out by keeping the Lift in terminal floors

Step 1: On –load tuning will be conducted on Inspection mode, all the input and Output functional Sequence should be consider (Refer Content 5.4 & 5.6.3)

ENTER

RUN

Page 29

Page 28 of 49

Version : 1.4 Date of issue : 03-07-14

Step 2: Maintain balanced load on Car and CWT side and locate the Elevator car in midway of the Shaft and Make sure the free movement of Car and CWT in the guide rail

Step 3: Verify the parameter (F1-01~F1-05) values that are correctly set to the actual motor nameplate

Step 4: Set the parameter F1-00=0 according to the actual encoder mounted on Motor shaft,

Set the value 0: Sin/Cos and F1-12=2048 PPR for Sin/Cos Encoder

Step 5: For Inspection speed setting, use parameter F3-11=0.250mps. Please refer content of 5.2 (Page-18)

for MCB’s LED sequence for Inspection operation

Step 6: Select the parameter F1-11=1 and press button, now operating LED keypad shows ‘TUNE’ Step 7: Using the control panel Inspection button, press UP/DOWN button, now the Synchronous motor

runs few (One & two)rotation. During tuning process, keep pressing the UP/DOWN button until

the Tuning gets finished. NICE 1000 system calculate the following parameters

F1-06Encoder initialized angle F1-08Wiring connection

F1-09ADC sampling delay F1-10Selection check of encoder’s signal

Once tuning process is over, ‘TUNE’ display goes off and LED keypad displays the Inspection Reference speed value.

Step 8: Follow the above tuning process more than 3 times and verify the parameter F1-06 value that the Error tolerance is within the range of ±5%

5.6.2.2 Tuning without Load on Hoist Motor :

Step 1: Separate the load from the motor (remove ropes from hoist machine)

Step 2: Set F0-01=0, now the control mode is selected to the operating LED keypad control Step 3: Make sure that the machine Brake is powered ON for free movement of Machine rotor

Step 4: Verify the motor parameter (F1-01~F1-05) values are correctly set as per the actual motor Nameplate and Encoder details (F1-00=0 & F1-12=2048)

Step 5: Select parameter F1-11=2 and press button, operating LED keypad display shows

‘TUNE’. Then press button on Keypad. Now the tuning process starts and NICE 1000 calculate the following parameters during the tuning process, F1-06, F1-07, F1-08, F1-09 and F1-10. Once tuning process is over, ‘TUNE’ display goes off and LED keypad displays to normal status.

Step 6: Follow the above tuning process more than 3 times and verify the parameter F1-06 value that the error tolerance is within the range of ±5%

ENTER

ENTER RUN

Page 30

Page 29 of 49

Version : 1.4 Date of issue : 03-07-14

5.6.3 Tabular Column for Functional Output sequence of the NICE1000

Function

Gearless Machine

(PMSM motor)

Geared/Gearless

Machine

(Induction/PMSM

motor)

Remarks

Inspection Mode

X4 OFF

X4 OFF for Inspection Mode X4 ON for Normal Mode

INS Up button Command

X5 ON

If X5 is not ON while UP button pressed, then the lift will not give any output

INS Down Button Command

X6 ON

If X6 is not ON while Down button pressed, then the lift will not give any output

RCR Contactor

Y22 ON

X22 OFF

Y3 ON

X22 OFF

Applicable only for Manual Door

FX-Shorting Contactor

Y3 ON

X22 OFF

Not Applicable

Applicable for all PMSM Gearless machine.

Improper operation leads to Err29. Check corresponding parameter setting

SW-Drive Output Contactor

Y1 ON

X2 OFF

Y1 ON

X2 OFF)

Improper operation sequence leads to Err36. Check corresponding parameter setting and wiring

BY-Brake Contactor

Y2 ON

X3 OFF

Y2 ON

X3 OFF

Improper operation sequence leads to Err37. Check corresponding parameter setting and wiring

5.6.4 Error in tuning process:

Error Code

Fault Details

Remedies

Err20

Encoder Fault

 Check the Encoder Parameter F1-00=0 & F1-12=2048  Check the Motor name plate parameter  Thoroughly check the Encoder signal wiring, pin configuration,

Encoder cable and its pin soldering at D-Type connector

 Check the Brake operation while tuning mode starts  Check the free movement of machine when brake opened  Check the Car and CWT free movement(If necessary apply guide

rail oil)

 Reduce the speed loop gain F2-00 & F2-03  Keep F2-02=0.5HZ & F2-05=1.5HZ for machine having less than

20HZ frequency

Err16

Encoder Fault

Err33

Lift speed

abnormal

Fault

Err19

Tuning Over

time fault

 Thoroughly check the Encoder signal wiring, pin configuration,

Encoder cable and its pin soldering at D-Type connector (Especially Z+ and Z- signal issue)

Err02

Over Current

Fault

 Output terminal Short (U V W)  Check the Brake operation while tuning mode starts  Check the free movement of machine when brake enabled

Page 31

Page 30 of 49

Version : 1.4 Date of issue : 03-07-14

5.7 Inspection Running:

 Now the Lift is ready for Inspection running. Please refer content of 5.2 (Page-18) for MCB’s

LED sequence for Inspection operation

 Make sure that the all safety switches are connected and functioning properly  Make sure that the Up & Down terminal Limit and terminal slowdown switches are wired up

and located in the right position as given in the manual

 Use the UP and DOWN Button in the Inspection board on controller/Car-Top to run the lift in

Inspection speed.

 Check the direction of the lift running. X5 LED in the Main Control Board (MCB) glows when UP

button is pressed. During this time, lift should run in UP direction and for DOWN button, X6

LED glows and lift runs in Down direction.

 If the running direction is wrong, then modify the parameter F2-10(1↔2, 0↔3)

 If Err20 comes after some distance travelled in Inspection mode, then modify the parameter F2-10

(0↔2, 1↔3). (For Geared lift, interchange PG-A and PG-B wires)

 If the system gives Err20 and the direction of running is also wrong, then modify the F2-10

(0↔1, 2↔3)

6. Normal/High Speed operation

6.1 Elevator Shaft Learning Process:

Ensure that the hoist-way top and bottom slowdown terminal, Direction Limits switches and floor level magnetic plates or flags are installed correctly before performing shaft self-learn.

Floor level switch cutting plates/flags (Door Zone):

Floor/Door zone switch mounted on Car-top

Floor/Door zone switch cutting plates/flags (80mm) fixed on shaft Guide rail

Page 32

Page 31 of 49

Version : 1.4 Date of issue : 03-07-14

Step 1:

 Run the lift in Inspection mode and check the encoder pulse parameter F4-03 for pulse variation.  Pulse value should increase when the lift runs in UP direction and decrease when the lift runs in

Down direction

 If pulse variation is reverse, then modify the parameter F2-10 (0↔2, 1↔3).  Make sure that the all required mechanical installation and field wiring are completed. Take the lift to

bottom terminal floor level using control panel Inspection in inspection speed.

 Observe the X1~X24 input terminal LEDs for proper operation of Floor/Door zone(X1 LED) and

Up/Down terminal Limit and slowdown switches(X09,X10,X11 & X12 LEDs)

 Locate the lift car in bottom most floor level, Down terminal Slowdown switch gets operated (X12

‘OFF’) and Floor level/Door Zone Switch (F5-01=003) gets operated (X1 ‘ON’)

Step 2: Set the following parameters

Description

Parameter code

Default Value

New Value

Remarks

Highest Floor

F6-00

Enter the total number of floor (no. of opening)

Lowest Floor

F6-01

Step 3: Now select the parameter F1-11=3(Shaft auto learning mode) and Enter or Keep Pressing ‘S1’ button located on MCTC-MCB of NICE 1000 for minimum 3secs

 Lift starts to run with Inspection speed towards up terminal floor.  On detection every Floor Level/Door zone cam, the floor counting will increase  On detection of up terminal floor level/Door zone switch signal, Lift stops and Shaft learning gets

completed

 During auto learn, NICE 1000 system measures the shaft travel distance using Encoder feedback  Counts the number of floors using Floor level/Door zone switch signal and stores counted encoder

pulses in the form of bits in F4 Floor parameters.

 On completion of auto shaft learning without any Error, operating LED keypad displays the normal

status.

(Note: If Err35 comes during shaft learning, follow the instruction of Step 1 of Content 6.1)

Shaft Auto learning enable switch (S1)

Page 33

Page 32 of 49

Version : 1.4 Date of issue : 03-07-14

6.2 Proceed for Door operator commissioning:-

6.2.1 For Auto Door

 NICE 1000 system is capable for double side door operator system (Front and Back Doors)  Door Open Limit and Door Close Limit switches feedbacks are mandatory for NICE 1000 system

function (to be connected to X14 and X18 Default input terminals for Front door)

Field Wiring Diagram suitable for NICE 900 Door Drive with NICE1000 Controller

 If the third party door drive system is used, follow the door drive commissioning instruction and

commission the door drive along with NICE1000 input and output interconnections as shown in above model wiring diagram

 Follow the commissioning procedure provided by door operator system supplier  Once door operator function is completed successfully, Elevator is ready for Normal operation with

rated speed

L U

N V

E W

NICE900 +24VDC

Door Drive PG-A

PG-B

PG-Z

COM

COM TA1

DI1 TC1

DI2 F9-09=2 TB1

DI3 TA2

DI4 TC2

DI5 (F9-05=1) TB2

DI6 (F9-06=2) TA3

DI7 TC3

DI8 F9-11=1 TB3

+24VDC

X14(F5-14=22) Y6

YM1

X18(F5-18=24)

Power

Supply

Motor

MCTC-MCB

Page 34

Page 33 of 49

Version : 1.4 Date of issue : 03-07-14

 After completion of Door operator commissioning and NICE1000 shaft learning process, Lift is ready

for normal operation. Now the lift car will be located in top most floor terminal level and the corresponding input terminal sequence will be seen in the NICE1000 Main Control Board LEDs as shown in the below table

Functional Command Sequence at Main Control Board (MCB) on NICE unit

Door Close Command (Y7 relay gets ON)

Door Fully opened

Door In between

Door Fully Closed

Remark

DOL DCL

X14ON

X18OFF

X14OFF X18OFF

X14OFF

X18ON

Improper Sequence can lead to Err53

Car Door Safety Landing Door Safety

X26OFF X27OFF

X26ON X27ON

Door Open Command (Y6 relay gets ON)

Feed Back Signal

Door Fully Closed

Door In between

Door Fully opened

Remark

DOL DCL

X14OFF

X18ON

X14OFF X18OFF

X14ON

X18OFF

Improper Sequence can lead to Err53

Car Door Safety Landing Door Safety

X26ON X27ON

X26OFF X27OFF

Door Fully Closed

Door Fully Opened

Door in between

Page 35

Page 34 of 49

Version : 1.4 Date of issue : 03-07-14

Door Operation Timing Diagram

Door Close

command

Y7 ON

Open

End

Door Closing

Fully

Closed

Door Open

Command

Y6 ON

Fully

Opened

Door Opening

End

X14 LED

F5-14=022

OFF

X18 LED

F5-18=024

OFF

X26 LED

F5-26=02

OFF

X27 LED

F5-27=03

OFF

Note:

Improper sequence of Door open Limit (X14), Door Close Limit (X18), Car safety (X26) and Landing safety (X27) can lead to the Err53 and stops the Elevator function.

Page 36

Page 35 of 49

Version : 1.4 Date of issue : 03-07-14

6.2.2 For Manual Door Setup Procedure

 Please refer NICE1000 Manual door ver2.0 Electrical Drawing and NICE100 User Manual  Verify the software version for NICE1000 Integrated controller. The suitable software version is

given in the below table

 Enable the bit11 of FE-14 for manual door Function as follow

Select and Press enter; now the display will show

The first two digits represent the bit number and the last single digit to enable or disable the corresponding selected bit number.

Using UP/DOWN key on the keypad, select bit3 & Enable the bit

Parameter

Default

Value to

be set

Function

F5-20

143

DRC contactor NC feedback enable function setting

F7-06

DRC contactor Function enable setting

F6-11

201

Disabling the auto door DO function

F6-12

202

Disabling the auto door DC function

F5-14

Disabling the auto door open limit function

F5-15

126

Disabling the auto door sensor function

F5-18

124

Disabling the auto door Close limit function

FB-12

Retiring Cam enable duration to verify landing door safety contact

FB-13

Retiring Cam disable duration to verify the landing door safety contact

 Adjust FB-03=5(Default) to modify Floor waiting time to attend the next registered call  Door open Buzzer output terminal is Y21 in the Main Control Board (MCB)  If the landing door is kept open after usage, NICE1000 tries for three times by giving the output to

the DRC contactor until the landing door safety contact is closed (landing door close). During this period NICE1000 also gives door open buzzer output at Y21 terminal. If the landing door is not closed within the three time try, NICE1000 cancels all registered calls and goes to idle mode.

NOTE:

For earlier software version used (FA-04=30169), to enable manual door function, please enable bit 03 in FE-14.

Software versions prior to this (Ex. FA-04=30168, 30167) does not have manual door feature.

Page 37

Page 36 of 49

Version : 1.4 Date of issue : 03-07-14

6.3 Normal operation & its signal verification

 Once the Door commissioning is completed, the lift is ready for normal operation  Turn ON the Inspection button into Normal mode

Input signal status of Main Control Board (MCB) while the lift at top terminal floor level with doors are closed in normal mode

Type of Input

Default

Input

Terminal

LED

status

Default

Parameter

Value

Default

Contact

Type

Remarks

Door Zone Switch signal

F5-01=003

Running Contactor Feedback (SW)

F5-02=104

Brake Contactor Feedback (BY)

F5-03=105

Inspection mode input signal

F5-04=109

OFFINS mode ON  Normal Mode

Inspection mode UP signal

OFF

F5-05=010

For UP direction command in INS mode

Inspection mode DOWN signal

OFF

F5-06=011

For DOWN direction command in INS mode

UP direction limit signal

F5-09=115

Down direction limit signal

X10

F5-10=116

Up terminal slowdown signal

X11

OFF

F5-11=117

As the Lift car is located at Top Most Floor where the UP terminal slowdown got activated

Down terminal slowdown signal

X12

F5-12=118

Over Load Feedback Signal

X13

F5-13=119

If Load cell is not available, keep F5-13=0

Door Open Limit feedback signal

X14

OFF

F5-14=022

If DO limit signal is ‘NC’

contact, keep F5-14=122

Door IR sensor signal

X15

F5-15=126

If Door IR sensor feedback is ‘NO’, keep F5-15=26

Door Close Limit Feedback signal

X18

OFF

F5-18=024

If DC limit signal is ‘NC’ contact, keep F5-14=124

Shorting Contactor Feedback (FX)

X19

F5-19=107

Applicable for PMSM only

Manual Door R/C contactor Feedback

X20

F5-20=143

Applicable for Manual Door only

UPC contactor Feed back

X22

F5-22=133

Applicable for UPS ready ARD function

Safety Circuit feedback signal

X25

F5-25=01

If all the field safety circuits are ok, then the X25 LED gets ON

Door lock safety circuit feedback signal 1

X26

F5-26=02

If Car Door is safely closed, then X26 LED gets ON

Door lock safety circuit feedback signal 1

X27

F5-27=03

If All landing doors are safely closed, then X26 LED gets ON

Page 38

Page 37 of 49

Version : 1.4 Date of issue : 03-07-14

 If the Input Signal sequences are ok as per the requirement, then the lift can be run in normal speed.  Select the Normal running speed using the parameter F0-03  During Normal Operation, if Error53 comes, it is due to the improper door drive close and open limit

feedback and also due to presence of landing door and car door safety by-pass

6.4 Floor Level Adjustment

 For Floor Level Adjustment, Confirm that the Floor level/Door zone cutting cam/magnet centre

is matched with the centre of the switch when the lift is in exact floor level.

Cutting Fin/Cam type Pencil type Switch with Door Zone Switch Magnet strip

 Maintain the same gap between Cutting Cam to Reed switch/ Magnet strip to Reed switch in every

floor

 For further adjustment, use the F4-00 = 30(default). Increase this value bit by bit if the lift car stops

before the floor level and vice versa.

 For example, lift car stops 10mm above the floor level in the landing while comes from bottom floor to

this floor, then reduce the F4-00 = 20 (30-10)

6.5 Car & Landing Calls configuration:

 All Car and Landing calls can be given to the L1~L20 terminal in Main Control Board (MCB) of

NICE1000

 Call Function input terminal L1~L20 of MCB can be programmed in F6-11~F6-30 using Keypad

 In NICE1000, Car functions are programmable and the default NICE1000 unit is programmed for 5

floor full collective function

 For better understanding, Two different configurations are given below

U-Type Reed Switch

Pencil Type Reed Switch

Cutting Cam

Magnet Strip

Centre Axis

80 to 200mm

Page 39

Page 38 of 49

Version : 1.4 Date of issue : 03-07-14

6 floors (G+5) Full collective configuration setting and its functional output terminal

Floor Call Details

Corresponding Parameter Setting

Call buttons Connection Terminal in MCB

Car Call Function

Gnd (Bottom most) floor Car Call

F6-15=211(Default)

1st Floor Car call

F6-16=212 (Default)

2nd Floor Car call

F6-17=213 (Default)

3rd Floor Car call

F6-18=214 (Default)

4th Floor Car call

F6-19=215 (Default)

5th Floor (Top most) Car call

F6-14=216

UP direction Landing Call Function

Gnd Floor Up landing Call

F6-23=221(Default)

L13

1st Floor Up landing Call

F6-24=222(Default)

L14

2nd Floor Up landing Call

F6-25=223(Default)

L15

3rd Floor Up landing Call

F6-26=224(Default)

L16

4th Floor Up landing Call

F6-20=225(Default)

L10

Down Direction Landing Call Function

1st Floor Down landing Call

F6-27=232(Default)

L17

2nd Floor Down landing Call

F6-28=233(Default)

L18

3rd Floor Down landing Call

F6-29=234(Default)

L19

4th Floor Down landing Call

F6-30=235(Default)

L20

5th Floor Down landing Call

F6-21=236(Default)

L11

9 Floors (G+8) Down Collective configuration setting and its functional output terminal

Floor Call Details

Corresponding Parameter Setting

Call buttons Connection Terminal in MCB

Car Call Function

Gnd (Bottom most) floor Car Call

F6-15=211(Default)

1st Floor Car call

F6-16=212 (Default)

2nd Floor Car call

F6-17=213 (Default)

3rd Floor Car call

F6-18=214 (Default)

4th Floor Car call

F6-19=215 (Default)

5th Floor Car call

F6-20=216

L10

6th Floor Car Call

F6-21=217

L11

7th Floor Car Call

F6-22=218

L12

8th Floor Car Call

F6-23=219

L13

Landing Call Function

Gnd Floor UP Landing call

F6-26=221

L16

1st Floor Down landing Call

F6-27=232(Default)

L17

2nd Floor Down landing Call

F6-28=233(Default)

L18

3rd Floor Down landing Call

F6-29=234(Default)

L19

4th Floor Down landing Call

F6-30=235(Default)

L20

5th Floor Down landing Call

F6-24=236(Default)

L14

6th Floor Down landing Call

F6-25=237(Default)

L15

7th Floor Down landing Call

F6-13=238(Default)

8th Floor Down landing Call

F6-14=239(Default)

Page 40

Page 39 of 49

Version : 1.4 Date of issue : 03-07-14

7. Floor display Setting:-

 NICE 1000 Lift Integrated Controller can provide three different output functions for third party

floor display.

They are

7 Segment output selection FE-12=0 Binary Code output selection FE-12=3 BCD output selection  FE-12=1(Default)

 For 7 segment function, set the following parameters

FE-12=0

F7-10=10

F7-11=11

F7-12=12

F7-13=13

F7-14=14

F7-15=15

F7-16=16

 To modify the 7 segment floor display digit, use the following parameters

FE-01 to FE-10 for landing level 1 to 10

Parameter

Setting Value

7segment display output

FE-xx

1900

To display ‘0’

FE-xx

1901

To display ‘1’

FE-xx

1902

To display ‘2’

FE-xx

1903

To display ‘3’

FE-xx

1904

To display ‘4’

FE-xx

1905

To display ‘5’

FE-xx

1906

To display ‘6’

FE-xx

1907

To display ‘7’

FE-xx

1908

To display ‘8’

FE-xx

1909

To display ‘9’

FE-xx

1911

To display ‘b’

FE-xx

1912

To display ‘G’

FE-xx

1913

To display ‘H’

FE-xx

1914

To display ‘L’

FE-xx

1915

To display ‘n’

FE-xx

1916

To display ‘P’

Example setting for b+G+4 landing lift (6 Floors)

Parameter

New Setting

Display Type

FE-01(basement Floor)

1911

To display ‘b’ for basement Floor

FE-02 (Ground Floor)

1912

To display ‘G’ for Ground Floor

FE-03 (First Floor)

1901

To display ‘1’ for First Floor

FE-04 (Second Floor)

1902

To display ‘2’ for Second Floor

FE-05 (Third Floor)

1903

To display ‘3’ for Third Floor

FE-06 (Fourth Floor)

1904

To display ‘4’ for Fourth Floor

Page 41

Page 40 of 49

Version : 1.4 Date of issue : 03-07-14

 For Binary functional output, set the following parameter

FE-12=3, F7-10=10, F7-11=11, F7-12=12 & F7-13=13

 Binary display output terminals

Bit0Y10 Bit1Y11 Bit2Y12 Bit3Y13

8. ARD function using UPS ready:-

 Confirm the ARD functional wiring is done as per the NICE1000 Electrical drawing to

connect the Suitable rated UPS to the controller

 Set the following parameter to enable the ARD function

Parameter

Function

Remarks

F5-22=133

UPC contactor feedback function

F7-00=32

UPC contactor enable function during power failure

UPC contactor used to connect the single phase UPS power supply to the Controller

F8-10=1

220VAC UPS function enable

F8-09=0.050

ARD mode Elevator speed

Lesser speed will give Err30 Higher speed will drain UPS quickly

FB-07=3073

Bit 0=1 to enable the Auto Light Load direction selection in UPS mode running

Add ‘1’ with the default value

in FB-07 parameter

UPS Rating Selection for suitable Motor rating

UPS Power

Controller Power

Remarks

1 KVA(700-800W)

P ≤ 3.7KW

Given UPS rating is for reference and Selection of UPS rating must be considered with the other control panel and field equipment

1.6KVA(1150-1200W)

P ≤ 5.5KW

2 KVA(1400-1600W)

P ≤ 7.5KW

3 KVA(2100-2400W)

11KW ≤ P ≤ 15KW

Page 42

Page 41 of 49

Version : 1.4 Date of issue : 03-07-14

9. Load Weigh Function:-

NICE 1000 system capable of function with Digital and Analog Load weigh system. On selection of any one of the load weigh system, the corresponding parameter to be chosen.

Description

Code

Setting Range

Default Value

Remarks

Weighing

Input

Selection

F8-08

0Invalid 1Reserved 2Analog Sampling

Preset

Torque

Selection

F8-01

0Pre-set torque invalid 1Pre-set torque Valid 2Automatic pre-torque compensation

Keep F8-01=2, if no

load weigh system is

used (Applicable for

Synchronous

Machine)

9.1 For Digital Load Weigh (Cell) system

 Digital output for Over Load from the Load Weigh system is connected to Input terminals X13 of Main

Control Board (MCB)

 Digit output for Full Load from the Load weigh system can be used in NICE 1000 system by

configuring anyone of the free Input terminals (X) of Main Control Board (MCB)

9.2 For Analog Load Weigh System

 Require Expansion board (MCTC-KZ-B); in which, terminals Ai & M are used for Load Weigh 0~10V

analog input

10. Ride Comfort Fine Tuning:-

10.1 Starting Jerk:

For Rollback and Surge Forward issue, adjust following parameter

Description

Code

Default

Rollback

Surge Forward

Drive Gain Zero Servo Speed Loop KP

F8-03

0.60

Increase

Decrease

Brake Gain Zero servo speed Loop TI

F8-04

0.60

Increase

Decrease

Page 43

Page 42 of 49

Version : 1.4 Date of issue : 03-07-14

10.2 Vibration While Starting:

Fine tune the speed loop gain using following parameters

Description

Code

Default

Remarks

Proportional gain 1 of Speed Loop (Kp1)

F2-00

Integrate time 1 of Speed Loop (Ki1)

F2-01

0.60

Switching Frequency 1

F2-02

2.00

Proportional gain 2 of Speed Loop (Kp2)

F2-03

Integrate time 2 of Speed Loop (Ki2)

F2-04

0.80

Switching Frequency 2

F2-05

5.00

10.3 Vibration or Jerk during running:

Fine tune the Current loop gain using following parameters

Description

Code

Default

Remarks

Proportional gain of Current loop

F2-06

Integral gain of current loop

F2-07

11. Fault codes – Causes – Remedies

Error information produced by NICE1000 can be divided into 5 sorts according to their influence to the system. Different fault has different disposal mode. And the respective relationship is listed as the following table.

FAULT

SORT

RELEVANT DISPOSAL

REMARK

Level 1

Display fault code

Any kind of working condition will not be influenced

Level 2

Display fault code; Sever lift group control (parallel) system;

Can operate normal running

Level 3

Display fault code; Stop at the nearest landing when in distance control, then stop running; Stop running at once in other work condition.

After stop, the system will close off output at once, and close brake

Level 4

Display fault code; When in distance control, the system will close off output at once and close brake; after stop, low speed running (such as return levelling, inspection) is allowed

The elevator can run in low speed in condition of fault code

Level 5

fault Express fault code: The system blank off output at once, and close brake; Running forbidden

Running forbidden

Page 44

Page 43 of 49

Version : 1.4 Date of issue : 03-07-14

11.1. FAULT CODE TABLE

Error on

LED

Display

Error on

On- Board

Display

Fault

Probable Causes

Remedy

Fault

Sort

Err01

E01

Invert unit protection

1. The main circuit output is grounded or short circuited.

2. The connecting cable of the motor is too long.

3. The working temperature is too high.

4. The internal connections become loose.

1. Eliminate external faults.

2. Install a reactor or an output filter.

3. Check the air channel and the cooling fan.

4. Contact the agent or Monarch.

Err02

E02

Over-current during Acceleration

1. The main circuit output is grounded or short circuited.

2. Motor auto tuning is performed improperly.

3. The load is too heavy.

4. The encoder signal is incorrect.

5. The UPS running feedback signal is abnormal.

1. Check whether the RUN contactor at the controller output side is normal.

2. Check whether the power cable jacket is damaged, whether the power cable is possibly short circuited to ground and whether the cable is connected reliably.

3. Check the insulation of motor power terminals, and check whether the motor winding is short-circuited or grounded.

4. Check whether the shorting PMSM stator contactor causes controller output short circuit.

5. Check whether motor parameters comply with the nameplate.

6. Perform motor auto-tuning again.

7. Check whether the brake keeps released before the fault occurs and whether the brake is stuck mechanically.

8. Check whether the balance coefficient is correct.

9. Check whether the encoder wirings are correct. For asynchronous motor, perform SFVC and compare the current to judge whether the encoder works properly.

10. Check whether the encoder lines per revolution is set correctly, whether the encoder signal is interfered with, whether the encoder cable runs through the duct independently, whether the cable is too long and whether the shielding layer is grounded at one end.

11. Check whether the encoder is installed reliably, whether the

Err03 ; E03

Over- current during deceleration

1. The main circuit output is grounded or short circuited.

2. Motor auto tuning is performed improperly.

3. The load is too heavy.

4. The deceleration rate is too short.

5. The encoder is seriously interfered with external noise.

5 Err04

E04

Over-current during constant speed

1. The main circuit output is grounded or short circuited.

2. Motor auto tuning is performed properly.

3. The load is too heavy.

4. The encoder is seriously interfered with external noise.

Page 45

Page 44 of 49

Version : 1.4 Date of issue : 03-07-14

rotating shaft is connected to the motor shaft reliably and whether the encoder is stable during normal-speed running.

12. Check whether UPS feedback is valid in the non- UPS running state E02).

13. Check whether the acceleration/deceleration rate is too high.

Err05

E05

Over voltage during acceleration

1. The input voltage is too high.

2. The regeneration power of the motor is too high.

3. The braking resistance is too large, or the braking unit fails. 4 .The acceleration rate is too short.

1. Adjust the input voltage. Observe whether the bus voltage is normal and whether it rises too quickly during running.

2. Check for the balance coefficient.

3. Select a proper braking resistor and check whether the resistance is too large based on the recommended braking resistance table

4. Check whether the cable connecting the braking resistor is damaged, whether the cooper wire touches the ground and whether the connection is reliable.

5 Err06

E06

Over-voltage during deceleration

1. The input voltage is too high.

2. The braking resistance is too large, or the braking unit fails.

3. The deceleration rate is too short.

5 Err07

E07

Over-voltage at constant speed

1. The input voltage is too high.

2. The braking resistance is too large, or the braking unit fails.

5 Err08

E08

Controller power fault

1.Input voltage is too high

2.Drive control panel is abnormal

1.Adjust input voltage

2.Please contact with agent or factory

Err09 E09

Under Voltage fault

1. Instantaneous power failure occurs on the input power supply.

2. The input voltage is too low.

3. The drive control board fails.

1. Eliminate external power supply faults and check whether the power fails during running.

2. Check whether the wiring of all power input cables is reliable.

3. Contact the agent or Monarch.

Err 10

E10

System overload

1. The brake circuit is abnormal.

2. The load is too heavy.

3. The encoder feedback signal is abnormal.

4. The motor parameters are incorrect.

5. A fault occurs on the motor power cables.

1. Check the brake circuit and power input.

2. Reduce the load.

3. Check whether the encoder feedback signal and setting are correct. Check whether initial angle of the encoder for the PMSM is correct.

4. Check the motor parameter setting and perform motor auto tuning.

5. Check the power cables of the motor (refer to the solution of E02)

Err 11

E11

Motor overload

1. FC-02 is set improperly.

2. The brake circuit is abnormal.

3. The load is too heavy.

1. Adjust the parameter (FC-02 can be set to the default value).

2. Refer to E10.

3 Err 12

E12

Input side phase failure

1. The power input is not symmetric.

1. Check whether the three phases of power supply are balanced and

Page 46

Page 45 of 49

Version : 1.4 Date of issue : 03-07-14

2. The drive control board fails.

whether the power voltage is normal. If not, adjust the power input.

2. Contact the agent or Monarch

Err 13

E13

Output side Phase failure

1. The output wiring of the main circuit is loose.

2. The motor is damaged.

1. Check the wiring.

2. Check whether the contactor at the output side is normal.

3. Eliminate the motor fault

Err 14

E14

Module Overheated

1. The ambient temperature is too high.

2. The fan is damaged.

3. The air channel is blocked.

1. Lower the ambient temperature.

2. Clear the air channel.

3. Replace the damaged fan.

4. Check whether the installation clearance of the controller satisfies the requirement

Err 16

E16

Encoder Fault

1. The start-up position is incorrect.

2. The torque deviation is too large.

3. The speed deviation is too large.

1. Check the encoder circuit.

2. Turn off the output MCCB.

3. The current loop parameters are too small.

4. The zero-point position is incorrect. Perform motor auto tuning again.

5. Reduce the load

Err 17

E17

Encoder signal check abnormal

The deviation of real-time angle and reference angle of the 1387 encoder is too large.

1. Check whether the encoder is normal.

2. Check whether the encoder wiring is reliable and normal.

3. Check whether the PG card wiring is proper.

4. Check whether the main unit and control cabinet are grounded well

Err 18

E18

Current detection fault

Diver control Board is failed

Contact with agent or factory

Err 19

E19

Motor tuning fault

1. The motor cannot rotate properly.

2. The motor auto tuning times out.

3. The encoder for the PMSM fails.

1. Enter the motor parameters correctly.

2. Check the motor wiring and whether phase loss occurs on the contactor at the output side.

3. Check the feedback encoder wiring and ensure that PPR of the encoder is set properly.

4. Check whether the brake keeps released during no-load autotuning.

5. Check whether the inspection button is released before the PMSM with-load auto-tuning is finished.

Err 20

E20

Rotary encoder fault

1. Check whether the encoder model matches the motor.

2. The encoder wiring is incorrect.

1. Check whether F1-00 is set correctly.

2. Check the encoder wiring.

3. Check whether the encoder is

Page 47

Page 46 of 49

Version : 1.4 Date of issue : 03-07-14

3. The current keeps large during low speed running.

normal.

4. Check whether the encoder is stuck mechanically during running.

5. Check whether the brake keeps released during running.

Err 21

E21

Synchronous encoder wiring fault

Error occurs to the wiring of synchronous encoder

Check the encoder wiring

Err 22

E22

Levelling signal abnormal

Levelling or door zone signal is stuck or breaks.

1. Check whether the levelling and door zone sensors work properly.

2. Check the installation verticality and depth of the levelling flags.

3. Check the input points of the MCB.

Err 23

E23

Short circuit fault to ground

The output is short circuited to ground.

Check the power cable or contact Monarch.

Err 25

E25

EEPROM failure

EEPROM of the MCB fails.

Contact the agent or Monarch.

Err 29

E29

PMSM U,V,W jump out contactor feedback abnormity

The shorting PMSM stator's output is inconsistent with the feedback.

1. Check whether the feedback contact (NO, NC) of the contactor is consistent with the parameter setting of the MCB.

2. Check whether the state of the MCB output indicator is consistent with the contactor action.

3. Check whether corresponding feedback contact acts after the contactor acts, and whether the corresponding feedback input point of the MCB acts correctly.

4. Check whether the shorting PMSM stator contactor is consistent with the MCB output feature.

5. Check the coil circuit of the shorting PMSM stator contactor.

Err 30

E30

Elevator position abnormity

1. The controller does not receive levelling signal within the time set in F9-02.

2. The up and down limit switches are met during the relevelling process.

3. The levelling signal is not received when re-levelling times out.

1. Check whether the levelling sensor mal-acts in non-levelling zone.

2. Check whether the levelling signal cables are connected reliably and whether the signal copper wires may touch the ground or be short circuited with other signal cables.

3. Check whether the encoder is used properly.

Page 48

Page 47 of 49

Version : 1.4 Date of issue : 03-07-14

Err31

E31

DPRAM abnormal

DPRAM reading and writing are abnormal.

Contact the agent or Monarch to replace the control board.

Err32

E32

CPU Abnormal

The CPU is abnormal.

1. Check jumpers J9 and J10 and check whether only the right two pins of J9 are shorted.

2. Contact the agent or Monarch to replace the control board

Err 33

E33

Elevator speed abnormity

1. The feedback speed is 1.15 times of the maximum running speed.

2. The speed is higher than 0.65 m/s in the inspection state.

3. The speed exceeds half of the rated speed during emergency running.

1. Check whether the encoder is used properly.

2. Check the setting of motor nameplate parameters.

3. Perform motor auto-tuning again.

4. Check inspection switch and signal cables.

Err 34

E34

Logic fault

Redundancy judgment and logic of the control board are abnormal.

Contact with agent or factory to replace control panel.

Err 35

E35

Shaft selftuning data abnormity

1. The elevator is not at the bottom floor when shaft auto tuning is started.

2. No levelling signal is received within 45s while continuous running.

3. The distance between two floors is too small.

4. The maximum number of landing floors is inconsistent with the setting value.

5. The floor pulses change inversely.

6. The system is not in the inspection state when shaft auto tuning is performed.

7. Shaft auto-tuning is not performed upon power-on.

1. Upon power-on, E35 is reported when the flag height is detected to be 0 or the RUN contactor is detected to keep open.

• Check whether the down slowdown switch is valid.

• Check whether the current floor

(F4-01) is set to 1, and whether F0-00 is set to 1.

• Check whether the inspection

switch is set to the inspection state.

2. E35 is reported when the first levelling position is reached.

• Check whether F4-03 increases when the elevator runs up. If not, adjust F2-10.

• Check whether the NC/NO

setting of the levelling sensor is correct.

• If the levelling sensor signal blinks, check whether the flag is installed properly.

3. E35 is reported during running.

• Check whether the running

times out: no levelling signal is received when the running time exceeds F9-02.

• Check whether the super short

floor function is enabled when the floor distance is less than 50 cm.

• Check whether the setting of F6-00 (Top floor of the elevator) is smaller than the actual condition.

4. E35 is reported when the elevator arrives at the top floor.

• Check whether the obtained

Page 49

Page 48 of 49

Version : 1.4 Date of issue : 03-07-14

top floor of the elevator and bottom floor of the elevator are consistent with the setting of F6-00 and F6-01 when the up slow-down signal is valid and the elevator reaches the door zone.

• Check whether the obtained

floor interval is less than 50 cm.

Err 36

E36

Contact feedback abnormity

1. The RUN contactor feedback is valid when the elevator starts up.

2. The feedback signal is not received 2s after the output of the RUN contactor.

3. The running current of the elevator is less than 0.1 A after the output of both the RUN contactor and the brake contactor.

1. Check whether the feedback contact of the contactor acts properly.

2. Check whether the feedback contact (NO, NC) of the contactor is consistent with the MCB parameter setting.

3. Check whether the output cables UVW of the controller are connected properly.

4. Check whether the power supply of the controller's control circuit is normal.

Err 37

E37

Brake feedback abnormity

The output of the brake contactor is inconsistent with the feedback.

1. Check whether the brake coil and feedback contact are correct.

2. Confirm the signal feature (NO, NC) of the feedback contact.

3. Check whether the power supply of the brake coil's control circuit is normal.

Err 38 E38

Encoder Signal abnormity

1. There is no input of the encoder pulses when the elevator runs automatically.

2. The direction of the input encoder signal is incorrect when the elevator runs automatically.

3. F0-00 is set to 0 (SFVC) in distance control.

1. Check whether the encoder is used correctly.

2. Exchange phases A and B of the encoder.

3. Check the setting of F0-00, and change it to "CLVC".

4. Check whether the system and signal cables are grounded reliably.

5. Check whether cabling between the encoder and the PG card is normal.

Err 40

E40

Lift running time-out

The setting of the elevator running time is exceeded.

The elevator is used for a long time and needs maintenance.

Err 41

E41

Safety circuit off

The safety circuit signal breaks off.

1. Check the status of the safety circuit switches.

2. Check whether the external power supply is normal.

3. Check whether the safety circuit contactor acts properly.

4. Confirm the signal feature (NO, NC) of the feedback contact of the safety circuit contactor.

Err 42

E42

Door lock safety circuit cut in running

The door lock circuit feedback breaks off during the elevator running.

1. Check whether the landing door lock and the car door lock are in good contact.

Page 50

Page 49 of 49

Version : 1.4 Date of issue : 03-07-14

2. Check whether the door lock contactor acts properly.

3. Confirm the signal feature (NO, NC) of the feedback contact on the door lock contactor.

4. Check whether the external power supply is normal.

Err 43

E43

Up limit signal off in running

The up limit signal breaks off when the elevator is running up.

1. Confirm the feature (NO, NC) of the up limit signal and down limit signal.

2. Check whether the up limit and down limit switches act properly.

3. The installation positions of limit switches are too close to the levelling flag. The limit switches will be touched at normal levelling.

Err 44

E44

Down limit signal off in running

The down limit signal breaks off when the elevator is running down.

4 Err 45

E45

Slow-down switch position abnormal

1. The installation positions of the slowdown switches do not satisfy the slow-down requirements.

2. The recorded slow-down switch position is greatly different from the actual position.

1. Ensure that the installation positions satisfy the requirements.

2. Check whether the slowdown switches act properly.

3. Set the NC/NO state of slowdown signal correctly.

Err 46

E46

Re-levelling abnormity

1. The re-levelling running speed exceeds 0.1 m/s.

2. The elevator is out of the door zone when re-levelling.

3. The feedback of the shorting door lock circuit contactor is abnormal.

1. Check the original and secondary wiring of the shorting door lock circuit relay.

2. Check whether the shorting door lock circuit contactor feedback function is enabled and whether the feedback signal is normal.

3. Check whether the encoder is used properly.

1 Err 47

E47

Shorting door lock circuit contactor failure

1. The feedback of the shorting door lock circuit fails.

2. The elevator runs at over speed or the running times out when the shorting door lock circuit contactor has output.

1. Confirm the signal feature (NO, NC) of the feedback contact on the shorting door lock circuit contactor.

2. Check whether the shorting door lock circuit contactor acts properly.

Err 48

E48

Door open fault

The consecutive times that the door does not open/close to the limit reaches the setting in FB-09.

1. Check whether the door machine system works properly.

2. Check whether the CTB is normal

Err 49

E49

Door close fault 5

Err 53

E53

Lock jump fault

1. The door lock and door open limit signals are valid simultaneously.

2. The landing door lock and the hall door lock are in different states.

1. Check whether the door lock circuit is normal.

2. Check whether the feedback contact of the door lock contactor acts properly.

3. Check whether the system receives the door open limit signal when the door lock signal is valid.

Page 51
