Inova WallBed Assembly Manual

WallBed | ASSEMBLY MANUAL

Inova LLC 2 Van Buren Blvd. Guilderland Center, NY 12085

WallBed | ASSEMBLY MANUAL

Inova LLC 2 Van Buren Blvd. Guilderland Center, NY 12085

QUEEN SIZE

QUICK START GUIDE

WallBed | ASSEMBLY MANUAL

Tech support is readily avai lable if needed

Email : [e-mail]

Phone: [phone]

WallBed | ASSEMBLY MANUAL

PLEASE NO TE: Your Bed may look different

than what is shown in the pic tures and

videos throughout thi s manual

QUICK START GUIDE

HELPFUL
IN F OR MATIO N

• Prior to opening your shipment, check and

confirm the room is completely ready to

receive the furniture

(see “Room Readiness Checkli st” below).

• Place the parts in the room according to the

sequence of the assembly steps to avoid

double hand ling

• T he Hardware Box i s located on the pallet

and labeled “Hardware”

• Hardware is packed by STEP #, not PART #

• A la rge, contractor’s garbage bag is included in

the Hardware Box for trash removal

• A ll parts are labeled for easy identification

• Labels wil l not be seen once the Bed is

completely assembled; the part label is a sticker

and can be removed if desired.

• Each page of the assembly includes a “QR Code”,

which is linked to a video for each step. To view,

download a compatible QR Code App to view

videos or go directly to YouTube (include link).

Tech support is readily avai lable if needed

Email : [e-mail]

Phone: [phone]

WallBed | ASSEMBLY MANUAL

PLEASE NO TE: Your Bed may look different

than what is shown in the pic tures and

videos throughout thi s manual

ROOM READINESS
CHECKLIST

• Check room to confirm the ceiling, floor,

and walls in the room are finished
and completed

• Select the wall and location in which the

Bed will be placed

• Measure the length of the wall and height

of ceiling to confirm the Bed will fit

TIP: You may want to remove existing

baseboard that is located on the wall where

the Bed will be installed. By removing the
baseboard, it will allow for a tighter fit
against the wall (custom units may already
have a notch for baseboard – see shop
drawings, if applicable).

• Locate any electrical outlets on the wall

that may be covered up by the Bed

• Clear out any items in the room so you

have a clear path to the wall and an open
area to assemble the Bed

• If the flooring is hard, lay down some

furniture blankets, sheets of cardboard, or

other cushioning material to prevent parts
from being scratched.

• Locate the maress that will be used with

this Bed; the specific maress is required
for proper adjustment of the Bed and
completion of the assembly

QUICK START GUIDE

(CONT.)

Tech support is readily avai lable if needed

Email : [e-mail]

Phone: [phone]

WallBed | ASSEMBLY MANUAL

PLEASE NO TE: Your Bed may look different

than what is shown in the pic tures and

videos throughout thi s manual

QUICK START GUIDE

(CONT.)

TOOLS NEEDED:

Electric Power Drill
#2 Phillips Bit
#3 Phillips Bit (provided)
#2 Square Bit (provided)
4mm Allen Wrench (provided)
4mm Allen Bit (provided)
9/16” Wrench
#2 Phillips Screwdriver
Hammer
Pliers
Utility Knife
Vise Grips
Flashlight
QR Code Scanner App
(To view videos)

HARDWARE LIST:

Bolts:

H-075 Flat Head Bolts, 5/16” x 1-1/2”
H-738 Flange Bolts 5/16” x 1-1/2”

Screws:

H-014s Euro Screws, 30mm
H-016 Course Thread Screws, 2-1/2”
H-019 Machine Screws, 10-32 x 3/4”
H-065 Panel Screws, 50mm
H-076 Flat Head Screws, 3/4”
H-087 Pan Head Screws, 5/8”
H-088 Machine Screws, 1/4”-20 x 1/2”
H-107s Euro Screws, 13mm
H-184 Auger Screws, 1”
H-358 Buon Head Screws, 5/16”
H-425 Machine Screws, 25mm

H-739 Cap Screws, 5/16” X 1-1/4”

Nuts:

H-086 Flange Nuts, 5/16”
H-308 Acorn Nut, 5/16”

Other:

H-003 Wood Dowels
H-008 Leveler Feet
H-011 Minifix Pins
H-067 Washers, 3/4”OD x 5/16” ID
H-073 Pozi Euro Screws, 14mm
H-074 Angle Brackets, 50mm
H-077 Wide Angle Brackets
H-085 Mending Plates
H-146 Angle Brackets, 45mm
H-210 Angle Bracket, 1”

H-364 Sleeve Bearings
Headoard Guides

The illustrations drawn are general representations of your product’s hardware.

WallBed: Hardware Overview

H-016

H-076

H-011

H-075

H-067

H-065

H-014s

H-003

H-073

H-019

H-008

H-074

The illustrations drawn are general representations of your product’s hardware.

WallBed: Hardware Overview, cont.

H-077

H-210

H-107s

H-085

H-184

H-088

H-087

H-146

H-086

The illustrations drawn are general representations of your product’s hardware.

WallBed: Hardware Overview, cont.

H-425

H-739

H-358

H-738

H-364

H-308

Headboard Guide

A. Lay the Right Cabinet Side on the floor as

shown.

B. Screw the H-011 Minifix Pins into the small

holes.

C. Tap the H-003 Wood Dowels into the larger

holes.

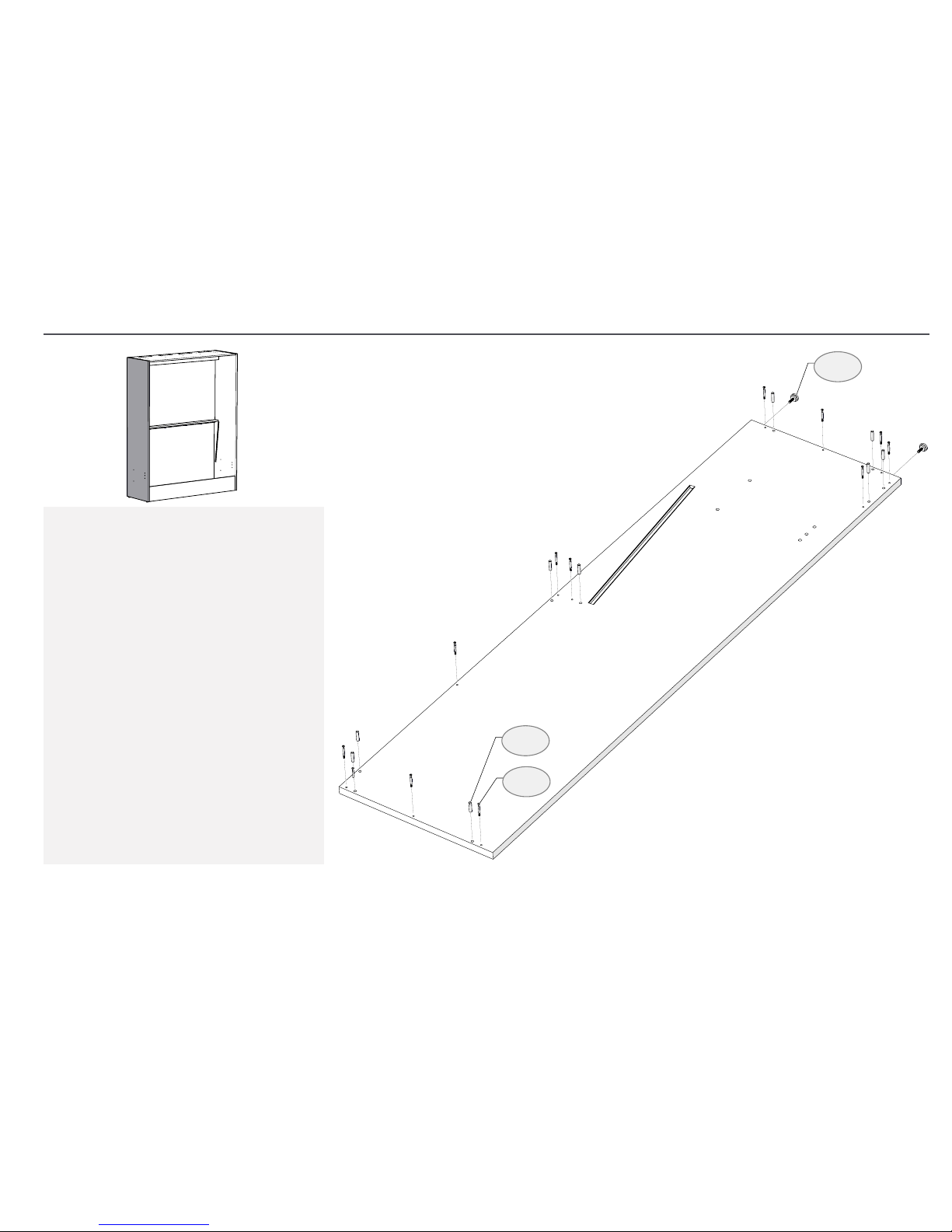

STEP 1 OPEN BACK: Prepare Right Cabinet Side

H-008

H-003

H-011

Use this version of Step 1 if your WallBed is an Open Back Model

A. Lay the Right Cabinet Side on the floor as

shown.

B. Screw the H-011 Minifix Pins into the small

holes.

C. Tap the H-003 Wood Dowels into the larger

holes.

STEP 1 CLOSED BACK: Prepare Right Cabient Side

Use this version of Step 1 if your Sofa-WallBed is a Closed Back Model

H-008

H-003

H-011

A. Lay the Cabinet Front on the floor and screw

the H-011 Minifix Pins into the small holes of
the Cabinet Front. Tap the H-003 Wood Dowels
into the larger holes of the Cabinet Front.

B. Prepare to aach Cabinet Boom to Cabinet

Front.

C. Make sure all the Minifix Cams in the Cabinet

Boom have their arrows pointing towards
the outside edge of the panel to allow the pins
to slide into the Cams, as shown.

D. Slide the Cabinet Boom onto the Minifix

Pins and Wood Dowels in the Cabinet Front,
then tighten the Minifix Cams in the Cabinet
Boom.

STEP 2: Attach Cabinet Front to Cabinet Bottom

Cabinet Front

H-003

H-011

B

A

Cabinet Bottom

Cabinet Front

B

Cabinet Bottom

D

C

Cabinet Front

Minifix Cam Arrow

A

B

Minifix Cam Arrow

D

B

STEP 3 OPEN BACK: Attach Valance to Cabinet Top & Attach Shelf to Cabinet Back

Use this version of Step 3 if your WallBed is an Open Back Model

A

B

Valance

Cabinet Top

B

Cabinet Top

H-065

Valance

D

C

Shelf

Cabinet Back

A

B

D

B

Cabinet Back

Shelf

H-065

A. Hold the Valance next to the Cabinet Top

B. Screw the Valance to the Cabinet top with

H-065 Panel Screws using a 4mm Allen
Wrench.

C. Hold the Shelf next to the Cabinet Back.

D. Screw the Shelf to the Cabinet Back with

H-065 Panel Screws using a 4mm Allen
Wrench.

STEP 3 CLOSED BACK: Attach Valance to Cabinet Top & Attach Shelf to Closed Back

Use this version of Step 3 if your WallBed is an Closed Back Model

A

B

Valance

Cabinet Top

B

Cabinet Top

H-065

Valance

D

C

B

Closed Back

A

Shelf

D

Closed Back

B

Shelf

H-065

A. Hold the Valance next to the Cabinet Top

B. Screw the Valance to the Cabinet top with

H-065 Panel Screws using a 4mm Allen
Wrench.

C. Hold the Shelf next to the Closed Back.

D. Screw the Shelf to the Closed Back with H-065

Panel Screws using a 4mm Allen Wrench.

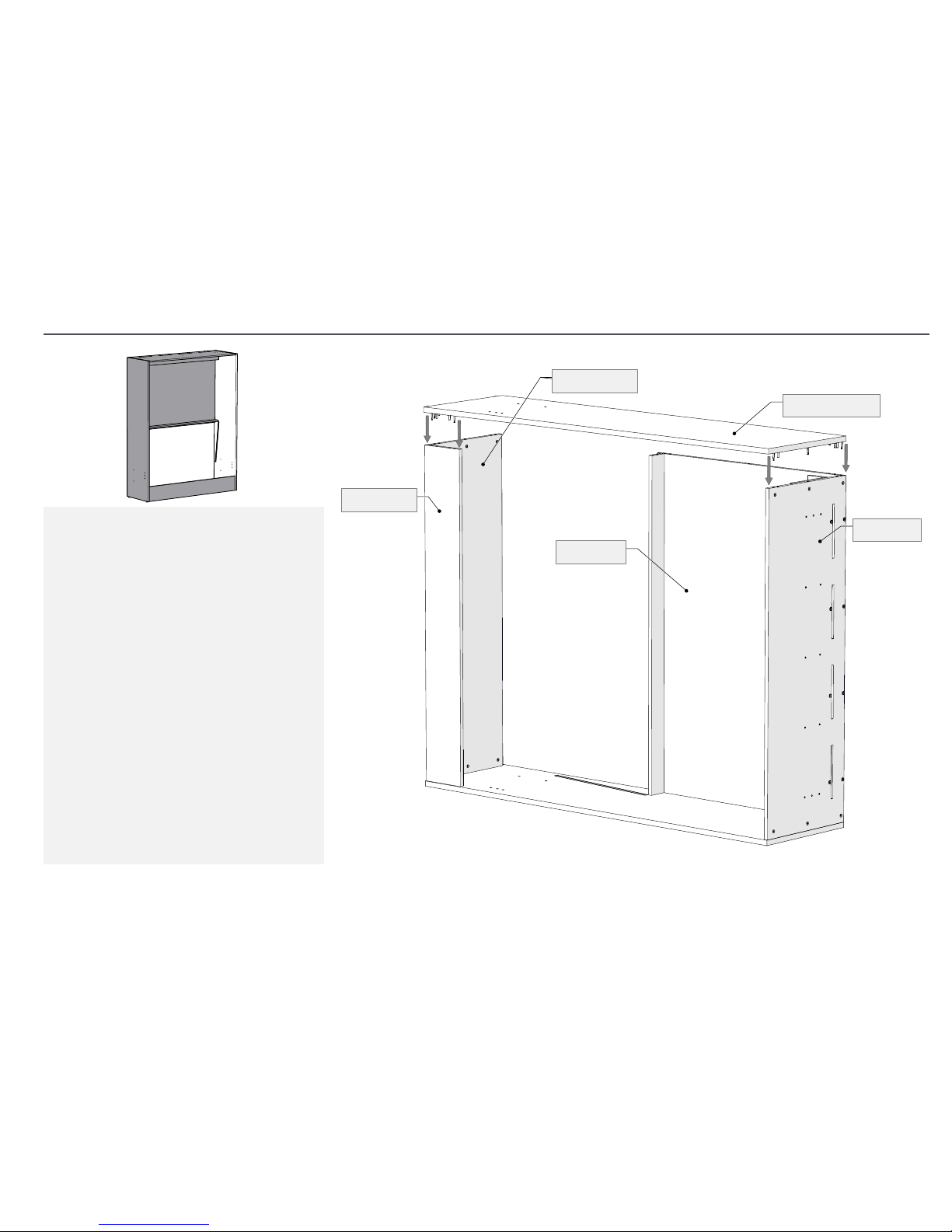

STEP 4 OPEN BACK: Attach Bottom Assembly, Cabinet Top & Back to Right Cabinet Side

Use this version of Step 4 if your WallBed is an Open Back Model

Cabinet Bottom

Cabinet Side, Right

Cabinet Front

Cabinet Back

Cabinet Top

A. Lay the Right Cabinet Side from Step 1 on the

floor as shown, using padding to protect it
from geing scratched.

B. Slide the Cabinet Front/Boom Assembly

onto the fiings in the Right Cabinet Side and
tighten the Minifix Cams.

C. Slide the Cabinet Back/Shelf Assembly onto

the fiings in the Right Cabinet Side and
tighten the Minifix Cams.

D. Slide the Cabinet Top Assembly onto the

fiings in the Right Cabinet Side and tighten
the Minifix Cams.

STEP 4 CLOSED BACK: Attach Bottom Assembly, Cabinet Top & Back to Right Cabinet Side

Use this version of Step 4 if your WallBed is an Closed Back Model

Cabinet Bottom

Cabinet Side, Right

Cabinet Front

Cabinet Back

H-065

Cabinet Top

A. Lay the Right Cabinet Side from Step 1 on the

floor as shown, using padding to protect it
from geing scratched.

B. Slide the Cabinet Front/Boom Assembly

onto the fiings in the Right Cabinet Side and
tighten the Minifix Cams.

C. Slide the Closed Back/Shelf Assembly onto the

fiings in the Right Cabinet Side and tighten
the Minifix Cams.

D. Slide the Cabinet Top Assembly onto the

fiings in the Right Cabinet Side and tighten
the Minifix Cams.

E. Screw the Cabinet Top to the Closed Back

using H-065 Panel Screws using a 4mm Allen
Wrench.

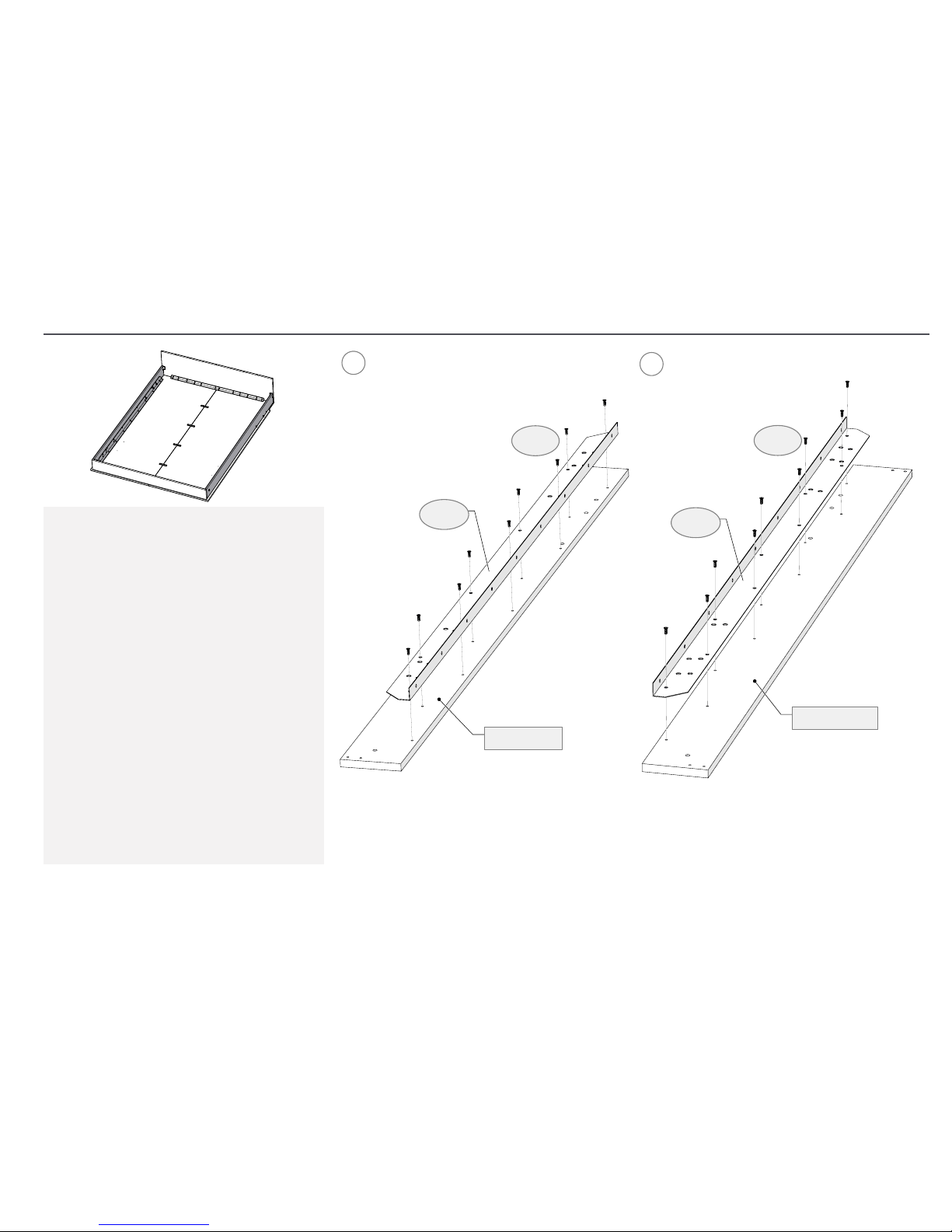

A. Lay the Le Cabinet Side on the floor as

shown.

B. Screw the H-011 Minifix Pins into the small

holes.

C. Tap the H-003 Wood Dowels into the larger

holes.

STEP 5 OPEN BACK: Prepare Left Cabinet Side

H-008

H-011

H-003

Use this version of Step 5 if your WallBed is an Open Back Model

A. Lay the Le Cabinet Side on the floor as

shown.

B. Screw the H-011 Minifix Pins into the small

holes.

C. Tap the H-003 Wood Dowels into the larger

holes.

STEP 5 CLOSED BACK: Prepare Left Cabinet Side

Use this version of Step 5 if your Sofa-WallBed is a Closed Back Model

H-008

H-003

H-011

A. Make sure all the Minifix Cams have their

arrows pointing to the nearest edge of the
panels.

B. Li the Le Cabinet Side, flip it over, and place

it on the partly assembled cabinet as shown.
You may need to shi the parts slightly to get
the dowels and pins to line up with the holes.

C. Tighten all the Minifix Cams as in Step 4.

D. The Bed Cabinet is now complete and ready to

stand up.

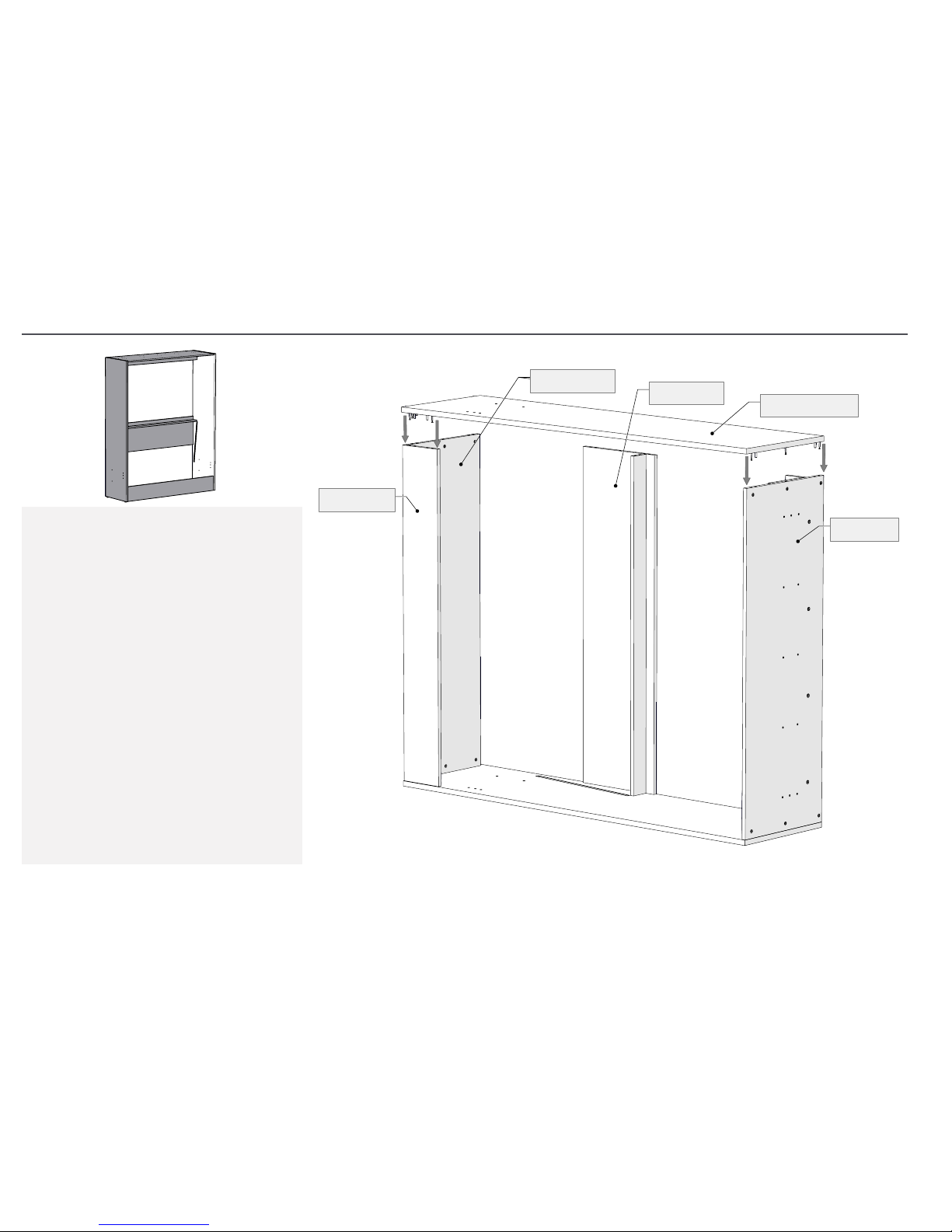

STEP 6 OPEN BACK: Attach Left Cabinet Side to the Cabinet Assembly

Cabinet Bottom

Cabinet Front

Cabinet Back

Cabinet Side, Left

Cabinet Top

Use this version of Step 6 if your WallBed is an Open Back Model

A. Make sure all the Minifix Cams have their

arrows pointing to the nearest edge of the
panels.

B. Li the Le Cabinet Side, flip it over, and place

it on the partly assembled cabinet as shown.
You may need to shi the parts slightly to get
the dowels and pins to line up with the holes.

C. Tighten all the Minifix Cams as in Step 4.

D. The Bed Cabinet is now complete and ready to

stand up.

STEP 6 CLOSED BACK: Attach Left Cabinet Side to the Cabinet Assembly

Use this version of Step 6 if your Sofa-WallBed is a Closed Back Model

Cabinet Bottom

Cabinet Front

Closed Back

Cabinet Side, Left

Cabinet Top

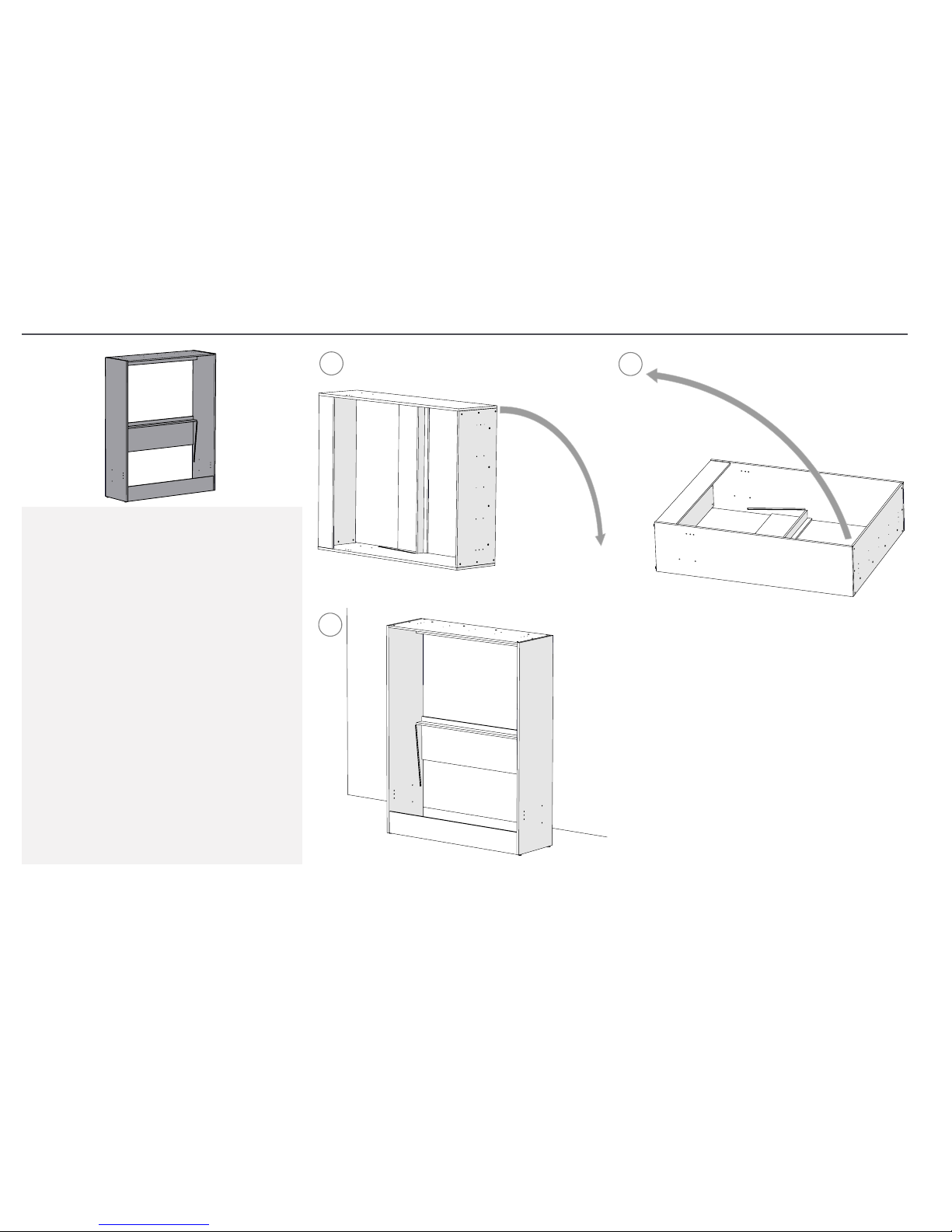

A. It is recommended this step is done by two

people for safety. Carefully lay the Cabinet
over as shown, using padding on the floor to
protect the cabinet from being scratched.

B. Raise the Cabinet as shown.

C. Carefully “walk” the standing Cabinet so that

it is about two feet from the wall where it will
be placed when it is finished.

STEP 7 OPEN BACK: Lay the Cabinet Over on its Back and then Stand it Up

A

B

B

A

C

B

D

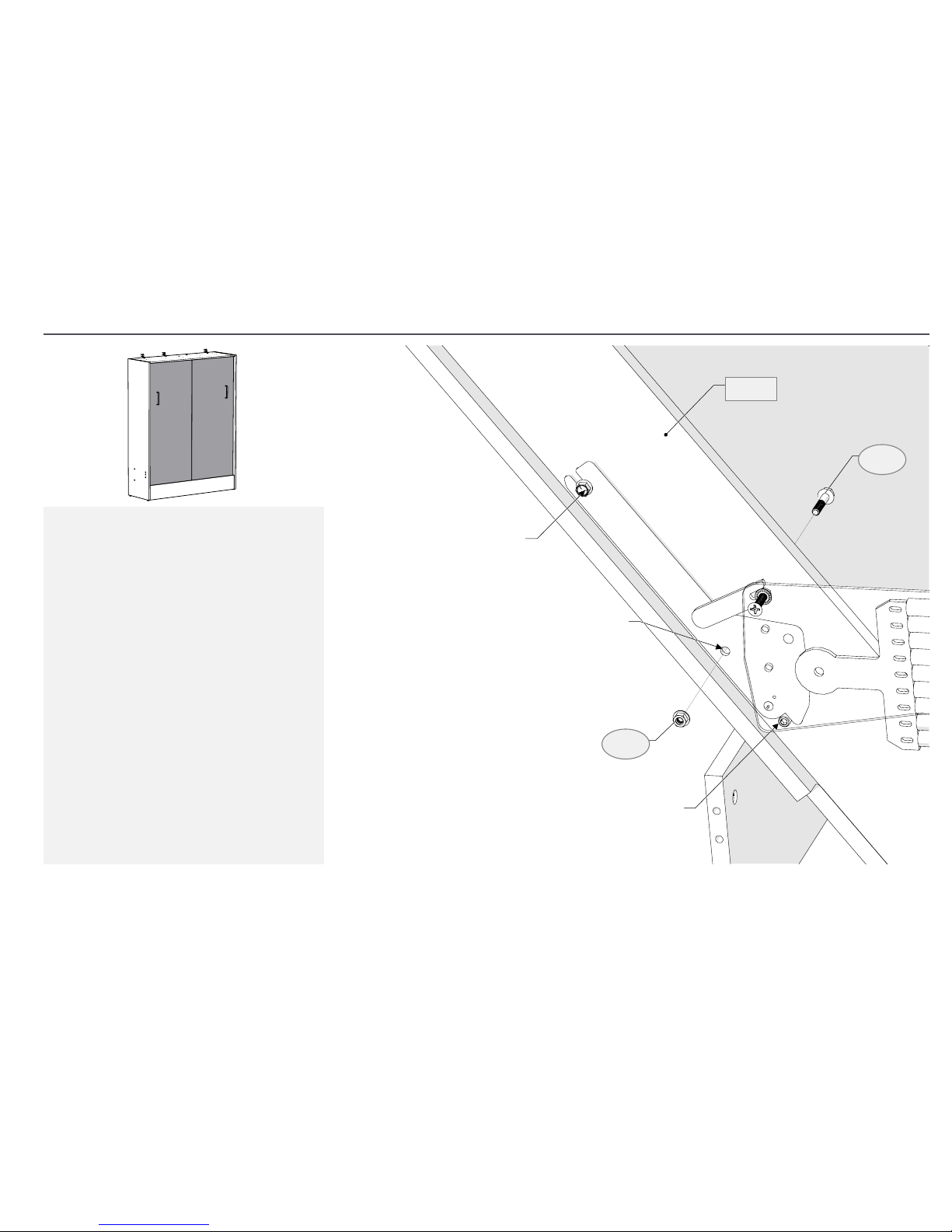

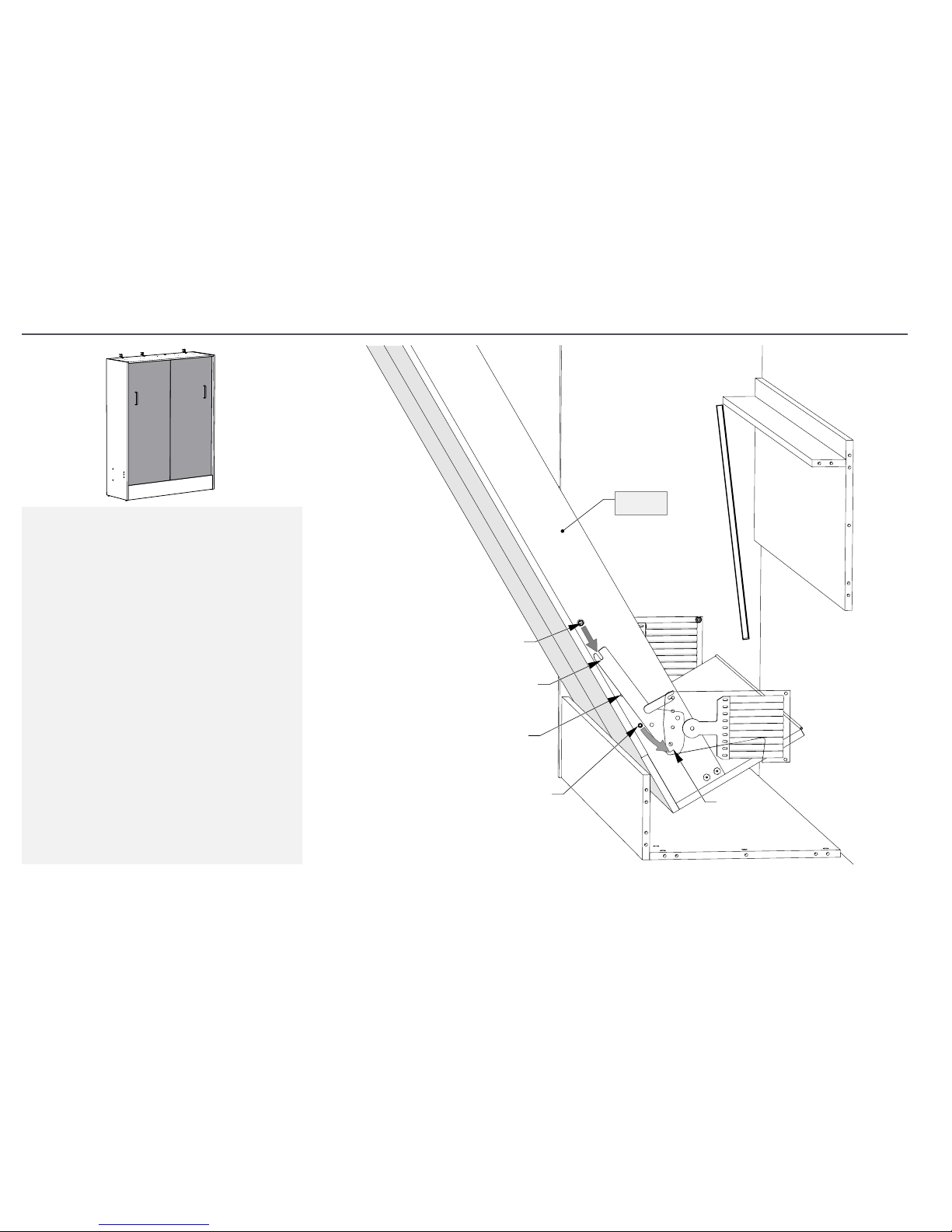

A. Pivot the mechanism arm until all three of

the front holes are exposed. From the outside
face of the Le Cabinet Side insert a H-075
Bolt through one of the front holes and
align the bolt with the mating hole in the
Le Mechanism. Hand turn a H-086 Nut on
the bolt until it begins to thread, but do not
tighten it completely. Insert another H-075
Bolt through one of the two rear holes. Align
and hand turn another H-086 Nut on the bolt
until it begins to thread, but do not tighten
it completely. Aer all five H-075 Bolts are
inserted through the outside face of the Le
Cabinet Side, and all five H-086 Nuts are hand
threaded on the bolts, proceed to tighten all
the H-086 Nuts tightly with a crescent wrench,
1/2” box wrench, or 1/2” socket.

B. Repeat “A” for the Right Spring Mechanism.

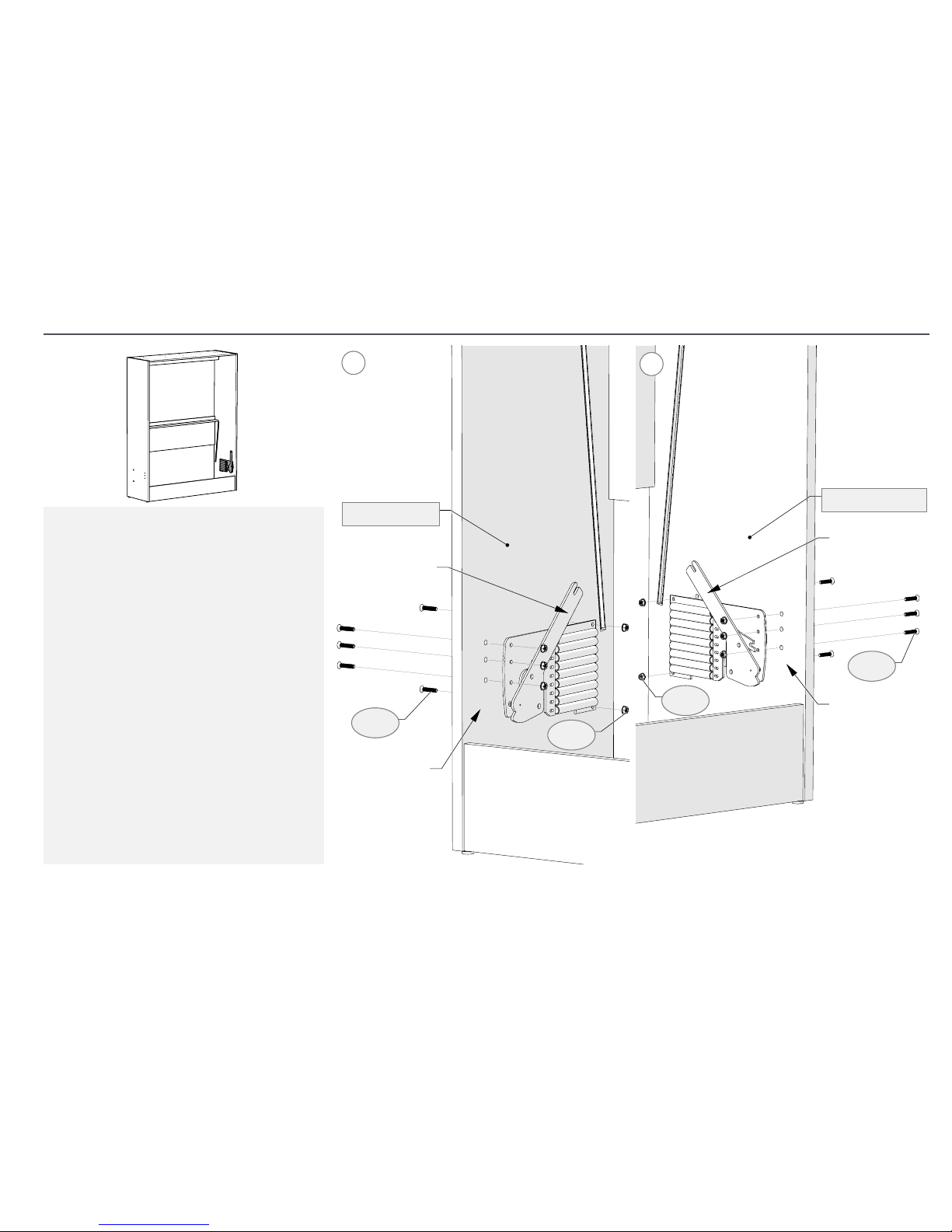

STEP 8: Attach the Lift Mechanisms to the Bed Cabinet

H-075

H-086

Mechanism Arm

A

Cabinet Side, Left

Mechansim, Left

B

H-075

B

H-086

Cabinet Side, Right

Mechanism Arm

Mechanism, Right

A. The WallBed cabinet should be placed directly

against the wall where it will be installed.
Do a preliminary check for squareness by
measuring diagonally from corner to corner
across the face of the cabinet. Use a step
ladder to access the wall above the Cabinet
Top and locate studs or other solid structural
members to which you can fasten the H-074
Angle Brackets.
TWIN SIZE requires two H-074 Angle
Brackets. One should be located on each
side of the centerline.
FULL & QUEEN SIZES require three H-074
Angle Brackets. One should be located near
the center and the other two should be located
near the sides of the Cabinet Top as shown.
KING SIZES requires four H-074 Angle
Brackets. Two should be located on each side
of the centerline.

B. Drive two H-016 Flathead Screws through each

Angle Bracket and into each solid framing
member in the wall. Drive two H-076 Flathead
Screws through the angle brackets and into
the Cabinet Top.

CAUTION! WallBeds must be securely
aached to wall structure before proceeding,
to ensure safe and smooth operation!

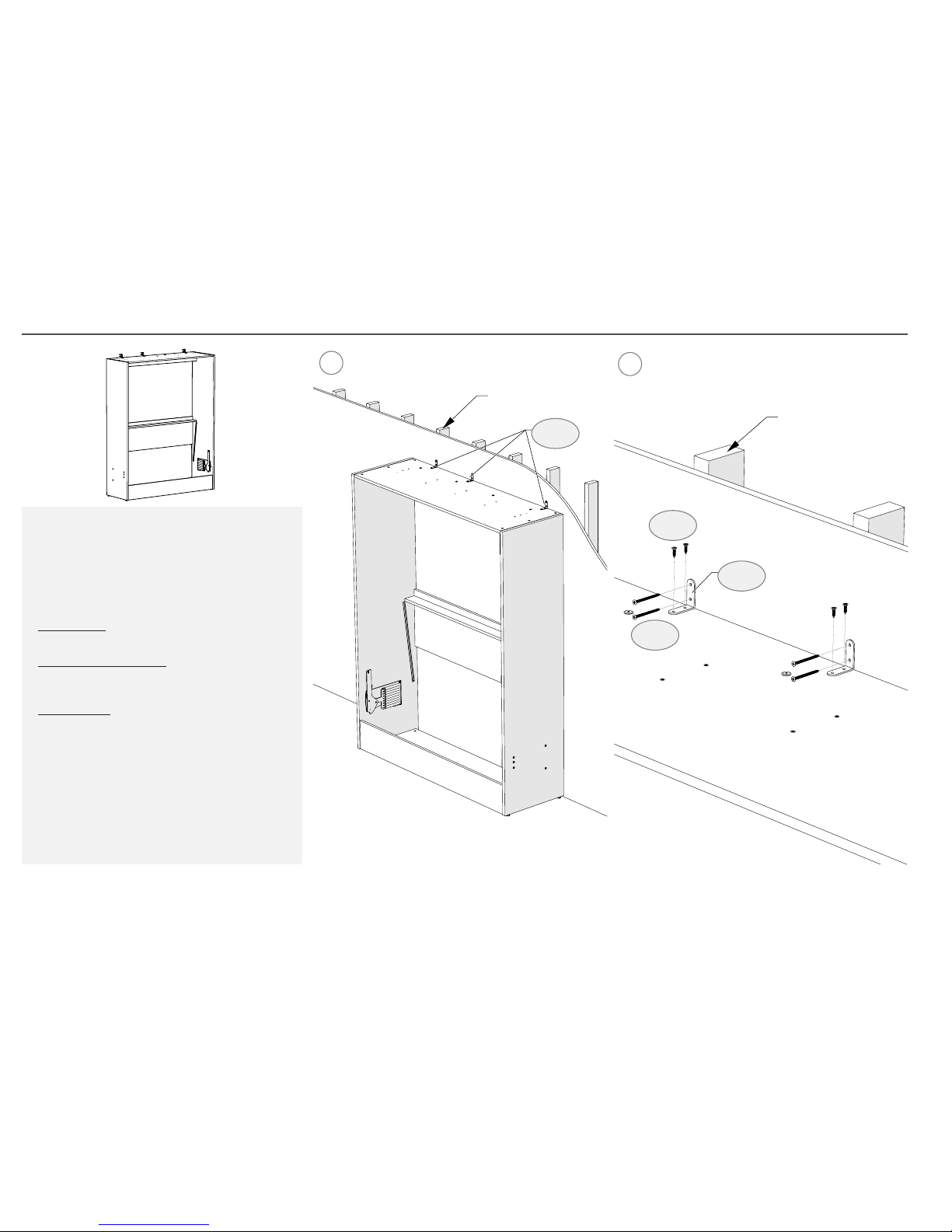

STEP 9: Attach the Cabinet to the Wall

A

Wall studs

H-074

B

H-074

H-076

Wall studs

H-016

B

A. Aach the M-222 Side Angle to the Le Side

Rail using H-073 Euro Screws, as shown.

B. Aach the M-222 Side Angle to the Le Side

Rail using H-073 Euro Screws, as shown.

STEP 10: Prepare Left and Right Side Rails

H-073

M-222

A

Side Rail, Left

B

H-073

M-222

Side Rail, Right

B

A. Carefully place the finished side of Bed Panels

on the carpet or other padded surface. Make
sure the area is clear of any hardware or debris
that can cause damage. Align the holes of the
Le Side Rail Angle with the holes of the Le
Bed Panel and aach them by screwing the
H-088 Bolts through the Side Angle and into
the Bed Panel. Take care to ensure that the
parts are oriented so that the Threaded Inserts
the Side Rail are near the notched end of the
Bed Panel. Proceed with the same process for
the Right Side Rail.

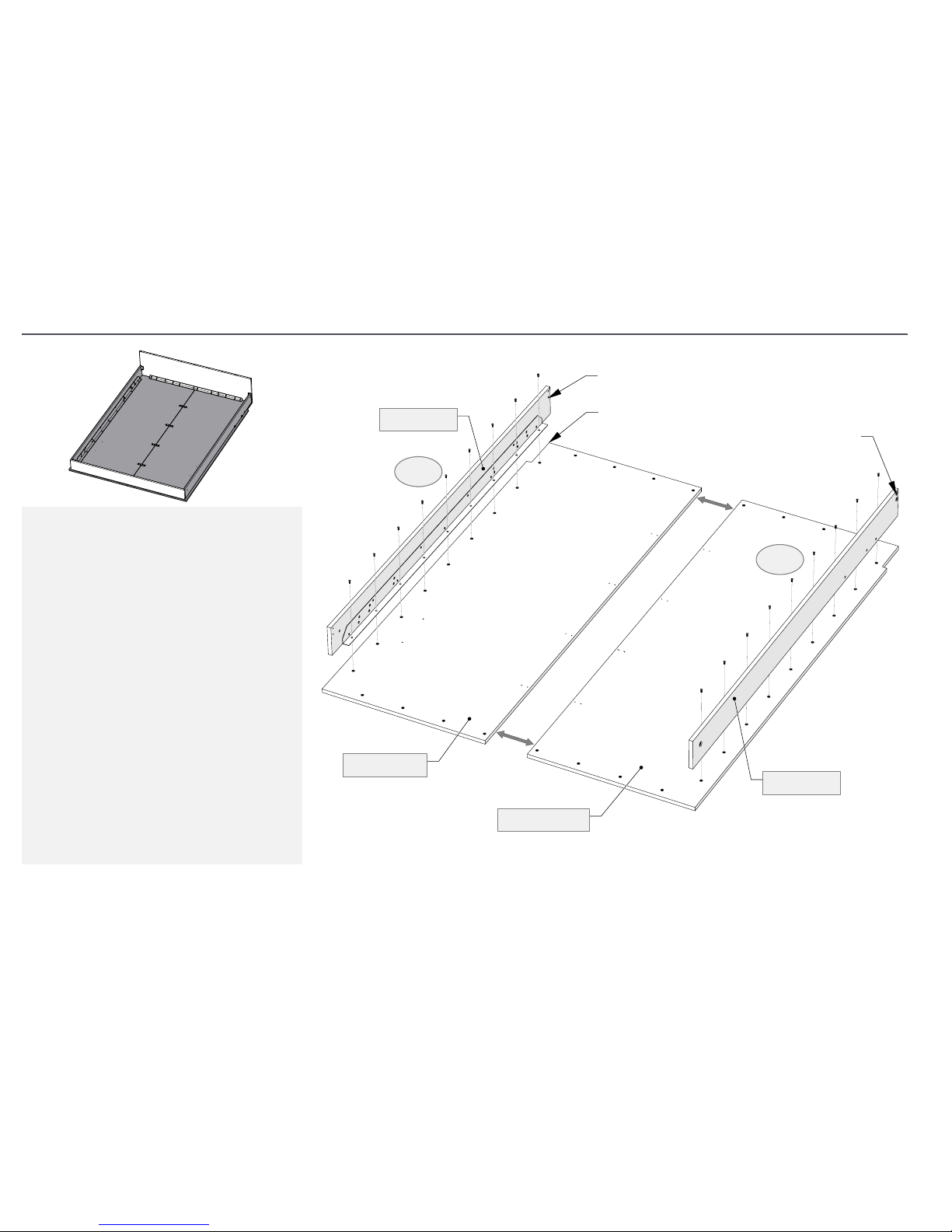

STEP 11 PLAIN BED PANEL: Side Rails to Bed Panels

Notched End

Threaded Inserts

Side Rail, Left

Threaded Inserts

H-088

Bed Panel, Left

H-088

Side Rail, Left

Bed Panel, Right

Use this version of Step 11 if your Sofa-WallBed has a Plain Bed Panel

A. Carefully place the finished side of Bed Panels

on the carpet or other padded surface. Make
sure the area is clear of any hardware or debris
that can cause damage. Align the holes of the
Le Side Rail Angle with the holes of the Le
Bed Panel and aach them by screwing the
H-088 Bolts through the Side Angle and into
the Bed Panel. Take care to ensure that the
parts are oriented so that the Threaded Inserts
the Side Rail are near the notched end of the
Bed Panel. Proceed with the same process for
the Right Side Rail.

STEP 11 RECESSED BED PANEL: Side Rails to Bed Panels

Use this version of Step 11 if your Sofa-WallBed has a Recessed Bed Panel

Notched End

Threaded Inserts

Lower Bed Panel

Side Rail, Left

Bed Panel, Left

Bed Panel, Right

Threaded Inserts

H-088

H-088

Upper Bed Panel

Side Rail, Left

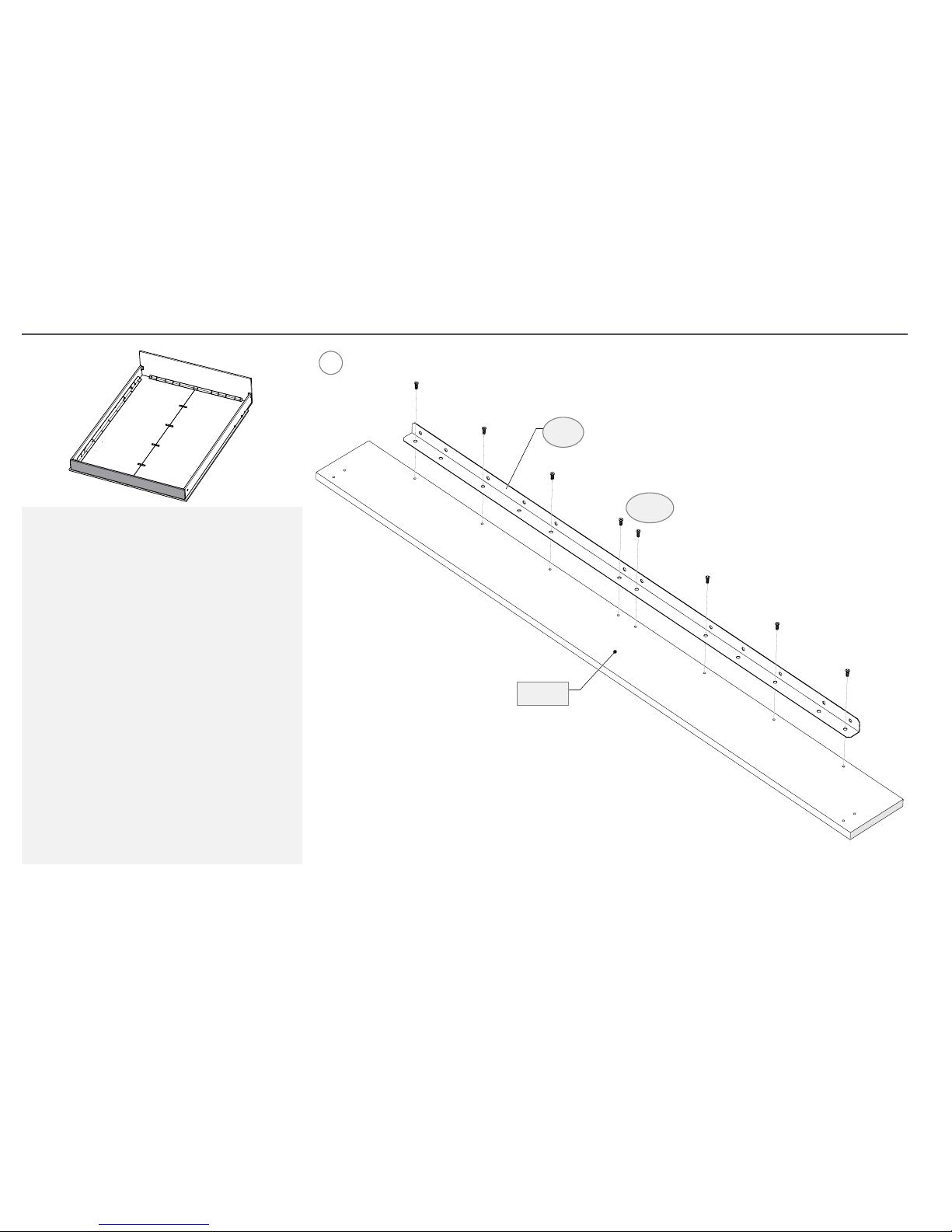

A. Aach the M-19 Short bed Angle to the Foot

Rail using H-073 Euro Screws, as shown.

STEP 12: Prepare Foot Rail

A

M-19

Foot Rail

H-073

A. Align the holes of the Foot Rail Angle with

the holes of the Bed Panels and aach them
by screwing the H-088 Bolts through the Foot
Rail Angle and into the Bed Panels. Take care
to ensure that the parts are oriented so that
the Foot Rail is at the opposite side of the Bed
Panel notched ends.

STEP 13 PLAIN BED PANEL: Attach Foot Rail to Bed Panels

Foot Rail

Side Rail, Left

Bed Panel, Left

H-088

Bed Panel, Right

Side Rail, Right

Notched End

Use this version of Step 13 if your Sofa-WallBed has a Plain Bed Panel

STEP 13 RECESSED BED PANEL: Attach Foot Rail to Bed Panels

Use this version of Step 13 if your Sofa-WallBed has a Recessed Bed Panel

Foot Rail

Side Rail, Left

Upper Bed Panel

H-088

Bed Panel, Left

Bed Panel, Right

Side Rail, Right

Notched End

A. Align the holes of the Foot Rail Angle with the

holes of the Right, Upper, and Le Bed Panels
and aach them by screwing the H-088 Bolts
through the Foot Rail Angle and into the Bed
Panels. Take care to ensure that the parts are
oriented so that the Foot Rail is at the opposite
side of the Bed Panel notched ends.

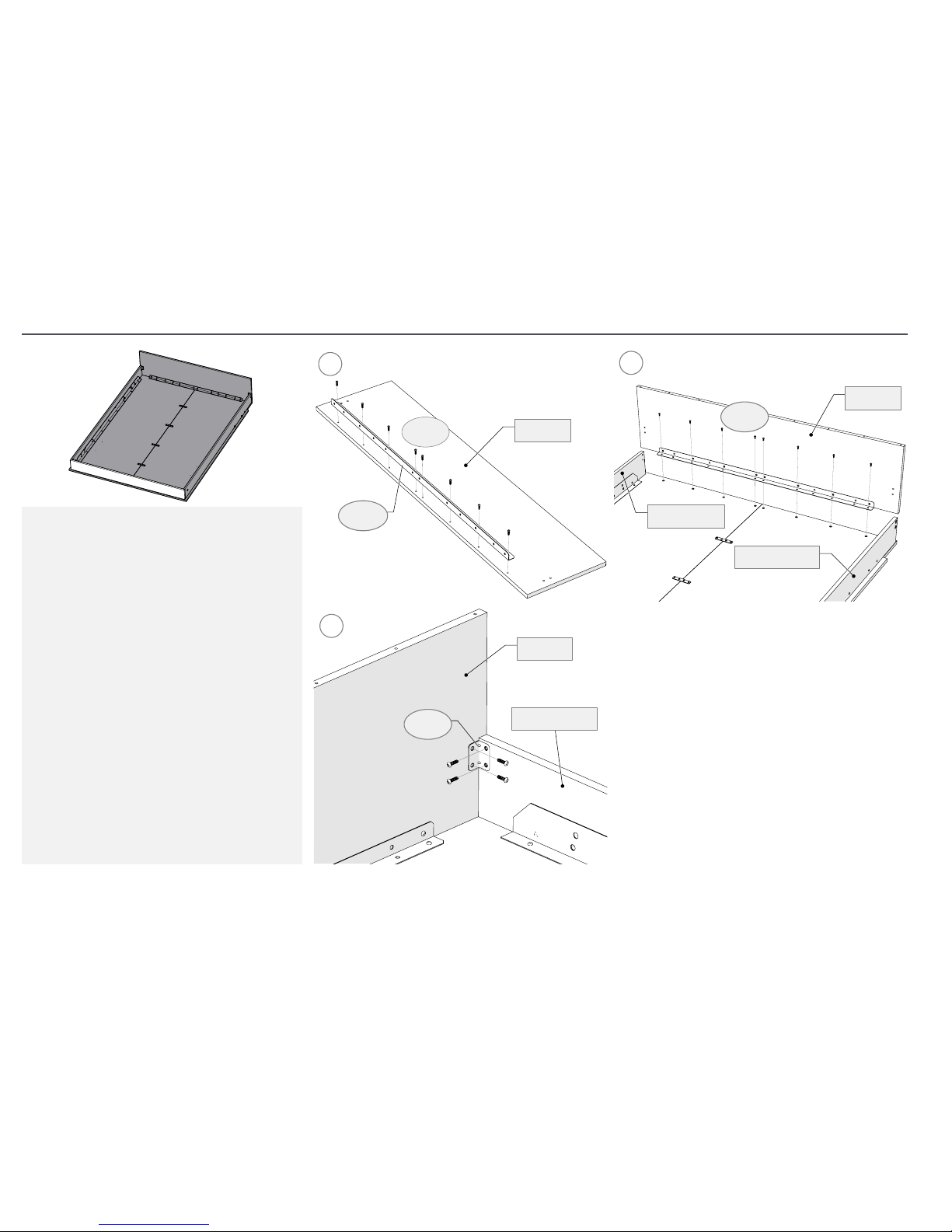

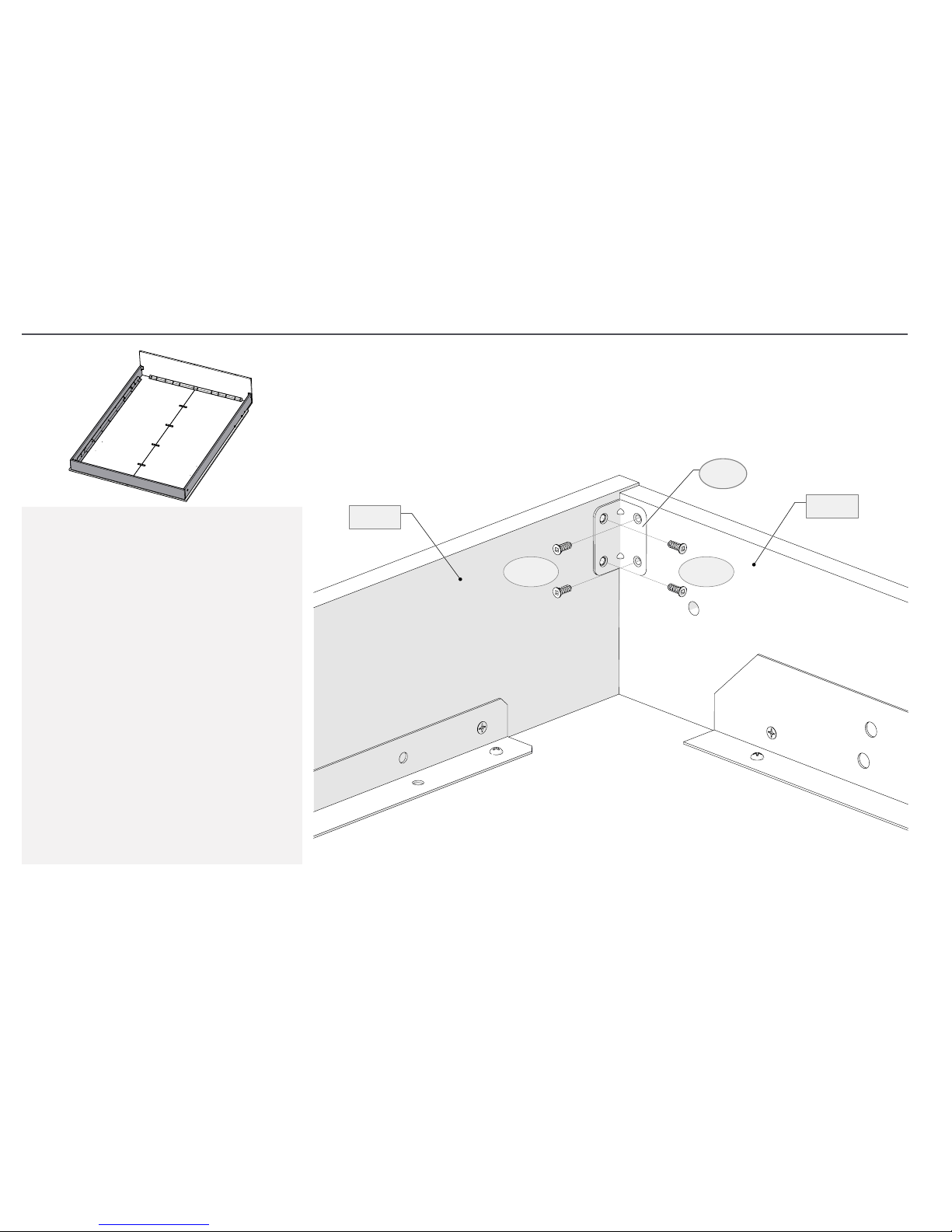

A. Aach the Foot Rail to each Side Rail by

connecting the H-077 Wide Angle Brackets
to each corner with H-107s Flat Head Euro
Screws, as shown.

STEP 14: Attach Foot Rail to Bed Panels

H-077

H-107s H-107s

Side Rail

Foot Rail

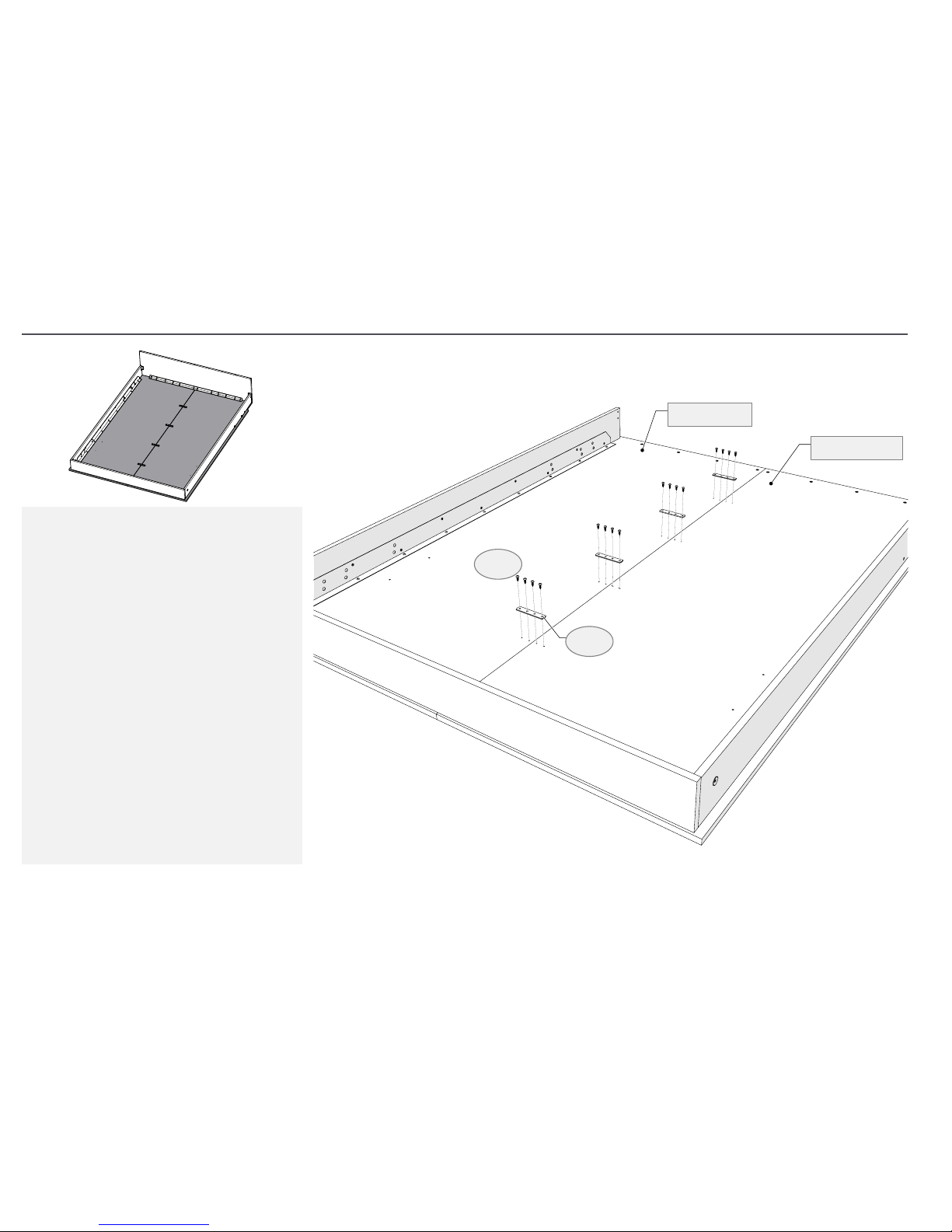

A. Aach the Right and Le Bed Panels to each

other using the H-085 Mending Plates and
H-087 Pan Head Screws, making sure that the
top edge of the panels are well aligned when
installing the H-085 Mending Plates.

STEP 15 PLAIN BED PANEL: Attach Right and Left Bed Panels

Bed Panel, Left

Bed Panel, Right

H-087

H-085

Use this version of Step 15 if your Sofa-WallBed has a Plain Bed Panel

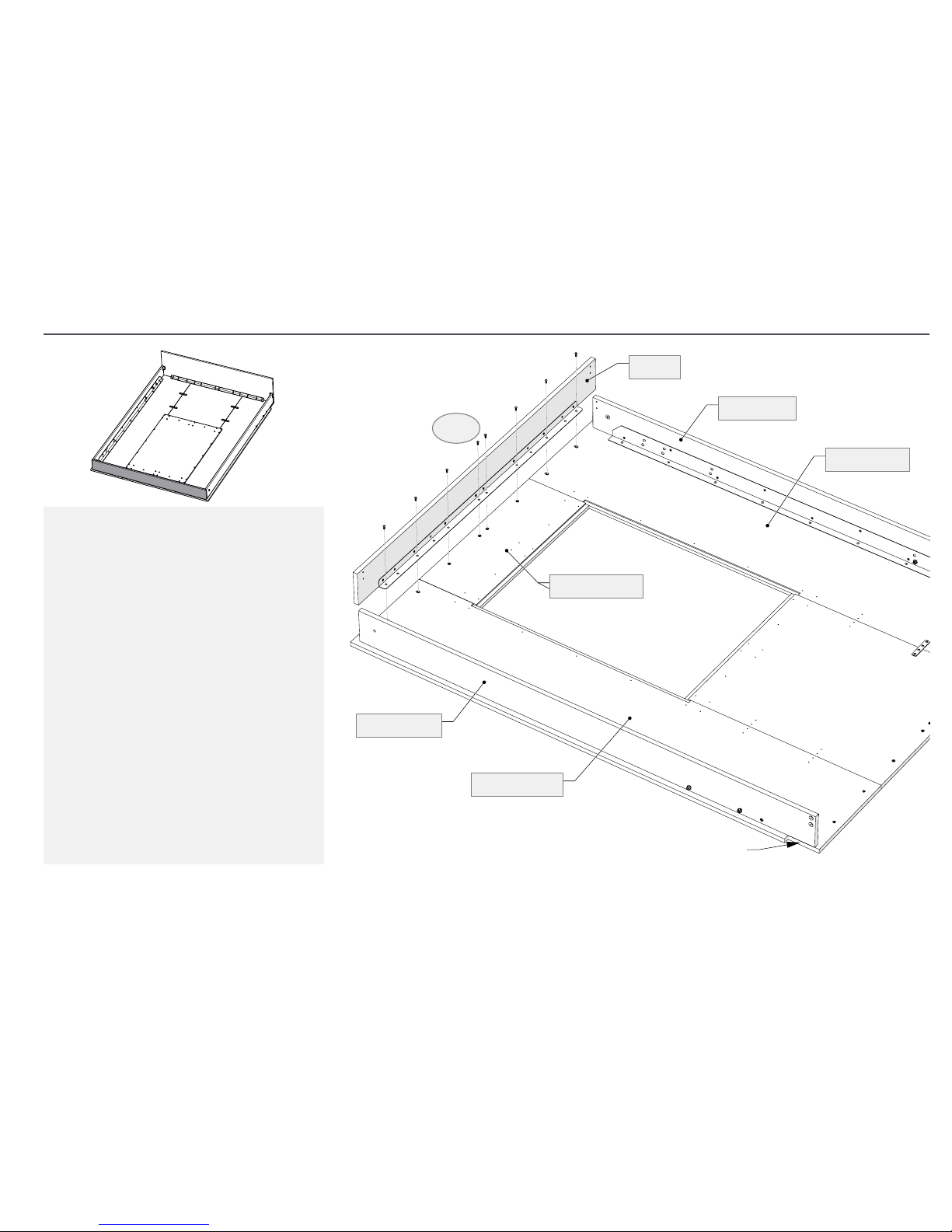

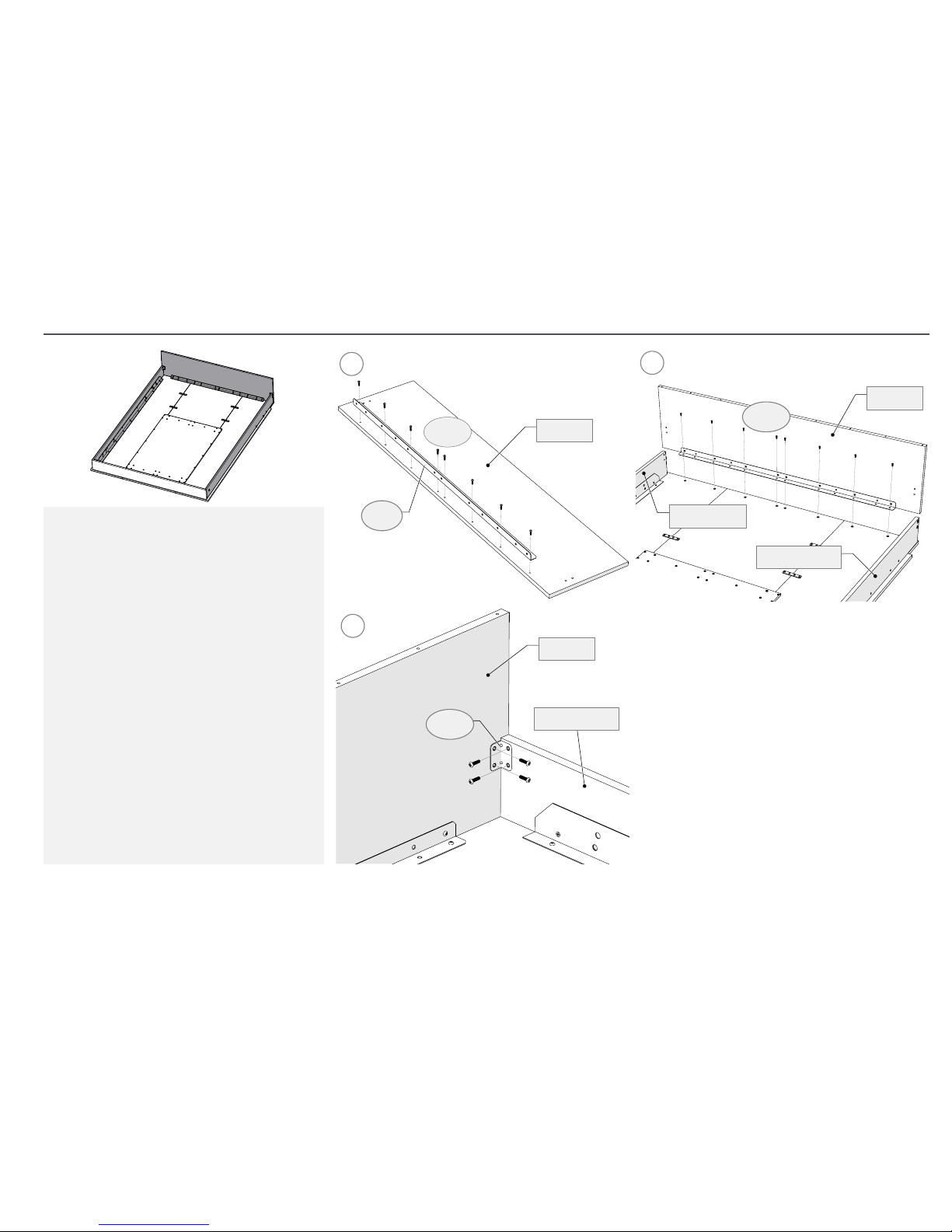

STEP 15 RECESSED BED PANEL: Attach Right and Left Bed Panels

Use this version of Step 15 if your Sofa-WallBed has a Recessed Bed Panel

Lower Bed Panel

Bed Panel, Left

H-085

H-087

Mirror Panel

Bed Panel, Right

Upper Bed Panel

H-184

Foot Rail

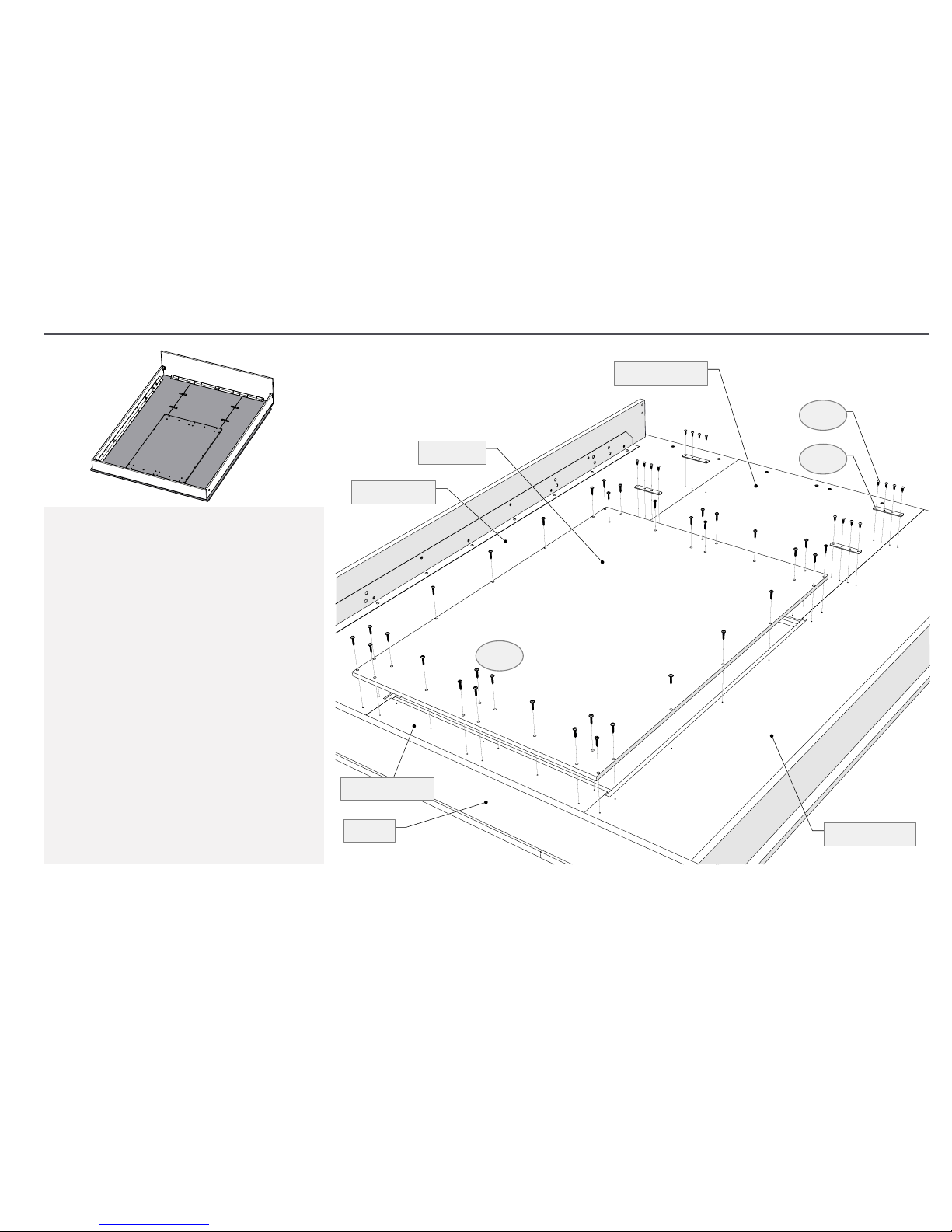

A. Lay the mirror Panel face down on the

rectangular opening in between the Bed
Panels, and line up the holes of the Mirror
Panel with holes in the Bed Panels. Make
sure that the ends of the Bed Panels are well
aligned. Aach the Right, Lower, and Le Bed
Panels to each other using the H-085 Mending
Plates and H-087 Pan Head Screws.

A. Aach the M-19 Short bed Angle to the Head

Rail using H-019 Screws, as shown.

B. Align the holes of the Head Rail Angle with

the holes of the Bed Panels and aach them
by screwing the H-088 Bolts through the Head
Rail Angle and into the Bed Panels, as shown.

C. Aach the Head Rail to each Side Rail by

connecting the H-077 Wide Angle Brackets
to each corner with H-107s Flat Head Euro
Screws, as shown.

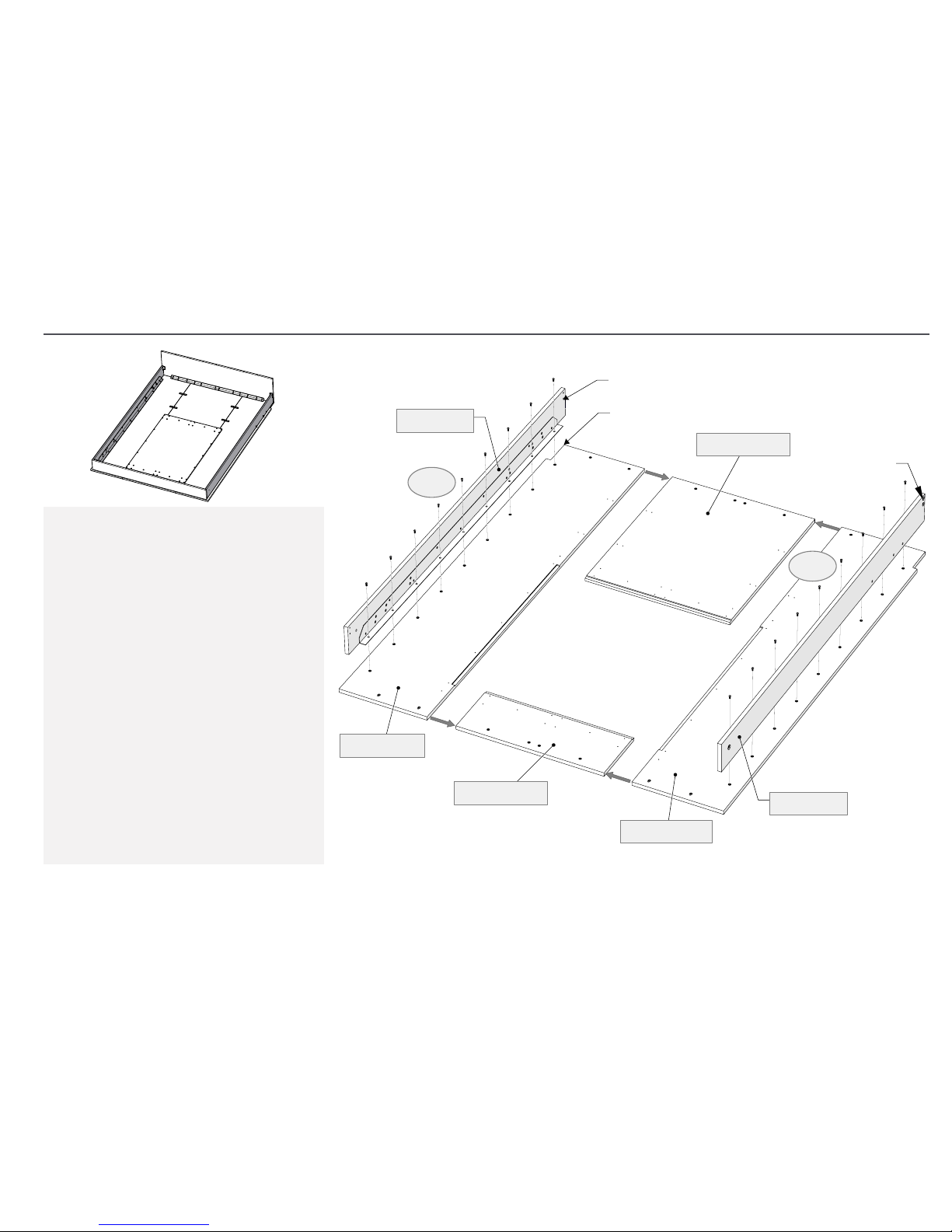

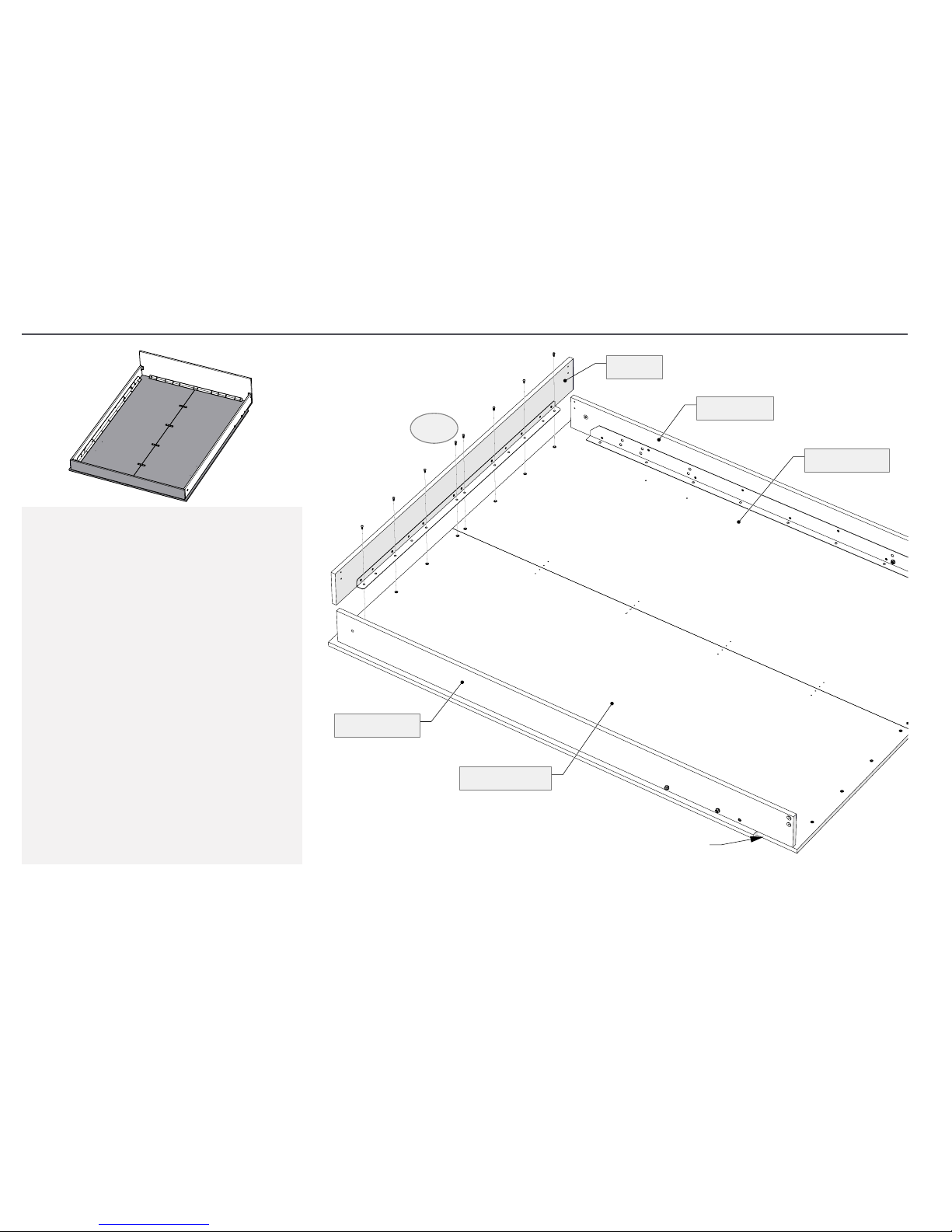

STEP 16 PLAIN BED PANEL: Prepare and Attach Head Rail to Bed Panels

Use this version of Step 16 if your Sofa-WallBed has a Plain Bed Panel

Head Rail

M-19d

H-019

A

B

Side Rail, Left

H-088

Head Rail

Side Rail, Right

B

H-077

D

Head Rail

Side Rail, Right

C

A

B

STEP 16 RECESSED BED PANEL: Prepare and Attach Head Rail to Bed Panels

Use this version of Step 16 if your Sofa-WallBed has a Recessed Bed Panel

Head Rail

M-19

H-019

A

B

Side Rail, Left

H-088

Head Rail

Side Rail, Right

B

H-077

D

Head Rail

Side Rail, Right

C

A

B

A. Aach the M-19 Short bed Angle to the Head

Rail using H-019 Screws, as shown.

B. Align the holes of the Head Rail Angle with

the holes of the Bed Panels and aach them
by screwing the H-088 Bolts through the Head
Rail Angle and into the Bed Panels, as shown.

C. Aach the Head Rail to each Side Rail by

connecting the H-077 Wide Angle Brackets
to each corner with H-107s Flat Head Euro
Screws, as shown.

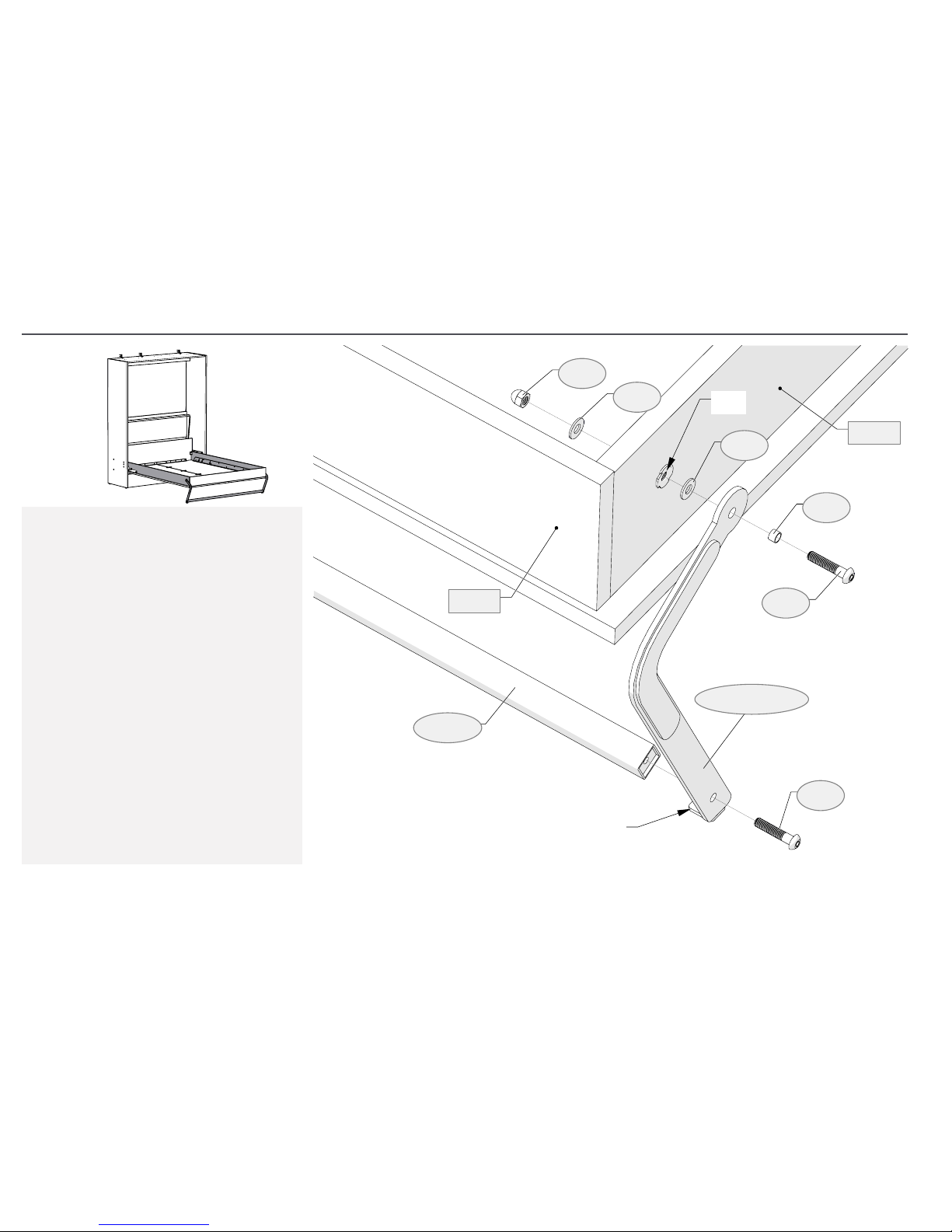

A. Insert a H-738 Bolt into the #1 hole from the

outside of the Side Rail. Thread a H-086 5/16”
nut on the end of the bolt just enough so that
the end of the bolt protrudes from the nut.
There should be about 1/4” of bolt threads
visible between the underside of the head of
the Bolt and the outside face of the Side Rail.
In the #3 hole, insert a H-739 Cap Screw from
the outside face of the Side Rail and thread on
a H-086 5/16” Nut from the other side. This nut
should be tightened by hand so that the head
of the Cap Screw is snug against the outside
face of the Side Rail.

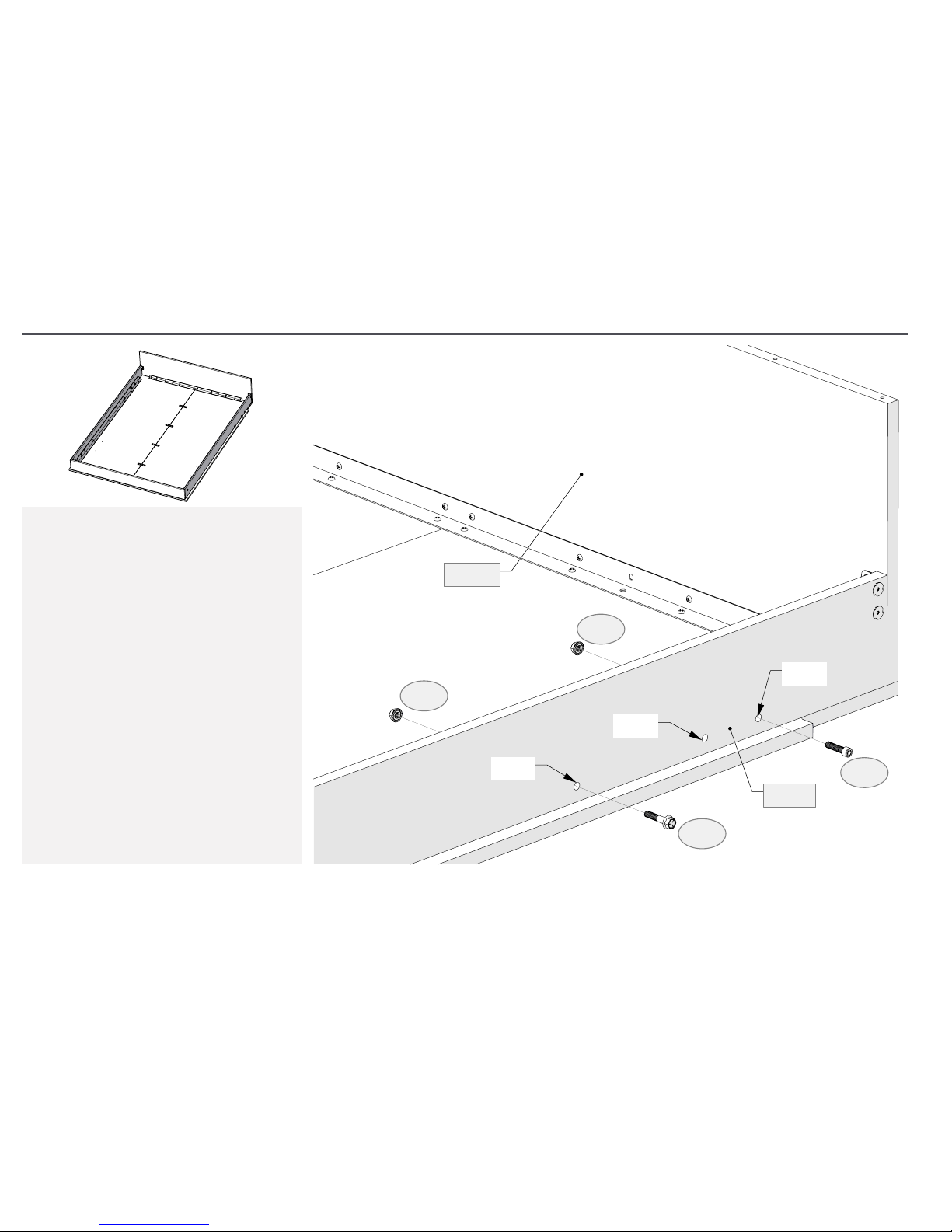

ST EP 17: Attach Mounting Hardware to the Side Rails

Head Rail

H-086

Hole #3

H-086

Hole #2

Side Rail

H-739

Hole #1

H-738

A. Carefully turn over the entire Bed Platform

over on its side, as shown.

B. Carefully support the Bed Platform on its side.

Aach the handles on each side of the Bed
Panels using the H-425 Machine Screws.

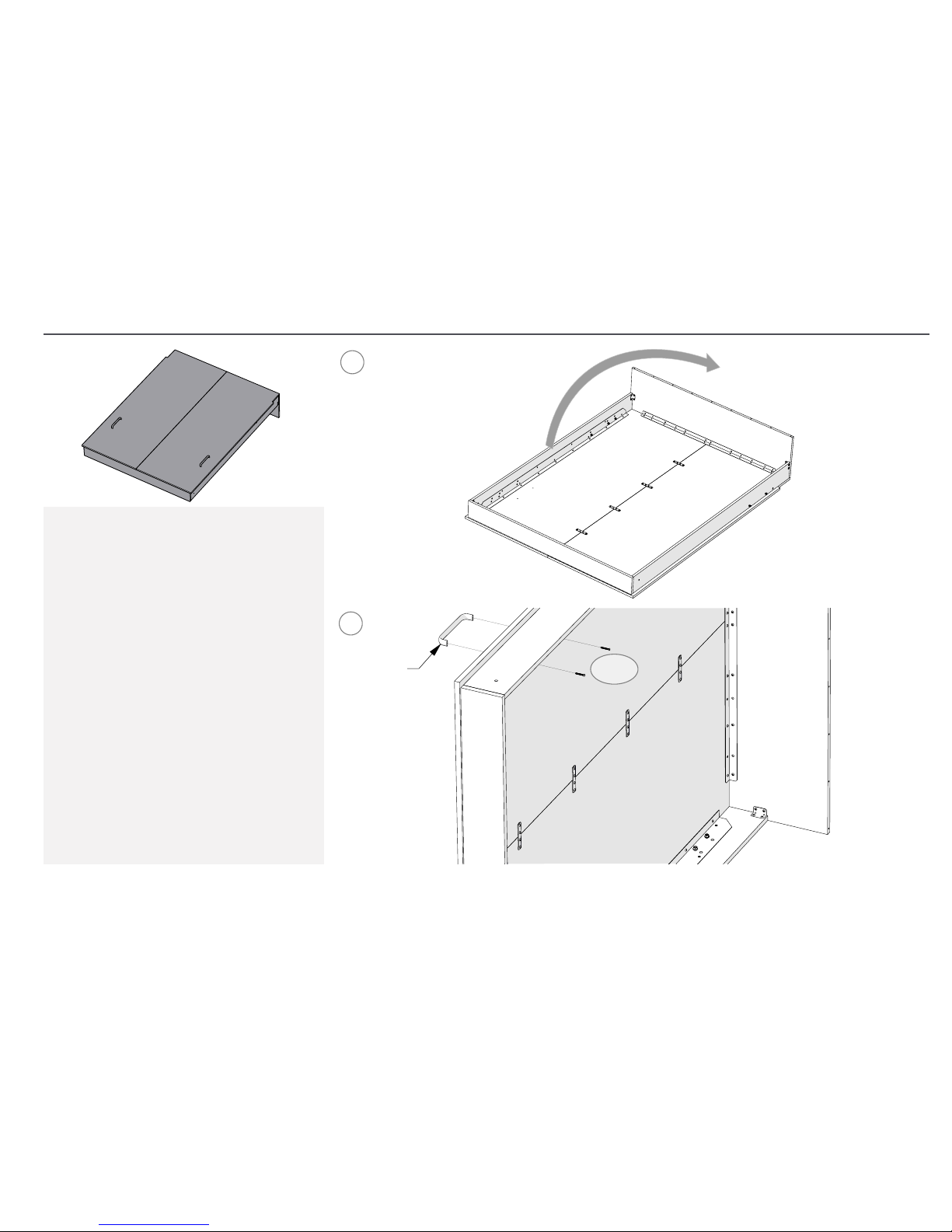

STEP 18: Attach the Handles to Bed Platform

A

Handle

H-425

A

B

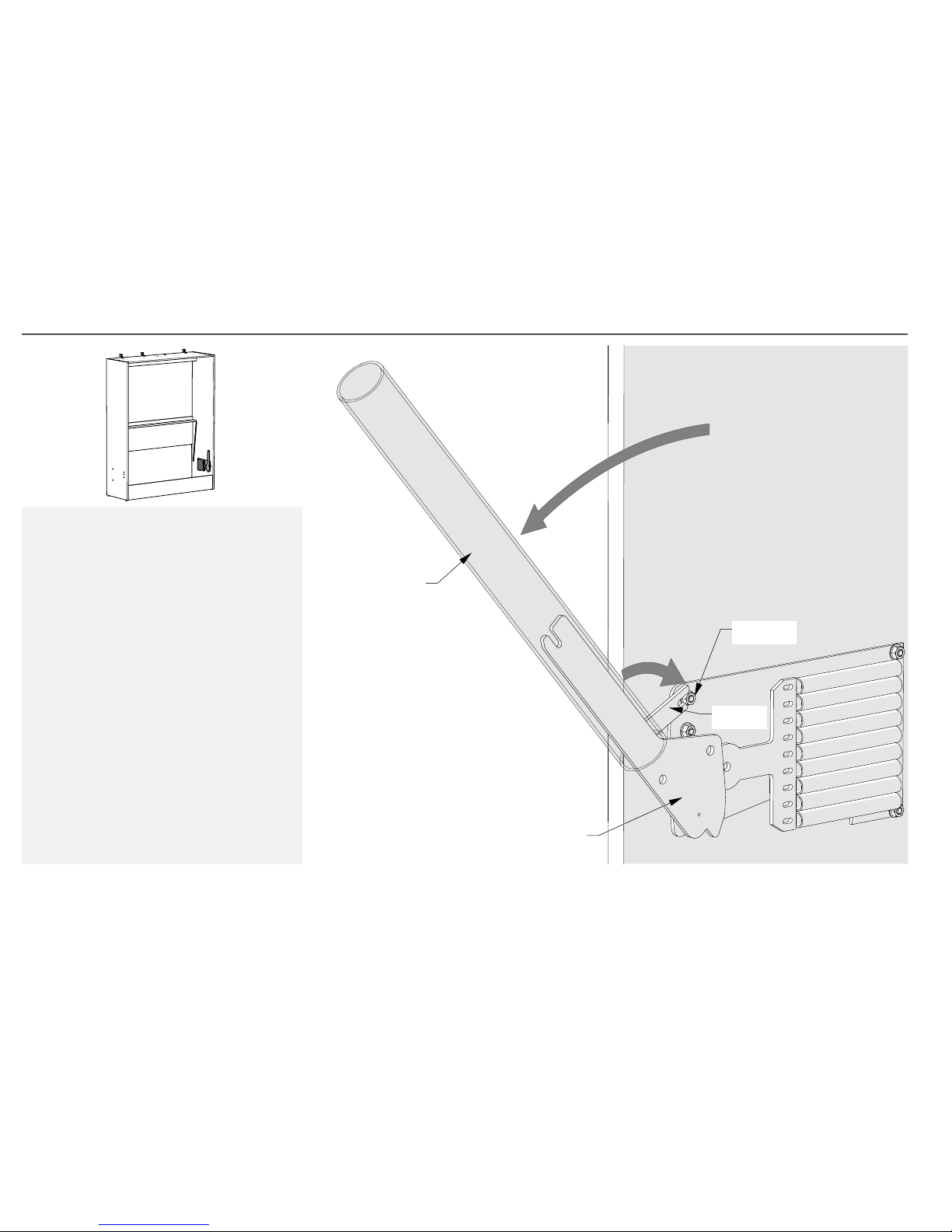

A. Slide the PVC pipe over the end of each

tension arm and use it bring the arms outward
against the initial tension of the springs. When
they are pulled near the angle shown, swivel
the Arm Locks over to brace against Hex Bolt
‘A’. There will be a lot of tension on the Tension
Arm.

CAUTION! There will be a lot of tension on
the Tension Arms. We recommend that two
people handle this procedure: one pulling
and holding the tension arm with both hands,
while the other sets the arm lock. When
seing the arm lock, avoid reaching behind
the tension arm and be very careful to avoid
geing pinched.

STEP 19: Pull down the Mechanism Arm

Hex Bolt 'A'

Tension Arm

Arm Lock

PVC Pipe

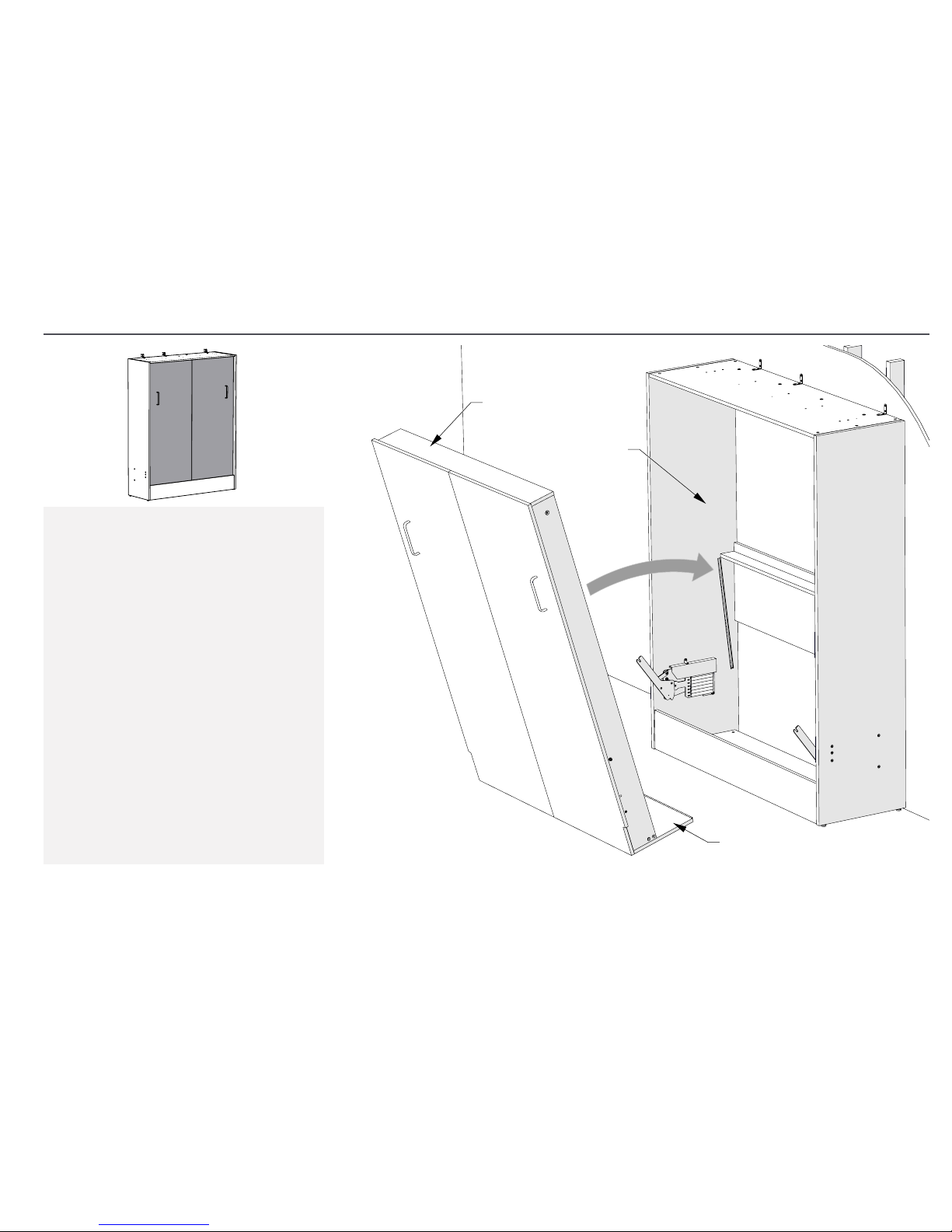

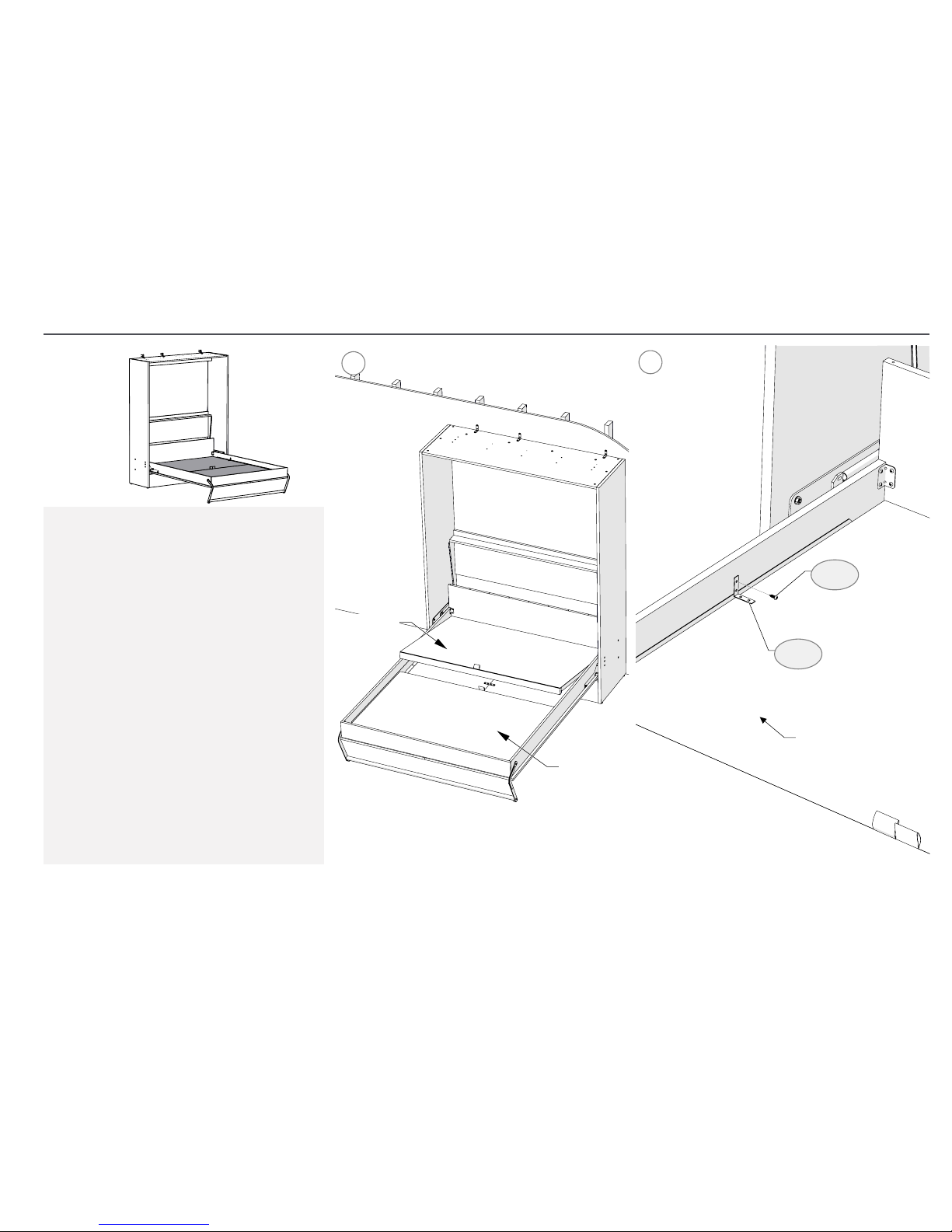

A. Walk the Bed Platform towards the Cabinet

and between the Sofa Arms as shown.

STEP 20: Walk the Bed Platform towards the Bed Cabinet

Cabinet Side

Bed Platform

Head Rail

A. Raise the Bed Platform to a height where the

Hex Bolts in Hole #1 are a few inches above
the Tension Arm Slots. Carefully fit the bed
platform between the two Tension Arms
so that the Hex Bolts in Hole #1 slide into
the Tension Arm Slots. Slowly tilt the Bed
Platform back to allow the Cap Screws in Hole
#3 to be seated against the notches at the
boom of each Tension Arm. Please note that
this image is made transparent to show the
Mechanism Arm components.

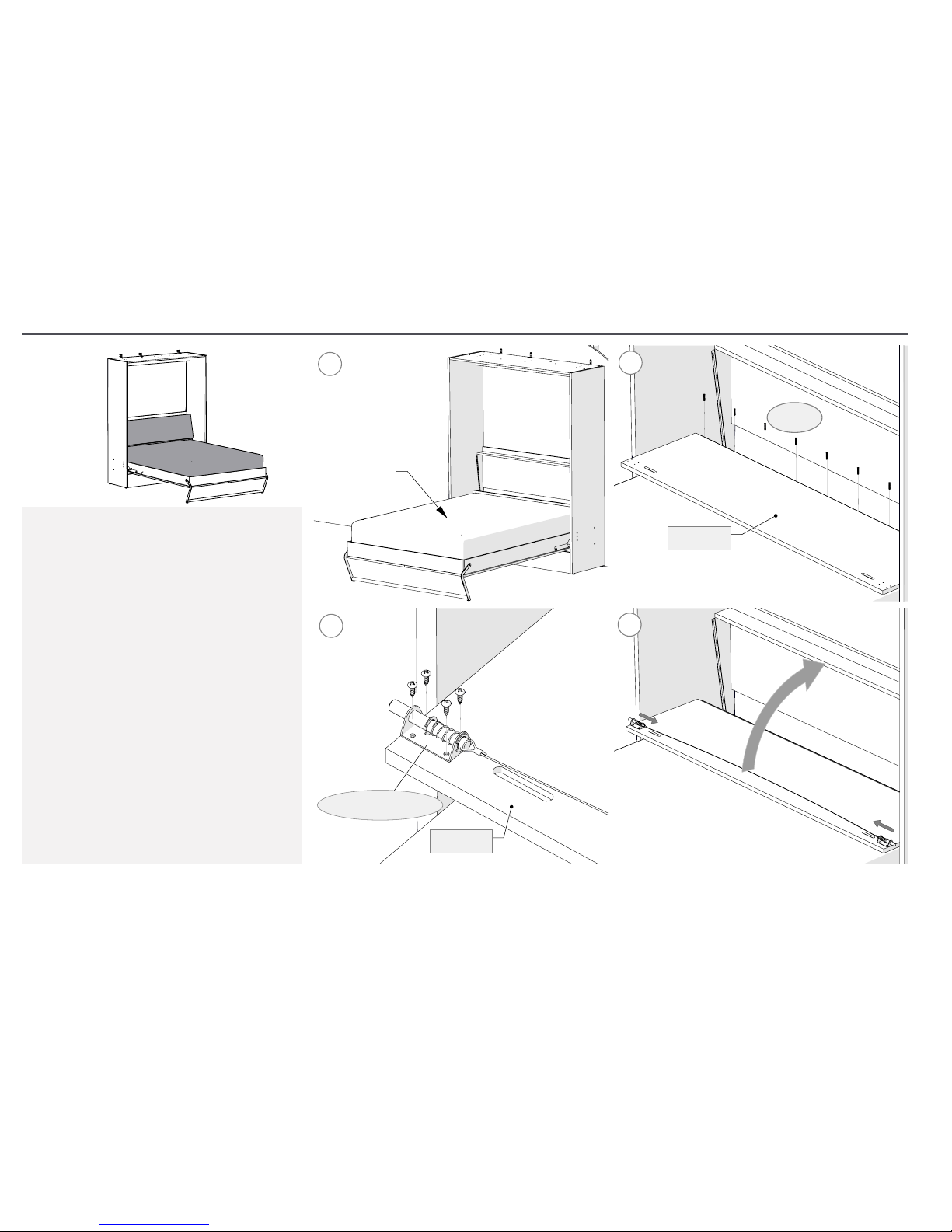

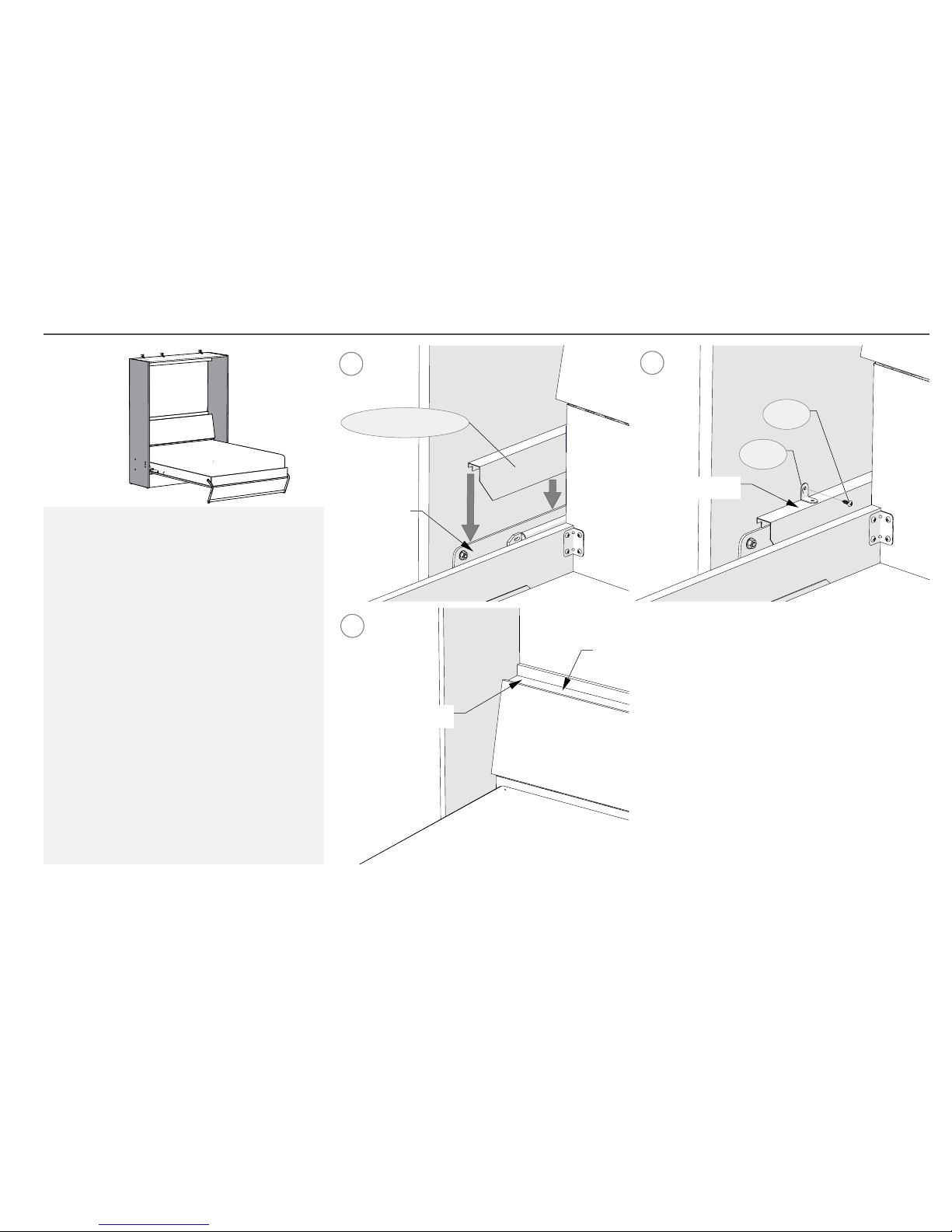

STEP 21: Locate the Bed Platform in Bed Cabinet

Hole #2

Cap Screw, Hole #3

Notch

Tension Arm Slot

Bolt, Hole #1

Side Rail

A. Insert the H-738 Hex Bolts into Hole #2 from

the inside face of both Side Rails and into the
Tension Arms. It may help to have a helper
hold the bed in the position near 45° to allow
for more access. Tighten the H-086 Flange
Nuts onto the H-738 Hex Bolts at Hole #2.
Tighten the Hex Bolts and Flange Nuts at
Hole #1. Tilt the Bed platform down until
it is horizontal. You will hear a click as the
Arm Locks disengage. Holding the upper
edge of the Bed Platform, gently let the Bed
close. Please note that this image is made
transparent to show the Mechanism Arm
components.

CAUTION! For the rest of the assembly,
the bed will be under spring tension as you
raise and lower it. While you are working
on it have someone hold it down for you so
it doesn’t rise suddenly. Before continuing,
be sure that the bolts in Holes #1 and 2 are
tightened completely.

STEP 22: Mount Bed Platform in Bed Cabinet

H-738

Cap Screw, Hole #3

Hole #2

Bolt, Hole #1

H-086

Side Rail

A. Assemble the Flipover Leg by aligning the

square welded nuts on the Leg Components
to the Crossbar, then securing them together
together with H-358 Buon Head Bolts. Ensure
the Leg Components are aligned with the bent
tabs pointing towards each other.

B. Align the Flipover Leg to the Bed Platform,

as shown. Use H-358 Buon Head Bolts
(through the H-364 Sleeve Bearings) to aach
the Flipover Leg to the Side Rails with H-067
Washers for spacing. as shown. Tighten the
Bolts into the T-Nut.

C. At the inside face of each Side Rail, position a

H-067 Washer over the end of the Buon Head
Bolt, and then tighten a H-308 Acorn Nut to
the end of the Buon Head Bolt.

STEP 23: Assemble Flipover Leg

Crossbar

Bent Tab

H-358

Leg Component

Side Rail

H-308

H-067

T-Nut

H-067

Foot Rail

H-364

H-358

A. Lay one Box Spring Panel down into the Bed

Platform so that the edge with the loop pull
is in the center of the Bed Platform and the
opposite edge is against the Headrail. Lay
down the second Box Spring Panel into the
Bed Platform so that the edge with the loop
pull is in the center of the Bed Platform and
the opposite edge is against the Footrail.
Firmly press the Box Spring Panel edges
down and visually inspect the Box Springs to
ensure all edges of the Box Spring Panels are
parallel to and supported by the Bed Platform
assembly.

B. Locate an Angle Bracket at the middle of each

Box Spring Panel edge that abuts a Side Rail.
Once located, fasten the H-146 Angle Brackets
to the Side Rails with H-087 Screws, as shown.

STEP 24: Install Box Springs into Bed Platform

B

Box Spring

A

Box Spring

H-146

H-087

B

Box Spring

A. At this point the maress can be placed into

the Bed Platform.

B. Locate the Headboard so that the hinge holes

align with the holes of the Head Rail. It is best
to start a H-014s Euro Screw at each end of the
hinge. Once the hinge is aligned this way, you
can finish inserting all of the Euro Screws and
tightening them.

C. Locate the Headboard Guide Assembly on

the back of the Headboard. Align the 4 holes
of each Headboard Guide with the 4 holes
on each end of the Headboard. Aach the
Headboard Guide to the Headboard with
H-087 Pan Head Screws, as shown.

D. Pull the Guide Cable away from the

Headboard so that Guide Pins are positioned
in towards the center of the Bed, then pivot
the Headboard toward the back of the Bed
Cabinet. Once the Guide Pins are aligned with
the Guide Tracks, release the Cable so that the
Pins are positioned out into the Tracks.

STEP 25: Put the Mattress in place & Attach the Headboard to the Head Rail

A

B

Mattress

H-014s

Headboard

B

Headboard Guide

Headboard

A

C

D

B

B

D

A. Place the right and le Spring Mechanism

covers down over the spring mechanisms
lining up the tabs in the covers with the spaces
in the mechanisms.

B. Secure the mechanism covers in place with

an H-210 Angle Bracket and H-087 Screw.
The bracket should be placed on top of the
mechanism cover and the screw should be
used to aach the angle bracket to the Cabinet
Side.

C. It is important that pillows are not stored

in the bed when closed. We leave it to your
discretion whether or not to place the warning
sticker on the Shelf.

STEP 24: Install Box Springs into Bed Platform

Mechanism

Mechanism Cover

A

B

H-210

Mechanism Cover

H-087

B

"No Pillows" Sticker

Shelf

A

C

B

D

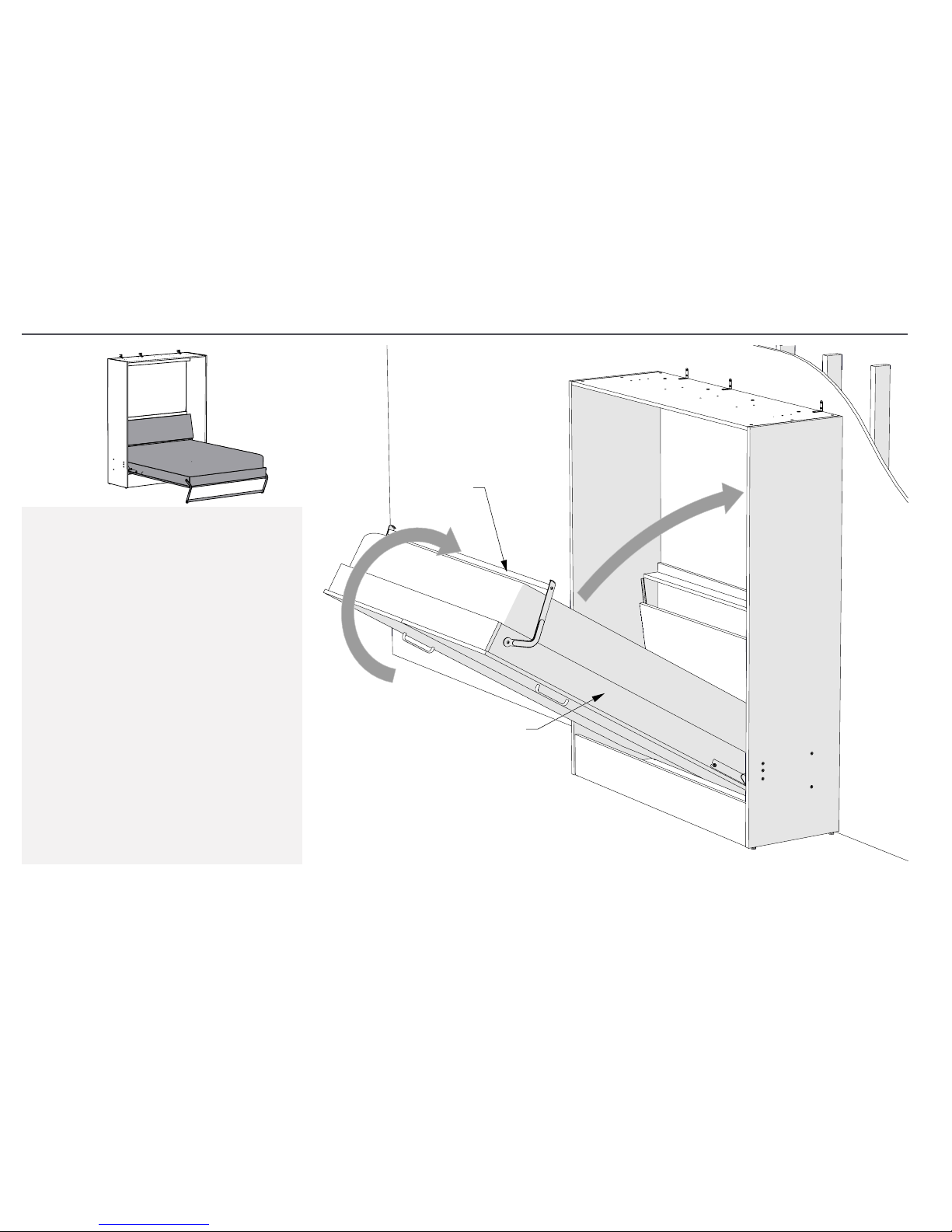

A. The flipover leg is pivoted up and over from its

support position to its stored position when
the bed is not in use. As the bed platform is
raised, a housekeeper or guest can grab the
square crossbar of the frame and simply li it
up and over into position.

STEP 25: Raise the Bed Platform and Pivot the Flipover Leg

Flipover Leg

Bed Platform

HOW IT WORKS

Wallbed | ASSEMBLY MANUAL

Tech support is readily avai lable if needed

Email : [e-mail]

Phone: [phone]

WallBed | ASSEMBLY MANUAL

PLEASE NO TE: Your Bed may look different

than what is shown in the pic tures and

videos throughout thi s manual

HOW IT WORKS

HOW IT MOVES UP

AND DOW N :

The mechanisms that allow the WallBed to
move up and down are spring-loaded and
located inside face of each pier.

As the WallBed is lowered down, gravity
is naturally starting to pull it down. The
springs “kick in” and provide enough
resistance to avoid it from coming down
too quic k ly.

As the WallBed is raised upward, gravity
is resisting, To make it easier to li, the

springs releases tension, assisting
the bed as it is raised.

TO LOWER THE WALLBED:

Handles are located on the outside of the
Bed Cabinet (on the Bed Panels) for use to
lower the Bed.

TO RAISE THE WALLBED:

At the corner of the bed platform, place
hands underneath and li. Start walking
toward the bed cabinet to close. Once at
half-way, grab a handle and guide into
the cabinet.

Tech support is readily avai lable if needed

Email : [e-mail]

Phone: [phone]

WallBed | ASSEMBLY MANUAL

PLEASE NO TE: Your Bed may look different

than what is shown in the pic tures and

videos throughout thi s manual

HOW IT WORKS (CONT.)

1. To adjust the number of springs, you will need to temporarily detach

the Bed Cabinet from the wall. Use a step ladder to access the top of
the Cabinet, and temporarily remove the H-o76 Flat Head Screws that
aach the Angle Brackets to the Cabinet Top (Refer to Step 9).

2. While the Angle Brakets remain aached to the wall, “walk” the

Cabinet forward until it is around two feet from the wall.

3. Working behind the Cabinet, add or remove springs from the spring

mechanisms as needed. The top and boom springs are installed
with the hooks facing inward so they are a lile easier to remove.
The final arrangement of springs should be symmetrical above and
below the center of the mechanism. for example, if you start with (8)
springs, the center space will be empty. If you remove a spring, you
should take it off the top, but you should also move the boom spring
to the center space. Ideally the le and right spring mechanism
should have the same number of springs.

HOW T O
ADJUST TENSION:

STEPS FOR ADJUSTMENT:

To adjust the tension of the Sofa-WallBed:

The factory has installed the proper number of
springs based on our estimates of the weight of typi­cal maresses. Your maress weight may vary from
these estimates. With the springs provided, the bed
platform should be very easy to raise and lower.

If it is too light, it will float up a lile instead of stay­ing down in the bed position. In this case you will
need to remove one of the springs.

If it is too heavy, it will be too difficult to li and you
will need to add a spring.

Tech support is readily avai lable if needed

Email : [e-mail]

Phone: [phone]

WallBed | ASSEMBLY MANUAL

PLEASE NO TE: Your Bed may look different

than what is shown in the pic tures and

videos throughout thi s manual

STEPS FOR ADJUSTMENT (CONT.):

HOW IT WORKS (CONT.)

4. Push the Cabinet in place against the wall and reaach the H-076

Flathead Screws through the Angle Brackets and into the Cabinet
Top. The Bed Cabinet must be secured to the wall structure, as in
Step 9! Test the raising and lowering of the bed.

TROUBLESHOOTING

WallBed | ASSEMBLY MANUAL

Tech support is readily avai lable if needed

Email : [e-mail]

Phone: [phone]

WallBed | ASSEMBLY MANUAL

PLEASE NO TE: Your Bed may look different

than what is shown in the pic tures and

videos throughout thi s manual

TROUBLESHOOTING

HOW CAN I ACCESS
BEHIND THE WALLBED?

If you need to access to the area behind the
bed, you most likey do not have to remove it
from the wall. The Headboard does release,
allowing access behind the Bed.

TO LOWER THE HEADBOARD:

Have someone lower the bed about halfway
and hold it there. On the back of the
Headboard there are guide pins located on
the le and right, with a cable stretched
between them. These pins extend into the
track located on each side of the cabinet,

guiding the Headboard movement as the
bed is raised and lowered. Reach behind
the Headboard and locate the cable. Pull
the cable upward to release the pins on
both side and pivot the Headboard forward
to the maress. Make sure you keep
holding tension on the cable as you pivot
the Headboard to prevent the pins from
scratching the inner faces of the Cabinet
Sides. At this point, the Bed can be lowered
down completely. To re-engage the pins,
pull upward on the tension cable and raise
Headboard, until the pins are aligned
with the track. Release the cable. The pins

should snap out into position, reseing the
headboard for use.

REMOVING BED FROM WALL:

With another person, “walk” each side of the
Cabinet away from wall.

TIP: You may want to place moving pads

underneath cabinet (with another person,
tip cabinet slightly to place pad).

MY WALLBED IS MAKING A
CREAKING NOISE

If any of the hinges or other parts of the
mechanism on the WallBed creak, spray

Tech support is readily avai lable if needed

Email : [e-mail]

Phone: [phone]

WallBed | ASSEMBLY MANUAL

PLEASE NO TE: Your Bed may look different

than what is shown in the pic tures and

videos throughout thi s manual

TROUBLESHOOTING (CON T.)

them with a dry silicone-type lubricant,
available at most hardware stores. Although
this type of lubricant should not damage the
wood panels, be careful not get any on the
bed covers or maress.

I CAN’T RAISE OR LOWER THE BED
PLATFORM

If there is any binding or difficulty raising or
lowering the bed, it is possible that a foreign
object has become lodged in the spring
mechanism. If there is no obvious culprit,
call Inova customer service for assistance in
troubleshooting the issue.

THE BED PLATFORM WON’’T CLOSE
COMP LETELY

If the Bed Platform is pivoted up and won’t
completely close to its “Up Position”, it is
possible there is an object lodged between
the back of the Cabinet Front and front
of the Bed Platform. If there is no obvious
obstruction, call Inova customer service for
assistance in troubleshooting the issue.

CARE & MAINTENANCE
INF O R MAT I O N

Please refer to your Welcome Booklet for
detailed information on Care & Maintenance

NEED TO DISASSEMBLE AND MOVE
THE WALLBED

Reverse assembly steps from manual

TIP: Bag and label hardware per Step.

This will be very helpful when reassembling
the WallBed .

Tech support is readily avai lable if needed

Email : [e-mail]

Phone: [phone]

WallBed | ASSEMBLY MANUAL

PLEASE NO TE: Your Bed may look different

than what is shown in the pic tures and

videos throughout thi s manual

I HAVE A BROKEN PART THAT
NEEDS TO BE REPLACED

Locate your order #
(label located inside Bed Platform)

Take photos of broken part and Bed overall

Upload and Email Us with description of
issue, photos, and include your order # for
easy identification.

TROUBLESHOOTING (CON T.)

Tech support is readily avai lable if needed

Email : [e-mail]

Phone: [phone]

WallBed | ASSEMBLY MANUAL

PLEASE NO TE: Your Bed may look different

than what is shown in the pic tures and

videos throughout thi s manual

FEEDBACK WELCOME

FEEDBACK WELCOME:

This assembly manual was created with you in
mind. Over the years, we have been asked common
questions and received important feedback on our
products and services.

With great care, and through continuous
improvement and learning, we have incorporated
the answers and feedback within these manuals.
We hope you find them useful and easy to use!

With this said, if there is any outstanding question
that you have, please do not hesitate to contact us.

We also welcome any and all feedback about our
product and your experience with it. Email us at

[e-mail] or call us at 866.528.2804.

We hope you enjoy your Inova WalBed for many
years to come!

THANK YOU.
