Inova Sofa-WallBed Assembly Manual

Sofa-WallBed | ASSEMBLY MANUAL

Inova LLC 2 Van Buren Blvd. Guilderland Center, NY 12085

QUEEN SIZE

Sofa-WallBed | ASSEMBLY MANUAL

Inova LLC 2 Van Buren Blvd. Guilderland Center, NY 12085

QUICK START GUIDE

Sofa-WallBed | ASSEMBLY MANUAL

QUICK START GUIDE

HELPFUL
INF O R M AT I O N

• Prior to opening your shipment, check and

confirm the room is completely ready to

receive the furniture

(see “Room Readiness Checklist” below).

• Place the parts in the room according to the

sequence of the assembly steps to avoid

double handling

• The Hardware Box is located on the pallet

and labeled “Hardware”

• Hardware is packed by STEP #, not PART #

Sofa-WallBed | ASSEMBLY MANUAL

• A large, contractor’s garbage bag is included in

the Hardware Box for trash removal

• All parts are labeled for easy identification

• Labels will not be seen once the Bed is

completely assembled; the part label is a sticker

and can be removed if desired.

• Each page of the assembly includes a “QR Code”,

which is linked to a video for each step. To view,

download a compatible QR Code App to view

videos or go directly to YouTube (include link).

PLEASE NOTE: Your Bed may look different

than what is shown in the pictures and

videos throughout this manual

Tech support is readily available if needed

Email: [e-mail]

Phone: [phone]

QUICK START GUIDE

(CONT.)

ROOM READINESS
CHECKLIST

• Check room to confirm the ceiling, floor,

and walls in the room are finished
and completed

• Select the wall and location in which the

Bed will be placed

• Measure the length of the wall and height

of ceiling to confirm the Bed will fit

TIP: You may want to remove existing

baseboard that is located on the wall where

the Bed will be installed. By removing the
baseboard, it will allow for a tighter fit
against the wall (custom units may already
have a notch for baseboard – see shop
drawings, if applicable).

• Locate any electrical outlets on the wall

that may be covered up by the Bed

• Clear out any items in the room so you

have a clear path to the wall and an open
area to assemble the Bed

• If the flooring is hard, lay down some

furniture blankets, sheets of cardboard, or

other cushioning material to prevent parts
from being scratched.

• Locate the maress that will be used with

this Bed; the specific maress is required
for proper adjustment of the Bed and
completion of the assembly

Sofa-WallBed | ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look different

than what is shown in the pictures and

videos throughout this manual

Tech support is readily available if needed

Email: [e-mail]

Phone: [phone]

QUICK START GUIDE

(CONT.)

TOOLS NEEDED:

Electric Power Drill
#2 Phillips Bit
#3 Phillips Bit (provided)
#2 Square Bit (provided)
4mm Allen Wrench (provided)
4mm Allen Bit (provided)
9/16” Wrench
#2 Phillips Screwdriver
Hammer
Pliers
Utility Knife
Vise Grips
Flashlight
QR Code Scanner App
(To view videos)

HARDWARE LIST:

Bolts:

H-021 Panel Bolts, 40 mm
H-068 Panel Bolts, 2”
H-112 Flange Head Bolts, 5/16” x 2”
H-162 Panel Bolts, 30mm
H-738 Flange Bolts 5/6” x 1-1/2”
H-920 Bolts, 3/8” x 3”
H-923 Bolts, 5/16” x 1”

Screws:

H-014s Euro Screws
H-019 Machine Screws, 10-32 x 3/4”
H-065 Panel Screws, 50mm
H-087 Pan Head Screws, 5/8”
H-088 Machine Screws, 1/4”-20 x 1/2”
H-107s Flat Head Euro Screws

H-114 Panel Screws, 1/4” x 2-1/2”
H-184 Auger Screws, 1”
H-425 Machine Screws, 25mm
H-739 Cap Screws, 5/16” X 1-1/4”
H-766 Machine Screws, 10-32 x 1”
H-924 Machine Screws, 1/4”-20 x 3/4”

Nuts:

H-086 Flange Nuts, 5/16”
H-189 Nuts, 3/8”
H-767 Nylock Nuts, 5/6”
H-919 Nylock Nuts, 3/8”

Other:

H-003 Wood Dowels
H-011 Minifix Pins
H-062 Double-Ended Minifix Pin

H-067 Washers, 3/4”OD x 5/16” ID
H-073 Washer Head Euro Screws
H-077 Wide Angle Brackets
H-085 Mending Plates
H-187 Washers, 1”OD x 7/16”ID
H-921 Rollers, 1”
Headoard Guides

Sofa-WallBed | ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look different

than what is shown in the pictures and

videos throughout this manual

Tech support is readily available if needed

Email: [e-mail]

Phone: [phone]

Sofa-WallBed: Hardware Overview

The illustrations drawn are general representations of your product’s hardware.

H-003

H-011

H-014s

H-067

H-068

H-019

H-021

H-062

H-065

H-073

H-077

H-085

Sofa-WallBed: Hardware Overview, cont.

The illustrations drawn are general representations of your product’s hardware.

H-086

H-087

H-088

H-107s

H-143

H-112

H-114

H-162

H-184

H-187

Sofa-WallBed: Hardware Overview, cont.

The illustrations drawn are general representations of your product’s hardware.

H-189

H-210

H-425

H-738

H-739

H-919

H-920

H-921

H-923

H-924

H-766

H-767

Headboard Guide

STEP 1 OPEN BACK: Prepare Right Pier

Use this version of Step 1 if your Sofa-WallBed is an Open Back Model

A. Lay the Right Pier on the floor as shown.

B. Screw the H-011 Minifix Pins into the small

holes.

C. Tap the H-003 Wood Dowels into the larger

holes.

H-003

H-011

Pier, Right

STEP 1 CLOSED BACK: Prepare Right Pier

Use this version of Step 1 if your Sofa-WallBed is a Closed Back Model

A. Lay the Right Pier on the floor as shown.

B. Screw the H-011 Minifix Pins into the small

holes.

C. Tap the H-003 Wood Dowels into the larger

holes.

H-003

H-011

Pier, Right

STEP 2 OPEN BACK: Attach Valance to Cabinet Top & Attach Shelf to Cabinet Back

Use this version of Step 2 if your Sofa-WallBed is an Open Back Model

A. Hold the Valance next to the Cabinet Top

B. Screw the Valance to the Cabinet top with

H-065 Panel Screws using a 4mm Allen
Wrench.

C. Hold the Shelf next to the Cabinet Back.

D. Screw the Shelf to the Cabinet Back with

H-065 Panel Screws using a 4mm Allen
Wrench.

A

Cabinet Top

C

Shelf

Valance

B

H-065

Cabinet Top

Valance

D

Shelf

Cabinet Back

H-065

Cabinet Back

STEP 2 CLOSED BACK: Attach Valance to Cabinet Top & Attach Shelf to Closed Back

Use this version of Step 2 if your Sofa-WallBed is a Closed Back Model

A. Hold the Valance next to the Cabinet Top

B. Screw the Valance to the Cabinet top with

H-065 Panel Screws using a 4mm Allen
Wrench.

C. Hold the Shelf next to the Closed Back.

D. Screw the Shelf to the Closed Back with

H-065 Panel Screws using a 4mm Allen
Wrench.

A

Cabinet Top

C

Closed Back

Valance

B

H-065

Cabinet Top

Valance

D

Shelf

Closed Back

Shelf

H-065

STEP 3 OPEN BACK: Attach Cabinet Top and Cabinet Back to Right Pier

Use this version of Step 3 if your Sofa-WallBed is an Open Back Model

Cabinet Back

A. Lay the Right Pier from Step 1 on the floor

as shown, using padding to protect it from
geing scratched.

B. Slide the Cabinet Back/Shelf Assembly onto

the fiings in the Right Cabinet Side and
tighten the Minifix Cams.

C. Slide the Cabinet Top Assembly onto the

fiings in the Right Cabinet Side and tighten
the Minifix Cams.

Cabinet Top

Pier, Right

STEP 3 CLOSED BACK: Attach Cabinet Top and Closed Back to Right Pier

Use this version of Step 3 if your Sofa-WallBed is a Closed Back Model

Closed Back

A. Lay the Right Pier from Step 1 on the floor

as shown, using padding to protect it from
geing scratched.

Cabinet Top

B. Slide the Closed Back/Shelf Assembly onto

the fiings in the Right Cabinet Side and
tighten the Minifix Cams.

C. Slide the Cabinet Top Assembly onto the

fiings in the Right Cabinet Side and tighten
the Minifix Cams.

D. Screw the Cabinet Top to the Closed Back

using H-065 Panel Screws using a 4mm Allen
Wrench.

H-065

Pier, Right

STEP 4 OPEN BACK: Prepare Left Pier

Use this version of Step 4 if your Sofa-WallBed is an Open Back Model

A. Lay the Le Pier on the floor as shown.

B. Screw the H-011 Minifix Pins into the small

holes.

C. Tap the H-003 Wood Dowels into the larger

holes.

H-011

H-003

Pier, Left

STEP 4 CLOSED BACK: Prepare Left Pier

Use this version of Step 4 if your Sofa-WallBed is a Closed Back Model

H-011

A. Lay the Le Pier on the floor as shown.

B. Screw the H-011 Minifix Pins into the small

holes.

C. Tap the H-003 Wood Dowels into the larger

holes.

H-003

Pier, Left

STEP 5 OPEN BACK: Attach Left Pier to the Cabinet Assembly

Use this version of Step 5 if your Sofa-WallBed is an Open Back Model

Pier, Left

A. Make sure all the Minifix Cams have their

arrows pointing to the nearest edge of the
panels.

B. Li the Le Pier, flip it over, and place it on

the partly assembled cabinet as shown. You
may need to shi the parts slightly to get the
dowels and pins to line up with the holes.

C. Tighten all the Minifix Cams as in Step 3.

Cabinet Back

Cabinet Top

STEP 5 CLOSED BACK: Attach Left Pier to the Cabinet Assembly

Use this version of Step 5 if your Sofa-WallBed is a Closed Back Model

Pier, Left

A. Make sure all the Minifix Cams have their

arrows pointing to the nearest edge of the
panels.

B. Li the Le Pier, flip it over, and place it on

the partly assembled cabinet as shown. You
may need to shi the parts slightly to get the
dowels and pins to line up with the holes.

C. Tighten all the Minifix Cams as in Step 3.

Cabinet Top

Closed Back

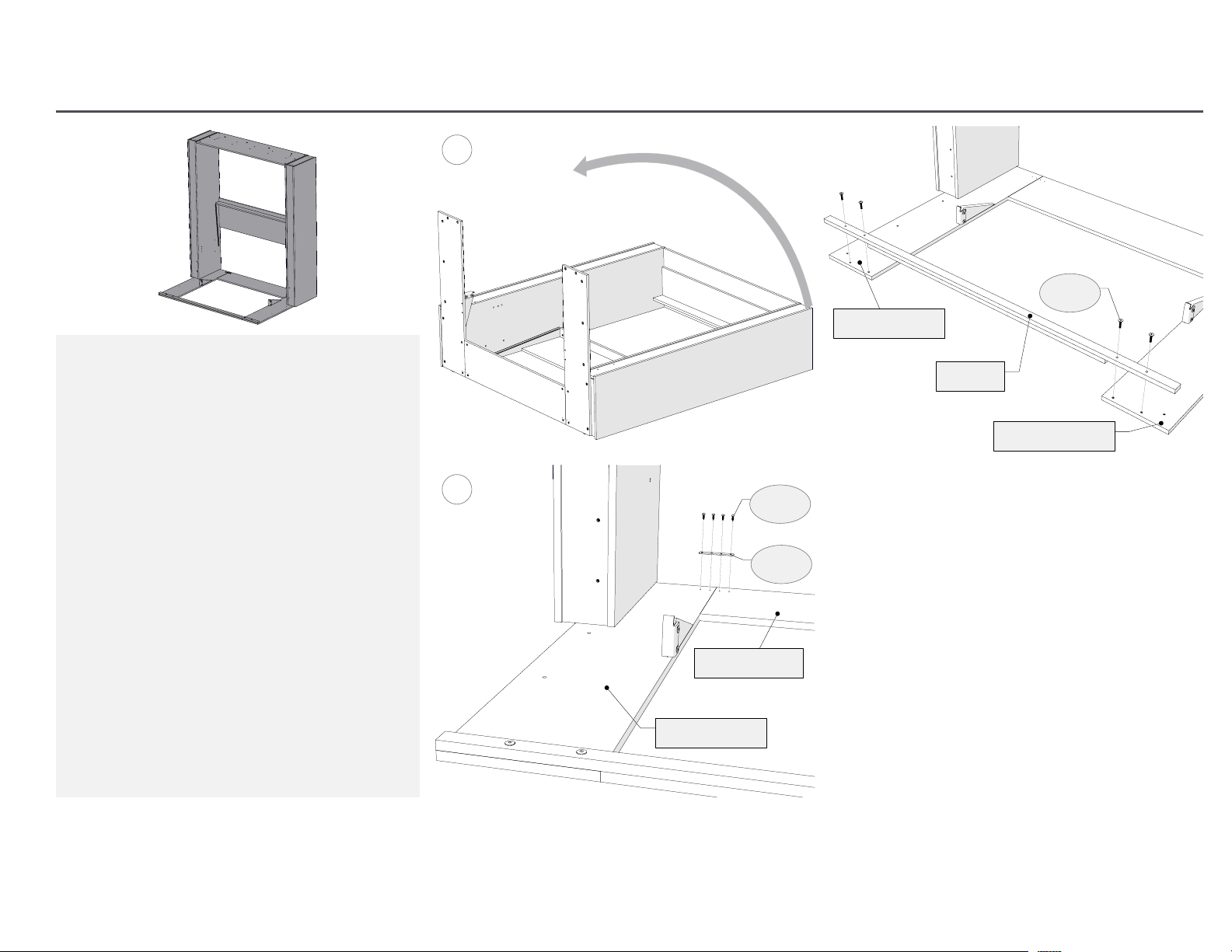

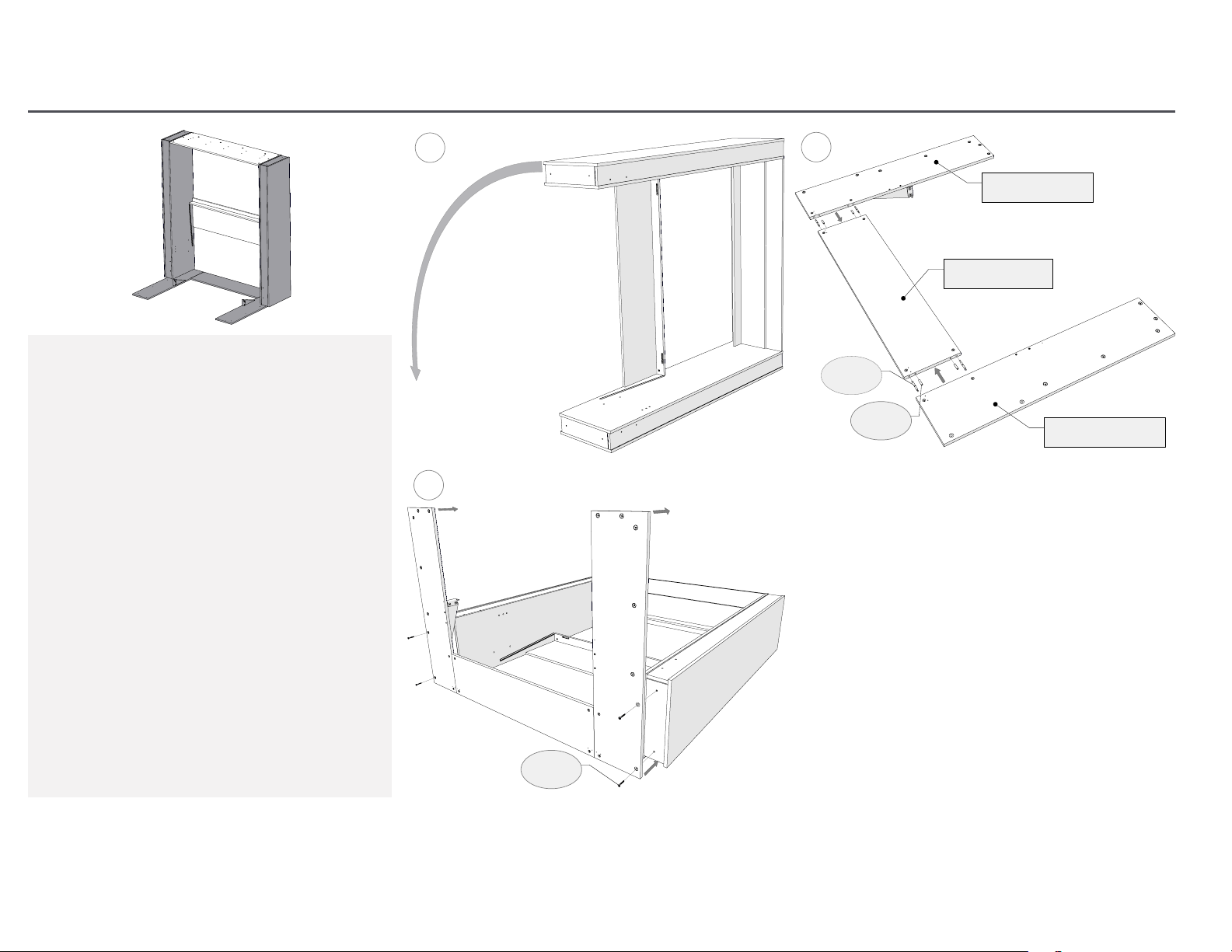

STEP 6: Attach Baseplate Assembly to Cabinet

A. Carefully lay the Cabinet over as shown

using padding on the floor to protect the
cabinet from being scratched.

B. Locate the Cabinet Boom and the Le and

Right Baseplates. Lay them on the floor as
shown with the pre-installed metal minifix
cams facing upwards. Insert a H-062 Double
Ended Minifix pin in each of the edge holes
on the Cabinet Boom that are in line with
a minifix cam. Turn the Minifix Cams 180º.
Insert H-003 Wood Dowels into the other
edge holes. Push the Baseplates against the
Cabinet Boom so that the other ends of the
Double Ended Minifix pins are aligned with
the edge holes. Turn the Minifix Cams in the
Baseplates until the panels are pulled tight.

A

B

Base Plate, Left

Cabinet Bottom

H-062

H-003

Base Plate, Right

C

C. Maneuver the Baseplate Assembly into

position as shown and aach it to the boom
of the cabinet using H-021 40mm Panel Bolts.
Make sure that the cams are facing away
from the cabinet as shown.

H-021

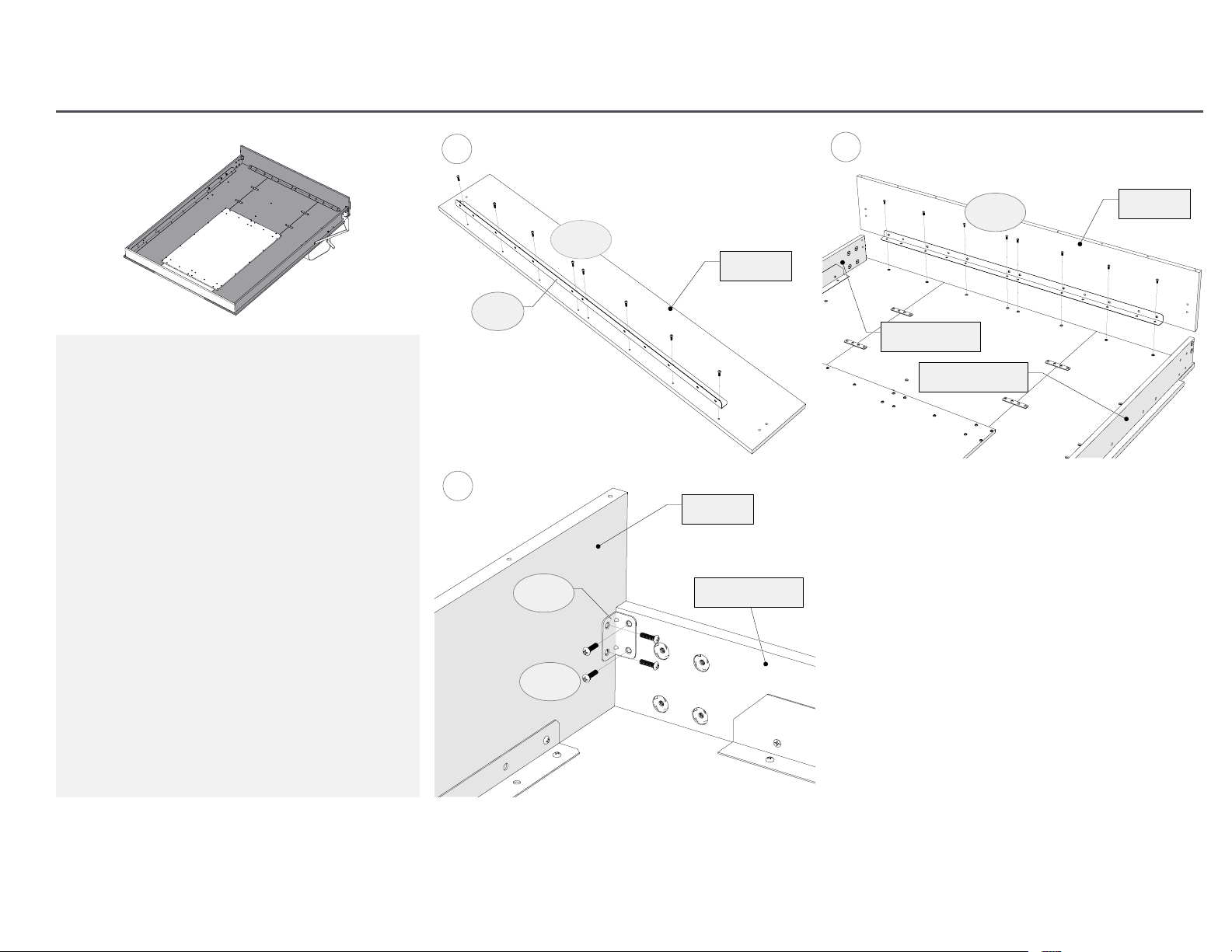

ST EP 7: Stand the Cabinet up and Attach Spreader

A

A. With two people stand the Bed Cabinet up as

shown.

B. Locate and aach the Spreader to the

Baseplate Assembly using H-162 30mm Panel
Bolts making sure that the black edge is
facing away from the Bed Cabinet.

C. Aach the H-085 Mending Plates to Cabinet

Boom and both Base Plates using H-087 Pan
Head Screws.

C

H-162

Base Plate, Left

Spreader

Base Plate, Right

H-087

Cabinet Bottom

Base Plate, Left

H-085

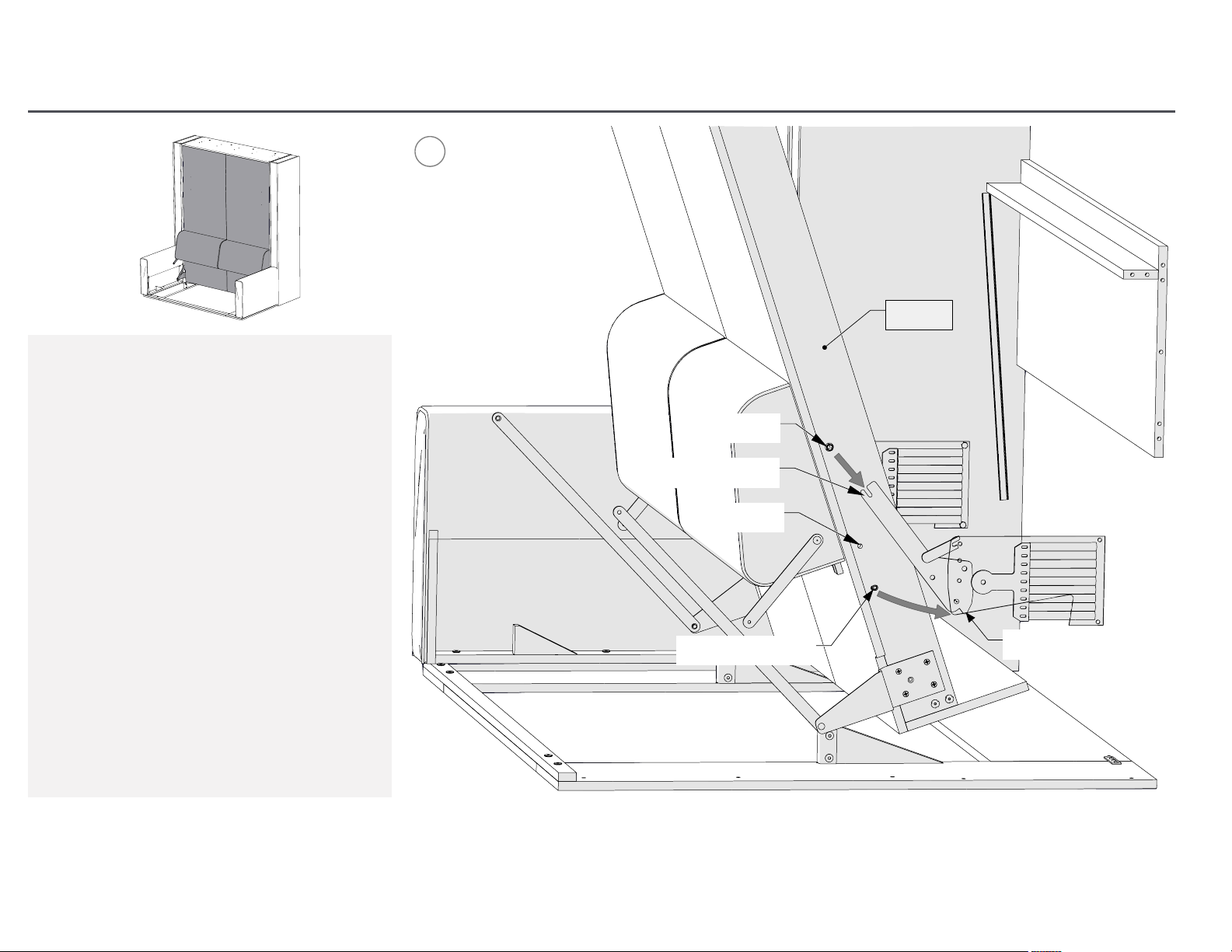

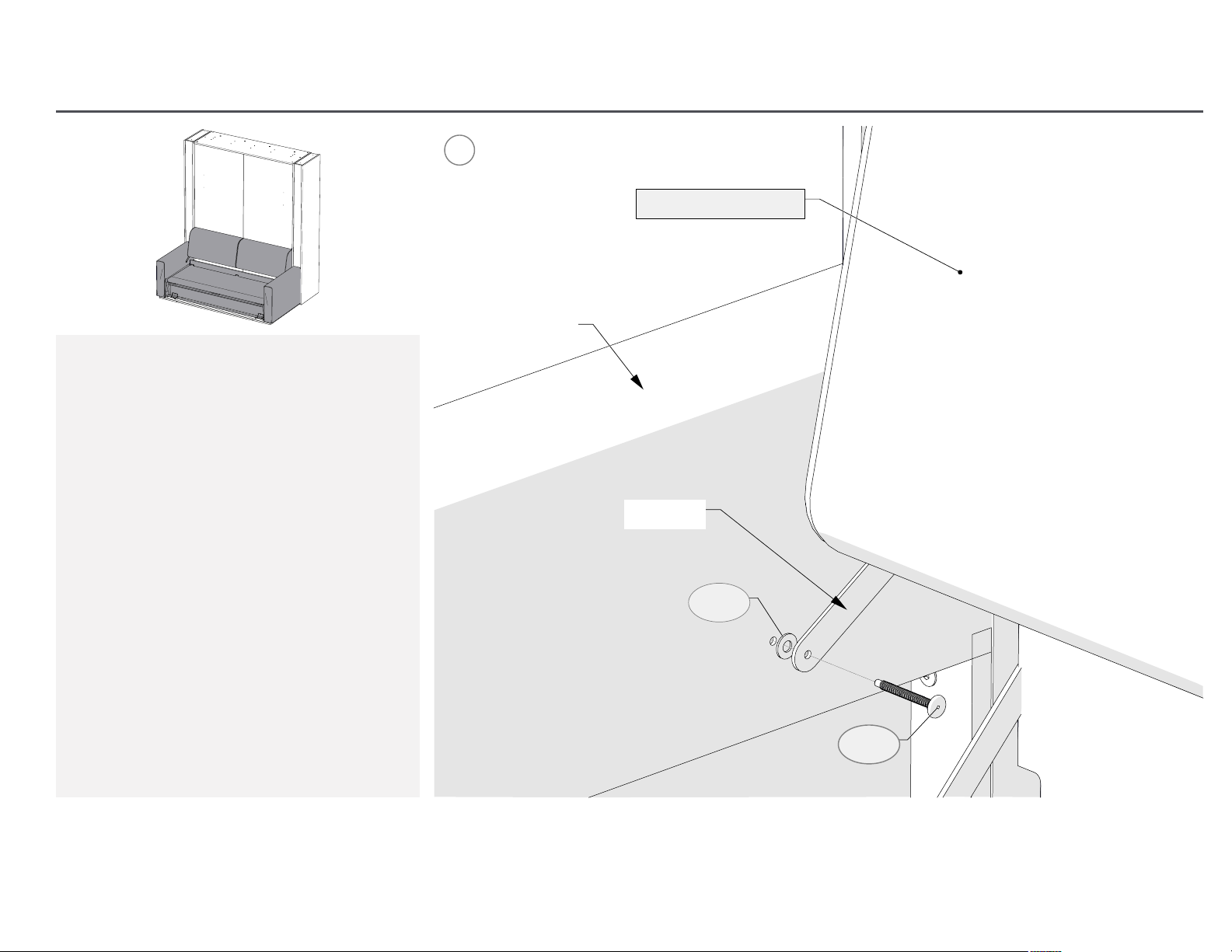

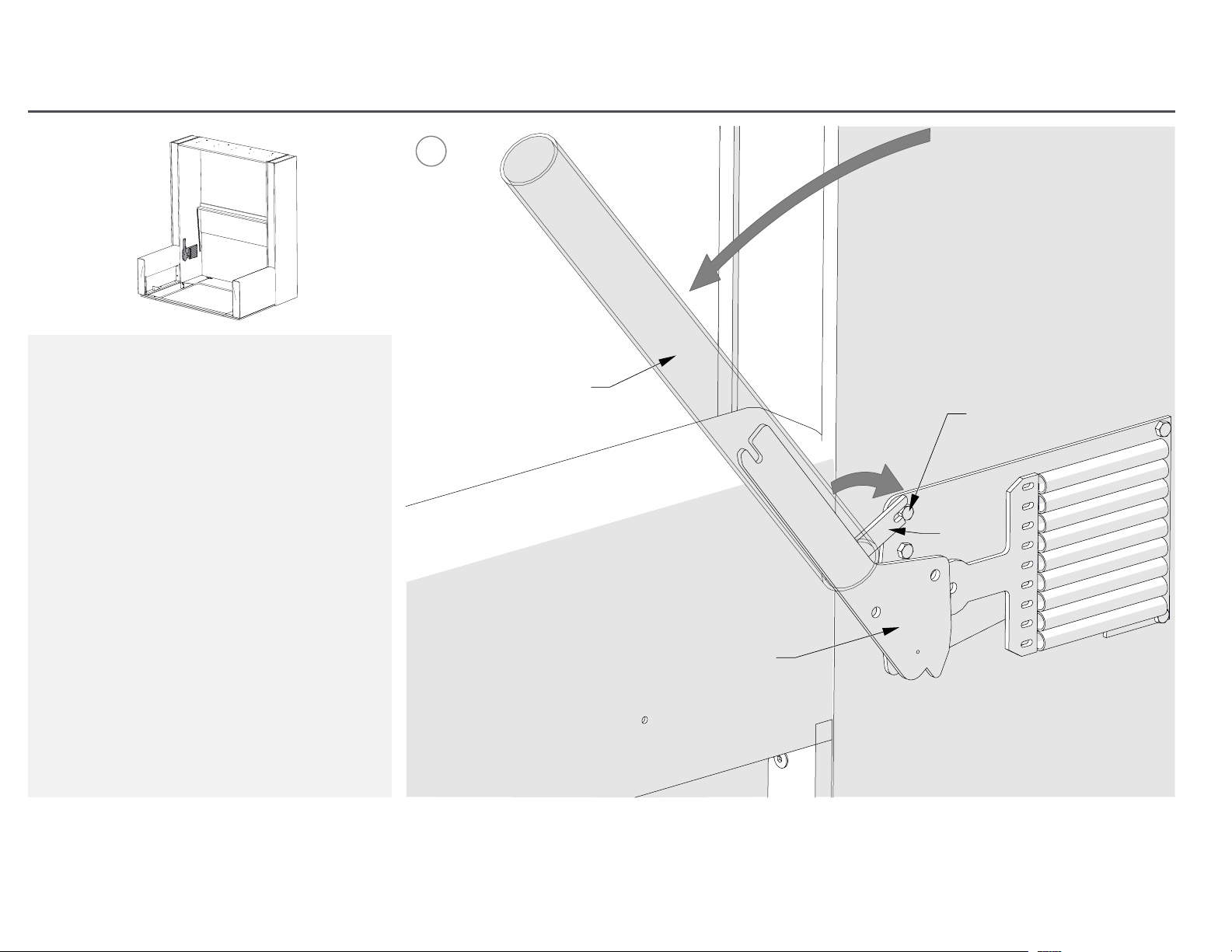

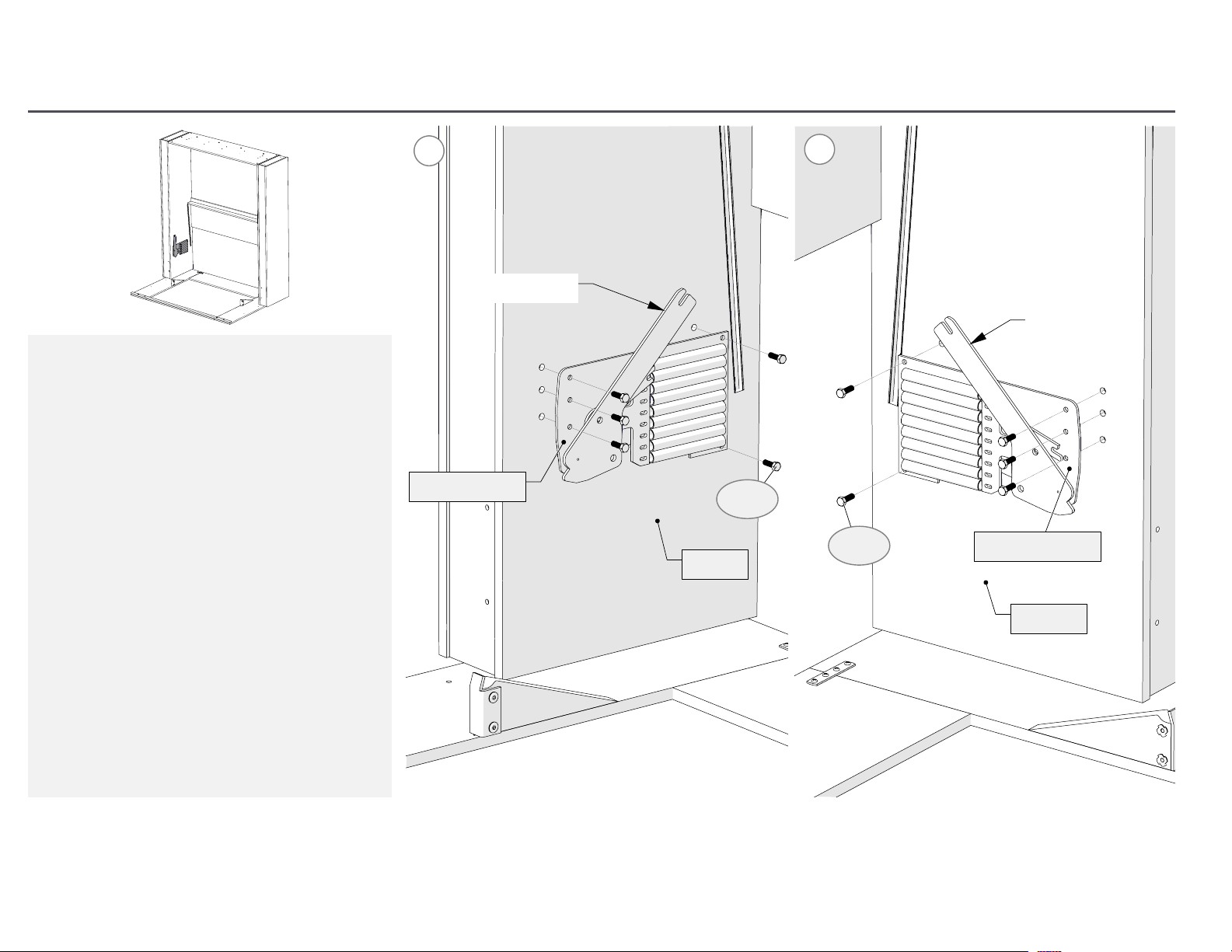

STEP 8: Attach the Lift Mechanisms to the Bed Cabinet

A. Pivot the mechanism arm until all three of

the front holes are exposed. Insert a H-923
Hex Head Bolt through one of these front
holes in the Le Spring Mechanism and align
the bolt and mechanism with the mating
hole in the Le Pier. Hand turn the bolt until
it begins to thread, but do not tighten it
completely. Insert another H-923 Hex Head
Bolt through one of the two rear holes. Align
and hand turn the bolt until it begins to
thread, but do not tighten it completely. Aer
all five H-923 Hex Head Bolts are inserted
and hand threaded, proceed to tighten all the
H-923 Hex Head Bolts tightly with a crescent
wrench, 1/2” box wrench, or 1/2” socket.

B. Repeat “A” for the Right Spring Mechanism.

A

Mechanism Arm

Mechanism, Left

H-923

Pier, Left

B

H-923

Mechanism Arm

Mechanism, Right

Pier, Right

STEP 9: Attach the Sofa Arms to the Bed Cabinet

A. Arrange the Le Sofa Arm on top of the

Baseplate Assembly as shown. Using H-068
Panel Bolts, aach the Le Sofa Arm to
the Baseplate Assembly and Bed Cabinet.
Start each panel bolt by hand so as to not
cross thread or push out the pre-installed
threaded inserts inside the cabinet and on
the underside of the Baseplate Assembly.

B. Repeat “A” for the Right Sofa Arm

CAUTION! Before continuing, be sure that
both Sofa Arms are securely aached to the
Bed Cabinet.

A

B

Sofa Arm, Left

Sofa Arm, Right

H-068

H-068

STEP 10: Prepare Left and Right Side Rails

A

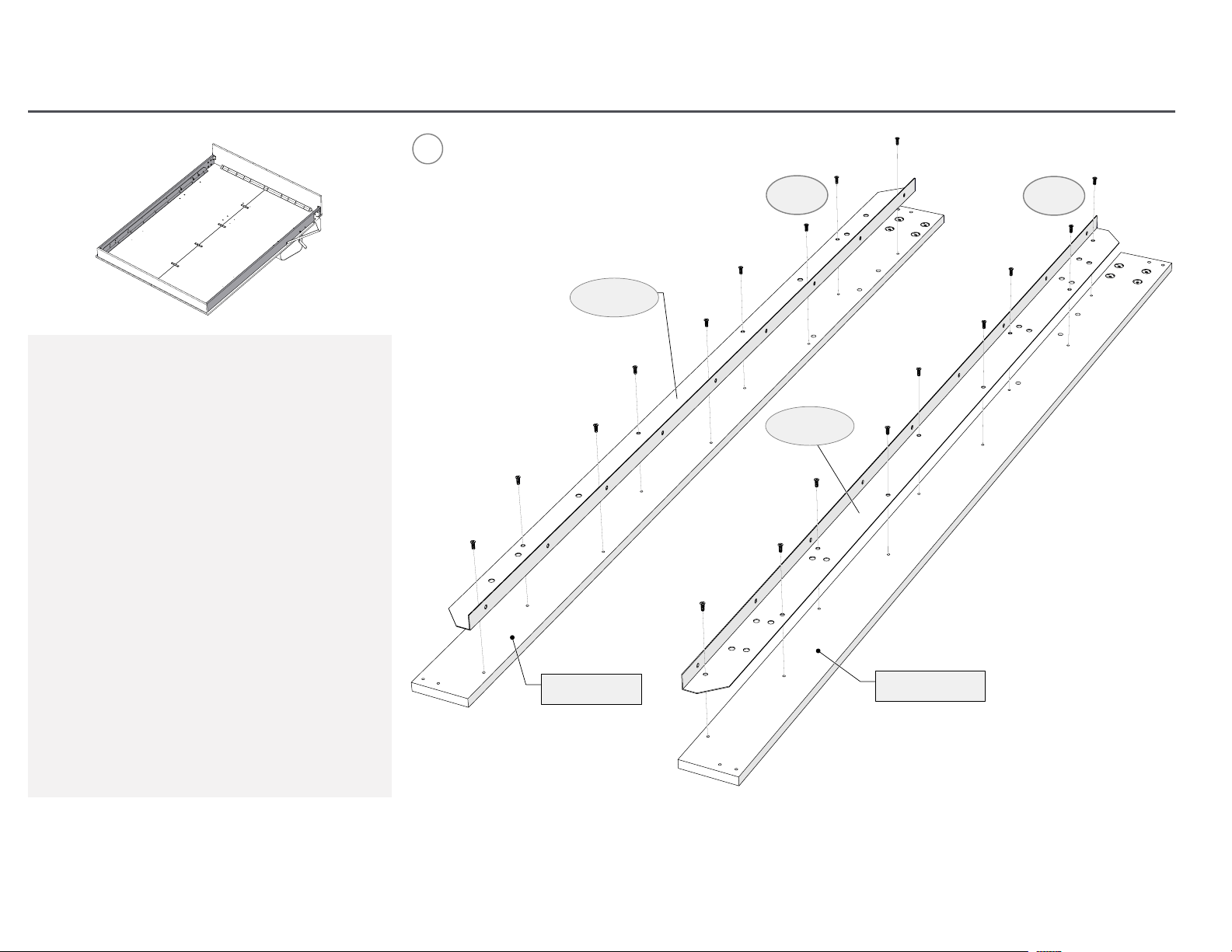

A. Aach the M-222 Side Angles to the Le and

Right Side Rails using H-073 Euro Screws, as
shown.

M-222_C

H-073

M-222_C

H-073

Side Rail, Left

Side Rail, Right

STEP 11 PLAIN BED PANEL: Side Rails to Bed Panels

Use this version of Step 11 if your Sofa-WallBed has a plain Bed Panel

A

A. Carefully place the finished side of Bed

Panels on the carpet or other padded surface.
Make sure the area is clear of any hardware
or debris that can cause damage. Align the
holes of the Le Side Rail Angle with the
holes of the Le Bed Panel and aach them
by screwing the H-088 Bolts through the Side
Angle and into the Bed Panel. Take care to
ensure that the parts are oriented so that the
cluster of 4 holes in the Side Rail are near the
notched end of the Bed Panel. Proceed with
the same process for the Right Side Rail.

Side Rail, Left

H-088

Bed Panel, Left

4 Holes

Notched End

H-088

Side Rail, Right

Bed Panel, Right

STEP 11 RECESSED BED PANEL: Side Rails to Bed Panels

Use this version of Step 11 if your Sofa-WallBed has a recessed Bed Panel

A

Side Rail, Left

H-088

A. Carefully place the finished side of Le,

Upper, Lower, and Right Bed Panels on the
carpet or other padded surface. Make sure
the area is clear of any hardware or debris
that can cause damage. Align the holes of
the Le Side Rail Angle with the holes of the
Le Bed Panel and aach them by screwing
the H-088 Bolts through the Side Angle and
into the Bed Panel. Take care to ensure that
the parts are oriented so that the cluster of
4 holes in the Side Rail are near the notched
end of the Bed Panel. Proceed with the same
process for the Right Side Rail.

4 Holes

Notched End

Lower Bed Panel

H-088

Bed Panel, Left

Upper Bed Panel

Side Rail, Right

Bed Panel, Right

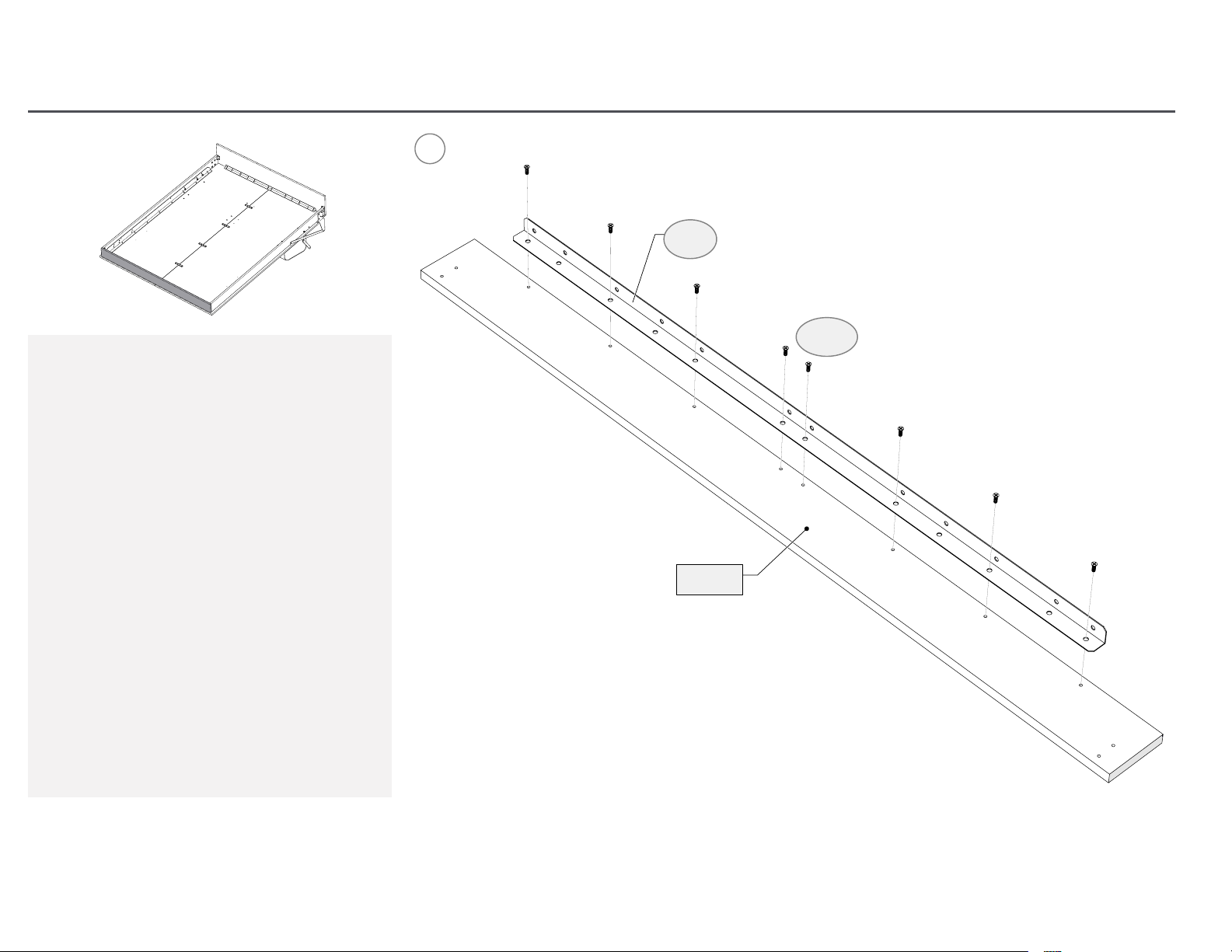

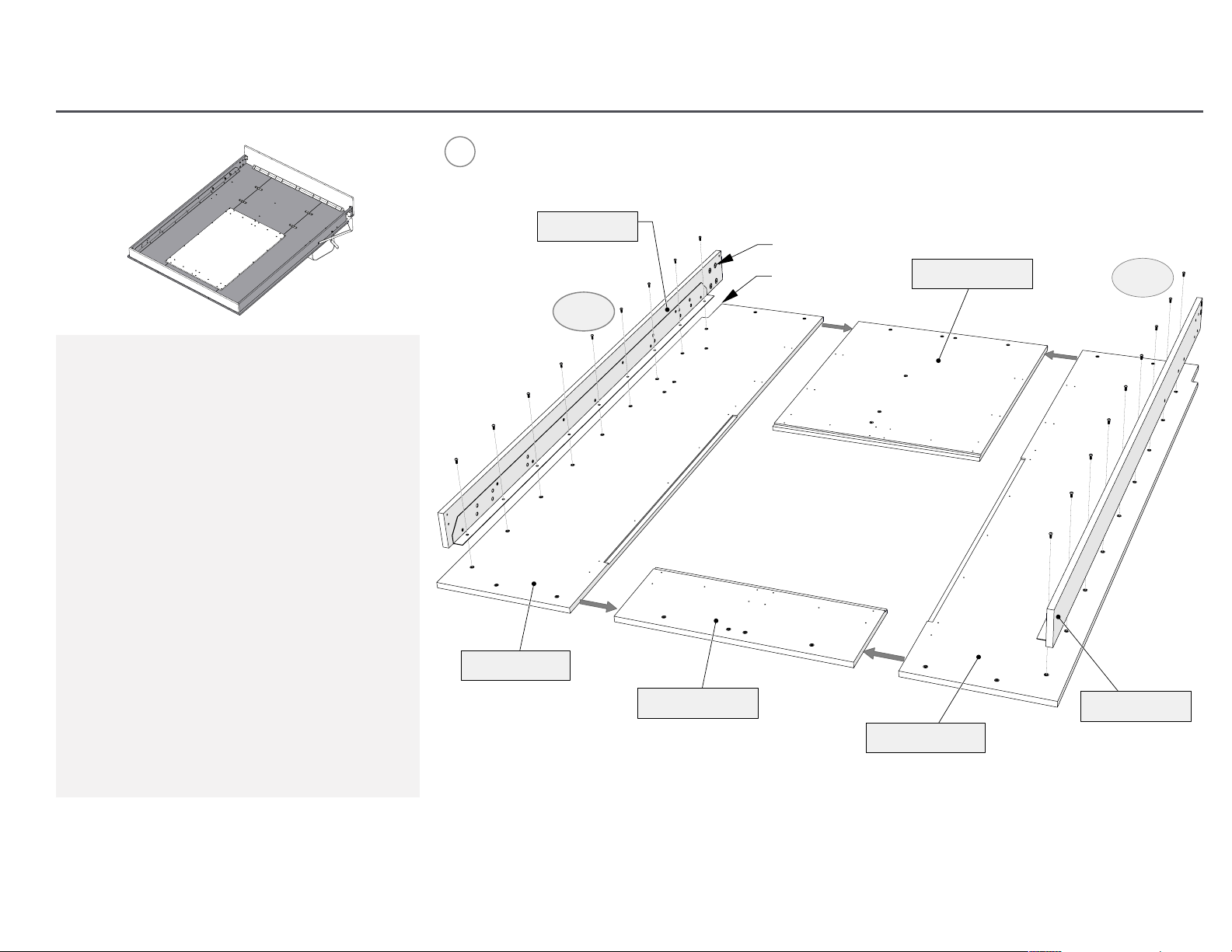

STEP 12: Prepare Foot Rail

A

M-19

A. Aach the M-19 Short bed Angle to the Foot

Rail using H-073 Euro Screws, as shown.

H-073

Foot Rail

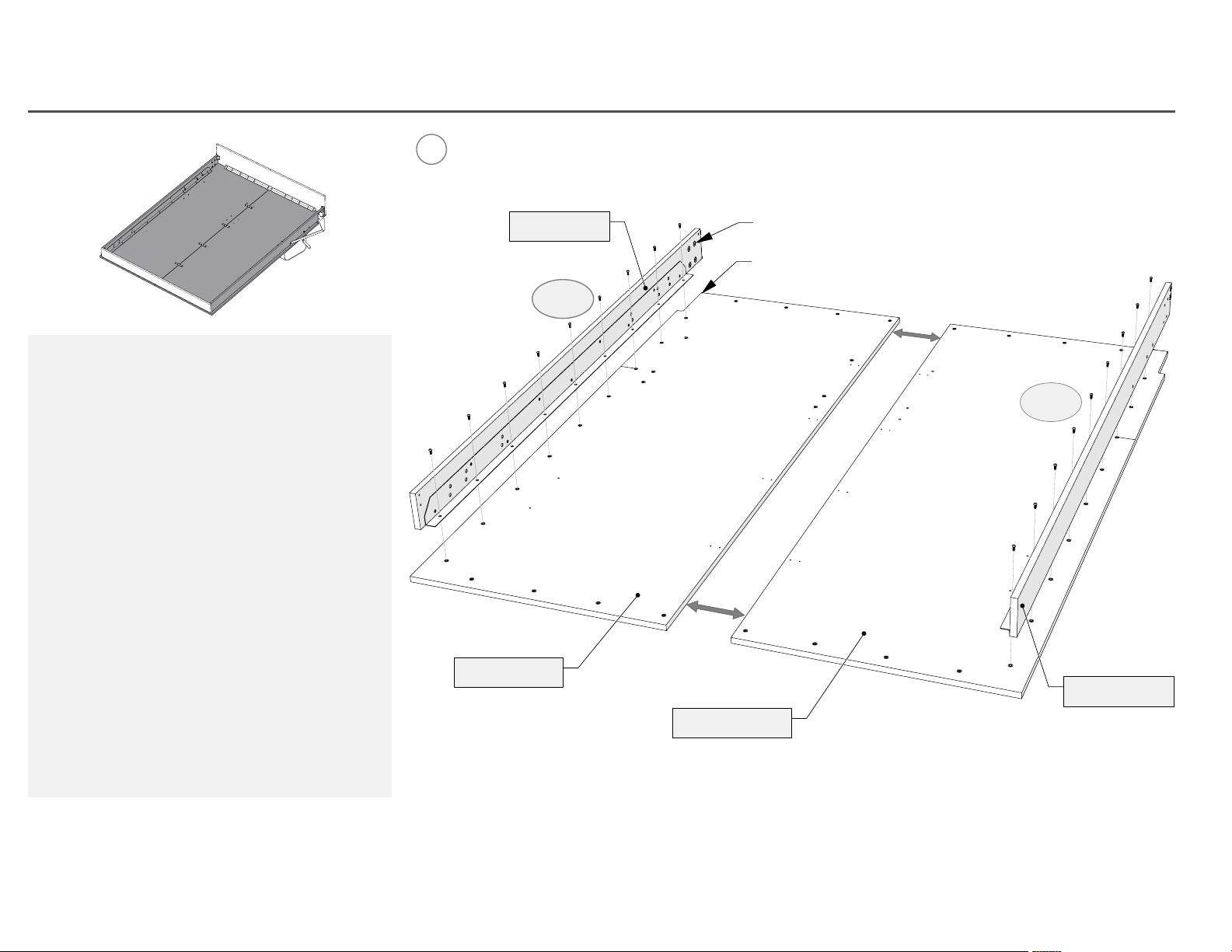

STEP 13 PLAIN BED PANEL: Attach Foot Rail to Bed Panels

A

Foot Rail

Side Rail, Left

Bed Panel, Left

H-088

Side Rail, Right

Bed Panel, Right

Notched End

Use this version of Step 13 if your Sofa-WallBed has a plain Bed Panel

A. Align the holes of the Foot Rail Angle with

the holes of the Bed Panels and aach them
by screwing the H-088 Bolts through the Foot
Rail Angle and into the Bed Panels. Take care
to ensure that the parts are oriented so that
the Foot Rail is at the opposite side of the Bed
Panel notched ends.

STEP 13 RECESSED BED PANEL: Attach Foot Rail to Bed Panels

Use this version of Step 13 if your Sofa-WallBed has a recessed Bed Panel

A. Align the holes of the Foot Rail Angle with

the holes of the Right, Upper, and Le Bed
Panels and aach them by screwing the
H-088 Bolts through the Foot Rail Angle and
into the Bed Panels. Take care to ensure that
the parts are oriented so that the Foot Rail is
at the opposite side of the Bed Panel notched
ends.

A

Side Rail, Right

Foot Rail

Side Rail, Left

H-088

Bed Panel, Left

Bed Panel, Right

Notched End

STEP 14: Attach Side Rails to Foot Rail

A

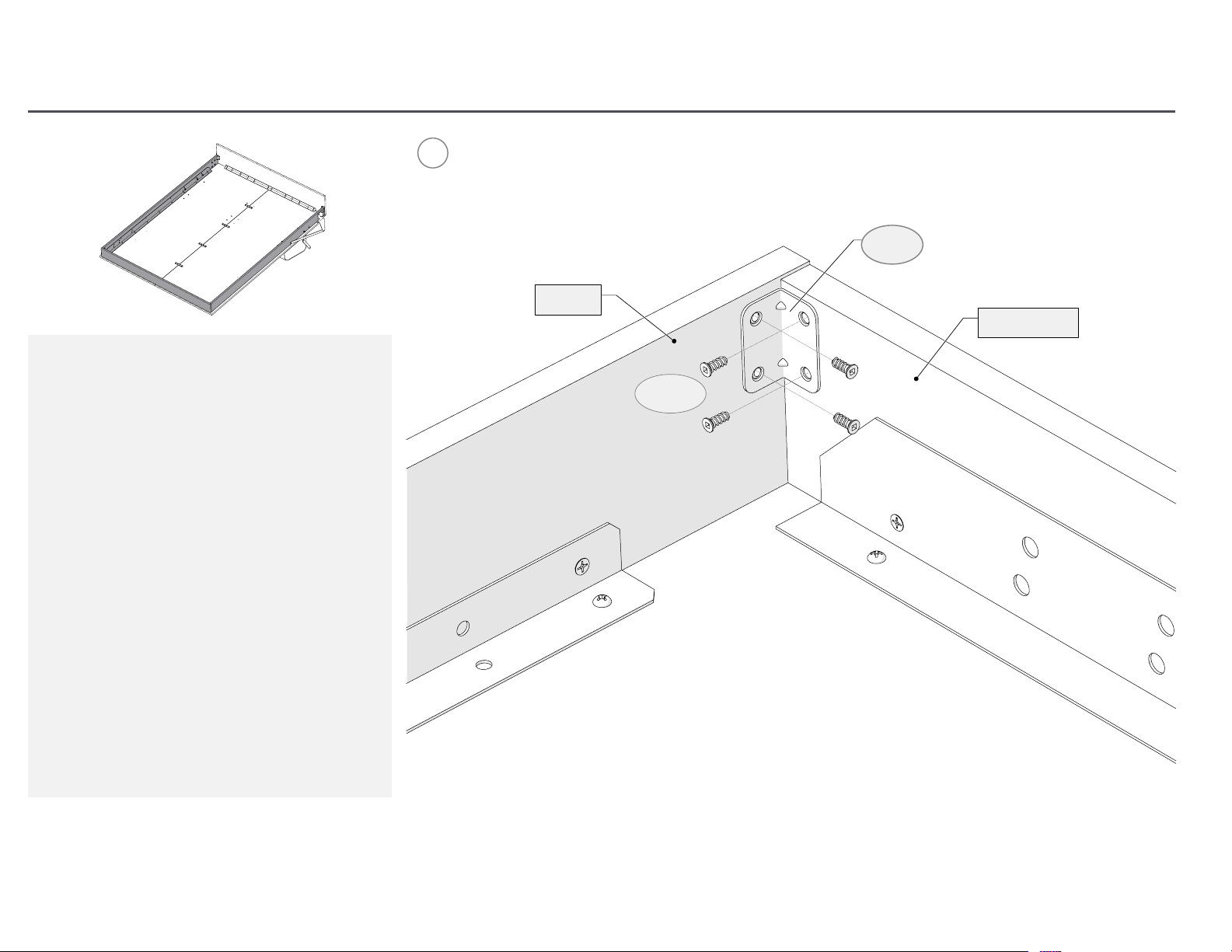

A. Aach the Foot Rail to each Side Rail by

connecting the H-077 Wide Angle Brackets
to each corner with H-107s Flat Head Euro
Screws, as shown.

H-077

Foot Rail

Side Rail, Left

H-107s

STEP 15 PLAIN BED PANEL: Attach Right and Left Bed Panels

Use this version of Step 15 if your Sofa-WallBed has a plain Bed Panel

A

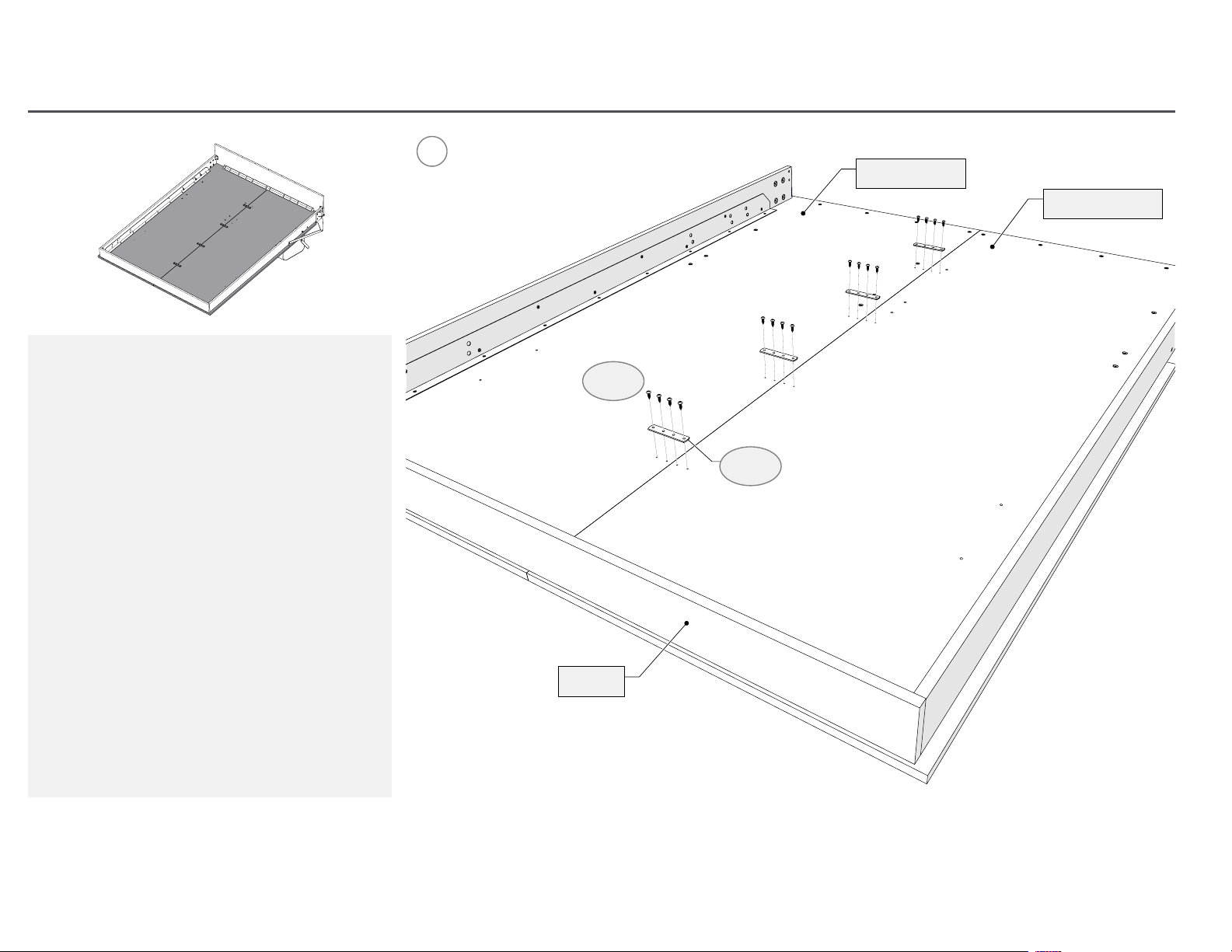

A. Aach the Right and Le Bed Panels to each

other using the H-085 Mending Plates and
H-087 Pan Head Screws, making sure that the
top edge of the panels are well aligned when
installing the H-085 Mending Plates.

H-087

H-085

Bed Panel, Left

Bed Panel, Right

Foot Rail

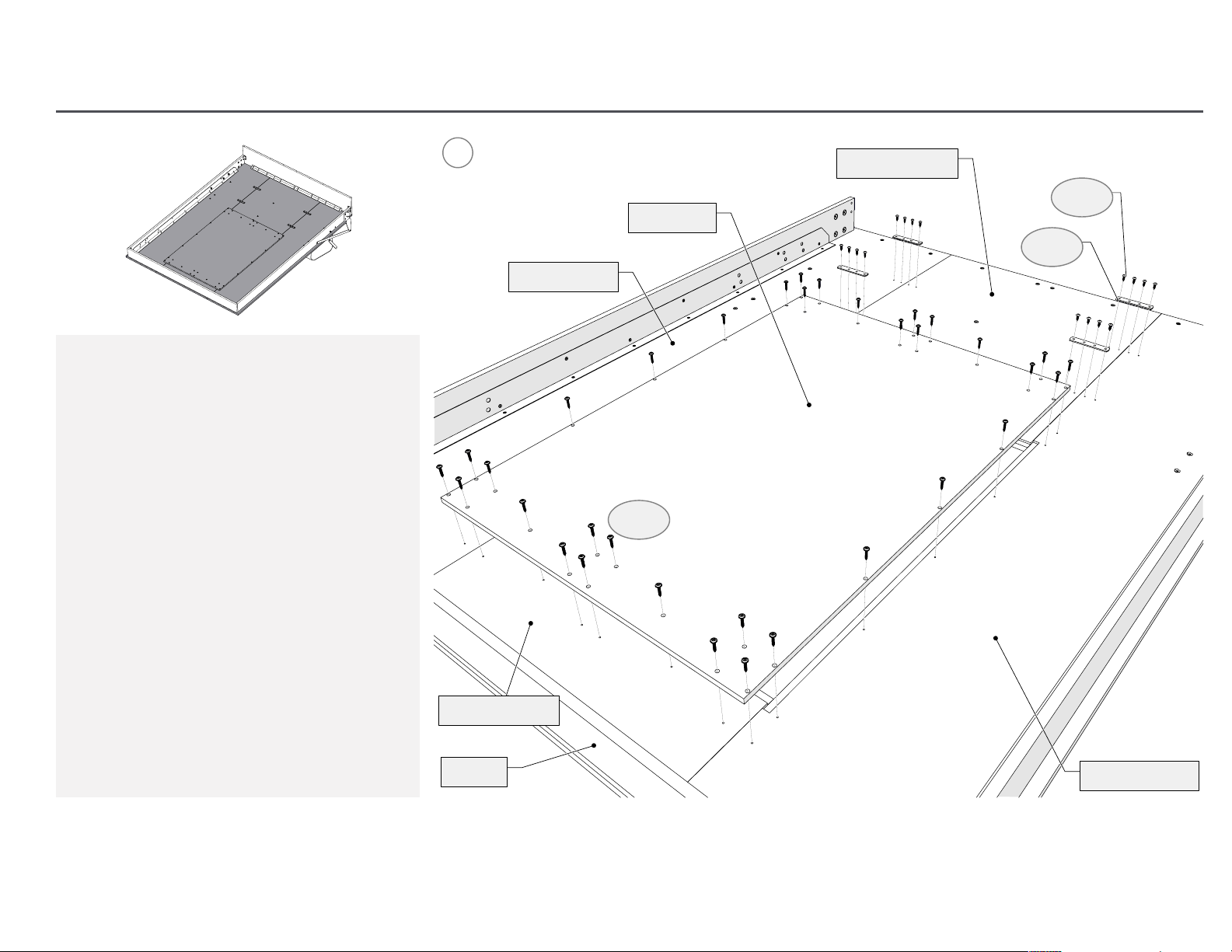

STEP 15 RECESSED BED PANEL: Attach Mirror Panel and Bed Panels

Use this version of Step 15 if your Sofa-WallBed has a recessed Bed Panel

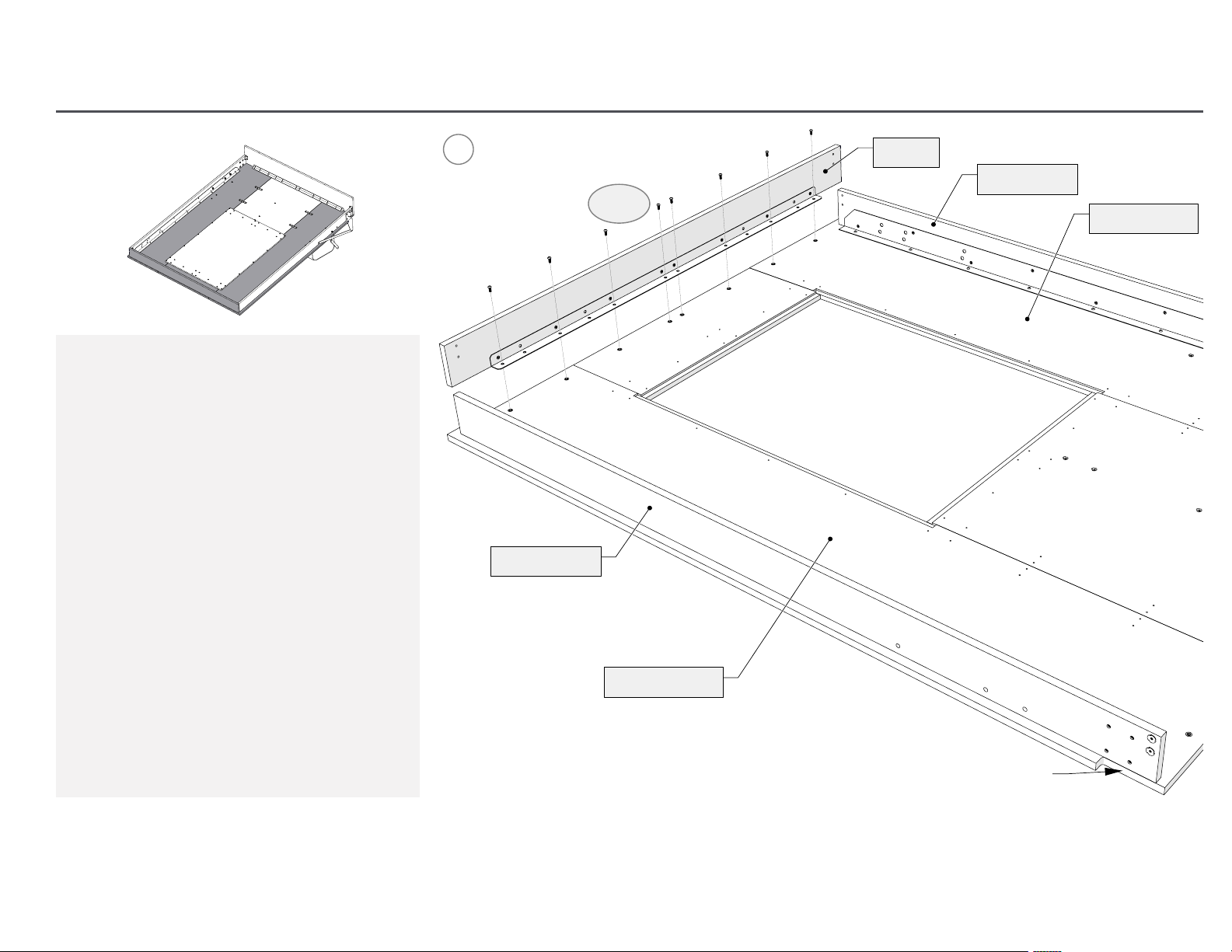

A. Lay the mirror Panel face down on the

rectangular opening in between the Bed
Panels, and line up the holes of the Mirror
Panel with holes in the Bed Panels. Make
sure that the ends of the Bed Panels are well
aligned. Aach the Right, Lower, and Le
Bed Panels to each other using the H-085
Mending Plates and H-087 Pan Head Screws.

A

Lower Bed Panel

H-087

Mirror Panel

H-085

Bed Panel, Left

H-184

Upper Bed Panel

Foot Rail

Bed Panel, Right

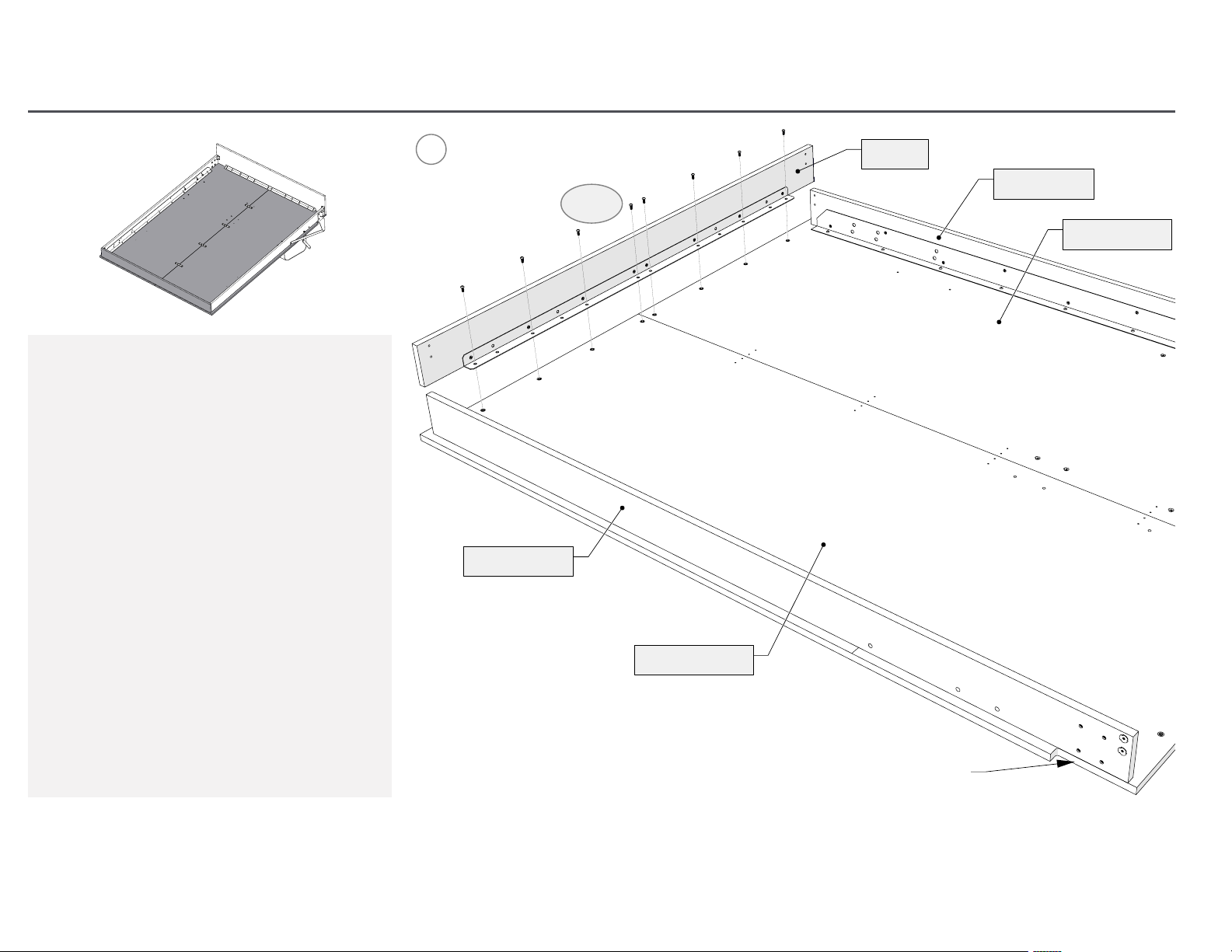

STEP 16 PLAIN BED PANEL: Prepare and Attach Head Rail to Bed Panels

Use this version of Step 16 if your Sofa-WallBed has a plain Bed Panel

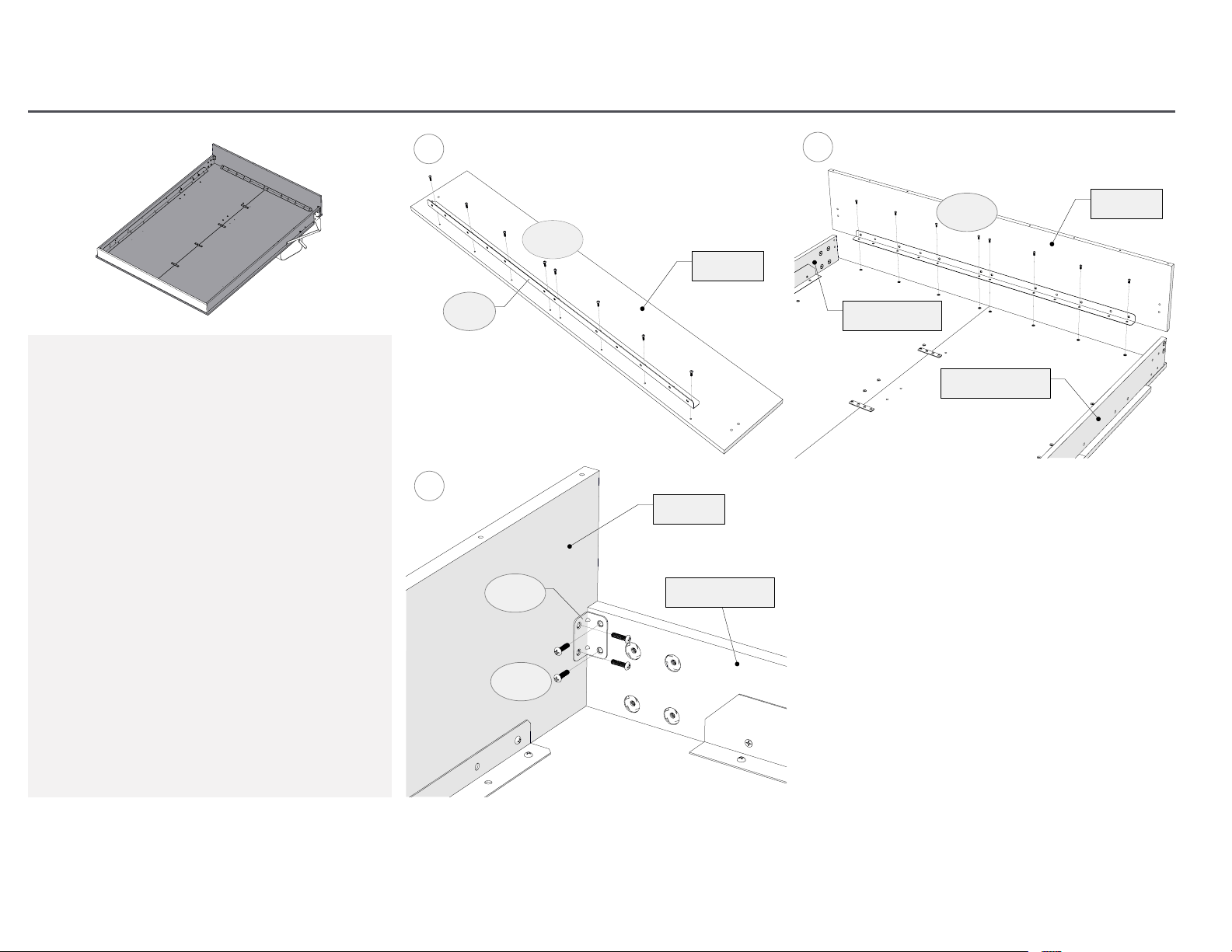

A. Aach the M-19 Short bed Angle to the Head

Rail using H-019 Screws, as shown.

B. Align the holes of the Head Rail Angle with

the holes of the Bed Panels and aach them
by screwing the H-088 Bolts through the
Head Rail Angle and into the Bed Panels, as
shown.

C. Aach the Head Rail to each Side Rail by

connecting the H-077 Wide Angle Brackets
to each corner with H-107s Flat Head Euro
Screws, as shown.

A

B

H-088

Head Rail

H-019

Head Rail

M-19

Side Rail, Left

Side Rail, Right

C

Head Rail

H-077

Side Rail, Right

H-019

STEP 16 RECESSED BED PANEL: Prepare and Attach Head Rail to Bed Panels

Use this version of Step 16 if your Sofa-WallBed has a recessed Bed Panel

A. Aach the M-19 Short bed Angle to the Head

Rail using H-019 Screws, as shown.

B. Align the holes of the Head Rail Angle with

the holes of the Bed Panels and aach them
by screwing the H-088 Bolts through the
Head Rail Angle and into the Bed Panels, as
shown.

C. Aach the Head Rail to each Side Rail by

connecting the H-077 Wide Angle Brackets
to each corner with H-107s Flat Head Euro
Screws, as shown.

A

B

H-088

Head Rail

H-019

Head Rail

M-19

Side Rail, Left

Side Rail, Right

C

Head Rail

H-077

Side Rail, Right

H-019

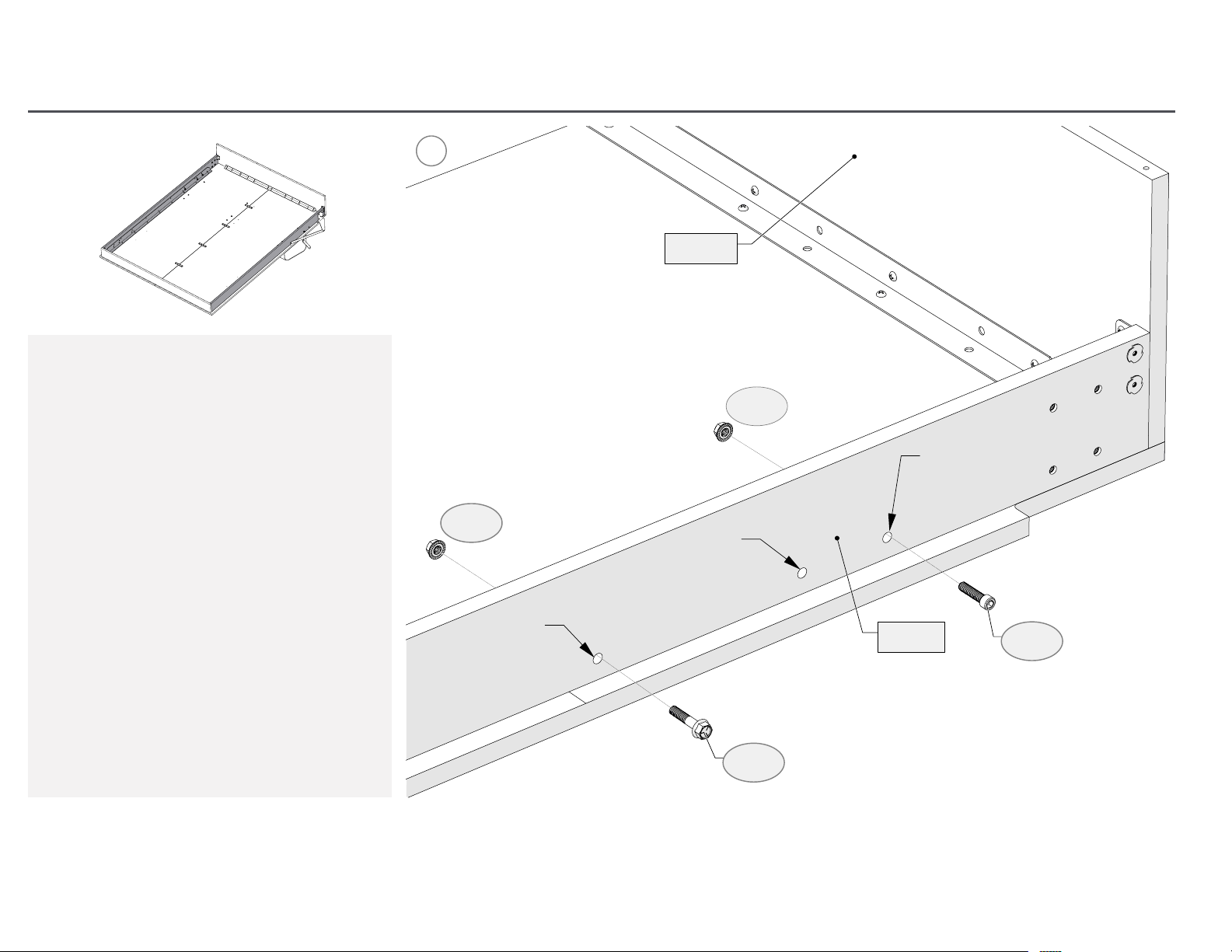

ST EP 17: Attach Mounting Hardware to the Side Rails

A

Head Rail

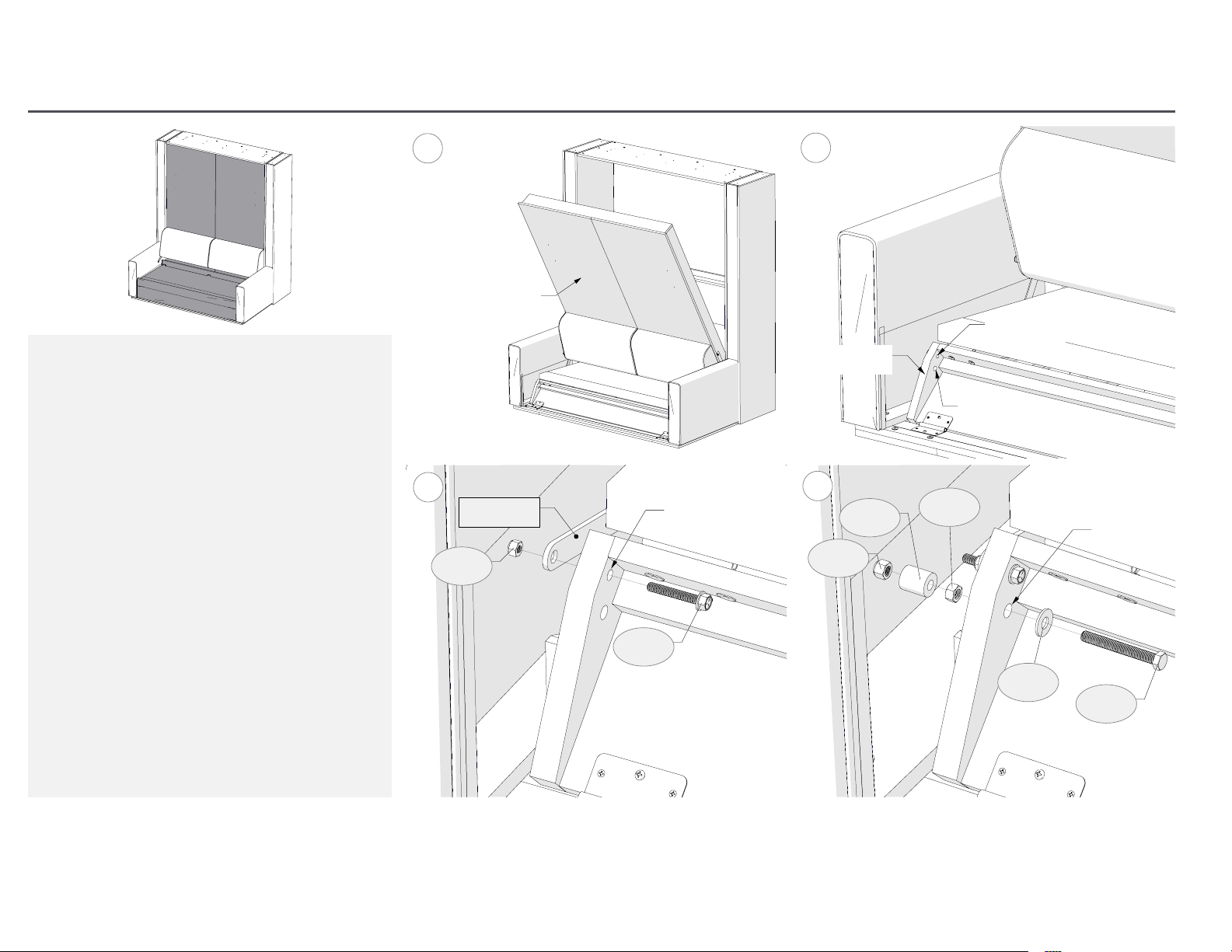

A. Insert a H-738 Bolt into the #1 hole from the

outside of the Side Rail. Thread a H-086 5/16”
nut on the end of the bolt just enough so that
the end of the bolt protrudes from the nut.
There should be about 1/4” of bolt threads
visible between the underside of the head of
the Bolt and the outside face of the Side Rail.
In the #3 hole, insert a H-739 Cap Screw from
the outside face of the Side Rail and thread
on a H-086 5/16” Nut from the other side. This
nut should be tightened by hand so that the
head of the Cap Screw is snug against the
outside face of the Side Rail.

H-086

H-086

Hole #3

Hole #2

Hole #1

H-738

Side Rail

H-739

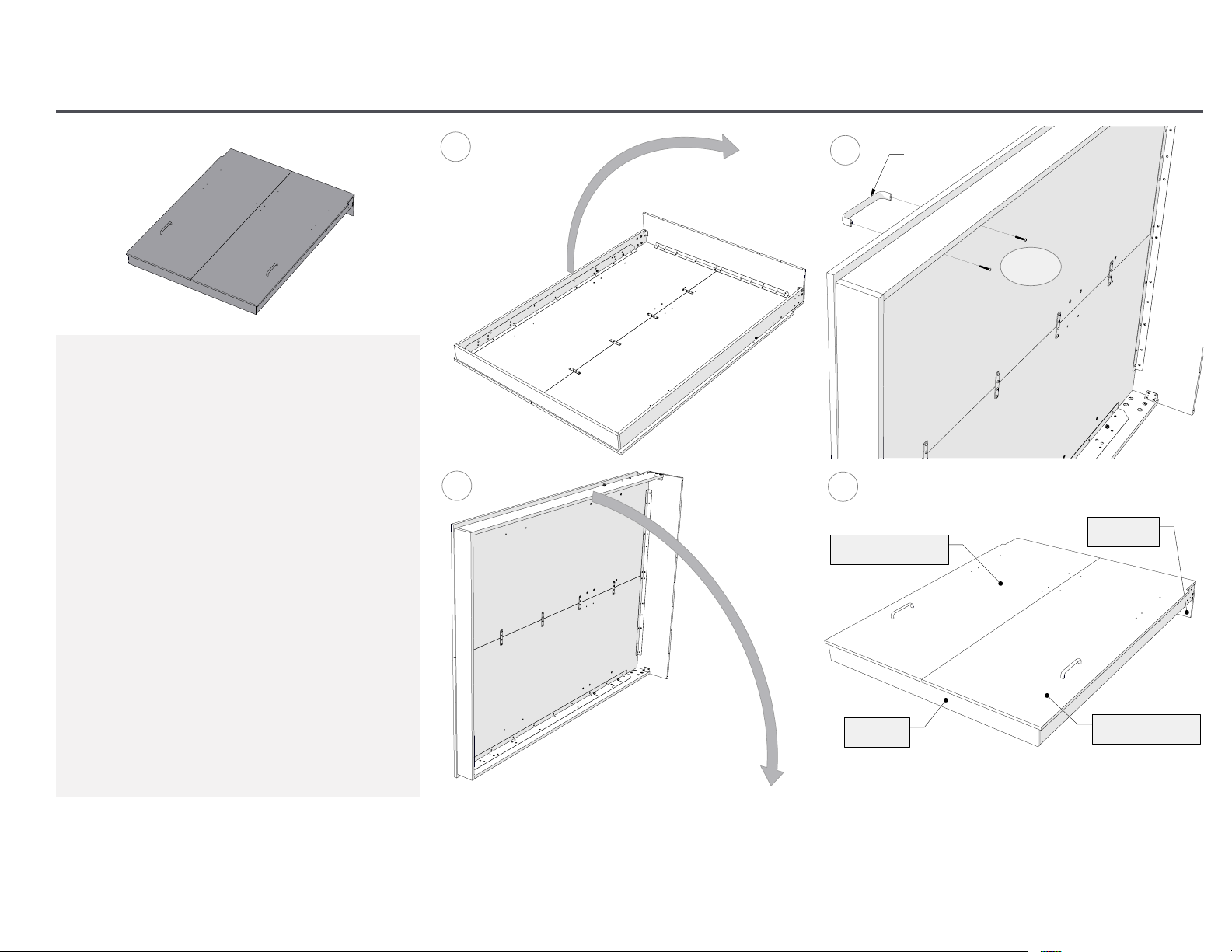

STEP 18: Turn over the Bed Platform and Attach the Handles

A. Carefully turn over the entire Bed Platform

over as shown.

B. Carefully support the Bed Platform on its

side. Aach the handles on each side of the
Bed Panels using the H-425 Machine Screws.

C. Continue to turn the Bed Platform over as

shown.

D. The Bed Platform shoud be resting on the

Head Rail and Foot Rail.

A

B

Handle

H-425

C

D

Head Rail

Bed Panel, Right

Foot Rail

Bed Panel, Left

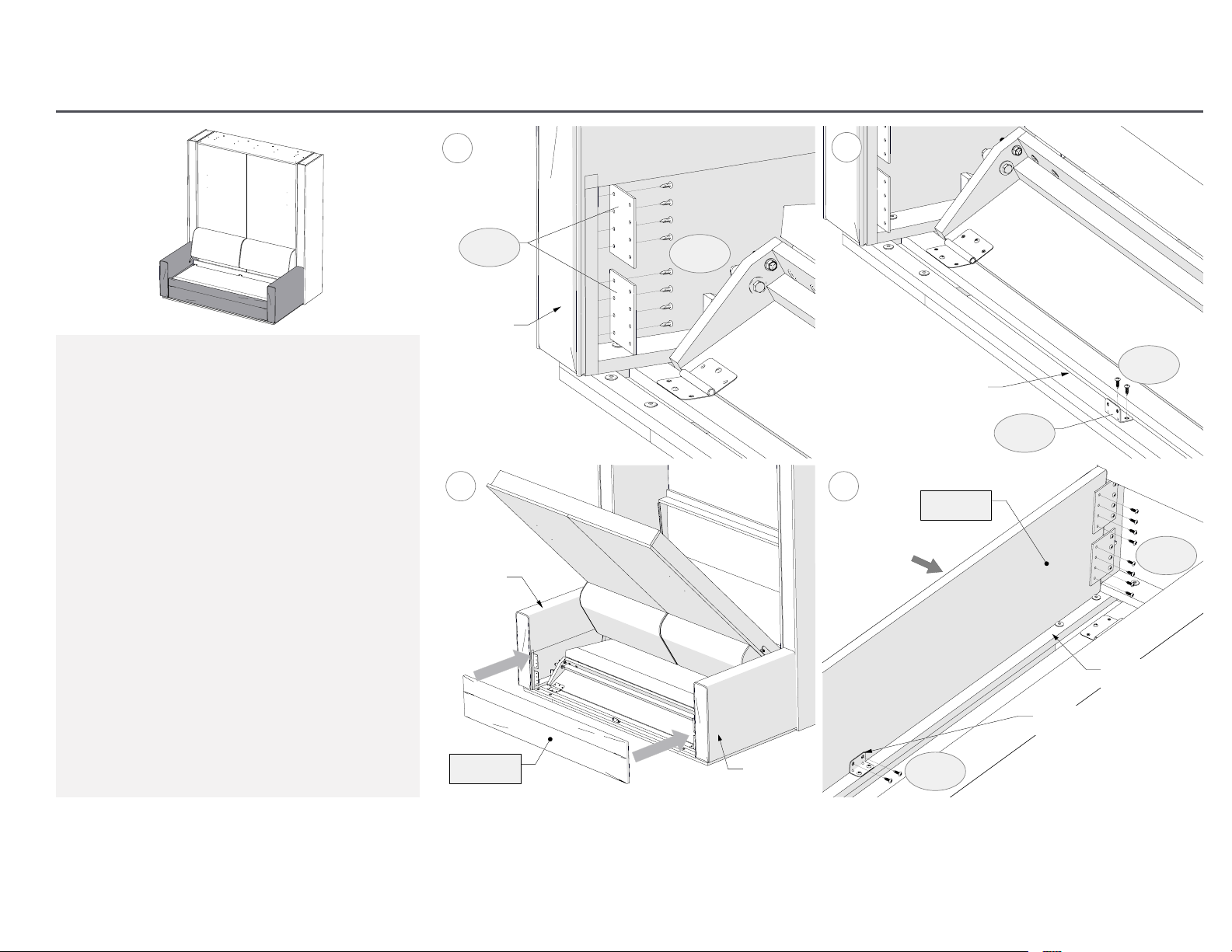

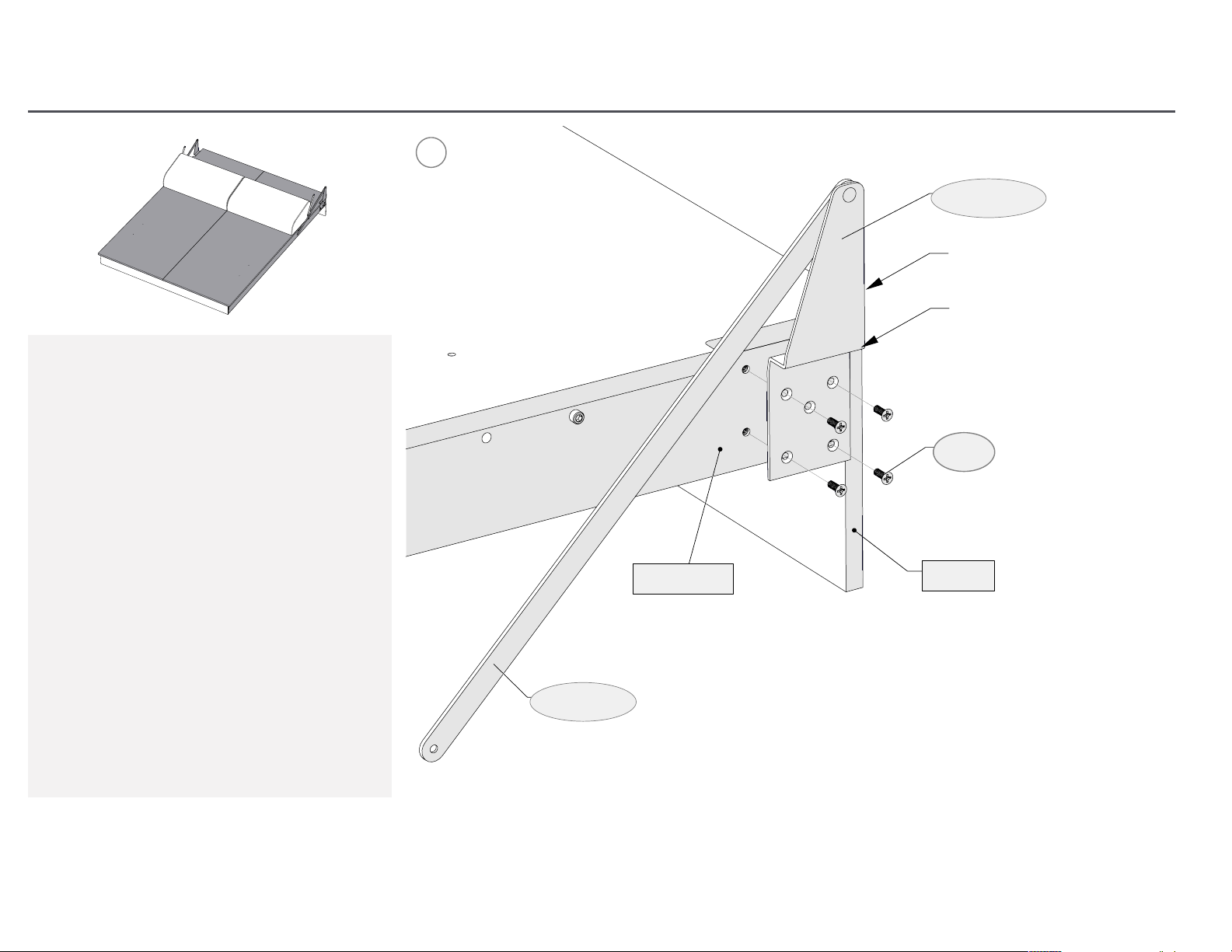

STEP 19: Attach Linking Bars and Cheek Plates to Bed Platform

A

A. Using the H-924 Flathead Bolts, aach the

Cheek Plate / Linking Bar assemblies to the
Side Rails so that the bend in the Cheek
Plate is oriented away from the Side Rail. Be
careful to orient the Cheek Plates exactly as
they are shown.

Cheek Plate

Flat edge towards Head Rail

Orient bend away from Side Rail

H-924

Linking Bar

Side Rail, Left

Head Rail

STEP 20: Attach Back Cushion Assembly to Bed Platform

A

Bed Panel, Right

Drawer Slide

H-766

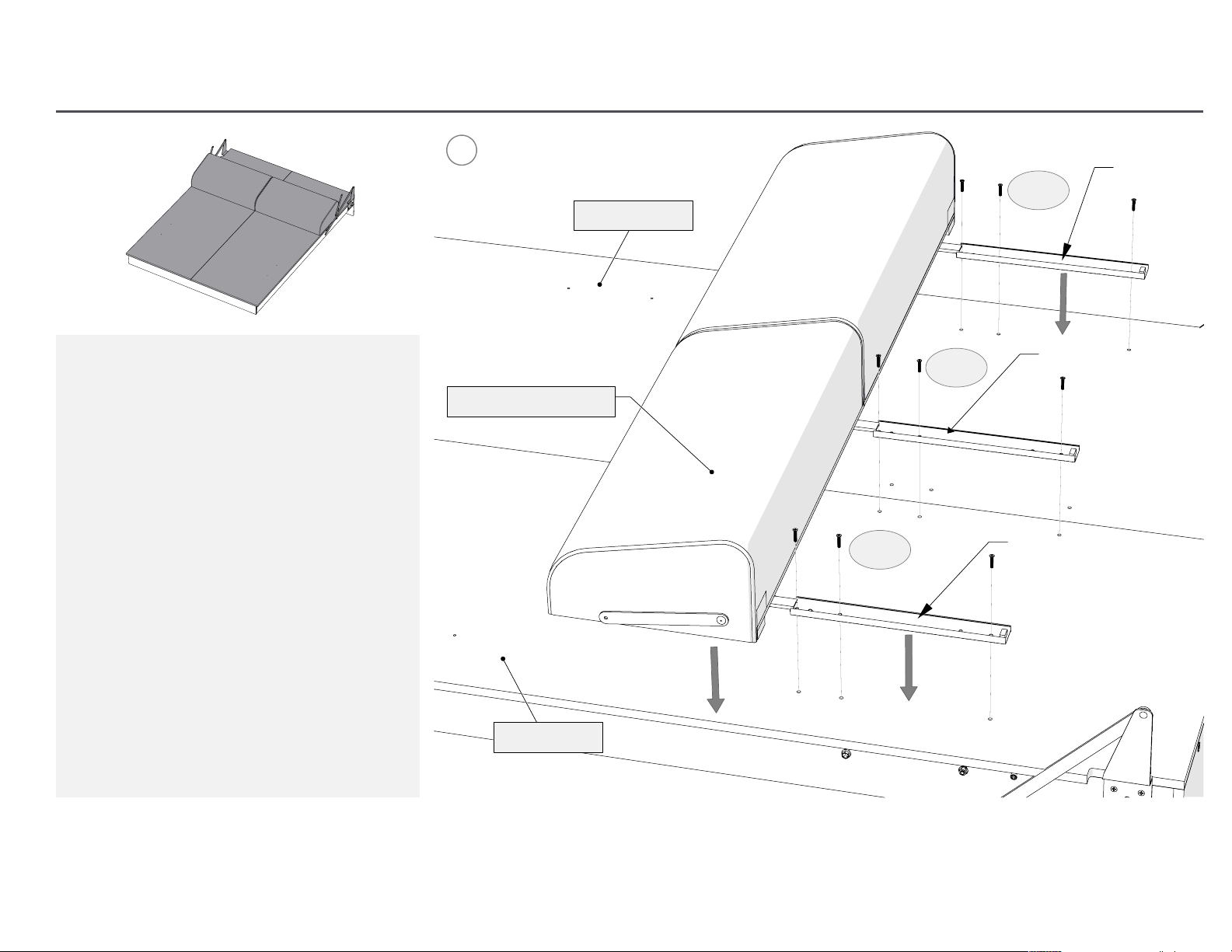

A. Carefully lay the Back Cushion Assembly on

top of the Bed Platform as shown. While the
cushions will slide “downhill” take care that
the the drawer slides do not scratch the Bed
Platform. Working from the Head Rail end to
the Foot Rail end of the drawer slides, locate
the first hole in the drawer slide and align
it with the mating hole in the bed platform.
Insert a H-766 Bolt in the hole and tighten.
Line up the next drawer slide hole with the
mating Bed Panel hole. Use another H-766
Bolt in this hole. Slide the Back Cushions all
the way towards the Foot Rail and you should
see the last hole in the drawer slide line
up with the mating bed platform hole. Use
another H-766 Bolt bolt in this hole.

Back Cushion Assembly

Bed Panel, Left

H-766

H-766

Drawer Slide

Drawer Slide

STEP 21: Pull down the Mechanism Arm

A

A. Slide the PVC pipe over the end of each

tension arm and use it bring the arms
outward against the initial tension of the
springs. When they are pulled near the angle
shown, swivel the Arm Locks over to brace
against Hex Bolt ‘A’. There will be a lot of
tension on the Tension Arm.

CAUTION! There will be a lot of tension on
the Tension Arms. We recommend that two
people handle this procedure: one pulling
and holding the tension arm with both
hands, while the other sets the arm lock.
When seing the arm lock, avoid reaching
behind the tension arm and be very careful
to avoid geing pinched.

PVC Pipe

Hex Bolt 'A'

Arm Lock

Tension Arm

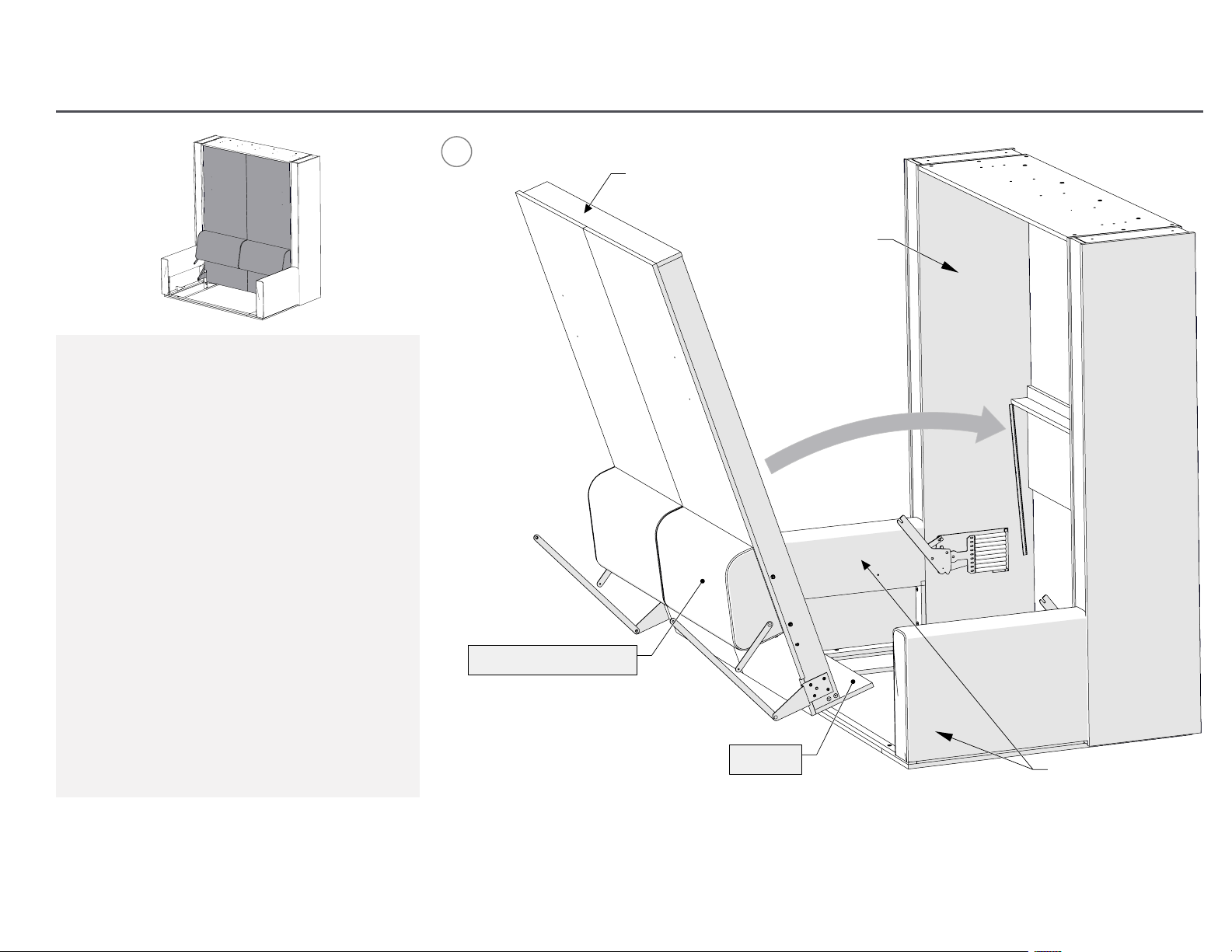

STEP 22: Walk the Bed Platform towards the Bed Cabinet

A

Bed Platform

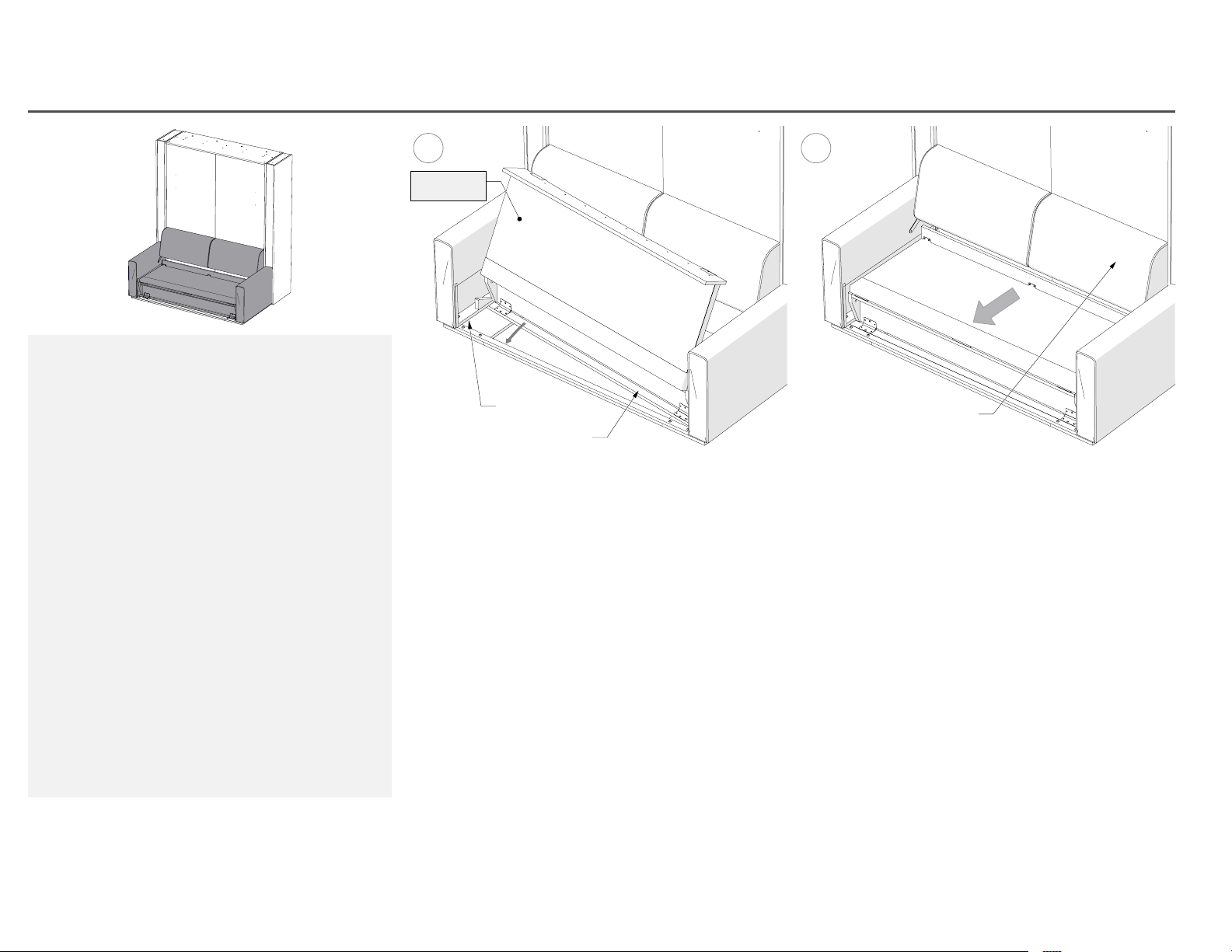

A. Walk the Bed Platform towards the Cabinet

and between the Sofa Arms as shown.

Bed Cabinet

Back Cushion Assembly

Head Rail

Sofa Arms

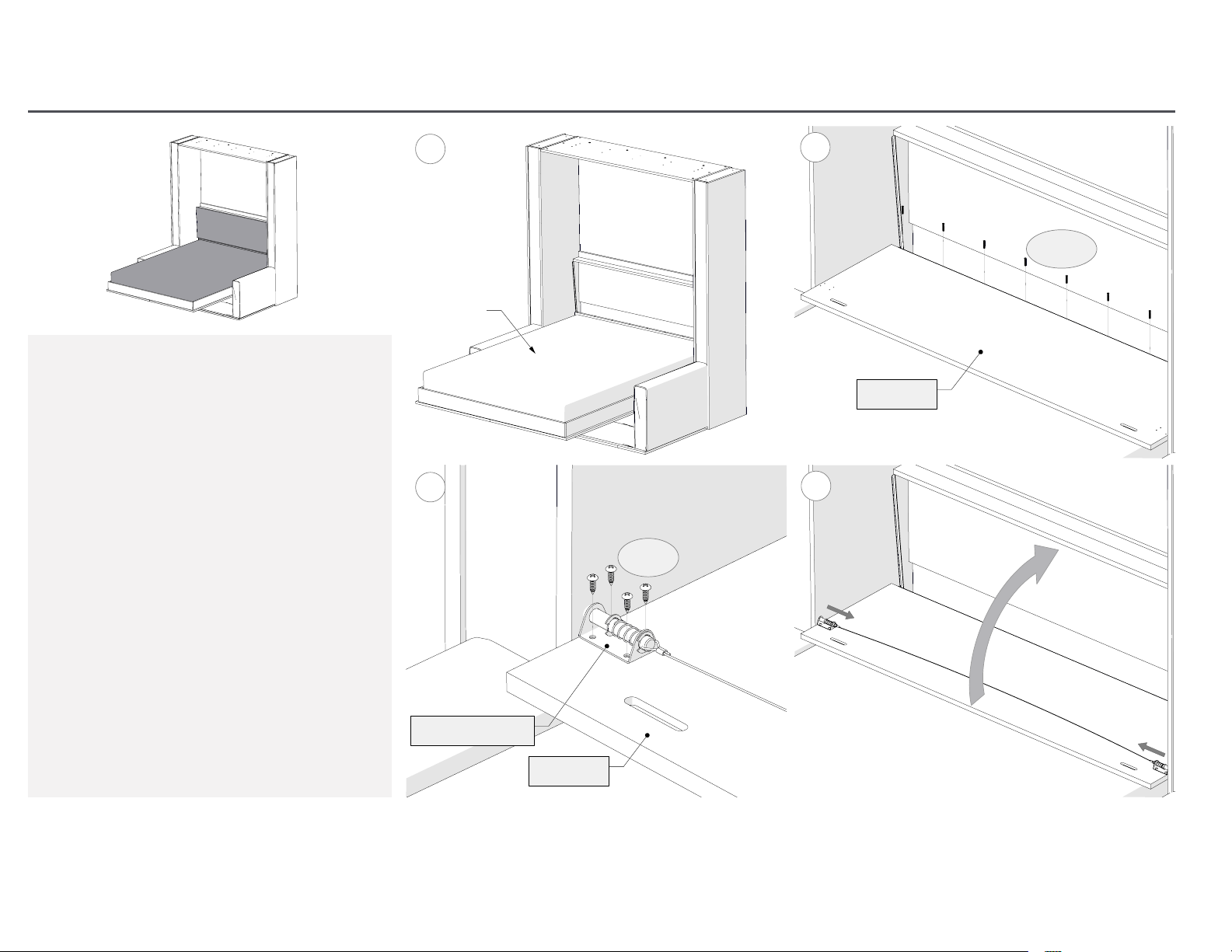

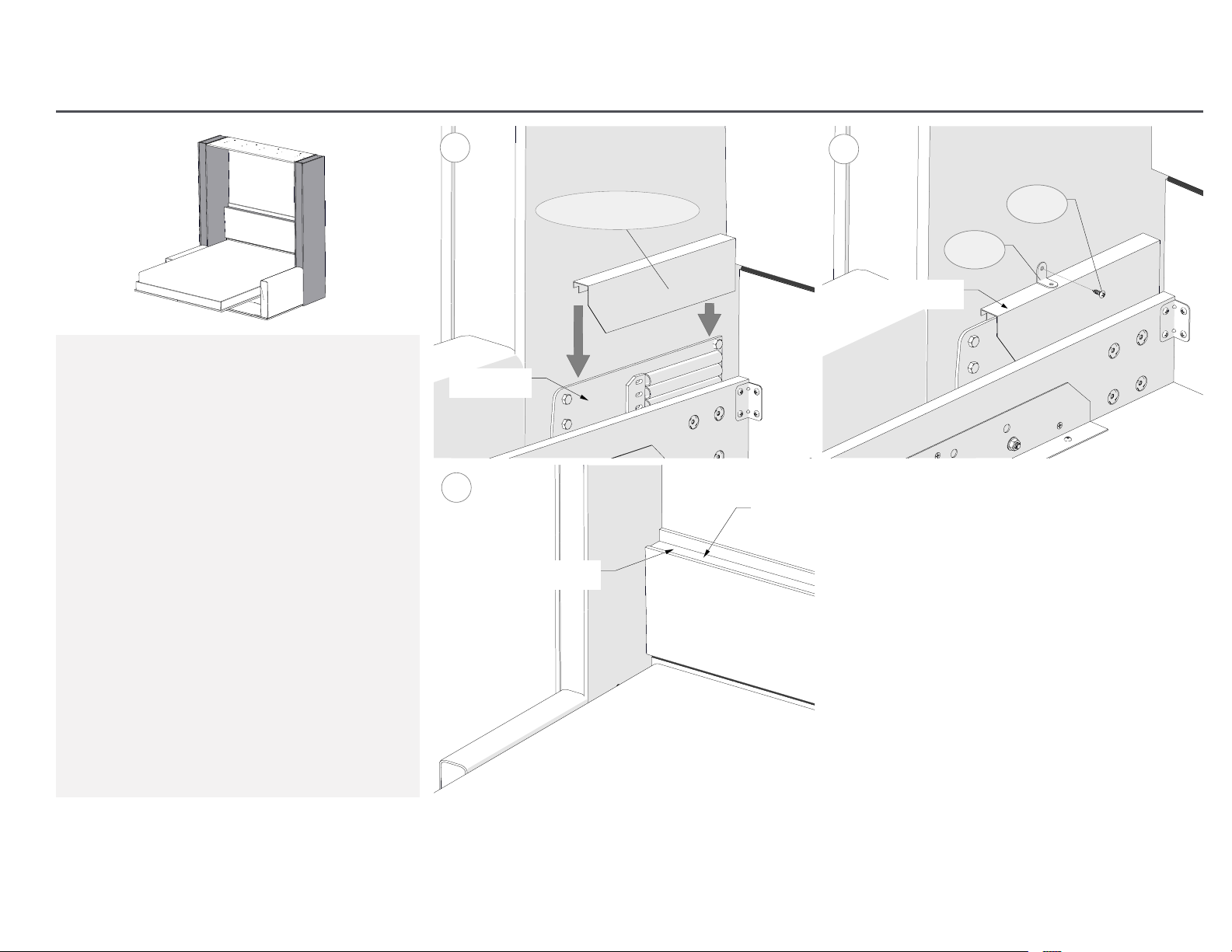

STEP 23: Locate the Bed Platform in Bed Cabinet

A

A. Raise the Bed Platform to a height where

the Hex Bolts in Hole #1 are a few inches
above the Tension Arm Slots. Carefully fit
the bed platform between the two Tension
Arms so that the Hex Bolts in Hole #1 slide
into the Tension Arm Slots. Slowly tilt the
Bed Platform back to allow the Cap Screws
in Hole #3 to be seated against the notches at
the boom of each Tension Arm. Please note
that this image is made transparent to show
the Mechanism Arm components.

Side Rail

Bolt, Hole #1

Tension Arm Slot

Hole #2

Cap Screw, Hole #3

Notch

STEP 24: Mount Bed Platform in Bed Cabinet

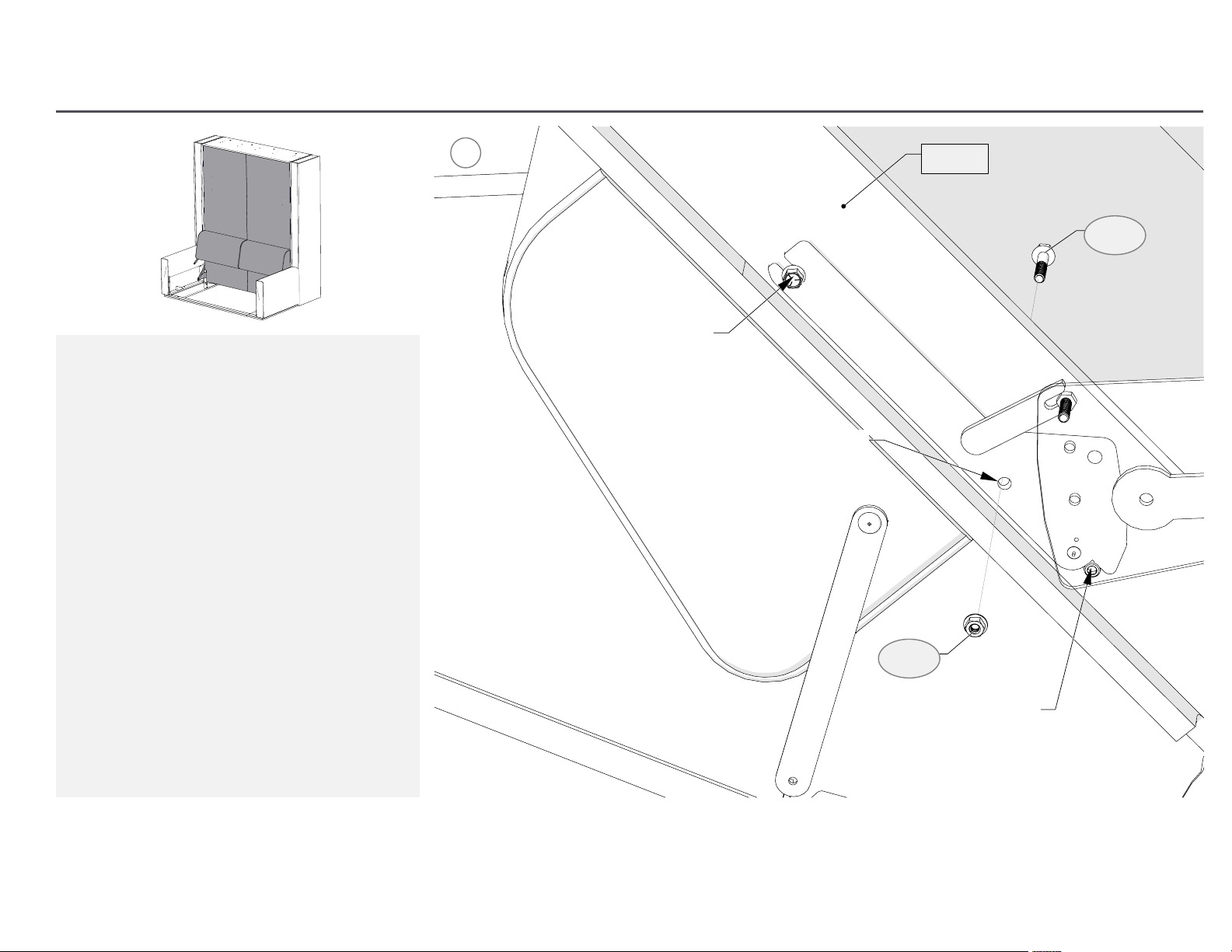

A. Insert the H-738 Hex Bolts into Hole #2 from

the inside face of both Side Rails and into the
Tension Arms. It may help to have a helper
hold the bed in the position near 45° to allow
for more access. Tighten the H-086 Flange
Nuts onto the H-738 Hex Bolts at Hole #2.
Tighten the Hex Bolts and Flange Nuts at
Hole #1. Tilt the Bed platform down until
it is horizontal. You will hear a click as the
Arm Locks disengage. Holding the upper
edge of the Bed Platform, gently let the Bed
close. Please note that this image is made
transparent to show the Mechanism Arm
components.

CAUTION! For the rest of the assembly,
the bed will be under spring tension as you
raise and lower it. While you are working
on it have someone hold it down for you so
it doesn’t rise suddenly. Before continuing,
be sure that the bolts in Holes #1 and 2 are
tightened completely.

A

Side Rail

H-738

Bolt, Hole #1

Hole #2

H-086

Cap Screw, Hole #3

STEP 25: Install Seat Deck Slider

A. Insert the Seat Deck in between the Sofa

Arms and install the Slider at a slight angle
into the Sliding Spaces, underneath the Sofa
Arms.

B. Rotate the Slider and Seat Deck into place to

make it parallel to the Cabinet. You may need
to li the Back Cushion Assembly a bit to fit
the Seat Deck underneath.

A

Seat Deck

Slider at slight angle

Sliding Space

B

Back Cushion Assembly

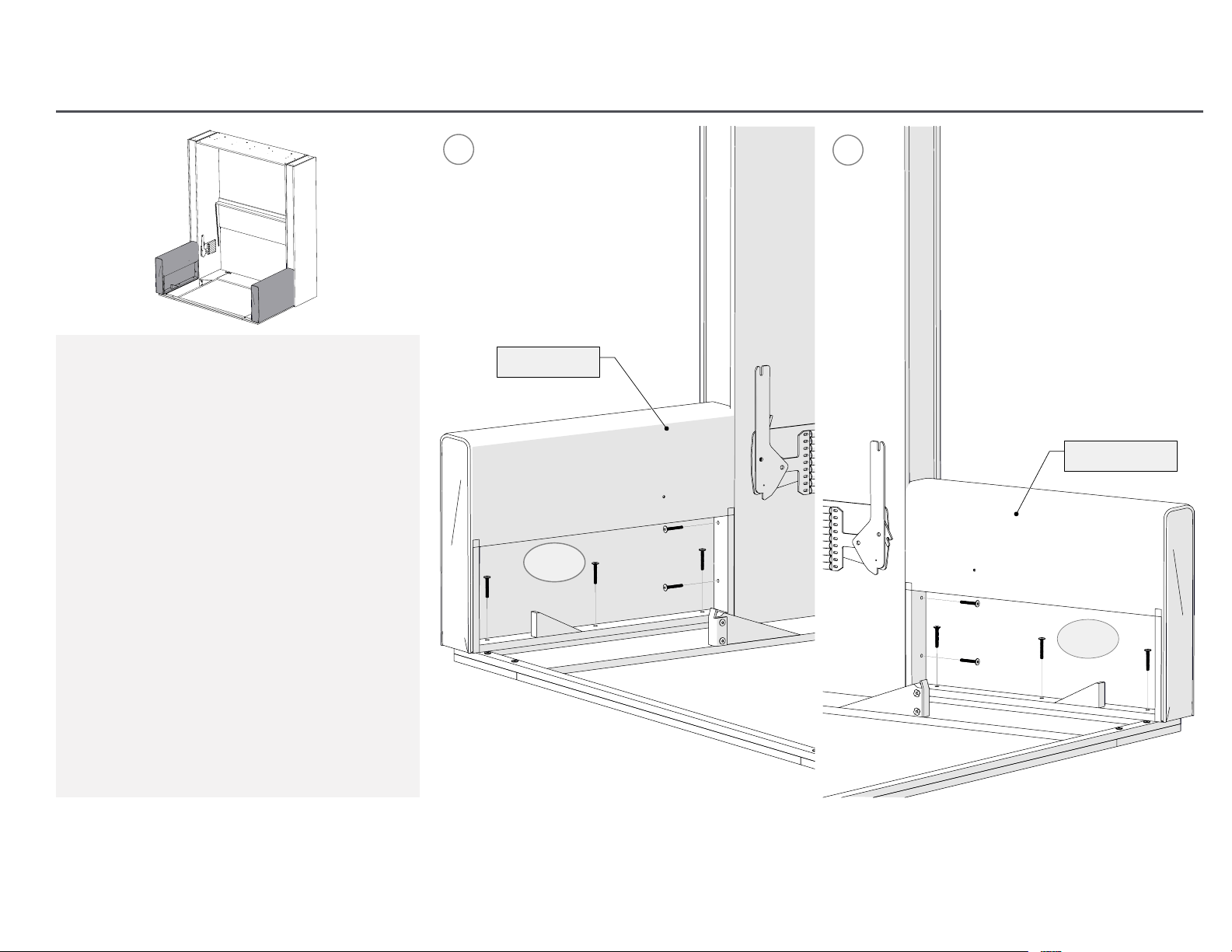

STEP 26: Connect the Back Cushion to the Sofa Arms

A

Back Cushion Assembly

Sofa Arm

A. With the bed platform in the closed position,

swing the Back Cushion linking bars into
position so that the predrilled hole in the
Sofa Arm is in line with the hole in the
linking bar. It may be necessary to slide the
Back Cushion Assembly upwards slightly
to align the two. Insert aH-067 Washer in
between the Sofa Arm and the outside face
of the Linking Bar. Aach the Linking Bars
to the Sofa Arms using H-114 Screws and a #2
square drive tip.

Linking Bar

H-067

H-114

ST EP 27: Complete the Sofa Seat Installation

A. Open the bed platform around 45º.

B. Locate the Front Support and its Upper and

Lower Holes.

C. Reaching around the side of the sofa seat,

locate the linking bar and pivot it upwards so
that it aligns with the upper mounting hole
in the front support as. It will be helpful to
raise and lower the bed to manipulate the
linking bar into the right position. Insert
the H-112 5/16” Bolt through the Upper Hole
of front support and thread it into the pre
installed tee nut in the outside face. Tighten
firmly. Pass the Linking Bar over the end of
the bolt and thread on the H-767 5/16” Nylock
Nut. Tighten the nut tightly but not too tight
that the Linking Bar won’t pivot.

A

Bed Platform at 45°

C

Linking Bar

H-767

Upper Hole

B

Front Support

D

H-921

H-919

Upper Hole

Lower Hole

H-189

Lower Hole

D. Insert the H-920 3/8” Bolt through the H-187

Washer and into the inside face of the front
support at the Lower Hole. There is a pre­installed tee nut on the outside face of the
front support. Tighten the 3/8” Bolt very
firmly against the washer and then hand
tighten the H-189 3/8” Nut on the end, slip on
the H-921 1” Roller and then thread on the
H-767 Nylock Nut so that the end of the bolt
is about flush with the end of the nut and the
roller is able to spin around the bolt.

H-112

H-187

H-920

STEP 28: Attach Skirt to Sofa

A. Keep the Bed Platform open around 45°.

Using H-087 5/8” Screws, aach two H-143
Mending Plates to the inside face of each arm
so that the 4 holes of each Mending Plate fall
on the Sofa Arm and the 4 holes are exposed
for the Skirt aachment, as shown. The
Mending Plates should be oriented vertically.

B. Aach a H-077 Wide Angle Bracket to the

top face of the Spreader so that the boom
flange edge is flush with the back edge of the
Spreader, as shown.

C. Locate the Sofa Skirt between the Sofa Arms

and its boom edge on the top face of the
Spreader. Reaching inside the of the sofa,
aach the skirt to the mending plates using
H-087 Screws.

A

H-143

Sofa Arm

C

Sofa Arm

B

H-087

H-087

Back edge of Spreader

H-077

D

Sofa Skirt

H-087

D. Screw the Skirt to the Wide Angle Bracket

with H-087 Screws.

Sofa Skirt

Sofa Arm

Spreader

Wide Angle Bracket

H-087

STEP 29: Put the Mattress in place & Attach the Headboard to the Head Rail

A. At this point the maress can be placed into

the Bed Platform.

B. Locate the Headboard so that the hinge holes

align with the holes of the Head Rail. It is
best to start a H-014s Euro Screw at each end
of the hinge. Once the hinge is aligned this
way, you can finish inserting all of the Euro
Screws and tightening them.

C. Locate the Headboard Guide Assembly on

the back of the Headboard. Align the 4 holes
of each Headboard Guide with the 4 holes
on each end of the Headboard. Aach the
Headboard Guide to the Headboard with
H-087 Pan Head Screws, as shown.

A

Mattress

C

B

H-014s

Headboard

D

H-087

D. Pull the Guide Cable away from the

Headboard so that Guide Pins are positioned
in towards the center of the Bed, then pivot
the Headboard toward the back of the Bed
Cabinet. Once the Guide Pins are aligned
with the Guide Tracks, release the Cable so
that the Pins are positioned out into the
Tracks.

Headboard Guide

Headboard

STEP 30: Install Mechanism Covers

A. Place the right and le Spring Mechanism

covers down over the spring mechanisms
lining up the tabs in the covers with the
spaces in the mechanisms.

B. Secure the mechanism covers in place with

an H-210 Angle Bracket and H-087 Screw.
The bracket should be placed on top of the
mechanism cover and the screw should
be used to aach the angle bracket to the
Cabinet Side.

C. It is important that pillows are not stored

in the bed when closed. We leave it to your
discretion whether or not to place the
warning sticker on the Shelf.

A

Mechanism

C

"No Pillows" Sticker

Mechanism Cover

B

H-087

H-210

Mechanism Cover

Shelf

STEP 31: Complete Sofa-WallBed Assembly

A

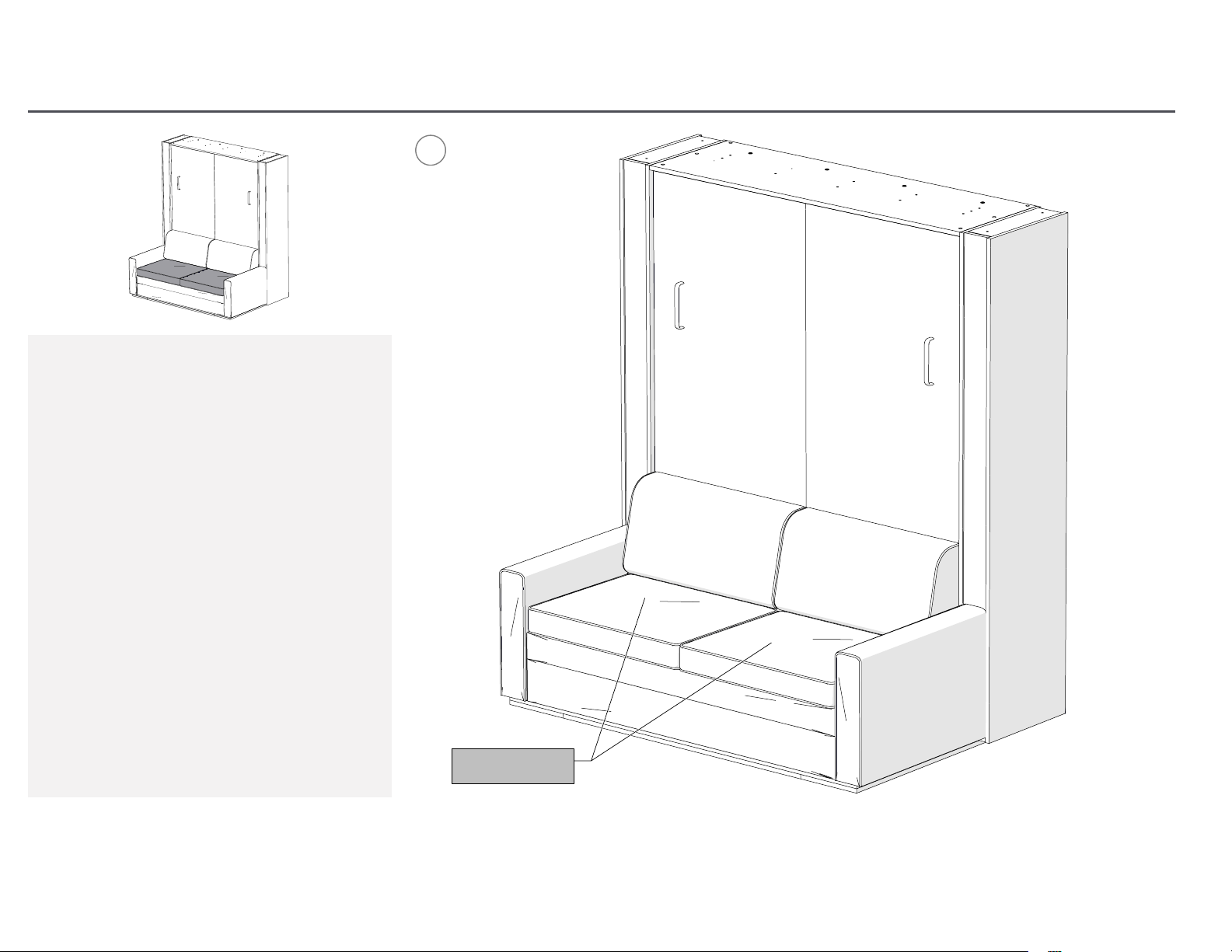

A. Li up the Bed Platform and install Sofa Seat

Cushions on top of the Seat Deck.

Seat Cushions

HOW IT WORKS

Sofa-Wallbed | ASSEMBLY MANUAL

HOW IT WORKS

HOW IT MOVES UP

AN D DOWN :

The mechanisms that allow the Sofa­WallBed to move up and down are spring­loaded and located inside face of each pier.

As the Sofa-WallBed is lowered down,
gravity is naturally starting to pull it down.
The springs “kick in” and provide enough
resistance to avoid it from coming down
too quickly.

As the Sofa-WallBed is raised upward,
gravity is resisting, To make it easier to li,

the springs releases tension, assisting
the bed as it is raised.

TO LOWER THE SOFA-WALLBED:

Handles are located on the outside of the
Bed Cabinet (on the Bed Panels) for use to
lower the Bed.

TO RAISE THE SOFA-WALLBED:

At the corner of the bed platform, place
hands underneath and li. Start walking
toward the bed cabinet to close. Once at
half-way, grab a handle and guide into
the cabinet.

Sofa-WallBed | ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look different

than what is shown in the pictures and

videos throughout this manual

Tech support is readily available if needed

Email: [e-mail]

Phone: [phone]

HOW IT WORKS (CONT.)

HOW TO
ADJUST TENSION :

To adjust the tension of the Sofa-WallBed:

The factory has installed the proper number of
springs based on our estimates of the weight of typi­cal maresses. Your maress weight may vary from
these estimates. With the springs provided, the bed
platform should be very easy to raise and lower.

If it is too light, it will float up a lile instead of stay­ing down in the bed position. In this case you will
need to remove one of the springs.

If it is too heavy, it will be too difficult to li and you
will need to add a spring.

STEPS FOR ADJUSTMENT:

1. To adjust the number of springs, you will need to temporarily “walk”

the cabinet and sofa forward until it is around two feet from the wall.
Do not move the unit by grabbing the sofa arms as it may damage it.
Use the cabinet instead.

2. Working behind the cabinet, add or remove springs from the spring

mechanisms as needed. The top and boom springs are installed
with the hooks facing inward so they are a lile easier to remove.
The final arrangement of springs should be symmetrical above and
below the center of the mechanism. for example, if you start with (8)
springs, the center space will be empty. If you remove a spring, you
should take it off the top, but you should also move the boom spring
to the center space. Ideally the le and right spring mechanism
should have the same number of springs.

3. Push the cabinet and sofa back in place against the wall and test the

raising and lowering of the bed.

Sofa-WallBed | ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look different

than what is shown in the pictures and

videos throughout this manual

Tech support is readily available if needed

Email: [e-mail]

Phone: [phone]

TROUBLESHOOTING

Sofa-WallBed | ASSEMBLY MANUAL

TROUBLESHOOTING

HOW CAN I ACCESS
BEHIND THE SOFA-WALLBED?

If you need to access to the area behind the
bed, you most likey do not have to remove it
from the wall. The Headboard does release,
allowing access behind the Bed.

TO LOWER THE HEADBOARD:

Have someone lower the bed about halfway
and hold it there. On the back of the
Headboard there are guide pins located on
the le and right, with a cable stretched
between them. These pins extend into the
track located on each side of the cabinet,

guiding the Headboard movement as the
bed is raised and lowered. Reach behind
the Headboard and locate the cable. Pull
the cable upward to release the pins on
both side and pivot the Headboard forward
to the maress. Make sure you keep
holding tension on the cable as you pivot
the Headboard to prevent the pins from
scratching the inner faces of the Cabinet
Sides. At this point, the Bed can be lowered
down completely. To re-engage the pins,
pull upward on the tension cable and raise
Headboard, until the pins are aligned
with the track. Release the cable. The pins

should snap out into position, reseing the
headboard for use.

REMOVING BED FROM WALL:

With another person, “walk” each side of the
Cabinet away from wall.

TIP: You may want to place moving pads

underneath cabinet (with another person,
tip cabinet slightly to place pad).

MY SOFA-WALLBED IS MAKING A
CREAKING NOISE

If any of the hinges or other parts of the
mechanism on Sofa-WallBed creak, spray

Sofa-WallBed | ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look different

than what is shown in the pictures and

videos throughout this manual

Tech support is readily available if needed

Email: [e-mail]

Phone: [phone]

TROUBLESHOOTING (CONT.)

them with a dry silicone-type lubricant,
available at most hardware stores. Although
this type of lubricant should not damage the
wood panels, be careful not get any on the
bed covers or maress.

I CAN’T RAISE OR LOWER THE BED
PLATFORM

If there is any binding or difficulty raising
or lowering the bed, it is possible that a
foreign object has become lodged in the sofa
mechanism. Remove the seat cushions, and
look between the sofa arm and sofa seat
for any obstructions. If there is no obvious

culprit, call Inova customer service for
assistance in troubleshooting the issue.

THE SEAT DECK HAS FALLEN AND
HAS NO SUPPORT.

If the Seat Deck feels like it has fallen
and has no support, it is possible the Rear
Suppport mechanisms need to be reset. To
reset these mechanisms you’ll need pull
the bed platform down to its bed position,
then raise it back up to its sofa position.
If the seat deck still has no support, call
Inova customer service for assistance in
troubleshooting the issue.

HOW DO I RETRIEVE SOMETHING
THAT FELL UNDERNEATH THE SEAT
DECK?:

It is possible to li up the seat deck and get
full access underneath, without removing
the sofa skirt. The process will be easier
with two people but it can be done with
one. First, remove the seat cushions from
the seat deck. While tucking your hands
between the Back Cushions and the back of
the seat deck, caefully li the seat deck rear.
While liing, be careful to tuck all portions
of the Back Cushions behind the seat deck
back. Once the seat deck is completely free,

Sofa-WallBed | ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look different

than what is shown in the pictures and

videos throughout this manual

Tech support is readily available if needed

Email: [e-mail]

Phone: [phone]

TROUBLESHOOTING (CONT.)

you’ll have access underneath. In order to
get the seat deck back underneath the Back
Cushions, you’ll need to carefully tuck all
portions of the Back Cushions over the seat
deck while your hands are over the top of
the seat deck back. Once the seat deck is
underneath the Back Cushions, you’ll need
to reset the Rear Support mechanisms.
Please refer to the previous Troubleshooting
item on how to reset the seat deck supports.

CARE & MAINTENANCE
IN F O RM ATI ON

Please refer to your Welcome Booklet for
detailed information on Care & Maintenance

NEED TO DISASSEMBLE AND MOVE
THE SOFA-WALLBED

Reverse assembly steps from manual

TIP: Bag and label hardware per Step.

This will be very helpful when reassembling
the Sofa-WallBed.

I HAVE A BROKEN PART THAT
NEEDS TO BE REPLACED

Locate your order #
(label located inside Bed Platform)

Take photos of broken part and Bed overall

Upload and Email Us with description of
issue, photos, and include your order # for
easy identification

Sofa-WallBed | ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look different

than what is shown in the pictures and

videos throughout this manual

Tech support is readily available if needed

Email: [e-mail]

Phone: [phone]

FEEDBACK WELCOME

FEEDBACK WELCOME:

This assembly manual was created with you in
mind. Over the years, we have been asked common
questions and received important feedback on our
products and services.

With great care, and through continuous
improvement and learning, we have incorporated
the answers and feedback within these manuals.
We hope you find them useful and easy to use!

With this said, if there is any outstanding question
that you have, please do not hesitate to contact us.

We also welcome any and all feedback about our
product and your experience with it. Email us at

[e-mail] or call us at 866.528.2804.

We hope you enjoy your Inova TableBed for many
years to come!

THANK YOU.

Sofa-WallBed | ASSEMBLY MANUAL

PLEASE NOTE: Your Bed may look different

than what is shown in the pictures and

videos throughout this manual

Tech support is readily available if needed

Email: [e-mail]

Phone: [phone]
