Inova PD00941013.001 User Manual

®

ICP-CM

Intel® Celeron® M Low
Power CPU Boards

CompactPCI

USER’S MANUAL

Publication Number: PD00941013.001 AB

MAN-ICP-CM

This user’s manual describes a product that, due to its nature, cannot describe a particular applica­tion. The content of this user’s manual is furnished for informational use only, is subject to change
without notice, and should not be constructed as a commitment by Inova Computers GmbH.
Inova Computers GmbH assumes no responsibility or liability for any errors or inaccuracies that
may appear in this user’s manual.

Except as otherwise agreed, no part of this publication may be reproduced, stored in a retrieval
system, or transmitted, in any form or by any means, electronic, mechanical, recording, or other­wise, without the prior written consent of Inova Computers GmbH.

Products or brand names are trademarks or registered trademarks of their respective companies or
organisations.

ICP-CM

Preface

®

Preface

Contents

Unpacking and Special Handling Instruc-

tions ............................................... 6

Revision History ............................... 7

Three Year Limited Warranty .............. 8

1.0 ICP-CM CPU........................... 1-3

1.01 Interfacing ............................................................................................... 1-4

1.02 Peripherals ............................................................................................... 1-4

1.03 Software .................................................................................................. 1-4

1.04 Graphics .................................................................................................. 1-4

1.1 Specifications ......................... 1-5

1.2 Functional Overview ................. 1-7

Figure 1.20 ICP-CM Interfacing .................................................................................................. 1-7

Figure 1.21 ICP-CM Board Overview .......................................................................................... 1-8

1.3 Software ................................ 1-9

1.31 Windows XP (Professional / Embedded) ................................................... 1-9

1.32 Windows 2000 (Professional) ................................................................... 1-9

1.33 Linux........................................................................................................ 1-9

1.34 VentureCom............................................................................................. 1-9

1.35 Windows CE........................................................................................... 1-10

1.36 VxWorks................................................................................................. 1-10

CompactPCI

1.37 OS-9 x86 ............................................................................................... 1-10

1.38 QNX ...................................................................................................... 1-10

1.39 Jbed ....................................................................................................... 1-10

©2004 Inova Computers GmbH Page 0-1Doc. PD00941013.001

Preface

ICP-CM

1.4 Hardware ............................. 1-11

1.41 Block Diagram........................................................................................ 1-11

Figure 1.41 Block Diagram....................................................................................................... 1-11

1.42 Connector Location ............................................................................... 1-12

Figure 1.42 Connector Locations .............................................................................................. 1-12

1.43 Connector Description ........................................................................... 1-12

Table 1.43 Connector Description ............................................................................................ 1-12

Table 1.43 Continued .............................................................................................................. 1-13

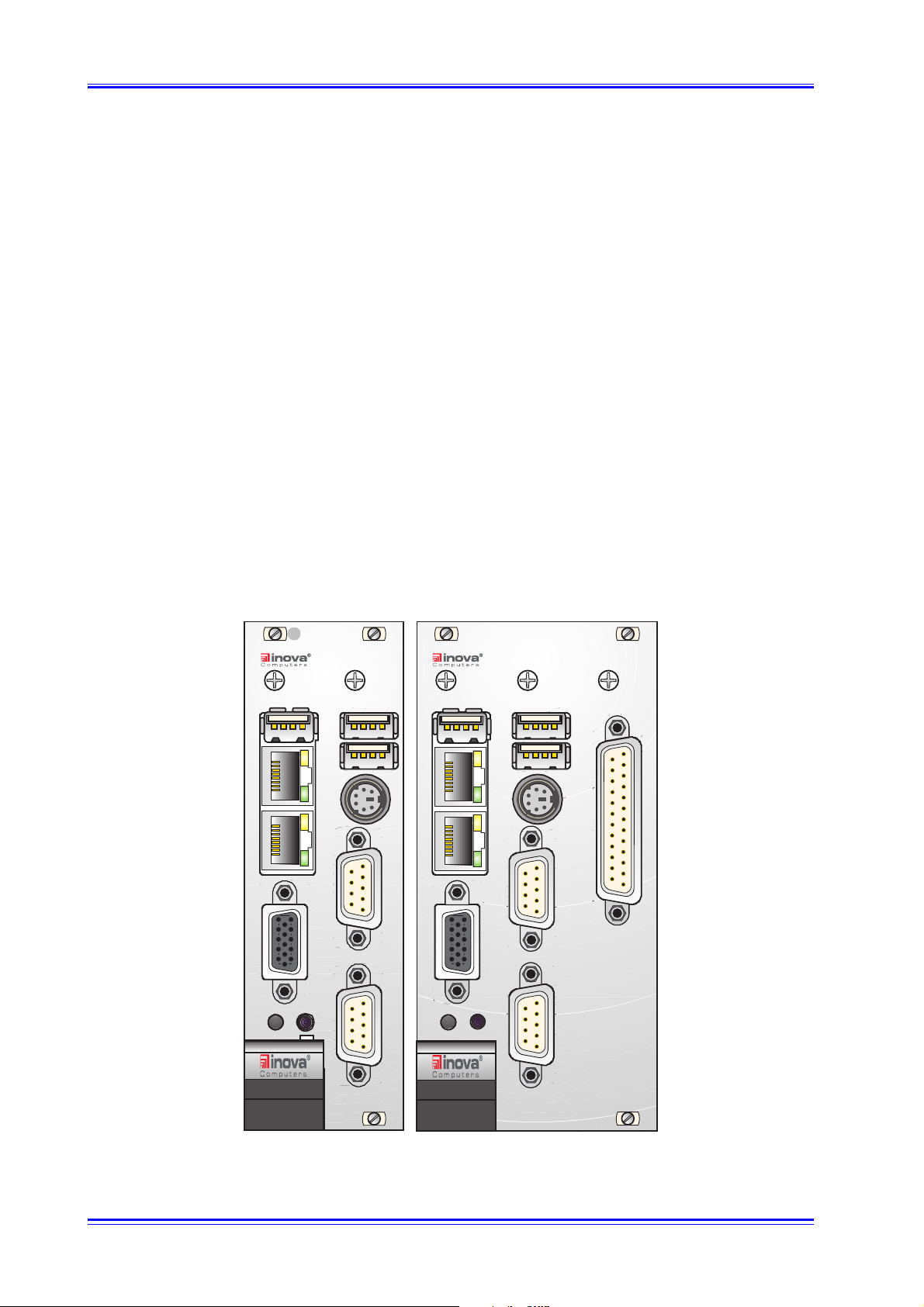

1.44 Front-Panel Features............................................................................... 1-13

Table 1.44 Front Panels ........................................................................................................... 1-13

Figure 1.44 Front-Panel Options .............................................................................................. 1-14

1.45 Interface Positions .................................................................................. 1-15

Figure 1.45 Interfaces .............................................................................................................. 1-15

1.46 Construction - 4HP Standard CPU .......................................................... 1-16

Figure 1.46 Construction of CPU with Heat-Sink Assembly ........................................................ 1-16

1.47 Construction - 8HP Standard CPU .......................................................... 1-17

Figure 1.47 Construction of CPU with Heat-Sink Assembly ........................................................ 1-17

1.48 Construction - 8HP Standard CPU with AGP........................................... 1-18

Figure 1.48 Construction of CPU with Heat-Sink Assembly ........................................................ 1-18

1.49 Power Requirements .............................................................................. 1-19

Table 1.49 ICP-CM Power Reqirements .................................................................................... 1-19

1.50 Power Consumption .............................................................................. 1-20

Figure 1.50 ICP-CM Power Consumption .................................................................................. 1-20

1.51 Thermal Considerations ......................................................................... 1-21

Table 1.51 ICP-CM Airflow Requirements ................................................................................. 1-21

2.0 Memory Map........................... 2-2

Figure 2.00 System Architecture ................................................................................................. 2-2

2.1 I/O Mapped Peripherals............. 2-4

Table 2.10 Legacy I/O Map (ISA Compatible) ............................................................................ 2-4

Table 2.10 Legacy I/O Map (ISA Compatible) Contd. ................................................................. 2-5

2.2 Memory Mapped Peripherals ..... 2-6

2.3 Interrupt Routing .................... 2-6

Table 2.30 PC-AT Interrupt Definitions ....................................................................................... 2-7

2.4 DMA Channel Descriptions ....... 2-7

Table 2.40 DMA Channel Description ........................................................................................ 2-7

2.5 Inova CM SMB Devices ............ 2-8

Table 2.50 SMB Devices ............................................................................................................. 2-8

2.6 Inova CM PCI Device List ......... 2-9

Table 2.60 Legacy I/O Map (ISA Compatible) ............................................................................ 2-9

©2004 Inova Computers GmbHPage 0-2 Doc. PD00941013.001

ICP-CM

Preface

2.7 Interrupt Configuration .......... 2-10

®

Table 2.70 CompactPCI Bus Interrupts ..................................................................................... 2-10

2.8 Timer / Counter ..................... 2-11

2.9 Watchdog ............................. 2-11

3.0 CompactPCI J1/J2 Connectors . 3-2

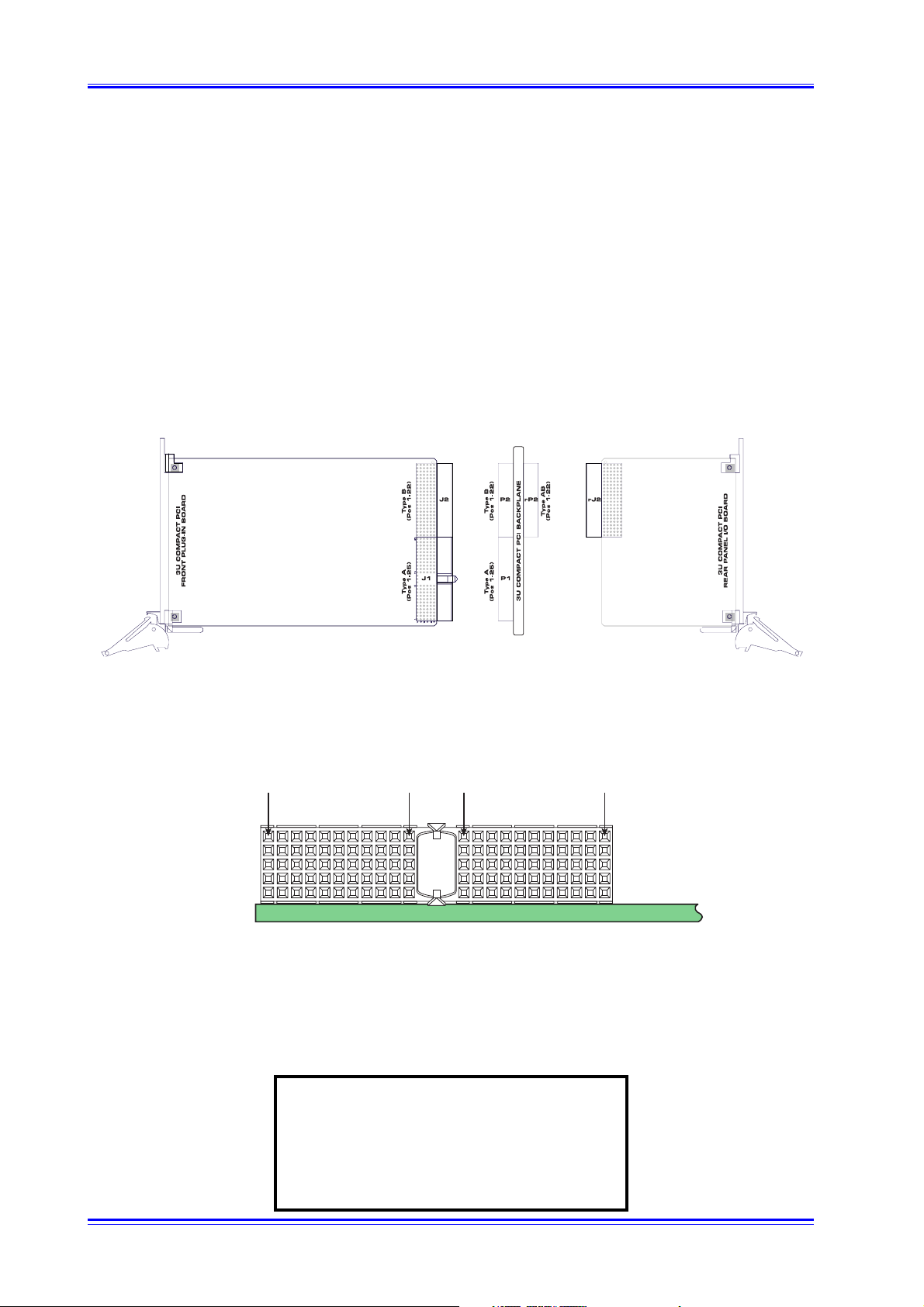

3.01 CompactPCI Connector Naming .............................................................. 3-2

Figure 3.01 Naming Convention as per PICMG 2.0 R3.0 Specification ........................................ 3-2

3.02 CompactPCI J1 Connector ....................................................................... 3-2

Figure 3.02 J1- 32-Bit CompactPCI Bus Interface Connector ....................................................... 3-2

3.03 ICP-PM Connector J1 and J2 .................................................................... 3-2

Table 3.03 32-Bit CompactPCI J1 Pin Assignment ....................................................................... 3-3

Table 3.04 32-Bit CompactPCI J2 Pin Assignment (Std. with Rear I/O (D)) .................................. 3-4

Table 3.04 32-Bit CompactPCI J2 Pin Assignment (Std. - with Rear I/O (D)) - Contd. .................. 3-5

Table 3.05 Inova’s ICP-CM Rear I/O J2 (CPU) Integration ........................................................... 3-6

3.1 CompactPCI Backplane ............ 3-7

Figure 3.10 Inova’s 32-Bit CompactPCI 8-Slot Backplane - RH System Slot .................................. 3-8

3.2 Interfaces ............................... 3-9

3.21 J6 & J7 Ethernet ....................................................................................... 3-9

Figure 3.21 RJ45 Pinout ............................................................................................................. 3-9

Table 3.21 Ethernet Standards & Connector Signals ................................................................... 3-9

3.22 J17 VGA Interface ................................................................................... 3-10

3.23 Graphic Features (Chipset) ..................................................................... 3-10

Table 3.23a highlights just some of the features of the standard integrated video controller. ..... 3-10

Figure 3.23 High-Density D-Sub VGA Interface Pinout .............................................................. 3-11

Table 3.23b Video Output Connector Signals ........................................................................... 3-11

3.24 J19 USB Interface ................................................................................... 3-12

Figure 3.24 USB Interface Pinout .............................................................................................. 3-12

Table 3.24 USB Connector Signals ........................................................................................... 3-12

3.25 J10 Hot-Swap Interface .......................................................................... 3-13

3.26 SW1 Reset Button .................................................................................. 3-13

3.27 J9 CompactFlash Interface ...................................................................... 3-13

3.28 Connecting the CM to the Inova ICP-HD3(-ND) .................................... 3-13

3.29 Connecting the CM to the Inova IPB-FPE12 ........................................... 3-13

CompactPCI

3.30 Connecting the CM to a Slim-Line Floppy-Disk ...................................... 3-13

A1 ICP-HD-3(-ND) CPU Extension .. A-2

A1.1 ICP-HD-3(-ND) Front-Panels (8HP or 12HP) ............................................. A-2

Figure A1.1 ICP-HD-3(-ND) CPU Front-Panels ............................................................................ A-2

A1.2 IDE Carrier Board ICP-HD-3(-ND) ............................................................. A-3

Figure A1.2 Interface Location of the ICP-HD-3(-ND) Module ..................................................... A-3

Table A1.2 Interface Description of the ICP-HD-3(-ND) Module .................................................. A-4

©2004 Inova Computers GmbH Page 0-3Doc. PD00941013.001

Preface

ICP-CM

A2 ICP-HD-3(-ND) Interfaces ......... A-5

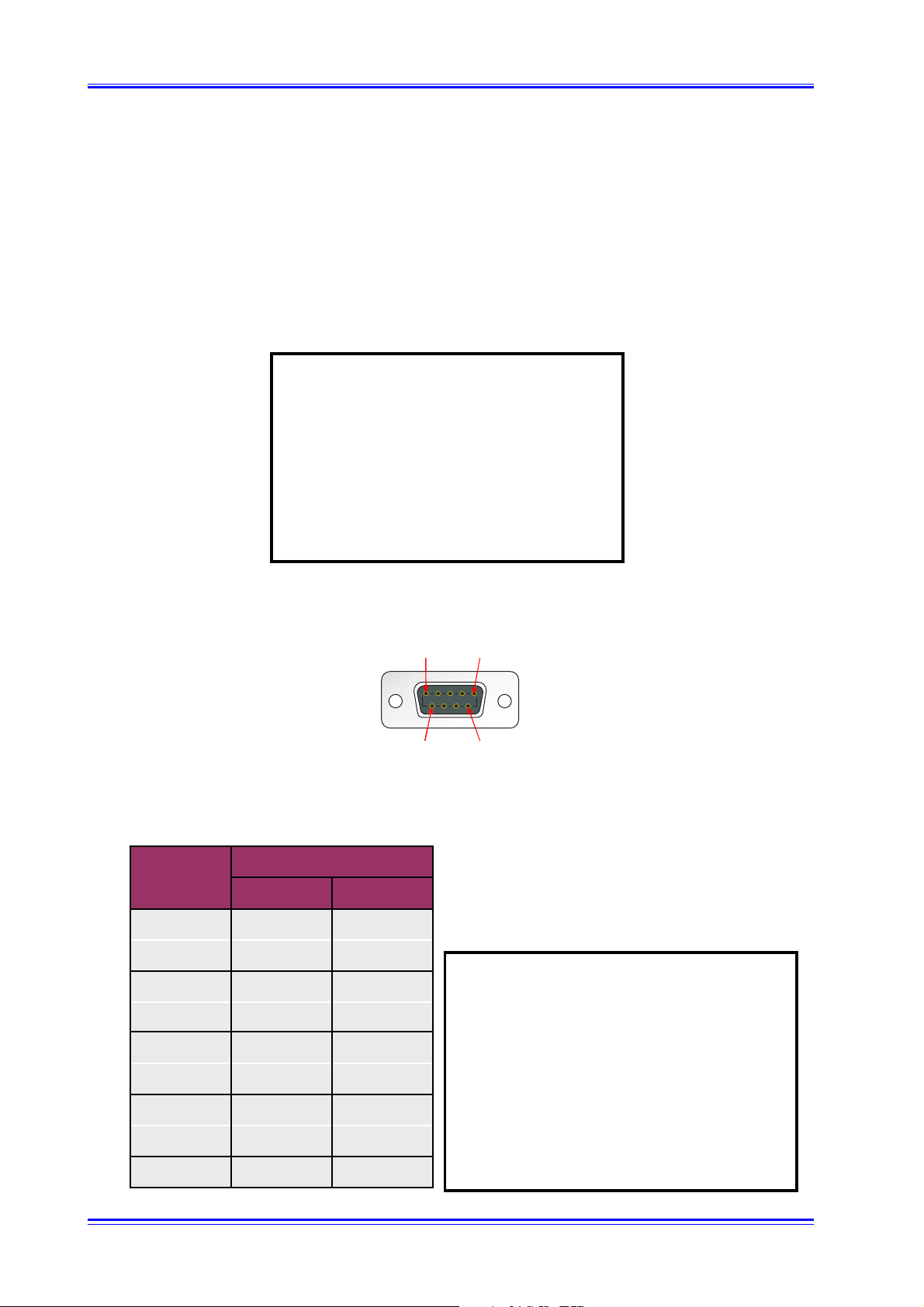

A2.1 COM1 & COM2 Interfaces ...................................................................... A-5

Figure A2.1 COM1 & COM2 Interface Pinout ............................................................................. A-5

Table A2.1 COM1 & COM2 Connector Signals ........................................................................... A-5

A2.2 Mouse & Keyboard Interfaces .................................................................. A-6

Figure A2.2 Mouse & Keyboard Interface Pinout ........................................................................ A-6

Table A2.2 Mouse & Keyboard Connector Signals ....................................................................... A-6

Table A2.3 USB Connector Signals ............................................................................................. A-7

A2.3 USB 2.0 Interfaces .................................................................................... A-7

Figure A2.3 USB Interface Pinout ................................................................................................ A-7

A2.4 EIDE Interface .......................................................................................... A-8

A2.5 Slim-Line Floppy Disk Interface................................................................. A-8

B1 IPB-FPE12 CPU Extension ........ B-2

B1.1 J13 Interface for LPT1 ............................................................................... B-2

B1.2 IPB-FPE12 Front-Panel (4HP or 12HP) ....................................................... B-2

Figure B1.2 IPB-FPE12 Stand-Alone or Integrated with CPU ........................................................ B-2

B1.3 LPT1 Piggyback ........................................................................................ B-3

Figure B1.3 LPT1 Piggyback Board IPB-FPE12 ............................................................................. B-3

Table B1.3 IPB-FPE12 Connector Description .............................................................................. B-4

B1.4 LPT1 Interface .......................................................................................... B-4

Figure B1.4 LPT1 Interface Pinout .............................................................................................. B-4

Table B1.4 LPT1 Connector Signals ............................................................................................ B-4

C1 ITM-RIO CPU Extension ............ C-2

C1.1 ITM-RIO-D Configurations ....................................................................... C-2

Table C1.10 Valid Rear I/O Configurations ................................................................................. C-2

Table C1.11 Rear I/O Module Functionality ................................................................................ C-2

C1.2 ITM-RIO Rear-Panels (4HP or 8HP) ........................................................... C-3

Figure C1.2 The rear Panels of the Inova ITM-RIO-D-x ................................................................ C-3

C1.3 ITM-RIO-D-x Transition Module ............................................................... C-4

Figure C1.3 Inova Rear I/O Transition Module ITM-RIO-D-x........................................................ C-4

Table C1.3 ITM-RIO-D-x Connector Description .......................................................................... C-5

C1.4 COM1 & COM2 Interfaces ...................................................................... C-6

Figure C1.4 COM1 & COM2 Interface Pinout ............................................................................. C-6

Table C1.4 COM1 & COM2 Connector Signals .......................................................................... C-6

C1.5 LPT1 Interface .......................................................................................... C-7

Figure C1.5 LPT1 Interface Pinout .............................................................................................. C-7

Table C1.5 LPT1 Connector Signals ............................................................................................ C-7

C1.6 Mouse & Keyboard Interfaces .................................................................. C-8

Figure C1.6 Mouse & Keyboard Interface Pinout ........................................................................ C-8

Table C1.6 Mouse & Keyboard Connector Signals ...................................................................... C-8

C1.7 VGA Interface .......................................................................................... C-9

Figure C1.7 VGA Interface Pinout ............................................................................................... C-9

Table C1.7 Video Output Connector Signals ............................................................................... C-9

C1.8 Fast Ethernet Interface ........................................................................... C-10

Figure C1.8 Fast Ethernet Interface Pinout ................................................................................ C-10

Table C1.8 Fast Ethernet Connector Signals .............................................................................. C-10

©2004 Inova Computers GmbHPage 0-4 Doc. PD00941013.001

ICP-CM

C1.9 USB Interface (USB 4) ............................................................................ C-11

®

C1.10 EIDE Interface ...................................................................................... C-12

C1.11 Slim-Line Floppy Disk Interface ............................................................ C-12

C1.12 ITM-RIO(C&D)-FHLU Extension ........................................................... C-13

Figure C1.9 USB Interface Pinout ............................................................................................. C-11

Table C1.9 USB Connector Signals ........................................................................................... C-11

Figure C1.12 ITM-RIO(C&D)-FHLU........................................................................................... C-13

Preface

D1 IPM-ATA CPU Extension .......... D-2

D1.1 rJ2 Interface ............................................................................................ D-2

Figure D1.1a Dedicated IPM-ATA Backplane ............................................................................... D-2

D1.1 rJ2 Interfaces (Contd.) ............................................................................ D-3

Figure D1.1b The Complete Connection Picture .......................................................................... D-3

D1.2 IPM-ATA-HD ........................................................................................... D-4

Figure D1.2 IPM-ATA-HD Board Layout ...................................................................................... D-4

Table D1.2 IPM-ATA-HD Jumper Description (CF Socket) ............................................................. D-4

D1.3 IPM-ATA-CF ............................................................................................ D-5

Figure D1.3 IPM-ATA-CF Board Layout ....................................................................................... D-5

Table D1.3 IPM-ATA-CF Jumper Description ................................................................................ D-5

D1.4 IPM-ATA-PCMCIA ................................................................................... D-6

Figure D1.4 IPM-ATA-PCMCIA Board Layout ............................................................................... D-6

Table D1.4 IPM-ATA-PCMCIA Jumper Description ....................................................................... D-6

D1.5 Device Compatibility .............................................................................. D-7

Table D1.5 Compatibility List ..................................................................................................... D-7

E1 AGP-R7000 CPU Extension....... E-2

Table E1.00 AGP Piggyback Configurations ................................................................................. E-2

E1.1 Specifications ........................................................................................... E-3

E1.2 J4 Interface ............................................................................................... E-4

Figure E1.20 J4 on the Underside of the AGP-R7000 Piggyback ................................................... E-4

Table E1.20 J4 Pinout ................................................................................................................. E-5

Table E1.20 J4 Pinout - Contd. .................................................................................................... E-6

E1.3 J3 & J5 IBP-GS-MULTILINK (TFT) Interfaces............................................... E-7

Figure E1.30 J3 and J5 Topside Connectors for the Inova IPB-GS-MULTILINK ................................ E-7

Table E1.30 J3 & J5 Interface Pinout ........................................................................................... E-8

E1.4 J1 Front-Panel VGA/TMDS Interface.......................................................... E-9

CompactPCI

Figure E1.40 Standard Front-Panel VGA/TMDS Interface ............................................................. E-9

Table E1.40 J1 Standard Front-Panel VGA/TMDS Pinout .............................................................. E-9

Table E1.41 J2 DIP Switch Settings - Digital TMDS (PanelLink) or DVI-D .................................... E-10

Table E1.42 J2 DIP Switch Settings - TFT (24Bit TTL/CMOS) ...................................................... E-10

E1.5 Rear I/O VGA Interface ........................................................................... E-11

©2004 Inova Computers GmbH Page 0-5Doc. PD00941013.001

Preface

ICP-CM

Unpacking and Special Handling Instructions

This product has been designed for a long and fault-free life; nonetheless, its life expectancy can
be severely reduced by improper treatment during unpacking and installation.

Observe standard antistatic precautions when changing piggybacks, ROM devices, jumper set­tings etc. If the product contains batteries for RTC or memory backup, ensure that the board is not
placed on conductive surfaces as these can cause short circuits, damage the batteries or disrupt
the conductive tracks on the board.

Do not exceed the specified operational temperature ranges of the board version ordered. If
batteries are present, their temperature restrictions must be taken into account.

Keep all the original packaging material for future storage or warranty shipments. If it is necessary
to store or ship the board, re-pack it as it was originally packed.

Before returning this product for repair, please ask for an RMA (Returned Material Authorization)
number by submitting an email and supply the following informa­tion:

L Company name, contact person, shipping address and invoice address
L Product name and serial number
L Failure or fault description
L Clearly write the RMA number on the outside of the transportation carton.

©2004 Inova Computers GmbHPage 0-6 Doc. PD00941013.001

ICP-CM

Revision History

®

Manual MAN-ICP-CM

Publication Number PD00941013.XXX

Preface

Revision History

Issue Author

PD00941013.001 AB 26/07/2004

Preliminary, First Release; All pages revised

Brief Description of Changes

Date of Issue

CompactPCI

©2004 Inova Computers GmbH Page 0-7Doc. PD00941013.001

Preface

ICP-CM

Three Year Limited Warranty

Inova Computers (‘Inova’) grant the original purchaser of Inova products the following hardware
warranty. No other warranties that may be granted or implied by anyone on behalf of Inova are
valid unless the consumer has the expressed written consent of Inova.

Inova warrants their own products (excluding software) to be free from defects in workmanship
and materials for a period of 36 consecutive months from the date of purchase. This warranty is
not transferable nor extendible to cover any other consumers or long term storage of the product.

This warranty does not cover products which have been modified, altered, or repaired by any
other party than Inova or their authorized agents. Furthermore, any product which has been, or
is suspected of being damaged as a result of negligence, misuse, incorrect handling, servicing or
maintenance; or has been damaged as a result of excessive current/voltage or temperature; or has
had its serial number(s), any other markings, or parts thereof altered, defaced, or removed will
also be excluded from this warranty.

A customer who has not excluded his eligibility for this warranty may, in the event of any claim,
return the product at the earliest possible convenience, together with a copy of the original proof
of purchase, a full description of the application it is used on, and a description of the defect; to
the original place of purchase.

Pack the product in such a way as to ensure safe transportation (we recommend the original
packing materials), whereby Inova undertakes to repair or replace any part, assembly or sub­assembly at our discretion; or, to refund the original cost of purchase, if appropriate.

In the event of repair, refund, or replacement of any part, the ownership of the removed or
replaced parts reverts to Inova, and the remaining part of the original guarantee, or any new
guarantee to cover the repaired or replaced items, will be transferred to cover the new or repaired
items. Any extensions to the original guarantee are considered gestures of goodwill, and will be
defined in the “Repair Report” returned from Inova with the repaired or replaced item.

Other than the repair, replacement, or refund specified above, Inova will not accept any liability
for any further claims which result directly or indirectly from any warranty claim. We specifically
exclude any claim for damage to any system or process in which the product was employed, or
any loss incurred as a result of the product not functioning at any given time. The extent of
Inova’s liability to the customer shall not be greater than the original purchase price of the item
for which any claim exists.

Inova makes no warranty or representation, either expressed or implied, with respect to its prod­ucts, reliability, fitness, quality, marketability or ability to fulfil any particular application or pur­pose. As a result, the products are sold “as is,” and the responsibility to ensure their suitability for
any given task remains the purchaser’s. In no event will Inova be liable for direct, indirect, or
consequential damages resulting from the use of our hardware or software products, or docu­mentation; even if we were advised of the possibility of such claims prior to the purchase of, or
during any period since the purchase of the product. Please remember that no Inova employee,
dealer, or agent are authorized to make any modification or addition to the above terms, either
verbally or in any other form written or electronically transmitted, without consent.

©2004 Inova Computers GmbHPage 0-8 Doc. PD00941013.001

ICP-CM

Product Overview

®

Product Overview

Overview Contents

1.0 ICP-CM CPU........................... 1-3

1.01 Interfacing ............................................................................................... 1-4

1.02 Peripherals ............................................................................................... 1-4

1.03 Software .................................................................................................. 1-4

1.04 Graphics .................................................................................................. 1-4

1.1 Specifications ......................... 1-5

1.2 Functional Overview ................. 1-7

Figure 1.20 ICP-CM Interfacing .................................................................................................. 1-7

Figure 1.21 ICP-CM Board Overview .......................................................................................... 1-8

1.3 Software ................................ 1-9

1.31 Windows XP (Professional / Embedded) ................................................... 1-9

1.32 Windows 2000 (Professional) ................................................................... 1-9

1.33 Linux........................................................................................................ 1-9

1.34 VentureCom............................................................................................. 1-9

1.35 Windows CE........................................................................................... 1-10

1.36 VxWorks................................................................................................. 1-10

1.37 OS-9 x86 ............................................................................................... 1-10

1.38 QNX ...................................................................................................... 1-10

1.39 Jbed ....................................................................................................... 1-10

1

CompactPCI

©2004 Inova Computers GmbH Page 1-1Doc. PD00941013.001

Product Overview

ICP-CM

1.4 Hardware ............................. 1-11

1.41 Block Diagram........................................................................................ 1-11

Figure 1.41 Block Diagram....................................................................................................... 1-11

1.42 Connector Location ............................................................................... 1-12

Figure 1.42 Connector Locations .............................................................................................. 1-12

1.43 Connector Description ........................................................................... 1-12

Table 1.43 Connector Description ............................................................................................ 1-12

Table 1.43 Continued .............................................................................................................. 1-13

1.44 Front-Panel Features............................................................................... 1-13

Table 1.44 Front Panels ........................................................................................................... 1-13

Figure 1.44 Front-Panel Options .............................................................................................. 1-14

1.45 Interface Positions .................................................................................. 1-15

Figure 1.45 Interfaces .............................................................................................................. 1-15

1.46 Construction - 4HP Standard CPU .......................................................... 1-16

Figure 1.46 Construction of CPU with Heat-Sink Assembly ........................................................ 1-16

1.47 Construction - 8HP Standard CPU .......................................................... 1-17

Figure 1.47 Construction of CPU with Heat-Sink Assembly ........................................................ 1-17

1.48 Construction - 8HP Standard CPU with AGP........................................... 1-18

Figure 1.48 Construction of CPU with Heat-Sink Assembly ........................................................ 1-18

1.49 Power Requirements .............................................................................. 1-19

Table 1.49 ICP-CM Power Reqirements .................................................................................... 1-19

1.50 Power Consumption .............................................................................. 1-20

Figure 1.50 ICP-CM Power Consumption .................................................................................. 1-20

1.51 Thermal Considerations ......................................................................... 1-21

Table 1.51 ICP-CM Airflow Requirements ................................................................................. 1-21

©2004 Inova Computers GmbHPage 1-2 Doc. PD00941013.001

ICP-CM

1.0 ICP-CM CPU

Product Overview

®

Cutting edge technology makes the Inova Socket mPGA479M, Celeron® M single-board compu­ter the ideal controller for a wide range of embedded (low power) industrial automation, military,
medical, aerospace, imaging, telecommunications, process control and embedded/OEM applica­tions. Without altering the design, Master or Slave ICP-CM CPUs can be operated in an industrial
environment through their ability to detect automatically the backplane system controller or pe­ripheral slot. In addition, the ICP-CM family can communicate at very high speed with up to 255
x 7 cascaded peripherals like graphics, industrial I/O or fast data acquisition modules on inter­linked passive backplanes.

The powerhouse in any application, Inova’s Socket mPGA479M based high-performance 3U Com­pactPCI CPU is packed with a feature set unrivalled in industry on such a small scale. Configured
with up to 1GByte onboard 266MHz DDR SDRAM, the ICP-CM is the ideal choice for low-power,
high peromance computing tasks. In addition, enriched performance scalability is assured through
the latest Intel® Celeron® M ‘processors and board feature set. Conforming to the latest PICMG
CompactPCI specification the ICP-CM has a colourful feature set that includes rear I/O options,
choice of graphic components and flexible mass-storage expansion options.

Being of a true universal design, both 5.0 and 3.3V I/O signalling voltages are possible without
board modification. The auto-detect mechanism in the PCI/PCI bridge permits the same CPU to
operate as a system Master controller or reside in a peripheral slot. A Slave CM CPU is thus able to
communicate with the host controller through the bridge via the CompactPCI backplane (for
high-speed DMA for example) or front-panel TCP/IP.

1

The standard Inova ICP-CM configuration is ready to run - straight from the box. Utilizing the low­power consumption and the high-performance of the Celeron processor enables truly embedded,
ruggedized industrial applications to be engineered utilizing the latest software available today.
512kByte of L2 cache backed by up to a 1GByte bank of soldered double-data rate (DDR) SDRAM
clocked at 266MHz ensures an efficient processor-level data throughput exceeding that of any
comparable product.

For hard-core ruggedized applications, and thanks to the miniaturisation of silicon components,

CompactPCI

Inova’s engineers have squeezed in a Compact FLASH socket suitable for use by all 3rd party
Micro-Drive devices or solid-state FLASH that adhere to the interface standard.

Serviceability and user friendliness feature throughout the CPU design and is highlighted in the
lack of on-board cabling - all interconnects are hard-wired. An optional dedicated hard disk carrier
with integrated COM ports, twin USB 2.0 and PS-2 mouse and keyboard interfaces connects
directly to the base CPU. Naturally, for space critical applications, these interfaces are available as
rear I/O - effectively extending the standard 160mm card by a further 80mm! Notebook hard
disks are selected for their high capacity, small footprint, rugged operating conditions and higher
operational temperature characteristics.

©2004 Inova Computers GmbH Page 1-3Doc. PD00941013.001

Product Overview

ICP-CM

1.01 Interfacing

To satisfy today’s LAN-hungry industrial applications, Inova have implemented dual, independent
100BaseTx LAN Fast Ethernet interfaces as standard on the CPU’s front-panel - or fed to a rear I/O
transition module on the backplane. Connectivity is further enhanced through the integration of
the latest USB 2.0 serial interfaces that permit a number of readily available peripherals such as
mouse, keyboard, floppy drives and even CD-ROMs or printers to be utilized without compromizing
front panel width.

1.02 Peripherals

The ICP-CM supports standard PC peripherals – floppy disk, hard disk and CD ROM. Notebook
style hard disks may be connected directly to the base-board (2-slot) and possess their own front­panel offering COM ports and combined PS-2 style connector for mouse and keyboard.

1.03 Software

The following operating systems are compatible with Inova’s CM, 3U CompactPCI CPU:

N Linux
N Windows
N Windows
N Windows
N Windows
N Windows
N Windriver VxWorks
N QNX
N Esmeralda Technology Jbed

®

2000

®

XP

®

NT® & VenturCom RTX® (Real-Time Extension) - On request

®

CE - On request

®

9x - On request

®

- On request

®

- On request

®

(under development - On request)

N Solaris x86 - On request

All readily available application software designed for operation on the standard x86 architecture
will execute without modification.

1.04 Graphics

Built in to the ICP-CM chipset is an analog VGA interface with BIOS configurable video RAM
allocation extracted from the system memory.

Inova have also developed a number of ATI Radeon R7000-based dedicated AGP plug-in modules
complete with video controller and RAM etc. for graphic intensive applications or to provide
greater display flexibility.

Depending on the selected module, MPEG-2 decoding, sound functions, GigaST)R for distrib­uted display communication, PanelLink or TFT flat-panel connectivity can be easily implemented.

©2004 Inova Computers GmbHPage 1-4 Doc. PD00941013.001

ICP-CM

1.1 Specifications

Product Overview

®

Processor

Memory

FLASH Socket

Phoenix BIOS
Ver. 4.x Rel. 6.0

Battery

Host Bridge

South Bridge

1

600MHz or 1.3GHz Socket mPGA479M mobile Intel Celeron M with 400MHz
PSB, 512kByte L2 cache, passive or active cooling

Either 256MByte or 1GByte soldered 266MHz DDR SDRAM

For CompactFlash devices (Flash & MicroDrives) providing >4GByte
mass-storage capacity

A LAN Boot A USB Boot
A ACPI 2.0 A Quick Boot
A Multi Boot A Quiet Boot

Lithium cell for RTC (NV-RAM) with a lifetime > 10 years

SiS651 North Bridge supporting

A 400/533MHz FSB to CPU
A 333MHz, 64-bit DDR DRAM controller
A VGA interface (2048 x 1536 pixels)
A AGP 4x interface
A Power management

SiS962

A PCI Bus 32-bit / 33MHz
A Mouse & keyboard controller
A Fast Ethernet
A USB 2.0
A AC97 bus (sound)
A LPC bus to Super I/O & BIOS
A IDE Controller (2 independent IDE channels - each supporting 2 devices)
A Ultra DMA 133 support
A Real-Time Clock
A Watchdog - programmable up to 256 hours; issues SMI or Reset
A Interrupt controller
A Power Management Unit

PC87393:

Super I/O

Graphic Option

CompactPCI

A Floppy Disk Controller, 1 Parallel Port (ECP, EPP), 2 serial COM Ports
A Watchdog

Onboard video controller (chipset) with:

A BIOS selectable video RAM allocation
A Support for MPEG-2 video playback
A Support for VESA standard super high resolution graphics modes
A Support for low-resolution modes (320x240, 512x384, 400x300)
A Supports VESA Display Power Management Signalling
A Supports Direct Draw Drivers
A Supports single video windows with overlay function

or AGP 4x Piggyback (R7000) with:

A 32MByte RAM
A 3D graphics, DVD & MPEG-2 support
A Multi-Display
A PanelLink & TFT support
A GigaST)R support
A Sound support
A Dual View support under Microsoft Windows 9x, Windows 2000 & XP
A CRT / TFT resolutions up to 2048x1536

©2004 Inova Computers GmbH Page 1-5Doc. PD00941013.001

Product Overview

ICP-CM

Fast Ethernet

PCI/PCI

On-Board I/O

Rear I/O

Mass Storage

Front-Panels

Connectors

Additional 82551 controller

Universal bridge (Master or Slave)

A Serialized interrupts
A Universal (3.3/5.0V) V I/O support
A 32-bit and Rear I/O

A Dual 10/100 Mbit/s Fast Ethernet
A 1x front-panel 480Mbit/s, USB 2.0, (1x rear-panel 12Mbit/s, USB 1.1)
A VGA (chipset or AGP)

Standard to all CPU variants is option ‘D’:

A VGA (chipset or AGP if installed)
A Fast Ethernet ETH 1 (Intel 82551)
A USB 1.1
A PS-2 mouse & keyboard
A 2nd IDE channel (Master & Slave)
A Software configurable

A LPT1 or
A COM1 & COM2 or
A Floppy disk (A or B - BIOS selectable)

A Reset & Beeper

1.44MByte 3.5” floppy drive and EIDE (standard 40-pin header - 80-strand
ATA-5 compatible) supporting 2 pairs (Master/Slave) hard-disks or CD ROMs

8HP front-panel with 2x USB 2.0, COM1, COM2, combined PS-2 mouse &
keyboard; 12HP panel has LPT

USB (USB), 2x RJ45 (Ethernet), 9/15-pin D-Sub (Graphic piggyback) or 15-pin
high-density D-Sub (VGA)

CompactPCI

Mechanics

Power Cons.

Software Sup­port

Mass

MTBF

Oper. Temp.

Storage Temp.

Humidity
Warranty
Conformance

A Universal (transparent/non-transparent) PCI/PCI bridge for Master/Slave

operation

A PICMG 2.0 R3.0, 32/64-bit, 33MHz system slot interface with 7 Master

(DMA) support.

A Full Hot-Swap according to PICMG2.1 R2.0

3U (100 x 160mm) x 21/42mm (4TE/8TE)

Typ. 15W

Windows®XP, Windows®2000, Windows®NT, Windows®9x, Linux, VxWorks®,
QNX®, OS9

220g (4TE)
>220,000 hours @ 20°C
0°C to +65°C (Std.) -40°C to +85°C (Opt.)

Passive cooling requires - refer to Table 1.51 for details

-40°C to +85°C

5% to 95% (non-condensing)
Three-year limited warranty
PICMG 2.0 R3.0; CE

*Notes: CPUs fitted with HD, FD or CD-ROM etc. have a max. operational temp. of 50°C.

Rear I/O D necessitates backplanes being PICMG 2.0 Rev. 3.0 compatible

©2004 Inova Computers GmbHPage 1-6 Doc. PD00941013.001

ICP-CM

Product Overview

1.2 Functional Overview

®

Figure 1.20 ICP-CM Interfacing

1

Inova’s CPUs have been prepared for rear I/O operation. Currently RIO-D is supported with VGA,
single-channel Fast Ethernet, second EIDE channel, USB 1.1, mouse, keyboard, reset and loud-

CompactPCI

speaker (beeper) and a software selectable choice between LPT1, COM1& COM2 or floppy drive.

Other rear I/O options may also be available (including customer specific) but are not referred to
in this user’s handbook. For OEM quantities and compatibility with existing 2.11 backplanes etc.
RIO-C1 could be considered - this is identical to rear I/o (D) except that the VGA, COM and PS-2
mouse options are not available. In order to take full advantage of the rear I/O features, the
CompactPCI backplane needs to support them. Inova provides two standard versions; the first has
the rear rP2 connector on the Master CPU slot only while the other has all slots fitted with rP2
connectors.

Be aware that boards using the PXI bus will experience signal conflict if used with any (includes
non Inova boards) CPU offering rear I/O - Therefore, in such cases always select a CPU board
configuration without rear I/O. Also, for compatibility with older backplane revisions (2.11), rear
I/O (C) should be selected if indeed rear I/O is required. CPUs configured with rear I/O (D) will not
work!

©2004 Inova Computers GmbH Page 1-7Doc. PD00941013.001

Product Overview

Figure 1.21 ICP-CM Board Overview

ICP-CM

Socket mPGA479M
for 600MHz or

1.3GHz Celeron M
Processor

IDE, USB 2.0, COM,
PS-2, Floppy + LPT
Interfaces

CompactFlash
Socket

USB

2.0

32-bit and rear I/O

256MB or

1GByte on-

board DDR

SDRAM

Fast
Ethernet

Fast
Ethernet

VGA, GigaST)R,
TMDS ( DVI ) or
TFT etc.

Host Bridge

AGP 4x Socket for

Inova Graphic Module

Reset Button & Hot-Swap LED

©2004 Inova Computers GmbHPage 1-8 Doc. PD00941013.001

ICP-CM

1.3 Software

Product Overview

®

1.31 Windows XP (Professional / Embedded)

Windows XP (Professional / Embedded) contains many new technologies and features designed
for businesses of all sizes and for users who demand the most from their computers. It integrates
the strengths of Windows 2000 (Professional), such as standards-based security, manageability
and reliability, with Plug and Play convenience, simplified user interfacing, and innovative support
services. This combination creates the best desktop operating system for businesses. Whether
Windows XP (Professional) is installed on a single computer or deployed throughout a worldwide
network, this new operating system increases computing power while lowering the cost of own­ership for desktop computers.

1.32 Windows 2000 (Professional)

Windows 2000 is highly reliable and available 32-bit OS which provides support for USB devices
and permits connection of peripherals without the need to reboot the system. Unlike Windows NT

4.0, support is also provided for the IEEE1394a (FireWire) devices. Finally, secure, wireless commu­nication between two Windows 2000-based computers is possible using the popular IrDA infrared
protocol.

Removable storage devices such as DVD and Device Bay are supported as are new display devices
such as Accelerated Graphics Port (AGP), multiple video cards and monitors, OpenGL 1.2, DirectX®

7.0 API, and Video Port Extensions. With Plug and Play, automatic installation of new hardware is
possible with only minimal configuration. More than 12,000 devices support this functionality.

1

1.33 Linux

Being a modern operating system, Linux executes a 32-bit architecture, uses pre-emptive multi­tasking, has protected memory, supports multiple users, and has rich support for networking,
including TCP/IP. Linux was originally written for Intel’s 386 architecture, but now runs on a wide
variety of hardware platforms including the full x86 family of processors as well as Alpha, SPARC,
and PowerPC.

Linux’s architecture also creates a more reliable and inherently stable system through the use of
protected memory and pre-emptive multitasking. Protected memory prevents an error in one

CompactPCI

application from bringing down the entire system, and genuine multitasking means that a bottle­neck in one application does not hold up the entire system. Linux also maintains a very clean
separation between user processes and kernel processes. While other server class operating sys­tems use protected memory this feature is prone to failure if faulty applications are allowed to
invade kernel space with their processes.

1.34 VentureCom

Hard, real-time scalability and embedded operation extensions are required for Windows NT by
HAL modification for deterministic interrupt handling at multiple priority levels. This approach
achieves response times in the µs range and reduces hardware resource requirements while main­taining full compatibility with the enormous range of standard software and device drivers written
for the Windows NT operating system.

©2004 Inova Computers GmbH Page 1-9Doc. PD00941013.001

Product Overview

ICP-CM

1.35 Windows CE

Microsoft® Windows CE is an operating system designed for a wide variety of embedded systems
and products, from hand-held PCs and consumer electronic devices to specialized industrial con­trollers and embedded communications devices. The Windows CE operating system has proved
itself capable of handling the most demanding 32-bit embedded applications by bringing the full
power of the Microsoft's 32-bit programming and operating systems technology to the embed­ded systems designer. Windows CE is actually a collection of operating system modules and com­ponents that can be selected and configured to meet the needs of a specific embedded applica­tion or product.

1.36 VxWorks

WindRiver’s run-time system solution is a high-performance RTOS with a scalable microkernel and
sophisticated networking facilities - like TCP/IP networking across various media.

The open architecture provides efficient support of PC-based architectures. Flexible, intertask com­munication, µs interrupt handling, POSIX 1003.1b real-time extensions, fast and flexible I/O sys­tem etc. are some of the many key features.

1.37 OS-9 x86

Microware’s real-time operating system has a track record that has been proved in the industrial/
embedded market and has continued to provide reliable intelligence to sophisticated applica­tions. OS-9 x86’s flexibility, modularity and reliability in conjunction with a rich driver structure
allow its use in I/O intensive applications.

1.38 QNX

This solution ports the Win32 API to a QNX kernel. The Win32 API aims to define a standard for
developing open systems applications that are optimized to run on ‘Wintel’ platforms. This oper­ating system evolves around a small microkernel RTOS that produces a protected-mode, POSIX­certified API. Being fully modular and scalable, this technology creates the smallest footprint that
is beneficial to high-end server applications.

1.39 Jbed

Esmertec’s Jbed is a new generation of real-time operating system. Java-based innovation provides
unprecedented safety and ease of use without compromising resource efficiency (native processor
speed) or hard real-time performance. In addition, advanced features are implemented such as
modularity, hot updates, deadline-driven scheduling admission testing as well as a fast and pro­ductive cross-development.

©2004 Inova Computers GmbHPage 1-10 Doc. PD00941013.001

ICP-CM

1.4 Hardware

Product Overview

®

1.41 Block Diagram

Figure 1.41 Block Diagram

1

This block diagram is applicable to all Inova’s CM-based CPUs. Components and/or functionality
may change without notice.

CompactPCI

Note

32-bit with or without Rear I/O (RIO)

configurations are possible. User’s of

NI peripheral cards should check to

see whether signal conflict is possible

with the RIO option selected. If in

doubt, select the CPU version without

RIO. The universal PCI/PCI bridge

allows the CPU to exist as a Master or

Slave. Recognition is automatic

depending on the CPU’s physical

position within a CompactPCI system.

©2004 Inova Computers GmbH Page 1-11Doc. PD00941013.001

Product Overview

1.42 Connector Location

Figure 1.42 Connector Locations

ICP-CM

1.43 Connector Description

Table 1.43 Connector Description

Connector Description

J1, J2 CompactPCI Interface Connector

J4 AGP 4x for Optional Inova Graphic Piggyback

J6 10BaseT/100BaseTx Fast Ethernet Interface ETH2 - [SiS 900 - chipset]

J7 10BaseT/100BaseTx Fast Ethernet Interface ETH1 - [i82551]

J9 CompactFlash Socket (MicroDrive or Flash)

©2004 Inova Computers GmbHPage 1-12 Doc. PD00941013.001

ICP-CM

Table 1.43 Continued

Product Overview

®

Connector Description

J11 Internal USB (1.1) interface for additional USB devices (USB 5)

J12, J13, J14 Hard Disk module, Mouse, Keyboard, COM, FD, USB 2.0 and LPT1 interfaces

J15 External USB 2.0 interface (USB 1)

J17 VGA interface (soldered D-Sub for onboard Chipset or from AGP piggyback)

SW1 Reset button switch

1.44 Front-Panel Features

Table 1.44 Front Panels

Interface Description & Location

Ethernet 2x RJ45 connector common to all CPU front-panels

USB USB (2.0) connector on all CPU front-panels (USB 1)

VGA Space for 15-Pin high-density D-Sub connector on all CPU front-panels

Reset Push-button reset on all CPU front-panels

1

Extended Front Panel Options - 8HP & 12HP

Mouse &
Keyboard

USB Two USB 2.0 connectors (USB 2 & USB 3)

1)

COM1

1)

COM2
LPT1 25-Pin D-Sub integrated within the 12HP panel only

CompactPCI

Floppy Standard (notebook) header for slim-line floppy interface

Single PS-2 style connector

9-Pin D-Sub

9-Pin D-Sub

1)

The ICP-CM Hard Disk carrier -

ICP-HD3 (Refer to Appendix A) has

jumper selectable COM configurations

- either RS232 or RS485

Note

©2004 Inova Computers GmbH Page 1-13Doc. PD00941013.001

Product Overview

Figure 1.44 Front-Panel Options

ICP-CM

The front-panels shown in Figure 1.44 show the tremendous flexibility built into Inova’s CPU
concept. From left, the standard CPU is 4TE with dual Fast Ethernet, USB (2.0) and VGA graphic
connections. If, instead of VGA graphics, PanelLink or GigaST)R is required then an AGP piggy­back is installed on J4 for this purpose. TFT graphics are realised in a similar way except the front­panel will be cut away (to the right of the VGA connector) to permit passage of the flat-band
ribbon cables.

If the application requires a PS/2 mouse, PS/2 keyboard, floppy, COM or LPT ports or if the CPU is
equipped with a hard disk, IDE FLASH or an adapter that accesses other devices attached to this
primary IDE channel, then an 8TE front-panel is selected. Both COM ports (jumper selectable to
be RS232 or RS485) are installed on Inova’s ICP-HD-3 carrier board as are the interfaces for the LPT
and slim-line FD.

The LPT interface is available on a dedicated panel shown to the right of Figure 1.44.

©2004 Inova Computers GmbHPage 1-14 Doc. PD00941013.001

ICP-CM

1.45 Interface Positions

Product Overview

®

Figure 1.45 Interfaces

1

CompactPCI

Figure 1.45 shows the typical positioning of the front panel extension modules for mouse, key­board, COM1, COM2, and LPT interfaces.

Note

A hard disk, if installed, will generally
be fitted to the piggyback containing

the combined PS-2 mouse / keyboard,

USB2.0, COM1 and COM2 interfaces.

©2004 Inova Computers GmbH Page 1-15Doc. PD00941013.001

Product Overview

ICP-CM

1.46 Construction - 4HP Standard CPU

This standard CPU configuration comprises:-

N Passively cooled base with chipset VGA graphics, dual Fast Ethernet and single USB

2.0 interface for mouse, keyboard, FD, CD-ROM etc. The minimum airflow requirements
must be compatible with the selected ‘processor speed, CPU damage could result otherwise !

Figure 1.46 Construction of CPU with Heat-Sink Assembly

F

G
D

G

D

D
E

D
E

D

E

D
E

H
G

H
G

©2004 Inova Computers GmbHPage 1-16 Doc. PD00941013.001

ICP-CM

1.47 Construction - 8HP Standard CPU

Product Overview

®

This standard CPU configuration comprises:-

N Passively cooled base with chipset VGA graphics, dual Fast Ethernet, three USB

2.0 interfaces, combined PS-2 mouse / keyboard, COM1 and COM2 interfaces. Behind the
extended front-panel is a platform for any IDE HD or Flash device with additional interfac­ing for FD and LPT - refer to Appendix A for further information. The minimum airflow
requirements must be matched with the selected ‘processor speed, CPU damage could
result otherwise !

Figure 1.47 Construction of CPU with Heat-Sink Assembly

1

CompactPCI

©2004 Inova Computers GmbH Page 1-17Doc. PD00941013.001

Product Overview

ICP-CM

1.48 Construction - 8HP Standard CPU with AGP

This standard CPU configuration comprises:-

N Passively cooled base with AGP 4x Radeon R7000-based graphics, dual Fast Ether-

net, three USB 2.0 interfaces, combined PS-2 mouse / keyboard, COM1 and COM2 inter­faces. Behind the extended front-panel is a platform for any IDE HD or Flash device with
additional interfacing for FD and LPT - refer to Appendix A for further information. The
minimum airflow requirements must be matched with the selected ‘processor speed, CPU
damage could result otherwise !

Figure 1.48 Construction of CPU with Heat-Sink Assembly

Note:

The dedicated carrier board - ICP-HD-3 is

mounted to the baseboard in exactly the

same fashion as illustrated in figure 1.47.

It has been omitted here for clarity.

©2004 Inova Computers GmbHPage 1-18 Doc. PD00941013.001

ICP-CM

1.49 Power Requirements

Product Overview

®

This CPU board is a high-performance, low-power device and, as such, requires voltage, current
and power timing as defined in table 1.49 for correct operation. The Inova >70W PSUs fulfil these
requirements and reference should be made to this products’ data sheet and user’s manual.

Table 1.49 ICP-CM Power Reqirements

Supply Voltages

Signal Voltage

+5V 5.0V +5%/-3%

+3.3V 3.3V +5%/-3%

V I/O

Power Dissipation

Frequency

600MHz 13.7W 17.5W

1300MHz 19.5W 31.3W

5.0V +5%/-3% or

3.3V +5%/-3%

(Typ.) P

P

TOT

2.5A @

5.2A @

1.8A

0.5A

TOT

I

MAX

600MHz
1300MHz

(Max.)

1

Power Sequencing

This CPU needs both the 5V and 3.3V lines to be switched simultaneously within a max.
allowable skew of 2ms. VI/O is assumed to be connected to either the +5V or +3.3V directly.

Symbol

t

+5V_rising _to_+3.3V_rising

t

MIN

-2ms +2ms

t

MAX

CompactPCI

©2004 Inova Computers GmbH Page 1-19Doc. PD00941013.001

Product Overview

ICP-CM

1.50 Power Consumption

The illustration provided in figure 1.50 is for reference only and serves to show the ‘typical-maxi­mum’ power consumption of the ICP-CM CPU. Variations in ‘processor manufacture and onboard
silicon make accurate testing impossible and hence, the figures shown in this illustration are sub­ject to fluctuation.

Note:

There is no such thing as a typical

application and so, the CPU power

consumption was measured with the

‘processor in idle state, in BIOS mode

(i.e. the OS power management

features were not being utilised) and

software stressed to 100%

To stress this CPU, the following software was installed:

A Microsoft Windows XP SP1,
A DirectX 9.0b,
A ATI Catalyst 3.9 video driver

on a 20GByte HD mounted on the baseboard (8HP with HD carrier) with 256Mbyte PC2100
memory and including the Radeon R7000 AGP piggyback with 32MByte video memory.

Figure 1.50 ICP-CM Power Consumption

©2004 Inova Computers GmbHPage 1-20 Doc. PD00941013.001

ICP-CM

1.51 Thermal Considerations

Product Overview

®

Being a passively-cooled design, a purpose-built, thermally optimized heat-sink is all that removes
the heat from the CPU. The effective surface area of the radiator unit mounted on the single slot
(4HP) CPU version is less that of the 8HP CPU and therefore, necessitates more airflow (or air
circulation) to keep it cool. As a guideline, the figures published in table 1.51 show the minimum
airflow required to maintain stable operation. As the ambient temperature surrounding the CPU
increases, so the airflow must increase.

Conclusions that can be drawn from this table are:

A Single-slot CPUs should not be integrated in applications where the environmental temp. ex-

ceeds 65°C

A CPUs intended for use in applications running at high operational temperatures ~ 85°C should

be clocked at 600MHz. At greater speeds, the volume of air required to cool the core
becomes so great that conventional cooling fans cannot be used.

Table 1.51 ICP-CM Airflow Requirements

Ambient Air Temperature

Frequency

600MHz

1300MHz

≤ 55°C ≤ 65°C ≤ 85°C≤ 75°C

8HP 4HP 8HP 4HP 8HP 4HP 8HP 4HP

without

forced

cooling

0.35
m/s

0.15
m/s

0.55
m/s

0.4

m/s

0.6

m/s

0.5

m/s

0.75
m/s

0.5

m/s

0.6

m/s

0.75
m/s

1

Key: Not recommended

Note:

CompactPCI

If the ambient temperature is greater

than 50°C, systems utilizing the benefit of

this Celeron M CPU cannot operate with

a standard hard-disk, floppy or CD-ROM

etc.

©2004 Inova Computers GmbH Page 1-21Doc. PD00941013.001

Product Overview

This page has been left blank intentionally

ICP-CM

©2004 Inova Computers GmbHPage 1-22 Doc. PD00941013.001

ICP-CM

Configuration

®

Configuration

Configuration Con-

tents

2.0 Memory Map........................... 2-2

Figure 2.00 System Architecture ................................................................................................. 2-2

2.1 I/O Mapped Peripherals............. 2-4

Table 2.10 Legacy I/O Map (ISA Compatible) ............................................................................ 2-4

Table 2.10 Legacy I/O Map (ISA Compatible) Contd. ................................................................. 2-5

2.2 Memory Mapped Peripherals ..... 2-6

2.3 Interrupt Routing .................... 2-6

Table 2.30 PC-AT Interrupt Definitions ....................................................................................... 2-7

2.4 DMA Channel Descriptions ....... 2-7

Table 2.40 DMA Channel Description ........................................................................................ 2-7

2.5 Inova CM SMB Devices ............ 2-8

Table 2.50 SMB Devices ............................................................................................................. 2-8

2.6 Inova CM PCI Device List ......... 2-9

Table 2.60 Legacy I/O Map (ISA Compatible) ............................................................................ 2-9

2.7 Interrupt Configuration .......... 2-10

Table 2.70 CompactPCI Bus Interrupts ..................................................................................... 2-10

2.8 Timer / Counter ..................... 2-11

2

2.9 Watchdog ............................. 2-11

CompactPCI

©2004 Inova Computers GmbH Page 2-1Doc. PD00941013.001

Configuration

2.0 Memory Map

Figure 2.00 System Architecture

ICP-CM

©2004 Inova Computers GmbHPage 2-2 Doc. PD00941013.001

ICP-CM

®

Configuration

2

Note:

96kBytes are reserved for option ROM

space:

- USB Legacy (32kByte)

- Ethernet Boot (16kByte)

- PXE Boot (48kByte)

In addition, 3rd party devices can also
have their ‘space’ here such as addi­tional networking cards, SCSI or
FireWire etc. The total available space
cannot exceed 96kByte.

CompactPCI

©2004 Inova Computers GmbH Page 2-3Doc. PD00941013.001

Configuration

ICP-CM

2.1 I/O Mapped Peripherals

The original PC-XT and PC-AT desktop computer (ISA bus) specification allows for 10-bit I/O
addressed peripherals. This permits peripheral boards to be I/O mapped from 0h to 3FFh.
CompactPCI systems permit the full 16-bit addressing capability of the Intel 80x86 ‘processors,
from 0h to 0FFFFh.

All Inova CPU boards include peripheral devices requiring I/O address space on board and hence
the BIOS automatically assigns the I/O address required by peripheral boards and PCI devices at
boot time based on the requirements of each device. The assigned addresses can be determined
by reading the configuration address space registers using special software tools.

Table 2.10 Legacy I/O Map (ISA Compatible)

I/O Address

$000 - $00F 8237 DMA controller #1

$020 - $021 8259 Master Interrupt Controller

$040 - $043 8254 Programmable Interval Timer #1

$060 8042 Keyboard Controller

$061 NMI Status

$064 8042 Keyboard Controller

$070 - $071 CMOS RAM, NMI Mask Reg., RTC

$080 Debug

$081 - $08B Low DMA page registers

$0A0 - $0A1 8259 Slave Interrupt Controller

$0C0 - $0DF 8237 DMA Controller #2

$0F0 - $0FF Coprocessor

$170 - $177 *) Secondary Hard Disk Controller

$1F0 - $1F7 *) Primary Hard Disk Controller

Description

$2F8 - $2FF *) Serial Port (COM2)

©2004 Inova Computers GmbHPage 2-4 Doc. PD00941013.001

ICP-CM

Table 2.10 Legacy I/O Map (ISA Compatible) Contd.

®

Configuration

I/O Address

$376-$377 *) Secondary Hard Disk Controller

$378 - $37F *) Parallel Port (LPT1) - Bi-Directional

$3F0 - $3F7 *) Floppy Disk Controller

$3F8 - $3FF *) Serial Port (COM1)

$3F6 - $3F7 *) Primary Hard Disk Controller

$481 — $48B DMA High Page Register

$4D0 — $4D1 Interrupt Unit Edge/Level Control Registers

$778 - $77F LPT1 (ECP only)

$CF8

$CFC

PCI Configuration Address
(DWORD Access Only)

PCI Configuration Data
(DWORD Access Only)

Note:

Description

2

*) Denotes Plug ‘n’ Play devices that

are configured during the BIOS POST.

Values shown are ISA compatible I/O

addresses for reference only.

CompactPCI

©2004 Inova Computers GmbH Page 2-5Doc. PD00941013.001

Configuration

ICP-CM

2.2 Memory Mapped Peripherals

PC-AT desktop computers (ISA bus) allow 24-bit memory addressed peripherals. This decoding
permits peripheral boards to be mapped in the Intel 80x86 memory map from 0h to 0FFFFFFh.

Inova’s CompactPCI systems allow the full 32-bit addressing capability of the Intel Pentium 4
range of ‘processors so that memory mapped peripheral devices may be mapped locally to the
‘processor board at any location in the memory map not being used by other devices (e.g. system
RAM.)

The BIOS automatically assigns memory addresses required by peripheral boards and PCI devices
at boot time based on the requirements of each device. The assigned addresses can be deter­mined by reading the configuration address space registers using PCI software tools.

Note:

Devices not located on the CPU side of

the PCI/PCI bridge are not normally

accessible by DOS.

2.3 Interrupt Routing

The IBM-compatible architecture includes one (PC-XT) or two (PC-AT) programmable interrupt
controllers (Intel 8259A-compatible ‘PICs’) configured to set the priority of interrupt requests to
the CPU.

In the PC-AT architecture, one PIC is programmed as the ‘master’ with one input (IRQ2) being the
‘cascaded’ interrupt from the second ‘slave’ PIC.

This configuration allows for a total of 15 interrupt sources to the CPU. Table 2.3 shows the
interrupts with their corresponding vectors and sources as defined for AT PCs.

©2004 Inova Computers GmbHPage 2-6 Doc. PD00941013.001

ICP-CM

Table 2.30 PC-AT Interrupt Definitions

®

Interrupt Request Interrupt Vector Function/Assignment

Configuration

IRQ0 08h Timer

IRQ1 09h Keyboard

IRQ2 0Ah Slave 8259

2

1)

IRQ3

1)

IRQ4

1)

IRQ5

IRQ6 0Eh Floppy

1)

IRQ7

IRQ8 70h Real-Time Clock

1)

IRQ9
IRQ10 72h Free for PCI

1)

IRQ11

IRQ12 74h Mouse

IRQ13 75h Co-processor

1)

IRQ14

1)

IRQ15

1)

Entries may be reserved for ISA devices with the BIOS

0Bh COM 2

0Ch COM 1

0Dh Free for PCI

0Fh LPT1

71h Free for PCI

73h Free for PCI

76h Hard Disk (IDE 0)

77h Hard Disk (IDE 1)

2.4 DMA Channel Descriptions

The ICP-CM CPU can access the devices shown in table 2.4 through the specified DMA channels.

CompactPCI

Table 2.40 DMA Channel Description

DMA Channel Description

0-

1-

2 Floppy

3 LPT1 (ECP only)

©2004 Inova Computers GmbH Page 2-7Doc. PD00941013.001

Configuration

2.5 Inova CM SMB Devices

Table 2.50 shows the addressing of the SMB (System Management Bus) Devices

Table 2.50 SMB Devices

ICP-CM

Address b[7:1]

0101 100

1010 000

1010 101

1010 110

1010 111

1101 001

Device

LM87 (Temperature Monitor)

EEPROM SPD DDR Bank 0

EEPROM TOP EXTENSION (e.g. ICP-HD-3) ID

EEPROM RIO PANEL ID

EEPROM Vital Product Data / General Purpose

ICS952001 (Timing Hub)

©2004 Inova Computers GmbHPage 2-8 Doc. PD00941013.001

ICP-CM

Configuration

2.6 Inova CM PCI Device List

®

Table 2.60 shows the available PCI devices both on-board and off-board (CompactPCI backplane).
It should be noted that the interrupt routing assumes a standard Inova backplane configuration
with a right-hand system slot.

Table 2.60 Legacy I/O Map (ISA Compatible)

Bus

No.

0 0x00 0x00 N/A 0651 1039

0 0x01 0x00 N/A 0001 1039

0 0x02 0x00 N/A 0008 1039

0 0x03 0x00 N/A 7001 1039

0 0x03 0x01 N/A 7001 1039

0 0x03 0x02 N/A 7001 1039

0 0x03 0x03 N/A 7002 1039

0 0x02 0x05 N/A 5518 1039

0 0x02 0x07 N/A 7012 1039

Device

Number

Function

Number

IRQ

Device /

Vendor ID

Description

SiS651 Host Bridge

SiS651 Virtual PPB

SiS962 LPC

SiS962 USB0 OHCI

SiS962 USB1 OHCI

SiS962 USB2 OHCI

SiS962 USB0 EHCI

SiS962 IDE

SiS962 B/S Audio

2

0 0x04 0x00 N/A 0900 1039 SiS962 LAN

0 0x08 0x00 INTA# 0020 3388

0 0x09 0x00 INTB# 1229 8086

1 0x00 0x00 INTA# 6325 1039

2 0x09 INTB#

2 0x0A INTC#

2 0x0B INTD#

PCI-PCI Bridge

LAN 82551 (Fast Ethernet)

AGP

CompactPCI Slot 8
CompactPCI Slot 7

CompactPCI Slot 6

1)

CompactPCI

2 0x0C INTA#

2 0x0D INTB#

2 0x0E INTC# CompactPCI Slot 3

2 0x0F INTD#

Bus No. 0 = On board; Bus No. 1 = AGP; Bus No. 2 = CompactPCI Bus

1)

CompactPCI backplane numeration is based on a 7-slot backplane and refers to the logical (and

not physical) slot number

CompactPCI Slot 5

CompactPCI Slot 4

CompactPCI Slot 2 [next to Master]

©2004 Inova Computers GmbH Page 2-9Doc. PD00941013.001

Configuration

ICP-CM

2.7 Interrupt Configuration

The CompactPCI specification defines a total of six interrupt signals on the backplane. INTA#
through INTD# are used to route interrupts from the CompactPCI boards to the PIC on the ‘proc­essor board. The interrupt request level generated by the device depends on the backplane slot
number which the board is plugged into, and the interrupt signal which is driven by the particular
PCI device.

Note:

CompactPCI interrupts may be shared

by multiple sources

Table 2.70 CompactPCI Bus Interrupts

CompactPCI

Bus Interrupts

INTA#

INTB#

INTC#

INTD#

INTP ( IRQ14 )

INTS

ENUM# Routed by BIOS

CompactPCI

Bus Interrupts

(IRQ15) or Serialized

Interrupt -

Refer to BIOS

Documentation

Note:

Interrupts INTA through INTS and

ENUM are System Master CPU inputs.

INTA and ENUM are outputs if the

CPU is in Peripheral Mode.

©2004 Inova Computers GmbHPage 2-10 Doc. PD00941013.001

ICP-CM

2.8 Timer / Counter

Configuration

®

The IBM-compatible architecture configures the programmable timer / counter (Intel 8254-com­patible) devices for system-specific functions as shown in Table 2.80.

The BIOS programs Timer 0 to generate an interrupt approximately every 55ms (18.2 times per
second.) This interrupt, known as the system timer tick, updates the BIOS clock and turns off the
floppy disk motor drive after a few seconds of inactivity for example.

The BIOS featured in Inova’s CPUs programs the system timer tick for PC compatibility. The inter­rupt generated by the timer creates an interrupt request on IRQ0 of the programmable interrupt
controller (PIC) which is serviced by the CPU as interrupt vector 08h.

In addition, Timer 1 and Timer 2 are also initialised by the BIOS as necessary for the specific
‘processor board functions.

Table 2.80 Timer and Counter Functions

Timer Function/Assignment

Timer 0 System Timer, Periodic Interrupt (55 ms)

Timer 1 SDRAM Refresh

Timer 2 Speaker Frequency Generator

2

2.9 Watchdog

Two independent watchdog timers are implemented in the ICP-CM. The first timer, residing in the
SiS962 South-Bridge, has a range from 4ms to 255 hours and can issue either a Reset or SMI
(System Management Interrupt) upon expiry. The second timer in the Super I/O controller ranges
from 1 minute to 255 minutes and issues either a Reset, IRQ or SMI upon timeout.

CompactPCI

Note:

An OS-specific driver is required to

configure the watchdog timer. Please

refer to the Inova WWW support

pages (http://www.inova-

computers.de/web/support/public/

index.html) for the latest versions or

contact Inova hotline support directly

for advice .

©2004 Inova Computers GmbH Page 2-11Doc. PD00941013.001

Configuration

This page has been left blank intentionally.

ICP-CM

©2004 Inova Computers GmbHPage 2-12 Doc. PD00941013.001

ICP-CM

Interfaces

®

Interfaces

Interfaces Contents

3.0 CompactPCI J1/J2 Connectors . 3-2

3.01 CompactPCI Connector Naming .............................................................. 3-2

Figure 3.01 Naming Convention as per PICMG 2.0 R3.0 Specification ........................................ 3-2

3.02 CompactPCI J1 Connector ....................................................................... 3-2

Figure 3.02 J1- 32-Bit CompactPCI Bus Interface Connector ....................................................... 3-2

3.03 ICP-PM Connector J1 and J2 .................................................................... 3-2

Table 3.03 32-Bit CompactPCI J1 Pin Assignment ....................................................................... 3-3

Table 3.04 32-Bit CompactPCI J2 Pin Assignment (Std. with Rear I/O (D)) .................................. 3-4

Table 3.04 32-Bit CompactPCI J2 Pin Assignment (Std. - with Rear I/O (D)) - Contd. .................. 3-5

Table 3.05 Inova’s ICP-CM Rear I/O J2 (CPU) Integration ........................................................... 3-6

3.1 CompactPCI Backplane ............ 3-7

Figure 3.10 Inova’s 32-Bit CompactPCI 8-Slot Backplane - RH System Slot .................................. 3-8

3.2 Interfaces ............................... 3-9

3.21 J6 & J7 Ethernet ....................................................................................... 3-9

Figure 3.21 RJ45 Pinout ............................................................................................................. 3-9

Table 3.21 Ethernet Standards & Connector Signals ................................................................... 3-9

3.22 J17 VGA Interface ................................................................................... 3-10

3.23 Graphic Features (Chipset) ..................................................................... 3-10

Table 3.23a highlights just some of the features of the standard integrated video controller. ..... 3-10

Figure 3.23 High-Density D-Sub VGA Interface Pinout .............................................................. 3-11

Table 3.23b Video Output Connector Signals ........................................................................... 3-11

3.24 J19 USB Interface ................................................................................... 3-12

CompactPCI

Figure 3.24 USB Interface Pinout .............................................................................................. 3-12

Table 3.24 USB Connector Signals ........................................................................................... 3-12

3.25 J10 Hot-Swap Interface .......................................................................... 3-13

3.26 SW1 Reset Button .................................................................................. 3-13

3.27 J9 CompactFlash Interface ...................................................................... 3-13

3.28 Connecting the CM to the Inova ICP-HD3(-ND) .................................... 3-13

3.29 Connecting the CM to the Inova IPB-FPE12 ........................................... 3-13

3.30 Connecting the CM to a Slim-Line Floppy-Disk ...................................... 3-13

3

©2004 Inova Computers GmbH Page 3-1Doc. PD00941013.001

Interfaces

ICP-CM

3.0 CompactPCI J1/J2 Connectors

The CompactPCI standard is electrically identical to the PCI local bus standard but has been en­hanced to support rugged industrial environments and up to 8 slots. The standard is based upon
a 3U board size and uses a rugged pin-in-socket hard 2mm connector (IEC-1076-4-101.)

3.01 CompactPCI Connector Naming

Figure 3.01 Naming Convention as per PICMG 2.0 R3.0 Specification

3.02 CompactPCI J1 Connector

Figure 3.02 J1- 32-Bit CompactPCI Bus Interface Connector

1 11 15 25

e
d

c
b
a

PCB

3.03 ICP-PM Connector J1 and J2

Inova’s ICP-CM CPU board has been designed as a 32-bit (or 64-bit) system slot device able to
operate in either +5V or +3.3V (I/O) systems. The CompactPCI backplane connector is keyed
accordingly (yellow for +3.3V and blue for +5V.)

Note:

Do not remove the keys. An I/O board

operating at 5.0V and keyed accordingly

will cause a 3.3V configured system to fail

if the keys are removed.

©2004 Inova Computers GmbHPage 3-2 Doc. PD00941013.001

ICP-CM

Table 3.03 32-Bit CompactPCI J1 Pin Assignment

®

Interfaces

Pin Nr Row A Row B Row C Row D Row E

J1-25 +5V

J1-24 AD[1] +5V V( I / O ) AD[0]

J1-23 +3.3V AD[4] AD[3] +5V AD[2]

J1-22 AD[7] GND +3.3V AD[6] AD[5]

J1-21 +3.3V AD[9] AD[8]

J1-20 AD[12] GND V( I / O ) AD[11] AD[10]

J1-19 +3.3V AD[15] AD[14] GND AD[13]

J1-18 SERR# GND +3.3V PAR C / BE[1]#

J1-17 +3.3V IPMB-SCL IPMB-SDA GND PERR#

J1-16 DEVSEL# GND V( I / O ) STOP# LOCK#

J1-15 +3.3V FRAME# IRDY# GND TRDY#

J1-14

J1-13

J1-12

J1-11 AD[18] AD[17] AD[16] GND C / BE[2]#

REQ64#

ENUM# +3.3V +5V

ACK64#

M66EN

KEY AREA

C / BE[0]#

3

J1-10 AD[21] GND +3.3V AD[20] AD[19]

J1-09 C / BE[3] GND (IDSEL) AD[23] GND AD[22]

J1-08 AD[26] GND V( I / O ) AD[25] AD[24]

J1-07 AD[30] AD[29] AD[28] GND AD[27]

J1-06 REQ0# GND +3.3V CLK0 AD[31]

CompactPCI

1)

J1-05 - - RST# GND GNT0#

J1-04

J1-03 INTA# INTB# INTC# +5V INTD#

J1-02 TCK +5V TMS TD0 TD1

J1-01 +5V - TRST# +12V +5V

Reserved for use for Inova’s Uninterruptible Power Supply (UPS)

UPS

1)

GND V( I / O ) INTP INTS

©2004 Inova Computers GmbH Page 3-3Doc. PD00941013.001

Interfaces

Table 3.04 32-Bit CompactPCI J2 Pin Assignment (Std. with Rear I/O (D))

Pin Nr Row A Row B Row C Row D Row E

J2-22 (GA4) (GA3) (GA2) (GA1) (GA0)

J2-21 CLK6 GND ETH1_TXF+ ETH1_TXF- ATA_CS0#

J2-20 CLK5 GND ATA_A0 GND ATA_RST#

J2-19 GND GND ATA_A1 ETH1_RXF+ ETH1_RXF-

ICP-CM

J2-18

J2-17

J2-16

J2-15

J2-14

J2-13

J2-12

J2-11

LPT_STB#

-

COM1_TXD

LPT_AFD#

FD_DENSEL

COM1_CTS

LPT_D0
FD_INDEX#
COM1_RTS

LPT_ERR#

FD_HDSEL#

COM1_DSR

LPT_D1

FD_TRK0#

COM1_DTR

LPT_INIT
FD_DIR#

COM2_TXD

LPT_D2

FD_WP#

COM2_RXD

LPT_SLCTIN

FD_STEP#

COM2_CTS

LPT_PE

FD_WRDATA#

COM1_RXD

VGA_VSYNC PRST# REQ6# GNT6#

LPT_ACK#

FD_DR1#

COM1_DCD

GND FAL# REQ5# GNT5#

LPT_SLCT

FD_WGATE#

COM1_RI

VGA_HSYNC V(I/O) ATA_D1 ATA_D2

ATA_IOW# USB4_D+ GND ATA_D3

GND SMB_DAT ATA_D4 ATA_D5

ATA_A2 GND ATA_CS1#

DEG# GND KB_CLK

+5V (1.5A) VGA_R ATA_D0

J2-10

J2-09

J2-08

LPT_D3

FD_RDATA#

COM2_RTS

LPT_D4

FD_DSKCHG#

COM2_DCD

LPT_D5
FD_MSEN0
COM2_DSR

©2004 Inova Computers GmbHPage 3-4 Doc. PD00941013.001

ATA_IOR# USB4_D- VGA_G ATA_D6

PM_DAT V(I/O) ATA_D7 ATA_D8

ATA_IRQ15 ATA_DMARQ GND ATA_D9

ICP-CM

Table 3.04 32-Bit CompactPCI J2 Pin Assignment (Std. - with Rear I/O (D)) - Contd.

®

Interfaces

Pin Nr Row A Row B Row C Row D Row E

LPT_BUSY

J2-07

J2-06

J2-05

J2-04 V(I/O)

J2-03 CLK4 GND GNT3# REQ4# GNT4#

FD_MTR1#

COM2_DTR

LPT_D6

FD_DRATE0

COM2_RI

LPT_D7

FD_MSEN1

-

PM_CLK SMB_CLK ATA_D10 ATA_D11

KB_DAT ATA_DMACK VGA_B ATA_D12

64EN# V(I/O) ATA_D13 ATA_D14

ATA_IORDY

SPEAKER

4)

#

GND ATA_D15

3

J2-02 CLK2 CLK3 SYSEN# GNT2# REQ3#

J2-01 CLK1 GND REQ1# GNT1# REQ2#

CompactPCI

©2004 Inova Computers GmbH Page 3-5Doc. PD00941013.001

Interfaces

Table 3.05 Inova’s ICP-CM Rear I/O J2 (CPU) Integration

Option RIO(C1) RIO(D)

VGA No Yes

Fast Ethernet Intel 82551 Intel 82551

USB 1.1 Yes Yes

PS-2 Mouse & Keyboard Keyboard Only Yes

2nd IDE Channel Yes Yes

Reset & Beeper Yes Yes

ICP-CM

LPT1 Software Selectable Software Selectable

COM1 & COM2 Software Selectable Software Selectable

Floppy Disk (A or B) Software Selectable Software Selectable

The rear I/O options described here do not detract from the latest PICMG 2.0 R3.0 specification.

1.) The VGA option in table 3.05 is from the chipset or mounted AGP piggyback - chipset video
should not be used in parallel with the front I/O option. Doing could cause possible damage to
the CPU board. If both front and rear VGA are required, then the AGP piggyback graphic option
should be used which may also permit different video information to be displayed.

2.) The single channel Fast Ethernet option in table 3.05 is ETH 1 on the front-panel i.e. the
dedicated Intel 82551 controller. If the rear I/O option is used then the front-panel connection
must not be used. Doing so will disrupt the communication leading to spurious results.

3.) If the mouse, keyboard, LPT or COM ports are used in rear I/O applications then they should
not be used from the front-panel. Communicating from both mouse and keyboard sources is
physically possible but is not recommended! The front panel COM port connections are disabled
If using the rear I/O COM port option.

One of

4.) The CPU boasts a number of USB connection possibilities - one USB 2.0 is on the front-panel,
one (USB 1.1) is just behind the panel for local device connection (custom), two (USB 2.0) are
embedded within the hard disk carrier and a final USB (1.1) port is routed to the rear I/O panel.

Note:

64-bit configurations cannot have rear

I/O! Version (D) is preferred and is there-

fore the standard configuration. Transi-

tion modules connect to the backplane

and provide the physical interfaces.

©2004 Inova Computers GmbHPage 3-6 Doc. PD00941013.001

ICP-CM

3.1 CompactPCI Backplane

Interfaces

®

The form factor defined for CompactPCI boards is based upon the Eurocard industry standard.
Both 3U (100 mm by 160 mm) and 6U (233 mm by 100 mm) board sizes are defined. A Com­pactPCI system is composed of up to eight CompactPCI cards. The CompactPCI backplane con­sists of one System Slot, and up to seven Peripheral Slots.

The System Slot provides arbitration, clock distribution, and reset functions for all boards on the
bus. The System Slot is responsible for performing system initialization by managing each local
board’s IDSEL signal.

3

Physically, the System Slot may be located at either end of the backplane but Inova have placed
theirs on the right to cater for physical expansion due to heat-sink, hard disk, extended function­ality etc. The Peripheral Slots may contain simple boards, intelligent slaves, or PCI bus masters.

Note:

Inova’s 3U CompactPCI Celeron M

CPU boards can be used as either

master or slave boards i.e. occupying

either the system slot or the peripheral

slot. The PCI / PCI bridge automati-

cally detects the CPU location within a

system.

Note:

Older backplane revisions (rev. 2.11)

cannot be used with Inova CPUs config-

ured for rear I/O (D). Attempting to do so

CompactPCI

will cause the boot sequence to fail.

When installing the CPU in environments

where PXI peripheral boards are being

used, CPU versions without rear I/O must

be used. Otherwise, signal conflict will

occur on the J2 interface.

©2004 Inova Computers GmbH Page 3-7Doc. PD00941013.001

Interfaces

Figure 3.10 Inova’s 32-Bit CompactPCI 8-Slot Backplane - RH System Slot

ICP-CM

Note:

The logical slots are different to the

physical slots. The slot marked with the

‘g‘ is the System Slot and always as-

signed logical ‘1’. The neighbouring slot

is logical ‘2’!

©2004 Inova Computers GmbHPage 3-8 Doc. PD00941013.001

ICP-CM

3.2 Interfaces

®

3.21 J6 & J7 Ethernet

J6 is a Fast Ethernet interface from the SiS chipset while J7 [ETH1] is an additional Fast Ethernet
from the dedicated on-board controller. Both RJ45 interfaces are available as standard on the CPU
front-panel and provide support for 10BaseT and 100BaseTX twisted pair standards.

Figure 3.21 RJ45 Pinout

Interfaces

Activity Link

81

Table 3.21 Ethernet Standards & Connector Signals

Standard Data Rate Cable Max. Length

IEEE802.3 10Base-T
Ethernet

IEEE802.3u 100Base-Tx
Fast Ethernet

Pin No.

10Mbit/2 2-pair Cat-5 100m

100Mbit/s 2-pair Cat-5 100m

Signal Description

Ethernet / Fast Ethernet

Note:

Users taking advantage of the CPU’s rear

I/O options are advised not to use the

front-panel interface [ETH1] if the rear

interface is being used. Possible damage

to the board could occur and data

integrity cannot be assured.

3

CompactPCI

1 TX0+

2 TX0-

3 RX0+

4

5

6 RX0-

7

8

©2004 Inova Computers GmbH Page 3-9Doc. PD00941013.001

Interfaces

ICP-CM

3.22 J17 VGA Interface

J17 is available on the CPU front-panel if this option is required and if this position is not already
occupied by an AGP piggyback for PanelLink (TFT) or GigaST)R communication. The 15-pin
high-density D-Sub connector forms the physical interface for the video on the ICP-CM which is
integrated within the chipset.

The amount of graphic memory allocated to the chipset video option is defined in BIOS. Vesa
resolutions up to 2048 x 1536 pixels with 32-bit colour depth are supported. Hence the full VGA,
SVGA, XGA, SXGA, UXGA, HDTV and QXGA scales are covered.

3.23 Graphic Features (Chipset)

Table 3.23a highlights just some of the features of the standard integrated video controller.

Feature Description

Supports single video windows with overlay function

Supports RGB555, RGB565, YUV422, and YUV420 video formats

Video Accelerator

High Integration

Resolution, Colour & Frame Rate

Supports DVD sub-picture playback overlay

2x 120x128 video playback line buffers to support 1920x1080 video

Supports Direct Draw Drivers

Built-in 64x128 CRT FIFOs to support ultra high res. graphics

Programmable 24-bit true-colour RAMDAC up to 333MHz pixel clk

MPEG II video playback

Built-in TV encoder interface

Supports 333MHz clock

Supports VESA standard super high resolution graphics modes

Supports low-resolution modes (320x240, 512x384, 400x300)

Power Management

Multimedia Application Supports RAMDAC snoop for multimedia applications

Supports VESA Display Power Management Signalling

Supports clock throttling for 2D engine and 3D engine

©2004 Inova Computers GmbHPage 3-10 Doc. PD00941013.001

ICP-CM

Figure 3.23 High-Density D-Sub VGA Interface Pinout

®

Interfaces

10 6

Table 3.23b Video Output Connector Signals

Pin No. Signal

1 Analog RED

2 Analog GREEN

3 Analog BLUE

4 N/C

5, 6, 7, 8 CRT Ground

9 +5V (DDC)

10 CRT Ground

11 N/C

5

15

1

11

Refresh

Rates (Hz)

3

12 DDC-SDA

13 HSYNC

14 VSYNC

15 DDC-SCL

CompactPCI

Refresh Rates (Hz)

Refresh

Rates (Hz)

©2004 Inova Computers GmbH Page 3-11Doc. PD00941013.001

Interfaces

ICP-CM

3.24 J19 USB Interface

J19 is located as standard on the front panel. All standard USB 2.0 and 1.1 compatible devices can
be connected to this interface.

Figure 3.24 USB Interface Pinout

Table 3.24 USB Connector Signals

Pin No. Signal

1 +5V

2 USB P0-

3 USB P0+

4 GND

1234

©2004 Inova Computers GmbHPage 3-12 Doc. PD00941013.001

ICP-CM

3.25 J10 Hot-Swap Interface

Interfaces

®

This PCB-level interface is used for the front-panel integrated micro-switch and blue LED in ac­cordance with the PICMG 2.1 R2.0 specifications.

3.26 SW1 Reset Button

The reset button allows the CPU to be reset in the event that it ‘hangs’ Performing a reset in this
manner is known as a ‘warm’ start as power is not removed from the peripherals (IDE etc.)

3

3.27 J9 CompactFlash Interface

CompactFlash™ cards are designed with flash technology, a nonvolatile storage solution that
does not require a battery to retain data indefinitely. CompactFlash storage cards are solid state,
meaning they contain no moving parts and their low power consumption means that they con­sume only five percent the power required by small disk drives.

J9 is the standard CompactFlash interface and needs no further explanation.

3.28 Connecting the CM to the Inova ICP-HD3(-ND)

Appendix A provides more information on the ICP-HD3(-ND) and its derivatives. For the sake of
completeness however, the ICP-HD3(-ND) must only be attached / detached to / from the CM
base board without power applied i.e. with the CPU removed from the CompactPCI environment.
Since there aren’t any flat-band cables or similar, installation is remarkably simple. The whole
module plugs into the mating J12, J13 and J14 connectors.

3.29 Connecting the CM to the Inova IPB-FPE12

CompactPCI

Appendix B provides more detailed information on the IPB-FPE12 module. However, for the sake
of completeness, the IPB-FPE12 connects directly to the ICP-HD3(-ND) module via a flex-cable.
There isn’t a direct connection possibility on the CPU base board itself.

3.30 Connecting the CM to a Slim-Line Floppy-Disk

Slim-line floppy disks connect directly to the ICP-HD3(-ND) via the standard header.

©2004 Inova Computers GmbH Page 3-13Doc. PD00941013.001

Interfaces

ICP-CM

This page has been left blank intentionally.

©2004 Inova Computers GmbHPage 3-14 Doc. PD00941013.001

Appendix A

ICP-HD-3

®

ICP-HD-3

ICP-HD-3 Contents

A1 ICP-HD-3(-ND) CPU Extension .. A-2

A1.1 ICP-HD-3(-ND) Front-Panels (8HP or 12HP) ............................................. A-2

Figure A1.1 ICP-HD-3(-ND) CPU Front-Panels ............................................................................ A-2

A1.2 IDE Carrier Board ICP-HD-3(-ND) ............................................................. A-3

Figure A1.2 Interface Location of the ICP-HD-3(-ND) Module ..................................................... A-3

Table A1.2 Interface Description of the ICP-HD-3(-ND) Module .................................................. A-4

A2 ICP-HD-3(-ND) Interfaces ......... A-5

A2.1 COM1 & COM2 Interfaces ...................................................................... A-5

Figure A2.1 COM1 & COM2 Interface Pinout ............................................................................. A-5

Table A2.1 COM1 & COM2 Connector Signals ........................................................................... A-5

A2.2 Mouse & Keyboard Interfaces .................................................................. A-6

Figure A2.2 Mouse & Keyboard Interface Pinout ........................................................................ A-6

Table A2.2 Mouse & Keyboard Connector Signals ....................................................................... A-6

Table A2.3 USB Connector Signals ............................................................................................. A-7

A2.3 USB 2.0 Interfaces .................................................................................... A-7

Figure A2.3 USB Interface Pinout ................................................................................................ A-7

A2.4 EIDE Interface .......................................................................................... A-8

A2.5 Slim-Line Floppy Disk Interface................................................................. A-8

A

CompactPCI

©2004 Inova Computers GmbH Page A-1ICP-PM/CM Appendix-A

ICP-HD-3

Appendix A

A1 ICP-HD-3(-ND) CPU Extension

Combined PS-2 mouse / keyboard, USB (2.0), COM ports, LPT, mass storage and slim-line FD
interfaces are supplied on the ICP-HD-3(-ND) - a CPU add-on board. Two versions exist - one is
supplied with a hard disk and one without. Both versions are functionally identical. The name
extension ‘-ND’ refers to the No Disk version!

All communication between the ICP-HD-3 and the host CPU is performed via rigid board connec­tors - there aren’t any flex cables on the CPU board itself! This concept eliminates the risk of
incorrect device installation and ensures both mechanical and electrical stability.

A1.1 ICP-HD-3(-ND) Front-Panels (8HP or 12HP)

The Inova ICP-HD-3(-ND) interface is a mass-storage carrier board that is only available as a CPU
plug-in device with either an 8HP or 12HP front-panel as illustrated in figure A1.1.

Figure A1.1 ICP-HD-3(-ND) CPU Front-Panels

USBCOM 1COM 2 USBPS/2

USBUSB

PS/2COM 1COM 2

LPT 1

RST VIDEO ETH 1 USBETH 2

RST VIDEO ETH 1 USBETH 2

©2004 Inova Computers GmbHPage A-2 ICP-PM/CM Appendix-A

Appendix A

A1.2 IDE Carrier Board ICP-HD-3(-ND)

ICP-HD-3

®

Figure A1.2 illustrates the construction of the integrated ICP-HD-3 carrier board and the location
of the interface connectors. Table A1.2 gives a description of these interfaces. Care should be
exercised when attaching the LPT interface to this carrier board. Here the connection is via a
length of flex cable between J11 of the carrier and J13 on the LPT module.

Note:

Damage to the CPU, hard-disk carrier

board or the LPT piggyback may

result if the flex cable is positioned

incorrectly. Inova will not accept

responsibility for negligent actions!

Position the blue side of the flex-cable

to the blue-flanked connector shown

below

Figure A1.2 Interface Location of the ICP-HD-3(-ND) Module

A

CompactPCI

©2004 Inova Computers GmbH Page A-3ICP-PM/CM Appendix-A

ICP-HD-3

Table A1.2 Interface Description of the ICP-HD-3(-ND) Module

Connector Description

Appendix A

J1

J2

J3 COM2 physical interface

J4 Reset - shorting these pins causes the CPU to reset

J5 PS-2 mouse & keyboard physical interface

J6 USB 2.0 physical interface - USB2

J7 COM1 physical interface

J8 Slim-line floppy disk interface

J9 Notebook style 2.5" IDE header for HD or Flash etc.

J10

J11 Flex cable interface for LPT1 (IPB-FPE12) module

J12 Standard 3.5" EIDE interface [80-strand cable only!]

Open: COM1 is configured for RS232 communication

Closed: COM1 is configured for RS485 communication

Open: COM2 is configured for RS232 communication

Closed: COM2 is configured for RS485 communication

Open: The CompactFlash on the CPU is Master

Closed: The CompactFlash on the CPU is Slave

J15 USB 2.0 physical interface - USB3

The accessibility / maintainability of the mounted hard disk is ensured through the two fixing
screw cutouts on the carrier board. A mounted hard disk is thus unable to shift or become dis­lodged in any direction.

Note:

Any notebook-style IDE hard disk,

Flash device or similar mass-storage

unit can be connected here. However,

Inova recommend only those devices

from known manufacturers.

Connecting devices to both J9 and J12
simultaneously is not recommended. A

better configuration is to use Master

and Slave devices connected to J12

only or use the Rear I/O feature.

©2004 Inova Computers GmbHPage A-4 ICP-PM/CM Appendix-A

Appendix A

ICP-HD-3

A2 ICP-HD-3(-ND) Interfaces

®

The carrier board serves not just to mount an IDE mass-storage device - it also provides the user
with a wealth of familiar standard PC interfaces.

A2.1 COM1 & COM2 Interfaces

The two COM ports feature a complete set of handshaking and modem control signals, maskable
interrupt generation and highspeed data transfer rates. The selection between the RS232 and
RS485 serial data communication standard is performed via J1 & J2 (COM1, COM2) illustrated in
Figure A1.2.

Note:

If the COM ports are used in rear I/O

applications then they should not be

used from the CPU front-panel.
The front panel COM port connections
are disabled automatically if using the

rear I/O COM port option.

Figure A2.1 COM1 & COM2 Interface Pinout

1

5

A

Table A2.1 COM1 & COM2 Connector Signals

6

Signal

Pin No.

RS232 RS485

9

CompactPCI

1 DCD

2 RxD RxD, TxD +

3 TxD RxD, TxD -

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9RI

©2004 Inova Computers GmbH Page A-5ICP-PM/CM Appendix-A

The standard CPU configuration has both

COM ports set for RS232 communication.

However, this device can be configured to

observe a two-wire, non galvanically
separated, RS485 protocol. The data

direction is governed by controlling the

Note:

UART’s RTS signal.

ICP-HD-3

Appendix A

A2.2 Mouse & Keyboard Interfaces

The physical PS-2 mouse & keyboard interface is brought out on this 8HP front-panel. Connector
pinout and description are provided in Figure A2.2 and Table A2.2 respectively.

Note:

If the mouse and keyboard ports are

used in rear I/O applications then they

should not be used from the front-

panel. Communicating from both

mouse and keyboard sources is physi-

cally possible but is not recommended!

Figure A2.2 Mouse & Keyboard Interface Pinout

5

3

Table A2.2 Mouse & Keyboard Connector Signals

6

4

21

Pin No. Signal Pin No. Signal

1 Data - Keyboard 2 Data - Mouse

3 GND 4 +5V

5 Clock - Keyboard 6 Clock - Mouse

©2004 Inova Computers GmbHPage A-6 ICP-PM/CM Appendix-A

Appendix A

A2.3 USB 2.0 Interfaces

ICP-HD-3

®

Standard to all ICP-HD-3 carrier board modules are the two USB (2.0) interfaces which are back­ward compatible to USB 1.1 devices.

Figure A2.3 USB Interface Pinout

1234

Table A2.3 USB Connector Signals

Pin No. Signal

1 +5V

2 USB P0-

3 USB P0+

A

4 GND

CompactPCI

©2004 Inova Computers GmbH Page A-7ICP-PM/CM Appendix-A

ICP-HD-3

Appendix A

A2.4 EIDE Interface

Standard to all ICP-HD-3 carrier board modules is the 3.5” EIDE hard-disk header. This has a
standard (commercial PC) pinout and requires no further mention here.

Note:

To conform with the UDMA 66 (or

higher) standards, only suitable,

commercially available 80-strand

ribbon cable should be used. Failure to

do so may result in data transmission
errors or even cause the CPU to crash!

A2.5 Slim-Line Floppy Disk Interface

Standard to all ICP-HD-3 carrier board modules is the slim-line floppy disk header. This has a
standard (commercial PC) pinout and requires no further mention here.

©2004 Inova Computers GmbHPage A-8 ICP-PM/CM Appendix-A

Appendix B

IPB-FPE12

®

IPB-FPE12

IPB-FPE12 Contents

B1 IPB-FPE12 CPU Extension ........ B-2

B1.1 J13 Interface for LPT1 ............................................................................... B-2

B1.2 IPB-FPE12 Front-Panel (4HP or 12HP) ....................................................... B-2

Figure B1.2 IPB-FPE12 Stand-Alone or Integrated with CPU ........................................................ B-2

B1.3 LPT1 Piggyback ........................................................................................ B-3

Figure B1.3 LPT1 Piggyback Board IPB-FPE12 ............................................................................. B-3

Table B1.3 IPB-FPE12 Connector Description .............................................................................. B-4

B1.4 LPT1 Interface .......................................................................................... B-4

Figure B1.4 LPT1 Interface Pinout .............................................................................................. B-4

Table B1.4 LPT1 Connector Signals ............................................................................................ B-4

CompactPCI

©2004 Inova Computers GmbH Page B-1ICP-P4/PM/CM Appendix-B

B

IPB-FPE12

Appendix B

B1 IPB-FPE12 CPU Extension

The Inova IPB-FPE12 adds LPT functionality to any Inova Pentium M, Celeron M or Pentium 4(M)
CPU. The piggyback is available as a stand-alone device with its own 4HP front-panel or integrated
within a 12HP front-panel. The information documented here is valid regardless of the connection
choice.

B1.1 J13 Interface for LPT1

The control of the LPT interface is performed through the J11 connector on the CPU’s hard-disk
carrier board. The location of this connector may be determined by referring to Appendix A of this
User’s Manual. The flex cable connection and function of the LPT interface are discussed in this
section.

B1.2 IPB-FPE12 Front-Panel (4HP or 12HP)

The Inova IPB-FPE12 interface is a small piggyback available as a stand-alone device with its own
4HP front-panel or integrated with the CPU as in figure B1.2.

Figure B1.2 IPB-FPE12 Stand-Alone or Integrated with CPU

USBUSB

Note:

nents

COM 2 LPT 1

RST VIDEO ETH 1 USBETH 2

PS/2COM 1COM 2

LPT 1

Although COM2 is shown on the left-

hand stand-alone front-panel, this
interface will not be present in the

delivered module. A dust cap replaces

the 9-pin D-Sub connector!

If an LPT or slim-line FD configured to

communicate via the rear I/O (RIO)

transition module then the LPT inter-

face cannot be used here. Trying to do

so will result in data corruption and

possible damage to the logic compo-

Page B-2 ICP-P4/PM/CM Appendix-B

©2004 Inova Computers GmbH

Appendix B

B1.3 LPT1 Piggyback

IPB-FPE12

®

Figure B1.3 illustrates the construction of the stand-alone IPB-FPE12 piggyback and the upperside
location of the J13 connector. The same mechanical construction applies to the integrated ver­sion. Care should be taken to ensure that pin 1 of J13 on the CPU base board is linked by an
appropriate length of flex cable to pin 1 on the ICP-HD-3 piggyback. To help with the orientation,
the connector flanks that are blue indicate the blue face of the flex-cable. Unmarked flanks indi­cate the metallic connection of the flex-cable. Also, pin 1 has been highlighted by a red triangle.

Note:

Damage to the CPU, hard-disk carrier

board or the piggyback may result if

the flex cable is positioned incorrectly.

Inova will not accept responsibility for

negligent actions!

Figure B1.3 LPT1 Piggyback Board IPB-FPE12

CompactPCI

Note:

The physical connection of the IPB-

FPE12 is electrically identical regard-

less of the nature of connection

(stand-alone or integrated!)

©2004 Inova Computers GmbH Page B-3ICP-P4/PM/CM Appendix-B

B

IPB-FPE12

Table B1.3 IPB-FPE12 Connector Description

Connector Description

J13 LPT1

B1.4 LPT1 Interface

The physical LPT1 interface is either integrated into a 12HP CPU front-panel or available as a
separate 4HP unit. The piggyback located behind this interface connects to the hard-disk carrier
board (ICP-HD-3) mounted J13 connector.

Appendix B

Figure B1.4 LPT1 Interface Pinout

113

1425

Table B1.4 LPT1 Connector Signals

Pin No. Signal Pin No. Signal

1 STROBE 2 PD0

3 PD1 4 PD2

5 PD3 6 PD4

7 PD5 8 PD6

9 PD7 10 ACK

11 BUSY 12 PE

13 SLCT 14 AUTOFD

15 ERROR 16 INIT

17 SLCTIN 18-25 GND

Page B-4 ICP-P4/PM/CM Appendix-B

©2004 Inova Computers GmbH

Appendix C

ITM-RIO

®

ITM-RIO

ITM-RIO Contents

C1 ITM-RIO CPU Extension ............ C-2

C1.1 ITM-RIO-D Configurations ....................................................................... C-2

Table C1.10 Valid Rear I/O Configurations ................................................................................. C-2

Table C1.11 Rear I/O Module Functionality ................................................................................ C-2

C1.2 ITM-RIO Rear-Panels (4HP or 8HP) ........................................................... C-3

Figure C1.2 The rear Panels of the Inova ITM-RIO-D-x ................................................................ C-3

C1.3 ITM-RIO-D-x Transition Module ............................................................... C-4

Figure C1.3 Inova Rear I/O Transition Module ITM-RIO-D-x........................................................ C-4

Table C1.3 ITM-RIO-D-x Connector Description .......................................................................... C-5

C1.4 COM1 & COM2 Interfaces ...................................................................... C-6

Figure C1.4 COM1 & COM2 Interface Pinout ............................................................................. C-6

Table C1.4 COM1 & COM2 Connector Signals .......................................................................... C-6

C1.5 LPT1 Interface .......................................................................................... C-7

Figure C1.5 LPT1 Interface Pinout .............................................................................................. C-7

Table C1.5 LPT1 Connector Signals ............................................................................................ C-7

C1.6 Mouse & Keyboard Interfaces .................................................................. C-8

Figure C1.6 Mouse & Keyboard Interface Pinout ........................................................................ C-8

Table C1.6 Mouse & Keyboard Connector Signals ...................................................................... C-8

C1.7 VGA Interface .......................................................................................... C-9

Figure C1.7 VGA Interface Pinout ............................................................................................... C-9

Table C1.7 Video Output Connector Signals ............................................................................... C-9

C1.8 Fast Ethernet Interface ........................................................................... C-10

Figure C1.8 Fast Ethernet Interface Pinout ................................................................................ C-10

CompactPCI

Table C1.8 Fast Ethernet Connector Signals .............................................................................. C-10

C1.9 USB Interface (USB 4) ............................................................................ C-11

Figure C1.9 USB Interface Pinout ............................................................................................. C-11

Table C1.9 USB Connector Signals ........................................................................................... C-11

C1.10 EIDE Interface ...................................................................................... C-12

C1.11 Slim-Line Floppy Disk Interface ............................................................ C-12

C1.12 ITM-RIO(C&D)-FHLU Extension ........................................................... C-13

Figure C1.12 ITM-RIO(C&D)-FHLU........................................................................................... C-13

C

©2004 Inova Computers GmbH Page C-1ICP-P4/PM/CM Appendix-C

ITM-RIO

Appendix C

C1 ITM-RIO CPU Extension

The Inova Pentium 4(M), Pentium M or Celeron M CPUs are more than just a computing platform

- they are a complete, well thought-out concept. Nowhere is this more apparent than in the
colourful rear I/O selection. With a choice of three full-length (80mm) plug-in modules conform­ing to the latest Inova rear I/O (D) specification and the rear I/O (C1) options, the major industrial
requirements have been satisfied.

C1.1 ITM-RIO-D Configurations

Rear I/O (D) is the standard configuration for the Pentium 4(M), Pentium M and Celeron M series
of high-performance CPUs. Table C1.10 illustrates the configurations stemming from one single
PCB layout - with backward compatibility to some of the features provided in the Inova rear I/O
(C) boards. Table C1.11 shows the functionality of the 4 Inova rear I/O compatible modules.

Table C1.10 Valid Rear I/O Configurations

Option RIO(C1) RIO(D)

VGA No Yes P4 PM CM

Fast Ethernet See Matrix See Matrix Intel 82551 82540EM 82551

USB 1.1 Yes Yes SiS 900 900 900

PS-2 Mouse & Keyboard Keyboard Only Yes RIO 82551 900 82551

2nd IDE Channel Yes Yes

Reset & Beeper Yes Yes

LPT1 Software Selectable Software Selectable

COM1 & COM2 Software Selectable Software Selectable

Floppy Disk (A or B) Software Selectable Software Selectable

Controller

LAN Networking Matrix

One of

Processor

Table C1.11 Rear I/O Module Functionality

Product

Name

ITM-RIO-D-0 Yes See Matrix 1.1 LPT1 Both Header Yes ( 80mm )

ITM-RIO-D-1 Yes See Matrix 1.1

ITM-RIO-D-2 Yes See Matrix 1.1 FD-A Keyboard Header Yes ( 80mm )

ITM-RIO­FHLU

All transition modules have reset and beeper pins
Auto-configuration RIO(D) feature can be overridden in BIOS. Settings MUST be made manually if equipped with RIO (C)

VGA

Graphic

No None 1.1 FD-A No Header No (25mm )

Fast

Ethernet

USB I/O

COM1 &

COM2

Mouse /

Keyboard

Both Header Yes (80mm )

Mass

Storage

Length

Full

©2004 Inova Computers GmbHPage C-2 ICP-P4/PM/CM Appendix-C

Appendix C

C1.2 ITM-RIO Rear-Panels (4HP or 8HP)

ITM-RIO

®

As with front-panel I/O, the physical interfaces from the ITM-RIO-D-x rear I/O module are brought
out to a face plate (rear panel). Figure C1.2 illustrates the three standard formats available (at time
of press.)

Figure C1.2 The rear Panels of the Inova ITM-RIO-D-x

CompactPCI

The rear I/O options described here do not detract from the latest PICMG 2.0 R3.0 specification.

The VGA option in table C1.10 can be from either the chipset or the AGP piggyback option. Using
the chipset graphics for both front and rear I/O simultaneously is not advisable as the loading may
be too great. If both front and rear I/O VGA are required then the twin-engined, Radeon-based
AGP piggyback graphic option should be used.

The single channel Fast Ethernet option in table C1.10 is either ETH1 or ETH 2 on the front-panel
depending on the computer platform. If the rear I/O option is used then the front-panel connec­tion must not be used. Doing so will disrupt the communication leading to spurious results.

If the mouse, keyboard and COM ports are used in rear I/O applications then they should not be
used from the front-panel. Communicating from both mouse and keyboard sources is physically
possible but is not recommended!

©2004 Inova Computers GmbH Page C-3ICP-P4/PM/CM Appendix-C

C

ITM-RIO

Appendix C

C1.3 ITM-RIO-D-x Transition Module

Figure C1.3 illustrates the construction of the ITM-RIO-D-x module. The connections are straight
forward and need little by way of explanation. None of the connectors can be incorrectly inserted
thanks to the mechanical keying of both plug and socket. Table C1.3 explains the significance of
the interfaces labelled in Figure C1.3.

Note:

Care should be exercised when insert-

ing the cables linking the COM, LPT,

EIDE and floppy etc. Only those cables

supplied by Inova Computers should

be used.

Figure C1.3 Inova Rear I/O Transition Module ITM-RIO-D-x

©2004 Inova Computers GmbHPage C-4 ICP-P4/PM/CM Appendix-C

Appendix C

Table C1.3 ITM-RIO-D-x Connector Description

ITM-RIO

®

Connector Description

J1 CompactPCI rear I/O connector

J2 Standard 3.5" IDE header

J3 Standard slim-line floppy disk interface

J4 Beeper (loudspeaker)

J5 Reset

Open: COM2 is configured for RS232 communication

J7

Closed: COM2 is configured for RS485 communication

Open: COM1 is configured for RS232 communication

J8

Closed: COM1 is configured for RS485 communication

J9 LPT1

J10 COM2

J11 VGA physical interface

J12 COM1

J13 USB physical interface (USB 4)

J14 Fast Ethernet physical interface

J15 PS-2 mouse & keyboard interface [only keyboard on ITM-RIO-D-2 ]

Note:

When setting up the rear I/O (D) the

CompactPCI

following should be observed:

Either the LPT interface or the COM ports

or the floppy disk interface can be used

(not combined)

Only the required device should be

attached. Installing or attaching hard-

ware that is not required will prevent the

actual device from being configured.

Example: if a FD is physically attached

but the COM ports are required, then

these ports will not work even if they are

correctly configured in BIOS!

C

©2004 Inova Computers GmbH Page C-5ICP-P4/PM/CM Appendix-C

ITM-RIO

Appendix C

C1.4 COM1 & COM2 Interfaces

The two COM ports feature a complete set of handshaking and modem control signals, maskable
interrupt generation and highspeed data transfer rates. An 8HP rear-panel (Figure C1.2) brings
out the physical COM1 & COM2 interfaces.

Note:

If the COM ports are used in rear I/O
applications then they should not be

used from the CPU front-panel.

The front panel COM port connections
are disabled automatically if using the

rear I/O COM port option.

Figure C1.4 COM1 & COM2 Interface Pinout

1

6

Table C1.4 COM1 & COM2 Connector Signals

Signal

Pin No.

RS232 RS485

1 DCD

2 RxD RxD, TxD +

3 TxD RxD, TxD -

4 DTR

5 GND

5

9

Note:

The standard CPU configuration has both
COM ports set for RS232 communication.

6 DSR

7RTS

8 CTS

9RI

©2004 Inova Computers GmbHPage C-6 ICP-P4/PM/CM Appendix-C

However, this device can be configured (J7

and J8) to observe a two-wire, non

galvanically separated, RS485 protocol.

The data direction is governed by control-

ling the UART’s RTS signal.

Appendix C

C1.5 LPT1 Interface

ITM-RIO

®

The physical LPT1 interface of the rear I/O panel illustrated in Figure C1.2 connects to J9 on the
baseboard for.

Note:

If the LPT port is used in rear I/O

applications then it should not be
used from the front-panel. Communi­cating from both sources is physically

possible but is not recommended!

Figure C1.5 LPT1 Interface Pinout

113

1425

Table C1.5 LPT1 Connector Signals

Pin No. Signal Pin No. Signal

1 STROBE 2 PD0

3 PD1 4 PD2

CompactPCI

5 PD3 6 PD4

7 PD5 8 PD6

9 PD7 10 ACK

11 BUSY 12 PE

13 SLCT 14 AUTOFD

15 ERROR 16 INIT

17 SLCTIN 18-25 GND

C

©2004 Inova Computers GmbH Page C-7ICP-P4/PM/CM Appendix-C

ITM-RIO

Appendix C

C1.6 Mouse & Keyboard Interfaces

The physical PS-2 keyboard interface is brought out on either a 4HP or 8HP rear -panel, the mouse
interface is only available on the 8HP version (Figure C1.2) Connector pinout and description are
provided in Figure C1.6 and Table C1.6 respectively.

Note:

If the mouse, keyboard ports are used

in rear I/O applications then they

should not be used from the front-

panel. Communicating from both

mouse and keyboard sources is physi-

cally possible but is not recommended!

Figure C1.6 Mouse & Keyboard Interface Pinout

5

3

Table C1.6 Mouse & Keyboard Connector Signals

6

4

21

Pin No. Signal Pin No. Signal

1 Data 2 N/C

3 GND 4 +5V

5 CLK 6 N/C

©2004 Inova Computers GmbHPage C-8 ICP-P4/PM/CM Appendix-C

Appendix C

C1.7 VGA Interface

ITM-RIO

®

The VGA signals appearing on this interface are from the CPU chipset or AGP piggyback (if config­ured for rear I/O signalling). Figure C1.7 and Table C1.7 provide the pinout and signal description
of this standard VGA interface respectively. With an AGP video piggyback installed, the video
image appearing on this rear I/O interface can be selected to be different to that appearing on the
front-panel. This is possible through (in this case) the piggyback’s dual independent Radeon 7000
graphics engines.

Note:

Using the chipset graphics for both

front and rear I/O simultaneously is

not advisable as the loading may be

too great. If both front and rear I/O

VGA are required then the twin-

engined, Radeon-based AGP piggy-

back graphic option should be used.

Figure C1.7 VGA Interface Pinout

5

10 6

1

15

Table C1.7 Video Output Connector Signals

Pin No. Signal

1 Analog RED

2 Analog GREEN

3 Analog BLUE

CompactPCI

4 N/C

5, 6, 7, 8 CRT Ground

9 +5V (DDC)

10 CRT Ground

11 N/C

12 DDC-SDA

13 HSYNC

14 VSYNC

15 DDC-SCL

11

C

©2004 Inova Computers GmbH Page C-9ICP-P4/PM/CM Appendix-C

ITM-RIO

Appendix C

C1.8 Fast Ethernet Interface

Standard to all rear I/O (D) transition modules is the Fast Ethernet connection. Figure C1.8 and
Table C1.8 provide the pinout and signal description of this standard Ethernet interface respec­tively. Although the LEDs feature on the Ethernet connector, these are not physically connected to
the rear I/O interface board. Instead, if this interface is used, communication traffic can still be
observed on the front-panel Ethernet connector!

Note:

The single channel Fast Ethernet

option in table C1.10 is either ETH 1

or ETH 2 on the front-panel depending

on the computer platform. If the rear

I/O option is used then the front-panel

connection using the same controller

must not be used. Doing so will

disrupt the communication leading to

spurious results.

Figure C1.8 Fast Ethernet Interface Pinout

81

Table C1.8 Fast Ethernet Connector Signals

Pin No.

1 TX0+

2 TX0-

3 RX0+

4

5

6 RX0-

Ethernet / Fast Ethernet

Signal Description

7

8

©2004 Inova Computers GmbHPage C-10 ICP-P4/PM/CM Appendix-C

Appendix C

C1.9 USB Interface (USB 4)

ITM-RIO

®

Standard to all rear I/O (D) transition modules is the peripheral USB (1.1) port. Figure C1.9 and
Table C1.9 provide the pinout and signal description of this standard Ethernet interface respec­tively.

Figure C1.9 USB Interface Pinout

1234

Table C1.9 USB Connector Signals

Pin No. Signal

1 +5V

2 USB P2-

3 USB P2+

4GND

CompactPCI

C

©2004 Inova Computers GmbH Page C-11ICP-P4/PM/CM Appendix-C

ITM-RIO

Appendix C

C1.10 EIDE Interface

Standard to all rear I/O transition modules is the 3.5” EIDE hard-disk header. This has a standard
(commercial PC) pinout and requires no further mention here.

Note:

To conform with the ATA 5 standard,
only suitable, commercially available

80-strand ribbon cable should be

used. Failure to do so may result in

data transmission errors or even cause

the CPU to crash!

C1.11 Slim-Line Floppy Disk Interface

Standard to all rear I/O transition modules is the slim-line floppy disk header. This has a standard
(commercial PC) pinout and requires no further mention here.

©2004 Inova Computers GmbHPage C-12 ICP-P4/PM/CM Appendix-C

Appendix C

C1.12 ITM-RIO(C&D)-FHLU Extension

ITM-RIO

®

To further enhance the I/O and serviceability of their CPUs, Inova have introduced a rear I/O
module (figure C1.12) that connects to a CompactPCI connector on the rear of the Master Slot on
the backplane. All standard Inova backplanes are equipped with this R2 connector so that even if
the rear I/O functionality is not requested at time of order, it can be implemented at a later stage.

One of the advantages of this module (apart from its obvious size benefit) is its ability to attach a

3.5” IDE device (or Inova IPM-ATA Mass Storage Device) without direct connection to the CPU
base board. This facilitates servicing and allows a CPU for example, to be exchanged without
touching the software stored on the HD. Likewise, a hard-disk can be swapped without having to
disassemble the CPU! Two slim-line (notebook) floppy interfaces are implemented allowing the
module to be compatible with existing Inova PIII CPUs (with RIO(C)) as well as the P4, PM and CM
family.

The integration of USB (1.1) with both the standard connector and notebook style internal con­nector facilitates the integration of commercially available FDs or similar devices. The signal de­scription of the standard connector can be obtained by referring to page C - 11

Figure C1.12 ITM-RIO(C&D)-FHLU

CompactPCI

©2004 Inova Computers GmbH Page C-13ICP-P4/PM/CM Appendix-C

C

ITM-RIO

Appendix C

This page has been left blank intentionally.

©2004 Inova Computers GmbHPage C-14 ICP-P4/PM/CM Appendix-C

Appendix D

IPM-ATA

®

IPM-ATA

IPM-ATA

D1 IPM-ATA CPU Extension .......... D-2

D1.1 rJ2 Interface ............................................................................................ D-2

Figure D1.1a Dedicated IPM-ATA Backplane ............................................................................... D-2

D1.1 rJ2 Interfaces (Contd.) ............................................................................ D-3

Figure D1.1b The Complete Connection Picture .......................................................................... D-3

D1.2 IPM-ATA-HD ........................................................................................... D-4

Figure D1.2 IPM-ATA-HD Board Layout ...................................................................................... D-4

Table D1.2 IPM-ATA-HD Jumper Description (CF Socket) ............................................................. D-4

D1.3 IPM-ATA-CF ............................................................................................ D-5

Figure D1.3 IPM-ATA-CF Board Layout ....................................................................................... D-5

Table D1.3 IPM-ATA-CF Jumper Description ................................................................................ D-5

D1.4 IPM-ATA-PCMCIA ................................................................................... D-6

Figure D1.4 IPM-ATA-PCMCIA Board Layout ............................................................................... D-6

Table D1.4 IPM-ATA-PCMCIA Jumper Description ....................................................................... D-6

D1.5 Device Compatibility .............................................................................. D-7

Table D1.5 Compatibility List ..................................................................................................... D-7

CompactPCI

©2004 Inova Computers GmbH Page D-1ICP-P4/PM/CM Appendix-D

D

IPM-ATA

Appendix D

D1 IPM-ATA CPU Extension

Inova Plug-In Module (IPM-) offers the user the ability to exchange a hard-disk for example with­out having to remove the CPU from the CompactPCI enclosure and then dismantle it etc. Cur­rently, three units exist that provide industry with hard-disk, Compact FLASH, MicroDrive or ATA
PCMCIA format mass storage capability.

D1.1 rJ2 Interface

All IPM-ATA modules possess rJ2 for data communication between the CompactPCI backplane
and the mass storage unit(s) in question. Figure D1.1a illustrates the dedicated IPM-ATA backplane
and connectors.

The IPM-ATA modules can only be
used in CompactPCI systems that have
been prepared for rear I/O or have the

IDE signals available on the rear rP2

connector that are in accordance with

the specification for RIO. In addition,

the rear rP2 CompactPCI connector

must be present.

Figure D1.1a Dedicated IPM-ATA Backplane

Note:

©2004 Inova Computers GmbHPage D-2 ICP-P4/PM/CM Appendix-D

Appendix D

D1.1 rJ2 Interfaces (Contd.)

IPM-ATA

®

Standard 80-pin IDE ribbon-cable is used to connect rJ2 of the ITM-RIO modules to the IPM’s
dedicated backplane. The use of ribbon cable permits the mass-storage device(s) to be positioned
at any convenient location within the CompactPCI enclosure. Figure D1.1b shows the complete
configuration (CompactPCI to IPM-XXX)

Figure D1.1b The Complete Connection Picture

CompactPCI

KEY:

1. IPM-ATA carrier board

2. Dedicated backplane with standard IDE header and power cord interface

3. Y-Cable for bringing the power from the CompactPCI backplane and to this and another device

4. Standard 80-strand, ATA-5 [UDMA-66 or higher] IDE ribbon cable (30cm)

5. Inova rear I/O module (ITM-RIO) with IDE connection

Note:

The IDE cabling used should conform to

at least ATA-5 standards (80-strand)

©2004 Inova Computers GmbH Page D-3ICP-P4/PM/CM Appendix-D

D

IPM-ATA

Appendix D

D1.2 IPM-ATA-HD

The IPM-ATA-HD has provision for one standard notebook (2.5”) EIDE device (FLASH or hard-disk)
and one Compact FLASH or MicroDrive site. Figure D1.2 illustrates the significant connectors for
this device while Table D1.2 indicates the jumper positions for the various Master/Slave device
configurations.

Figure D1.2 IPM-ATA-HD Board Layout

Note:

The hard disk is jumpered seperately for

Master / Slave operation

Table D1.2 IPM-ATA-HD Jumper Description (CF Socket)

Jumper J6

2-3

Open

CompactFlash

or MicroDrive in J3

Master

Slave

1
2
3

It should be noted that the secondary IDE channel (from rear I/O) only is available for use by the
IPM-ATA-HD (the primary is on the CPU board itself). Multi Master or multi Slave configurations
are not supported and will not work!

©2004 Inova Computers GmbHPage D-4 ICP-P4/PM/CM Appendix-D

Appendix D

D1.3 IPM-ATA-CF

IPM-ATA

®

The IPM-ATA-CF has provision for one or two standard Compact FLASH or MicroDrive devices.
Figure D1.3 illustrates the significant connectors for this device while Table D1.3 indicates the
jumper settings for the various Master/Slave device configurations.

Figure D1.3 IPM-ATA-CF Board Layout

1
2
3

Table D1.3 IPM-ATA-CF Jumper Description

Jumper J6 Jumper J7

CompactPCI

2-3 2-3

Open Open

It should be noted that the secondary IDE channel only (from rear I/O) is available for use by the
IPM-ATA-CF (the primary is on the CPU board itself). Multi Master or multi Slave configurations
are not supported and will not work!

CompactFlash

or MicroDrive in J3

Master

Slave

©2004 Inova Computers GmbH Page D-5ICP-P4/PM/CM Appendix-D

CompactFlash

or MicroDrive in J4

Master

Slave

D

IPM-ATA

Appendix D

D1.4 IPM-ATA-PCMCIA

The IPM-ATA-PCMCIA has provision for one standard ATA PCMCIA device and one Compact
FLASH or MicroDrive site. Figure D1.4 illustrates the significant connectors for this device while
Table D1.4 indicates the jumper settings for the various Master/Slave device configurations.

Figure D1.4 IPM-ATA-PCMCIA Board Layout

1
2
3

Table D1.4 IPM-ATA-PCMCIA Jumper Description

Jumper J8 Jumper J6

2-3 2-3

Open Open

It should be noted that the secondary IDE channel only (from rear I/O) is available for use by the
IPM-ATA-PCMCIA (the primary is on the CPU board itself). Multi Master or multi Slave configura­tions are not supported and will not work!

PCMCIA Device in J5

Master

Slave

Note:

CompactFlash

or MicroDrive in J3

Master

Slave

The PCMCIA device cannot and must

not be removed during use. To ex-

change or remove the device, first

power-down the system!

©2004 Inova Computers GmbHPage D-6 ICP-P4/PM/CM Appendix-D

Appendix D

D1.5 Device Compatibility

IPM-ATA

®

Because of the diversity of Compact FLASH devices available with different architectures and error
recovery routines etc. there is a strong possibility that some Master / Slave combinations will fail to
be recognised by the BIOS. To help highlight the problem, Inova have provided the test report
shown in Table D1.5 which should be regarded as a guide when choosing to pick-and-mix de­vices. Should devices other than those from the manufacturers indicated in the table be chosen,
then it may be prudent that Inova be contacted prior to commissioning.

Table D1.5 Compatibility List

Test

1

2

3

4

Position Compact FLASH Card

J3 IBM Microdrive DMDM-10340 Master

J4 Empty -

J3 M-Systems 64MByte Compact FLASH Master

J4 Empty -

J3 IBM Microdrive DMDM-10340 Slave

J4 IBM Microdrive DMDM-10340 Master

J3 IBM Microdrive DMDM-10340 Slave

J4 M-Systems 64MByte Compact FLASH Master

Jumper

Passed

Passed

Passed
(incl. Strip Set Config.)

Passed

Result

5

6 Passed

CompactPCI

J3 IBM Microdrive DMDM-10340 Master

J4 M-Systems 64MByte Compact FLASH Slave

J3 M-Systems 64MByte Compact FLASH Master

J4 IBM Microdrive DMDM-10340 Slave

Note:

This module only supports ATA PCMCIA
cards (memory) and cannot be used with
WLAN, modem, GPS etc. PCMCIA devices.

If one configuration seems not to work,

try swapping Master and Slave.

Failed: M-Systems not
detected in BIOS

D

©2004 Inova Computers GmbH Page D-7ICP-P4/PM/CM Appendix-D

IPM-ATA

Appendix D

This page has been left blank intentionally.

©2004 Inova Computers GmbHPage D-8 ICP-P4/PM/CM Appendix-D

Appendix E

AGP-R7000

®

AGP-R7000

AGP-R7000

E1 AGP-R7000 CPU Extension....... E-2

Table E1.00 AGP Piggyback Configurations ................................................................................. E-2

E1.1 Specifications ........................................................................................... E-3

E1.2 J4 Interface ............................................................................................... E-4

Figure E1.20 J4 on the Underside of the AGP-R7000 Piggyback ................................................... E-4

Table E1.20 J4 Pinout ................................................................................................................. E-5

Table E1.20 J4 Pinout - Contd. .................................................................................................... E-6

E1.3 J3 & J5 IBP-GS-MULTILINK (TFT) Interfaces............................................... E-7

Figure E1.30 J3 and J5 Topside Connectors for the Inova IPB-GS-MULTILINK ................................ E-7

Table E1.30 J3 & J5 Interface Pinout ........................................................................................... E-8

E1.4 J1 Front-Panel VGA/TMDS Interface.......................................................... E-9

Figure E1.40 Standard Front-Panel VGA/TMDS Interface ............................................................. E-9

Table E1.40 J1 Standard Front-Panel VGA/TMDS Pinout .............................................................. E-9

Table E1.41 J2 DIP Switch Settings - Digital TMDS (PanelLink) or DVI-D .................................... E-10

Table E1.42 J2 DIP Switch Settings - TFT (24Bit TTL/CMOS) ...................................................... E-10

E1.5 Rear I/O VGA Interface ........................................................................... E-11

CompactPCI

©2004 Inova Computers GmbH Page E-1ICP-P4/PM/CM Appendix-E

E

AGP-R7000

Appendix E

E1 AGP-R7000 CPU Extension

The AGP-R7000 is an Inova AGP 4x ATI Radeon-based graphic extension for use with the ICP-P4,
ICP-P4(M), ICP-PM and ICP-CM CPUs. By utilizing the power of the ATI Radeon 7000 equipped
with 32MByte of SDRAM, a graphic performance improvement of some 50%
when compared to the on board (chipset) solution. Able to drive analog VGA or PanelLink com­patible monitors directly or connect to the IBP-GS-MULTILINK GigaST)R transmitter with CAN
routing for long-distance digital data transfer, the AGP-R7000 suits the demands of modern indus­trial (automation engineering) applications.

It is fabricated in 2 basic versions: Analog VGA or digital DVI-D (TMDS). Connectors J1, J3 and J5
are explained later in this section.

Table E1.00 AGP Piggyback Configurations

1.)

can be expected

J1

(Front)

CRT 1 - TFT Option 1

CRT 1 CRT 1 TFT Option 2

CRT 1 CRT 2 TFT Option 3

TMDS - TFT Option 4

TMDS CRT 1 TFT Option 5

Rear I/O J3 / J5 Option

Note

The front and/or rear connected display

devices may be configured to show the

same or different (independent) video

content to TFT units by configuring the

driver software.

With the AGP installed, the onboard

(chipset) graphic is disabled.

Options 2 and 5 are preferred (standard).

Option 3, although possible, should only

be selected if CRT 1 is permanently

connected.

1.) OpenGL applications performed 83% faster with the AGP piggyback installed and memory efficiency increased by 14%

©2004 Inova Computers GmbHPage E-2 ICP-P4/PM/CM Appendix-E

Appendix E

E1.1 Specifications

®

Interface AGP 4x (120-pin connector)

Video ATI Radeon with 32MByte RAM
Controller

Screen Options Resolution Colour Depth Refresh
(TFT & VGA) 1920 x 1200 32-bit 72Hz

TMDS 1600 x 1200 24-bit 60Hz

Configuration DIP switch for DDC data or fixed resolution

AGP-R7000

1920 x 1200 16-bit 80Hz
2048 x 1536 16-bit 60Hz

User Interfaces 15-pin D-Sub for front-panel VGA or

Options Front or rear-panel VGA

Software Windows® 2000®, Windows® XP
Support

Power Req. +3.3V (2W), +5V (2W) (typically)

Mass 40g (typically)
Oper. Temp. 0°C to +60°C
Storage Temp. -40°C to +85°C
Humidity 5% to 95% (non-condensing) @ 40°C

Warranty Three-year limited warranty

1)

Two VGA monitors can be connected simultaneously with identical video information on both - the Radeon
graphics engine must be configured accordingly. An alternative is also available where the content appearing
on the 2nd display is different to that of the first. The disadvantage of this configuration is that if a monitor is
not connected to the front-panel (CRT1) the video content cannot be displayed on CRT2 (rear) until the OS has

CompactPCI

been initialised and the video driver initialised. If a BIOS upgrade is required or the settings need to be altered
etc. then, without the CRT on the front-panel, the user will not see anything which makes the task almost
imposible!

2)

This is the only supported mode whereby (independent) video can be produced via the front DVI-D and a rear
connected analog (CRT) device.

15-pin D-Sub for front-panel TMDS (PanelLink)
2x27 pin ZIF connector for TFT (GigaST)R)

1)

Front-panel TMDS and rear-panel VGA

®

2)

Both options support TFT - video content can be selected to be the TMDS or CRT

©2004 Inova Computers GmbH Page E-3ICP-P4/PM/CM Appendix-E

E

AGP-R7000

Appendix E

E1.2 J4 Interface

Communication to and from the host CPU is through J4 (refer to figure E1.20) - the AGP interface.
The video output, as discussed earlier, is hardware configured (at time of purchase) for different front
and rear panel modes - refer to table E1.00. The TFT option (J3/J5) is always present.

The J4 AGP interface on the graphic piggyback is electrically identical to AGP, but has a smaller form
factor and uses a different connector. Table E1.20 shows the pinout of this connector.

Figure E1.20 J4 on the Underside of the AGP-R7000 Piggyback

©2004 Inova Computers GmbHPage E-4 ICP-P4/PM/CM Appendix-E

Appendix E

Table E1.20 J4 Pinout

®

Pin No. Signal Pin No. Signal

11 INTB# 12 SDATA_IN
13 GND 14 INTA#
15 CLK 16 RST#

AGP-R7000

1 USB6+ 2 GND
3 PC_BEEP 4 USB6-

5 VCC3.3 6 AC_RESET#
7 SYNC 8 BITCLK
9 SDATA_OUT 10 VCC5

17 REQ# 18 GND
19 ST0 20 GNT#

21 VCC3.3 22 ST1
23 ST2 24 ­25 RBF# 26 VCC3.3
27 - 28 PIPE#

29 GND 30 WBF#
31 SBA0 32 SBA1
33 SBA2 34 GND
35 SB_STB 36 SBA3

37 VCC3.3 38 SB_STB#
39 SBA4 40 SBA5
41 SBA6 42 VCC3.3
43 AD31 44 SBA7

45 GND 46 AD30

CompactPCI

47 AD29 48 AD28
49 AD27 50 GND
51 AD25 52 AD26
53 VDDQ1.5 54 AD24

55 AD_STB1 56 AD_STB1#
57 AD23 58 VDDQ1.5
59 AD21 60 C/BE3#

©2004 Inova Computers GmbH Page E-5ICP-P4/PM/CM Appendix-E

E

AGP-R7000

Table E1.20 J4 Pinout - Contd.

Pin No. Signal Pin No. Signal

61 GND 62 AD22
63 AD19 64 AD20

65 AD17 66 GND
67 C/BE2# 68 AD18
69 VDDQ1.5 70 AD16

71 IRDY# 72 FRAME#
73 DEVSEL# 74 VDDQ1.5
75 - 76 TRDY#

Appendix E

77 GND 78 STOP#
79 PERR# 80 PME#

81 SERR# 82 GND
83 C/BE1# 84 PAR
85 VDDQ1.5 86 AD15
87 AD14 88 AD13

89 AD12 90 VDDQ1.5
91 AD10 92 AD11
93 GND 94 AD9
95 AD8 96 C/BE0#

97 AD_STB0 98 GND

99 AD7 100 AD_STB0#
101 VDDQ1.5 102 AD6
103 AD5 104 AD4

105 AD3 106 VDDQ1.5
107 AD1 108 AD2
109 GND 110 AD0
111 VREFCG 112 VREFGC
113 VGA_R 114 GND

115 VGA_G 116 HSYNC
117 GND 118 VSYNC
119 VGA_B 120 VB_EN

©2004 Inova Computers GmbHPage E-6 ICP-P4/PM/CM Appendix-E

Appendix E

E1.3 J3 & J5 IBP-GS-MULTILINK (TFT) Interfaces

AGP-R7000

®

To address an almost unlimited number of cascaded digitally connected (GigaST)R) TFT displays
with optional CAN control and PanelLink Slave connectivity, the Inova GigaST)R transmitter pig­gyback, IPB-GS-MULTILINK needs to be installed adjacent to the AGP piggyback. This connection
is made through connectors J3 and J5 on the upper side of the piggyback as shown in figure
E1.30. Table E1.30 gives the pinout of these two connectors.

The settings of the DIP switch (J2) are explained later.

Figure E1.30 J3 and J5 Topside Connectors for the Inova IPB-GS-MULTILINK

CompactPCI

Also visible on the upper side of this piggyback are three labels - one (Label 1) shows the name of
the board, the second shows the product bar code (with manufacturing details, lot number and
ID number) and the third (Label 3) carries the revision number. The board revision is also printed
on the PCB.

©2004 Inova Computers GmbH Page E-7ICP-P4/PM/CM Appendix-E

E

AGP-R7000

Table E1.30 J3 & J5 Interface Pinout

J3 Connector J5 Connector

Pin No. Signal Pin No. Signal

1 D16_R0 1 D0_B0
2 D17_R1 2 D1_B1
3 GND 3 GND
4 D18_R2 4 D2_B2

5 D19_R3 5 D3_B3
6 GND 6 GND
7 D20_R4 7 D4_B4

Appendix E

8 D21_R5 8 D5_B5

9 GND 9 GND
10 D22_R6 10 D6_B6
11 D23_R7 11 D7_B7
12 GND 12 GND

13 CLK 13 D8_G0
14 GND 14 D9_G1
15 DE 15 GND
16 GND 16 D10_G2

17 HSYNC 17 D11_G3
18 GND 18 GND
19 VSYNC 19 D12_G4
20 GND 20 D13_G5

21 GND 21 GND
22 GND 22 D14_G6
23 VCC3.3 23 D15_G7
24 VCC3.3 24 VCC5.0

25 VCC3.3 25 VCC5.0
26 VCC3.3 26 VCC5.0
27 VCC3.3 27 VCC5.0

Information on the GigaSTAR IPB-GS-MULTILINK can be found in the respective documentation.

©2004 Inova Computers GmbHPage E-8 ICP-P4/PM/CM Appendix-E
