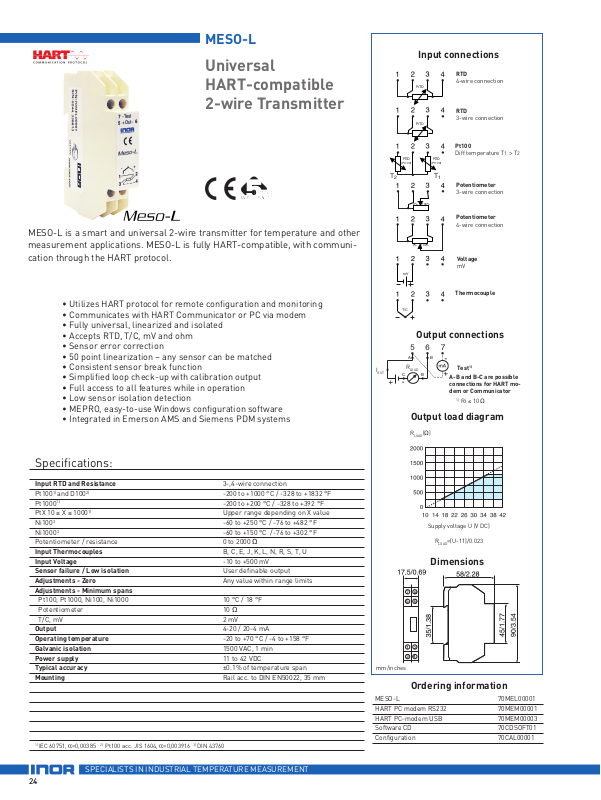

INOR MESO-L Specifications

24

24

MESO-L

T

1

T

2

mV

RTD

(Pt100)

T/C

RTD

100%

0%

RTD

RTD

(Pt100)

100%

0%

A

B

B

C

1

2

4

3

5

6

7

8

SPECIALISTS IN INDUSTRIAL TEMPERATURE MEASUREMENT

Universal
HART-compatible

Input connections

RTD

4-wire connection

2-wire Transmitter

MESO-L is a smart and universal 2-wire transmitter for temperature and other
measurement applications. MESO-L is fully HART-compatible, with communi­cation through the HART protocol.

• Utilizes HART protocol for remote conguration and monitoring

• Communicates with HART Communicator or PC via modem

• Fully universal, linearized and isolated

• Accepts RTD, T/C, mV and ohm

• Sensor error correction

• 50 point linearization – any sensor can be matched

• Consistent sensor break function

• Simplied loop check-up with calibration output

• Full access to all features while in operation

• Low sensor isolation detection

• MEPRO, easy-to-use Windows conguration software

• Integrated in Emerson AMS and Siemens PDM systems

RTD

3-wire connection

Pt100

Diff temperature T1 > T2

Potentiometer

3-wire connection

Potentiometer

4-wire connection

Voltage

mV

Thermocouple

Output connections

R

I

OUT

LOAD

1)

Test

A-B and B-C are possible
connections for HART mo­dem or Communicator

1)

Ri ≤ 10 Ω

Output load diagram

R

(Ω)

LOAD

Specications:

Input RTD and Resistance 3-,4-wire connection

1)

Pt100

and D1002) -200 to +1000 °C / -328 to +1832 °F
Pt10001) -200 to +200 °C / -328 to +392 °F
PtX 10 ≤ X ≤ 10001) Upper range depending on X value

3)

Ni100

3)

Ni1000
Potentiometer / resistance 0 to 2000 Ω

Input Thermocouples B, C, E, J, K, L, N, R, S, T, U
Input Voltage -10 to +500 mV
Sensor failure / Low isolation User denable output
Adjustments - Zero Any value within range limits
Adjustments - Minimum spans

Pt100, Pt1000, Ni100, Ni1000 10 °C / 18 °F
Potentiometer 10 Ω
T/C, mV 2 mV

Output 4-20 / 20-4 mA
Operating temperature -20 to +70 °C / -4 to +158 °F
Galvanic isolation 1500 VAC, 1 min
Power supply 11 to 42 VDC
Typical accuracy ±0.1% of temperature span
Mounting Rail acc. to DIN EN50022, 35 mm

1)

IEC 60751, α=0,00385

-60 to +250 °C / -76 to +482 °F

-60 to +150 °C /-76 to +302 °F

2)

Pt100 acc. JIS 1604, α=0,003916

3)

DIN 43760

Supply voltage U (V DC)

R

=(U-11)/0.023

LOAD

Dimensions

mm/inches

Ordering information

MESO-L 70MEL00001
HART PC modem RS232 70MEM00001
HART PC-modem USB 70MEM00003
Software CD 70CDSOFT01
Conguration 70CAL00001
