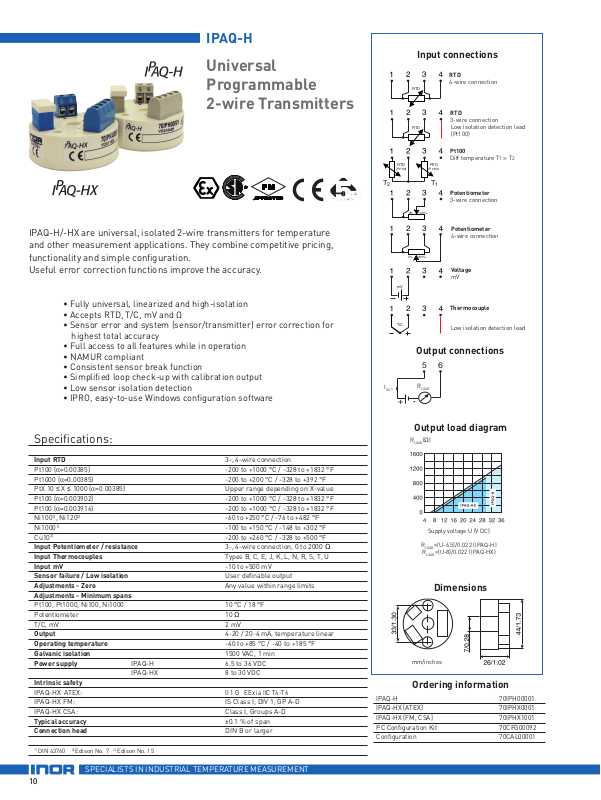

IPAQ-H
SPECIALISTS IN INDUSTRIAL TEMPERATURE MEASUREMENT
Universal
Programmable

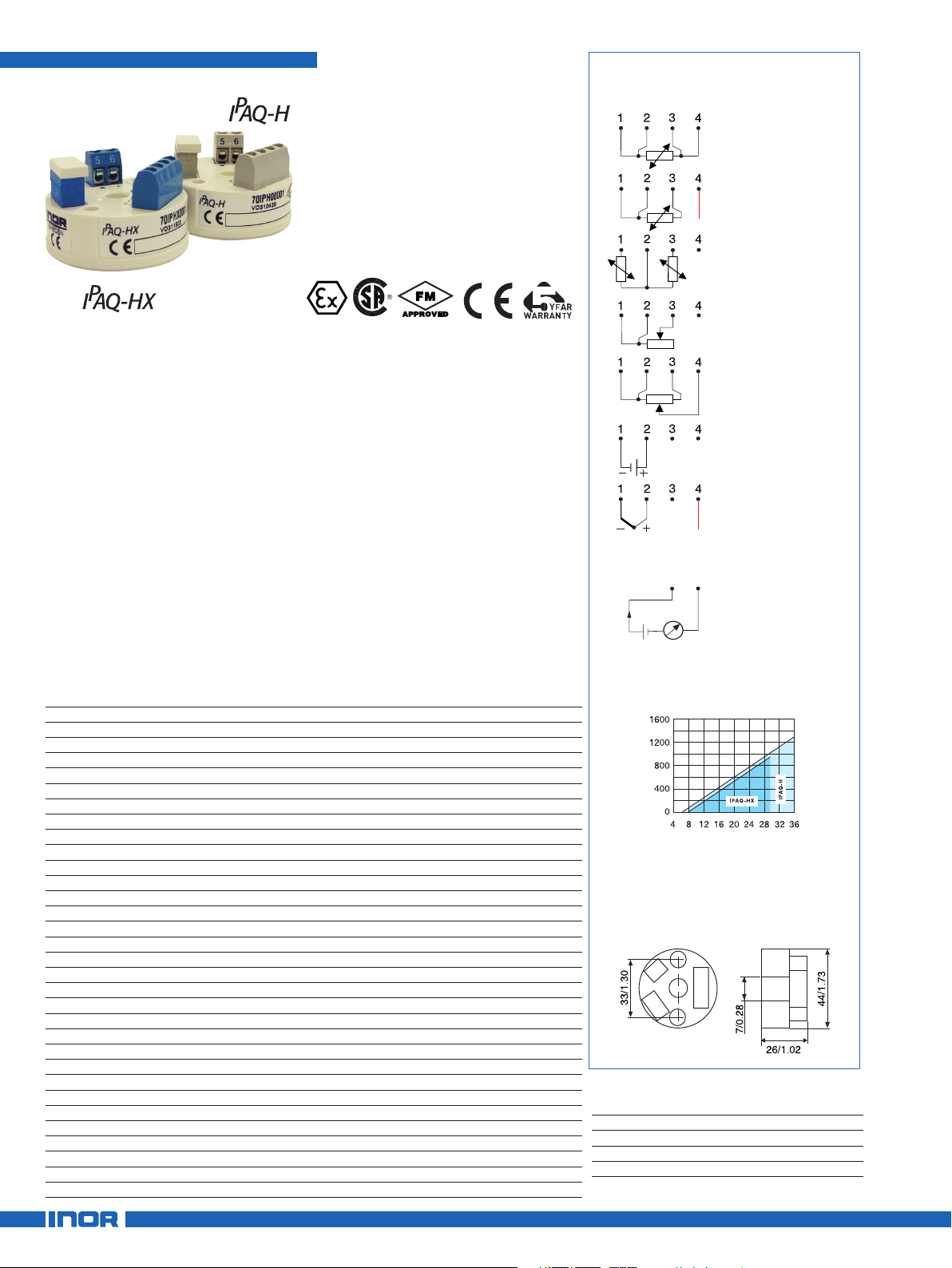

Input connections
RTD
4-wire connection
2-wire Transmitters
IPAQ-H/-HX are universal, isolated 2-wire transmitters for temperature
and other measurement applications. They combine competitive pricing,
functionality and simple conguration.
Useful error correction functions improve the accuracy.
• Fully universal, linearized and high-isolation
• Accepts RTD, T/C, mV and Ω
• Sensor error and system (sensor/transmitter) error correction for
highest total accuracy
• Full access to all features while in operation
• NAMUR compliant
• Consistent sensor break function
• Simplied loop check-up with calibration output
• Low sensor isolation detection
• IPRO, easy-to-use Windows conguration software
RTD
3-wire connection
Low isolation detection lead
(Pt100)
Pt100
Diff temperature T1 > T2
Potentiometer
3-wire connection
Potentiometer
4-wire connection
Voltage
mV
Thermocouple
Low isolation detection lead
Output connections
I
OUT
R
LOAD
Output load diagram
R
Specications:
Input RTD 3-, 4-wire connection
Pt100 (α=0.00385) -200 to +1000 °C / -328 to +1832 °F
Pt1000 (α=0.00385) -200 to +200 °C / -328 to +392 °F
PtX 10 ≤ X ≤ 1000 (α=0.00385) Upper range depending on X-value
Pt100 (α=0.003902) -200 to +1000 °C / -328 to +1832 °F
Pt100 (α=0.003916) -200 to +1000 °C / -328 to +1832 °F
Ni1001), Ni1202) -60 to +250 °C / -76 to +482 °F
Ni10001) -100 to +150 °C / -148 to +302 °F
Cu103) -200 to +260 °C / -328 to +500 °F
Input Potentiometer / resistance 3-, 4-wire connection, 0 to 2000 Ω
Input Thermocouples Types B, C, E, J, K, L, N, R, S, T, U
Input mV -10 to +500 mV
Sensor failure / Low isolation User denable output
Adjustments - Zero Any value within range limits
Adjustments - Minimum spans
Pt100, Pt1000, Ni100, Ni1000 10 °C / 18 °F
Potentiometer 10 Ω
T/C, mV 2 mV
Output 4-20 / 20-4 mA, temperature linear
Operating temperature -40 to +85 °C / -40 to +185 °F
Galvanic isolation 1500 VAC, 1 min
Power supply IPAQ-H 6.5 to 36 VDC
IPAQ-HX 8 to 30 VDC
Intrinsic safety
IPAQ-HX ATEX:
II 1 G EEx ia IIC T4-T6
IPAQ-HX FM: IS Class I, DIV 1, GP A-D
IPAQ-HX CSA: Class I, Groups A-D
Typical accuracy ±0.1 % of span
Connection head DIN B or larger
1)
DIN 43760
2)
Edison No. 7
3)
Edison No. 15
IPAQ-H 70IPH00001
IPAQ-HX (ATEX) 70IPHX0001
IPAQ-HX (FM, CSA) 70IPHX1001
PC Conguration Kit 70CFG00092
Conguration 70CAL00001
(Ω)
LOAD
Supply voltage U (V DC)
R
=(U-6.5)/0.022 (IPAQ-H)
LOAD
R
=(U-8)/0.022 (IPAQ-HX)
LOAD
Dimensions
mm/inches
Ordering information
