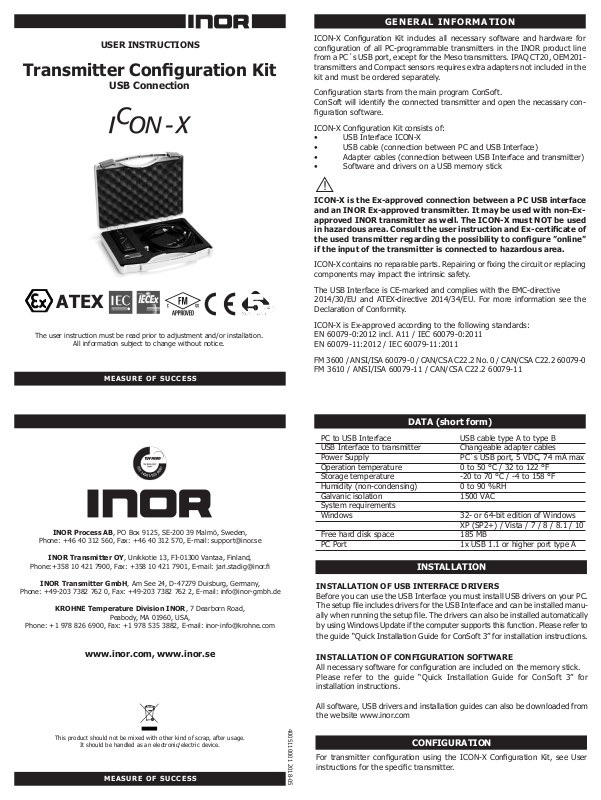

INOR ICON-X Operating Manual

USER INSTRUCTIONS

Transmitter Conguration Kit

USB Connection

ATEX

The user instruction must be read prior to adjustment and/or installation.

All information subject to change without notice.

MEASURE OF SUCCESS

GENERAL INFORMATION

ICON-X Conguration Kit includes all necessary software and hardware for
conguration of all PC-programmable transmitters in the INOR product line
from a PC´s USB port, except for the Meso transmitters. IPAQ CT20, OEM201­transmitters and Compact sensors requires extra adapters not included in the
kit and must be ordered separately.

Conguration starts from the main program ConSoft.
ConSoft will identify the connected transmitter and open the necassary con­guration software.

ICON-X Conguration Kit consists of:

• USB Interface ICON-X

• USB cable (connection between PC and USB Interface)

• Adapter cables (connection between USB Interface and transmitter)

• Software and drivers on a USB memory stick

!

ICON-X is the Ex-approved connection between a PC USB interface
and an INOR Ex-approved transmitter. It may be used with non-Ex­approved INOR transmitter as well. The ICON-X must NOT be used

in hazardous area. Consult the user instruction and Ex-certicate of
the used transmitter regarding the possibility to congure ”online”

if the input of the transmitter is connected to hazardous area.

ICON-X contains no reparable parts. Repairing or xing the circuit or replacing
components may impact the intrinsic safety.

The USB Interface is CE-marked and complies with the EMC-directive
2014/30/EU and ATEX-directive 2014/34/EU. For more information see the
Declaration of Conformity.

ICON-X is Ex-approved according to the following standards:
EN 60079-0:2012 incl. A11 / IEC 60079-0:2011
EN 60079-11:2012 / IEC 60079-11:2011

FM 3600 / ANSI/ISA 60079-0 / CAN/CSA C22.2 No. 0 / CAN/CSA C22.2 60079-0
FM 3610 / ANSI/ISA 60079-11 / CAN/CSA C22.2 60079-11

INOR Process AB, PO Box 9125, SE-200 39 Malmö, Sweden,

Phone: [phone], Fax: [phone], E-mail: [e-mail]

INOR Transmitter OY, Unikkotie 13, FI-01300 Vantaa, Finland,

Phone:[phone], Fax: [phone], E-mail: jari.stadig@inor.

INOR Transmitter GmbH, Am See 24, D-47279 Duisburg, Germany,

Phone: [phone], Fax: [phone], E-mail: [e-mail]

KROHNE Temperature Division INOR, 7 Dearborn Road,

Phone: [phone], Fax: [phone], E-mail: [e-mail]

Peabody, MA 01960, USA,

www.inor.com, www.inor.se

This product should not be mixed with other kind of scrap, after usage.

It should be handled as an electronic/electric device.

MEASURE OF SUCCESS

DATA (short form)

PC to USB Interface USB cable type A to type B
USB Interface to transmitter Changeable adapter cables
Power Supply PC´s USB port, 5 VDC, 74 mA max
Operation temperature 0 to 50 °C / 32 to 122 °F
Storage temperature -20 to 70 °C / -4 to 158 °F
Humidity (non-condensing) 0 to 90 %RH
Galvanic isolation 1500 VAC
System requirements
Windows 32- or 64-bit edition of Windows
XP (SP2+) / Vista / 7 / 8 / 8.1 / 10
Free hard disk space 185 MB
PC Port 1x USB 1.1 or higher port type A

INSTALLATION

INSTALLATION OF USB INTERFACE DRIVERS

Before you can use the USB Interface you must install USB drivers on your PC.
The setup le includes drivers for the USB Interface and can be installed manu­ally when running the setup le. The drivers can also be installed automatically
by using Windows Update if the computer supports this function. Please refer to

the guide “Quick Installation Guide for ConSoft 3” for installation instructions.

INSTALLATION OF CONFIGURATION SOFTWARE

All necessary software for conguration are included on the memory stick.
Please refer to the guide “Quick Installation Guide for ConSoft 3” for
installation instructions.

All software, USB drivers and installation guides can also be downloaded from
the website www.inor.com

4005110001 2018-05

CONFIGURATION

For transmitter conguration using the ICON-X Conguration Kit, see User
instructions for the specic transmitter.

1.

2.

4. 5. 6.

3.

DESCRIPTION USB INTERFACE

The USB Interface is powered from the PC´s USB port.
There are three LED indicators on the USB Interface: “USB”, “PC” and “DEV”.
They are indicators to make the understanding of the communication between
PC and transmitter easier. Their functions are described below:

• “USB” LED indicates data transfer. It lights during data transfer, other­ wise it is off.

• “PC” LED indicates connection between Conguration program and PC.
When conguration is made from IPRO, MinIPAQ Soft or ProSoft, it is
green when the conguration program is open. With all other congura-
tion programs it is green only during reading or writing to transmitter.

• “DEV” LED indicates the transmitter connection status.
If it’s green, the connected transmitter is detected by the USB Inter­ face. Flashing green indicates that the USB Interface is waiting for a
new transmitter from the same product family, e.g. changing to a new
device. When it´s red no transmitter is detected by the USB Interface
and any sort of transmitter can be connected to the USB Interface.

SAFETY DIAGRAM

Hazardous Area Safe Area

Sensor
(e. g. temperature)

Transmitter
(e.g. temperature)

ICON-X

Ex-approved
Power Supply /
Zener barrier

CONTENTS

1. USB communication cable (connection between PC and USB Interface).

2. USB Interface ICON-X

3. Mini USB to Mini USB adapter (USB Interface to Transmitter)

4. Mini USB to four pole rectangular connector (USB Interface to
transmitter)

5. Mini USB to 3,5 mm tele plug connector (USB Interface to transmitter)

6. Mini USB to three pole rectangular connector (USB Interface to
transmitter)

NAMEPLATE

Um 250 V AC/DC
0 Ta +50 °C

PO Box 9125

SE-200 39 Malmö

USA FM17US0117X
Canada 17CA0056X
AIS CL I DIV 1 GP ABCD
CL I ZN 0 [AEx/Ex ia Ga] IIC

SWEDEN

Per Control Drawing
No. 4006801801

www.inor.com

PN: 70USBIX001
SN: Nyyww.xxxxxx
PO: ZZZZZZZZZ

0539 II (1)G [Ex ia Ga] IIC
KIWA 16ATEX0011X
IECEx KIWA 16.0005X

WARNING: SUBSTITUTION OF COMPONENTS MAY IMPAIR INTRINSIC SAFETY

LIMITED WARRANTY

INOR Process AB, or any other afliated company within the Inor Group (hereinafter
jointly referred to as ”Inor”), hereby warrants that the Product will be free from defects
in materials or workmanship for a period of ve (5) years from the date of delivery
(”Limited Warranty”). This Limited Warranty is limited to repair or replacement at
Inor’s option and is effective only for the rst end-user of the Product. Upon receipt
of a warranty claim, Inor shall respond within a reasonable time period as to its
decision concerning:
1 Whether Inor acknowledges its responsibility for any asserted defect in
materials or workmanship; and, if so,
2 the appropriate cause of action to be taken (i.e. whether a defective
product should be replaced or repaired by Inor).
This Limited Warranty applies only if the Product:
1 is installed according to the instructions furnished by Inor;
2 is connected to a proper power supply;
3 is not misused or abused; and
4 there is no evidence of tampering, mishandling, neglect, accidental damage,
modication or repair without the approval of Inor or damage done to
the Product by anyone other than Inor.

This Limited Warranty is provided by Inor and contains the only express war­ranty provided.

INOR SPECIFICALLY DISCLAIMS ANY EXPRESS WARRANTY NOT
PROVIDED HEREIN AND ANY IMPLIED WARRANTY, GUARANTEE
OR REPRESENTATION AS TO SUITABILITY FOR ANY PARTICULAR
PURPOSE, PERFORMANCE, QUALITY AND ABSENCE OF ANY HIDDEN
DEFECTS, AND ANY REMEDY FOR BREACH OF CONTRACT, WHICH BUT
FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION, OPERATION
OF LAW, CUSTOM OF TRADE OR COURSE OF DEALING, INCLUDING
IMPLIED WARRANTIES OF MER-CHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. EXCEPT AS PROVIDED HEREIN,
INOR FURTHER DISCLAIMS ANY RESPONSIBILITY FOR LOSSES,
EXPENSES, INCONVENIENCES, SPECIAL, DIRECT, SECONDARY OR
CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP OR USE
OF THE PRODUCT.

Products that are covered by the Limited Warranty will either be repaired or replaced
at the option of Inor. Customer pays freight to Inor, and Inor will pay the return
freight by post or other “normal” way of transport. If any other type of return freight
is requested, customer pays the whole return cost.

Part number
Serial number (yyww=year and week of manufacturing)
Batch number

TRANSMITTER COMMUNICATION

The following transmitters have to be connected to

!

a power supply before communication: IPAQ-H/-HX,
IPAQ-L/-LX, IPAQ-4L, ProfIPAQ-H/-HX and ProfIPAQ-L

1. After installing the drivers for the USB interface and conguration soft­ ware, connect the USB cable and the USB interface to a free USB port
of your PC.

2. Connect the transmitter to the USB interface with a suitable Mini USB
cable.

3. Start up the ConSoft program.

4. Click on the “Read Project” button. ConSoft will connect to the
transmitter and open a relevant window for transmitter conguration.

5. A new transmitter can at any time be connected, without restarting
ConSoft, by clicking on “Read from transmitter”.

Ex-DATA

0539 II (1)G [Ex ia Ga] IIC Uo : 9.4 V
KIWA 16ATEX0011X Io : 96 mA
IECEx KIWA 16.0005X Po : 0.68 W
Um : 250 V AC/DC
USA – FM17US0117X
Canada – FM17CA0056X
AIS CL I, Div 1 and 2, GP A-D,
CL I, Zn 0, 1 and 2, [AEx/Ex ia Ga] IIC

ORDERING INFORMATION

Item Part No.

ICON-X Conguration Kit Ex 70CFGUSX01
