MODEL : QUICK 3
USER GUIDE MANUAL
EN 6100-6-3:2007 + A1
3
EN 6100-6-1:2007
Table of Contents:
QUICK 3 Features .....…....…………........….……………………………….………3
QUICK 3 Main Parts .........................................................................................4-5
Warnings & General information ..………........……….…..........………........…6-7
Serial Number ……………………….……..………………….......…………………...8
Opening & Folding QUICK 3 ...………………………....……......…..………….9-15
Operation ..………………………………………………………………………....…16
Charging & Battery .....……………………………………………….….…..………17
Throttle ............................................................................................................18-21
Safety / Tires air pressure …....……………...….…………………………......….....22
Driving Technique .......……….....................…………...……...…........................23
New App .......…………………….................…………...……...…........................24
QUICK 3 Quick Maintenance ..........................................................................25
Flat Tire Repair Instruction ..…………………….....…………..……….........…27-35
Removing Rear Plastic Covers .....................................................................28
Disconnecting Motor Connectors .............................................................29
Removing Rear Motorized Wheel ..........................................................30-31
Replacing Flat Tyre Tube ........................................................................32-33
Reassembling Rear Wheel ..........................................................................34
Plastic Covers Assembly ...............................................................................35
1
QUICK 3 APPEARANCE
2
NEW SMARTPHONE APP
QUICK FOLDING
MECHANISM
SELF LOCKING /
RELEASE BUTTON
LITHIUM ION
BATTERY 48V-13Ah
ALUMINIUM DECK
QUICK 3 FEATURES
NEW FOLDING BAR SYSTEM
EVA GRIPS
Throttle
with LCD display and functions
REAR DISC BRAKE LEVER
FRONT BRAKE LEVER
HEIGHT ADJUSTABLE HANDLEBARS
QUICK RELEASE
ANTI SKID GRIPS
MUDGUARD
NEW REAR REFLECTOR
WITH LIGHT
AUTO MOTOR CUT OFF REAR DISC BRAKE
EFFICIENT INTEGRAL
BRUSHLESS HUB MOTOR
by MYWAY
BATTERY CHARGER
CONNECTOR
KICKSTAND
CARRY HANDLE
3
NEW REFLECTIVE
HEADLIGHTS
FRONT V-BRAKES
ORIGINAL ALLOY
by MYWAY
WHEEL
10 INCH PNEUMATIC
REMOVABLE FOR
MAINTENANCE
TYRES
ACCESSIBILITY
QUICK 3 MAIN PARTS
QUICK FOLDING MECHANISM
SELF LOCKING / RELEASE M BUTTON
ALUMINIUM DECK WITH CARRY HANDLE + ANTI SKID GRIPS
INOKIM WHEEL MOTOR
REAR DISC BRAKE
BATTERY CHARGER CONNECTOR
4
QUICK 3 MAIN PARTS
MAINTENANCE PLASTIC COVER
FRONT BRAKE LEVER / REAR DISC BRAKE LEVER
SPEED CONTROL THROTTLE
WITH LCD DISPLAY
QUICK RELEASE
KICKSTAND
5
WARNINGS & GENERAL INFORMATION
READ THIS MANUAL
IMPORTANT INFORMATION
WHY IS IT NECESSARY TO READ THIS USER MANUAL ?
This Manual was written to help you understand the proper use and
maintenance of INOKIM.
It is important for you to understand your new INOKIM; its features
every ride.
remote location, without any obstacles.
INOKIM needs a short period for all moving parts such as hinges
and brakes to adjust themselves into their correct position.
WARNING !
The responsibility for INOKIM maintenance is yours, and
will help reduce risks of injuries.
Therefore, read this manual and follow it's instructions, they
will help you avoid these risks.
6
WARNINGS & GENERAL INFORMATION
PLEASE NOTICE
INOKIM is not liable for incidental damages or consequential
damages due directly or indirectly to the use of this product.
BEFORE RIDING:
Ensure that the M button is inserted all the way in to the middle
folding mechanism/bridge.
GENERAL WARNING
•
Always follow the local laws and regulations.
• Never ride your scooter in conditions of poor visibility.
• Do not do stunts, wheelies or jumps. They will increase your
chances of injury and damage your INOKIM.
• Never carry passengers.
7
SERIAL NUMBER
RECORD SERIAL NUMBERS:
Write down the serial number of your INOKIM. Keep this information
separately and in a safe place.
Each INOKIM has a unique serial number. These numbers can provide
information that may be useful later on for insurance claims and in case
of loss or theft.
1. The number is on the top of the board, on the side of the front wheel.
2. Note the serial number and keep it in a safe place.
8
OPENING AND FOLDING INOKIM
9
STEP 1
A. Slightly lift steering bar to
release weight
OPENING INOKIM
B. Pull Out M BUTTON
IMPORTANT NOTE !
one hand in a far point from the folding mechanism to create a
opening mechanism, meanwhile creating a gentle pull on the
M button in the other hand.
At the right point of no pressure the mechanism will be released and
the M button will come out easily. That will enable the folding of the
handlebar. INOKIM's patent for quick and steady locking is based on
exact pressures.
Imprudence in this act will harm and cause wear to the folding
system.
10
ni dor gnireetS eht dloh ,)nottub kcol( nottub M eht esaeler oT
STEP 2
the folding mechanism
STEP 3
OPENING INOKIM
B. Visually check that
M BUTTON
is inserted all the way in
CLICK
A. Unfold T-Bar
NOTICE:
Before driving you must ensure that the M button is inserted all
the way in to the central folding mechanism. Otherwise you risk
injuring yourself and damaging the folding system !
11
STEP 4
Unfold handlebars and lock
them with the RED side rings
OPENING INOKIM
12
STEP 5
OPENING INOKIM
A. Open Quick Release
B. Pull Handle bar up to
adjust height
C. Lock Quick Release
13
FOLDING QUICK 3
STEP 1
The telescopic steering rod: Start by opening the quick release, slide
the top steering rod into the main steering rod (where the INOKIM
logo is written) and lock the Quick Release.
A. Open Quick Release
B. Slide Handle Bar down
C. Lock Quick Release
NOTICE:
INOKIM has a unique folding mechanism, which enables a quick
and easy fold for carrying, transportation and storage.
14
FOLDING QUICK 3
STEP 2
Folding of the steering system is achieved by pulling out the M button
and folding the steering rod towards the rear wheel till you hear a
M button is inserted all the way in, both positions.
A. Push Steering pole Forward
B. Pull Out M Button
C. Fold back the Steering Part
until it's locked in it's place
You may fold INOKIM more compact by folding T-bar as well at any
stage of the folding process.
15
OPERATION
BATTERY:
Do not operate motor while charging!
•
• Indicator lights in the throttle are intended only for general
knowledge (full /empty) and does not give a precise indication to
the battery status.
• Do not store INOKIM for long terms (more than two months) with fully
charged battery.
• From time to time discharge and fully charge the battery.
DO NOT USE THE BATTERY IF THE BOARD:
• Is Broken
• Emits an unusual odour or excessive heat
• Presents any leakage.
Avoid contact with substance oozing from the battery.
Keep the battery away from children and pets. Exposure to the
battery voltage can cause death or serious injury.
limits may result in the annulment of the warranty, battery damage,
and an ineffective battery charging.
16
OPERATION
CHARGING AND BATTERY:
Your INOKIM has an external charger. Connect the charging cable
to INOKIM's charging socket under the footboard, on the right side at
the rear.
Than connect the chargers electric cable to an electrical outlet.
Charging Light Red - Battery is charging.
Charging Light Green - Charging is complete.
Avoid long periods of time with an uncharged or fully charged
battery.
To maximize your INOKIM's battery performance, fully charge it for 9
hours, once a month, or after each use of twelve hours.
Unplug INOKIM from the outlet before installing, removing the battery
or performing any maintenance. It is dangerous to work on INOKIM
when plugged into an AC outlet. Electrical shock can cause serious
injury and damage the scooter.
Do not attempt to open the battery. Do not insert anything in the
battery and do not attempt to open its case with any tool. Inserting
an object into openings or in the battery can cause electrical
damage it and cause release of dangerous toxic substances.
Charge the battery only using tools approved by INOKIM.
Remove the battery and carry INOKIM according to all applicable
local and national requirements.
17
THROTTLE OPERATION
LCD DISPLAY THROTTLE FUNCTIONS
• travel speed
• cruise control
• distance
• battery status
• speed mode
• Total trip
• background light
• automatic power-off
• ODO
THROTTLE BUTTONS INTRODUCTION
18
button
ON/OFF button
button
ACCELERATE thumb button
THROTTLE OPERATION
THROTTLE POWER ON
Pressing to power the scooter on.
THROTTLE POWER OFF
Press for three seconds to shut down the system.
AUTO OFF
automatically shut down.
DRIVE / SPEED CONTROL
Start twisting the thumb throttle with your thumb for accelerating.
Max twisting angle 60 ° for full speed.
19
SPEED MODE
When power on
THROTTLE OPERATION
the default display is mode (appear at top right).
You may change it using the buttons.
Speed mode: this function is to limit the maximum
speed of the scooter, either for a beginner user or
for more accurate riding in a crowded surrounding:
SPEED
• speed mode 3 - using full throttle will gain maximum
speed of the scooter, 25KM/H at default.
• speed mode 2 - using full throttle, will gain 70% of scooter top speed.
• speed mode 1 - using full throttle, the maximum speed will be under10 KM/H
DISPLAY MODES
To enter the display modes setings :
Touch buttons for 2 seconds will enter in the .
Press to switch between modes
Long press will back to normal function menu.
• LCD BACKLIGHT ( )
When power is on, you can open or close the LCD backlight by long press
There are 3 levels for different LCD brightness.
Press to change level from 1 to 3 (low/middle/high).
Long touch to save settings.
Short touch to enter second mode.
• SPEED LIMIT MODE (second mode)
Default and highest speed 25KM/H at full throttle.
Press or buttons to change speed limit number.
Long touch to save setting.
Short touch to enter third mode.
20
DISPLAY MODES
• CRUISE CONTROL (third mode)
The default setting is Cruise Control off (letter "n" to indicate).
Press or to choose enable Cruise Control
(Letter "Y" to indicate).
Long touch to save setting.
Short touch to enter forth mode.
SET KM OR MILE(forth mode)
The default setting is km/h(letter “0” to indicate).
Press + or - to change to km or mile(letter “1” indicate mile).
Long touch to save setting.
The default setting is photocell on(letter “Y” to indicate).
Press + or - to choose disable photocell(letter “n” to indicate).
sserp ,”Y“ si rettel nehW
value is 510. Press +/- to turn up/down the value. After saving setting, the
front & rear LED lights will turn on automatically if the ambient photographic
is lower than set value. Otherwise the lights will be off.
Long touch to save setting.
Short touch
• TRIP RESET
Reset TRIP by long press
OTHER DISPLAY MODES ARE:
• TRIP- your trip distance since your last trip reset. Press to swap.
• ODO - your scooter total distance since its factory assembled,
or new / repaired battery was placed.
• Battery voltage - Your battery state.
• Error - your system has encountered an error, please contact your local
21
THROTTLE OPERATION
CRUISE CONTROL
Wile riding at full speed for more then Ten (10) seconds, the Cruise Control will
safety reasons).
When Cruise Control is operated, you can release your thumb from the throttle
and the scooter will continue to ride at full speed.
To slow down, simply apply pressure on one of the brake levers or press the
throttle again, the Cruise Control will be turned off.
When riding with cruise control and braking, Cruise Control system powers off.
WARNING!
Please be aware that when using Cruise Control system,
releasing your thumb from the throttle will not slow you down,
WARNING !
Certain countries or regions require safety devices or gear. It is
your responsibility to know the state laws, and follow them.
22
SAFETY
TIRES AIR PRESSURE
Air pressure in tires: 35psi to 40psi.
SAFETY GEAR
Helmet: most serious injuries that occur while riding are head injuries.
This could have been prevented if a helmet had been worn.
You must wear a helmet while riding your QUICK 3 . The helmet must be
worn according to its instructions.
MECHANICAL SAFETY TESTS:
Before using QUICK 3 : Perform a visual inspection that all screws and
nuts are tight and in place. Note if anything looks amiss, or is showing
signs of wear. If you are unsure, bring your QUICK 3 to the authorized
distributor.
Tires and wheels: check the tires for signs of wear. To do this- spin them
to make sure that they are not yet in the need of replacing. Make sure
that the wheels are freely rotating from the brakes. If not, take
QUICK 3 to the authorized distributor.
Before each ride, always check your brakes and mechanical function.
TIP
As you accelerate, lean forwards.
As you brake, tilt your weight backwards !
23
DRIVING TECHNIQUE
SAFE DRIVING:
obstacles to disturb you so you can get to know your QUICK 3 before
driving it.
DRIVING TECHNIQUE:
Foot Position - before riding out your foot as close as possible to the
front section of the scooter and your other foot on the ground. Make
sure that your driving route is clear.
To start riding propel yourself forwards (as on non-motorized scooters)
with your foot that is on the ground.
Immediately after press the thumb throttle downwards and tilt your
body forward so you won’t fall backwards during acceleration. Quick
3 will be in motion.
Avoid leaning on the handle bars during acceleration and
deceleration!
Keep one foot behind the other. For stability and comfort, place one
foot forward and the other turned sideways at a 70-90 degree angle
(like on a skateboard/surfboard).
DRIVING TECHNIQUE:
Turns - The turns on INOKIM are done as on skateboard/snowboard.
The handlebar should be parallel to the body. Before turning look at
the approaching direction and make sure turning is safe.
Braking - Tilt your weight backwards so that the brake action will
come through the feet and not trough the handlebar and steering
system.
It is best to learn how to adjust your centre of gravity whilst
stopping otherwise there is a dual concern: forward turning over
(a "Stopy") and/or wear and tear of the handlebar and steering
system.
24
NEW APP
DOWNLOA D IN O KIM APPLI CATION
search for our app on your smartphone : INOKIM
25
INOKIM QUICK MAINTENANCE
26
INOKIM QUICK MAINTENANCE
INOKIM was assembled by professional people. Any attempt to
cause damage to the INOKIM "Quick" E-Scooter, and will cancel the
manufacturer warranty given upon delivery.
REQUIRED TOOLS
3 mm Allen key
19 mm ring key
Professional spoons Tire Pump
27
INOKIM REAR FLAT TIRE REPAIR
1. Make sure the INOKIM is unplugged and powered off.
2. Place INOKIM on a high stable surface where it's placed only on its
body, so that rear and front wheels will be in the air.
3. Use 3 mm Allen key to open both rear plastic covers. (See Page 28)
4. From INOKIM's right side gently disconnect all motor connectors
attached to wires. (See Page 30)
5. Use 19 mm ring key to disassemble motor nuts and motors.
(See page 30)
6. Remember the exact order and place of washers on each side of
the motor. (See page 31)
7. Use professional spoons (not plastic or small ones) to dismount tire
from motor, be careful not to damage the motor, rim, tire and tube,
use liquid soap around the rim to help tire slide out of the rim.
(See Page 33)
8. Fix or replace tube.
9. Put the tire back in place. Use liquid soap around the rim to put the
tire back in place. Do not use any tools for placing back tire on the
rim, use hands only! (See Page 33).
10. Check that your repair is completely done by pumping air to 45 psi.
Into the wheel.
11. In order to put INOKIM back together do all the steps in reverse
order. (See Page 34)
NOTICE !
MAKE SURE THE INOKIM IS UNPLUGGED AND POWERED OFF !
28
INOKIM REAR FLAT TIRE REPAIR
OPEN BOTH REAR PLASTIC COVERS
1
Use 3 mm Allen key
2
Always slide plastic cover aligned with QUICK 3 body
lines as shown with blue arrow.
Do not pull the covers as shown with the red arrow.
29
INOKIM REAR FLAT TIRE REPAIR
IMPORTANT NOTE
When assembling the motor back, note the arrows on both plugs, make
sure they are aligned or you may damage the connector
Gently, unplug the motor connector
1
2
30
INOKIM REAR FLAT TIRE REPAIR
DISASSEMBLE MOTOR WHEEL
1
Use 19mm ring key
to open nuts
2
Remove the washer
3
Disassemble nuts
and washers from
both sides
31
INOKIM REAR FLAT TIRE REPAIR
DISASSEMBLE MOTOR WHEEL
Carefully slide out
the Motor wheel

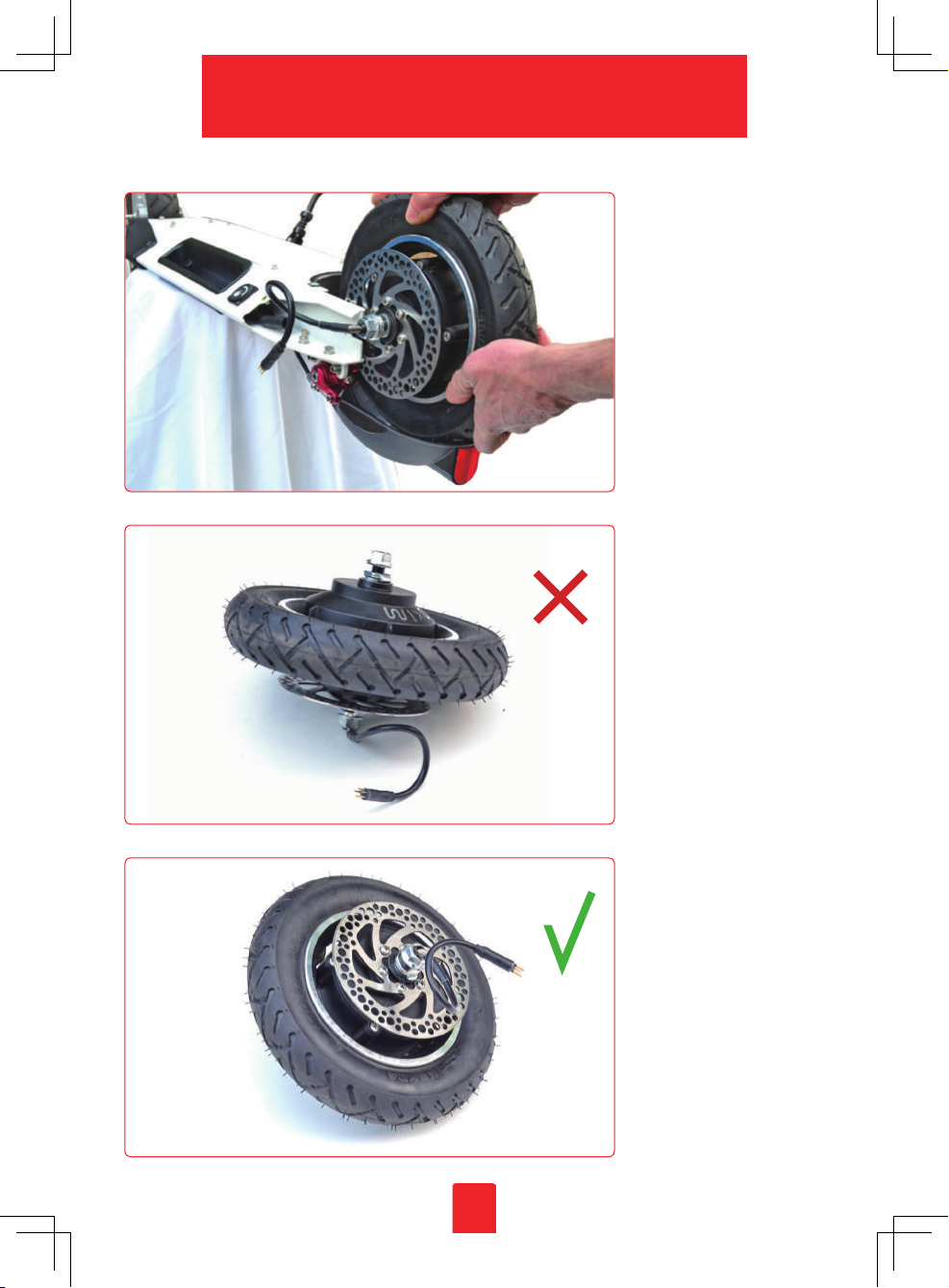

DON'T PLACE MOTOR
ON THE FLOOR WITH
ROTOR (DISC BRAKE)
TOUCHING THE
GROUND, TO PREVENT
IT FROM BENDING!
32
INOKIM REAR FLAT TIRE REPAIR
REPLACING A TUBE
1
Start next to the air
valve.
Use professional
levers to dismount
Motor Rim
2
Be careful not to
damage the motor!
Slowly open about
1/4 of the Tire using
the levers
3
Use hand to help
tire slide out of the
rest of the tire out of
the rim
33
INOKIM REAR FLAT TIRE REPAIR
REPLACING A TUBE
4
replace it if needed
5
Place tire back on rim using your hands only
(You can use lubricant such as soap
to ease this operation)
DO NOT USE ANY TOOLS FOR PLACING BACK
TIRE ON THE RIM, USE HANDS ONLY !
34
INOKIM REAR FLAT TIRE REPAIR
PLACING THE MOTOR WHEEL BACK
1
Slide back Motor.
Check right order
of washers at both
sides!
2
Note inner washers
are in place
3
Note external
washer with lug is in
correct slot!
Safety extension lock
of the washer must
enter this slot on both
sides of motor hinge
35
INOKIM REAR FLAT TIRE REPAIR
PLASTIC COVER ASSEMBLY
1
Align plastic cover
lines to INOKIM
body lines
2
Slide in plastic
cover
Both corners of
Aluminium and
plastic should be
aligned
The body
construction rail is
showing through the
slot of the plastic
3
Align plastic cover
hole with 4mm
hole on INOKIM
body and screw it
Note that aluminium
the hole!
36
A WORD FROM THE DESIGNER
Congratulations on your new purchase.
Alternative transportation solutions such as electric scooters
have become popular since we launched MYWAY Quick in 2011.
As more people are using the electric scooter the market is increasingly competitive
and demanding.
In order to remain the market leaders, we constantly work on improving our user
We hope you like the Quick 3 with its new features and smartphone app.
Enjoy, ride carefully, and return safely back home.
Riccardo Nimrod Sapir
37
Ningbo Myway Intelligent Technology Co.,Ltd
(Head Quarter, Marketing Center, R&D center)
7F#Putuoshan Road,Beilun,Ningbo,
ZheJiang Province, China 315806
Tel:0086-574-86133933
WWW.INOKIM.COM | EMAIL: oversea@inokim.com
Loading...
