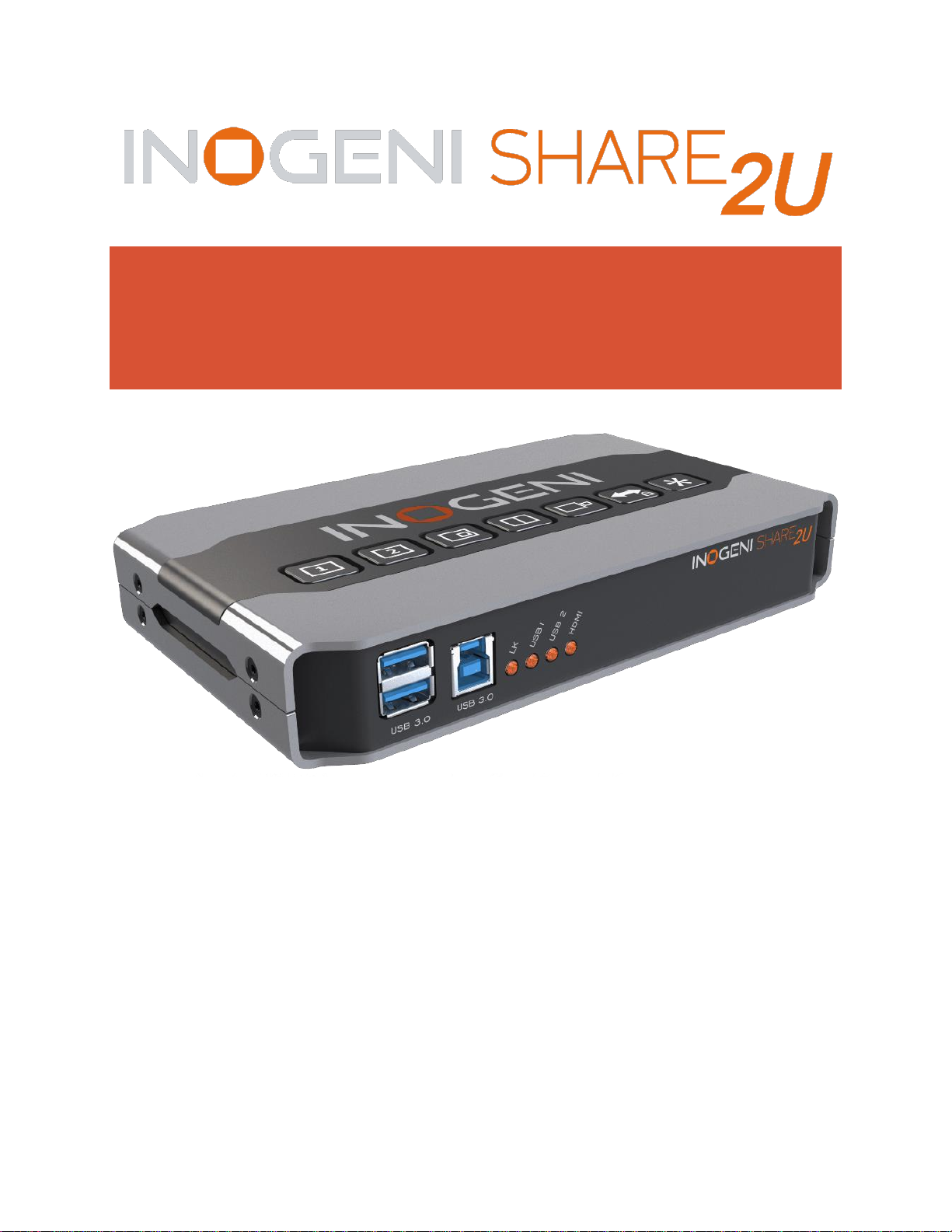

Inogeni SHARE2U USB 3.0 Konverter User Manual [EN]

Dual USB 2.0 Video Mixer to USB 3.0 Converter

User Guide v1.7

Thank you!

You have just acquired the finest and easiest to use tool for simultaneous capture of two streams of uncompressed video with audio for your computer.

Easy, No Drivers, No Setup !

Versatile !

Compatible with all Apps !

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

SHARE2U CONVERTER P/N SHARE2U

PRODUCT HIGHLIGHTS

• EASY ! No drivers required.

• Capture from MJPEG and H264 USB 2.0 cameras, which are UVC-compliant.

• Capture HDMI feeds.

• Predefined Picture in Picture (PIP) views.

• Ideal for Video streaming and Videoconferencing.

• Compatible to all motherboards and chipsets.

• Powered via external power supply.

• Scaler and Colorspace Conversion.

• Supports Windows, OSX and Linux.

• Audio mixing capability.

• DirectShow, AVFoundation and V4L2 Compatible.

• Professional grade full-metal enclosure.

OVERVIEW

The INOGENI SHARE2U Converter is the most easy and reliable tool for simultaneous capture and mix of two video sources into one single USB stream with audio for your PC for recording, videoconferencing, lecture capture and streaming applications. No driver installation is necessary and it will work on all motherboards and USB 3.0 chipsets. It features two USB inputs, one HDMI input, a line level stereo analog input, a line level stereo analog output, an internal USB 3.0 hub with 2x USB 3.0 ports for expansion purposes and USB 3.0 connector for the host. It supports SD and HDTV video formats, up to 1080p60, and most computer graphic formats. Compact in size and rugged, the converter is a practical and an easy-to-use USB 3.0 capture solution. It is compatible with Windows, OSX and Linux operating systems, and is UVC-compliant, so it will work with all DirectShow/V4L2 and AVFoundation compatible software.

The converter supports 1080p resolutions up to 30 fps for USB and HDMI inputs. The line level stereo analog audio input and output are two-channel LPCM.

SHARE2U comes with a USB 3.0 cable and its power supply.

• Line level stereo audio support.

• Predefined Picture in Picture (PIP) views.

• Digital Fluid technology - Internal frame buffers maximize frame rate with any PC.

• Hardware-based color space and sampling conversion.

• Automatic scaling and frame rate conversion.

• Customizable video processing functions.

• Image controls: Brightness, contrast, saturation and hue settings.

• Supports multiple devices on the same PC.

• Compatible with Windows, macOS and Linux.

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

DEVICE CONNECTORS

CONNECTION DIAGRAM

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

SPECIFICATIONS

Video Input 1

Connector

1x USB 2.0 camera (MJPEG or H264).

Video Resolutions

Depends on the camera specifications.

Video Input 2

Connector

1x USB 2.0 camera (MJPEG or H264).

Video Resolutions

Depends on the camera specifications.

Connector

1x HDMI

Video Resolutions

1080p, 720p and 640x480

Frame Rates

Up to 30 Hz, all formats.

Analog input

Analog stereo, line level, 3.5mm jack.

Analog output

Analog stereo, line level, 3.5mm jack.

HDCP Copy protection

The device will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

Mixer Control

The Mixer feature can be controlled by the following interfaces: HID RS-232 Keypad INOGENI REMOTE LAN

*** Click 2 times on “2” button of the keypad in order to switch between USB and HDMI inputs. Same behavior with all the other control interfaces.

Output

Connectors

1x USB 3.0 to host. 1x HDMI output. Same video content over USB 3.0 and HDMI outputs.

Color Space

YCbCr (YUY2) 4:2:2 8-bit.

Video Scaler

Automatic hardware based.

Color Space Conversion

Automatic hardware based.

Sampling Conversion

Automatic hardware based.

Frame Rate Conversion

Automatic hardware based.

USB expansion

2x USB 3.0 ports for expansion purposes. The devices connected will appear to the host.

Audio

Audio input

2-channel LPCM 48kHz audio from Line input or embedded in HDMI

Audio output

2-channel LPCM 48kHz audio Line level

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

Compatibility

Operating System

NO driver installation necessary. Windows 7 and above (32/64-bit) OSX 10.10 and above Linux (kernel v2.6.38 and above) Android

Host Requirements

USB 3.0 port Minimum 4GB RAM Intel Core i5 Graphic card with its own memory for on-screen rendering applications.

Motherboard

Compatible with all motherboards: Intel, Renesas, ASMedia, and Fresco Logic.

Cameras Supported

UVC-compliant cameras for USB inputs. HDMI sources up to 1080p30.

Software Compatibility

UVC-compliant. Runs with all software compatible to DirectShow, V4L2, QuickTime and AVFoundation.

Dimensions [W x L x H, cm]

18.5 x 11 x 3

Weight [g]

540

Power

12V, 700mA (adapter included)

UPC Code

040232633843

Origin

Canada

Harmonized Code

8517.62.000.900

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

TOP USER BUTTONS

These mixer buttons have the same function as INOGENI Control App software.

Input 1 to full screen.

Input 2 to full screen.

Picture in picture. Each press on this button change the small window position at each corner.

Side by side.

Big and small.

Swap input 1 and input 2 for buttons: picture in picture, side by side and big and small. Each press on this button swap input 1 with input 2. To lock/unlock the keypad, press and hold this button for 2 seconds.

Not used, reserved for customization.

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

SERIAL COMMUNICATION PROTOCOL

The device baud rate is 9600. This setting is configured using the appropriate firmware.

Terminal block pinout

As written on the back of the device, here is the pinout of the terminal block.

Pin 1: Receive Pin 2: GND Pin 3: Transmit Pin 4: 5V supply (for INOGENI Remote)

Commands

If the commands are recognized, the “ACK” string will be sent. If the commands are NOT recognized, the “NACK” string will be sent.

Input 1 is the USB input 1. Input 2 is the USB input 1 OR HDMI input.

Commands sent to the serial interface must have the ‘<’ character at the beginning and ‘>’ character

at the end.

COMMAND

Command description

<S1>

Source 1, which comes from the USB input 1 connector

<S2>

Source 2, which comes from the USB input 1 or HDMI connector

<SS>

Side by Side View

<TB>

Top Bottom View

<BS>

Big and Small View

<PPTR>

Picture in Picture at top right corner

<PPTL>

Picture in Picture at top left corner

<PPBR>

Picture in Picture at bottom right corner

<PPBL>

Picture in Picture at bottom left corner

<SW>

Swap View

<SS1>

Side by Side View where Input 1 is at the left side

<SS2>

Side by Side View where Input 2 is at the left side

<TB1>

Top Bottom View where Input 1 is at the top

<TB2>

Top Bottom View where Input 2 is at the top

<BS1>

Big and Small View where Input 1 is at the left side

<BS2>

Big and Small View where Input 2 is at the left side

<PPTR1>

Picture in Picture at top right corner where Input 1 is the background

<PPTR2>

Picture in Picture at top right corner where Input 2 is the background

<PPTL1>

Picture in Picture at top left corner where Input 1 is the background

<PPTL2>

Picture in Picture at top left corner where Input 2 is the background

<PPBR1>

Picture in Picture at bottom right corner where Input 1 is the background

<PPBR2>

Picture in Picture at bottom right corner where Input 2 is the background

<PPBL1>

Picture in Picture at bottom left corner where Input 1 is the background

<PPBL2>

Picture in Picture at bottom left corner where Input 2 is the background

<SAVE>

Save the current configuration onboard for future use

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

<RSTR>

Erase the current configuration onboard and return to default values

<BLK>

Black video

<SHW>

Show video

<RST>

Reset the device

<SWUSB>

Select USB source as input 2.

Select HDMI source as input 2.

<POLL>

Returns the current view of the device. In case PPTL1 mode is active, you will receive: >> <POLL>

VIEW => S1 BLACK => disabled

ACK

<GET>

Return the firmware versions and video. Here is an example. >> <GET>

StreamerApp => 1.4.1 DeviceID => 0 FX3 => N/A FPGA => N/A EDID => N/A Input 1 => 1920x1080 MJPEG Input 2 => Unlocked Input 3 => Unlocked VIEW => S1 BLACK => disabled IP => 192.168.0.29 MAC => f8:dc:7a:5:76:8 ACK

Moves PTZ camera horizontally. This is a relative control.1

X = 1, for USB1 = 2, for USB2 Y = -1, counterclockwise = 0, stop

= 1, clockwise

Moves PTZ camera vertically. This is a relative control. 1

X = 1, for USB1 = 2, for USB2 Y = 1, camera goes up = 0, stop

= -1, camera goes down

Sets zoom of camera. This is a relative control. 1

X = 1, for USB1 = 2, for USB2

Y = 100 to 500

Tells PTZ camera to go to a saved preset position.

X = 1, for USB1 = 2, for USB2

Y = 1 to 3, for preset 1, 2 and 3

Saves current position to camera preset memory.

X = 1, for USB1 = 2, for USB2

Y = 1 to 3, for preset 1, 2 and 3

The function works for specific cameras like Logitech® Rally, MeetUp and PTZ Pro.

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

INOGENI REMOTE

The INOGENI Remote needs to be connected to the terminal block port in order to operate. Apply wiring accordingly. This remote is sending serial commands to the SHARE2U device. Make sure to set the DIP SW6 below the SHARE2U to ON in order to apply power to the remote before going further. See “DIP SWITCHES” section of this document for more details. Check the user manual of the INOGENI REMOTE for more details.

For SHARE2U and CAM series – You need to wire up a RJ45 cable to a terminal

block plug.

Do not plug a RJ45 cable between the INOGENI device and the REMOTE.

INOGENI device side

Pin 1: Receive Pin 2: GND Pin 3: Transmit

Pin 4: 5V supply

REMOTE side

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

LAN INTERFACE

The default IP address of the device is 192.168.0.81. Use our Control App in order to change it. You can use any telnet application in order to communicate with the device using TCP. Make sure to use

the right IP address and port 50000.

You can use the commands by sending HTTP or TCP requests. For example, you can send an HTTP request by sending it using any browser, for example, to 192.168.0.81:50000/COMMAND. If the command is recognized, you will receive the ACK string.

Commands sent to the LAN interface must have the ‘$’ character at the beginning and ‘$’ character at the end.

COMMAND

Command description

$S1$

Source 1, which comes from the USB input 1 connector

$S2$

Source 2, which comes from the USB input 1 or HDMI connector

$SS$

Side by Side View

$TB$

Top Bottom View

$BS$

Big and Small View

$PPTR$

Picture in Picture at top right corner

$PPTL$

Picture in Picture at top left corner

$PPBR$

Picture in Picture at bottom right corner

$PPBL$

Picture in Picture at bottom left corner

$SW$

Swap View

$SS1$

Side by Side View where Input 1 is at the left side

$SS2$

Side by Side View where Input 2 is at the left side

$TB1$

Top Bottom View where Input 1 is at the top

$TB2$

Top Bottom View where Input 2 is at the top

$BS1$

Big and Small View where Input 1 is at the left side

$BS2$

Big and Small View where Input 2 is at the left side

$PPTR1$

Picture in Picture at top right corner where Input 1 is the background

$PPTR2$

Picture in Picture at top right corner where Input 2 is the background

$PPTL1$

Picture in Picture at top left corner where Input 1 is the background

$PPTL2$

Picture in Picture at top left corner where Input 2 is the background

$PPBR1$

Picture in Picture at bottom right corner where Input 1 is the background

$PPBR2$

Picture in Picture at bottom right corner where Input 2 is the background

$PPBL1$

Picture in Picture at bottom left corner where Input 1 is the background

$PPBL2$

Picture in Picture at bottom left corner where Input 2 is the background

$SAVE$

Save the current configuration onboard for future use

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

$RSTR$

Erase the current configuration onboard and return to default values

$BLK$

Black video

$SHW$

Show video

$RST$

Reset the device

$POLL$

Returns the current view of the device. In case PPTL1 mode is active, you will receive:

VIEW => S1 BLACK => disabled

ACK

$GET$

Return the firmware versions and video resolutions of CAM and CONT inputs. Here is an example.

$PAN_X_Y$

Moves PTZ camera horizontally. This is a relative control.2

X = 1, for USB1 = 2, for USB2 Y = -1, counterclockwise = 0, stop

= 1, clockwise

$TILT_X_Y$

Moves PTZ camera vertically. This is a relative control. 2

X = 1, for USB1 = 2, for USB2 Y = 1, camera goes up = 0, stop

= -1, camera goes down

$ZOOM_X_Y$

Sets zoom of camera. This is a relative control. 2

X = 1, for USB1 = 2, for USB2

Y = 100 to 500

$PRESET_X_Y$

Tells PTZ camera to go to a saved preset position.

X = 1, for USB1 = 2, for USB2

Y = 1 to 3, for preset 1, 2 and 3

$SAVEPRESET_X_Y$

Saves current position to camera preset memory.

X = 1, for USB1 = 2, for USB2

Y = 1 to 3, for preset 1, 2 and 3

The function works for specific cameras like Logitech® Rally, MeetUp and PTZ Pro.

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

DIP SWITCHES

The device has DIP switches below the device in order to force settings. Here are the functions of the DIP switches.

SW1

OFF

USB resolution is 1080p only. This will force application to take high quality video.

Multiple USB resolutions available.

SW2

For future use

SW3

OFF

Frame buffer frequency is set to 60Hz. (default)

Frame buffer frequency is set to 50Hz.

SW4

Reserved

SW5

Reserved

SW6

OFF

Disable 5V on terminal block. (default)

Enable 5V on terminal block. This switch must be set in order to power up the connected remote.

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

AUDIO CONTROL

The device embeds an audio mixer. You have complete control over USB 2.0 and HDMI inputs and output. You can also mute and adjust gain on I/Os. You can click “Apply” button in order to keep configuration at each bootup. You can also restore default configuration by clicking “Restore defaults” button.

There are two modes for the audio mixer:

Automatic audio selection:

This mode gives priority on the analog inpu. Otherwise, USB inputs are sent over USB. HDMI input audio is always mixed with the USB 2.0 and/or analog inputs. You can mute HDMI audio by clicking on MUTE button.

Mix audio: This mode mixes audio from all USB 2.0 and analog inputs. HDMI input audio is always mixed with the USB 2.0 and/or analog inputs. You can mute HDMI audio by clicking on MUTE button.

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

Here is a diagram of the audio mixer layout:

USB1

USB2

Analog input

HDMI input

Analog output

USB3.0 audio input

USB3.0 audio output

INOGENI CONTROL APP

The INOGENI Control App allows you to control and monitor video sources.

The device has its own application in order to control the Mixer configuration using the USB Human Input Device (HID) or the LAN interfaces.

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

You can also monitor the firmware versions installed on the device and the status of the USB and HDMI inputs.

You can update your device to the latest firmware using the Update menu. The C++ source code of this application is available on demand.

Visit the Software Update web page under Support -> Software Tools for more details.

CRESTON MODULES

You can use the Crestron modules in order to control the INOGENI SHARE2U device using the serial or the IP connections. These modules are available on our website under the section Software Update. Refer to the Help file on how to use the modules.

INOGENI SHARE2U User Guide – V1.7 – June 1, 2020

SUPPORT

Engineered by video professionals, for video professionals, it is your most compatible USB 3.0 device. INOGENI expertise at your fingertips:

• Expert Technical Support team at support@inogeni.com for immediate help or if you have any technical question about our products.

• You can visit our list of compatible USB 2.0 cameras to see if this one fits the device.

• Extensive Knowledge Base to learn from other customers experiences.

INOGENI name and logo are trademarks or registered trademark of INOGENI. Use of this product is subject to the terms and conditions of the license and limited warranty in effect at the time of purchase. Product specifications can change without notice.

INOGENI, Inc. 979 de Bourgogne avenue, suite 530 Québec G1W 2L4 (QC) Canada

Inogeni SHARE2U USB 3.0 Konverter User Manual [EN]

Specifications and Main Features

Frequently Asked Questions

User Manual
