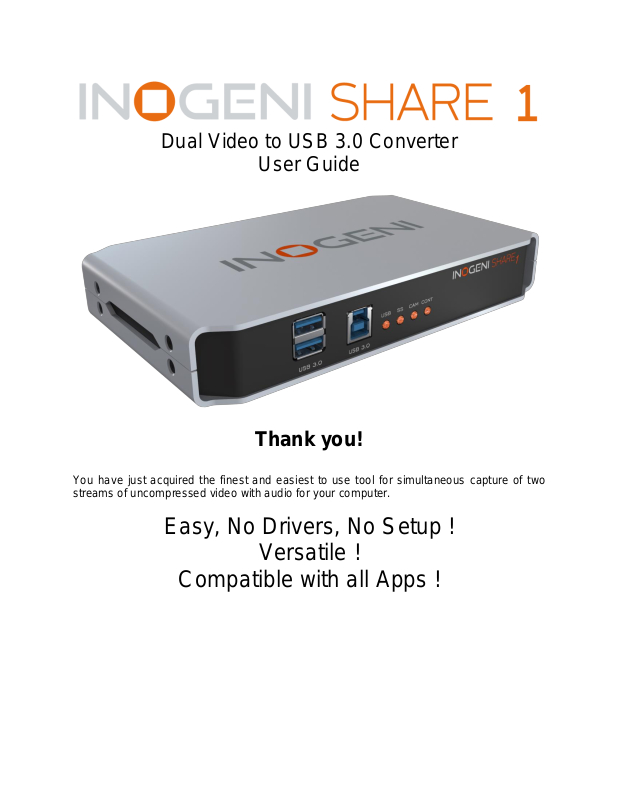

Dual Video to USB 3.0 Converter
User Guide
Thank you!
You have just acquired the finest and easiest to use tool for simultaneous capture of two
streams of uncompressed video with audio for your computer.
Easy, No Drivers, No Setup !
Versatile !
Compatible with all Apps !
INOGENI SHARE1 User Guide
Version 1.0
7/26/16
2
SHARE2 CONVERTER
P/N SHARE1
PRODUCT HIGHLIGHTS
EASY ! No drivers required.
Dual Uncompressed 1080p Video & Audio Capture
Ideal for Video streaming and Videoconferencing
Compatible to all motherboards and chipsets
Up to 1080p at 60 fps
Powered via external power supply.
Scaler and Colorspace Conversion
Supports Windows and Linux.
DirectShow and V4L2 Compatible
Professional grade full-metal enclosure
OVERVIEW
The INOGENI SHARE1 Converter is the most easy and reliable tool for simultaneous capture of two
streams of uncompressed video with audio from your HDMI/DVI/VGA or CVBS sources for your PC for
recording, videoconferencing, lecture capture and streaming applications. No driver installation is
necessary and it will work on all motherboards and USB 3.0 chipsets. It features an HDMI, DVI and a
NTSC/PAL input, a line level stereo analog input, a line level stereo analog output, an internal USB 3.0
hub with 2x USB 3.0 ports for expansion purposes and USB 3.0 connector for the host. It supports SD
and HDTV video formats, up to 1080p60, and most computer graphic formats. Compact in size and
rugged, the converter is a practical and an easy-to-use USB 3.0 capture solution. It is compatible with
Windows and Linux operating systems, and is UVC-compliant, so it will work with all DirectShow and
V4L2 compatible software.
The converter supports 1080p resolutions up to 60 fps. All SD and HD resolution signals are converted
to 4:2:2 8-bit color space over USB 3.0. The line level stereo analog audio input and output are twochannel LPCM. SHARE1 comes with a USB 3.0 cable, a DVI to VGA and DVI to HDMI adapters.
Line level stereo audio support
Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
Hardware-based color space and sampling conversion
Automatic scaling and frame rate conversion
Customizable video processing functions
Image controls: Brightness, contrast, saturation and hue settings
Supports multiple devices on the same PC.
Compatible with Windows and Linux.
INOGENI SHARE1 User Guide
Version 1.0
7/26/16
3
DEVICE CONNECTORS
CONNECTION DIAGRAM
INOGENI SHARE1 User Guide
Version 1.0
7/26/16
4
SPECIFICATIONS
Video Input 1
Connector
1 x HDMI
Video
Resolutions
1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768,
800x600, 640x480
Video Input 2
Connector
1 x DVI-I – Digital & Analog
Video
Resolutions
DVI: 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960,
1024x768, 800x600, 640x480
VGA: 1080p, 720p, 480p, 576p, 1920x1200, 1680x1050, 1400x1050, 1600x1200,
1280x1024, 1360x768, 1280x768, 1280x800, 1024x768, 800x600, 640x480
Connector
1 x CVBS
Video
Resolutions
480i, 576i
Frame Rates
Up to 60 Hz, all formats
Color Space
RGB, YCbCr 4:4:4 and 4:2:2
Sampling Rate
165 MHz
Analog input
Analog stereo, line level, 3.5mm jack.
Analog output
Analog stereo, line level, 3.5mm jack.
HDCP Copy
protection
The device will not decrypt BD/DVD movies, satellite/cable receivers or other
encrypted sources.
Camera
Control
RS-232 port on RJ-45 connector for RS-232 or VISCA control.
Requires installation of COM port driver.
Output
Connector
1 x USB 3.0 to host
Color Space
YCbCr (YUY2) 4:2:2 8-bit
Video Scaler
Automatic hardware based
Color Space
Conversion
Automatic hardware based
Sampling
Conversion
Automatic hardware based
Frame Rate
Conversion
Automatic hardware based
USB
expansion
2 x USB 3.0 ports for expansion purposes. The devices connected will appear to the
host.
Maximum USB
bandwidth
Because of USB bandwidth limitation, you cannot stream simultaneously two
1080p60 videos over USB. However, for example, these combinations will work:
Input 1 at 1080p50 and Input 2 at 1080p30.
Both Inputs at HD resolutions, such as 1080i60, 1080p30 or 720p60.
Input 1 at 1080p60 and Input 2 at 1080p25.
And all other combinations at lower resolution or frame rate.
The internal scaler can be used to reduce the resolution and frame rate of
the input if necessary.
Audio
Audio input
2-channel LPCM 48kHz audio from Line input or embedded in HDMI
Audio output
2-channel LPCM 48kHz audio Line level
INOGENI SHARE1 User Guide
Version 1.0
7/26/16
5
Compatibility
Operating
System
NO driver installation necessary.
Windows 7 and above (32/64-bit)
Linux (kernel v2.6.38 and above)
Android
OSX 10.10 – There will be only one video interface available on OSX
Host
Requirements
USB 3.0 port
Minimum 4GB RAM
Intel Core i5
Graphic card with its own memory for on-screen rendering applications.
Motherboard
Compatible with all motherboards
Intel, Renesas, ASMedia, and Fresco Logic
Cameras
Supported
Cameras and camcorders with an HDMI/DVI, VGA or CVBS output
Software
Compatibility
UVC-compliant
Runs with all software compatible to DirectShow, V4L2, QuickTime and
AVFoundation.
Adapters
included
DVI to VGA and DVI to HDMI adapters
Dimensions
[W x L x H, cm]
18.5 x 11 x 3
Weight
[g]
466
Power
12V, 500mA (adapter included)
UPC Code
040232355523
Origin
Canada
Harmonized
Code
8517.62.000.900
INOGENI SHARE1 User Guide
Version 1.0
7/26/16
6
INOGENI SOFTWARE SUITE
Refresh the list of
detected devices
Play/Stop/Record
Selected video device
Selected resolution
Selected frame rate
Selected audio device
Eager to try it now? Simple as 1-2-3!
1- Connect the USB 3.0 cable to your computer
2- Connect any type of video source
3- Run your App or Download INOGENI Software Suite
You can use our INOGENI Software Suite in order to preview and record your video
sources.
1. You can open the INOGENI Simple Capture application.
You will then have to use which video device, the resolution and the frame rate to
use for the preview/capture. Optional audio source can be selected.
2. To preview, you can click on the Play button and a window will appear with the
video content.
You can click the Stop button to quit the preview mode or close the preview
window.
INOGENI SHARE1 User Guide
Version 1.0
7/26/16
7
3. If you want to capture to a file, you can click on the Record button and the
application will ask you where to save the file to.
4. The application will then record your video sources.
The length of the recording will also be available in the application.
You can also use our INOGENI Simple Viewer which only offers a single preview of a
video and audio sources.
Or you can use your favorite application with the INOGENI.
INOGENI SHARE1 User Guide
Version 1.0
7/26/16
8
SUPPORT
Engineered by video professionals, for video professionals, it is your most compatible
USB 3.0 device. INOGENI expertise at your fingertips:
Expert Technical Support team at support@inogeni.com for immediate help or
if you have any technical question about our products.
INOGENI Software Suite to start capturing quickly with your INOGENI device.
Please visit www.inogeni.com/support for more details.
Extensive Knowledge Base to learn from other customers experiences.
© Copyright 2016 by INOGENI Inc. All Rights Reserved.
INOGENI name and logo are trademarks or registered trademark of INOGENI. Use of
this product is subject to the terms and conditions of the license and limited warranty in
effect at the time of purchase. Product specifications can change without notice.
