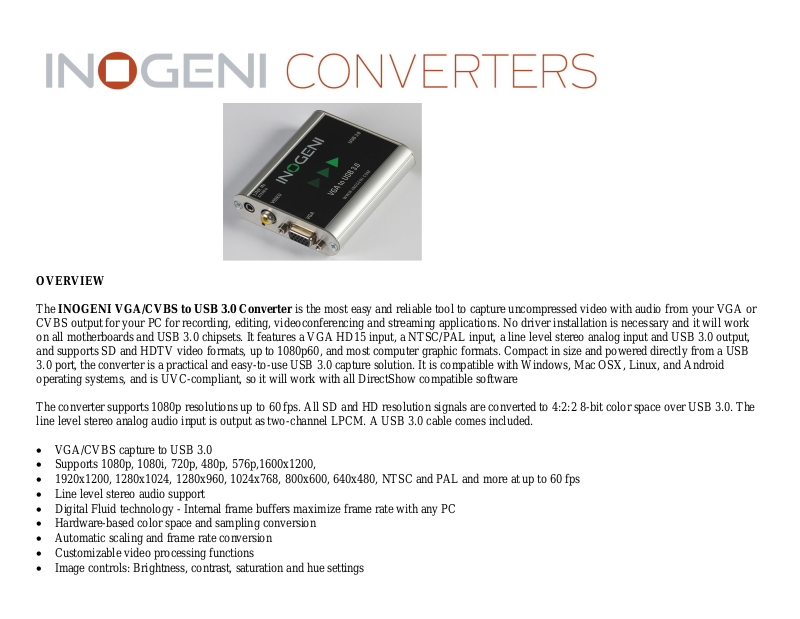

OVERVIEW
The INOGENI VGA/CVBS to USB 3.0 Converter is the most easy and reliable tool to capture uncompressed video with audio from your VGA or
CVBS output for your PC for recording, editing, videoconferencing and streaming applications. No driver installation is necessary and it will work
on all motherboards and USB 3.0 chipsets. It features a VGA HD15 input, a NTSC/PAL input, a line level stereo analog input and USB 3.0 output,
and supports SD and HDTV video formats, up to 1080p60, and most computer graphic formats. Compact in size and powered directly from a USB
3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android
operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software
The converter supports 1080p resolutions up to 60 fps. All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0. The
line level stereo analog audio input is output as two-channel LPCM. A USB 3.0 cable comes included.
VGA/CVBS capture to USB 3.0
Supports 1080p, 1080i, 720p, 480p, 576p,1600x1200,
1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480, NTSC and PAL and more at up to 60 fps
Line level stereo audio support
Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
Hardware-based color space and sampling conversion
Automatic scaling and frame rate conversion
Customizable video processing functions
Image controls: Brightness, contrast, saturation and hue settings
Supports multiple devices on the same PC.
Input
Output
Compatibility
Connector
1 x HD15(VGA), 1 x
RCA(NTSC/PAL), 1 x
3.5mm jack (line stereo
audio)
Connector
1 x USB 3.0
Operating System
NO driver installation necessary.
Windows 7/8/8.1 (32/64-bit)
OSX (10.10 and above) Linux (kernel v2.6.38 and
above)
Android
Video Resolutions
1080p, 720p, 1080i, 480p,
576p,
1600x1200
1920x1200, 1280x1024,
1280x960, 1024x768,
800x600, 640x480, NTSC,
PAL and more
Color Space
YCbCr
(YUY2)
4:2:2 8-bit
Host
Requirements
USB 3.0 port
Frame Rates
Up to 60 Hz, all formats
Video Scaler
Automatic
hardware
based
Motherboard
Compatible with all motherboards
Intel, Renesas, ASMedia, and Fresco Logic
Color Space
RGB
Color Space
Conversion
Automatic
hardware
based
Cameras
Supported
Cameras and camcorders with an HDMI output
Sampling Rate
165 MHz
Sampling
Conversion
Automatic
hardware
based
Software
Compatibility
UVC-compliant
Runs with all software compatible to DirectShow,
V4L2, QuickTime and AVFoundation..
Embedded Audio
Analog stereo, line level
Frame Rate
Conversion
Automatic
hardware
based
Audio
2-channel
LPCM audio
48 kHz
Powered from USB 3.0 port
Compatible with Windows, Max OSX, Linux, and Android
INOGENI Inc. www.inogeni.com
3175 ch. Quatre-Bourgeois #104
Québec, QC G1W 2K7
Canada
VGA2USB3
P/N DVIUSB
Dimensions &
Weight
VGA =
3.2” x 2.9” x 0.75”
@126g
Conformity:
DVIUSB: FCC, CE, RoHS, ISO 9001
USB 3Power
5V, 680 mA
UPC Code
040232250521
Origin
Canada
Harmonized
Code
8522.90.00
