Inogen One G3 User Manual

13

12

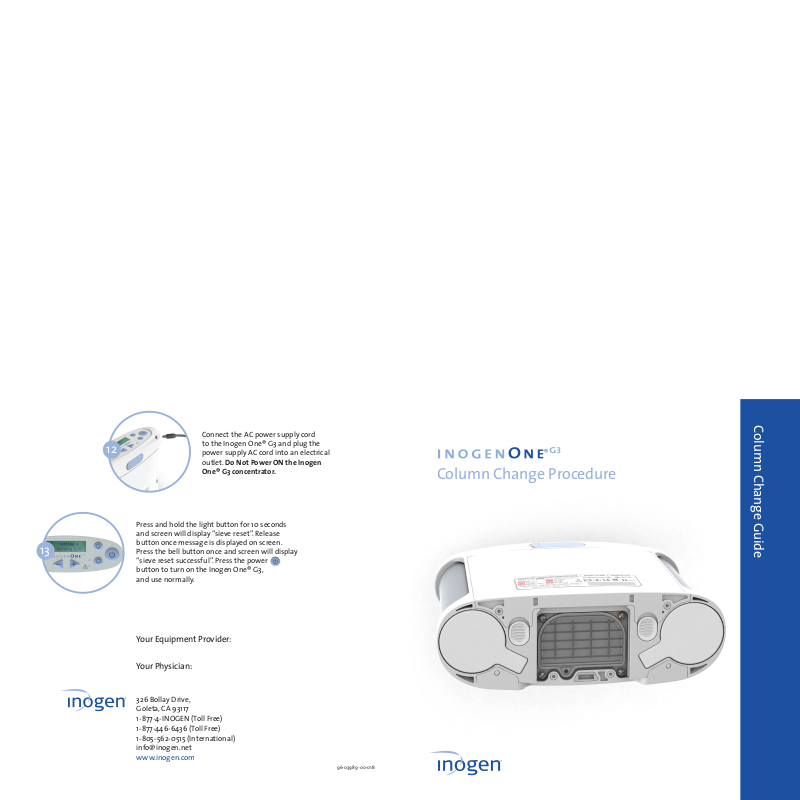

Column Change Guide

Connect the AC power supply cord
to the Inogen One® G3 and plug the
power supply AC cord into an electrical
outlet. Do Not Power ON the Inogen

One® G3 concentrator.

Column Change Procedure

Press and hold the light button for 10 seconds
and screen will display “sieve reset”. Release
button once message is displayed on screen.
Press the bell button once and screen will display
“sieve reset successful”. Press the power
button to turn on the Inogen One® G3,
and use normally.

Your Equipment Provider:

Your Physician:

326 Bollay Drive,
Goleta, CA 93117
1-877-4-INOGEN (Toll Free)
1-877-446-6436 (Toll Free)
1-805-562-0515 (International)
[email protected]

www.inogen.com

96-03989-00-01B

3

Remove the battery from the Inogen
One® G3 concentrator.

To change the columns on your Inogen One G3, first:

Turn off the Inogen One® G3 concentrator by pressing the

1

power button to shut down the device.

Remove the Inogen One® G3 concentrator from

2

the carry bag.

4

Turn the Inogen One® G3 over so that is standing
in the upside down position where the display
panel is facing down and the bottom of the
Inogen One® G3 is facing up.

5

6

Remove column by pressing the latch
button with thumb or finger.

While holding the button
open, insert the column tool
underneath the opposite side
of the column (metal tube) with
other hand.

9

8

7

While still holding the button
open, slide the column (metal
tube) out by pushing with the
column tool.

Remove the column completely
from the Inogen One® G3.
And then repeat steps 5 - 7
for the other column.

For the column installation, remove
dust caps of new column. Make sure
there is no dust or debris where the
dust caps were located.

NOTE Column change instructions are only to be used when maintenance is
required and are not intended for practice purpose.

www.inogen.com

11

10

Insert column into the Inogen One® G3
concentrator. Do not leave the column
exposed; it should be inserted into the
Inogen One® G3 as soon as the dust caps
have been removed.

Push the column into the device such that the
column is fully seated into the Inogen One® G3
concentrator. The spring loaded latch button
should fully return to the locked and closed position.
Repeat steps 8-10 to install the other column.

Continues on back
