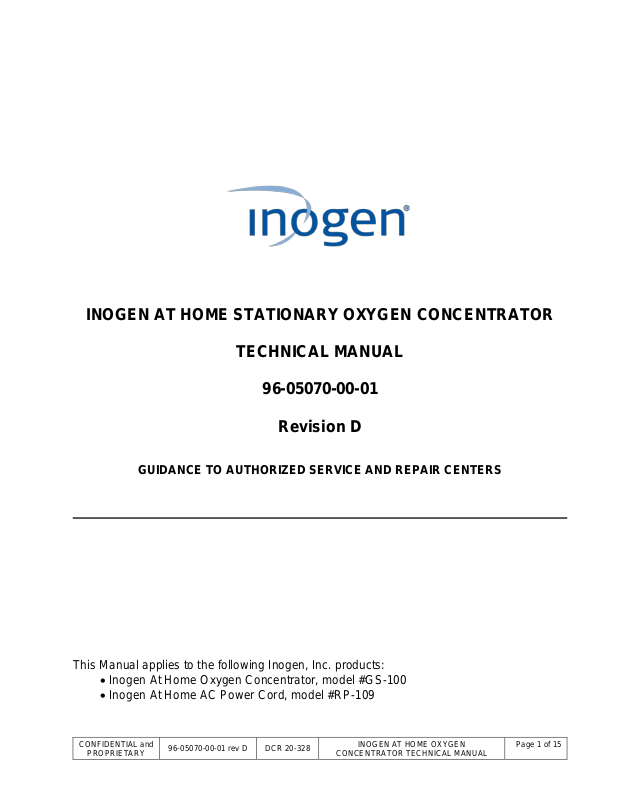

CONFIDENTIAL and
INOGEN AT HOME OXYGEN
INOGEN AT HOME STATIONARY OXYGEN CONCENTRATOR
TECHNICAL MANUAL
96-05070-00-01
Revision D
GUIDANCE TO AUTHORIZED SERVICE AND REP AIR CENTERS
This Manual applies to the following Inogen, Inc. products:
• Inogen At Home Oxygen Concentrator, model #GS-100
• Inogen At Home AC Power Cord, model #RP-109
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 1 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
TABLE OF CONTENTS
1. INFORMATION FOR PROVIDERS OF THE INOGEN AT HOME .................................. 3
1.1. CAUTION AND WARNING STATEMENTS ......................................................................... 3
2. SETTING UP A PATIENT ON INOGEN AT HOME ........................................................ 4
2.1. RECOMMENDATIONS FOR USE ..................................................................................... 4
2.2. SYSTEM COMPONENTS ............................................................................................... 4
2.3. USING THE INOGEN AT HOME ...................................................................................... 4
2.4. SELECTING THE PROPER FLOW SETTING ...................................................................... 4
3. SERVICING THE INOGEN AT HOME ............................................................................ 5
3.1. MAINTENANCE BY THE PROVIDER ................................................................................. 5
3.2. MAINTENANCE BY THE PATIENT ................................................................................... 9
3.3. EXPECTED SERVICE REQUIREMENTS ......................................................................... 10
4. INOGEN AT HOME SYSTEM SPECIFICATIONS ........................................................ 10
4.1. CLASSIFICATIONS ..................................................................................................... 11
5. INOGEN AT HOME ERROR ALARMS ........................................................................ 11
5.1. NOTES ..................................................................... ERROR! BOOKMARK NOT DEFINED.
5.2. LOW PRIORITY ALARMS ............................................ ERROR! BOOKMARK NOT DEFINED.
5.3. MEDIUM PRIORITY ALARMS ....................................... ERROR! BOOKMARK NOT DEFINED.
5.4. HIGH PRIORITY ALARMS ............................................ ERROR! BOOKMARK NOT DEFINED.
5.5. ERROR CODE TABLE ................................................ ERROR! BOOKMARK NOT DEFINED.
CONTACTS FOR MORE INFORMATION ........................................................................... 15
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 2 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
1. INFORMATION FOR PROVIDERS OF THE INOGEN AT HOME
A WARNING indicates that the personal SAFETY of the Patient may be
sure that patients understand all warning statements.
A CAUTION indicates that a precaution or service procedure must be
the equipment. Be sure that patients understand all caution statements.
A NOTE indicates specific information to improve ease of use or
maintenance of the equipment.
A DESIGN NOTE indicates specific information regarding the design of the
This information is not required to operate or maintain the Inogen At Home.
Thank you for choosing to provide your patients with the Inogen At Home stationary oxygen
concentrator. We are pleased to offer you and your patient s a comprehensive solution for
your stationary oxygen needs.
This Technical Manual will familiarize you with provider-specific information regarding the
Inogen At Home Oxygen Concentrator and its accessories. Before r eading this Technical
Manual, please read and review the Inogen At Home Patient Manual for description and
indications for use of the device.
Be sure to thoroughly read all of the information in this manual in its entirety. If you have any
additional questions, please see the list of contacts at the end of this Technical Manual.
Instructions included in this Technical Manual are intended to help assure that patients are
given proper guidance in the use and function of the Inogen At Home and its accessories.
Proper care in relaying this information will not only enhance the user’s experience with the
Inogen At Home, but will also protect the patient, prolong the life of the device, and help you
avoid unnecessary service calls and complaints from users.
1.1. Caution and Warning Statements
You will see Warnings and Cautions throughout this Technical Manual. To ensure effective
Oxygen Therapy and proper operation of the Inogen At Home Oxygen Concentrator , you
must observe them carefully.
involved. Disregarding a warning could result in a significant injury. Be
WARNING
CAUTION
followed. Disregarding a caution could lead to a minor injury or damage to
NOTE
DESIGN
NOTE
Inogen At Home and/or accessories. This information is included in this
manual to provide you with a greater working understanding of the device.
In many cases, warnings and cautions have been included in the Inogen At Home User
Manual.
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 3 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
Availability of an alternate source of oxygen is recommended in case of
patient.
2. SETTING UP A PATIENT ON INOGEN AT HOME
2.1. Indications for Use
The Inogen At Home Oxygen Concentrator is used on a prescriptive basis by patients
requiring supplemental oxygen. It supplies a high concentration of oxygen and is use d
with a nasal cannula to channel oxygen from the concentrator to the patient. The Inogen
At Home Oxygen Concentrator may be used in a home or institution.
CAUTION
power outage or mechanical failure. Several certifying bodies for Home
Health Care Providers require that back-up oxygen be available to the
2.2. System Components
The following are standard components of the Inogen system:
o Inogen At Home Oxygen Concentrator
o AC Power Cord
o Humidifier Bottle (not included)
o Cannula (not included)
Patient Set-Up. To properly set up a patient on the Inogen At Home System, you may
need to provide:
o Extra cannulas (not included)
o Extra output filters (not included)
2.3. Using the Inogen At Home
To quickly configure the Inogen At Home for patient use:
1. Place the concentrator in a well-ventilated location; air intake and exhaus t vents
must have clear access.
2. Attach the cannula to the nozzle fitting on the top of the concentrator or to the
humidifier bottle, if using.
3. Connect the power cord to the Inogen At Home.
4. Plug into closest AC outlet.
5. Turn on the Inogen At Home by pressing the on/off button.
6. Use the + (increase flow) or – (decrease flow) buttons to adjust the Inogen At Home
to the flow setting prescribed by the physician or clinician.
For further information regarding the use of the Inogen At Home, please consult the
User Manual.
2.4. Selecting the Proper Flow Setting
The Inogen At Home can provide oxygen to the patient as long as a source of
electricity is available. Because the oxygen is being pr oduced as it is used, supply of
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 4 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
oxygen is rate-limited. The Inogen At Home delivers up to 5 L/min of 90% (+6%/-3%)
1
1.0 2 2.0 3 3.0 4 4.0
5
5.0
oxygen.
At each flow setting, the Inogen One generates a specific amount of oxygen (1 L/min per
setting), which is delivered continuously to the patient. The device will deliver the same
volume of oxygen regardless of the patient’s breath rate.
Flow Setting Flow Rate (L/min)
3. SERVICING THE INOGEN AT HOME
3.1. Maintenance by the Provider
3.1.1. Authorized Repair Centers
The Inogen At Home is only intended to be repaired by authorized repair cent er s . If a
repair is required, please contact Inogen to locate your nearest authorized repair
center. If you would like to become an authorized repair center, please contact
Inogen for access to certification training, service instructions, component part list s
and the necessary repair equipment.
3.1.2. Cleaning and Processing for Reuse
Reprocessing between patient use is required. Refer to the following guidance on
the process to clean and disinfect for reuse.
The following supplies are recommended:
o Nitrile Gloves or equivalent
o Safety Glasses
o Disinfecting wipes or Spray designed to kill bacteria and viruses
o Compressed Air (30 psi / 207 kPa, for blowing off parts)
o Particulate Respirator (N95 rated)
The following safety precautions should be followed when cleaning and processing a
concentrator for reuse:
1. The cleaning process should be performed in a well-ventilated area.
2. Wear nitrile gloves, safety glasses, and a particulate respirator when
cleaning and disinfecting the concentrator.
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 5 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
3. Avoid touching your face during and after cleaning the concentrator to
The use of Nocolyse (OxyPharm) surface disinfectant system
States.
prevent transfer of contaminants.
4. Immediately after cleaning remove gloves and wash hands.
The following steps should be performed to clean and disinfect the concentrator:
1. Put on personal protective equipment (PPE).
2. Disinfect by wiping down exterior surfaces with disinfecting wipes or spray.
Avoid getting moisture in or around the battery connectors, power jack, or
vents. Follow manufacturer’s instructions for application and surface dwell
times.
NOTE
has been approved for use in Europe. Not approved in United
3. Cleaning. If visibly soiled, clean exterior surfaces using a soft cloth
dampened with a mild liquid detergent (such as Dawn™ in US) and water.
Then gently wipe dry. Avoid getting moisture in or around the battery
connectors, power jack, or vents. If items have scuff marks or other such
surface discoloration, use multi-surface sponge cleaner may be used.
4. Hard-Surfaces: (concentrator shell, batteries, power supplies, carts, pulse
oximeter, etc.): Disinfect and clean entire outer surface as necessary per
above.
5. Cords: Uncoil or untie cord(s). Disinfect entire length of cord(s) and
connectors at each end. Clean as necessary per above.
6. Disposables: If the disposable item has been opened or is dirty it is to be
discarded; otherwise, it does not need to be disinfected. Clean as
necessary per above.
7. Carry Bags: Disinfect entire outer and inner surfaces of carry bag. If the
carry bag is dirty and/or emits excessive odor, it is to be discarded. Clean
as necessary per above.
8. Literature: Literature does not need to be disinfected; if dirty, discard.
9. Packaging Materials: Packaging materials do not need to be disinfected; if
dirty, discard.
10. Once cleaned and disinfected, remove Particle Filters and blow off
accessible internal areas with compressed air to remove any visible debris.
11. Blow off Particle Filters with compressed air to remove any visible debr is.
12. Disinfect any accessible area behind the Particle Filters with disinfecting
towels. Avoid getting moisture on the electronics (USB port and
motherboard). Replace the Particle Filters as necessary.
13. Disinfect batteries and power supplies by wiping down the exterior of them
with disinfecting towels or spray.
14. Remove and replace Output Filter per section 3.1.6 below.
15. Unit is now ready for reuse.
16. Remove PPE and wash hands with soap and water for a minimum of 20
seconds.
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 6 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
Do not disassemble the Inogen At Home or any of the accessories or
for service of the Inogen At Home and accessories.
During a normal field maintenance visit, the technician may elect to turn
to bring an extra oxygen supply.
Discovery of cracks or other types of external damage may be
safety of the device, arrange for equipment servicing.
attempt any maintenance other than tasks described in this Technical
Manual unless you have completed a training course through Inogen.
NOTE
Disassembly of the Inogen At Home or any of the accessories without
proper training certification will void the product warranties. Contact
Inogen for information about receiving proper training and certificat ion
3.1.3. Suggested Materials for Regular Maintenance
To perform regular field maintenance (by a technician) on the Inogen At Home
System, you may need:
o Inogen At Home Particle Filter (RP-400)
o Inogen At Home Output Filter Replacement Kit (RP-107)
Includes spanner wrench and two output filters
o Inogen At Home Air Inlet Filter (RP-401)
o Inogen At Home Column Pair (RP-402)
o Humidifier Connector Tube (Salter Labs #S0-676)
o Humidifier Bottle (Salter Labs #7600)
o Nasal Cannula (Salter Labs 16SOFT)
o External Oxygen Analyzer (such as Salter Labs PrO2 Check)
NOTE
off the concentrator for approximately 30 minutes. If the patient requires
oxygen during this period, Inogen recommends making arrangements
3.1.4. System Inspection
At the start of any maintenance visit:
1. Be sure to ask the patient if they have experienced any difficulties in operating
the equipment.
2. Be sure to ask the patient if they have observed any malfunctions or changes
in characteristics of the equipment.
3. Visually inspect the device and accessories for cracks or other damage.
4. Feel the sides of the device for vibration and listen for unusual noises, rattles,
or other signs that the device requires service.
indicative of other internal damage that may not be visible. If such
CAUTION
external damage is discovered, be certain to inquire as to how it
occurred, and whether any changes in the device have been
noticeable since its occurrence. If you have any concern over the
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 7 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
3.1.5. Output Filter Replacement
Failure to inspect and replace the product filter may result in the filter
oxygen to the patient.
This filter is intended to protect the user from small particles in the product gas flow.
The Inogen At Home includes an output filter conveniently located behind the
removable cannula nozzle fitting. Inogen suggests that this filter be replaced between
patients.
Use the Output Filter Replacement Kit (RP-107) to replace the Output Filter:
1. Use the Cannula Barb Tool (included in RP-107) to access the product filter. The
tool has two prongs which mate with two indentations located on the surface of the
metal cannula barb fitting on the Inogen At Home.
2. Carefully remove the cannula fitting by unscrewing it in the counter-clockwise
direction.
3. The filter, a hard plastic disk with a silicone gasket on its outer edge, will be visible
in the recess once the hose barb is removed.
4. Remove the filter, and inspect the recess to make sure it is free of debris.
5. Install a replacement filter.
6. Carefully screw the cannula barb fitting back into the recess (clockwise) until it
bottoms out on the filter gasket. Take care to squarely screw the nozzle fitting into
the threads, and not to over tighten.
CAUTION
becoming clogged or obstructed over time, and in reduced delivery of
3.1.6. Oxygen Purity Check
The oxygen concentration can be checked using the Salter Labs PrO2 Check
ultrasonic oxygen analyzer. The concentrator should be run for 10 minutes before
measuring the oxygen concentration. If the concentrator has not been used for more
than 2 weeks, the concentrator should be run for a minimum of 30 minutes to allow for
adjustments to the operating parameters prior to measuring the oxygen concentration.
3.1.7. Air Inlet Filter Replacement
The inlet filter on the top of the concentrator (behind the handle) should be replaced
when visually necessary (i.e. filter appears dirty) using the Air Inlet Filter
Replacement Kit.
3.1.8. Column Change Procedure
There are two columns in the concentrator located behind the particle filter. These
two columns should be removed and replaced when column service is required.
Ensure adequate time is allotted to complete all steps without disruption when
performing this maintenance.
1. Turn off the concentrator by pressing the power button.
2. Unplug the concentrator from the electrical outlet.
3. Lay the concentrator down on its side.
4. Press the two latch buttons on the sides of the device to remove the cover
from the bottom of the concentrator in order to access the two columns.
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 8 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
5. Press the column latch button with thumb or finger and pull the column out
Do not use total cannula tubing length exceeding 100 feet with the Inogen
At Home unless proper saturation has been verified by a clinician.
Do not leave the column exposed after the dust caps are removed; it
lifespan.
Column change instructions are only to be used when maintenance is
procedure.
of the concentrator using the pull ring attached to the column cap.
6. Remove the column completely from the concentrator.
7. Repeat steps 5-6 to remove the other column.
Installation of the new columns:
8. Remove the upper and lower dust caps from each column. There should be
a total of two dust caps removed from each column. Make sure there is no
dust or debris where the dust caps were located.
9. Insert the new column into the concentrator.
CAUTION
should be inserted into the concentrator as soon as the dust caps have
been removed to minimize environmental exposure and maximize
10. The column should click into place and the spring loaded latch button
should fully return to the closed position when the column is completely
inserted.
11. Repeat steps 9-10 to install the other column.
12. Replace the lower cover and return the concentrator to its upright position.
13. Connect the power supply cord from the concentrator and plug into an
electrical outlet. Do not power on the concentrator.
14. Press and hold the plus (+) button for ten seconds. Flow indicators 1, 3 & 5
will be illuminated and columns will be reset. Release the plus button.
15. Press the power button to turn on the concentrator and use normally.
NOTE
required. Column should only be removed during this maintenance
3.2. Maintenance by the Patient
3.2.1. Cannula Replacement
The nasal cannula should be replaced on a regular basis. A single lumen cannula of 4
to 100 feet in le ngth must be used. I nogen has certified its perf ormance data with the
Salter Laboratories 16SOFT cannula.
CAUTION
3.2.2. Particle Filter Cleaning and Replacement
On the side of the Inogen At Home, ambient air passes through a particle filter that
removes dust fragments. This particle filter must be cleaned on a weekly basis to
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 9 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
ensure adequate air flow through the device. If the particle screen is not cleaned
Service Item
Estimated Service Requirement Frequency
Compressor
20,000 run hours
Columns
18 to 24 months
Valves
25,000 run hours
Particle Filter
20,000 run hours with regular cleaning by user
Cooling Fan
25,000 run hours
Dimensions:
16.5”H (41.25 cm) x 13”W (15 cm) x 7”D (31 cm)
Weight:
18 lbs (8.2 kg.)
Noise:
<50 dBa
Warm-Up Time:
<5 minutes
Oxygen Concentration:
90 + 6/-3%
Flow Control Settings:
5 settings; 1-5 liters per minute
Power:
AC Power Supply
100-240 V, 50-60 Hz, 275 W Max
frequently, the life expectancy of the concentrator will be shortened due to higher
internal operating temperatures.
Particle filters should be cleaned using a mi ld liquid detergent (such as DawnTM) and
water solution; be sure the filter is rinsed in water and allowed to air dry befor e reuse.
Additional replacement filters may be obtained from Inogen (RP-400). There are other
types of filters inside the Inogen At Home that provide additional filtration. Maintenance
of these filters is not required under normal operating conditions.
3.2.3. Humidifier Bottle Refill
The humidifier bottle should be routinely refilled according to the manufacturer’s
instructions.
3.2.4. Surface Cleaning
The outside case should be cleaned using a clot h dampened with a solution of mild
liquid detergent (such as DawnTM) and water. Avoid getting water in or around the
power jack or vents.
3.3. Expected Service Requirements
The following table is provided as an estimate only and assumes typical
environmental conditions for temperature, humidity, and air pollution. Any smoking
around the device will severely shorten its life expectancy. Please refer to product
warranty coverage terms.
4. INOGEN AT HOME SYSTEM SPECIFICATIONS
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 10 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
Environmental Ranges
Temperature: 41 - 104oF (5 - 40oC)
Altitude: 0 - 10,000 ft. (0 - 3048 m)
Mode of Operation:
Continuous
Type of Protection Against Electrical Shock:
Class II
Type BF
Not intended for cardiac application
Degree of Protection Against Ingress of Water:
Concentrator: IP 21
Degree of Safety for Application in Presence
of Anesthetic Gases:
Intended for Use:
Humidity: 15% to 95%, non-condensing
4.1. Classifications
Degree of Protection Against Electrical Shock:
5. INOGEN AT HOME ERROR ALARMS
5.1. DEFINITIONS
5.1.1. Alarm LED: The alarm LED is positioned above a warning symbol (⚠) o n the user interface
panel and is used to indicate when an alarm is occurrin g.
Not suitable for such applications
5.1.2. Warning LED: The warning LED is positioned above the Alarm LED and is us ed to indicate
when column maintenance is required. Depending on the concentrator version, there may or
may not be a triangle symbol positioned below the Warning LED. Please note that the
visuals used below do not include the triangle symbol but actual appearance may
vary.
5.1.3. Flow LED Indicator: In addition to the Alarm and Warning LEDs, the flow indi cator LEDs are
used to indicate the reason for which the concentrator is malfunctioning. Unlike in normal
operation when the flow indicator LEDs incrementally turn on, only one flow indicator LED
turns on with the alarm or warning LED to signify the reason for which the concentrator has
errored.
5.1.4. Hour meter Error Code: Unique Error Codes exist for each error which can occur. This code will be displayed on the Hour meter Screen on the backside of the concentrator when the unit is experiencing the error.
5.1.5. Error Recall: The most recent err or can be recalled on the Hour meter screen by pressing
and holding the minus (-) button for 5 seconds while the unit is in standby. The unique error
code will then be displayed on the Hour meter Screen for 30 seconds after which the Screen
will revert back to displaying the life clock.
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 11 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
5.2. WARNINGS
Indicator Condition Action/Explanation
Continuous beep Power Error -
Power was lost
during operation.
Flow indicator LED
flashing
System Startup –
The oxygen
concentration
and/or flow are not
yet in spec.
Solid blue LED
Double beep
O2 Service Soon One or both of the
columns attached to
the concentrator
need to be
replaced.
Try unplugging the power cord and plugging it back in.
Try using a different AC outlet or a different power cord.
If the alarm is not reset, hold the power button down f or
2 seconds. If error persists, return the concentrat or for
service.
As long as the yellow alarm LED is not illuminated,
there is no error and no action is required. Once the
output stabilizes, the green flow indicator LED will
remain solid.
Column maintenance is required within 30 days. Follow
the procedure included with the replacement columns to
change the columns. Press and hold the plus (+) button
for 5 seconds to clear the alarm for 72 hours.
5.3. LOW PRIORITY ALARMS
The following low priority alarm messages are accom panied by a double beep and a solid yellow
light.
Indicator Condition
Low Oxygen Oxygen < 82% for
10 minutes.
Service Needed The
concentrator’s
compressor has
reached its
maximum speed.
Hour
Action/Explanation
meter
Error Code
-25- The concentrator has been producing
oxygen at a slightly decreased level
for over 5 minutes. Column
maintenance may be required or there
may be a leak in the concentrator.
Return the concentrator for service if
the low oxygen error was not
preceded by an O2 service soon error.
-27- The compressor is at its end of life or
there is a leak in the concentrator.
Return the concentrator for service.
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 12 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
Sensor Fail One of the
concentrator’s
sensors has
malfunctioned.
-24- Remove power and restart the
concentrator. If error persists, return
the concentrator for service.
Low Flow - Flow
<10% of specified
flow setting for 5
minutes.
5.4. MEDIUM PRIORITY ALARMS
The following medium priority alarm messages are accompanied by a triple beep and a flashing
yellow light.
Indicator Condition
Oxygen Error Oxygen <50%
for 10 minutes.
-26-
The concentrator is producing oxygen
at a slightly decreased rate. Ensure air
intake vents have clear access and
particle filters are clean. Check for
kinked tubing and listed for proper
exhaust noise. If problem persists,
return the concentrator for service.
Hourmeter
Action/Explanation
Error Code
-22- The concentrator has a malfunction
such as a leak or a failed valve. Return
the concentrator for service.
PROPRIETARY
Flow Error Oxygen is <50%
of specified flow
setting for 1
minute.
96-05070-00-01 rev D DCR 20-328
-23-
Proper oxygen delivery is not being
detected. Check for kinked tubing and
listen for proper exhaust noises. If
problem persists, return the
concentrator for service.
CONCENTRATOR TECHNICAL MANUAL
Page 13 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
5.5. HIGH PRIORITY ALARMS
The following high priority alarm messages are acc ompanied by a five beep pattern and a flashing
yellow light.
Indicator Condition
Fire Hazard Internal smoke
detector has
been activated.
System Hot Concentrator is
too hot and is
shutting down.
System Cold Concentrator is
too cold and is
shutting down.
Hourmeter
Action/Explanation
Error Code
- 9- Smoke has been detected inside the
device. Allow the concentrator to air out
in a smoke-free environment. Restart
the concentrator. If the smoke detection
error occurs frequently when no smoke
is deemed present, return the
concentrator for service.
-13-
Ensure air intake and outlet vents have
clear access and particle filters are
clean. Allow the concentrator to cool for
10 minutes and restart. If problem
persists, the cooling fan is not
functioning. Return concentrator for
service.
-12- Allow the concentrator to warm up in a
room temperature environment for 10
minutes and restart. If error persists,
return concentrator for service.
PROPRIETARY
System Error System has
encountered an
error and is
shutting down.
96-05070-00-01 rev D DCR 20-328
-XX-
(see below)
CONCENTRATOR TECHNICAL MANUAL
Take note of the error code displayed
on the small screen on the backside of
the device. See Error Code table below.
Page 14 of 15
CONFIDENTIAL and
INOGEN AT HOME OXYGEN
5.6. ERROR CODE TABLE
The following error codes are displayed on the small screen on the backside of the concentrator during
System Error.
Error Code Number Condition Action/Explanation
- 2- Software Error. Unplug the external power to clear the e rro r and then
restart the concentrator. If error persists, switch to a
backup source of oxygen and contact your equipment
provider.
- 6- Pressure Error. Check that the sieve beds are installed properly. I f error
persists, switch to a backup source of oxygen and contact
your equipment provider.
-10- Low Current.
-11- High Current.
-14-
-15-
-18-
Sensor Error. Signal or
reading out of spec.
Applies to signals from
user interface and other
internal connections.
Restart concentrator. If error persists, switch to a ba ckup
source of oxygen and contact your equipment provider.
There may be a fault with the motor. If error persists,
switch to a backup source of oxygen and contact your
equipment provider.
A sensor has given an out of range reading and might
need to be serviced if the error persists after resta rt ing the
concentrator.
5.7. CONTACTS for MORE INFORMATION
Inogen, Inc.
301Coromar Drive
Goleta, CA 93117
1-866-765-2800
http://www.inogenone.com
http://www.inogen.net
PROPRIETARY
96-05070-00-01 rev D DCR 20-328
CONCENTRATOR TECHNICAL MANUAL
Page 15 of 15
Loading...
