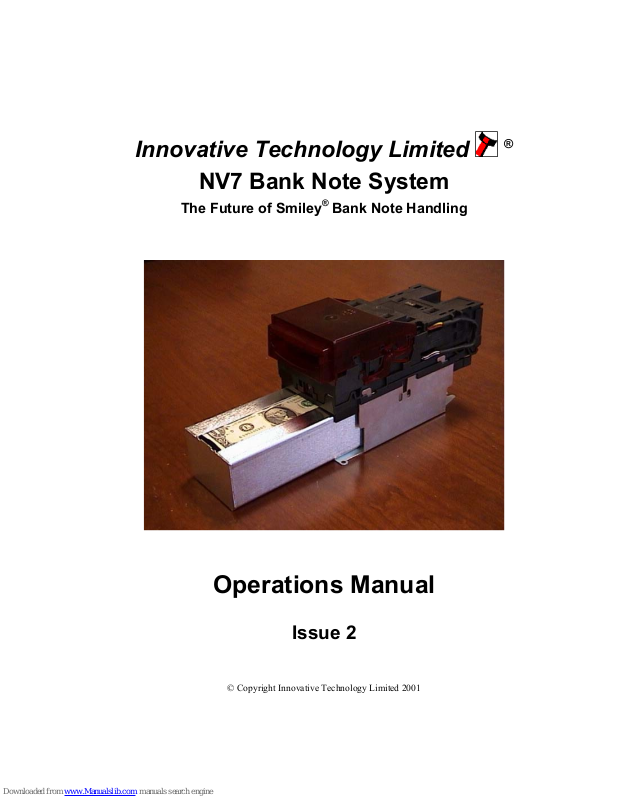

Innovative Technology NV7 Operation Manual

Page 1
Innovative Technology Limited
®
NV7 Bank Note System
The Future of Smiley® Bank Note Handling
Operations Manual
Issue 2
© Copyright Innovative Technology Limited 2001
Page 2
Introduction
IMPORTANT
This Product must be fused with a 2 Amp fuse before use.
This manual describes the operation of the NV7 Bank note Validator as fitted with Firmware Version 1-00
Please note that the NV7 Validator is NOT pin for pin compatible with the NV2/3/4/4X or 5 series products
We recommend that you study this manual as there are many new features permitting new uses and more secure applications.
If you do not understand any part of this manual please contact the factory for assistance. In this way we may continue to improve our product.
Smiley® and the ITL Logo are international registered trademarks and they are the property of Innovative Technology Limited.
Innovative Technology has a number of European and International Patents and Patents Pending protecting this product. If you require further details please contact the factory.
Innovative Technology Ltd. Derker Street Oldham England OL1 4EQ
Tel: +44 (0)161 626 9999 +44 (0)161 620 1990 Fax: +44 (0)161 620 2090 email sales@innovative-technology.co.uk
or visit our web site on www.innovative-technology.co.uk
2
Page 3
Contents
Page
INTRODUCTION.....................................................................................................................................2
CONTENTS.............................................................................................................................................3
SCOPE OF DOCUMENT ........................................................................................................................4
GENERAL DESCRIPTION .....................................................................................................................5
NV7 FUNCTIONALITY ...........................................................................................................................6
ENVIRONMENT AND POWER REQUIREMENTS ................................................................................7
INTERFACES: HARDWARE DESCRIPTION........................................................................................8
INTERFACES: PROTOCOLS ..............................................................................................................10
MECHANICAL INSTALLATION...........................................................................................................14
CALIBRATION AND ROUTINE MAINTENANCE................................................................................15
FAULT FINDING...................................................................................................................................16
SUPPORT TOOLS................................................................................................................................17

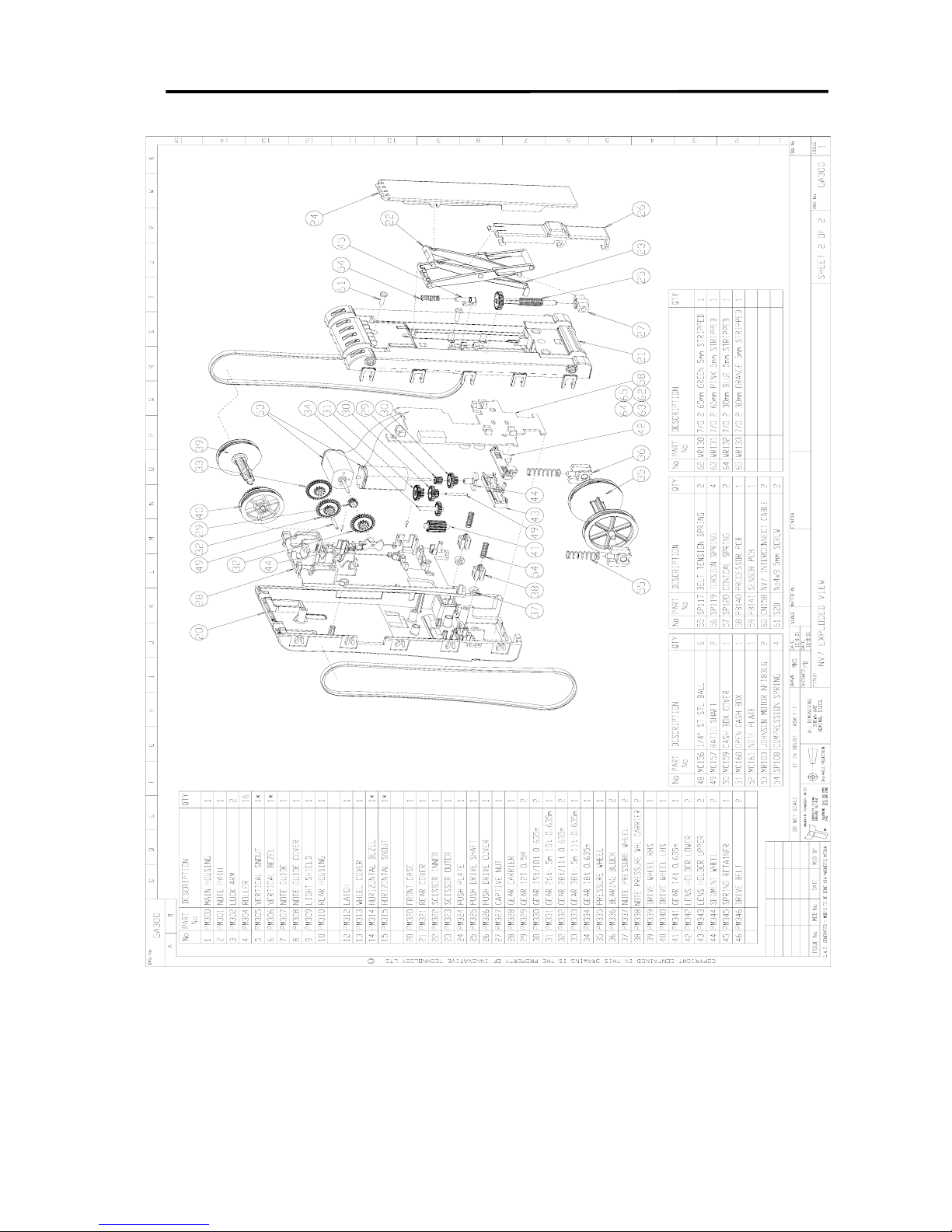

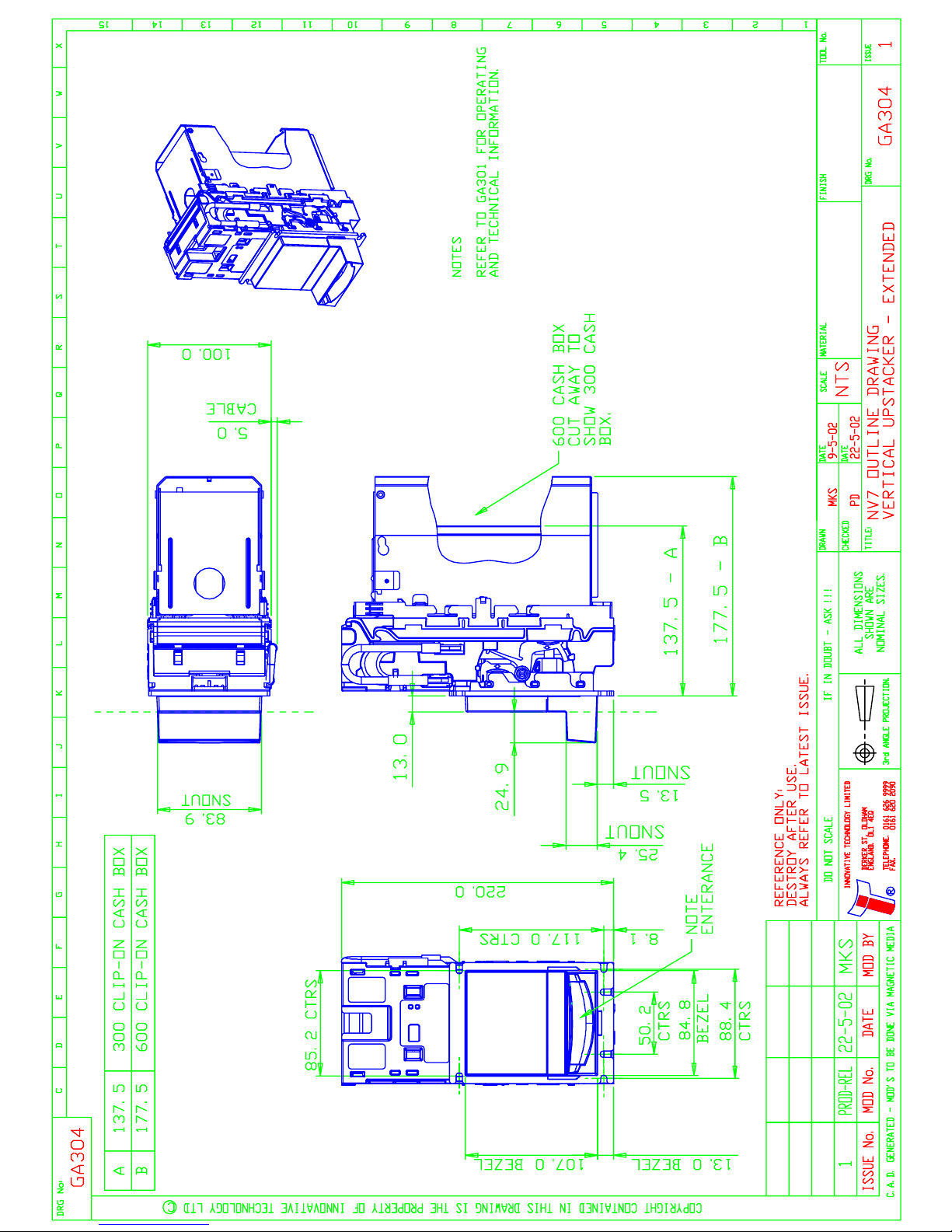

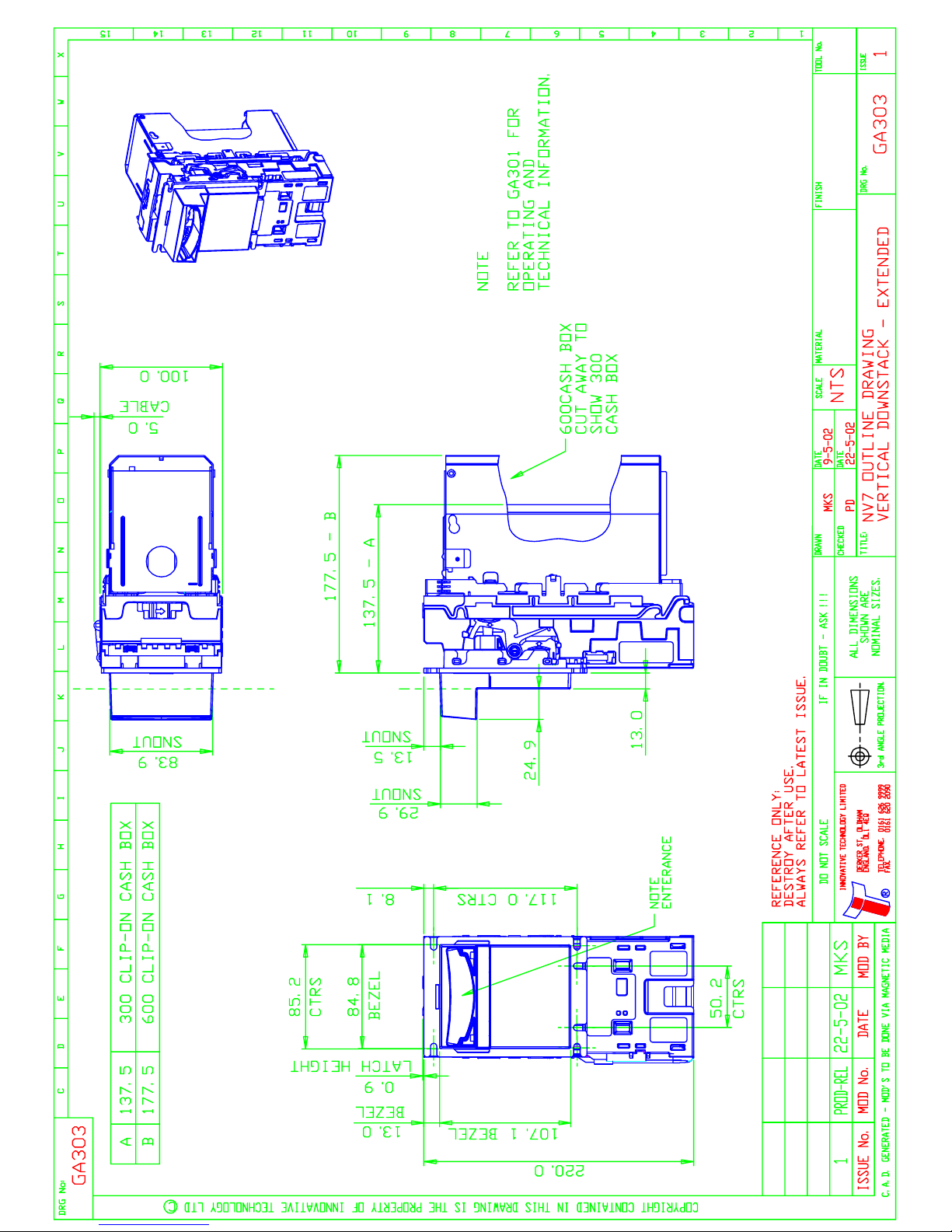

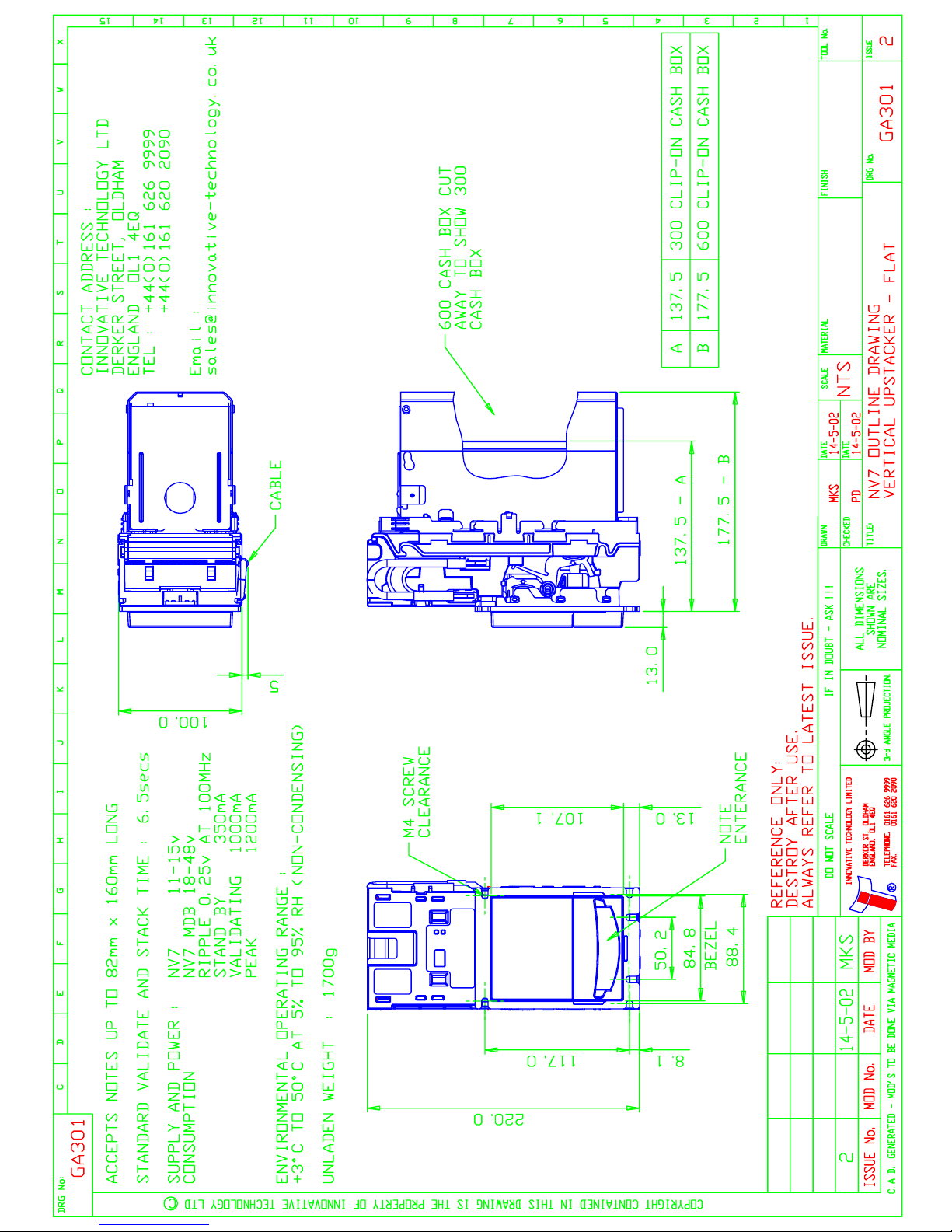

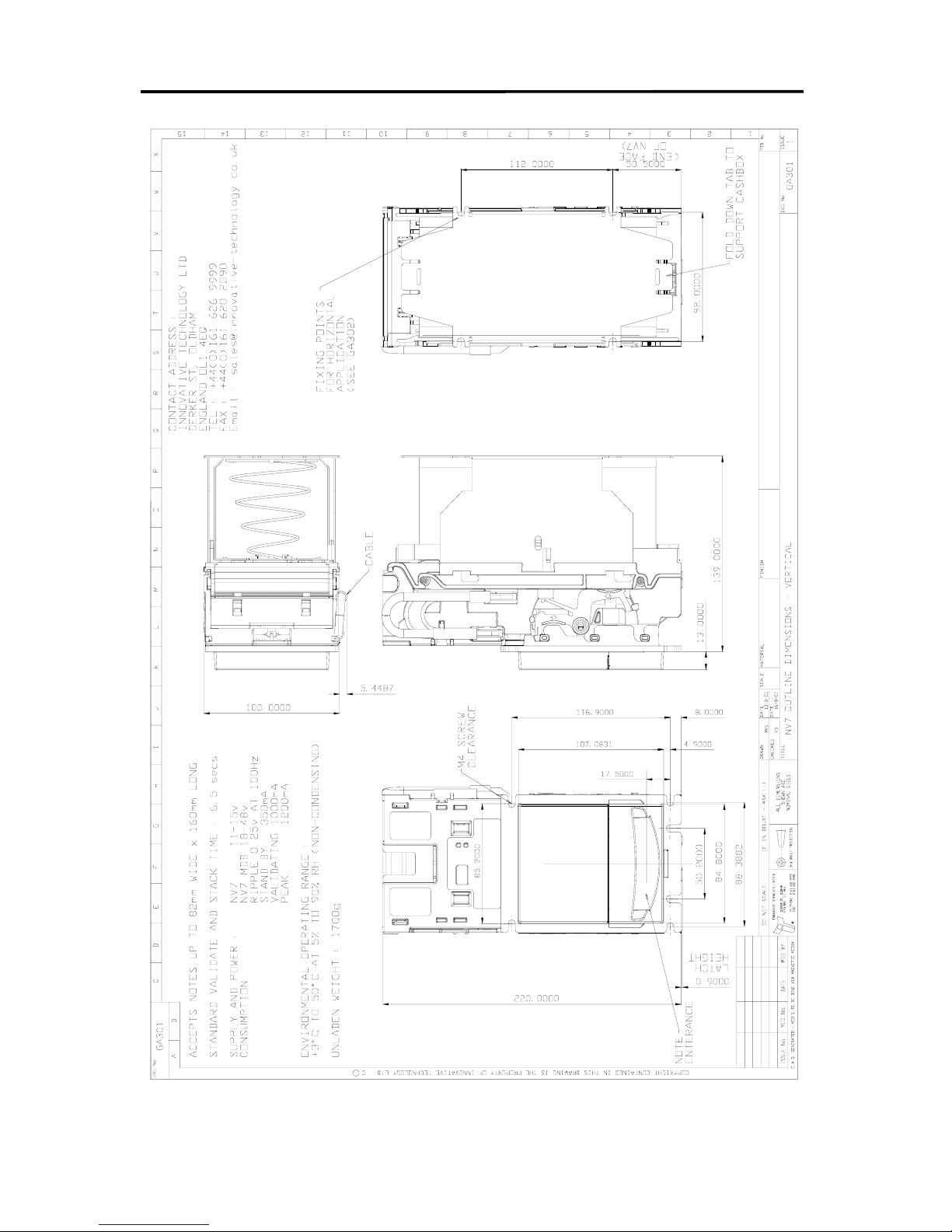

PARTS LIST AND DRAWINGS ...........................................................................................................18
REVISION HISTORY ............................................................................................................................27
3
Page 4
Scope of Document
This document is intended for those whose will:
a) Design the NV7 into items of equipment.
b) Build equipment using the NV7.
c) Install equipment containing the NV7.
d) Maintain equipment containing the NV7.
Although information is included which will allow a degree of fault diagnosis and repair, it is recommended that for all but simple mechanical repairs the unit is returned to an approved service centre for repair.
CAUTION:
Never exceed the recommended environmental and electrical limits.
Do not attempt to lubricate the mechanisms as this may affect the note transport.
Do not polish the lens as this may alter the optical characteristics.
If the NV7 Validator is disassembled the unit must be re-calibrated. In the unlikely event of a problem it is better to have the complete unit checked.
Innovative Technology Ltd has a policy of continual product improvement. As a result the products supplied may vary from the specification described here. Innovative Technology is not responsible for any loss, harm, or damage caused by the installation and use of this product. This does not affect your local statutory rights. If in doubt please contact Innovative Technology for details of any changes. Alternatively visit our web site at
www.innovative-technology.co.uk
4
Page 5
General Description

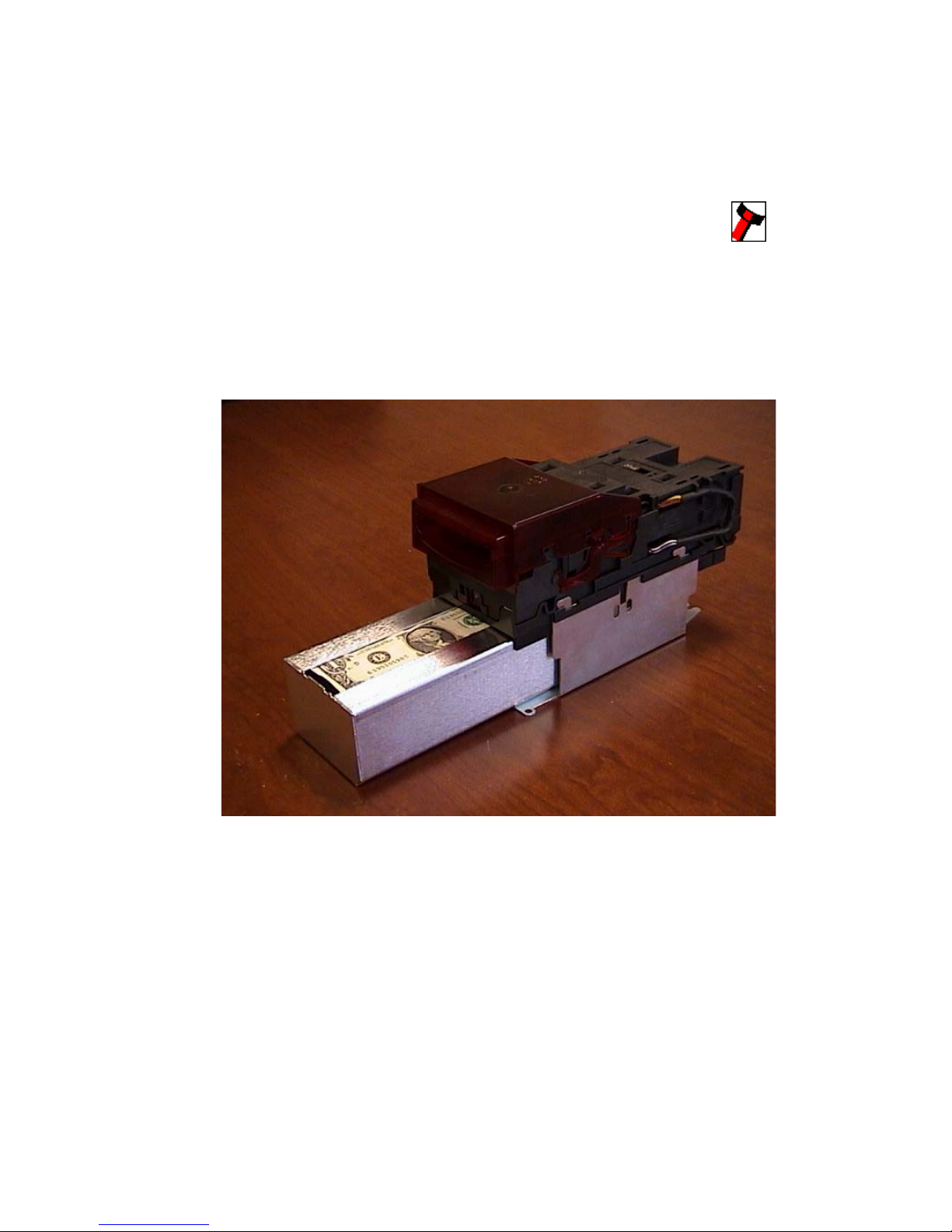

NV7 Validator - the next generation of Smiley® Bank Note validators

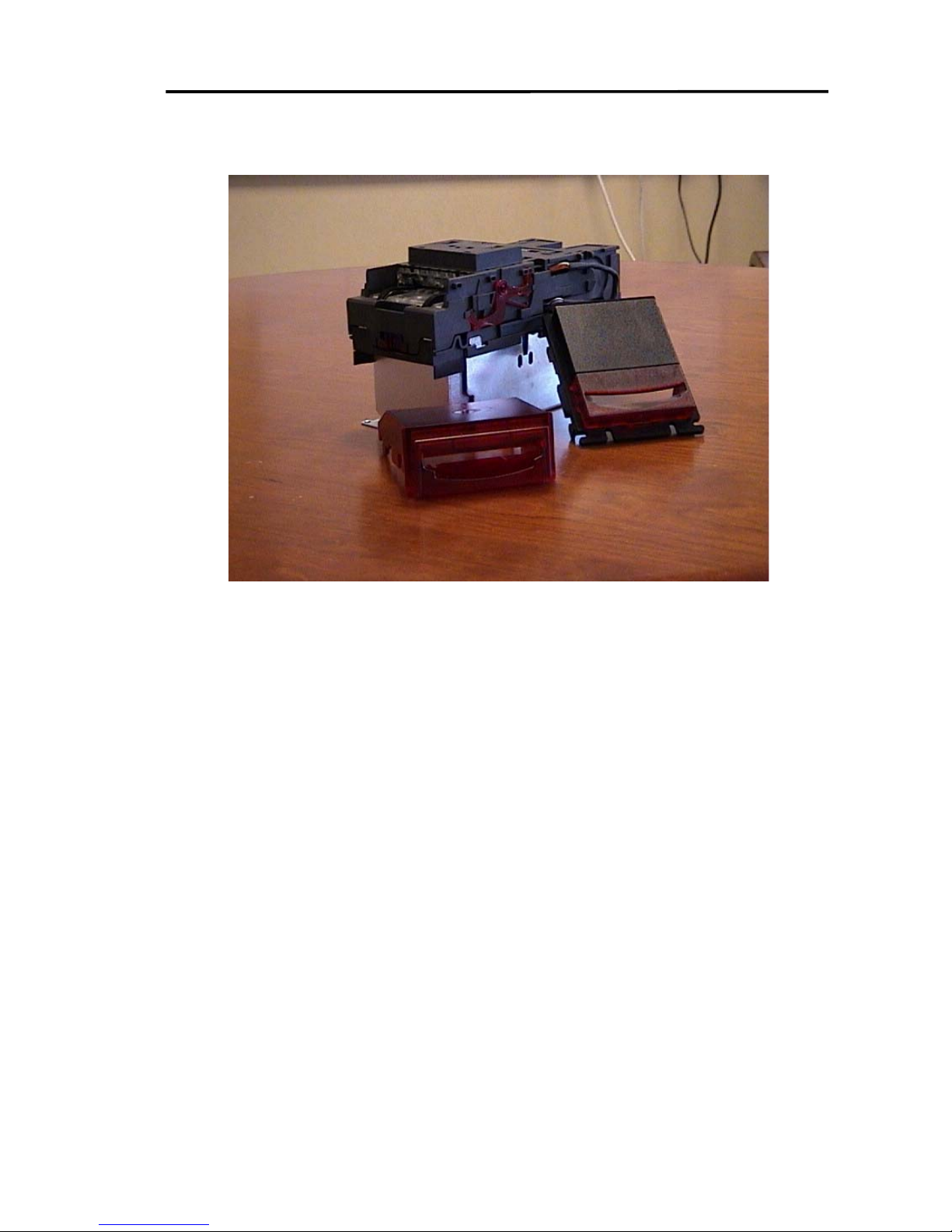

Figure 1 – The NV7 and the vertical and universal bezels
The NV7 Bank Note System is a compact note handling mechanism, suitable for most money machines. It will accept up to 16 different denominations of notes in the serial control mode, and will cope with different designs of banknote having the same value such as are found in the United Kingdom.
The NV7 Validator leaves the factory containing at least one currency data set so that it is ready for immediate installation. If it is desired to change the currency data set this may be done using either the NV7 to NV7 currency cloning system or the PC based Currency Management software. New currencies and applications are being tested all the time, so please refer to our web site or contact the factory for information concerning specific currencies if they are not already included on our approved list.
The NV7 has been designed for easy installation in most machines. The new stepped “smiling mouth” allows insertion of notes with one hand and simplifies the note handling mechanism.
Interfacing the Validator is very simple, with the choice of parallel open collector outputs, pulse stream output, or SSP secure serial communications.
Other communication protocols such as the MDB interface will become available in future
5
Page 6

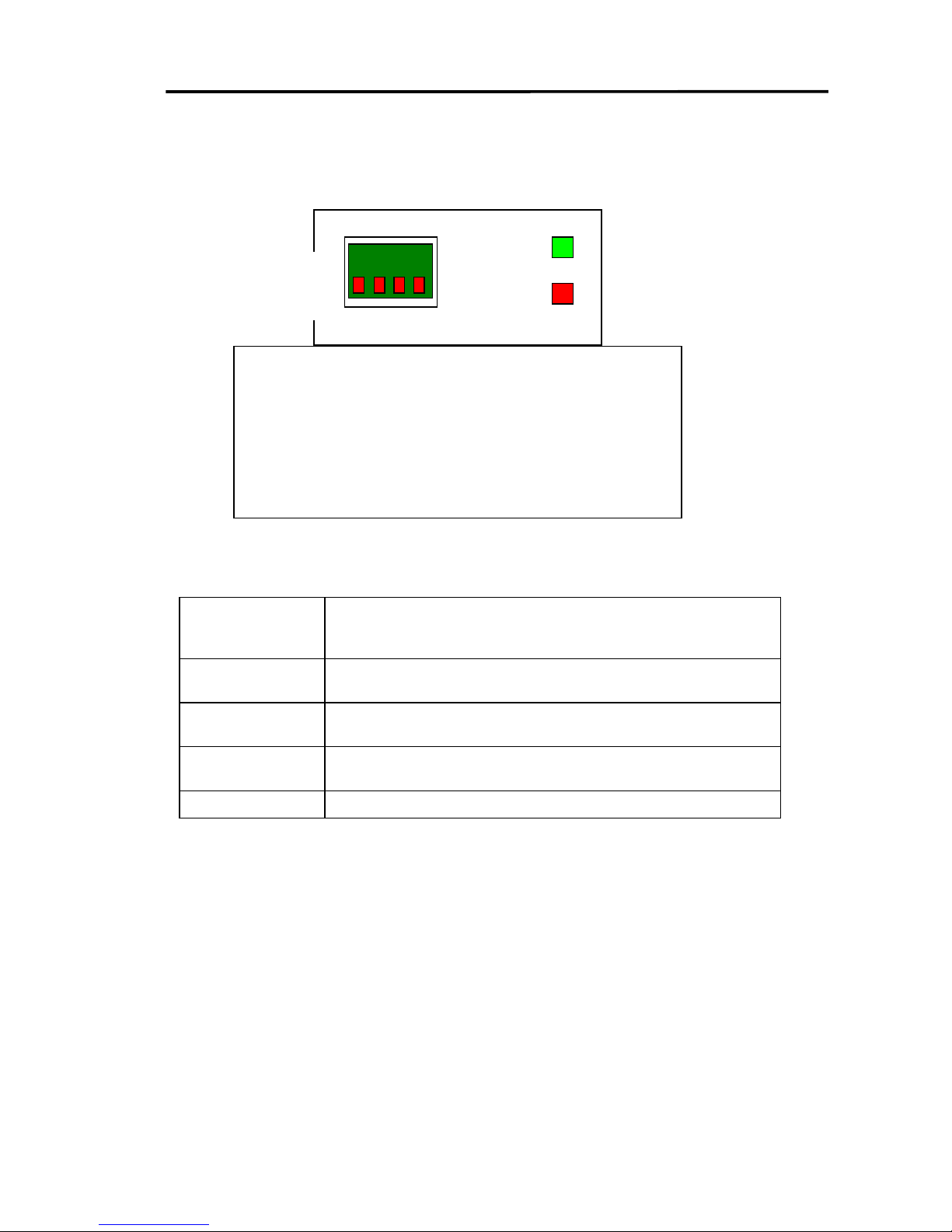

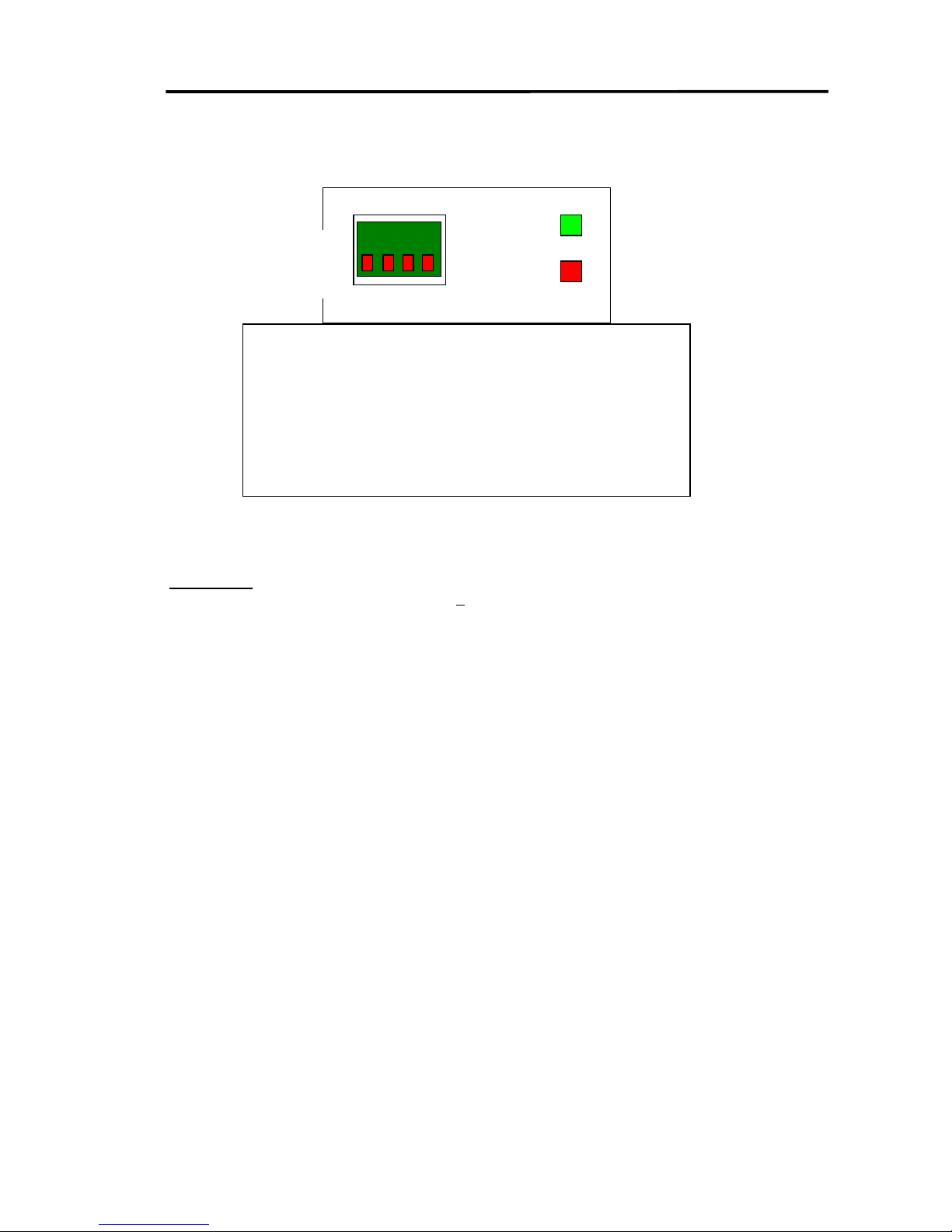

NV7 Functionality – User Display and DIP switches
UP U
DOWN D
2
3
4
Interfaces
D D Parallel
D U Pulse
U D S.S.P. U U Special
1
Status
1 2 3 4
U High U Initialise Security
D High Accept
The two LED’s on the top of the unit are used to provide a variety of status signals: The red status is used to indicate system problems – these are described below
Slow flashing green led Heartbeat (slow = 1 second period)
In normal RUN operation, when the NV7 is ready to read a note, the green status led will flash slowly ("Heartbeat") to signal a “healthy” status.
Flashing red one second period
NV7 is jammed, somewhere in the note path
Fast flashing red (fast = half second period)
NV7 cannot calibrate, sensor(s) may be blocked
Alternately flashing green then red
Stacker is full
Switch 1: High Acceptance / High Security:
Switch 1 allows the operator to alter the security sensitivity of the NV7.
Switch 2: Initialise on power up:
If dipswitch 2 is set to the UP position before power up of the validator, the unit go into initialisation mode.
In this mode, the validator note path motors will run forward and wait a piece of calibration paper to be entered into the front of the validator. After initialisation, the paper will be ejected from the front of the validator.Ensure that dipswitch 2 is set to down again after initialisation.
PLEASE NOTE: ONLY CARRY OUT THIS INITIALISATION UNDER INSTRUCTION FROM INNOVATIVE TECHNOLOGY LTD AND ENSURE THAT YOU USE THE INITIALISATION PAPER AVAILABLE FROM INNOVATIVE TECHNOLOGY LTD.
6
Page 7
Environment and Power Requirements
Environment Minimum Maximum
Temperature +3oC +50oC
Humidity 5% 95% Non condensing
Electrical Supply Minimum Maximum
Supply Voltage (V dc) Absolute Limits 11V 15V
*MDB Versions Supply Voltage 18V 42V
NOTE: If input voltage falls below 10.5v the NV7 will reject notes
Supply Ripple Voltage 0 0.25V
@100Hz
Supply Currents
Standby 350mA
Validating 1000mA
Peak (Stacker Motor stall) 1200mA
7
Page 8
Interfaces: Hardware Description

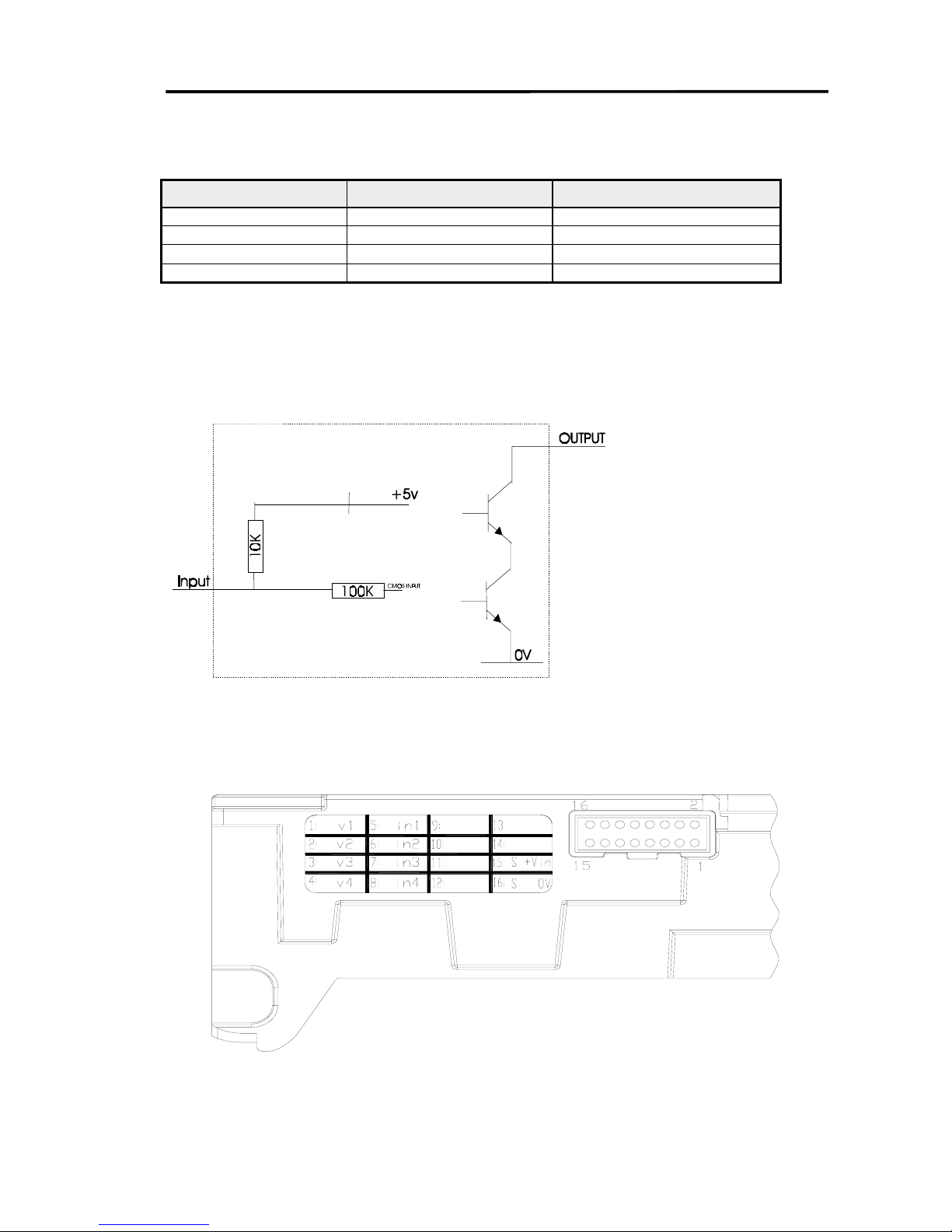

Interface Logic levels Logic Low Logic High
Inputs 0V < Low < 0.5 +3.7V < High <12V Outputs with 10K pull up
0.6V pull up voltage of host interface Maximum Current Sink 50mA per output Note that the output low signal is affected by the value of the pull up resistor on the host interface.
All outputs are open collector transistors.
All Inputs are held high to internal +5v via 10K. The input structure is a CMOS gate with anti static protection fitted. Please ensure your signal LOW levels comply with the 74HC CMOS series specification for reliable operation.
16 Pin Connector Details
: 16 Pins, 0.1" pitch header, 2 rows by 8 pins
8
Page 9
Pin Name: Description:
1 Vend 1 Note accepted on Channel 1,
Also the Pulse Stream output Also the serial output pin in SSP Serial Mode
2 Vend 2 Note accepted on Channel 2 pulse output
Also MEI HI2 Data Line, connect to Inhibit2
3 Vend 3 Note accepted on Channel 3 pulse output
Also MEI HI2 Busy Line, connect to Inhibit3 4 Vend 4 Note accepted on Channel 4 pulse output 5 Inhibit 1 Inhibit channel 1 by holding this pin HIGH. To Enable a channel the
inhibit must be held LOW.
Also the Serial Input pin in RS232 serial mode 6 Inhibit 2 Inhibit channel 2 by holding this pin HIGH 7 Inhibit 3 Inhibit channel 3 by holding this pin HIGH 8 Inhibit 4 Inhibit channel 4 by holding this pin HIGH 9 Busy NV7 is validating and stacking output. Active low while the NV7 is
reading, transporting or stacking a note. 10 Escrow Operate Escrow function by holding LOW, refer to Escrow section for
full details
NOTE: pins 11 to 14 have no function unless MDB software is
downloaded 11 MDB TX Optically Isolated MDB transmit output 12 MDB TX GND Optically Isolated MDB transmit output ground 13 MDB RX GND Optically Isolated MDB transmit input ground 14 MDB RX Optically Isolated MDB transmit input 15 +Vin Nominal 12V DC supply 16 0V 0v Supply
Software Optional Serial Interface Input and Outputs
Note: these interfaces will only work if the relevant interface software is downloaded
Name: Description:
SSP TxD Vend 1 SSP RxD Inhibit 1 ID003 TxD Vend 1 ID003 RxD Inhibit 1 HI2 Busy Vend 3 + Inhibit 3
HI2 Data Vend 2 + Inhibit 2
9
Page 10
Interfaces: Protocols
To select the required interface, the dip switches on the front/top of the NV7 must be set accordingly:-
UP U
DOWN D
2
3
4
Interfaces
D D Parallel
D U Pulse
U D S.S.P. U U Special
1
Status
1 2 3 4
U High U Initialise Security
D High Accept
1: parallel input and output:
To use parallel outputs dip switch 3 and 4 must be down
Vend Signals
(Pins 1 to 4). The four channels have their own individual outputs. If a note is recognised then
the relevant channel line is pulled low for 100 +
3 milliseconds. It is recommended that pulses outside these
limits are rejected as a precaution against false triggering due to noise.
Busy Output: (Pin 9). This is a general-purpose busy signal. It is active low while the NV7 is in operation.
Escrow Control (Parallel mode): (pin 10). The NV7 has a single note escrow facility. This allows the
Validator to hold onto the note once accepted, and then only stack the note in the cash box when the host machine confirms that the Vend operation has been completed. If no confirmation of the Vend is received then the note will be returned to the customer after 30 seconds. If the host machine itself aborts the transaction by raising the corresponding inhibit input high, the note is returned immediately. The sequence of operations is as follows:
1. Pin 10 held low awaiting note insertion.
2. Note inserted. Validator issues a 100ms pulse on the appropriate channel.
3. The host machine initiates vend process.
4. The host machine raises pin 10 high to indicate that it wants the note. If this is not done within 30 seconds the Validator will return the note.
5. The Validator issues a 100ms pulse on the appropriate channel within 3 seconds of pin 10 going high to indicate final acceptance of the note. (If the signal has not been received within 30 seconds it indicates the customer has forcibly retrieved the note and the vend should be aborted.)
6. The vend process is completed.
7. The host machine makes pin 10 low in expectation of the next vend.
The host can force the return of the note to the customer by raising the inhibit line high, at any time before the end of the 30 second time-out. For channels above 4, taking all the inhibits high will cause a note reject.
In the event of a note being forcibly removed from the mouth of the NV7 during the 30 second interval, the NV7 will go out of service for 45 seconds.
Escrow Control (SSP mode): escrow is also possible using the SSP serial Interface. Please refer to SSP Specification GA138 available on the website www.innovative-technology.co.uk.
10
Page 11

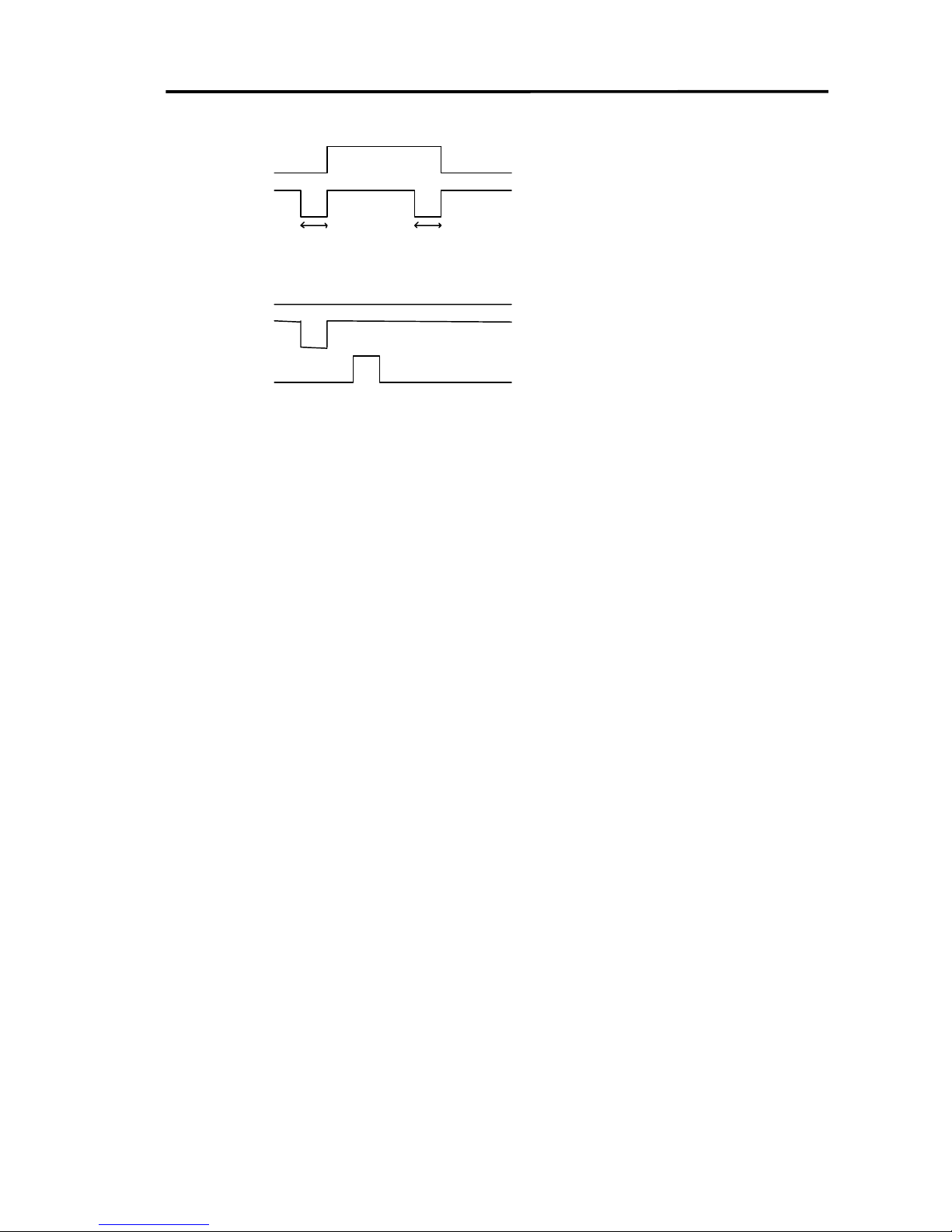

Escrow Timing Diagra m for Paralle l Vends:-
Escro w
Vend
Escro w
Vend
Inhibit
100mse
Do not wait more than 30
seconds for the second vend confirmatio n
Inhibit rejection can be at any time during the 30 decision period after the of the vend
(Escrow held low)
100mse
Inhibit Operation
Each channel (1 to 4) has its own inhibit input to allow the host machine to refuse specified values of notes. To inhibit a channel, the relevant inhibit input must be held high. To enable a channel the corresponding inhibit must be latched low so that notes may be accepted.
If all four inhibits are high simultaneously then the NV7 will not read in any notes. In this mode, if a note is inserted the motor will run in reverse preventing the insertion of a note. All four inhibits may be connected together to create a 'global' inhibit. In this way the NV7 may be brought in and out of operation by the host machine.
It is also possible to inhibit channels using the SSP interface
2: Pulse Stream Output:
To use pulse stream output dip switch 3 must be down, switch 4 must be up.
When a note is recognised vend 1 will pulse a pre set number times, the number of pulses and the timing is set in the NV7 currency manager programme (and set to default values with supplied dataset).
3: SSP Smiley Secure Protocol
Please refer to SSP Specification ITL Drawing GA 138 on the web site.
To help in the software implementation of the SSP protocol, Innovative Technology can provide, C Code, DLL controls and Visual Basic applications on request. Please contact the factory for assistance.
Programming
Validators are normally supplied ready taught from the factory. This section may be skipped unless the validators need to be re-taught with a new note or currency.
The NV7 Validator may only be programmed using the NV7 currenct download manager or by cloning from a master unit:
1. Use the NV7 Currency Manager Software, which is supplied with a range of currencies. To use this system
you will require a PC running Windows 95/98/NT™, Pentium™ 100MHz or faster with a serial port, and a 12volt dc power supply to power the validator. (© Microsoft and Intel). A list of currently supported currencies is maintained on our web site, and new releases can be downloaded from there. Further details are available from Sales at Innovative Technology Ltd.
11
Page 12
2 .NV7 - NV7 Copy (Cloning)
Overview
The facility exists for using an NV7 Bank Note Validator to copy its programme and settings to another NV7 The ‘Master’ validator will transmit the currency data and upgrade the slave’s firmware if necessary.
Requirements
Master to have firmware 1.01 or greater
NV7 copy cable assembly. 12V supply.

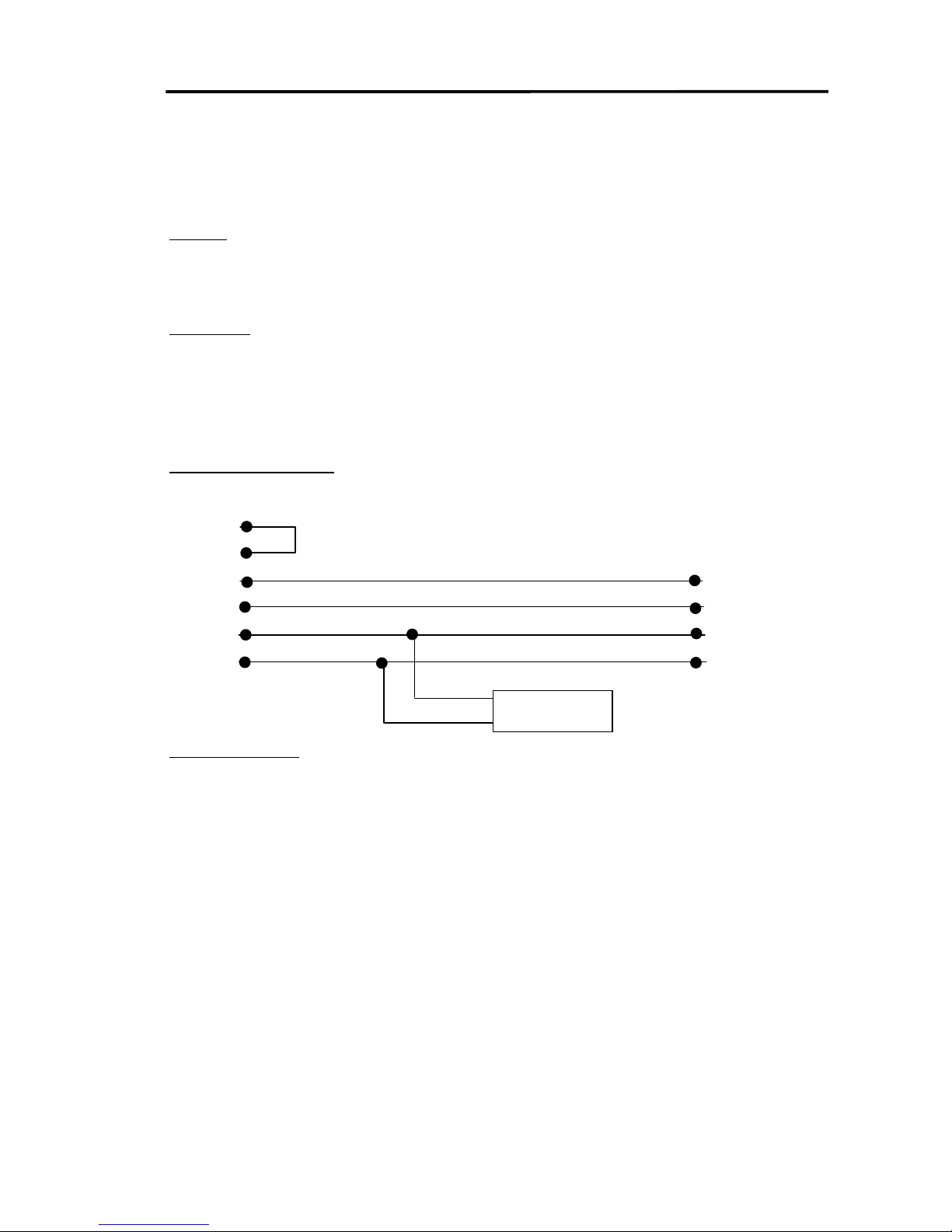

NV7 Copy Cable Diagram
+12V Supply
Slave
Vend 1
Inhibit 1
0v
12v
Master
Vend 4
Inhibit 4
Inhibit 1
Vend 1
0v
12v
Start-up configuration
Remove power from slave and master units. Set dip switches 3 UP and 4 DOWN to select SSP interface mode on both NV7s. Connect the two units together as above. Make sure Vend 4 is connected to Inhibit 4 on the master unit.
Turn on the 12V supply.
The Master unit will update the slave firmware if the version of the master is greater than the slave.
If the master firmware is less than the slave, then the copy process is aborted.
12
Page 13
NV7 – NV7 copy process.
Connect NV7 master to slave using copy adaptor and apply power
Master unit will flash RED and GREEN LED if the connector is configured correctly.
RED and GREEN on master flash together – attempting to communicate with slave.
RED and GREEN on master flash alternately - communication established, master waiting for slave to reset.
If communication has been established and slave has reset then the master will read slave firmware version and decide on next action.
If slave firmware version is greater than master: Master RED and GREEN LED’s will flash alternately at 1-second rate. No further copy action will take place.
If slave firmware version is same as master then master will start to copy currency data to slave.
If slave firmware version is less than master then master will start to copy firmware data to slave.
Firmware copy:
Master RED LED will blink rapidly during firmware copy (the LED will pause from time to time).
If master RED LED changed to slow blink (1 per second) then communication has been lost and copying should be restarted from beginning.
When firmware copy is complete, slave will reset and Master unit will wait to re-establish communications. (LED flashes as at first stage power-up).
When slave is ready, master will initiate currency data copy.
Currency copy:
Master GREEN LED will blink rapidly during the currency copy process (the LED will pause from time to time).
If master RED LED changed to slow blink (1 per second) then communication has been lost and copying should be restarted from beginning.
When currency copy is complete, Master will show GREEN and RED LEDs continuously and slave will reset.
NV7 – NV7 copy is now complete
13
Page 14

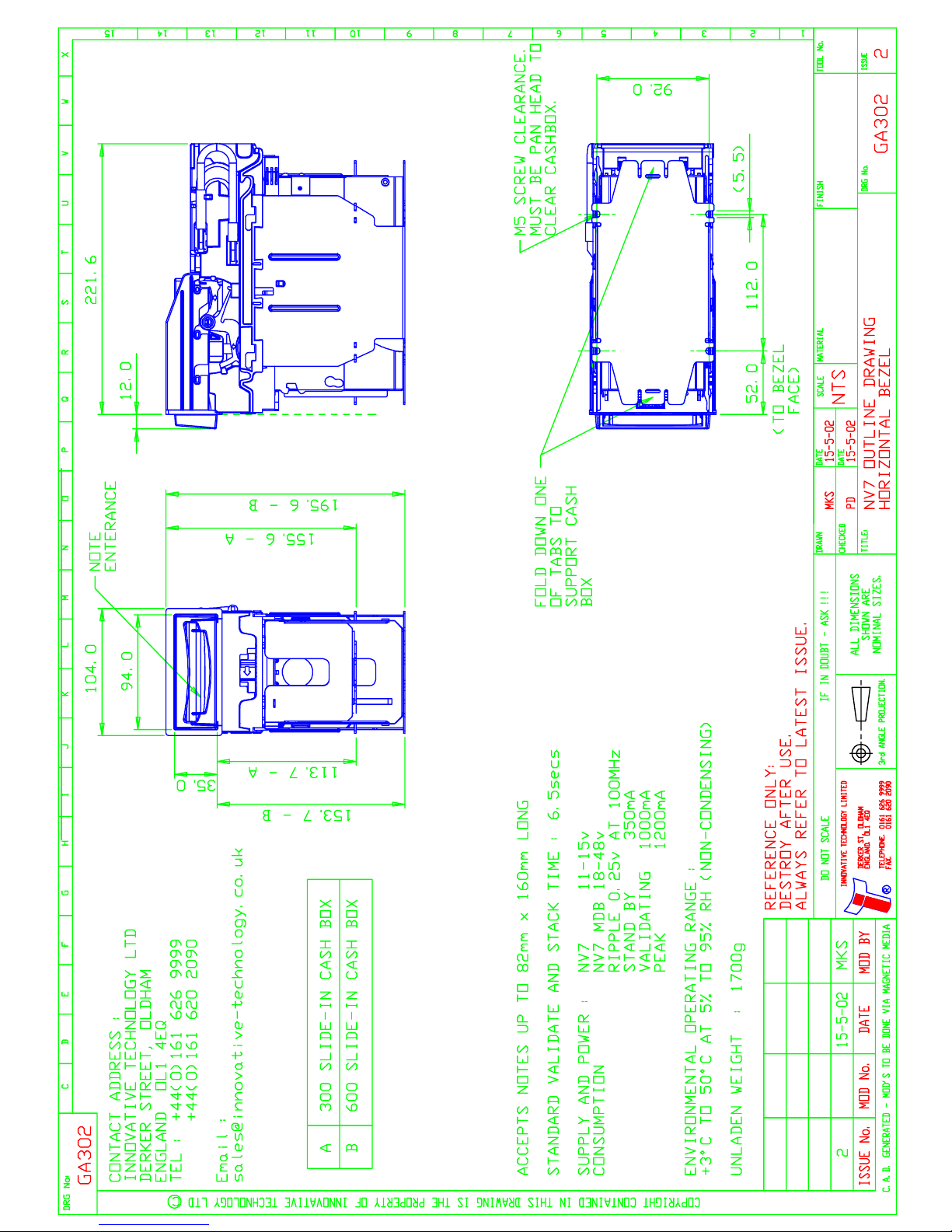

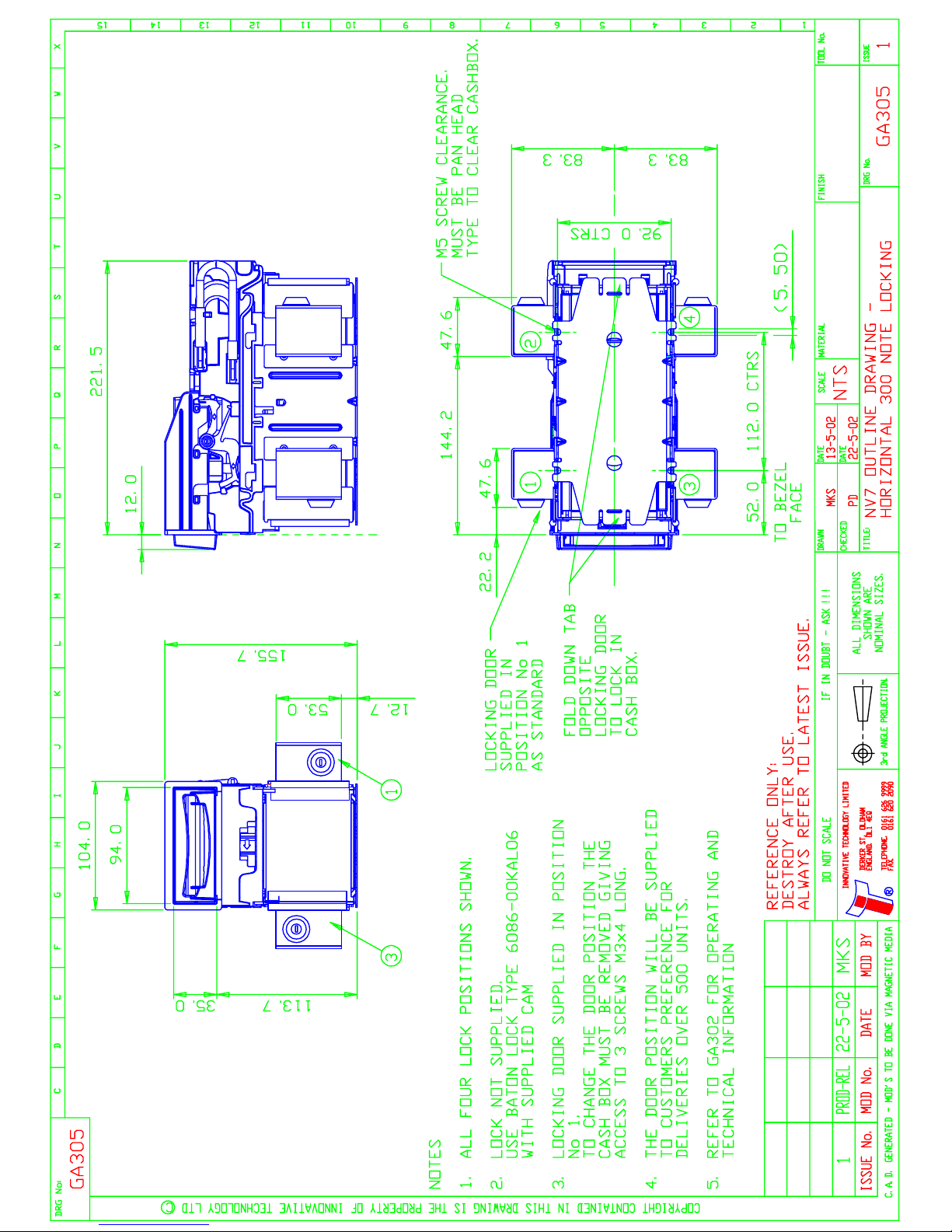

Mechanical Installation
The NV7 validator can be supplied with either the Horizontal Bezel (PM314 & PM315) or the Vertical bezel (PM306 & PM305).
Changing or removing the bezels:
Push both of the locking arms so that they disengage from the bezel sides. The bezel may then be unhooked from the 6 locating points. To refit push the bezel onto the six locating points. The locking arms will spring back to secure the bezel.
Please make sure both locking arms have located correctly.
14
Page 15
Calibration and Routine Maintenance
The NV7 Validator has been designed to minimise any performance variation over time. Much of this is achieved by careful hardware and software design. However, depending upon the environment the NV7 may at some time require cleaning or even re-calibration.
Cleaning:
Slide the red catch on the end of the NV7 Validator to open the note path. The note path and lozenge may now be exposed for cleaning. Wipe the surfaces with a soft lint free cloth that has been dampened with a water and detergent solution (such as a household washing up liquid) NEVER use a solvent based cleaner such as alcohol, petrol, methylated spirits, white spirit, or PCB cleaner. This will result in permanent damage to the validator. Take particular care around the lenses. If a lens has become badly scratched do not attempt to polish it as this may damage the optical properties.
Re-Calibration:
The NV7 has an in-built self-calibration system that maintains the optical sensors at their best operating point. However if the NV7 is disassembled for any reason it will need to be re-calibrated. This is best done in conjunction with the diagnostics software. - Follow the help menus supplied with this programme.
15
Page 16
Fault Finding
Problem
Check:
Solution
Validator will not take notes: Is the Bezel Illuminated? Check power supply,
Check interface system
Is the jumper cable connected from
the top to the bottom of the
validator?
Test cable
Validator runs slowly or intermittently:
Make sure there are no foreign
objects in the note path
Clean the note path
Check voltage level of supply Ensure correct supply and
sufficient current. Check for damage Replace Path components Ensure there is no grease on drive
belts
Replace belts
Notes pass through the validator but do not give a vend signal
Is the power supply inside specification. Which interface have you selected
Ensure correct supply and
sufficient current.
Check dip switch settings
Check Interface system
Unit rejects genuine notes Check that the unit has been
programmed for this note.
Check Currency on label
Check the security setting Adjust security setting
Notes not stacking correctly Is cash box fitted?
Is cash box damaged Incorrect cash box for NV7
Replace cash box
16
Page 17
Support Tools
The following support tools are available for use with the NV7 Bank Note Validator:
1. PC Currency Manager Software.
2. Downloads from the Innovative Technology Ltd website: www.innovative-technology.co.uk
1. PC Currency Programming Software.
The NV7 Currency Manager software offers the following functions:
Teach the NV7 Validator by downloading pre-prepared currency data via the serial communications link.
Check the firmware version and currency set already loaded on an NV7 unit
Adjust the channel and pulse configuration on a pre-programmed NV7 to your own requirements
Download a new version of firmware onto the NV7
Use diagnostic functions to check validator operation ( version 2.2 and greater only)
The software will run on an IBM compatible Personal Computer with Pentium™ processor or equivalent and requires a DA1 which must be fitted to the PC serial port. This program runs under the Windows 95/98/NT™ operating system, and requires one free serial port to connect to the NV7. (© Microsoft and Intel).
2. Internet Website support.
The Innovative Technology Ltd website provides the means to download new and updated currency sets and new versions of firmware for the NV7. Visit www.innovative-technology.co.uk for further details. Technical bulletins are also made available. Note the files are password protected to prevent abuse. Periodically the passwords are changed. Please contact sales at Innovative Technology for password updates.
3. Email Support.
If the data you require is not available over the Internet Innovative Technology supports an email system to help customers with unusual requirements. The address is sales@innovative-technology.co.u
17
Page 18
Parts List and Drawing
18
Page 19
19
Page 20
20
Page 21
21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
27
Revision History
Issue No. Mod No. Date Done by
Draft A NA July 2001 KA
Issue 1 NA January 2002 TJC
Issue 2 NA June 2002 TB
Loading...
