Innovative technology ITITV-2012 User Manual

Dock & View

ITITV-2012

User's Guide

Important Safety Instructions

When used in the directed manner, this unit has been designed and manufactured to ensure
your personal safety. However, improper use can result in potential electrical shock or fire
hazards. Please read all safety and operating instructions carefully before installation and use,
and keep these instructions handy for future reference. Take special note of all warnings listed in
these instructions and on the unit.

1. Water and Moisture
The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink,
laundry tub, swimming pool or in a set basement.

2. Ventilation
The unit should be situated so that its location or position does not interfere with its proper
ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that
may block the ventilation openings. The ventilation should not be impeded by covering the
ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Also, it
should not be placed in a built-in installation, such as a bookcase or cabinet, which may
impede the flow of air through the ventilation openings.

3. Heat & Flame
The unit should be situated away from heat sources such as radiators, heat registers, stoves
or other appliances (including amplifiers) that produce heat.
No naked flame sources, such as lighted candles, should be placed on the apparatus.

4. Power Source
The unit should be connected to a power supply only of the type described in the operating
instructions or as marked on the appliance.
Where the AC/DC Adaptor is used as the disconnect device, the disconnect device shall
remain readily operable.

5. Power Cord Protection
Power supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them. It is always best to have a clear area from where the cord
exits the unit to where it is plugged into an AC outlet.

6. Cleaning
The unit should be cleaned only as recommended. See the section "Care and Maintenance"
of this manual for cleaning instructions.

7. Object and Liquid Entry
Care should be taken so that objects do not fall and liquids are not spilled into any openings
or vents located on the unit. It shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.

8. Attachments
Do not use attachments not recommended by the product manufacturer.

9. Lightning and Power Surge Protection
Unplug the unit from the wall outlet and disconnect the periods of time. This will prevent
damage to the product due to lightning and power-line surges.

10. Overloading
Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
result in a risk of fire of electric shock.

11. Damage Requiring Service
This unit should be serviced by qualified service personnel when:
A. The power supply cord or plug has been damaged.
B. Objects have fallen into or liquid has been spilled into the enclosure.
C. The unit has been exposed to rain.
D. The unit has been dropped or the enclosure damaged.
E. The unit exhibits a marked change in performance or does not operate normally.

12. Periods of Nonuse
If the unit is to be left unused for an extended period of time, such as a month or longer, the
power cord should be unplugged from the unit to prevent damage or corrosion.

13. Servicing
The user should not attempt to service the unit beyond those methods described in the user's
operating instructions. Service methods not covered in the operating instructions should be
referred to qualified service personnel.

Features

Thank you for purchasing the Dock & View for iPod/iPhone/iPad.

This model incorporates following features :

- Different iPad / iPod / iPhone models Re-charger

- Playback iPhone/iPad/iPod music file /video clip at the primary docking station and output

audio/video signal to TV set

- Re-charge iPhone/iPad/iPod battery on the secondary docking station

- AC-DC power adaptor operated

- Remote Control operation

Box Includes:

- Dock & View docking station

- Power adaptor

- Composite cables

- Remote control

- Instruction manual

- Quick start guide

“Made for iPod”,“Made for iPhone” and “Made for iPad”mean that an electronic accessory has
been designed to connect specifically to iPod, iPhone or iPad respectively and has been certified
by the developer to meet Apple performance standards. Apple is not responsible for the
operation of this device or its compliance with safety and regulatory standards. Please note that
the use of this accessory with iPad, iPhone or iPod may affect wireless performance.

iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries.

Installation

Remote Control

The remote control operates on one CR2025 battery (included).
To activate the remote control, remove the insulation tab attached in the battery compartment.

Warnings:

- Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

- Be sure that the battery is installed correctly. Wrong polarity may damage the unit.

- Only batteries of the same or equivalent type as recommended are to be used.

- If the unit is not to be used for an extended period of time, remove the battery.

- Do not dispose of batteries in fire, battery may explode or leak.

- Danger of explosion if battery is incorrectly replaced.

AC-DC Power Adaptor Connection

The unit is powered by an external AC-DC power adaptor, required the output DC 5V 4000mA
(included).
(1) Firmly and securely plug the adaptor's AC plug into AC main outlet.
(2) Connect the adaptor's DC output plug to the DC-in jack of the unit.

Description of Parts

Main Unit

Top View

Front View

Rear View

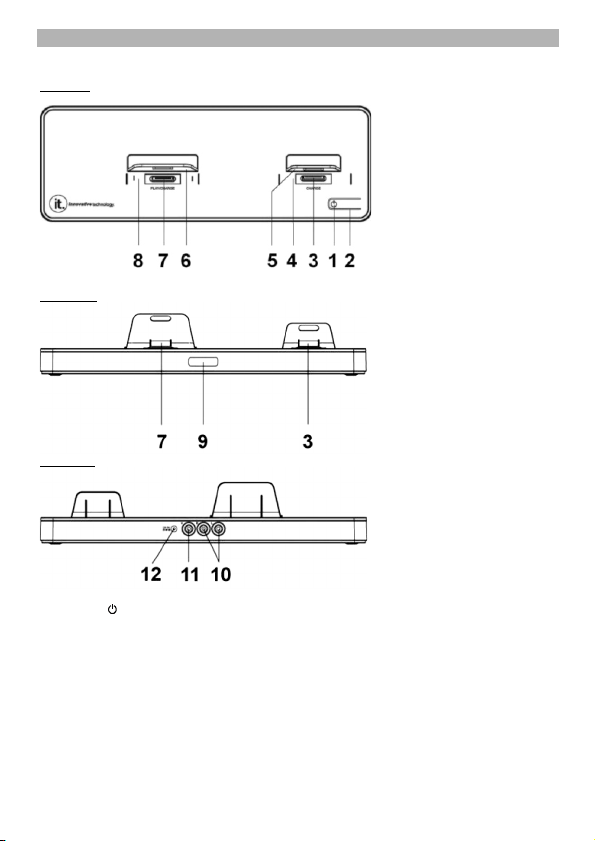

1. Standby button ----- Turn the unit on / off

2. Standby indicator ----- Lights up whilst the unit is on

3. Secondary iPhone/iPad connector

4. Secondary docking platform

5. Secondary iPhone/iPad backing plate

6. Primary iPhone/iPad backing plate

7. Primary iPhone/iPad connector

8. Primary docking platform

9. Remote Control Infrared Sensor

10. Audio RCA jack ----- Left and Right channel audio output

11. Video Out RCA jack ----- Composite video output

12. DC-in Jack -----For the connection of external DC power supply

Description of Parts

Remote Control

1. Infrared Transmitter

2. Standby button ----- Turn the unit on / off

3. button ----- Play / Pause iPod (iPhone/iPad) music

4. button-----Skip tracks Forward; perform high-speed search

5. button---- iPod Repeat button

6. button ---- iPod menu Down button

7. VOL + / - button --- Adjust volume level up or down

8. button ----- iPod menu Up button

9. button ----Skip tracks Backward ; perform high-speed search

10. button ----- iPod Shuffle button

11. MENU button ----- iPod menu button

12. ENTER button ----- iPod menu confirm selection button

13. MUTE button ----- Mute the volume

14. Battery Compartment

Playback iPad / iPhone / iPod Music or Video Clip

This model can be used with a variety of different iPad / iPhone / iPod models.

- Connect one end of a RCA video cable to the rear RCA video out socket on the dock unit.

- Connect the left and right audio channel RCA audio cable to the rear RCA L/R audio out

socket on the dock unit.

- Connect the other end of the left and right channel RCA audio cable to L/R audio-in

connector of the television or other external audio amplifier.

• Insert your iPad / iPhone / iPod into the docking port by placing the connector on the bottom

of the iPad / iPhone / iPod onto the connector at the docking platform.

Caution:

Please be careful when seating the iPad / iPhone / iPod into the docking port to avoid

damaging the 30-pin connector on the iPad / iPhone / iPod or in the docking system.

• Press the Standby button to turn on the unit. The Standby indicator lights up.

• To turn off the unit, press the Standby button and the Standby indicator will turn off.

TIPS: Remove the dock cover before you dock your device.

(A) The Primary Docking Station

Listening to iPad / iPhone / iPod music

From the remote control

● You may press the VOL + / - button to adjust the volume to a desired level.

Note: The volume level cannot be adjusted using the volume control on your iPad/iPhone/iPod
after being docked. Use the included remote to adjust the volume during playback.

● Press the button to pause or resume the iPad/iPhone/iPod playback.

● Press the / button to skip to the next or previous song.

● Press and hold the / button for fast-forwarding or fast-rewinding during playback.

● To set iPod music play-mode in random, press the SHUFFLE button.

● To set iPod music in repeat play-mode, press the button.

● To mute the volume, press the MUTE button. Press the MUTE button again to resume

listening to the music.

● To access iPod / iPhone menu, press the MENU button (not applicable for iPad).

● You may press the navigation buttons ( Up / Down / ENTER) as from your iPhone /

iPod to highlight and select desired items (not applicable for iPad).

Watching video clip on an external TV set

Before you watch a movie from the external TV set, you first need to set your iPod's TV Out setting.

For earlier iPod with video models (with click wheel) :
iPod : On the main menu choose video then select video setting.
iPod : Set the TV Out section to "ON" .
iPod : Switch back to the movie library and you’re ready for playback of a movie of your choice.

For iPad, iPhone and iPod touch :
TV Out will be automatically set in iPad, iPhone and iPod touch when the TV Out on/off setting is
not available for user's selection.

Operation

1. Press the Standby button to turn on the unit.

2. Securely dock your iPad / iPhone / iPod with video.

3. Select the video you wish to watch from the menu on your Apple device and press either the

Play / Pause button on remote control or the play button on the Apple device.

4. The video out signal from the dock unit will be enabled and you can watch a movie on your

television or external video display.

Note: The playback of video clip will not display on your iPad / iPhone / iPod screen after being

docked.

(B) The Secondary Docking Station

The secondary docking station is designed to re-charge the iPad/iPhone/iPod battery only.
It will not playback music / video at this station.

Noted:

● When the unit is powered by the external DC adaptor and once the iPad / iPhone / iPod

connected to the docking port, the unit recharges the iPad / iPhone / iPod battery.

● If the unit is powered on, but there is no Apple device docked on the primary docking station,

the unit will automatically turn off after approximately 5 minutes.

Care and Maintenance

- Do not subject the unit to excessive force, shock, dust or extreme temperature.

- Do not tamper with the internal components of the unit.

- Clean your unit with a damp (never wet) cloth. Solvent or detergent should never be used.

- Avoid leaving your unit in direct sunlight or in hot, humid or dusty places.

- Keep your unit away from heating appliances and sources of electrical noise such as

fluorescent lamps or motors.

Technical Data

Power Adaptor : Input AC100V - 240V ~ 50 / 60 Hz
Output DC 5V 4000mA

Power Supply for the unit : DC 5V 4000mA

THE SPECIFICATION AND EXTERNAL APPEARANCE OF THE SET ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE.

FCC Statement

Warning: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and the receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-Consult the dealer or an experienced radio/TV technician for help.

Perchlorate Material- Special handling may apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/. This notice is required by
California Code of Regulations, Title 22, Division 4.5, Chapter 33: Best Management Practices
for Perchlorate Materials. This device includes a battery which contain perchlorate material.

CALIFORNIA PROP 65 WARNING
"WARNING" This product contains a chemical known to the State of California to cause birth
defects or other reproductive harm. For more information on regulations and a list of chemicals,
log on the following website address:
http://www.oehha.ca.gov/prop65.html

Innovative Technology Electronics Corp.
Limited Warranty: 90 Days Labor, One Year Parts

Innovative Technology Electronics Corp. (IT) warrants the product to be free from “Defects” in
materials under normal use for a period of “One Year” from the date of the original purchase. The
Warranty is “Not” transferable. IT agrees, within the initial “90 Day” period, to repair or replace
the product if it is determined to be defective at “No Charge”. It is further agreed that IT will cover
the cost to repair or replace damaged “Parts” only for a total period of “One Year” from the date
of the original purchase. The warranty does not cover cosmetic damage, antennas, AC cords,
cabinets, headbands, ear-pads, or damage due to line power surges, connection to improper
voltage supply or settings, misuse, mishandling, accident, acts of God or attempted repair by an
unauthorized service agent.

To obtain service, the purchaser MUST present an original sales receipt / proof of
purchase. Please contact us at www.ithomeproducts.com to request an RMA (Return
Material Authorization) number to return products for service or replacement. Returns

without an RMA number on the package will be refused and returned to sender. Upon receipt of
the returning item and our full inspection (IT) may issue a replacement to customer for the same
item or of one that has equivalent value and features. To return an item, supply full name, return
address, phone number, item purchased, receipt of purchase and reason for return to obtain
RMA number.

All returns must be in the original packaging or reasonable substitute to prevent damage.
Customer “Must” include full name, shipping address and telephone number inside of package.
No return will be shipped back to a PO Box or APO address.
Please include your check or money order in the amount of

• USD$5.00 for items $10.00 to $39.99 (Price Paid Per Unit)

• USD$10.00 for items $40.00 to $99.99. (Price Paid Per Unit)

• USD$16.00, for items $100.00 and up. (Price Paid Per Unit)

• Shipping fees are non-refundable

to be payable to Innovative Technology Electronics Corp. (for handling and return
shipping charges) (IT) will not be responsible for delays or unprocessed claims resulting
from a purchaser’s failure to provide any / all of the necessary information.
Send all inquiries or RMA request via our website www.ithomeproducts.com/support.

Innovative Technology Electronics Corp.
1 Channel Drive
Port Washington, NY 11050
Toll free: 1-877-483-2497

Website for support: www.ithomeproducts.com/support

There are no express warranties except as listed above.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CUSTOMER, (IT) SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY
ON THIS PRODUCT EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the above exclusions or limitations may not
apply to you. This warranty gives you specific legal rights and you may also have other rights,
which vary from state to state.
