Innovative Technology ICU Quick Start Manual

Doc: ICU Quick Start Guide Version: 1.2

U Quick Start Guide

<< Back to Contents

Document Name:

ICU Quick Start Guide

Document Version:

1.2

Date of Release:

06/06/2018

Table of Contents

1 DOCUMENT INTRODUCTION .............................................................................................................. 2

1.1 RELATED DOCUMENTS ..................................................................................................................................... 2

1.2 MANUAL AMENDMENTS .................................................................................................................................. 2

1.3 COPYRIGHT .................................................................................................................................................... 2

1.4 LIMITED WARRANTY........................................................................................................................................ 2

1.5 PRODUCT SAFETY INFORMATION ....................................................................................................................... 3

1.6 DISCLAIMER ................................................................................................................................................... 3

2 GET TO KNOW YOUR ICU DEVICE ....................................................................................................... 6

2.1 FRONT VIEW .................................................................................................................................................. 6

2.2 REAR VIEW .................................................................................................................................................... 7

2.3 BOTTOM VIEW ............................................................................................................................................... 7

2.4 DEVICE STATUS LIGHTS .................................................................................................................................... 8

2.4.1 Boot Up Sequence ............................................................................................................................ 8

2.4.2 Age Verification Sequence................................................................................................................ 8

3 MACHINE INTEGRATION .................................................................................................................... 9

3.1 POWER SPECIFICATION .................................................................................................................................... 9

3.2 CONNECTION SPECIFICATION ............................................................................................................................ 9

3.3 SCREW SPECIFICATION ..................................................................................................................................... 9

3.4 BEZEL MOUNTING .......................................................................................................................................... 9

4 INSTALLATION AND USE .................................................................................................................. 11

5 SOFTWARE INTEGRATION ................................................................................................................ 12

5.1 SSP COMMUNICATION FLOW .........................................................................................................................12

5.2 UVC WEBCAM.............................................................................................................................................14

6 APPENDIX ....................................................................................................................................... 15

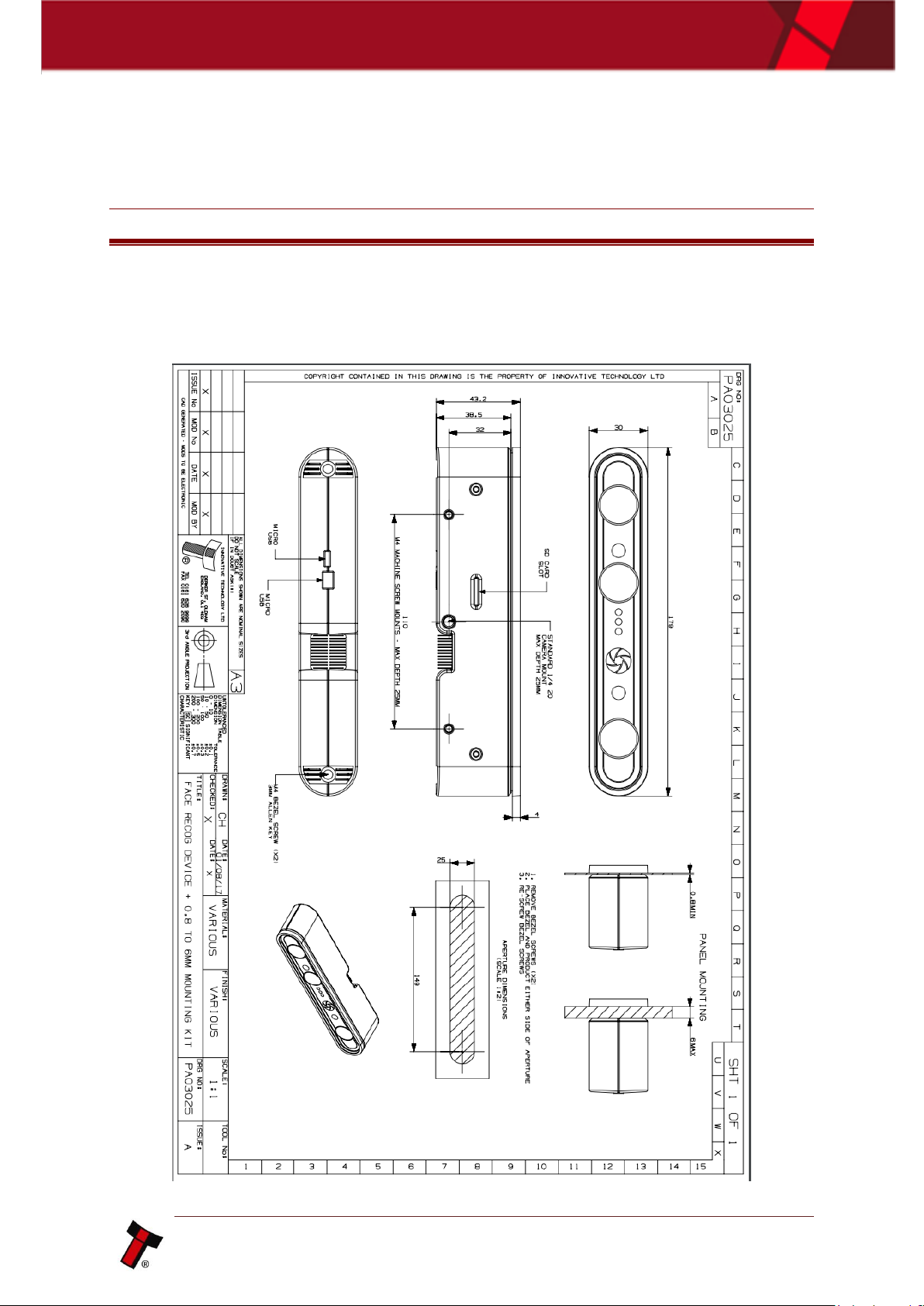

6.1 2D DRAWINGS .............................................................................................................................................15

6.1.1 ICU Device.......................................................................................................................................15

6.1.2 Power Cable....................................................................................................................................16

6.2 APPROVALS .................................................................................................................................................17

6.2.1 FCC ..................................................................................................................................................17

U Quick Start Guide

<< Back to Contents

1 DOCUMENT INTRODUCTION

1.1 Related Documents

This document should be read together with the following:

For SSP/eSSP:

Protocol Manual – SSP (GA138): SSP Interface Protocol Specification for integration

SSP Implementation Guide (GA973): Information for programmers and integrators

1.2 Manual Amendments

Rev.

Date

Amendment Details

Issued

by

1.0

27/04/2018

First Issue

CW

1.1

18/05/2018

Removed API information, updated to standard SSP comms

Include new images – measurement diagrams etc

Added integration sections

CW

1.2

06/06/2018

Updated SSP Comms information and UVC Section

Added Installation and Use Section

Changed some wording to further clarify information

CW

1.3 Copyright

This manual set is Copyright © Innovative Technology Ltd. 2018. No part of this publication may be reproduced in any form or by any means used to make any derivative such as translation, transformation, or adaptation without permission from Innovative Technology Ltd. The contents of this manual set may be subject to change without prior notice.

1.4 Limited Warranty

Innovative Technology Ltd warrants each of its hardware products to be free from defects in workmanship and materials under normal use and service for a period commencing on the date of purchase from Innovative Technology Ltd or its Authorized Reseller, and extending for the length of time stipulated by Innovative Technology Ltd.

A list of Innovative Technology Ltd offices can be found in every section of this manual set. If the product proves defective within the applicable warranty period, Innovative Technology Ltd will repair or replace the product. Innovative Technology Ltd shall have the sole discretion whether to repair or replace, and any replacement product supplied may be new or reconditioned.

U Quick Start Guide

<< Back to Contents

The foregoing warranties and remedies are exclusive and are in lieu of all other warranties, expressed or implied, either in fact or by operation of law, statutory or otherwise, including warranties of merchantability and fitness for a particular purpose.

Innovative Technology Ltd shall not be liable under this warranty if it’s testing and examination disclose that the alleged defect in the product does not exist or was caused by the customer's or any third person's misuse, neglect, improper installation or testing, unauthorized attempts to repair, or any other cause beyond the range of the intended use. In no event will Innovative Technology Ltd be liable for any damages, including loss of profits, cost of cover or other incidental, consequential or indirect damages arising out the installation, maintenance, use, performance, failure or interruption of an Innovative Technology Ltd product, however caused.

1.5 Product Safety Information

Throughout this user manual, we may draw your attention to key safety points that you should be aware of when using or maintaining the product.

These safety points will be highlighted in a box, like this:

Caution!

This is an example text.

This user manual and the information it contains is only applicable to the model stated on the front cover and must not be used with any other make or model.

1.6 Disclaimer

Innovative Technology Ltd is not responsible for any loss, harm, or damage caused by the installation and use of this product. This does not affect your local statutory rights. If in doubt contact Innovative Technology for details of any changes.

Innovative Technology Ltd has a policy of continual product improvement. As a result, the products supplied may vary from the specification described here.

Innovative Technology Ltd does not accept liability for any errors or omissions contained within this document. Innovative Technology Ltd shall not incur any penalties arising out of the adherence to, interpretation of, or reliance on, this standard.

U Quick Start Guide

<< Back to Contents

Safety Notice! Read before using this product!

Safety Notice - Warning. Ensure power is removed before allowing access to the inside of this product.

Ensure any static build up is discharged before allowing access to any part of this product or media contained. Always earth this product/base plate in accordance with the manual.

For use only in or with complete equipment where the acceptability of the combination is determined by UL LLC. When installed in an end-product, consideration must be given to the following:

• The power supply terminals and/or connectors are: Not investigated for field wiring

• The investigated Pollution Degree is: 2

• The following end-product enclosures are required: Mechanical, Fire

• Equipment not investigated for accessibility to children – to be evaluated in end-user application

Sicherheitshinweis – Warnung: Es muss sichergestellt werden, dass das Gerät von der Versorgungsspannung getrennt wird, bevor ein Eingriff in das Innere des Gerätes erfolgt. Es muss sichergestellt werden, dass jegliche statische Aufladung des Gerätes entladen wird, bevor auf das Gerät oder auf innerhalb des Gerätes befindliche Objekte zugegriffen wird. Die Erdung des Gerätes muss immer gemäß Handbuch erfolgen.

Nur für die Verwendung in oder mit kompletter Ausstattung, dessen Eignung und Kombination von der UL LLC ermittelt wurde. Bei der Installation in einem Endproduckt, muss folgendes berücksichtigt werden:

• Die Spannungsversorgungsklemmen und/oder Verbinder sind: Feldverkabelung wurde nicht

untersucht

• Der untersuchte Verschmutzungsgrad ist: 2

• Folgende Anforderungen an die Gehäuse des Endproduktes sind gefordert: Mechanisch, Feuer

Aviso de seguridad: Asegúrese de que la alimentación está desconectada y de que toda la energía estática es descargada antes de manipular este producto. Conecte a tierra la chapa base de la manera que se indica en el manual.

Solo para uso con dispositivos con los cuales la compatibilidad ha sido certificada por UL LLC. Tras su instalación en producto acabado, tener en cuenta lo siguiente:

• Los conectores y terminales de alimentación son: No se ha investigado/especificado cableado

externo.

• El grado de contaminación determinado es: 2

• Los siguientes manuales/certificados de producto final son requeridos: Mecánico, Fuego

Avis de sécurité : Assurez-vous que l'alimentation est coupée et que toute l'énergie statique est déchargé avant de manipuler ce produit. Connecter à la terre, la plaque de base à la manière indiquée dans le manuel.

A utiliser Seulement avec les dispositifs dont la compatibilité a été certifiée par UL LLC. Après son installation dans le produit fini, prendre en considération ce qui suit:-

• Les connecteurs et les bornes d'alimentation sont : cela n’a pas été étudié/spécifié câblage externe.

• Le degré de contamination déterminé est : 2

• Les manuels suivants / les certificats du produit final sont nécessaires : mécanique, incendie

Bezpečnostní upozornění. Před manipulací uvnitř tohoto produktu se ujistěte, že je produkt odpojen od zdroje elektrického napětí. Ujistěte se, že jakýkoliv elektrostatický náboj byl vybit před manipulací s jakoukoliv částí tohoto produktu nebo obsaženým médiem. Vždy uzemněte tento produkt/základovou desku v souladu s

návodem.

Pouze pro použití v nebo s kompletním vybavením, kde je přijatelnost kombinace určena UL LLC. Při instalaci v konečném produktu je třeba zvážit nasledující:

• Napájecí svorky a/nebo konektory: Nejsou sledované pro externí kabeláž

• Sledovaný stupeň znečištění je: 2

• Následující krytí konečného produktu jsou požadované: Mechanické, Protipožární

U Quick Start Guide

<< Back to Contents

Notice – IR Emitting Device

This device emits IR.

U Quick Start Guide

<< Back to Contents

2 GET TO KNOW YOUR ICU DEVICE

2.1 Front View

Feature

Description

1

Visible Camera

Camera used for face depth estimation

2

Visible Camera

Camera used for face age estimation and

face recognition

3

Status LEDs

Lights to show the status of the ICU, see

Section 2.4 for more information

4

ICU Logo

Flashes during use to show

communication with host machine

5

Visible Camera

Camera used for face depth estimation

6

IR LEDs

Infra-red LEDs for target illumination.

** The Focal Length of the Cameras is 1 Metre**

1 2 3

5 4 6

6

U Quick Start Guide

<< Back to Contents

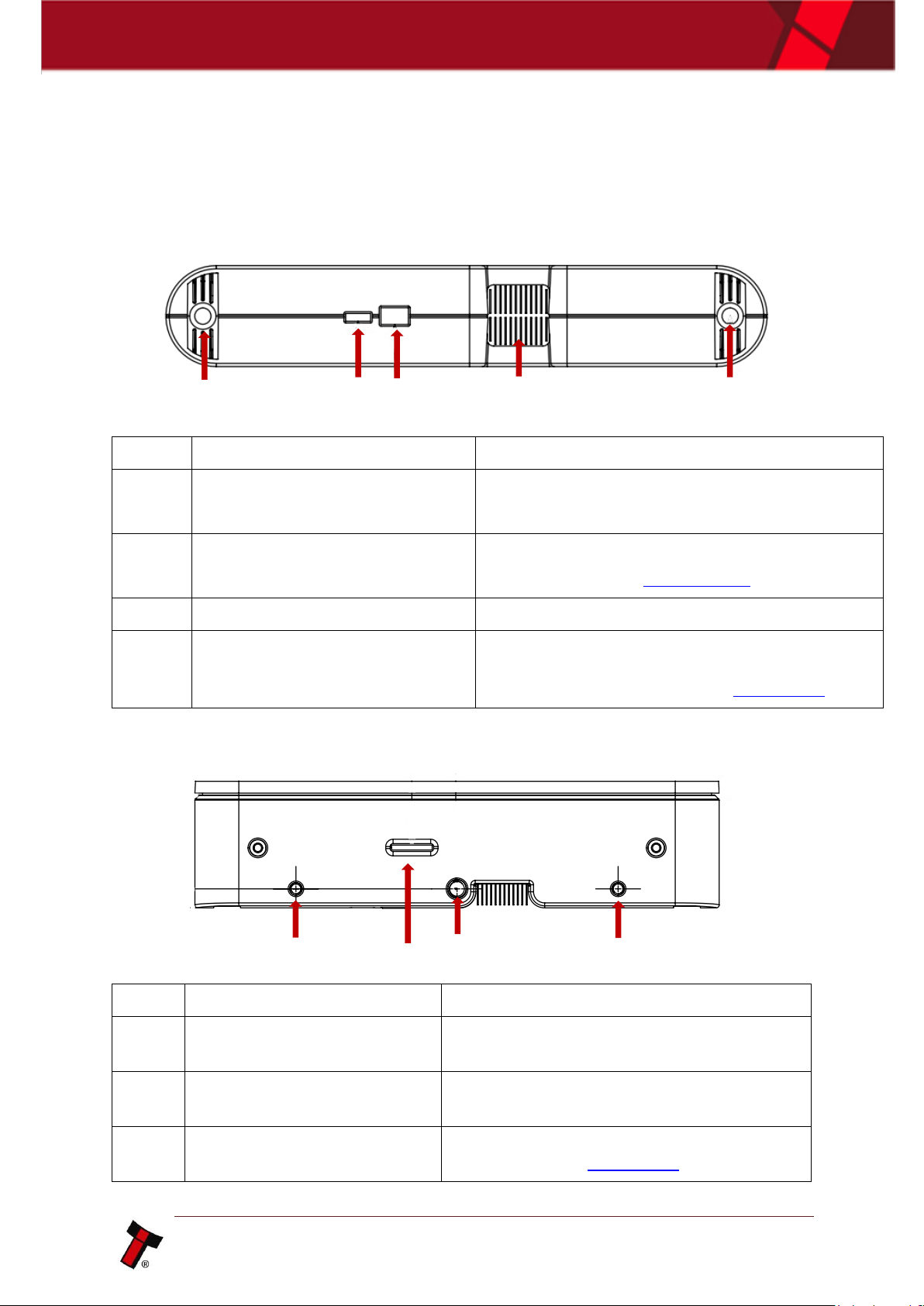

2.2 Rear View

Feature

Description

1

Micro USB Socket

(Type B Female)

Socket for connecting micro USB cable for

communication.

2

Power Socket

Socket for connecting power supply cable.

See Section 6.1.2

3

Heatsink

Heatsink to allow the unit to cool itself

4

Bezel Screws

The screws holding the face to the front of the

unit. Unscrew these to remove the face for

machine mounting. See Section 3.4

2.3 Bottom View

Feature

Description

1

Machine Screw Mounts

Mounting point for machine screws

(Optional)

2

SD Card Slot

Slot for micro SD card. Used for future

expansion/data port.

3

Camera Mount

Optional mounting point (e.g. for Camera

Tripod). See Section 3.3 for details.

1 2 3 4 4

1

2

3

1

U Quick Start Guide

<< Back to Contents

2.4 Device Status Lights

The ICU device has three status LEDs and an illuminated Image Capture logo. From left to right the LEDs are: Amber, Green and Red. These LEDs report different statuses depending on the process that it is currently undertaking; see the below tables for further information.

2.4.1 Boot Up Sequence

Step

LED Status

Power-On Indication

Operating System Started

Age Verification Initialised

Boot-Up Completed

After the boot up sequence is completed the green LED on the ICU device will remain illuminated. When communications are received from the host machine the ICU logo will begin to flash to indicate receipt and response. The boot-up sequence typically takes around 1minute to complete.

2.4.2 Age Verification Sequence

After receipt of an enable command, see Section 5.1, the following process occurs:

Step

LED Status

Waiting for face

Face Detected

Age Verification Processing

Age Verification Completed &

waiting for next face.

The Age Verification sequence will be repeated while a face is detected in the image. Processing times will vary depending on processing options and configuration settings.

U Quick Start Guide

<< Back to Contents

3 MACHINE INTEGRATION

3.1 Power Specification

The unit shall be supplied from a source specified as Electrical Energy Source Class 1 (ES1) to IEC/UL 62368-1, or specified as SELV according to IEC/UL 60950-1.

Voltage

12VDC (+/- 10%)

Current

1A

3.2 Connection Specification

The ICU device has two sockets on the back of the unit; a power connection socket and a communication socket. The location of these is shown in Section 2.2.

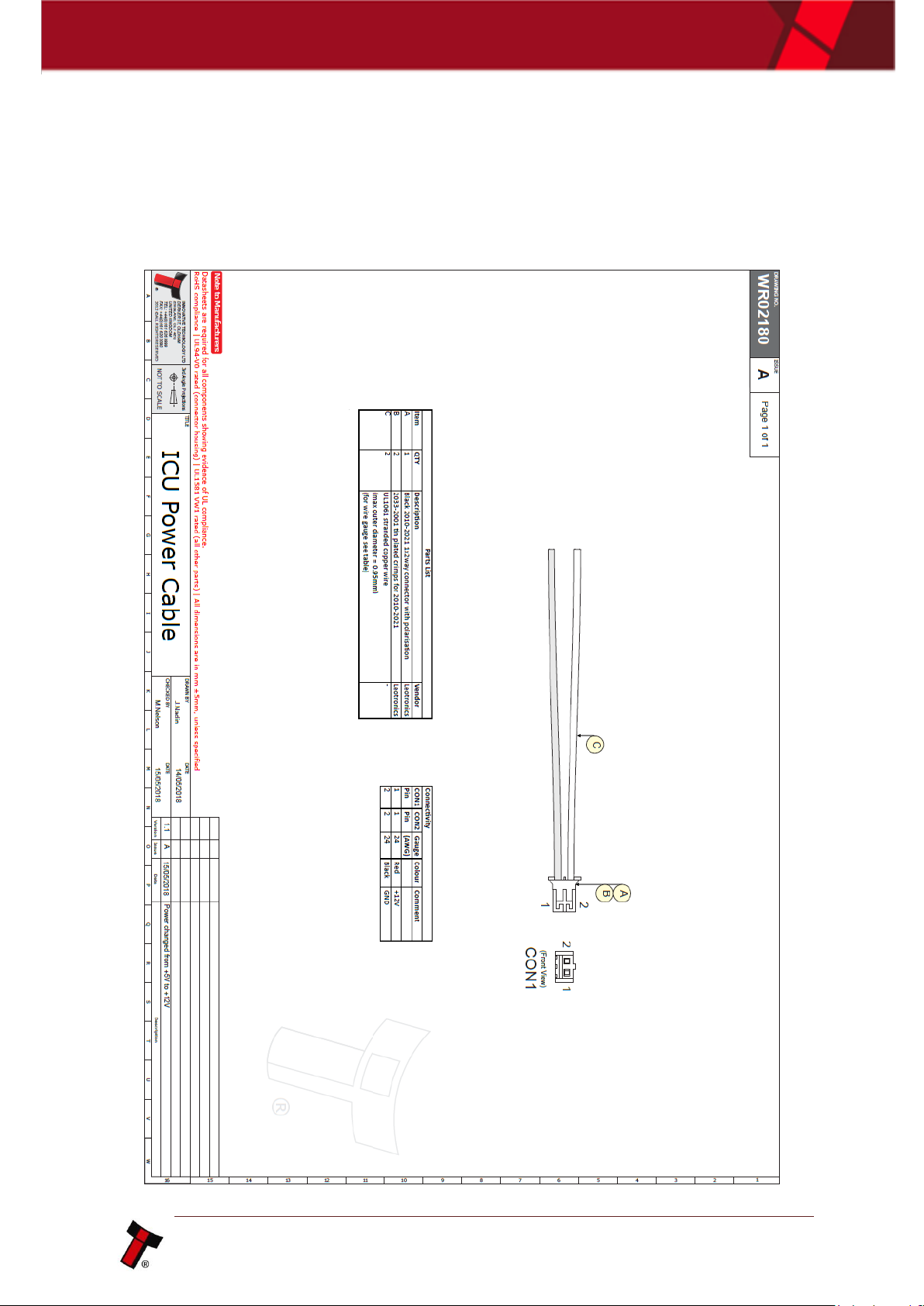

The drawing for the power cable is shown in Section 6.1.2.

The communication cable is a standard USB Type-A to Type-B Micro USB cable. This micro USB cable provides the physical link through which communications and video are transmitted. The maximum length of this data cable is 3 metres.

3.3 Screw Specification

The table below shows the screw specifications for the different screws on the ICU device. The bezel screws are provided with the unit as it is already attached, the other screws must be sourced separately.

Screw Position

Thread

Max Depth

Machine Mount Screw

M4

25mm

Bezel Screw

M4 (3mm Allen Key Head)

12mm

Camera Mount

Standard ¼” Tripod Mount

25mm

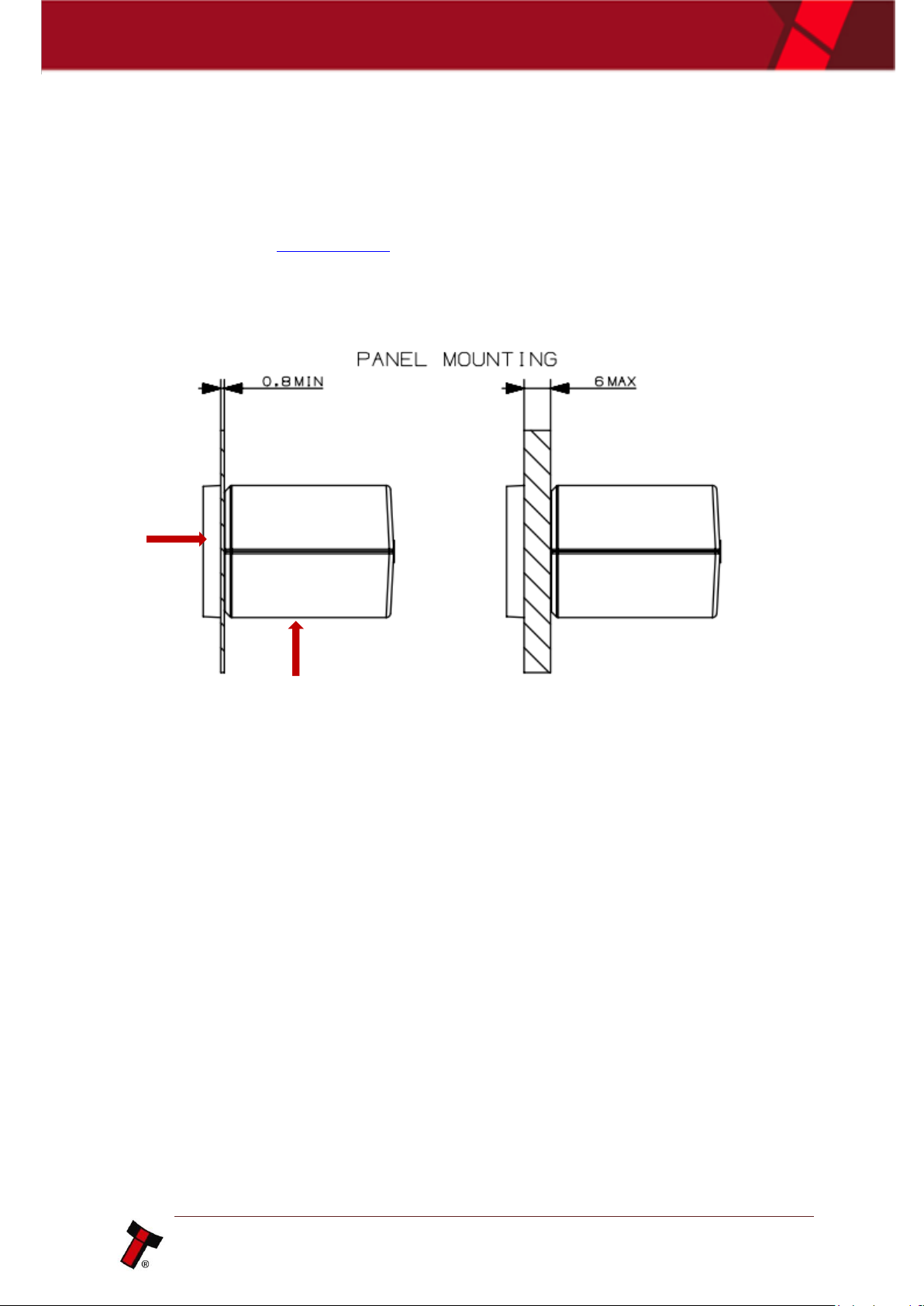

3.4 Bezel Mounting

It is possible to remove the front face of the ICU device to mount it inside a machine. This lets you secure the face of the unit to the outside of the machine, while mounting the ICU device behind it inside the machine:

ICU Device

Bezel

U Quick Start Guide

<< Back to Contents

Ensure that the cut-out area of the host machine is large enough so as not to cover the cameras. See Section 6.1.1 for measurement drawings. The minimum and maximum widths of the machine panel is shown in the diagram below (measurements in millimetres):

ICU Device

Bezel

U Quick Start Guide

<< Back to Contents

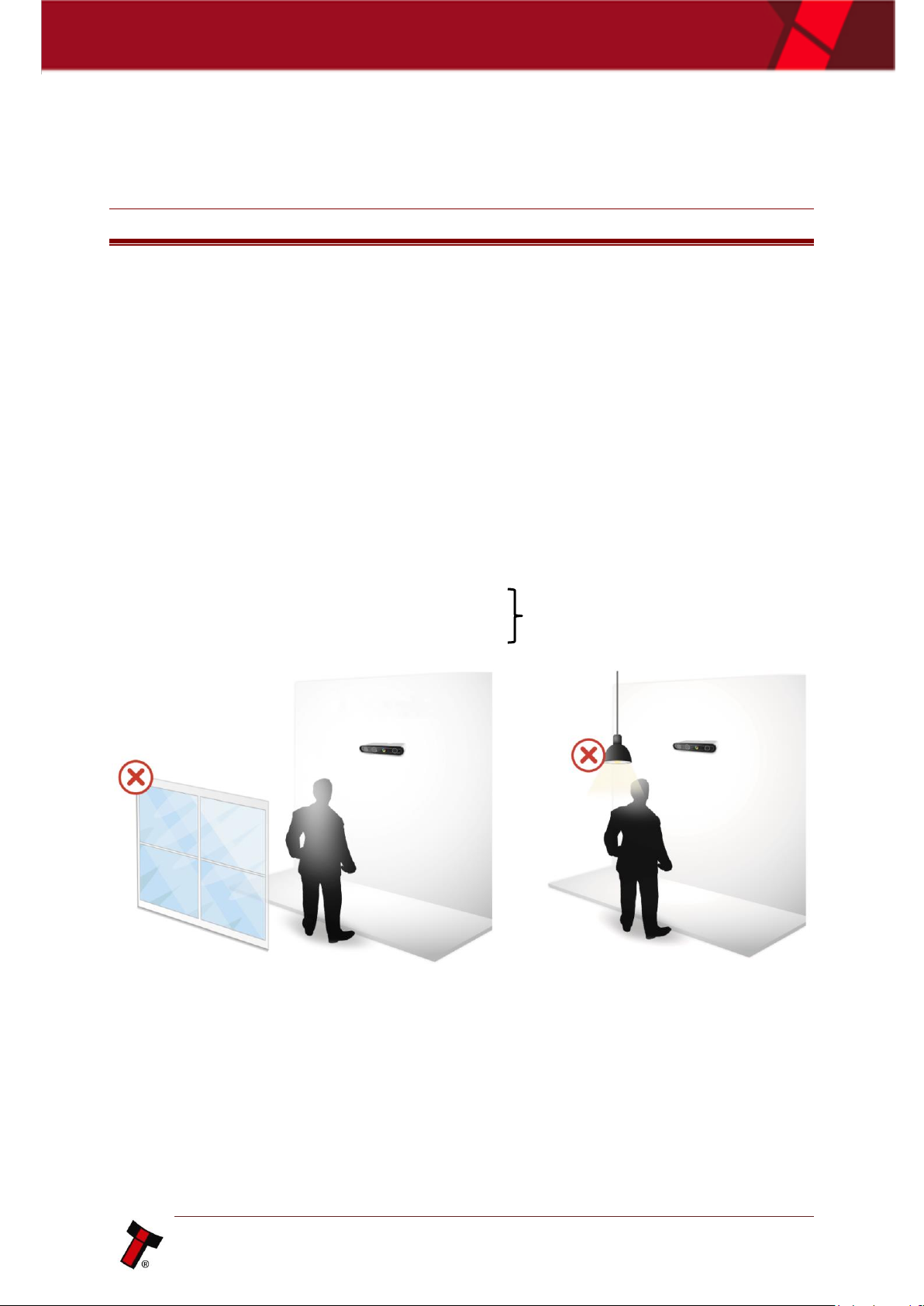

4 INSTALLATION AND USE

Choosing the optimum setup will generate the best results. Camera technology requires careful consideration of the lighting, including subject illumination and background lighting. The ICU implements automated exposure settings that help to reduce poor illumination conditions. However, despite this, the location of the ICU and the surrounding lighting is key to achieving the best accuracy. Consider the points below when deciding on the location of the installation:

Do:

• Locate ICU device 60-80 cm from the subject’s face.

• Place the ICU device so that the subject will look into the camera.

• Ensure the subject’s face will have good illumination.

Avoid:

• Poor illumination of the subject’s face.

• Bright background lighting.

(these will severely affect the performance)

U Quick Start Guide

<< Back to Contents

5 SOFTWARE INTEGRATION

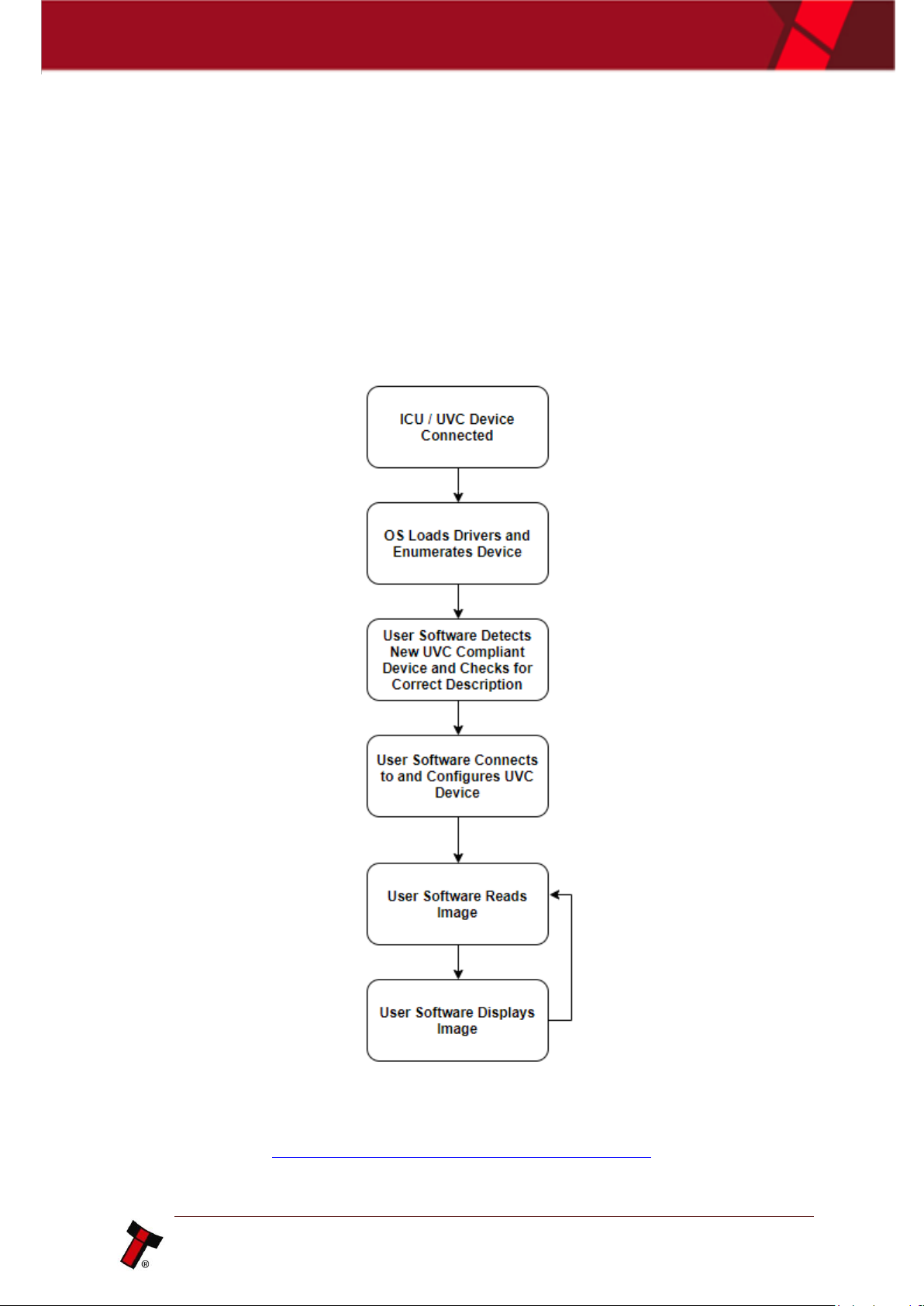

The ICU operates as a UVC webcam device over USB, with age verification or estimation details using the SSP interface over the same USB connection.

5.1 SSP Communication Flow

On connecting the ICU to a PC, standard COM Port and UVC drivers will be enumerated. These are then used for interfacing with your application.

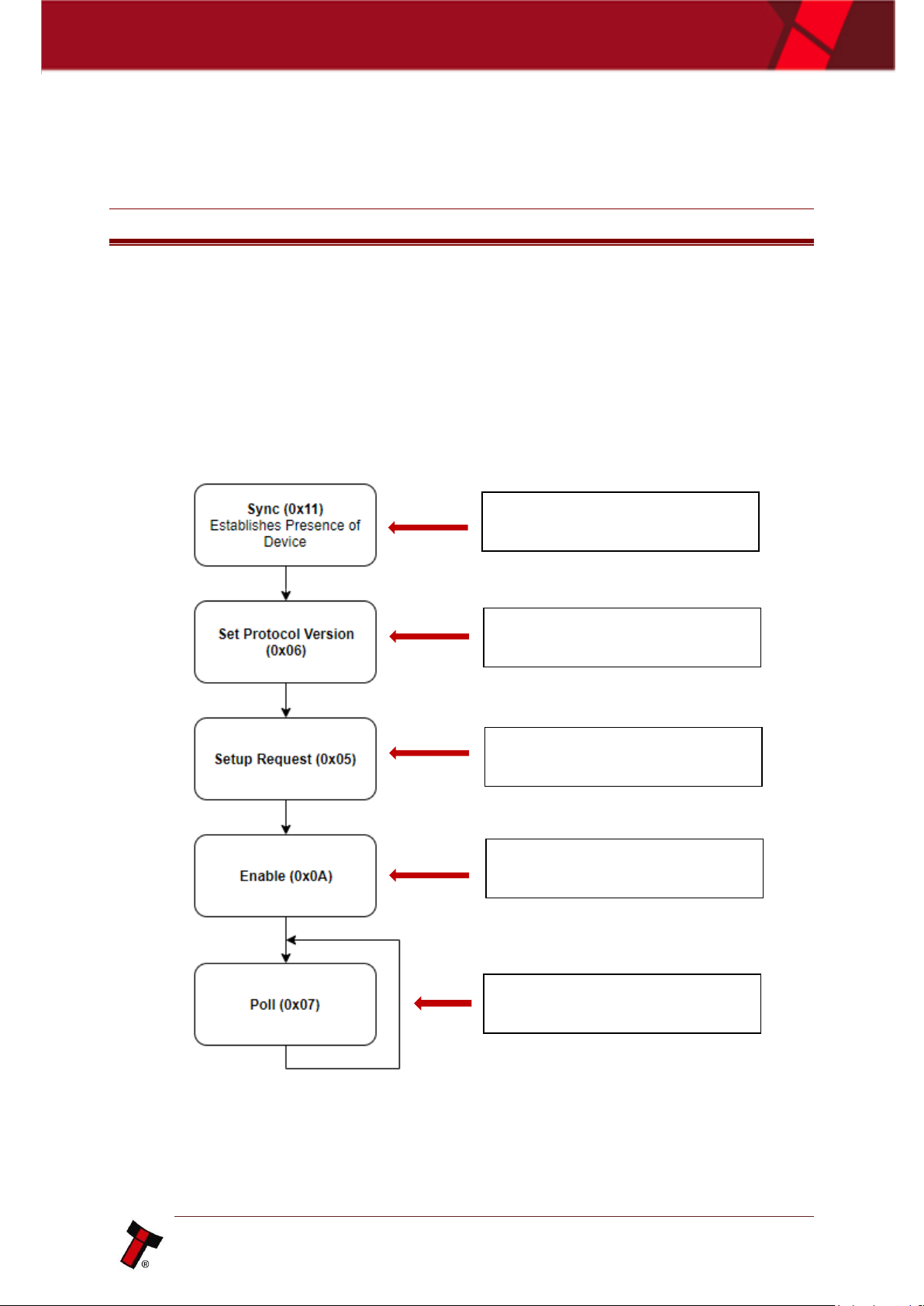

The flow chart below shows the basic command sequence when communicating via SSP. See SSP manual and the SSP Implementation guide for more information.

Ensures the communication packets are synchronized from this point.

Ensures the correct version of SSP is being used

Request information about the device setup/configuration

Allows the age verification process to take place on detected faces

Request info on detections or other events

U Quick Start Guide

<< Back to Contents

Poll commands should be sent every 200ms. If the ICU does not receive poll command for 5 seconds, it will automatically revert to the disabled state. An Enable command (0x0A) must be sent to the ICU before any further processes will be performed.

The possible responses to the Poll command are outlined below, each response must be handled appropriately within the machine software:

Response

Hex Code

Description

Disabled

0xE8

Device is in a disabled state, send the Enable

command to use the device.

Process Event

0x11

If data byte is 0x01, device is initialising. Please

wait until this is no longer reported before

attempting to enable or modify the ICU.

Face Detected

0x14

Face detected in central camera’s field of view.

Age Detected

0x15

Depending on ICU settings (Age Verify or Age

Estimate) this will report either a Pass/Check or

the estimated age. See SSP Manual for further

explanation of the data bytes.

Error Event

0x16

An error occurred. Details are provided in the

data transmitted.

Data Processing

0x17

The ICU device is currently processing a result.

Slave Reset

0xF1

The ICU device has been powered up or power

cycled and has run through its reset process.

Further information regarding SSP is available in the following manuals:

Implementation Guide:

SSP Implementation Guide (GA973): Information for programmers and integrators

Protocol Manual:

Protocol Manual – SSP (GA138): SSP Interface Protocol Specification for integration

U Quick Start Guide

<< Back to Contents

5.2 UVC Webcam

USB Video Class (UVC) is a defined standard for USB video devices. To simplify development, the ICU falls into this family of devices.

The following indicates a typical UVC application interaction within an operating system (OS):

More information on the USB Video Class can be found here:

www.usb.org/developers/docs/devclass_docs/

U Quick Start Guide

<< Back to Contents

6 APPENDIX

6.1 2D Drawings

6.1.1 ICU Device

U Quick Start Guide

<< Back to Contents

6.1.2 Power Cable

U Quick Start Guide

<< Back to Contents

6.2 Approvals

6.2.1 FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
