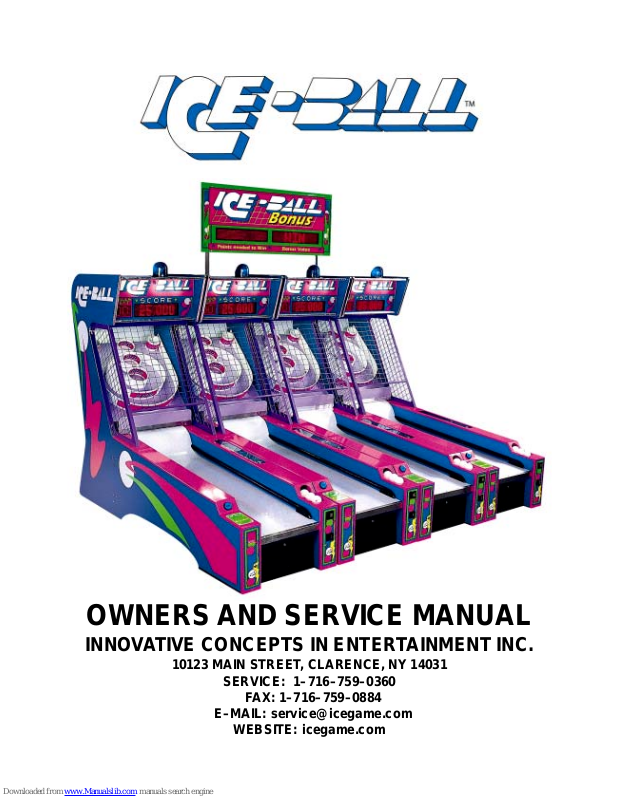

OWNERS AND SERVICE MANUAL
INNOVATIVE CONCEPTS IN ENTERTAINMENT INC.
10123 MAIN STREET, CLARENCE, NY 14031
SERVICE: 1–716–759–0360
FAX: 1–716–759–0884
E–MAIL: service@icegame.com
WEBSITE: icegame.com
2
INTRODUCTION
· GAME FEATURES
· GAME PLAY
ASSEMBLY
· BEFORE YOU BEGIN
· TOOLS NEEDED
· INSTALLATION
· SETTING A.C. LINE VOLTAGES
· A.C. LINE VOLTAGE ADJUSTMENTS
SET–UP / TESTING
· SAFETY PRECAUTIONS
· PROGRAMMING YOUR GAME
· OPTION MODES
· TESTING
QUICK TROUBLESHOOTING
· PROBLEMS AND SOLUTIONS
REPAIR
· OPERATIONAL BACKGROUND
· MECHANICAL REPAIR
· ELECTRICAL / ELECTRONIC REPAIR
· MAINTENANCE
PARTS LISTINGS
SCHEMATICS
WARRANTY INFORMATION
TABLE OF CONTENTS
3
INTRODUCTION
Another important feature of our game is the operator
selectable “Balls per game”. This feature allows the
operator to control how many balls the game will normally
deliver. This amount is adjustable from 1 to 20 balls per
game. It is however important to note that THE BALLS
PER GAME IS NOT RELATED TO HOW MANY BALLS
ARE IN THE GAME. The quantity of balls in the game is
only for reference based on the normal 9 balls given in the
traditional game. The game will work with 1 to 15 balls in
the game, yet deliver the proper amount programmed into
the game every time. (It is a good idea however to have at
least 3 balls in the game to avoid slow play)
All programming is accomplished from the Main P.C. Board
which is conveniently located at the front end of the
cabinet. This make servicing and adjusting as easy as
turning a key .
GAME PLAY
Game play begins when a player has inserted enough
money into the game to create 1 “Credit”. At this point, the
“St art” button begins to flash.
When the start button is pressed, the balls release from
the game and the game begins.
The player throws balls at the target pockets and is
awarded the points indicated on those pockets.
The player continues to throw balls until they are all used
up. If the player breaks a predetermined score during
game play , he may be entitled to get “Free Balls”.
At the end of the game, the game will dispense tickets
based on score. (If the game is so equipped)
If the player gets a “New High Score” or “Extended Play”
the rotating Beacon light will turn on. The Beacon light will
also turn on if the player has won the ticket jackpot from
the Optional Jackpot Marquee.
GAME FEATURES
Thank you for your purchase of the new ICE BALL" Alley
Roller game from I.C.E. Through extensive testing and
consultation with game operators, we have
developed a game with all of the features and
serviceability you’ve been asking for. We have gone to
great lengths to manufacture an Alley Roller game that is
far easier to service and operate than anything before it.
The features we have added, truly bring this game up to
date.
The game starts off with unparalleled ease of assembly.
The game goes together in just a few minutes.
The game cabinetry is a unique plywood construction with
a special overlay for a superior finish. A special lacquer
finish is applied over the wood for a beautiful rich, deep
look. All of the cabinet p anels interlock together, are
reinforced with cleats and are glued together to produce a
cabinet that can handle all of the abuse you can give it.
Loading tickets is a snap, with our easy pull out drawer.
This new feature drastically reduces the time needed to
load tickets, as well as making it much to service ticket
jams or the dispenser.
Long life fluorescent lighting is used throughout the game
to lower maintenance and create a bright playfield area.
Even the ball return area is back lit to add to the
appearance and serviceability of the game.
Reliability is the name of the game with our new ball
release assembly . With a specially engineered solenoid
and double linkages, this mechanism has been tested to
last for years. Best of all, the entire assembly simply lifts
out of the cabinet with no tools needed!
The best state of the art sound on sound audio is used to
create an exciting atmosphere for the game player. Even
our background theme is synchronized so all games play
the theme at the same time, even when only one game is
being played.
ICE BALL" allows the operator to give the players extra
balls when a certain point threshold is reached. In addition,
double scores can be awarded if desired. This extends the
total points possible and adds a great deal to player
appeal. These features also add excitement when used in
conjunction with the optional Jackpot Marquee.
4
ASSEMBLY
BEFORE YOU BEGIN
WARNING: WHEN INSTALLING THIS GAME,
A 3 PRONG GROUNDED A.C. RECEPTACLE MUST BE
USED. FAILURE TO DO SO COULD RESULT IN
SERIOUS INJURY TO YOURSELF OR OTHERS.
FAILURE TO USE A GROUNDED RECEPTACLE COULD
ALSO CAUSE IMPROPER GAME OPERATION, OR
DAMAGE TO THE ELECTRONICS
DO NOT DEFEAT OR REMOVE THE GROUNDING
PRONG ON THE POWER CORD FOR THE SAME
REASONS AS GIVEN ABOVE. USING AN IMPROPERLY
GROUNDED GAME COULD VOID YOUR WARRANTY.
HA VE A QUALIFIED ELECTRICIAN CHECK YOUR A.C.
RECEPTACLE TO BE SURE THE GROUND IS
FUNCTIONING PROPERLY.
TOOLS NEEDED
Large Allen Key (Supplied)
Phillips head screwdriver
INSTALLATION
Remove the banding from the pallet.
NOTE: BE SURE TO STAND TO THE SIDE WHEN
CUTTING THE BANDS, AS THEY ARE UNDER
PRESSURE, AND COULD SPRING OUT
CAUSING INJURY.
Lift out all cage parts as well as any other parts shipped
along with the game.
Remove the 2 game halves from the pallet.
Set the rear of the game into the approximate location of
where it will be located. If assembling more than 1
game, you must leave space to run the power cords
and linking phone cord.
Set the front cabinet into position in front of the rear
cabinet.
Open the coin and ticket doors and slide the left side cover
forward enough to connect the harnessing from the
rear cabinet to the front cabinet.
Slide the front cabinet into position. Insert the large Allen
key into the holes on the sides of the front cabinet and
rotate the Allen key 180° to lock the cabinet halves
together.
Slide the right hand cover from the game.
Remove the packing material from around the ball release
assembly.
NOTE: KEEP THE PACKING MATERIAL FOR THE BALL
RELEASE ASSEMBLY BEHIND THE GAME IN CASE
YOU DECIDE TO MOVE YOUR GAME LATER.
Open the parts box containing the balls and install them
into the ball return release. (There should be 9 balls
supplied with the game)
Slide the right hand cover back onto the game.
Open the electronics access door. (Door in between the
ticket and coin drawers)
On each Main P.C. Board are 2 modular phone jacks.
Connect a phone line from game to game, plugging 1
end into each game. Feed the phone lines through a
wiring hole located in the rear of the electronic
enclosure. It does not matter which jack you plug the
phone line into on the board as long as the phone lines
are connected from game to game. If you are installing
a Jackpot Marquee, it can be connected to any open
phone jack on any game.
Connect the long Computer style power cord to the Power
Module. The power module is located inside the
Electronics access door, to the lower right. Connect
the other end to a grounded A.C. outlet.*
* Be sure before plugging the game in that it is wired for
the proper A.C. voltage. One way to check is by looking at
the game’s serial number tag. It will indicate the rated
voltage on it. If you are still unsure about what the game’s
voltage is set for, please refer to the “Setting A.C. line
voltages” section in this manual.
5
SETTING A.C. LINE
VOLTAGES
The game comes with 4 available line voltage settings as
described below. These settings should be used to
provide A.C. power in the correct range to the game
without over or under powering it.
POWER RANGE VOLTAGE SETTING
90–1 10 V.A.C. 110
1 10–130 V.A.C. 120
200–220 V.A.C. 220
220–240 V.A.C. 240
The game uses a POWER MODULE to handle all of the
A.C. power distribution chores of the game. It incorporates
an On–Off switch, primary A.C. game fusing, and power
switching capabilities. This allows the game to be used
with a wide variety of A.C. voltages by re–strapping the
main transformer.
A.C. LINE VOLTAGE
ADJUSTMENT
To adjust the game for a different A.C. voltage:
• Unplug the game from the outlet.
• Disconnect the power cord from the power
module.
• Using a small flat blade screwdriver, pry the fuse
holder from the power module.
• Notice a small window on the fuse holder with an
arrow that points to the voltage the game is
presently set at.
• Using a small flat blade screwdriver, lift the
retaining tab that holds the voltage selector in the
fuse holder.
• Rotate the voltage selector until the voltage you
want is displayed in the voltage select window.
• Push the voltage selector back into the fuse holder
until it snaps into place. NOTE: Do not force the
selector into the fuse holder. If it does not go in
easily , it is not being inst alled correctly.
ASSEMBLY
• Snap the fuse holder assembly back into the
power module.
• Plug the power cord back into the receptacle in the
power module, and into the wall outlet.
NOTE: WHEN CHANGING VOLTAGES FROM THE
110–120 TO 220–240 RANGE, LOWER THE MAIN FUSE
AMPERAGE V ALUE BY ½.
WHEN CHANGING FROM THE 220–240 TO 110–120
VOL T RANGE, DOUBLE THE MAIN FUSE AMPERAGE
VALUE.
6
SET–UP / GAME TESTING
SAFETY PRECAUTIONS
IMPORTANT: F AILURE T O FOLLOW THESE
DIRECTIONS COULD CAUSE SERIOUS DAMAGE TO
YOU OR YOUR GAME.
WARNING: WHEN INSTALLING THIS GAME,
A 3 PRONG GROUNDED A.C. RECEPTICLE MUST BE
USED. FAILURE TO DO SO COULD RESULT IN
SERIOUS INJURY TO YOURSELF OR OTHERS.
FAILURE TO USE A GROUNDED RECEPTICLE COULD
ALSO CAUSE IMPROPER GAME OPERATION, OR
DAMAGE TO THE ELECTRONICS
DO NOT DEFEAT OR REMOVE THE GROUNDING
PRONG ON THE POWER CORD FOR THE SAME
REASONS AS GIVEN ABOVE. USING AN IMPROPERLY
GROUNDED GAME COULD VOID YOUR WARRANTY.
HA VE A QUALIFIED ELECTRICIAN CHECK YOU’RE
A.C. RECEPTICLE TO BE SURE THE GROUND IS
FUNCTIONING PROPERLY.
REPLACE ALL INCANDESCENT BULBS WITH PROPER
ICE SUPPLIED BULBS ONL Y
PROGRAMMING YOUR GAME
This section will give you a detailed explanation of the
functions and operating characteristics of each of the
programming buttons.
PLEASE READ THIS SECTION CAREFULLY TO
AVOID PROBLEMS WITH YOUR GAME.
NOTE: THE PROGRAMMING AND TEST BUTTONS
ARE LOCATED ALONG THE FRONT EDGE OF THE
MAIN P.C. BOARD WHICH IS LOCATED BEHIND
THE ELECTRONICS ACCESS DOOR. THIS DOOR
IS BETWEEN THE TICKET AND COIN DRAWERS
A T THE FRONT OF THE GAME.
PROGRAMMING BUTTON
(PGM / SW1)
This button is used to enter and exit the programming
mode. Use this button to change game settings or to
remotely change settings on the optional Jackpot Marquee.
Press this button once to enter programming mode. When
in this mode, the game displays will display information
pertinent to game programming. Press this button once
again to exit programming mode.
Once in this mode, you can push SW2, SW3 or SW4 to
make adjustments to the game.
SELECT BUTTON
(SEL / SW2)
This button is used to advance through all of the various
programming option modes. Each push of this button will
move you to the next programmable option. The option
number is displayed in the “Balls Left” display .
STEP UP BUTTON
(UP / SW3)
This button is used to change the VALUE of a particular option
mode. The operation mode values are displayed on the “Score”
display. Each push of this button changes to the next HIGHER
available value for that mode.
STEP DOWN BUTTON
(DOWN / SW4)
This button is used to change the VALUE of a p articular
option mode. Each push of this button changes to the next
LOWER available value for that mode.
7
SET–UP / GAME TESTING
TEST BUTTON
(TEST / SW5)
This button is used for factory burn–in of the game
electronics. It is also very helpful to be sure all game
functions work correctly. When in this mode, the following
things will happen:
Game release solenoid will cycle on and off
Displays will count down displaying similar
numbers. (Ex.: all 9’s or 8’s)
Beacon light will cycle on and off.
Closing any score (playfield) switch by throwing a
ball will create an audible sound.
Pushing the start button, coin switch or low ticket
micro switch will create an audible sound.
Game theme song will constantly play .
To exit the test mode, press the programming button.
AUDIO TEST BUTTON
(AUDIO TEST / SW6)
Pressing this button will cause the game’s theme song to
play . This is used to prove that the audio microprocessor is
talking to the logic microprocessor properly . This is a useful
Main P.C. Board troubleshooting procedure.
OPTIONS MODES
Please the setting information carefully BEFORE making
any adjustments. Failure to set options properly can yield
unexpected results.
PLEASE NOTE: THE VALUES PRE–SET AT THE
FACTORY HAVE BEEN FOUND TO WORK BEST
FOR MOST LOCATIONS.
MODE 00
(VOLUME)
This option is used to change the relative sound volume of
the game. “1” is the lowest the game can be set to play at
while “4” is the loudest. Each time the button is pushed, a
sound is played to make it easier to determine where the
volume level should be set. The factory default for this
option mode is “3”.
MODE 01
(COINS PER CREDIT)
COIN INPUT #1
This mode determines how many coins are needed to
create 1 credit for coin input #1. (This is also the only coin
input normally adjusted for most usage) This value can be
adjusted from 0–8. Setting a “1” would indicate 1 coin is
needed to obtain 1 credit. A “2” would indicate 2 coins are
needed to obtain 1 credit. Setting a “0” sets the game to
the “FREE PLA Y” mode. The factory default for this setting
is “1”.
MODES 02–03–04
(COINS PER CREDIT)
COIN INPUTS 2–3–4
These coin input functions in an identical fashion to that of
MODE 01. These options are generally used in markets
that require the use of electronic multi–mechs. Consult our
service department if you have any questions regarding the
use of electronic multi–mechs.
MODE 05
(MULTI–CREDITS)
This mode can be used to create multiple credits for each
coin inserted. For example: setting a “2” would give you 2
credits for each coin inserted. The range for this option is
0–9. Setting a “0” turns this option off. The default for this
option is “0”.
8
SET–UP / GAME TESTING
MODE 06
(CREDIT BONUS)
This option is used to create “Bonus Credits”. The way this
option works is as follows: if a “3” is set, for every 3 coins
put in AT THE SAME TIME, 1 extra credit would be given.
The range for this option is 0–9. Setting a “0” turns this
option off. The default value for this option is ”0”.
MODE 07
(BALLS PER GAME)
This option determines the ST ANDARD amount of balls
dispensed per game. This amount DOES NOT include any
other balls that may be dispensed by other option settings.
NOTE: THE NUMBER SET WILL DETERMINE HOW
MANY BALLS ARE DISPENSED PER GAME. THE
NUMBER IS NOT DETERMINED BY THE BALLS
KEPT IN THE GAME. THE NUMBER OF BALLS IN
THE GAME IS BASICALLY USED AS A BALL
SUPPLY. THIS AMOUNT SHOULD NOT BE
ALLOWED TO GO BELOW THREE (3) OR ABOVE
FIFTEEN (15).
The range for this option is 0–20. The default value for this
option is “9”. (The traditional balls per game value for alley
roller games).
POINT SETTING INFORMATION
IN SOME OF THE MODES BELOW, POINT VALUE
WILL BE DISCUSSED.
THIS GAME HAS THE ABILITY TO BE SET FOR 3
DIFFERENT POINT LEVELS. (DISCUSSED IN
DETAIL IN MODE 21.) WHENEVER POINT VALUES
ARE DISCUSSED, THE SIGNIFICANT (FRONT END
NUMBERS) ARE DISCUSSED. THE TRAILING
“00’S” ARE NOT IMPORTANT.
EXAMPLE: SETTING A “30” WOULD BE GOOD
FOR 300 OR 3,000 POINTS. SETTING A 300
WOULD BE GOOD FOR 3,000 OR 30,000 POINTS.
CALL OUR SERVICE DEPARTMENT AT:
1–716–759–0360
MODE 08
(EXTENDED PLAY POINTS)
When this mode is selected, the game will dispense
additional balls when a pre–determined score is reached.
THE GAME COMES STOCK SET TO DELIVER POINTS
BASED ON 1,000 POINT INCREMENTS. Therefore
setting a 300 in this mode would give an extended play
point value of 3,000. The range for this option is 0–9999.
The default value for this option is 300.
MODE 09
(EXTENDED PLAY BALLS)
This mode determines how many “Extended Play” balls will
be dispensed when the extended play points value (see
mode 08) has been reached. The range for this option is
0–20 balls. Setting a “0” will turn this option off, even if
mode 08 is active. The default for this option is “3”.
MODE 10
(DOUBLE POINTS)
This game has an option that will have the game double
the point value of 1 of the balls thrown during game play .
The time that the double point throw shows up varies from
game to game, but always shows up once during the
game. Setting a “1” turns this option on. Setting a “0” turns
this option off. The default for this mode is “1”.
MODE 11
(ATTRACT MODE)
This mode will play the game’s “Attract” mode when
selected. The attract mode consists of the game’s theme
song being played, along with the beacon light turning on.
The values for this mode (in minutes) is 0–30. Setting a “0”
turns the attract mode off. The default value for this mode
is “3”.
9
SET–UP / GAME TESTING
MODE 12
(POINTS PER TICKET)
This option adjusts the points needed to dispense a ticket.
Setting a value of 30 will dispense 1 ticket for every 3,000
points scored. The range for this option is 0–9999. The
default value for this mode is “30”. (ticket for every 3,000
points)
MODE 13
(MINIMUM TICKETS)
This mode sets the minimum amount of tickets that can be
dispensed in a game. This would be the equivalent of a
“just for playing” option. This amount set IS NOT in
addition to other tickets won. If the amount of tickets
normally won exceeds the minimum amount set, that
number is the number awarded. The range for this option
is 0–10. Setting a “0” turns this option off. The default value
for this mode is “4”.
MODE 14
(TICKET CAP)
This mode determines the maximum amount of tickets that
can be given in a game REGARDLESS of points made.
NOTE: THIS MAXIMUM WILL NOT AFFECT THE
TICKETS DISPENSED FOR WINNING THE TICKET
JACKPOT FROM THE OPTIONAL “JACKPOT
MARQUEE”. ANY JACKPOT TICKET CAP WILL BE
HANDLED BY THE JACKPOT MARQUEE.
The range for this option is 0–50. Setting a “0” turns the
option off. The default setting is “0”.
MODE 15
(TICKET THRESHOLD)
With this option enabled, it will not be possible to win any
tickets until a pre–determined threshold value has been
reached. Once this threshold has been crossed, tickets will
then be dispensed.
MODE 16
(DEFAULT HIGH SCORE)
This mode sets the INITIAL high score. This value is the
value displayed when the game is first powered up.*
* This value will not be seen if mode 22 has been
programmed to keep the previous high score.
The values for this mode are 0–9999. The default value for
this mode is 200. (20,000 points)
MODE 17
(EXTRA BALLS FOR HIGH
SCORE)
This mode determines how many free balls will be
dispensed for breaking the high score. The values for this
mode are 0–10. Setting a value of “0” turns this mode off.
The default for this mode is “1”.
MODE 18
(AUTO ADV ANCE BALL)
This mode is needed for 2 reasons. First, if someone starts
a game but does not throw the balls or walks away, there
has to be a way to end the game. Second, if a ball is
thrown into another game by mistake, the game would
never end unless the game had a way to count down a
ball.
This mode eliminates both of the above problems by
automatically counting down by 1 ball every XXX seconds.
XXX being the value programmed into this mode. The
number chosen will be the amount of seconds between the
counting down of each ball. The values for this mode are
0–60. Setting a “0” turns this feature off. (Not normally
advisable) The default value for this mode is “20”.
10
SET–UP / GAME TESTING
MODE 19
(THEME PLAY ON)
This mode allows the game’s theme song to be eliminated
during game play. Setting a “1” plays the theme during
game play . Setting a “0” turns the theme song off. It is
advisable to leave the song play during the game, as it
adds excitement to the game and speeds up game play .
NOTE: THE GAME’S THEME SONG IS
SYNCHRONIZED ON ALL GAMES. WHEN 1 GAME
IS STAR TED, THE THEME PLAYS ON ALL GAMES.
THIS PREVENTS SONGS PLAYING AT DIFFERENT
TIMES AND THE DISTRACTING NOISES
ASSOCIATED WITH THAT CONDITION. THIS
SYNCHRONIZATION DOES NOT AFFECT GAME
PLA Y IN ANY W A Y AND IS A BENEFICIAL DESIGN
CONSIDERATION.
MODE 20
(STATION I.D.)
For the games to synchronize their sound properly or to
run the optional “Jackpot Marquee” properly, the games
must have different identification numbers. Each game
must be set to a different I.D. the numbers available are
from 00–13. It doesn’t matter which numbers you pick or if
the numbers are sequential or not, so long as each
number is different.
IMPORTANT: IF THE STATION I.D.’S ARE NOT SET
PROPERLY, THE GAME WILL WORK STRANGELY,
CAUSING MANY UNEXPECTED PROBLEMS.
MODE 21
(MODE)
This mode sets the score values for various point
configurations. The game comes with the following score
values:
1000
2000
3000
4000
5000
If you wish, you can set values in the 100’s range (100,
200, etc.) or in the 10’s range (10, 20, etc.). If you wish to
lower the value, use the following guide.
Set a “0” for point values in the 1,000’s
Set a “1” for point values in the 100’s
Set a “2” for point values in the 10’s
MODE 22
(NO KEEP HIGH SCORE)
This mode will reset the high score to the value set in
option mode 16 at power up when enabled. Setting a “0”
will keep the high score indicated at power down. Setting a
“1’ will reset the value to that in option mode 16.
MODE 23
(FACTORY DEFAULTS)
When this mode is selected, the game will revert to all
factory default settings.
SET “1”, THEN EXIT PROGRAMMING MODE TO
RESET ALL VALUES TO FACTO RY DEFAULT .
The default for this mode is “0”.
TESTING
After the game is installed and set up, it is a good idea to
play a few games, to be sure everything is working
properly.
Play a few games paying special attention to the following
areas:
Balls per game
Tickets dispensed
Beacon light working
Proper scoring
Proper jackpot (If using Marquee)
IF YOU HAVE ANY QUESTIONS REGARDING
THESE SETTINGS, PLEASE CALL OUR
11
QUICK TROUBLESHOOTING
GAME WILL NOT TAKE OR ADD MONEY CORRECTLY
Micro switch not working or returning properly. Check and repair or replace as necessary.
Game programming set–up incorrectly . Refer to service manual for proper settings.
Bad harnessing or connector. Check w/ohm meter and repair if necessary.
Bad Main P.C. Board. Check and repair or replace as necessary .
ST ART BUTTON WILL NOT FLASH WHEN GAME HAS CREDITS, OR WORK WHEN PUSHED
Micro switch not working properly . Test and replace as necessary.
Micro switch popped out of housing. Snap back into housing.
Burned out light bulb. Replace light bulb.
Bad harnessing or connector. Check w/ohm meter and rep air as necessary.
Bad Main P.C. Board. Check and repair or replace as necessary .
GAME HAS NO SOUND
Bad speaker. Check w/ohm meter for 8–ohm load and replace if defective.
Volume level set incorrectly. Check service manual for volume setting procedures.
Bad Harnessing or connector. Check w/ohm meter and repair if necessary.
Bad Main P.C. Board. Check and repair or replace as necessary .
Main P.C. Board fan bad & I.C.’s overheated. Replace fan.
BALLS WILL NOT RELEASE OR WILL NOT STOP RELEASING
Solenoid burned out. Replace solenoid.
Solenoid sticks in. replace solenoid.
Release lever binding. Check, lubricate or replace as necessary .
Release return spring broken. Replace spring.
Bad ball count sensor. Check and replace as necessary.
Bad connector or harnessing. Check w/ohm meter and repair as necessary.
Bad Opto–isolator. Check w/ohm meter and replace if necessary.
Bad Main P.C. Board. Check and repair or replace as necessary .
Debris jamming ball return system. Clean return area.
GAME WILL NOT ADD POINTS CORRECTLY / COUNTS BALLS WHEN NOT THROWN
Bad score sensor. Check and repair or replace.
Score sensor wiring bad. Check w/ohm meter and repair or replace.
Cabinet harnessing bad. Check w/ohm meter and repair or replace as necessary.
Sensors loose or misaligned. Realign sensors.
Main P.C. Board bad. Check and repair or replace as necessary.
TICKET DISPENSER DOES NOT WORK OR WORKS IMPROPERLY
Bad harnessing. Check w/ohm meter and repair if necessary .
Bad ticket dispenser. Repair or replace ticket dispenser.
Dispenser out of tickets. Add tickets.
Bad Main P.C. Board. Check and repair or replace as necessary .
Optical sensor on dispenser dirty. Clean sensor.
SCORE DISPLAY WILL NOT LIGHT OR WORKS IMPROPERLY
No power on Main P.C. Board. Check transformer and fuses / check power module
Bad connectors or harnessing. Check w/ohm meter and repair as necessary.
Bad Display P.C. Board. Repair or replace as necessary .
Bad Main P.C. Board. Repair or replace as necessary .
12
QUICK TROUBLESHOOTING
NO FLUORESCENT LIGHTING
Bad connectors or harnessing. Check w/ohm meter and repair as necessary.
Bad ballast transformer. Replace ballast transformer.
Bad bulb. Replace bulb.
No A.C. power to game. Check main fuses in power module.
GAME WILL NOT RETAIN HIGH SCORE WHEN GAME TURNED OFF AND THEN BACK ON
Programming set incorrectly .
Back up battery on Main P.C. Board bad. Check and replace battery if necessary .
GAMES ACT STRANGELY FOR NO APPARENT REASON
Game I.D.’s set improperly. Refer to service manual for proper settings.
Game hit by electrostatic discharge. Turn games of f, wait 15 seconds and turn back on.
Bad Main P.C. Board. Check and repair or replace as necessary .
REFER TO THE NEXT SECTION FOR DETAILED INFORMATION
ON REPLACEMENT OF P.C. BOARDS AND MECHANICAL COMPONENTS
13
GAME REPAIR
WARNING: ALW AYS REMOVE POWER TO THE
GAME BEFORE ATTEMPTING ANY SERVICE,
UNLESS NEEDED FOR SPECIFIC TESTING.
FAILURE T O OBSERVE THIS PRECAUTION
COULD RESULT IN SERIOUS INJURY TO
YOURSELF OR OTHERS.
OPERATIONAL
BACKGROUND
The ICE BALL" game has been designed with MODULAR
repair in mind. The coin drawer and ticket drawer can be
slid out and removed in their entirety to be worked on in
another area if desired. The ball release assembly can be
removed as a unit with no tools necessary , making rep air a
snap.
The ball release system utilizes an A.C. Pull tpe solenoid
that has been specifically designed to eliminate residual
magnetism problems commonly found in this type of
solenoid. The solenoid is powered via an Opto–isolator, to
eliminate solenoid noise from the electronic circuitry .
Other than the display , all electronics and power supply
components are located on the Main P.C. Board to make
modular type replacement fast and simple.
The display board has been designed to be very reliable
and easy to repair. Very few drive components are
necessary for this type of display .
TROUBLESHOOTING
PHILOSOPHY
To find problems with the game, always first check what
should be obvious. See that the game is plugged in and
that all of the fuses on the game are good. This includes
the fuse that is located INSIDE the power module.
Next, check to see that all of the connectors are firmly
seated and that none of the wires have pulled out of them.
When trying to find out if specific components are bad or
not, try swapping them with components from another
player station to see if the problem moves with the
component, or stays where it was. This will help you to
know if you have a problem with a specific component, or
maybe a problem with either the wiring or the Main P.C.
Board.
Use extreme caution when using probes or volt if the game
is powered up. If doing continuity checks, it is important to
disconnect the harnessing at both, as attached they may
yield erroneous results.
If P.C. Boards are suspected as causing problems, check
to see that all of the I.C. chips are firmly seated on the
boards.
If light bulbs are suspected, swap them with one that is
known to work to narrow the problem down to the bulb or
P.C. Board.
MECHANICAL
REPAIR
BALL RELEASE ASSEMBLY
WARNING: BE SURE POWER HAS BEEN REMOVED
FROM THE GAME BEFORE PROCEEDING.
Open the cash box drawer at least 6 inches.
Pull forward on the ball release cover. (The p anel with the
clear plastic window) about 3 inches to disengage,
then lift off.
Remove the balls from the game.
Grasp the release assembly by the rail and slowly lift out,
being careful to avoid hitting the sensors on the cover
retaining screws.
Disconnect the connector that connects the release
assembly to the game.
SOLENOID REPLACEMENT
Remove the spring from the solenoid and mounting bolt.
14
GAME REPAIR
Carefully scribe a mark when removing the solenoid to be
sure the replacement is properly located.
Remove the hardware that secures the solenoid to the
mounting plate.
When re–assembling, be sure to use the same size cotter
pin to retain the clevis pin, as this pin is needed to hold
the spring to the solenoid assembly.
Be sure the bent over end of the cotter pin is trimmed so it
cannot contact the solenoid body .
SOLENOID REPLACEMENT
The ball count sensor must be replaced as an assembly.
Remove the transmitter, receiver and sensor P.C. Board
from the release assembly.
When replacing the unit, it is important to remember to use
the star washers. This will prevent the sensors from
rotating or loosening.
Be sure to install the new sensors in the same position as
the old ones. This is important to insure proper
alignment and consequently proper ball count
BULB REPLACEMENT
The bulbs replace easily . Pull the bulb straight out of the
socket.
Insert the new bulb into the socket and snap into place.
ELECTRONIC REPAIR
DISPLA Y ASSEMBLY
SCORE DISPLAY ASSEMBLY
Unlock and remove the display cover.
Remove the Phillips head screw at the top of the display
mounting bracket.
Lift the entire assembly straight up, then pull the bottom
forward and remove connectors from the rear.
Unscrew the display from the mounting bracket.
Assemble in reverse order.
BULB REPLACEMENT
Unlock and remove the display cover.
Pull the old bulb straight out of the socket.
Push a new bulb straight into the socket and snap into
place.
MAIN P.C. BOARD
Turn off A.C. power and remove the power cord from the
power module.
Remove all P.C. Board connectors noting where each one
connects into the board.
Remove the 4 hex fasteners that retain the board to the
mounting bracket.
Re–assemble in reverse order.
15
GAME REPAIR
BALL RETURN SENSOR
Turn off game power.
Open cash drawer at least 6 inches.
Slide ball release cover from right hand side of game.
Sensor assembly is located at the rear of the ball return
channel where the 2 cabinets meet.
Unscrew the sensor assembly and remove.
Assemble in reverse order.
NOTE: BE SURE THE TRANSMITTER WIRING IS
KEPT HIGH ENOUGH FOR THE BALLS TO PASS
UNDER. IF THERE IS AN Y SLACK, IT IS
IMPORTANT TO REMOVE IT USING A TIE WRAP,
ETC.
SCORE SENSORS
Remove all A.C. power from the game.
Remove the 6 screws from the front of the cage and
remove the front of the cage.
Remove the single screw from the bottom of each cage
side and remove the sides.
Remove the 2 retaining screws on the playfield.
Remove the playfield.
Re–connect power to the game and put the game in test
mode.
Run your hand through each sensor pair and listen for the
sound to indicate proper function.
If the sensor does not indicate proper function, remove the
sensor and replace.
Re–assemble in reverse order.
Re–test the assembly when finished.
MAINTENANCE
Maintenance is easy as the game requires very little
service under normal use. To get the best out of the game,
please perform the following as indicated:
Clean the playfield weekly using Wildcat pinball
cleaner.
Clean the playfield once every 3 months with a
buffing wheel and Novus polish.
Oil the levers and linkages on the release system
every 6 months.
Polish the cabinet with a good grade of spray
furniture polish every 6 months.
16
PARTS LISTINGS
MECHANICAL PARTS
AR1001 Ball Rail
AR1002 Ball Return Tray
AR1003 Rail Support S p acer
AR1004 Ball Release Lever S pring
AR1005 Cash Box
AR1007 Solenoid Linkage
AR1009 Ball Release Lever Bracket
AR1011 Channel Cover , LEFT
AR1012 Channel Cover, RIGHT
AR1016 Alley Edge Protector, REAR
AR1018 Ball Release Lever
AR1019 Alley Edge Protector, FRONT
AR1020 Cup Connecting Plates
Ticket Bin
1026 Ticket Bin Switch Mounting Bracket
AR1029 Speaker Grille
AR1033 Cage, LEFT SIDE
AR1034 Cage, RIGHT SIDE
AR1035 Cage, FRONT
AR2017 Diffuser Support
AR3000 Runaway Material w/Adhesive
AR3001 Ball Jump
AR3005 Ball Cover Window
AR3006 Playfield Light Cover
AR3008 PL7 Light Diffuser
AR3010 Cup, 10,000 Point
AR3011 Cup, 5,000 Point
AR3012 Cup, 4,000 Point
AR3013 Cup, 2,000 and 3,000 Point
AR3014 Cup, 1,000 Point
AR3015 Cup, Bottom Ring
AR3017 Insulating Grommet
AR3020 Runaway Ball Bumper Material
AR3021 Ball Stop Grommet
AR3024 Ball
AR3065 Runaway Ball Bumper Cap, Left Side
AR3066 Runaway Ball Bumper Cap, Right Side
AR3069 Ball Diverter
Coin Door Lock
5101 Mech Holder
Latch Tool
6111 Fiber Lever Washer
61 1 7 Clevis Pin 3/4”
61 1 8 Clevis Pin 1”
GRAPHICS & DECALS
AR7001 Display Panel
AR7002 Programming Decal
AR7003 Coin Door Decal
AR7004 Ticket Door Decal
AR7008 Instruction Panel
AR7009 Fuse Rating Decal
AR7014 10,000 Point Decal, Left Hand Side
AR7015 5,000 Point Decal
AR7016 4,000 Point Decal
AR7017 3,000 Point Decal
AR7018 2,000 Point Decal
AR7019 1,000 Point Decal
AR7020 10,000 Point Decal, Right Hand Side
AR9001 Service Manual
ELECTRICAL / ELECTRONIC
PARTS
Low Ticket Switch
PL7 Transformer
PL7 Bulb
251 PL7 Socket
FP2000X Display P.C. Board
AR2002 Transformer
AR2005 Start Button
HP2006B Blue Rotating Beacon Light
AR2007 Speaker 6 X 9
AR2008 Solenoid
FP2009X Optical Sensor Assembly (Zero Count)
AR2009X Optical Sensor Assembly
CC2027 20 Ft. Computer S tyle Power Cord
AR2028X Ball Eject P.C. Board (AR Model)
AR2034X Main P .C. Board Assembly
HH2050 Power Module
Solid State Relay
12 Ft. Modular Phone Cord
HH5005 Ticket Dispenser (Deltronic Labs)
PC20224 Counter, 12 Volt D.C.
PC20429 Red Diffused L.E.D.
PLEASE CALL OUR SERVICE
DEPARTMENT FOR HELP WITH ANY
PARTS NOT SHOWN ON THIS LIST
PHONE 1–716–759–0360
17
18
I.C.E warrants all components in the ICE BALL" game to be free of defects in
materials and workmanship for a period of ninety days from the date of purchase.
This warranty does not cover items damaged due to normal wear and tear , subjected
to abuse, improperly assembled by the end user , modified, repaired, or operated in a
fashion other than that described in the service manual.
If your ICE BALL" game fails to conform to the above–mentioned warranty ,
I.C.E.'s sole responsibility shall be at its option to repair or replace any defective
component with a new or remanufactured component of equal to or greater O.E.M.
specification.
I.C.E. will assume no liability whatsoever , for cost s associated with labor to replace
defective parts, or travel time associated therein.
I.C.E.'s obligation will be to ship free of charge, replacement parts by U.P.S. Ground,
U.S. mail, or other comparable shipping means. Any express mail or overnight
shipping expense is at the cost of the purchaser.
Products will be covered under warranty only when:
· The serial number of the game with the defective parts is given.
· The serial number of the defective part, if applicable, is given.
· Defective parts are returned to I.C.E., shipping pre–paid, in a timely fashion, if
requested by I.C.E.
· A copy of the sales receipt is available as proof of purchase upon request of
I.C.E.
I.C.E. distributors are independent, privately owned and operated. In their judgment,
they may sell parts or accessories other than those manufactured by I.C.E. We
cannot be responsible for the quality , suitability, or safety of any non–I.C.E. part, or
any modification, including labor, which is performed by such a distributor.
Warranty
Loading...
