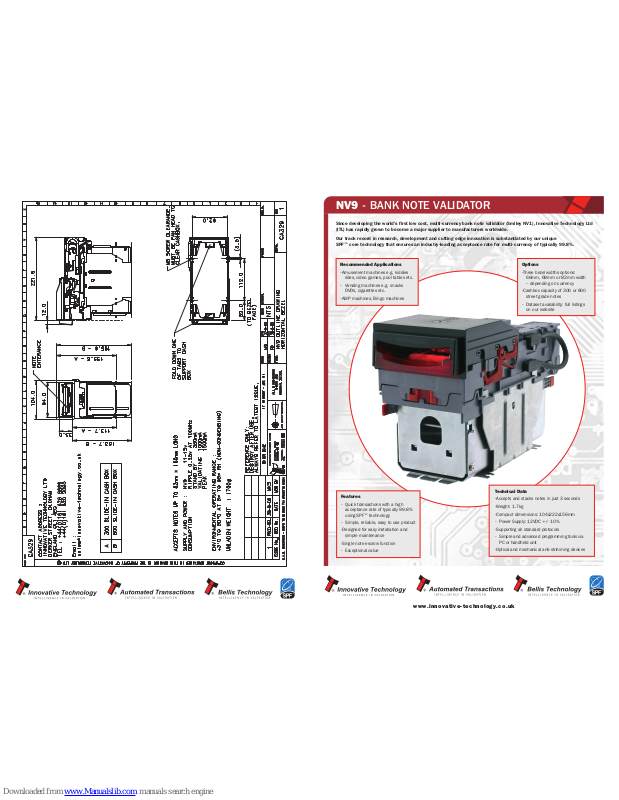

NV9 - BANK NOTE VALIDATOR
Since developing the world’s first low cost, multi-currency bank note validator (Smiley NV1), Innovative Technology Ltd
(ITL) has rapidly grown to become a major supplier to manufacturers worldwide.
Our track record in research, development and cutting edge innovation is substantiated by our unique
SPF™core technology that ensures an industry-leading acceptance rate for multi-currency of typically 99.8%.
Recommended Applications
-Amusement machines e.g. kiddies
rides, video games, pool tables etc.
- Vending machines e.g. snacks
DVDs, cigarettes etc.
-AWP machines, Bingo machines
Options
-Three bezel widths options:
66mm, 69mm or 82mm width
– depending on currency
-Cashbox capacity of 300 or 600
street grade notes
- Dataset availability: full listings
on our website
Technical Data
-Accepts and stacks notes in just 3 seconds
-Weight: 1.7kg
-Compact dimensions: 104x222x156mm
- Power Supply: 12VDC +/- 10%
-Supporting all standard protocols
- Simple and advanced programming tools via
PC or handheld unit
-Optical and mechanical anti-strimming devices
Features
- Quick transactions with a high
acceptance rate of typically 99.8%
using SPF™ technology
- Simple, reliable, easy to use product
-Designed for easy installation and
simple maintenance
-Single note escrow function
- Exceptional value
www.innovative-technology.co.uk
Page 2
NV9 - BANK NOTE VALIDATOR SERIES
Not responsible for changings or errors.
NV9-201 NV9-701 NV9-501
(Lockable version)
NV9-202 NV9-302 NV9-402 NV9-602 NV9-702
NV9-203 NV9-303 NV9-403
NV9-204 NV9-304 NV9-404
NV9-603 NV9-703
NV9-604 NV9-704
Cash Box: 600 Slide In (PA194)
Bezel: Horizontal (PA189)
Cash Box: 600 Slide In (PA194)
Bezel: Vertical Down Snout (PA191)
Cash Box: 300 Clip On (PA185)
Bezel: Vertical Down Snout (PA191)
Cash Box: 600 Clip On (PA193)
Bezel: Vertical Down Snout (PA191)
Cash Box: 600 Slide In (PA194)
Bezel: Vertical Up (PA188)
Cash Box: 300 Clip On (PA185)
Bezel: Vertical Up (PA188)
Cash Box: 600 Clip On (PA193)
Bezel: Vertical Up (PA188)
Cash Box: 600 Slide In (PA194)
Bezel: Vertical Up Snout (PA190)
Cash Box: 300 Clip On (PA185)
Bezel: Vertical Up Snout (PA190)
Cash Box: 600 Clip On (PA193)
Bezel: Vertical Up Snout (PA190)
Cash Box: 1000 Slide In (PA364)
Bezel: Horizontal (PA189)
Cash Box: Lockable Slide In
Cash Box for 300 Notes (PA186)
Door: Frant Right (Standard)
Cash Box: 1000 Clip On (PA365)
Bezel: Vertical Down Snout (PA191)
Cash Box: 1000 Slide In (PA364)
Bezel: Vertical Down Snout (PA191)
Cash Box: Lockable Slide In
Cash Box for 300 Notes (PA186)
Door: Back Right
Cash Box: 1000 Clip On (PA365)
Bezel: Vertical Up (PA188)
Cash Box: 1000 Slide In (PA364)
Bezel: Vertical Up (PA188)
Cash Box: Lockable Slide In
Cash Box for 300 Notes (PA186)
Door: Front Left
Cash Box: 1000 Clip On (PA365)
Bezel: Vertical Up Snout (PA190)
Cash Box: 1000 Slide In (PA364)
Bezel: Vertical Up Snout (PA190)
Cash Box: Lockable Slide In
Cash Box for 300 Notes (PA186)
Door: Back Left
All lockable versions of
NV9 series will be
delivered without lock!
Locking Door
Position 4
Locking Door
Position 3
Locking Door
Position 2
Locking Door
Position 1
Optional Front Bezel
Bezel: 69mm Fixed Width Horizontal (PA268)
Fits a.o. for Russian Rubel
Bezel: Vertical Up-Down Flat 69mm (PA323)
Fits a.o. for Russian Rubel
Bezel: 66mm Fixed Width Horizontal (PA257)
Fits a.o. for US-Dollar
Bezel: Vertical Up-Down Flat 66mm (PA296)
Fits a.o. for US-Dollar
All bezels are interchangeable.
All validators include the
following interface options:
- SSP (Smiley Secure Protocol)
- SIO (Simple Serial Interface)
- MDB (requires IF5 Box)
- CCTalk
- Parallel
- Pulse
- Binary
Difference Between Slide In And Clip On Cash Box
Removable Slide In Cash Box Removable Clip On Cash Box
-...05
-...06
-...07
-...08
NV9-101
NV9-102
NV9-103
NV9-104
Cash Box: 300 Slide In (PA192)
Bezel: Horizontal (PA189)
Cash Box: 300 Slide In (PA192)
Bezel: Vertical Down Snout (PA191)
Cash Box: 300 Slide In (PA192)
Bezel: Vertical Up (PA188)
Cash Box: 300 Slide In (PA192)
Bezel: Vertical Up Snout (PA190)
