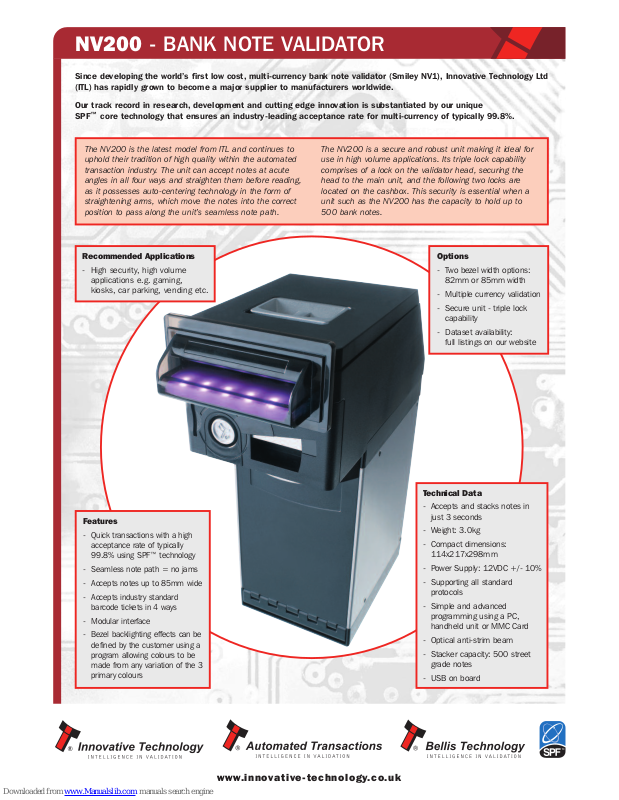

NV200 - BANK NOTE VALIDATOR
S
ince developing the world’s first low cost, multi-currency bank note validator (Smiley NV1), Innovative Technology Ltd
(ITL) has rapidly grown to become a major supplier to manufacturers worldwide.
Our track record in research, development and cutting edge innovation is substantiated by our unique
S
PF
™
c
ore technology that ensures an industry-leading acceptance rate for multi-currency of typically 99.8%.
Options
- Two bezel width options:
82mm or 85mm width
- Multiple currency validation
-
Secure unit - triple lock
capability
- Dataset availability:
full listings on our website
Recommended Applications
- High security, high volume
applications e.g. gaming,
kiosks, car parking, vending etc.
The NV200 is the latest model from ITL and continues to
uphold their tradition of high quality within the automated
t
ransaction industry. The unit can accept notes at acute
angles in all four ways and straighten them before reading,
as it possesses auto-centering technology in the form of
straightening arms, which move the notes into the correct
p
osition to pass along the unit’s seamless note path.
The NV200 is a secure and robust unit making it ideal for
use in high volume applications. Its triple lock capability
c
omprises of a lock on the validator head, securing the
head to the main unit, and the following two locks are
located on the cashbox. This security is essential when a
unit such as the NV200 has the capacity to hold up to
5
00 bank notes.
F
eatures
- Quick transactions with a high
acceptance rate of typically
99.8% using SPF™ technology
-
Seamless note path = no jams
- Accepts notes up to 85mm wide
- Accepts industry standard
barcode tickets in 4 ways
- Modular interface
-
Bezel backlighting effects can be
defined by the customer using a
program allowing colours to be
made from any variation of the 3
primary colours
T
echnical Data
- Accepts and stacks notes in
just 3 seconds
- Weight: 3.0kg
-

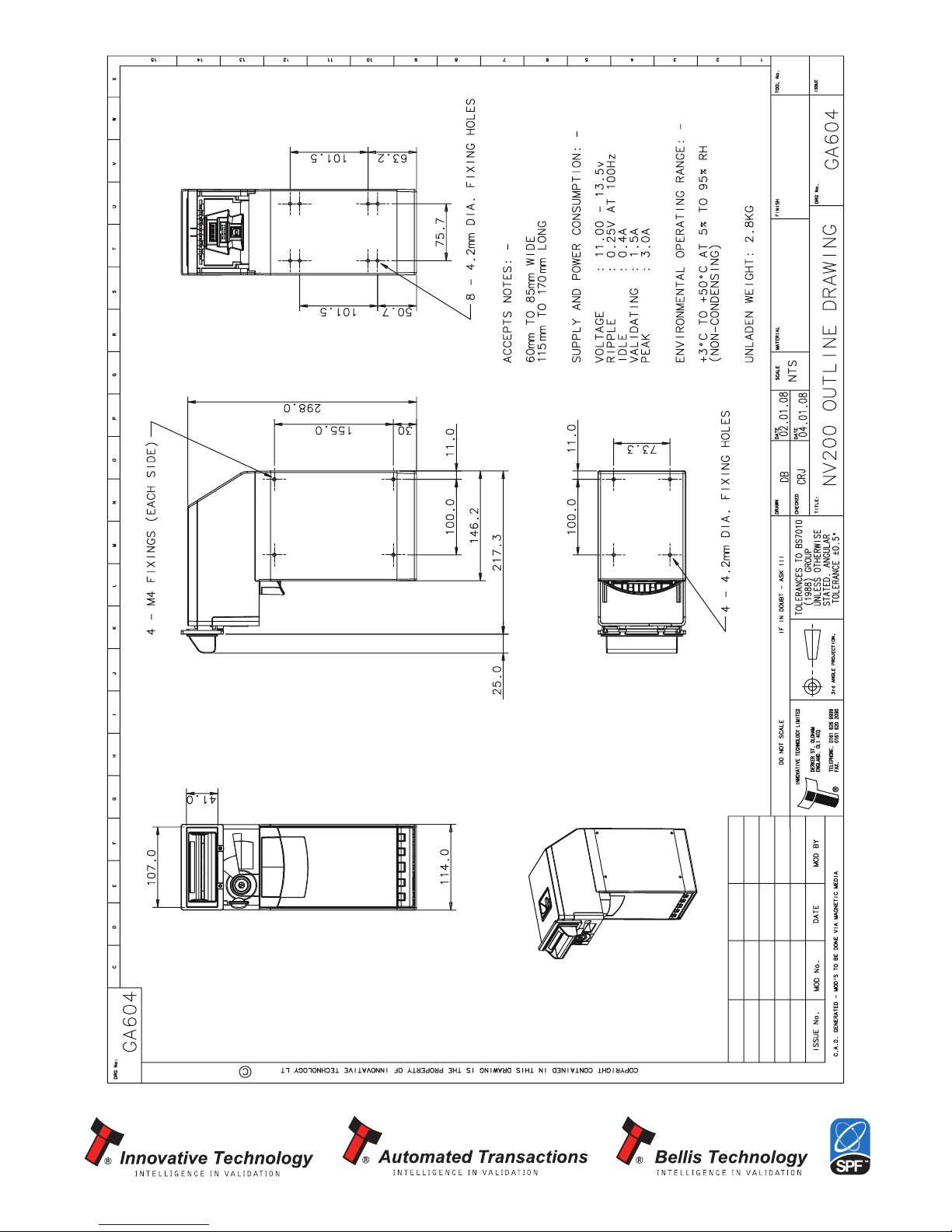

Compact dimensions:
114x217x298mm
- Power Supply: 12VDC +/- 10%
-
Supporting all standard
protocols
- Simple and advanced
programming using a PC,
handheld unit or MMC Card
- Optical anti-strim beam
- Stacker capacity: 500 street
grade notes
- USB on board
www.innovative-technology.co.uk
