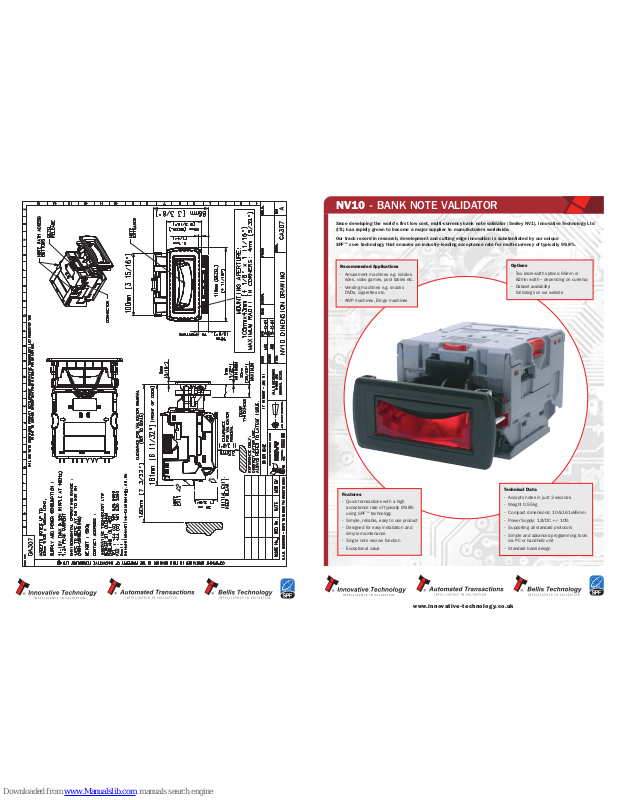

NV10 - BANK NOTE VALIDATOR
S
ince developing the world’s first low cost, multi-currency bank note validator (Smiley NV1), Innovative Technology Ltd
(ITL) has rapidly grown to become a major supplier to manufacturers worldwide.
Our track record in research, development and cutting edge innovation is substantiated by our unique
S
PF
™
c
ore technology that ensures an industry-leading acceptance rate for multi-currency of typically 99.8%.
Recommended Applications
- Amusement machines e.g. kiddies
rides, video games, pool tables etc.
-
Vending machines e.g. snacks
DVDs, cigarettes etc.
- AWP machines, Bingo machines
Options
- Two bezel width options: 66mm or
82mm width
– depending on currency
-
Dataset availability:
full listings on our website
www.innovative-technology.co.uk
Technical Data
- Accepts notes in just 3 seconds
- Weight 0.55kg
- Compact dimensions: 104x161x86mm
- Power Supply: 12VDC +/- 10%
- Supporting all standard protocols
- Simple and advanced programming tools
via PC or handheld unit
-
Standard bezel design
F
eatures
-
Quick transactions with a high
acceptance rate of typically 99.8%
using SPF™ technology
-
Simple, reliable, easy to use product
- Designed for easy installation and
simple maintenance
-
Single note escrow function
- Exceptional value
Page 2
NV10 - BANK NOTE VALIDATOR SERIES Change NV2/4 FOR NV10
Not responsible for changings or errors.
N
V10-101
C
hange NV4PA121 (‘Notes” bezel) For NV10
N
V10-102
Bezel: Standard Bezel (PA231)
NV10-101 IF6 Interface Adaptor Plate PA258
Bezel: Extended Bezel (PA266)
66mm Fixed Width Bezel (PA255)
Fits a.o. for US-Dollar
F
acia Plate Chrome (MC001)
Extended Bezel 66mm (PA267)
Fits a.o. for US-Dollar
Optional Front BezelAdditional Facia
& Adaptor Plates
Standard/Extended Bezel
F
acia Plate Silver (MC002)
NV4 to NV10 Adaptor Plate
(PA258)
Further coloured materials on request.
All bezels are interchangeable.
All validators include the following interface options: - S
SP (Smiley Secure Protocol)
- SIO (Simple Serial Interface) - MDB (requires IF5 Box) - CCTalk - Parallel - Pulse - Binary
+ +
Change NV2 For NV10
NV10-101 IF6 Interface Adaptor Plate
+ +
Change NV4PA134 (Universal bezel) For NV10
NV10-101 IF6 Interface
+
Change NV4PA134 (Universal bezel) For NV10 - Short installation Depth
NV10-102 IF6 Interface
In order to shorten the
installation depth of
the NV10P
A231 for
ca. 45mm, please use
Extended Bezel PA266
+
