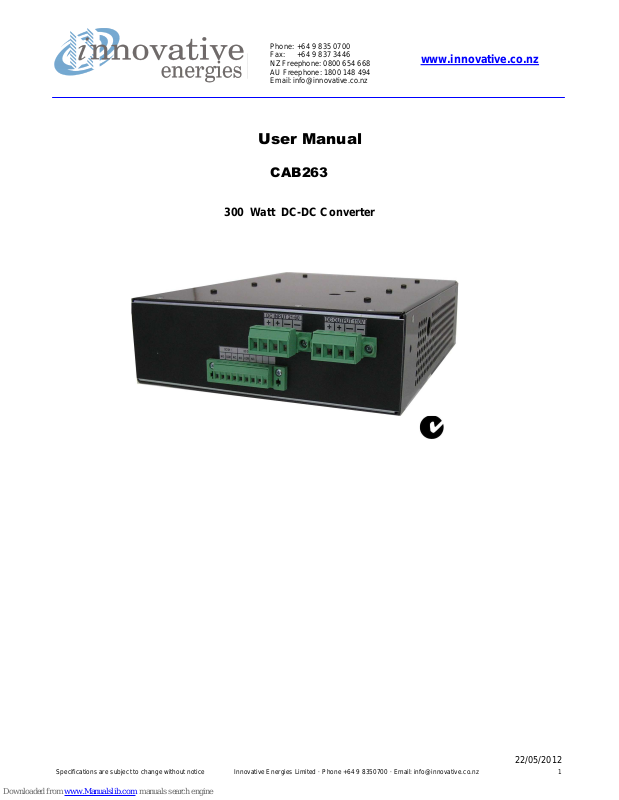

Innovative CAB263 User Manual

Specifications are subject to change without notice Innovative Energies Limited · Phone [phone] · Email: [email protected] 1

www.innovative.co.nz

Phone: [phone]
Fax: [phone]
NZ Freephone: 0800 654 668
AU Freephone: 1800 148 494
Email: [email protected]

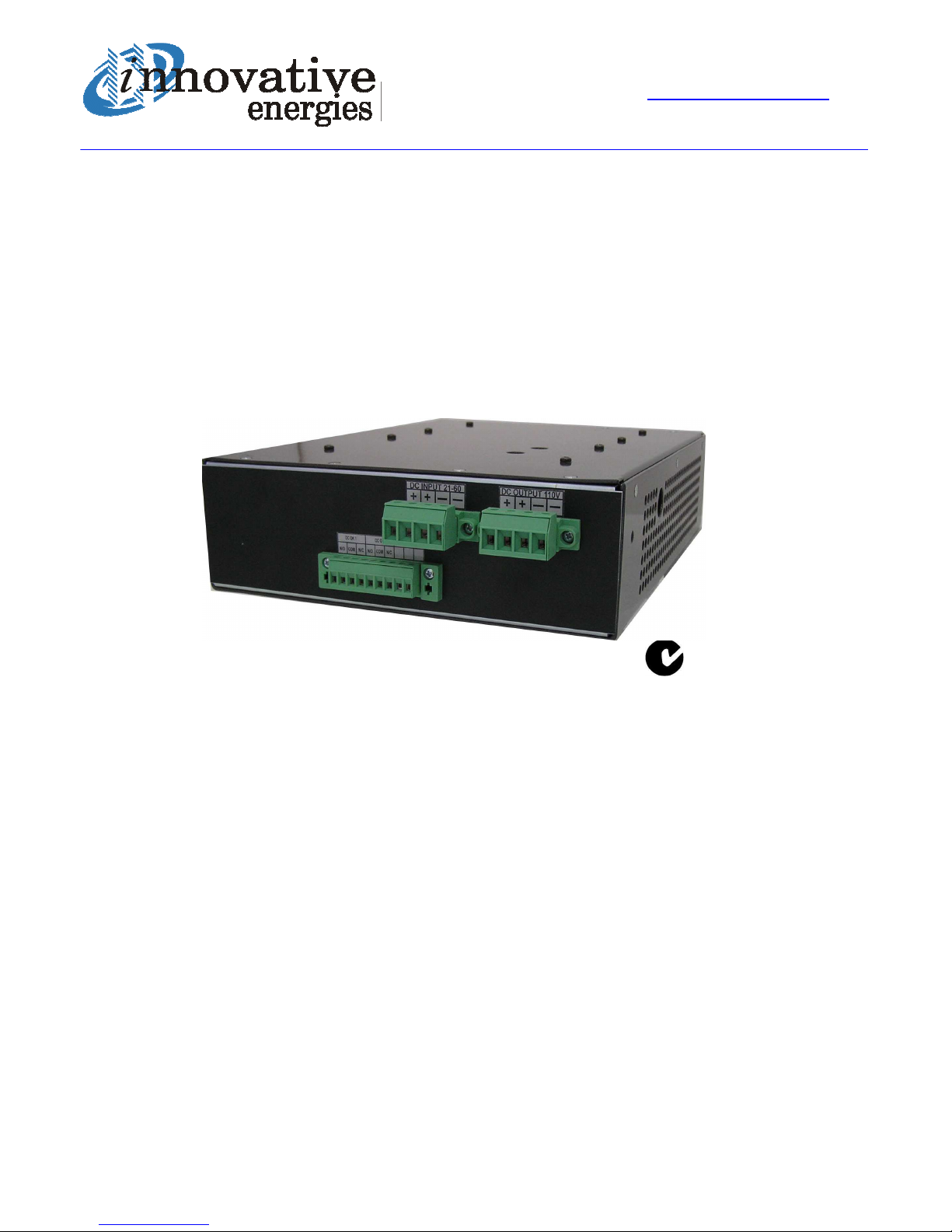

300 Watt DC-DC Converter

CAB263

User Manual

22/05/2012

Specifications are subject to change without notice Innovative Energies Limited · Phone [phone] · Email: [email protected] 2

PSU = power supply unit BCT = battery condition test ECB = electronic circuit breaker
ELVD = electronic low voltage disconnect RPP = reverse polarity protection EMI = electromagnetic interference

Glossary of terms used in our user manuals

SNMP = Simple Network Management
Protocol

LAN = local area network

Safety

The user is responsible for ensuring that input and output wiring segregation complies with local standards and that in
the use of the equipment, access is confined to operators and service personnel. A low resistance earth connection is
essential to ensure safety and additionally, satisfactory EMI suppression (see below).

HAZARDOUS VOLTAGES EXIST WITHIN A POWER SUPPLY ENCLOSURE AND ANY REPAIRS MUST

BE CARRIED OUT BY A QUALIFIED SERVICEPERSON.

Electrical Strength Tests

Components within the power supply responsible for providing the safety barrier between input and output are con­structed to provide electrical isolation as required by the relevant standard. However EMI filtering components could be
damaged as result of excessively long high voltage tests between input, output and ground. Please contact our techni­cians for advice regarding electric strength tests.

Earth Leakage

The EMI suppression circuits causes earth leakage currents which may be to the maximum allowable of 3.5mA.

Ventilation

High operating temperature is a major cause of power supply failures, for example it has been well documented that a
10oC rise in the operating temperature of a component will halve its expected life. Therefore always ensure that there is
adequate ventilation for the equipment. Batteries and cooling fans also suffer shortened lifetimes if subjected to high
ambient temperatures - both should be included in a routine maintenance schedule to check for signs of reduced effi­ciency.

Water / Dust

Every effort must be made in the installation to minimise the risk of ingress of water or dust. Water will almost always
cause instant failure. The effects of dust are slower in causing failure of electronic equipment but all electrical equip­ment should be cleaned free of any dust accumulation at regular intervals. This is particularly important where internal
fans are fitted.

Electromagnetic Interference (EMI)

Switching power supplies and converters inherently generate electrical noise. All wiring should be as short as practica­ble and segregated from all equipment wiring which is sensitive to EMI. Residual noise can be reduced by looping DC
wiring through ferrite cable sleeves. These are most effective as close to the power supply as possible and as many
turns of the wire taken through the core (+ and - in the same direction) as the core will accommodate.

Fuse ratings

Check that the wiring and fuses or MCBs match the rating of the PSU or converter. Adequate fuse protection of battery
circuits is very important owing to the large potential currents available from batteries. Our No-Break DC series has an
internal ECB for protection of the battery circuit but for all other charging situations should have an external fuse or cir­cuit breaker fitted in the battery circuit.

Connection polarity

It is critical to check the polarity carefully when connecting batteries and equipment to DC power supplies and chargers.
Boost chargers (and some float chargers) made by Innovative Energies have reverse polarity protection, which can be
by an electronic switch (non-destructive) or an internal fuse which needs to be replaced if a battery is connected in re­verse.

Specifications are subject to change without notice Innovative Energies Limited · Phone [phone] · Email: [email protected] 3

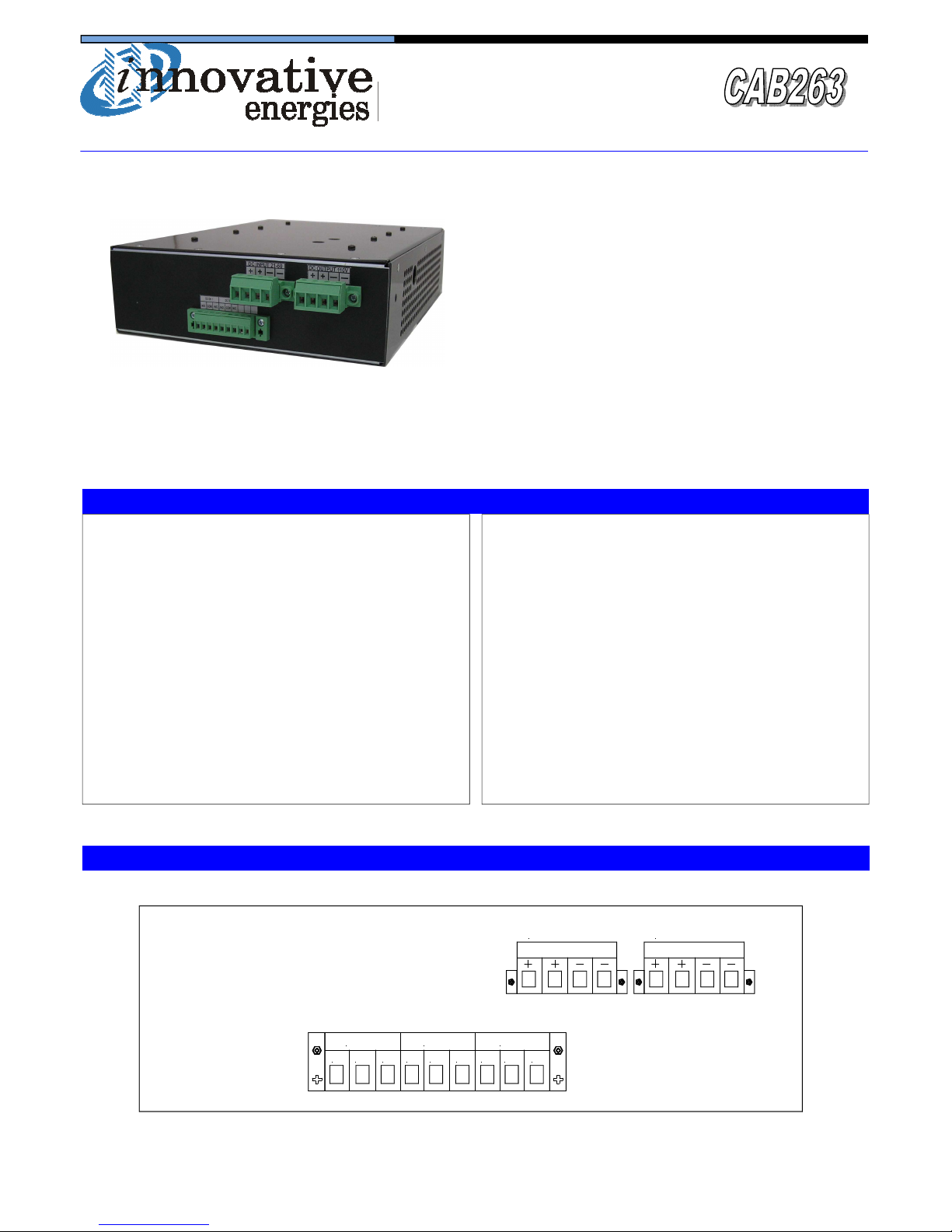

♦ 24 Month Warranty

DC/DC converter 300W

• Isolated input- output - ground

• Convection cooled

• DC OK alarm relay + Output diode

• Designed for industrial use

• Input transient/surge suppression

• Short circuit protection

• Reverse polarity protection

• EMI compliance to international standards

Specifications

Input voltage
Input protection
Output voltage
Output Protection

Output power
Short circuit protection

Isolation

20 -60VDC
Input fuse, varistor, reverse polarity
110VDC
Hiccup current limit on overload or short

circuit
300W
Shutdown to zero output (Auto self recovery

on removal of short)
1KV DC input - output / earth

Efficiency
Soft Start
Line Regulation
Load Regulation
Ripple
EMC
Operating

temperature
Alarm contact

Dimensions

85%
1 second typical
< 0.5% over input range
< 0.7% open circuit to full load
Typically 1% Peak-Peak
To CISPR22
0 to 40°C; linearly derate to 50% output at

50°C
NO-C-NC (1A,50VDC)

225W x 77H x 340D

DC OK 1

20-60VDC INPUT 110VDC OUTPUT

DC OK 2 UNUSED

NO COM NC NO COM NC NO COM NC

Connection Terminal Layout

Specifications are subject to change without notice Innovative Energies Limited · Phone [phone] · Email: [email protected] 4

Innovative Energies Limited

Phone: [phone]
Freephone: 0800 654 668 (New Zealand)
1800 148 494 (Australia)

Fax: [phone]
Email: [email protected]
Online: www.innovative.co.nz or www.innovative-energies.com
In Person: 1 Heremai Street, Henderson, Auckland, New Zealand
By Post: PO Box 19-501, Auckland 1746, New Zealand

TERMS OF WARRANTY

Innovative Energies Ltd warrants its power supplies for
24 months (two years) from date of shipment against
material and workmanship defects.

Innovative Energies' liability under this warranty is lim­ited to the replacement or repair of the defective product
as long as the product has not been damaged through
misapplication, negligence, or unauthorized modification
or repair.
