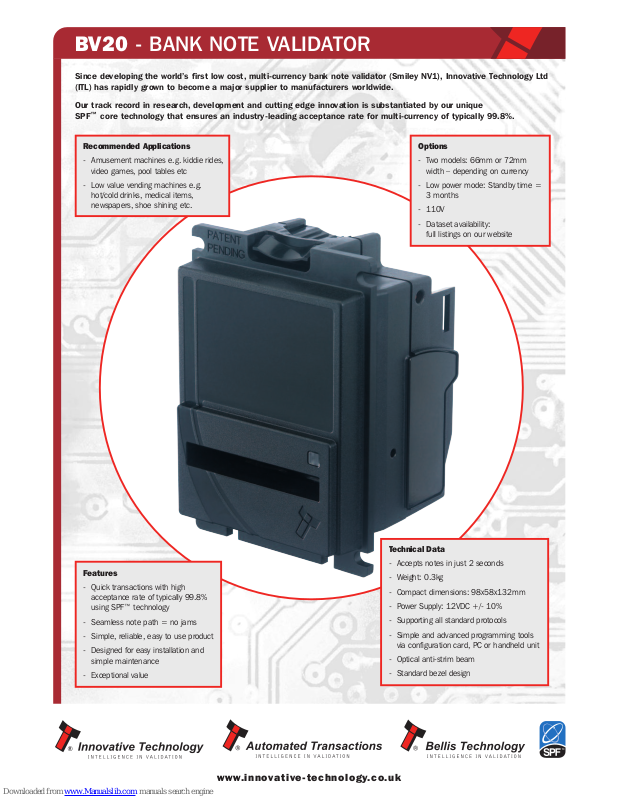

BV20 - BANK NOTE VALIDATOR
S
ince developing the world’s first low cost, multi-currency bank note validator (Smiley NV1), Innovative Technology Ltd
(ITL) has rapidly grown to become a major supplier to manufacturers worldwide.
Our track record in research, development and cutting edge innovation is substantiated by our unique
S
PF
™
c
ore technology that ensures an industry-leading acceptance rate for multi-currency of typically 99.8%.
Recommended Applications
- Amusement machines e.g. kiddie rides,
video games, pool tables etc
- Low value vending machines e.g.
h
ot/cold drinks, medical items,
newspapers, shoe shining etc.
Options
- Two models: 66mm or 72mm
width – depending on currency
- Low power mode: Standby time =
3
months
- 110V
- Dataset availability:
f
ull listings on our website
Technical Data
- Accepts notes in just 2 seconds
- Weight: 0.3kg
- Compact dimensions: 98x58x132mm
- Power Supply: 12VDC +/- 10%
- Supporting all standard protocols
- Simple and advanced programming tools
via configuration card, PC or handheld unit
- Optical anti-strim beam
- Standard bezel design
Features
- Quick transactions with high
acceptance rate of typically 99.8%
using SPF™ technology
-
Seamless note path = no jams
- Simple, reliable, easy to use product
-
Designed for easy installation and
simple maintenance
-
Exceptional value
www.innovative-technology.co.uk
