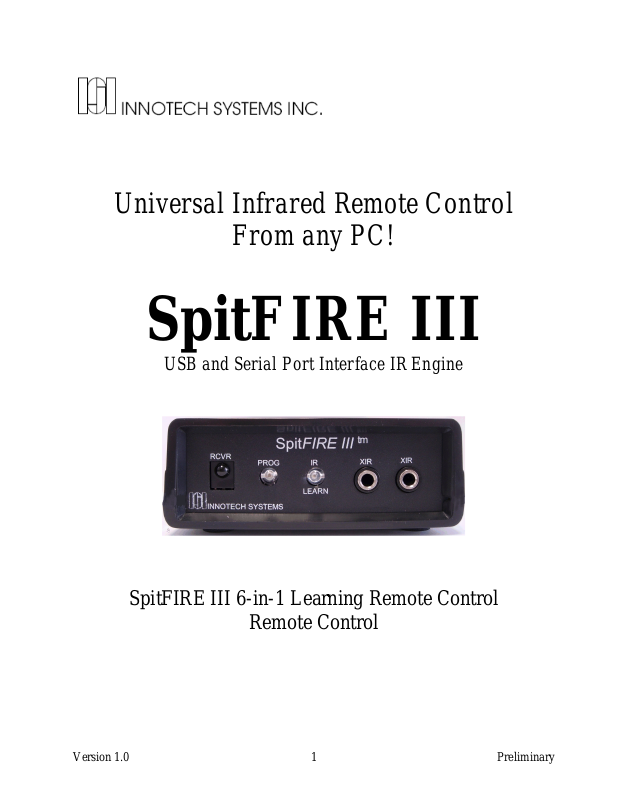

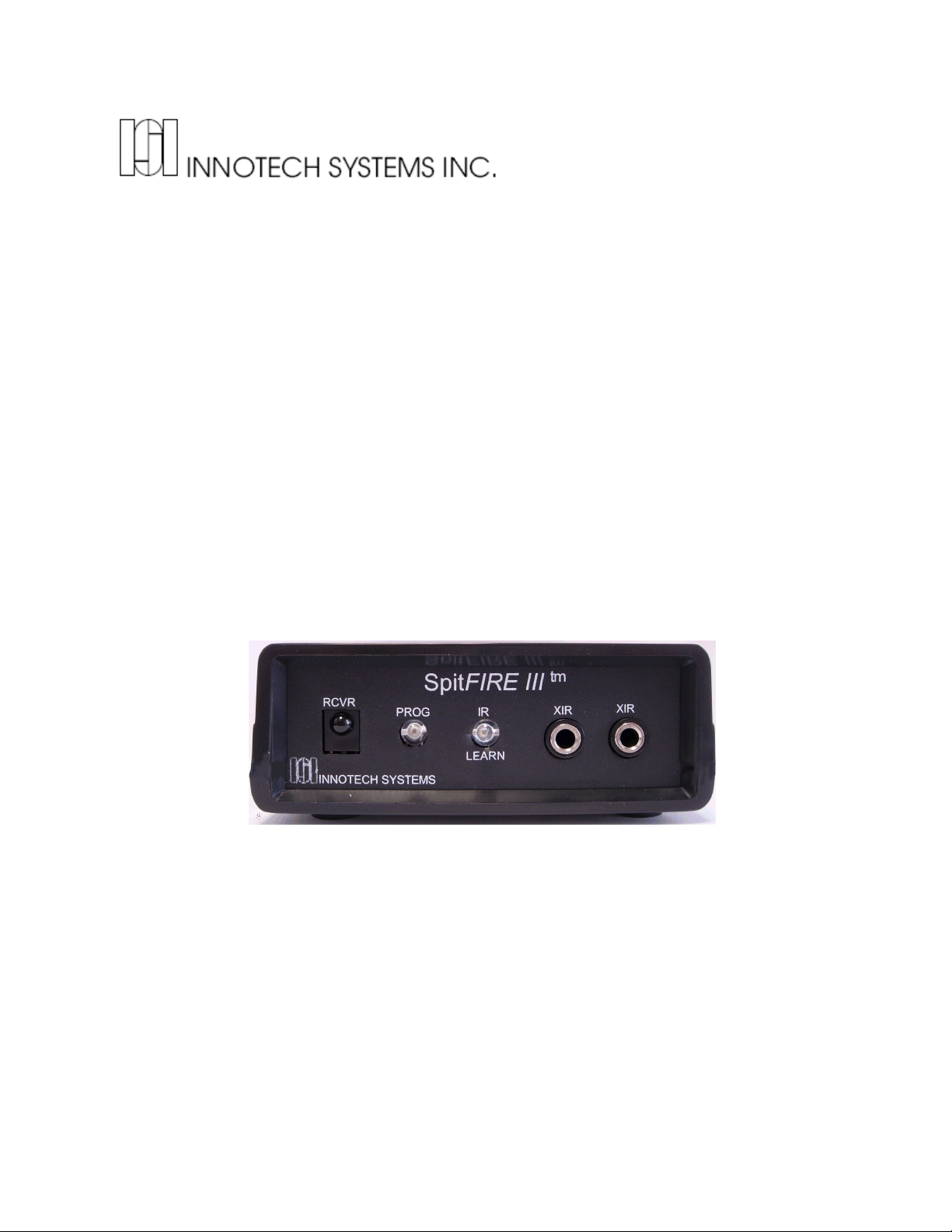

Innotech Systems SpitFIRE III User Manual

Universal Infrared Remote Control

From any PC!

SpitFIRE III

USB and Serial Port Interface IR Engine

SpitFIRE III 6-in-1 Learning Remote Control

Remote Control

Version 1.0 Preliminary 1

SpitFIRE III

Serial Port Interface IR Engine

FEATURES

• Infrared remote control from a PC

• Internal Infrared Code Library supports all common TV, VCR, Cable, Satellite, Home Theater

and DVD Players

• “Learns” additional codes from your existing remote control

• USB and Serial port interface

• Powered by USB port or optional 9V DC power cube

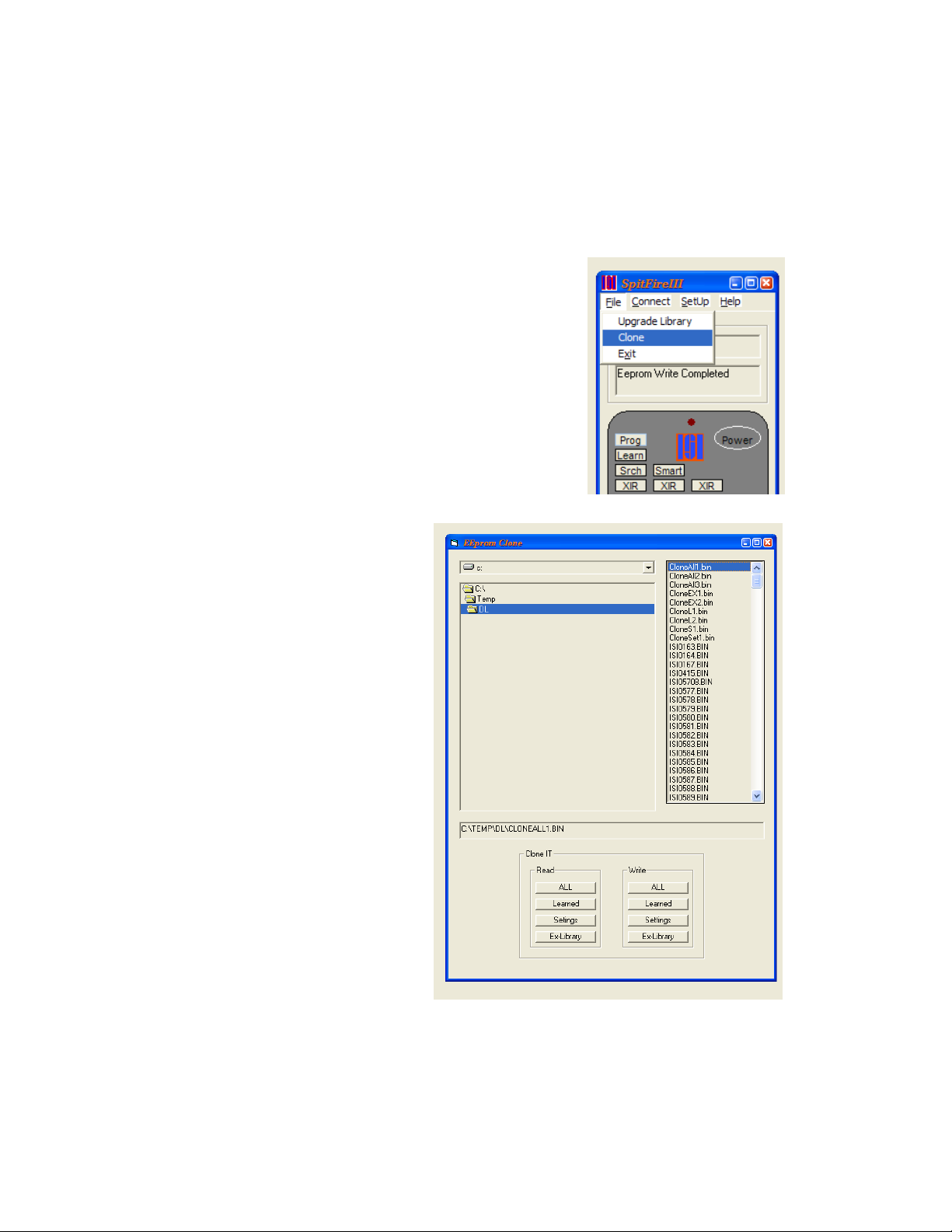

• Includes “cloning” capability for one-step replication of your setup and configuration from one

Spitfire to another

• PC-upgradeable library

• Punch-Through Operation

• Macros

• Smart Source™

• IR Learning

o Learns up to 112 button codes dynamically distributed over six sources
o Learns all common IR protocols
o Learns IR frequencies up to 75 kHz

• Application software included

o Standard application permits easily customized on-screen display of “virtual remote

control”

o Use the included Visual Basic source code to create your own applications

• Button mapping files are provided for internal and external library’s

• IR Output

o Front panel IR emitter LED
o Two front panel IR blaster jacks accept standard 1/8" (3.5mm) mono mini-plug

• Multiple Spitfires can be connected to a PC at a time.

• Dimension: 3.3" W x 1.2" H x 5.25" L

• Options include IR receiver

• Ideal for
– Home Automation
– Home Theater
– Industrial Control

Version 1.0 Preliminary 2

INTRODUCTION

Congratulations on purchasing your SpitFIRE Serial Port Infrared Remote Control.

The Innotech Systems’ SpitFIRE turns an ordinary PC into a powerful state-of-the-art home entertainment
control system!

The SpitFIRE controls all popular entertainment devices directly from a PC. The SpitFIRE converts data
from your computer’s serial or USB port into infrared remote control signals.

The Innotech Systems SpitFIRE III turns an ordinary PC into a powerful State-of-the-art entertainment
control system! The SpitFIRE III controls IR remote control compatible entertainment devices directly from
a PC.

The SpitFIRE III Learning SpitFIRE includes a built-in library of entertainment remote control codes that
covers a wide variety of consumer products. In addition, the SpitFIRE III can learn new IR codes so that
your control system is never out-dated. The learned codes can be added to an entertainment device that
already exists in the library or it can add completely new devices to the library. Learned codes are stored in
non-volatile memory for permanent storage, even with the power removed.

The SpitFIRE III includes a convenient front panel mounted infrared diode and two (3.5mm) jacks which
permit the use of mini stick-on IR emitters for maximum flexibility.

Front panel status light provides feedback for programming the SpitFIRE. Status information is also sent
back to the PC via the serial or USB connection.

The small (3¼" x 5¼") SpitFIRE may be situated behind or near the PC, and is connected via a
conventional serial cable or USB to the PC. The SpitFIRE is controlled via a standard serial interface. The
host PC controls the SpitFIRE by sending simulated button presses. The SpitFIRE will respond by returning
status information for every command.

The SpitFIRE includes sample Visual Basic application software. The software displays a “virtual” remote
control on screen and responds to “virtual button presses” to illustrate the operation of the device and for
you to use as the basis for your own software applications.

Version 1.0 Preliminary 3

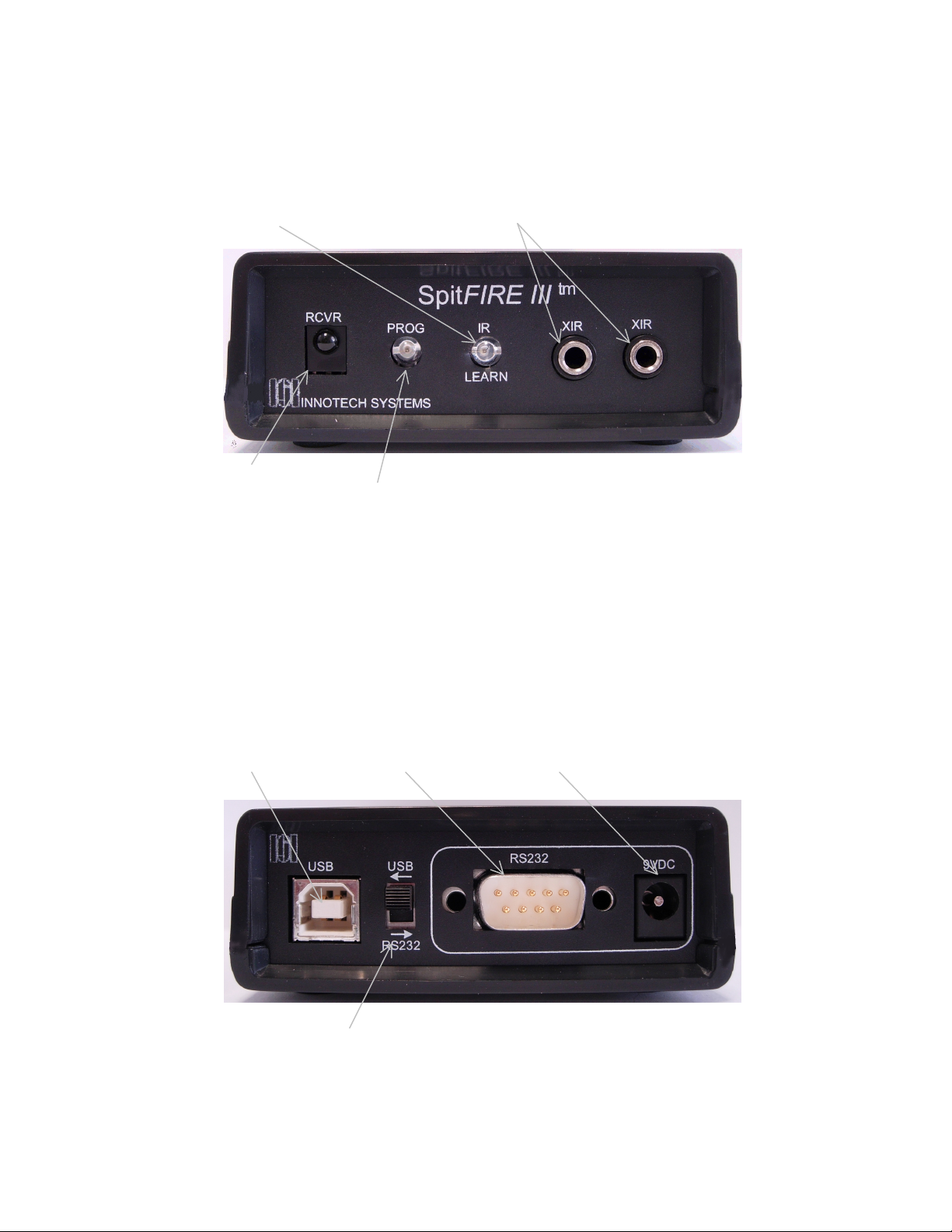

SpitFIRE --- Front Panel

IR Sensor & Transmitter Infrared Output (3.5mm) mono mini-plug

Optional Receiver

Program Status LED

SpitFIRE --- Back Panel

USB Port RS-232 Serial Input Power Supply Jack

Interface Select Switch
USB Powered or 9V DC power cube

Version 1.0 Preliminary 4

Installing SpitFIRE USB Drivers

Windows XP, Windows 98 drivers and instillation guides are supplied on the Spitfire software and
documentation CD. For all other drivers http://www.ftdichip.com/Drivers/VCP.htm

Developers-Note1: The USB drivers act as virtual COM-ports, this means that they look and act as COM­ports to the end user and to the supplied software. If you are a developer of software, this is not the only
way to access the spitfire. This virtual comport method was chosen to maintain backwards compatibility
with previous versions of the Spitfire. All the drivers can be found at…

http://www.ftdichip.com/Drivers/D2XX.htm D2XX drivers allow direct access to the USB device

through a DLL. Application software can access the USB device through a series of DLL function
calls.

Installing SpitFIRE On-Screen Control Software

1. It is recommended that you close all running software applications before you install the SpitFIRE On-

Screen Control Software.

2. Insert the provided spitfire installation and documentation CD into your CD disk drive.

3. To install, go to the installation directory and run SETUP.EXE

(drive):\Installation\SETUP.EXE.

4. Follow the setup prompts as they appear on your screen. The installation program will default to

installing the software in C:\Program files\Spitfire. You may change this to another directory if you wish.

5. Connect the SpitFIRE to the desired USB or COM port.

6. To begin using on-screen control click on the SpitFIRE icon in the Start menu.

SpitfireIII.LNK

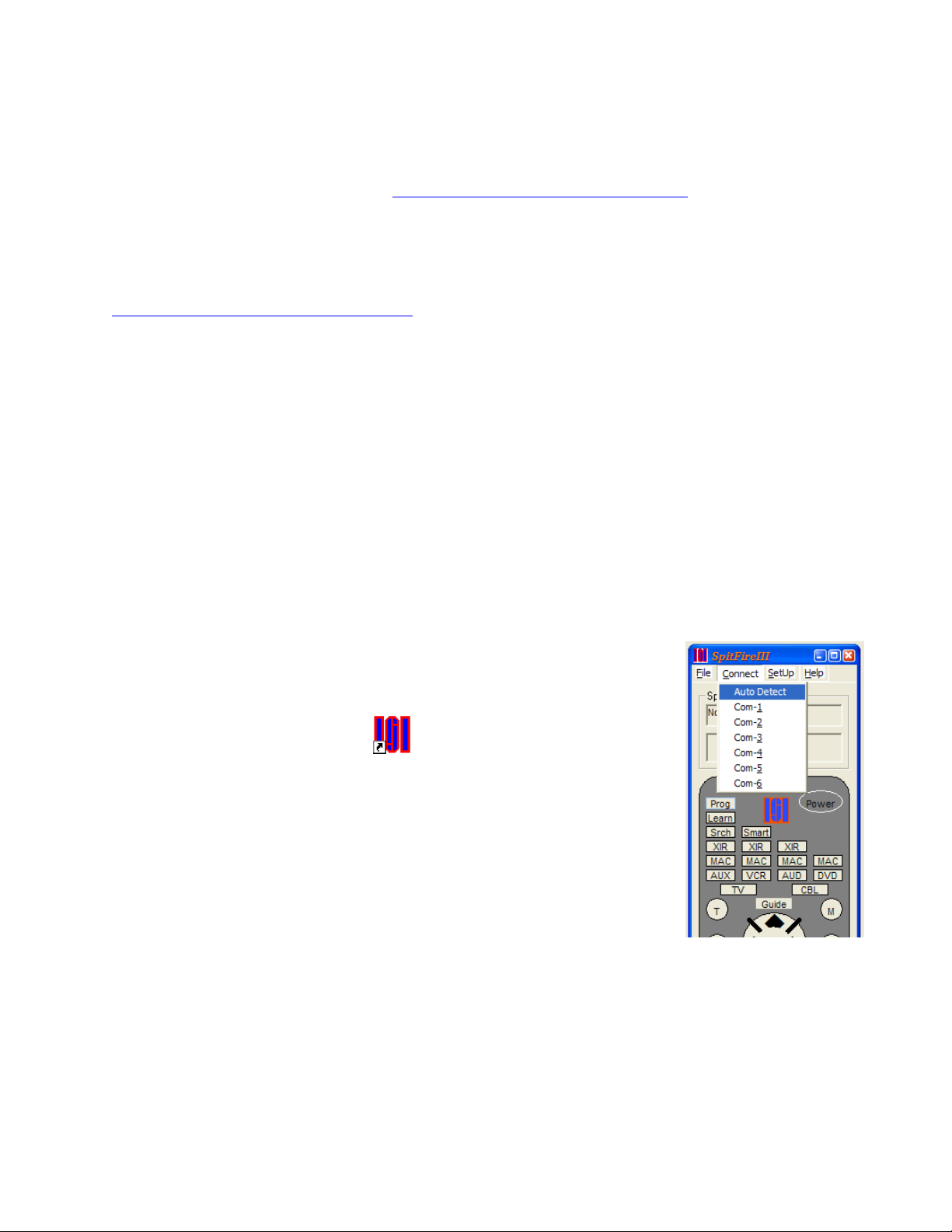

In order for the PC to communicate with the SpitFIRE, the communication
settings must be properly set. The remote control application software can
auto-detect the proper communication port and settings.

If the auto-detect method does not work and you know the COM port number,
then you can manually select the COM port using Com-1 to Com-6. The USB
drivers are designed to act as virtual serial ports and they will appear to the PC
and the user as a regular com port.

The auto-detect feature will attempt to find the correct com port or virtual com port by searching for the
connected spitfire one port at a time COM 10, 9, 8, 7... If multiple spitfires are connected to the PC then
auto-detect will find them in descending number order.

Version 1.0 Preliminary 5

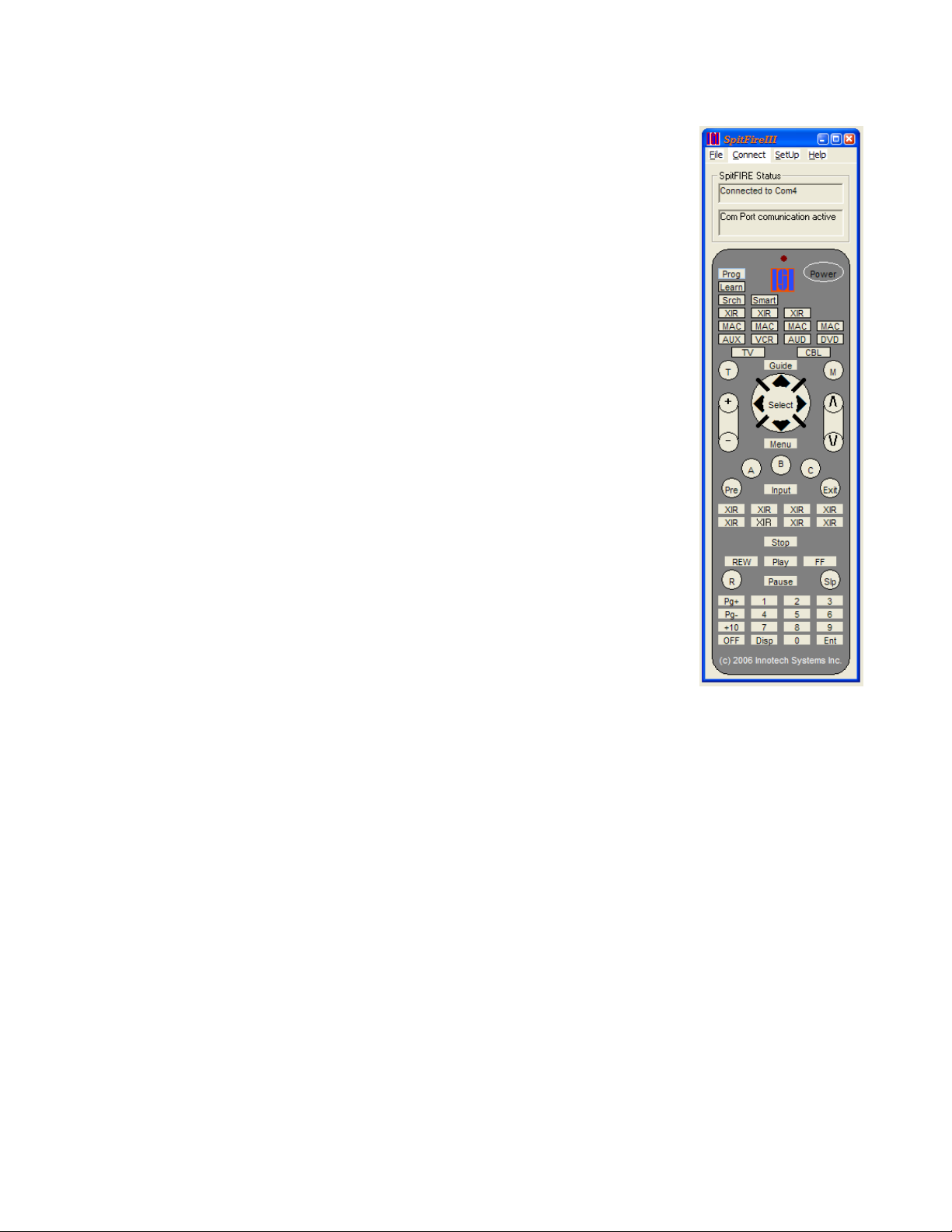

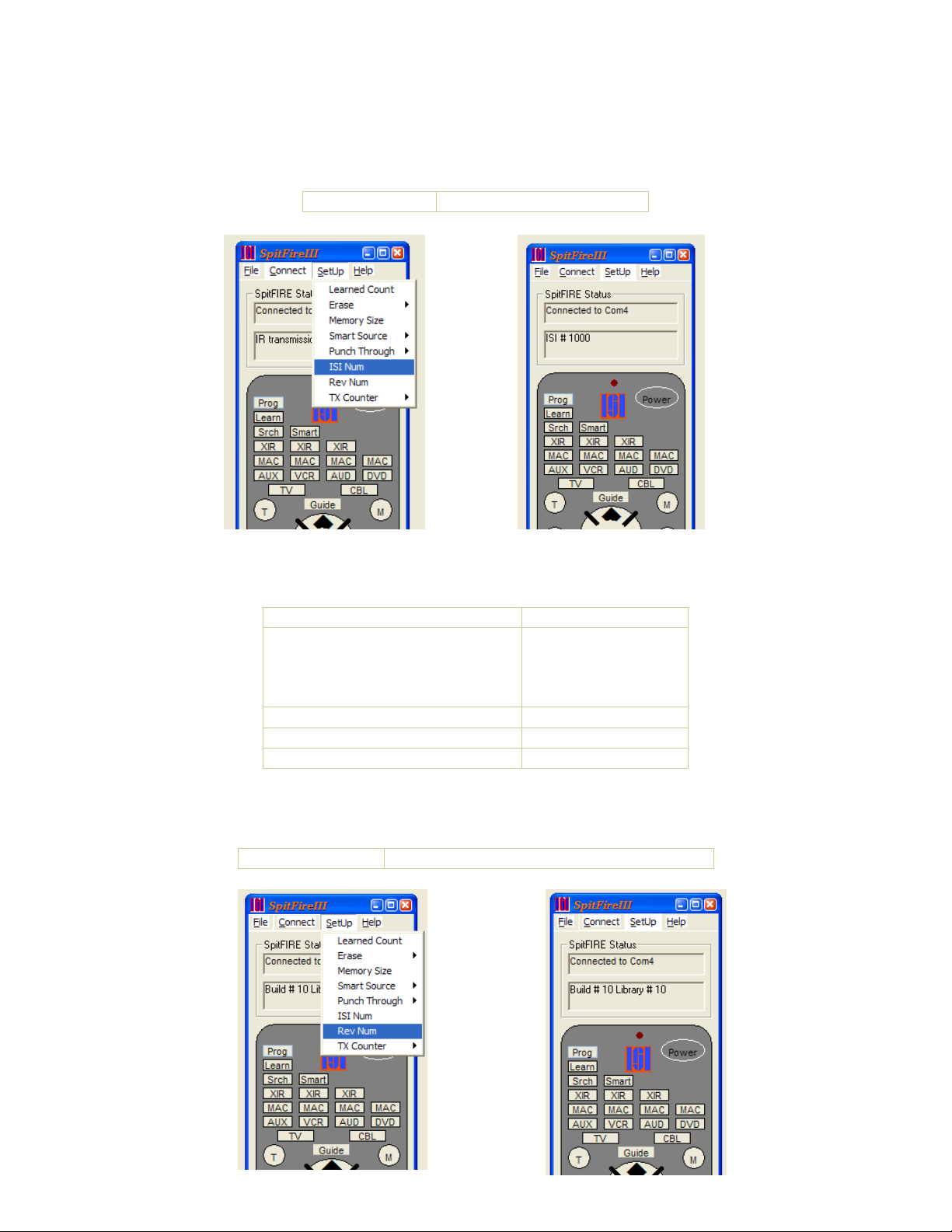

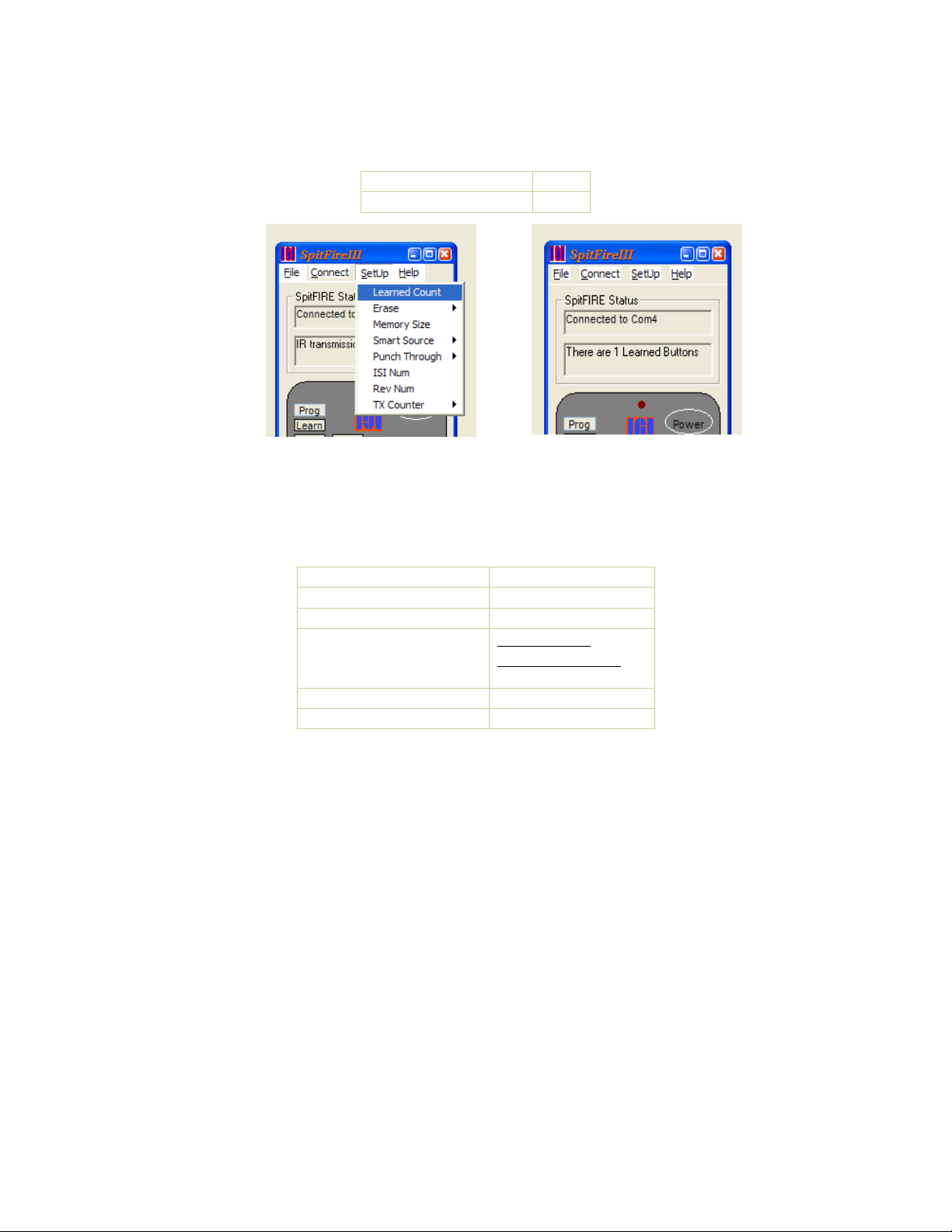

Using the SpitFIRE virtual remote control application

The remote control application software, will display an image of a remote control.
Clicking on any button with the mouse will press that button. The Spitfire comes
preprogrammed to control a typical Sony TV. The CBL/SAT, DVD, VCR, AUD,
and AUX slots are empty. The on-screen LED will flash appropriately and a status
box will interpret and display messages received back from the SpitFIRE.

Customizing the Display

The appearance of the remote control is determined by the file buttons.txt, which
is installed in the SpitFIRE directory. During startup, the program reads the
contents of buttons.txt. This file contains information about the button label, button
scancode, and appearance of each button on the remote. Buttons.txt can be
modified with any text editor, so the user can customize the look and function of
the remote to suit their needs.

Buttons.txt is organized into 64 text lines, for each of 64 possible buttons, starting
from the top left of the remote and reading across. Each line consists of 3 fields
separated by commas.

1. Field one is the button label which appears as text on the button.

2. Field two is the 1-byte scancode, The scancode represents a specific button
in the IR library. (see the button mapping table)

3. Field three is a visibility tag, either 1 (visible) or 0 (invisible) allowing
unused buttons may be hidden.

The included "buttons.bak" file can be renamed to "buttons.txt" to show all

the buttons available on the remote. However, depending on the device being controlled, not all buttons
may be functional.

Developers-Note2:

Communications between the SpitFIRE and the program is simple. When the user presses a button

on screen, the program first finds that button’s associated scancode from an array. This array is
constructed at startup as the program reads the contents of the "buttons.txt" file. Each scancode is
represented by an integer. The program then converts that integer to a byte, sets the button down bit,(data
bit 7) and sends that to the SpitFIRE hardware through the serial port.

The ActiveX control MSComm is used, making it easy to write routines that transmit data to and

from the serial ports. The SpitFIRE communicates at 2400 baud, 8 data bits, 1 stop bit, no parity. After the
SpitFIRE hardware receives a scancode from the serial port, it returns a status byte. The program receives
and acts based upon the type of status byte, which may indicate the number of times to flash the visible
LED, the success or failure of a programming operation, etc. This is accomplished through IF-ELSE and
CASE statements. As the source code demonstrates, Visual Basic's tools simplify the task of writing fully
functional programs to control the SpitFIRE. Feel free to examine the included source files for Visual Basic

5.0:
CONTROL.BAS, CONTROL.FRM, CONTROL.FRX, CONTROL.VBP, CONTROL.VBW
To load the entire project into Visual Basic, open the “SpitFIRE control.vbp” file.

Version 1.0 Preliminary 6

VIRTUAL BUTTON MAPPING

Developers-Note3: The Most Significant Bit (data bit 7) is functionally defined as the button press

bit and is set by the VRC prior to transmission of the scancode to the spitfire. To avoid any

confusion this table along with the buttons.txt and ISI###.dat files all do not have the MSB set, but
when the code is transmitted the MSB is always set. If you do not set the MSB the spitfire will not
respond to the command or will misinterpret the command.

Buttons that Transmit IR
Function CODE Class

0 00h channel
1 01h channel
2 02h channel
3 03h channel
4 04h channel
5 05h channel
6 06h channel
7 07h channel
8 08h channel
9 09h channel
Enter 0Ah channel
Mute 0Bh volume
Volume up 0Ch volume
Volume down 0Dh volume
Channel up 0Eh channel
Channel down 0Fh channel
Rewind 10h transport
Play 11h transport
Fast Forward 12h transport
Record 13h transport
Stop 14h transport
Pause 15h transport
Power 16h power
Previous 17h channel
Input 18h PIP
Display 19h setup
Menu 1Ah setup
Select 1Bh Setup
Navigate up 1Ch Setup
Navigate down 1Dh Setup
Navigate left 1Eh setup
Navigate Right 1Fh setup
Exit 20h setup
Guide 21h setup
10+ 22h channel
TITLE 23h
Sleep 24h power
Yellow Square 25h channel
Blue Circle 26h channel
Red Triangle 27h Channel
PIP 28h PIP
PIP Ch+ 29h PIP
PIP CH- 2Ah PIP
PIP move 2Bh PIP
PIP swap 2Ch PIP

Function CODE Class

Page up 2Dh channel
Page down 2Eh channel
Power off 2Fh power
XIR48 30h none
XIR49 31h none
XIR50 32h none
XIR51 33h none
XIR52 34h none
XIR53 35h none
XIR54 36h none
XIR55 37h none
XIR56 38h none
XIR57 39h none
XIR58 3Ah none
XIR59 3Bh none
XIR60 3Ch none
XIR61 3Dh none
XIR62 3Eh none
XIR63 3Fh none

Control Buttons
Function CODE Type

Program 40h Setup
AUX 41h Slot
TV 42h Slot
VCR 43h Slot
DVD 44h Slot
Audio 45h Slot
CBL/SAT 46h Slot
Search 47h Setup
Learn 48h Setup
F1 49h Macro
F2 4Ah Macro
F3 4Bh Macro
F4 4Ch Macro
Smart Source ON 4Dh Setup
Smart Source Off 4Eh Setup
Toggle Smart Source 4Fh Setup
IR repeat 0 50h Setup
IR repeat 1 51h Setup
IR repeat 2 52h Setup
IR repeat 3 53h Setup
IR repeat 4 54h Setup
IR repeat 5 55h Setup
IR repeat 6 56h Setup

Version 1.0 Preliminary 7

Function CODE Type

IR repeat 7 57h Setup
Erase Learned button 58h Setup
Write EEPROM 59h Setup
Read EEPROM 5Ah Setup
Clear EEPROM 5Bh Setup
Revision number 5Ch Setup
Device number 5Dh Setup
Number of learned buttons 5Eh Setup
Erase Selected Device 5Fh Setup
Enable Punch-Thru 60h Setup
Disable Punch-Thru 61h Setup
Size EEPROM 62h Setup

Status Byte from Spitfire to Host

Response byte CODE

Invalid Scan Code 31h
Invalid Device Code 32h
Search Exhausted 33h
Slot Empty 34h
Program Abort 35h
IR Xmit complete 36h
Invalid IR type 37h
Power-On-Reset 38h
Auto Search 39h
No Learn button specified 3Ah
No Learn IR detected 3Bh
Learn Started 3Ch
Brand Search 3Dh
Non-Learnable button 3Eh
Learn analysis Error 3Fh
Send Start Address Lo 11h

Response byte CODE

Send Start Address Hi 12h
Send End Address Lo 13h
Send End Address Hi 14h
Read Complete 15h
Write Complete 16h
Start Write 17h
Read/Write Error 18h
Memory Full 19h
EEPROM NG 1Ah
EEPROM SIZE 128 1Bh
EEPROM SIZE 64 1Ch
Erase Complete 1Dh
Search Exhausted 1Eh
Abort Learn 2Ah
IR Xmit from AUX slot 40h
IR Xmit from TV Slot 41h
IR Xmit from VCR slot 42h
IR Xmit from DVD slot 43h
IR Xmit from AUD slot 44h
IR Xmit from CBL/SAT slot 45h
IR Xmit Macro End-Of-String 10h
IR Xmit Macro End Of Macro 1Fh
Xmit Macro Delay 46h
Indicator Flash 0 A0h
Indicator Flash 1 A1h
Indicator Flash 2 A2h
Indicator Flash 3 A3h
Indicator Flash 4 A4h
Indicator Flash 5 A5h
Indicator Flash 6 A6h
Indicator Flash 7 A7h
Indicator Flash 8 A8h
Indicator Flash 9 A9h

Version 1.0 Preliminary 8

OPERATING YOUR SPITFIRE

Programming the Spitfire

Many of the Spitfire parameters can be setup using the following model..

Host sends one of the 6 slot commands to the Spitfire (TV, DVD CBL/SAT, AUDIO, VCR, AUX)
Receive 1 LED flash status. This marks the slot as active until changed.
Host sends the PROGRAM command
Receive 2 LED flashes status response
Host sends 1 numeric digit to set some user preference.

-or- send 2 digits to prepare to do a brand auto-search.

-or- send 3 digits to program a device from the internal library.

-or- send 4 digits to program a device from the extended (downloadable) library

Receive 1 LED flash for each digit
Host sends PROGRAM (or SEARCH) to complete to operation.
Response varies depending on the operation.

Slots

Before the Spitfire can transmit an IR signal, one or more devices must be programmed from the
library database or one or more buttons must be learned. The Spitfire is a 6-in-1 remote control
meaning that 6 independent slots can be setup. These 6 slots can be programmed for any
combination of device category. The 6 default categories are AUX, TV, VCR, DVD, AUD, and
CBL/SAT, however there is no restriction on what device category gets programmed into what
slot. For example all 6 slots can be programmed to be a different TV and the name displayed on
the virtual remote can be changed by editing the buttons.txt file.

Programming a slot from the library

Slots are programmed either by directly entering a 3 or 4 digit device code for a selected slot or
by using one of the auto-search modes. 3 digit device codes are built into the Spitfire. 4 digit
device codes are for extra devices that can be uploaded into the extended non-volatile memory.

Direct Device Code Programming

Like any universal remote control, the SpitFIRE can be programmed by directly entering a
3 or 4 digit device code from the device list. The button sequence to program a slot from the
device list is as follows….

Button Host sends

MSB set

Send one of the six slot buttons C1h – C6h 1 indicator LED flash A1h
Send PROGRAM C0h 2 LED flashes A2h
Send #0 - #9 hundreds digit of device

80h – 89h 1 LED flash A1h
code
Send #0 - #9 tens digit of device code 80h – 89h 1 LED flash A1h
Send #0 - #9 ones digit of device code 80h – 89h 1 LED flash A1h
Send PROGRAM C0h 3 LED flashes if device

Status returned Spitfire sends

A3h

exists in the library.

Direct Device Code Programming example to program TV code 122.
Button Host sends

MSB set

TV C2h 1 indicator LED flash Flash 1 A1h
Prog C0h 2 LED flashes Flash 2 A2h
1 81h 1 LED flash Flash 1 A1h
2 82h 1 LED flash Flash 1 A1h
2 82h 1 LED flash Flash 1 A1h
Prog C0h 3 LED flashes. If code exists Flash 3 A3h

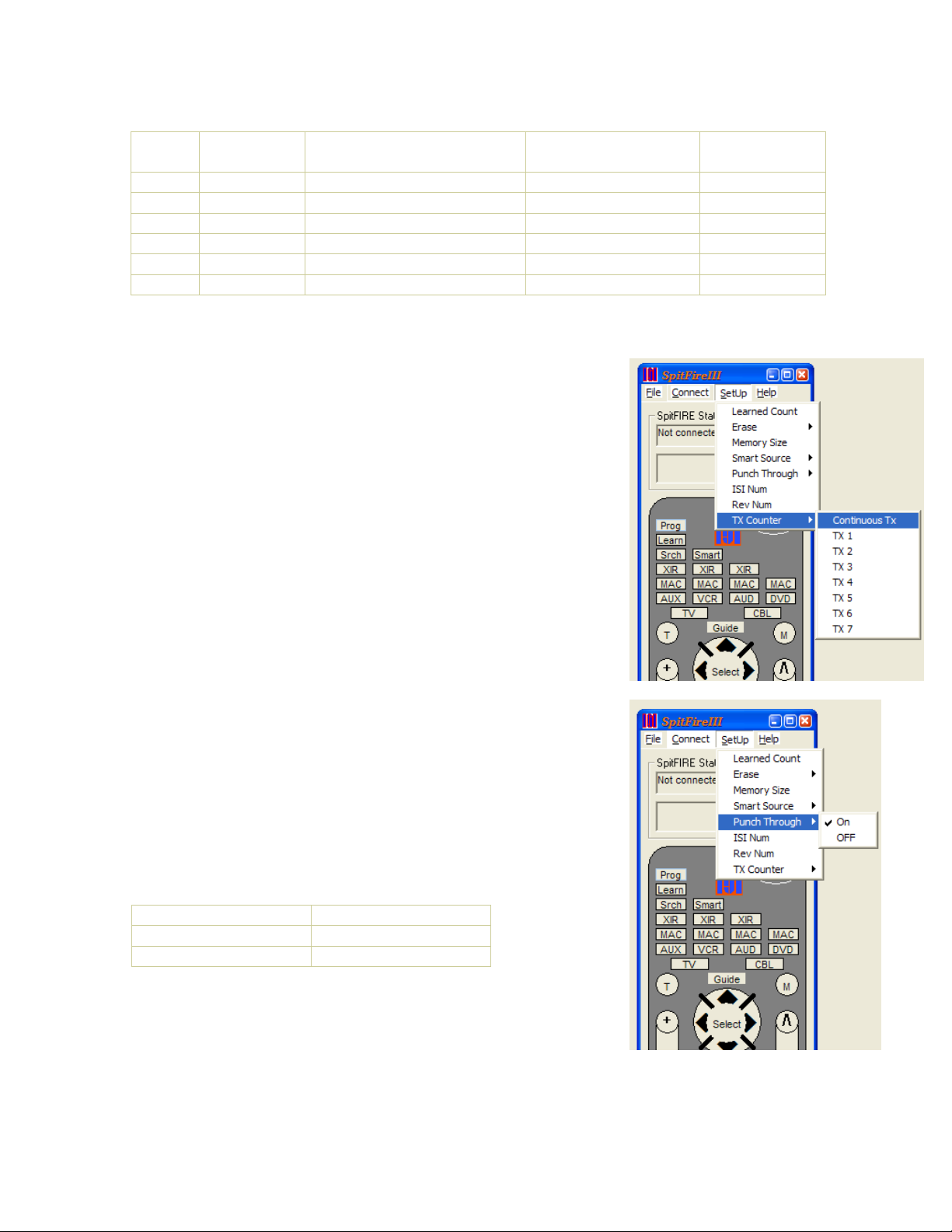

Transmitting IR codes from the library

Once a slot is programmed, the appropriate IR code is transmitted by
“pressing” any virtual button that is implemented for the device that
was programmed. The IR code will be transmitted a minimum of 3
times. This default repeat count can be adjusted by sending an
IR_repeat_N command with the MSB set (Dh – D7h). The repeat
transmit count is one of the features that you should keep in mind
when assigning macros. If the device works when you are in
continuous transmission mode but does not work when you assign a
macro simply increase the transmission repeat counter.
The Spitfire defaults to Continuous Transmit mode. In this mode the
Request-To-Send (RTS) signal is lowered for as long as a button is
held down. In response the IR code will repeat as long as the
“button” is held unless the code is designated as a non-repeat type or
until it is transmitted 256 times.

Punch-Through

Library devices generally implement some subset of all the possible
buttons that exist. For example it is unlikely that a TV in the library
will implement the PLAY button (unless it’s a combo). If a button
is not implemented, the Spitfire will check the other slots for
programmed devices that have the requested button implemented in
a logical order depending on the class of button. Punch-Through can
be handy for most remote control operation however there may be
applications where punch-through is not desired. Punch-Through
mode can be turned on or off by sending the PunchOn or PunchOff
commands.

Function Status response

Enable Punch Through 2 indicator LED flashes
Disable Punch Through 1 indicator LED flash

Status returned Virtual Remote Spitfire sends

Version 1.0 Preliminary 10

Smart Source (patented)

The Spitfire can be programmed to pre-select specific slots when certain classes of buttons are
transmitted. Button classes are defined in the following table.

Class Buttons

POWER POWER, PWR_OFF, SLEEP
VOLUME VOL+, VOL-, MUTE
CHANNEL 0-9, Enter, CH+, CH-, PREVIOUS
TRANSPORT PLAY, STOP, FF, REW, PAUSE, RECORD
SETUP UP, DOWN, LEFT, RIGHT, MENU, EXIT, GUIDE, DISPLAY
PIP INPUT, PIP, PIP swap PIP Ch+ PIP Ch- PIP move

To setup smart source send the following button sequence for each class that you want to
program.

Button Status

returned

Send one of the six slot buttons TV, DVD, etc) Flash 1
Send PROGRAM Flash 2
Send any button from the desired class Flash 3

NOTE: To program the channel class you cannot use the numbers (0-9) because they are used for
device setup. Instead use another button from the channel class such as CH+. Programming a
class automatically enables smart-source mode. Smart source can be temporarily disabled by
sending the SMART button.

Smart Source can be handy for most remote control operation
however there may be applications where Smart Source is not
desired. Smart Source mode can be turned on or off by sending
the SmartOn or SmartOff commands.

Function Status response

Enable Smart Source Flash 2
Disable Smart Source Flash 1

Smart-Source example:

• If you want the TV to turn on and off when the POWER

button is sent, independent of what slot was selected
previously, you send; TV PROG POWER.

• If you want to select the TV whenever you adjust the

volume. Send TV PROG VOL+

• If you want to select your cable box whenever you change

the channel. Send CBL PROG CH+

• To automatically select the DVD slot whenever you send a transport button, Send DVD

PROG PLAY.

Once smart source is setup, you may never need to send a slot button. However there are times
when you may need to circumvent the automatic slot selection that smart source provides. For
example, if you need to control the channel function on your VCR but smart-source forces the

Version 1.0 Preliminary 11

channel button to control your cable box, you can temporarily disable smart-source. When smart
source is turned off, you can use the slot buttons to determine what device the numbers control.
Once the VCR is set to the proper channel, you can turn smart source back on and resume the
automatic slot selection you programmed.

Auto-Search

Auto-Search mode causes the Spitfire to transmit a button from each device in the library, wait 3
seconds, and then move to the next device until told to stop. There are two auto-search modes in
the Spitfire, Category and Brand Auto-search.

Category auto-search will search through an entire category (TV, DVD, VCR, etc) of devices
from the database. The currently active slot determines the category of the search. For example,
selecting the TV slot will only search for TVs. Selecting the AUX slot will search through the
entire library without regard to category. The button sequence to start a category auto-search is...

Function Status returned

Send a Slot button Flash 1
Send PROGRAM Flash 2
Send SEARCH AutoSearch

The Spitfire will start its search from the currently programmed device code in the currently
active slot. It will transmit the POWER button, and then pause 3 seconds to give the user time to
respond. Before each IR message is sent, the IC8205A returns an IR Xmit Start status byte.
When the IR transmission is done, it sends a IR Xmit Complete status byte.

The Spitfire will stop searching when one of the following happens:

Function Status returned

Send PROGRAM code
Code is saved in the currently active slot
Send one of the 6 slot codes
Code is saved in the selected slot
Send any other button
Search is aborted. No code saved

Search will stop automatically when all of the pertinent codes have been sent.

Flash 3

Flash 3

Version 1.0 Preliminary 12

Brand Auto-Search

The Spitfire can filter its auto-search by category and brand. For example, it can be told to search
only for Sony TVs. This reduces the time it takes to find the desired code. To start a brand
search the following button sequence is sent…

Function Status returned

Send a Slot button 1 indicator LED flash
Send PROGRAM 2 LED flashes
Send brand code tens digit 1 LED flash
Send brand code ones digit 1 LED flash
Send SEARCH AutoSearch

See the brand code list in appendix B.

Brand auto-search is stopped the same way as the category auto-search. Send the PROGRAM
button or one of the 6 slot buttons to save the code, or any other button to abort.

Learning from another remote

The Spitfire can learn IR codes from other remote controls. These learned codes can be
programmed on existing buttons or they can be learned onto unused buttons. If a learned code is
programmed on top of an existing library button, the learned code has precedence. Up to 112
learned codes can be programmed into the Spitfire distributed in any way amongst the 6 source
slots. Note that re-programming a device from the library will erase all the learned codes for that
device slot. The button sequence to learn an IR code is..

Function Status returned

Send a Slot button 1 indicator LED flash
Send LEARN Learn Started
Send any learnable button code

Holding the teaching remote about 2 inches from the
IR/LEARN LED on the front of the spitfire. Press the
button that you want to learn on the teaching remote for
about 2 seconds or until one of the following status
messages is received.

You can only learn IR codes onto the 64 buttons that send IR. You cannot learn IR codes onto
the following buttons that are used for device programming purposes.

• The 6 slot buttons. (TV, DVD CBL/SAT, AUDIO, VCR, AUX)

• PROGRAM

• LEARN

• F1 – F4 (MAC buttons)

• SMART-SOURCE

• SEARCH

Not a learnable button
Memory Full
No button specified

Learn Started 1 flash
No IR detected
No IR detected
Learn analysis error
Memory Full
Learn Complete (2 flashes)

Version 1.0 Preliminary 13

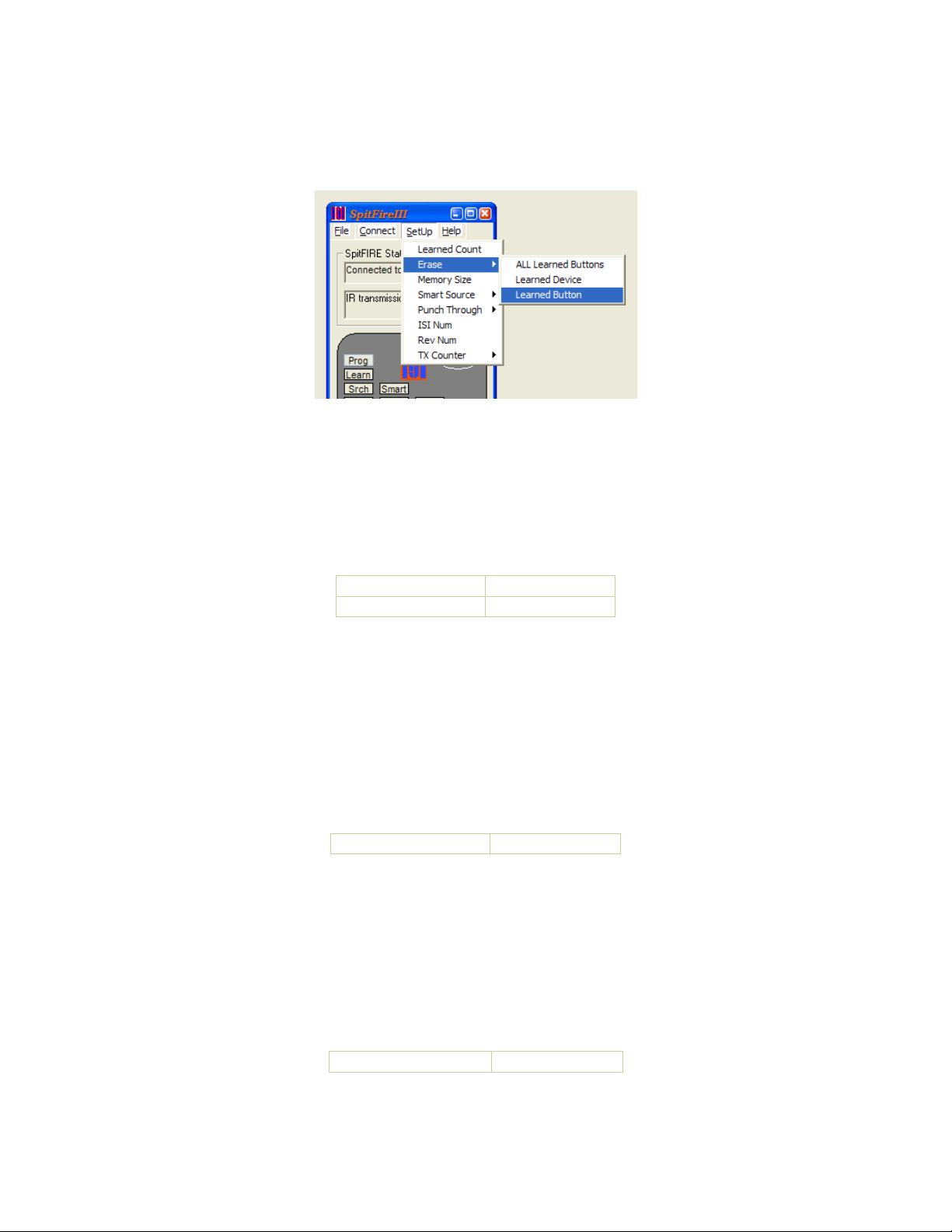

Un-Learn

The Spitfire has three methods to un-learn IR codes. Un-learning can be accomplished one button
at a time, one device at a time, or all learned buttons at one time.

Manually Erase A Learned Button

o Press a Slot button (TV, AUX1, AUX2) (1 flash)
o Press LEARN (2 flashes)
o Press PROGRAM (2 flashes)

o Press any learned button that you want to un-learn (4 flashes) - or -
o Any button with no learned code (2 flashes)

Erase a Learned Button

Send Erase 2 Flash
Button to be erased Erase_Complete

Manually Erase a Device

o Press a Slot button (TV, AUX1, AUX2) (1 flash)
o Press LEARN (2 flashes)
o Press PROGRAM (2 flashes)
o Press any Slot button (TV, AUX1, AUX2) which you want to un-learn (4 flashes)

Note that re-programming a device from the library also erases all learned codes for that device
slot.

Erase a Device slot command

Send ErDevSelected Erase_Complete

Manually Erase All Learned Buttons

o Press a Slot button (TV, AUX1, AUX2) (1 flash)
o Press LEARN (2 flashes)
o Press PROGRAM (2 flashes)
o Press PROGRAM (4 flashes)

Erase All Learned Buttons command

Send ClearEEPROM Erase_Complete

Version 1.0 Preliminary 14

Learn Count

You can send a command to check how many learned buttons there are in the spitfire memory.

Send NumLearnedBut 0-112

Macros

There are 4 macro buttons in the Spitfire (F1 – F4). These buttons can be programmed to
transmit a series of up to 24 button codes each. The macro buttons can be setup to send a series
of favorite channels or to turn all your equipment on or off. To program a macro Send the
following buttons…

Function Status returned

Send the Learn command 2 indicator LED flash
Send F1 – F4 2 LED flashes
Send button sequence IR Xmit Start then

IR Xmit complete

for each button sent
End of String (Learn) 2 Flashes
End of Macro (Program) 3 Flashes

Multi String Macros

You can program a macro button to send out a sequence of buttons that is different each time the
macro button is sent. For example, if you want to program macro 1 to go to each of your favorite
sports channels.

o Press CBL (1 flash)
o Press LEARN (2 flashes)
o Press the F1 (2 flashes)
o Press #1
o Press #9
o Press LEARN (end of 1st macro string for channel 19) (2 flashes)
o Press #2
o Press #8
o Press LEARN (end of 2nd macro string for channel 28) (2 flashes)
o Press #4
o Press #5
o Press PROGRAM (end of 3rd macro string for channel 45 and end of the macro) (3 flashes)

Version 1.0 Preliminary 15

The first time you Send F1 the TV will go to channel 19, the 2nd Send will show channel 28 and
the 3rd will go to channel 45. After that the sequence begins at channel 19 again. Another macro
button can be programmed to go to you favorite movie channels.

Long Delay Macro

You can program a long delay in a macro by pressing SMART while programming the macro.
For example, if you want to program macro 3 to have a long delay between Power on and the
input command.

o Press TV (1 flash)
o Press LEARN (2 flashes)
o Press the F3 (2 flashes)
o Press POWER
o Press SMART (delay 1 second) (1 flash)
o Press INPUT
o Send PROGRAM (end of macro) (3 flashes)

Manually Read back the programmed device code

To read back the 3 or 4 digit library device codes enter the following button sequence…

Button Status returned

Send the slot code that you want to read 1 indicator LED flash
Send PROGRAM 2 LED flashes
Send #1 1 LED flash
Send PROGRAM Flash hundreds digit

Send the slot code that you want to read 1 indicator LED flash
Send PROGRAM 2 LED flashes
Send #2 1 LED flash
Send PROGRAM Flash tens digit

Send the slot code that you want to read 1 indicator LED flash
Send PROGRAM 2 LED flashes
Send #3 1 LED flash
Send PROGRAM Flash ones digit

Send the slot code that you want to read 1 indicator LED flash
Send PROGRAM 2 LED flashes
Send #4 1 LED flash
Send PROGRAM Flash thousands digit

Version 1.0 Preliminary 16

Read the programmed device code

To read back the 3 or 4 digit library device codes enter the following command…

Send ISINumber 2 bytes HighByte--LowByte

Manually Read the firmware revision levels…

Button Status returned

To read firmware major send AUX
To read firmware minor send TV
To read library major send VCR
To read library minor send DVD
Send PROGRAM 2 LED flashes
Send #0 1 LED flash
Send PROGRAM Flash digit

Read the firmware revision levels…
To read back the entire 4 digit revision number enter the following command…

Send REVNumber 4 bytes Rev_maj-Rev_min-Lib_maj-Lib_min

1 indicator LED flash

Version 1.0 Preliminary 17

Resetting the SpitFIRE to factory default settings.

This sequence will erase all user device codes, learned buttons, preference settings, smart-source
programming, and macros.

Button Status returned

Send one of the six slot

1 indicator LED flash
buttons
Send PROGRAM 2 LED flashes
Send #9 1 LED flash
Send PROGRAM After a delay of several seconds,

Erase Compete

The Spitfire comes bundled with a DAT file for every file in both the internal and
external library. A DAT file is a text file that contains all the button mapping
information. For example you can refer to the DAT file to see what buttons are available
and where they are mapped for each device.

The default TV is a Sony device # 347 .\Library\On Chip Library\DAT\

Scan Code, Name of Button

0,0
1,1
2,2
3,3
4,4
5,5
6,6
7,7
8,8
9,9
10,ENTER
11,MUTE
12,VOL_UP
13,VOL_DOWN
14,CH_UP
15,CH_DOWN
22,POWER
23,RECALL
24,INPUT
25,DISPLAY
26,MENU
27,EXECUTE
28,UP
29,DOWN
30,LEFT
31,RIGHT
32,Exit
33,MTS/GUIDE
36,SLEEP
40,PIP_ON/OFF
41,PIP_CH+
42,PIP_CH­43,PIP_MOVE

44,PIP_SWAP

Version 1.0 Preliminary 18

Upgrading the Library

You can add codes to the SpitFIRE by down loading a BIN
file into the non-volatile memory of the Spitfire. There are
eight downloadable file locations. The Spitfire is shipped
with an Internal Library consisting of 577 IR codes, and
another 398 downloadable files. \\Library \Down Load
Library\ Bin.
The procedure to download a Library upgrade file is ..

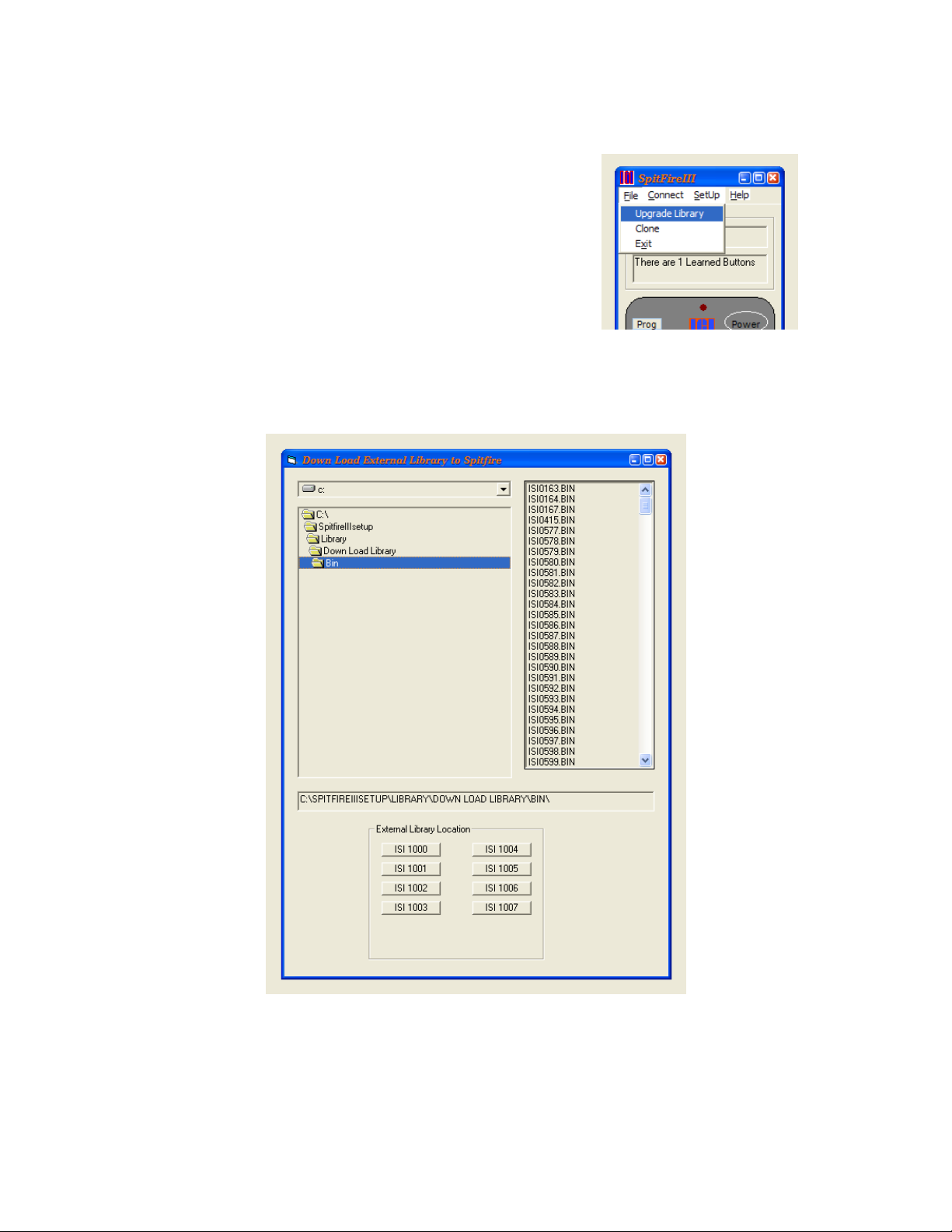

Click on the File menu option, and then select Upgrade
Library.

This will open the “Down Load External Library to Spitfire” window.

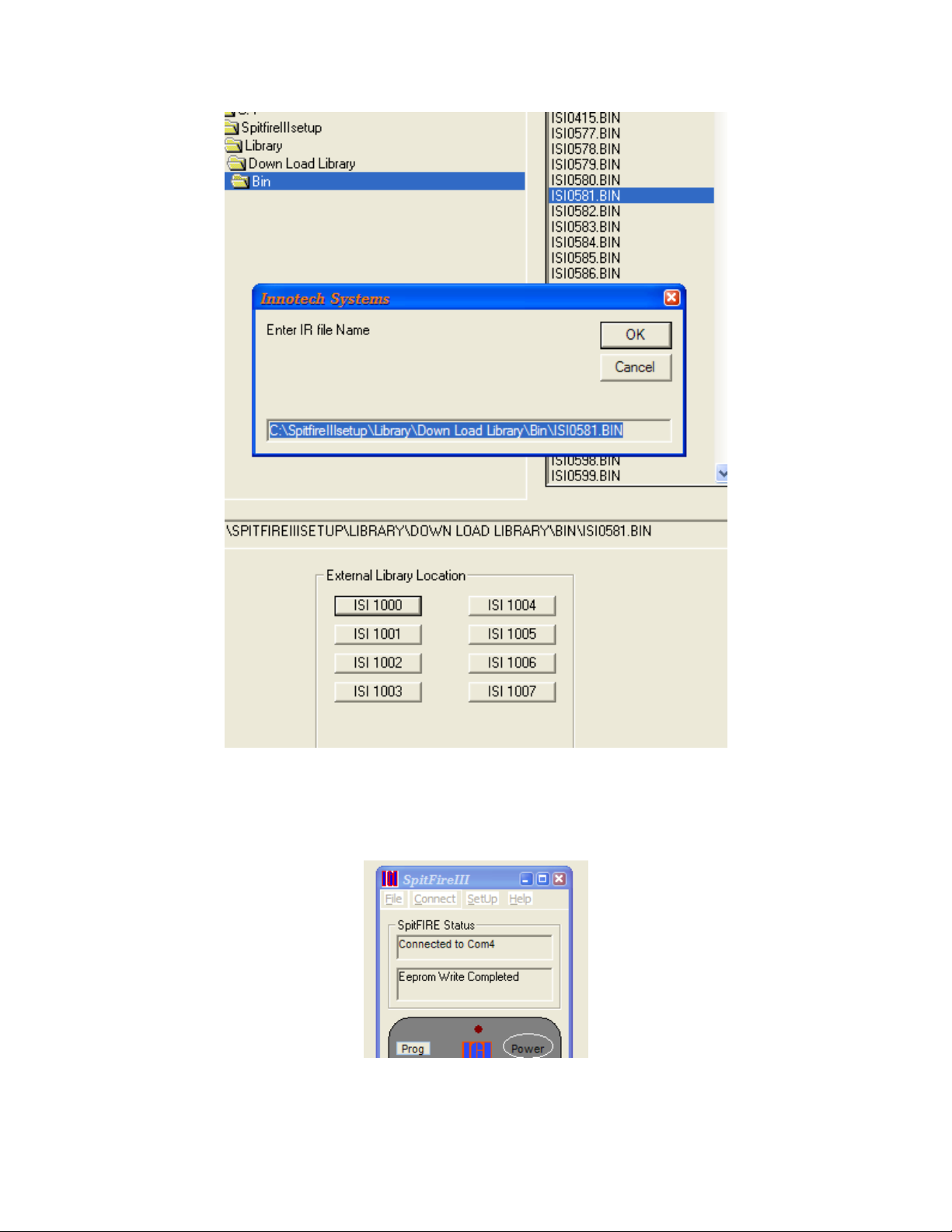

Set the path to the file, and click on one of the eight locations that you want to down load
the file to.

Version 1.0 Preliminary 19

Click OK and the Spitfire will count down the file transfer, and display Eeprom Write
Completed. The user can do this for all eight locations. To assign a down loaded file to a
source the user must manually program the slot with the corresponding device number.

Version 1.0 Preliminary 20

Cloning

Once your SpitFIRE is configured exactly the way you want it, you can download all its settings
to your PC. These settings include internal device settings, external library devices, learned
library codes, macros user preferences such as the Smart Source setting. Then you can duplicate
the spitfire configuration onto multiple Spitfires with the just a couple of clicks of the mouse.
There is also partial cloning of only just the learned codes, or just the user preferences, or all the
external devices. The procedure to Clone a spitfire is ..

Click on the File menu option, and then select Clone.

This will open the “EEprom Clone”
window. Set the file location and
then click on the operation that you
want to perform.

Version 1.0 Preliminary 21

Select the path to the folder that you want to image file to go into. Click OK. The Spitfire
will count down the file transfer, and display RD / WR Completed.

Version 1.0 Preliminary 22

Appendix A

Developers Feature Transaction Sheet

This appendix demonstrates all possible transactions including failed transactions and
time outs.

IR repeat 0 flash3
IR repeat 1 flash1
IR repeat 2 flash2

IR repeat 3 flash3
IR repeat 4 flash4
IR repeat 5 flash5
IR repeat 6 flash6
IR repeat 7 flash7

TV flash1
Program flash2
8 flash1
Program flash 1,2,3,4

Set The MacRepCtr

OR

Learn Learn Started

No button press Time out No Learn button specified

Valid button flash1

Button

Invalid button Non-Learnable button

Learn a button

Error in analysis Learn analysis Error

IR

No IR No Learn IR detected
Memory full Memory Full
Learn Complete flash2

Slot flash1
Program flash2
Search Auto Search
IR Xmit from XXX slot - IR Xmit complete

Button

Auto Search by category

Program flash2
Source flash2
all other buttons Program Abort
Search Exhausted

Version 1.0 Preliminary 23

Slot flash1
Program flash2
3-4 digit code 0 flash1 for each digit
Program IR Xmit from XXX slot - IR Xmit complete

Button

Manual Search by catagory

Learn-Source-Macro-Search flash3
All IR tx buttons IR Xmit from XXX slot - IR Xmit complete

Slot flash1
Program flash2
2 digit brand code flash1 for each digit
Program or Search Brand Search

Program flash3

Button

Source flash3
all other buttons Program Abort
Search Exhausted

Brand Auto Search

Source flash1
Program flash2
3-4 digit device code flash1 for each digit
Program flash3

Program a device slot

Source flash1
Program flash2
3 digit code 001 flash1 for each digit
Program flash3

Load a Blank Device

To Erase a Slot note: (See note)

Source flash1
Program flash2
4 digit code 9999 flash1 for each digit
Program flash3

Note: All slots except the TV slot are preloaded with device code 001. which is an empty device. The TV slot is
preloaded with device code 347 which is a Sony TV. Device slots can be completely erased with device code 9999
but it is recommended that code 001 be used instead to avoid problems with punch-through and learned buttons.

Version 1.0 Preliminary 24

Priority Press

Slot flash1
Program flash2

Powe classr flash3
Volume class flash3

Button

Channel class flash3
Transport class flash3
Setup class flash3
PIP class flash3

Toggle Priority Press

Smart Source ON fash2
Smart Source Off fash1

Smart OFF=flash1 ON=flash2

Source flash1
Program flash2
5 flash1
Program OFF=flash1 ON=flash2

Or

Or

Revision number 4 bytes Rev_maj-Rev_min-Lib_maj-Lib_min

Source flash1
Program flash2
0 flash1
Program flash(rev)

Read back theVersion Number

or

Version 1.0 Preliminary 25

Device number

Slot flash1
Program flash2
1 flash1
Program flash(Hundreds)
Slot flash1
Program flash2
2 flash1
Program flash(Tens)
Slot flash1
Program flash2
3 flash1
Program flash(Ones)
Slot flash1
Program flash2
4 flash1
Program flash(Thousands)

Read back the Device Number

or

2 bytes ScanHi--ScanLo

Toggle Punch Through Mode

Enable Punch-Thru
Disable Punch-Thru

Slot flash1
Program flash2
7 flash1
Program OFF=flash1 ON=flash2

or

flash2
flash1

Slot flash1
Program flash2
9 flash1
Program Power-On-Reset
LONG DELAY Erase complete

Reset the Remote

Version 1.0 Preliminary 26

Smart Source and Punch through are ignored when programing and transmittong a macro

Learn
Mac1-4 flash2
Smart (1SEC) flash1
Source flash1
IR tx button IR Xmit from XXX slot - IR Xmit complete
Learn (EOS) flash2
Program (EOM) flash3
other Macro (EOM) flash3
Search (EOM) flash3

Program a macro

flash2

Read EEPROM Send Start Address Hi
Start Hi Send Start Address Lo
Start Lo Send End Address Hi
End Hi Send End Address Lo
End Lo Data(n)
Echo Data(n+x) x++
Read Complete

Read Eeprom

Write EEPROM Send Start Address Hi
Start Hi Send Start Address Lo
Start Lo Send End Address Hi
End Hi Send End Address Lo
End Lo Start Write
Data(n) Echo
Data(n+x) x++ Echo
Write Complete

Write Eeprom

Size EEPROM EEprom 128 or 64

Size EEprom

Version 1.0 Preliminary 27

Erase Learned button flash2

Button

Learn flash2
Program flash2

Button

Erase A Learned Button

learned button Erase Complete
not learned Search Exhausted

or

learned button Erase Complete
not learned Search Exhausted

Erase Selected Device Erase Complete

Learn flash2
Program flash2
Source Erase Complete

Erase Device

or

Clear EEPROM Erase Complete

Learn flash2
Program flash2

Program Erase Complete

Erase All Learned Buttons

or

Number of learned buttons #

Get Number of Learned Buttons

Learn flash2
Macro x flash2

Macro x flash3

Erase A Macro

Version 1.0 Preliminary 28

Appendix B

To do a brand auto-search, press
Slot (TV, AUX1, AUX2) à PROG à 2 digit brand code à PROG.

Brand List

ABC 00 Marantz 50
Admiral 01 Megatron 51
Aiwa 02 Memorex 52
Akai 03 MGA 53
Allegro 04 Mitsubishi 54
Anam 05 Montgomery_Ward 55
AOC 06 Motorola 56
Archer 07 MTC 57
Apex 08 NAD 58
Brooksonic 09 NEC 59
Candle 10 Nikko 60
Carver 11 Optimus 61
Citizen 12 Orion 62
Craig 13 Panasonic 63
Comcast 14 Pegasus 64
Cox 15 Philco 65
Curtis_Mathes 16 Philips 66
Daewoo 17 Pioneer 67
Daytron 18 Proscan 68
Denon 19 Primestar 69
Dish 20 Proton 70
DishNet 21 Quasar 71
DirecTV 22 Radio_Shack 72
Dwin 23 RCA 73
Echostar 24 Realistic 74
Electrohome 25 Runco 75
Emerson 26 Sampo 76
Fisher 27 Sansui 77
Fujitsu 28 Samsung 78
Funai 29 Sanyo 79
GE 30 Scientific_Atlanta 80
Gemini 31 Scott 81
General_Instrument 32 Sears 82
Goldstar 33 Sharp 83
GoVideo 34 Signature 84
Hallmark 35 Sherwood 85
Harmon_Kardon 36 Sony 86

Version 1.0 Preliminary 29

Brand List

Hamlin_Regal 37 Sylvania 87
Hitachi 38 Symphonic 88
Hughes 39 Tandy 89
Jerrold 40 Teac 90
JVC 41 Technics 91
Kenwood 42 Teknika 92
Kloss 43 Toshiba 93
KTV 44 Tivo 94
LG 45 Time_Warner 95
Luxman 46 Universal 96
LXI 47 Yamaha 97
Magnasonic 48 Zenith 98

Magnavox 49

To program a device press
Slot (TV, AUX1, AUX2) à PROG à 3 digit device code à PROG

TV Internal Library

Admiral 446,336,450,364,365,366,361,394,404,439,307,
Advent 365
Adventura 320,
Aiko 353,429,436,
Aiwa 287,464,439,435,437,
Akai 356,337,347,370,334,340,
Alaron 307,
Allegro 450,
Alleron 364,307,
Amark 399,
America_Action 364,
Anam 347,364,333,393,399,343,
AOC 337,334,399,297,309,339,
Apex 285,420,421,465,422,423,359,
Archer 399,
Asha 428,
Audio_Dynamics 467,
Audio_Technica 334,
Audiovox 364,392,399,468,
Baysonic 364,
Beaumark 428,
Belcor 337,334,

Version 1.0 Preliminary 30

TV Internal Library

Bell_&_Howell 433,450,364,365,361,307,
Bradford 364,
Brokwood 337,334,
Brooksonic 337,415,364,326,334,399,439,
Calix 468,
Candle 337,292,334,468,320,
Canon 454,
Capehart 450,339,
Carnivale 337,
Carver 330,299,304,
CCE 429,436,
Celebrity 347,
Centurion 337,
Cetronic 364,
Cinema_Sound 334,
Cineral 410,
Citizen 337,353,364,292,334,381,434,303,308,320,
Clairtone 309,
Classic 364,
Colortyme 337,334,
Concerto 337,334,
Contec/Cony 364,309,
Coronado 434,335,
Craig 364,326,367,428,296,343,
Crown 364,434,
Curtis_Mathes 330,336,337,433,444,334,361,367,434,308,454,
CXC 364,
Cybernex 428,
Daewoo 337,373,295,353,364,334,380,392,424,429,434,331,436,
Daytron 337,450,353,334,434,
Denon 365,
Dumont 334,463,
Durabrand 291,363,399,446,
Dwin 394,
Dynasty 364,
Dynatech 320,
Electroband 347,309,
Electrohome 337,347,334,428,468,
Electrophonic 468,

281,446,416,418,337,364,366,326,334,363,367,374,434,468,470,439

Emerson

,452,293,296,303,307,307,309,311,323,443,

Version 1.0 Preliminary 31

TV Internal Library

Envision 337,
Fisher 368,433,313,375,
Fortress 365,
Fujitsu 307,
Funai 364,363,307,
Futuretech 364,

417,336,337,338,347,447,328,327,333,388,391,398,401,404,405,431

GE
Gibralter 337,334,463,
Goldstar 337,442,329,334,348,430,434,468,322,
Griswold 310,
Grundy 364,307,
Hallmark 337,326,334,307,
Harley_Davidson 307,
Harmon_Kardon 330,442,467,
Havard 337,364,326,307,

Hitachi
IMA 364,
Infinity 330,
Insignia 446,330,
Inteq 334,463,468,
Janeil 320,
JBL 330,
JCB 347,
JCPenney 336,337,338,442,327,329,333,334,399,434,467,302,308,317,318,
Jensen 425,337,334,385,
JVC 338,369,409,427,466,469,441,316,345,
Kawasho 337,347,334,
Kaypani 339,
KEC 364,468,308,
Kenwood 337,334,
Kloss 337,320,
Kloss_Novabeam 320,
KMC 322,
Kodak 460,468,454,
KTV 337,364,363,367,434,303,309,
LG 284,289,413,337,334,
Linatech 310,
Lloyd 443,
Lodgenet 463,
Loewe 330,

,332,438,453,296,305,306,317,454,

337,370,294,334,360,376,383,403,434,445,305,315,323,324,454,454
,

Version 1.0 Preliminary 32

TV Internal Library

Logik 364,326,361,443,
Luxman 337,334,
LXI 368,330,336,337,433,334,377,382,393,468,443,
Magnasonic 330,337,353,365,334,399,429,468,307,436,

281,283,416,330,337,371,459,292,334,385,301,304,307,308,319,321

Magnavox
Magnin 428,
Majestic 361,463,
Marantz 288,412,330,337,334,466,301,304,
Marta 468,
Masushita 460,454,
Megatron 337,370,334,399,
MEI 338,309,454,
Memorex 425,446,418,337,433,450,456,334,361,382,428,468,439,322,454,
MGA 425,337,294,334,454,
Midland 336,338,463,
Minutz 327,
Mitsubishi 312,425,330,337,347,455,458,291,352,365,294,334,389,340,454,

Montgomery_Ward
Motorola 425,330,338,347,365,333,
MTC 337,334,428,308,309,331,
Multitech 364,
NAD 337,334,379,379,436,
NEC 337,347,291,442,334,384,400,467,299,
Nikei 364,
Nikko 337,353,334,468,
NTC 353,
Olevia 334,
Onking 364,
Onwa 364,
Optimus 425,433,364,366,456,379,428,468,307,454,
Optonica 365,366,456,
Orion 418,364,326,463,307,

Panasonic
Philco 330,337,292,334,304,319,321,454,
Philips 330,337,347,459,334,385,396,301,304,317,319,321,454,
Pilot 337,334,468,
Pioneer 337,372,328,334,341,379,323,
Portland 337,351,353,334,434,
Prediwave 457,

,454,

330,337,433,366,456,327,334,361,332,297,301,304,306,307,317,319
,321,454,

290,298,330,338,347,460,328,386,414,432,456,333,393,395,343,451
,454,

Version 1.0 Preliminary 33

TV Internal Library

Primestar 453,
Prism 338,333,
Proscan 336,357,334,332,440,306,310,318,323,
Proton 337,325,334,399,434,339,
Pulsar 337,450,353,334,463,
Quasar 338,347,457,328,364,386,456,333,343,451,454,

368,425,336,337,433,460,352,364,366,456,334,367,428,434,468,335

Radio_Shack
Radix 468,
Randex 468,

RCA
Realistic 337,433,460,364,366,456,334,468,454,
Rhapsody 309,
Runco 337,450,398,463,
Sampo 337,334,339,
Samsung 286,411,419,356,337,444,334,354,355,426,434,308,335,
Sansui 446,410,418,
Sanyo 368,337,433,313,334,378,390,300,
Scimitsu 334,
Scotch 337,334,
Scott 337,364,326,334,367,434,307,
Sears 330,336,337,433,313,334,382,468,300,302,307,454,
Semp 359,
Sharp 337,460,365,366,456,334,387,406,434,
Shogun 337,334,
Signature 330,336,365,369,334,361,296,
Simpson 337,292,304,
Singer 460,468,
Sonic 309,
Sony 337,347,449,349,344,402,407,408,297,314,323,454,
Soundesign 337,364,292,334,307,
Spectracon 337,364,334,334,399,
Squareview 307,
SSS 337,364,326,334,
Starlite 364,326,334,
Supre_Macy 292,320,
Supreme 347,
Sylvania 281,416,330,337,292,334,363,301,304,319,321,443,454,
Symphonic 364,363,367,307,443,
Tandy 330,336,365,366,342,
Tatung 338,347,333,399,

,454,

336,337,347,447,448,282,349,350,351,365,414,333,334,358,462,332
,440,346,438,453,306,310,318,323,454,

Version 1.0 Preliminary 34

TV Internal Library

Technics 338,333,454,
Technol_ACE 307,
Techwood 337,338,334,399,
Teknika 425,330,337,353,364,292,334,361,434,468,307,308,320,454,
Tera 337,325,334,
TMK 337,326,334,
TNCI 334,463,
Toshiba 418,415,433,359,461,365,382,302,308,443,
Tosonic 309,
Totevision 428,434,468,
Trutech 392,
Unitech 428,
Universal 336,327,317,
Vector_Research 337,442,369,467,
Victor 369,
Video_Concepts 442,467,340,
Videosonic 428,
VidTech 337,370,334,
Vikatron 330,
Viking 320,
Waycon 359,
White_Westinghouse 446,
X10 291,
Yamaha 337,442,334,467,
York 337,
Zenith 337,450,353,362,370,334,361,392,397,399,463,468,439,
Zonda 399,468,

CBL Internal Library

ABC 193,204,197,
Adelphia 240,
Allegro 219,180,199,
Antronix 199,
Archer 180,199,221,208,214,
Bright_House_Networks 239,
Cabletenna 208,
Cableview 208,
Century 180,
Citizen 180,203,

Version 1.0 Preliminary 35

CBL Internal Library

Comcast 238,234,
Comtronics 191,179,
Cox 238,239,168,
CTX 180,
Director 238,
Eagle_Comtronics 191,
Elecricord 182,
Emerson 216,
Everquest 190,191,
Explorer 239,
Garrard 180,
GE 211,230,
Gemini 171,190,218,223,185,186,187,200,
General_Instrument 238,169,171,173,175,190,193,204,210,174,200,202,
Global 234,
Goldstar 191,
Guestserv 181,
Hamilton 170,
Hamlin_Regal 170,195,227,192,212,177,198,
Harmon_Kardon 183,
Hitachi 193,
Jasco 180,
Jerrold 238,169,171,173,175,190,193,204,220,229,174,200,202,
Kingston 180,179,
Magnavox 236,222,228,231,232,
Media_One 238,
Memorex 219,
Motorola 240,238,
Movie_Time 182,
Novavision 194,197,
Oak 223,224,
Omega 190,191,
Panasonic 219,176,215,225,181,
Paragon 219,
Philips 236,209,172,179,205,206,207,
Pioneer 168,184,188,
Pulsar 219,
Radio_Shack 235,213,217,
RCA 176,215,
Regal 170,195,177,
Rembrandt 187,

Version 1.0 Preliminary 36

CBL Internal Library

Runco 219,
Samsung 191,
Scientific_Atlanta 239,194,224,226,197,
Signal 191,
Signature 193,
SL_Marx 191,
Sony 237,225,233,
Sprucer 176,215,
Standard_Compnt 186,
Starcom 169,171,190,
Stargate 217,190,191,
Starquest 190,
Super_Cable 238,
Sylvania 196,
Tandy 178,
Teleview 191,
Texscan 196,
Time_Warner 239,239,
Torx 204,
Toshiba 219,
Tusa 190,
Unica 180,199,208,
United_Cable 224,
Universal 180,182,199,215,192,212,208,214,
Videotron 181,
View_Master 213,
Viewstar 178,179,
West 180,
Zenith 217,219,219,189,201,

SAT Internal Library

Digital_Entertainment 247,250,
DirecTV 258,279,280,
Dish 272,241,242,252,265,253,270,
DishNet 277,265,253,270,
Echostar 265,270,
Expressvu 265,
GE 274,
General_Instrument 247,254,250,
GOI 265,

Version 1.0 Preliminary 37

SAT Internal Library

Hitachi 255,245,
HTS 265,
Hughes 275,263,243,
JVC 265,
LG 278,
Magnavox 249,248,
Memorex 249,
Mitsubishi 260,
Optimus 248,
Panasonic 244,
Paysat 249,
Pegasus 259,
Philips 256,257,249,268,263,
Primestar 247,250,
Proscan 259,
Radio_Shack 260,
RCA 276,266,259,261,262,264,260,
Sagem 255,
Samsung 251,271,
Sony 267,269,
Toshiba 246,261,262,
Uniden 249,248,263,
Zenith 273,

DVD Internal Library

Aiwa 558,567,119,167,
Akai 158,142,
Anam 099,163,

158,109,147,156,161,420,421,549,551,560,422,423,135,148,149,112

Apex
Audiovox 109,140,
Brooksonic 415,113,
California_Audio 107,
Concept 109,
Daewoo 552,561,142,
Denon 098,139,142,102,106,123,128,129,132,133,
DuraBrand 109,140,
Emerson 159,558,567,416,
Enterprise 150,
Escient 111,

Version 1.0 Preliminary 38

,164,115,

DVD Internal Library

Fisher 153,151,107,
GE 104,110,
Go_Video 554,563,553,562,
Goldstar 126,
GoVideo 109,
GPX 160,
Greenhill 140,
Harmon_Kardon 120,
Hitachi 108,
Initial 109,
JVC 556,565,555,564,135,115,
Kawasaki 140,
Kenwood 131,
KLH 140,
Kyocera 139,102,132,133,
Magnavox 416,152,117,123,128,129,
Marantz 117,
Memorex 160,113,
Microsoft 110,
MinTek 109,
Mitsubishi 121,123,128,129,
NAD 123,128,129,
Nickelodeon 160,
Onkyo 111,
Optimus 125,
Orion 113,
Oritron 157,

098,557,566,136,139,100,414,102,107,123,128,129,130,132,133,134

Panasonic
Philips 117,
Pioneer 547,114,123,128,129,
Polaroid 549,
Popular_Mech 122,
Proscan 104,110,
Quasar 107,
RCA 157,104,109,417,099,140,163,103,110,123,128,129,
Realistic 125,
Sampo 143,
Samsung 155,419,154,550,559,108,118,
Sansui 548,113,
Sanyo 151,138,127,

,146,

Version 1.0 Preliminary 39

DVD Internal Library

Sharp 137,143,131,
Shinsonic 109,
Sony 162,166,138,165,105,118,144,145,
Sylvania 159,558,567,416,
Symphonic 159,
Teac 141,101,
Technics 107,130,134,146,
Thompson 104,110,
Toshiba 111,418,117,113,123,128,129,131,
Urban_Concepts 111,
Venture 140,137,
Yamaha 117,139,116,102,122,124,132,133,
Zenith 150,126,

AUD Internal Library

Aiwa 167,090,024,025,026,034,054,063,068,086,091,
Akai 037,
AMC 023,
Anam 163,
Apex 164,
Bose 068,
Carver 066,
Casio 039,
Cinema_Sound 029,
Clairtone 065,
Clarion 065,
Curtis_Mathes 039,
Denon 013,019,027,029,030,031,032,035,
Fisher 036,066,
GE 062,
Harmon_Kardon 006,007,087,
Hitachi 053,
Inkel 003,575,
JBL 006,
JCPenny 039,
JVC 011,059,071,077,089,097,
Kenwood 083,096,003,018,033,044,064,065,066,072,074,575,
LKI 039,
LXI 039,
Magnavox 004,576,047,073,

Version 1.0 Preliminary 40

AUD Internal Library

Marantz 095,004,007,008,012,576,
MCS 039,
Myryad 008,012,
NAD 085,
Nakamichi 078,
Optimus 037,049,050,065,
Panasonic 022,052,002,574,
Philips 004,576,
Pioneer 092,009,038,042,049,051,070,081,
RCA 163,043,047,055,065,084,
Realistic 040,041,
Sansui 014,047,078,
Sanyo 036,046,
Sears 039,
Sharp 031,065,076,080,
Sherwood 001,008,088,573,
Sirius 083,096,
Sony 166,093,165,009,082,015,017,034,048,054,070,079,
Taekwang 037,
Teac 014,016,020,037,056,061,078,
Technics 021,028,058,059,002,574,
Toshiba 045,070,
Wards 066,
Yamaha 094,577,010,023,034,043,057,060,065,067,068,069,
Zenith 075,

VCR Internal Library

Admiral 507,508,515,
Adventura 558,567,
Aiwa 464,558,567,534,435,437,526,
Akai 554,563,475,505,522,530,502,504,
American_High 517,572,
Apex 465,549,551,560,
Asha 506,
Audio_Dynamics 467,515,
Audiovox 519,
Beaumark 506,
Blue_Parade 547,
Brooksonic 439,515,523,
Candle 519,

Version 1.0 Preliminary 41

VCR Internal Library

Canon 486,492,
Carver 517,
Citizen 523,
Colt 558,567,
Craig 498,479,506,532,
Curtis_Mathes 550,559,471,486,492,
Cybernex 506,
Daewoo 552,561,424,429,434,480,495,436,
Daurabrand 446,
DBX 515,
DirecTV 569,
Dynatech 558,567,
Electrohome 506,

558,558,567,567,554,563,513,468,470,475,499,514,529,539,544,452

Emerson
ESA 552,561,
Fisher 498,501,533,518,
Funai 558,567,507,
Garrard 558,567,
GE 447,431,493,494,534,438,453,531,508,515,
Goldstar 430,481,519,
GoVideo 553,562,506,
Gradiente 558,567,
Griswold 472,
Harley_Davidson 558,567,
Harmon_Kardon 519,
Harwood 558,567,499,
Havard 558,567,
Headquarter 503,482,
HI-Q 498,
Hitachi 558,567,500,511,445,530,534,472,502,521,
Instant_Replay 558,567,572,
JCL 572,
JCPenney 486,506,502,519,
Jensen 530,502,
JVC 556,565,555,564,516,427,466,469,483,484,441,530,502,535,
Kenwood 503,482,530,502,
KLH 558,567,
Linatech 472,
Lloyd 558,567,
Logik 558,567,

,443,515,523,

Version 1.0 Preliminary 42

VCR Internal Library

LXI 443,
Magnasonic 558,567,506,
Magnavox 459,487,439,517,
Magnin 506,
Marantz 488,517,519,572,
Masushita 507,517,
Memorex 558,567,498,511,428,533,538,543,507,
MGA 475,474,
Minolta 472,502,
Mitsubishi 425,455,458,475,
Montgomery_Ward 558,567,498,506,514,502,507,
MTC 558,567,506,
Multitech 558,567,
NAD 536,
NEC 442,497,530,473,502,519,
Nikon 485,510,
Noblex 506,
Optimus 558,567,433,498,503,434,482,506,533,507,518,
Optonica 507,
Orion 529,523,
Oritron 439,
Panasonic 557,566,432,456,492,540,545,451,454,507,512,
Pentax 534,472,502,
Philips 459,568,489,517,
Pioneer 547,536,
Polaroid 549,
Pridiwave 457,
Proscan 440,508,
Protec 558,567,
Quarter 503,482,
Quartz 503,482,
Quasar 456,
Radio_Shack 558,567,433,503,468,482,506,507,
RCA 448,462,440,534,531,472,502,508,512,515,
Realistic 558,567,433,498,503,468,506,533,507,518,
Ricoh 485,510,
Runco 485,510,
Samsung 553,562,550,559,444,471,426,495,496,505,506,522,537,542,
Sansui 548,532,530,473,502,
Sanyo 498,503,482,533,
Schneider 511,

Version 1.0 Preliminary 43

VCR Internal Library

Scott 514,515,
Sears 498,503,482,486,490,492,501,533,472,502,518,
Sharp 460,478,507,
Shintom 558,567,
Shogun 506,
Signature 558,567,
Singer 558,567,506,507,
Sony 541,546,449,525,511,520,571,477,524,527,509,509,510,528,
STS 502,
Sylvania 558,567,
Symphonic 558,567,
Tandy 558,567,
Tashiko 523,
Tatung 530,502,
Teac 558,567,530,476,502,
Teknika 558,567,
Tivo 569,570,571,568,
Toshiba 444,461,491,514,445,518,
Totevision 506,
Unitech 506,
Vector_Research 519,
Victor 535,
Video_Concepts 475,519,
Videosonic 506,
Yamaha 530,476,502,519,
Zenith 554,563,450,511,463,468,485,439,510,

Combo TV / VCR Internal Library

Aiwa 464,435,437,
Apex 465,
Audio_Dynamics 467,
Brooksonic 439,
Daewoo 424,429,434,436,
Daurabrand 446,
Emerson 468,470,452,443,
GE 447,431,438,453,
Goldstar 430,
Hitachi 445,
JVC 427,466,469,441,

Version 1.0 Preliminary 44

Combo TV / VCR Internal Library

LXI 443,
Magnavox 459,439,
Memorex 428,
Mitsubishi 425,455,458,
NEC 442,
Optimus 433,434,
Oritron 439,
Panasonic 432,456,451,454,
Philips 459,
Pridiwave 457,
Proscan 440,
Quasar 456,
Radio_Shack 433,468,
RCA 448,462,440,
Realistic 433,468,
Samsung 444,426,
Sharp 460,
Sony 449,
Toshiba 444,461,445,
Zenith 450,463,468,439,

Combo TV / DVD Internal Library

Apex 420,421,422,423,
Emerson 416,
Magnavox 416,
RCA 417,
Samsung 419,
Sylvania 416,
Toshiba 418,

Combo TV / DVD / VCR Internal Library

Brooksonic 415,
Panasonic 414,

Combo VCR / DVD Internal Library

Aiwa 558,567,
Apex 549,551,560,

Version 1.0 Preliminary 45

Combo VCR / DVD Internal Library

Daewoo 552,561,
Emerson 558,567,
Go_Video 554,563,553,562,
JVC 556,565,555,564,
Panasonic 557,566,
Pioneer 547,
Polaroid 549,
Samsung 550,559,
Sansui 548,
Sylvania 558,567,

Combo DVD / Audio Internal Library

Aiwa 167,
Anam 163,
Apex 164,
RCA 163,
Sony 166,165,

DVR Internal Library

American_High 572,
DirecTV 258,279,280,569,
Dish 272,265,270,
DishNet 277,265,270,
Echostar 265,270,
Expressvu 265,
GE 274,
GOI 265,
HTS 265,
Hughes 275,263,
Instant_Replay 572,
JCL 572,
JVC 265,
LG 278,
Marantz 572,
Mitsubishi 260,
Pegasus 259,
Philips 268,568,263,
Proscan 259,

Version 1.0 Preliminary 46

DVR Internal Library

Radio_Shack 260,
RCA 276,266,259,261,262,264,260,
Samsung 271,
Sony 267,269,571,
Tivo 569,570,571,568,
Toshiba 261,262,
Uniden 263,
Zenith 273,

VOD Internal Library

Adelphia 240,
Bright_House_Networks 239,
Comcast 238,
Cox 238,239,
Director 238,
Explorer 239,
General_Instrument 238,
Jerrold 238,
Media_One 238,
Motorola 240,238,
Scientific_Atlanta 239,
Sony 237,
Super_Cable 238,
Time_Warner 239,239,

To program a down loaded device press
Slot (TV, AUX1, AUX2) à PROG à 4 digit device code à PROG

TV Down Load Library

Abex 867,
Advent 892,
Albatron 828,884,
Ampro 869,849,856,
Anam 854,835,
Audiovox 824,827,830,831,877
BenQ 829,
Blaupunkt 899,

Version 1.0 Preliminary 47

TV Down Load Library

Brooksonic 898,
CCE 834,
Coby 873,
Decca 839,
Durabrand 819,
Dwin 870,865,
Dynatech 855,
Eiki 850
Electrohome 853,866,
Emerson 897,
Envision 825,882,
Fujitsu 875
Gateway 881,
GoVideo 878,889,
Helios 838,886,
Hisense 846,
Hitachi 852,
Jensen 892,847,
Jvc 842,
Kloss 896,
Kloss_Novabeam 896,
Konka 844,
KTV 843,834,
Luce 826,883,
Magnavox 897,896,872,
Maxent 820,
Memorex 901,
Multitech 834,
Onkio 891,
Optoma 837,
Panasonic 895,894,
Philco 896,
Philips 876,
Princeton 868,
Proton 861
RCA 903,902,
Rotec 851
Runco 859,860,863,864,900,
Samsung 874,
Sharp 893
SharperImage 832,

Version 1.0 Preliminary 48

TV Down Load Library

Sony 857,
SVA 838,858,880,886,888,
Sylvania 896,
Symphonic 845,
Thomson 836,
Universal 903,902,
US_Electronics 841,
Vidikron 862,
ViewSonic 833,885,
Vinc 879,890,
Wight_Westinghouse 848,887,
X10 821,823,822,

CBL Down Load Library

ABC 791,771,761,
Adelphia 796,
Americast 799,
Aspire Digital 800
Bell_&_Howell 790,
Bellsouth 799,
Bright_House_Networks 789,
Charter_Digital 797,
Clear_Max 774,
Cox 789,798,
Eagle_Comtronics 779,
Eastern 762,
Explorer 789,
GC_Electronics 759,
General_Instrument 790,
Guestserv 793,
Hamilton 787,
Hamlin_Regal 787,788,
Hitachi 790,773,
Hitex 761,
Jerrold 790,
Kingston 768,
Lyonnaise 785,

Version 1.0 Preliminary 49

CBL Down Load Library

Macom 765,
Mitsubishi 783,
Motorola 794,797,795,
Movie_Time 754,756,
Novaplex 776,760,
NSC 754,756,777,780,
Oak 778,761,
Pace 784,
Philips 767,
Recoton 782,
Regal 787,788,
Regency 762,
Shaw 702
Signature 790,
Storm 775,
Super_Cable 794,
Teknika 764,
Telecaption 758,
Texscan 770,
Thomson 801,
Time_Warner 789,792,
Tocom 753,771,772,
Trinity 786,
TV86 769,
United_Artists 761,
United_Cable 778,
Video_Way 766,
Videotron 793,
Viewstar 757,763,781,755,

SAT Down Load Library

Access 807,805,
Alpha_Star 809,
AOLTV 811,
Canal+ 814,
Chaparral 808,
CoShip 817,
Drake 806,
LG 813,
Philips 816,815,

Version 1.0 Preliminary 50

SAT Down Load Library

RCA 804,818,
Realistic 810,
Samsung 812,
Skycable 803,
Strong 814,
Uniden 816,

DVD Down Load Library

Advent 892,706,
Aiwa 723,
AMW 687,688,
Apex 698,747,741,723,722,
AudioVox 750,724,735,698,701,704,694
Bose 674,
Cambridge 689,
Cary 670,
Centrios 713,
Classic 688,
Coby 750,705,724,678,707,703,
CyberHome 682,696,
Daewoo 711,710,
Denon 743,
Densay 700,
Disney 718,
Emerson 718,719,
ESA 712,
Farenheit 720,
Funi 677,
GE 749,
Giec 714,
GoVideo 691,699,676,
Gradiente 702,
Interact 679,
Jensen 892,
JVC 741,
Jwin 685,
Kenwood 727,726,
KLH 669,
Konka 680,681,745,746,
Koss 702,

Version 1.0 Preliminary 51

DVD Down Load Library

Lasonic 672,
Legacy 715,
LightOn 708,728,
Magnavox 932,938,717,716,
Memorex 718,
MinTek 747,
Mustek 699,
Myryad 671,
NexxTech 712,
Nickelodeon 752,
Norcent 683,688,673,
Onkio 891,
Onkyo 692,667,673,
Oritron 702,
Panasonic 931,937,894,743,697,734,
Philips 932,934,938,940,
Pioneer 738,737,736,
Polaroid 750,705,724,688,
PowerAcoustik 720,
Pyle 720,721,
Qwestar 715,
RILO 708,
Rowa 675,
Sampo 678,
Samsung 748,
Sharp 893,733,
Sherwood 729,
Sony 751,929,935,742,732,731,730
Sungale 686,
Sylvania 718,
Symphonic 718,
Teac 740,
TeachWood 684,
Technics 744,
Toshiba 933,939,

Vinc 690,
Vizio 690,695
Vocapro 709
Xwave 693,
Yahoo 712,739
Yamaha 668,

Version 1.0 Preliminary 52

DVD Down Load Library

Zenith 930,936,

AUD Down Load Library

ADC 599,
Adcom 653,
Aiwa 614,
Akai 666,
Anam 586,
Angstrom 587,
Arcam 588,
Audio_Access 616,
Audio_Alchemy 589,615,
Audio_Ease 614,
Audio_Matrix 613,
B&K 611,612,
Bose 577,578,637,591,
Chiro 590,
Citatio 598,
Denon 580,595
Enlightened_Audio 608,
Fosgate 592,617,
Harmon_Kardon 657,656,
JCPenny 584,
Jensen 606,
Kenwood 665,
Kinergetics 593,
KLH 639,
Koss 584,
Krell 625,
Kyocera 599,
Lexicon 603,604,605,636,
Luxman 593,594,600,601,602,607,
Mcintosh 609,
Meridian 579,632,633,
Mitsubishi 650,652,
Mondial 586,593,596,597,629,630,631,
Myryad 582,
NEC 658,
Onkyo 643,583,654,581,582,
Panasonic 585,659,

Version 1.0 Preliminary 53

AUD Down Load Library

Parasound 623,627,628,
Philips 644,
Pioneer 662,663,664,638,
Polkaudio 610,651,
RCA 660,661,646,649
Rotel 618,624,626,
Sansui 655,
Sony 648,647,641,640,
Soundesign 635,
Soundstream 622,
SSI 621,
Sumo 620,
Technics 585,658,659,

Theta_Digital 619,
Universal 646,
XM 610,651,
Yamaha 645,

VCR Down Load Library

Admiral 945,944,
Aiwa 958,925,
Akai 948,921,
Audio_Dynamics 908,946,928,
Blaupunkt 899,
Brooksonic 945,954,944,
Candle 928,
Canon 955,
Capehart 914,
Colortyme 928,
Cybernex 953,
Daewoo 915,
DBX 946,
Electrohome 913,
Emerson 906,943,945,944,
Fisher 963,964,965,
GE 951,946,917,
Goldstar 941,942,962,928,
GoVideo 904,959,960,961,966,967,968,919,947,
Harmon_Kardon 910,926,

Version 1.0 Preliminary 54

VCR Down Load Library

Hitachi 917,
Instant_Replay 969,
JVC 920,
Magnasonic 946,
Magnavox 918,
Memorex 901,957,925,
MGA 913,
Mitsubishi 909,911,913,926,921,
Montgomery_Ward 918,
Neckermann 943,
Optimus 949,
Optonica 916,
Panasonic 922,
Pentax 917,
Philips 963,964,965,
Quartz 950,
Quasar 923,
RCA 902,903,905,946,924,917,918,922,
Runco 900,
Samsung 953,
Scott 945,944,
Sears 952,
Sharp 907,
Signature 953,
Sony 912,927,
Sylvania 913,
Teknika 909,956,
TMK 943,
Toshiba 909,913,
Venture 905,

Combo TV / VCR Down Load Library

Blaupunkt 899,
Memorex 901,
RCA 902,903,
Runco 900,

Version 1.0 Preliminary 55

Combo TV / DVD Down Load Library

Panasonic 894,
Sharp 893,

TV / DVD / VCR Down Load Library

Advent 892,
Jensen 892,
Onkio 891,

Combo VCR / DVD Down Load Library

Magnavox 932,938,
Panasonic 931,937,
Philips 932,934,938,940,
Sony 929,935,
Toshiba 933,939,
Zenith 930,936,

DVR Down Load Library

CoShip 817,
Instant_Replay 969,

VOD Down Load Library

Americast 799,
Bellsouth 799,
Cox 798,

Version 1.0 Preliminary 56
