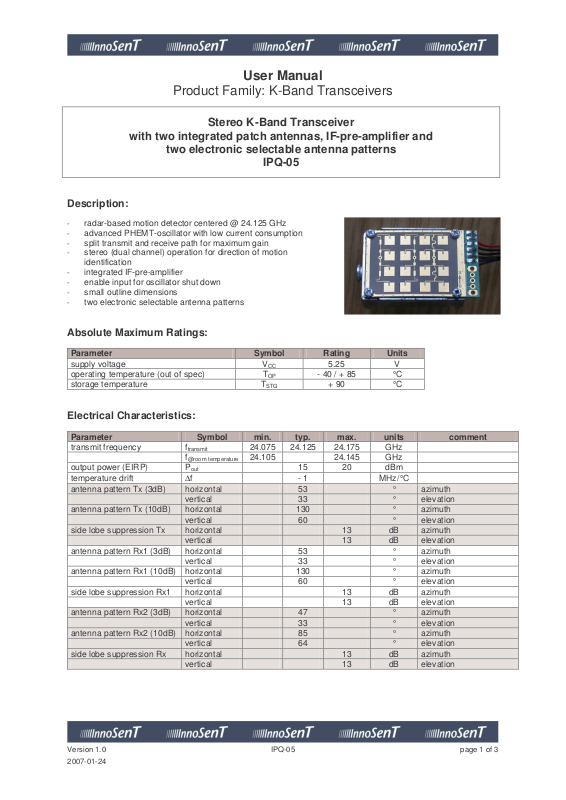

User Manual
Product Family: K-Band Transceivers
Stereo K-Band Transceiver
with two integrated patch antennas, IF-pre-amplifier and
two electronic selectable antenna patterns
IPQ-05
Description:
-
radar-based motion detector centered @ 24.125 GHz
-
advanced PHEMT-oscillator with low current consumption
-
split transmit and receive path for maximum gain
-
stereo (dual channel) operation for direction of motion
identification
-
integrated IF-pre-amplifier
-
enable input for oscillator shut down
-
small outline dimensions
-
two electronic selectable antenna patterns
Absolute Maximum Ratings:
Parameter Symbol Rating Units
supply voltage VCC 5.25 V
operating temperature (out of spec) TOP - 40 / + 85 °C
storage temperature T
STG
Electrical Characteristics:
Parameter Symbol min. typ. max. units comment
transmit frequency f
f
output power (EIRP) P
temperature drift
antenna pattern Tx (3dB) horizontal 53 ° azimuth
vertical 33 ° elevation
antenna pattern Tx (10dB) horizontal 130 ° azimuth
vertical 60 ° elevation
side lobe suppression Tx horizontal 13 dB azimuth
vertical 13 dB elevation
antenna pattern Rx1 (3dB) horizontal 53 ° azimuth
vertical 33 ° elevation
antenna pattern Rx1 (10dB) horizontal 130 ° azimuth
vertical 60 ° elevation
side lobe suppression Rx1 horizontal 13 dB azimuth
vertical 13 dB elevation
antenna pattern Rx2 (3dB) horizontal 47 ° azimuth
vertical 33 ° elevation
antenna pattern Rx2 (10dB) horizontal 85 ° azimuth
vertical 64 ° elevation
side lobe suppression Rx horizontal 13 dB azimuth
vertical 13 dB elevation
24.075 24.125 24.175 GHz
transmit
@room temperature
out
∆f
24.105 24.145 GHz
15 20 dBm
- 1 MHz/°C
+ 90 °C
Version 1.0 IPQ-05 page 1 of 3
2007-01-24
Page 2
Electrical Characteristics (cont’d):
I
Q
Parameter Symbol min. typ. max. units comment
I/Q balance amplitude 6 dB
phase 60 90 120 °
IF output voltage offset 1.0 2.2 4.0 V
IF-amplifier gain 19 20 21 dB
bandwidth DC kHz
switching voltage high level 2 5.5 V narrow antenna pattern
low level GND 0.5 V broad antenna pattern
supply voltage VCC 4.75 5.0 5.25 V
supply current ICC 35 50 mA
operating temperature TOP - 20 + 60 °C
outline dimensions ~ 40 x 25 x 24 mm
upper frequency limited
by operational amplifier
Interface:
Pin # Description In/Out Comment
1 enable input active low
2 VCC input supply voltage (+5 V)
3 GND input analog ground
4 IF1 output Signal I(nphase)
5 IF2 output Signal Q(uadrature)
6 not connected
mates with: Molex P/N 53014, 53015 and 53025
I/Q Channel:
Signal Q is leading if an object moves towards the radar transceiver.
Version 1.0 IPQ-05 page 2 of 3
2007-01-24
Page 3
Certification and environment protection:
InnoSenT GmbH has established and applies a quality system for:
Development, production and sales of radar sensors for commercial and
industrial sensors
An audit was performed, Report No. 010350 Proof has been furnished that
the requirements according to DIN EN ISO 9001:2000 are fulfilled.
This InnoSenT product is compliant to the restriction of hazardous substances
(RoHs – European Union directive 2002/95/EG).
FCC approval
• This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
• Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may
void the FCC authorization to operate this equipment.
• Manufacturers of mobile or fixed devices incorporating IPQ-05 modules are authorized to use the FCC
Grants and IC Certificates of the IPQ-05 modules for their own final products according to the conditions
referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or
the host device shall bear a second label stating "Contains FCC ID: UXS-IPQ05" and "Contains IC: 6902AIPQ05".
Contact Information:
InnoSenT GmbH
Am Roedertor 30
97499 Donnersdorf
Germany
Phone: +49 (0) 9528-9518-0
Fax: +49 (0) 9528-9518-99
E-Mail: [email protected]
Web: www.InnoSenT.de
Version 1.0 IPQ-05 page 3 of 3
2007-01-24
