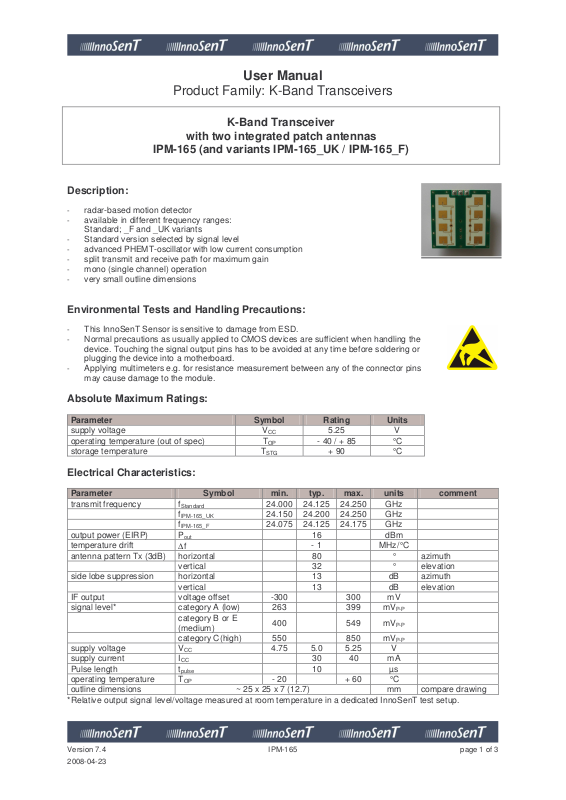

Page 1
User Manual
Product Family: K-Band Transceivers
K-Band Transceiver
with two integrated patch antennas
IPM-165 (and variants IPM-165_UK / IPM-165_F)
Description:
-
radar-based motion detector
-
available in different frequency ranges:
Standard; _F and _UK variants
-
Standard version selected by signal level
-
advanced PHEMT-oscillator with low current consumption
-
split transmit and receive path for maximum gain
-
mono (single channel) operation
-
very small outline dimensions
Environmental Tests and Handling Precautions:
-
This InnoSenT Sensor is sensitive to damage from ESD.
-
Normal precautions as usually applied to CMOS devices are sufficient when handling the
device. Touching the signal output pins has to be avoided at any time before soldering or
plugging the device into a motherboard.
-
Applying multimeters e.g. for resistance measurement between any of the connector pins
may cause damage to the module.
Absolute Maximum Ratings:
Parameter Symbol Rating Units
supply voltage VCC 5.25 V
operating temperature (out of spec) TOP - 40 / + 85 °C
storage temperature T
STG
Electrical Characteristics:
Parameter Symbol min. typ. max. units comment
transmit frequency f
f
f
output power (EIRP) P
temperature drift
antenna pattern Tx (3dB) horizontal 80 ° azimuth
vertical 32 ° elevation
side lobe suppression horizontal 13 dB azimuth
vertical 13 dB elevation
IF output voltage offset -300 300 mV
signal level* category A (low) 263 399 mV
category C(high) 550 850 mV
supply voltage VCC 4.75 5.0 5.25 V
supply current ICC 30 40 mA
Pulse length t
operating temperature TOP - 20 + 60 °C
outline dimensions ~ 25 x 25 x 7 (12.7) mm compare drawing
*Relative output signal level/voltage measured at room temperature in a dedicated InnoSenT test setup.
24.000 24.125 24.250 GHz
Standard
IPM-165_UK
IPM-165_F
out
∆f
category B or E
(medium)
pulse
24.150 24.200 24.250 GHz
24.075 24.125 24.175 GHz
16 dBm
- 1 MHz/°C
400 549 mV
10 µs
+ 90 °C
P-P
P-P
P-P
Version 7.4 IPM-165 page 1 of 3
2008-04-23
Page 2
Interface:
The sensor provides a 2.54mm grid, single row pin header (square pin 0.635mm)
Pin # Description In/Out Comment
1 VCC input supply voltage (+5 V)
2 IF1 output signal output
3 GND input analog ground
Mechanical Outlines:
(all dimensions in mm)
Approved pulsing conditions to fulfill the FCC requieremts:
• ASK modulation with 10kHz and 10% dutycycle (on-time 10µs min.)
• Warning: Any other pulsing condition with less than 10µs on-time may void the FCC authorization to operate
this equipment.
Certification and environment protection:
InnoSenT GmbH has established and applies a quality system for:
Development, production and sales of radar sensors for commercial and
industrial sensors
An audit was performed, Report No. 010350 Proof has been furnished that
the requirements according to DIN EN ISO 9001:2000 are fulfilled.
This InnoSenT product is compliant to the restriction of hazardous substances
(RoHs – European Union directive 2002/95/EG).
Version 7.4 IPM-165 page 2 of 3
2008-04-23
Page 3
FCC approval
• This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
• Warning: Changes or modifications made to this equipment not expressly approved by InnoSenT GmbH may
void the FCC authorization to operate this equipment.
• Manufacturers of mobile or fixed devices incorporating IPM-165 modules are authorized to use the FCC
Grants and IC Certificates of the IPM-165 modules for their own final products according to the conditions
referenced in these documents. In this case, the FCC label of the module shall be visible from the outside, or
the host device shall bear a second label stating "Contains FCC ID: UXS-IPM165F" and "Contains IC:
4012A-IPM165F".
Contact Information:
InnoSenT GmbH
Am Roedertor 30
97499 Donnersdorf
Germany
Phone: +49 (0) 9528-9518-0
Fax: +49 (0) 9528-9518-99
E-Mail: [email protected]
Web: www.InnoSenT.de
Version 7.4 IPM-165 page 3 of 3
2008-04-23
