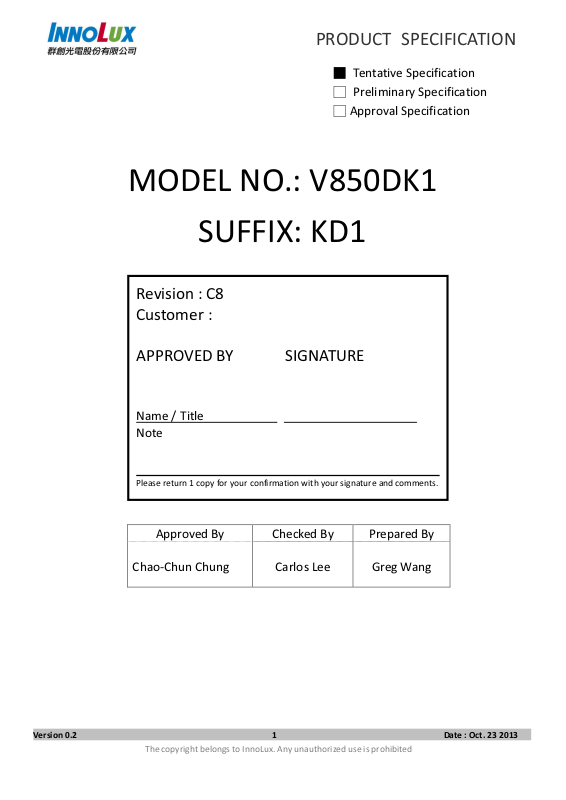

INNOLUX V850DK1.KD1 Specification

PRODUCT SPECIFICATION

■ Tentative Specification
□ Preliminary Specification

□ Approval Specification

MODEL NO.: V850DK1

SUFFIX: KD1

Revision : C8
Customer :

APPROVED BY SIGNATURE

Name / Title
Note

Please return 1 copy for your confirmation with your signature and comments.

Approved By Checked By Prepared By

Chao-Chun Chung

Carlos Lee

Greg Wang

Version 0.2 1 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

CONTENTS

CONTENTS.......................................................................................................................................................................2

REVISION HISTORY ........................................................................................................................................................4

1. GENERAL DESCRIPTION ............................................................................................................................................5

1.1 OVERVIEW ......................................................................................................................................................................... 5

1.2 FEATURES ..........................................................................................................................................................................5

1.3 GENERAL SPECIFICATIONS.......................................................................................................................................... 5

1.4 MECHANICAL SPECIFICATIONS................................................................................................................................. 6

2. ABSOLUTE MAXIMUM RATINGS ..............................................................................................................................7

2.1 ABSOLUTE RATINGS OF ENVIRONMENT ................................................................................................................ 7

2.2 PACKAGE STORAGE ....................................................................................................................................................... 8

2.3 ELECTRICAL ABSOLUTE RATINGS............................................................................................................................. 8

2.3.1 TFT LCD MODULE ........................................................................................................................................................ 8

2.3.2 BACKLIGHT CONVERTER UNIT ...............................................................................................................................8

3. ELECTRICAL CHARACTERISTICS..............................................................................................................................9

3.1 TFT LCD MODULE ........................................................................................................................................................... 9

3.2 BACKLIGHT UNIT.......................................................................................................................................................... 12

3.2.1 CONVERTER CHARACTERISTICS........................................................................................................................... 12

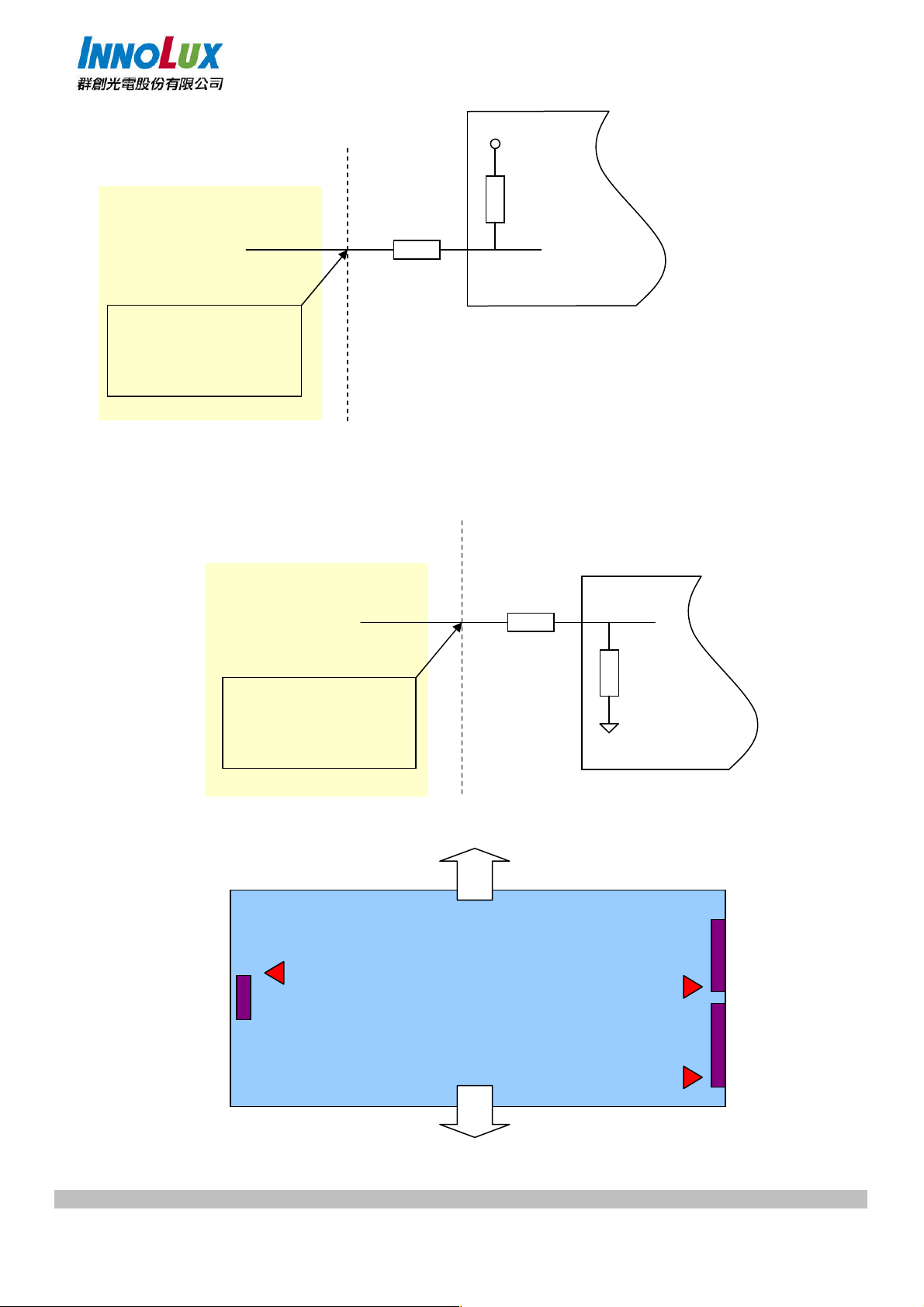

3.2.2 CONVERTER INTERFACE CHARACTERISTICS ................................................................................................... 14

4. BLOCK DIAGRAM OF INTERFACE ..........................................................................................................................16

4.1 TFT LCD MODULE ......................................................................................................................................................... 16

5 .INPUT TERMINAL PIN ASSIGNMENT.....................................................................................................................17

5.1 TFT LCD MODULE ......................................................................................................................................................... 17

5.2 BACKLIGHT UNIT.......................................................................................................................................................... 24

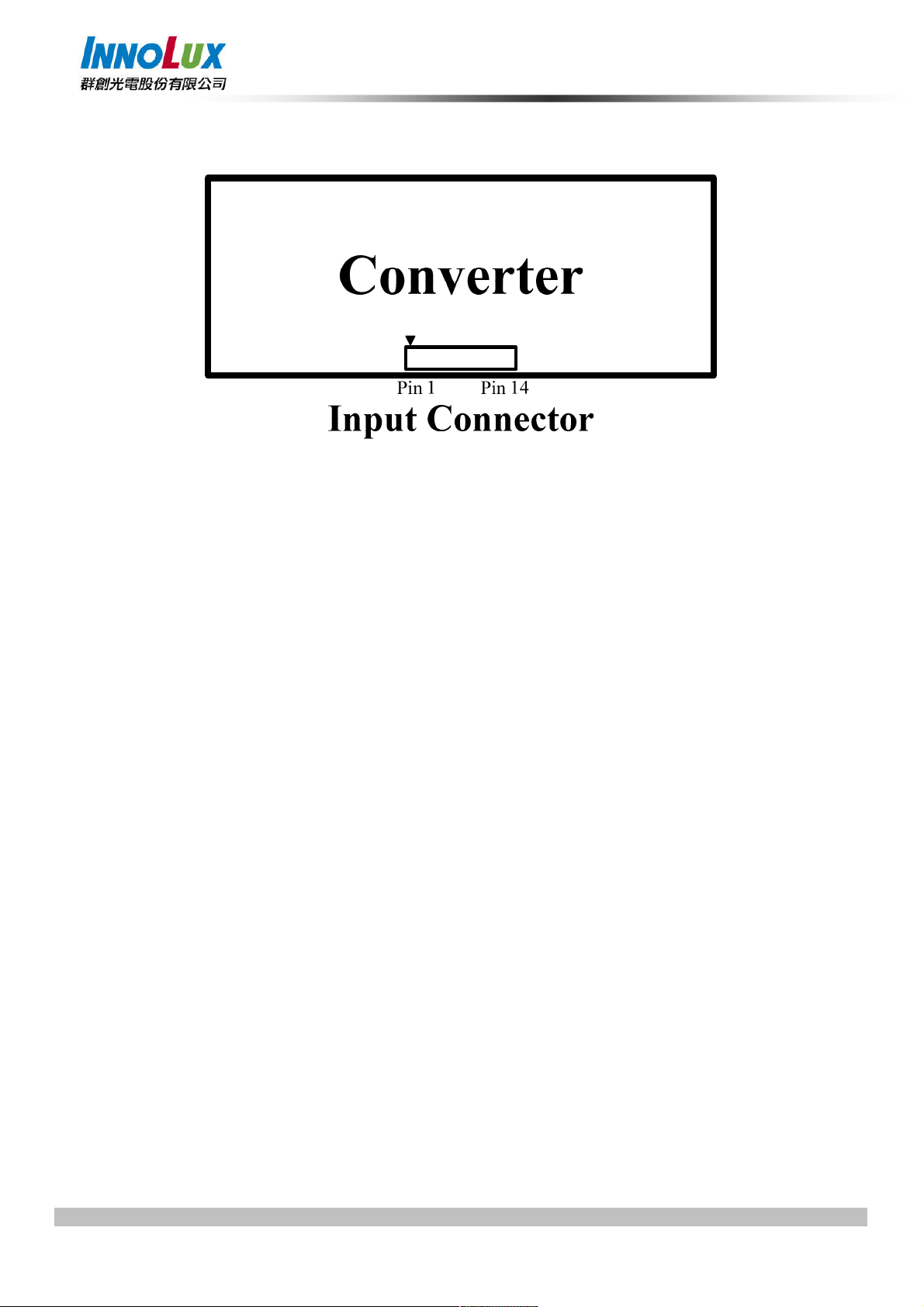

5.3 CONVERTER UNIT......................................................................................................................................................... 25

5.4 COLOR DATA INPUT ASSIGNMENT......................................................................................................................... 27

6. INTERFACE TIMING..................................................................................................................................................28

6.1 INPUT SIGNAL TIMING SPECIFICATIONS .............................................................................................................. 28

6.1.1 Timing spec for Frame Rate = 100Hz ................................................................................................................ 28

6.1.2 Timing spec for Frame Rate = 120Hz ................................................................................................................ 29

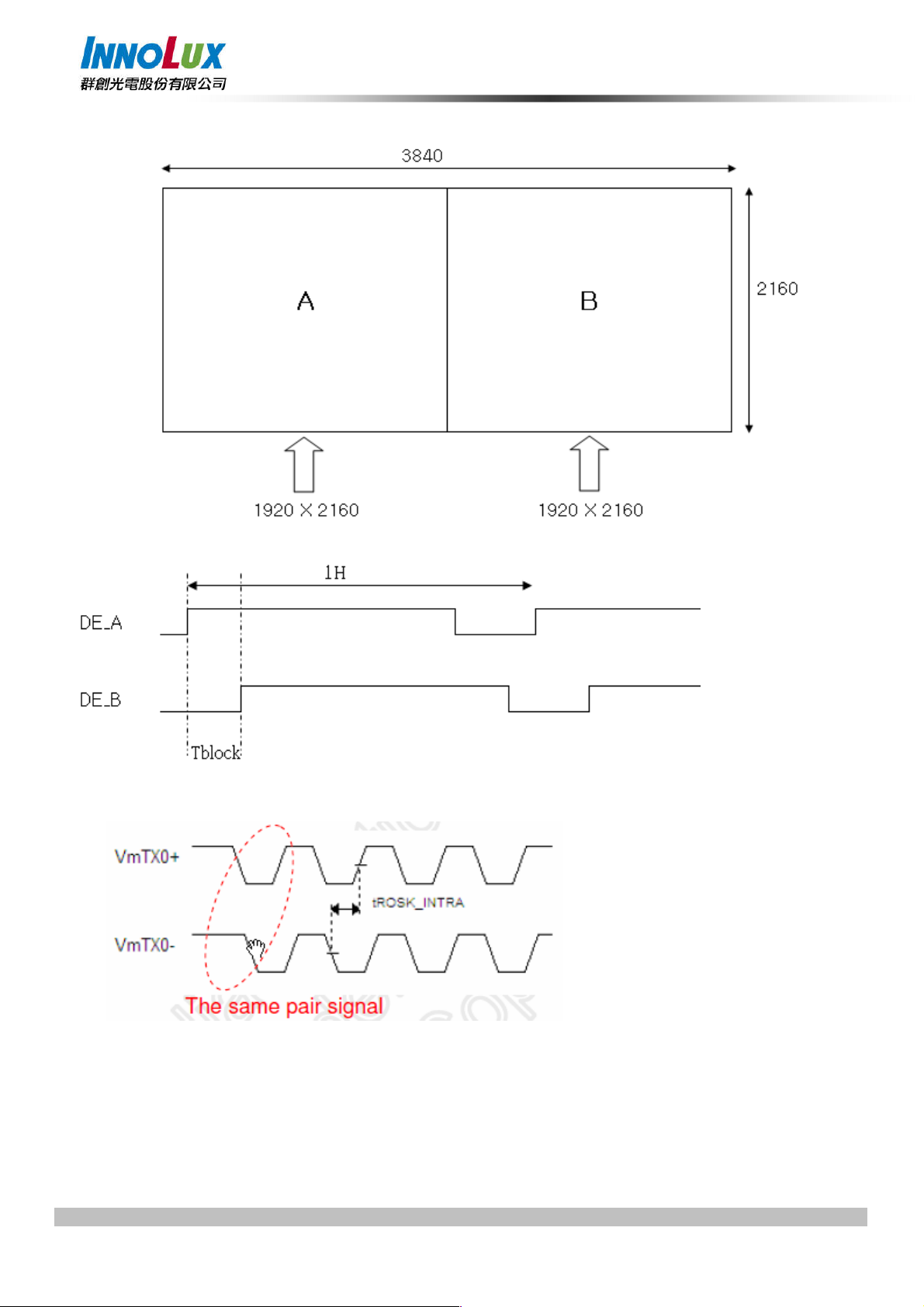

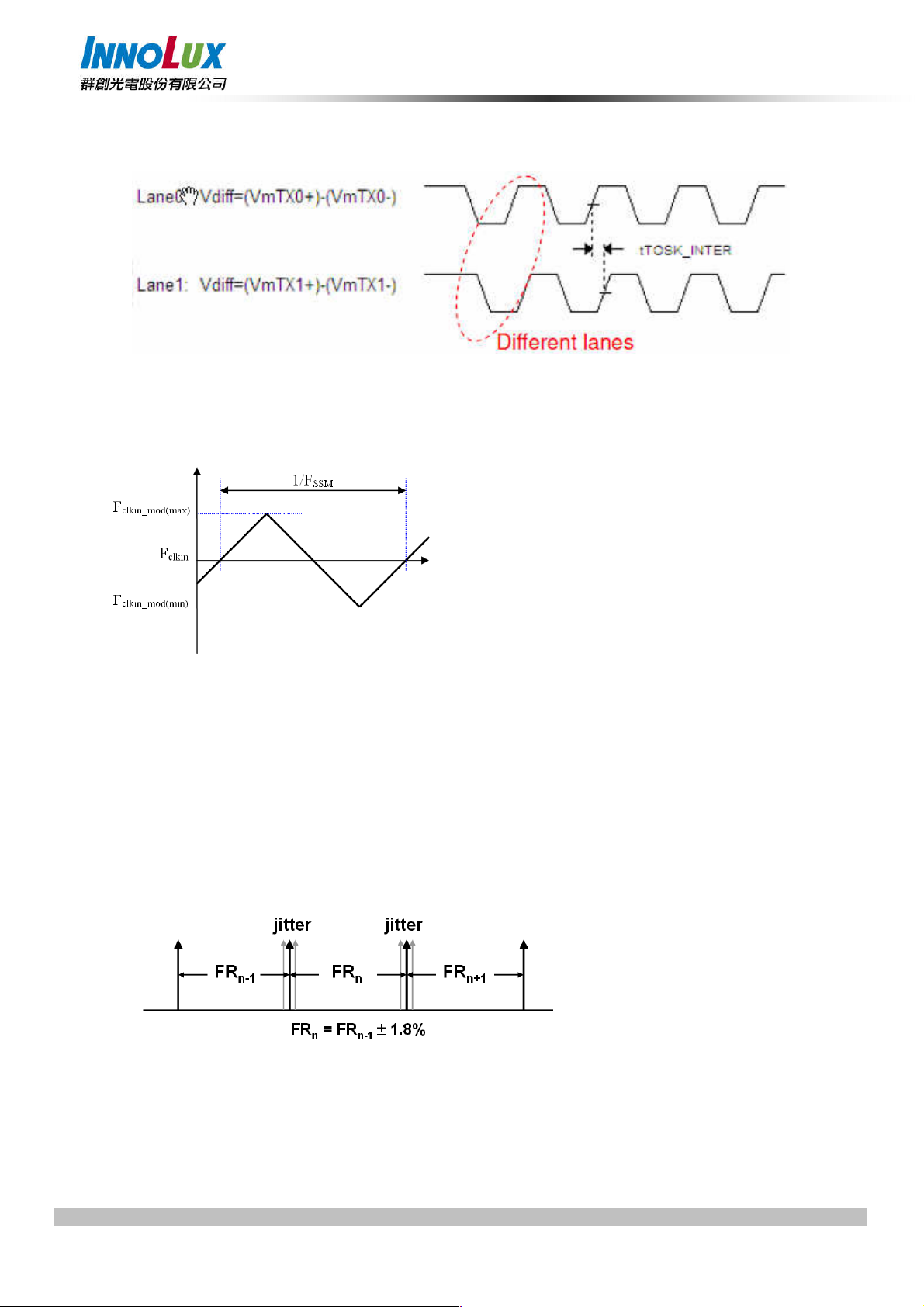

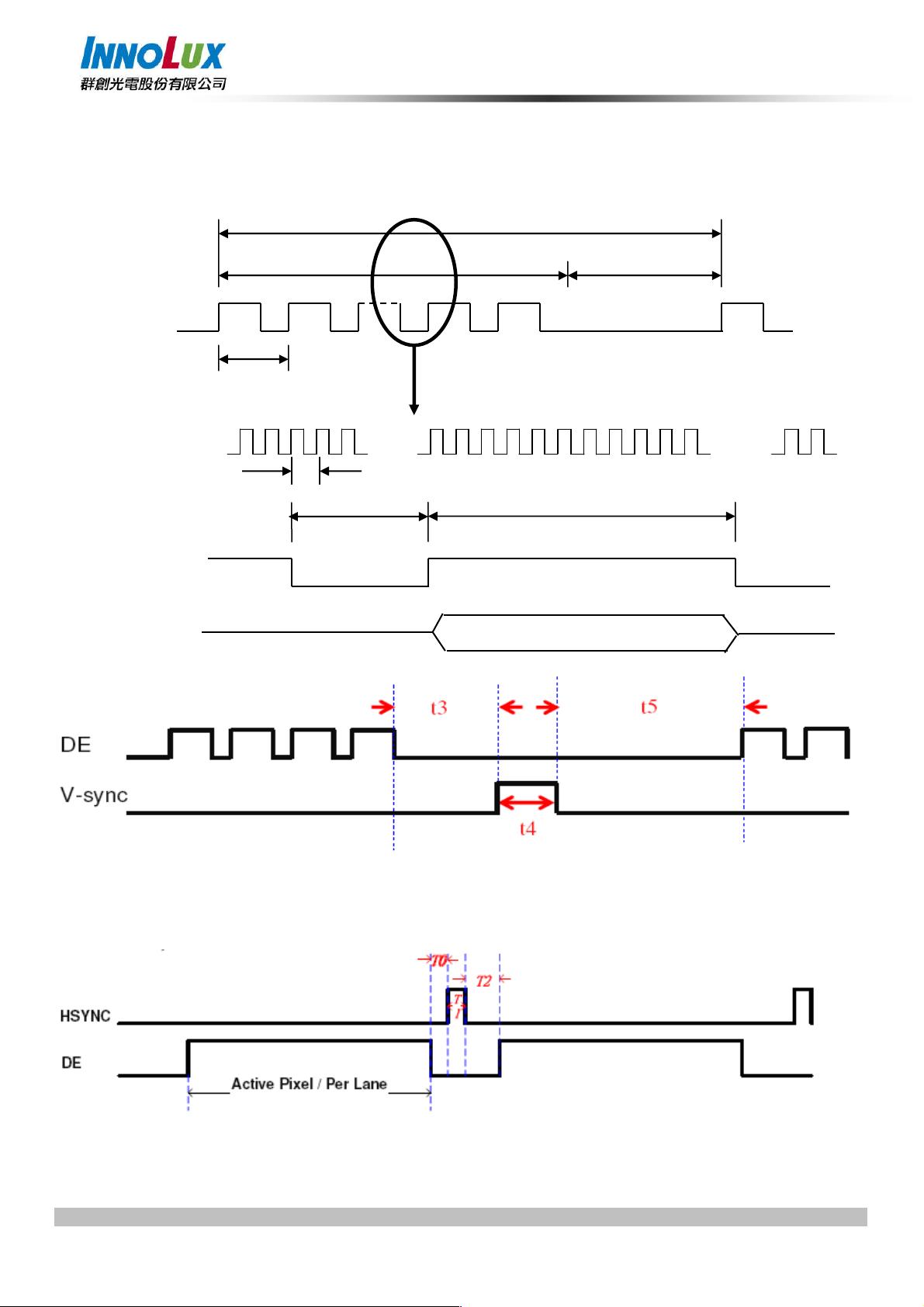

6.2 V by One Input Signal Timing Diagram ....................................................................................................................... 33

Version 0.2 2 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

6.3 Byte Length and Color mapping of V-by-One HS ....................................................................................................... 33

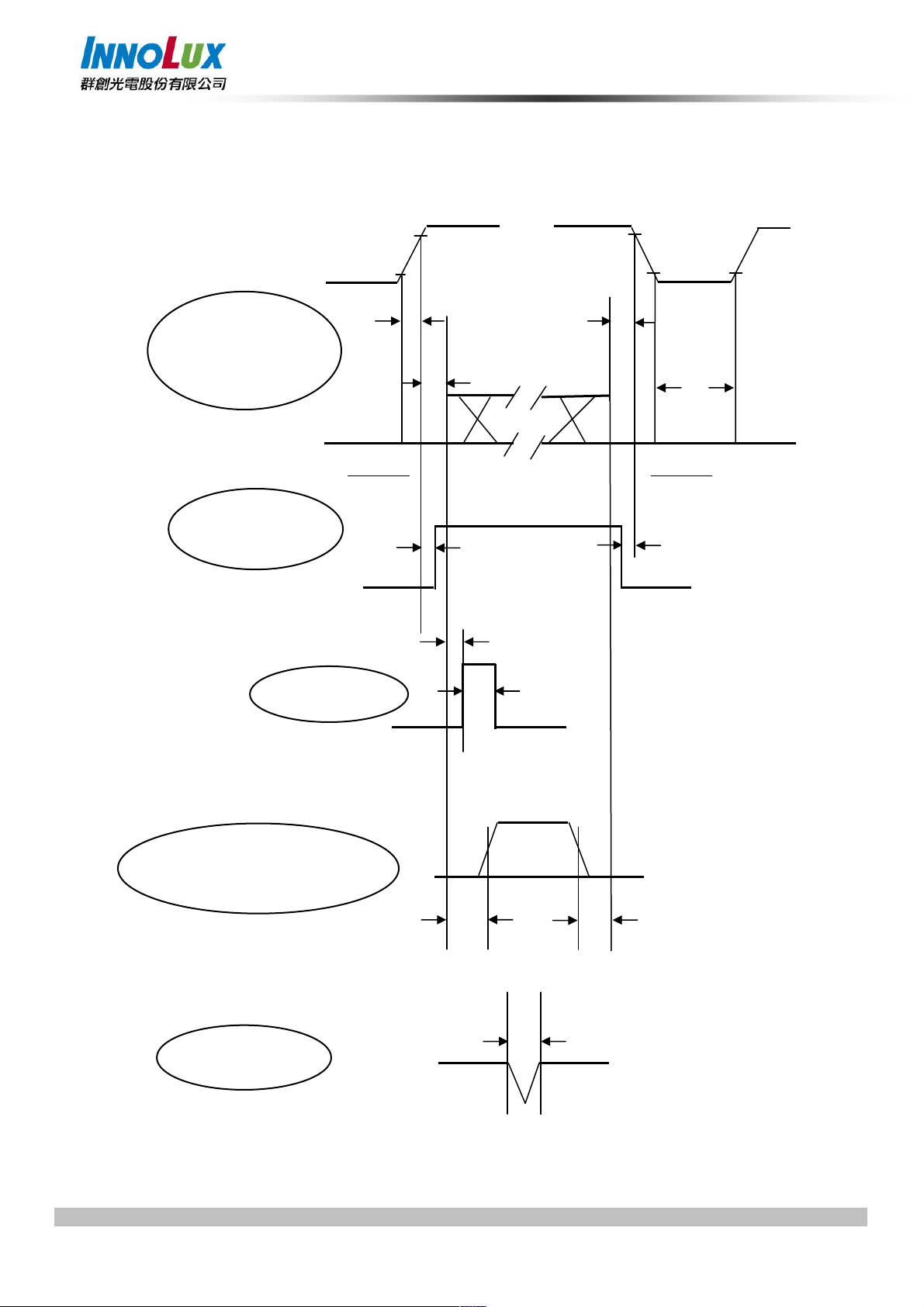

6.4 POWER ON/OFF SEQUENCE ......................................................................................................................................35

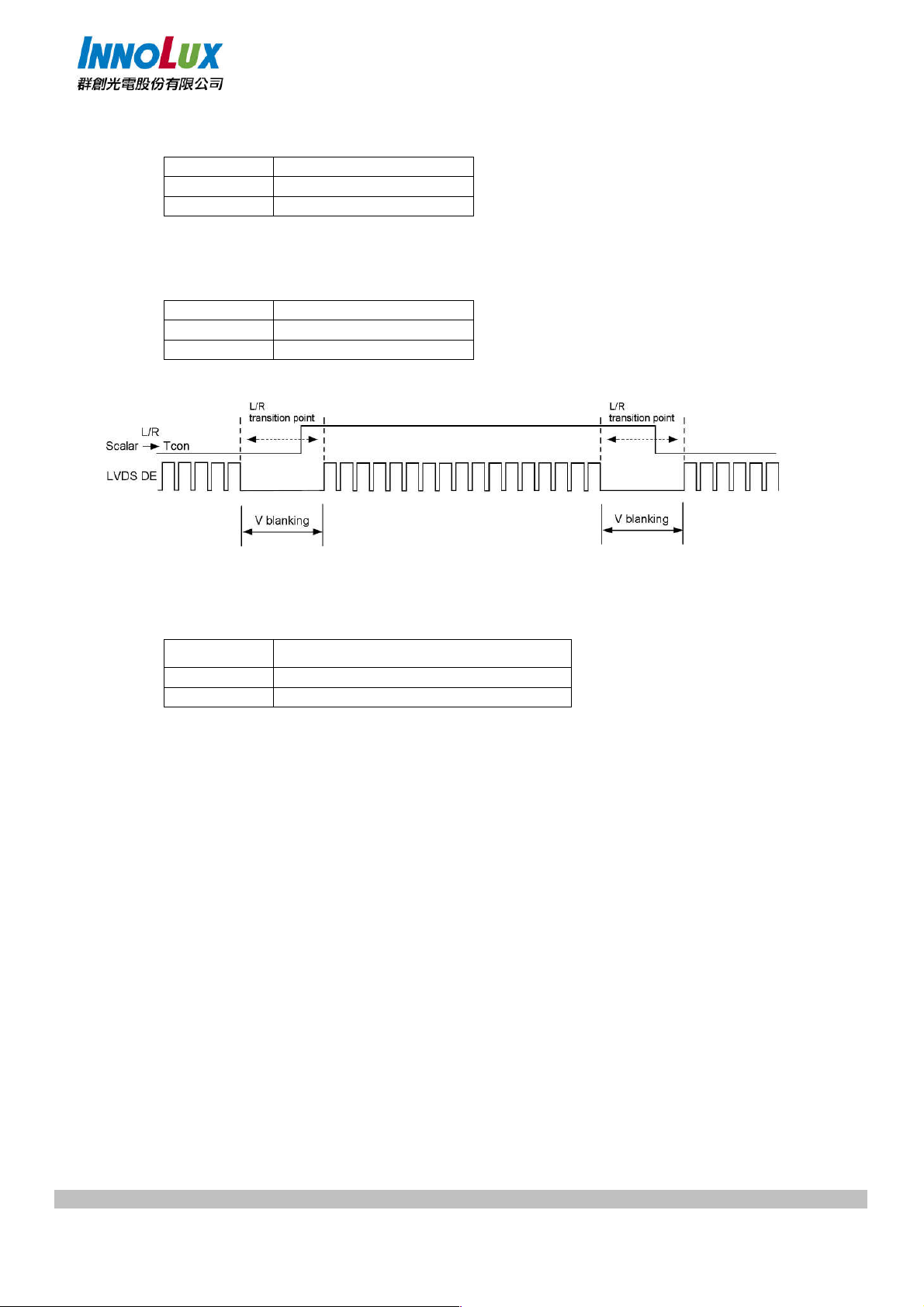

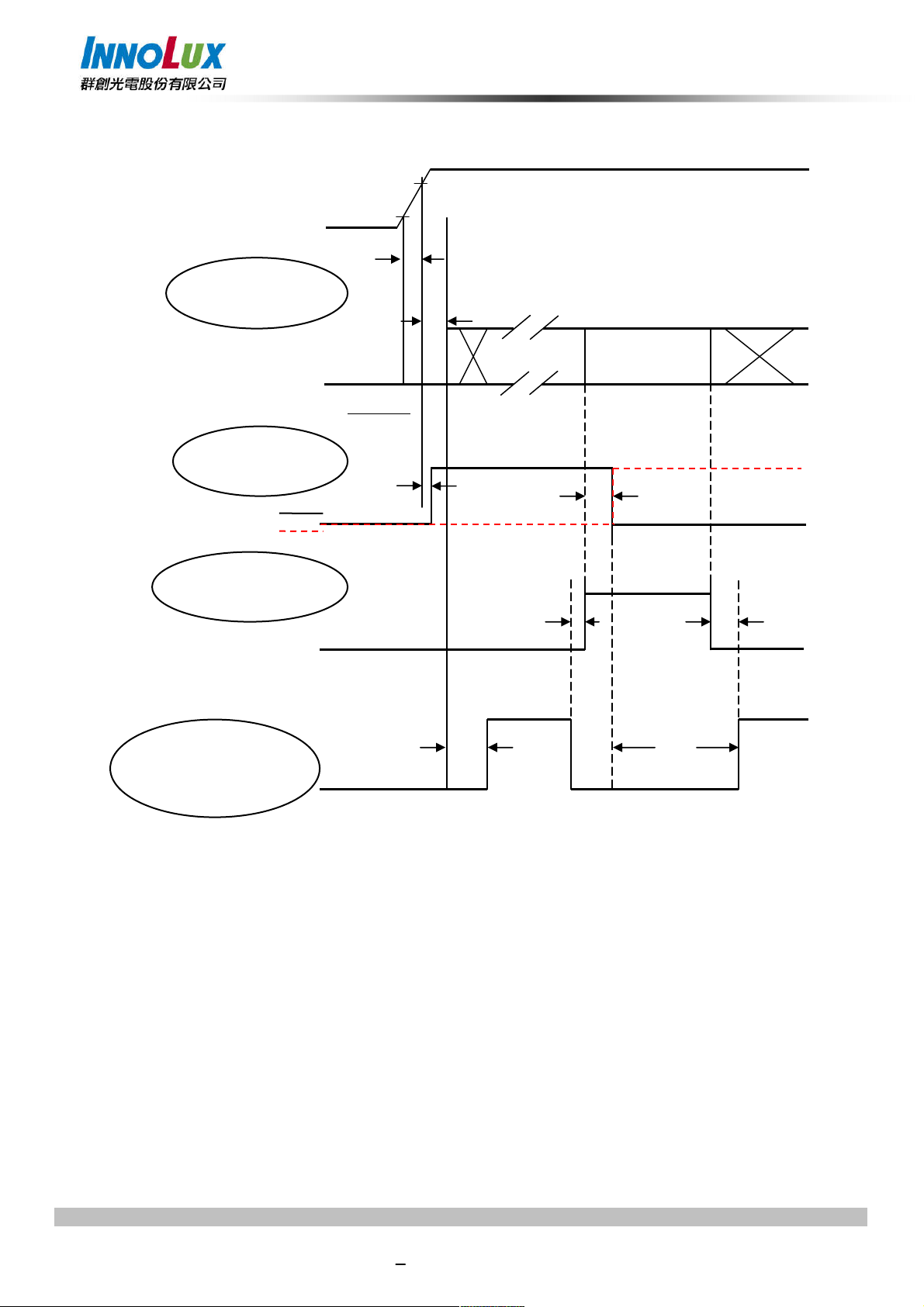

6.5 2D/3D MODE CHANGE SIGNAL SEQUENCE WITHOUT VCC TURN OFF AND TURN ON........................ 36

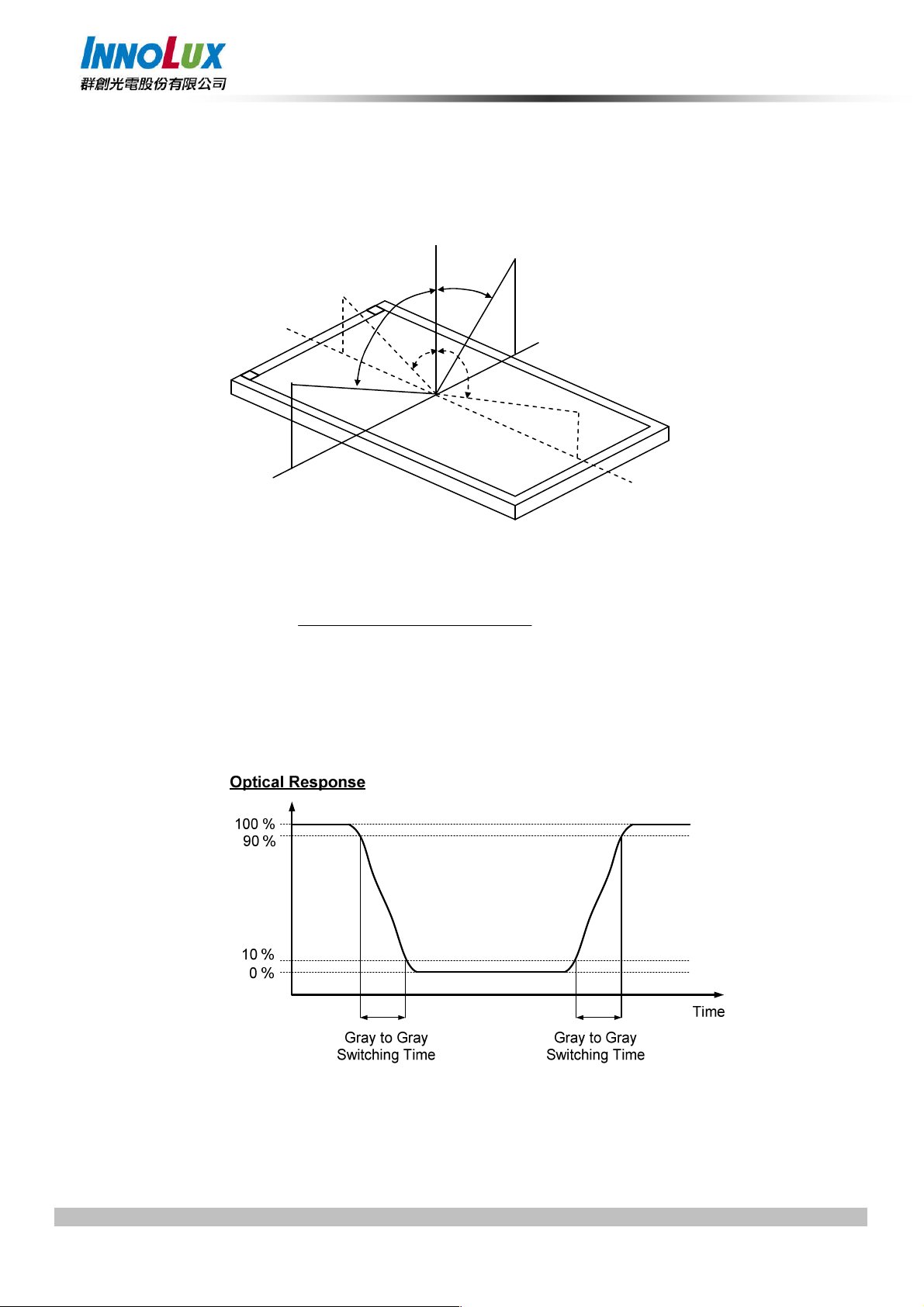

7. OPTICAL CHARACTERISTICS ..................................................................................................................................37

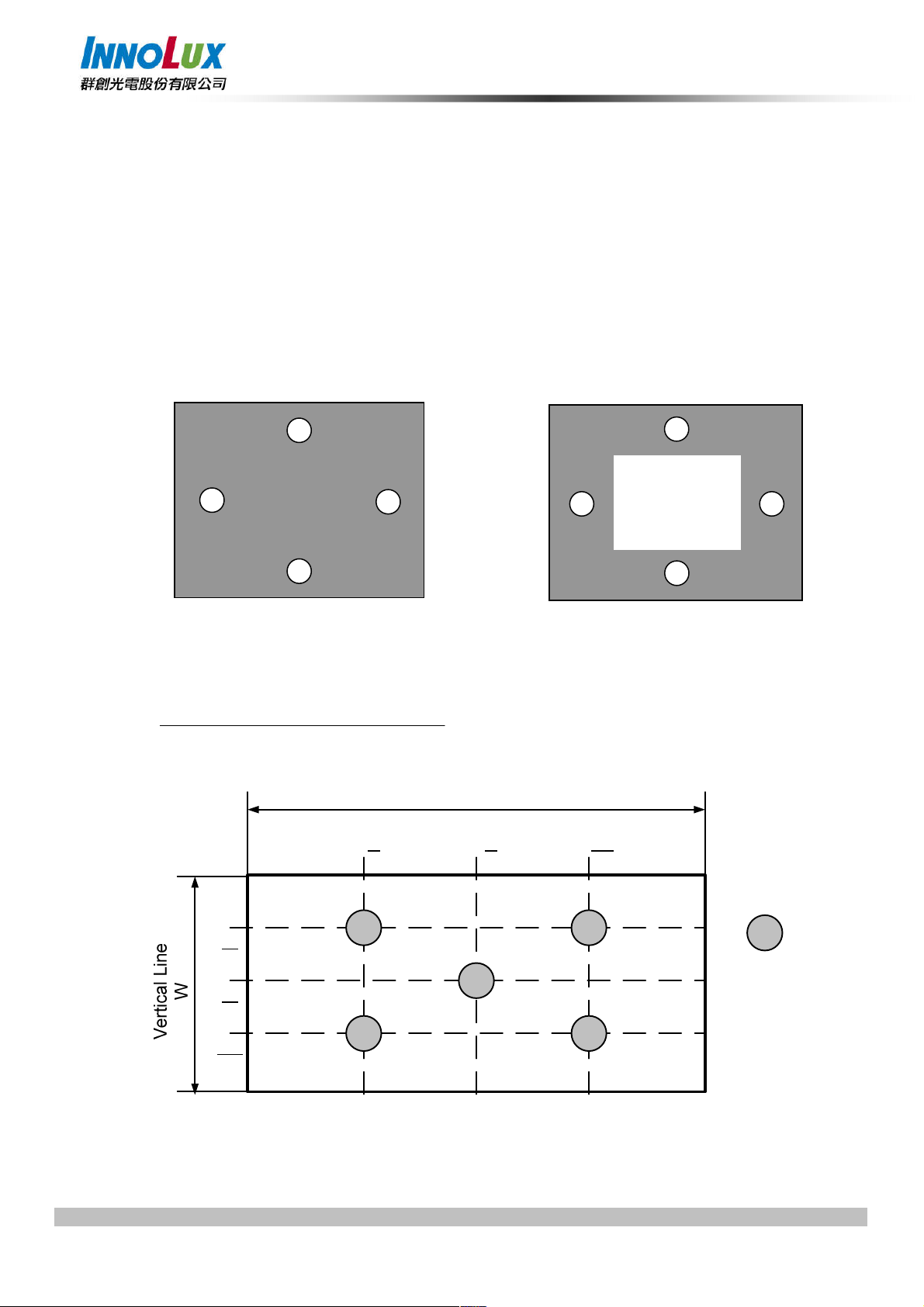

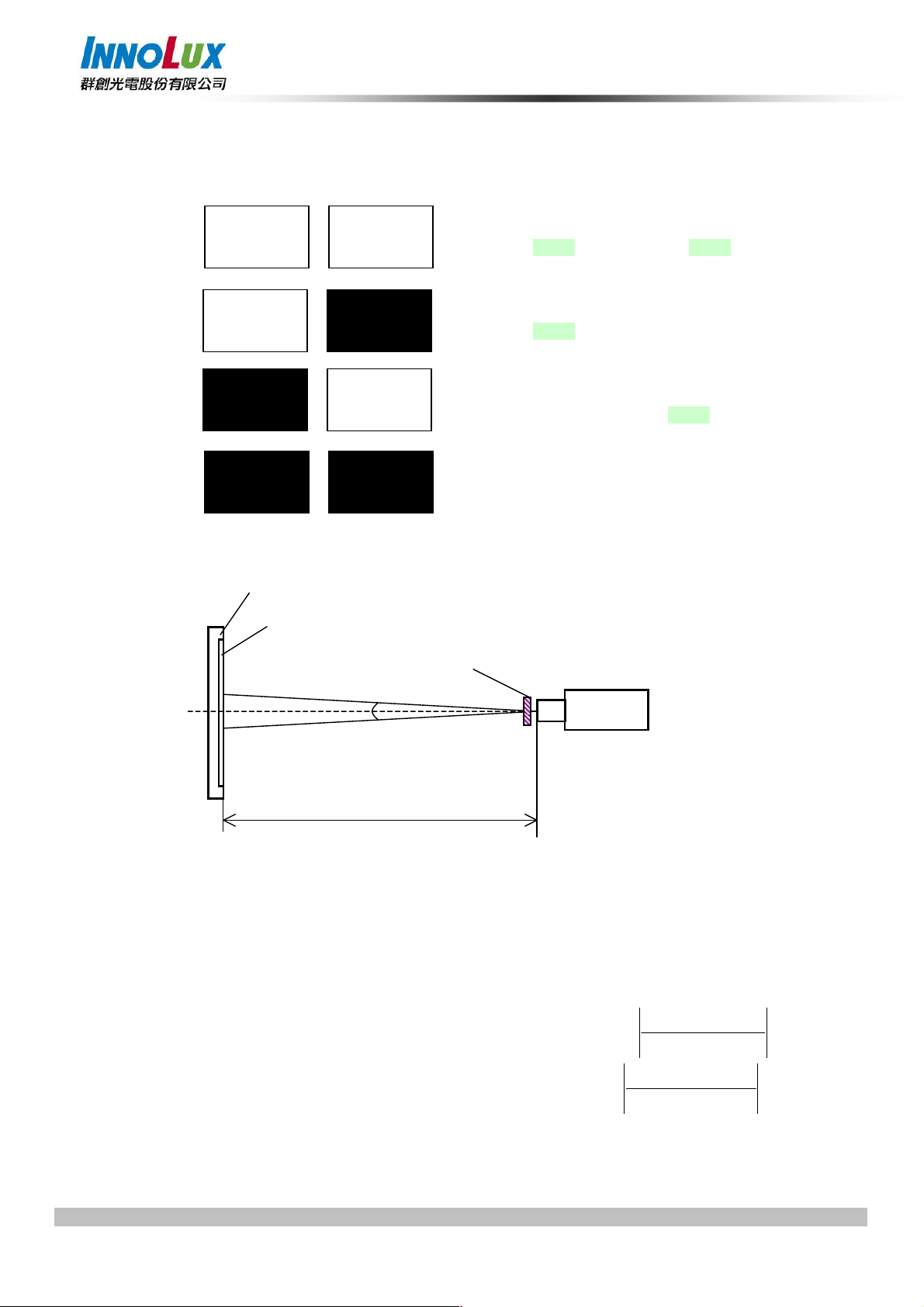

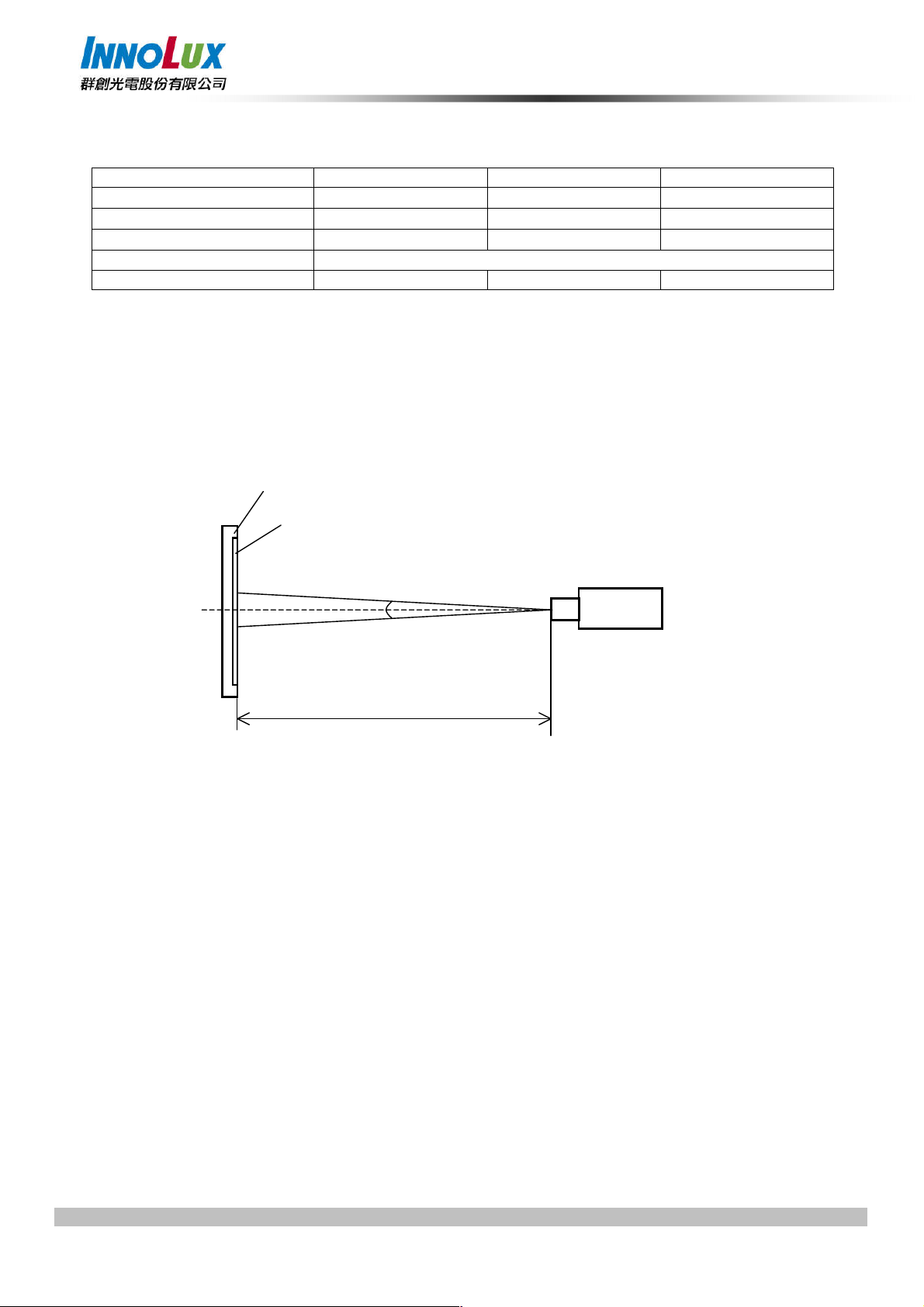

7.1 TEST CONDITIONS ........................................................................................................................................................ 37

7.2 OPTICAL SPECIFICATIONS ......................................................................................................................................... 38

8. PRECAUTIONS ...........................................................................................................................................................43

8.1 ASSEMBLY AND HANDLING PRECAUTIONS........................................................................................................ 43

8.2 SAFETY PRECAUTIONS ................................................................................................................................................ 43

8.3 SAFETY STANDARDS.................................................................................................................................................... 44

9. DEFINITION OF LABELS ...........................................................................................................................................45

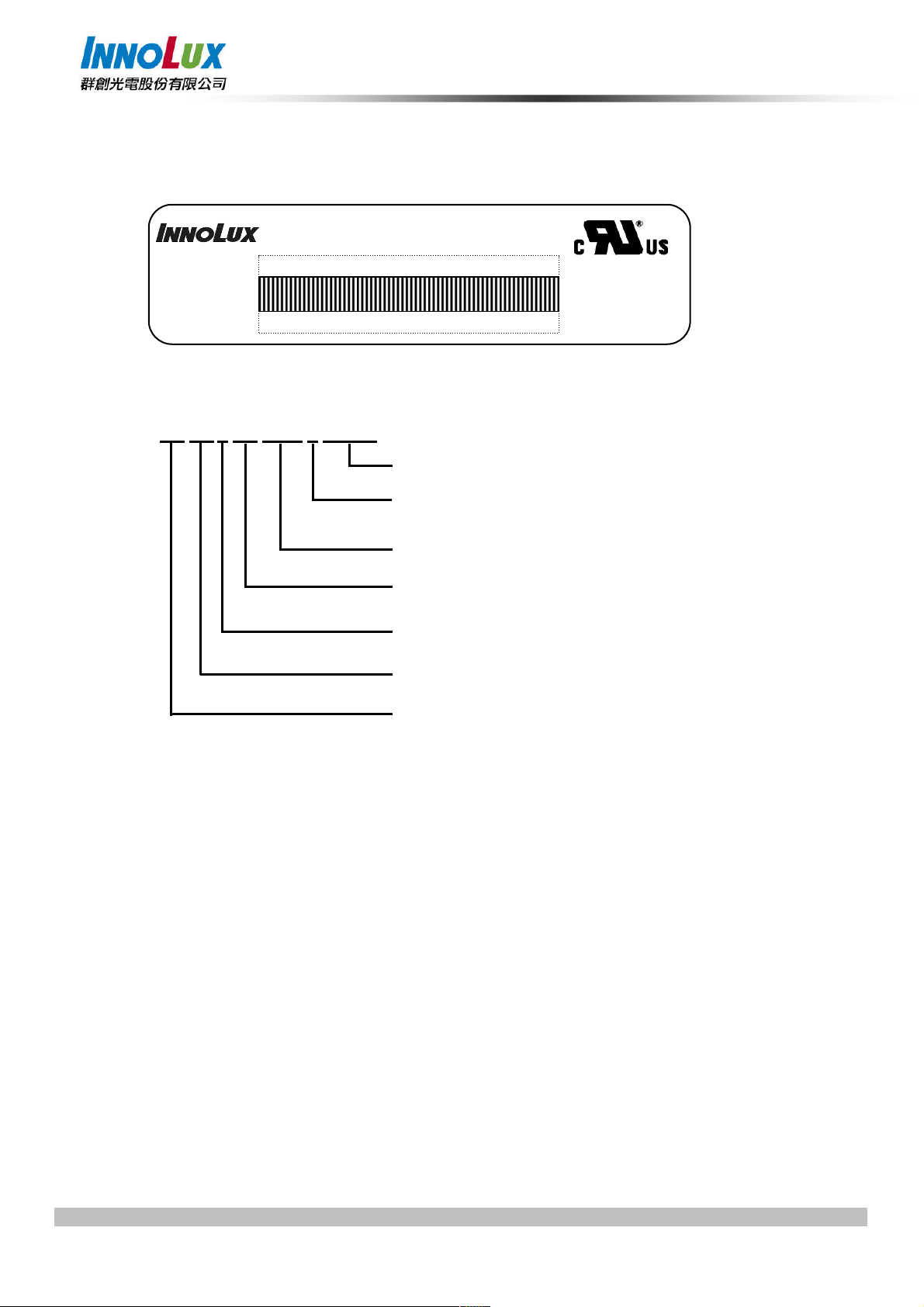

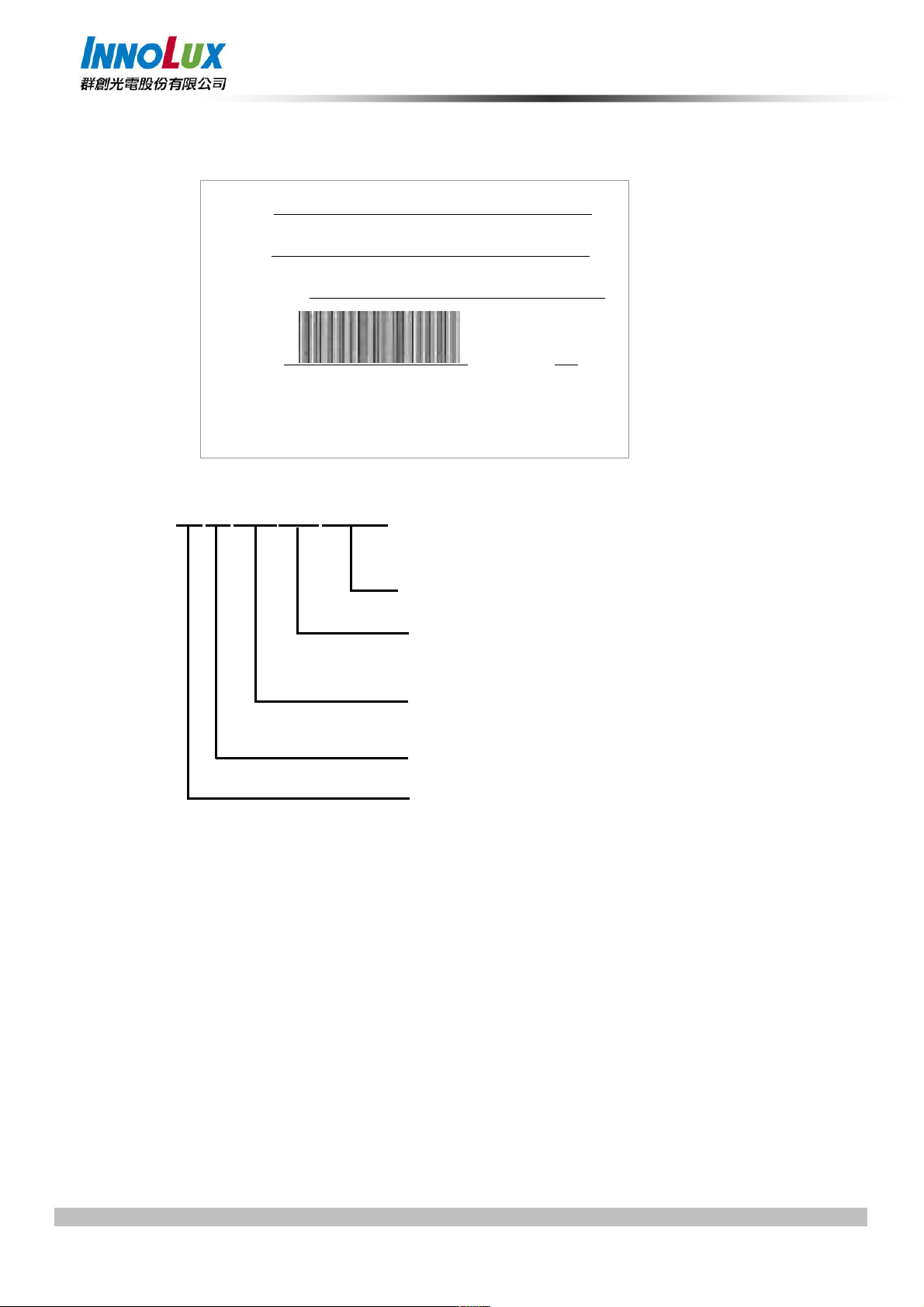

9.1 MODULE LABEL............................................................................................................................................................. 45

9.2 CARTON LABEL.............................................................................................................................................................. 46

10. PACKAGING.............................................................................................................................................................47

10.1 PACKAGING SPECIFICATIONS ................................................................................................................................ 47

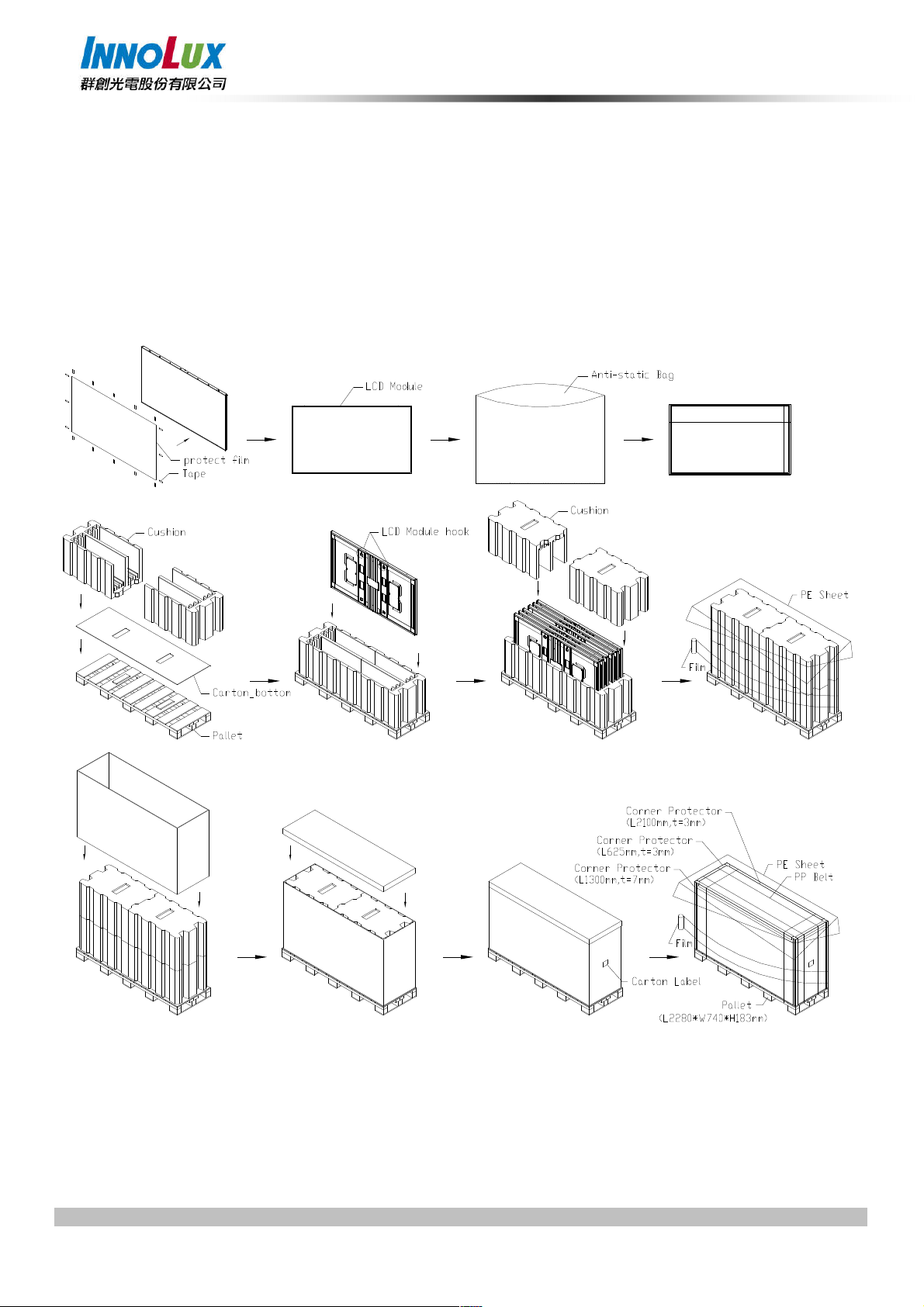

10.2 PACKAGING METHOD............................................................................................................................................... 47

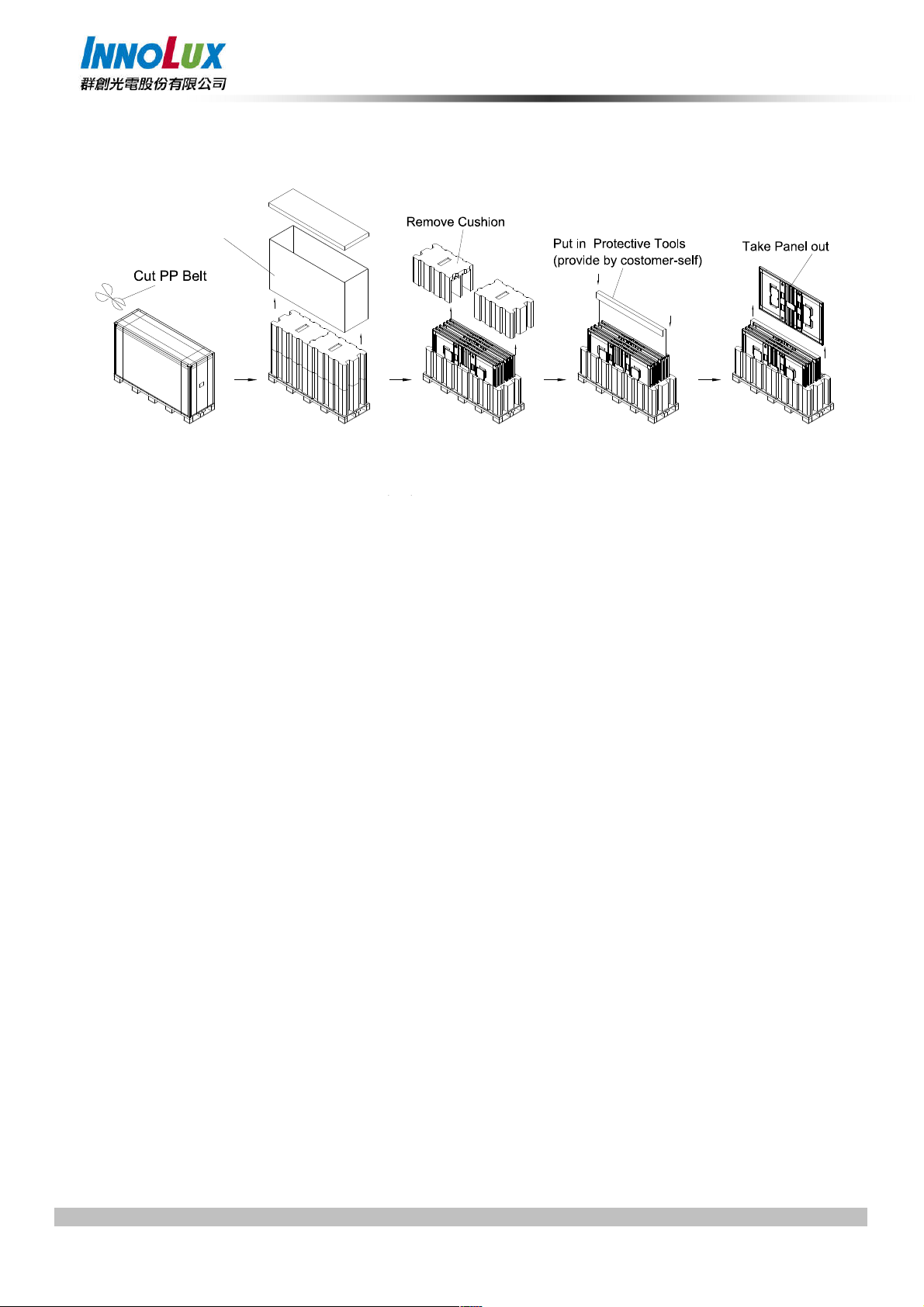

10.3 UN-PACKAGING METHOD ....................................................................................................................................... 48

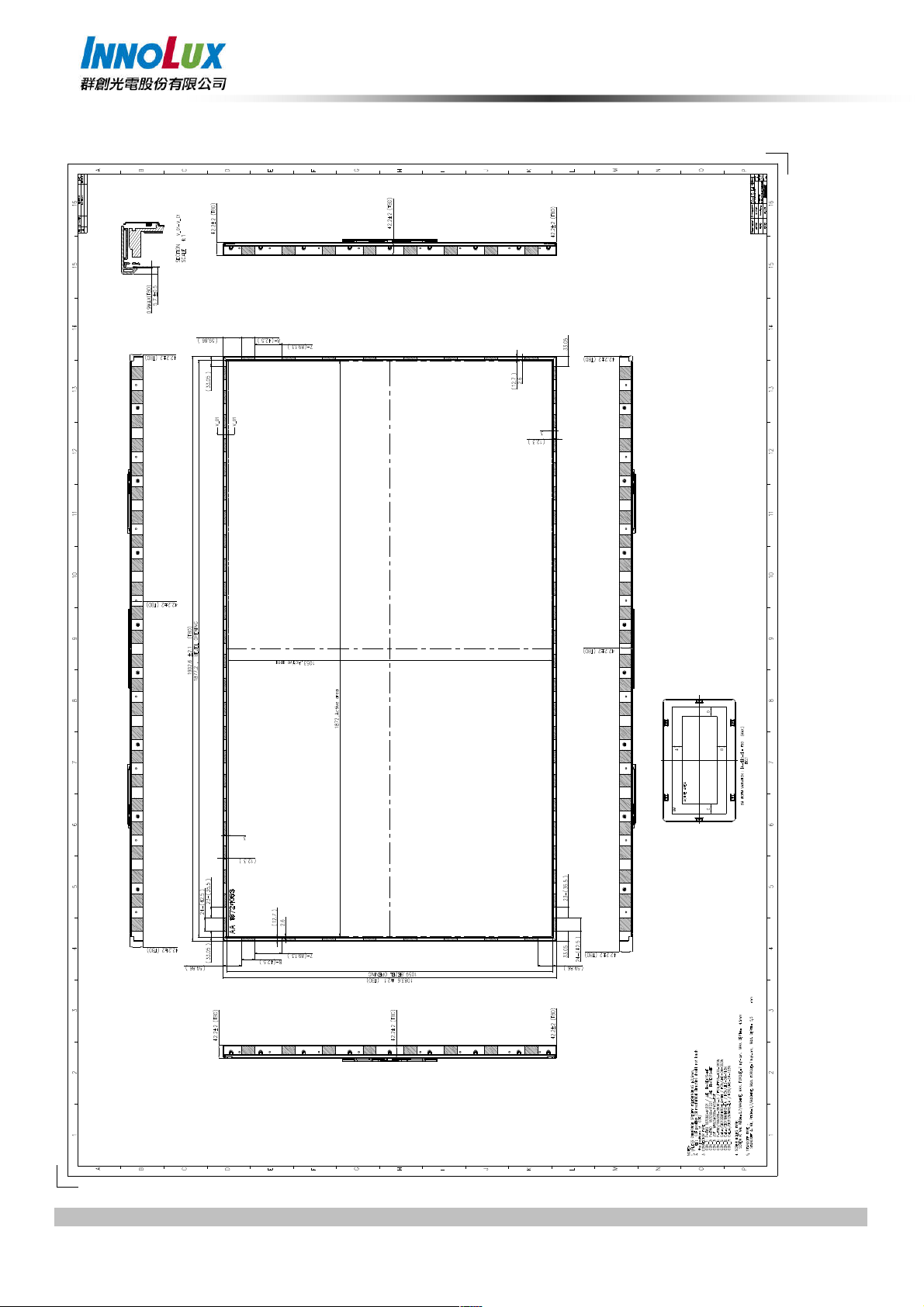

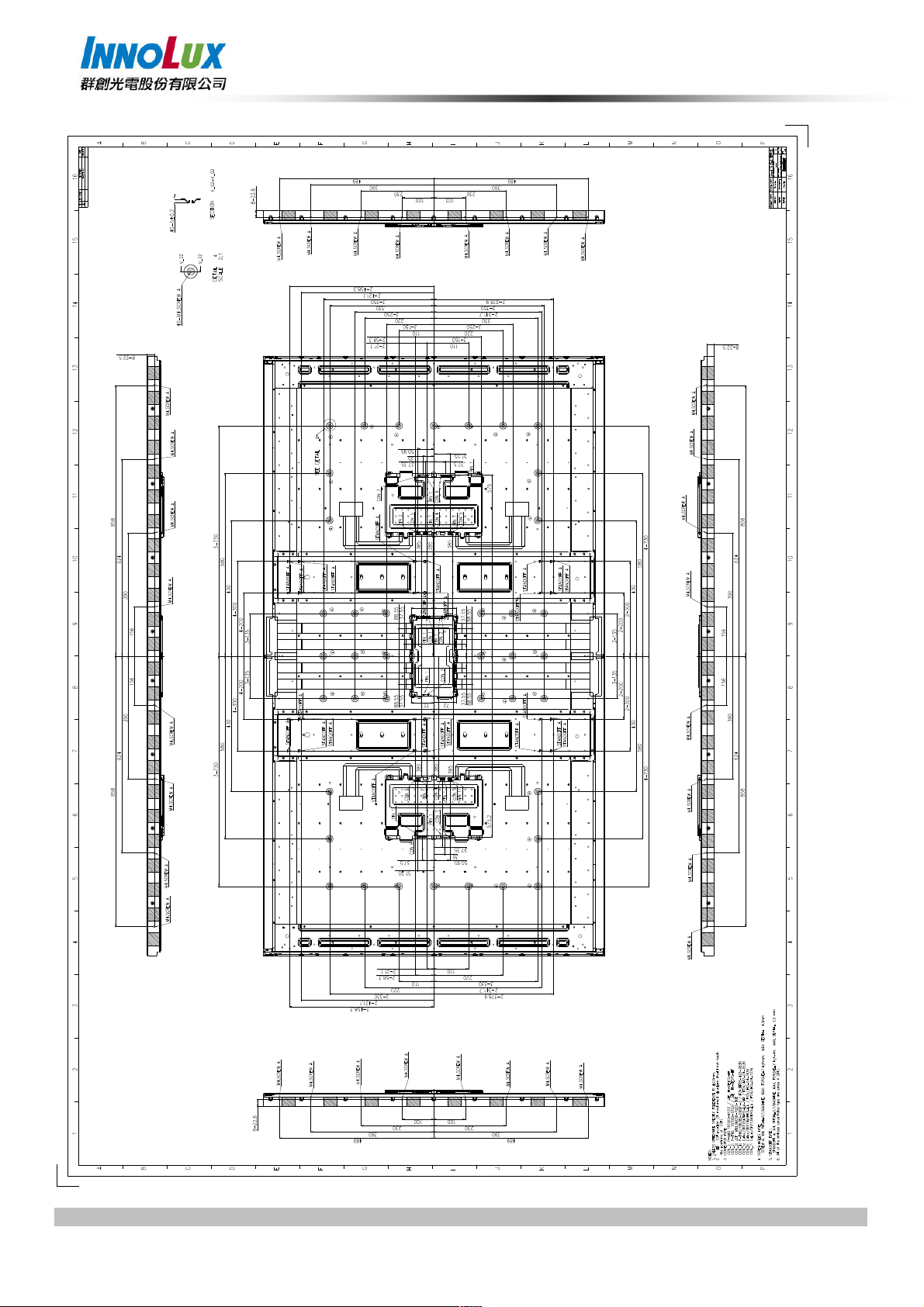

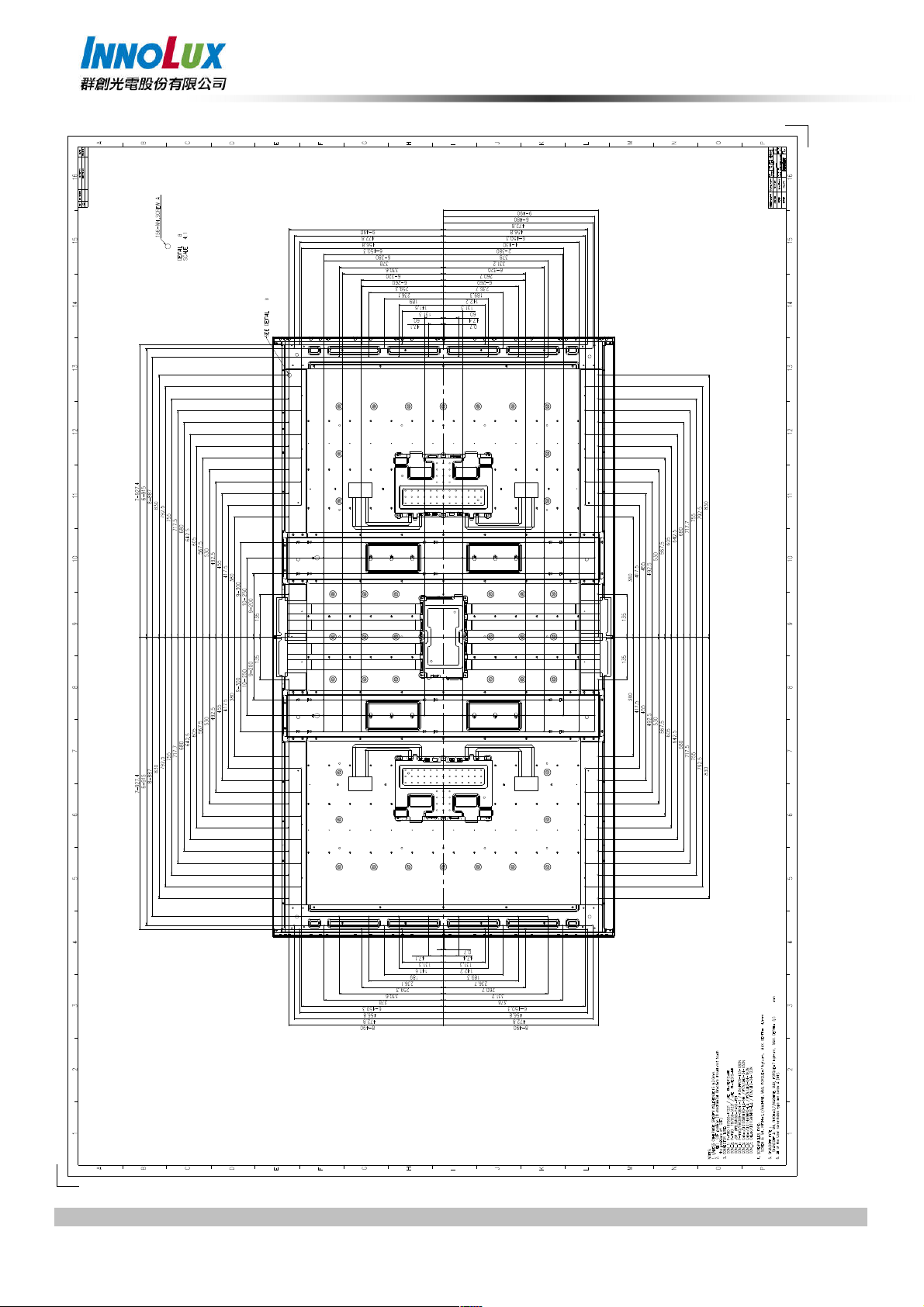

11. MECHANICAL CHARACTERISTIC ........................................................................................................................49

Version 0.2 3 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

REVISION HISTORY

Version Date

Ver. 0.0
Ver. 0.1

Ver. 0.2

Sept.23, 2013
Oct.21, 2013

Oct.23, 2013

Page

(New)

All
P 6
P 13
P 14
P 17
P 47/48
P 49/50/51
P 28/29

Section

All

1.4

3.2.1

3.2.2

5.1.1
10
11
6

Description

The Tentative specification was first issued.
Update MECHANICAL SPECIFICATIONS
Update CONVERTER CHARACTERISTICS
Update CONVERTER INTERFACE CHARACTERISTICS
Update TFT LCD MODULE
Update PACKAGING
Update MECHANICAL CHARACTERISTIC
Update INTERFACE TIMING

Version 0.2 4 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

1. GENERAL DESCRIPTION

1.1 OVERVIEW

V850DK1-KD1 is a 84.5” TFT Liquid Crystal Display module with LED Backlight unit and 16 Lane V-by-one

interface. This module supports 3840 x 2160 QF HDTV format and can display true 1.07G colors (8-bit+FRC).

The driving board module for backlight is built-in.

1.2 FEATURES

－ High brightness (500 nits)

－ High contrast ratio (3000 :1)

－ Fast response time (Gray to Gray typical : 6.5ms)

－ High color saturation (NTSC 100%)

－ Quad Full HDTV (3840 x 2160 pixels) resolution, true Quad Full HDTV format

－ DE (Data Enable) only mode

－ LVDS (Low Voltage Differential Signaling) interface

－ Optimized response time for 100Hz/120Hz frame rate

－ Viewing Angle : 176(H)/176(V) (CR>20) VA technology

－ Ultra wide viewing angle: Super MVA technology

－ RoHs compliance

－ Input frame rate : FHD 100/120Hz, FHD 50/60Hz or QFHD 24/30Hz,

Output frame rate: QFHD 100/120Hz , QFHD 100/120Hz or QFHD 120Hz/120Hz

1.3 GENERAL SPECIFICATIONS

Item Specification Unit Note

Active Area 1872(H)*1053(V) (84.5” diagonal) mm

Bezel Opening Area 1877.2(H)*1059.0(V) mm

Driver Element a-si TFT active matrix - -

Pixel Number 3840 x R.G.B. x 2160 pixel -

Pixel Pitch(Sub Pixel) 0.4875 (H) x 0.4875 (V) mm -

Pixel Arrangement RGB vertical stripe - -

Display Colors 1.07G colors (8-bit+FRC) color -

Display Operation Mode Transmissive mode / Normally black - -

Surface Treatment Anti-Glare coating (Haze 0.5%) - (2)

(1)

Rotation Function

Display Orientation

Note (1) Please refer to the attached drawings in chapter 9 for more information about the front and back outlines.

Note (2) The spec of the surface treatment is temporarily for this phase. INX reserves the rights to change this feature.

Version 0.2 5 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Unachievable (3)

Signal input with “INX” (3)

PRODUCT SPECIFICATION

Note (3)

Back Side

Tcon

Board

Front Side

INX

1.4 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal (H)

Module Size

Weight TBD g

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical (V) TBD

Depth (D)

TBD

TBD 40.2 42.2 44.2 To Rear

TBD

1900.5 1902.6

1081.5 1083.6

49.8

51.8 53.8

1904.7 (1),(2)

1085.7 (1),(2)

To converter

cover

Note (2) Module Depth does not include connectors.

Version 0.2 6 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Value

Item Symbol

Min. Max.

Storage Temperature TST -20 +60 ºC (1)

Unit Note

Operating Ambient Temperature

Shock (Non-Operating) S

Vibration (Non-Operating) V

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90 %RH Max. (Ta 40 ºC).≦

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) Thermal management should be considered in final product design to prevent the surface temperature of display

area from being over 65 ºC. The range of operating temperature may degrade in case of improper thermal

management in final product design.

Note (3) 11 ms, half sine wave, 1 time for ± X, ± Y, ± Z.

Note (4) 10 ~ 200 Hz, 30 min, 1 time each X, Y, Z.

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough so that the

module would not be twisted or bent by the fixture.

TOP 0 50 ºC (1), (2)

- 35 G (3), (5)

NOP

- 1.0 G (4), (5)

NOP

Relative Humidity (%RH)

100

90

80

60

Operating Range

40

20

10

Storage Range

Temperature (ºC)

80 60 -20 40 0 20 -40

Version 0.2 7 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

2.2 PACKAGE STORAGE

When storing modules as spares for a long time, the following precaution is necessary.

(a) Do not leave the module in high temperature, and high humidity for a long time, It is highly recommended

to store the module with temperature from 0 to 35 ℃ at normal humidity without condensation.

(b) The module shall be stored in dark place. Do not store the TFT-LCD module in direct sunlight or fluorescent

light.

2.3 ELECTRICAL ABSOLUTE RATINGS

2.3.1 TFT LCD MODULE

Value

Item Symbol

Min. Max.

Unit Note

Power Supply Voltage

VCC -0.3 13.5 V

Logic Input Voltage VIN -0.3 3.6 V

2.3.2 BACKLIGHT CONVERTER UNIT

Item Symbol

Light Bar Voltage VW Ta = 25 ℃ - - 60 V

Converter Input Voltage VBL - 0 - 30 V

Control Signal Level - - -0.3

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation should be

restricted to the conditions described under Normal Operating Conditions.

Note (2) No moisture condensation or freezing.

Note (3) The control signals include On/Off Control and External PWM Control.

Test

Condition

Min. Type Max. Unit

RMS

- 6 V

3D Mode

(1)

Note

Version 0.2 8 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

(Ta = 25 ± 2 ºC)

Parameter Symbol

Power Supply Voltage VCC 10.8 12 13.2 V (1)

Rush Current I

White Pattern PT

Black Pattern PT

Power
consumption

Power Supply

Current

Heavy Loading pattern

Ex: Horizontal Stripe

(by cell and platform)

White Pattern PT

Black Pattern PT

Heavy Loading pattern

Ex: Horizontal Stripe

(by cell and platform)

Differential Input High

Threshold Voltage

RUSH

PT

PT

VLVTH

Min. Typ. Max.

－ －

－

－

－

－

－

－

－ －

Value

TBD

TBD

TBD

TBD

TBD

TBD

Unit Note

TBD A (2)

TBD

TBD

W

TBD

(3)

TBD

TBD

TBD

+50 mV

A

VbyOne HS

CMOS

interface

Differential Input Low

Threshold Voltage

Differential input voltage

(single-end)

Differential Input Resistor RRIN

Input High Threshold Voltage

Input Low Threshold Voltage

VLVTL

|VID|

VIH 2.7

VIL 0

-50

200

80 100 120

－ －

－

－

－

600 mV

3.3 V

0.7 V

mV

(4)

o

Version 0.2 9 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Note (1) The module should be always operated within the above ranges. The ripple voltage should be controlled under

10% of Vcc (Typ.)

Note (2) Measurement condition :

Note (3) The specified power supply current is under the conditions at Vcc = 12 V, Ta = 25 ± 2 ºC, fv = 120 Hz, whereas a

power dissipation check pattern below is displayed.

a. White Pattern

GND

b. Black Pattern

Vcc rising time is 470us

Vcc

0.9Vcc

0.1Vcc

470us

c. Heavy Loading pattern Ex: Horizontal Stripe

Active Area

Active Area

R G B R G B R G B

R G BR G B R G BR G B R G BR G B
R G B R G B R G B

R G BR G B R G BR G B R G BR G B

R G B R G B R G B

R G B R G B R G BR G B R G B R G B
R G B R G B R G B

R G B R G B R G BR G B R G B R G B

R G B R G B R G B

R G BR G B R G BR G B R G BR G B
R G B R G B R G B

R G BR G B R G BR G B R G BR G B

Version 0.2 10 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

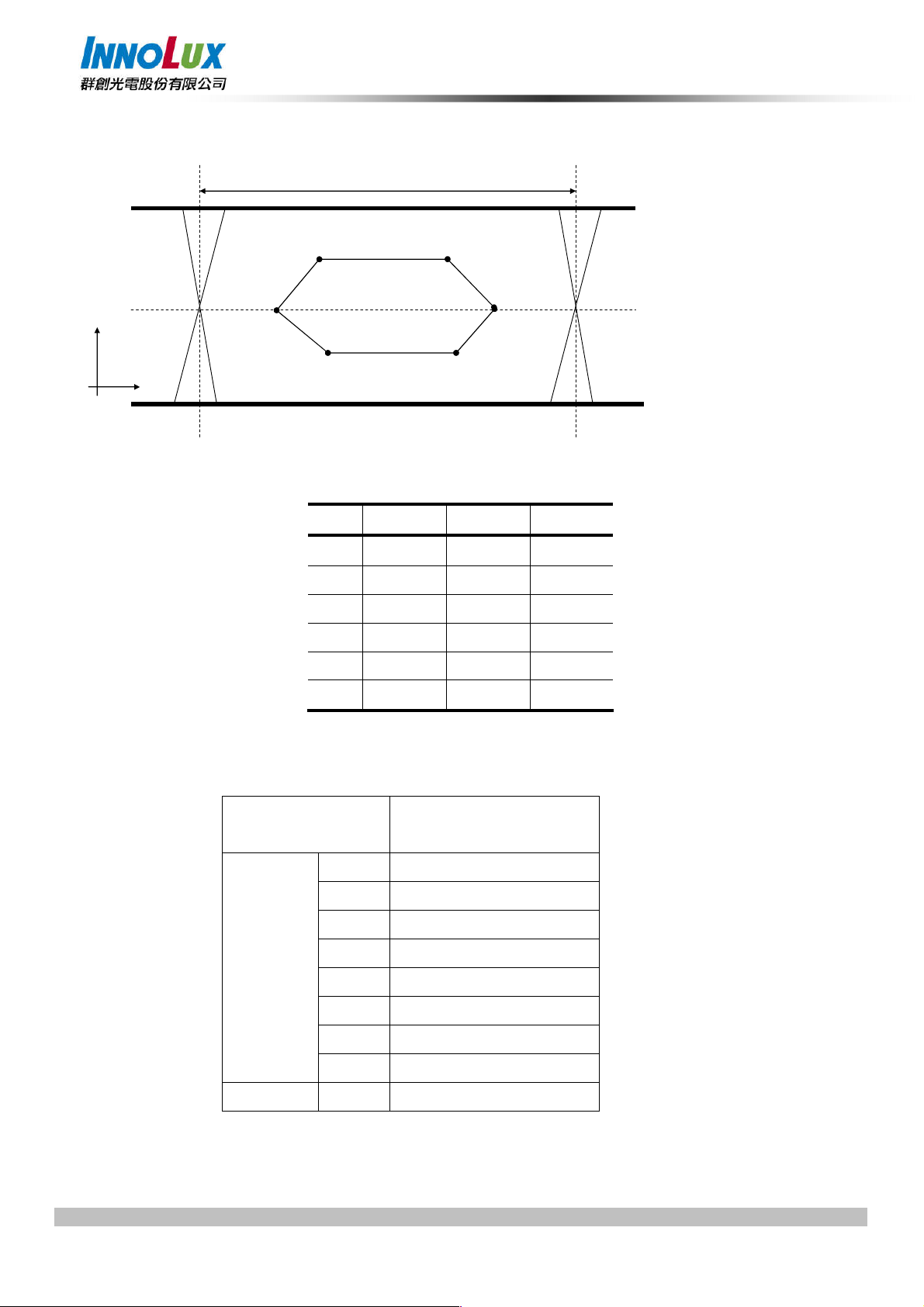

Note (4) The V by One input characteristics are as follows:

PRODUCT SPECIFICATION

Version 0.2 11 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

3.2 BACKLIGHT UNIT

3.2.1 CONVERTER CHARACTERISTICS

Parameter Symbol

PRODUCT SPECIFICATION

Value

Min. Typ. Max.

Unit

Note

P

BL(2D)

－

(445.2) (508.9)

W

(1), (2)

Power Consumption

P

BL(3D)

Converter Input Voltage VBL 22.8 24.0 25.2 VDC

I

BL(2D)

－

－

(331.7) (374.4)

W

(1), (2)

(18.4) (21.2) A Non Dimming

Converter Input Current

I

BL(3D)

－

(13.8) (15.6) A

VBL=22.8V

I

R(2D)

－ －

(28.7)

Apeak

(3), (6)

Input Inrush Current

VBL=22.8V

I

R(3D)

－ －

(46.5)

Apeak

(3), (6)

Dimming Frequency

Dimming Duty Ratio

Life Time

Note (1) The power supply capacity should be higher than the total converter power consumption PBL. Since the pulse

width modulation (PWM) mode was applied for backlight dimming, the driving current changed as PWM

duty on and off. The transient response of power supply should be considered for the changing loading

FB 90 160 190 Hz

DDR 0 - 100 %

- 30,000 - - Hrs

(5)

(4), (5)

(7)

when converter dimming.

Note (2) The measurement condition of Max. value is based on 84.5" backlight unit under input voltage 24V at

2D/3D Mode and lighting 1 hour later.

Note (3) For input inrush current measure, the VBL rising time from 10% to 90% is about 20ms.

Note (4) EPWM signal have to input available duty range. And , under 5% duty (DDR) IS only valid for electrical

operation.

Note (5) FB and DDR are available only at 2D Mode.The dimming frequency follows the frequency of EPWM in 2D

normal mode.

Version 0.2 12 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Note (6) Below diagram is only for power supply design reference.

Note (7) The lifetime is defined as the time which luminance of the LED decays to 50% compared to the initial value,

Operating condition: Continuous operating at Ta = 25±2℃

Version 0.2 13 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

External PWM Control

3.2.2 CONVERTER INTERFACE CHARACTERISTICS

PRODUCT SPECIFICATION

Parameter Symbol

On/Off Control

ON

VBLON

Voltage

Voltage

External PWM Frequency

OFF

HI

LO

VEPWM

F

EPWM

Error Signal ERR

VBL Rising Time Tr1

Control Signal Rising Time Tr

Control Signal Falling Time Tf

PWM Signal Rising Time TPWMR

PWM Signal Falling Time TPWMF

Input Impedance Rin

PWM Delay Time TPWM

Condition

Test

Value

Unit

Note

Min. Typ. Max.

－

2.0

－

5.0 V

－

－

0

2.0

－

－

0.8 V

5.25 V Duty on
(5), (6)

－

0

－

0.8 V Duty off

－ 90 160 190 Hz Normal mode (7)

－ － － － －

－

20

－ － －

－ － －

－ － －

－ －

100 ms

100 ms

50 us

ms 10%-90%VBL

Abnormal: Open

(6)

－ － －

－

－

1

100

－ －

－ －

50 us

MΩ

ms (6)

EPWM, BLON

Ton

－

300

－ －

ms

BLON Delay Time

T

on1

BLON Off Time Toff

Note (1) The Dimming signal should be valid before backlight turns on by BLON signal. It is inhibited to change the

external PWM signal during backlight turn on period.

Note (2) The power sequence and control signal timing are shown in the Fig.1. For a certain reason, the converter has a

possibility to be damaged with wrong power sequence and control signal timing.

Note (3) While system is turned ON or OFF, the power sequences must follow as below descriptions:

Turn ON sequence: VBL → PWM signal → BLON

Turn OFF sequence: BLOFF → PWM signal → VBL

Note (4) When converter protective function is triggered, ERR will output open collector status. Please refers to Fig.2.

Note (5) The EPWM interface that inserts a pull up resistor to 5V in Max Duty (100%), please refers to Fig.3.

Note (6) EPWM is available only at 2D Mode.

Note (7) EPWM signal have to input available frequency range.

Note (8) [Recommend] EPWM duty ratio is set at 100%(Max. Brightness) in 3D Mode.

Note (9) Used the EPWM signal control user dimming only in L/D OFF. When L/D ON or 2D scan mode. Please reference

－

－

300

300

－ －

－ －

ms

ms

Version 0.2 14 Date : Oct. 23 2013

5.1 Note(11) and application Note.

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

V

V

BL

V

BLON

EPWM

Tr1

BL

0.9V

0.1V

BL

2.0V

0.8V

Ton

Ton1

0

0

Toff

Backlight on duration

Tr

Tf

Ext. Dimming Function

PWMR

T

2.0V

0

0.8V

T

PWM

T

PWMF

Floating

V

W

External

PWM

Period

External

PWM Duty

100%

Fig. 1

Fig. 2 Fig. 3

Version 0.2 15 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

CNV2 CNV1

Power

OUTPUT

C

ON3

E_PWM

ERR

XRL Board

XLR Board

XLL

Board

XRR

Board

XRL Board

XLR Board

XLL Board

XRR

Board

4. BLOCK DIAGRAM OF INTERFACE

4.1 TFT LCD MODULE

PRODUCT SPECIFICATION

TFT LCD PANEL

(3840x3x2160)

C Board

VbyOne FFC

INPUT CONNECTOR

VBL

GND

CN2: JH2-D4-143N or

CI0114M1HER0-LA

BLON

INPUT CONNECTOR

CONVERTER

CONNECTOR

LED

BACKLIGHT

UNIT

Version 0.2 16 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

5 .INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

CNV1 Connector Pin Assignment (JAE FI-RE51S-HF)

Pin Name Description Note

1 N.C. No Connection (11)
2 N.C. No Connection (11)
3 N.C. No Connection (11)
4 N.C. No Connection (11)
5 N.C. No Connection (11)
6 N.C. No Connection (11)
7 N.C. No Connection (11)
8 N.C. No Connection (11)
9 N.C. No Connection (11)

10 GND Ground

11 GND Ground

PRODUCT SPECIFICATION

12 GND Ground
13 GND Ground
14 GND Ground
15 L/R_O Output signal for Glasses Left Right signal, (6)
16 L/R Input signal for Left/Right synchronous signal. (3) (8)
17 2D/3D 2D/3D Enable (2) (8)

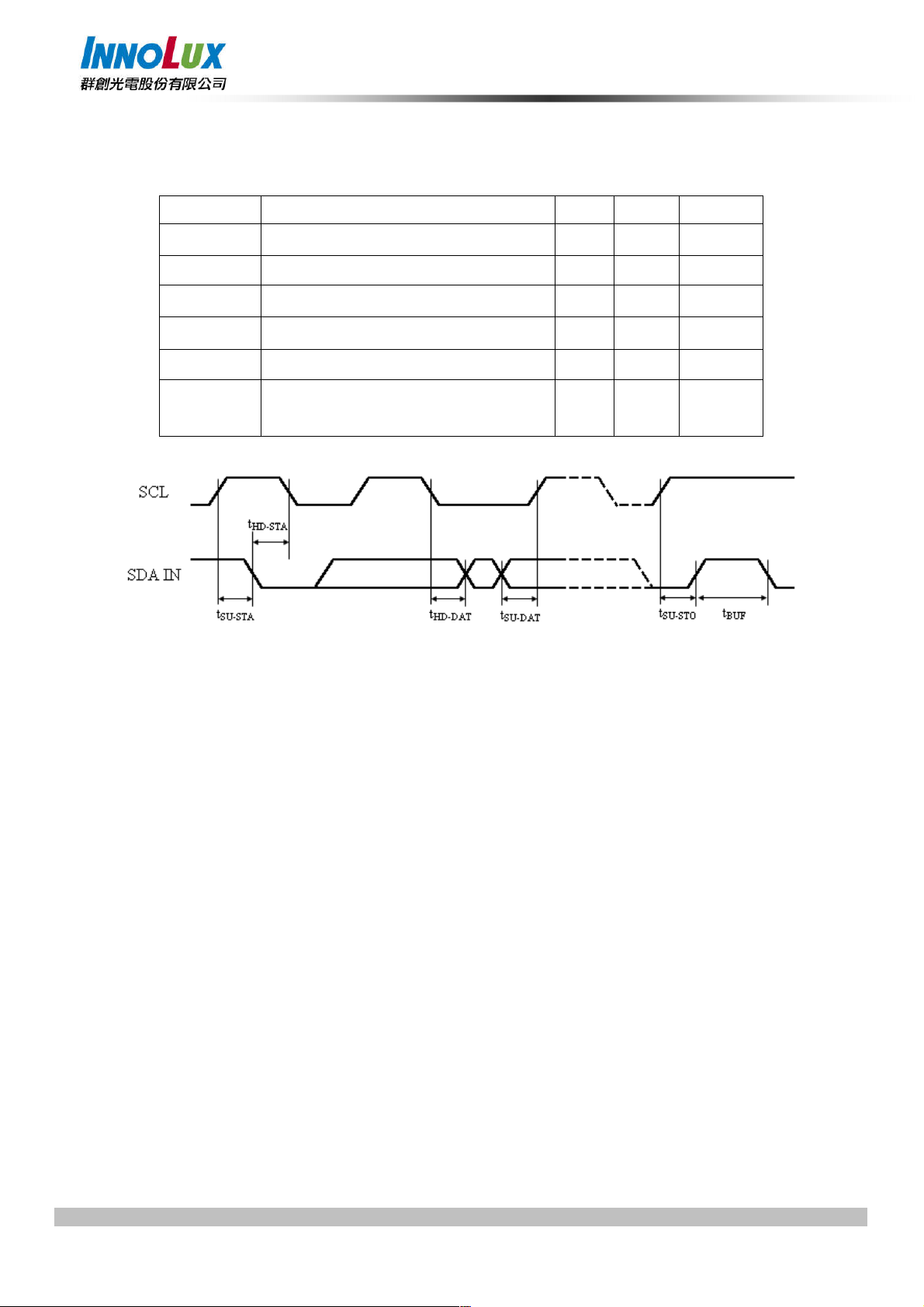

18 SDA I2C Data signal (12)
19 SCL I2C Clock signal (12)
20 WP EEPROM Write Protection
21 N.C. No Connection (11)
22 N.C. No Connection (7)
23 N.C. No Connection (11)
24 N.C. No Connection (11)
25 HTPDN Hot plug detect output, Open drain.
26 LOCKN Lock detect output, Open drain.
27 GND Ground
28 RX0N
29 RX0P
30 GND Ground
31 RX1N
32 RX1P
33 GND Ground

Version 0.2 17 Date : Oct. 23 2013

1ST Pixel Negative VbyOne differential data input in area A. Lan 0

(1)

1ST Pixel Positive VbyOne differential data input in area A. Lan 0

2ND Pixel Negative VbyOne differential data input in area A. Lan 1

(1)

2ND Pixel Positive VbyOne differential data input in area A. Lan 1

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

34
35

RX2N
RX2P

3RD Pixel Negative VbyOne differential data input in area A. Lan 2
3RD Pixel Positive VbyOne differential data input in area A. Lan 2

(1)

36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

GND
RX3N
RX3P
GND
RX4N
RX4P
GND
RX5N
RX5P
GND
RX6N
RX6P
GND
RX7N
RX7P

Ground

4TH Pixel Negative VbyOne differential data input in area A. Lan 3

(1)

4TH Pixel Positive VbyOne differential data input in area A. Lan 3

Ground

5TH Pixel Negative VbyOne differential data input in area A. Lan 4

(1)

5TH Pixel Positive VbyOne differential data input in area A. Lan 4

Ground

6TH Pixel Negative VbyOne differential data input in area A. Lan 5

(1)

6TH Pixel Positive VbyOne differential data input in area A. Lan 5

Ground

7TH Pixel Negative VbyOne differential data input in area A. Lan 6

(1)

7TH Pixel Positive VbyOne differential data input in area A. Lan 6

Ground

8TH Pixel Negative VbyOne differential data input in area A. Lan 7

(1)

8TH Pixel Positive VbyOne differential data input in area A. Lan 7

51

GND

CNV2 Connector pin assignment (JAE FI-RE41S-HF)

Pin Name Description Note

1

GND

2

RX8N

3

RX8P
4 GND Ground
5 RX9N
6 RX9P
7 GND Ground
8 RX10N
9 RX10P

10 GND Ground
11 RX11N

12

RX11P

Ground

Ground

1ST Pixel Negative VbyOne differential data input in area B. Lan 8
1ST Pixel Positive VbyOne differential data input in area B. Lan 8

2ND Pixel Negative VbyOne differential data input in area B. Lan 9
2ND Pixel Positive VbyOne differential data input in area B. Lan 9

3RD Pixel Negative VbyOne differential data input in area B. Lan 10
3RD Pixel Positive VbyOne differential data input in area B. Lan 10

4TH Pixel Negative VbyOne differential data input in area B. Lan 11
4TH Pixel Positive VbyOne differential data input in area B. Lan 11

(1)

(1)

(1)

(1)

13 GND Ground

Version 0.2 18 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

14 RX12N
15 RX12P
16 GND Ground

5TH Pixel Negative VbyOne differential data input in area B. Lan 12

(1)

5TH Pixel Positive VbyOne differential data input in area B. Lan 12

17 RX13N
18 RX13P
19 GND Ground
20 RX14N
21 RX14P
22 GND Ground
23 RX15N
24 RX15P
25 GND Ground
26 N.C. No Connection
27 N.C. No Connection
28 N.C. No Connection
29 N.C. No Connection
30 N.C. No Connection
31 N.C. No Connection
32 N.C. No Connection

6TH Pixel Negative VbyOne differential data input in area B. Lan 13

(1)

6TH Pixel Positive VbyOne differential data input in area B. Lan 13

7TH Pixel Negative VbyOne differential data input in area B. Lan 14

(1)

7TH Pixel Positive VbyOne differential data input in area B. Lan 14

8TH Pixel Negative VbyOne differential data input in area B. Lan 15

(1)

8TH Pixel Positive VbyOne differential data input in area B. Lan 15

33 N.C. No Connection
34 N.C. No Connection
35 N.C. No Connection
36 N.C. No Connection
37 N.C. No Connection
38 N.C. No Connection
39 N.C. No Connection
40 N.C. No Connection
41 N.C. No Connection

CN3 Connector Pin Assignment (SM05B-PASS-TBT(LF)(SN)(JST))

1

GND

2

GND

3

Vin Power input (+12V)

4

Vin Power input (+12V)

5

Vin Power input (+12V)

Ground
Ground

(11)

Version 0.2 19 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Note (1) V-by-One

PRODUCT SPECIFICATION

R

○

HS Data Mapping

Area Lane Data Stream

A

B

Lane 0
Lane 1
Lane 2
Lane 3
Lane 4
Lane 5
Lane 6

Lane7
Lane 8
Lane 9

Lane 10
Lane 11

Lane12
Lane 13
Lane 14
Lane 15

1, 9, 17, ..........., 1905, 1913

2, 10, 18, ........., 1906, 1914

3, 11, 19, ........., 1907, 1915

4, 12, 20, ........., 1908, 1916

5, 13, 21, ..........., 1909, 1917

6, 14, 22, ........., 1910, 1918

7, 15, 23, ........., 1911, 1919

8, 16, 24, ........., 1912, 1920

1921, 1929, 1937, ..........., 3825, 3833

1922, 1930, 1938, ..........., 3826, 3834

1923, 1931, 1939, ..........., 3827, 3835

1924, 1932, 1940, ..........., 3828, 3836

1925, 1933, 1941, ..........., 3829, 3837

1926, 1934, 1942, ..........., 3830, 3838

1927, 1935, 1943, ..........., 3831, 3839

1928, 1936, 1944, ..........., 3832, 3840

Version 0.2 20 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

2D/3D

Note

L or Open

2D Mode

H 3D Mode

L/R Note

L Ri

ght synchronous signal

H Left synchronous signal

L Keep low level

H Keep low level

Note (2) 2D/3D mode selection.

L= Connect to GND or Open, H=Connect to +3.3V

Note (3) Input signal for Left Right eye frame synchronous
VIL=0~0.8 V, VIH=2.0~3.3 V

Note (6) The definition of L/R_O signal as follows

L= 0V , H= +3.3V

L/R_O Note

Note (7) Interface optional pin has internal scheme as following diagram. Customer should keep the interface

voltage level requirement which including Panel board loading as below.

Version 0.2 21 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

X/B

X/B

IC

1K ohm

VL < V

IL

IC

1K ohm

VL < V

IL

3.3V

Panel Board System Board

>16K ohm

Interface Voltage Level
VH > V

IH

Note (8) Interface optional pin has internal scheme as following diagram. Customer should keep the interface voltage
level requirement which including Panel board loading as below.

Interface Voltage Level
VH > V

Note (9) VbyOne HS connector pin order defined as follows

IH

PCB

Panel Board System Board

>16K ohm

CNV2(41pin)

CNV1(51pin)

Version 0.2 22 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

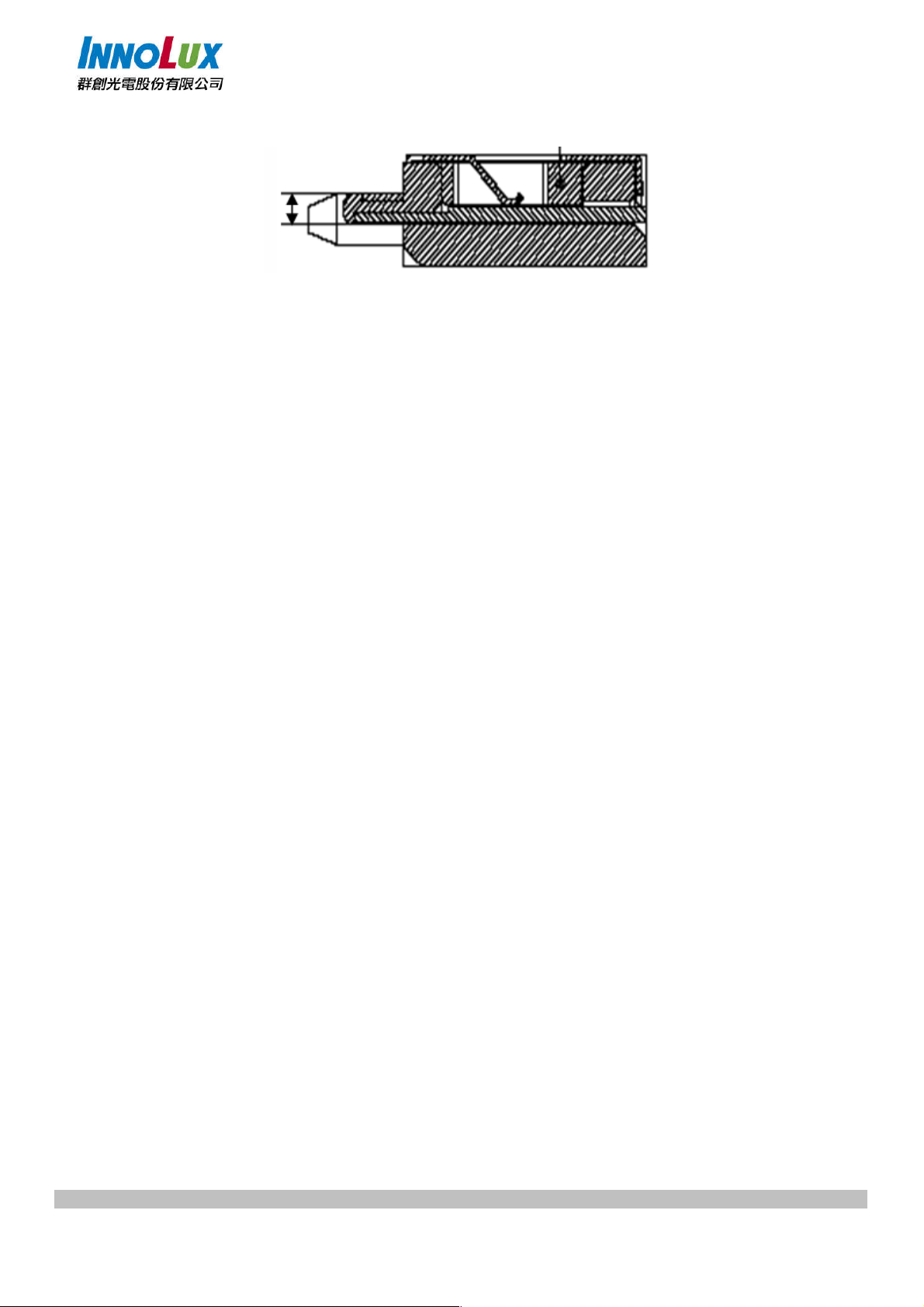

Note (10) V-by-One connector mating dimension range request is 0.93mm~1.0mm as below

Note (11) Reserved for internal use. Please leave it open.
Note (12) Local dimming table select for customer use.

Version 0.2 23 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

5.2 BACKLIGHT UNIT

The pin configuration for the housing and lead wire is shown in the table below.

CN4,5 : 196388-12041-3 (P-TWO) ; FF01-430-123A(FCN)

Pin № Symbol Feature

1 VLED

2 VLED

3 VLED

4 NC NC

5 N1

6 N2

7 N3

8 N4

9 N5

10 N6

11 N7

12 N8

CN3,6 : 196388-12041-3 (P-TWO) ; FF01-430-123A(FCN)

Positive of LED String

Negative of LED String

Pin № Symbol Feature

1 N1

2 N2

3 N3

4 N4

5 N5

6 N6

7 N7

8 N8

9 NC NC

10 VLED

11 VLED

12 VLED

Negative of LED String

Positive of LED String

Version 0.2 24 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

5.3 CONVERTER UNIT

CN1 (Header) : CI0114M1HR0-LA (CvilLux) ; JH2-D4-143N(FCN)

Pin No.

1

2

Symbol Feature

PRODUCT SPECIFICATION

3

4

5

6

7

8

9

10

11 ERR Normal (GND) ; Abnormal (Open collector)

12 BLON BL ON/OFF

13 NC NC

14 E_PWM External PWM Control

VBL +24V

GND GND

CN2 (Header) : CI0112M1HR0-LA (CvilLux) ; JH2-D4-123N(FCN)

Pin No.

1

Symbol Feature

2

3

4

5

6

7

8

9

10

11 NC NC

12 NC NC

VBL +24V

GND GND

Version 0.2 25 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Note (1) If Pin14 is open, E_PWM is 100% duty.

Note (2) Input connector pin order defined as follows

PRODUCT SPECIFICATION

Version 0.2 26 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 10-bit gray scale data input for the

color. The higher the binary input the brighter the color. The table below provides the assignment of color versus

data input.

Data Signal

Color

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Black
Red
Green
Blue
Cyan
Magenta
Yellow
White
Red (0) / Dark
Red (1)
Red (2)

:

:
Red (1021)
Red (1022)
Red (1023)
Green (0) / Dark
Green (1)
Green (2)

:

:
Green (1021)
Green (1022)
Green (1023)
Blue (0) / Dark
Blue (1)
Blue (2)

:

:
Blue (1021)
Blue (1022)
Blue (1023)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

Note (1) 0: Low Level Voltage，1: High Level Voltage

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1
1
1
0
0
0

:

:
1
1
1
0
0
0

:

:
0
0
0
0
0
0

:

:
0
0
0

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

1

:

:

:

:

:

:

1

1

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

1

1

1

1

1

1

0

0

0

1

0

0

0

0

0

:

:

:

:

:

:

1

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

1

1

0

1

1

0

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

1

0

0

0

1

1

1

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

1

1

1

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

0

0

0

1

1

1

1

0

0

1

1

1

0

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

;

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

1

0

0

:

:

:

:

:

:

0

1

0

1

0

0

1

1

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

1

0

0

1

0

0

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

1

0

:

:

:

:

:

:

1

0

1

1

1

0

1

1

1

Version 0.2 27 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Signal

Item Symbol

Min. Typ. Max.

Unit Note

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram. (Ta = 25 ± 2 ºC)

Frequency Data Clock 1/Tc TBD 74.3

Data skew between each

area (A/B)

Intra-Pair skew

VbyOne

Receiver

6.1.1 Timing spec for Frame Rate = 100Hz

Frame rate 2D mode

Vertical Active

Display Term

(8 Lan,1920X2160

Active Area)

Inter-pair skew

Spread spectrum
modulation range
Spread spectrum
modulation frequency

2D Mode

V back porch V_back

V front porch V_front

TBD MHZ

Total Tv TBD 2700 TBD Th

Display Tvd TBD 2160 TBD Th

Blank Tvb TBD 540 TBD Th

Tblock

-0.3

-5

clkin_mod

F

F

SSM

Fr5 TBD 100 TBD Hz

-0.06

TBD

－ －

13 TBD

2 TBD

－

－

－

－

0.06 H

0.3 UI

5 UI

TBD

TBD

TBD line
TBD line

MHz

K

Hz

(1)

(2)
(3)

(4)

(5)

(9),(10)

Tv=Tvd+Tv

(1)

Vsync width V_width

Total Th TBD 285 TBD Tc

Horizontal Active

Display Term

2D Mode

(8 Lan,1920X2160

Active Area)

Version 0.2 28 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Display Thd TBD 240 TBD

Blank Thb TBD 45 TBD Tc

H back porch H_back

H front porch H_front

Hsync width H_width

1 TBD

10 TBD

4 TBD
5 TBD

TBD line

Tc

TBD Tc
TBD Tc

TBD Tc

Th=Thd+T

(1)

6.1.2 Timing spec for Frame Rate = 120Hz

PRODUCT SPECIFICATION

Frame rate

Vertical Active

Display Term

(8 Lan,1920X2160

Active Area)

Horizontal Active

Display Term

2D Mode

3D Mode

2D Mode

2D mode

3D mode

Total Tv TBD 2250 TBD Th Tv=Tvd+Tvb

Display Tvd TBD 2160 TBD Th

Blank Tvb TBD 90 TBD Th

V back porch V_back 13 TBD

V front porch V_front

Vsync width V_width

Total Tv TBD Th

Display Tvd TBD Th

Blank Tvb TBD Th

V back porch V_back

V front porch V_front

Vsync width V_width

Total Th TBD 285 TBD Tc Th=Thd+Thb

Display Thd TBD 240 TBD Tc

Blank Thb TBD 45 TBD Tc

H back porch H_back

H front porch H_front

Hsync width H_width

Fr6 TBD 120 TBD Hz

Fr6 TBD TBD TBD Hz

2 TBD TBD line
1 TBD TBD line

TBD line
TBD line
TBD line

10 TBD TBD Tc

4 TBD TBD Tc
5 TBD TBD Tc

TBD

line

(9),(10)

(7),(9),(10)

－
－

(1)

(6), (8)

(1)

－
－

(1)

(8 Lan,1920X2160

Active Area)

3D Mode

Note (1) Please make sure the range of pixel clock has follow the below equation：
Fclkin(max) ≧ Fr ╳ Tv ╳ Th
Fr ╳ Tv ╳ Th ≧ Fclkin (min)

Total Th TBD TBD TBD Tc Th=Thd+Thb

Display Thd TBD TBD TBD Tc

Blank Thb TBD TBD TBD Tc

H back porch H_back TBD TBD TBD Tc

H front porch H_front TBD TBD TBD Tc

Hsync width H_width TBD TBD TBD Tc

－
－

(1)

Version 0.2 29 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Thb

Tc

～

～

～

～

INPUT SIGNAL TIMING DIAGRAM

Tvd

Tv

Tvb

DE

DCLK

DE

DATA

Th

Thd

Valid display data (240 DCLK)

T3>=2H

T4>=1H

T5>=13H

T0>=4 Tc

T1>=5 Tc

T2>=10 Tc

Version 0.2 30 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Note (2) Data skew between areas

PRODUCT SPECIFICATION

Note (3) VbyOne HS Intra-pair skew

Version 0.2 31 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Note (4) VbyOne HS Inter-pair skew.

Note (5) The SSCG (Spread spectrum clock generator) is defined as below figures.

Note (6) Please fix the Vertical timing (Vertical Total =TBD / Display = TBD / Blank = TBD) in 120Hz 3D mode
Note (7) In 3D mode, the set up Fr6 in Typ. ±3 Hz .In order to ensure that the electric function performance to avoid
no display symptom.(Except picture quality symptom.)
Note (8) In 3D mode, the set up Tv and Tvb in Typ. ±30.In order to ensure that the electric function performance to

avoid no display symptom.(Except picture quality symptom.)
Note (9) The frame-to-frame jitter of the input frame rate is defined as the above figures. FRn = FRn-1 ± 1.8%.
Note (10) The setup of the frame rate jitter > 1.8% may result in the cosmetic LED backlight symptom but the
electric function is not affected.

.

Version 0.2 32 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

6.2 V by One Input Signal Timing Diagram

1UI = 1/(Serial data rate)

PRODUCT SPECIFICATION

B

Y

X

X=0 UI

A

F

C

D

E

X=1 UI

Y=0mV

Table 1 Eye Mask Specification

X [UI] Y [mV] Note

A 0.25 0 (1)
B 0.3 50 (1)
C 0.7 50 (1)
D 0.75 0 (1)
E 0.7 -50 (1)

F 0.3 -50 (1)

Note (1) Input levels of V-by-One HS signals are comes from “V-by-One HS Stander Ver.1.4”

6.3 Byte Length and Color mapping of V-by-One HS

Packer input &

30bpp RGB (10bit)

Unpacker output

D[0] R[2]
D[1] R[3]
D[2] R[4]
D[3] R[5]

Byte 0

D[4] R[6]
D[5] R[7]
D[6] R[8]
D[7] R[9]

Byte 1 D[8] G[2]

Version 0.2 33 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

D[9] G[3]
D[10] G[4]
D[11] G[5]
D[12] G[6]
D[13] G[7]
D[14] G[8]
D[15] G[9]
D[16] B[2]
D[17] B[3]
D[18] B[4]

Byte 2

Byte 3

D[19] B[5]
D[20] B[6]
D[21] B[7]
D[22] B[8]
D[23] B[9]
D[24] X
D[25] X
D[26] B[0]
D[27] B[1]
D[28] G[0]
D[29] G[1]
D[30] R[0]
D[31] R[1]

Version 0.2 34 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

100ms

T6

6.4 POWER ON/OFF SEQUENCE

To prevent a latch-up or DC operation of LCD module, the power on/off sequence should be as the diagram

below.

0.5≦T1≦10ms
0≦T2≦200ms
0≦T3≦50ms
500ms ≦T4

0V

0.1VCC

T2

T1

T3

0.1Vcc

T4

VALID

V-by-One Signals

0V

Power On

Power Off

0≦T7≦T2
0≦T8≦T3

T7

T8

Option Signals

(2D/3D, LD_EN)

T13

700ms≦T13

T14

Host I2C Command

Backlight (Recommended)

500ms≦T5

≦

50%

T5

50%

T6

Power ON/OFF Sequence

Vcc Dip

T15≦10ms

Vcc

Vcc(typ.) x 0.85

T15

Version 0.2 35 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

2D/3D

Scalar Black Pattern

Insertion

6.5 2D/3D MODE CHANGE SIGNAL SEQUENCE WITHOUT VCC TURN OFF AND TURN ON

VCC

0V

0.9VCC

0.1VCC

0.5≦T1≦10ms

0≦T2≦200ms

LVDS Signals

0V

Power On

T1

T2

Scalar send
Black Pattern

0≦T7≦T2

0≦T10≦10m

3D to 2D
2D to 3D

T7

T10

0≦T9≦10ms

10≦T12≦20ms

T9

T12

Backlight ON/OFF

500ms≦T5

500ms≦T11

T5

T11

Note (1) The supply voltage of the external system for the module input should follow the definition of Vcc.
Note (2) Apply the LED voltage within the LCD operation range. When the backlight turns on before the LCD operation or the

LCD turns off before the backlight turns off, the display may momentarily become abnormal screen.

Note (3) In case of Vcc is in off level, please keep the level of input signals on the low or high impedance. If T2<0,that maybe

cause electrical overstress failure.
Note (4) T4 should be measured after the module has been fully discharged between power off and on period.
Note (5) Interface signal shall not be kept at high impedance when the power is on.
Note (6) When 2D/3D mode is changed, TCON will insert black pattern internally. During black insertion, TCON would load

required optical table and TCON parameter setting. The black insertion time should be longer than 650ms because

TCON must recognize 2D or 3D format and set the correct parameter.
Note (7) Vcc must decay smoothly when power-off.

Note (8) T5 Backlight turn on time depend on T14 command length+T13

Version 0.2 36 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Vertical Frame Rate Fr 120 Hz

The LCD module should be stabilized at given temperature for 1 hour to avoid abrupt temperature change

during measuring in a windless room.

Local Dimming Function should be Disable before testing to get the steady optical characteristics (According to

5.1 CNF1 Connector Pin Assignment, Pin no. “42”)

25±2

50±10

12±1.2

%RH

o

C

V

LCD Module

LCD Panel

Field of View = 1º

500 mm

CS - 2000

Light Shield Room

(Ambient Luminance < 2 lux)

Version 0.2 37 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

7.2 OPTICAL SPECIFICATIONS

The relative measurement methods of optical characteristics are shown in 7.2. The following items should be

measured under the test conditions described in 7.1 and stable environment shown in 7.1.

Item Symbol Condition Min. Typ. Max. Unit

Contrast Ratio CR

Response Time Gray to gray

2D

3D

2D

3D-W

3D-D

θx=0°, θY =0°

Viewing angle at

normal direction

Center Luminance of

White

White Variation

Cross Talk CT

Red

Green

Blue

Color

L

C

δW

Rx

Ry

Gx

Gy

Bx

By

2000 3000

400 500

Typ.-

0.03

Note

- - Note (2)

6.5 13

- cd/m

60 - cd/m

1.3 - Note (6)

- 4 % Note (5)

(4) - % Note (8)

(11) - % Note (8)

(0.683)
(0.310)
(0.254)
(0.695)
(0.151)
(0.055)

Typ.+

0.03

ms Note (3)

2

Note (4)

2

Note (8)

-

-

-

-

-

-

Chromaticity

White

Correlated color

temperature

Color

Gamut

Horizontal

Viewing

Angle

Vertical

Transmission direction of

the up polarizer

Wx

Wy

C.G.

θx+

θx-

θY+

θY-

Φup

-

80 88

80 88

CR≥20

80 88

80 88

- - 90

0.280

0.290

10000

100

-

-

K

- % NTSC

-

­Deg.

-

-

Deg.

-

(1)

(7)

Version 0.2 38 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Note (1) Definition of Viewing Angle (θx, θy) :

Viewing angles are measured by Autronic Conoscope Cono-80 (or Eldim EZ-Contrast 160R).

PRODUCT SPECIFICATION

Note (2) Definition of Contrast Ratio (CR) :

θX- = 90º

6 o’clock

θy- = 90º

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) =

x-

y-

Normal

θx = θy = 0º

θy- θy+

θx−

θx+

12 o’clock direction

y+

θy+ = 90º

x+

θX+ = 90º

L1023 of Luminance Surface

L0 of Luminance Surface

L1023: Luminance of gray level 1023

L 0: Luminance of gray level 0

CR = CR (5), where CR (X) is corresponding to the Contrast Ratio of the point X at the figure in Note (6).

Note (3) Definition of Gray-to-Gray Switching Time :

The driving signal means the signal of gray level 0, 124, 252, 380, 508, 636, 764, 892 and 1023.

Gray to gray average time means the average switching time of gray level 0, 124, 252, 380, 508, 636, 764, 892 and 1023 to each

other.

Version 0.2 39 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Note (4) Definition of Luminance of White (LC) :

Active Area

(D, W)

Active Area

(0, 0)

(D, W)

PRODUCT SPECIFICATION

Measure the luminance of gray level 1023 at center point.

LC = L (5), where L (x) is corresponding to the luminance of the point X at the figure in Note (6).

Note (5) Definition of Cross Talk (CT) :

CT = | YB – YA | / YA × 100 (%)

Where :

YA = Luminance of measured location without gray level 1023 pattern (cd/m2)

YB = Luminance of measured location with gray level 1023 pattern (cd/m2)

(0, 0)

Y

(D/2,W/8)

A,U

Gray 512

Y

(D/8,W/2)

A,L

Y

(D/2,7W/8)

A, D

Y

(7D/8,W/2)

A, R

Y

(D/2,W/8)

B, U

(D/4,W/4)

Gray 1023

Y

Y

(D/8,W/2)

B, L

Y

(D/2,7W/8)

B, D

(7D/8,W/2)

A, R

(3D/4,3W/4)

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 1023 at 5 points

δW =

W

4

W

2

3W

4

(5)] L (4), L (3), L (2), L (1), [L Maximum

(5)] L (4), L (3), L (2), L (1), [L Minimum

Horizontal Line

D

D

4

D

2

1 2

5

3 4

3D

4

X

Test point :

X = 1 ~ 5

Version 0.2 40 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

6 o’clock

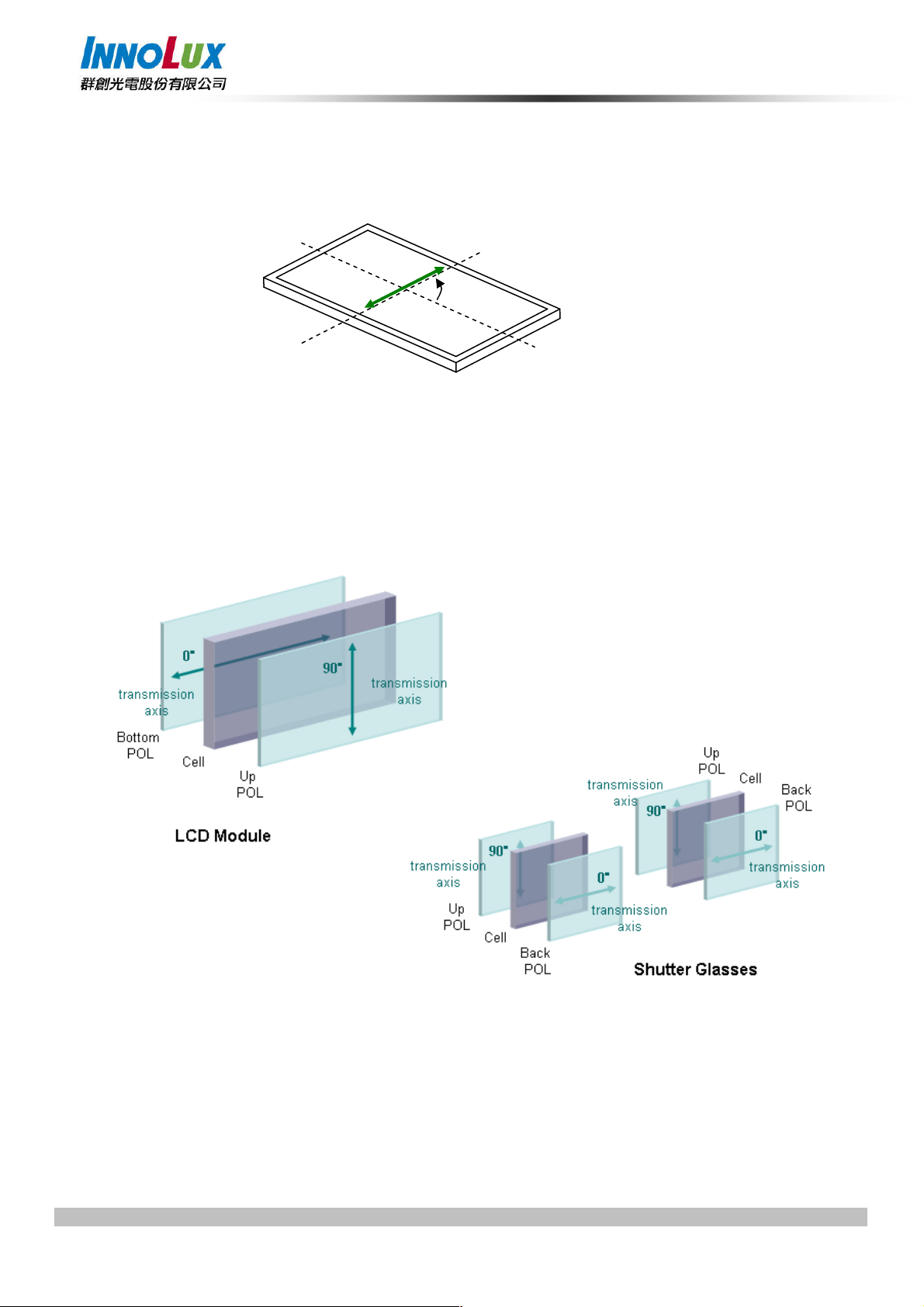

Note (7) This is a reference for designing the shutter glasses of 3D application. Definition of the transmission direction of the up

polarizer (Φ

The transmission axis of the front polarizer of the shutter glasses should be parallel to this panel transmission direction to

get a maximum 3D mode luminance.

) on LCD Module :

up-P

x-

y-

Up Polarizer

12 o’clock direction

y+

Φ

up-P

x

+

Φ=0o

Version 0.2 41 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Note (8) Definition of the 3D mode performance (measured under 3D mode, use INX’s shutter glass) :

a. Test pattern

Left eye image and right eye image are displayed alternated

WW

Left eye image: W1023; Right eye image: W1023

WB

Left eye image: W1023; Right eye image: W0

BW

Left eye image: W0; Right eye image: W1023

BB

Left eye image: W0; Right eye image: W0

b. Measurement setup

Shutter glasses are well controlled under suitable timing, and measure the luminance of the center point of the panel

through the right eye glass. The transmittance of the glass should be larger than 40.0% under 3D mode operation.

The luminance of the test pattern “WW”, denoted L(WW); the luminance of the test pattern ”WB”, denoted L(WB) ;

the luminance of the test pattern “BW”, denoted L(BW); the luminance of the test pattern “BB”, denoted “L(BB)

c. Definition of the Center Luminance of White, Lc (3D) : L(WW)

LCD Module

LCD Panel

Right Eye Shutter Glass

Field of View = 1º

500 mm

CS - 2000

Light Shield Room

(Ambient Luminance < 2 lux)

d. Definition of the 3D mode white crosstalk, CT (3D-W) :

e. Definition of the 3D mode dark crosstalk, CT (3D-D) :

Version 0.2 42 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

)3(

WDCT

≡−

)3(

DDCT

≡−

−

)()(

BBLWWL

−

)()(

BWLWWL

−

)()(

BBLWWL

−

)()(

BBLWBL

PRODUCT SPECIFICATION

8. PRECAUTIONS

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

[1] Do not apply rough force such as bending or twisting to the module during assembly.

[2] Do not apply pressure or impulse to the module to prevent the damage of LCD panel and Backlight.

[3] Bezel of Set can not press or touch the panel surface. It will make light leakage or scrape.

[4] It should be attached to the system firmly using all mounting holes.

[5] It is recommended to assemble or to install a module into the user’s system in clean working areas. The dust

and oil may cause electrical short or worsen the polarizer, do not press or scratch the surface harder than a HB

pencil lead.

[6] Use finger-stalls with soft gloves in order to keep display clean during the incoming inspection and assembly

process.

[7] Protection film for polarizer on the module should be slowly peeled off just before use so that the electrostatic

charge can be minimized.

[8] Do not disassemble the module.

[9] Always follow the correct power-on sequence when the LCD module is turned on. This can prevent the

damage and latch-up of the CMOS LSI chips.

[10] Do not plug in or pull out the I/F connector while the module is in operation, pins of I/F connector should not

be touched directly with bare hands. Do not adjust the variable resistor located on the module.

[11] Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and easily

scratched. Water, IPA (Isoproyl Alcohol) or Hexane are desirable cleaners. Do not use Ketone type materials

(ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might permanent damage to the

polarizer due to chemical reaction.

[12] Moisture can easily penetrate into LCD module and may cause the damage during operation.

[13] When storing modules as spares for a long time, the following precaution is necessary.

[13.1] Do not leave the module in high temperature, and high humidity for a long time. It is highly

recommended to store the module with temperature from 0 to 35℃ at normal humidity (under 70%)

without condensation.

[13.2] The module shall be stored in dark place. Do not store the TFT-LCD module in direct sunlight or

fluorescent light.

[14] When ambient temperature is lower than 10ºC, the display quality might be reduced. For example, the

response time will become slow, and the starting voltage of LED will be higher than that of room temperature.

8.2 SAFETY PRECAUTIONS

To optimize PID module’s lifetime and functions, operating conditions should be followed as below

[1] Normal operating condition

[1.1] Temperature : 20±15℃

[1.2] Humidity : 55±20%

[1.3] Well-ventilated place is suggested to set up PID module and system.

[1.4] Display pattern : regular switched patterns or moving pictures.

[1.4.1] Periodical power-off or screen saver is needed after long-term static display.

Version 0.2 43 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Information Technology

[1.4.2] Moving picture or black pattern is strongly recommended for screen saver.

[2] Operating requirements of PID modules and systems to prevent uneven display under long-term operating.

[2.1] PID suitable operating time : under 20 hrs a day.

[2.2] Periodical display contents should be changed from static image to moving picture.

[2.2.1] Different background and image colors changed respectively, and changed colors periodically.

[2.2.2] Background and image with large different luminance displayed at the same time should be

avoided.

[3] The startup voltage of a Backlight may cause an electrical shock while assembling with the converter. Do not

disassemble the module or insert anything into the Backlight unit.

[4] Do not connect or disconnect the module in the “Power On” condition.

[5] Do not exceed the absolute maximum rating value. (supply voltage variation, input voltage variation,

variation in part contents and environmental temperature…) Otherwise the module may be damaged.

[6] If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In case of

contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

[7] Module should be turned clockwise (regular front view perspective) when used in portrait mode.

[8] Ultra-violet ray filter is necessary for outdoor operation.

[9] Only when PID module is operated under right operating conditions, lifetime in this spec can be guaranteed.

After the module’s end of life, it is not harmful in case of normal operation and storage.

8.3 SAFETY STANDARDS

The LCD module should be certified with safety regulations as follows:

Regulatory Item

equipment

Audio/Video Apparatus

UL UL60950-1:2006 or Ed.2:2007

cUL CAN/CSA C22.2 No.60950-1-03 or 60950-1-07

CB IEC60950-1:2005 / EN60950-1:2006+ A11:2009

UL UL60065 Ed.7:2007

cUL CAN/CSA C22.2 No.60065-03:2006 + A1:2006

IEC60065:2001+ A1:2005 / EN60065:2002 + A1:2006+ A11:2008

CB

Standard

Version 0.2 44 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

X X X X X X X Y M D L N N N N

9. DEFINITION OF LABELS

9.1 MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

Model Name : V85DK1-KD1

Revision : Rev. XX, for example: A0, A1… B1, B2… or C1, C2…etc.

Serial ID : X X X X X X X Y M D L N N N N

Serial ID includes the information as below:

V850DK1-KD1 Rev. XX

Serial No.

Product Line

Year, Month, Date

INX Internal Use

INX Internal Use

Revision

INX Internal Use

MADE IN CHINA

LEOO(CAPG/CANO/VIRO)

RoHS

Manufactured Date:

Year : 2001=1, 2002=2, 2003=3, 2004=4…2010=0, 2011=1, 2012=2…

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1st to 31st, exclude I ,O, and U.

Revision Code : Cover all the change

Serial No. : Manufacturing sequence of product

Product Line : 1 → Line1, 2 → Line 2, …etc.

Version 0.2 45 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

9.2 CARTON LABEL

The barcode nameplate is pasted on each box as illustration, and its definitions are as following explanation.

P.O. NO.

Model Name: V850DK1– KD1

Carton ID: X X X X X X X Y M D X X X X

Parts ID.

Model Name V850DK1-KD1

Carton ID. Quantities
XXXXXXXXXXXXXX

Made In Taiwan (Made In China)

INX Internal Use

Year, Month, Date

INX Internal Use

Serial ID includes the information as below :

Manufactured Date:

Year: 2010=0, 2011=1, 2012=2…etc.

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1st to 31st, exclude I ,O, and U.

Revision Code: Cover all the change

Revision

INX Internal Use

Version 0.2 46 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

10. PACKAGING

10.1 PACKAGING SPECIFICATIONS

(1) 6 LCD TV modules / 1 Box
(2) Box dimensions : 2267(L) X 727 (W) X 1304 (H)
(3) Weight: approximately 350 Kg (6 modules per box)

10.2 PACKAGING METHOD

Packaging method is shown in following figures.

PRODUCT SPECIFICATION

Air / Sea / Land Transportation

(40ft / 40ft HQ Container)

Figure 10-1 packing method

Version 0.2 47 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

10.3 UN-PACKAGING METHOD

Un-packaging method is shown as following figures.

Remove Carton

PRODUCT SPECIFICATION

Figure 10-2 un-packing

Version 0.2 48 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

11. MECHANICAL CHARACTERISTIC

PRODUCT SPECIFICATION

Version 0.2 49 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Version 0.2 50 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Version 0.2 51 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

A.2 I2C timing

PRODUCT SPECIFICATION

Appendix A

Symbol Parameter Min. Max. Unit

t

Start setup time 250 - ns

SU-STA

t

Start hold time 250 - ns

HD-STA

t

Data setup time 80 - ns

SU-DAT

t

Data hold time 0 - ns

HD-DAT

t

Stop setup time 250 - ns

SU-STO

Time between Stop condition and next

t

BUF

500 - ns

Start condition

Version 0.2 52 Date : Oct. 23 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited
