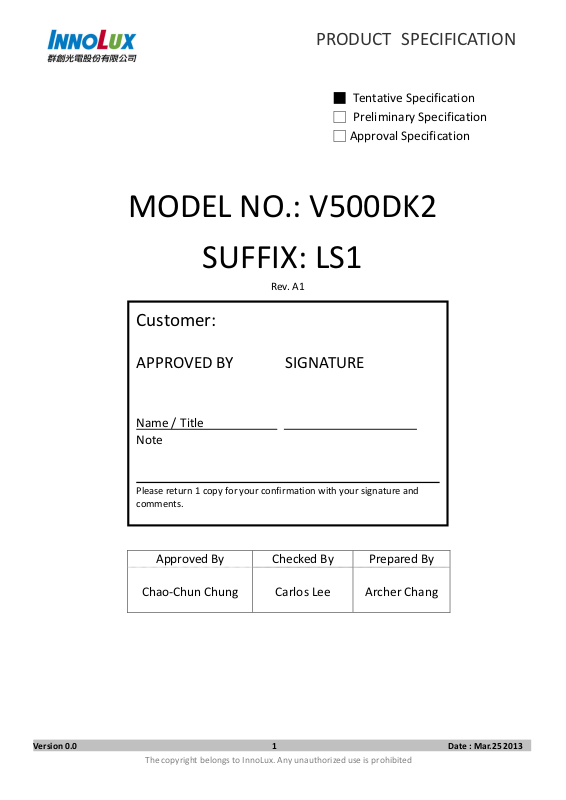

INNOLUX V500DK2.LS1 Specification

PRODUCT SPECIFICATION

Customer:

■ Tentative Specification □ Preliminary Specification

□ Approval Specification

MODEL NO.: V500DK2

SUFFIX: LS1

Rev. A1

APPROVED BY SIGNATURE

Name / Title Note

Please return 1 copy for your confirmation with your signature and comments.

Approved By Checked By Prepared By

Chao-Chun Chung

Version 0.0 1 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Carlos Lee

Archer Chang

PRODUCT SPECIFICATION

CONTENTS

CONTENTS.......................................................................................................................................................................2

REVISION HISTORY ........................................................................................................................................................4

1. GENERAL DESCRIPTION ............................................................................................................................................5

1.1 OVERVIEW ......................................................................................................................................................................... 5

1.2 FEATURES .......................................................................................................................................................................... 5

1.3 GENERAL SPECIFICATI0NS........................................................................................................................................... 5

1.4 MECHANICAL SPECIFICATIONS................................................................................................................................. 6

2. ABSOLUTE MAXIMUM RATINGS ..............................................................................................................................7

2.1 ABSOLUTE RATINGS OF ENVIRONMENT ................................................................................................................ 7

2.2 PACKAGE STORAGE ....................................................................................................................................................... 8

2.3 ELECTRICAL ABSOLUTE RATINGS............................................................................................................................. 8

2.3.1 TFT LCD MODULE ........................................................................................................................................................ 8

2.3.2 BACKLIGHT CONVERTER UNIT ............................................................................................................................... 8

3. ELECTRICAL CHARACTERISTICS..............................................................................................................................9

3.1 TFT LCD MODULE ........................................................................................................................................................... 9

3.2 BACKLIGHT UNIT.......................................................................................................................................................... 12

3.2.1 CONVERTER CHARACTERISTICS........................................................................................................................... 12

3.2.2 CONVERTER INTERFACE CHARACTERISTICS ................................................................................................... 14

4. BLOCK DIAGRAM OF INTERFACE ..........................................................................................................................16

4.1 TFT LCD MODULE ......................................................................................................................................................... 16

5 .INPUT TERMINAL PIN ASSIGNMENT.....................................................................................................................17

5.1 TFT LCD MODULE ......................................................................................................................................................... 17

5.2 BACKLIGHT UNIT.......................................................................................................................................................... 23

5.3 CONVERTER UNIT......................................................................................................................................................... 24

5.4 LVDS INTERFACE........................................................................................................................................................... 25

5.5 COLOR DATA INPUT ASSIGNMENT......................................................................................................................... 27

6. INTERFACE TIMING..................................................................................................................................................28

6.1 INPUT SIGNAL TIMING SPECIFICATIONS .............................................................................................................. 28

6.1.1 Input Timing Spec for FHD, Frame Rate = 50Hz............................................................................................ 28

6.1.2 Input Timing Spec for FHD, Frame Rate = 60Hz............................................................................................ 29

Version 0.0 2 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

6.1.3 Input Timing Spec for FHD, Frame Rate = 100Hz.......................................................................................... 29

6.1.4 Input Timing Spec for FHD, Frame Rate = 120Hz.......................................................................................... 30

6.1.5 Input Timing spec for QFHD, Frame Rate = 24Hz......................................................................................... 31

6.1.6 Input Timing spec for QFHD, Frame Rate = 30Hz......................................................................................... 31

6.2 POWER ON/OFF SEQUENCE ...................................................................................................................................... 34

7. OPTICAL CHARACTERISTICS ..................................................................................................................................36

7.1 TEST CONDITIONS ........................................................................................................................................................ 36

7.2 OPTICAL SPECIFICATIONS ......................................................................................................................................... 37

8. PRECAUTIONS ...........................................................................................................................................................42

8.1 ASSEMBLY AND HANDLING PRECAUTIONS........................................................................................................ 42

8.2 SAFETY PRECAUTIONS ................................................................................................................................................ 42

8.3 SAFETY STANDARDS.................................................................................................................................................... 42

9. DEFINITION OF LABELS ...........................................................................................................................................43

9.1 MODULE LABEL............................................................................................................................................................. 43

9.2 CARTON LABEL.............................................................................................................................................................. 44

10. PACKAGING.............................................................................................................................................................45

10.1 PACKAGING SPECIFICATIONS ................................................................................................................................ 45

10.2 PACKAGING METHOD............................................................................................................................................... 45

10.3 UN-PACKAGING METHOD ....................................................................................................................................... 46

11. MECHANICAL CHARACTERISTIC ........................................................................................................................47

Version 0.0 3 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

REVISION HISTORY

Version Date

0.0

Mar.25.2013

Page

(New)

All All

Section Description

Tentative Specification Ver 0.0 was first issued.

Version 0.0 4 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

1. GENERAL DESCRIPTION

1.1 OVERVIEW

V500DK2-LS1 is a 50” TFT Liquid Crystal Display module with LED Backlight unit and 4ch-LVDS

interface. This module supports 3840 x 2160 Quad Full HDTV format and can display true 1.07G colors

(8-bit+FRC). The driving board module for backlight is built-in.

1.2 FEATURES

－ High brightness (400 nits)

－ High contrast ratio (5000:1)

－ Fast response time (Gray to Gray typical : 6.5 ms)

－ High color saturation (NTSC 72%)

－ Quad Full HDTV (3840 x 2160 pixels) resolution, true HDTV format

－ LVDS (Low Voltage Differential Signaling) interface

－ Optimized response time for 100Hz/120Hz frame rate

－ Viewing Angle : 176(H)/176(V) (CR>20) VA Technology

－ Ultra wide viewing angle: Super MVA technology

－ RoHs compliance

－ T-con input frame rate : FHD 50/60Hz, FHD 100/120Hz or QFHD 24/30Hz,

Output frame rate: QFHD 50/60Hz, QFHD 100/120Hz or QFHD 48Hz/60Hz

1.3 GENERAL SPECIFICATI0NS

Item Specification Unit Note

Active Area 1095.84(H) x 616.41(V) (50” diagonal) mm

Bezel Opening Area 1103.04(H) x 622.41(V) mm

Driver Element a-si TFT active matrix - -

Pixel Number 3840 x R.G.B. x 2160 pixel -

Pixel Pitch(Sub Pixel) (H) x (V) mm -

Pixel Arrangement RGB vertical stripe - -

Display Colors 1.07G colors (8-bit+FRC) color -

Display Operation Mode Transmissive mode / Normally black - -

Surface Treatment

Rotation Function

Anti-Glare coating (Haze 1%)，Hardness 3H

Achievable (3)

- (2)

(1)

Display Orientation

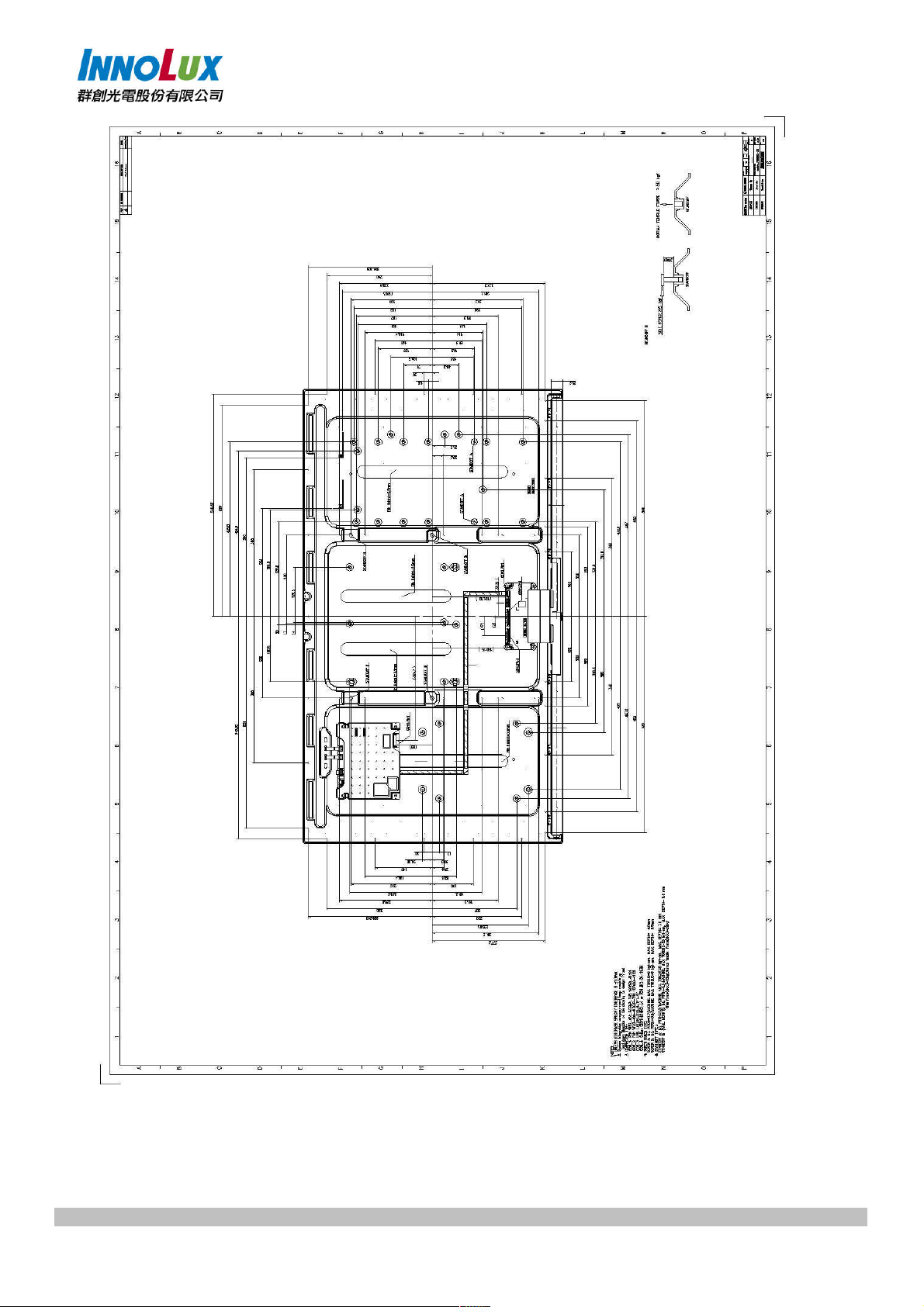

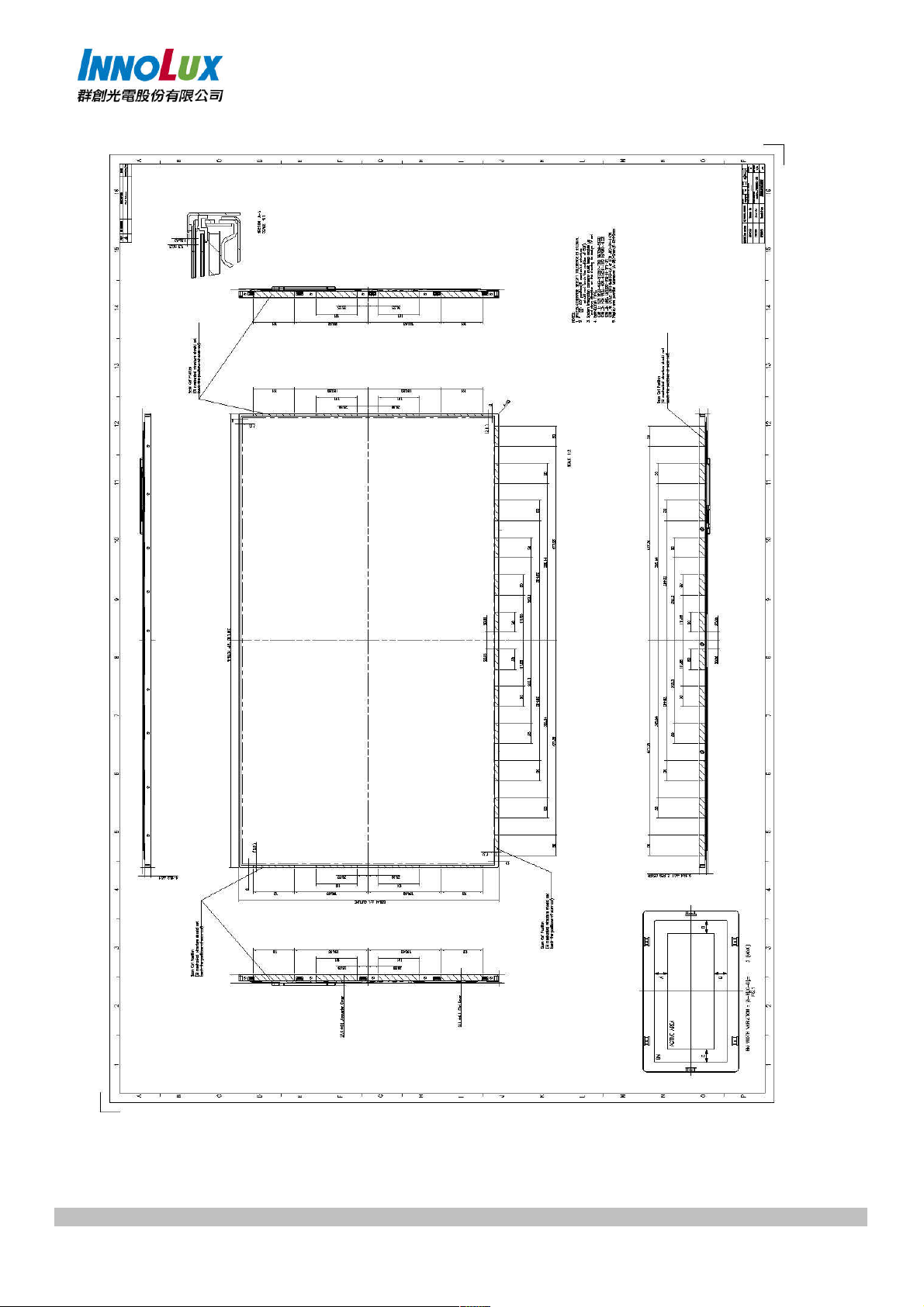

Note (1) Please refer to the attached drawings in chapter 11 for more information about the front and back outlines.

Note (2) The spec of the surface treatment is temporarily for this phase. INX reserves the rights to change this feature.

Note (3)

Version 0.0 5 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Signal input with “INX” (3)

PRODUCT SPECIFICATION

Tcon

Boar

d

Back Side

Front Side

INX

1.4 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal (H)

Module Size

Weight 11850

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical (V) 637.41 638.41 639.41 mm (1),(2)

Depth (D)

1114.04 1115.04 1116.04 mm (1),(2)

15.2 16.2 17.2 mm To Rear

26.6 27.6 28.6 mm

To converter

cover

Note (2) Module Depth does not include connectors.

Version 0.0 6 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Value

Item Symbol

Min. Max.

Storage Temperature TST -20 +60 ºC (1)

Unit Note

Operating Ambient Temperature

Shock (Non-Operating) S

Vibration (Non-Operating) V

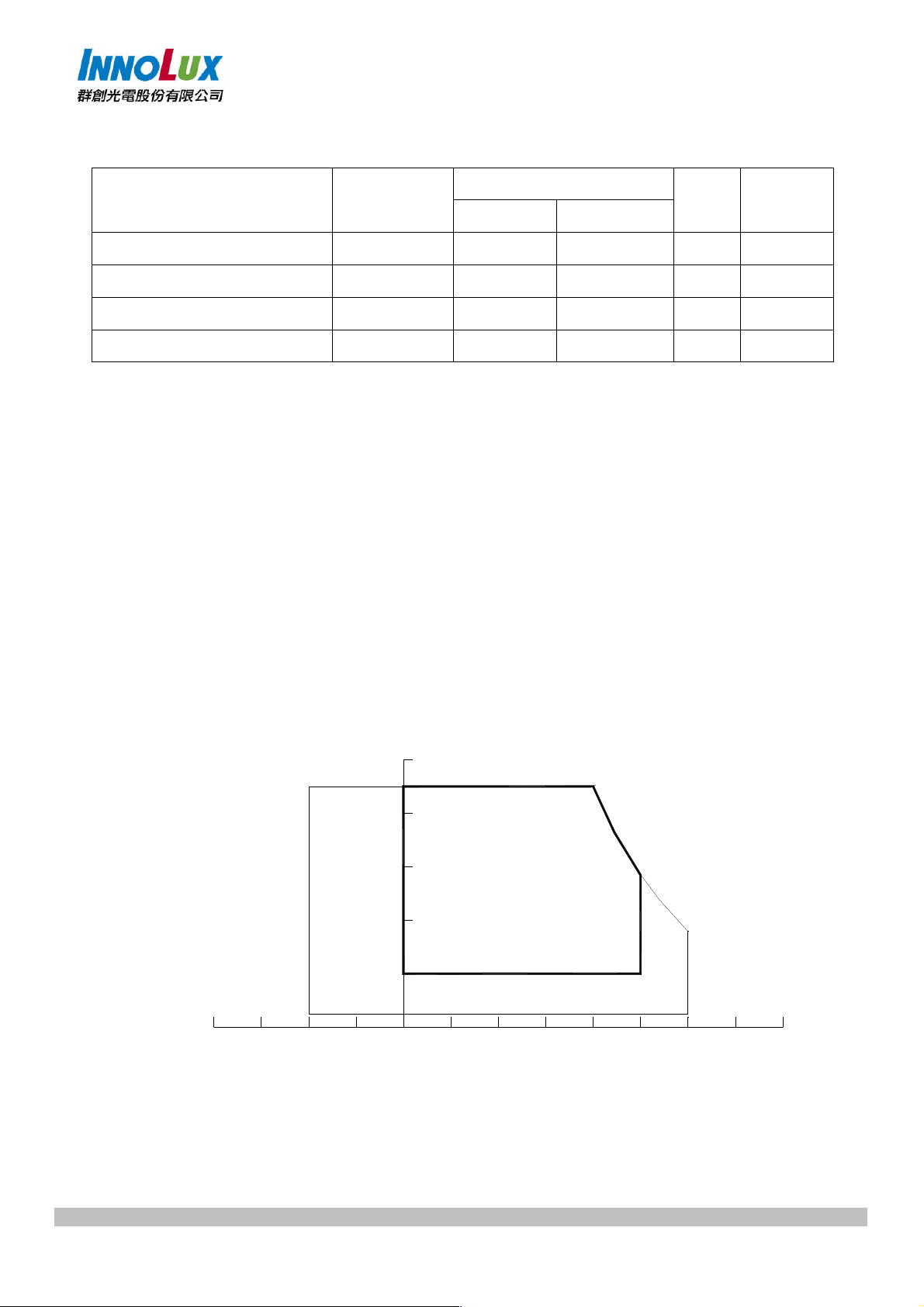

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90 %RH Max. (Ta 40 ºC).≦

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) Thermal management should be considered in final product design to prevent the surface temperature of display

area from being over 65 ºC. The range of operating temperature may degrade in case of improper thermal

management in final product design.

Note (3) 11 ms, half sine wave, 1 time for ± X, ± Y, ± Z.

Note (4) 10 ~ 200 Hz, 30 min, 1 time each X, Y, Z.

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough so that the

module would not be twisted or bent by the fixture.

TOP 0 50 ºC (1), (2)

- 35 G (3), (5)

NOP

- 1.0 G (4), (5)

NOP

Relative Humidity (%RH)

100

90

80

60

Operating Range

40

20

10

Storage Range

Temperature (ºC)

80 60 -20 40 0 20 -40

Version 0.0 7 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

2.2 PACKAGE STORAGE

When storing modules as spares for a long time, the following precaution is necessary.

(a) Do not leave the module in high temperature, and high humidity for a long time, It is highly recommended

to store the module with temperature from 0 to 35 ℃ at normal humidity without condensation.

(b) The module shall be stored in dark place. Do not store the TFT-LCD module in direct sunlight or fluorescent

light.

2.3 ELECTRICAL ABSOLUTE RATINGS

2.3.1 TFT LCD MODULE

Value

Item Symbol

Min. Max.

Unit Note

Power Supply Voltage

Logic Input Voltage VIN -0.3 3.6 V

VCC -0.3 13.5 V

2.3.2 BACKLIGHT CONVERTER UNIT

Item Symbol

Light Bar Voltage VW Ta = 25 ℃ - - 60 V

Converter Input Voltage VBL - 0 - 30 V

Control Signal Level - - -0.3

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation should be

restricted to the conditions described under Normal Operating Conditions.

Note (2) No moisture condensation or freezing.

Note (3) The control signals include On/Off Control and External PWM Control.

Test

Condition

Min. Type Max. Unit

RMS

- 6 V

3D Mode

(1)

Note

Version 0.0 8 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

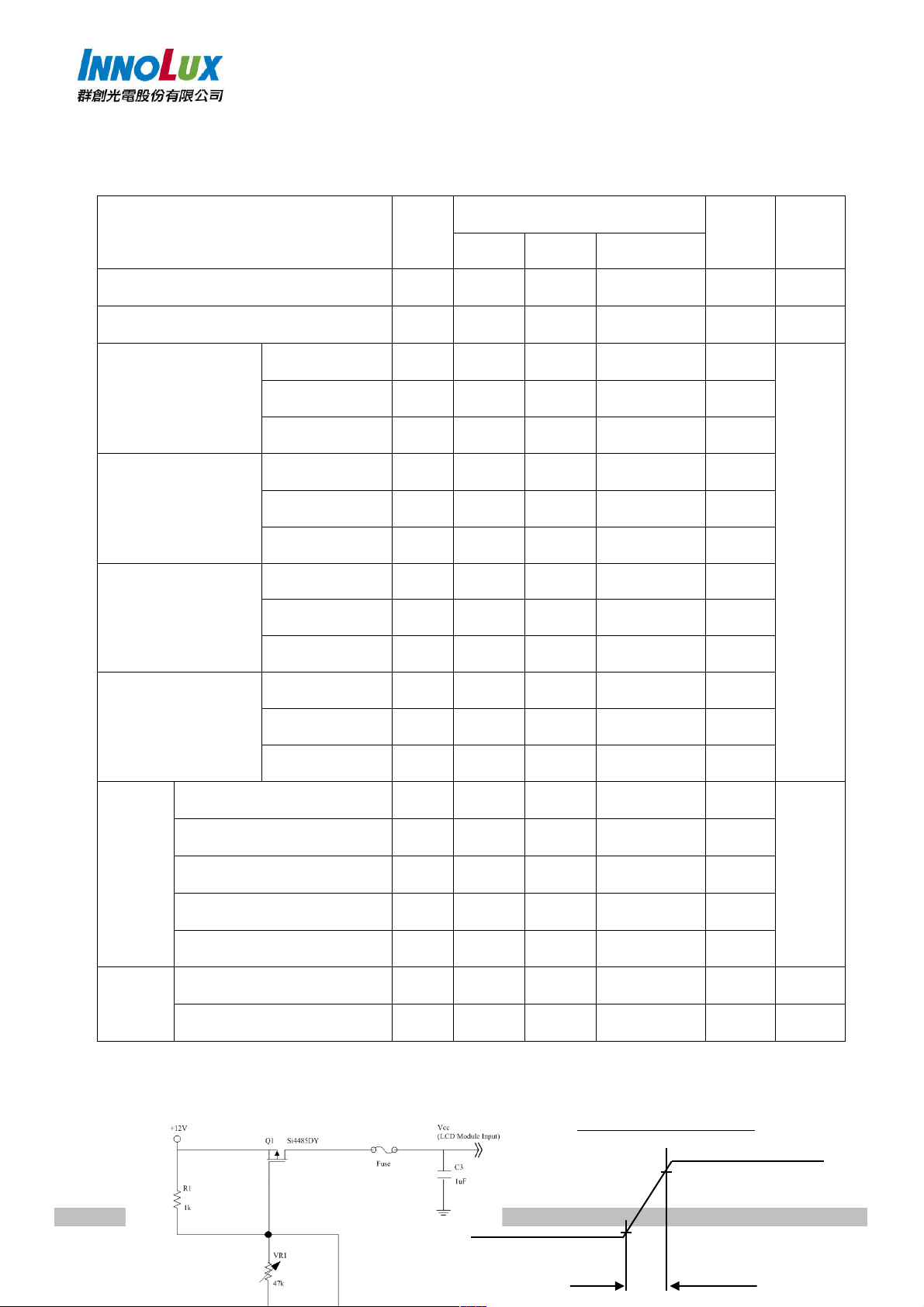

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

(Ta = 25 ± 2 ºC)

Power Supply Voltage VCC 10.8 12 13.2 V (1)

Rush Current I

OFHD 120Hz Output

Power Consumption

OFHD 120Hz Output

Power Supply Current

QFHD 60Hz Output

Power Consumption

Parameter Symbol

RUSH

White Pattern P

Horizontal Stripe PT

Black Pattern PT

White Pattern

Horizontal Stripe

Black Pattern

White Pattern P

Horizontal Stripe PT

Black Pattern PT

T

－－

T

Value

Min. Typ. Max.

－－

－

(8.916) (10.452) W

24.48

8.352

0.743

2.04

0.696

8.64 10.296 W

23.472

8.352

Unit Note

(3.1) A (2)

29.64 W

9.984 W

0.871 A

2.47 A

0.832 A (3)

28.236 W

9.984 W

White Pattern

QFHD 60Hz Output

Power Supply Current

Differential Input High Threshold Voltage

Differential Input Low

LVDS

interface

CMOS

interface

Note (1) The module should be always operated within the above ranges. The ripple voltage should be controlled under

Note (2) Measurement condition :

Threshold Voltage

Common Input Voltage VCM 1.0 1.2 1.4 V

Differential input voltage (single-end)

Terminating Resistor RT

Input High Threshold Voltage VIH 2.7

Input Low Threshold Voltage VIL 0

10% of Vcc (Typ.)

Horizontal Stripe

Black Pattern

－－

V

LVTH

V

LVTL

|VID|

+100

-300

200

－

0.72

1.956

0.696

－

100

－

0.858 A

2.353 A

0.832 A

+300 mV

-100 mV

600 mV

－

3.3 V

0.7 V

Vcc rising time is 470us

(4)

ohm

Vcc

0.9Vcc

Version 0.0 9 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

GND

0.1Vcc

470us

PRODUCT SPECIFICATION

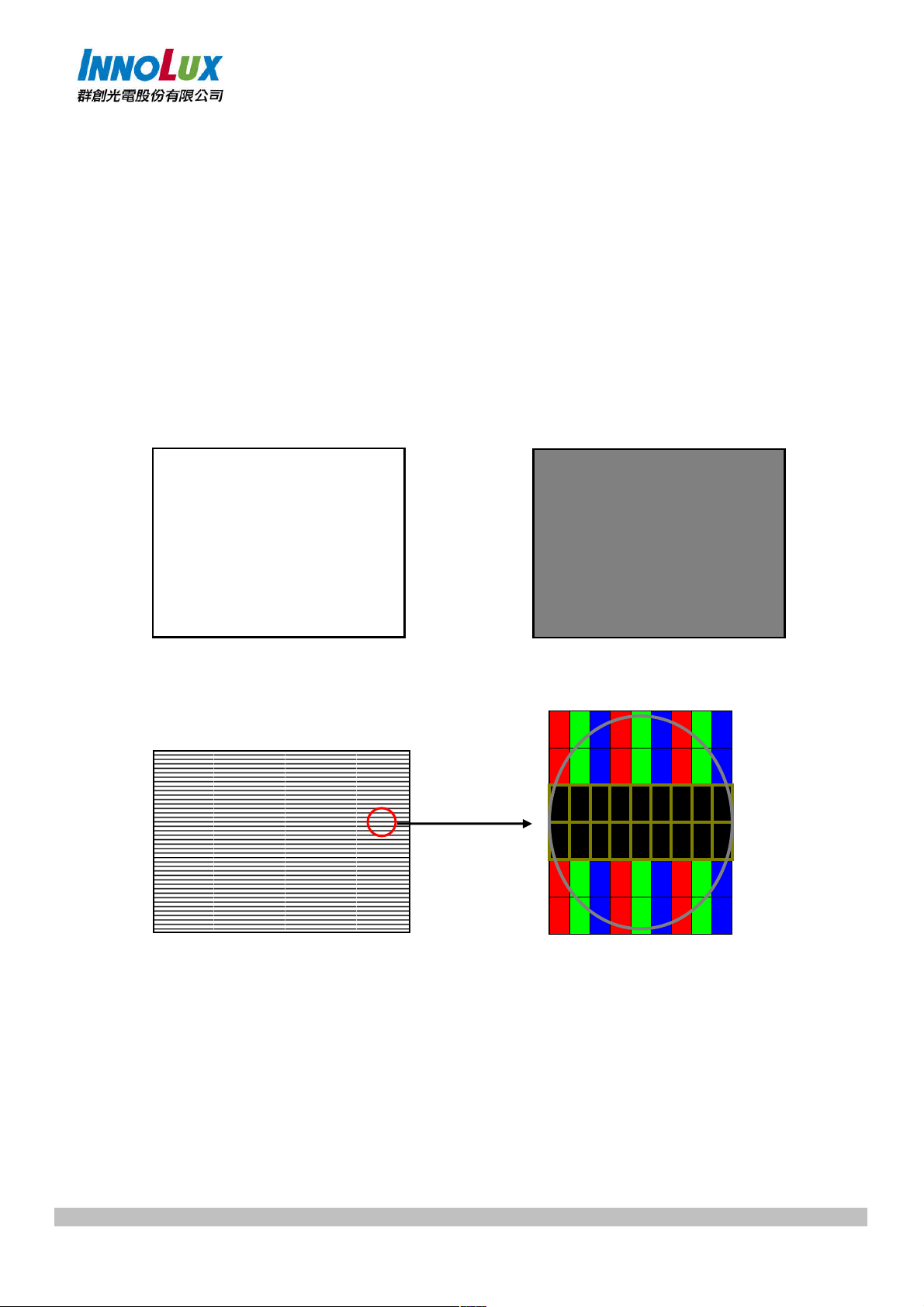

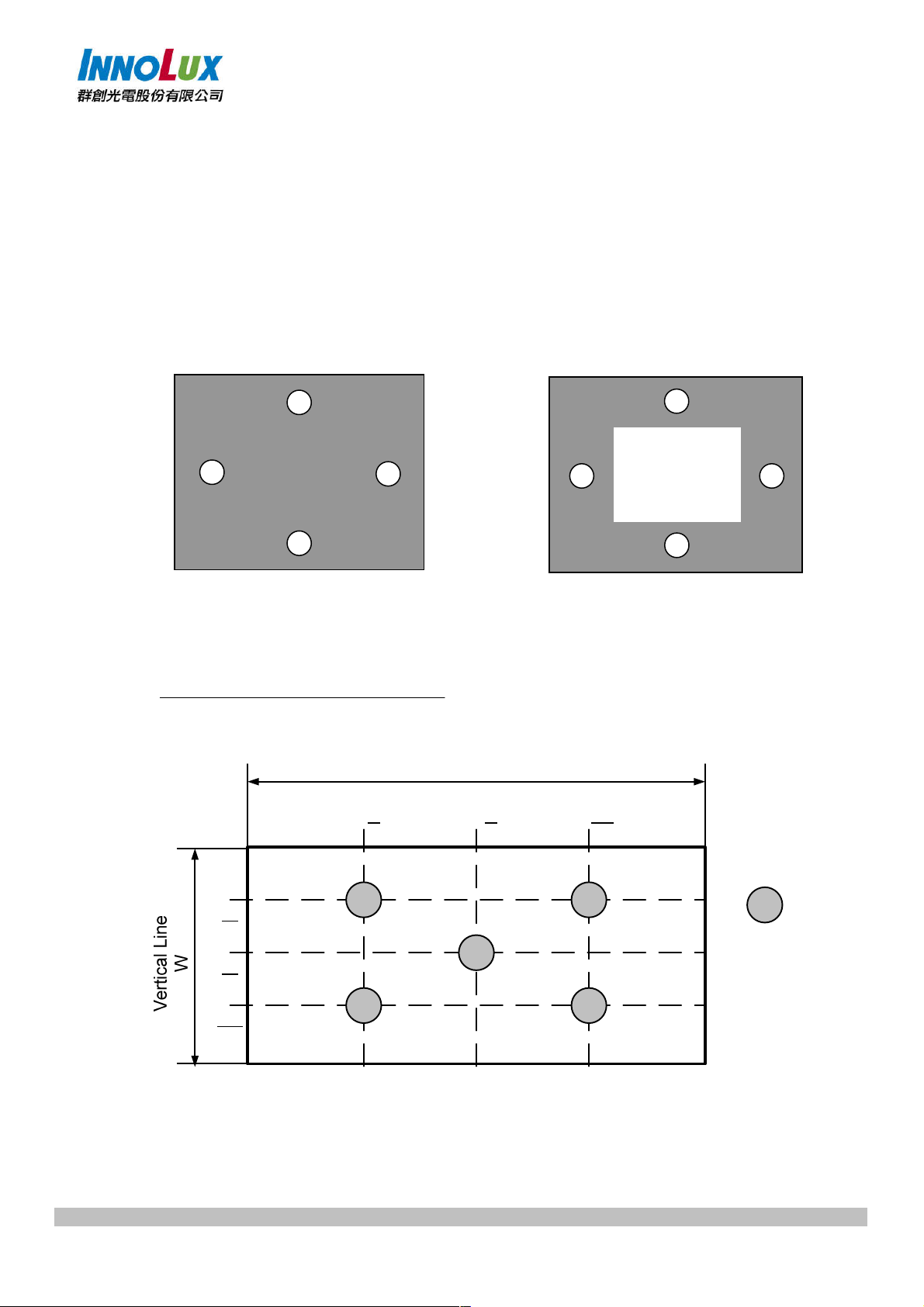

Note (3) The specified power supply current is under the conditions at Vcc = 12 V, Ta = 25 ± 2 ºC, fv = 60/120 Hz, whereas

a power dissipation check pattern below is displayed.

a. White Pattern

Active Area

c. Heavy Loading pattern

b. Black Pattern

Active Area

R G B R G B R G B

R G BR G B R G BR G B R G BR G B R G B R G B R G B

R G BR G B R G BR G B R G BR G B

R G B R G B R G B

R G B R G B R G BR G B R G B R G B R G B R G B R G B

R G B R G B R G BR G B R G B R G B

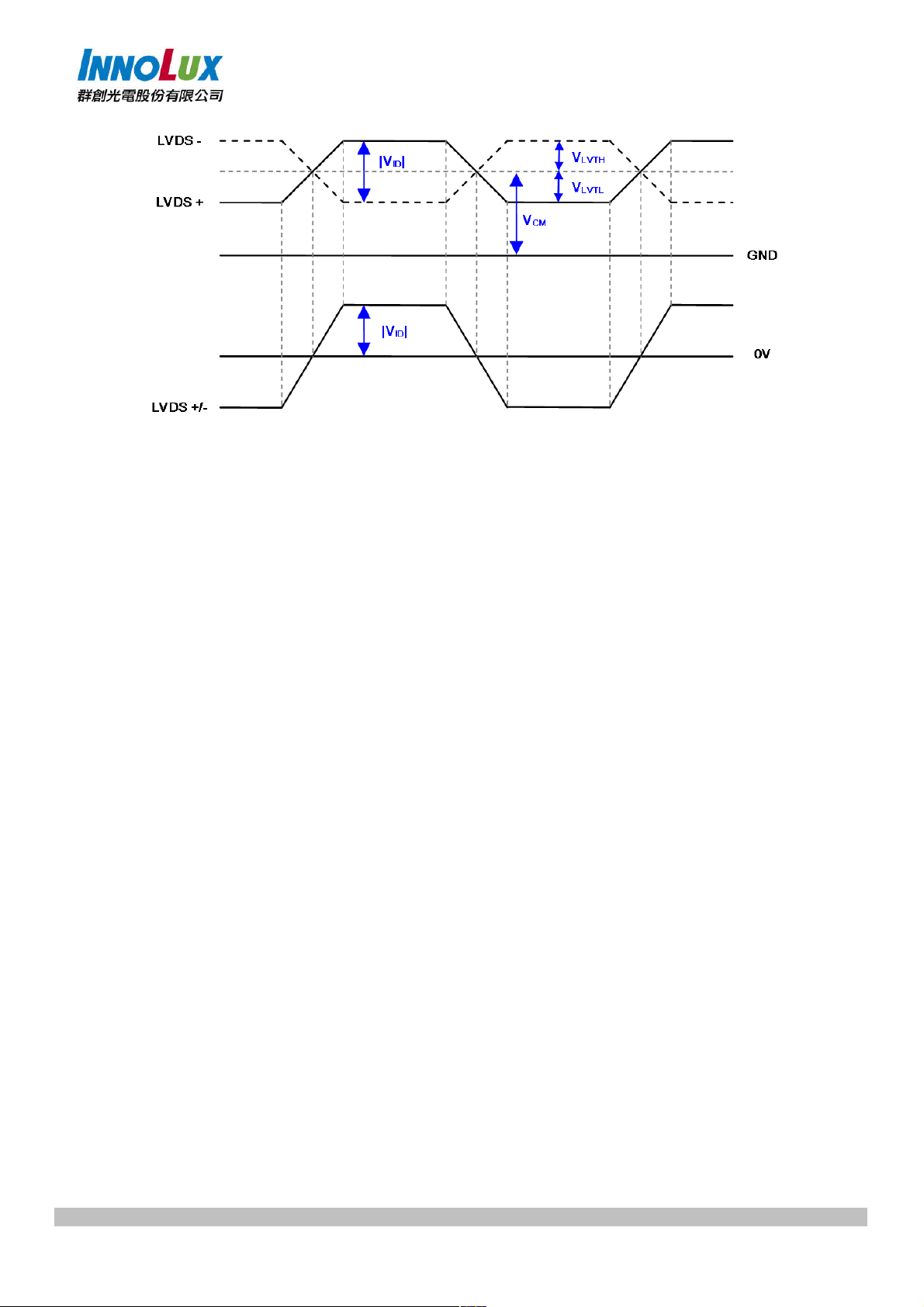

Note (4) The LVDS input characteristics is shown as below :

Version 0.0 10 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

R G B R G B R G B

R G BR G B R G BR G B R G BR G B R G B R G B R G B

R G BR G B R G BR G B R G BR G B

PRODUCT SPECIFICATION

Version 0.0 11 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

3.2 BACKLIGHT UNIT

3.2.1 CONVERTER CHARACTERISTICS

Parameter Symbol

P

BL(2D)

Power Consumption

P

BL(3D)

PRODUCT SPECIFICATION

Value

Min. Typ. Max.

－

87.3 100.4

85 96

Unit

W

Note

(1), (2)

Converter Input Voltage VBL 22.8 24.0 25.2 VDC

－

I

BL(2D)

3.64 4.2 A Non Dimming

Converter Input Current

－

I

BL(3D)

3.54 4 A

VBL=22.8V

I

R(2D)

－

9.5

Apeak

－

(3), (6)

Input Inrush Current

VBL=22.8V

I

R(3D)

－

14

Apeak

－

(3), (6)

Dimming Frequency

Dimming Duty Ratio

Life Time

Note (1) The power supply capacity should be higher than the total converter power consumption PBL. Since the pulse

width modulation (PWM) mode was applied for backlight dimming, the driving current changed as PWM

duty on and off. The transient response of power supply should be considered for the changing loading

when converter dimming.

Note (2) The measurement condition of Max. value is based on 58" backlight unit under input voltage 24V, at 2D/3D

Mode and lighting 1 hour later.

FB 170 180 190 Hz

DDR 5 - 100 %

- 30,000 - - Hrs

(5)

(4), (5)

(7)

Note (3) For input inrush current measure, the VBL rising time from 10% to 90% is about 20ms.

Note (4) EPWM signal have to input available duty range. Between 97% and 100% duty (DDR) have to be avoided.

(97% < DDR < 100%) But 100% duty (DDR) is possible. 5% duty (DDR) is only valid for electrical operation.

Note (5) FB and DDR are available only at 2D Mode.

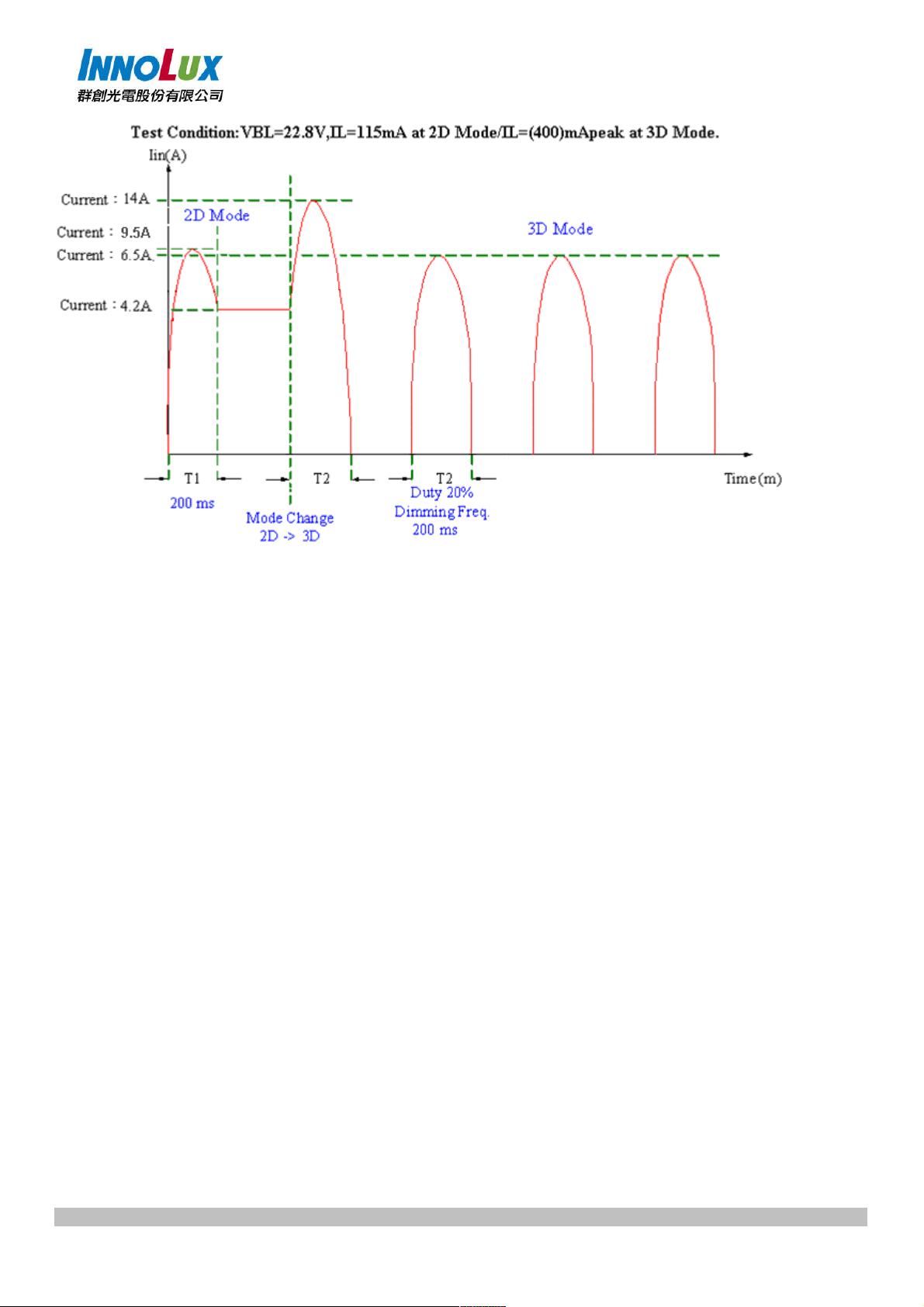

Note (6) Below diagram is only for power supply design reference.

Version 0.0 12 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Note (7) The lifetime is defined as the time which luminance of the LED decays to 50% compared to the initial value,

Operating condition: Continuous operating at Ta = 25±2℃

Version 0.0 13 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

3.2.2 CONVERTER INTERFACE CHARACTERISTICS

External PWM Control

PRODUCT SPECIFICATION

Parameter Symbol

On/Off Control

ON

VBLON

Voltage

External PWM Frequency

OFF

HI

LO

VEPWM

F

EPWM

Error Signal ERR

VBL Rising Time Tr1

Control Signal Rising Time Tr

Control Signal Falling Time Tf

PWM Signal Rising Time TPWMR

PWM Signal Falling Time TPWMF

Input Impedance Rin

PWM Delay Time TPWM

Condition

Test

Value

Unit

Min. Typ. Max.

－

2.0

0

2.0

0

－

5.0 V

0.8 V

5.25 V Duty on

0.8 V Duty off

－ 150 160 170 Hz

－－－－－

－

20

－－－

－

1

100

－－

100 ms

50 us

－－

MΩ

Note

(5), (6)

Normal mode (7)

Abnormal: Open

ms 10%-90%VBL

(6)

EPWM, BLON

ms (6)

Ton

－

300

－－

ms

BLON Delay Time

T

on1

BLON Off Time Toff

Note (1) The Dimming signal should be valid before backlight turns on by BLON signal. It is inhibited to change the

external PWM signal during backlight turn on period.

Note (2) The power sequence and control signal timing are shown in the Fig.1. For a certain reason, the converter has a

possibility to be damaged with wrong power sequence and control signal timing.

Note (3) While system is turned ON or OFF, the power sequences must follow as below descriptions:

Turn ON sequence: VBL → PWM signal → BLON

Turn OFF sequence: BLOFF → PWM signal → VBL

Note (4) When converter protective function is triggered, ERR will output open collector status. Please refers to Fig.2.

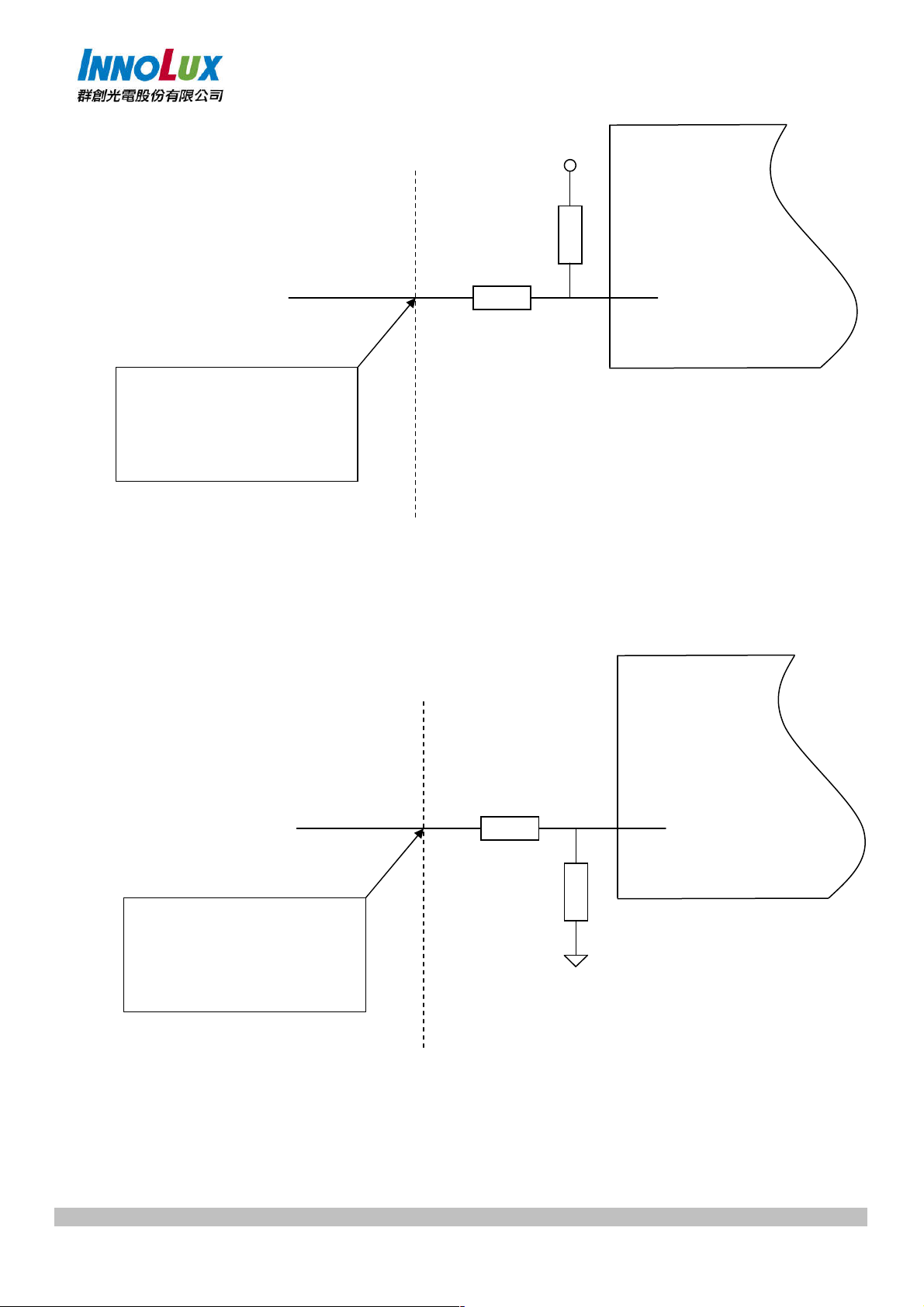

Note (5) The EPWM interface that inserts a pull up resistor to 5V in Max Duty (100%), please refers to Fig.3.

Note (6) EPWM is available only at 2D Mode.

Note (7) EPWM signal have to input available frequency range.

Note (8) [Recommend] EPWM duty ratio is set at 100%(Max. Brightness) in 3D Mode.

－

300

－－

ms

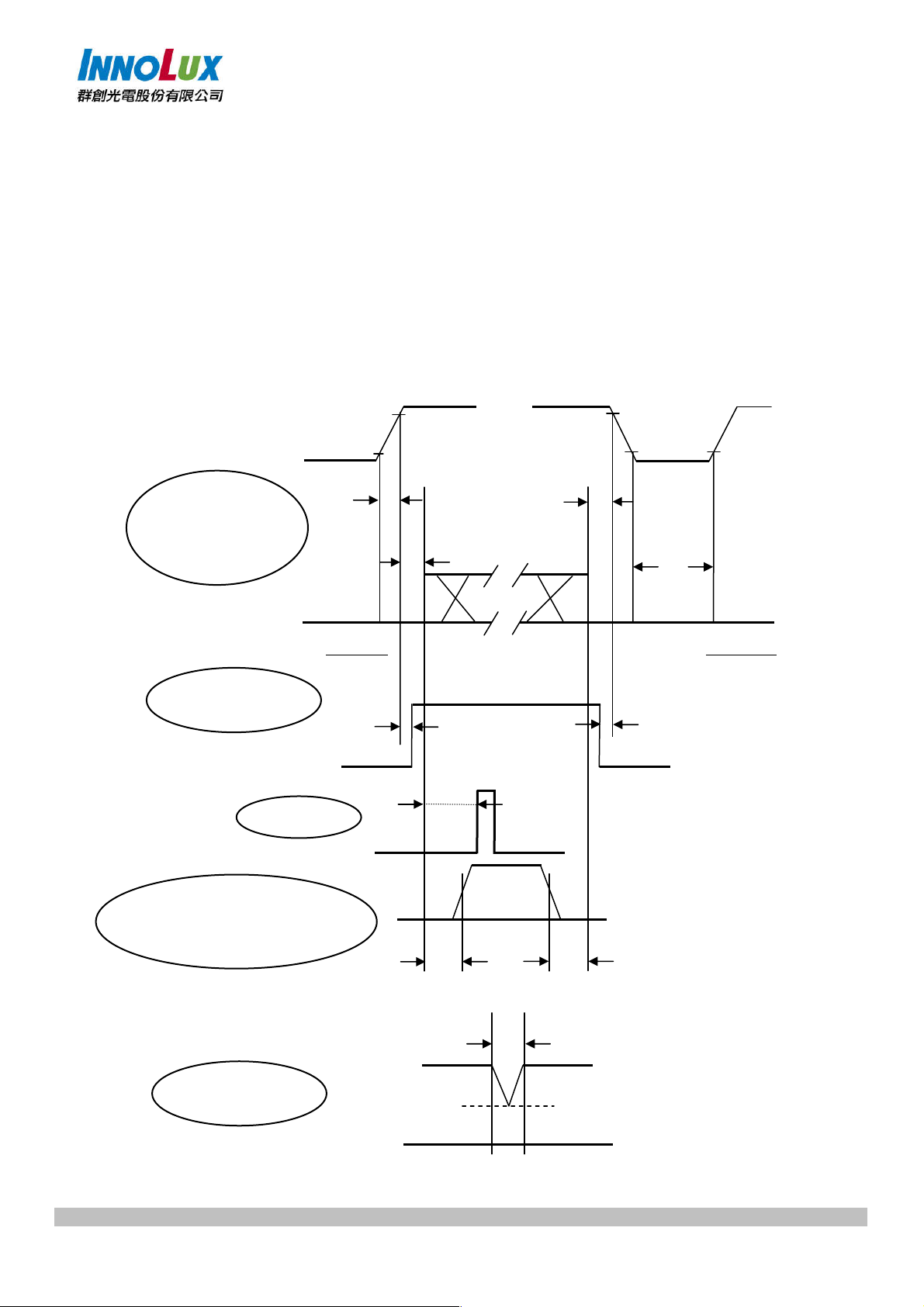

Version 0.0 14 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

V

BL

V

BLON

EPWM

Tr1

BL

0.9V

0.1V

BL

2.0V

0.8V

2.0V

0.8V

Ton

PWM

T

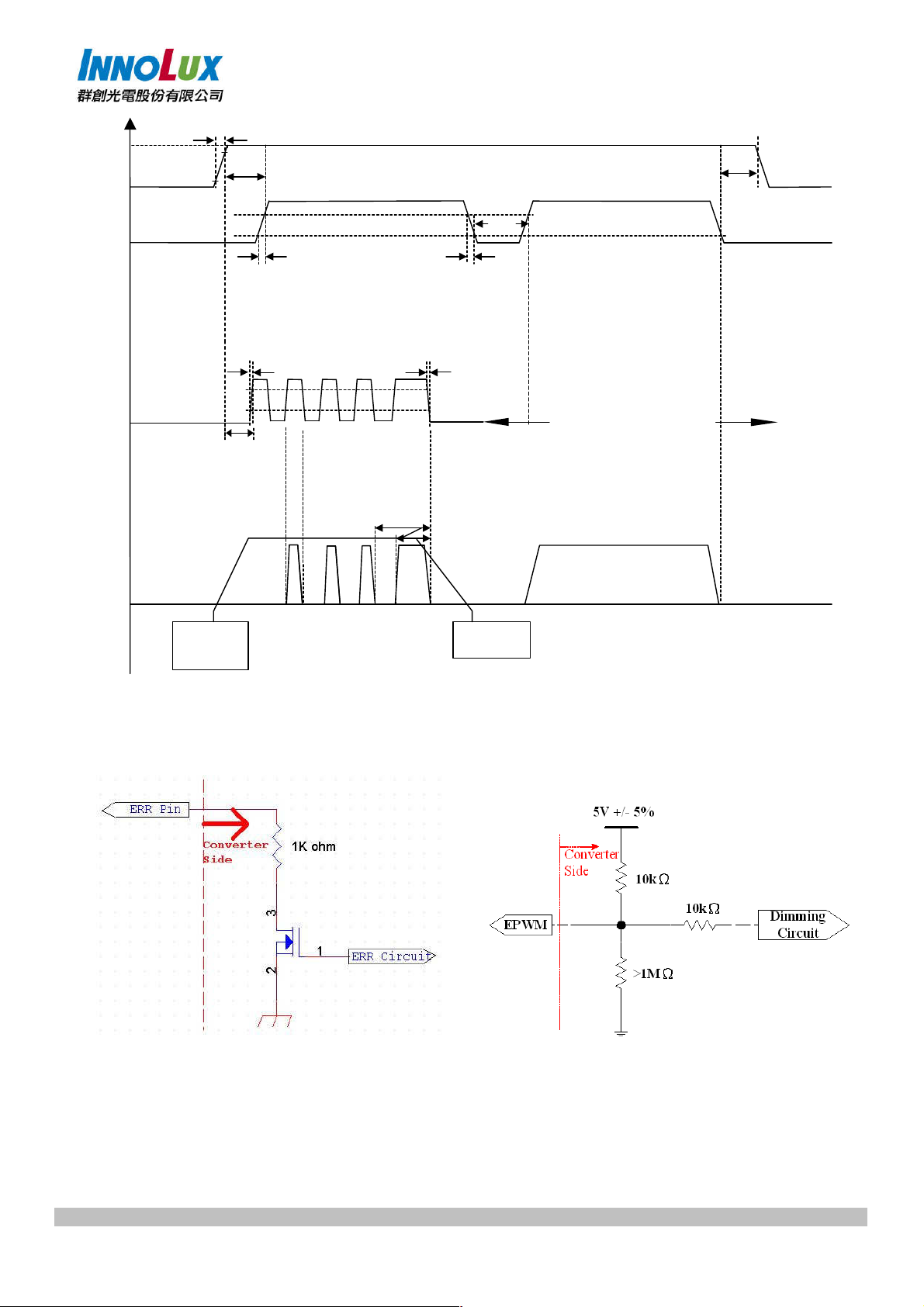

Backlight on duration

Tr

Ext. Dimming Function

PWMR

T

Ton1

Tf

PWMF

Floating

0

Toff

V

W

External

PWM

Period

External

PWM Duty

100%

Fig. 1

Fig. 2 Fig. 3

Version 0.0 15 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

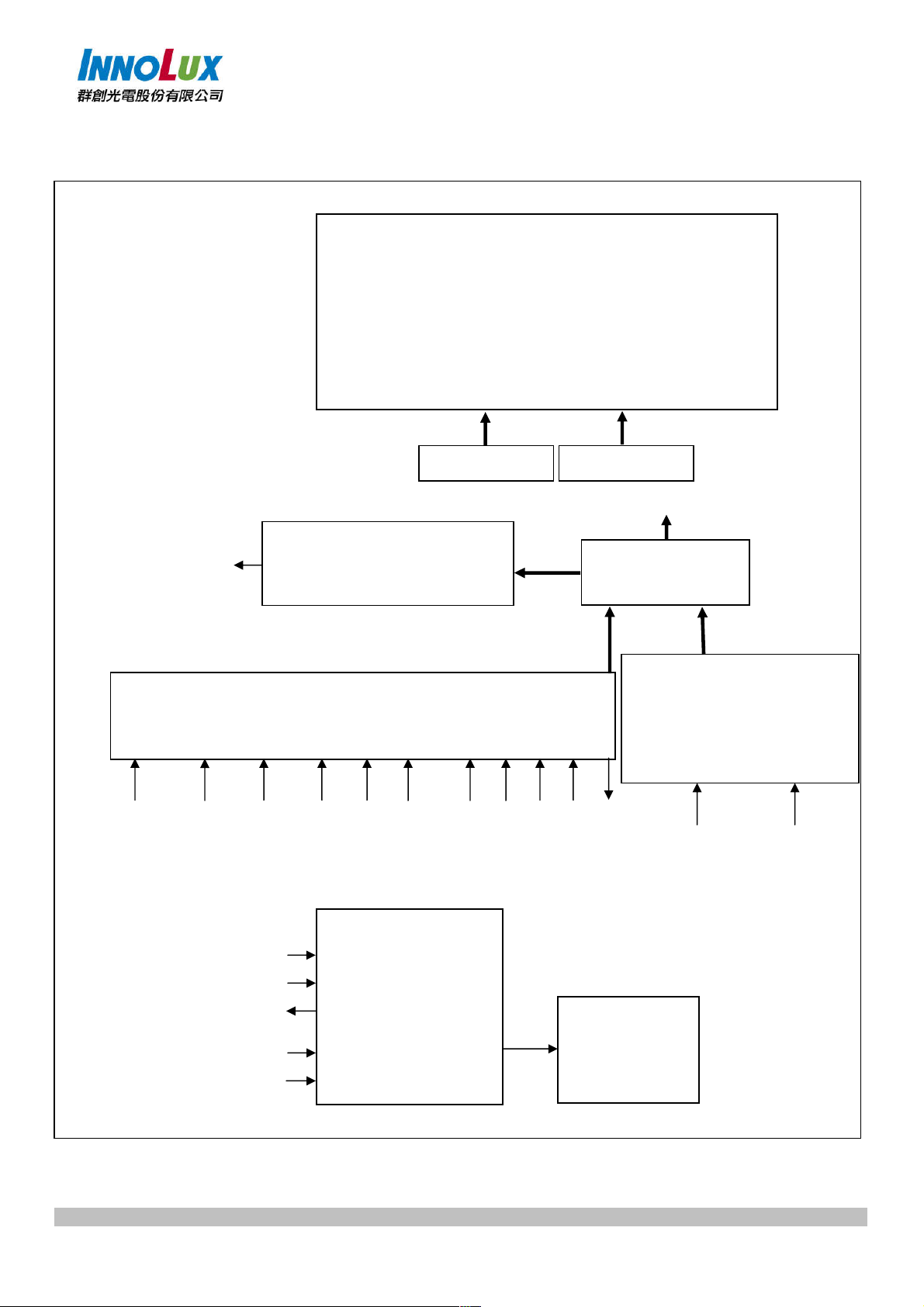

4. BLOCK DIAGRAM OF INTERFACE

E_PWM

ERR

CH3_0(+/

-)

CH4_0(+/

-)

SELLVDS

2D/3D

L/R LD_EN

VCC L/R_O

GND SDA SCL

L/R_O

XR Board

XL B

oard

4.1 TFT LCD MODULE

PRODUCT SPECIFICATION

TFT LCD PANEL

(3840x3x2160)

OUTPUT CONNECTOR

CON2: LM123S-010-H-TF1-3Y

INPUT CONNECTOR

CNF1: WF23-402-5133,FCN

or 187059-51221(P-TWO)

C Board

INPUT CONNECTOR

CNF2:187060-41221(P-TWO) or WF23-4 00-413C(FCN)

CH1_0(+/-) CH1_1(+/-) CH1_2(+/-) CH1_3(+/-) CH1_4(+/-) CH1_CLK(+/-)

CH2_0(+/-) CH2_1(+/-) CH2_2(+/-) CH2_3(+/-) CH2_4(+/-) CH2_CLK(+/-)

CH3_1(+/-) CH3_2(+/-) CH3_3(+/-) CH3_4(+/-) CH3_CLK(+/

-)

CH4_1(+/-) CH4_2(+/-) CH4_3(+/-) CH4_4(+/-) CH4_CLK(+/-)

CONVERTER

VBL

GND

BLON

Version 0.0 16 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

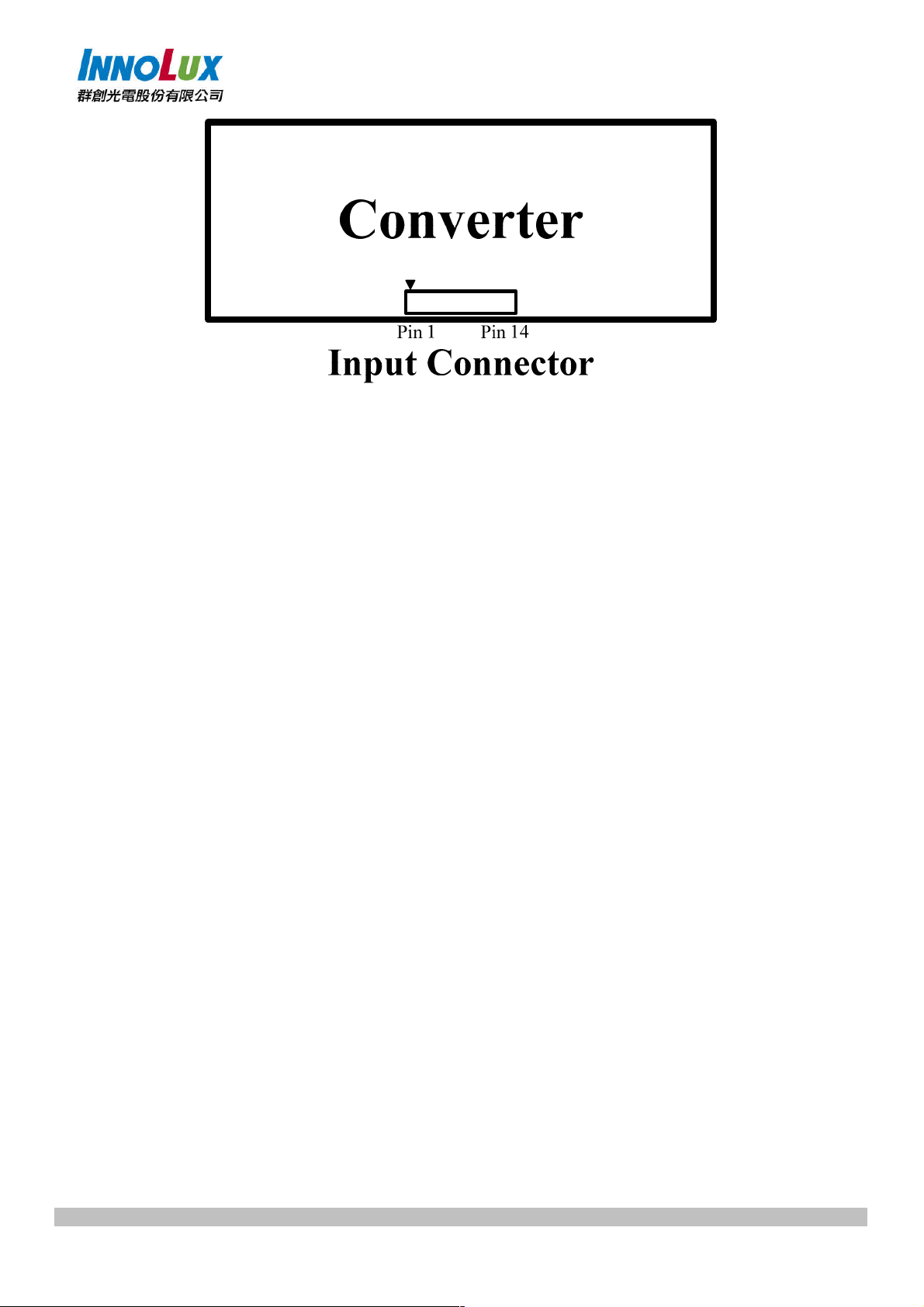

CONNECTOR

CN1:

CI0114M1HR0-LA

(CvilLux)

CN2: CI0112M1HR0-LA

(CvilLux)

LED

BACKLIGHT

UNIT

PRODUCT SPECIFICATION

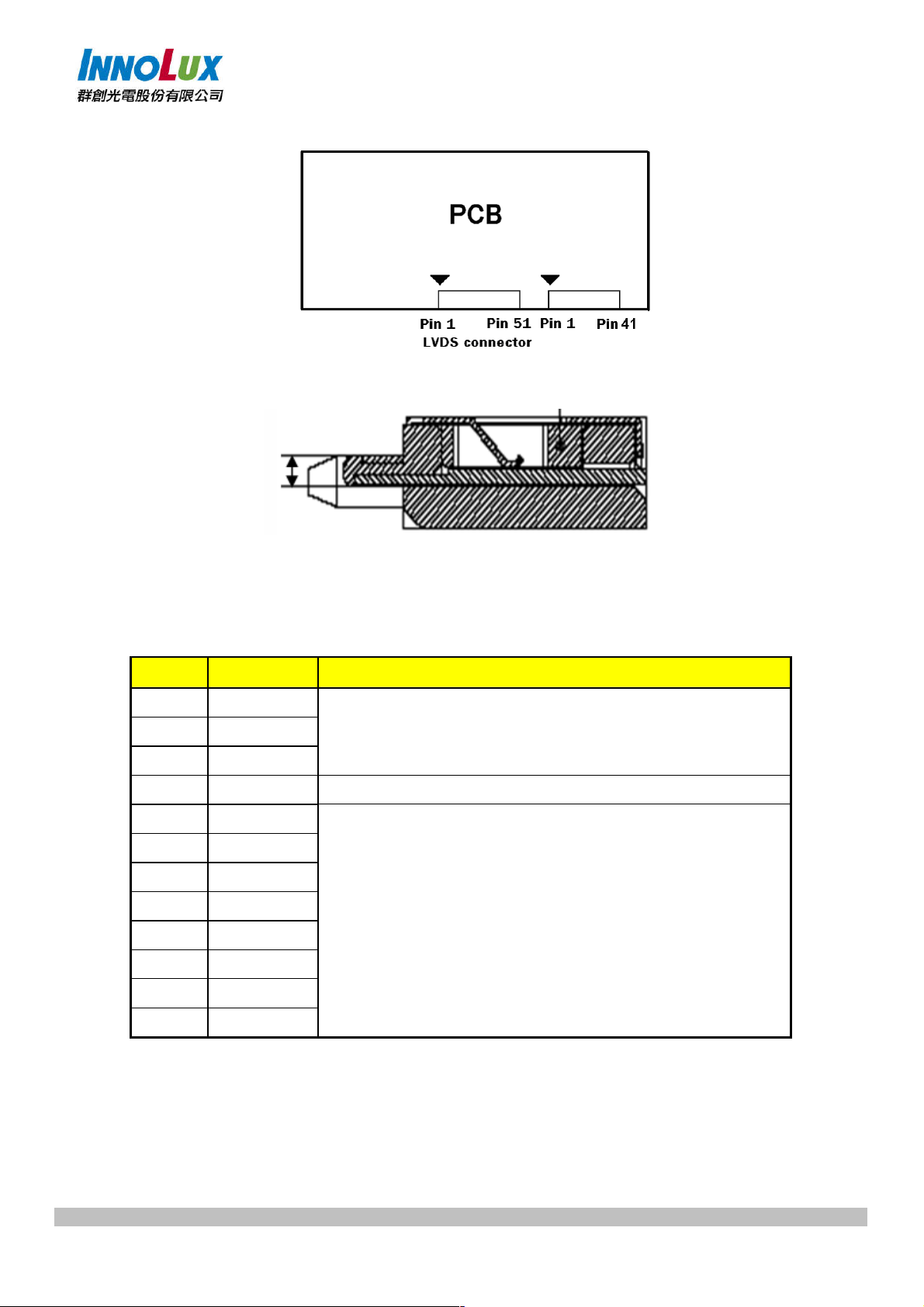

5 .INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

CNF1 Connector Pin Assignment (WF23-402-5133(FCN) or 187059-51221(P-TWO))

Matting connector : FI-RE51HL (JAE)

Pin Name Description

1 N.C. No Connection (1)

2 SCL I2C Clock (for mode selection & function setting)

3 SDA I2C Data (for mode selection & function setting)

4 N.C. No Connection

5 L/R_O Output signal for Left Right Glasses control

6 N.C. No Connection (1)

7 SELLVDS Input signal for LVDS Data Format Selection (3)(9)

8 N.C. No Connection

9 N.C. No Connection

10 N.C. No Connection

11 GND Ground

12 CH1[0]- First pixel Negative LVDS differential data input. Pair 0

13 CH1[0]+ First pixel Positive LVDS differential data input. Pair 0

Note

(1)

(2)

(1)

14 CH1[1]- First pixel Negative LVDS differential data input. Pair 1

(4)

15 CH1[1]+ First pixel Positive LVDS differential data input. Pair 1

16 CH1[2]- First pixel Negative LVDS differential data input. Pair 2

17 CH1[2]+ First pixel Positive LVDS differential data input. Pair 2

18 GND Ground

19 CH1CLK- First pixel Negative LVDS differential clock input.

20 CH1CLK+ First pixel Positive LVDS differential clock input.

21 GND Ground

22 CH1[3]- First pixel Negative LVDS differential data input. Pair 3

23 CH1[3]+ First pixel Positive LVDS differential data input. Pair 3

24 CH1[4]- First pixel Negative LVDS differential data input. Pair 4

25 CH1[4]+ First pixel Positive LVDS differential data input. Pair 4

26 2D/3D Input signal for 2D/3D Mode Selection (5)(10)

27 L/R Input signal for Left Right eye frame synchronous (6)

(4)

28 CH2[0]- Second pixel Negative LVDS differential data input. Pair 0

Version 0.0 17 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

(4)

PRODUCT SPECIFICATION

29 CH2[0]+ Second pixel Positive LVDS differential data input. Pair 0

30 CH2[1]- Second pixel Negative LVDS differential data input. Pair 1

31 CH2[1]+ Second pixel Positive LVDS differential data input. Pair 1

32 CH2[2]- Second pixel Negative LVDS differential data input. Pair 2

33 CH2[2]+ Second pixel Positive LVDS differential data input. Pair 2

34 GND Ground

35 CH2CLK- Second pixel Negative LVDS differential clock input.

36 CH2CLK+ Second pixel Positive LVDS differential clock input.

37 GND Ground

38 CH2[3]- Second pixel Negative LVDS differential data input. Pair 3

39 CH2[3]+ Second pixel Positive LVDS differential data input. Pair 3

40 CH2[4]- Second pixel Negative LVDS differential data input. Pair 4

41 CH2[4]+ Second pixel Positive LVDS differential data input. Pair 4

42 LD_EN Input signal for Local Dimming Enable (7)(9)

43 N.C. No Connection (8)

44 GND Ground

45 GND Ground

46 GND Ground

47 N.C. No Connection

(4)

(1)

48 VCC +12V power supply

49 VCC +12V power supply

50 VCC +12V power supply

51 VCC +12V power supply

CNF2 Connector pin assignment (187060-41221 (P-TWO) or WF23-400-413C (FCN))

Matting connector : FI-RE41HL (JAE)

Pin Name Description Note

1 N.C. No Connection

2 N.C. No Connection

3 N.C. No Connection

4 N.C. No Connection

5 N.C. No Connection

(1)

Version 0.0 18 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

6 N.C. No Connection

7 N.C. No Connection

8 N.C. No Connection

9 GND Ground

10 CH3[0]- Third pixel Negative LVDS differential data input. Pair 0

11 CH3[0]+ Third pixel Positive LVDS differential data input. Pair 0

12 CH3[1]- Third pixel Negative LVDS differential data input. Pair 1

(4)

13 CH3[1]+ Third pixel Positive LVDS differential data input. Pair 1

14 CH3[2]- Third pixel Negative LVDS differential data input. Pair 2

15 CH3[2]+ Third pixel Positive LVDS differential data input. Pair 2

16 GND Ground

17 CH3CLK- Third pixel Negative LVDS differential clock input.

(4)

18 CH3CLK+ Third pixel Positive LVDS differential clock input.

19 GND Ground

20 CH3[3]- Third pixel Negative LVDS differential data input. Pair 3

21 CH3[3]+ Third pixel Positive LVDS differential data input. Pair 3

(4)

22 CH3[4]- Third pixel Negative LVDS differential data input. Pair 4

23 CH3[4]+ Third pixel Positive LVDS differential data input. Pair 4

24 GND Ground

25 GND Ground

26 CH4[0]- Fourth pixel Negative LVDS differential data input. Pair 0

27 CH4[0]+ Fourth pixel Positive LVDS differential data input. Pair 0

28 CH4[1]- Fourth pixel Negative LVDS differential data input. Pair 1

(4)

29 CH4[1]+ Fourth pixel Positive LVDS differential data input. Pair 1

30 CH4[2]- Fourth pixel Negative LVDS differential data input. Pair 2

31 CH4[2]+ Fourth pixel Positive LVDS differential data input. Pair 2

32 GND Ground

33 CH4CLK- Fourth pixel Negative LVDS differential clock input.

(4)

34 CH4CLK+ Fourth pixel Positive LVDS differential clock input.

35 GND Ground

36 CH4[3]- Fourth pixel Negative LVDS differential data input. Pair 3

37 CH4[3]+ Fourth pixel Positive LVDS differential data input. Pair 3

Version 0.0 19 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

(4)

PRODUCT SPECIFICATION

SELLVDS

Note

L Right glass turn on

H Left glass turn on

SELLVDS

Note

L JEIDA Format

H or Open

VESA Format

38 CH4[4]- Fourth pixel Negative LVDS differential data input. Pair 4

39 CH4[4]+ Fourth pixel Positive LVDS differential data input. Pair 4

40 GND Ground

41 GND Ground

CON2 Connector Pin Assignment (LM123S010HTF13Y)

1 N.C. No Connection

2 N.C. No Connection

3 N.C. No Connection

4 GND Ground

5 N.C. No Connection

6 L/R_O Output signal for Left Right Glasses control

7 N.C. No Connection

8 N.C. No Connection

9 N.C. No Connection

10 N.C. No Connection

Note (1) Reserved for internal use. Please leave it open.

Note (2) The definition of L/R_O signal as follows

L= 0V, H=+3.3V

Note (3) LVDS format selection.

(1)

－

(1)

(2)

(1)

L= Connect to GND, H=Connect to +3.3V or Open

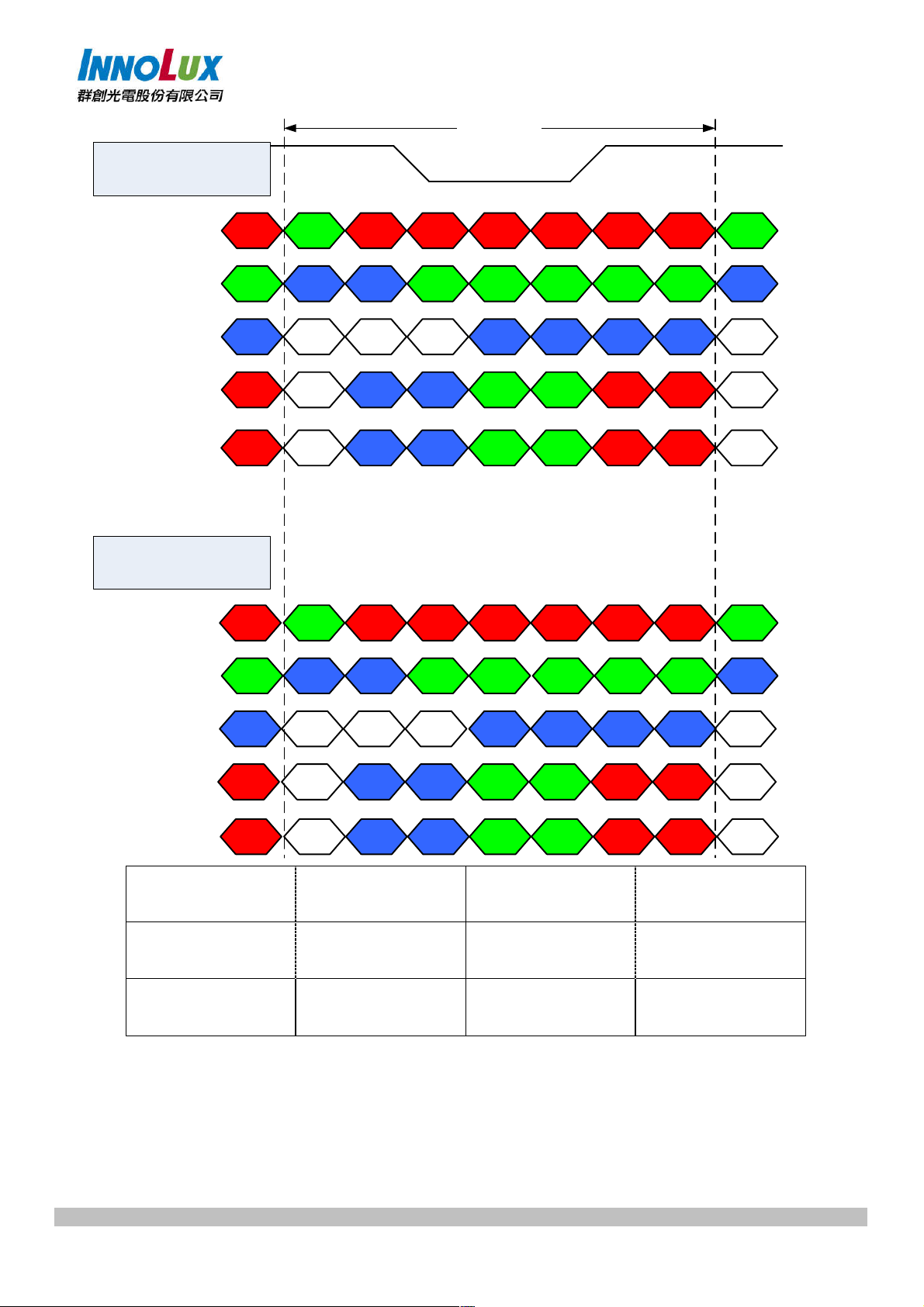

Note (4) LVDS 4-port Data Mapping

FHD 100/120Hz Input

Port Channel of LVDS Data Stream

1st Port First Pixel 1, 5, 9, ……1913, 1917

2nd Port Second Pixel 2, 6, 10, ….1914, 1918

3rd Port Third Pixel 3, 7, 11, ….1915, 1919

4th Port Fourth Pixel 4, 8, 12, ….1916, 1920

Version 0.0 20 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

QFHD 24/30Hz Input

2D/3D

Note

L or Open

2D Mode

H 3D Mode

L Local Dimming Disable

H or Open

Local Dimming Enable

L/R Note

L Right synchronous signal

H Left synchronous signa

l

Port Channel of LVDS Data Stream

1st Port First Pixel 1, 5, 9, ……3833, 3837

2nd Port Second Pixel 2, 6, 10, ….3834, 3838

3rd Port Third Pixel 3, 7, 11, ….3835, 3839

4th Port Fourth Pixel 4, 8, 12, ….3836, 3840

Note (5) 2D/3D mode selection.

L= Connect to GND or Open, H=Connect to +3.3V

Note (6) Input signal for left and right eye frame synchronous

VIL=0~0.7 V, VIH=2.7~3.3 V

PRODUCT SPECIFICATION

Note (7) Local dimming enable selection.

L= Connect to GND，H=Connect to +3.3V or Open

LD_EN Note

Note (8) Reserved for internal use. Open is preferred. However, it is also acceptable to reserve the wire connecting with

specific High/Low voltage level.

Note (9) Interface optional pin has internal scheme as following diagram. Customer should keep the interface voltage level

requirement which including panel board loading as below.

Version 0.0 21 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

System Board

PRODUCT SPECIFICATION

3.3V

10K ohm

1K ohm

IC

Interface Voltage Level

VH > V

VL < V

IH

IL

Panel Board

Note (10) Interface optional pin has internal scheme as following diagram. Customer should keep the interface voltage level

requirement which including panel board loading as below.

Panel Board System Board

1K ohm

IC

Interface Voltage Level

VH > V

VL < V

IH

IL

10K ohm

Version 0.0 22 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Note (11) LVDS connector pin order defined as follows

Note (12) LVDS connector mating dimension range request is 0.93mm~1.0mm as below

5.2 BACKLIGHT UNIT

The pin configuration for the housing and leader wire is shown in the table below.

CN3

Connector Type :

Pin No.

1 VLED+ 2 VLED+ 3 VLED+ 4 NC NC 5 N6 N7 N8 N9 N-

10 N-

11 N-

Symbol Description

196388-12041-3(P-TWO) or FF01-431-123A(FCN)

Positive of LED string

Negative of LED string

12 N-

Version 0.0 23 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

CN6

Connector Type :

Pin No.

12 VLED+

11 VLED+

10 VLED+

9 NC NC 8 N7 N6 N5 N4 N3 N2 N1 N-

Symbol Description

196388-12041-3(P-TWO) or FF01-431-123A(FCN)

Positive of LED string

Negative of LED string

5.3 CONVERTER UNIT

CN1 (Header) : CI0114M1HR0-LA (CvilLux)

Pin No.

1

2

3

4

5

6

7

8

9

10

11 ERR Normal (GND) ; Abnormal (Open collector)

12 BLON BL ON/OFF

Symbol Feature

VBL +24V

GND GND

13 NC NC

14 E_PWM External PWM Control

Note (1) If Pin14 is open, E_PWM is 100% duty.

Note (2) Input connector pin order defined as follows

Version 0.0 24 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

5.4 LVDS INTERFACE

JEIDA Format : SELLVDS = L

VESA Format : SELLVDS = H or Open

Version 0.0 25 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

VESA Format

PRODUCT SPECIFICATION

Current Cycle

AR 0P

AR 0N

AR 1P

AR 1N

AR 2P

AR 2N

AR 3P

AR 3N

AR 4P AR 4N

JEIDA Format

AR 0P

AR 0N

AR 1P

AR 1N

AR0

AG1

AB2

AR6

AR4

AG5

AG0 AR5

AB1

DE VS HS AB5 AB4 AB3 AB2

REV AB7 AB6 AG7 AG6 AR7 AR6

REV AB9 AB8 AG9 AG8 AR9 AR8AR8 REV

AG4 AR7

AB5

AB0 AG5 AG4 AG3 AG2 AG1

AB4 AG7 AG6 AG5AG9 AG8

AR4 AR3 AR2 AR1 AR0

AR6 AR5 AR4AR9 AR8

AG0

AB1

DE

REV

AG4

AB5

AR 2P

AR 2N

AR 3P

AR 3N

AR 4P AR 4N

AR0~AR9 First Pixel R Data

AG0~AG9 First Pixel G Data

AB0~AB9 First Pixel B Data

AB6

AR2

DE VS HS AB7 AB6AB9 AB8

REV AB3 AB2 AG3 AG2 AR3 AR2

REV AB1 AB0 AG1 AG0 AR1 AR0AR0 REV

DE Data enable signal

(9; MSB, 0; LSB)

VS/HS Vertical-sync/

(9; MSB, 0; LSB)

REV Reserved

(9; MSB, 0; LSB)

Horizontal-sync

DE

REV

Version 0.0 26 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

5.5 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 10-bit gray scale data input for the

color. The higher the binary input the brighter the color. The table below provides the assignment of color versus

data input.

Data Signal

Color

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

Basic Colors

Gray Scale Of Red

Gray Scale Of Green

Gray Scale Of Blue

Black Red Green Blue Cyan Magenta Yellow White Red (0) / Dark Red (1) Red (2)

:

: Red (1021) Red (1022) Red (1023) Green (0) / Dark Green (1) Green (2)

:

: Green (1021) Green (1022) Green (1023) Blue (0) / Dark Blue (1) Blue (2)

:

: Blue (1021) Blue (1022) Blue (1023)

0

1

0

1

0

1

0

:

0

:

0

Note (1) 0: Low Level Voltage，1: High Level Voltage

Red Green Blue

0

1

0

1

0

1

1 1 1 0 0 0

:

: 1 1 1 0 0 0

:

: 0 0 0 0 0 0

:

: 0 0 0

1

0

:

1

0

:

0

:

0

1

0

1

:

1

0

1

0

:

0

:

0

1

0

1

0

1

0

:

1

0

1

0

:

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

:

0

:

1

0

:

0

1

0

1

0

1

0

:

0

:

1

0

:

0

1

0

1

0

1

0

1

0

:

;

0

1

0

1

0

:

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

1

0

:

0

:

0

:

1

0

1

0

1

0

:

0

:

0

:

1

0

1

0

1

0

:

0

:

0

1

0

1

0

:

1

0

1

0

1

Version 0.0 27 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

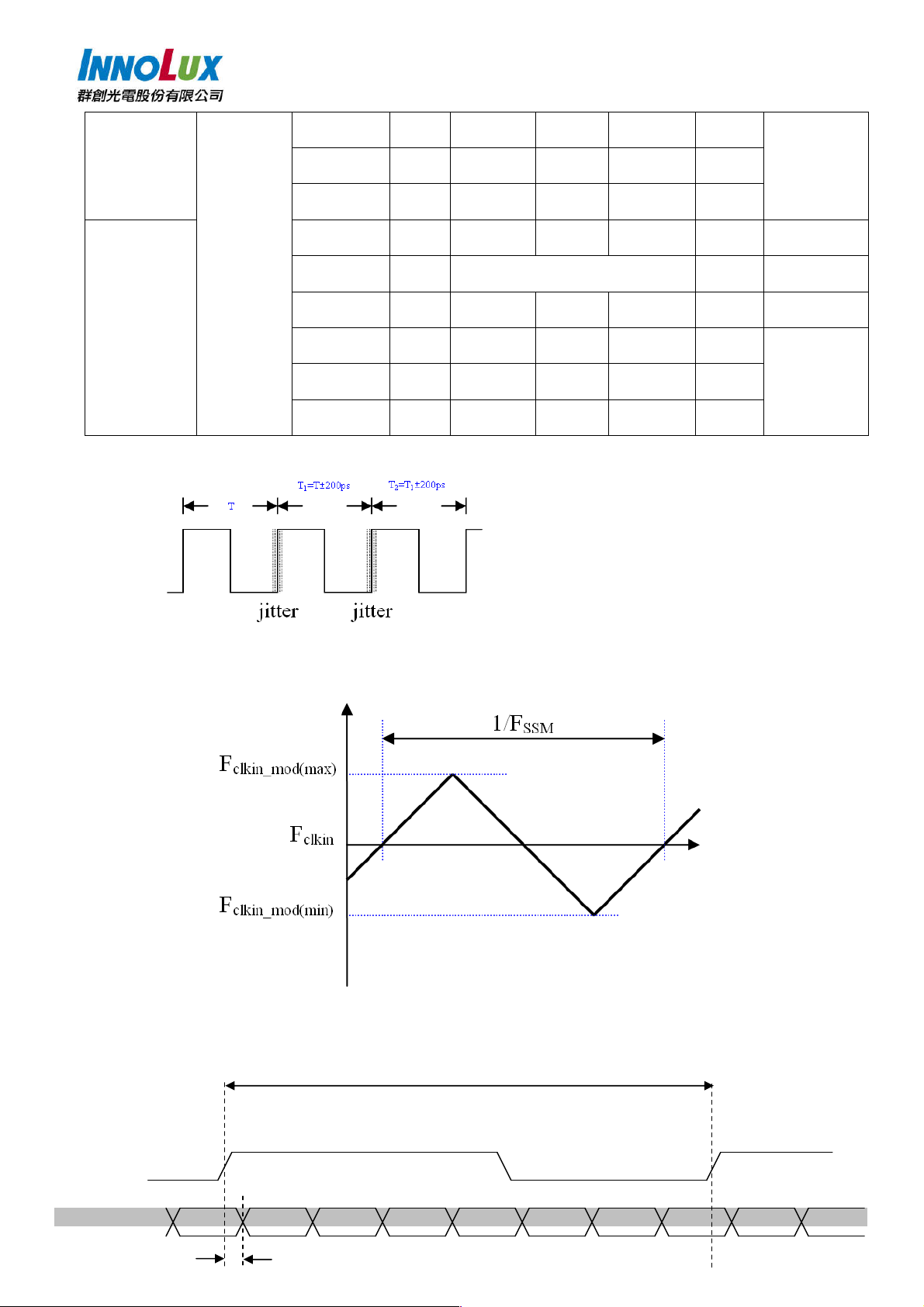

The input signal timing specifications are shown as the following table and timing diagram. (Ta = 25 ± 2 ºC)

Signal Item Symbol

Min. Typ. Max. Unit Note

Input cycle to

T

- - 200 ps (1)

rcl

cycle jitter

LVDS

Receiver

Spread spectrum

modulation range

clkin_mo

F

-1.5%

d

clkin

- F

+1.5% MHz

clkin

Clock

Spread spectrum

F

- - 66 KHz

SSM

modulation frequency

LVDS

Receiver

Receiver skew margin T

RSKM

-400 - 400 ps (3)

Data

6.1.1 Input Timing Spec for FHD, Frame Rate = 50Hz

Signal Item Symbol

LVDS Clock Frequency

F

clkin

(=1/TC)

Min. Typ. Max. Unit Note

60 74.25 79 MHz (4)

Frame Rate 2D Mode Fr 47 50 53 Hz (5)

(2)

Total Tv 1104 1350 1395 Th Tv=Tvd+Tvb

Vertical

Active

Display

Display Tvd 1080 Th Blank Tvb 24 270 315 Th Front porch Tvfp 10

－－

Th

Term

Back porch Tvbp Vsync Tvswid

10

4

－－－－

Th Th

(6)

2D Mode

Total Th 1060 1100 1340 Tc Th=Thd+Thb

Horizontal

Active

Display

Term

Display Thd 960 Tc Blank Thb 100 140 380 Tc Front porch Thfp 5 Back porch Thbp Hsync Thswid

5 2

－－－－－－

Tc Tc Tc

(6)

Version 0.0 28 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

6.1.2 Input Timing Spec for FHD, Frame Rate = 60Hz

PRODUCT SPECIFICATION

Signal Item Symbol

F

LVDS Clock Frequency

Frame Rate 2D Mode Fr 57 60 63 Hz (5)

Total Tv 1104 1125 1395 Th Tv=Tvd+Tvb

Vertical

Active

Display

Term

2D Mode

Horizontal

Active

Display Tvd 1080 Th Blank Tvb 24 45 315 Th Front porch Tvfp 10 Back porch Tvbp Vsync Tvswid Total Th 1060 1100 1340 Tc Th=Thd+Thb Display Thd 960 Tc Blank Thb 100 140 380 Tc

clkin

(=1/TC)

Min. Typ. Max. Unit Note

60 74.25 79 MHz (4)

10

4

－－－－－－

Th Th Th

(6)

Display

Term

6.1.3 Input Timing Spec for FHD, Frame Rate = 100Hz

Signal Item Symbol Min. Typ. Max. Unit Note

LVDS Clock

Frame Rate 2D Mode Fr 97 100 103 Hz (5)

2D Mode

Vertical

Active

Display

Term

Front porch Thfp 5 Back porch Thbp Hsync Thswid

F

Frequency

Total Tv 1104 1350 1395 Th Tv=Tvd+Tvb

Display Tvd 1080 Th

Blank Tvb 24 270 315 Th

Front porch Tvfp

Back porch Tvbp

clkin

(=1/TC)

5 2

60 74.25 79 MHz (4)

10

－－－－－－

－－

Tc Tc Tc

Th

(6)

Vsync Tvswid

Horizontal

Active

Version 0.0 29 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Total Th 530 550 670 Tc Th=Thd+Thb

Display Thd 480 Tc

4

－－

Th

Display

Term

PRODUCT SPECIFICATION

Blank Thb 50 70 190 Tc

Front porch Thfp

5

－－

Tc

Back porch Thbp

Hsync Thswid

6.1.4 Input Timing Spec for FHD, Frame Rate = 120Hz

Signal Item Symbol Min. Typ. Max. Unit Note

2D Mode 60 74.25 79 MHz

LVDS Clock

3D Mode

2D Mode 117 120 123 Hz

Frame Rate

3D Mode

Total Tv 1104 1125 1395 Th Tv=Tvd+Tvb

Display Tvd 1080 Th

Blank Tvb 24 45 315 Th

2D Mode

Front porch Tvfp

F

clkin

(=1/TC)

Fr

5

2

10

－－

74.25 MHz

120 Hz

－－

Tc

Th

(6)

(4)

(5)

Vertical

Active

Display

Term

Horizontal

Active

Display

Term

3D Mode

2D Mode

Back porch Tvbp

Vsync Tvswid

Total Tv 1125 Th

Display Tvd 1080 Th

Blank Tvb 45 Th

Front porch Tvfp

Back porch Tvbp

Vsync Tvswid

Total Th 530 550 670 Tc Th=Thd+Thb

Display Thd 480 Tc

Blank Thb 50 70 190 Tc

Front porch Thfp

Back porch Thbp

10

4

10

4

5

－－

－－－

－－

Th

Tc

(6)

Hsync Thswid

3D Mode

Version 0.0 30 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Total Th 530 550 670 Tc Th=Thd+Thb

2

－－

Tc

PRODUCT SPECIFICATION

Display Thd 480 Tc

Blank Thb 50 70 190 Tc

Front porch Thfp

Back porch Thbp

Hsync Thswid

6.1.5 Input Timing spec for QFHD, Frame Rate = 24Hz

Signal Item Symbol Min. Typ. Max. Unit Note

F

LVDS Clock

Frame Rate 2D Mode Fr 23 24 25 Hz (5)

Vertical

Active

Display

Term

Frequency

Total Tv 2208 2250 2450 Th Tv=Tvd+Tvb

Display Tvd 2160 Th

Blank Tvb 48 90 290 Th

Front porch Tvfp

Back porch Tvbp

clkin

(=1/TC)

5

2

60 74.25 79 MHz (4)

20

－－

Tc

Th

(6)

2D Mode

Horizontal

Active

Display

Term

6.1.6 Input Timing spec for QFHD, Frame Rate = 30Hz

Signal Item Symbol Min. Typ. Max. Unit Note

LVDS Clock

Frame Rate 2D Mode Fr 29 30 31 Hz (5)

Vertical

Active

Display

2D Mode

Vsync Tvswid

Total Th 992 1375 1440 Tc Th=Thd+Thb

Display Thd 960 Tc

Blank Thb 32 415 480 Tc

Front porch Thfp

Back porch Thbp

Hsync Thswid

F

Frequency

Total Tv 2208 2250 2450 Th Tv=Tvd+Tvb

Display Tvd 2160 Th

clkin

(=1/TC)

8

12

10

4

60 74.25 79 MHz (4)

－－

Th

Tc

(6)

Term

Version 0.0 31 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Blank Tvb 48 90 290 Th

PRODUCT SPECIFICATION

Front porch Tvfp

Back porch Tvbp

Vsync Tvswid

Total Th 992 1100 1340 Tc Th=Thd+Thb

Horizontal

Active

Display

Term

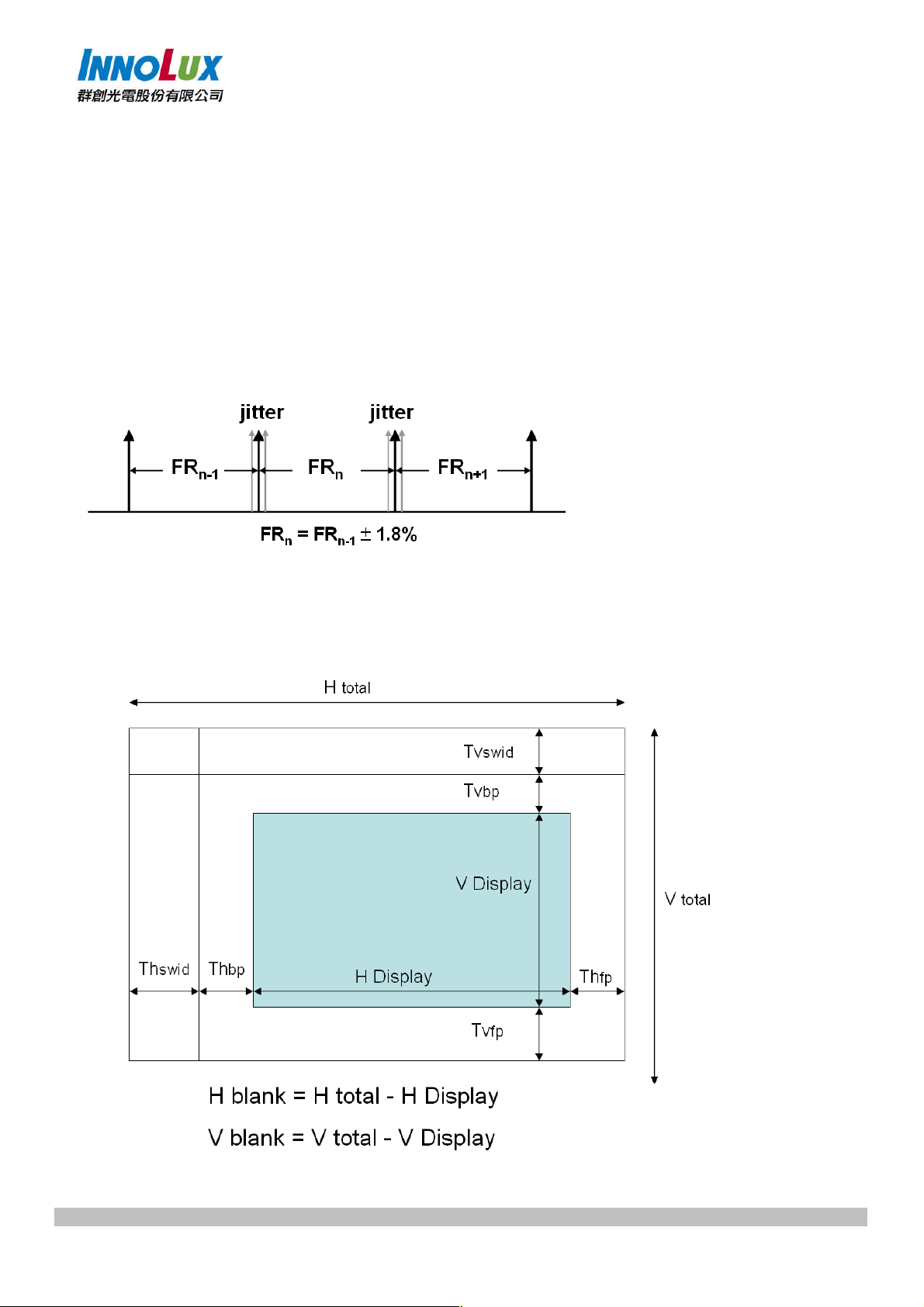

Note (1) The input clock cycle-to-cycle jitter is defined as below figures. Trcl =｜T1 – T︱

Display Thd 960 Tc

Blank Thb 32 140 380 Tc

Front porch Thfp

Back porch Thbp

Hsync Thswid

20

8

12

10

4

－－

Th

Tc

(6)

Note (2) The SSCG (Spread spectrum clock generator) is defined as below figures.

Note (3) The LVDS timing diagram and the receiver skew margin is defined and shown in following figure.

Version 0.0 32 Date : Mar.25 2013

RXCLK+/-

RXn+/-

The copyright belongs to InnoLux. Any unauthorized use is prohibited

T

RSKM

Tc

PRODUCT SPECIFICATION

Note (4) Please make sure the range of pixel clock has follow the below equations.

Fclkin (max) ≧ (Fr ╳ Tv ╳ Th) ≧ Fclkin(min)

Note (5)

a. The frame-to-frame jitter of the input frame rate is defined as the following figure. b. FRn = FRn-1 ± 1.8%.

Note (6)

c. Hsync and Vsync signals are necessary for this module. d. The polarity of Hsync & Vsync should be positive. e. Please follow the input signal timing diagram as below :

Version 0.0 33 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

T

10≦10ms

500ms

≦T4

0≦T8≦T3

6.2 POWER ON/OFF SEQUENCE

To prevent a latch-up or DC operation of LCD module, the power on/off sequence should be as the diagram

below.

0.9Vcc

0V

0.5≦T1≦10ms

0≦T2≦200ms

0≦T3

0.1VCC

T3 T1

T2

LVDS Signals

0≦T7≦T2

0V

Power On

Option Signals (SELLVDS,2D/3D, LD_EN)

500ms≦T9

Host I2C Command

Backlight (Recommended)

500ms≦T5 100ms≦T6

T7

T5

T

9

50%

T6

0.1Vcc

T4

Power Off

T8

Vcc Dip

Vcc

Vcc(typ.) x 0.85

0V

T10

Note (1) The supply voltage of the external system for the module input should follow the definition of Vcc.

Version 0.0 34 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Note (2) Apply the LED voltage within the LCD operation range. When the backlight turns on before the LCD operation or

the LCD turns off before the backlight turns off, the display may momentarily become abnormal screen.

Note (3) In case of Vcc is in off level, please keep the level of input signals on the low or high impedance. If T2<0,that maybe

cause electrical overstress failure.

Note (4) T4 should be measured after the module has been fully discharged between power off and on period. Note (5) Interface signal shall not be kept at high impedance when the power is on. Note (6) Vcc must decay smoothly when power-off.

Version 0.0 35 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Vertical Frame Rate Fr 120 Hz

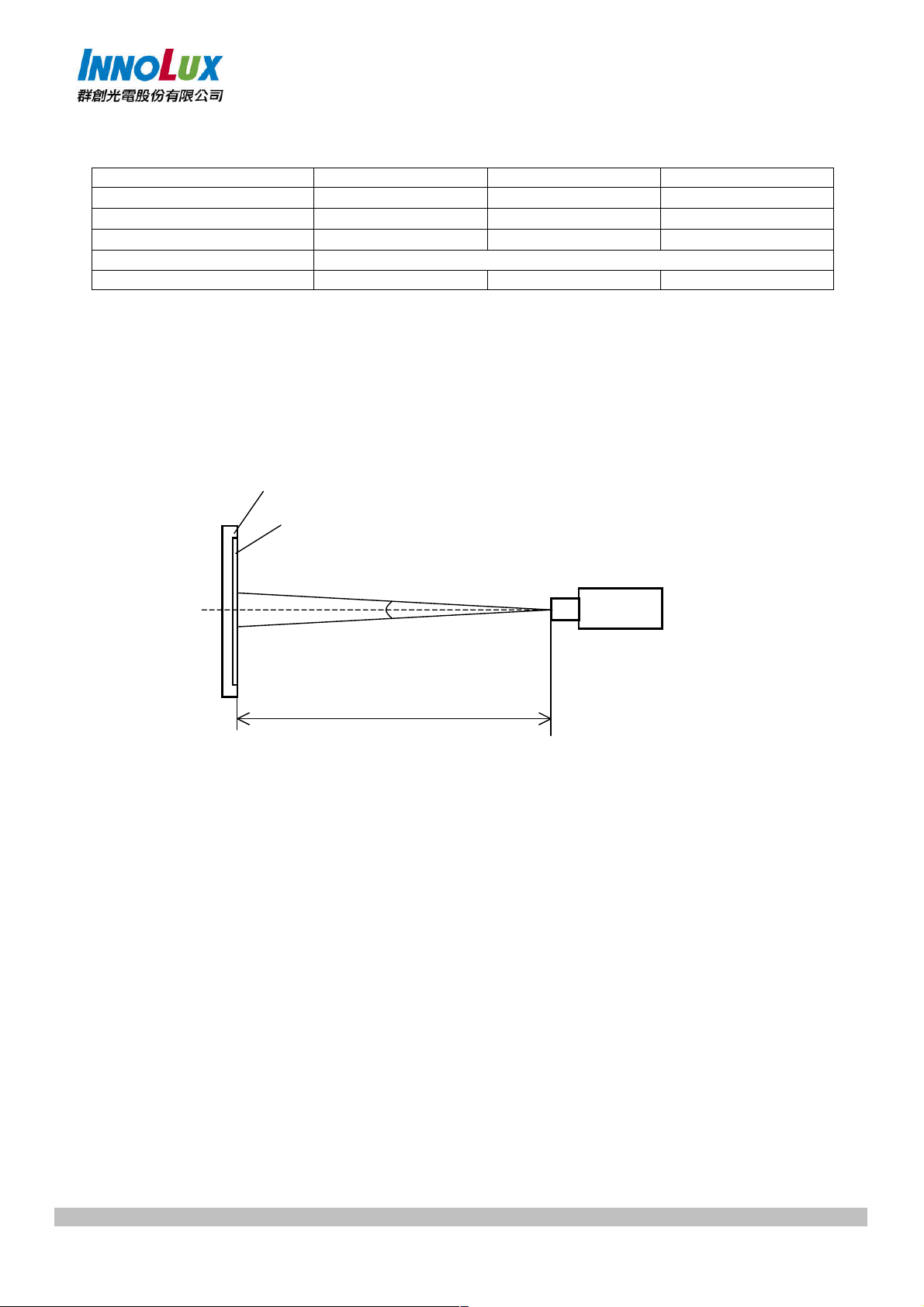

The LCD module should be stabilized at given temperature for 1 hour to avoid abrupt temperature change

during measuring in a windless room.

Local Dimming Function should be Disable before testing to get the steady optical characteristics (According to

5.1 CNF1 Connector Pin Assignment, Pin no. “42”)

25±2

50±10

12±1.2

%RH

o

C

V

LCD Module

LCD Panel

Field of View = 1º

500 mm

CS - 2000

Light Shield Room

(Ambient Luminance < 2 lux)

Version 0.0 36 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

7.2 OPTICAL SPECIFICATIONS

The relative measurement methods of optical characteristics are shown in 7.2. The following items should be

measured under the test conditions described in 7.1 and stable environment shown in 7.1.

Item Symbol Condition Min. Typ. Max. Unit

Contrast Ratio CR

Response Time Gray to gray

2D

3D

2D

3D-W

3D-D

θx=0°, θY =0°

Viewing angle at

normal direction

Center Luminance of

White

White Variation

Cross Talk CT

Red

Green

Color

Chromaticity

Blue

White

L

C

δW

Rx

Ry

Gx

Gy

Bx

By

Wx

Wy

3500 5000

320 400

Typ.-

0.03

Note

- - Note (2)

6.5 13

- cd/m

60 - cd/m

1.3 - Note (6)

- 4 % Note (5)

4 - % Note (8)

11 - % Note (8)

(0.640)

(0.332)

(0.309)

(0.620)

Typ.+

(0.153)

0.03

(0.052)

0.280

0.290

ms Note (3)

2

Note (4)

2

Note (8)

-

Correlated color temperature

Color

Gamut

Horizontal

Viewing

Angle

Vertical

Transmission direction of

the up polarizer

C.G.

θx+

θx-

θY+

θY-

Φup

-

80 88

CR≥20

80 88

- - 90

9800

72

K

- % NTSC

-

Deg.

-

Deg.

-

(1)

(7)

Version 0.0 37 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Note (1) Definition of Viewing Angle (θx, θy) :

Viewing angles are measured by Autronic Conoscope Cono-80 (or Eldim EZ-Contrast 160R).

PRODUCT SPECIFICATION

θ

X-

= 90º

x-

6 o’clock

θ

y-

= 90º

y-

Note (2) Definition of Contrast Ratio (CR) :

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) =

Normal

θx = θy = 0º

θy- θ

y+

θx−

θx+

12 o’clock direction

y+

θ

y+

= 90º

x+

θ

X+

= 90º

L1023 of Luminance Surface

L0 of Luminance Surface

L1023: Luminance of gray level 1023

L 0: Luminance of gray level 0

CR = CR (5), where CR (X) is corresponding to the Contrast Ratio of the point X at the figure in Note (6).

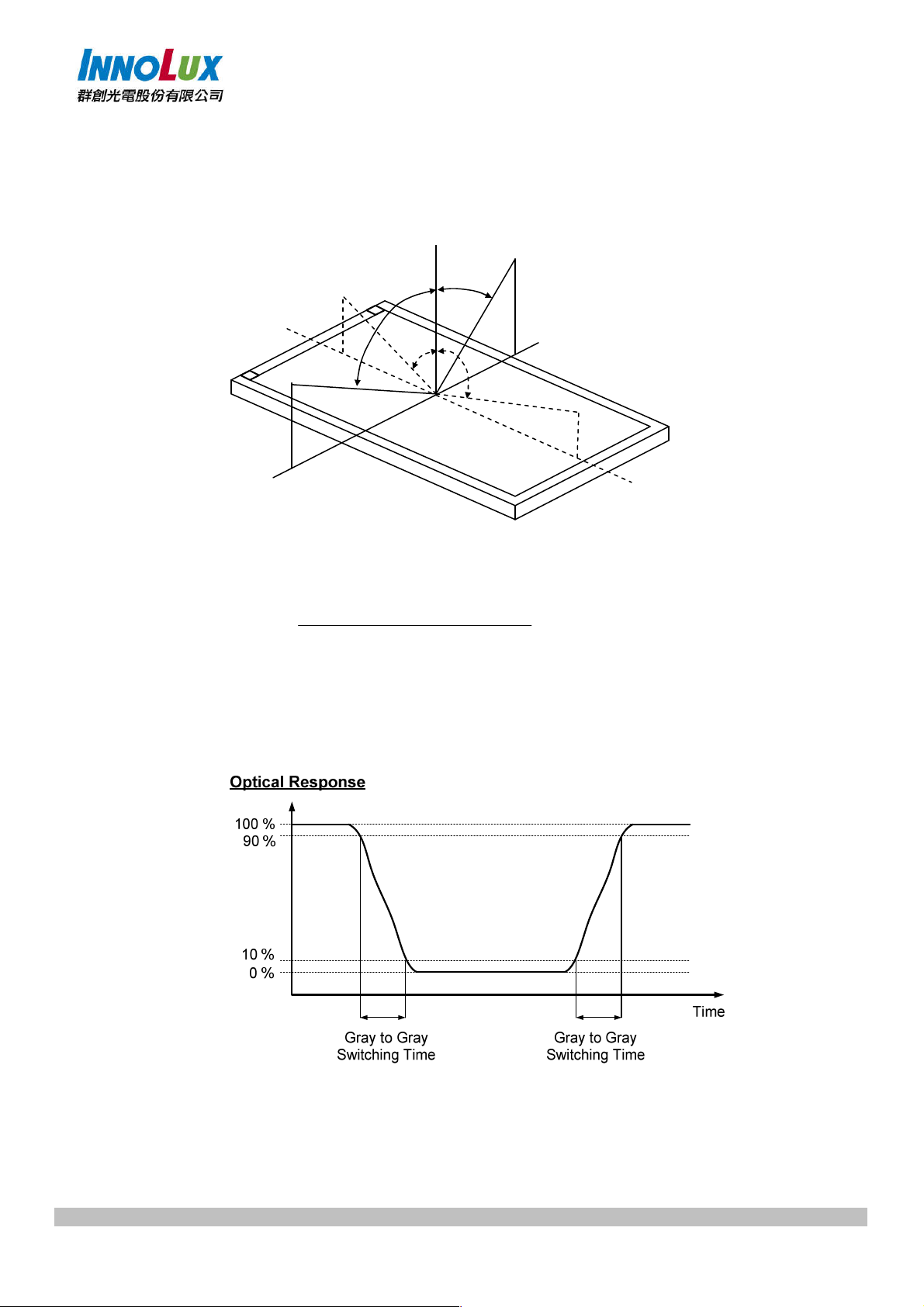

Note (3) Definition of Gray-to-Gray Switching Time :

The driving signal means the signal of gray level 0, 124, 252, 380, 508, 636, 764, 892 and 1023.

Gray to gray average time means the average switching time of gray level 0, 124, 252, 380, 508, 636, 764, 892 and 1023 to each

other.

Note (4) Definition of Luminance of White (L

) :

C

Version 0.0 38 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Measure the luminance of gray level 1023 at center point.

Active Area

(D, W)

Active Area

(0, 0)

(D, W)

LC = L (5), where L (x) is corresponding to the luminance of the point X at the figure in Note (6).

Note (5) Definition of Cross Talk (CT) :

CT = | YB – YA | / YA × 100 (%)

Where :

YA = Luminance of measured location without gray level 1023 pattern (cd/m2)

YB = Luminance of measured location with gray level 1023 pattern (cd/m2)

(0, 0)

Y

(D/2,W/8)

A,U

PRODUCT SPECIFICATION

Y

(D/2,W/8)

B, U

(D/4,W/4)

Gray 512

Y

(D/8,W/2)

A,L

Y

(D/2,7W/8)

A, D

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 1023 at 5 points

δW =

W

4

W

2

3W

4

(7D/8,W/2)

A, R

(5)] L (4), L (3), L (2), L (1), [L Maximum

(5)] L (4), L (3), L (2), L (1), [L Minimum

Horizontal Line

D

4

D

2

1 2

5

3 4

Y

(D/8,W/2)

B, L

3D

4

Gray 1023

Y

(D/2,7W/8)

B, D

Y

(7D/8,W/2)

A, R

(3D/4,3W/4)

Test point :

X = 1 ~ 5

X

Version 0.0 39 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

6 o’clock

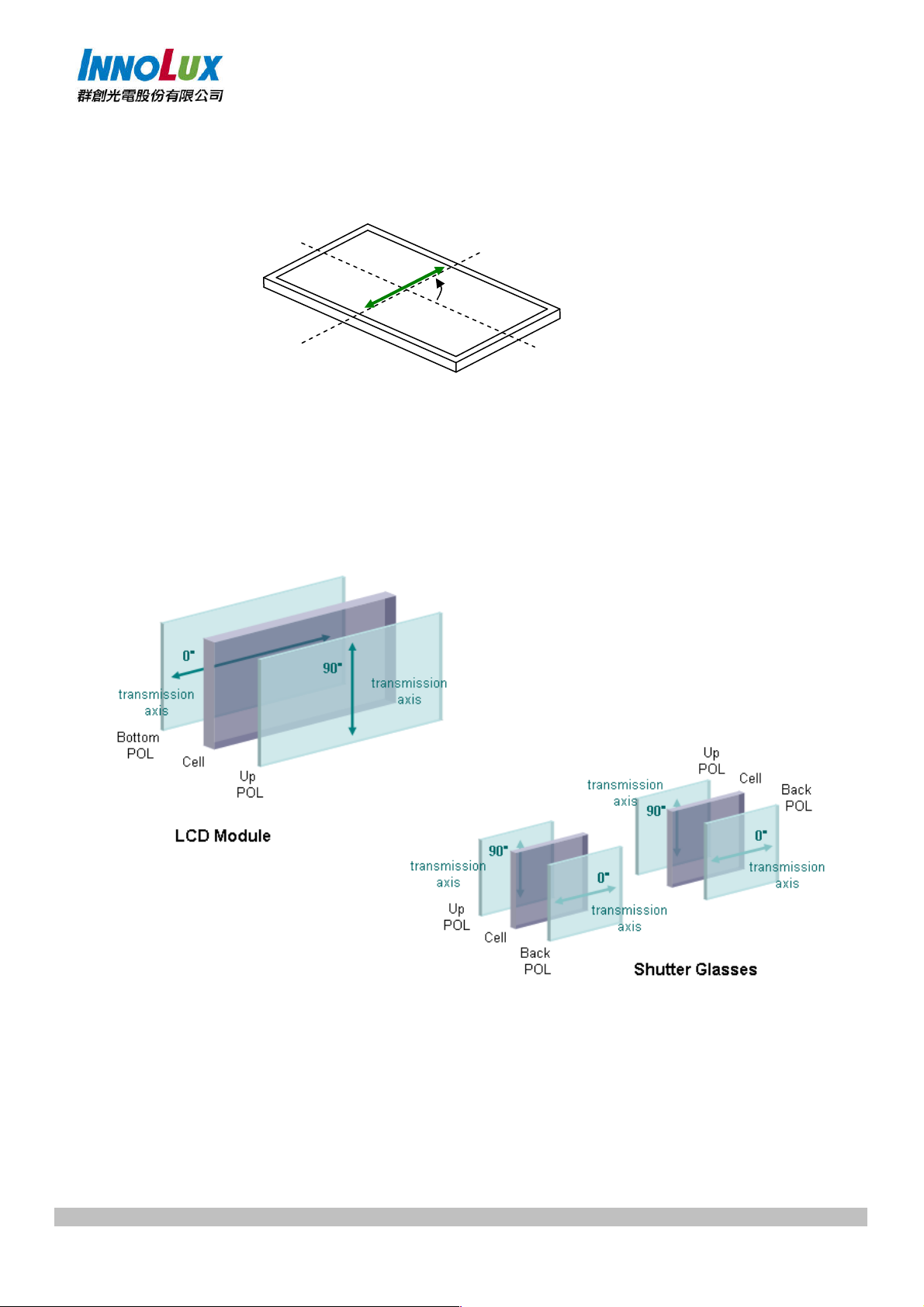

Note (7) This is a reference for designing the shutter glasses of 3D application. Definition of the transmission direction of the up

polarizer (Φ

The transmission axis of the front polarizer of the shutter glasses should be parallel to this panel transmission direction to

get a maximum 3D mode luminance.

) on LCD Module :

up-P

y-

x-

Up Polarizer

12 o’clock direction

y+

Φ

up-P

x

+

Φ=0o

Version 0.0 40 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

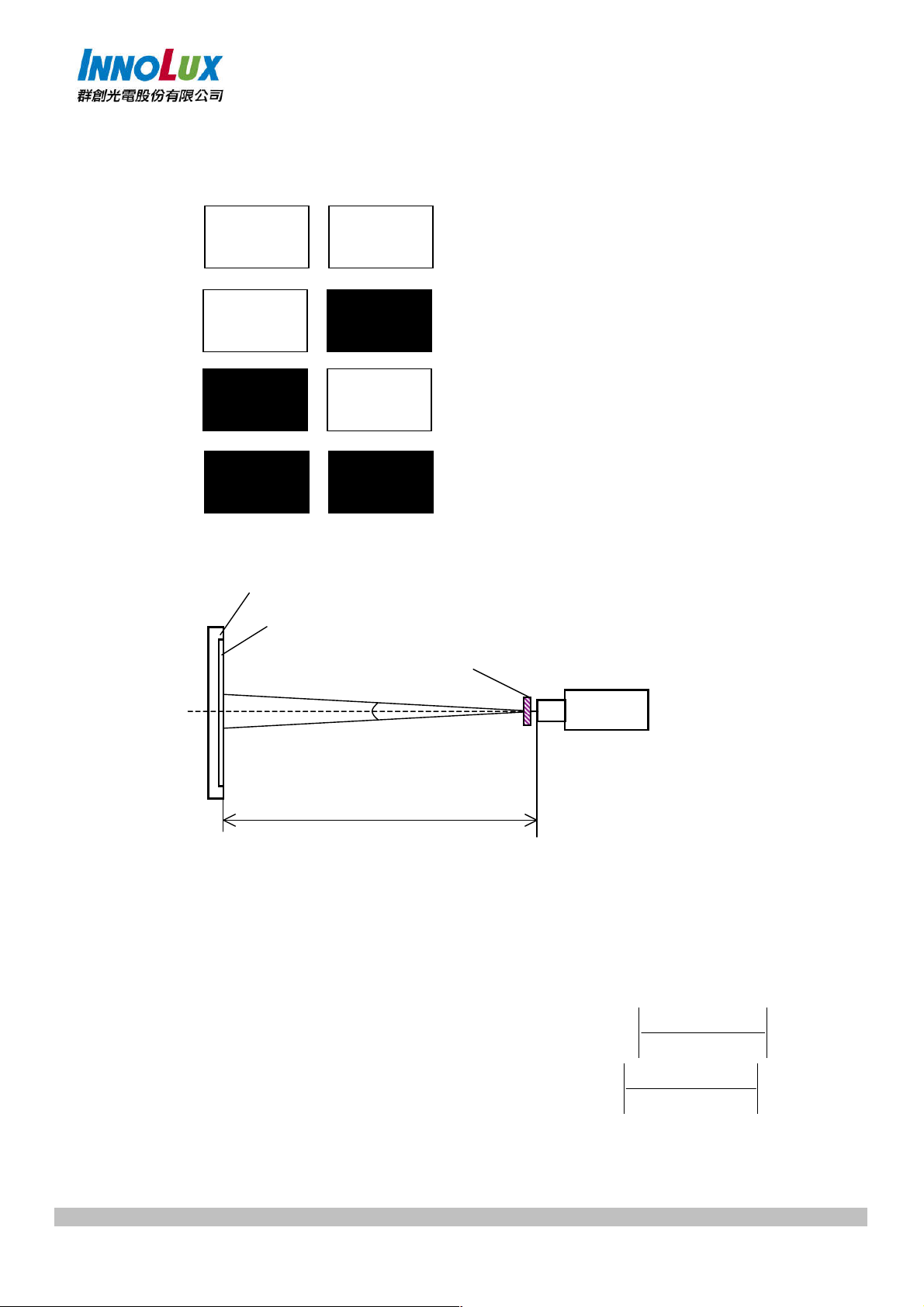

Note (8) Definition of the 3D mode performance (measured under 3D mode, use INX’s shutter glass) :

a. Test pattern

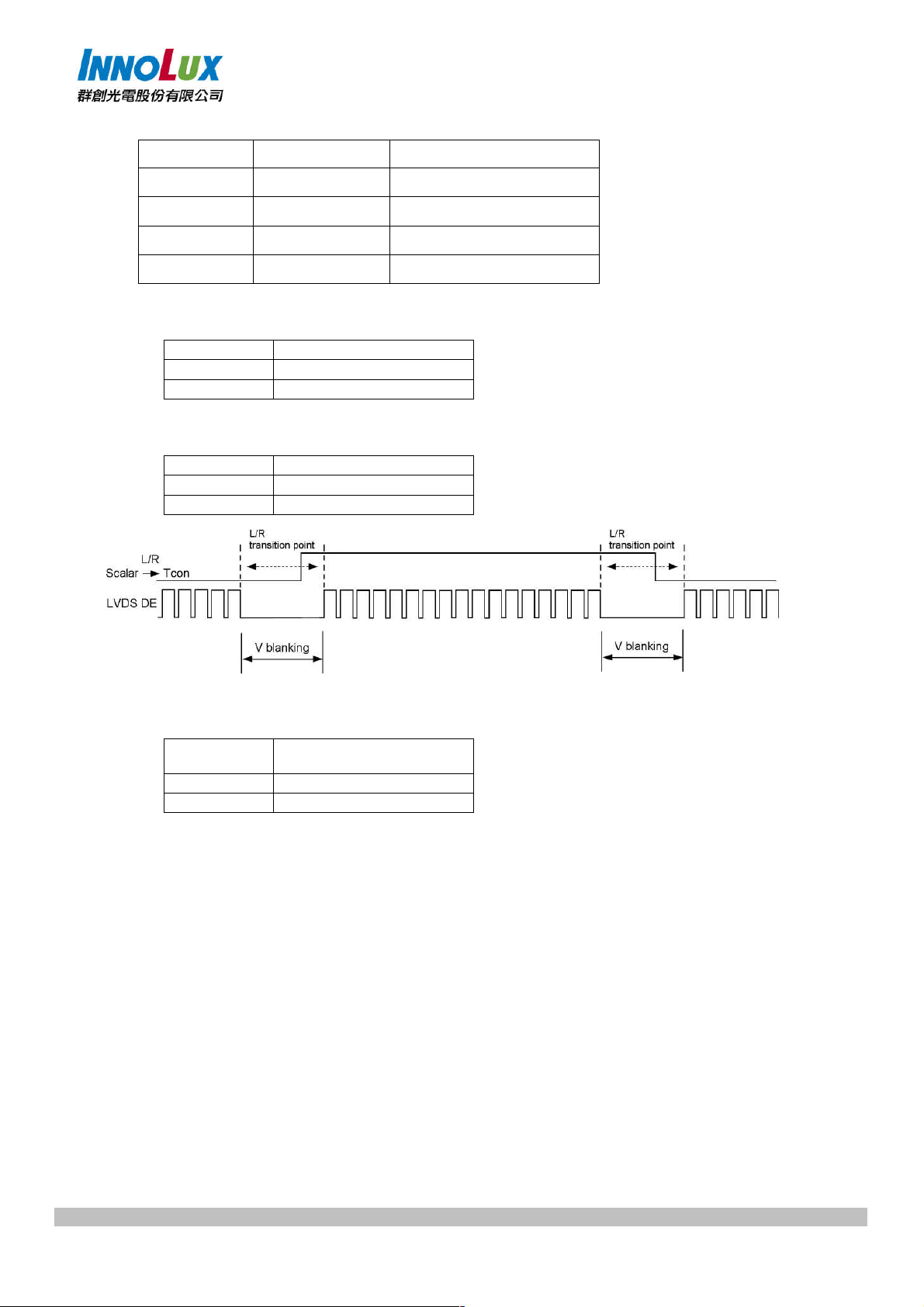

Left eye image and right eye image are displayed alternated

WW

Left eye image: W1023; Right eye image: W1023

WB

Left eye image: W1023; Right eye image: W0

BW

Left eye image: W0; Right eye image: W1023

BB

Left eye image: W0; Right eye image: W0

b. Measurement setup

LCD Module

LCD Panel

Right Eye Shutter Glass

CS - 2000

Field of View = 1º

500 mm

Shutter glasses are well controlled under suitable timing, and measure the luminance of the center point of the panel

through the right eye glass. The transmittance of the glass should be larger than 40.0% under 3D mode operation.

The luminance of the test pattern “WW”, denoted L(WW); the luminance of the test pattern ”WB”, denoted L(WB) ;

the luminance of the test pattern “BW”, denoted L(BW); the luminance of the test pattern “BB”, denoted “L(BB)

c. Definition of the Center Luminance of White, Lc (3D) : L(WW)

Light Shield Room

(Ambient Luminance < 2 lux)

d. Definition of the 3D mode white crosstalk, CT (3D-W) :

e. Definition of the 3D mode dark crosstalk, CT (3D-D) :

Version 0.0 41 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

)3(

WDCT

≡−

)3(

DDCT

≡−

−

BWLWWL

−

BBLWWL

−

)()(

BBLWWL

)()(

BBLWBL

PRODUCT SPECIFICATION

Technology

8. PRECAUTIONS

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly.

(2) It is recommended to assemble or to install a module into the user’s system in clean working areas. The

dust and oil may cause electrical short or worsen the polarizer.

(3) Do not apply pressure to the module (including Active Area) to prevent the damage of LCD panel and

backlight.

(4) Always follow the correct power-on sequence when the LCD module is turned on. This can prevent the

damage and latch-up of the CMOS LSI chips.

(5) Do not plug in or pull out the I/F connector while the module is in operation.

(6) Do not disassemble the module.

(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(8) Moisture can easily penetrate into LCD module and may cause the damage during operation.

(9) High temperature or humidity may deteriorate the performance of LCD module. Please store LCD

modules in the specified storage conditions.

(10) When ambient temperature is lower than 10ºC, the display quality might be reduced. For example, the

response time will become slow, and the starting voltage of LED will be higher than that of room

temperature.

8.2 SAFETY PRECAUTIONS

(1) The startup voltage of a backlight is over 1000 Volts. It may cause an electrical shock while assembling

with the inverter. Do not disassemble the module or insert anything into the backlight unit.

(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(3) After the module’s end of life, it is not harmful in case of normal operation and storage.

8.3 SAFETY STANDARDS

The LCD module should be certified with safety regulations as follows:

Regulatory Item

UL UL60950-1:2006 or Ed.2:2007

Information

cUL CAN/CSA C22.2 No.60950-1-03 or 60950-1-07

equipment

CB IEC60950-1:2005 / EN60950-1:2006+ A11:2009

Standard

If the module displays the same pattern for a long period of time, the phenomenon of image sticking may be occurred.

Version 0.0 42 Date : Mar.25 2013

Audio/Video Apparatus

The copyright belongs to InnoLux. Any unauthorized use is prohibited

UL UL60065 Ed.7:2007

cUL CAN/CSA C22.2 No.60065-03:2006 + A1:2006

IEC60065:2001+ A1:2005 / EN60065:2002 + A1:2006+ A11:2008

CB

PRODUCT SPECIFICATION

X X X X X X X Y M D L N N N N

9. DEFINITION OF LABELS

9.1 MODULE LABEL

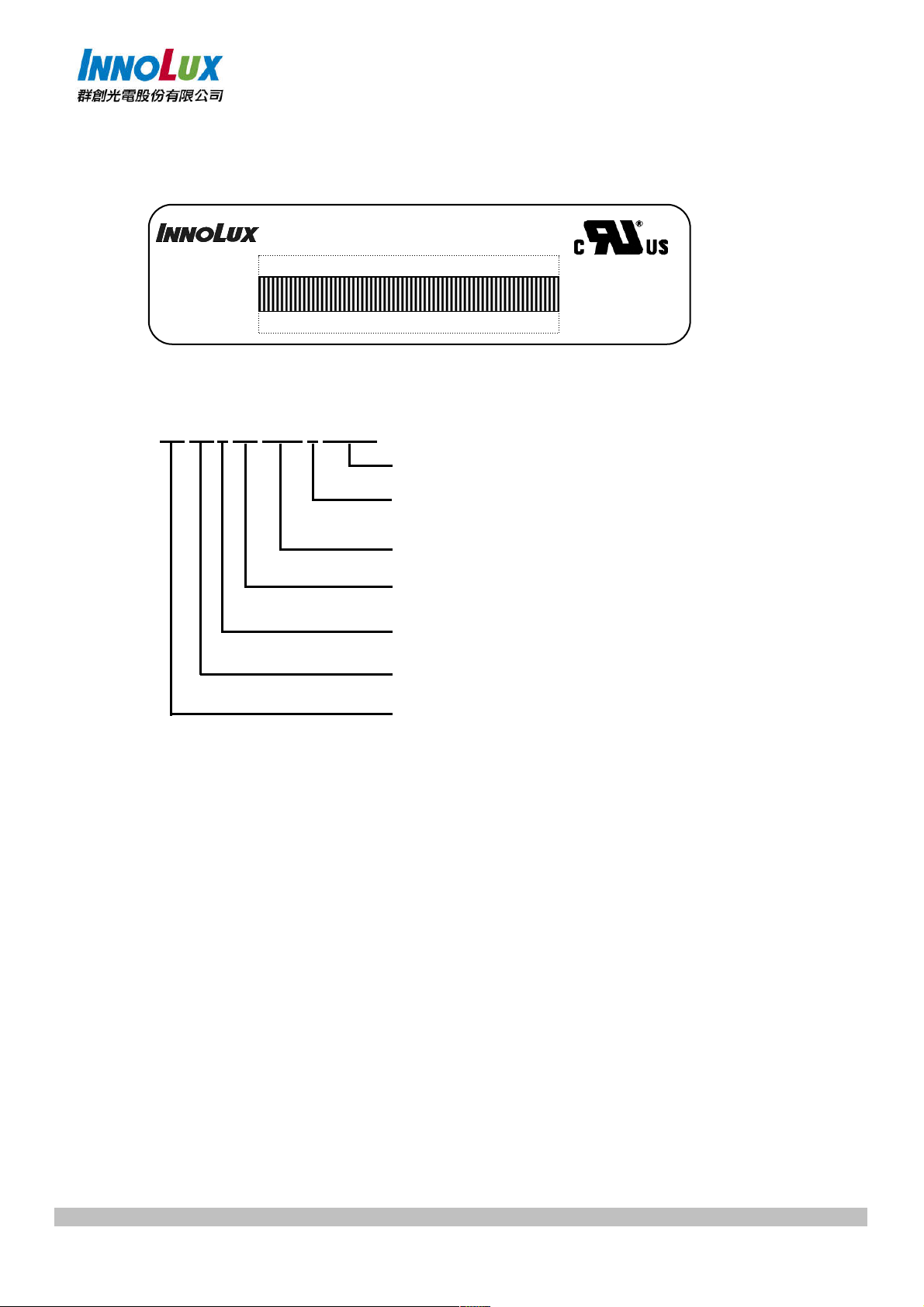

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

Model Name : V500DK2-LS1

Revision : Rev. XX, for example: A0, A1… B1, B2… or C1, C2…etc.

Serial ID : X X X X X X X Y M D L N N N N

Serial ID includes the information as below :

V500DK2-LS1 Rev. XX

Serial No.

Product Line

Year, Month, Date

INX Internal Use

Revision

INX Internal Use

MADE IN CHINA

LEOO(CAPG/CANO/VIRO)

RoHS

Manufactured Date :

Year : 2001=1, 2002=2, 2003=3, 2004=4…2010=0, 2011=1, 2012=2…

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1st to 31st, exclude I ,O, and U.

Revision Code : Cover all the change

Serial No. : Manufacturing sequence of product

Product Line : 1→Line1, 2→Line 2, …etc.

Version 0.0 43 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

9.2 CARTON LABEL

The barcode nameplate is pasted on each box as illustration, and its definitions are as following explanation.

Model Name: V500DK2– LS1

Carton ID: X X X X X X X Y M D X X X X

P.O. NO.

Parts ID.

Model Name V500DK2-LS1

Carton ID. Quantities XXXXXXXXXXXXXX

Made In Taiwan (Made In China)

INX Internal Use

Year, Month, Date

Serial ID includes the information as below :

Manufactured Date:

Year: 2010=0, 2011=1, 2012=2…etc.

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1st to 31st, exclude I ,O, and U.

Revision Code: Cover all the change

INX Internal Use

Revision

INX Internal Use

Version 0.0 44 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

10. PACKAGING

10.1 PACKAGING SPECIFICATIONS

(1) 22 LCD TV modules / 1 Box (2) Box dimensions : 1288(L) X 1138 (W) X 775 (H) (3) Weight: approximately 297 Kg

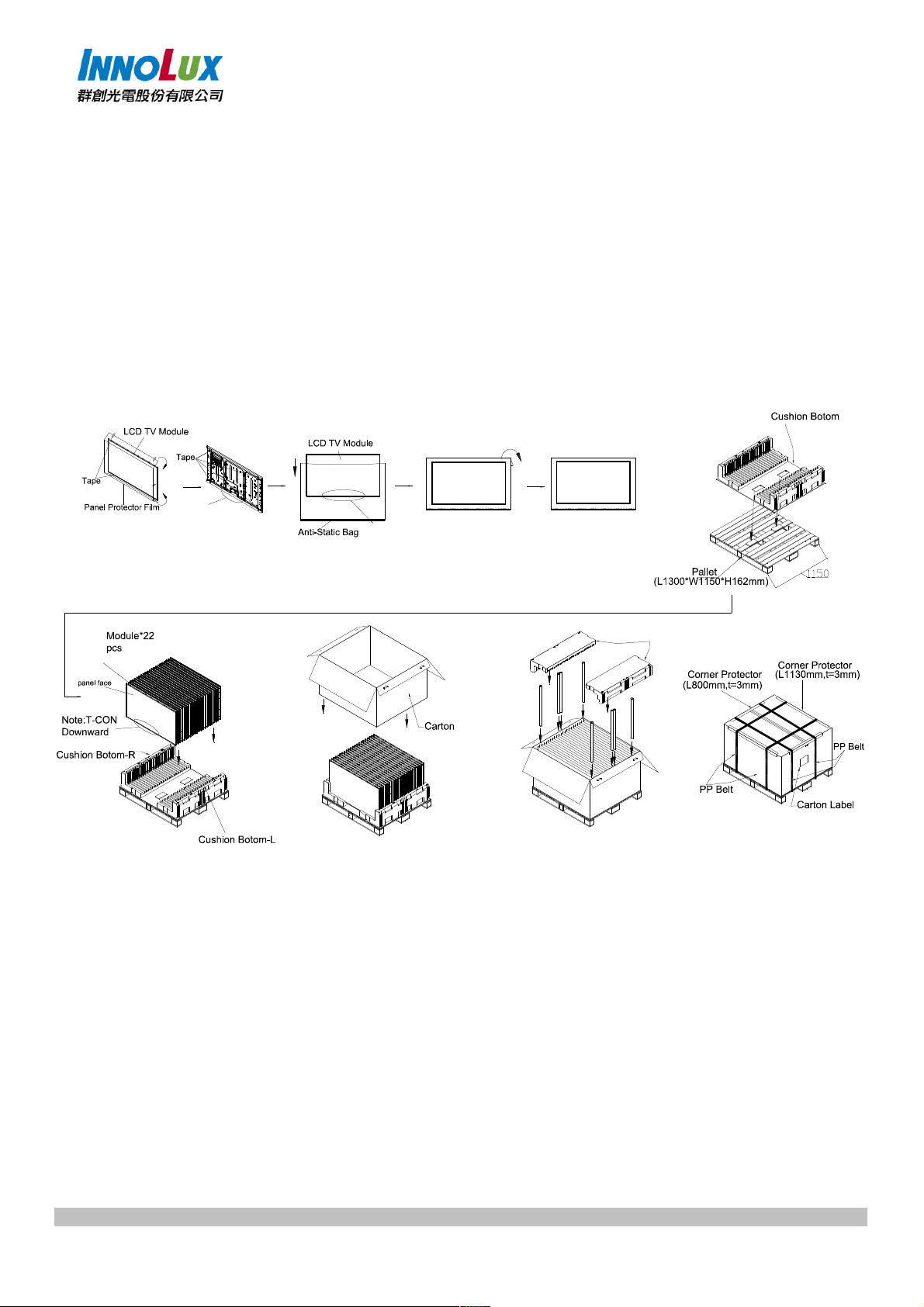

10.2 PACKAGING METHOD

Packaging method is shown in following figures.

Note:T-CON Downward

PRODUCT SPECIFICATION

Cushion Top

Version 0.0 45 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

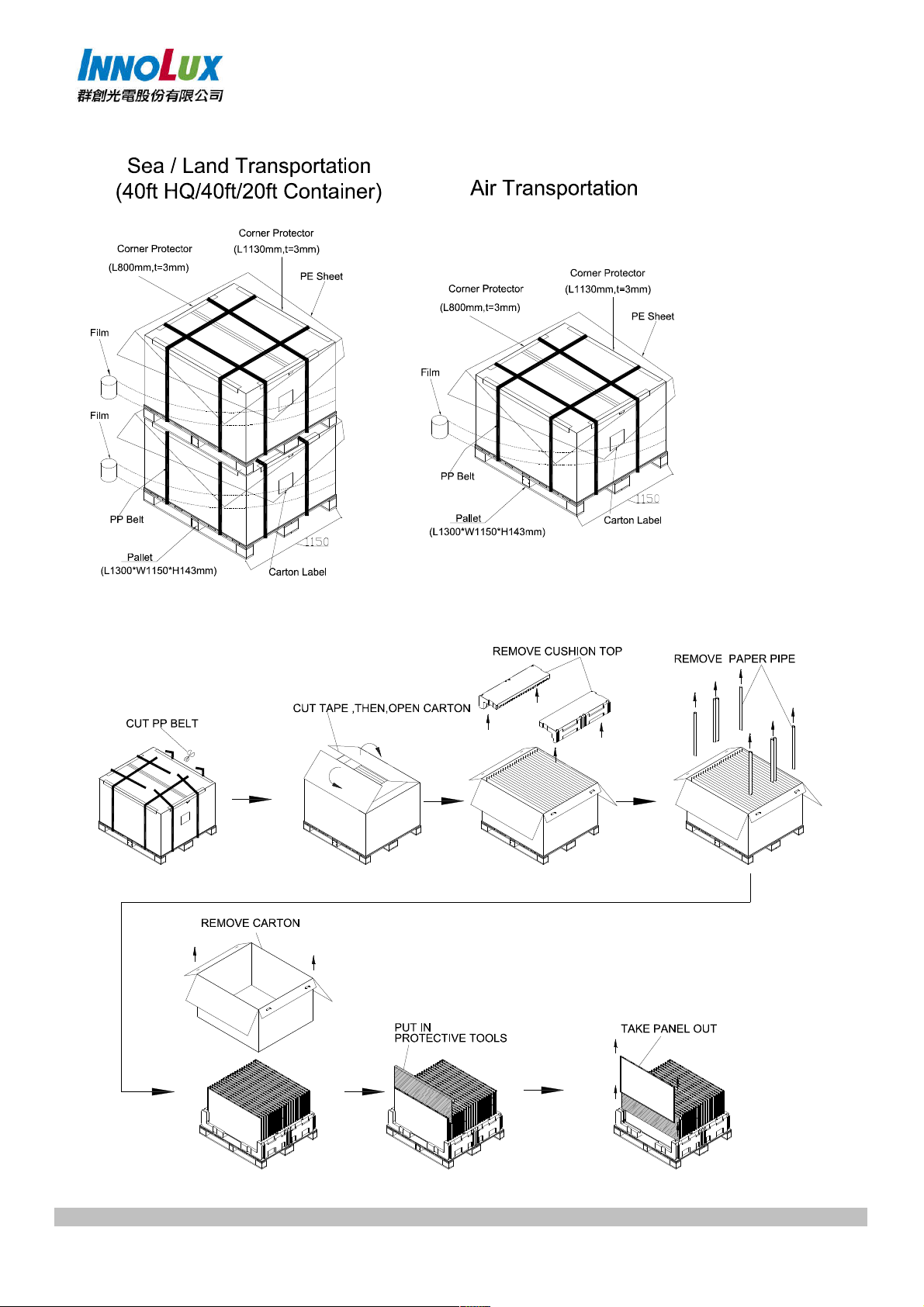

10.3 UN-PACKAGING METHOD

Un-packaging method is shown in following figures.

Version 0.0 46 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

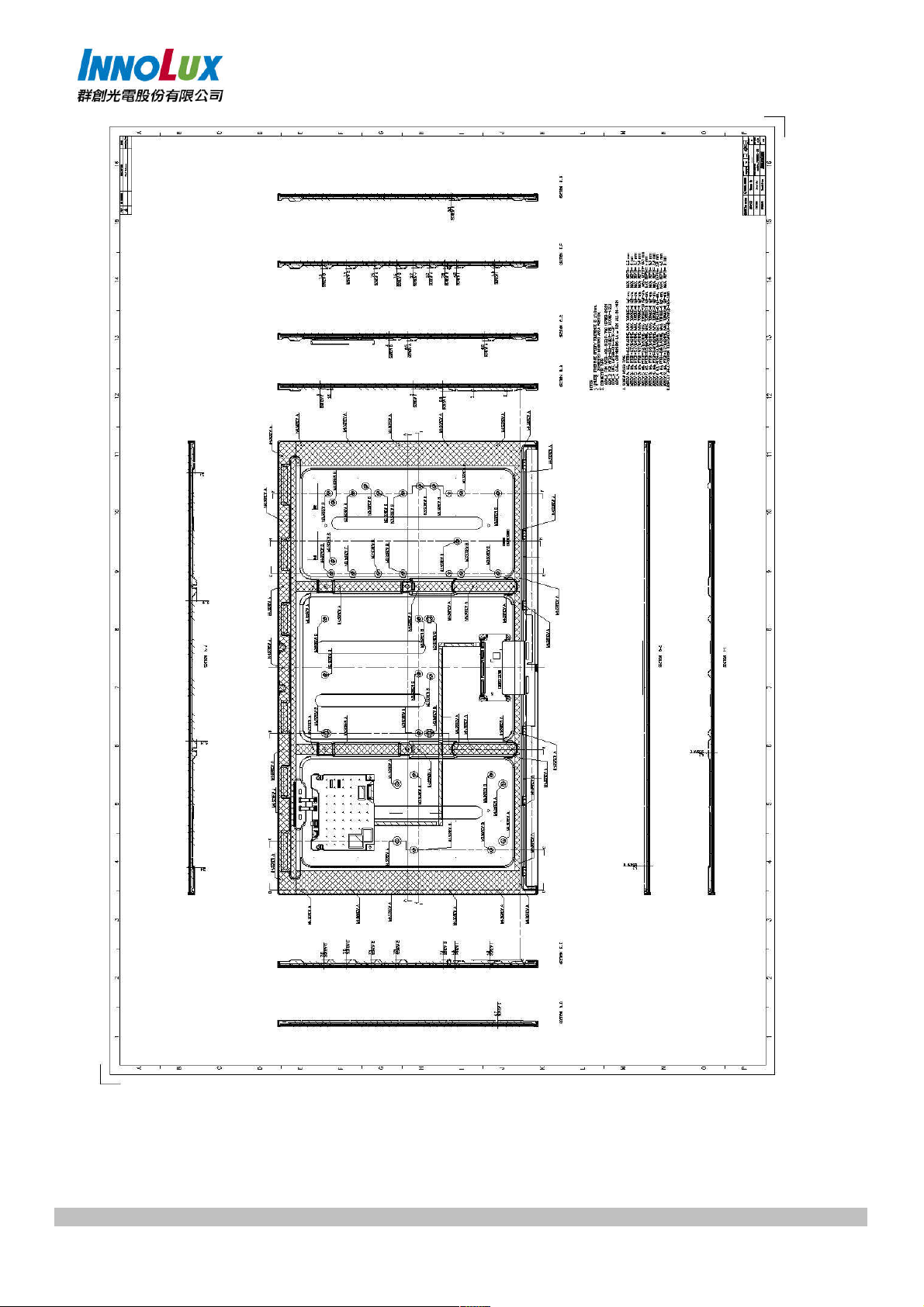

11. MECHANICAL CHARACTERISTIC

PRODUCT SPECIFICATION

Version 0.0 47 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Version 0.0 48 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Version 0.0 49 Date : Mar.25 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

INNOLUX V500DK2.LS1 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
