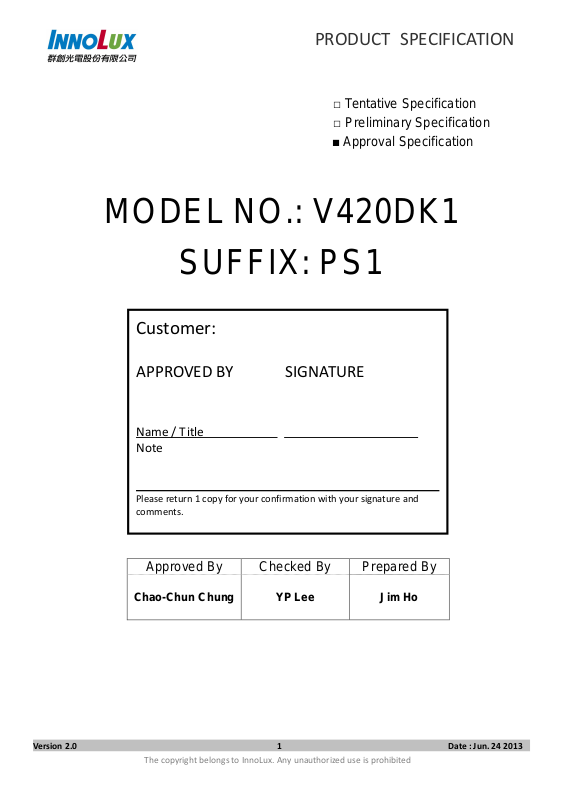

INNOLUX V420DK1.PS1 Specification

PRODUCT SPECIFICATION

Customer:

□ Tentative Specification □ Preliminary Specification

■

Approval Specification

MODEL NO.: V420DK1

SUFFIX: PS1

APPROVED BY SIGNATURE

Name / Title Note

Please return 1 copy for your confirmation with your signature and comments.

Approved By Checked By Prepared By

Chao-Chun Chung

Version 2.0 1 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

YP Lee

Jim Ho

PRODUCT SPECIFICATION

CONTENTS

CONTENTS...................................................................................................................................................................... 2

1. GENERAL DESCRIPTION........................................................................................................................................... 5

1.1 OVERVIEW......................................................................................................................................................... 5

1.2 FEATURES.......................................................................................................................................................... 5

1.3 MECHANICAL SPECIFICATIONS...................................................................................................................... 6

2. ABSOLUTE MAXIMUM RATINGS ............................................................................................................................... 7

2.1 ABSOLUTE RATINGS OF ENVIRONMENT....................................................................................................... 7

2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL) ............................................................................... 8

2.3 ELECTRICAL ABSOLUTE RATINGS ................................................................................................................. 8

2.3.1 TFT LCD MODULE................................................................................................................................... 8

3. ELECTRICAL CHARACTERISTICS ............................................................................................................................9

3.1 TFT LCD Module................................................................................................................................................. 9

4. BLOCK DIAGRAM OF INTERFACE .......................................................................................................................... 12

4.1 TFT LCD MODULE ...........................................................................................................................................12

5. INPUT TERMINAL PIN ASSIGNMENT...................................................................................................................... 13

5.1 TFT LCD OPEN CELL ...................................................................................................................................... 13

5.2 LVDS INTERFACE............................................................................................................................................ 20

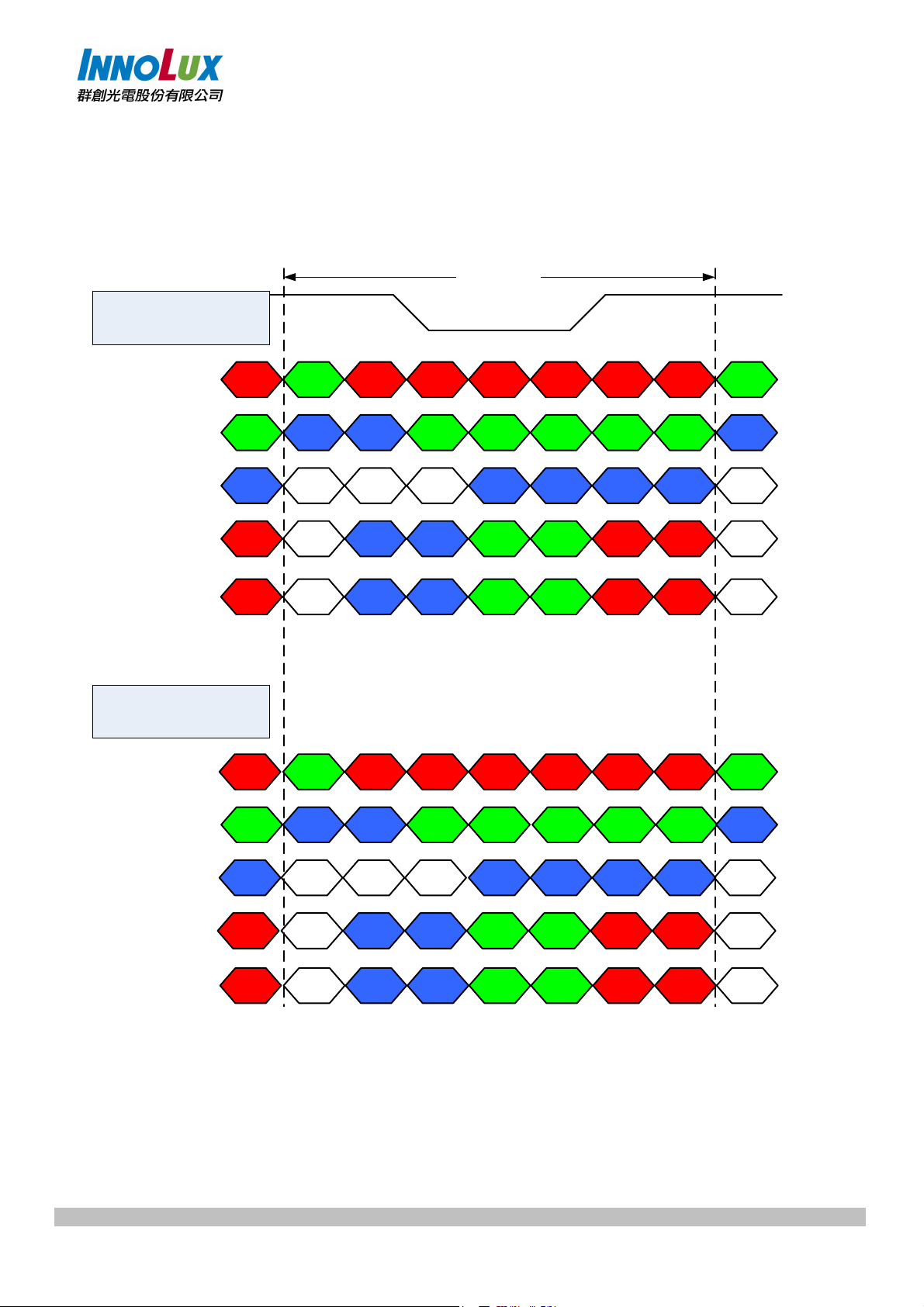

5.3 COLOR DATA INUT ASSIGNMENT.................................................................................................................. 21

5.4 FLICKER (Vcom) ADJUSTMENT .....................................................................................................................21

6. INTERFACE TIMING.................................................................................................................................................. 23

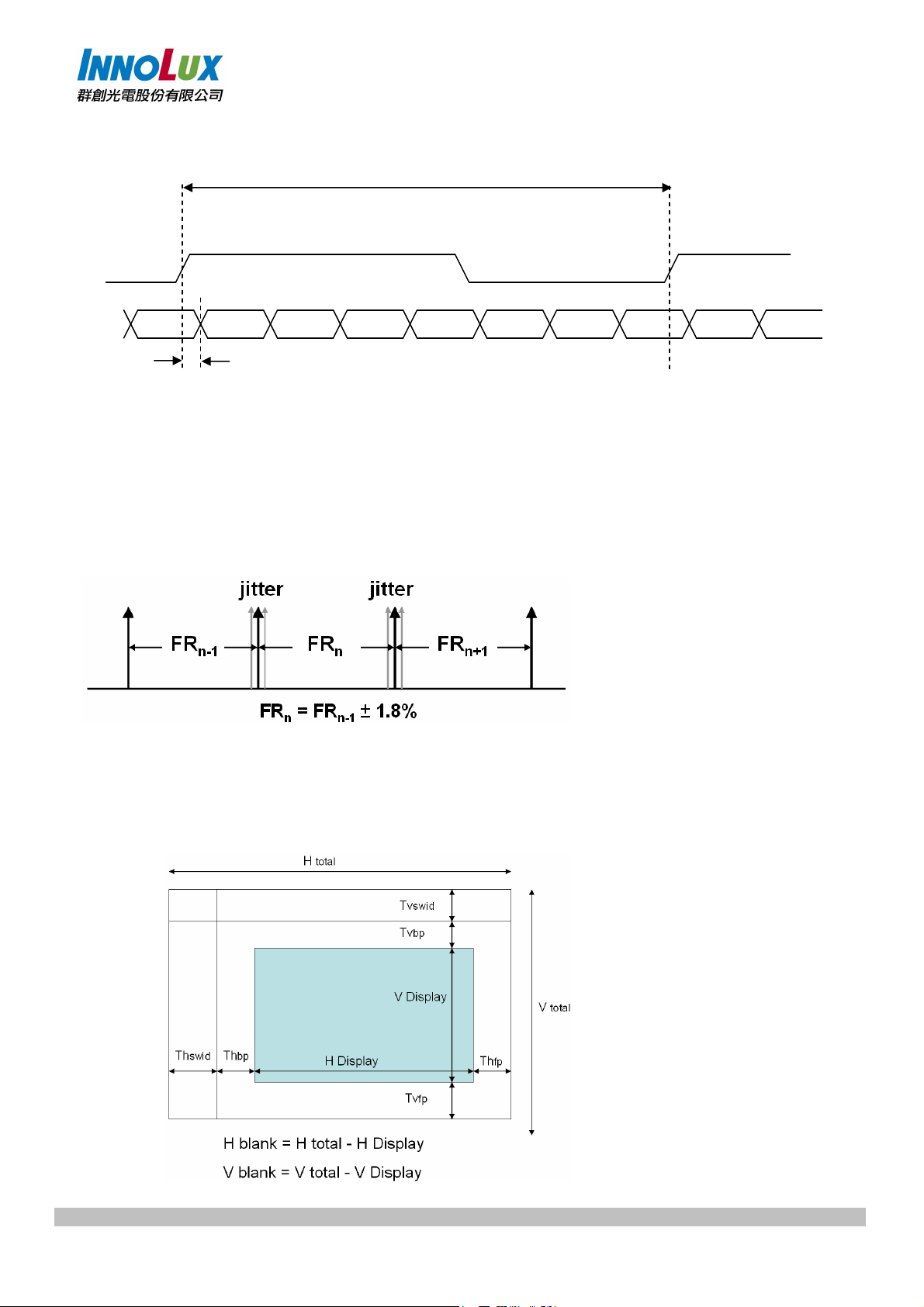

6.1 INPUT SIGNAL TIMING SPECIFICATIONS.....................................................................................................23

6.1.1 Input Timing Spec for FHD, Frame Rate = 50Hz.................................................................................... 23

6.1.2 Input Timing Spec for FHD, Frame Rate = 60Hz.................................................................................... 24

6.1.3 Input Timing Spec for FHD, Frame Rate = 100Hz.................................................................................. 24

6.1.4 Input Timing Spec for FHD, Frame Rate = 120Hz.................................................................................. 25

6.1.5 Input Timing spec for QFHD, Frame Rate = 24Hz.................................................................................. 26

6.1.6 Input Timing spec for QFHD, Frame Rate = 30Hz.................................................................................. 26

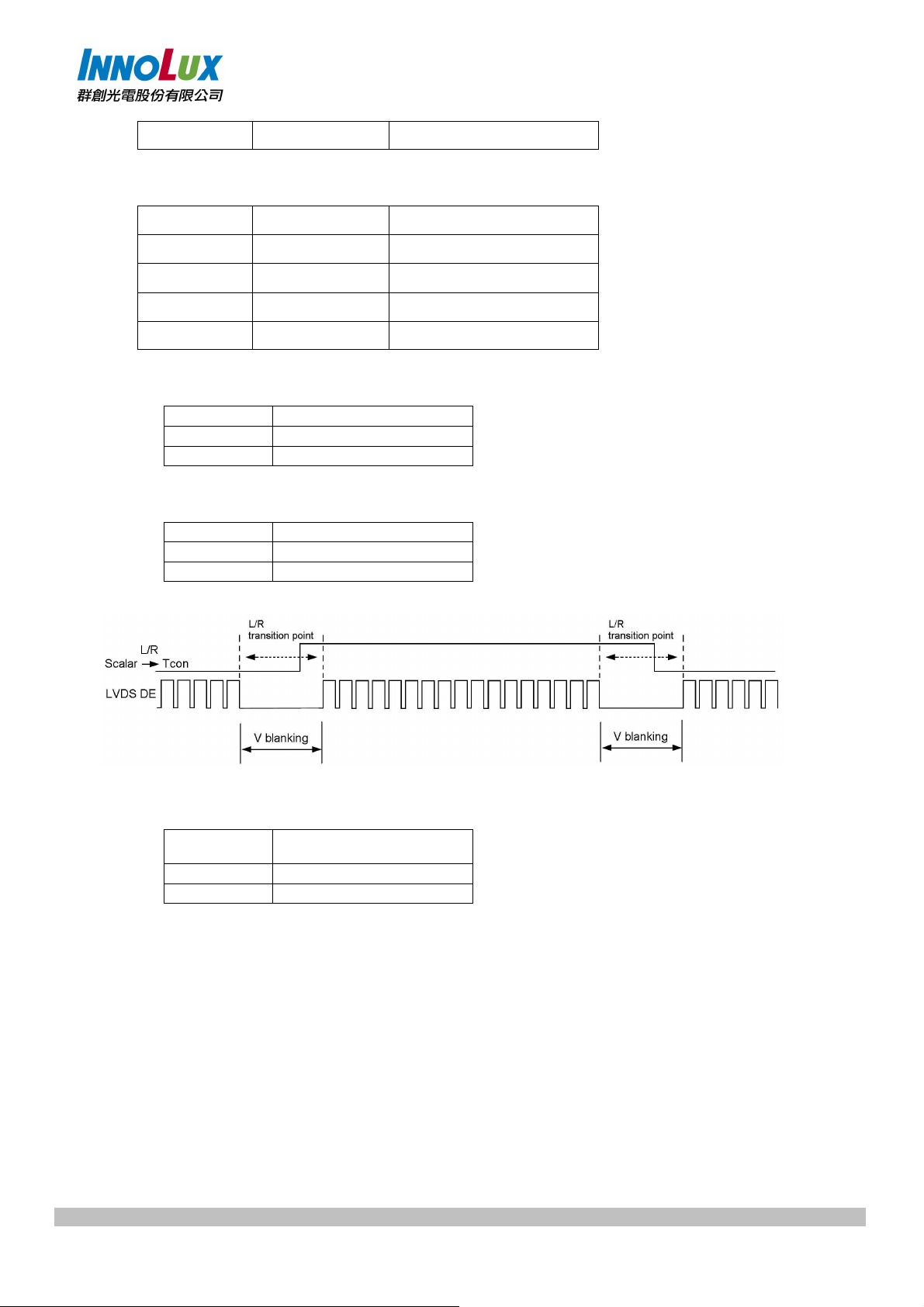

6.2 POWER ON/OFF SEQUENCE.........................................................................................................................29

7. OPTICAL CHARACTERISTICS ................................................................................................................................. 30

Version 2.0 2 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

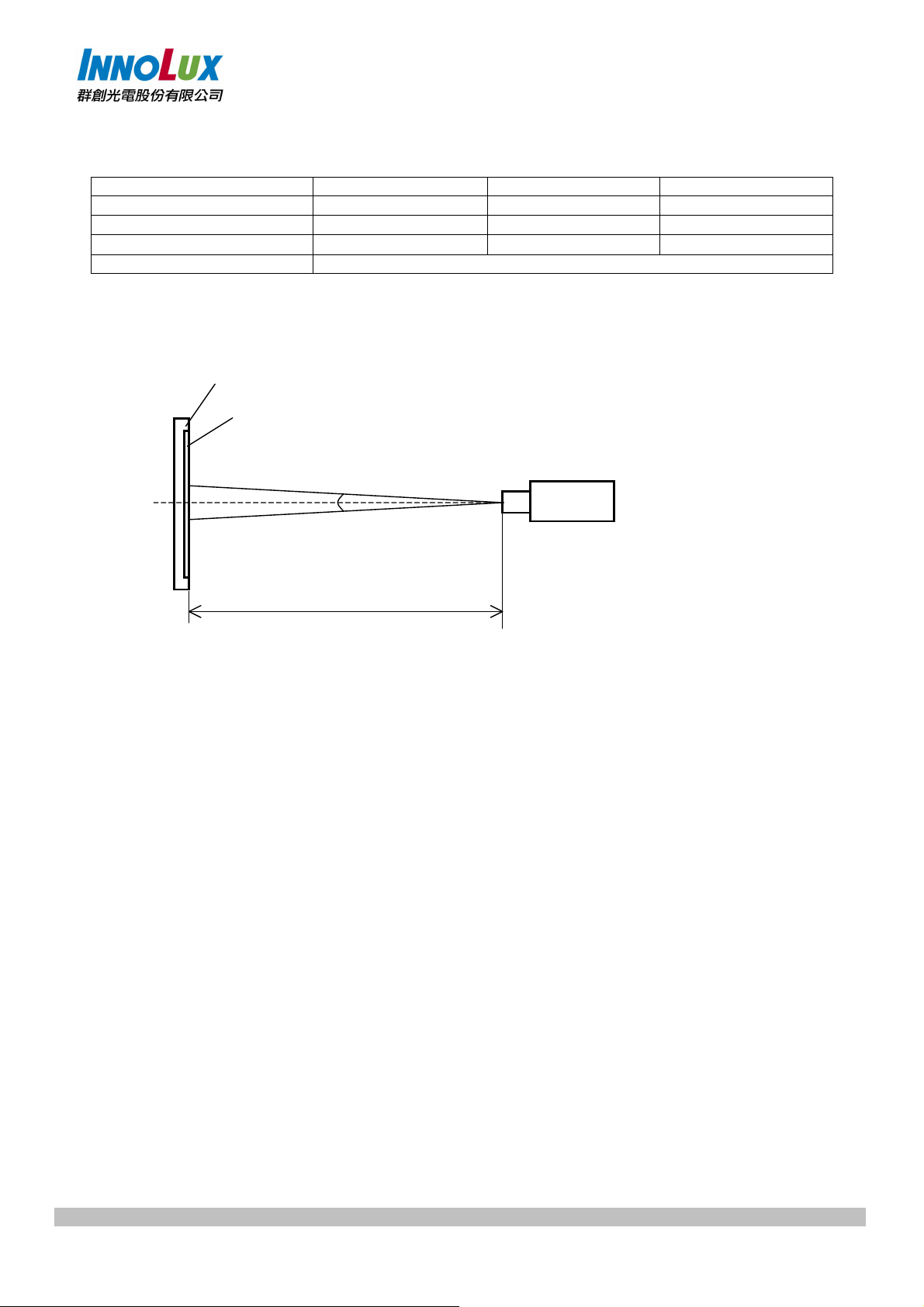

7.1 TEST CONDITIONS.......................................................................................................................................... 30

7.2 OPTICAL SPECIFICATIONS ............................................................................................................................ 31

8. PRECAUTIONS.......................................................................................................................................................... 35

8.1 ASSEMBLY AND HANDLING PRECAUTIONS ................................................................................................ 35

8.2 SAFETY PRECAUTIONS ................................................................................................................................. 36

9. DEFINITION OF LABELS........................................................................................................................................... 37

9.1 OPEN CELL LABEL.......................................................................................................................................... 37

10. PACKAGING.............................................................................................................................................................39

10.1 PACKAGING SPECIFICATIONS .................................................................................................................... 39

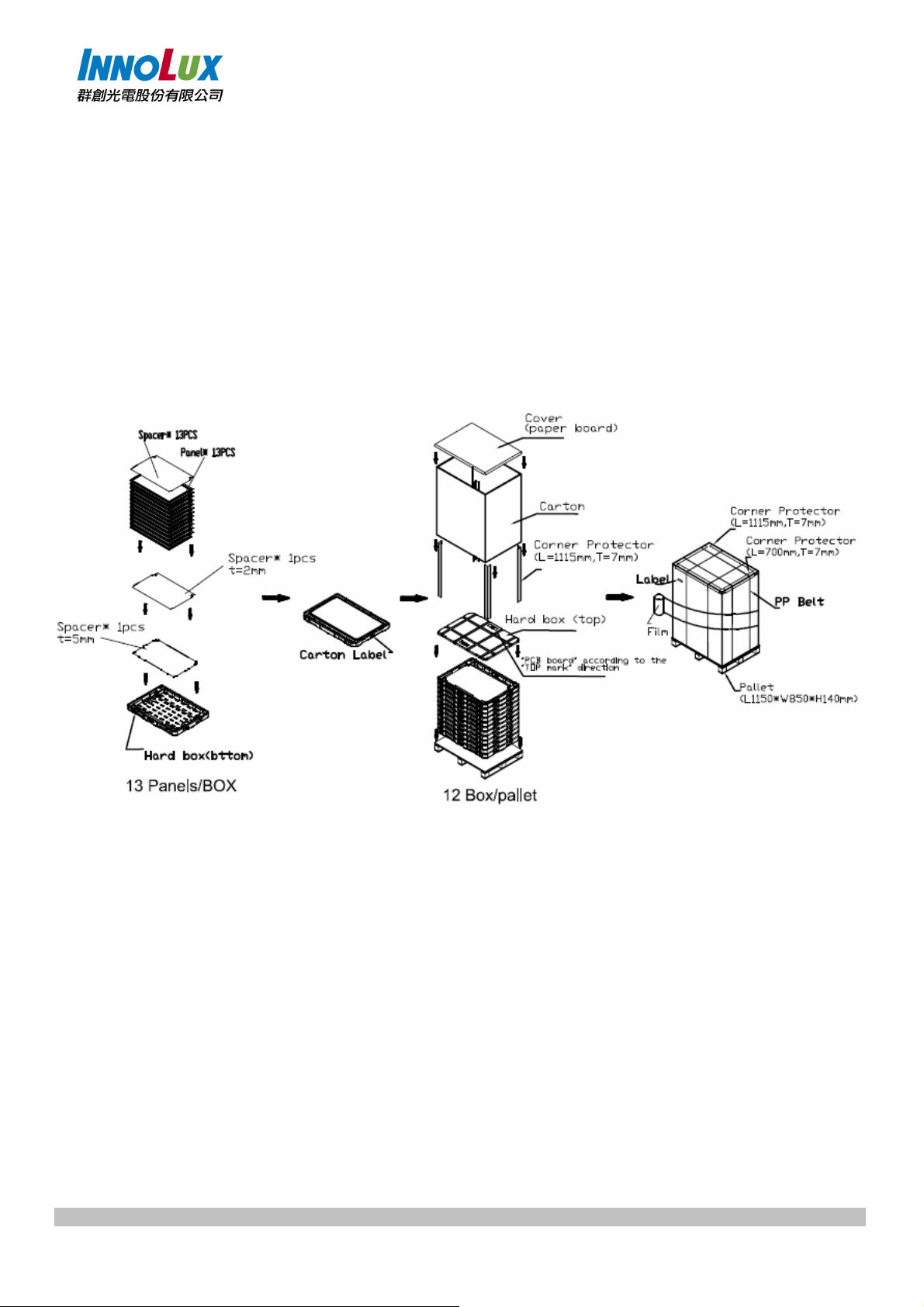

10.2 PACKAGING METHOD................................................................................................................................... 39

10.3 UNPACKAGING METHOD .............................................................................................................................40

11. MECHANICAL CHARACTERISTIC.......................................................................................................................... 41

Version 2.0 3 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Version Date

Ver 2.0 Jun.24.2013

PRODUCT SPECIFICATION

REVISION HISTORY

Page

(New)

All All The Approval Specification was first issued.

Section Description

Version 2.0 4 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

X+C Board

1. GENERAL DESCRIPTION

1.1 OVERVIEW

V420DK1-PS1 is a 42” TFT Liquid Crystal Display product with driver ICs and 4ch-LVDS interface. This product supports 3840 x 2160 Quad Full HDTV format and can display true 1.07G colors (8-bit +FRC). The backlight unit is not built in.

1.2 FEATURES

CHARACTERISTICS ITEMS SPECIFICATIONS

Pixels [lines] 3840 x R.G.B. x 2160 Active Area [mm] Sub-Pixel Pitch [mm] 0.0798 (H) x 0.2394 (V) Pixel Arrangement RGB vertical stripe Weight [g] 1460 Physical Size [mm] 931.296 × 566.204 × 1.8 Typ. Display Mode Transmissive mode / Normally black Contrast Ratio 5000:1 Typ.

Glass thickness (Array / CF) [mm] 0.5 / 0.5 Viewing Angle (CR>20) (VA Model) Viewing Angle (CR>10) (TN Model) Color Chromaticity

919.296 (H) x 517.104 (V) (42” diagonal)

(Typical value measured at INX’s module)

+88/-88(H),+88/-88(V) Typ. (Typical value measured by INX’s module) +80/-80(H),+80/-70(V) Typ. (Typical value measured by INX’s module) R=(0.659,0.325)

G=(0.277, 0.588) B=(0.134, 0.115) W=(0.312, 0.362) * Please refer to “color chromaticity” in 7.2

Version 2.0 5 Date : Jun. 24 2013

Cell Transparency [%] 4.5% Typ. Please refer to “Transmittance” in 7.2 Polarizer Surface Treatment Rotation Function Display Orientation RoHs Compliance

Back Side

Anti-Glare coating (Haze 1%) Achievable Signal input with “INX”

Front Side

INX

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

1.3 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Weight - 1460 - g -

I/F connector mounting position

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Note (2) Connector mounting position

The mounting inclination of the connector makes the screen center within ± 0.5mm as the horizontal.

+/- 0.5mm

(2)

Version 2.0 6 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1), (3) Operating Ambient Temperature TOP 0 50 ºC (1), (2), (3)

Note (1) Temperature and relative humidity range is shown in the figure below. (a) 90 %RH Max. (Ta 40 ºC).≦ (b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC). (c) No condensation.

Note (2) Thermal management should be considered in final product design to prevent the surface temperature of display

area from being over 65 ºC. The range of operating temperature may degrade in case of improper thermal management in final product design.

Note (3) The rating of environment is base on LCD module. Leave LCD cell alone, this environment condition can’t be

guaranteed. Except LCD cell, the customer has to consider the ability of other parts of LCD module and LCD module process.

Min. Max.

Value

Unit Note

Version 2.0 7 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)

Recommended Storage Condition: With shipping package.

Recommended Storage temperature range: 25±5 ℃

Recommended Storage humidity range: 50±10%RH

Recommended Shelf life: a month

2.3 ELECTRICAL ABSOLUTE RATINGS

2.3.1 TFT LCD MODULE

Value

Item Symbol

Min. Max.

Power Supply Voltage VCC -0.3 13.5 V

Logic Input Voltage VIN -0.3 3.6 V

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

Unit Note

(1)

should be restricted to the conditions described under Normal Operating Conditions.

Version 2.0 8 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD Module

(Ta = 25 ± 2 ºC)

Power Supply Voltage VCC 10.8 12 13.2 V (1)

Rush Current I

QFHD 120Hz Output Power Consumption

QFHD 120Hz Output Power Supply Current

QFHD 60Hz Output Power Consumption

Parameter Symbol

RUSH

White Pattern P

Horizontal Stripe PT

Black Pattern PT

White Pattern

Horizontal Stripe

Black Pattern

White Pattern P

Horizontal Stripe PT

Black Pattern PT

T

－－

T

Value

Min. Typ. Max.

－－

－

9.48 11.28 W

20.88 25.20 W

9.36 11.04 W

0.79 0.94 A

1.74 2.10 A

0.78 0.92 A

9.00 10.80 W

20.16 23.52 W

8.88 10.20 W

Unit Note

2.8 A (2)

(3)

QFHD 60Hz Output Power Supply Current

Differential Input High Threshold Voltage

Differential Input Low

LVDS interface

CMOS interface

Threshold Voltage Common Input Voltage VCM 1.0 1.2 1.4 V Differential input voltage

(single-end) Terminating Resistor RT

Input High Threshold Voltage VIH 2.7

Input Low Threshold Voltage VIL 0

White Pattern

Horizontal Stripe

Black Pattern

－－

V

+100

LVTH

V

-300

LVTL

|VID| 200

－

0.75 0.90 A

1.68 1.96 A

0.74 0.85 A

－

100

－

+300 mV

-100 mV

600 mV

－

3.3 V

0.7 V

ohm

(4)

Version 2.0 9 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Note (1) The module should be always operated within the above ranges. The ripple voltage should be controlled under 10% of

Vcc (Typ.)

Note (2) Measurement condition :

Note (3) The specified power supply current is under the conditions at Vcc = 12 V, Ta = 25 ± 2 ºC, fv = 60/120 Hz, whereas a

power dissipation check pattern below is displayed.

a. White Pattern

GND

Vcc rising time is 470us

Vcc

0.9Vcc

0.1Vcc

470us

b. Black Pattern

c. Horizontal Pattern

Active Area

Version 2.0 10 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

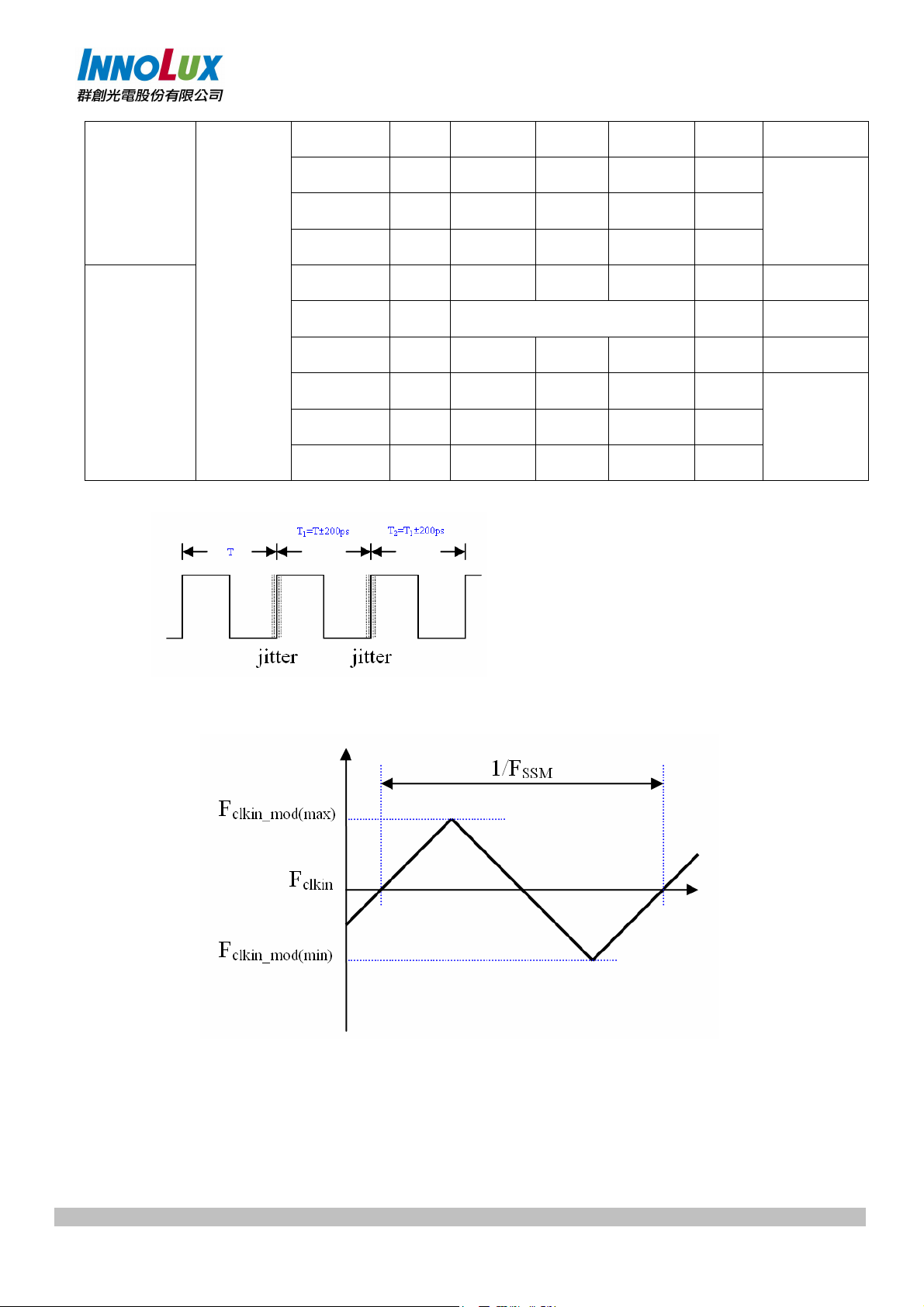

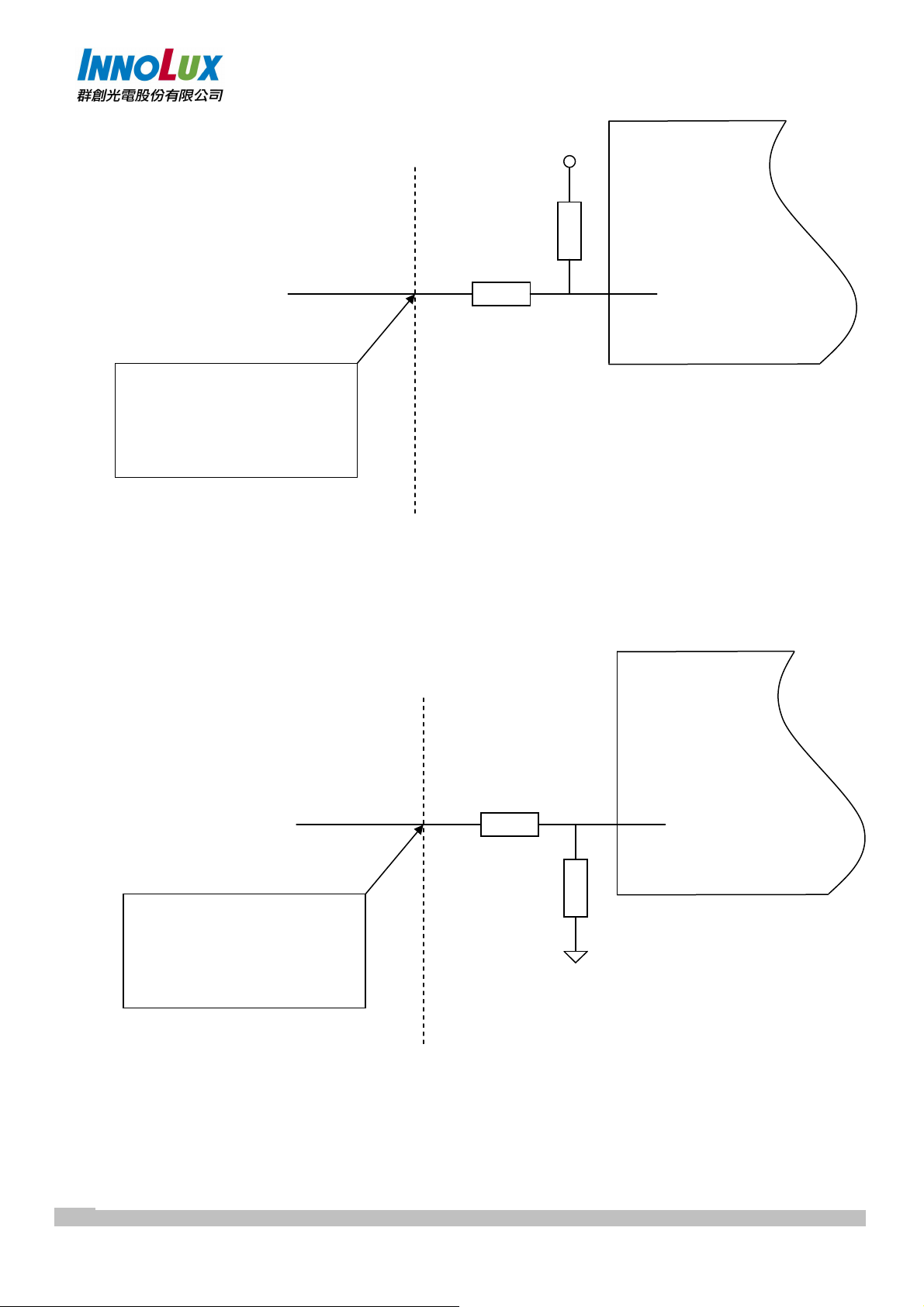

Note (4) The LVDS input characteristics is shown as below :

PRODUCT SPECIFICATION

Version 2.0 11 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

4. BLOCK DIAGRAM OF INTERFACE

4.1 TFT LCD MODULE

PRODUCT SPECIFICATION

TFT LCD PANEL

(3840x3x2160)

X(R) Board X(L) Board

OUTPUT CONNECTOR

L/R_O

CON2: LM123S-010-H-TF1-3Y

INPUT CONNECTOR

CNF1: 187059-51221(P-TWO)

or WF23-402-5133(FCN)

C Board

INPUT CONNECTOR

CNF2:

187060-41221(P-TWO) or

WF23-400-413C(FCN)

CH1_0(+/-) CH1_1(+/-) CH1_2(+/-) CH1_3(+/-) CH1_4(+/-) CH1_CLK(+/-)

CH2_0(+/-) CH2_1(+/-) CH2_2(+/-) CH2_3(+/-) CH2_4(+/-) CH2_CLK(+/-)

SELLVDS

2D/3D SDA

L/R LD_EN VCC L/R_O GND SCL

CH3_0(+/-) CH3_1(+/-) CH3_2(+/-) CH3_3(+/-) CH3_4(+/-) CH3_CLK(+/-)

CH4_0(+/-) CH4_1(+/-) CH4_2(+/-) CH4_3(+/-) CH4_4(+/-) CH4_CLK(+/-)

Version 2.0 12 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD OPEN CELL

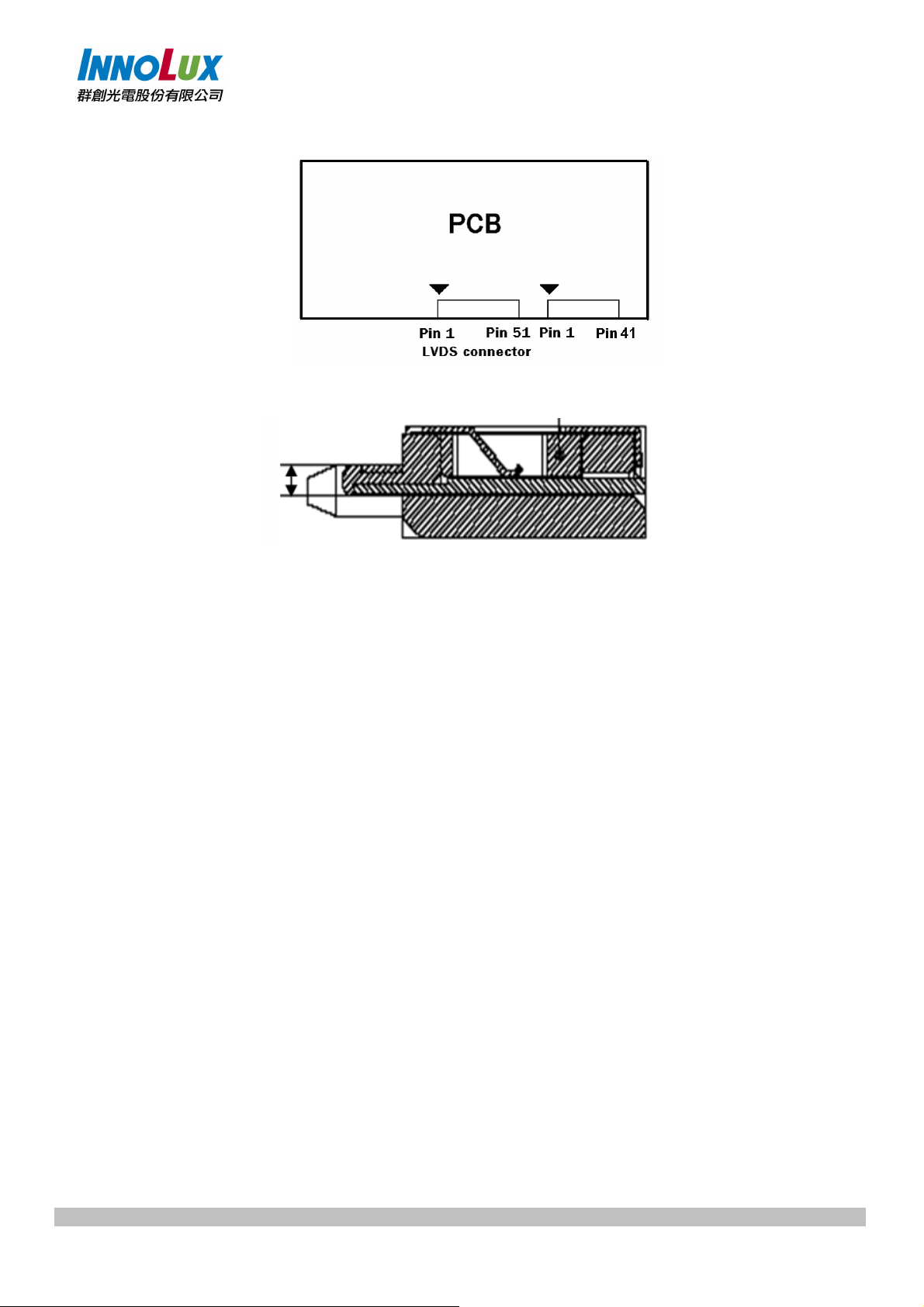

CNF1 Connector Pin Assignment (187059-51221(P-TWO) or WF23-402-5133 (FCN)) Matting connector: FI-RE51HL (JAE)

Pin Name Description

1 N.C. No Connection (1) 2 SCL I2C Clock (for mode selection & function setting) 3 SDA I2C Data (for mode selection & function setting) 4 N.C. No Connection 5 L/R_O Output signal for Left Right Glasses control 6 N.C. No Connection (1) 7 SELLVDS Input signal for LVDS Data Format Selection (3)(9) 8 N.C. No Connection 9 N.C. No Connection

10 N.C. No Connection

11 GND Ground 12 CH1[0]- First pixel Negative LVDS differential data input. Pair 0 13 CH1[0]+ First pixel Positive LVDS differential data input. Pair 0

Note

(1) (2)

(1)

14 CH1[1]- First pixel Negative LVDS differential data input. Pair 1

(4)

15 CH1[1]+ First pixel Positive LVDS differential data input. Pair 1 16 CH1[2]- First pixel Negative LVDS differential data input. Pair 2 17 CH1[2]+ First pixel Positive LVDS differential data input. Pair 2 18 GND Ground 19 CH1CLK- First pixel Negative LVDS differential clock input. 20 CH1CLK+ First pixel Positive LVDS differential clock input. 21 GND Ground 22 CH1[3]- First pixel Negative LVDS differential data input. Pair 3 23 CH1[3]+ First pixel Positive LVDS differential data input. Pair 3 24 CH1[4]- First pixel Negative LVDS differential data input. Pair 4 25 CH1[4]+ First pixel Positive LVDS differential data input. Pair 4 26 2D/3D Input signal for 2D/3D Mode Selection (5)(10) 27 L/R Input signal for Left Right eye frame synchronous (6)

(4)

Version 2.0 13 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

28 CH2[0]- Second pixel Negative LVDS differential data input. Pair 0 29 CH2[0]+ Second pixel Positive LVDS differential data input. Pair 0 30 CH2[1]- Second pixel Negative LVDS differential data input. Pair 1 31 CH2[1]+ Second pixel Positive LVDS differential data input. Pair 1 32 CH2[2]- Second pixel Negative LVDS differential data input. Pair 2 33 CH2[2]+ Second pixel Positive LVDS differential data input. Pair 2

(4)

34 GND Ground 35 CH2CLK- Second pixel Negative LVDS differential clock input. 36 CH2CLK+ Second pixel Positive LVDS differential clock input. 37 GND Ground 38 CH2[3]- Second pixel Negative LVDS differential data input. Pair 3 39 CH2[3]+ Second pixel Positive LVDS differential data input. Pair 3 40 CH2[4]- Second pixel Negative LVDS differential data input. Pair 4 41 CH2[4]+ Second pixel Positive LVDS differential data input. Pair 4 42 LD_EN Input signal for Local Dimming Enable (7)(9) 43 N.C. No Connection (8) 44 GND Ground 45 GND Ground 46 GND Ground 47 N.C. No Connection

(4)

(1)

48 VCC +12V power supply 49 VCC +12V power supply 50 VCC +12V power supply 51 VCC +12V power supply

CNF2 Connector pin assignment (187060-41221 (P-TWO) or WF23-400-413C (FCN)) Matting connector: FI-RE41HL (JAE)

Pin Name Description Note

1 N.C. No Connection 2 N.C. No Connection 3 N.C. No Connection 4 N.C. No Connection 5 N.C. No Connection

Version 2.0 14 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

(1)

PRODUCT SPECIFICATION

6 N.C. No Connection 7 N.C. No Connection 8 N.C. No Connection 9 GND Ground

10 CH3[0]- Third pixel Negative LVDS differential data input. Pair 0

11 CH3[0]+ Third pixel Positive LVDS differential data input. Pair 0 12 CH3[1]- Third pixel Negative LVDS differential data input. Pair 1

(4)

13 CH3[1]+ Third pixel Positive LVDS differential data input. Pair 1 14 CH3[2]- Third pixel Negative LVDS differential data input. Pair 2 15 CH3[2]+ Third pixel Positive LVDS differential data input. Pair 2 16 GND Ground 17 CH3CLK- Third pixel Negative LVDS differential clock input.

(4)

18 CH3CLK+ Third pixel Positive LVDS differential clock input. 19 GND Ground 20 CH3[3]- Third pixel Negative LVDS differential data input. Pair 3 21 CH3[3]+ Third pixel Positive LVDS differential data input. Pair 3

(4)

22 CH3[4]- Third pixel Negative LVDS differential data input. Pair 4 23 CH3[4]+ Third pixel Positive LVDS differential data input. Pair 4 24 GND Ground 25 GND Ground 26 CH4[0]- Fourth pixel Negative LVDS differential data input. Pair 0 27 CH4[0]+ Fourth pixel Positive LVDS differential data input. Pair 0 28 CH4[1]- Fourth pixel Negative LVDS differential data input. Pair 1

(4)

29 CH4[1]+ Fourth pixel Positive LVDS differential data input. Pair 1 30 CH4[2]- Fourth pixel Negative LVDS differential data input. Pair 2 31 CH4[2]+ Fourth pixel Positive LVDS differential data input. Pair 2 32 GND Ground 33 CH4CLK- Fourth pixel Negative LVDS differential clock input.

(4)

34 CH4CLK+ Fourth pixel Positive LVDS differential clock input. 35 GND Ground 36 CH4[3]- Fourth pixel Negative LVDS differential data input. Pair 3 37 CH4[3]+ Fourth pixel Positive LVDS differential data input. Pair 3

Version 2.0 15 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

(4)

PRODUCT SPECIFICATION

38 CH4[4]- Fourth pixel Negative LVDS differential data input. Pair 4 39 CH4[4]+ Fourth pixel Positive LVDS differential data input. Pair 4 40 GND Ground 41 GND Ground

CON2 Connector Pin Assignment (LM123S010HTF13Y or equivalent)

1 N.C. No Connection 2 N.C. No Connection 3 N.C. No Connection 4 GND Ground 5 N.C. No Connection 6 L/R_O Output signal for Left Right Glasses control 7 N.C. No Connection 8 N.C. No Connection 9 N.C. No Connection

10 N.C. No Connection

Note (1) Reserved for internal use. Please leave it open. Note (2) The definition of L/R_O signal as follows

L= 0V, H=+3.3V

L/R_O Note

L Right glass turn on

H Left glass turn on

(1)

－

(1) (2)

(1)

Note (3) LVDS format selection.

L= Connect to GND, H=Connect to +3.3V or Open

SELLVDS Note

L JEIDA Format

H or Open VESA Format

Note (4) LVDS Data Mapping

LVDS 4-port FHD 100/120Hz Input

Port Channel of LVDS Data Stream

1st Port First Pixel 1, 5, 9, ……1913, 1917

2nd Port Second Pixel 2, 6, 10, ….1914, 1918

3rd Port Third Pixel 3, 7, 11, ….1915, 1919 4th Port Fourth Pixel 4, 8, 12, ….1916, 1920

LVDS 2port FHD 50/60Hz Input

Port Channel of LVDS Data Stream

1st Port First Pixel 1, 3, 5, ……1917, 1919

Version 2.0 16 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

2nd Port Second Pixel 2, 4, 6, ….1918, 1920

LVDS 4-port QFHD 24/30Hz Input

Port Channel of LVDS Data Stream

1st Port First Pixel 1, 5, 9, ……3833, 3837

2nd Port Second Pixel 2, 6, 10, ….3834, 3838

3rd Port Third Pixel 3, 7, 11, ….3835, 3839 4th Port Fourth Pixel 4, 8, 12, ….3836, 3840

Note (5) 2D/3D mode selection.

L= Connect to GND or Open, H=Connect to +3.3V

2D/3D Note

L or Open 2D Mode

H 3D Mode

Note (6) Input signal for left and right eye frame synchronous VIL=0~0.7 V, VIH=2.7~3.3 V

L/R Note

L Right synchronous signal

H Left synchronous signal

PRODUCT SPECIFICATION

Note (7) Local dimming enable selection.

L= Connect to GND，H=Connect to +3.3V or Open

LD_EN Note

L Local Dimming Disable

H or Open Local Dimming Enable

Note (8) Reserved for internal use. Open is preferred. However, it is also acceptable to reserve the wire connecting with

specific High/Low voltage level.

Note (9) Interface optional pin has internal scheme as following diagram. Customer should keep the interface voltage level

requirement which including panel board loading as below.

Version 2.0 17 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

System Board

PRODUCT SPECIFICATION

3.3V

10K ohm

1K ohm

IC

Interface Voltage Level

VH > V

VL < V

IH

IL

Panel Board

Note (10) Interface optional pin has internal scheme as following diagram. Customer should keep the interface voltage level

requirement which including panel board loading as below.

Panel Board System Board

1K ohm

IC

Interface Voltage Level VH > V

IH

VL < V

IL

10K ohm

Version 2.0 18 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Note (11) LVDS connector pin order defined as follows

Note (12) LVDS connector mating dimension range request is 0.93mm~1.0mm as below

Version 2.0 19 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

5.2 LVDS INTERFACE

JEIDA Format : SELLVDS = L VESA Format : SELLVDS = H or Open

VESA Format

PRODUCT SPECIFICATION

Current Cycle

AR 0P AR 0N

AR 1P AR 1N

AR 2P AR 2N

AR 3P AR 3N

AR 4P AR 4N

JEIDA Format

AR 0P AR 0N

AR 1P AR 1N

AR0

AG1

AB2

AR6

AR4

AG5

AG0 AR5

AB1

DE VS HS AB5 AB4 AB3 AB2

REV AB7 AB6 AG7 AG6 AR7 AR6

REV AB9 AB8 AG9 AG8 AR9 AR8AR8 REV

AG4 AR7

AB5

AB0 AG5 AG4 AG3 AG2 AG1

AB4 AG7 AG6 AG5AG9 AG8

AR4 AR3 AR2 AR1 AR0

AR6 AR5 AR4AR9 AR8

AG0

AB1

DE

REV

AG4

AB5

AR 2P AR 2N

AR 3P AR 3N

AR 4P AR 4N

R0~R9: Pixel R Data (9; MSB, 0; LSB) G0~G9: Pixel G Data (9; MSB, 0; LSB) B0~B9: Pixel B Data (9; MSB, 0; LSB) DE : Data enable signal DCLK : Data clock signal Notes: (1) RSVD (reserved) pins on the transmitter shall be “H” or “L”.

Version 2.0 20 Date : Jun. 24 2013

AB6

AR2

The copyright belongs to InnoLux. Any unauthorized use is prohibited

DE VS HS AB7 AB6AB9 AB8

REV AB3 AB2 AG3 AG2 AR3 AR2

REV AB1 AB0 AG1 AG0 AR1 AR0AR0 REV

DE

REV

PRODUCT SPECIFICATION

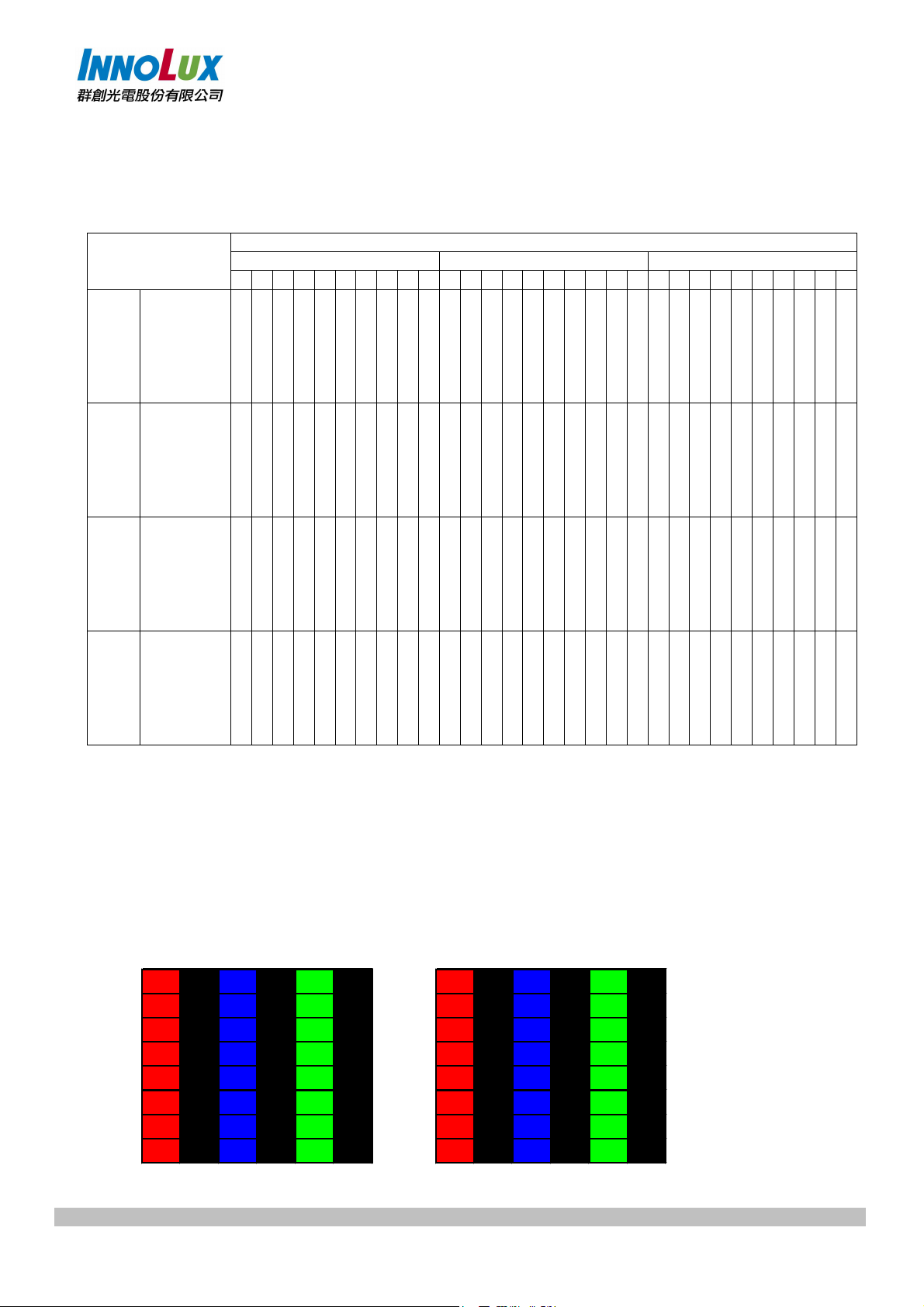

5.3 COLOR DATA INUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 10-bit gray scale data input for the color. The higher the binary input the brighter the color. The table below provides the assignment of color versus data input.

Data Signal

Color

R9 R8 R7 R6 R5 R4 R3 R2 R1 R0 G9 G8 G7 G6 G5 G4 G3 G2 G1 G0 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

Basic Colors

Gray Scale Of Red

Gray Scale Of Green

Gray Scale Of Blue

Black Red Green Blue Cyan Magenta Yellow White

Red (0) / Dark Red (1) Red (2)

:

: Red (1021) Red (1022) Red (1023)

Green (0) / Dark Green (1) Green (2)

:

: Green (1021) Green (1022) Green (1023)

Blue (0) / Dark Blue (1) Blue (2)

:

: Blue (1021) Blue (1022) Blue (1023)

0

1

0

1

0

1

0

:

0

:

0

Note (1) 0: Low Level Voltage，1: High Level Voltage

Red Green Blue

0

1

0

1

0

1

1 1 1

0 0 0

:

: 1 1 1

0 0 0

:

: 0 0 0

0 0 0

:

: 0 0 0

1

0

:

1

0

:

0

:

0

1

0

1

:

1

0

1

0

:

0

:

0

1

0

1

0

1

0

:

1

0

1

0

:

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

:

0

:

1

0

:

0

1

0

1

0

1

0

:

0

:

1

0

:

0

1

0

1

0

1

0

1

0

:

;

0

1

0

1

0

:

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

1

0

:

0

:

0

:

1

0

1

0

1

0

:

0

:

0

:

1

0

1

0

1

0

:

0

:

0

1

0

1

0

:

1

0

1

0

1

5.4

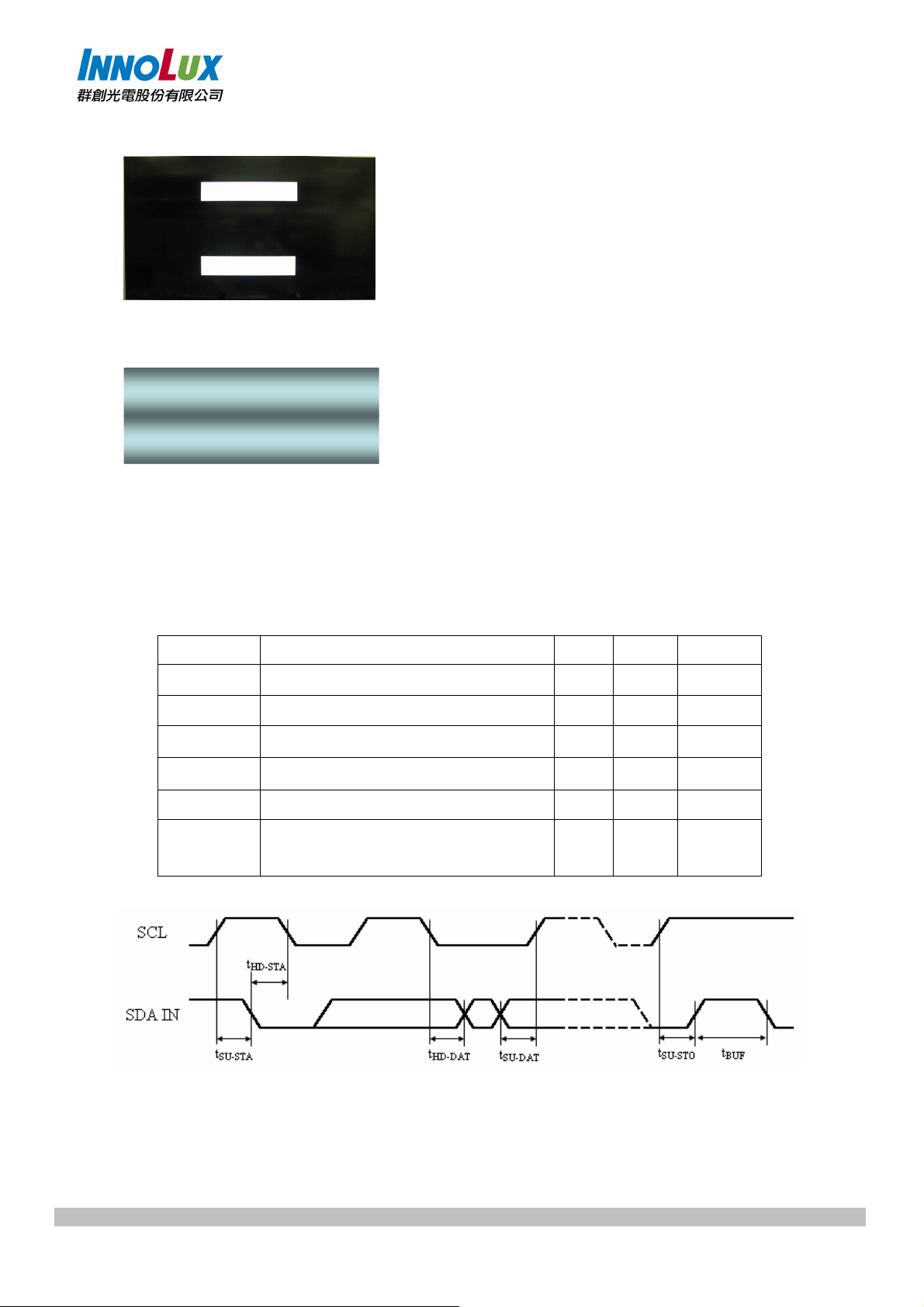

FLICKER (Vcom) ADJUSTMENT

(1) Adjustment Pattern:

Column-inversion pattern was shown as below. If customer need below pattern, please directly contact with Account FAE.

Frame N Frame N+1

+ - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

- + - + - +

Version 2.0 21 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

(2) Adjustment method: (Digital V-com) Programmable memory IC is used for Digital V-com adjustment in this model. INX provide Auto Vcom tools to

adjust Digital V-com.The detail connection and setting instruction, please directly contact with Account FAE or refer INX Auto V-com adjustment OI. Below items is suggested to be ready before Digital V-com adjustment in

customer LCM line. a. USB Sensor Board. b. Programmable software

Version 2.0 22 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram. (Ta = 25 ± 2 ºC)

Signal Item Symbol

Min. Typ. Max. Unit Note

Input cycle to

T

- - 200 ps (1)

cycle jitter

rcl

LVDS

Spread spectrum

Receiver

modulation range

clkin_mod

F

clkin

-1.5%

- F

+1.5% MHz

clkin

Clock

Spread spectrum modulation frequency

SSM

- - 66 KHz

F

LVDS

Receiver

Receiver skew margin T

RSKM

-400 - 400 ps (3)

Data

6.1.1 Input Timing Spec for FHD, Frame Rate = 50Hz

Signal Item Symbol

LVDS Clock Frequency

F

clkin

(=1/TC)

Min. Typ. Max. Unit Note

60 74.25 79 MHz (4)

Frame Rate 2D Mode Fr 47 50 53 Hz (5)

(2)

Total Tv 1104 1350 1395 Th Tv=Tvd+Tvb

Vertical

Active

Display

Display Tvd 1080 Th Blank Tvb 24 270 315 Th Front porch Tvfp 10

－－

Th

Term

Back porch Tvbp Vsync Tvswid

10

4

－－－－

Th Th

(6)

2D Mode

Total Th 1060 1100 1340 Tc Th=Thd+Thb

Horizontal

Active

Display

Term

Display Thd 960 Tc Blank Thb 100 140 380 Tc Front porch Thfp 5 Back porch Thbp Hsync Thswid

5 2

－－－－－－

Tc Tc Tc

(6)

Version 2.0 23 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

6.1.2 Input Timing Spec for FHD, Frame Rate = 60Hz

PRODUCT SPECIFICATION

Signal Item Symbol

LVDS Clock Frequency

F

clkin

(=1/TC)

Min. Typ. Max. Unit Note

60 74.25 79 MHz (4)

Frame Rate 2D Mode Fr 57 60 63 Hz (5)

Total Tv 1104 1125 1395 Th Tv=Tvd+Tvb

Vertical

Active

Display

Display Tvd 1080 Th Blank Tvb 24 45 315 Th Front porch Tvfp 10

－－

Th

Term

Back porch Tvbp Vsync Tvswid

10

4

－－－－

Th Th

(6)

2D Mode

Total Th 1060 1100 1340 Tc Th=Thd+Thb

Horizontal

Active

Display Thd 960 Tc Blank Thb 100 140 380 Tc

Display

Term

Front porch Thfp 5 Back porch Thbp Hsync Thswid

5 2

－－－－－－

Tc Tc Tc

6.1.3 Input Timing Spec for FHD, Frame Rate = 100Hz

Signal Item Symbol

LVDS Clock Frequency

F

clkin

(=1/TC)

Min. Typ. Max. Unit Note

60 74.25 79 MHz (4)

Frame Rate 2D Mode Fr 97 100 103 Hz (5)

2D Mode

Vertical

Active

Display

Total Tv 1104 1350 1395 Th Tv=Tvd+Tvb

Display Tvd 1080 Th Blank Tvb 24 270 315 Th Front porch Tvfp 10

－－

Th

Term

Back porch Tvbp

10

－－

Th

(6)

－－

Th

Horizontal

Active

Vsync Tvswid

4 Total Th 530 550 670 Tc Th=Thd+Thb Display Thd 480 Tc

Version 2.0 24 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Display

Term

PRODUCT SPECIFICATION

Blank Thb 50 70 190 Tc Front porch Thfp 5

－－

Tc Back porch Thbp Hsync Thswid

6.1.4 Input Timing Spec for FHD, Frame Rate = 120Hz

Signal Item Symbol

2D Mode 60 74.25 79 MHz

LVDS Clock

3D Mode 2D Mode 117 120 123 Hz

Frame Rate

3D Mode

Total Tv 1104 1125 1395 Th Tv=Tvd+Tvb Display Tvd 1080 Th Blank Tvb 24 45 315 Th

2D Mode

Front porch Tvfp 10

F

clkin

(=1/TC)

Fr

5 2

Min. Typ. Max. Unit Note

－－－－

74.25 MHz

120 Hz

－－

Tc

Th

(6)

(4)

(5)

Vertical

Active

Display

Term

Horizontal

Active

Display

Term

3D Mode

2D Mode

Back porch Tvbp Vsync Tvswid Total Tv 1125 Th Display Tvd 1080 Th Blank Tvb 45 Th Front porch Tvfp 10 Back porch Tvbp Vsync Tvswid Total Th 530 550 670 Tc Th=Thd+Thb Display Thd 480 Tc Blank Thb 50 70 190 Tc Front porch Thfp 5 Back porch Thbp

10

4

10

4

5

－－－－

－－－－－－－－－

－－－－

Th

Tc

(6)

Hsync Thswid

3D Mode

Version 2.0 25 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Total Th 530 550 670 Tc Th=Thd+Thb

2

－－

Tc

PRODUCT SPECIFICATION

Display Thd 480 Tc Blank Thb 50 70 190 Tc Front porch Thfp 5 Back porch Thbp Hsync Thswid

5 2

－－－－－－

Tc

6.1.5 Input Timing spec for QFHD, Frame Rate = 24Hz

Signal Item Symbol

LVDS Clock Frequency

F

clkin

(=1/TC)

Min. Typ. Max. Unit Note

60 74.25 79 MHz (4)

Frame Rate 2D Mode Fr 23 24 25 Hz (5)

Total Tv 2208 2250 2450 Th Tv=Tvd+Tvb

Vertical

Active

Display

Display Tvd 2160 Th Blank Tvb 48 90 290 Th Front porch Tvfp 20

－－

Th

Term

Back porch Tvbp

20

－－

Th

(6)

Vsync Tvswid

8

－－

Th

2D Mode

Total Th 992 1375 1440 Tc Th=Thd+Thb

Horizontal

Active

Display

Term

Display Thd 960 Tc Blank Thb 32 415 480 Tc Front porch Thfp 12 Back porch Thbp Hsync Thswid

10

4

－－－－－－

Tc

6.1.6 Input Timing spec for QFHD, Frame Rate = 30Hz

Signal Item Symbol

LVDS Clock Frequency

F

clkin

(=1/TC)

Min. Typ. Max. Unit Note

60 74.25 79 MHz (4)

Frame Rate 2D Mode Fr 29 30 31 Hz (5)

Vertical

2D Mode

Total Tv 2208 2250 2450 Th Tv=Tvd+Tvb

Active

Display Tvd 2160 Th

(6)

Version 2.0 26 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Display

Term

PRODUCT SPECIFICATION

Blank Tvb 48 90 290 Th Front porch Tvfp 20

－－

Th Back porch Tvbp Vsync Tvswid Total Th 992 1100 1340 Tc Th=Thd+Thb

Horizontal

Active

Display

Term

Note (1) The input clock cycle-to-cycle jitter is defined as below figures. Trcl =｜T1 – T︱

Display Thd 960 Tc Blank Thb 32 140 380 Tc Front porch Thfp 12 Back porch Thbp Hsync Thswid

20

8

10

4

－－－－

－－－－－－

Th

Tc Tc Tc

(6)

Note (2) The SSCG (Spread spectrum clock generator) is defined as below figures.

Version 2.0 27 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

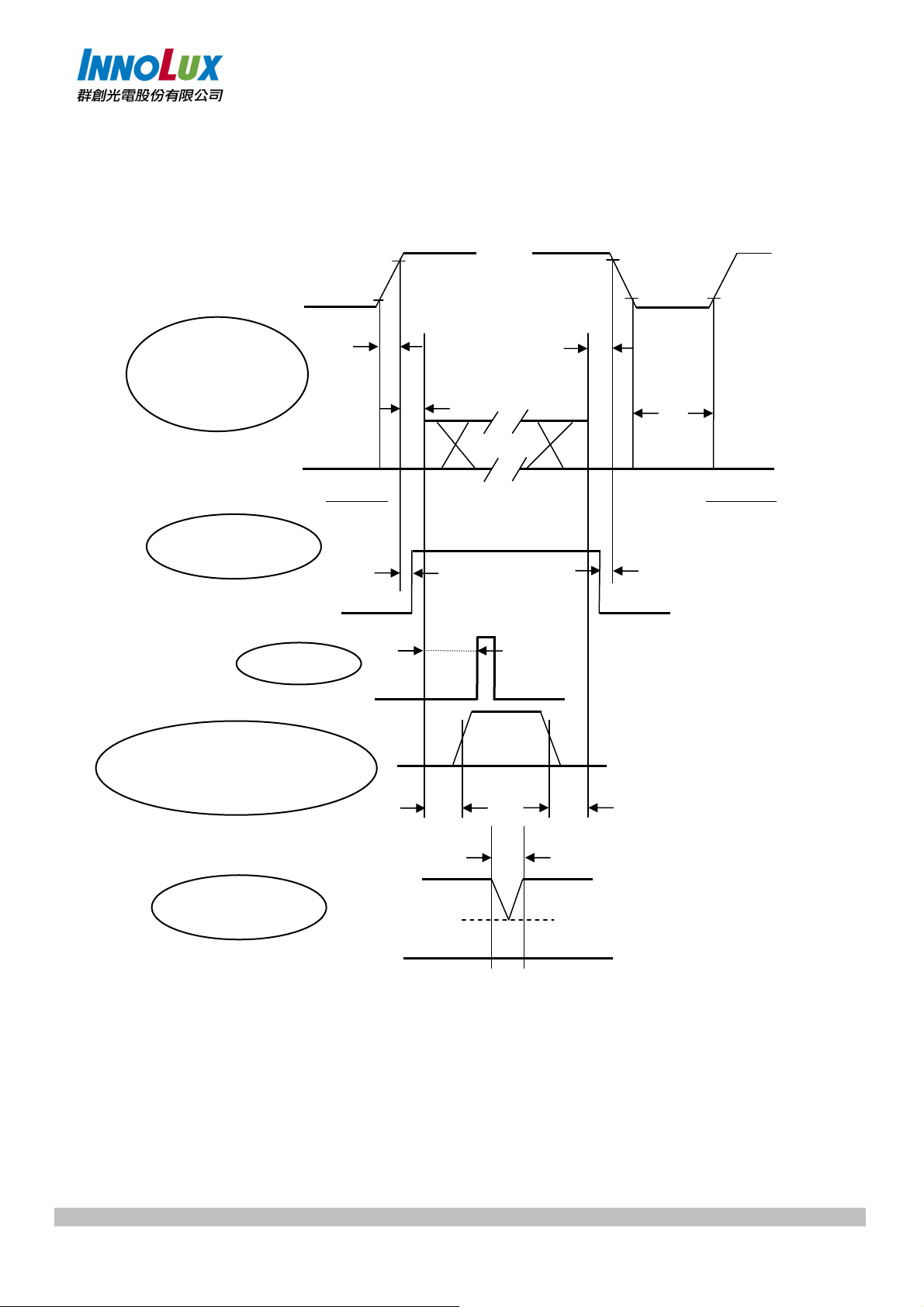

Note (3) The LVDS timing diagram and the receiver skew margin is defined and shown in following figure.

Tc

RXCLK+/-

RXn+/-

T

RSKM

Note (4) Please make sure the range of pixel clock has follow the below equations.

Fclkin (max) ≧ (Fr Tv Th╳ ╳ ) Fclkin(min)≧

Note (5)

a. The frame-to-frame jitter of the input frame rate is defined as the following figure. b. FRn = FRn-1 ± 1.8%.

Note (6)

c. Hsync and Vsync signals are necessary for this module. d. The polarity of Hsync & Vsync should be positive. e. Please follow the input signal timing diagram as below :

Version 2.0 28 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

500ms

≦T4

0≦T8≦T3

T

10≦10ms

6.2 POWER ON/OFF SEQUENCE

(Ta = 25 ± 2 ºC)

To prevent a latch-up or DC operation of LCD module, the power on/off sequence should be as the diagram below.

0.5≦T1≦10ms

0≦T2≦200ms

0≦T3

LVDS Signals

0≦T7≦T2

Option Signals (SELLVDS,2D/3D, LD_EN)

Host I2C Command

Backlight (Recommended)

1000ms≦T5

100ms≦T6

Vcc Dip

0V

500ms≦T9

0.9Vcc

0.1VCC

Power On

T7

Vcc(typ.) x 0.85

T2

Vcc

T5

0.9Vcc

0.1Vcc

T3 T1

T4

Power Off

T8

T

9

50%

T6

T10

0V

Note (1) The supply voltage of external system for the module input should follow the definition of Vcc. Note (2) Apply the lamp voltage within the LCD operation range. When the backlight turns on before the LCD operation or the

LCD turns off before the backlight turns off, the display may momentarily become abnormal screen. Note (3) In case of VCC=off, please keep the level of input signals on the low or high impedance. Note (4) T4 should be measured after the module has been fully discharged between power off and on period. Note (5) Interface signal shall not be kept at high impedance when the power is on. Note (6) Vcc must decay smoothly when power-off.

Version 2.0 29 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"

The LCD module should be stabilized at given temperature for 1 hour to avoid abrupt temperature change during measuring in a windless room.

25±2

50±10

12V±1.2

o

C

%RH

V

LCD Module

LCD Panel

Field of View = 1º

500 mm

CS - 2000

Light Shield Room

(Ambient Luminance < 2 lux)

Version 2.0 30 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

7.2 OPTICAL SPECIFICATIONS

The relative measurement methods of optical characteristics are shown as below. The following items should

be measured under the test conditions described in 7.1 and stable environment shown in 7.1.

Item Symbol

Color Chromaticity

Red

Green

Blue

Rcx

Rcy Gcx Gcy

Bcx

Bcy

Wcx

Viewing Angle at Normal

Standard light source “C”

Condition Min. Typ. Max. Unit Note

0.659

0.325

0.277

-

θx=0°, θY =0°

Direction

Typ.

-0.03

0.588

0.133

0.115

0.312

Typ.

+0.03

-

(0)

White

Wcy

0.362

-

Transmittance T% 4.05 4.5 - % (5)

θx=0°, θY =0°

Transmittance Variation

δT

- - 1.3 (6)

with INX module

Contrast Ratio CR

Gray to

Response Time

gray

3500 5000

θx=0°, θY =0°

- 6.5 13 ms (1),(4)

with INX Module

- - (1),(3)

θx+

80

88

-

Horizontal

Viewing

θx-

CR≥20

80

88

Deg. (1),(2)

Angle

θY+

With INX module

80

88

-

Vertical

θY-

80

88

-

Transmission direction

Φ

-

of the up polarizer

Note (0) Light source is the standard light source ”C” which is defined by CIE and driving voltage are based on

suitable gamma voltages. The calculating method is as following :

1. Measure Module’s and BLU’s spectrum at center point. White and R,G,B are with signal input. BLU (for V420DK1-LS1) is supplied by INX.

2. Calculate cell’s spectrum.

3. Calculate cell’s chromaticity by using the spectrum of standard light source “C”.

Note (1) Light source is the BLU which supplied by INX (V420DK1-LS1) and the cell driving voltage are based on suitable

gamma voltages.

up-P

-

90

-

Deg. (7)

Version 2.0 31 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

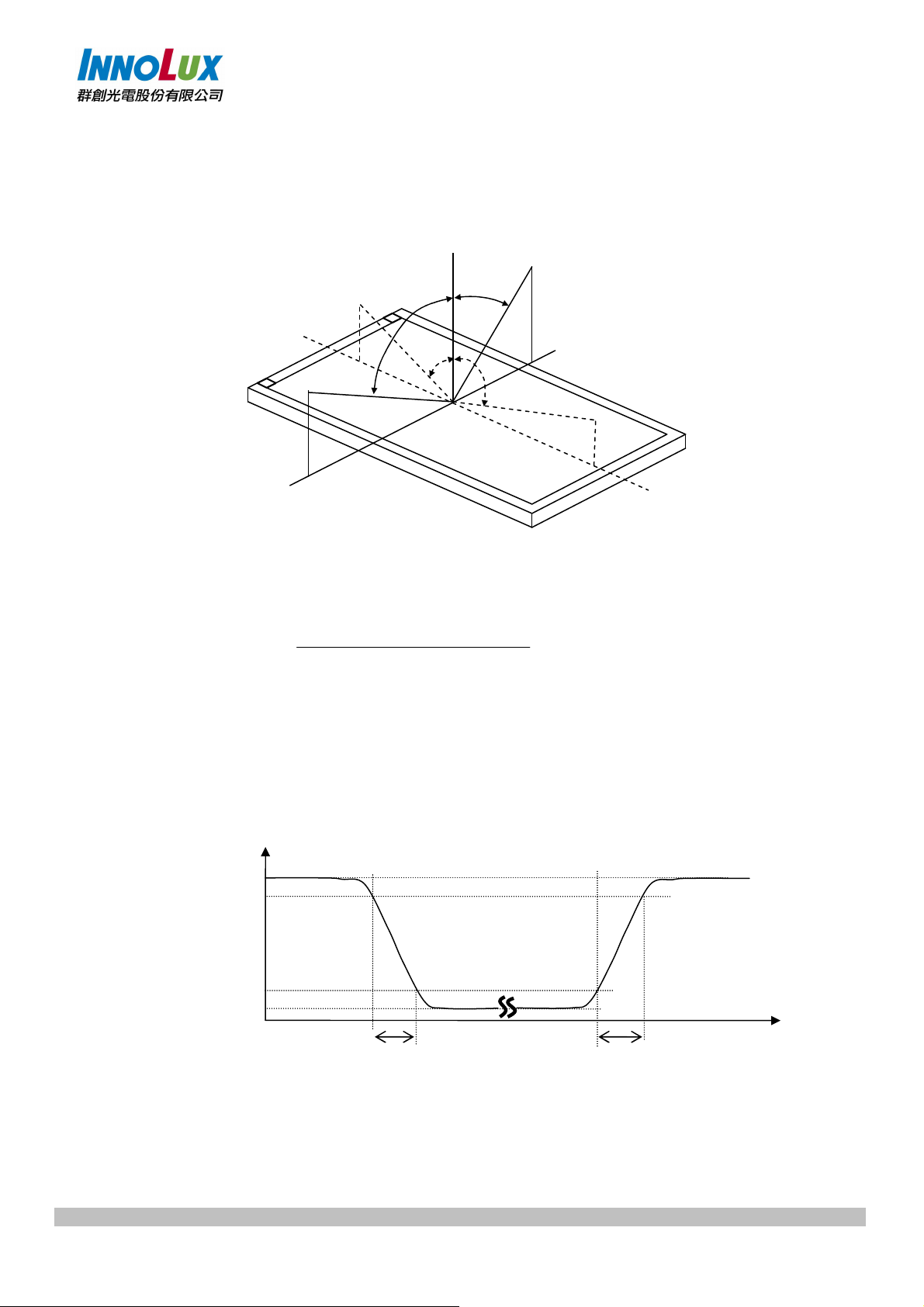

Note (2) Definition of Viewing Angle (θx, θy) :

Time

Viewing angles are measured by Autronic Conoscope Cono-80 (or Eldim EZ-Contrast 160R)

PRODUCT SPECIFICATION

θX- = 90º

6 o’cloc

Note (3) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) =

y-

x-

Normal

θx = θy = 0º

θy- θy+

θx−

θx+

12 o’clock direction

y+

θy+ = 90º

x+

θX+ = 90º

L1023 of Luminance Surface

L0 of Luminance Surface

L1023 : Luminance of gray level 1023 L0 : Luminance of gray level 0 CR = CR (5), where CR (X) is corresponding to the Contrast Ratio of the point X at the figure in Note (5).

Note (4) Definition of Gray-to-Gray Switching Time:

100%

90%

Optical

Response

10%

0%

Gray to gray

switching time

The driving signal means the signal of gray level 0, 124, 252, 380, 508, 636, 764, 892 and 1023.

Gray to gray

switching time

Gray to gray average time means the average switching time of gray level 0, 124, 252, 380, 508, 636, 764, 892 and 1023 to each other.

Version 2.0 32 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Note (5) Definition of Transmittance (T%) :

[

]

Measure the transmittance at 5 points. Light source is the BLU which contains three diffuser sheets and the cell driving voltage are based on suitable gamma voltages.

PRODUCT SPECIFICATION

Transmittance (T%) = The transmittance of each point can be calculated by the following expression.

T (X) =

L1023: Luminance of gray level 1023 T(X) is corresponding to the point X1~X5 at the figure in Note (6).

Note (6) Definition of Transmittance Variation (δT) :

Measure the transmittance at 5 points.

Transmittance Variation (δT )=

T(X) is calculated as Note(5).

module LCD of (X) L1023

BLU of (X) Luminance

×

D/4 D/2 3D/4

%100

Horizontal Line

D

T(5)T(4),T(3),T(2),T(1), Average

] T(5) T(4), T(3), T(2), T(1), [ Maximum

] T(5) T(4), T(3), T(2), T(1), [ Minimum

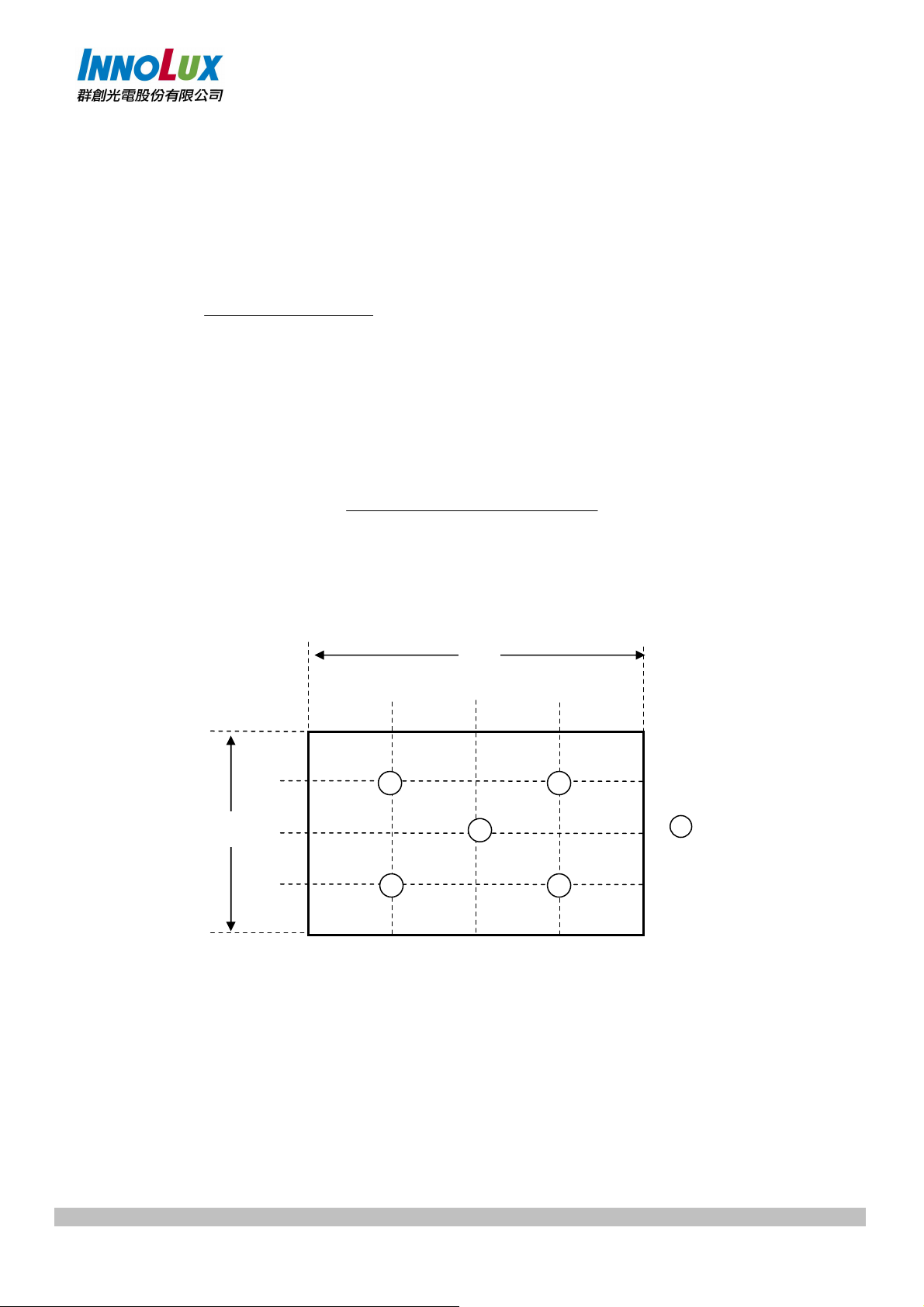

W/4

1 2

: Test Point

W/2

W

Vertical Line

3W/4

3 4

5

X

X=1 to 5

Active Area

Version 2.0 33 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

6 o’clock

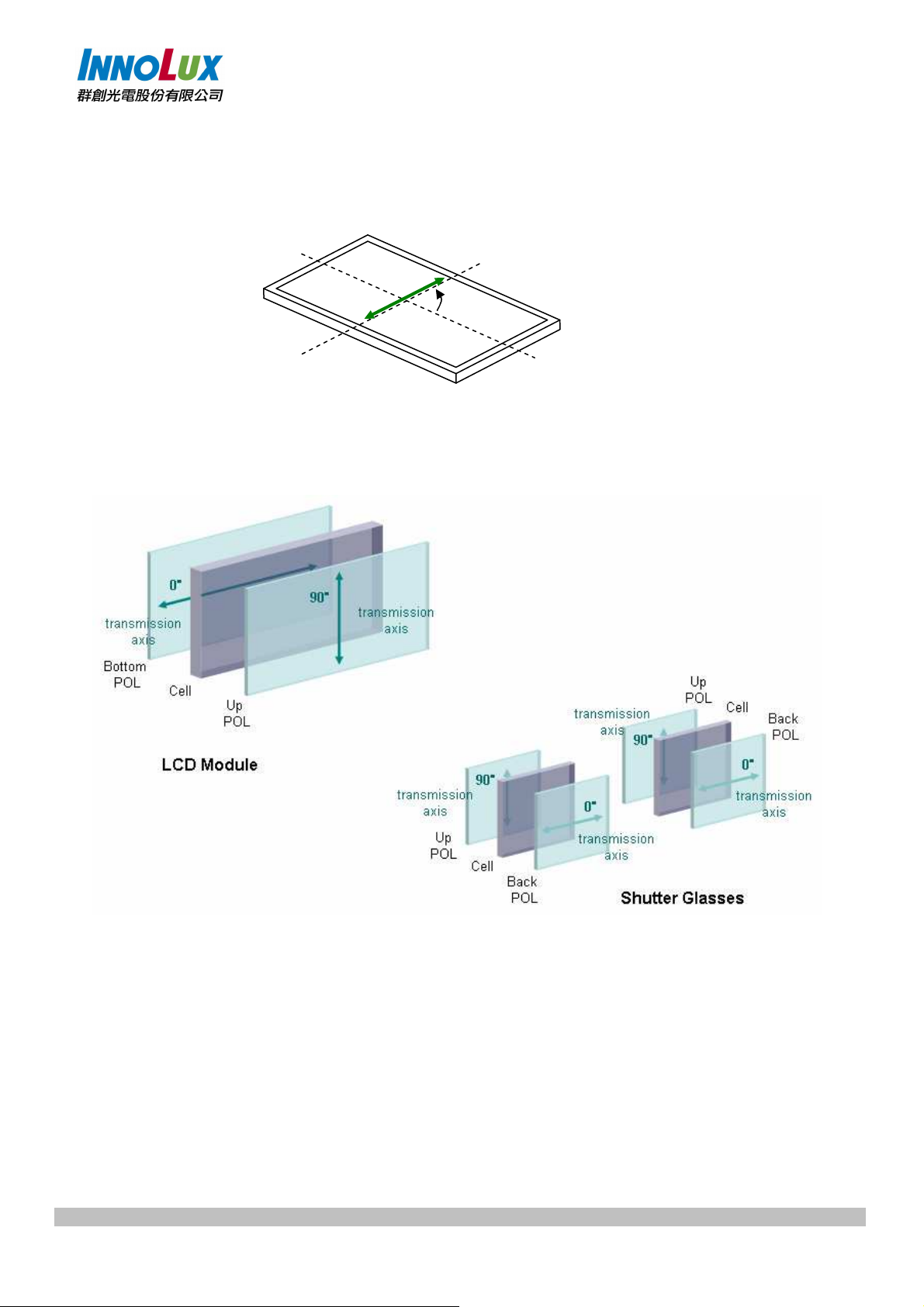

Note (7) This is a reference for designing the shutter glasses of 3D application. (VA case)

Definition of the transmission direction of the up polarizer (Φ

) on LCD Module:

up-P

x-

12 o’clock direction

y+

Φ

up-P

y-

The transmission axis of the front polarizer of the shutter glasses should be parallel to this panel transmission direction to get a maximum 3D mode luminance.

Up Polarizer

x

+

Φ=0o

Version 2.0 34 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

8. PRECAUTIONS

8.1 ASSEMBLY AND HANDLING PRECAUTIONS

[ 1 ] Do not apply improper or unbalanced force such as bending or twisting to open cells during assembly. [ 2 ] It is recommended to assemble or to install an open cell into a customer’s product in clean working areas.

The dust and oil may cause electrical short to an open cell or worsen polarizers on an open cell. [ 3 ] Do not apply pressure or impulse to an open cell to prevent the damage. [ 4 ] Always follow the correct power-on sequence when an open cell is assembled and turned on. This can

prevent the damage and latch-up of the CMOS LSI chips. [ 5 ] Do not design sharp-pointed structure / parting line / tooling gate on the plastic part of a COF (Chip on film),

because the burr will scrape the COF. [ 6 ] If COF would be bended in assemble process, do not place IC on the bending corner. [ 7 ] The gap between COF IC and any structure of BLU must be bigger than 2 mm. This can prevent the damage

of COF IC. [ 8 ] The bezel opening must have no burr and be smooth to prevent the surface of an open cell scraped. [ 9 ] The bezel of a module or a TV set can not contact with force on the surface of an open cell. It might cause

light leakage or scrape. [ 10 ] In the case of no FFC or FPC attached with open cells, customers can refer the FFC / FPC drawing and buy

them by self. [ 11 ] It is important to keep enough clearance between customers’ front bezel/backlight and an open cell.

Without enough clearance, the unexpected force during module assembly procedure may damage an open

cell. [ 12 ] Do not plug in or unplug an I/F (interface) connector while an assembled open cell is in operation. [ 13 ] Use a soft dry cloth without chemicals for cleaning, because the surface of the polarizer is very soft and

easily scratched. [ 14 ] Moisture can easily penetrate into an open cell and may cause the damage during operation. [ 15 ] When storing open cells as spares for a long time, the following precaution is necessary.

[ 15.1 ] Do not leave open cells in high temperature and high humidity for a long time. It is highly

recommended to store open cells in the temperature range from 0 to 35 at normal humidity without ℃ condensation.

[ 15.2 ] Open cells shall be stored in dark place. Do not store open cells in direct sunlight or fluorescent light

environment. [ 16 ] When ambient temperature is lower than 10ºC, the display quality might be reduced. [ 17 ] Unpacking (Cartons/Tray plates) in order to prevent open cells broken:

[ 17.1 ] Moving tray plates by one operator may cause tray plates bent which may induce open cells broken.

Two operators carry one carton with their two hands. Do not throw cartons/tray plates, avoid any

impact on cartons/tray plates, and put down & pile cartons/tray plates gently.

[ 17.2 ] A tray plate handled with unbalanced force may cause an open cell damaged. Trays should be

completely put on a flat platform.

Version 2.0 35 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

[ 17.3 ] To prevent open cells broken, tray plates should be moved one by one from a plastic bag. [ 17.4 ] Please follow the packing design instruction, such as the maximum number of tray stacking to

prevent the deformation of tray plates which may cause open cells broken.

[ 17.5 ] To prevent an open cell broken or a COF damaged on a tray, please follow the instructions below:

[17.5.1] Do not peel a polarizer protection film of an open cell off on a tray [17.5.2] Do not install FFC or LVDS cables of an open cell on a tray [17.5.3] Do not press the surface of an open cell on a tray. [17.5.4] Do not pull X-board when an open cell placed on a tray.

[ 18 ] Unpacking (Hard Box) in order to prevent open cells broken:

[ 18.1 ] Moving hard boxes by one operator may cause hard boxes fell down and open cells broken by

abnormal methods. Two operators carry one hard box with their two hands. Do handle hard boxes

carefully, such as avoiding impact, putting down, and piling up gently.

[ 18.2 ] To prevent hard boxes sliding from carts and falling down, hard boxes should be placed on a surface

with resistance.

[ 18.3 ] To prevent an open cell broken or a COF damaged in a hard box, please follow the instructions

below:

[18.3.1] Do not peel a polarizer protection film of an open cell off in a hard box. [18.3.2] Do not install FFC or LVDS cables of an open cell in a hard box. [18.3.3] Do not press the surface of an open cell in a hard box. [18.3.4] Do not pull X-board when an open cell placed in a hard box.

[ 19 ] Handling – In order to prevent open cells, COFs , and components damaged:

[ 19.1 ] The forced displacement between open cells and X-board may cause a COF damaged. Use a fixture

tool for handling an open cell to avoid X-board vibrating and interfering with other components on a

PCBA & a COF.

[ 19.2 ] To prevent open cells and COFs damaged by taking out from hard boxes, using vacuum jigs to take

out open cells horizontally is recommended.

[ 19.3 ] Improper installation procedure may cause COFs of an open cell over bent which causes damages.

As installing an open cell on a backlight or a test jig, place the bottom side of the open cell first on the

backlight or the test jig and make sure no interference before fitting the open cell into the

backlight/the test jig.

[ 19.4 ] Handle open cells one by one.

[ 20 ] Avoid any metal or conductive material to contact PCB components, because it could cause electrical

damage or defect.

8.2 SAFETY PRECAUTIONS

[ 1 ] If the liquid crystal material leaks from the open cell, it should be kept away from the eyes or mouth. In case

of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

[ 2 ] After the end of life, open cells are not harmful in case of normal operation and storage.

Version 2.0 36 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

9. DEFINITION OF LABELS

9.1 OPEN CELL LABEL

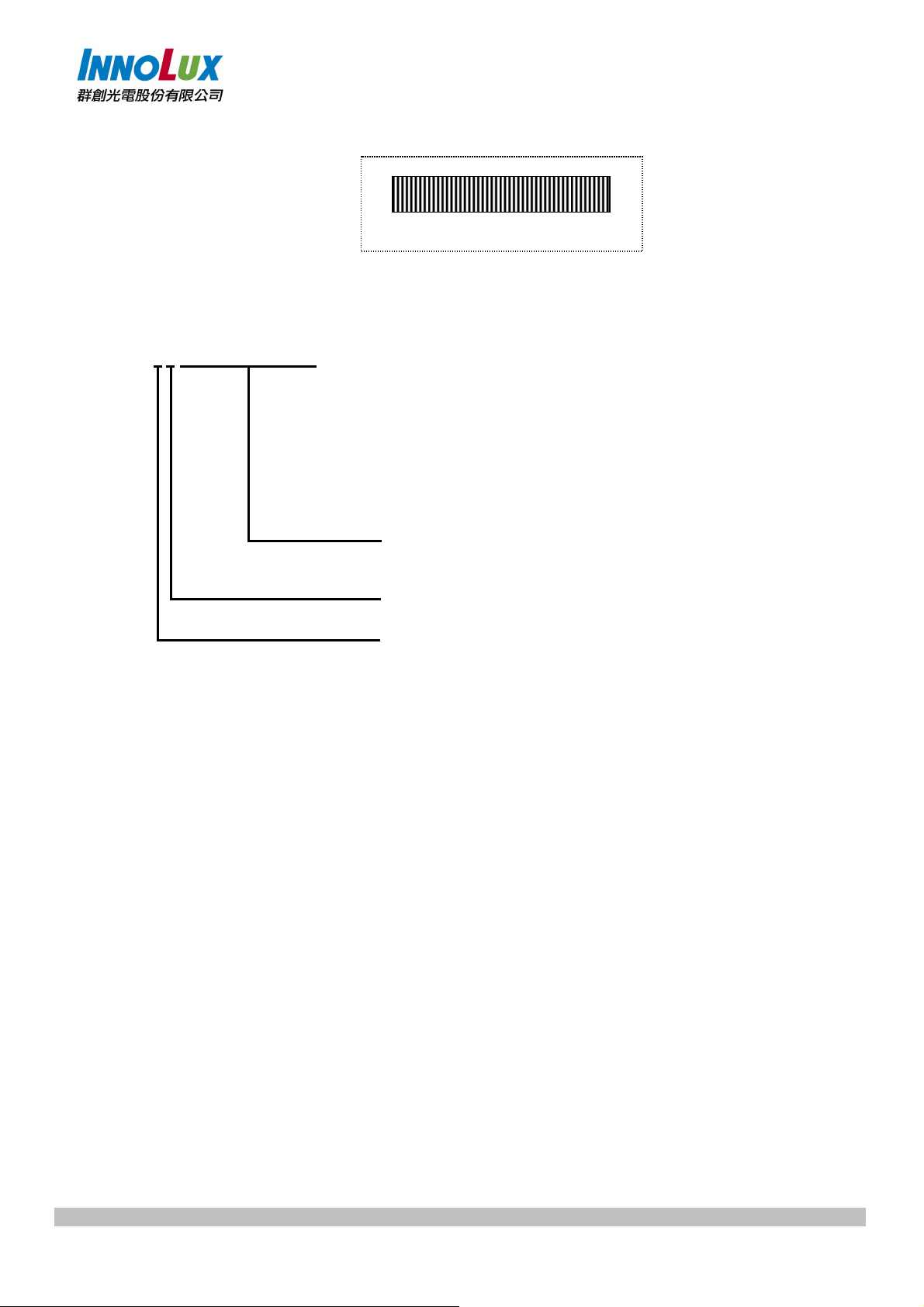

The barcode nameplate is pasted on each open cell as illustration for INX internal control

Figure.9-1 Serial No. Label on SPWB Model Name : V420DK1-PS1 Revision : Rev. XX, for example: A0, A1… B1, B2… or C1, C2…etc. Serial ID : X X X X X X X Y M D L N N N N

V420DK1 –PS1 Rev. XX

X X X X X X X Y M D L N N N N

Serial No.

Year, Month, Date

INX Internal Use

Revision

Serial ID includes the information as below: Manufactured Date : Year: 2010=0, 2011=1,2012=2…etc. Month: 1~9, A~C, for Jan. ~ Dec. Day: 1~9, A~Y, for 1st to 31st, exclude I ,O, and U. Revision Code : Cover all the change Serial No.: Manufacturing sequence of product

INX Internal Use

Version 2.0 37 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Figure.9-2 Panel ID Label on Cell

Panel ID Label includes the information as below: Panel ID: T X X X X X X X X X X X

TXXXXXXXXXXX

INX Internal Use

FAB Line: 1~8, for Fab1~Fab8

TFT

Version 2.0 38 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

10. PACKAGING

10.1 PACKAGING SPECIFICATIONS

(1) 13 pcs LCD Open Cell / 1 Box (2) Box dimensions : 1113 (L) X 813 (W) X 99.4 (H)mm (3) Weight : approximately 7.7 Kg ( 13 Open Cells per box) (4) 156 LCD TV Panels / 1 Group (5) Without the outer Carton, Boxes stack under the package architecture.

10.2 PACKAGING METHOD

Packing method (Hard Box) is shown in following figures.

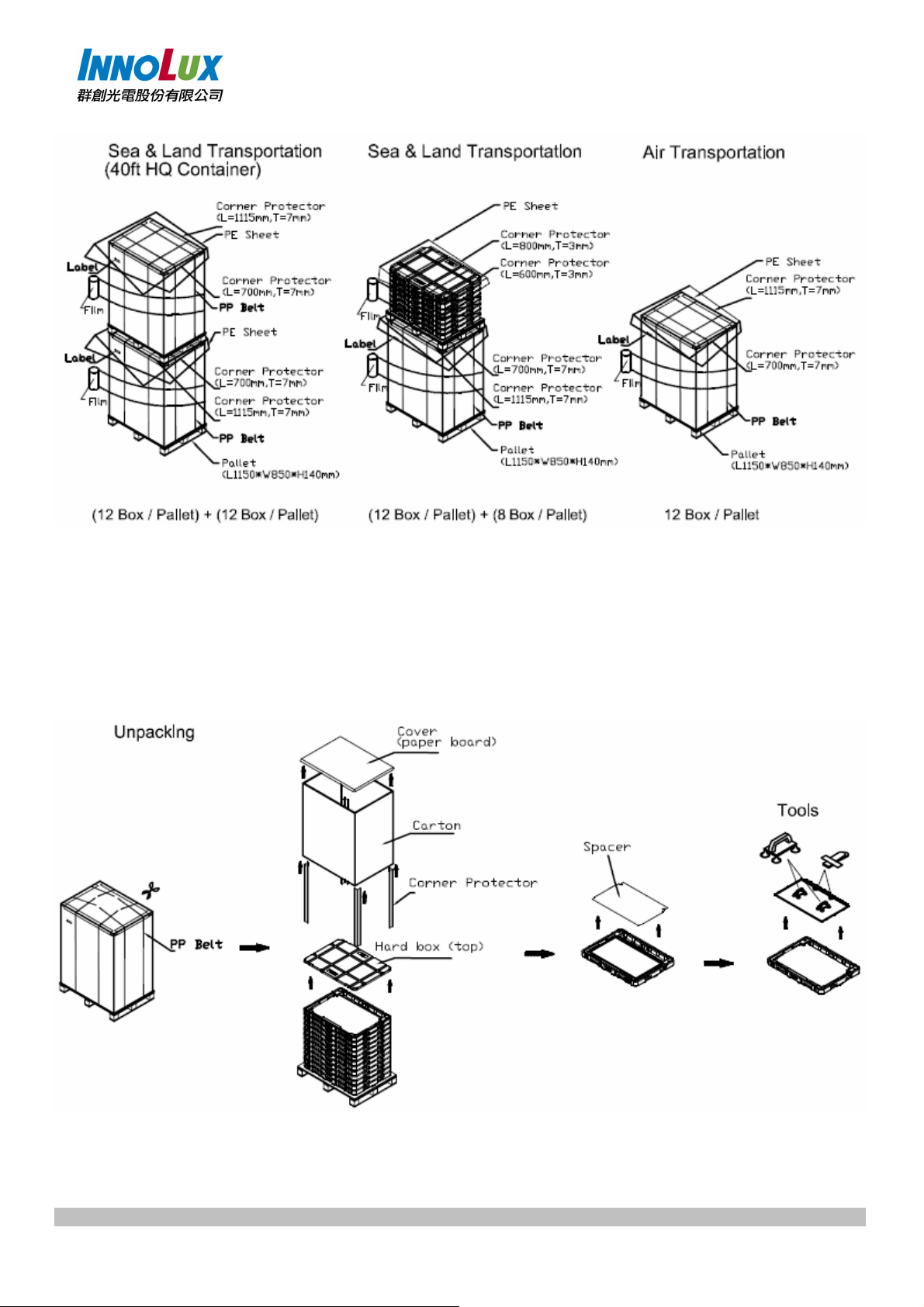

Figure.10-1 packing method

Version 2.0 39 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Figure.10-2 packing method

10.3 UNPACKAGING METHOD

Unpacking method (Hard Box) is shown in following figures.

Figure.10-3 unpacking method

Version 2.0 40 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

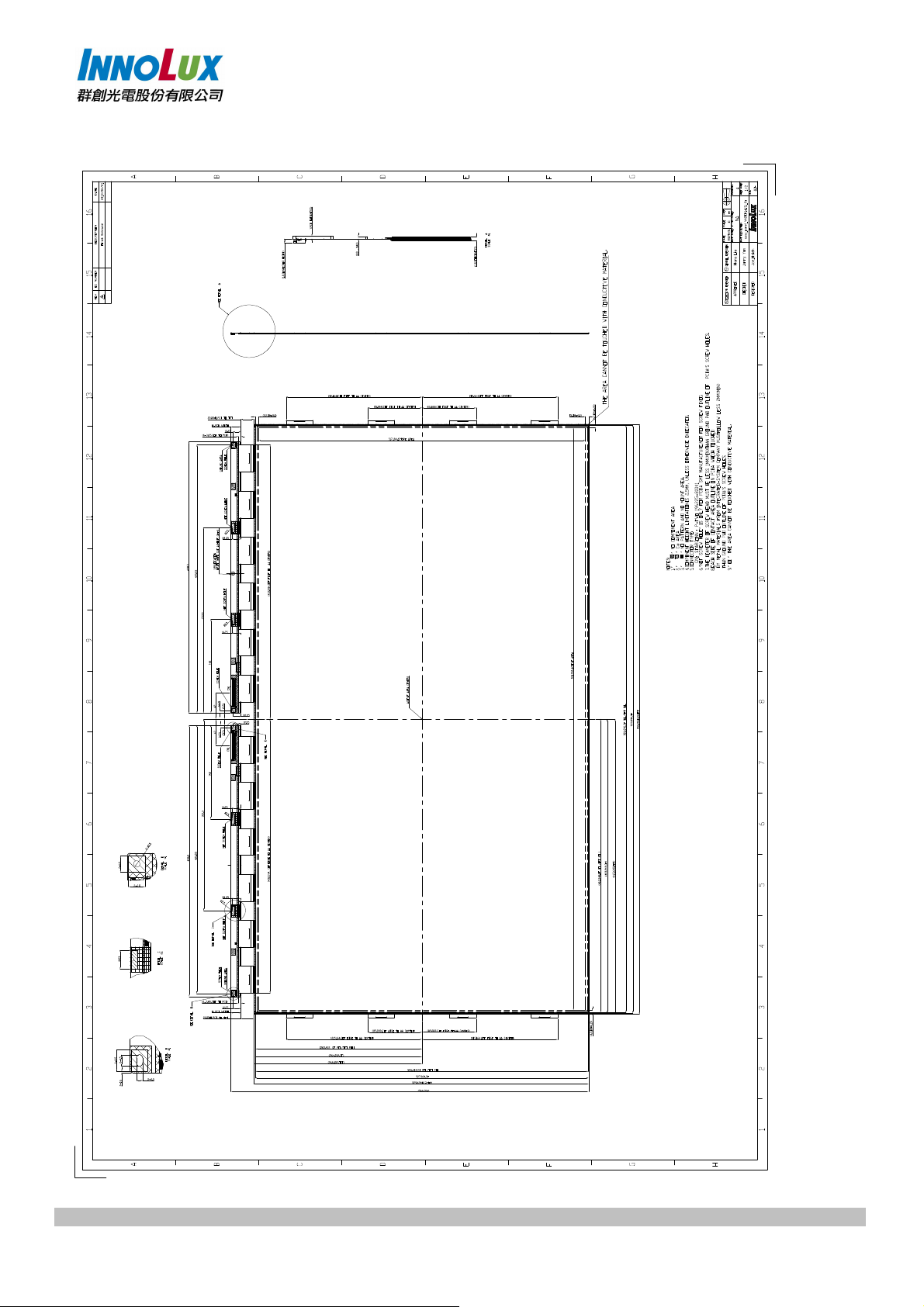

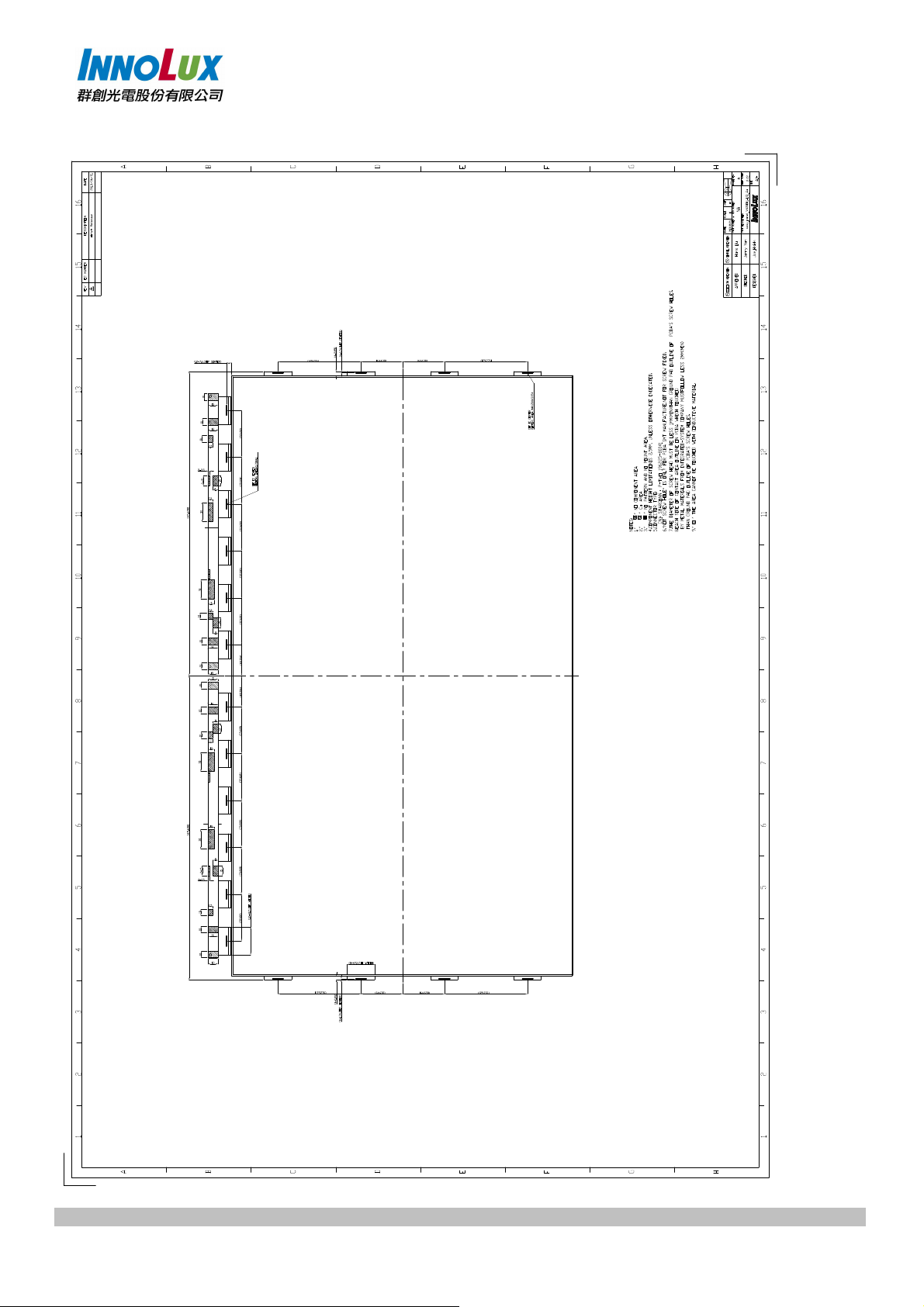

11. MECHANICAL CHARACTERISTIC

PRODUCT SPECIFICATION

Version 2.0 41 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Version 2.0 42 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

PRODUCT SPECIFICATION

Appendix A

Local Dimming demo function

A.1 I2C address and write command Device address: 0xe0 Register address: 0x65 Command data: 0x16 0x00 0x00 0x00 0x00 0x00: Local Dimming demo mode OFF (Note 1)

0x16 0x00 0x00 0x00 0x00 0x01 : Local Dimming demo mode ON (Demo in right half

screen) (Note 2) Preamble data: 0x26 0x38 I2C data:

START

Device Address Preamble data

11100000

(0xE0)

Register Address Command Data Command Data

01100101

(0x65)

Command Data Command Data Command Data

00000000

(0x00)

Command Data

ACK

00100110

(0x26)

00010110

(0x16)

00000000

(0x00)

ACK

Preamble data

00111000

(0x38)

00000000

(0x00)

00000000

(0x00)

ACK

00000001

STOP

(0x01)

Version 2.0 43 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

Note 1: Local Dimming demo OFF

Note 2: Local Dimming demo ON

PRODUCT SPECIFICATION

A.2 I2C timing

Symbol Parameter Min. Max. Unit

t

Start setup time 250 - ns

SU-STA

t

Start hold time 250 - ns

HD-STA

t

Data setup time 80 - ns

SU-DAT

t

Data hold time 0 - ns

HD-DAT

t

Stop setup time 250 - ns

SU-STO

Time between Stop condition and next

t

BUF

Start condition

500 - ns

Version 2.0 44 Date : Jun. 24 2013

The copyright belongs to InnoLux. Any unauthorized use is prohibited

INNOLUX V420DK1.PS1 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
