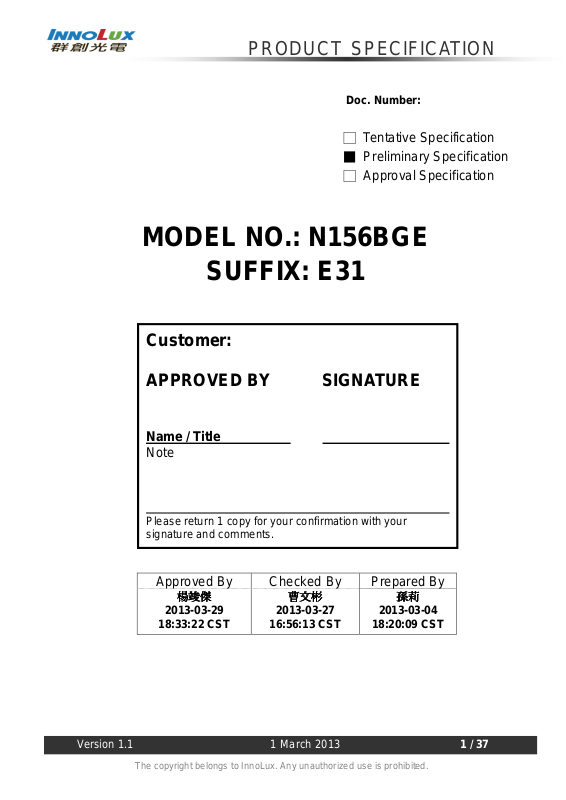

INNOLUX N156BGE.E31 Specification

PRODUCT SPECIFICATION

Customer:

Doc. Number:

□ Tentative Specification
▓ Preliminary Specification
□ Approval Specification

MODEL NO.: N156BGE

SUFFIX: E31

APPROVED BY SIGNATURE

Name / Title

Note

Please return 1 copy for your confirmation with your
signature and comments.

Approved By Checked By Prepared By

楊竣傑

楊竣傑

楊竣傑楊竣傑

2013-03-29

18:33:22 CST

曹文彬

曹文彬

曹文彬曹文彬

2013-03-27

16:56:13 CST

孫莉

孫莉

孫莉孫莉

2013-03-04

18:20:09 CST

Version 1.1 1 March 2013 1 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

CONTENTS

1. GENERAL DESCRIPTION.........................................................................................................4

1.1 OVERVIEW ................................................................................................................................4

1.2 GENERAL SPECIFICATI0NS ...................................................................................................4

2. MECHANICAL SPECIFICATIONS .............................................................................................5

2.1 CONNECTOR TYPE..................................................................................................................5

3. ABSOLUTE MAXIMUM RATINGS .............................................................................................6

3.1 ABSOLUTE RATINGS OF ENVIRONMENT ..........................................................................6

3.2 ELECTRICAL ABSOLUTE RATINGS......................................................................................6

3.2.1 TFT LCD MODULE............................................................................................................6

4. ELECTRICAL SPECIFICATIONS...............................................................................................7

4.1 FUNCTION BLOCK DIAGRAM...............................................................................................7

4.2. INTERFACE CONNECTIONS .................................................................................................7

4.3 ELECTRICAL CHARACTERISTICS........................................................................................9

4.3.1 LCD ELETRONICS SPECIFICATION...............................................................................9

4.3.2 LED CONVERTER SPECIFICATION..............................................................................11

4.3.3 BACKLIGHT UNIT...........................................................................................................13

4.4 INPUT SIGNAL TIMING SPECIFICATIONS ........................................................................14

4.4.1 DISPLAY PORT INTERFACE ..........................................................................................14

4.4.2 COLOR DATA INPUT ASSIGNMENT ............................................................................15

4.5 DISPLAY TIMING SPECIFICATIONS ...................................................................................16

4.6 POWER ON/OFF SEQUENCE ................................................................................................17

5. OPTICAL CHARACTERISTICS ...............................................................................................19

5.1 TEST CONDITIONS.................................................................................................................19

5.2 OPTICAL SPECIFICATIONS ..................................................................................................19

6. RELIABILITY TEST ITEM ........................................................................................................22

7. PACKING..................................................................................................................................23

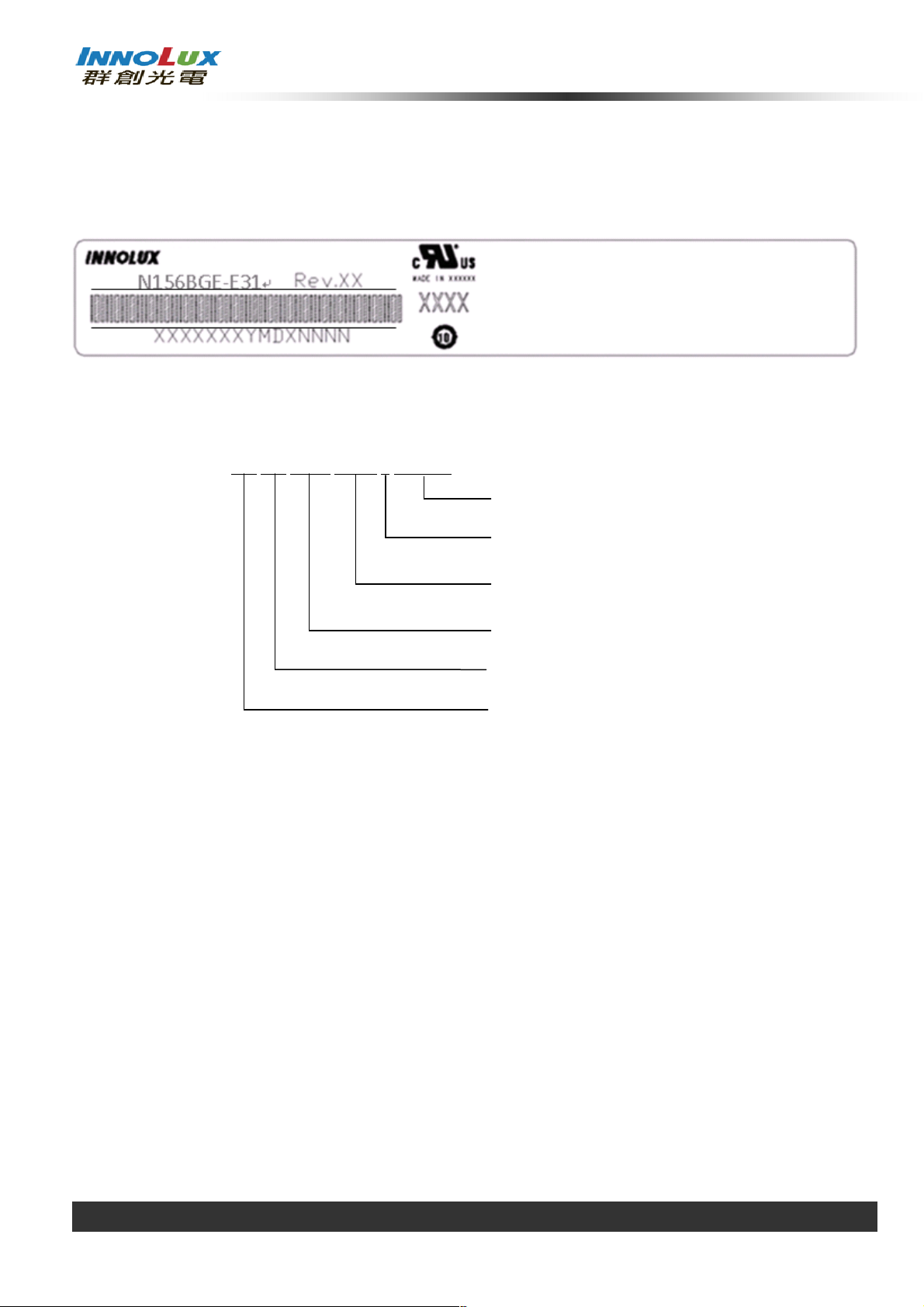

7.1 MODULE LABEL ....................................................................................................................23

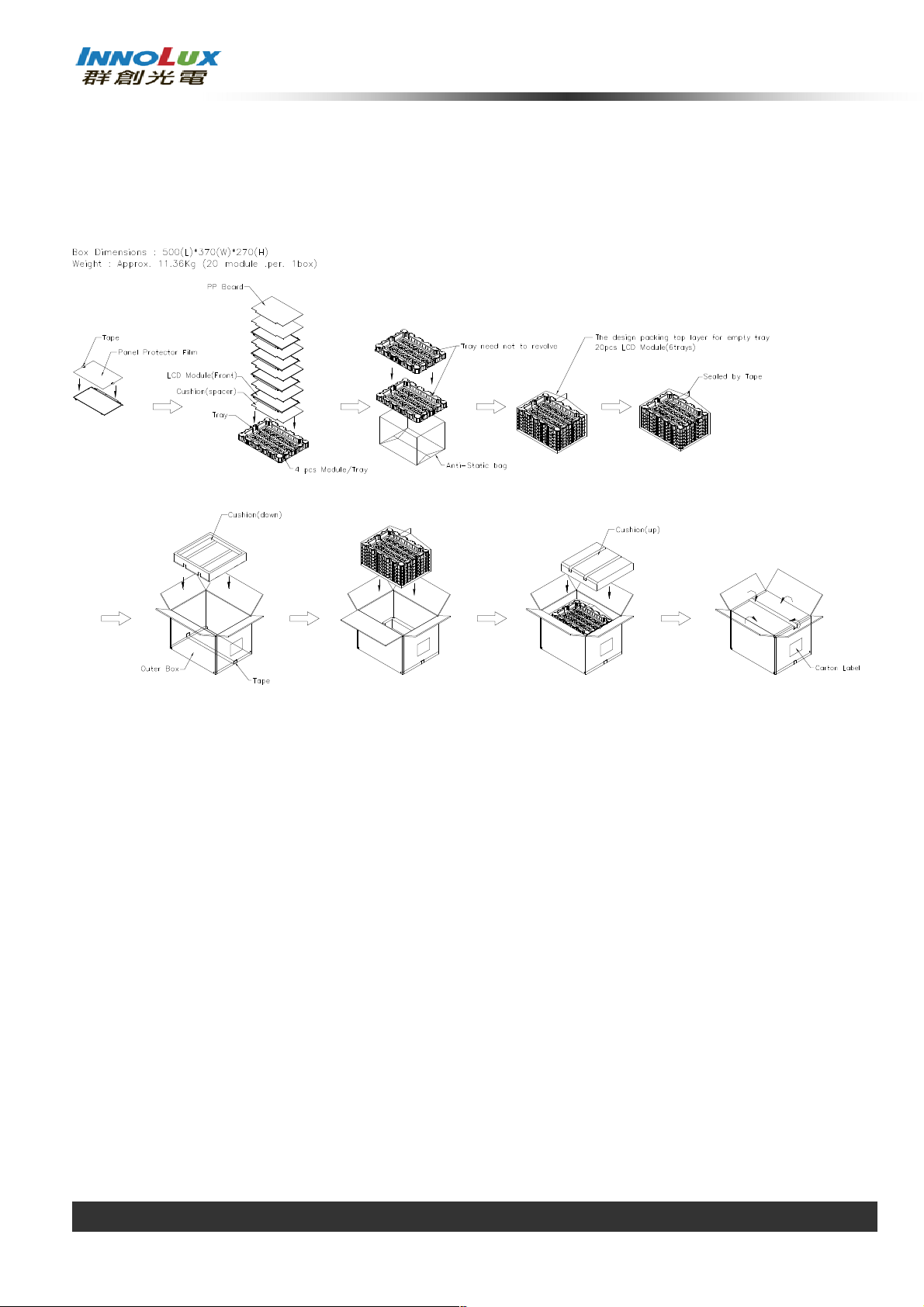

7.2 CARTON ...................................................................................................................................24

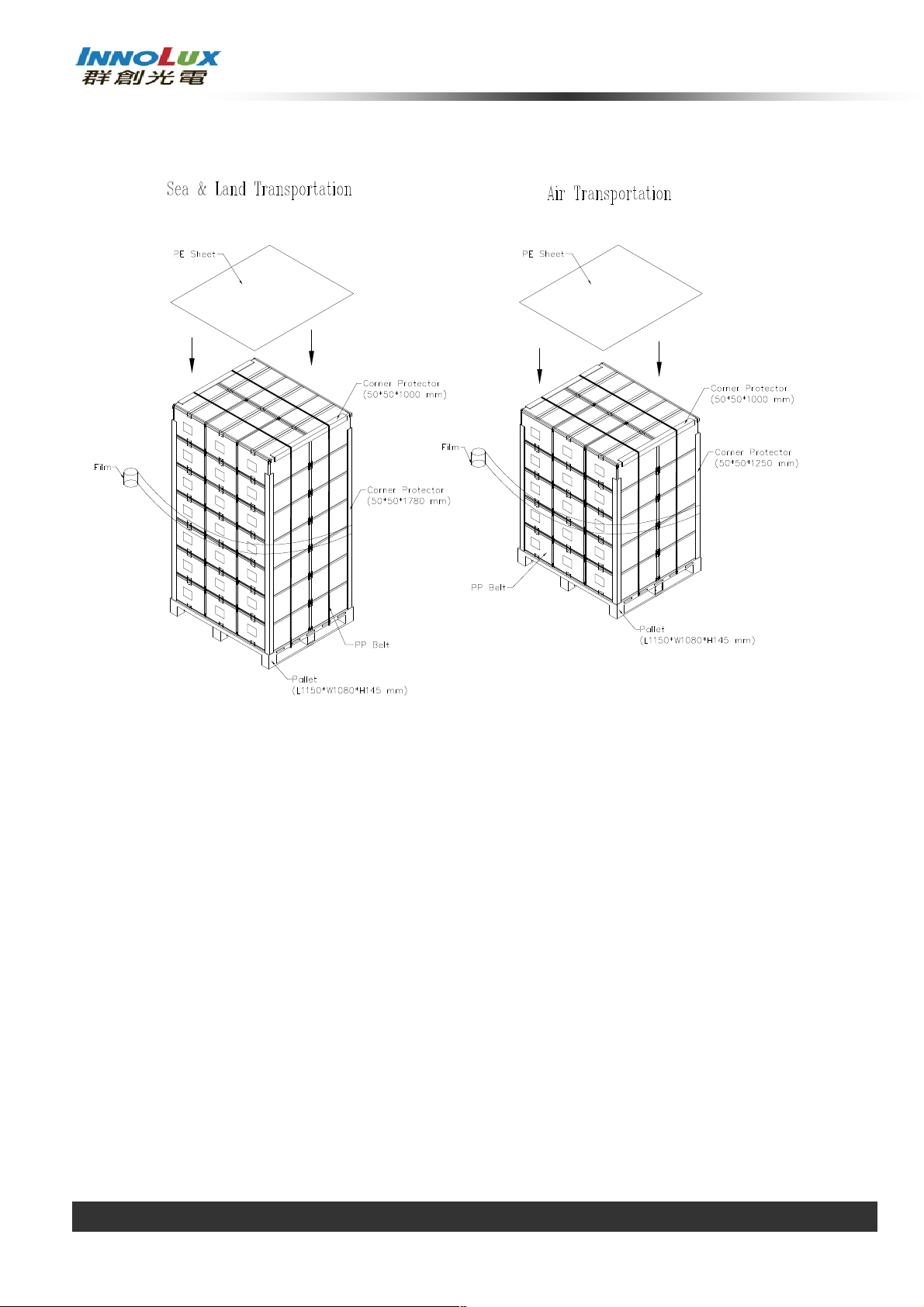

7.3 PALLET.....................................................................................................................................24

7.3 PALLET.....................................................................................................................................25

8. PRECAUTIONS........................................................................................................................26

8.1 HANDLING PRECAUTIONS..................................................................................................26

8.2 STORAGE PRECAUTIONS ....................................................................................................26

8.3 OPERATION PRECAUTIONS.................................................................................................26

Appendix. EDID DATA STRUCTURE...........................................................................................27

Appendix. OUTLINE DRAWING..................................................................................................30

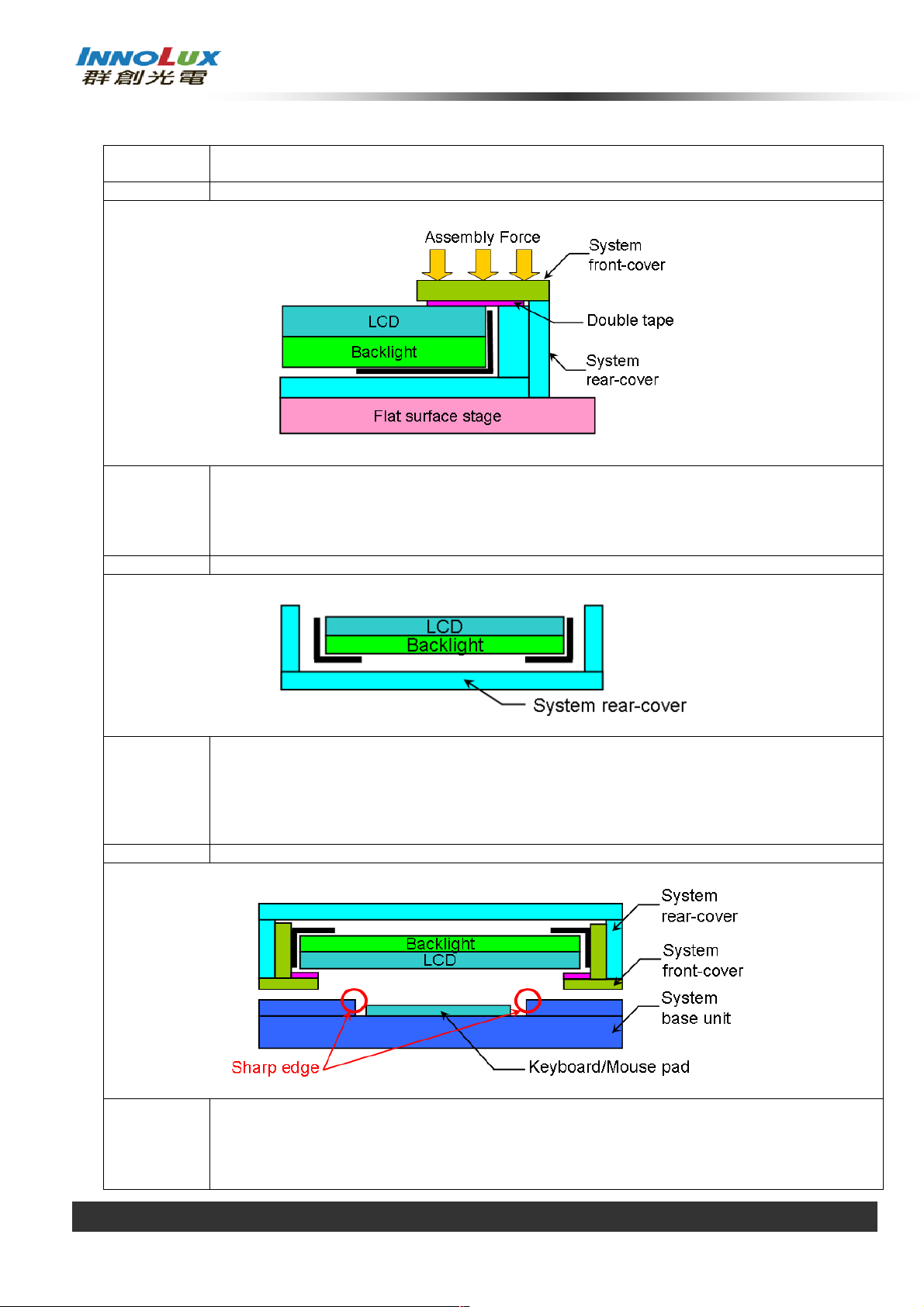

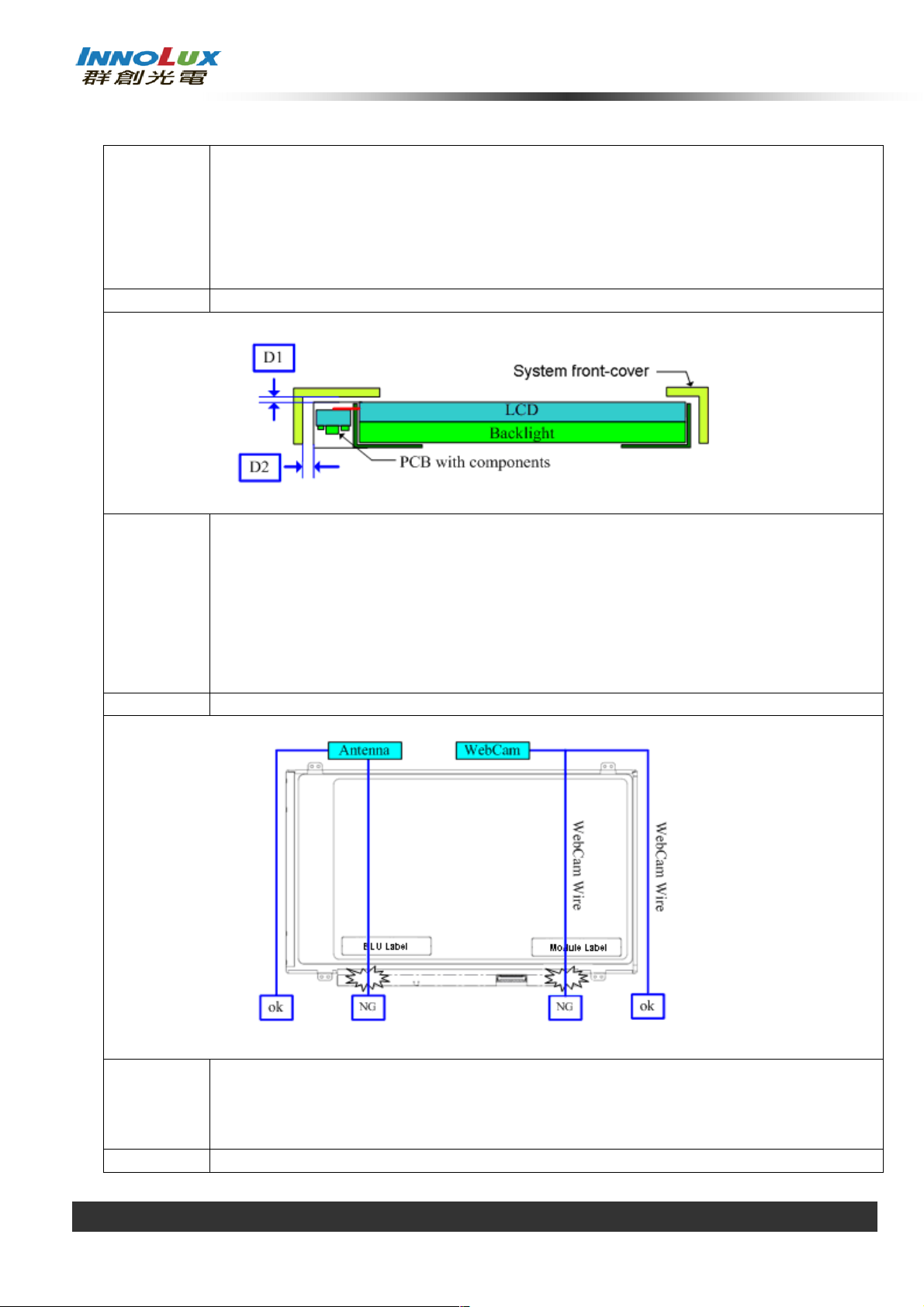

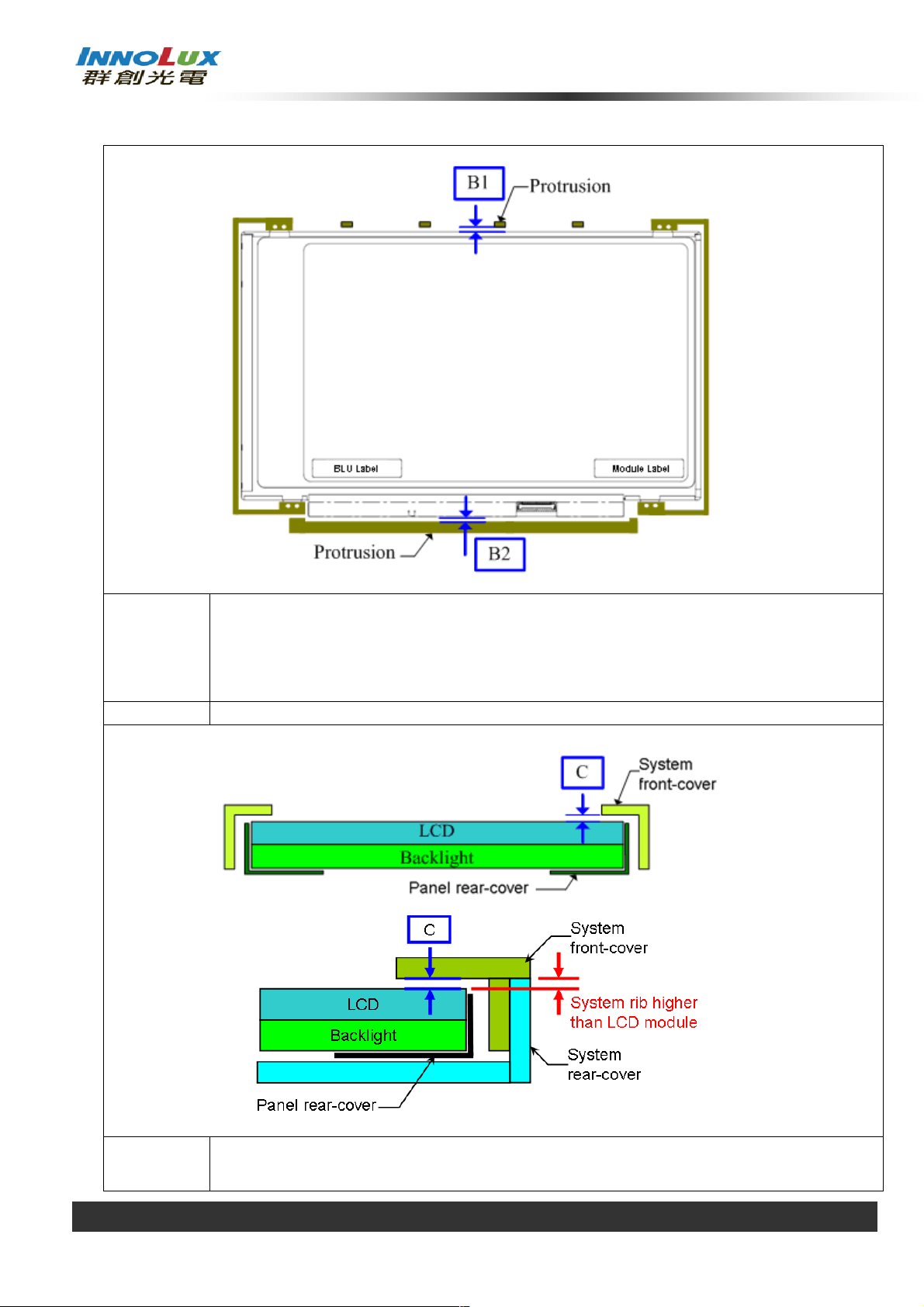

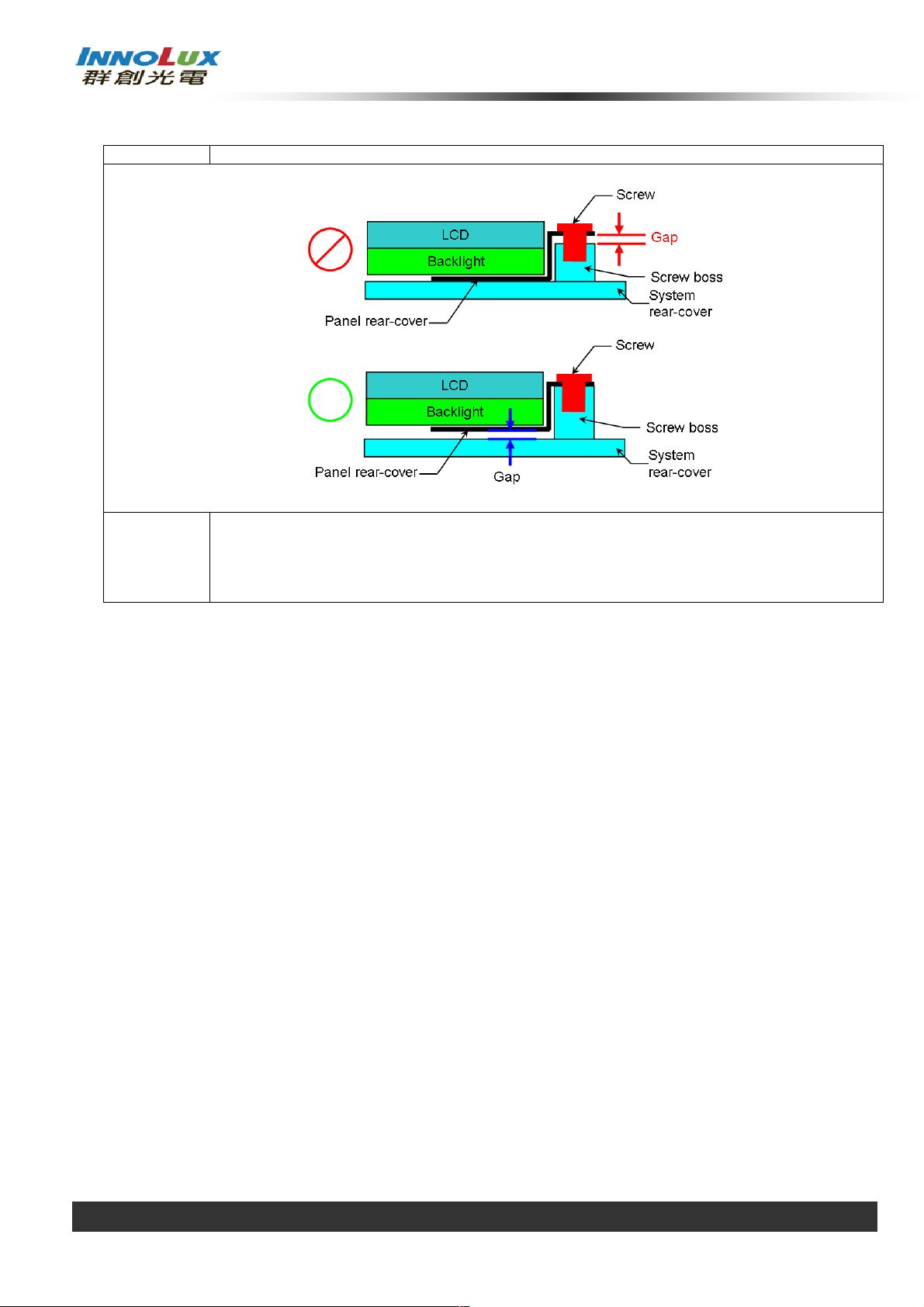

Appendix. SYSTEM COVER DESIGN GUIDANCE....................................................................32

Version 1.1 1 March 2013 2 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

REVISION HISTORY

Version

1.0 Dec. 08, 2012 All Preliminary Specification Ver.1.0 was first issued.

1.1 Mar. 01, 2013

31 Modify “Appendix.

Date Page Description

All Change logo & content from “CHIMEI INNOLUX” to “INNOLUX”

SYSTEM COVER DESIGN GUIDANCE”

Version 1.1 1 March 2013 3 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N156BGE-E31 is a 15.6” (1

unit and 30 pins eDP interface. This module supports 1366 x 768 HD mode and can display
262,144 colors. The optimum viewing angle is at 6 o’clock direction.

5.6

” diagonal) TFT Liquid Crystal Display module with LED Backlight

1.2 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Screen Size 15.6” diagonal
Driver Element a-si TFT active matrix - ­Pixel Number 1366 x R.G.B. x 768 pixel ­Pixel Pitch 0.252 (H) x 0.252 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), Anti-Glare - ­Luminance, White 200 Cd/m2

Power Consumption Total (2.86) W (Max.) @ cell (1.0) W (Max.), BL (1.86) W (Max.) (1)

Note (1) The specified power consumption (with converter efficiency) is under the conditions at VCCS =

3.3 V, fv = 60 Hz, LED_VCCS = Typ, fPWM = 200 Hz, Duty=100% and Ta = 25 ± 2 ºC, whereas Mosaic
pattern is displayed.

Version 1.1 1 March 2013 4 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

Pin1 Pin30

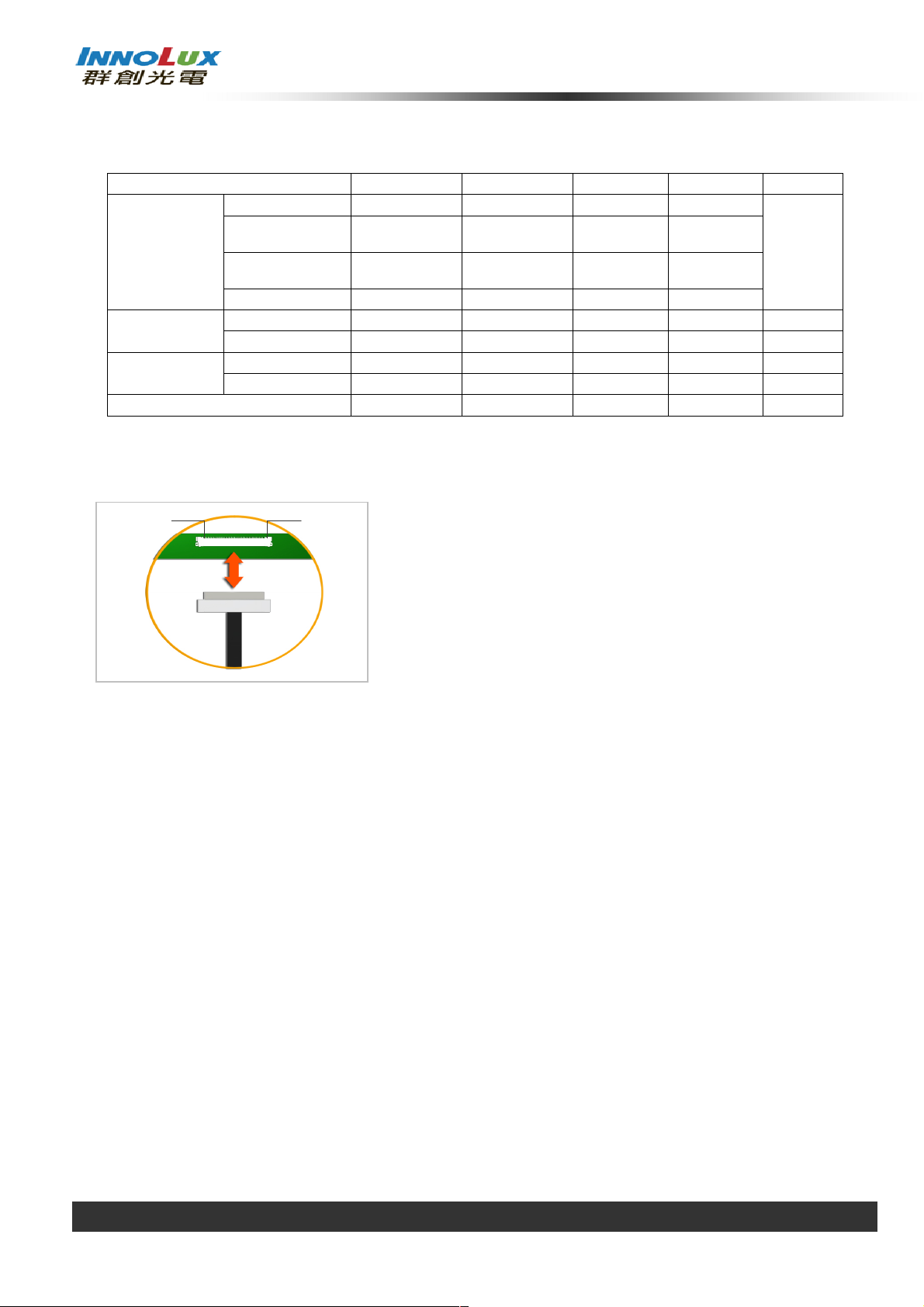

2. MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal (H) 359 359.5 360 mm
Vertical (V) w/o

Module Size

Bezel Area

Active Area

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

PCB and Hinge
Vertical (V) with
PCB w/o Hinge
Thickness (T) - 3.5 3.8 mm

Horizontal 347.06 347.36 347.66 mm
Vertical 196.29 196.59 196.89 mm
Horizontal 343.932 344.232 344.532 mm
Vertical 193.236 193.536 193.836 mm

Weight - 410 425 g

2.1 CONNECTOR TYPE

206 206.5 207 mm
217 217.5 218 mm

(1)

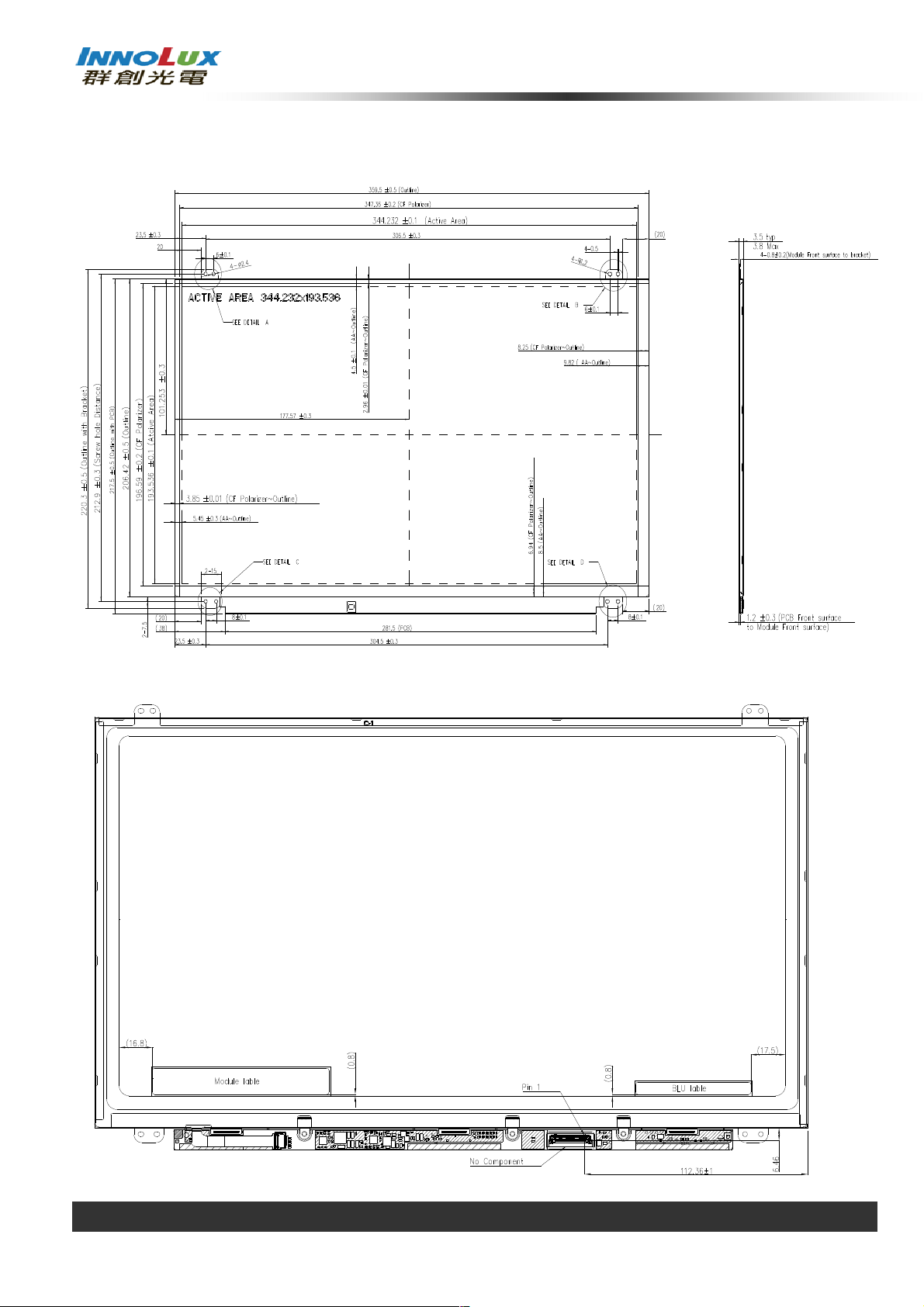

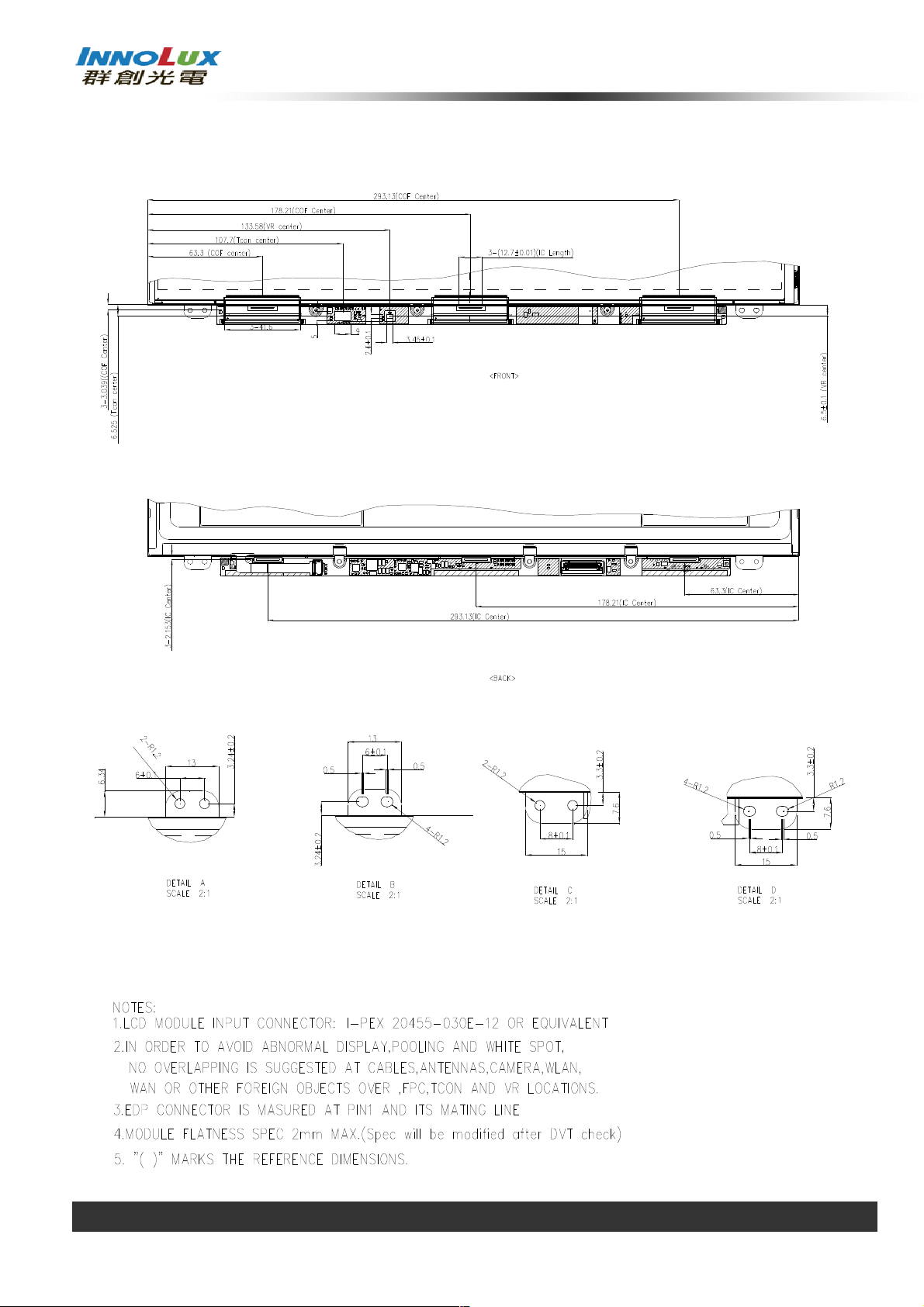

Please refer Appendix Outline Drawing for detail design.

Connector Part No.: IPEX-20455-030E-12
User’s connector Part No: IPEX-20453-030T-01

Version 1.1 1 March 2013 5 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

3. ABSOLUTE MAXIMUM RATINGS

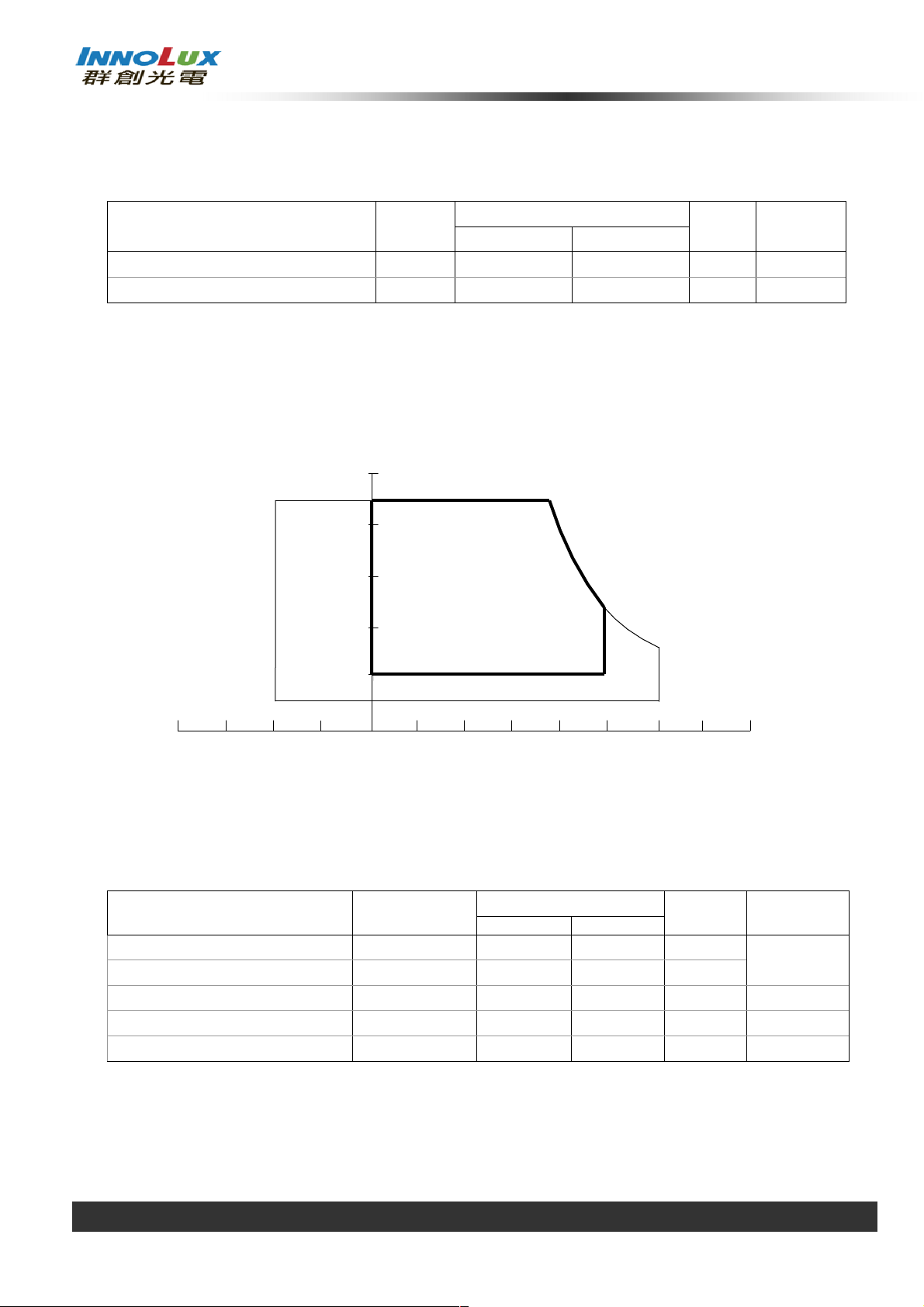

3.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Min. Max.
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)

Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0 ºC min. and 60 ºC max.

Relative Humidity (%RH)

100

90
80

Value

Unit Note

60

Operating Range

40

20
10

Storage Range

Temperature (ºC)

3.2 ELECTRICAL ABSOLUTE RATINGS

3.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage VCCS -0.3 +4.0 V
Logic Input Voltage VIN -0.3 VCCS+0.3
Converter Input Voltage
Converter Control Signal Voltage
Converter Control Signal Voltage

LED_VCCS
LED_PWM,

LED_EN

Value

Min. Max.

-0.3 (26) V (1)

-0.3 (5) V (1)

-0.3 (5) V (1)

80 60 -20 40 0 20 -40

Unit Note

(1)

V

Note (1) Stresses beyond those listed in above “ELECTRICAL ABSOLUTE RATINGS” may cause

permanent damage to the device. Normal operation should be restricted to the conditions
described in “ELECTRICAL CHARACTERISTICS”.

Version 1.1 1 March 2013 6 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

SCAN DRIVER

CIRCUIT

EDID

DC/DC CONVERTER &

LED

4. ELECTRICAL SPECIFICATIONS

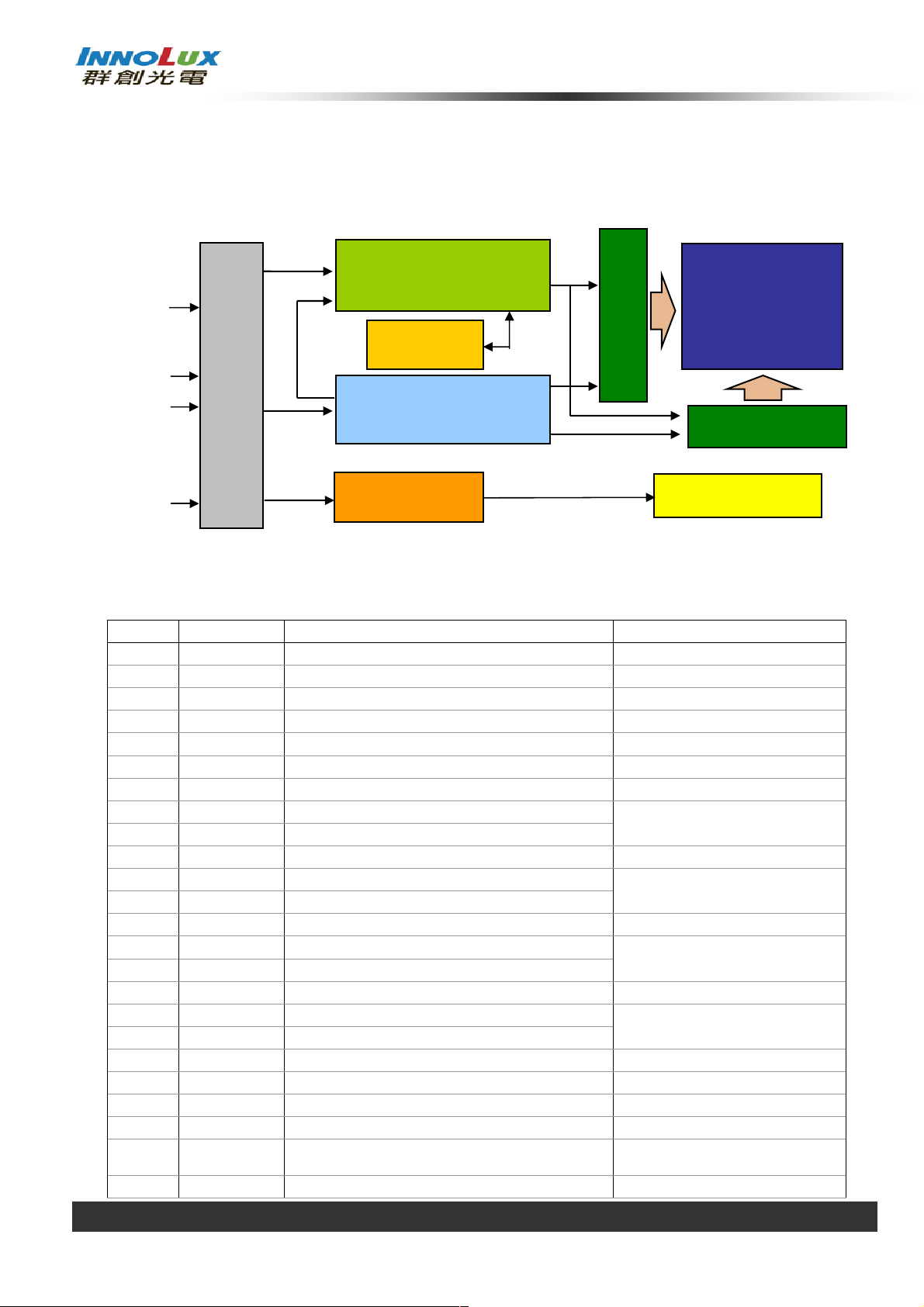

4.1 FUNCTION BLOCK DIAGRAM

Display port
Signals

INPUT CONNECTOR

TIMING

CONTROLLER

TFT LCD PANEL

Converter
Input Signals

VCCS
GND

EEPROM

REFERENCE VOLTAGE

GENERATOR

CONVERTER

DATA DRIVER IC

BACKLIGHT UNIT

4.2. INTERFACE CONNECTIONS

PIN ASSIGNMENT

Pin Symbol Description Remark

1 NC No Connection (Reserved)
2 H_GND High Speed Ground
3 NC No Connection (Reserved)
4 NC No Connection (Reserved)
5 H_GND High Speed Ground
6 ML0- Complement Signal-Lane 0
7 ML0+ True Signal-Main Lane 0
8 H_GND High Speed Ground

9 AUX+ True Signal-Auxiliary Channel
10 AUX- Complement Signal-Auxiliary Channel
11 H_GND High Speed Ground
12 VCCS Power Supply +3.3 V (typical)
13 VCCS Power Supply +3.3 V (typical)
14 NC No Connection (Reserved for INNOLUX test)
15 GND Ground
16 GND Ground
17 HPD Hot Plug Detect
18 BL_GND BL Ground
19 BL_GND BL Ground
20 BL_GND BL Ground
21 BL_GND BL Ground
22 LED_EN BL_Enable Signal of LED Converter

23 LED_PWM
24 NC No Connection

PWM Dimming Control Signal of LED
Converter

Version 1.1 1 March 2013 7 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

Pitch

25 NC No Connection
26 LED_VCCS BL Power
27 LED_VCCS BL Power
28 LED_VCCS BL Power
29 LED_VCCS BL Power
30 NC No Connection (Reserved)

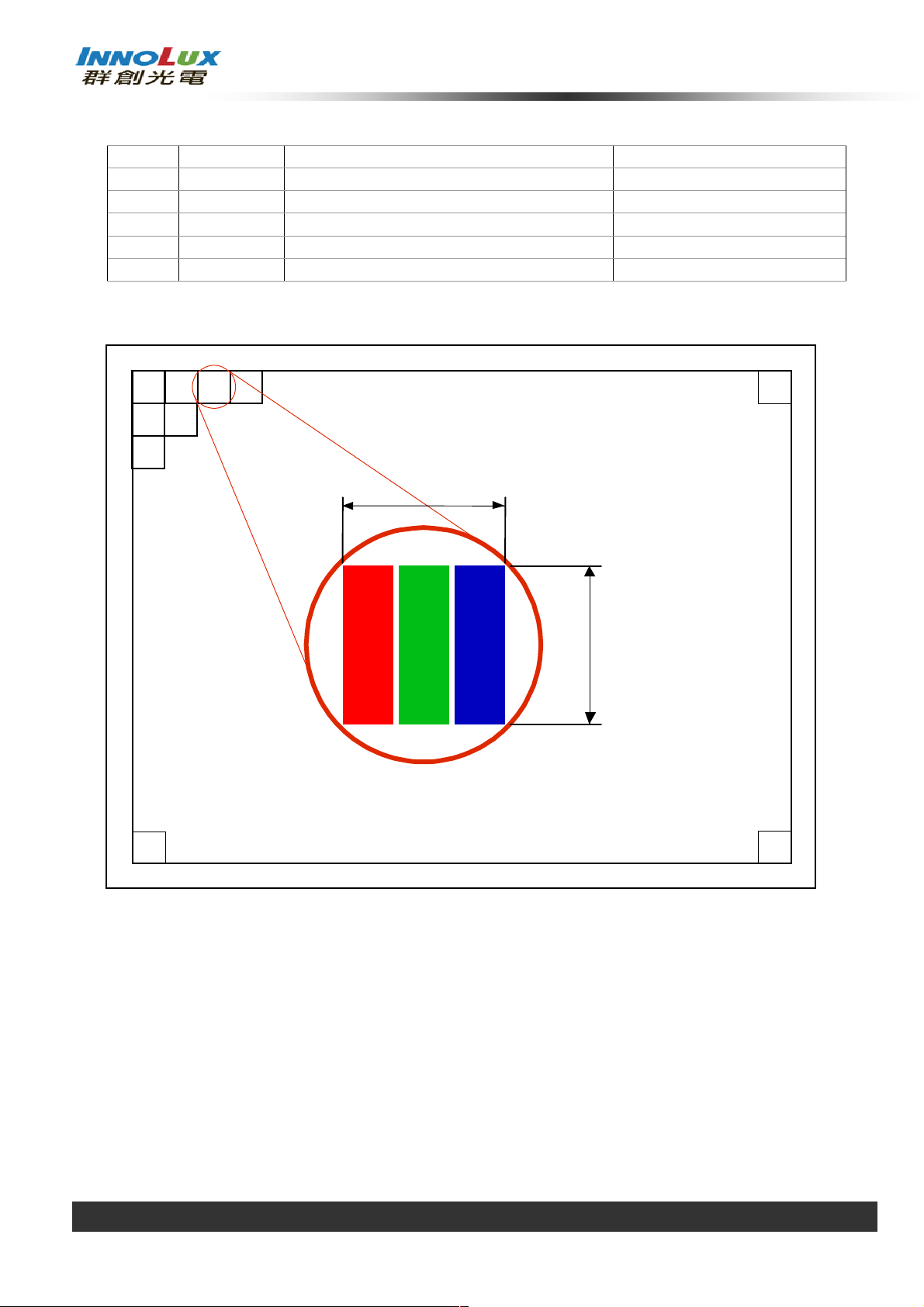

Note (1) The first pixel is odd as shown in the following figure.

1,1

(odd)

2,1
3,1

1,2

(even)

2,2

1,3

(odd)

1,4

(even)

1,Xmax

Pitch

Ymax,

Ymax,1

Xmax

Version 1.1 1 March 2013 8 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

C2

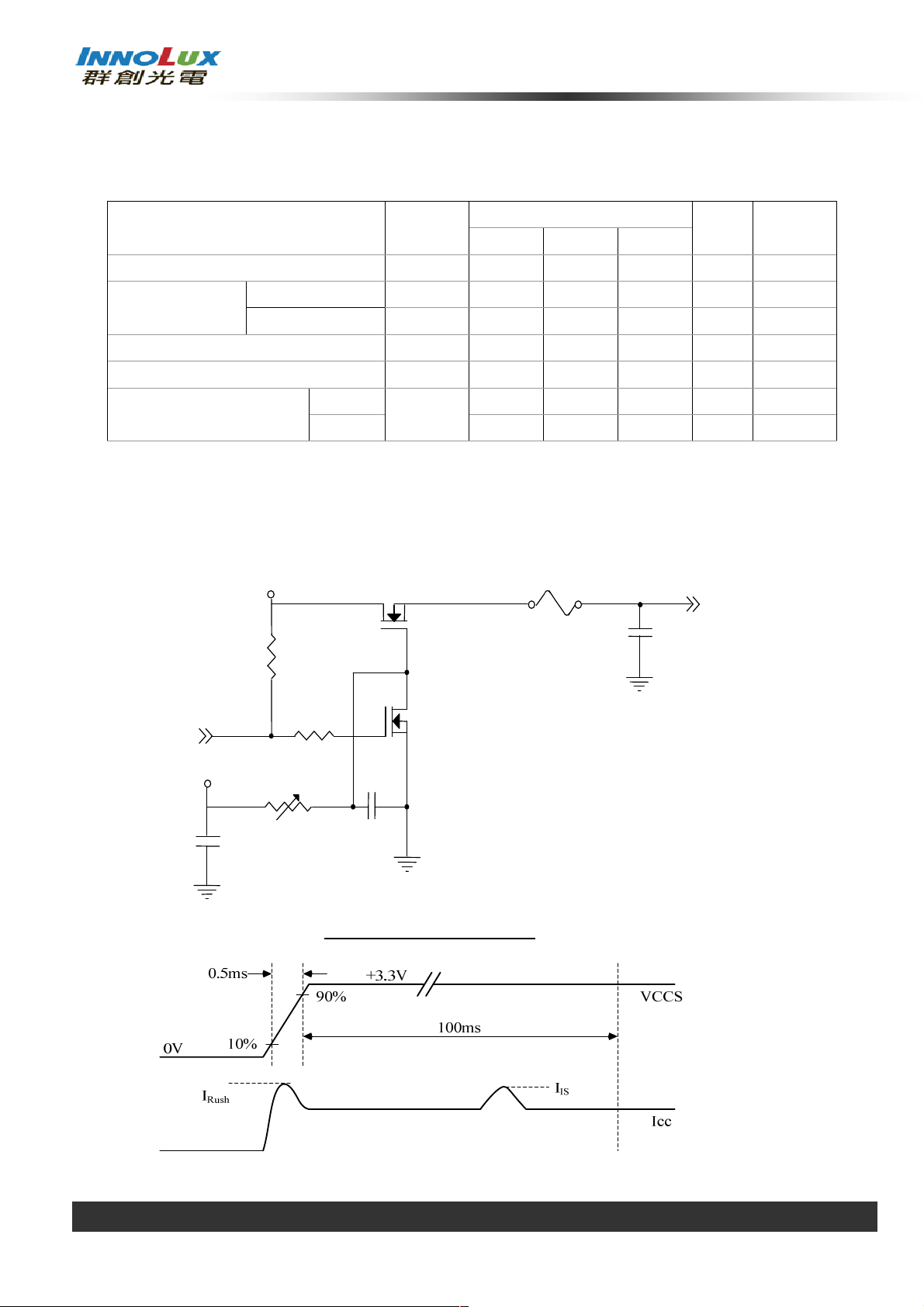

4.3 ELECTRICAL CHARACTERISTICS

4.3.1 LCD ELETRONICS SPECIFICATION

Parameter Symbol

Min. Typ. Max.

Power Supply Voltage VCCS 3.0 3.3 3.6 V (1)-

Value

Unit Note

HPD

High Level (2.25) - (2.75) V

Low Level (0) - (0.4) V
Ripple Voltage VRP - (50) - mV (1)­Inrush Current I

- - (1.5) A (1),(2)

RUSH

Mosaic - (250) (300) mA (3)a

Power Supply Current

Black

lcc

- (300) (340) mA (3)
Note (1) The ambient temperature is Ta = 25 ± 2 ºC.
Note (2) I

: the maximum current when VCCS is rising

RUSH

IIS: the maximum current of the first 100ms after power-on

Measurement Conditions: Shown as the following figure. Test pattern: black.

(High to Low)

(Control Signal)

SW

+12V

+3.3V

R1
47K

R2

1K

47K

VR1

C1

1uF

Q1 2SK1475

0.01uF

Q2

2SK1470

FUSE

C3

1uF

VCCS

(LCD Module Input)

VCCS rising time is 0.5ms

Version 1.1 1 March 2013 9 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

Note (3) The specified power supply current is under the conditions at VCCS = 3.3 V, Ta = 25 ± 2 ºC, DC

Current and fv = 60 Hz, whereas a power dissipation check pattern below is displayed.

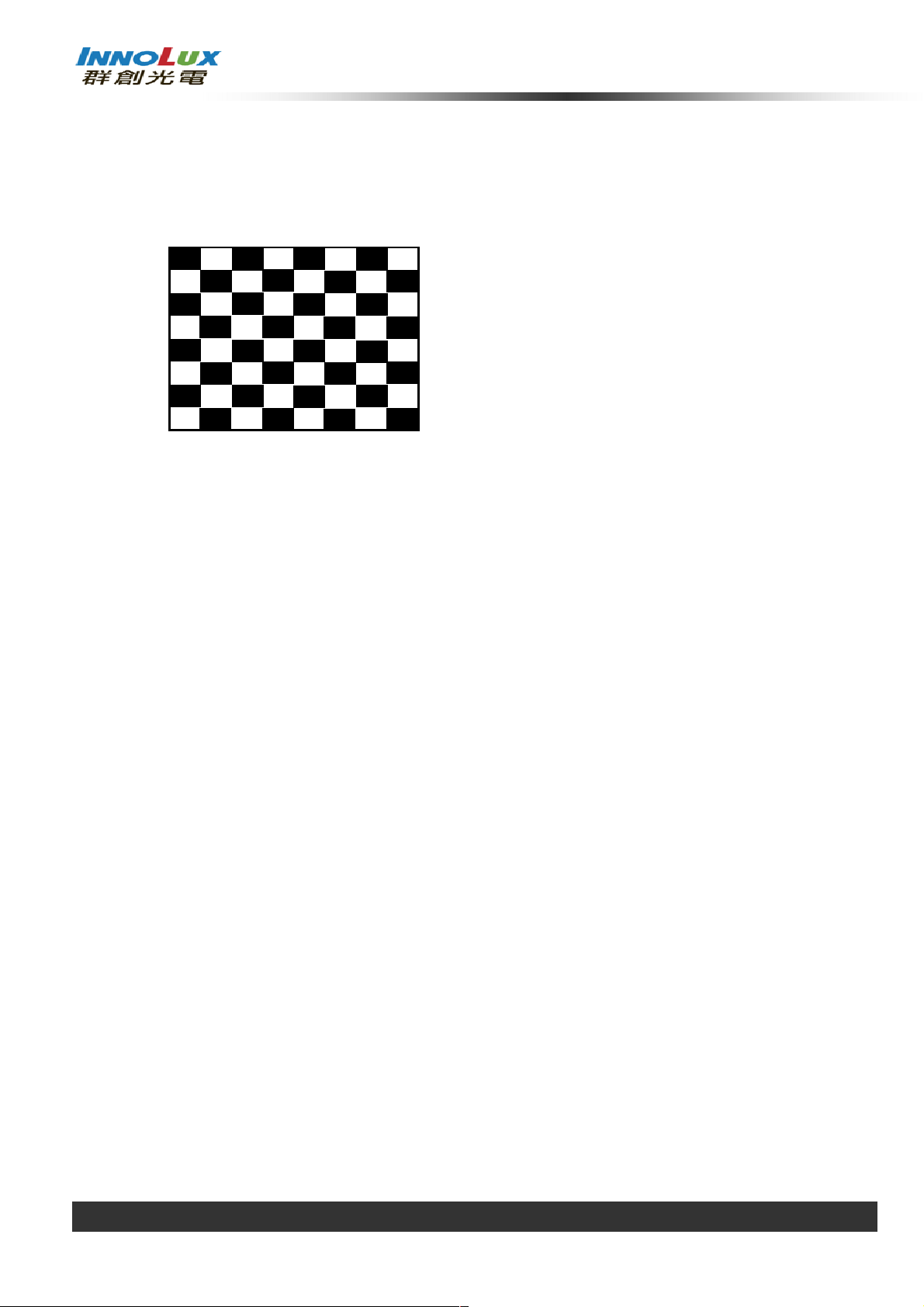

a. Mosaic Pattern

Active Area

Version 1.1 1 March 2013 10 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

PWM Control Permissive Ripple

C2

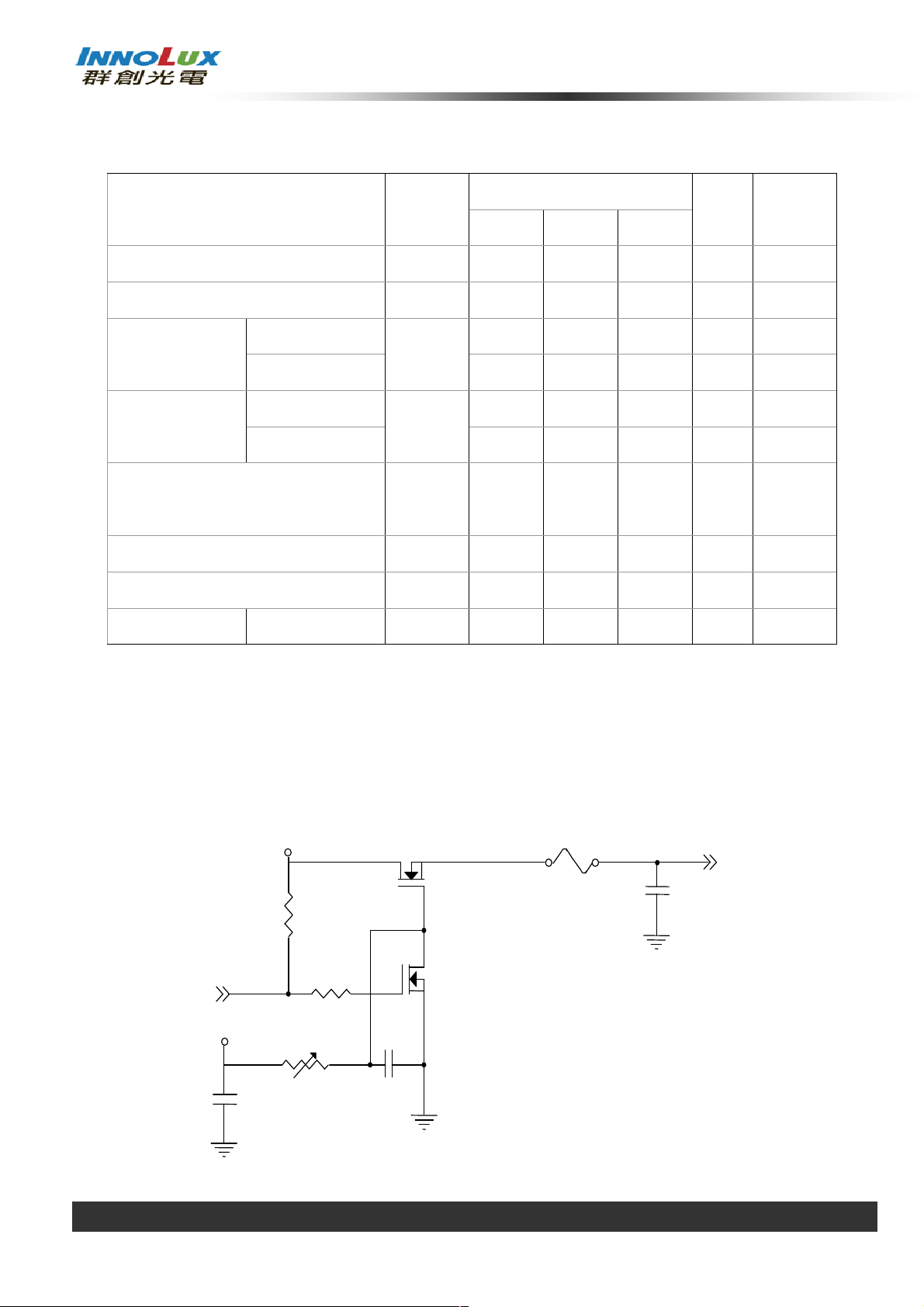

4.3.2 LED CONVERTER SPECIFICATION

Parameter Symbol

Value

Unit Note

Min. Typ. Max.
Converter Input power supply voltage
Converter Inrush Current

LED_Vccs

ILED

RUSH

(5.0) (12.0) (21.0) V

- - (1.5) A (1)

Backlight On (2.2) - (5) V

EN Control Level

Backlight Off

PWM High Level

PWM Control Level

PWM Low Level

(0) - (0.6) V

(2.2) - (5) V

(0) - (0.6) V

PWM Control Duty Ratio (5) - (100) %

Voltage
PWM Control Frequency f

LED Power Current LED_VCCS =Typ.

Note (1) ILED

: the maximum current when LED_VCCS is rising,

RUSH

(190) - (2K) Hz (2)

PWM

ILED (116) (145) (163) mA (3)

- - (100) mV

V

PWM_pp

ILEDIS: the maximum current of the first 100ms after power-on,
Measurement Conditions: Shown as the following figure. LED_VCCS = Typ, Ta = 25 ± 2 ºC, f

= 200 Hz, Duty=100%.

.

LED_VCCS(Typ)

Q1 IRL3303

(High to Low)

(Control Signal)

SW=24V

LED_VCCS(Typ)

C1

1uF

R1
47K

R2

1K

Q2

IRL3303

47K

VR1

0.01uF

FUSE

C3

1uF

(LED Converter Input)

PWM

Version 1.1 1 March 2013 11 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

≤∗+

∗+≤

≥

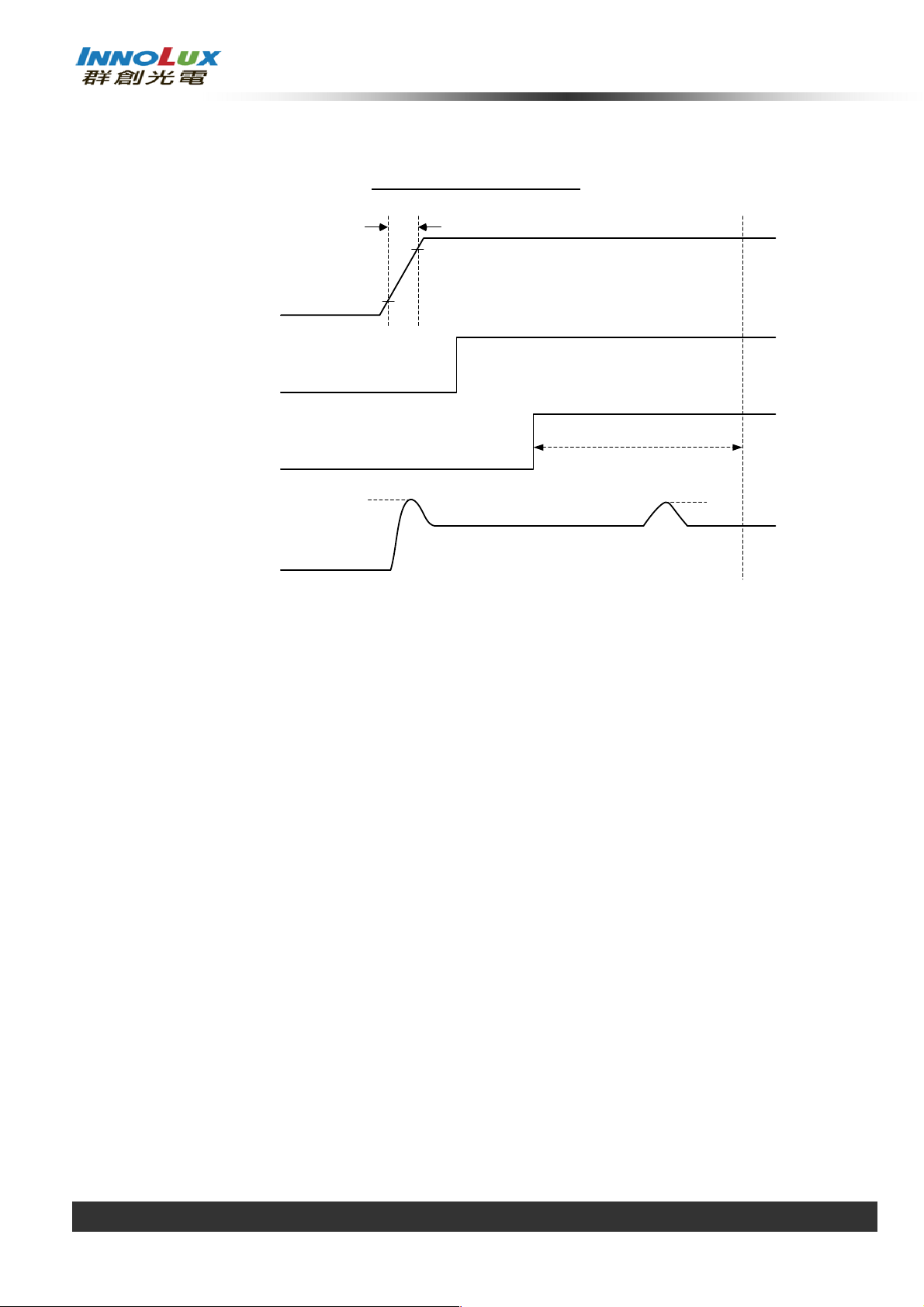

VLED rising time is 0.5ms

0.5ms

90%

ILED

10%

Rush

100ms

ILED

IS

LED_VCC

LED_PWM

LED_EN

ILED

Note (3) If PWM control frequency is applied in the range less than 1KHz, the “waterfall” phenomenon on

the screen may be found. To avoid the issue, it’s a suggestion that PWM control frequency should
follow the criterion as below.

0V

0V

0V

PWM control frequency f

fN )33.0(

N

: Integer

f

: Frame rate

Note (4) The specified LED power supply current is under the conditions at “LED_VCCS = Typ.”, Ta = 25

± 2 ºC, f

= 200 Hz, Duty=100%.

PWM

should be in the range

PWM

f

PWM

)3(

N

fN

)66.0(

Version 1.1 1 March 2013 12 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

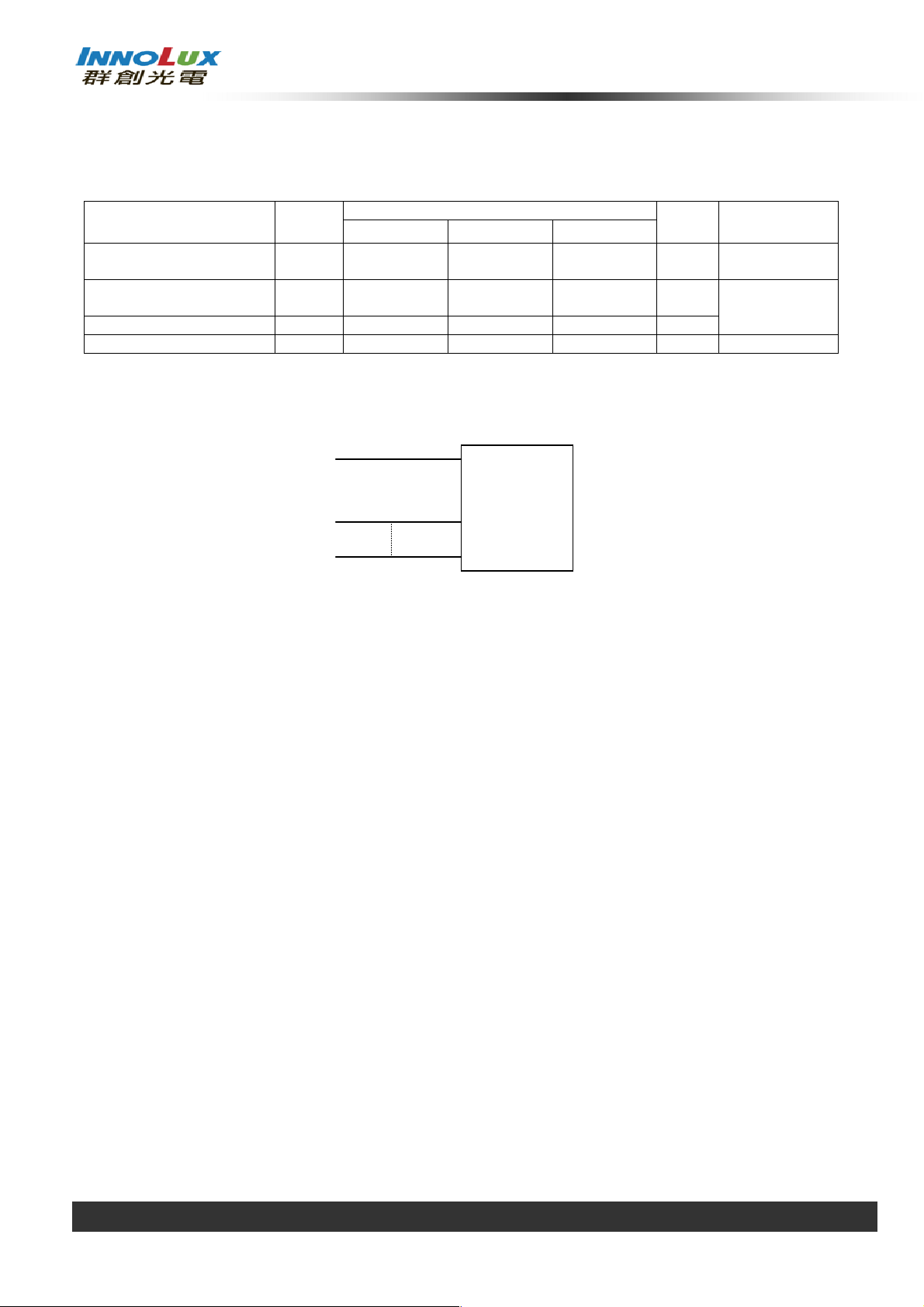

4.3.3

BACKLIGHT UNIT

PRODUCT SPECIFICATION

Parameter Symbol

LED Light Bar Power
Supply Voltage
LED Light Bar Power
Supply Current
Power Consumption PL - 1.478 1.584 W
LED Life Time LBL 12000 - - Hrs (4)

Note (1) LED current is measured by utilizing a high frequency current meter as shown below :

Light Bar Feedback
Channels

VL 27.5 30.8 33 V

IL - 48 - mA

Min. Typ. Max.

V

L, IL

Ta = 25 ± 2 ºC
Value

LED
Light Bar

Unit Note

(1)(2)(Duty100%)

(3)

Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter

with current balancing function to drive LED light-bar.
Note (3) PL = IL ×VL (Without LED converter transfer efficiency)
Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta =

25 ±2 oC and IL = 16 mA(Per EA) until the brightness becomes 50% of its original value.≦

Version 1.1 1 March 2013 13 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

0V

VCM

|VID|

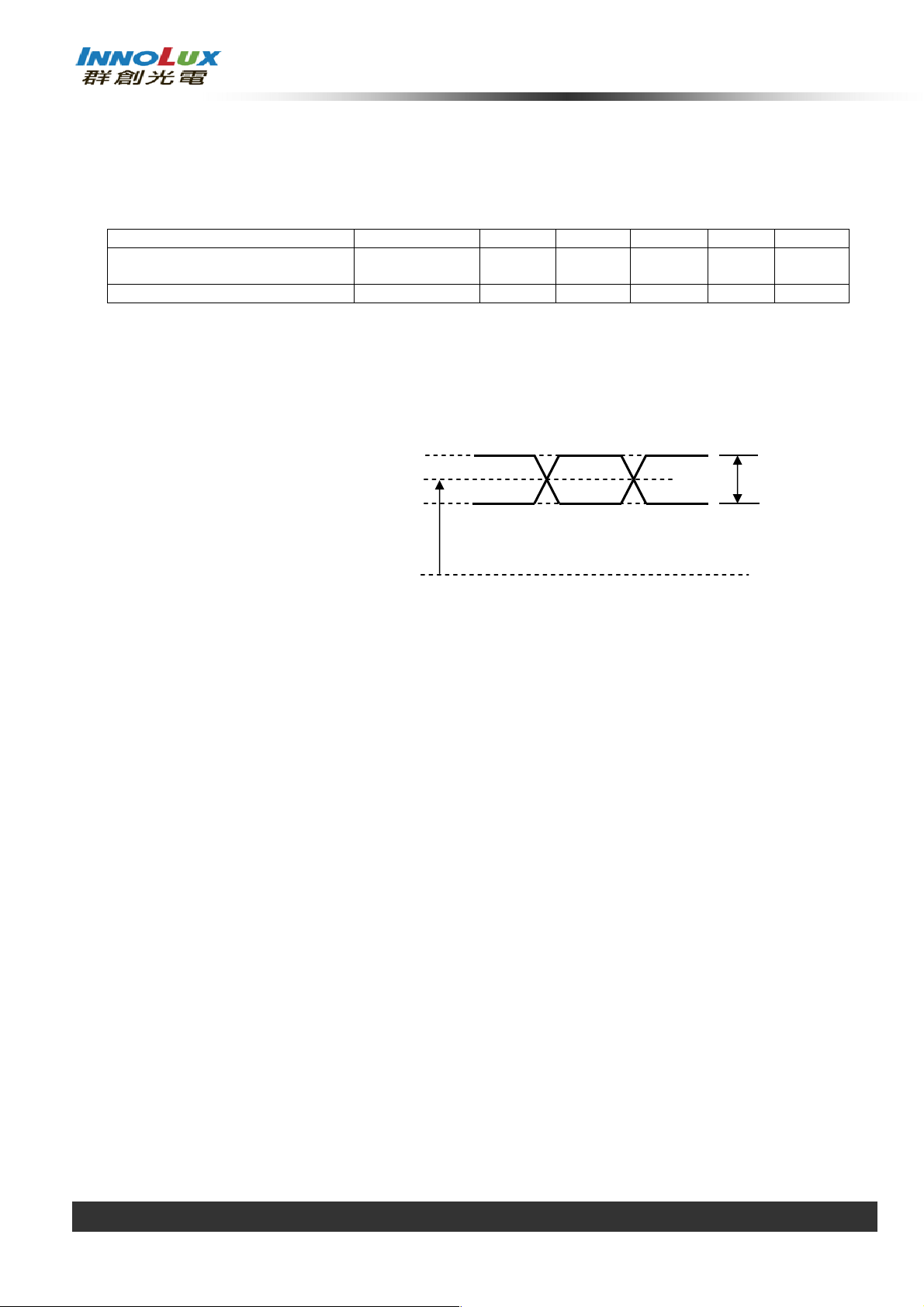

4.4 INPUT SIGNAL TIMING SPECIFICATIONS

4.4.1 DISPLAY PORT INTERFACE

Parameter Symbol Min. Typ. Max. Unit Notes
Differential Signal Common Mode
Voltage(MainLink and AUX)
AUX AC Coupling Capacitor C

Note (1) Display port interface related AC coupled signals are following VESA DisplayPort Standard

Version1. Revision 1a and VESA Embedded DisplayPortTM Standard Version 1.1.
(2) The AUX AC Coupling Capacitor placed on Source Devices.
(3) DisplayPortCompliance Test Specification (CTS) 1.1

Single Ended

VCM (0) (2) V (1)(3)

(75) (200) nF (2)

AUX

VD+

VD-

Version 1.1 1 March 2013 14 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

4.4.2 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input

for the color. The higher the binary input the brighter the color. The table below provides the assignment
of color versus data input.

Data Signal

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0
1
0
0
0
1
1
1
0
0
0

:

:
1
1
1
0
0
0

:

:
0
0
0
0
0
0

:

:
0
0
0

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

1

0

1

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

1

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

:

:

:

:

:

:

:

:

1

1

1

0

1

1

1

1

1

1

1

1

0
0
0
1
1
1
0
1
0
0
0

:

:
0
0
0
0
0
0

:

:
0
0
0
0
1
0

:

:
1
0
1

Version 1.1 1 March 2013 15 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

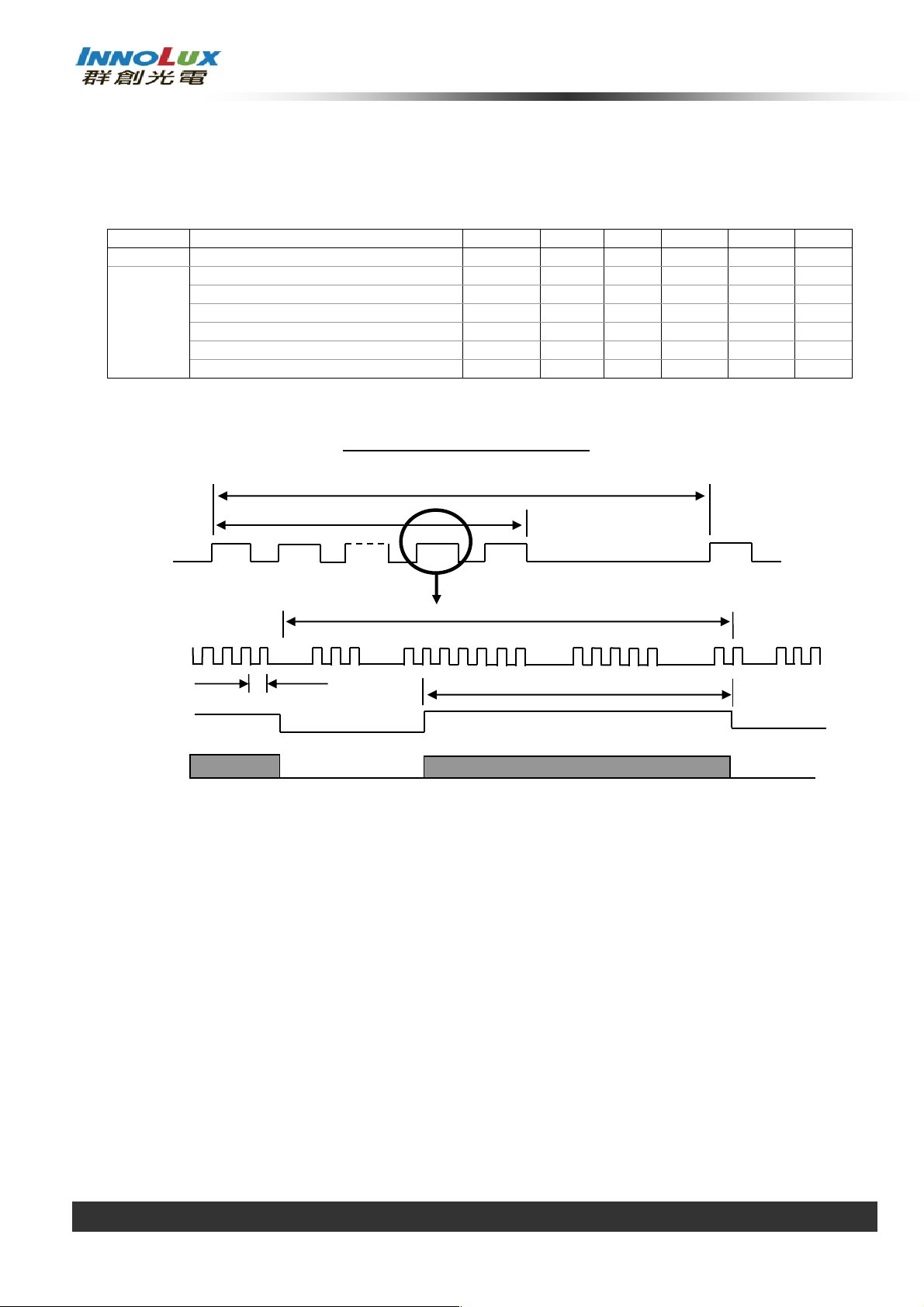

4.5 DISPLAY TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.
Refresh rate 60Hz

Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc (67.9) (75.45) (79.22) MHz -

Vertical Total Time TV (790) (806) (830) TH -

Vertical Active Display Period TVD (768) (768) (768) TH -

DE

Vertical Active Blanking Period TVB TV-TVD (38) TV-TVD TH -

Horizontal Total Time TH (1482) (1560) (1716)

Horizontal Active Display Period THD (1366) (1366) (1366)

Horizontal Active Blanking Period THB TH-THB (194) TH-THB Tc -

INPUT SIGNAL TIMING DIAGRAM

Tc ­Tc -

DE

DCLK

DE

DATA

TC

THD

Version 1.1 1 March 2013 16 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

10%

t6

-

-

-

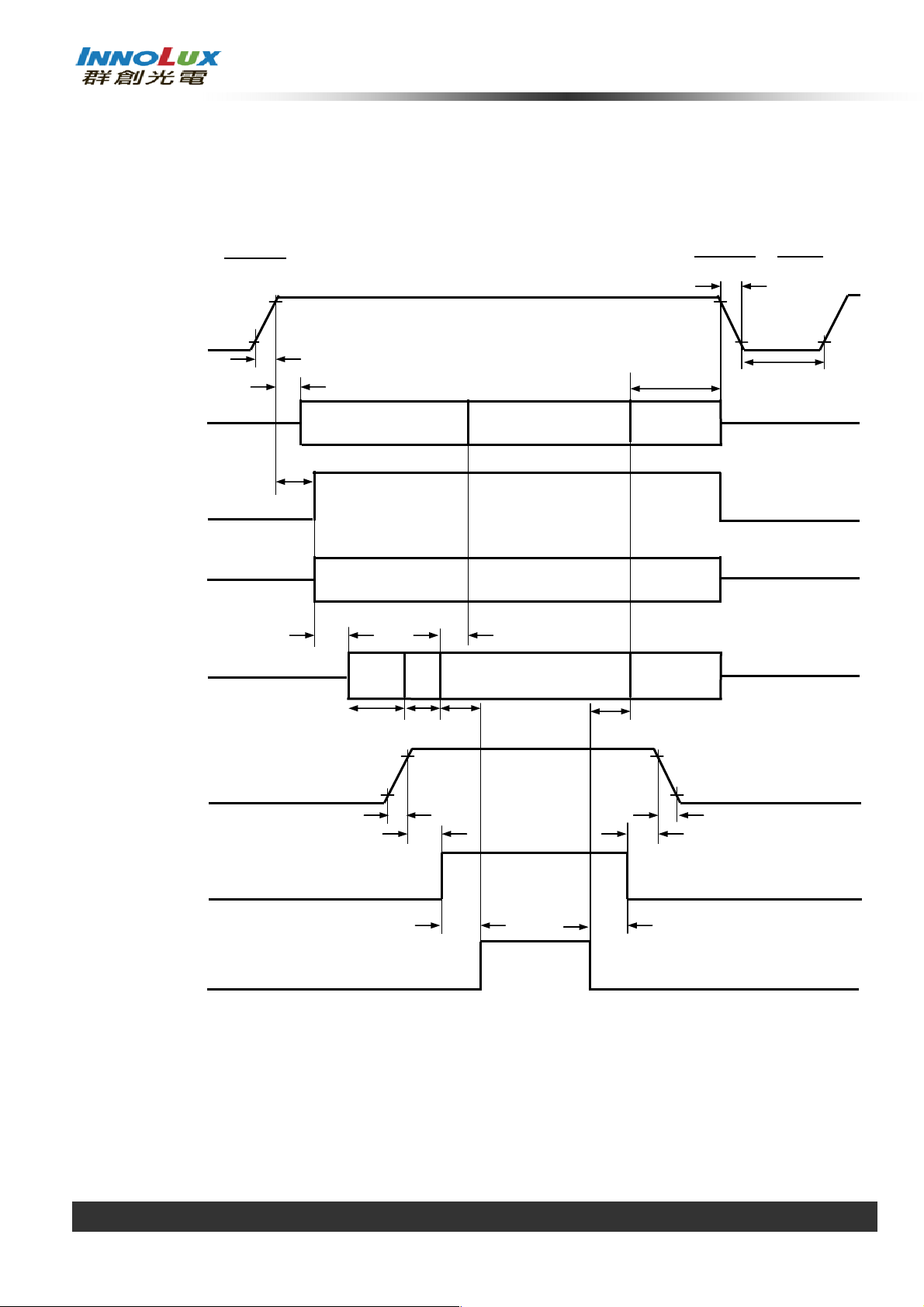

4.6 POWER ON/OFF SEQUENCE

The power sequence specifications are shown as the following table and diagram.

-Power Supply
for LCD, VCCS

-eDP Display

-HPD from Sink

-AUX Channel

-Main Link Data

0V

0V

Power On

90%

10%

t1

Power Off

t11

90%

t2

Black Video

t3

AUX Channel Operational

t4

Link

Training

t7

Idle

Video from Source

Valid Video Data

t10

Black Video

Idle or off

Restart

10%

t12

Power Supply for

LED Converter,
LED_VCCS

LED Converter

Dimming Signal,
LED_PWM

LED Converter

Enable Signal,
LED_EN

0V

0V

0V

10%

t5

90%

t8

t

A

t

C

t

E

t9

90%

10%

t

B

t

D

t

F

Version 1.1 1 March 2013 17 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

Timing Specifications:

Parameter

t1 Power rail rise time, 10% to 90%

t2

t3

t4

t5 Link training duration Source

t6 Link idle Source

t7

t8

t9

t10
t11

t12 VCCS Power off time Source

tA
tB
tC
tD
tE
tF

Note (1) Please don’t plug or unplug the interface cable when system is turned on.

Delay from LCD,VCCS to black
video generation

Delay from LCD,VCCS to HPD
high

Delay from HPD high to link
training initialization

Delay from valid video data from
Source to video on display

Delay from valid video data from
Source to backlight on

Delay from backlight off to end of
valid video data

Delay from end of valid video data
from Source to power off
VCCS power rail fall time, 90% to
10%

LED power rail rise time, 10% to
90%
LED power rail fall time, 90% to
10%
Delay from LED power rising to
LED dimming signal
Delay from LED dimming signal to
LED power falling
Delay from LED dimming signal to
LED enable signal
Delay from LED enable signal to
LED dimming signal

Description

Reqd.

By

Source (0.5) (10) ms

Sink (0) (200)

Sink (0) (200)

Source - - ms

Sink (0) (50) ms

Source

Source - - ms

Source (0) (500)
Source (0.5) (10) ms

Source (0.5) (10) ms
Source (0) (10) ms
Source (1) - ms
Source (1) - ms
Source (1) - ms ­Source (1) - ms -

Value

Min Max

- - ms

- - ms

- - ms

(500) - ms

Unit Notes

Prevents display
noise until valid

ms

ms

ms

video data is
received from the
Source
Sink Aux Channel
must be
operational upon
HPD high
Allows for Source
to read Link
capability and
initialize
Dependant on
Source link
training protocol
Min accounts for
required BS-Idle
pattern. Max
allows for Source
frame
synchronization
Max allows Sink
validate video
data and timing
Source must
assure display
video is stable
Source must
assure backlight is
no longer
illuminated

-

-

-

-

-

-

-

Note (2) Please avoid floating state of the interface signal during signal invalid period.
Note (3) It is recommended that the backlight power must be turned on after the power supply for LCD and the

interface signal is valid.

Version 1.1 1 March 2013 18 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

5. OPTICAL CHARACTERISTICS

5.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha

Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"

LED Light Bar Input Current IL 48 mA

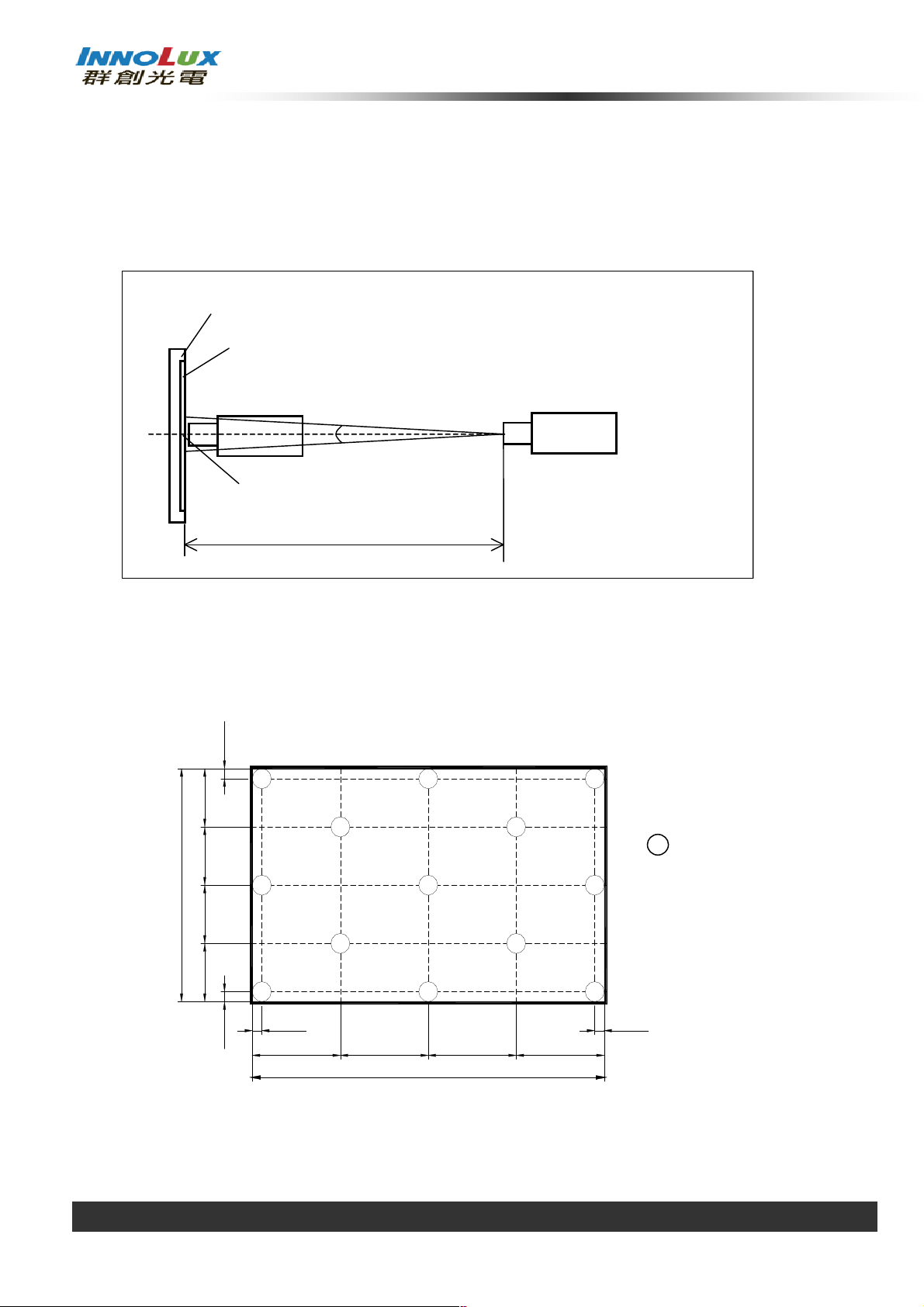

The measurement methods of optical characteristics are shown in Section 5.2. The following items
should be measured under the test conditions described in Section 5.1 and stable environment shown in
Note (5).

5.2 OPTICAL SPECIFICATIONS

Item Symbol

Contrast Ratio CR 250 400 - -

Response Time

Average Luminance of White

Red

Color
Chromaticity

Green

Blue

White

Horizontal

Viewing Angle

Vertical

White Variation of 5 Points

TR - 3 8 ms
TF - 8 13 ms

L

AVE

Rx
Ry
Gx
Gy

Bx

By
Wx 0.313
Wy

θ

+

x

θ

-

x

θ

+

Y

θ

-

Y

δW5p

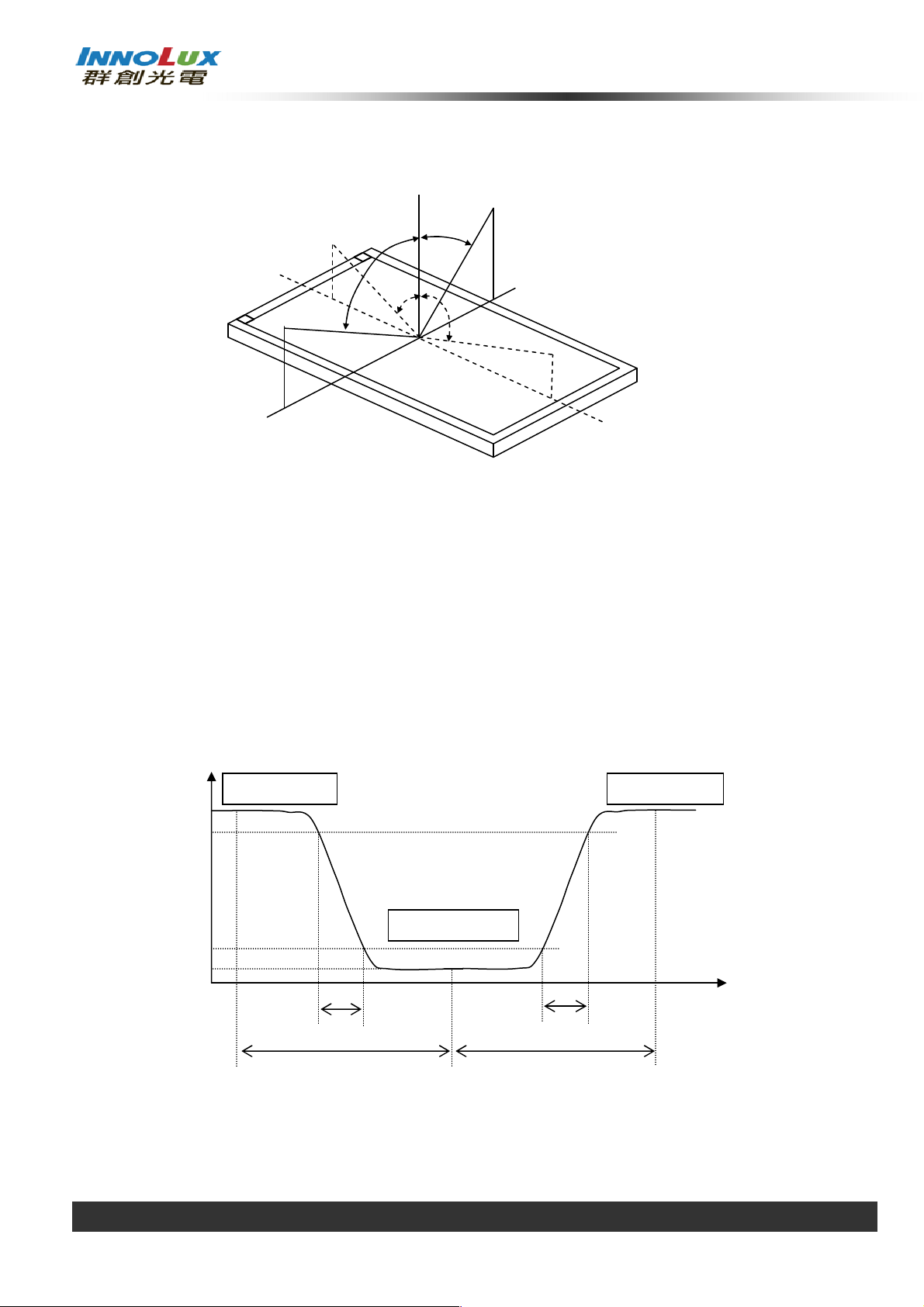

Note (1) Definition of Viewing Angle (θx, θy):

Condition Min. Typ. Max. Unit Note

θ

=0°, θY =0°

x

Viewing Normal Angle

CR≥10

θx=0°, θY =0°

25±2

50±10

%RH

170 200 - cd/m

0.585

0.354

0.338

Typ –

0.03

0.575

0.152

Typ +

0.03

0.118

0.329
40 45
40 45 ­15 20 -

Deg.

40 45 -

80 -- --

o

C

-

-

-

-

-

-

-

-

%-

2

(2),

(5),(7)
(3),(7)

(4),

(6),(7)

(1),(7)

(1),(5),

(7)

(5),(6),

(7)

Version 1.1 1 March 2013 19 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

T

ime

66.67 ms

66.67 ms

θ

X-

= 90º

x-

6 o’clock

θ

y-

= 90º

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0
L63: Luminance of gray level 63
L 0: Luminance of gray level 0

Normal

θx = θy = 0º

θy- θ

y+

θx−

θx+

12 o’clock direction

y+

θ

y+

= 90º

x+

θ

X+

= 90º

CR = CR (1)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

Note (3) Definition of Response Time (TR, TF):

100%

90%

Optical

Response

10%

0%

TR

TF

Note (4) Definition of Average Luminance of White (L

Measure the luminance of White at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

AVE

):

L (x) is corresponding to the luminance of the point X at Figure in Note (6)

Version 1.1 1 March 2013 20 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

Light Shield Room

( Ambient

L

uminance < 2

l u x)

X=1 to 13

X

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.

LCD M odule

LCD P anel

USB2000

or equivalent

CS - 2000T

or equivalent

Center of the S creen

500 mm

Note (6) Definition of White Variation (δW):
Measure the luminance of White at 5 points

δW5p = {

Minimum [L (1)~ L (5)] / Maximum [L (1)~ L (5)]}*100%

10mm

6

H/4

2 3

7

8

: Test Point

H

H/4 H/4 H/4

Note (7) The listed optical specifications refer to the initial value of manufacture, but the condition of

the specifications after long-term operation will not be warranted.

9

4 5

11 12 13

10mm 10mm

10mm

W/4 W/4 W/4 W/4

1

W

10

Active area

Version 1.1 1 March 2013 21 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

6. RELIABILITY TEST ITEM

Test Item Test Condition Note
High Temperature Storage Test 60ºC, 240 hours
Low Temperature Storage Test -20ºC, 240 hours
Thermal Shock Storage Test

-20ºC, 0.5hour←→60℃, 0.5hour; 100cycles, 1hour/cycle
High Temperature Operation Test 50ºC, 240 hours
Low Temperature Operation Test 0ºC, 240 hours

High Temperature & High Humidity
Operation Test

ESD Test (Operation)

Shock (Non-Operating)

Vibration (Non-Operating)

Note (1) criteria : Normal display image with no obvious non-uniformity and no line defect.
Note (2) Evaluation should be tested after storage at room temperature for more than two hour
Note (3) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough

so that the module would not be twisted or bent by the fixture.

50°C, 80% RH, 240 hours

150pF, 330Ω, 1sec/cycle
Condition 1 : Contact Discharge, ±8KV
Condition 2 : Air Discharge, ±15KV

220G, 2ms, half sine wave,1 time for each direction of
±X,±Y,±Z

1.5G / 10-500 Hz, Sine wave, 30 min/cycle, 1cycle for each

X, Y, Z

(1) (2)

(1)

(1)(3)

(1)(3)

Version 1.1 1 March 2013 22 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

7. PACKING

7.1 MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

(a) Model Name: N156BGE – E31
(b) Revision: Rev. XX, for example: C1, C2 …etc.
(c) Serial ID: X X X X X X X Y M D L N N N N

(d) Production Location: MADE IN XXXX. XXXX stands for production location.
(e) UL Logo : XXXX is UL factory ID.

Serial No.
Product Line

Year, Month, Date

INNOLUX Internal Use

Revision

INNOLUX Internal Use

Version 1.1 1 March 2013 23 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

7.2 CARTON

PRODUCT SPECIFICATION

Figure. 7-2 Packing method

Version 1.1 1 March 2013 24 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

7.3 PALLET

PRODUCT SPECIFICATION

Figure. 7-3 Packing method

Version 1.1 1 March 2013 25 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

8. PRECAUTIONS

8.1 HANDLING PRECAUTIONS

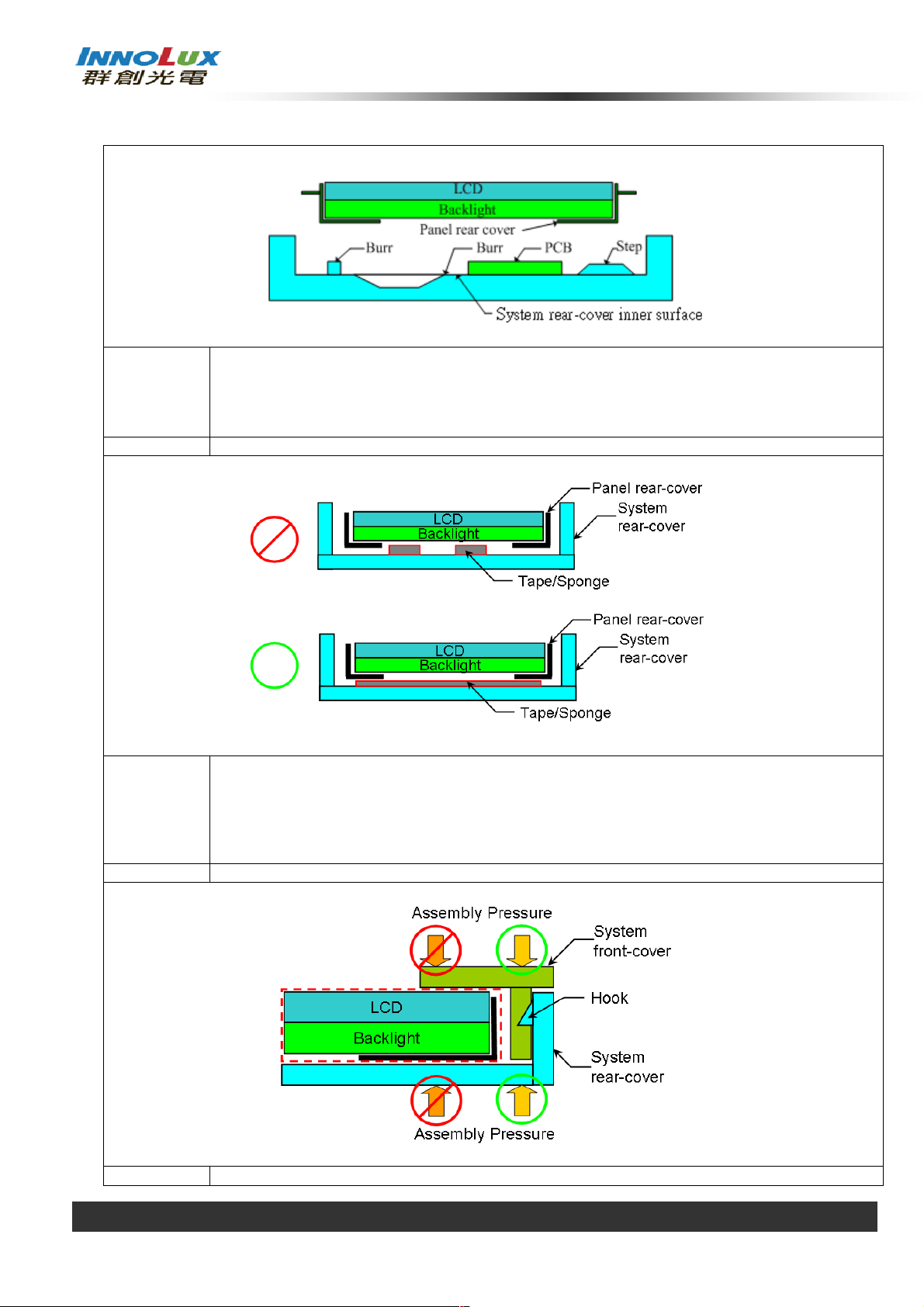

(1) The module should be assembled into the system firmly by using every mounting hole. Be careful

not to twist or bend the module.

(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause

electrical short or damage the polarizer.

(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and

assembly process.

(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer

is very soft and easily scratched.

(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not

use Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It
might permanently damage the polarizer due to chemical reaction.

(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel

for a long time.

(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.
(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.
(9) Do not disassemble the module.
(10) Do not pull or fold the LED wire.
(11) Pins of I/F connector should not be touched directly with bare hands.

8.2 STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module

within the specified storage conditions.
(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may

damage LCD module when it is operating.
(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the

response time will become slowly, and the starting voltage of LED will be higher than the room

temperature.

8.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.
(2) Always follow the correct power on/off sequence when LCD module is connecting and operating.

This can prevent the CMOS LSI chips from damage during latch-up.
(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.

Version 1.1 1 March 2013 26 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

Appendix. EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the
VESA Plug & Display and FPDI standards.

Byte #

(decimal)

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

0
1
2
3
4
5
6
7
8
9

Byte #

(hex)

0 Header
1 Header
2 Header
3 Header
4 Header
5 Header
6 Header
7 Header
8 EISA ID manufacturer name (“CMN”)

9 EISA ID manufacturer name (Compressed ASCII)
0A ID product code (N156BGE-E31) BE
0B ID product code (hex LSB first; N156BGE-E31) 15

0C ID S/N (fixed “0”)
0D ID S/N (fixed “0”)

0E ID S/N (fixed “0”)
0F ID S/N (fixed “0”)
10 Week of manufacture (fixed week code)

11 Year of manufacture (fixed year code)
12 EDID structure version # (“1”)
13 EDID revision # (“4”)
14 Video I/P definition (“digital”)
15 Max H image size (“34.42cm”)
16 Max V image size (“19.35cm”)
17 Display Gamma (Gamma = ”2.2”)
18 Feature support (“Active off, RGB Color”)
19 Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0 E9
1A Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0 15
1B Rx=0.585 95

1C Ry=0.354 5A
1D Gx=0.338 56

1E Gy=0.575 93
1F Bx=0.152 27
20 By=0.118 1E
21 Wx=0.313 50
22 Wy=0.329 54
23 Established timings 1
24 Established timings 2
25 Manufacturer’s reserved timings

26 Standard timing ID # 1
27 Standard timing ID # 1
28 Standard timing ID # 2
29 Standard timing ID # 2

Field Name and Comments

Value

(hex)

00 00000000
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111

00 00000000
0D 00001101
AE 10101110

00 00000000

00 00000000

00 00000000

00 00000000
2C 00101100

16 00010110

01 00000001

04 00000100

95 10010101

22 00100010

13 00010011

78 01111000

02 00000010

00 00000000

00 00000000

00 00000000

01 00000001

01 00000001

01 00000001

01 00000001

Value

(binary)

10111110

00010101

11101001
00010101
10010101

01011010
01010110
10010011
00100111

00011110
01010000
01010100

Version 1.1 1 March 2013 27 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

42
43

44
45
46
47
48
49
50
51
52
53

54
55

56
57
58
59
60
61
62
63
64

65
66

67
68
69
70

71
72

73
74

75
76

77
78
79

80
81
82
83
84
85

2A Standard timing ID # 3

2B Standard timing ID # 3
2C Standard timing ID # 4
2D Standard timing ID # 4

2E Standard timing ID # 5

2F Standard timing ID # 5

30 Standard timing ID # 6

31 Standard timing ID # 6

32 Standard timing ID # 7

33 Standard timing ID # 7

34 Standard timing ID # 8

35 Standard timing ID # 8

Detailed timing description # 1 Pixel clock (“75.45MHz”, According to

36

VESA CVT Rev1.1)
37 # 1 Pixel clock (hex LSB first)
38 # 1 H active (“1366”)
39 # 1 H blank (“194”)
3A # 1 H active : H blank (“1366 : 194”)
3B # 1 V active (”768”)

3C # 1 V blank (”38”)
3D # 1 V active : V blank (”768 :38”)

3E # 1 H sync offset (”31”)
3F # 1 H sync pulse width ("65”)
40 # 1 V sync offset : V sync pulse width (”4 : 12”)

# 1 H sync offset : H sync pulse width : V sync offset : V sync width
41

(”31: 65 : 4 : 12”)
42 # 1 H image size (”344 mm”) 58
43 # 1 V image size (”194 mm”) C2
44 # 1 H image size : V image size (”344 : 194”)
45 # 1 H boarder (”0”)
46 # 1 V boarder (”0”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
47

Negatives
48 Detailed timing description # 2
49 # 2 Flag
4A # 2 Reserved

# 2 FE (hex) defines ASCII string (Model Name “N156BGE-E31”,
4B

ASCII)

4C # 2 Flag
4D # 2 1st character of name (“N”) 4E

4E # 2 2nd character of name (“1”) 31
4F # 2 3rd character of name (“5”) 35
50 # 2 4th character of name (“6”) 36
51 # 2 5th character of name (“B”) 42
52 # 2 6th character of name (“G”) 47
53 # 2 7th character of name (“E”) 45
54 # 2 8th character of name (“-”) 2D
55 # 2 9th character of name (“E”)

01 00000001
01 00000001

01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001

79 01111001

1D 00011101

56 01010110

C2 11000010

50 01010000
00 00000000
26 00100110
30 00110000

1F 00011111

41 01000001

4C 01001100

00 00000000

10 00010000
00 00000000
00 00000000

18 00011000
00 00000000

00 00000000
00 00000000

FE 11111110

00 00000000

45 01000101

01011000
11000010

01001110
00110001
00110101

00110110

01000010

01000111

01000101

00101101

Version 1.1 1 March 2013 28 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

86
87
88

89
90
91
92
93
94
95
96
97
98

99
100
101
102
103
104
105
106
107
108
109
110

111

112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127

56 # 2 10th character of name (“3”)
57 # 2 11th character of name (“1”)

58 # 2 New line character indicates end of ASCII string
59 # 2 Padding with “Blank” character
5A Detailed timing description # 3

5B # 3 Flag
5C # 3 Reserved
5D # 3 FE (hex) defines ASCII string (Vendor “CMN”, ASCII)

5E # 3 Flag

5F # 3 1st character of string (“C”)

60 # 3 2nd character of string (“M”)

61 # 3 3rd character of string (“N”)

62 # 3 New line character indicates end of ASCII string

63 # 3 Padding with “Blank” character

64 # 3 Padding with “Blank” character

65 # 3 Padding with “Blank” character

66 # 3 Padding with “Blank” character

67 # 3 Padding with “Blank” character

68 # 3 Padding with “Blank” character

69 # 3 Padding with “Blank” character

6A # 3 Padding with “Blank” character

6B # 3 Padding with “Blank” character
6C Detailed timing description # 4

6D

# 4 Flag

6E # 4 Reserved

# 4 FE (hex) defines ASCII string (Model Name“N156BGE-E31”,

6F

ASCII)

70 # 4 Flag

71

# 4 1st character of name (“N”) 4E

72 # 4 2nd character of name (“1”) 31

73

# 4 3rd character of name (“5”) 35

74 # 4 4th character of name (“6”) 36

75

# 4 5th character of name (“B”) 42

76 # 4 6th character of name (“G”) 47

77

# 4 7th character of name (“E”) 45

78 # 4 8th character of name (“-”) 2D

79

# 4 9th character of name (“E”)
7A # 4 10th character of name (“3”)
7B # 4 11th character of name (“1”)

7C # 4 New line character indicates end of ASCII string
7D # 4 Padding with “Blank” character

7E Extension flag
7F Checksum

33 00110011
31 00110001

0A 00001010

20 00100000
00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000

43 01000011
4D 01001101
4E 01001110
0A 00001010

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000
FE 11111110

00 00000000

01001110
00110001
00110101
00110110

01000010

01000111

01000101

00101101
45 01000101
33 00110011
31 00110001

0A 00001010

20 00100000
00 00000000

6A 01101010

Version 1.1 1 March 2013 29 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

Appendix. OUTLINE DRAWING

Version 1.1 1 March 2013 30 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

Version 1.1 1 March 2013 31 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

Appendix.

0. Permanent deformation of system cover after reliability test

Definition

1. Design gap A between panel & any components on system rear-cover

SYSTEM COVER DESIGN GUIDANCE

System cover including front and rear cover may deform during reliability test. Permanent
deformation of system front and rear cover after reliability test should not interfere with
panel. Because it may cause issues such as pooling, abnormal display, and also white spot.

a). Sufficient gap between panel & system is recommended for preventing from backpack or
pogo test fail.
b). Zero gap from panel's maximum thickness boundary to any components, foreign objects,

Definition

2 Design gap B1 & B2 between panel & protrusions

wire, cable or extrusion on system cover inner surface is forbidden.
c). Interference between panel and system rear-cover is forbidden after reliability test.
Note: Recommend at least 0.6mm gap. If the gap is less than recommendation, please
check with INX.

Version 1.1 1 March 2013 32 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

a). Sufficient gap is recommended between panel & protrusions for preventing from shock
related failures.

Definition

3 Design gap C between system front-cover & panel surface.

b). Interference between panel and system rear-cover is forbidden after reliability test.
Note: Recommend at least 2.0mm gap. If the gap is less than recommendation, please
check with INX.

a). Sufficient gap between system front-cover & panel surface is a must for preventing from

Definition

pooling or glass broken.
b). Interference between panel and system (front & rear) cover is forbidden after reliability

Version 1.1 1 March 2013 33 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

test.
c). Interference is also forbidden in the act of system front-cover deformation during swing
test, hinge test, knock test, or during pooling inspection procedure.
d). To remain sufficient gap, design with system rib higher than maximum panel thickness is
recommended.
Note: Recommend at least 0.1mm gap. If the gap is less than recommendation, please
check with INX.

4 Design gap D1 & D2 between system front-cover & PCB Assembly.

a). Sufficient gap between system front-cover & PCB assembly is a must for preventing from
abnormal display after backpack test, hinge test, twist test or pogo test.
b). Interference between panel and system front-cover is forbidden after reliability test.
c). Interference is also forbidden in the act of system front-cover deformation during swing

Definition

5 Interference examination of antenna cable and WebCam wire

test, hinge test, knock test, or during pooling inspection procedure.
d). To remain sufficient gap, design with system rib higher than maximum panel thickness is
recommended.
Note: Recommend for D1 at least 0.1mm gap, D2 at least 2.0mm gap. If the gap is less than
recommendation, please check with INX.

a). Antenna cable or WebCam wire overlap with panel outline is forbidden for preventing
from abnormal display & white spot after backpack test, hinge test, twist test or pogo test.

Definition

6 System rear-cover inner surface examination

b). Antenna cable or WebCam wire bypass panel outline is recommended.
c). Interference between panel and system rear-cover is forbidden after reliability test.

Version 1.1 1 March 2013 34 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

Definition a). Burr at logo edge, step, protrusion or PCB board will easily cause white spot or glass

broken.
b). Keeping flat surface underneath backlight is recommended.
c). Interference between panel and system cover is forbidden after reliability test.

7 Tape/sponge design on system inner surface

Definition a) To prevent abnormal display & white spot after scuffing test, hinge test, pogo test,

backpack test, it is not recommended to add tape/sponge in separate location. Since each
tape/sponge may act as pressure concentration location.
b) We suggest to design with a tape/sponge that well covered under panel rear-cover.
c). Interference between panel and system rear-cover is forbidden after reliability test.

8 Assembly SOP examination

Definition To prevent panel crack during system front-cover assembly process with hook design, it is

Version 1.1 1 March 2013 35 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

prohibited to press panel or any location that related directly to the panel.

9 Assembly SOP examination

Definition To prevent panel crack during system front-cover assembly process without hook design, it

is only allowed to give slight pressure with large contact area. This can help to distribute the
stress and prevent stress concentration. Also it is suggest to put the system on a flat surface
stage during the assembly.

10 Material used for system rear-cover

Definition a) To prevent abnormal display & white spot after scuffing test, hinge test, pogo test,

backpack test, as the poor rigidity result from deformation of system rear-cover during the
test.
b) We suggest using aluminum-magnesium alloy as the system rear-cover material with
thickness min 1.5mm, instead of using PC/ABS.

11 System base unit design near keyboard and mouse pad

Definition To prevent abnormal display & white spot after scuffing test, hinge test, pogo test, backpack

test, no sharp edge design is allowed in any area that may damage the panel during the
test. We suggest to remove all sharp edges, or to reduce the thickness difference of
keyboard/mouse pad from the nearby surface.

Version 1.1 1 March 2013 36 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.

PRODUCT SPECIFICATION

12 Screw boss height design

Definition a). Gap left between panel rear-cover bracket and screw boss surface is prohibited.

b). To remain sufficient gap between panel and system rear-cover, screw boss height must
be designed with respect to the height of bracket bottom surface to panel bottom surface +
flatness change of panel itself.

Version 1.1 1 March 2013 37 / 37

The copyright belongs to InnoLux. Any unauthorized use is prohibited.
