INNOLUX MT220WW01 V.B Specification

Global LCD Panel Exchange Center

ϥʳ

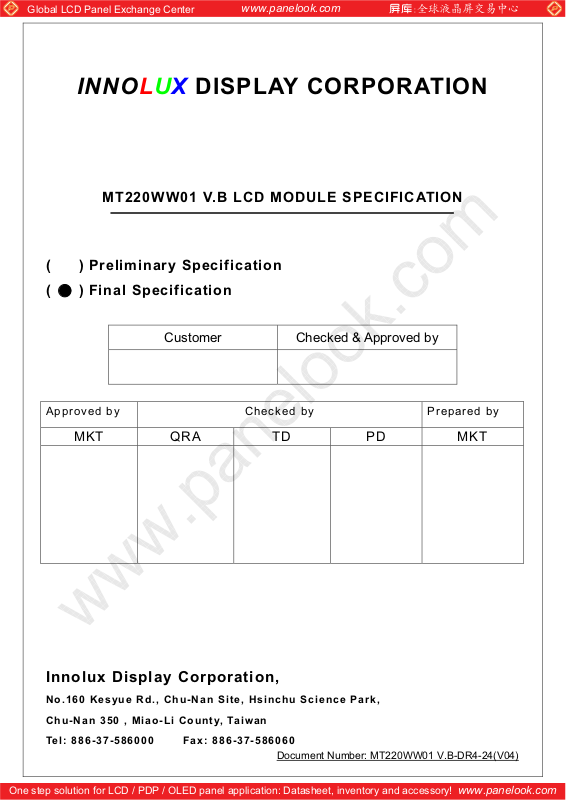

INNOLUX DISPLAY CORPORATION

MT220WW01 V.B LCD MODULE SPECIFICATION

( ) Preliminary Specification

www.panelook.com

(

) Final Specification

Customer Checked & Approved by

Approved by Checked by Prepared by

MKT QRA TD PD MKT

Innolux Display Corporation,

No.160 Kesyue Rd., Chu-Nan Site, Hsinchu Science Park,

Chu-Nan 350 , Miao-Li County, Taiwan

Tel: 886-37-586000 Fax: 886-37-586060

Document Number: MT220WW01 V.B-DR4-24(V04)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

InnoLux copyright

Record of Revision

Version Revise Date Page Content

1.0 2007/6/04

All Initial Release

Copying forbidden.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Contents:

A. General Specification

B. Electrical Specifications

1. Pin assignment

2. Absolute maximum ratings

3. Electrical characteristics

a. Typical operating conditions

b. Display color vs. input data signals

SPEC NO.

PAGE

MT220WW01 V.B

3/22

c. Input signal timing

d. Display position

e. Backlight driving conditions

C. Optical specifications

D. Reliability test items

E. Safety

F. Display quality

G. Handling precaution

H. Label

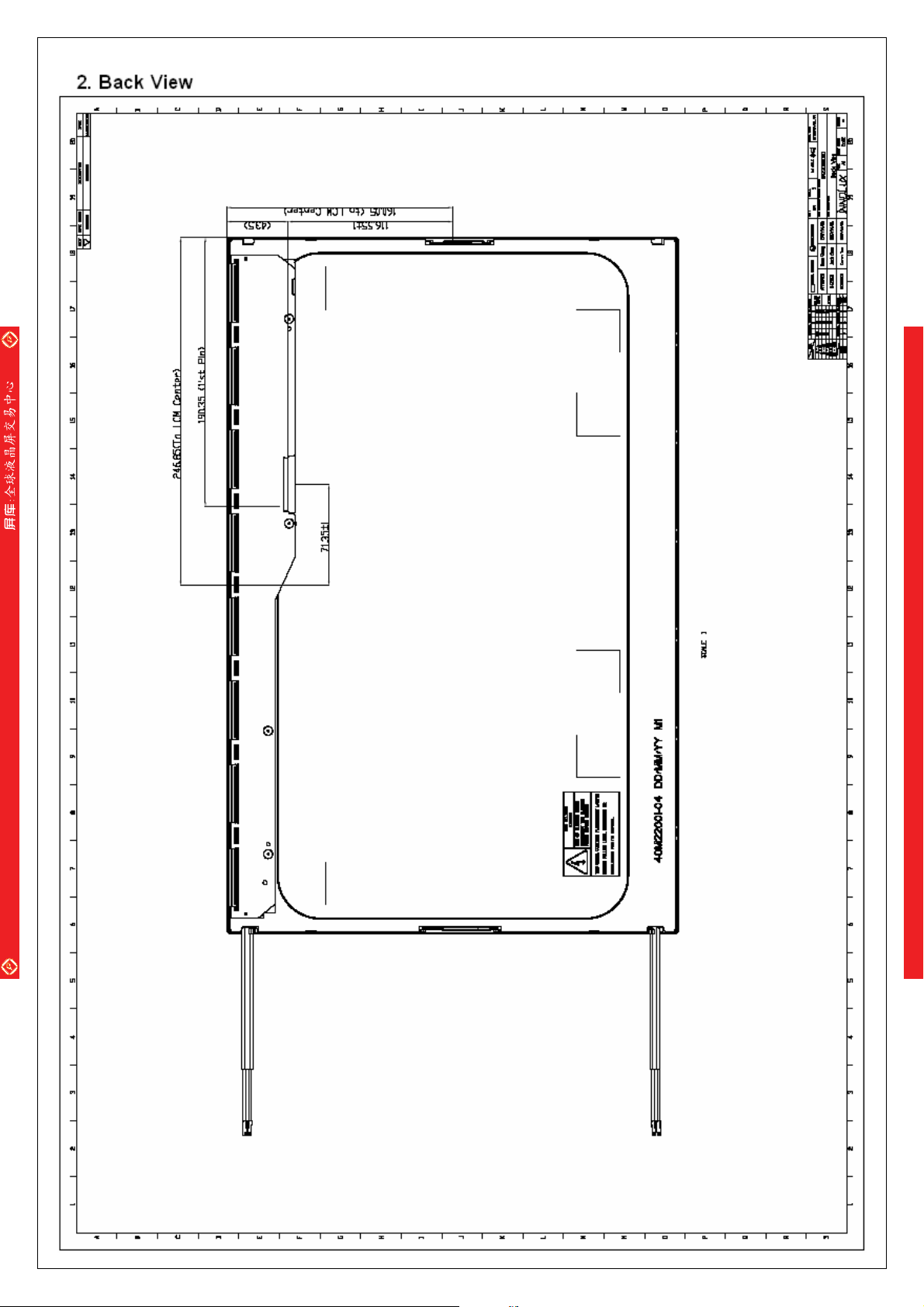

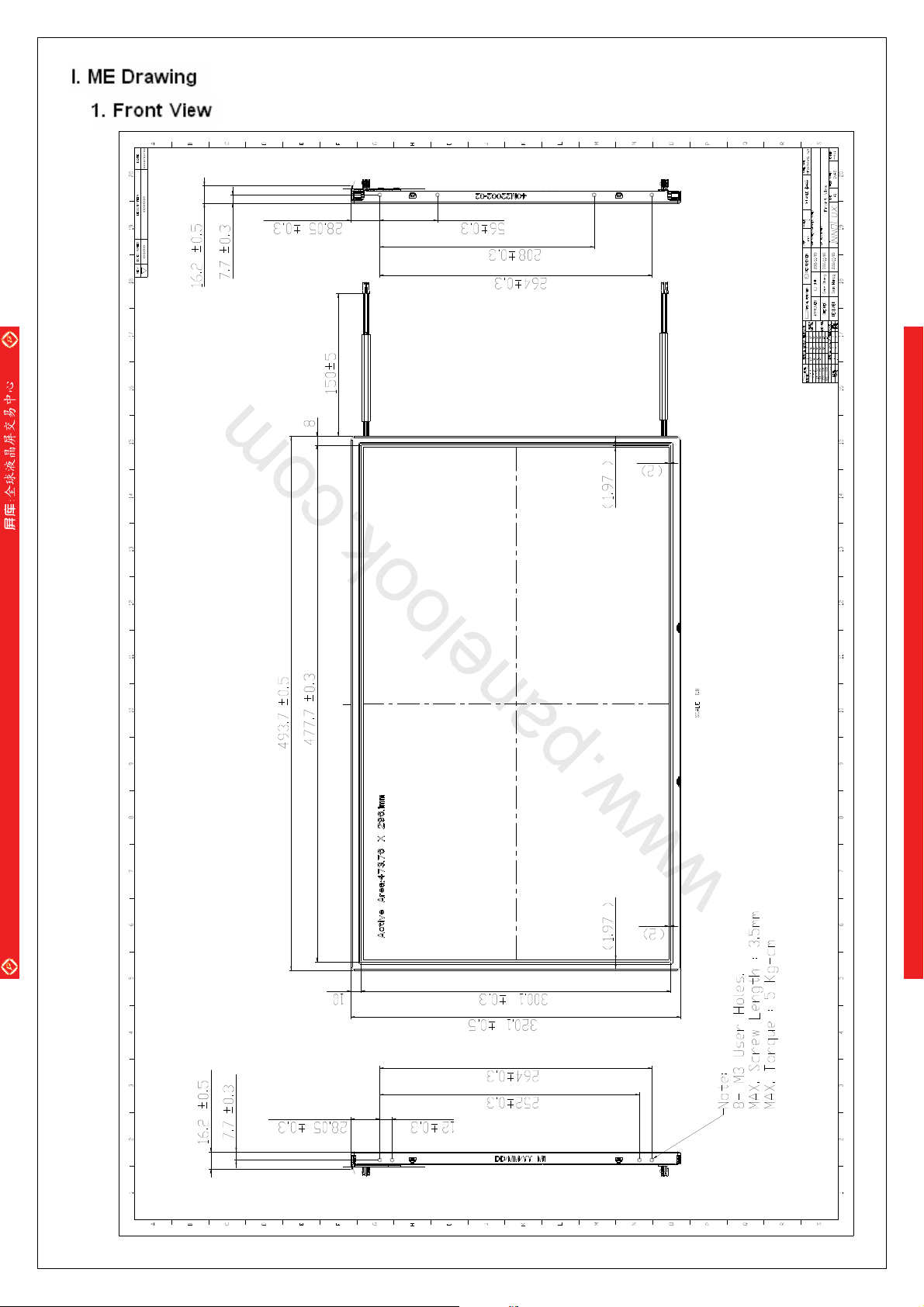

I. Mechanical drawings

Appendix

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

A. General Specification

NO. Item Specification Remark

1 Display resolution (pixel) 1680(H) X 1050(V), WSXGA+ resolution

2 Active area (mm) 473.76(H) X 296.1(V)

3 Screen size (inch) 22 inches diagonal

4 Pixel pitch (mm) 0.282(H) X 0.282(V)

5 Color configuration R, G, B vertical stripe

6 Overall dimension (mm) 493.7 (W) X 320.1 (H) X 16.5 (D) (typ.)

7 Weight (g) 2900 (max.)

8 Surface treatment Anti-glare, Haze = 25%, Hard coating (3H)

SPEC NO.

PAGE

MT220WW01 V.B

4/22

9 Input color signal 8 bit LVDS

10 Display colors 16.7 M (6 bit with Hi-FRC)

11 Optimum viewing direction 6 o’clock

12 Backlight 4 CCFL

13 RoHS RoHS compliance

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

MT220WW01 V.B

PAGE

B. Electrical Specifications

1.Pin assignment Connector ʳ

JAE FI-XB30SSRL-HF16, Foxconn GS23302-0311R-7F or mechanical interface equivalent connector.

Pin No. Symbol Description

Frame VSS Ground

1 RXinO0- -LVDS differential data input, Chan 0-Odd

2 RXinO0+ +LVDS differential data input, Chan 0-Odd

3 RXinO1- -LVDS differential data input, Chan 1-Odd

4 RXinO1+ +LVDS differential data input, Chan 1-Odd

5 RXinO2- -LVDS differential data input, Chan 2-Odd

6 RXinO2+ +LVDS differential data input, Chan 2-Odd

5/22

7 VSS Ground

8 RXOC- -LVDS differential Clock input (Odd)

9 RXOC+ +LVDS differential Clock input (Odd)

10 RXinO3- -LVDS differential data input, Chan 3-Odd

11 RXinO3+ +LVDS differential data input, Chan 3-Odd

12 RXinE0- -LVDS differential data input, Chan 0-Even

13 RXinE0+ +LVDS differential data input, Chan 0-Even

14 VSS Ground

15 RXinE1- -LVDS differential data input, Chan 1-Even

16 RXinE1+ +LVDS differential data input, Chan 1-Even

17 VSS Ground

18 RXinE2- -LVDS differential data input, Chan 2-Even

19 RXinE2+ +LVDS differential data input, Chan 2-Even

20 RXEC- -LVDS differential Clock input (Even)

21 RXEC+ +LVDS differential Clock input (Even)

22 RXinE3- -LVDS differential data input, Chan 3-Even

23 RXinE3+ +LVDS differential data input, Chan 3-Even

24 VSS Ground

25 VSS Ground

26 NC No Connection

27 VSS Ground

28 VCC +5.0V power supply

29 VCC +5.0V power supply

30 VCC +5.0V power supply

Frame VSS Ground

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

2. Absolute maximum ratings

Parameter Symbol

#1

#1 #30

Rear view of LCM

Values

Min. Max.

SPEC NO.

PAGE

#30#1#30

MT220WW01 V.B

6/22

Unit

Remark

Power voltage Vcc -0.3 6 V At 25°C

Input signal voltage VLH -0.3 4.3 V At 25°C

Operating temperature Top 0 50 °C Note 1

Storage temperature TST - 20 60 °C Note 2

CCFL Current ICFL 3 8 [mA]

Note 1: The relative humidity must not exceed 90% non-condensing at temperatures of 40°C or

less. At temperatures greater than 40°C, the wet bulb temperature must not exceed 39°C.

Note 2: The unit should not be exposed to corrosive chemicals.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3. Electrical characteristics a. Typical operating conditions

Item Symbol Min. Typ. Max. Unit Remark

Input Voltage Vcc 4.5 5 5.5 V

Permissive Power Input Ripple

Input Current

Rush Current

Logic Input

Voltage

LVDS:

IN+, IN-

Common Mode Voltage

Differential Input Voltage

Threshold Voltage (High)

Threshold Voltage (Low)

Black

White

Mosaic I

VCM - 1.2 - V

VTH - - 100 mV Note 5

SPEC NO.

PAGE

- - 0.25 V

V

RF

- 900 1400 Note 1

I

cc

- 700 - Note 2

I

cc

- 800 -

cc

- - 4 A Note 4

I

Rush

VID 100 - 600 mV

VTL -100 - - mV Note 5

MT220WW01 V.B

7/22

mA

Note 3

Note 1 : The specified current is under the V

=5V, 25°C, fv=60Hz (frame frequency) condition

cc

whereas black pattern is displayed.

Note 2 : The specified current is under the Vcc =5V, 25C, fv=60Hz (frame frequency) condition

whereas white pattern is displayed.

Note 3 : The specified current is under the Vcc =5V, 25C, fv=60Hz (frame frequency) condition

whereas mosaic pattern(black & white [8*6] ) is displayed.

White : 255 Gray

Black : 0 Gray

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Note 4 : test condition :

(1) V

(2) Pattern: Mosaic pattern

= 5 V, VDD rising time = 470 Ӵs ± 10%

DD

90

(3) Test circuit

CONTROL SIGNAL

(HIGH to LOW)

%

SPEC NO.

PAGE

V

DD

Ton=470 Ӵs  10%

5 V

R1 C1

47K

R2

1K

12V

R3

M1

2SK1059

FUSE

M2

2SK1399

C2

MT220WW01 V.B

8/22

VDD ( LCD INPUT)

1uF

C3

1uF

47K

10000pF

Note 5 : LVDS signal definition

VIN

= Positive differential DATA & CLK Input

+

VIN- = Negative differential DATA & CLK Input

VID = VIN

VCM =ΨVCM

VID =ΨVID

VID+ =ΨVIH

VID- =ΨVIL

VCM = (VIN

VCM+ = (VIH

VCM- = (VIL

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

– VIN- ,

+

–VID-Ψ,

+

–VIH-Ψ,

+

–VIL-Ψ,

+

+VIN-)/2,

+

+VIH-)/2,

+

+VIL-)/2,

+

–VCM-Ψ,

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Note 6 : Power on sequence for LCD V

DD

SPEC NO.

PAGE

MT220WW01 V.B

9/22

Parameter Value Unit

Min. Typ. Max. ms

T1 0.1 -- 10 ms

T2 0 -- 50 ms

T3 200 250 -- ms

T4 100 250 -- ms

T5 0 20 50 ms

T6 0.1 -- -- ms

T7 1000 -- -- ms

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT220WW01 V.B

10/22

b. Display color vs. input data signals

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

Basic colors

Red

Green

Blue

Color

Black Red(255) Green(255) Blue(255) Cyan Magenta Yellow White

Red(000) dark Red(001) Red(002)

:

Red(253) Red(254) Red(255) bright

Green(000)dark Green(001) G

reen(002)

:

Green(253) Green(254) Green(255)

Blue(000) dark Blue(001) Blue(002)

:

Blue(253) Blue(254) Blue(255) bright

bright

Red Green Blue

MSB LSB MSB LSB MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0

0

1

0

1

0

:

1

0

:

0

:

0

:

0

:

0

1

0

1

0

:

1

0

1

0

1

0

: 0 0 0

0 0 0

: 0 0 0

:

0

:

0

Input color data

G7 G6 G5 G4 G3 G2 G1 G0

0

1

0

1

0

1

0

:

0

:

1

0

:

0

1

0

1

0

1

0

:

0 0 0

: 1 1 1

0 0 0

: 0 0 0

:

0

1

0

:

0

1

0

:

0

B7 B6 B5 B4 B3 B2 B1 B0

0

0 1 0 1 0 1 1

0 0 0

: 0 0 0

0 1 0

:

1 0 1

0 0 0

: 0 0 0

0

1

0

1

0

:

0

:

0

:

1

0

1

0

1

0

:

0

:

0

0 0

0

:

1

0

1

0

1

0

:

0

:

0

1 0

1

:

1

0

1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT220WW01 V.B

11/22

c. Input signal timing

Support Input Timing Table

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Description Min. Typ. Max. Unit

period 12.2 16.8 21.23 nS Clock

frequency 47.1 59.6 82 MHz

Vertical

Horizontal

Dclk

T

V total line number 1059 1080 1100 TH

V_TOTAL

Data duration 1050 1050 1050 TH

V_DATA

TVB V-blank 9 30 50 TH

f

frequency 50 60 76 Hz

V

H total pixel number 890 920 1004 DClk

H_TOTAL

Data duration 840 840 840 DClk

H_DATA

H-blank 73 80 164 DClk

T

HB

Note: Because this module is operated by DE only mode, Hsync and Vsync input signals should be set

to low logic level or ground. Otherwise, this module would operate abnormally.

INPUT SIGNAL TIMING DIAGRAM

Tv

Tvd Tvb

DE

Th

DCLK

Tc

Thb Thd

DE

DATA

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

d. Display Position

D(1, 1) D(2, 1) …… D(840, 1) …… D(1679, 1) D(1680, 1)

D(1, 2) D(2, 2) …… D(840, 2) …… D(1679, 2) D(1680, 2)

. . .

D(1, 525) D(2, 525) …… D(840, 525) …… D(1679, 525) D(1680, 525)

. . .

D(1, 1049) D(2, 1049) …… D(840, 1049) …… D(1679, 1049) D(1680, 1049)

D(1, 1050) D(2,1050) …… D(840, 1050) …… D(1679,1050) D(1680, 1050)

……

e. Backlight driving conditions

Parameter Symbol Min. Typ. Max. Unit Remark Remark

Lamp voltage VL 680(8mA) 794(7mA) 955(3mA) Vrms -- Note 1, 2

Lamp operation current

SPEC NO.

PAGE

. . .

IL 3 7 8 mArms -- Note 3

……

MT220WW01 V.B

12/22

. . .

Lamp starting voltage VLstart

Frequency F 40 55 60 KHZ Note 7

Lamp life time 40000 50000 Hr Note 8

1250 T = 25±D! Note 4,5,6,7

1570

Vrms

T = 0±D Note 4,5,6,7

Note: The waveform of the voltage output of inverter must be area-symmetric and the design of the

inverter must have specifications for the modularized lamp. The performance of the Backlight,

such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter

for the lamp. All the parameters of an inverter should be carefully designed to avoid producing too

much current leakage from high voltage output of the inverter. When designing or ordering the

inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the

inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module

should be operated in the same manners when it is installed in your instrument.

Note 1 : Specified values are for a single lamp. Note 2: Operating voltage is measured at 25 ± 2

o

C. The variance of the voltage is ±10%.

Note 3:

The degree of unbalance: less than 10%

The ratio of wave height: less than

10%2 r

p: high side peak

Ip

I

-p: low side peak

The degree of unbalance = |

The ratio of wave height =

Ip-I-p| /Irms*100(%)

Ip(or I-p)/Irms

I-p

I

Lamp should be completely turned on.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT220WW01 V.B

13/22

Note 4: Test equipment: AS-114B

Note 5: The voltage shown above should be applied to the lamp for more than 1 second after startup.

Otherwise, the lamp may not be turned on normally.

Note 6:

Inverter should provide more than max. value, and then lamp could be completely turned on.

Note 7: Lamp frequency may produce interference with horizontal synchronous frequency and this may

cause line flow on the display. Therefore lamp frequency shall be detached from the horizontal synchronous frequency and its harmonics as far as possible in order to avoid interference.

Lamp Hi-POT test spec: The current leakage should not be more than (<=) 0.9mA under the

conditions of “the frequency of the inverter output voltage keeping 60Hz, test voltage keeping

3.0KV and test time keeping 2sec”.

Note 8: Lamp life definition: The brightness of lamp becomes 50% of the initial brightness or not normal

lighting.

Backlight connector : 35001HS-02L

Pin no. Symbol Function Remark

1 VIH Lamp high voltage input Cable color: Pink

2 VIL Lamp low voltage input Cable color: White

3 VIH Lamp high voltage input Cable color: Blue

4 VIL Lamp low voltage input Cable color: Black

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

C. Optical Specifications

Item Symbol Condition

Response time

Tr+Tf

Contrast ratio CR = 0ш 500 700 Note 3,5

Top

Bottom

Viewing angle

Left

Tr

Tf

Ӱ= 0ш

CRЊ10

CRЊ5

CRЊ10

CRЊ5ʳ

CRЊ10

CRЊ5ʳ

SPEC NO.

MT220WW01 V.B

PAGE

Specification

Min. Typ. Max.

1.5 3

3.5 7

5 10

70

75

70

75

80

85

80

85

89

14/22

Unit Remark

ms Note 4

deg. Note 3,5,7

Right

Brightness (Center) YL

Wx 0.313

Wy 0.329

Rx

Ry

Color chromaticity(CIE)

White uniformity (9 points) w

Cross talk Ct

Gx

Gy

Bx

By

CRЊ10

CRЊ5

Ӱ= 0ш

75

80

200 250 ʳ

-0.03

0.75 0.80

ʳʳ ʳʳ

85

89

0.640

0.349

0.284

0.617

0.142

0.067

+0.03

ʳʳ

2%

nit Note 3,6

Note 3

Note 3,8

Note 9

Note 1: Ambient temperature = 25°C. Note 2: To be measured in dark room after backlight warm up 30 minutes. Note 3: To be measured with a viewing cone of 2°by Topcon luminance meter BM-5A.

Note 4: Definition of response time: The output signals of BM-7 are measured when the input

signals are changed from “Black” to “White” (falling time) and from “White” to “Black” (rising time), respectively. The response time interval is between the 10% and 90% of amplitudes. Refer to figure as below :

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

100%

S ig

90%

n a l( R

e la

t

iv e

v a lu

10%

e )

0%

Note 5: Definition of contrast ratio:

Contrast ratio is calculated by the following formula.

Contrast ratio (CR)=

"Black"

Tr

Brightness on the "white" state Brightness on the "black" state

SPEC NO.

PAGE

Tf

MT220WW01 V.B

15/22

"White""White"

Note 6: Driving conditions for CCFL: I

Note 7: Definition of viewing angle.

Note 8: Definition white uniformity:

Luminance are measured at the following nine points (P1~P9).

Ӭ

Minimum Brightness of nine points(P1~P9).

=

Maximum Brightness of nine points (P1~P9).

= 7mA, 50 KHz Frequency.

L

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Note 9:

SPEC NO.

PAGE

1/2

1/6

2/3 1/3

A

1/6

A’

127 gray level 127 gray level

B

1/2

l L

l / LA x 100%= 2% max., LA and LA’ are brightness at location A and A’

A-LA’

l / LB x 100%= 2% max., LB and LB’ are brightness at location B and B’

B-LB’

1/2

MT220WW01 V.B

16/22

1/6

1/3

1/2

B’

2/3

0 gray level

Note 10: Optical characteristic measurement setup.

Field=2

Photo-detector (BM-5A)

50cm

LCD Panel

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

D. Reliability test items

Test Item Test Condition Judgment Remark

High temperature storage

Low temperature storage

High temperature & high

humidity operation

High temperature operation

Low temperature operation

Thermal Shock

(non-operation)

Electrostatic discharge (ESD)

(non-operation)

60°C, 240Hrs

-20°C, 240Hrs

40°C, 90%RH, 240Hrs

(No condensation)

50°C, 240Hrs

0°C, 240Hrs

-20°C~60°C

1Hr, 5mins, 1Hr, 100cycles

Contact:+/-8kV, 150pF(330ohms),

10 times/1 point, 1 time/1 sec

SPEC NO.

PAGE :

Note 1 Note 2

MT220WW01 V.B

17/22

Air discharge:+/-15kV, 150pF(330ohms),

10 times/1 point, 1 time/1 sec

Vibration

(non-operation)

Mechanical Shock

(non-operation)

MTBF Demonstration 40,000 hours with confidence level 90% Note 1 Note 3

Vibration level : 1.5G

Bandwidth : 10-300Hz

Waveform : sine wave,

sweep rate : 10min

30 min for each direction X, Y, Z

(1.5 Hrs in total)

Shock level : 50G, 11ms

Waveform : Half sine wave

Direction : ±X, ±Y, ±Z

One time each direction

Note 1 Note 2

Note1: Pass: Normal display image with no obvious non-uniformity and no line defect. Partial

transformation of the module parts should be ignored.

Fail: No display image, obvious non-uniformity, or line defects.

Note2: Evaluation should be tested after storage at room temperature for one hour.

Note 3: The MTBF (exclude the CCFL ) calculation is based on the assumption that the failure rate

distribution meets the Exponential Model.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE :

MT220WW01 V.B

18/22

E. Safety

1. Sharp Edge Requirements

There will be no sharp edges or corners on the display assembly that could cause injury.

2. Materials

a. Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic materials

are used, they will be reviewed and approved by the responsible InnoLux Toxicologist.

b. Flammability

All components including electrical components that do not meet the flammability grade UL94-V1

in the module will complete the flammability rating exception approval process. The printed circuit

board will be made from material rated 94-V1 or better. The actual UL flammability rating will be

printed on the printed circuit board.

c. Capacitors

If any polarized capacitors are used in the display assembly, provisions will be made to keep

them from being inserted backwards.

F. Display quality

The display quality of the color TFT-LCD module should be in compliance with the Innolux’s Incoming inspection standard.

G. Handling precaution

The Handling of the TFT-LCD should be in compliance with the Innolux’s handling principle standard.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Ё

www.panelook.com

H. Label

1. Module Label

MT220WW01 AM2200001

18 mm

Z1 Z

2

Z3 Z4Z

Z1 Z2 Z3 Z4 Z5 Z

Z

5 Z 6 Z7

8

9

SPEC NO.

PAGE :

MT220WW01 V.B

19/22

73 mm

V.B B0X

Z

6

Z

Z11 Z

10

Z8 Z9 Z10 Z11 Z12

7

Z

12

Z14 Z

13

15

Z

16

Z17 Z18 Z

Z20Z

19

21 Z22 Z 23

MADE IN XXX

(a) Model Number: MT220WW01

(b) Version: V.B

(c) Serial ID I: Z

Z2 Z3 Z4 Z 5 Z 6 Z 7 Z8 Z

1

Serial ID includes the information as below:

1. Manufactured Date: Year: 0~9, for 2000~2009

2. Month: 1~9 & A~C for Jan.~Dec.

9 Z10

Z

12

11

Serial No.

Code of grade

INL internal use

Year, Month, Date

INL internal use

3. Date: 1~9 & A~Z (exclude I, O, Q, U) for 1th~31th

4. Code of grade: 1, 2, 3, 5, E

5. Serial No.: Module manufacture sequence number.

(d) Serial ID II (INL internal use)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

2. Carton Label

SPEC NO.

PAGE :

INNOLUX DISPLAY

BOX ID:

100 mm

Z1Z2Z 3Z

Model No. MT220WW01 V.B

AM2200001 B0X

Quantity : 5 PCS

-- Z 5-- Z

4

6Z 7Z8Z9

MT220WW01 V.B

20/22

MFG Date: 20XX/XX/XX Made in XXX

QC:

(a) Model Number: MT220WW01

(b) Version: V.0

(c) Packing quantity: 5 pcs

(d) Serial ID: Z

Serial ID includes the information as below :

Z2 Z3 Z4 Z 5 Z6 Z

1

60 mm

Z 9

7 Z8

Serial No.

Code of grade

Year, Month, Date

INL internal use

(a) Manufactured Date: Year: 0~9, for 2000~2009

Month: 1~9 & A~C for Jan.~Dec.

Date: 1~9 & A~Z (exclude I, O, Q, U) for 1th~31th

(b) Code of grade: 1, 2, 3, 5, E

(c) Serial No.: Module packing sequence number.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

INNOLUX MT220WW01 V.B Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
