INNOLUX MT220WW01 V.7 Specification

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Version:1.0

Record of Revision

Version Revise Date Page Content

1.0 2009-4-14

2.0 2009-8-4 5 NTSC Update(From 68% to 70%)

2009-8-4 5 TCO 5.0 Compliance Update

2009-8-4 5 Weight Update (From Max 2200g to Max 1800g)

2009-8-4 7 FFC Cancelled

2009-8-4 7

All

Pre spec edition

Rear View of LCM Update

InnoLux copyright

Copying forbidden.

2009-8-4 15

2009-8-4 P16

3.0 2009-9-29 P15 Minimum LED Lifetime Update

White Uniformity Minimum Data Update

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT220WW01 V.7

4/24

Contents:

A. General Specification

B. Electrical Specifications

1. Pin assignment

2. Absolute maximum ratings

3. Electrical characteristics

a. Typical operating conditions

b. Display color vs. input data signals

c. Input signal timing

d. Display position

e. Backlight Unit

C. Optical specifications

D. Reliability test items

E. Safety

F. Display quality

G. Handling precaution

H. Label

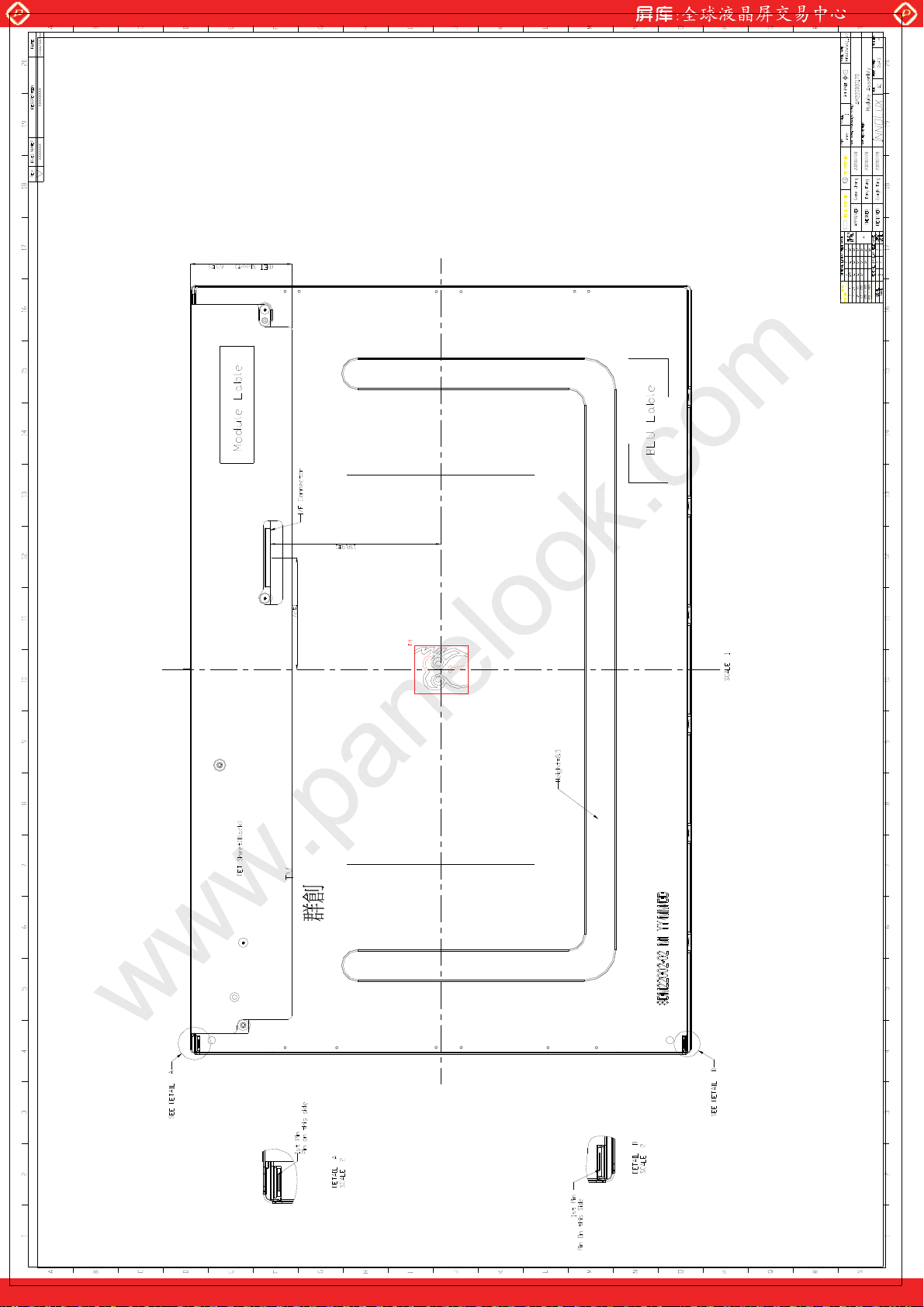

I. Mechanical drawings

Appendix

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

A. General Specification

NO. Item Specification Remark

1 Display resolution (pixel) 1680(H) X 1050(V), WSXGA+ resolution

2 Active area (mm) 473.76(H) X 296.1(V)

3 Screen size (inch) 22 inches diagonal

4 Pixel pitch (mm) 0.282(H) X 0.282(V)

5 Color configuration R, G, B vertical stripe

6 Overall dimension (mm) 493.7 (W) X 320.1 (H) X 9.8 (D) (Typ.)

7 Weight (g) 1800 (Max.)

8 Power Consumption(W) 20.5W (Typ.)

SPEC NO.

PAGE

MT220WW01 V.7

5/24

9 Surface treatment Anti-glare, Haze = 25%, Hard coating (3H) Note 1

10 Input color signal 8 bit LVDS

11 Display colors 16.7 M (6 bit with Hi-FRC)

Color saturation 70% NTSC

12

13 Optimum viewing direction

14 Backlight

15 RoHS

16 Halogen Free

17 TCO 5.0

Note 1: Glare Option available

Note 2: Only Anti-Glare can meet TCO 5.0.

6 o’clock

Side-light bar (White LED)

RoHS compliance

Halogen free compliance

TCO 5.0 compliance

Note 2

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

B. Electrical Specifications

1.Pin assignment

1.1. TFT panel Connector ʳ

Foxconn GS23302-0011R-7F or mechanical interface equivalent connector.

Pin No. Symbol Description

Frame VSS Ground

1 RXinO0- -LVDS differential data input, Chan 0-Odd

2 RXinO0+ +LVDS differential data input, Chan 0-Odd

3 RXinO1- -LVDS differential data input, Chan 1-Odd

4 RXinO1+ +LVDS differential data input, Chan 1-Odd

5 RXinO2- -LVDS differential data input, Chan 2-Odd

6 RXinO2+ +LVDS differential data input, Chan 2-Odd

7 VSS Ground

SPEC NO.

PAGE

MT220WW01 V.7

6/24

8 RXOC- -LVDS differential Clock input (Odd)

9 RXOC+ +LVDS differential Clock input (Odd)

10 RXinO3- -LVDS differential data input, Chan 3-Odd

11 RXinO3+ +LVDS differential data input, Chan 3-Odd

12 RXinE0- -LVDS differential data input, Chan 0-Even

13 RXinE0+ +LVDS differential data input, Chan 0-Even

14 VSS Ground

15 RXinE1- -LVDS differential data input, Chan 1-Even

16 RXinE1+ +LVDS differential data input, Chan 1-Even

17 VSS Ground

18 RXinE2- -LVDS differential data input, Chan 2-Even

19 RXinE2+ +LVDS differential data input, Chan 2-Even

20 RXEC- -LVDS differential Clock input (Even)

21 RXEC+ +LVDS differential Clock input (Even)

22 RXinE3- -LVDS differential data input, Chan 3-Even

23 RXinE3+ +LVDS differential data input, Chan 3-Even

24 VSS Ground

25 VSS Ground

26 NC No Connection

27 VSS Ground

28 VCC +5.0V power supply

29 VCC +5.0V power supply

30 VCC +5.0V power supply

Frame VSS Ground

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT220WW01 V.7

7/24

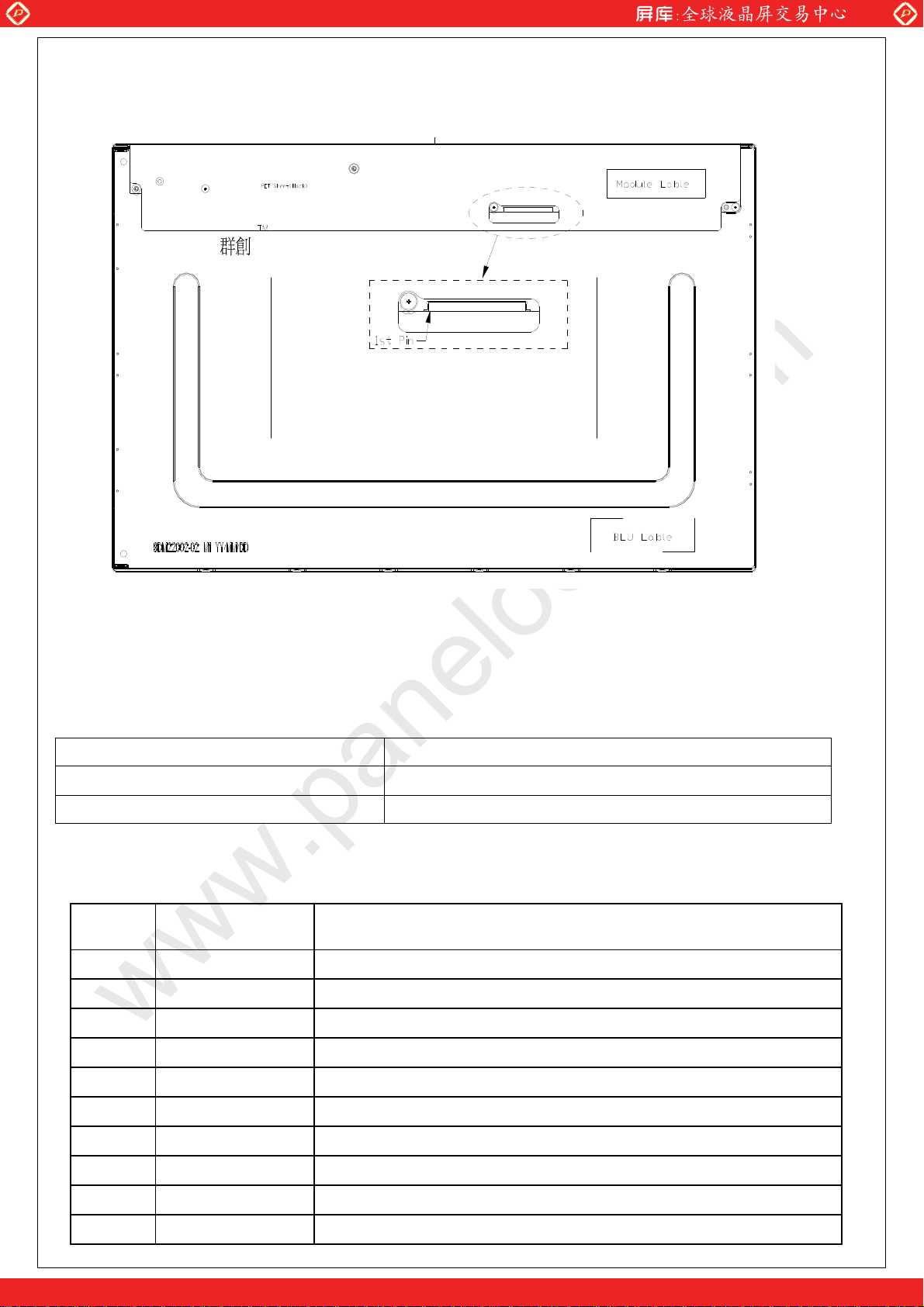

Rear View of LCM

1.2. Recommend Connector for Backlight Unit

This connector is mounted on the monitor system board for LED light-bar FFC mating.

Connector Name/Designation Match Connector

Manufacturer Entery INDUSTRIAL CO.,LTD

Mating type part number 7080-Q10N-00R

1.3 Light-bar Connector Pin Assignment

Upper Light-bar Connector Pin Assignment:

Pin No Symbol Description

1 IRLED1 LED current sense for string 1

2 IRLED1 LED current sense for string 1

3 IRLED2 LED current sense for string 2

4 VLED LED power supply

5 VLED LED power supply

6 VLED LED power supply

7 VLED LED power supply

8 IRLED2 LED current sense for string 2

9 IRLED3 LED current sense for string 3

10 IRLED3 LED current sense for string 3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

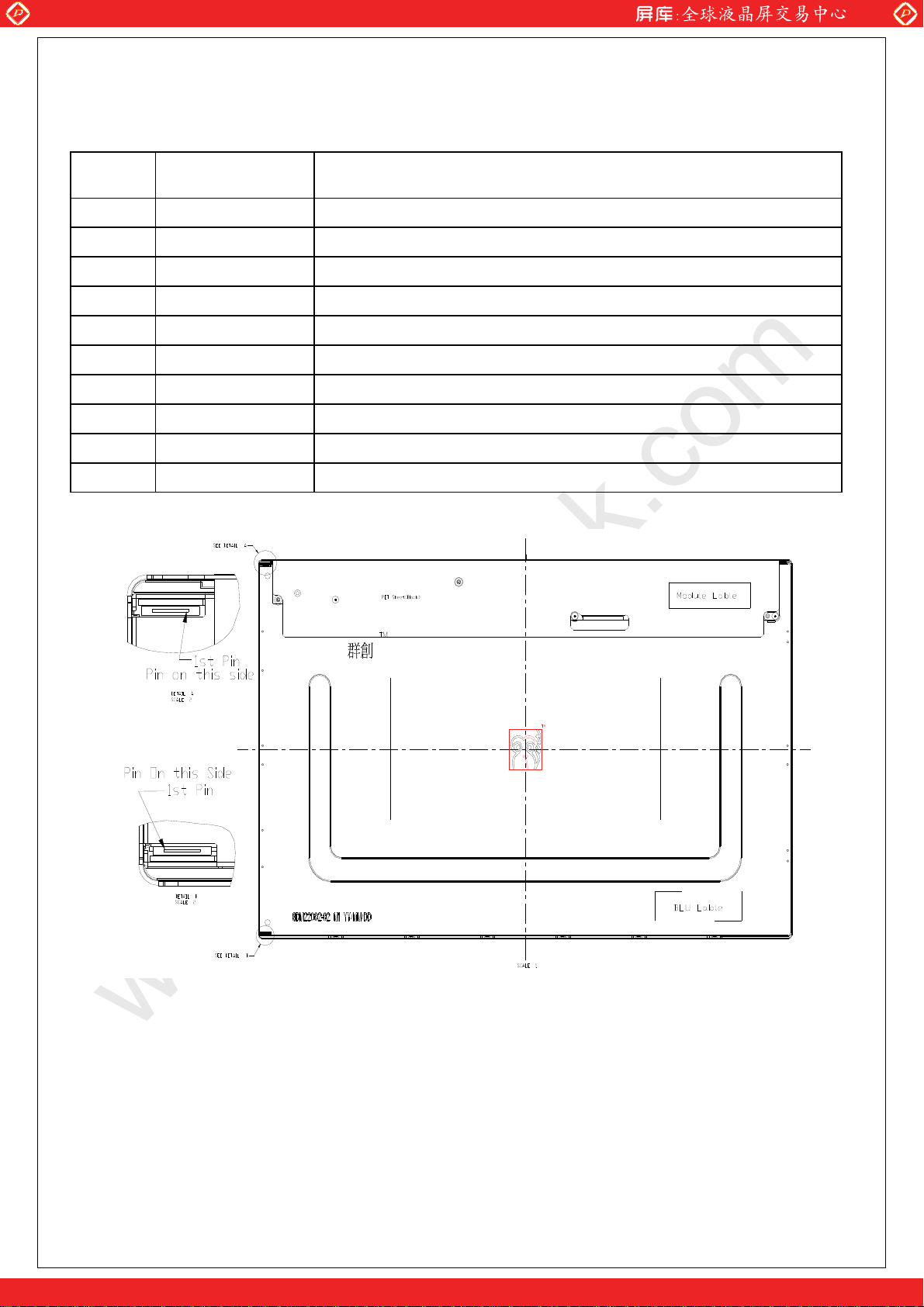

Lower Light-bar Connector Pin Assignment:

Pin No Symbol Description

1 IRLED1 LED current sense for string 1

2 IRLED1 LED current sense for string 1

3 IRLED2 LED current sense for string 2

4 VLED LED power supply

5 VLED LED power supply

6 VLED LED power supply

7 VLED LED power supply

8 IRLED2 LED current sense for string 2

9 IRLED3 LED current sense for string 3

10 IRLED3 LED current sense for string 3

SPEC NO.

PAGE

MT220WW01 V.7

8/24

Rear View of LCM

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT220WW01 V.7

9/24

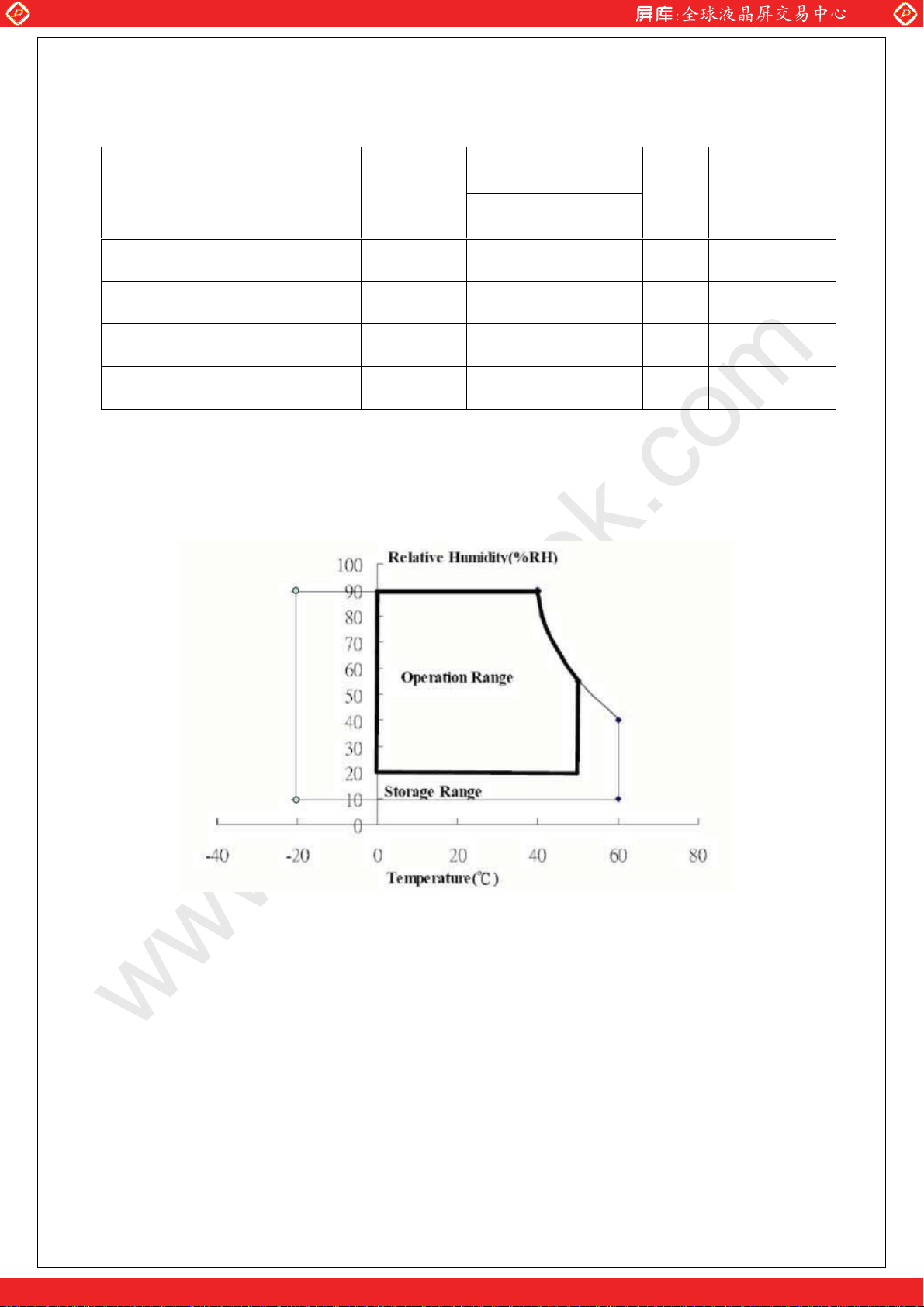

2. Absolute maximum ratings

Parameter Symbol

Power voltage Vcc -0.3 6.0 V At 25°C

Input signal voltage VLH -0.3 4.3 V At 25°C

Operating temperature Top 0 50 °C Note 1

Storage temperature TST -20 60 °C Note 2

Values

Min. Max.

Note 1: The relative humidity must not exceed 90% non-condensing at temperatures of 40°C or

less. At temperatures greater than 40°C, the wet bulb temperature must not exceed 39°C.

Note 2: The unit should not be exposed to corrosive chemicals.

Unit

Remark

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

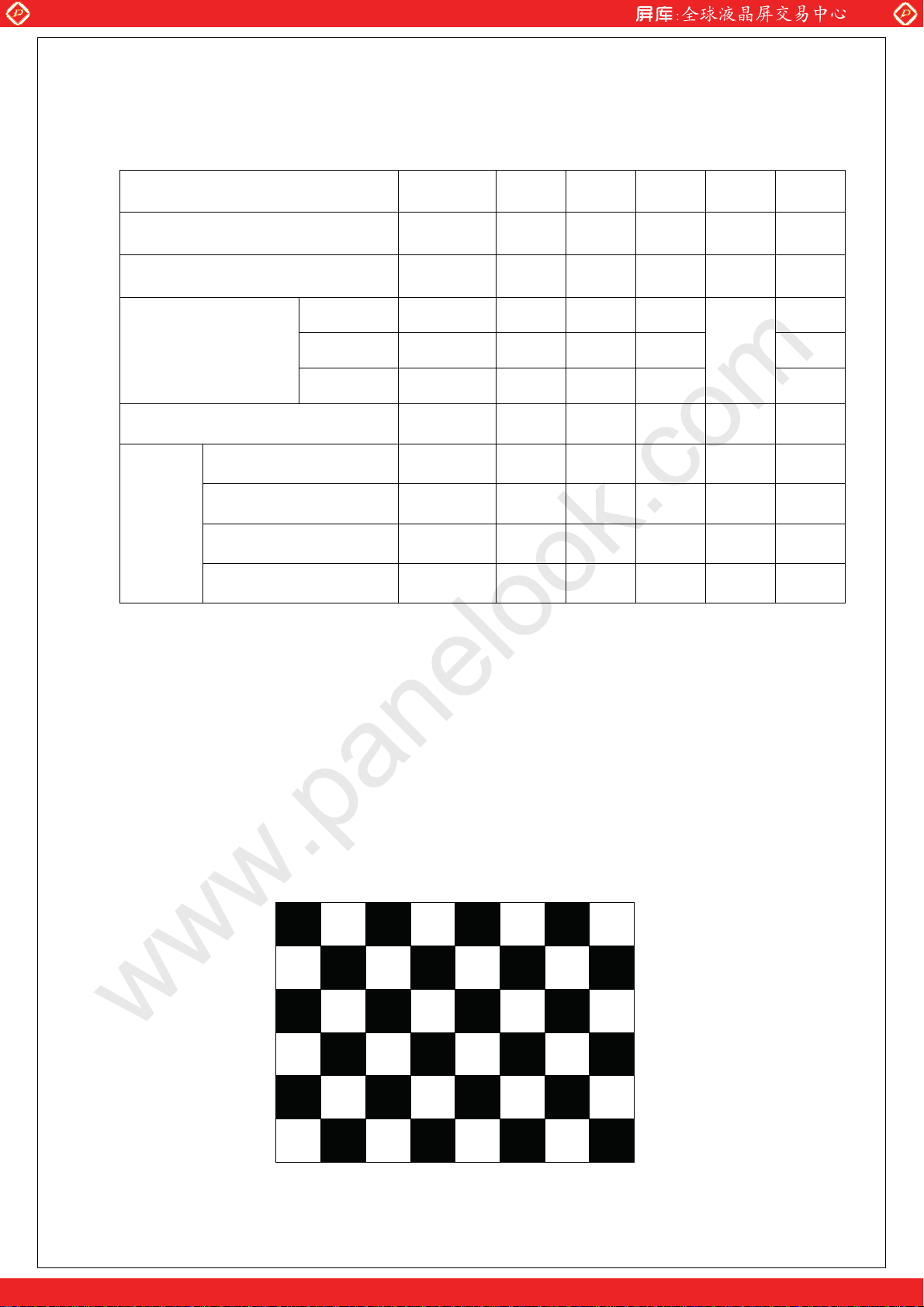

3. Electrical characteristics a. Typical operating conditions

Item Symbol Min. Typ. Max. Unit Remark

Input Voltage Vcc 4.5 5 5.5 V

Permissive Power Input Ripple

Input Current

Rush Current

Logic Input

Voltage

LVDS:

IN+, IN-

Common Mode Voltage

Differential Input Voltage

Threshold Voltage (High)

Threshold Voltage (Low)

Black

White

Mosaic I

SPEC NO.

PAGE

V

- - 0.25 V

RF

- 900 1400 Note 1

I

cc

- 700 - Note 2

I

cc

- 800 -

cc

- - 4 A Note 4

I

Rush

VCM - 1.2 - V

VID 100 - 600 mV

VTH - - 100 mV Note 5

VTL -100 - - mV Note 5

MT220WW01 V.7

10/24

mA

Note 3

Note 1 : The specified current is under the V

=5V, 25°C, fv=60Hz (frame frequency) condition

cc

whereas black pattern is displayed.

Note 2 : The specified current is under the Vcc =5V, 25C, fv=60Hz (frame frequency) condition

whereas white pattern is displayed.

Note 3 : The specified current is under the Vcc =5V, 25C, fv=60Hz (frame frequency) condition

whereas mosaic pattern(black & white [8*6] ) is displayed.

White : 255 Gray

Black : 0 Gray

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

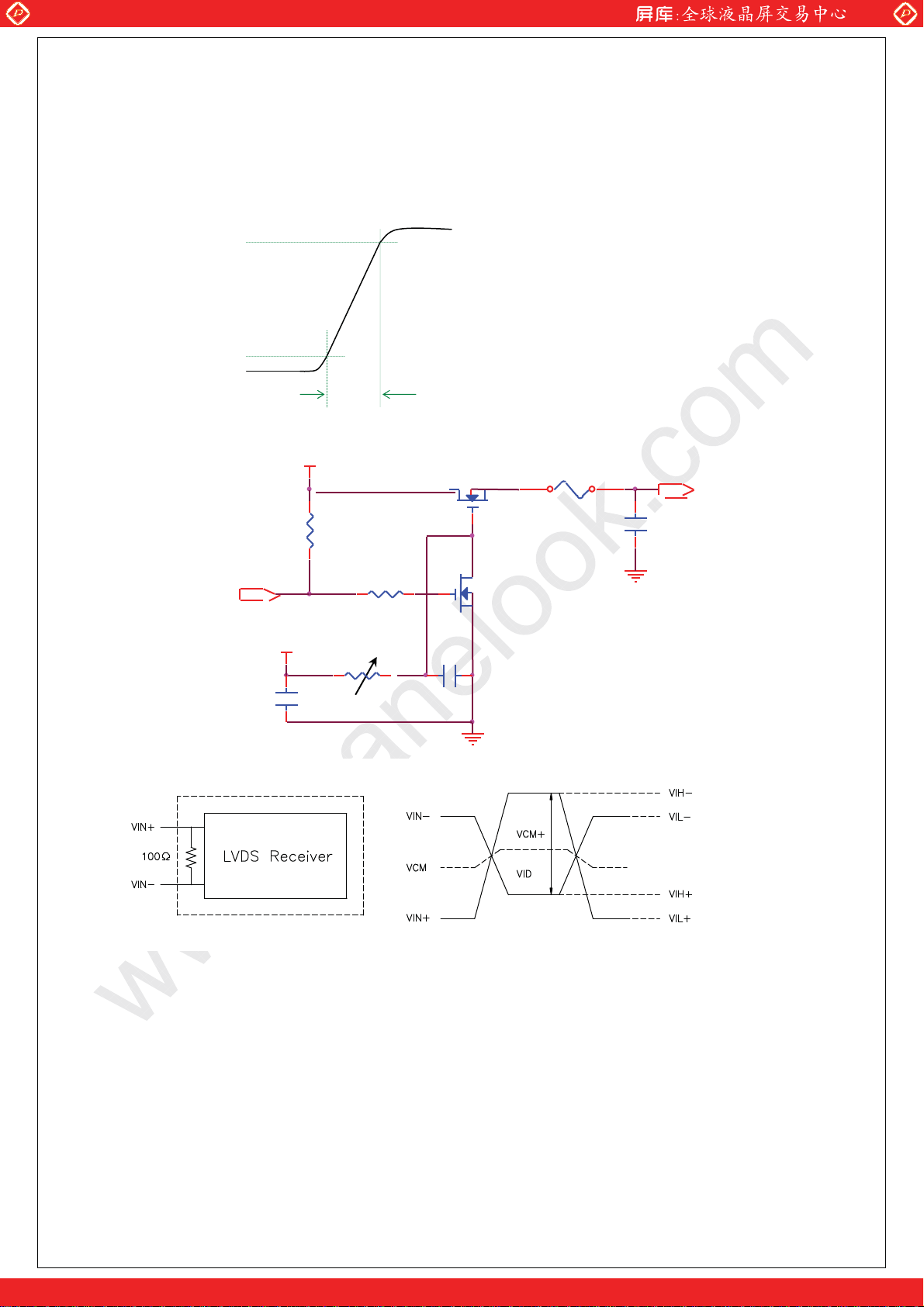

Note 4 : test condition :

(1) V

(2) Pattern: Mosaic pattern

(3) Test circuit

CONTROL SIGNAL

(HIGH to LOW)

= 5 V, VDD rising time = 470 Ӵs ± 10%

DD

90

%

SPEC NO.

V

DD

Ton=470 Ӵs  10%

5 V

R1 C1

47K

R2

1K

12V

R3

M1

2SK1059

M2

2SK1399

C2

PAGE

FUSE

MT220WW01 V.7

11/24

VDD ( LCD INPUT)

1uF

C3

1uF

47K

10000pF

Note 5 : LVDS signal definition

VIN

= Positive differential DATA & CLK Input

+

VIN- = Negative differential DATA & CLK Input

VID = VIN

VCM =ΨVCM

VID =ΨVID

VID+ =ΨVIH

VID- =ΨVIL

VCM = (VIN

VCM+ = (VIH

VCM- = (VIL

– VIN- ,

+

–VID-Ψ,

+

–VIH-Ψ,

+

–VIL-Ψ,

+

+VIN-)/2,

+

+VIH-)/2,

+

+VIL-)/2,

+

–VCM-Ψ,

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

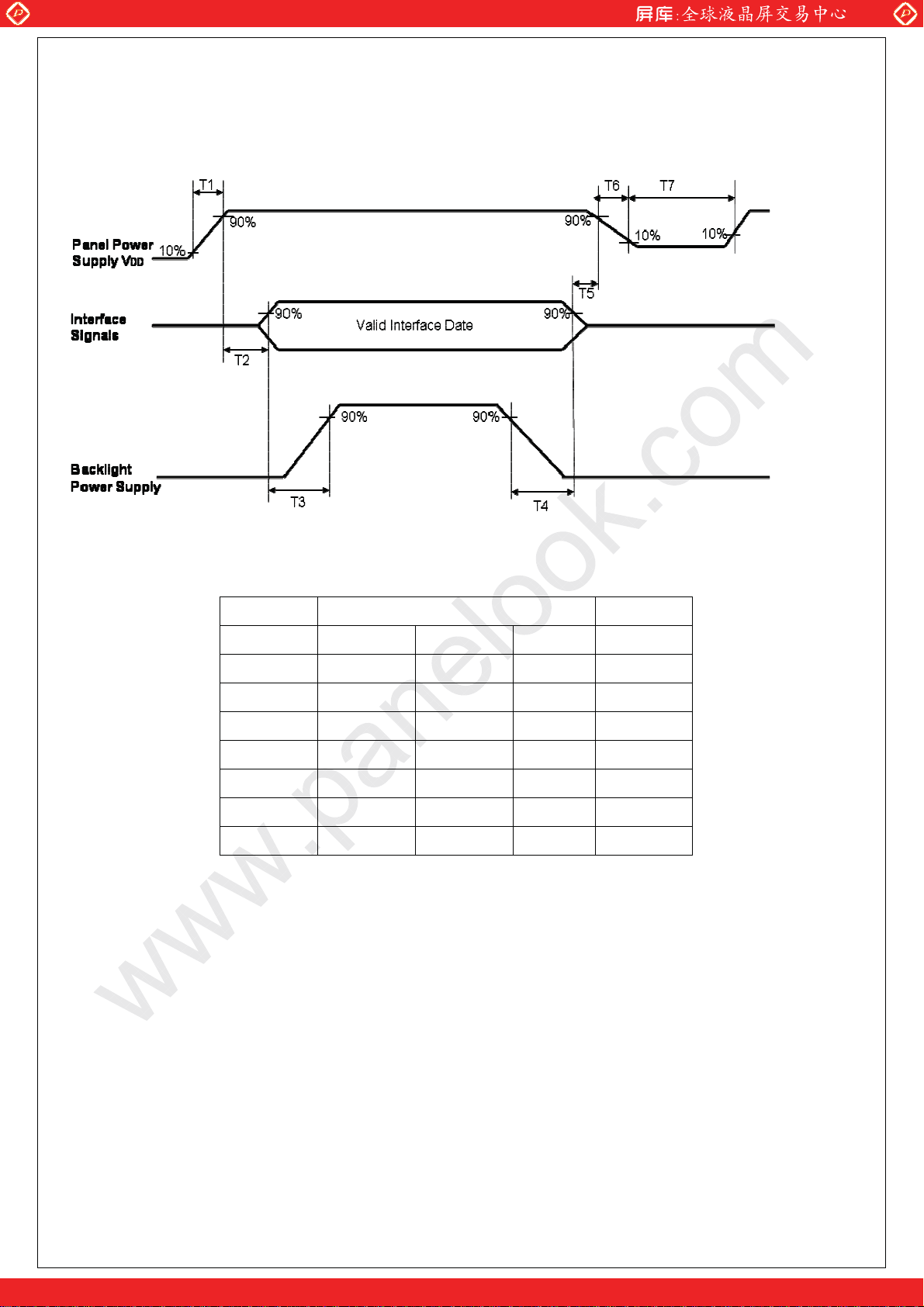

Note 6 : Power on sequence for LCD V

DD

SPEC NO.

PAGE

MT220WW01 V.7

12/24

Parameter Value Unit

Min. Typ. Max. ms

T1 0.1 -- 10 ms

T2 0 -- 50 ms

T3 200 250 -- ms

T4 100 250 -- ms

T5 0 20 50 ms

T6 0.1 -- 10 ms

T7 1000 -- -- ms

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT220WW01 V.7

13/24

b. Display color vs. input data signals

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for the color;

the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

Basic colors

Red

Green

Blue

Color

Black Red(255) Green(255) Blue(255) Cyan Magenta Yellow White

Red(000) dark Red(001) Red(002)

:

Red(253) Red(254) Red(255) bright

G

reen(000)dark Green(001) Green(002)

:

Green(253) Green(254) Green(255)

Blue(000) dark Blue(001) Blue(002)

:

Blue(253) Blue(254) Blue(255) bright

bright

Red Green Blue

MSB LSB MSB LSB MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0

0

1

0

1

0

:

1

0

:

0

0 0

0

:

0

:

0

:

0

1

0

1

0

:

1

0

1

0

1

0

: 0 0 0

0 0 0

: 0 0 0

:

0

:

0

Input color data

G7 G6 G5 G4 G3 G2 G1 G0

0

1

0

1

0

1

0

:

0

:

1

0

:

0

1

0

1

0

1

0 0 0

1 1 1

0 0 0

0

:

0

1

0

:

0

1

0

:

0

B7 B6 B5 B4 B3 B2 B1 B0

0

0 1 0 1 0 1 1

0 0 0

: 0 0 0

0 1 0

: 1 0 1

0 0 0

: 0 0 0

0

1

0

1

0

:

0

:

0

:

1

0

1

0

1

0

:

0

0 0

0

:

0

:

1

0

1

0

1

0

:

0

:

0

1

0

1

:

1

0

1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT220WW01 V.7

14/24

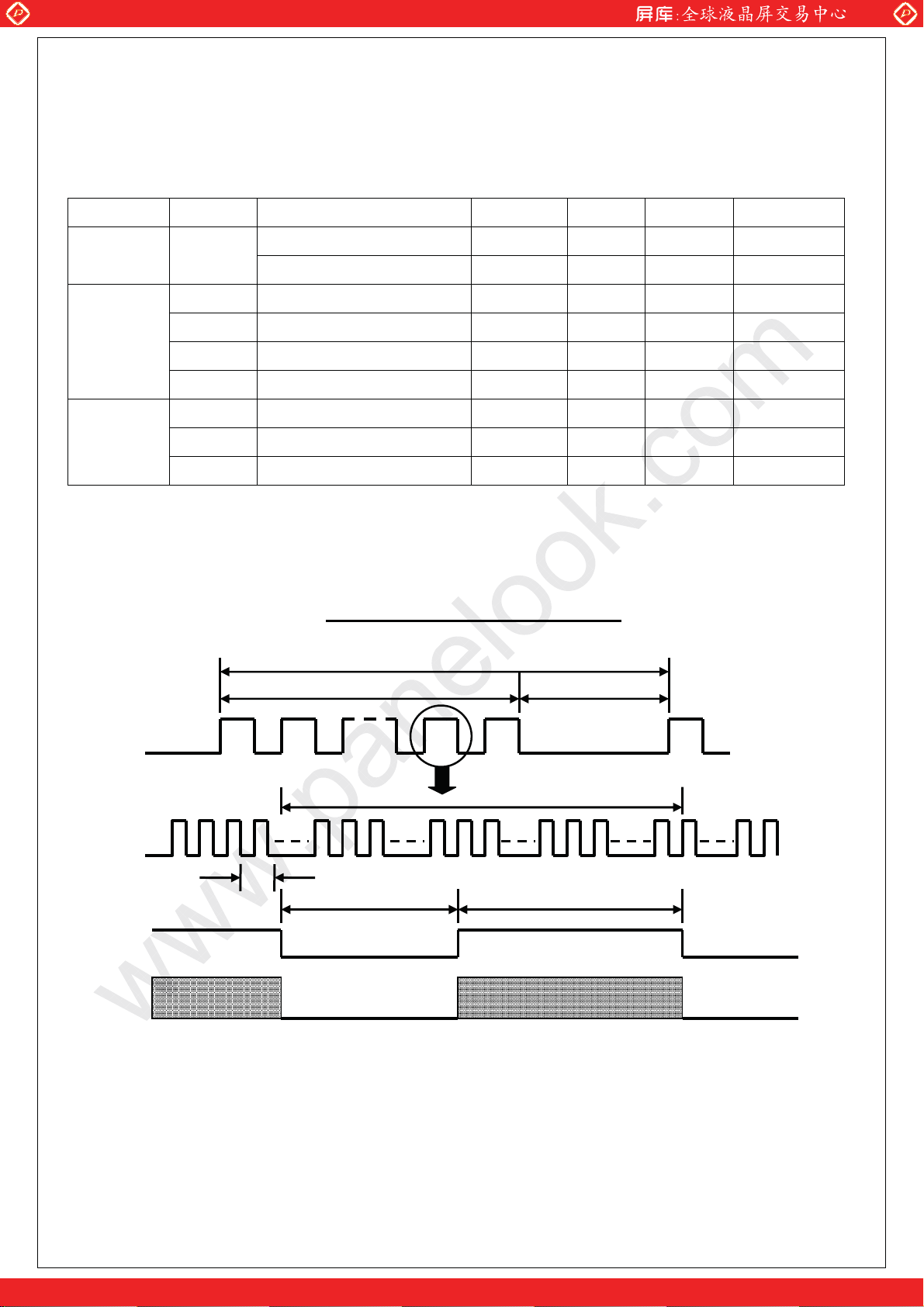

c. Input signal timing

Support Input Timing Table

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Description Min. Typ. Max. Unit

period 12.2 16.8 21.23 nS Clock

frequency 47.1 59.6 82 MHz

Vertical

Horizontal

Dclk

T

V total line number 1059 1080 1100 TH

V_TOTAL

Data duration 1050 1050 1050 TH

V_DATA

TVB V-blank 9 30 50 TH

f

frequency 50 60 76 Hz

V

H total pixel number 890 920 1004 DClk

H_TOTAL

Data duration 840 840 840 DClk

H_DATA

H-blank 73 80 164 DClk

T

HB

Note: Because this module is operated by DE only mode, Hsync and Vsync input signals should be set

to low logic level or ground. Otherwise, this module would operate abnormally.

INPUT SIGNAL TIMING DIAGRAM

Tv

Tvd Tvb

DE

Th

DCLK

Tc

Thb Thd

DE

DATA

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT220WW01 V.7

d. Display Position

D(1, 1) D(2, 1) …… D(840, 1) …… D(1679, 1) D(1680, 1)

D(1, 2) D(2, 2) …… D(840, 2) …… D(1679, 2) D(1680, 2)

. . .

D(1, 525) D(2, 525) …… D(840, 525) …… D(1679, 525) D(1680, 525)

. . .

D(1, 1049) D(2, 1049) …… D(840, 1049) …… D(1679, 1049) D(1680, 1049)

D(1, 1050) D(2,1050) …… D(840, 1050) …… D(1679,1050) D(1680, 1050)

……

. . .

……

. . .

e. Backlight Unit

Parameter Symbol

Light Bar Input Voltage VLED - 42.9 44.2 VDC (Duty 100%)

Min. Typ. Max.

Valu e

Unit Note

15/24

. . .

Light Bar Input Current ILED - - 360 mADC 1,2,3

Power Consumption PLED - - 15.91 Watt 4

LED Life Time LBL 30,000 - - Hrs 5

Note 1: There are two Light Bars, and the specified current is input LED chip 100% duty current.

Note 2: The sensing current of each string is 60mA.

Note 3: Each light bar have three current sensing strings, so that each light bar input current is 180mA.

Note 4: P

LED

= I

LED

× V

LED

.

Note 5: The life time is determined as the time at which luminance of the LED becomes 50% of the

initial brightness or not normal lighting at I

=360mA on condition of continuous operating at

LED

25±2°C.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

C. Optical Specifications

Item Symbol Condition

Tr

Response time

Contrast ratio CR = 0ш 700 1000 Note 1,3

Viewing angle

Tf

Tr+Tf

Top

Bottom

Left

Ӱ= 0ш

CRЊ10

CRЊ10ʳ

SPEC NO.

PAGE

Specification

Min. Typ. Max.

1.5 3

3.5 7

5 10

70

70 80

75 85

80

MT220WW01 V.7

16/24

Unit Remark

ms Note 2

deg. Note 1,3,5

Right

Brightness (Center) YL

Wx 0.313

Wy 0.329

Rx

Ry

Color chromaticity(CIE)

White uniformity (9 points) w

Cross talk Ct

Gx

Gy

Bx

By

CRЊ10

Ӱ= 0ш

75 85

200 250 ʳ

0.640

-0.03

0.70 0.75

ʳʳ ʳʳ

0.345

0.324

0.619

0.150

0.059

+0.03

ʳʳ

1.5%

nit Note 1,4,8

Note : Ambient temperature = 25°C.

To be measured in dark room after backlight warm up 10 minutes.

Note 1: To be measured with a viewing cone of 2°by Topcon luminance meter BM-5A. Note 2: Definition of response time:

The output signals of BM-7 are measured when the input signals are changed from “Black” to “White” (falling time) and from “White” to “Black” (rising time), respectively. The response time interval is between the 10% and 90% of amplitudes. Refer to figure as below :

Note 1

Note 1,6

Note 7

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

100%

S ig

90%

n a l( R

e la

t

iv e

v a lu

10%

e )

0%

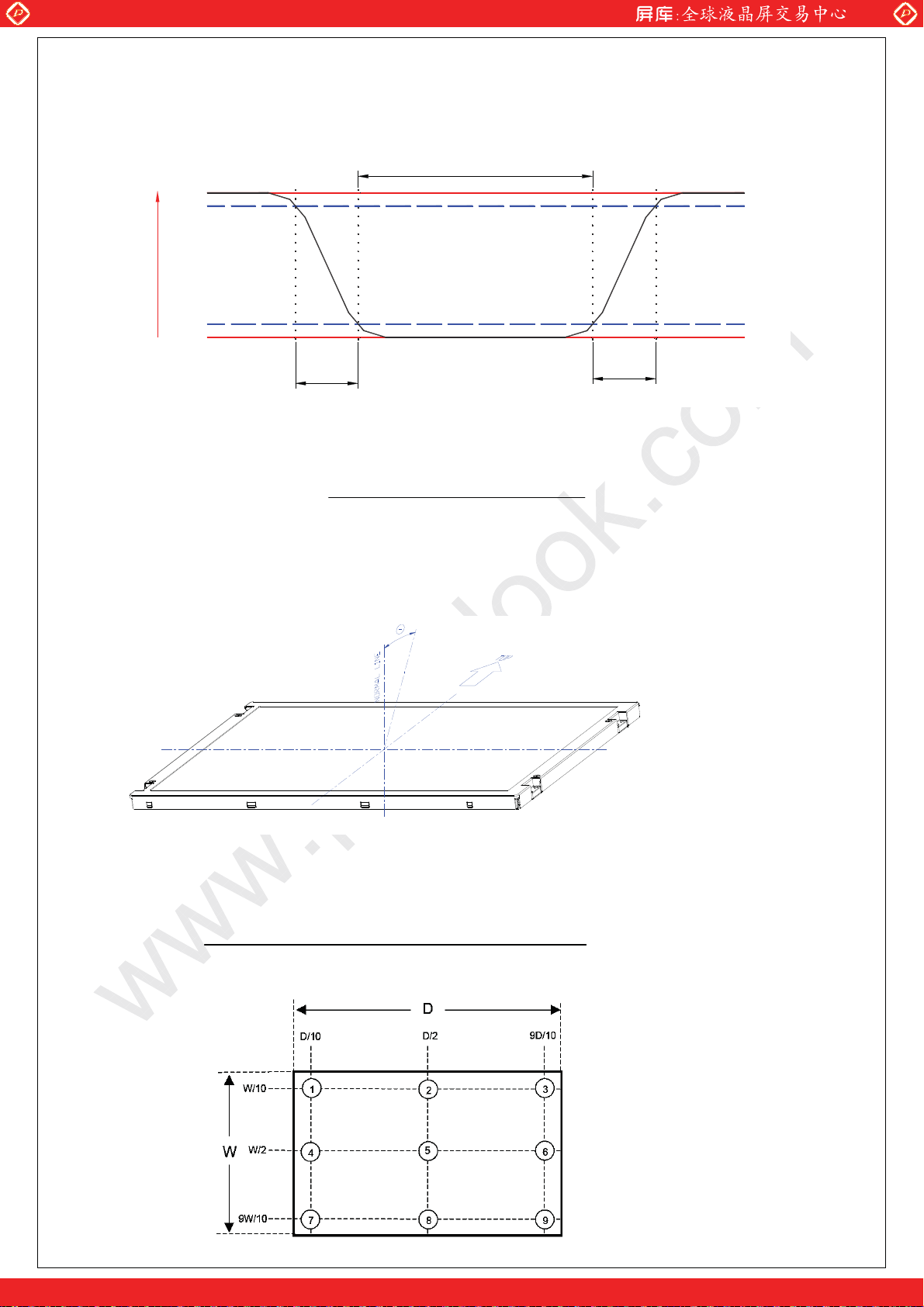

Note 3: Definition of contrast ratio:

Contrast ratio is calculated by the following formula.

Contrast ratio (CR)=

"Black"

Tr

Brightness on the "white" state Brightness on the "black" state

SPEC NO.

PAGE

Tf

MT220WW01 V.7

17/24

"White""White"

Note 4: Driving conditions for LED Light Bar: I

Note 5: Definition of viewing angle.

Note 6: Definition white uniformity:

Luminance are measured at the following nine points (P1~P9).

Ӭ

Minimum Brightness of nine points(P1~P9).

=

Maximum Brightness of nine points (P1~P9).

=360mA

LED

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

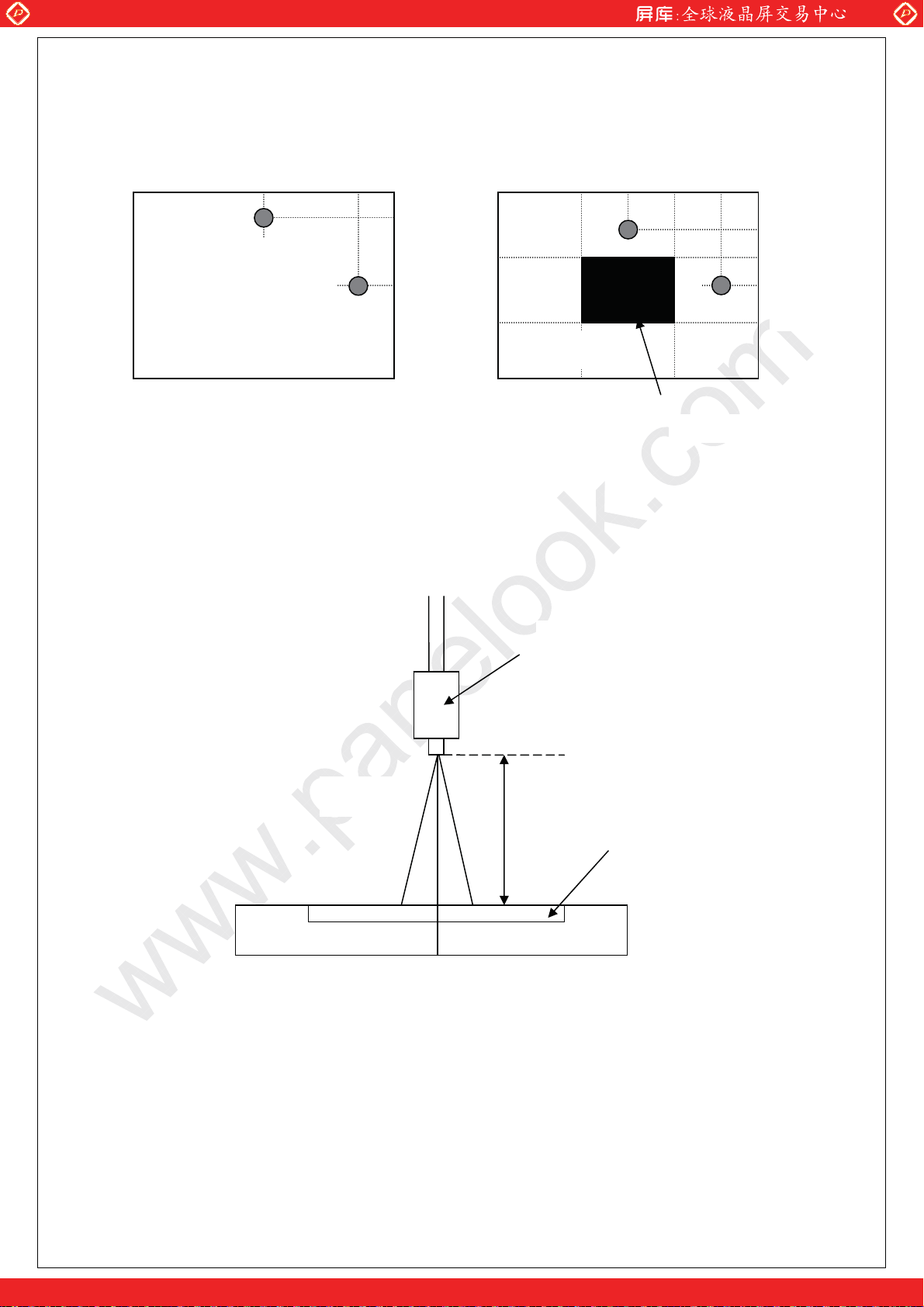

Note 7:

SPEC NO.

1/2

1/6

PAGE

2/3 1/3

A

1/6

A’

127 gray level 127 gray level

B

1/2

l L

l / LA x 100%= 1.5% max., LA and LA’ are brightness at location A and A’

A-LA’

l / LB x 100%= 1.5% max., LB and LB’ are brightness at location B and B’

B-LB’

1/2

MT220WW01 V.7

18/24

1/6

1/3

1/2

B’

2/3

0 gray level

Note 8: Optical characteristic measurement setup.

Field=2

Photo-detector (BM-5A)

50cm

LCD Panel

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

D. Reliability test items

Test Item Test Condition Judgment Remark

High temperature storage

Low temperature storage

High temperature & high

humidity operation

High temperature operation

Low temperature operation

Thermal Shock

(non-operation)

Electrostatic discharge (ESD)

(non-operation)

60°C, 240Hrs

-20°C, 240Hrs

40°C, 90%RH, 240Hrs

(No condensation)

50°C, 240Hrs

0°C, 240Hrs

-20°C~60°C

-20°C /1Hr, 60°C /1Hr, 100cycles

Contact:+/-8kV, 150pF(330ohms),

10 times/1 point, 1 time/1 sec, total 16 points

SPEC NO.

PAGE :

MT220WW01 V.7

19/24

Note 1 Note 2

Air discharge:+/-15kV, 150pF(330ohms), 10

times/1 point, 1 time/1 sec, total 9 points

time/1 sec, total 9 points

Vibration

(non-operation)

Mechanical Shock

(non-operation)

MTBF Demonstration 30,000 hours with confidence level 90% Note 1 Note 3

Vibration level : 1.5G

Bandwidth : 10-300Hz

Waveform : sine wave,

sweep rate : 10min

30 min for each direction X, Y, Z

(1.5 Hrs in total)

Shock level : 50G, 11ms

Waveform : Half sine wave

Direction : ±X, ±Y, ±Z

One time each direction

Note 1 Note 2

Note1: Pass: Normal display image with no obvious non-uniformity and no line defect. Partial

transformation of the module parts should be ignored.

Fail: No display image, obvious non-uniformity, or line defects.

Note2: Evaluation should be tested after storage at room temperature for two hour.

Note 3: The MTBF calculation is based on the assumption that the failure rate distribution meets the

Exponential Model.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE :

MT220WW01 V.7

20/24

E. Safety

1. Sharp Edge Requirements

There will be no sharp edges or corners on the display assembly that could cause injury.

2. Materials

a. Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic materials

are used, they will be reviewed and approved by the responsible InnoLux Toxicologist.

b. Flammability

All components including electrical components that do not meet the flammability grade UL94-V1

in the module will complete the flammability rating exception approval process. The printed circuit

board will be made from material rated 94-V1 or better. The actual UL flammability rating will be

printed on the printed circuit board.

c. Capacitors

If any polarized capacitors are used in the display assembly, provisions will be made to keep

them from being inserted backwards.

F. Display quality

The display quality of the color TFT-LCD module should be in compliance with the Innolux’s Incoming inspection standard.

G. Handling precaution

The Handling of the TFT-LCD should be in compliance with the Innolux’s handling principle standard.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Ё

www.panelook.com

H. Label

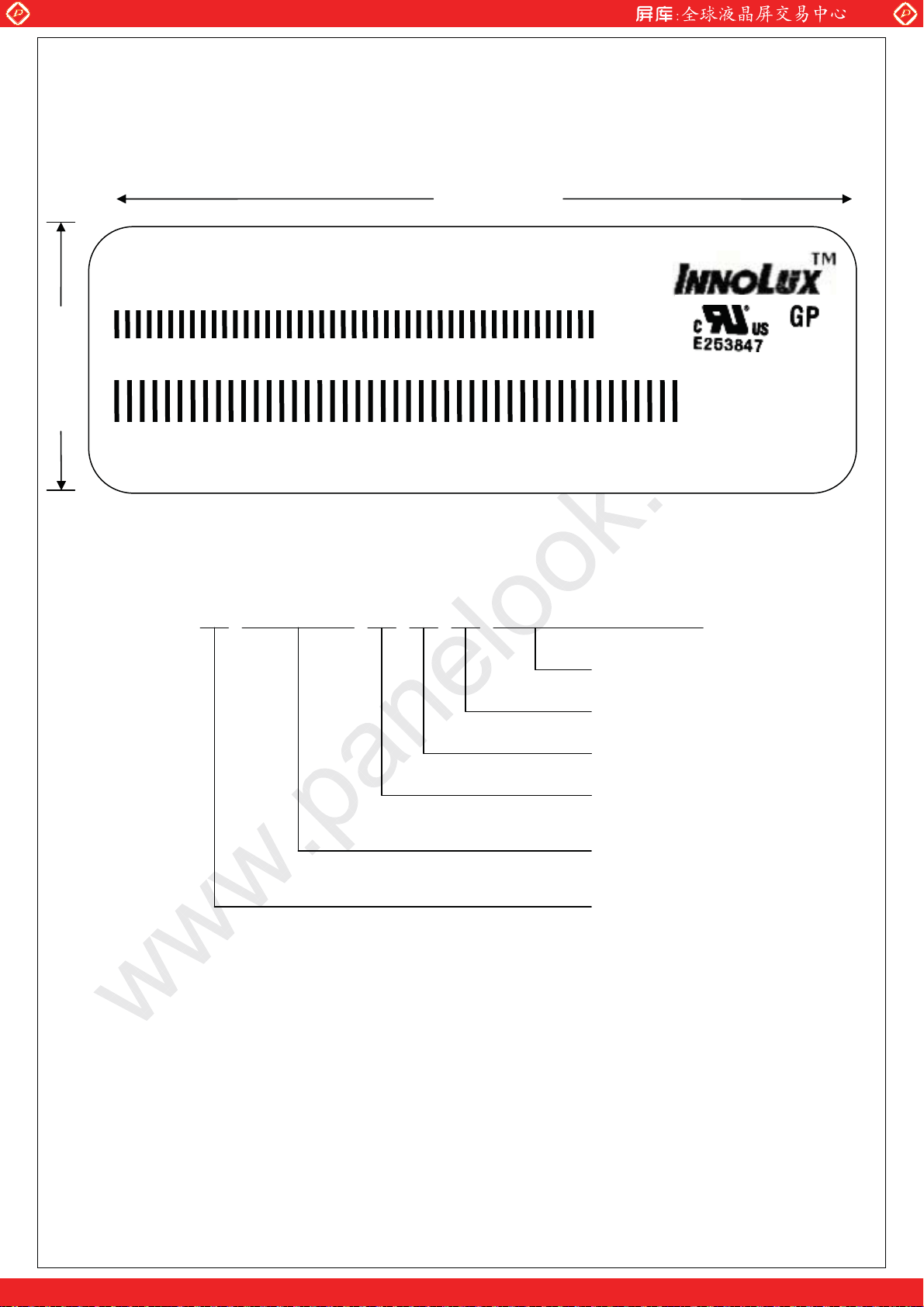

1. Module Label

18 mm

Z1 Z

73 mm

MT220WW01 V.7 AM220000170X

2

Z3 Z4 Z

Z1 Z2 Z3 Z4 Z5 Z

Z

5 Z 6 Z7

8

Z

9

10

6

Z11 Z

Z

Z8 Z9 Z10 Z11 Z12

7

Z

Z14 Z

12

13

Z

16

Z17 Z18 Z

15

SPEC NO.

PAGE :

Z

19

20 Z21 Z22 Z 23

MT220WW01 V.7

21/24

MADE IN XXX

(a) Model Number: MT220WW01

(b) Version: V.7

(c) Serial ID I: Z

Z2 Z3 Z4 Z 5 Z 6 Z 7 Z8 Z

1

Serial ID includes the information as below:

1. Manufactured Date: Year: 0~9, for 2000~2009

9 Z10

Z

12

11

Serial No.

Code of grade

INL internal use

Year, Month, Date

INL internal use

2. Month: 1~9 & A~C for Jan.~Dec.

3. Date: 1~9 & A~Z (exclude I, O, Q, U) for 1th~31th

4. Code of grade: 1, 2, 3, 5, E

5. Serial No.: Module manufacture sequence number.

(d) Serial ID II (INL internal use)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

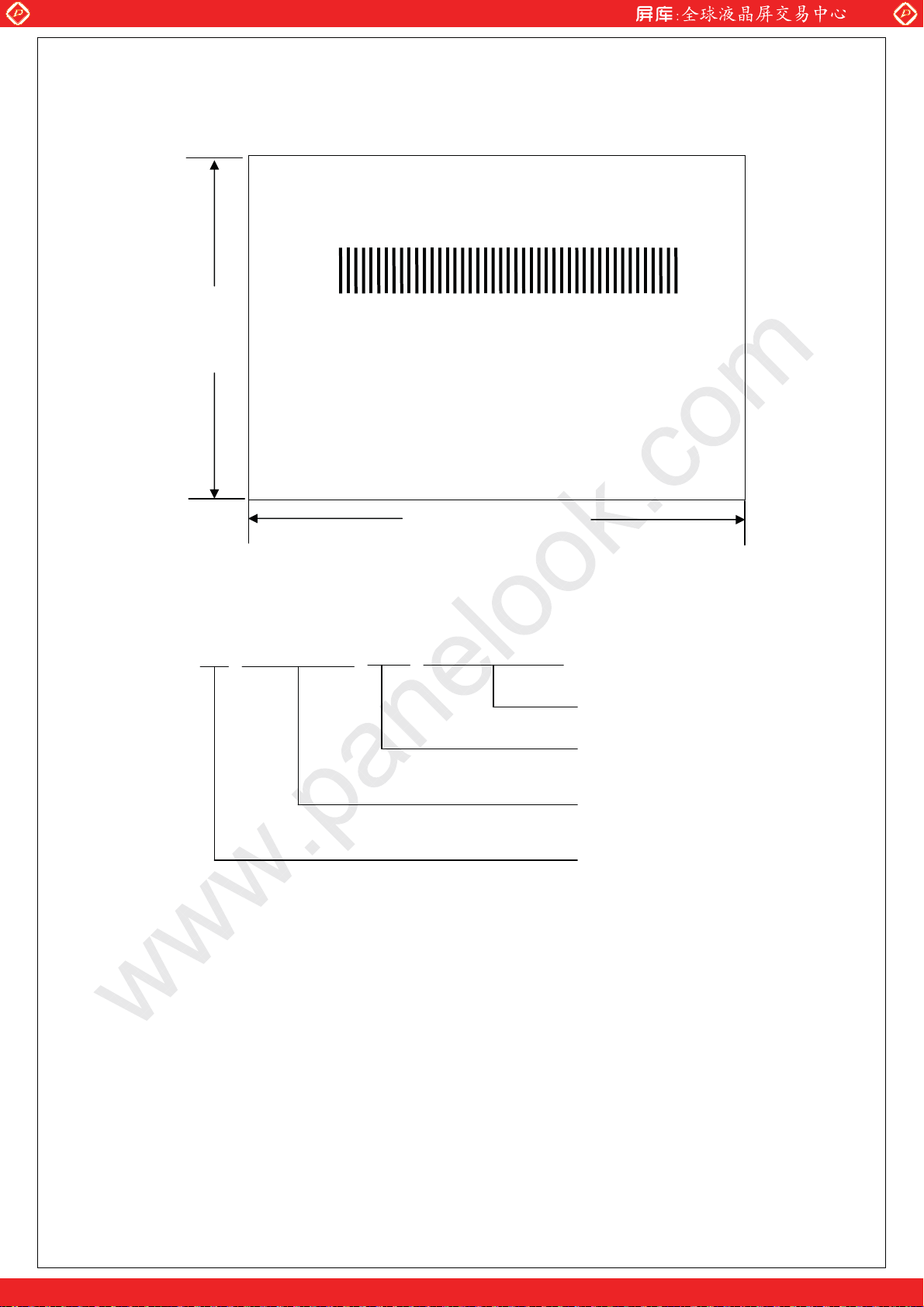

2. Carton Label

INNOLUX DISPLAY

BOX ID:

60 mm

Z

1 Z2 Z 3

Model No. MT220WW01 V.7

AM2200001 70X

Quantity : 7 PCS

MFG Date: 20XX/XX/XX

QC: Made in XXX

Z

-- Z 5-- Z 6 Z 7 Z

4

SPEC NO.

PAGE :

8 Z9

MT220WW01 V.7

22/24

100 mm

(a) Model Number: MT220WW01

(b) Version: V.7

(c) Packing quantity: 7 pcs

(d) Serial ID: Z

Serial ID includes the information as below :

(a) Manufactured Date: Year: 0~9, for 2000~2009

Month: 1~9 & A~C for Jan.~Dec.

Date: 1~9 & A~Z (exclude I, O, Q, U) for 1th~31th

Z2 Z3 Z4 Z 5 Z6 Z

1

7 Z8

Z 9

Serial No.

Code of grade

Year, Month, Date

INL internal use

(b) Code of grade: 1, 2, 3, 5, E

(c) Serial No.: Module packing sequence number.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

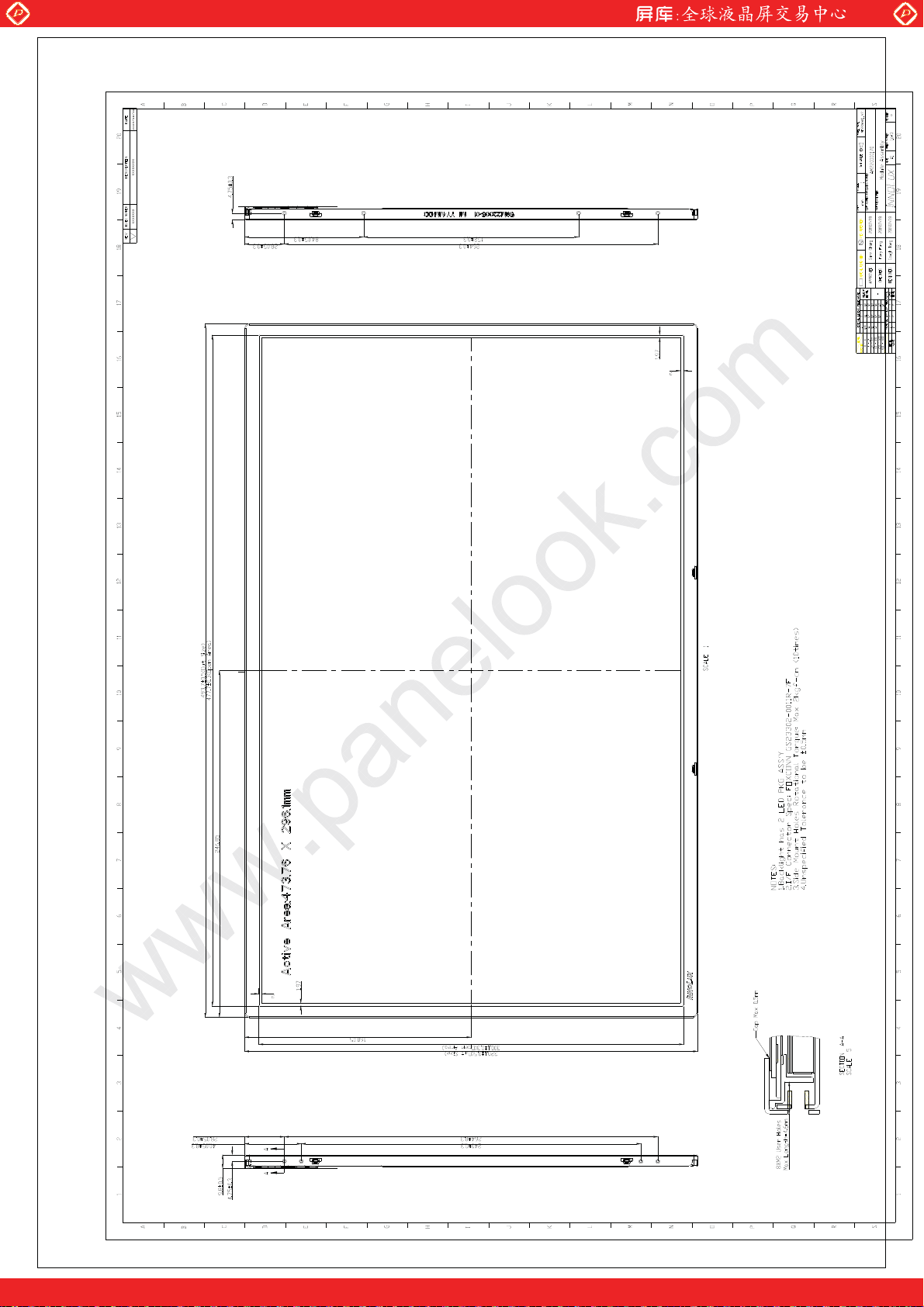

I. Mechanical drawing

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
