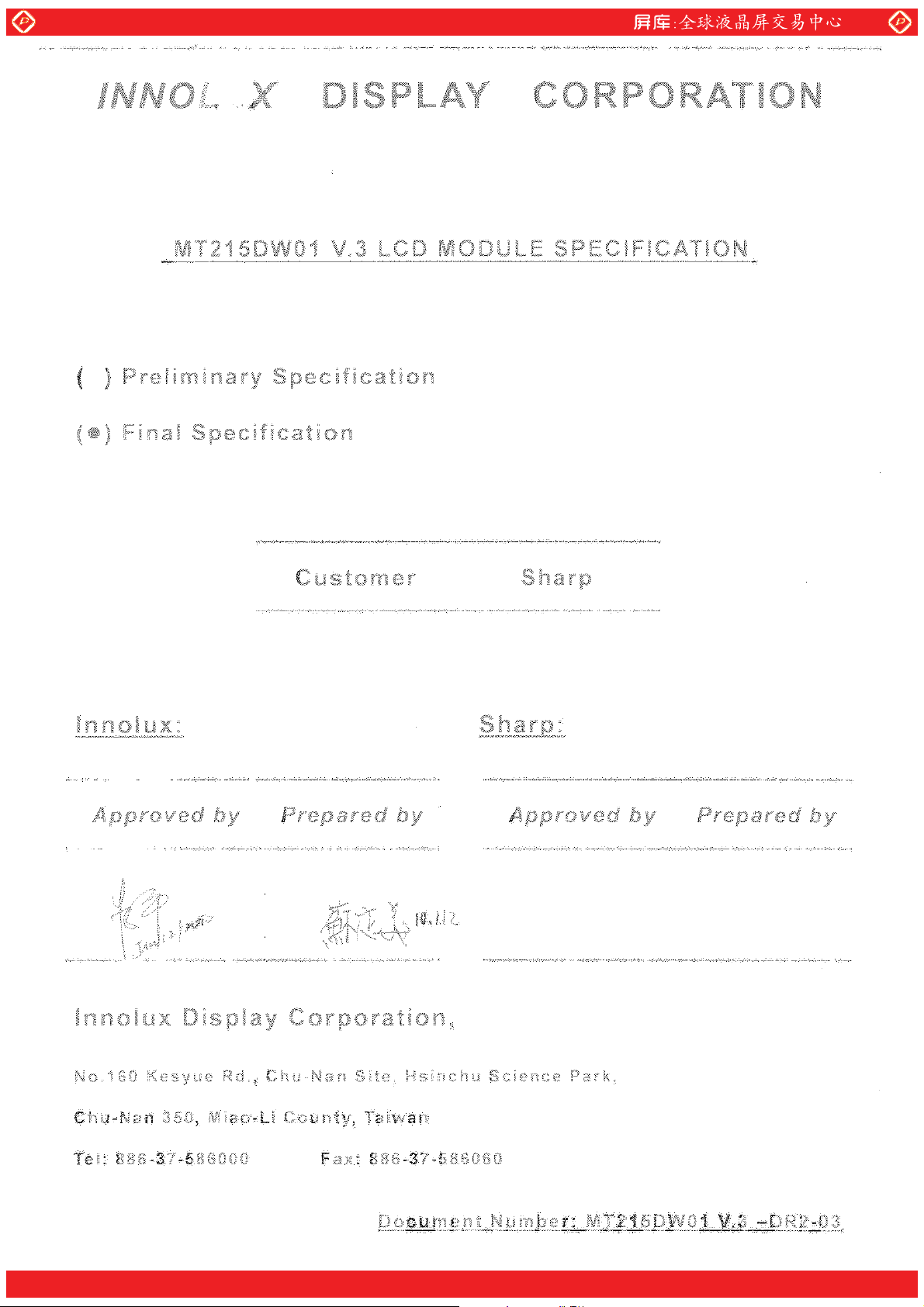

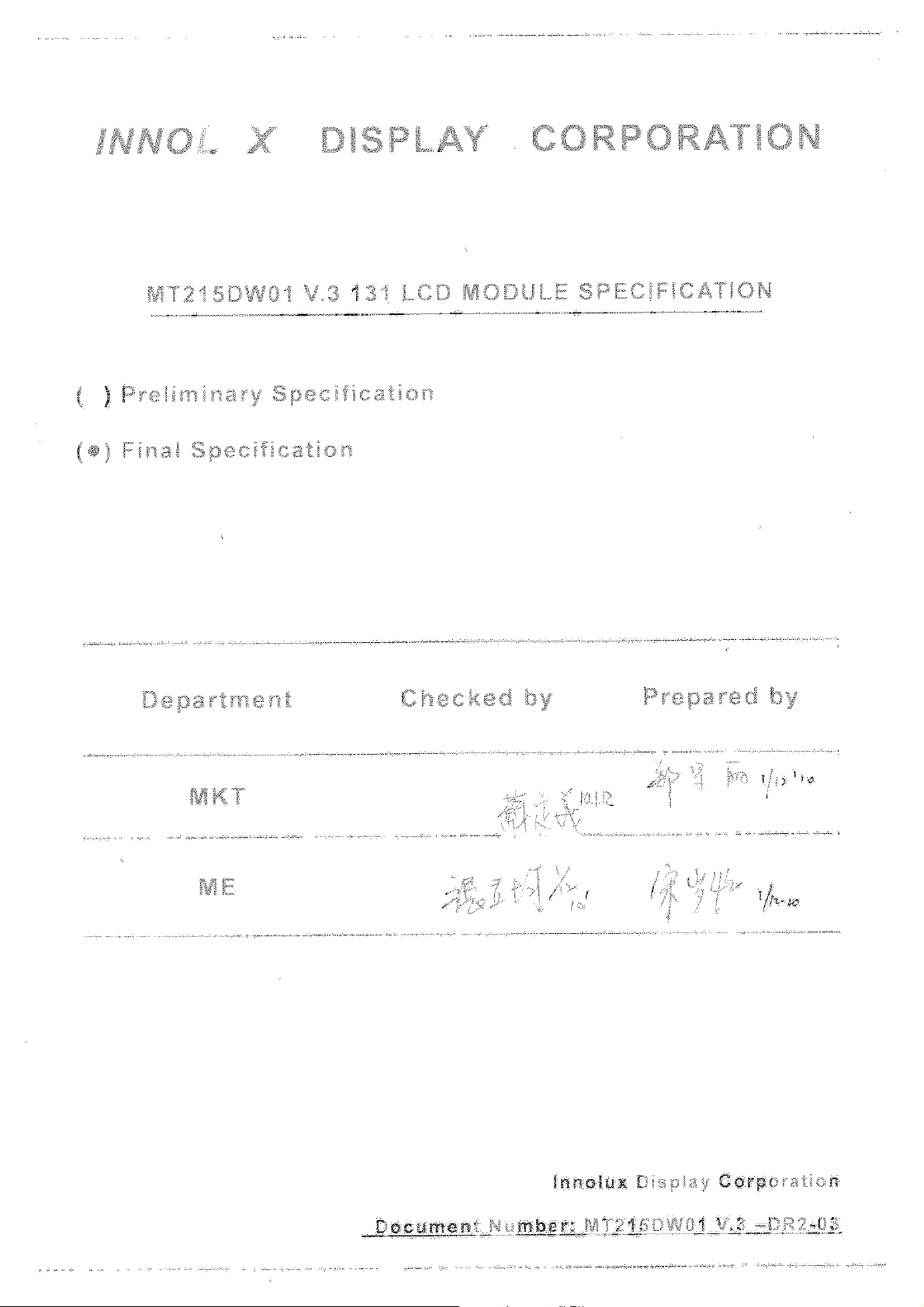

INNOLUX MT215DW01 V.3 Specification

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Version: 1.0

Record of Revision

Version Revise Date Page Content

InnoLux copyright

Copying forbidden.

1.0 20010/1/9

First edition to all Final -Spec.

Contents:

SPEC NO.

PAGE

MT215DW01 V.3

4/25

A. General Specification

B. Electrical Specifications

1. Pin assignment 6

2. Absolute maximum ratings 8

3. Electrical characteristics 9

a. Typical operating conditions 9

b. Display color vs. input data signals 12

c. Input signal timing 13

d. Display position 14

e. Backlight driving conditions 14

5

6

C. Optical specifications

D. Reliability test items

E. Safety

F. Display quality

G. Handling precaution

H. Label

I. Mechanical drawings

16

19

20

21

24

SPEC NO.

PAGE

MT215DW01 V.3

5/25

A. General specification

NO. Item Specification Remark

1 Display resolution (pixel)

2 Active area (mm)

3 Screen size (inch)

4 Pixel pitch (mm)

5 Color configuration

6 Overall dimension (mm)

7 Color Gamut

Weight (g) 1600g

8

9 Surface treatment

10 Input color signal

11 Display colors

12 Optimum viewing direction

1920(H) X 1080(V), Full HD resolution

476.64(H) X268.11 (V)

21.53 inches diagonal

0.24825(H) X0.24825 (V)

R, G, B vertical stripe

495.6(W) X 292.2(H) X 9.8(D) (typ.)

70%

Anti-Glare, Haze=25%, Hard coating (3H)

8 bit LVDS

16.7M (6 bit with Hi-FRC)

6 o’clock

Note 1

13 Backlight

14 Others

White-LED

TCO 5.0 & RoHS & Halogen Free compliance

Note 1: Glare Option.

Note 2: Only Anti-Glare can meet TCO 5.0

SPEC NO.

PAGE

B. Electrical specifications

1. Pin assignment

Connector

FOXCONN GS23302-0011 R-7F or mechanical interface equivalent connector.

Pin No Symbol Description

Frame VSS Ground

1 RXinO0- -LVDS differential data input, Chan 0-Odd

2 RXinO0+ +LVDS differential data input, Chan 0-Odd

3 RXinO1- -LVDS differential data input, Chan 1-Odd

4 RXinO1+ +LVDS differential data input, Chan 1-Odd

5 RXinO2- -LVDS differential data input, Chan 2-Odd

6 RXinO2+ +LVDS differential data input, Chan 2-Odd

7 VSS Ground

MT215DW01 V.3

6/25

8 RXOC- -LVDS differential Clock input (Odd)

9 RXOC+ +LVDS differential Clock input (Odd)

10 RXinO3- -LVDS differential data input, Chan 3-Odd

11 RXinO3+ +LVDS differential data input, Chan 3-Odd

12 RXinE0- -LVDS differential data input, Chan 0-Even

13 RXinE0+ +LVDS differential data input, Chan 0-Even

14 VSS Ground

15 RXinE1- -LVDS differential data input, Chan 1-Even

16 RXinE1+ +LVDS differential data input, Chan 1-Even

17 VSS Ground

18 RXinE2- -LVDS differential data input, Chan 2-Even

19 RXinE2+ +LVDS differential data input, Chan 2-Even

20 RXEC- -LVDS differential Clock input (Even)

21 RXEC+ +LVDS differential Clock input (Even)

22 RXinE3- -LVDS differential data input, Chan 3-Even

23 RXinE3+ +LVDS differential data input, Chan 3-Even

24 VSS Ground

25 NC No Connection

26 NC No Connection

27 NC No Connection

28 VCC +5.0V power supply

29 VCC +5.0V power supply

30 VCC +5.0V power supply

Frame VSS Ground

SPEC NO.

MT215DW01 V.3

PAGE

7/25

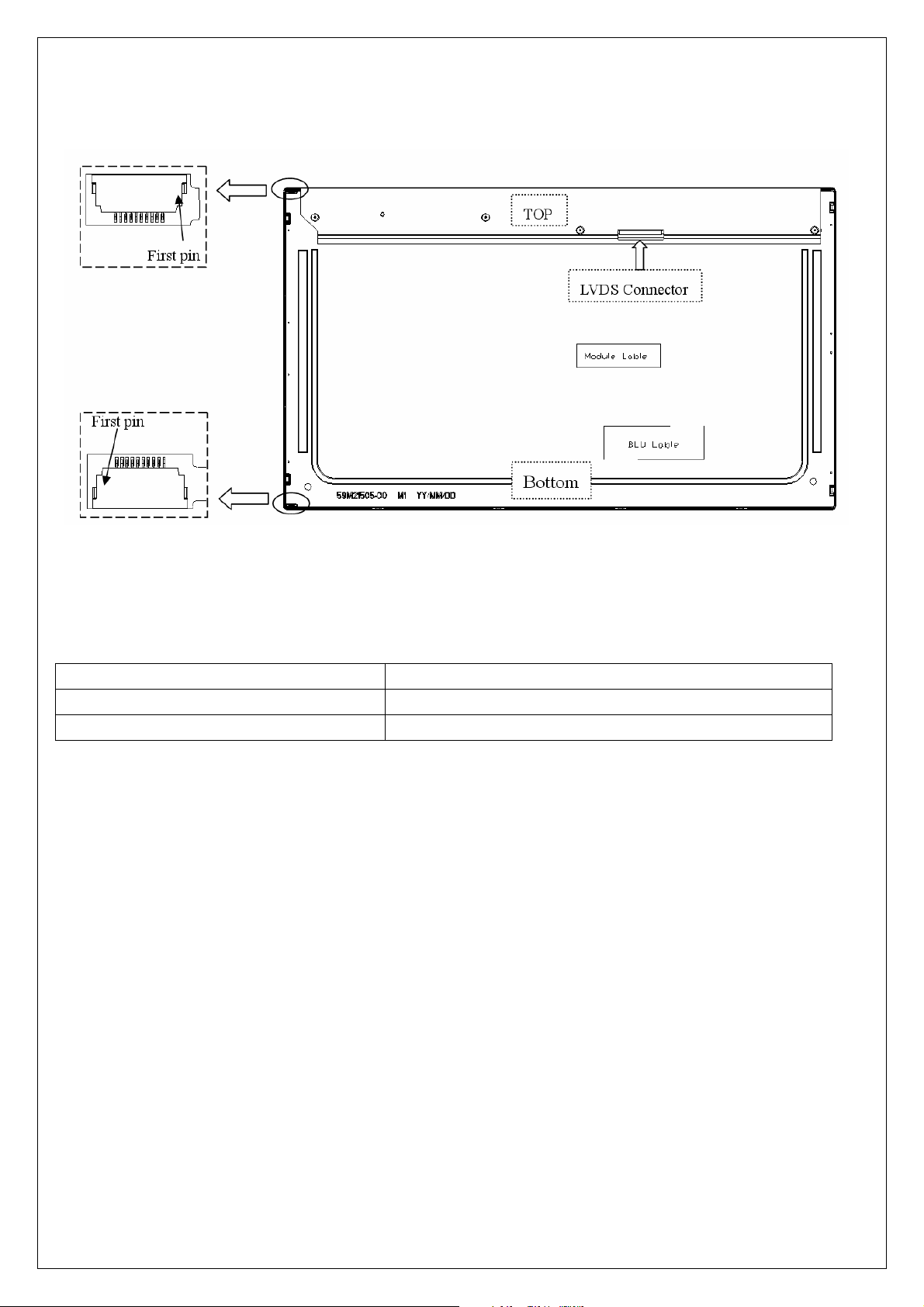

Rear View of LCM

1.2. Recommend Connector for Backlight Unit This connector is mounted on the monitor system board for LED light-bar FFC mating. Connector Name/Designation Match Connector Manufacturer Entery INDUSTRIAL CO.,LTD Mating type part number 7080-Q10N-00R

1.3 Light-bar Connector Pin Assignment

Upper Light-bar Connector Pin Assignment:

Pin No Symbol Description

1 IRLED1 LED current sense for string 1

2 IRLED1 LED current sense for string 1

3 IRLED2 LED current sense for string 2

4 VLED LED power supply

5 VLED LED power supply

6 VLED LED power supply

7 VLED LED power supply

8 IRLED2 LED current sense for string 2

9 IRLED3 LED current sense for string 3

10 IRLED3 LED current sense for string 3

SPEC NO.

PAGE

MT215DW01 V.3

8/25

Lower Light-bar Connector Pin Assignment:

Pin No Symbol Description

1 IRLED1 LED current sense for string 1

2 IRLED1 LED current sense for string 1

3 IRLED2 LED current sense for string 2

4 VLED LED power supply

5 VLED LED power supply

6 VLED LED power supply

7 VLED LED power supply

8 IRLED2 LED current sense for string 2

9 IRLED3 LED current sense for string 3

10 IRLED3 LED current sense for string 3

2. Absolute maximum ratings

SPEC NO.

PAGE

MT215DW01 V.3

9/25

Parameter Symbol

Min.

Power voltage Vcc

Input signal voltage VLH

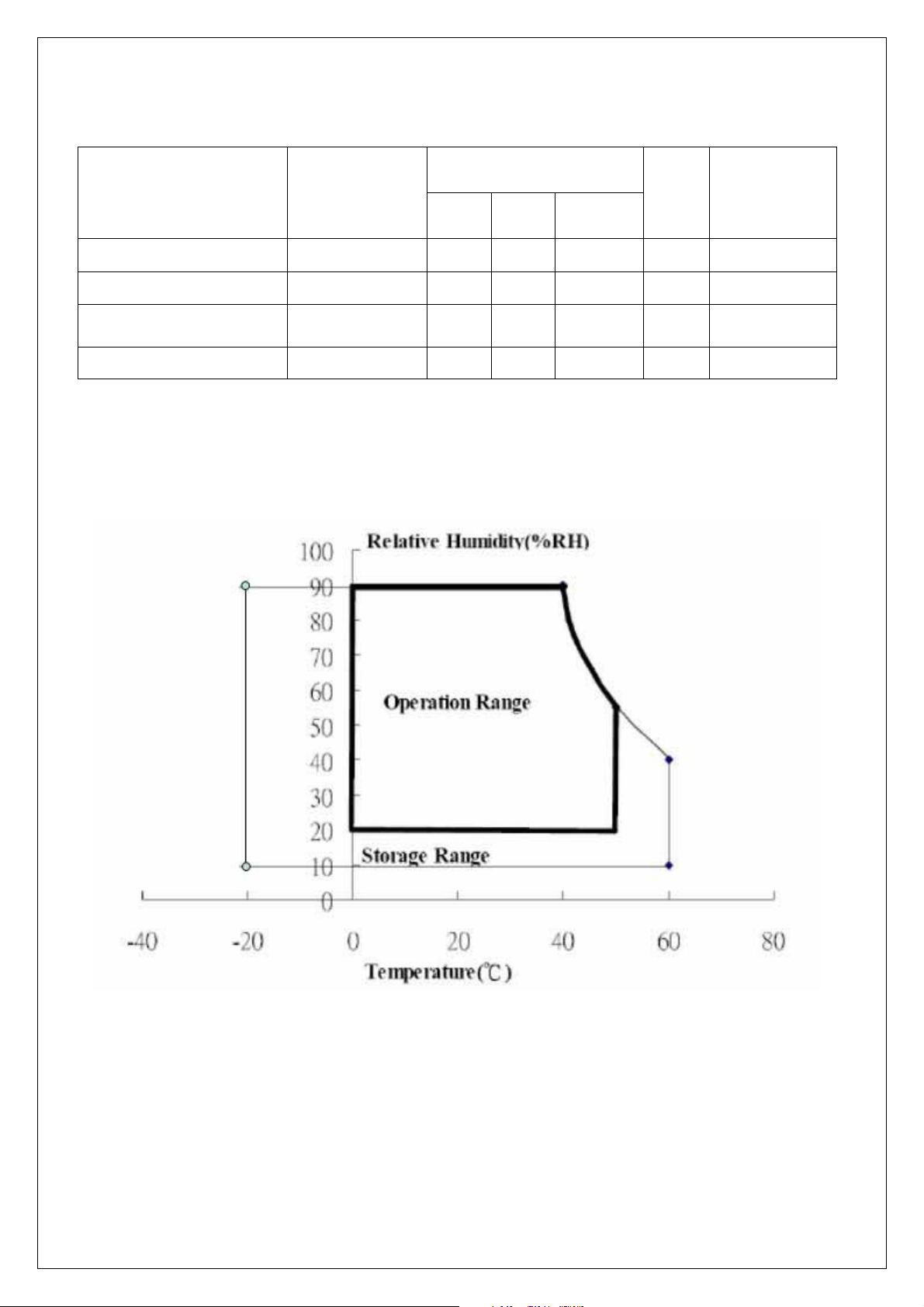

Operating temperature Top 0 - 50 °C Note 1

Storage temperature TST

Note 1: The relative humidity must not exceed 90% non-condensing at temperatures of 40°C or less.

At temperatures greater than 40°C, the wet bulb temperature must not exceed 39°C.

Note 2: The unit should not be exposed to corrosive chemicals.

-0.3 -

-20 -

Values

Typ .

Max.

6.0 V At 25°C

4.3 V At 25°C

60 °C Note 2

Unit

Remark

3. Electrical characteristics a. Typical operating conditions

Item Symbol Min. Typ. Max. Unit Remark

SPEC NO.

PAGE

MT215DW01 V.3

10/25

Input Voltage

Permissive Power Input Ripple

Input Current

Rush Current

Logic Input

Voltage

LVD S:

IN+, IN-

Common Mode Voltage

Differential Input Voltage

Threshold Voltage (High)

Threshold Voltage (Low)

Black

White

Mosaic

V

4.5 5 5.5

cc

V

- -

RF

0.15

Icc - 1000 1300

Icc - 700 1000

I

- 900 1200

cc

I

- 1.6 3 A

Rush

VCM - 1.2 - V

VID 100 - 600 mV

VTH - - 100

VTL -100 - -

V

Vp-p

Note 1

Ma

mV Note 5

Note 2

Note 3

Note 4

Note 1 : The specified current is under the Vcc =5V, 25 °C, fv=60Hz (frame frequency) condition

whereas black pattern is displayed.

Note 2 : The specified current is under the Vcc =5V, 25 °C, fv=60Hz (frame frequency) condition

whereas white pattern is displayed.

Note 3 : The specified current is under the Vcc =5V, 25 °C, fv=60Hz (frame frequency) condition

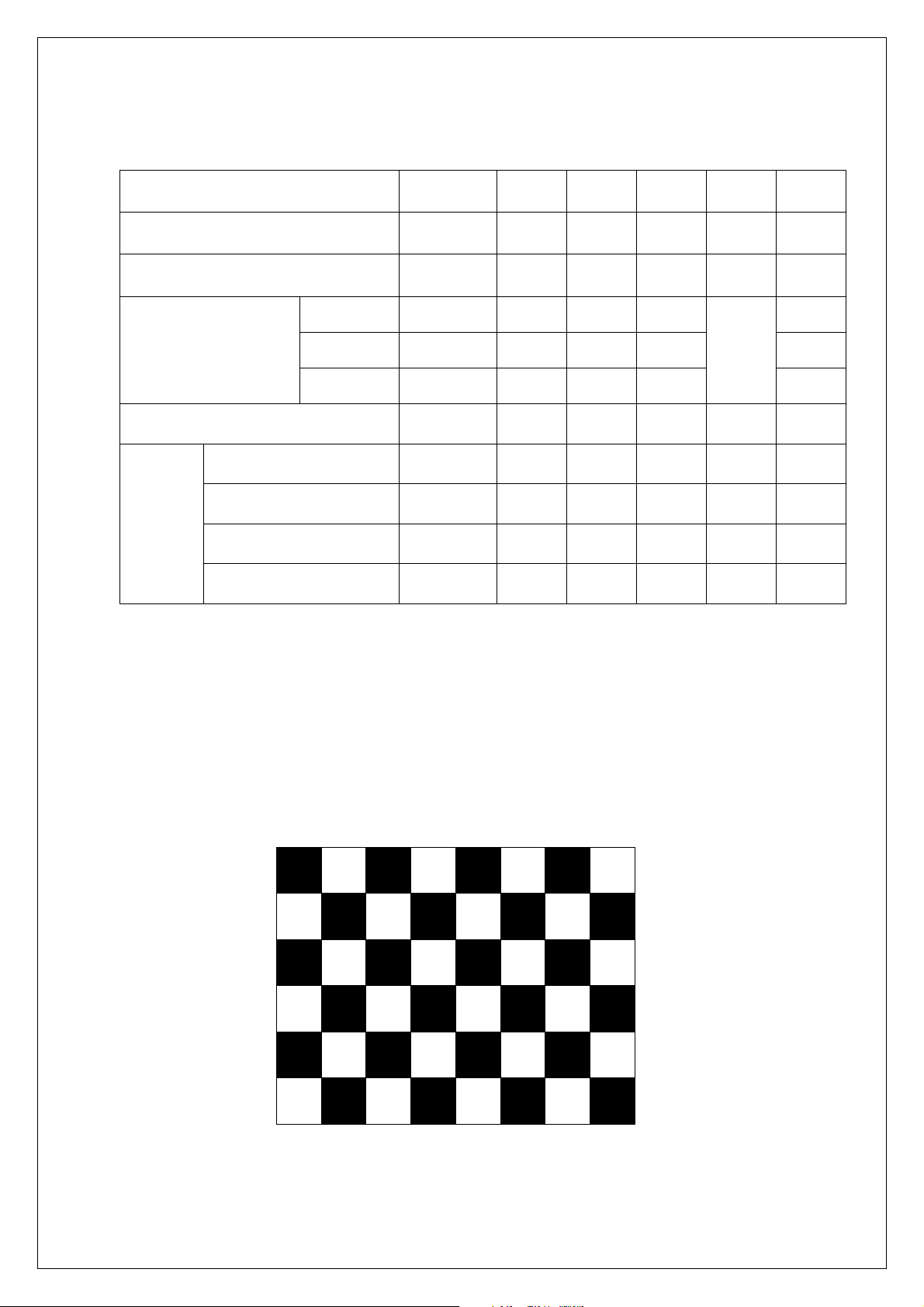

whereas mosaic pattern(black & white [8*6] ) is displayed.

White: 255 Gray

Black: 0 Gray

Note 4: test condition :

SPEC NO.

PAGE

MT215DW01 V.3

11/25

(1) V

= 5 V, VDD rising time = 470 μs ± 10%

DD

(2) Pattern: Mosaic pattern

90%

(3) Test circuit

CONTROL SIGNAL

(HIGH to LOW)

12V

V

5 V

DD

R1 47K

R3

Ton=470 Ӵs  10%

M1 2SK1059

R2

1K

M2 2SK1399

C2

FUSE

VDD ( LCD INPUT)

C1 1uF

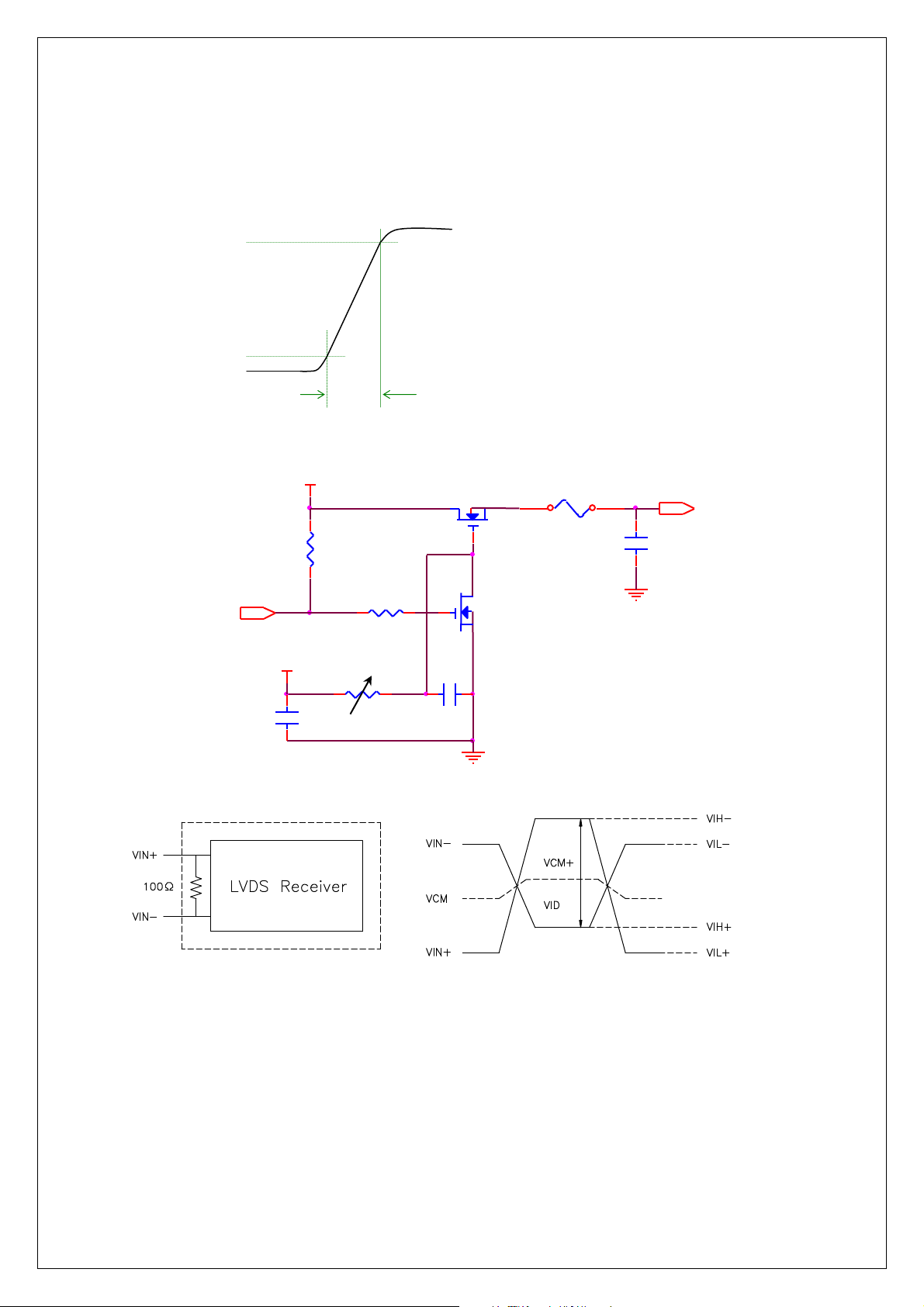

Note 5: LVDS signal definition

VIN+ = Positive differential DATA & CLK Input

VIN- = Negative differential DATA & CLK Input

VID = VIN+ – VIN- , VCM =ΨVCM

VID =ΨVID

VID+ =ΨVIH

VID- =ΨVIL

–VCM-Ψ,

+

–VID-Ψ,

+

–VIH-Ψ,

+

–VIL-Ψ,

+

C3 1uF

47K

10000pF

VCM = (VIN

VCM+ = (VIH

VCM- = (VIL

+VIN-)/2,

+

+VIH-)/2,

+

+VIL-)/2,

+

SPEC NO.

PAGE

MT215DW01 V.3

12/25

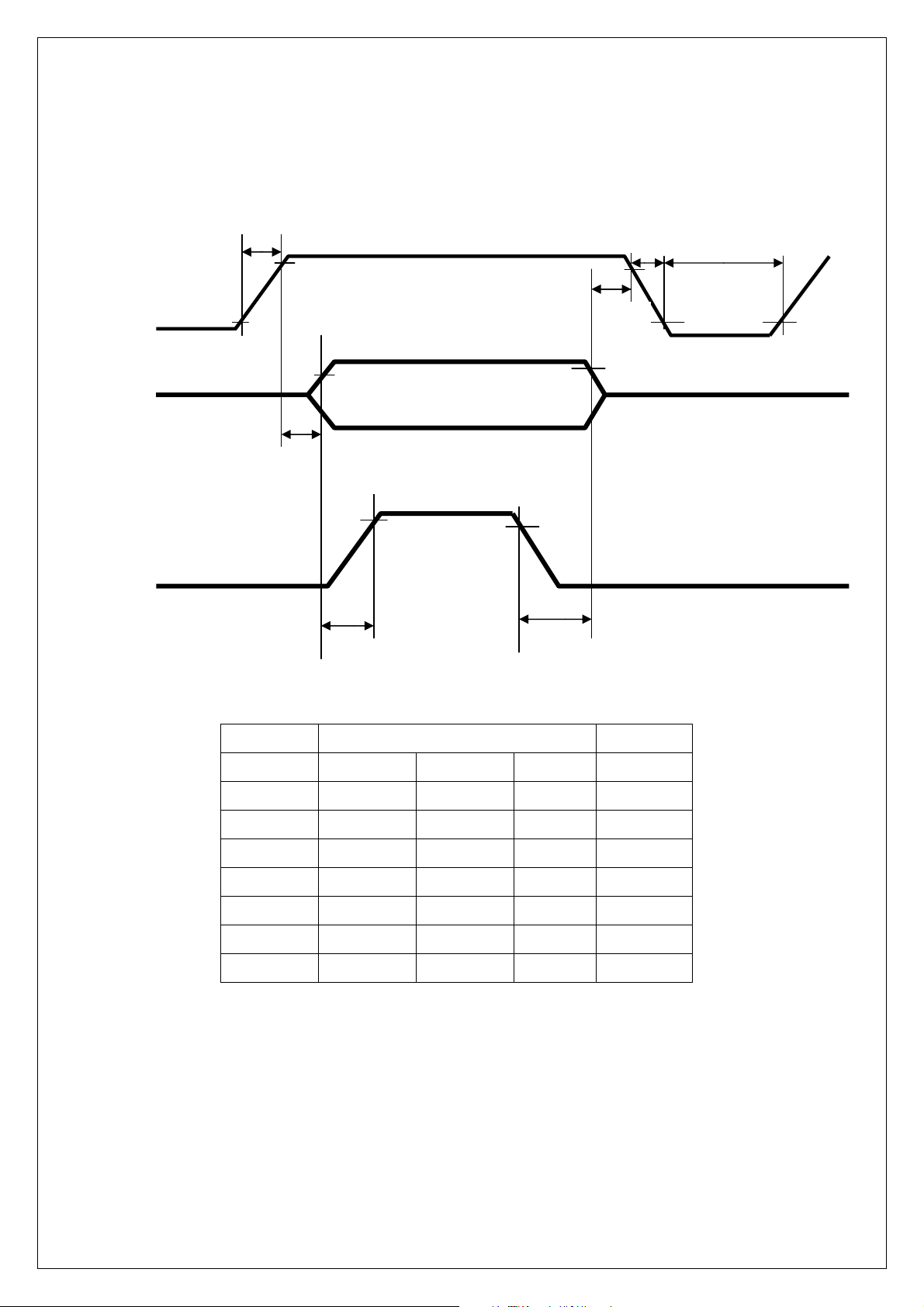

Note 6: Power on sequence for LCD V

T1

Panel Power

Supply V

DC

90%

10%

90% 90%

Interface

Signals

T2

Backlight Power

Supply

DD

Valid Interface Data

90%

T5

T6

10%

T7

10%

T3 T4

Parameter Value Unit

Min Typ Max ms

T1 0.1 - 10 ms

T2 0 30 50 ms

T3 200 250 - ms

T4 100 250 - ms

T5 0 20 50 ms

T6 0.1 - 50 ms

T7 1000 - - ms

SPEC NO.

PAGE

MT215DW01 V.3

13/25

b. Display color vs. input data signals

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

Color

MSB LSB MSB LSB MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0

Red Green Blue

Input color data

G7 G6 G5 G4 G3 G2 G1 G0

B7 B6 B5 B4 B3 B2 B1 B0

Basic colors

Black Red(255) Green(255) Blue(255) Cyan Magenta Yellow White

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

Red

Green

Red(000) dark Red(001) Red(002)

:

Red(253) Red(254) Red(255) bright

Green(000)dark Green(001) Green(002)

:

Green(253) Green(254) Green(255)

bright

0

:

1

0

0 0

0 0 0

0

:

0

:

0

1

0

1

0

:

0

1

0

1

0

1

0

0 0

: 0 0 0

0

:

1

0

1

0

1

0

:

1

0

0 0 0

:

0 0 0

:

1 1 1

0

:

0

1

0

:

0

1

0

1

0

:

0

:

0

:

0

:

0

:

0

Blue(000) dark Blue(001) Blue(002)

Blue

Blue(253) Blue(254) Blue(255) bright

0

:

0

:

0

:

0

0 0 0

:

0 0 0

0

:

0

1

0

1

0

1

0

1

0

1

:

1

0

1

SPEC NO.

PAGE

MT215DW01 V.3

14/25

c. Input signal timing Support Input Timing Table

Item Description Min. Typ. Max. Unit

Dclk

period 11.43 13.89 16.7 nS Clock

frequency 60 72 87.5 MHz

Vertic al

Horizontal

T

V_TOTAL

T

H_TOTAL

T

V total line number 1090 1100 1160 T

Data duration

V_DATA

ˉ

1080

ˉ

TVB V-blank 10 20 80 T

f

frequency 50 60 75 Hz

V

H_TOTAL

T

H_TOTAL

H total pixel number 1000 1088 1120 DClk

Data duration

H_DATA

H-blank 40 128 160 DClk

T

HB

Ё

960

Ё

DClk

Note: Because this module is operated by DE only mode, Hsync and Vsync input signals should be set

to low Logic level or ground. Otherwise, this module would operate abnormally.

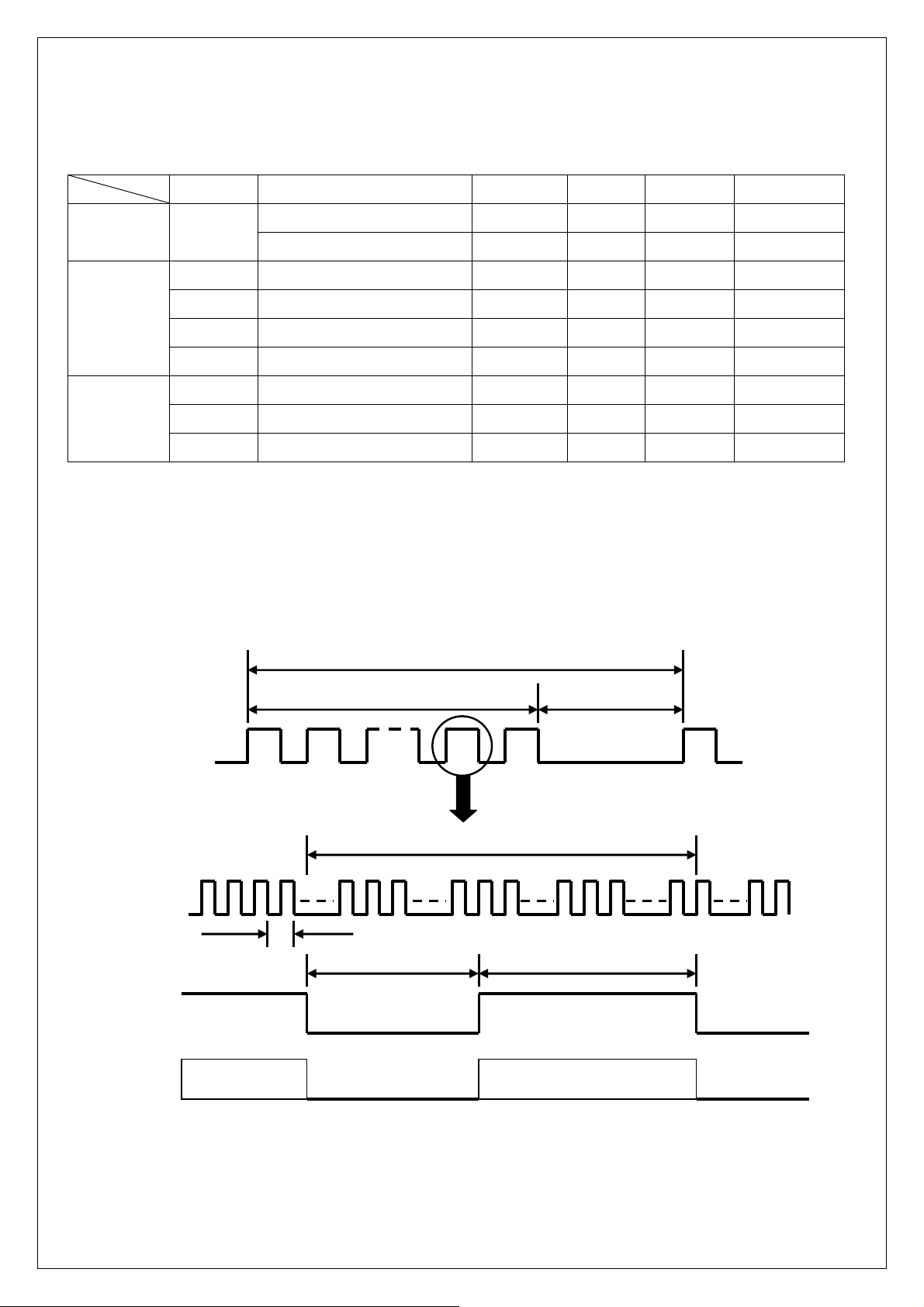

INPUT SIGNAL TIMING DIAGRAM

Tv

DE

DCLK

DE

DATA

Tc

Tvd Tvb

Thb Thd

d. Display Position

D(1,1) D(2,1) … … D(960,1) … … D(1919,1) D(1920,1)

D(1,2) D(2,2) … … D(960,2) … … D(1919,2) D(1920,2)

. . … … . … … . .

D(1,540) D(2,540) … … D(960,540) … … D(1919,540) D(1920,540)

. . … … . … … . .

D(1,1079) D(2,1079) … … D(960,1079) … … D(1919,1079) D(1920,1979)

D(1,1080) D(2,1080) … … D(960,1080) … … D(1919,1080) D(1920,1080)

e. Backlight Unit

Parameter Symbol Min. Typ. Max. Unit Note

Light Bar Input voltage VLED - 36.3 37.4 VDC (Duty 100%)

SPEC NO.

PAGE

MT215DW01 V.3

15/25

Light Bar Input current

Power Consumption PLED - 13.07 14.81 W Note 4

LED life time LBL 25,000 30,000 - Hrs Note 5

Note 1: There are two Light Bars, and the specified current is input LED chip 100% duty current.

Note 2: The sensing current of each string is 60mA.

Note 3: Each light bar have three current sensing strings, so that each light bar input current is 180mA.

Note 4: PLED = ILED × VLED.

Note 5: The life time is determined as the time at which luminance of the LED becomes 50% of the

initial brightness or not normal lighting at ILED=360mA on condition of continuous operating

at 25±2°C.

ILED - 360 396 mADC Note 1,2,3

C. Optical specifications

SPEC NO.

PAGE

MT215DW01 V.3

16/25

Item Symbol Condition

Response time

Contrast ratio

Viewing angle

Brightness (Center) YL

Tr

Tf

Tr+Tf

CR

Top

Bottom

Left

Right

= 0ш

= 0ш 700 1000 -

CRЊ10 70 80

CRЊ10

Wx

Color chromaticity(CIE)

Wy

Rx

Ry

= 0ш

Gx

Gy

Bx

By

White uniformity (9) 

Cross talk(In 60HZ) Ct -

-

W

-

Specification

Min. Typ. Max.

-

70 80

75 85

250 300 -

-0.03

0.70 0.75 -ʳ

- - 2.0%

1.5 3

3.5 7

5

0.313

0.329

0.640

0.345

0.324

0.619

0.150

0.059

10

-

+0.03

nits Note 3

Unit Remark

deg. Note 3,5,6

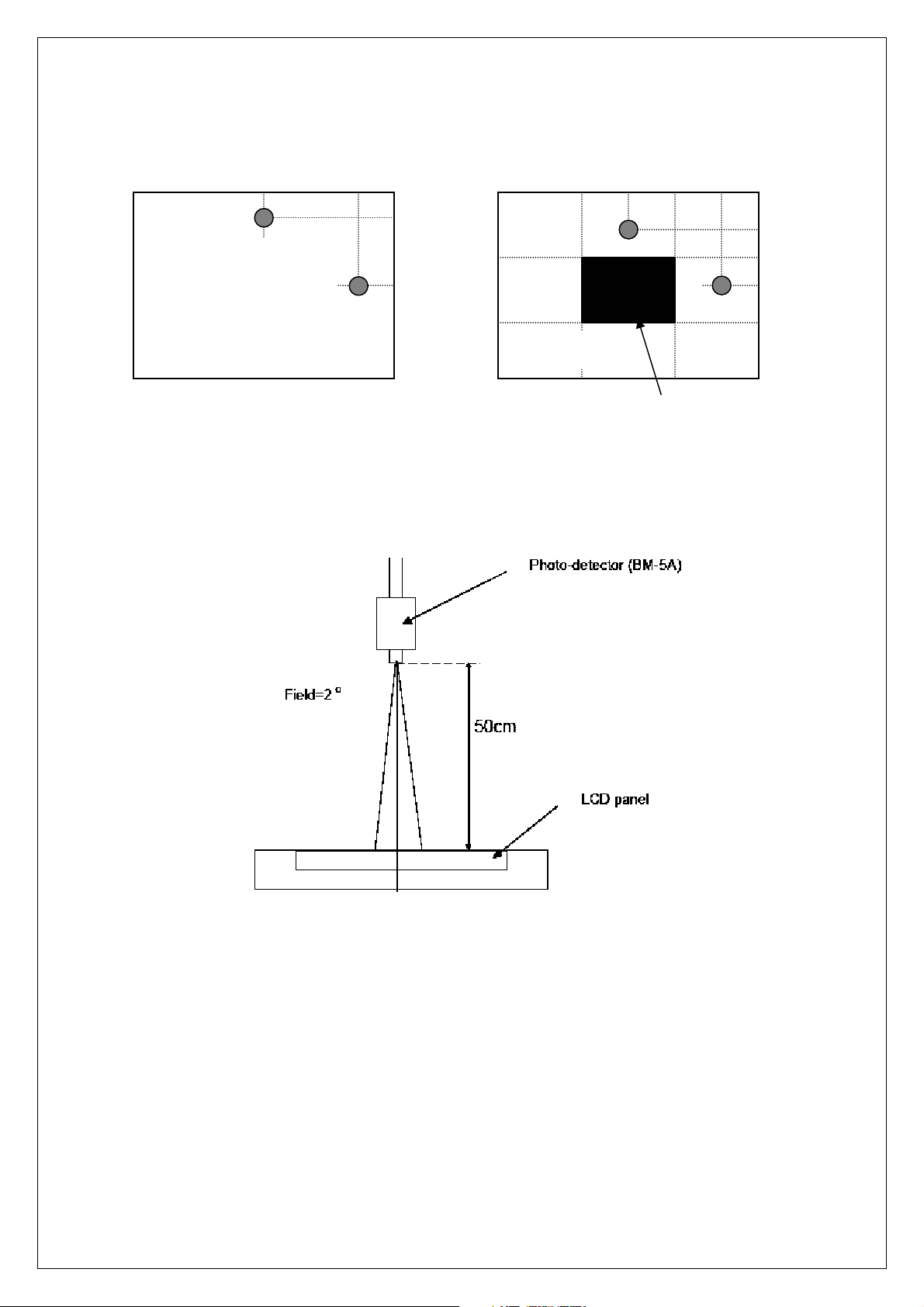

Note 1: Ambient temperature = 25°C. Note 2: To be measured in dark room after backlight warm up 30 minutes. Note 3: To be measured with a viewing cone of 2°by Topcon luminance meter BM-5A.

ms Note 4

Note 3,5

Note 3,7

Note 8

Note 3

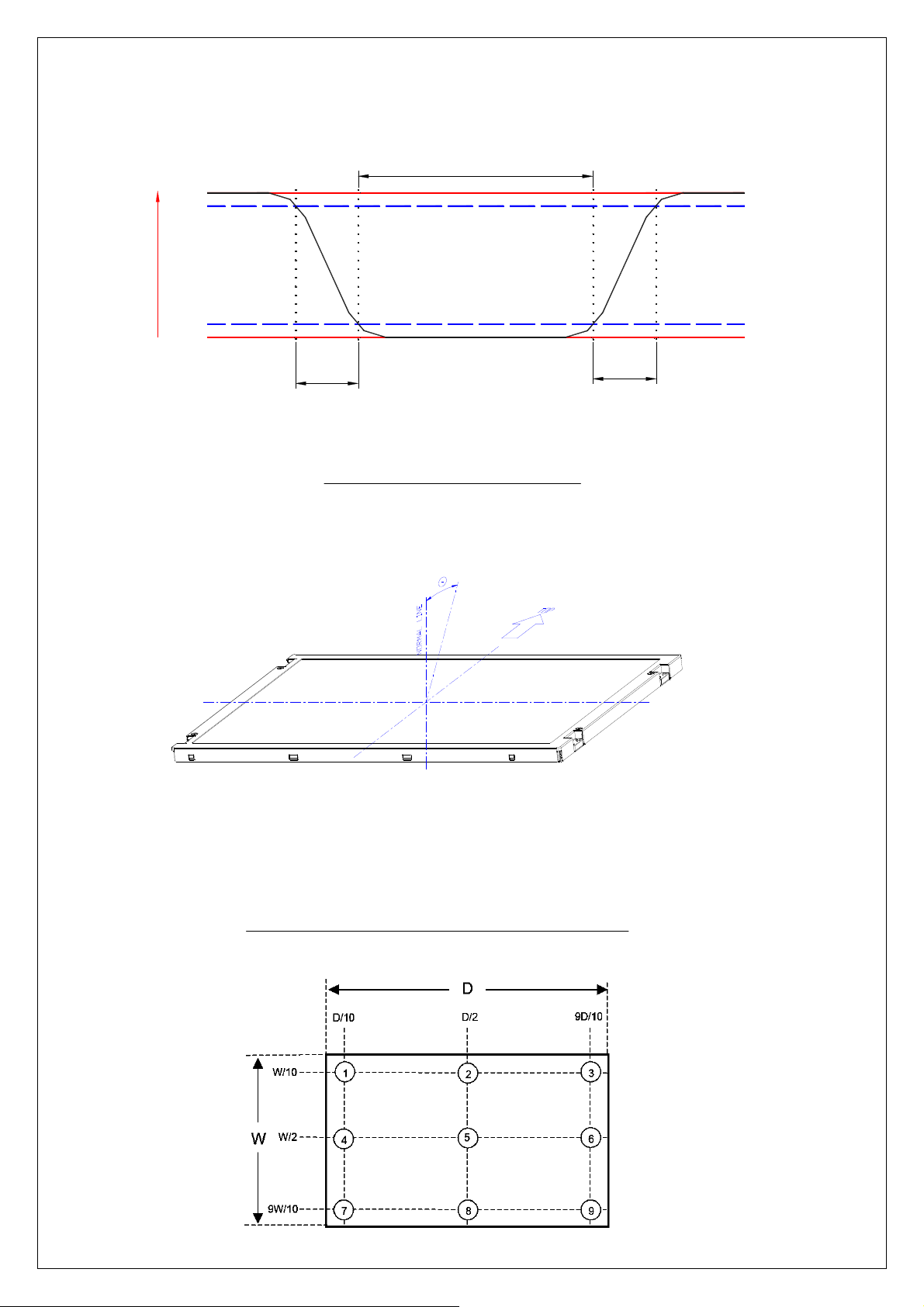

Note 4: Definition of response time:

The output signals of BM-7 are measured when the input signals are changed from “Black”

to “White” (falling time) and from “White” to “Black” (rising time), respectively. The response time

interval is between the 10% and 90% of amplitudes. Refer to figure as below.

SPEC NO.

PAGE

MT215DW01 V.3

17/25

100%

S i

90%

g n a l

(

R e

l

a t

i

v e

v a l

u

10%

e )

0%

Note 5: Definition of contrast ratio:

Contrast ratio is calculated by the following formula.

Contrast ratio (CR)=

Note 6: Definition of viewing angle

"Black"

Tr

Brightness on the "white" state Brightness on the "black" state

"White""White"

Tf

Note 7: Definition white uniformity:

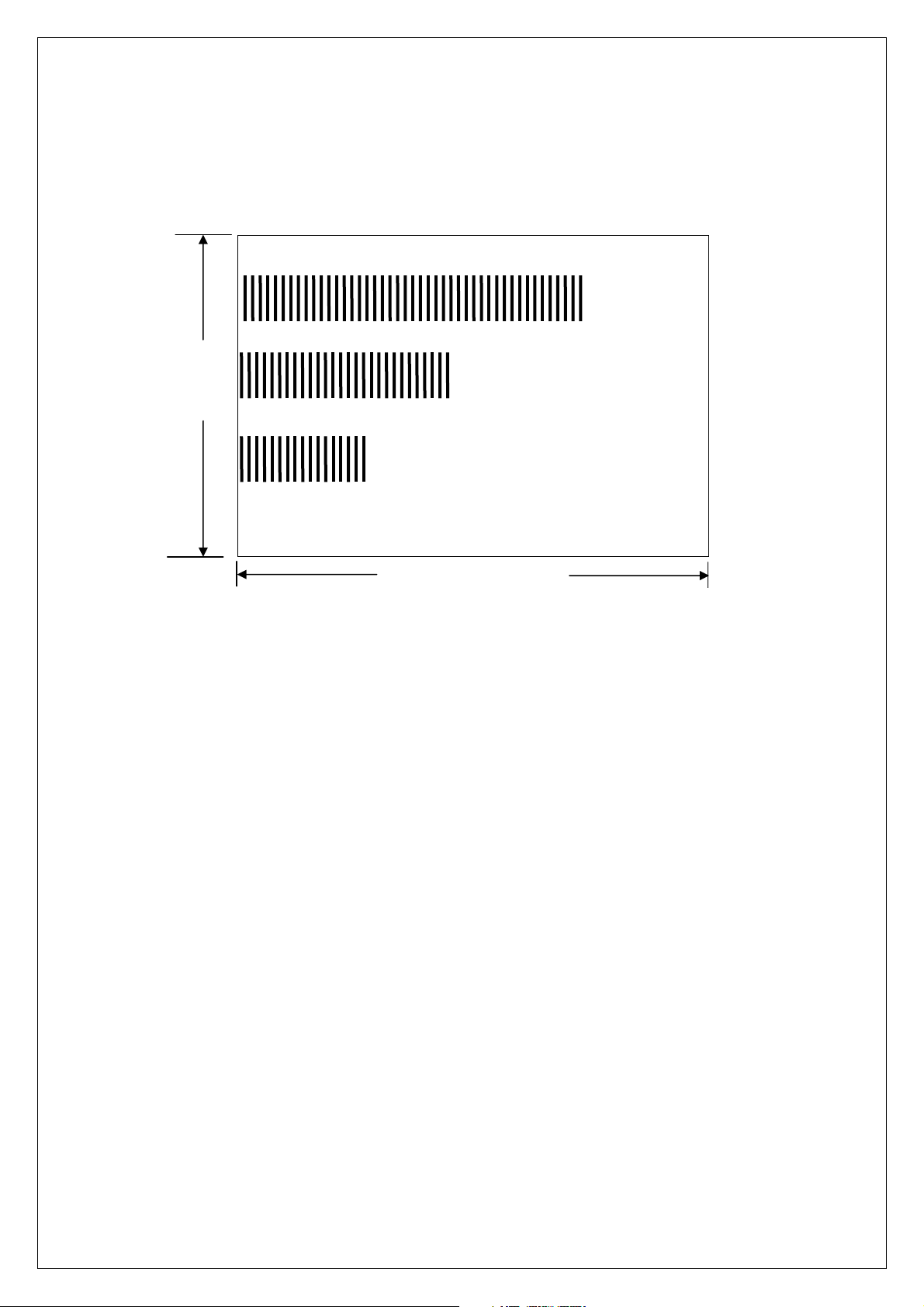

Luminance are measured at the following nine points (P1~P9).

Ӭ

Minimum Brightness of nine points(P1~P9).

=

Maximum Brightness of nine points (P1~P9).

Note 8:

SPEC NO.

1/2

1/6

PAGE

2/3 1/3

A

1/6

A’

127 gray level 127 gray level

B

1/2

MT215DW01 V.3

18/25

1/6

1/3

1/2

B’

2/3

0 gray level

l L

l / LA x 100%= 2% max., LA and LA’ are brightness at location A and A’

A-LA’

l / LB x 100%= 2% max., LB and LB’ are brightness at location B and B’

B-LB’

Note 10: Optical characteristic measurement setup.

D.Reliability test items

Test Item Test Condition Judgment Remark

SPEC NO.

PAGE

MT215DW01 V.3

19/25

High temperature storage

Low temperature storage

High temperature & high

humidity operation

High temperature operation

Low temperature operation

Thermal Shock

(non-operation)

Electrostatic discharge (ESD)

(non-operation)

Vibration

(non-operation)

60°C, 240Hrs

-20°C, 240Hrs

40°C, 90%RH, 240Hrs

(No condensation)

50°C, 240Hrs

0°C, 240Hrs

-20°C~60°C

-20°C /1Hr, 60°C /1Hr, 100cycles

Contact:+/-8kV, 150pF(330ohms),

10 times/1 point, 1 time/1 sec, total 16 points

Air discharge:+/-15kV, 150pF(330ohms), 10

times/1 point, 1 time/1 sec, total 9 points

Vibration level : 1.5G

Bandwidth : 10-300Hz

Waveform : sine wave,

sweep rate : 10min

Note 1 Note 2

30 min for each direction X, Y, Z

(1.5 Hrs in total)

Mechanical Shock

(non-operation)

MTBF Demonstration 25000 hours with confidence level 90% Note 1 Note 3

Shock level : 50G, 11ms

Waveform : Half sine wave

Note 1 Note 2

Direction : ±X, ±Y, ±Z

One time each direction

Note1: Pass: Normal display image with no obvious non-uniformity and no line defect.

Partial transformation of the module parts should be ignored.

Fail: No display image, obvious non-uniformity, or line defects.

Note2: Evaluation should be tested after storage at room temperature for two hours.

Note 3: The MTBF calculation is based on the assumption that the failure rate distribution meets the

Exponential Model (CCFL excluded).

SPEC NO.

PAGE

MT215DW01 V.3

20/25

E. Safety

(1) Sharp Edge Requirements

There will be no sharp edges or corners on the display assembly that could cause injury.

(2) Materials

a. Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic materials are

used, they will be reviewed and approved by the responsible InnoLux Toxicologist.

b. Flammability

All components including electrical components that do not meet the flammability grade UL94-V1 in

the module will complete the flammability rating exception approval process. The printed circuit

board will be made from material rated 94-V1 or better. The actual UL flammability rating will be

printed on the printed circuit board.

c. Capacitors

If any polarized capacitors are used in the display assembly, provisions will be made to keep them

from being inserted backwards.

F. Display quality

The display quality of the color TFT-LCD module should be in compliance with the

Innolux’s Incoming inspection standard.

G. Handling precaution

The Handling of the TFT-LCD should be in compliance with the Innolux’s handling principle standard.

m

H. Label

(1) Module Label

SPEC NO.

PAGE

MT215DW01 V.3

21/25

20 mm

Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z

45 m

SHARP

LQ215M1LGN2

8 Z9

(a) Model Number: LQ215M1LGN2 (Sharp assigned)

(b) Serial ID I: Z

Z2 Z3 Z4 Z 5 Z 6 Z 7 Z8 Z

1

9

Version

Serial No

Production Place ˄Innolux =I˅

Month

Year

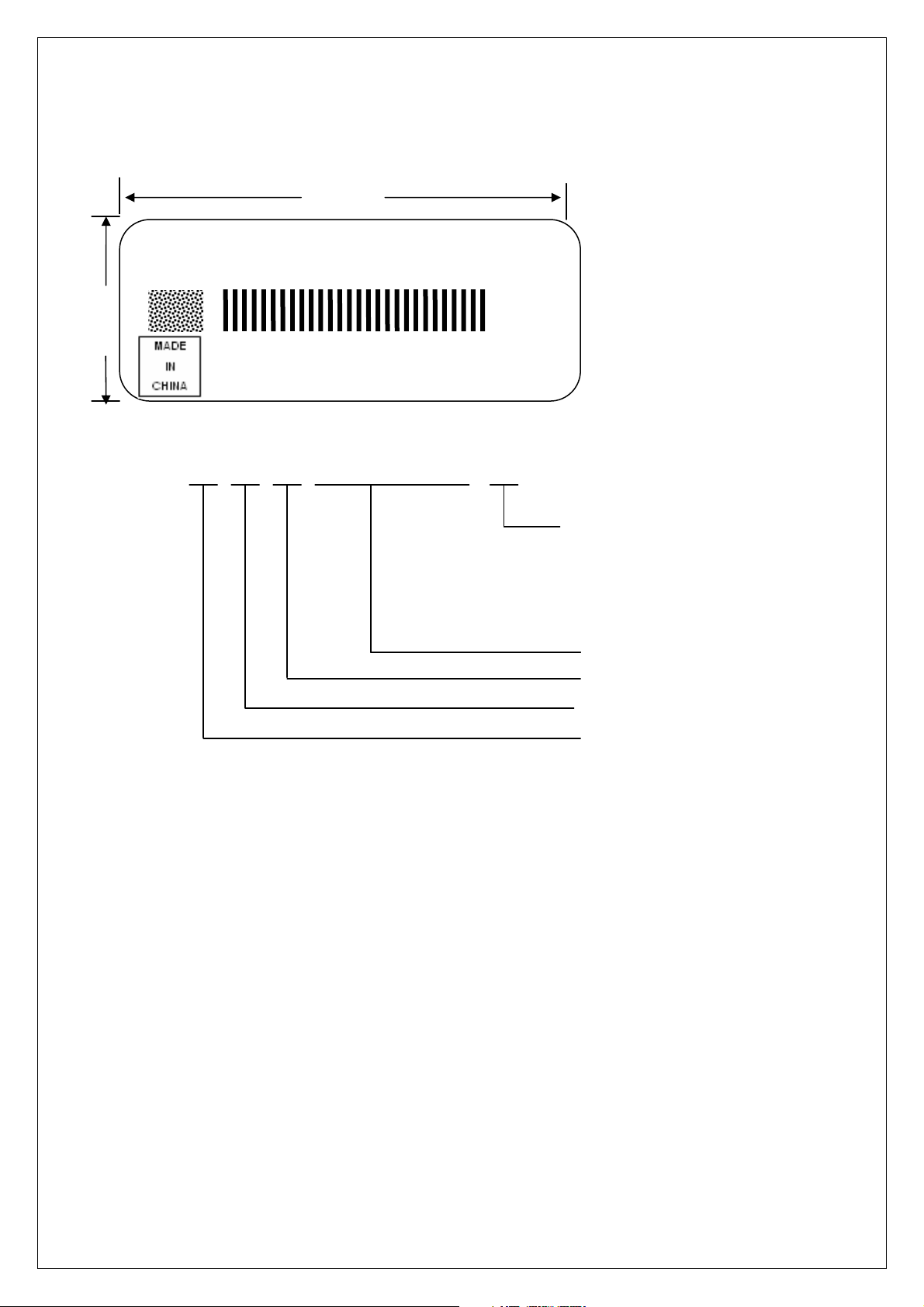

Serial ID includes the information as below:

1. Year: Final digit of the A.D. EX.”9” for2009

2. Month: 1~9, X, Y and Z.˄X=Oct. Y=Nov. Z=Dec.˅

3. Production Place ˄Innolux =I˅

4. Serial No: 0~99999, Over 10Kpcs use A, B, C…

For example: Actual Print

99,999 99999

100,000~ A0000~

110,000~ B0000~

120,000~ C0000~

5. Version: The first Version is A, version changes with design change.

Version with 26 letters, For example: A, B, C…

SPEC NO.

PAGE

MT215DW01 V.3

22/25

(2) Carton Label_INL

BOX ID :

60 mm

Z1 Z2 Z3 Z4 --Z 5--Z6 Z7 Z8 Z 9

Part No.

Model No. LQ215M1LGN2 V.4 AM2150001 31X

Quantity : X pcs

MFG Date: 20XX/XX/XX

QC:

MADE IN CHINA

80 mm

(a) Model Name: SharpLQ215M1LGN2 ; INL :MT215DW01

(b) Version: Sharp : V.4 ; INL :V.3

(c) Packing quantity: 8 pcs

(d) Serial ID: Z

Z2 Z3 Z4 Z 5 Z6 Z

1

7 Z8

Z 9

Serial No

Code of grade

Serial ID includes the information as below:

(a) Manufactured Date: Year: 0~9, for 2000~2009

Month: 1~9 & A~C for Jan.~Dec.

Date: 1~9 & A~Z (exclude I, O, Q, U) for 1st~31th

(b) Code of grade: 1,2, 3, 5, E

(c) Serial No: Module packing sequence no

Year, Month, Date

INL internal use

(3) Carton Label_Sharp

SPEC NO.

PAGE

MT215DW01 V.3

23/25

⼒ܻક⬾˖

LotNo.: (1T)20XX.XX.XX

60 mm

(4S)LQ215M1LGN2

Quantity : (Q) X pcs

80 mm

(a) Sharp Model Name: LQ215M1LGN2 (Sharp assigned)

(b) Lot No.: Year: 0~9, for 2000~2009

Month: 1~9 & A~C for Jan.~Dec.

Date: 1~9 & A~Z (exclude I, O, Q, U) for 1st~31th

(c) Packing quantity: 8pcs

(1) Front view

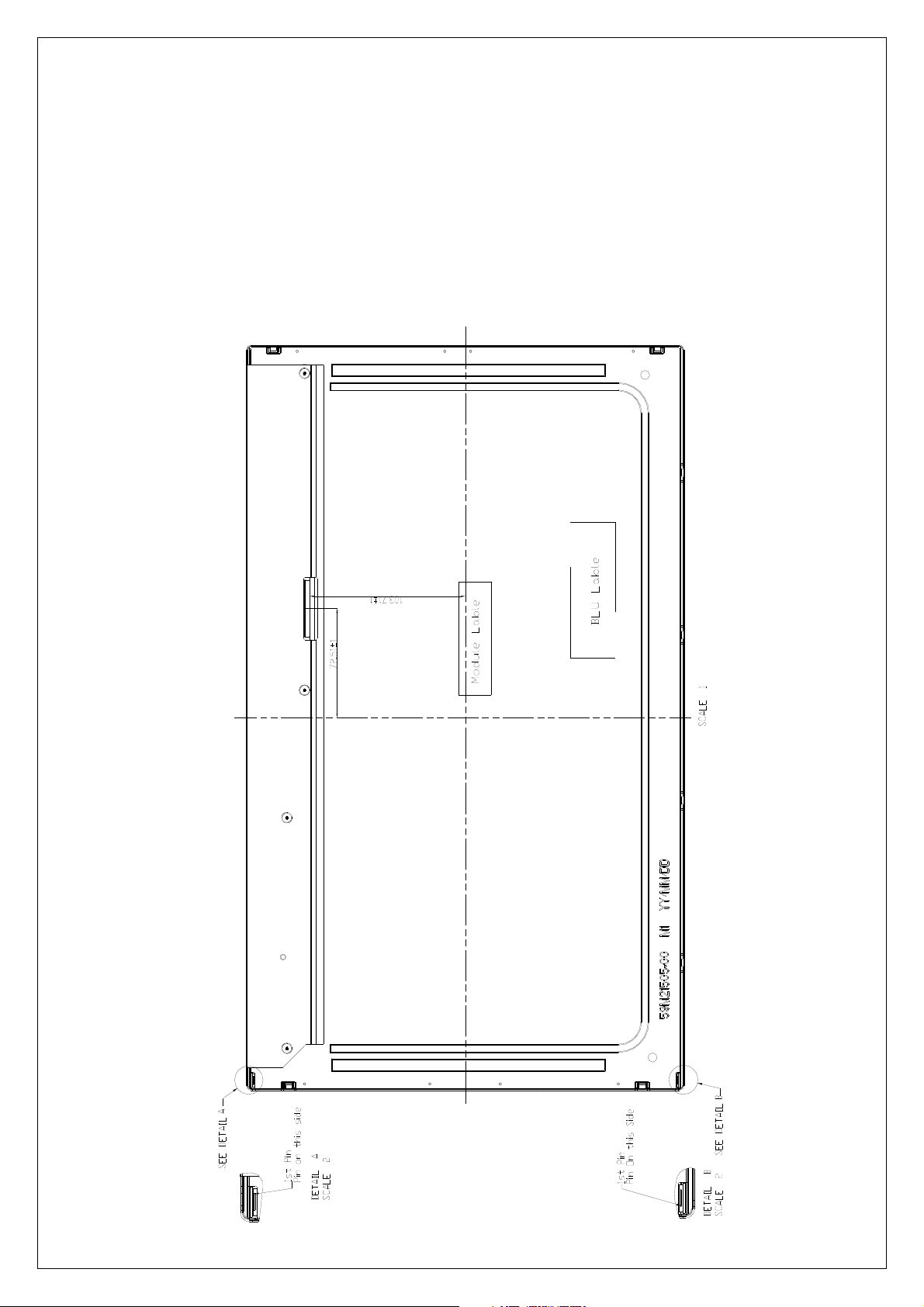

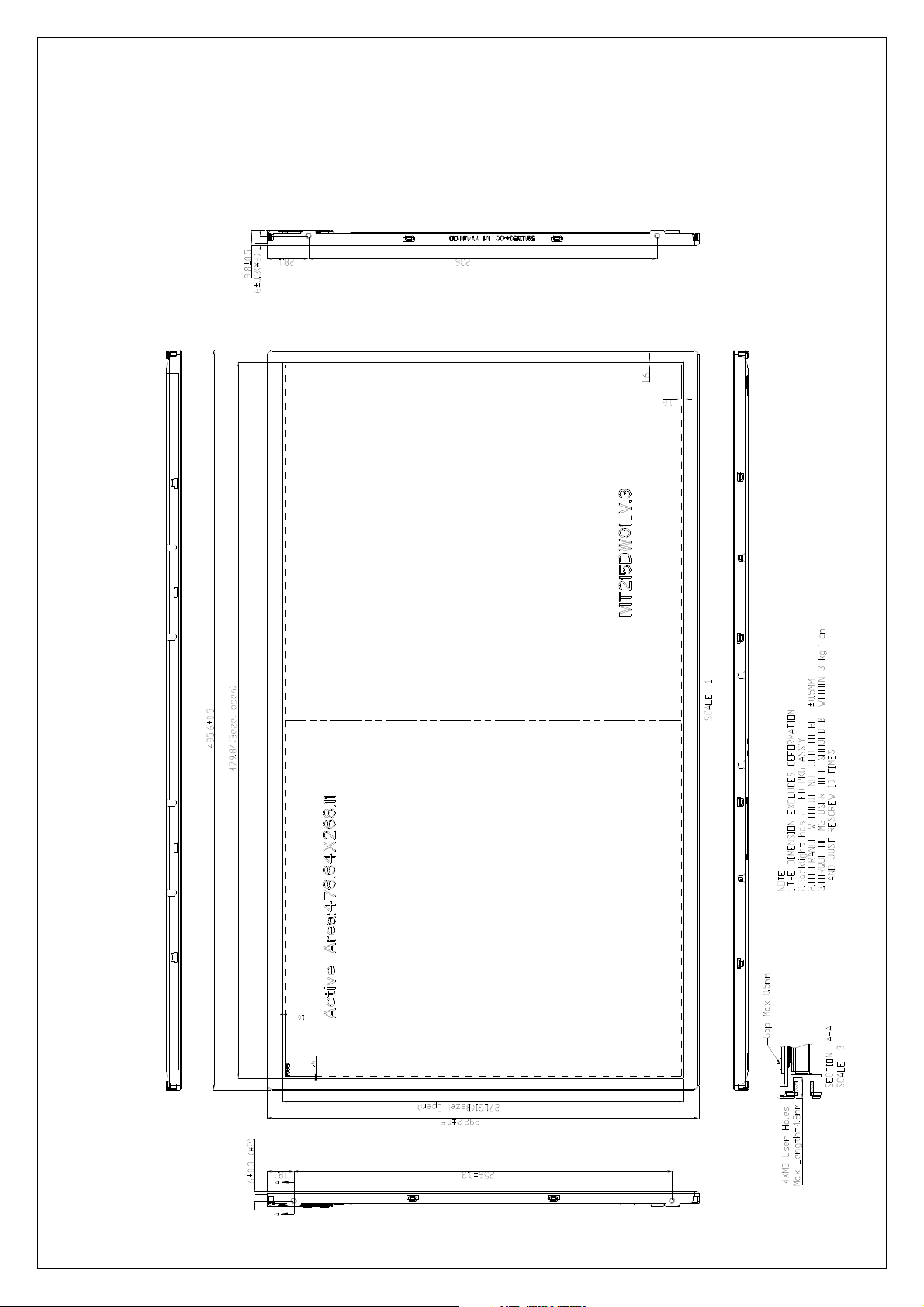

I. ME Drawing

(2) Back view

INNOLUX MT215DW01 V.3 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
