INNOLUX MT190AW02 V.Y Specification

SPEC NO. PAGE

Version: 4.0

Record of Revision

Version Revise Date Page Content

MT190AW02 V.Y 2/23

1.0 2008/12/25

2.0 2009/4/14 4 Add Halogen free compliance 10 Add T6 maximum value(10ms)

3.0 2009/6/17 10 Update T6 maximum value from 10ms to 50ms

4.0 2009/10/22 8 Update Power Input Ripple Max. value from 0.15V to 0.2V

12 Update Horizontal Htotal Min. value from 752 to 760

All First edition to all Pre-Spec.

SPEC NO.

PAGE

MT190AW02 V.Y

3/23

Contents:

A. General Specification

B. Electrical Specifications

1. Pin assignment

2. Absolute maximum ratings

3. Electrical characteristics

a. Typical operating conditions

b. Display color vs. input data signals

c. Input signal timing

d. Display position

e. Backlight driving conditions

C. Optical specifications

D. Reliability test items

E. Safety

F. Display quality

G. Handling precaution

H. Label

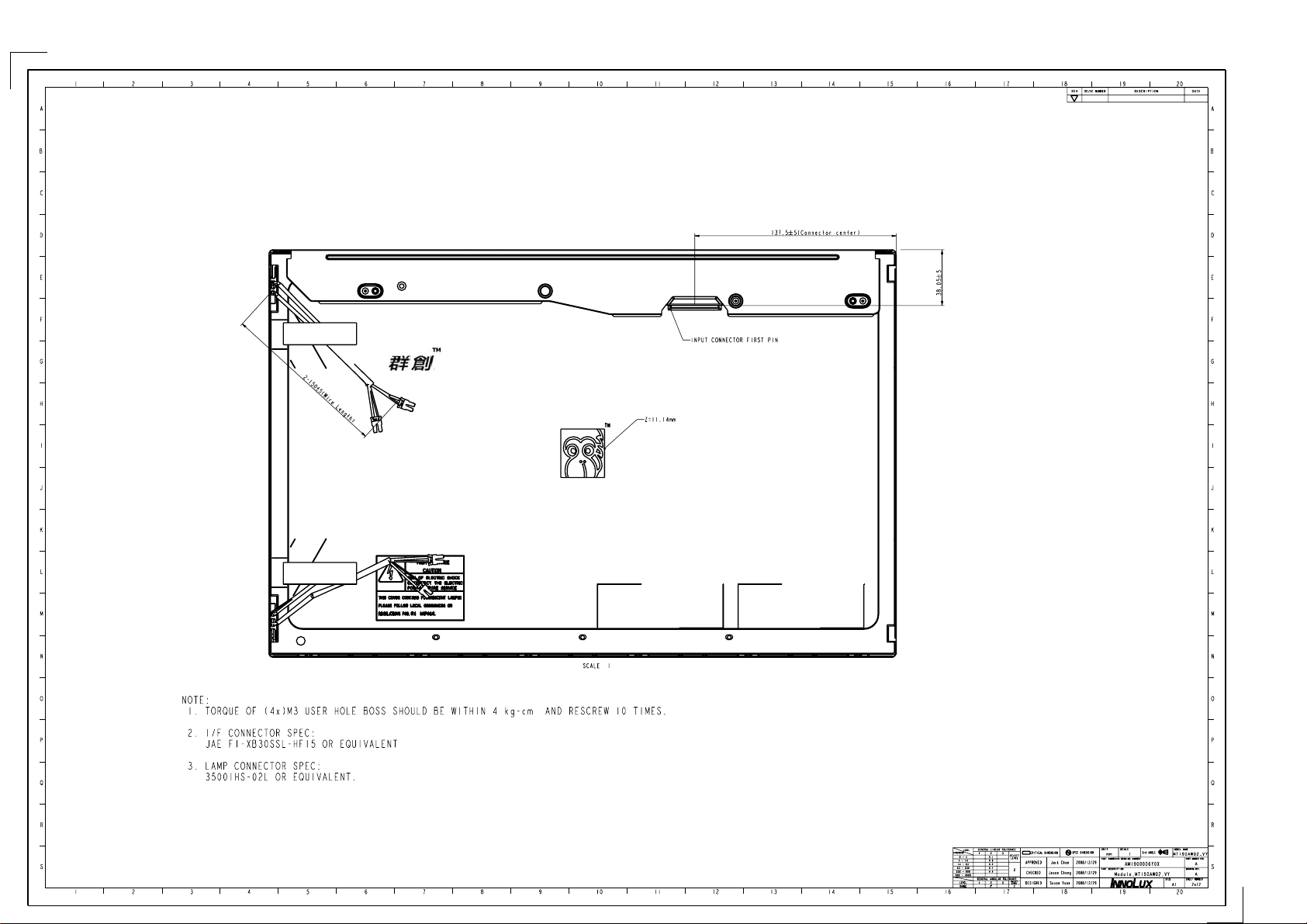

I. Mechanical drawings

Appendix

SPEC NO. PAGE

MT190AW02 V.Y 4/23

A．General specification

NO. Item Specification Remark

1 Display resolution (pixel)

2 Active area (mm)

3 Screen size (inch)

4 Pixel pitch (mm)

5 Color configuration

6 Overall dimension (mm)

7 Weight (g)

8 Surface treatment

9 Input color signal

10 Display colors

11 Color saturation

1,440(H) X 900(V), WXGA+ resolution

408.24(H) X 255.15(V)

19 inches diagonal

0.2835(H) X 0.2835(V)

R, G, B vertical stripe

428 (W) X 278 (H) X 16.5 (D) (Max)

2200 (max)

Anti-Glare, Haze=25%, Hard coating (3H) Note 1

8 bit LVDS

16.7M (6 bit with Hi-FRC)

72% NTSC

12 Optimum viewing direction

13 Backlight

14 RoHS & Halogen free

15 TCO’03

Note 1：Glare Option available Note 2：Only Anti-Glare model can meet TCO’03 compliance

6 o’clock

4 CCFL

RoHS & Halogen free compliance

TCO’03 compliance Note 2

SPEC NO.

PAGE

B. Electrical specifications

1.Pin assignment

Connector

FOXCONN GS23302-0311S-7F or mechanical interface equivalent connector.

Pin No Symbol Description

Frame VSS Ground

1 RXinO0- -LVDS differential data input, Chan 0-Odd 2 RXinO0+ +LVDS differential data input, Chan 0-Odd 3 RXinO1- -LVDS differential data input, Chan 1-Odd 4 RXinO1+ +LVDS differential data input, Chan 1-Odd 5 RXinO2- -LVDS differential data input, Chan 2-Odd 6 RXinO2+ +LVDS differential data input, Chan 2-Odd 7 VSS Ground

MT190AW02 V.Y

5/23

8 RXOC- -LVDS differential Clock input (Odd)

9 RXOC+ +LVDS differential Clock input (Odd) 10 RXinO3- -LVDS differential data input, Chan 3-Odd 11 RXinO3+ +LVDS differential data input, Chan 3-Odd 12 RXinE0- -LVDS differential data input, Chan 0-Even 13 RXinE0+ +LVDS differential data input, Chan 0-Even 14 VSS Ground 15 RXinE1- -LVDS differential data input, Chan 1-Even 16 RXinE1+ +LVDS differential data input, Chan 1-Even 17 VSS Ground 18 RXinE2- -LVDS differential data input, Chan 2-Even 19 RXinE2+ +LVDS differential data input, Chan 2-Even 20 RXEC- -LVDS differential Clock input (Even) 21 RXEC+ +LVDS differential Clock input (Even) 22 RXinE3- -LVDS differential data input, Chan 3-Even 23 RXinE3+ +LVDS differential data input, Chan 3-Even 24 VSS Ground 25 NC No Connection 26 NC No Connection 27 NC No Connection 28 VCC +5.0V power supply 29 VCC +5.0V power supply 30 VCC +5.0V power supply

Frame VSS Ground

SPEC NO.

PAGE

MT190AW02 V.Y

6/23

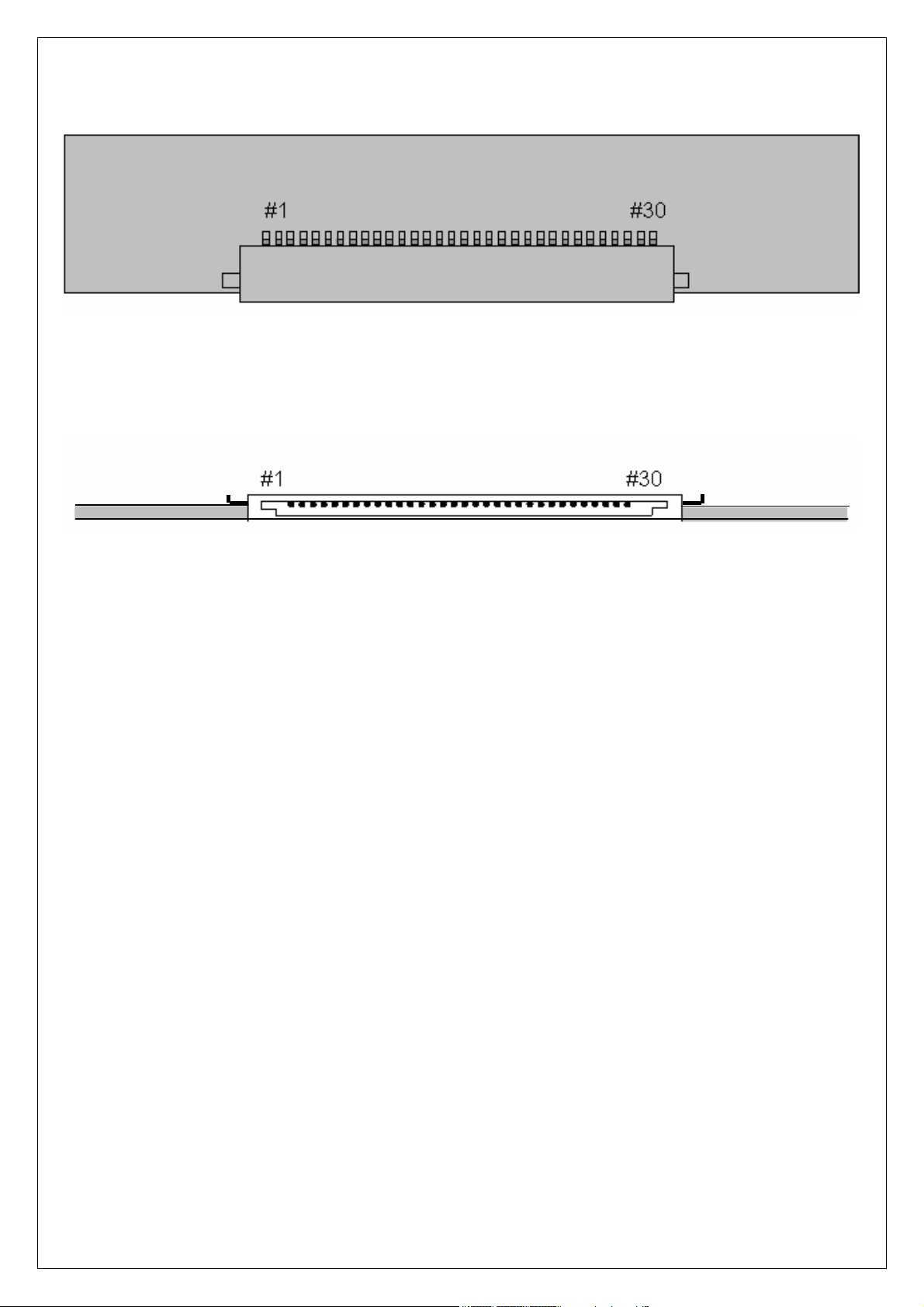

Top view of LVDS connector

Rear view of LVDS connector

2. Absolute maximum ratings

SPEC NO.

PAGE

MT190AW02 V.Y

7/23

Parameter Symbol

Min.

Power voltage Vcc

Input signal voltage VLH

Operating temperature Top

Storage temperature TST

CCFL Current ICFL 2.0 7.0 7.5 [mA]

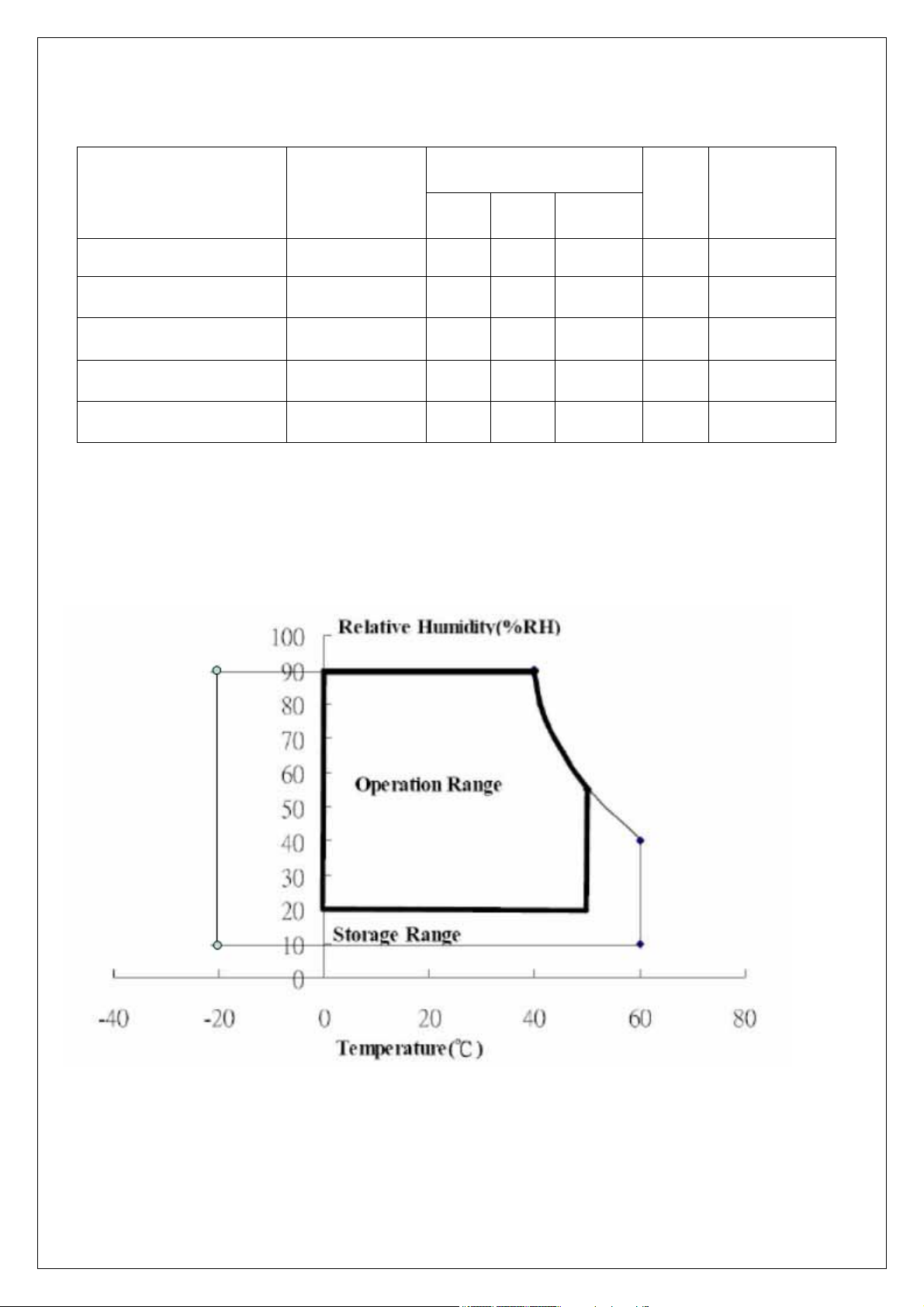

Note 1: The relative humidity must not exceed 90% non-condensing at temperatures of 40°C or less.

At temperatures greater than 40°C, the wet bulb temperature must not exceed 39°C.

Note 2: The unit should not be exposed to corrosive chemicals.

-0.3 -

0 -

-20 -

Values

Typ .

Max.

6.0 V At 25°C

4.3 V At 25°C

50 °C Note 1

60 °C Note 2

Unit

Remark

3. Electrical characteristics a. Typical operating conditions

Item Symbol Min. Typ. Max. Unit Remark

SPEC NO.

PAGE

MT190AW02 V.Y

8/23

Input Voltage

Permissive Power Input Ripple

Input Current

Rush Current

Logic Input

Voltage

LVD S:

IN+, IN-

Common Mode Voltage

Differential Input Voltage

Threshold Voltage (High)

Threshold Voltage (Low)

Black

White

Mosaic

V

cc

V

RF

4.5 5 5.5

- -

0.2

Icc - 700 1000

Icc - 500 700

I

cc

I

- 1.6 3

Rush

- 700 1000

VCM - 1.2 -

VID 100 - 600

VTH - - 100

VTL -100 - -

V

Note 1

mA

A Note 4

V

mV

mV Note 5

Note 2

Note 3

Note 1 : The specified current is under the Vcc =5V, 25 °C, fv=60Hz (frame frequency) condition

whereas black pattern is displayed.

Note 2 : The specified current is under the Vcc =5V, 25 °C, fv=60Hz (frame frequency) condition

whereas white pattern is displayed.

Note 3 : The specified current is under the Vcc =5V, 25 °C, fv=60Hz (frame frequency) condition

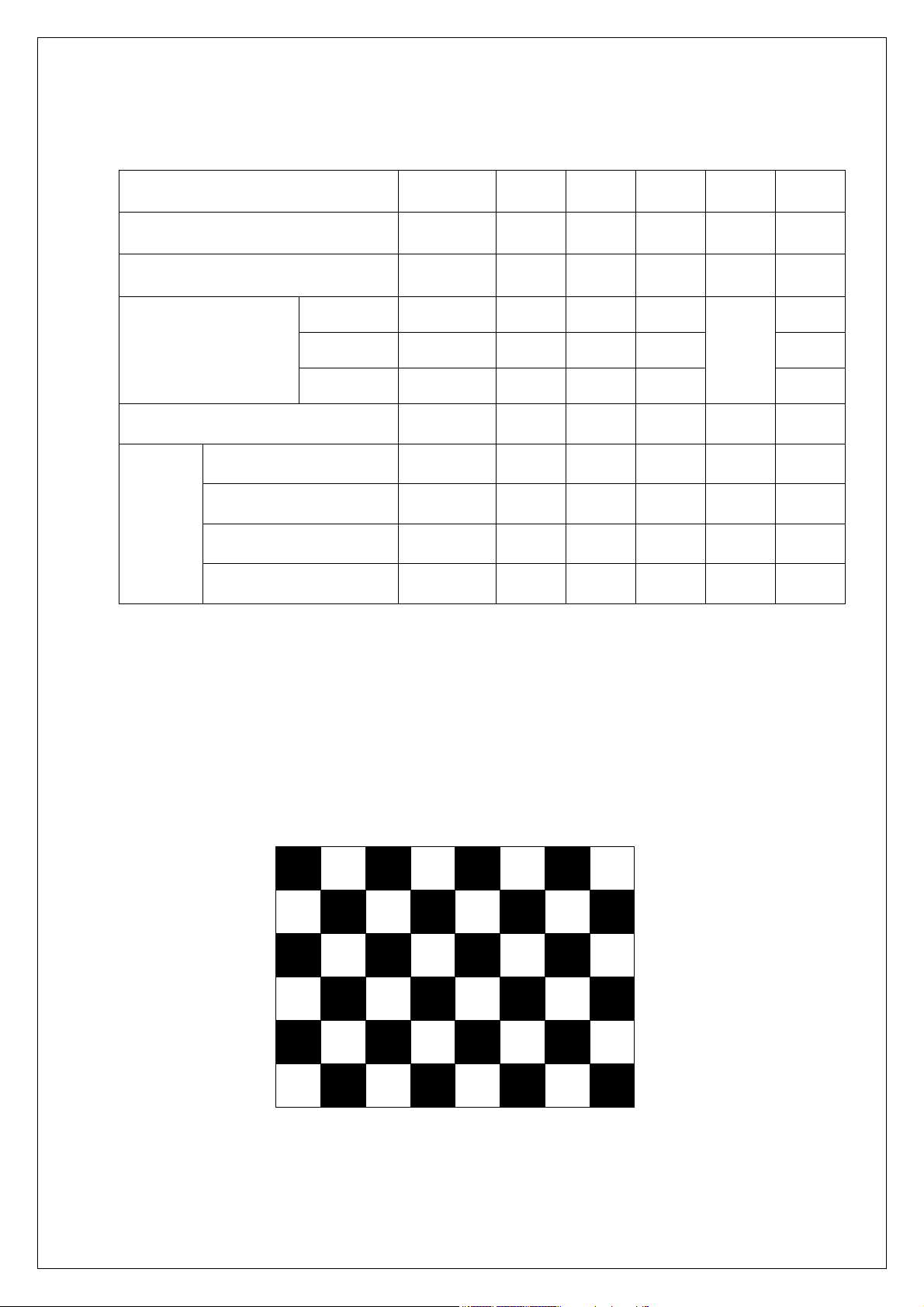

whereas mosaic pattern(black & white [8*6] ) is displayed.

White : 255 Gray

Black : 0 Gray

Note 4 : test condition :‘

SPEC NO.

PAGE

MT190AW02 V.Y

9/23

(1) V

= 5 V, VDD rising time = 470

DD

(2) Pattern: Mosaic pattern

%

90

10%

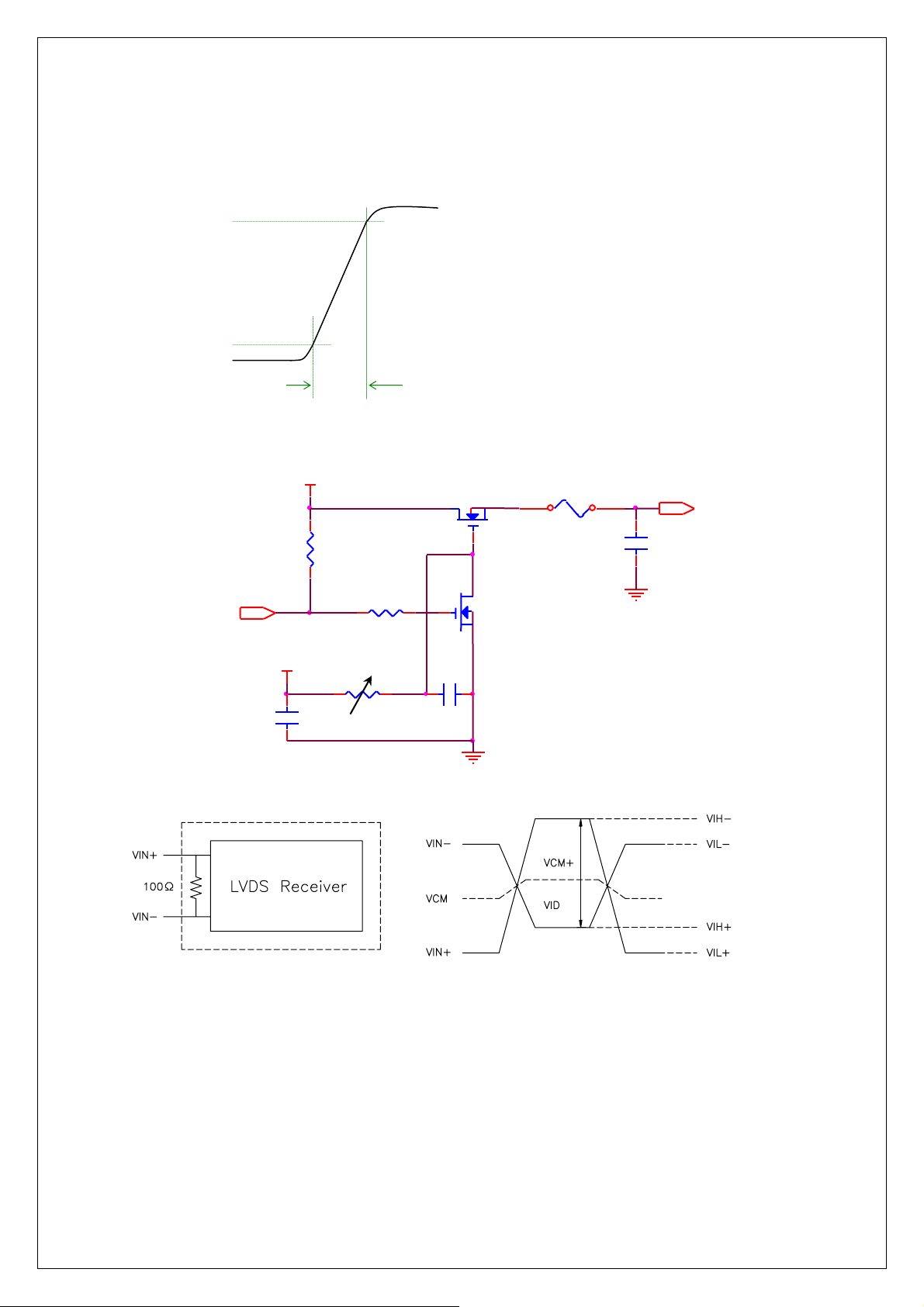

(3) Test circuit

CONTROL SIGNAL

(HIGH to LOW)

12V

µ

s ± 10%

V

DD

C2

μ

s ± 10%

M1 2SK1059

M2 2SK1399

FUSE

C1 1uF

VDD (

LCD INPUT)

Ton=470

5 V

R1 47K

R2

1K

R3

Note 5: LVDS signal definition

VIN+ = Positive differential DATA & CLK Input

VIN- = Negative differential DATA & CLK Input

VID = VIN+ – VIN- ,

∆VCM =｜VCM+–VCM-｜,

∆VID =｜VID+–VID-｜,

VID+ =｜VIH

VID- =｜VIL

–VIH-｜,

+

–VIL-｜,

+

C3 1uF

47K

10000pF

VCM = (VIN

VCM+ = (VIH

VCM- = (VIL

+VIN-)/2,

+

+VIH-)/2,

+

+VIL-)/2,

+

SPEC NO.

PAGE

MT190AW02 V.Y

10/23

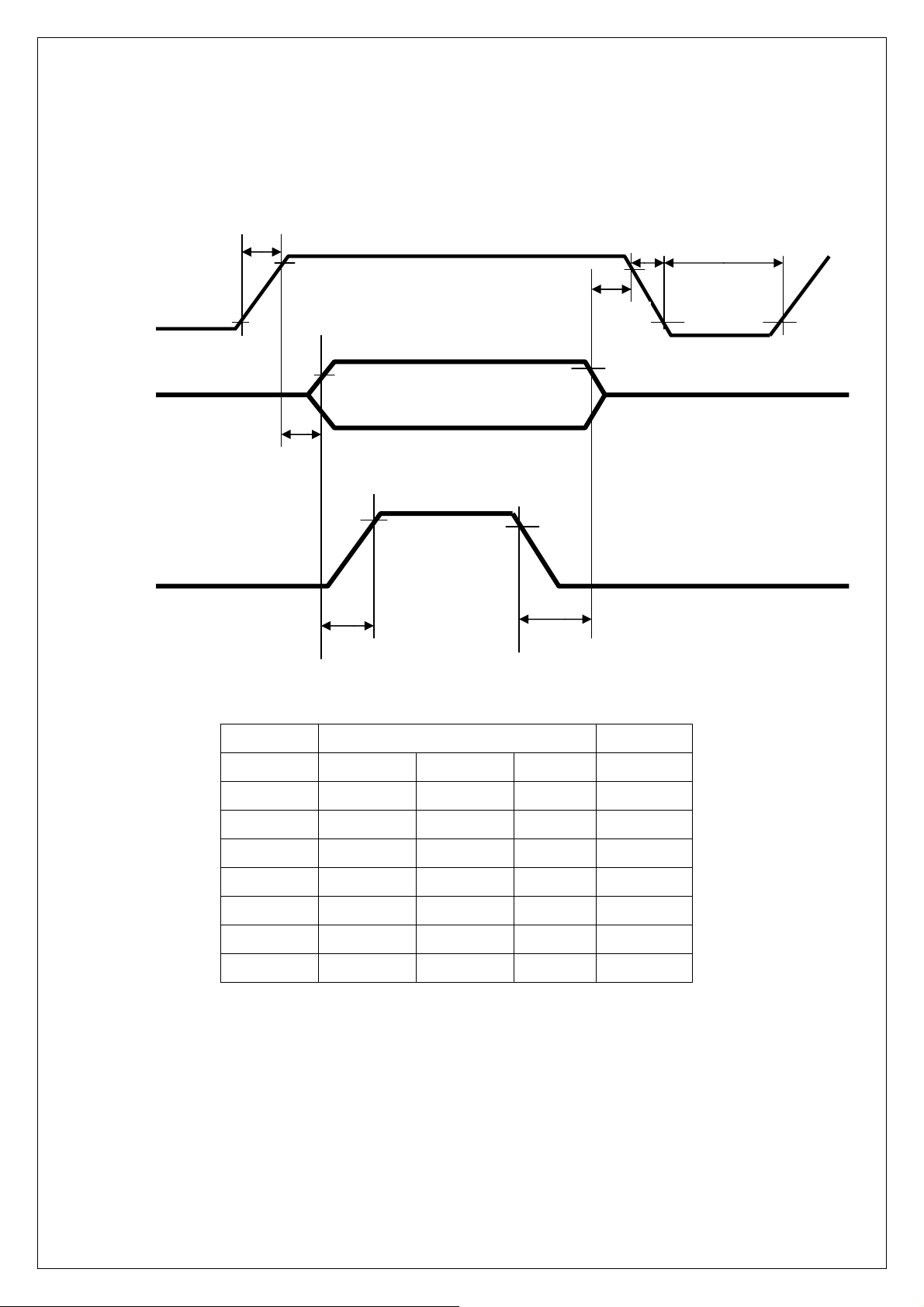

Note 6 : Power on sequence for LCD V

T1

Panel Power

Supply V

DC

90%

10%

90% 90%

Interface

Signals

T2

Backlight Power

Supply

DD

Valid Interface Data

90%

T5

T6

10%

T7

10%

T3 T4

Parameter Value Unit

Min Typ Max ms

T1 0.1 - 10 ms

T2 0 30 50 ms

T3 200 250 - ms

T4 100 250 - ms

T5 0 20 50 ms

T6 0.1 - 50 ms

T7 1000 - - ms

SPEC NO.

PAGE

MT190AW02 V.Y

11/23

b. Display color vs. input data signals

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

Color

MSB LSB MSB LSB MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0

Red Green Blue

Input color data

G7 G6 G5 G4 G3 G2 G1 G0

B7 B6 B5 B4 B3 B2 B1 B0

Basic colors

Black Red(255) Green(255) Blue(255) Cyan Magenta Yellow White

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

Red

Green

Red(000) dark Red(001) Red(002)

:

Red(253) Red(254) Red(255) bright

Green(000)dark Green(001) Green(002)

:

Green(253) Green(254) Green(255)

bright

0

:

1

0

:

0

:

0

1

0

:

0

1

0

:

0

1

0

:

1

0

1

0

:

0 0 0

:

1

0

:

1

0

0 0 0

:

0 0 0

:

1 1 1

0

:

0

1

0

:

0

1

0

1

0

:

0

:

0

:

0

:

0

Blue(000) dark Blue(001) Blue(002)

Blue

Blue(253) Blue(254) Blue(255) bright

0

:

0

:

0

:

0

:

0

0 0 0

:

0 0 0

0

1

0

:

0

1

0

1

0

1

0

1

:

1

0

1

SPEC NO.

PAGE

MT190AW02 V.Y

12/23

c. Input signal timing Support Input Timing Table

Item Description Min. Typ. Max. Unit

Dclk

period 17.24 22.5 27 nS Clock

frequency 37 44.4 58 MHz

Vertic al

T

V_TOTAL

T

V total line number 905 926 942 T

Data duration

V_DATA

－

900

TVB V-blank 5 26

－

H_TOTAL

T

H_TOTAL

T

H_TOTAL

fV frequency 50 60 75 Hz

Horizontal

T

H_TOTAL

T

H total pixel number 760 800 968 DClk

Data duration

H_DATA

H-blank 32 80

T

HB

－

720

－

DClk

Note: Because this module is operated by DE only mode, Hsync and Vsync input signals should be set

to low Logic level or ground. Otherwise, this module would operate abnormally.

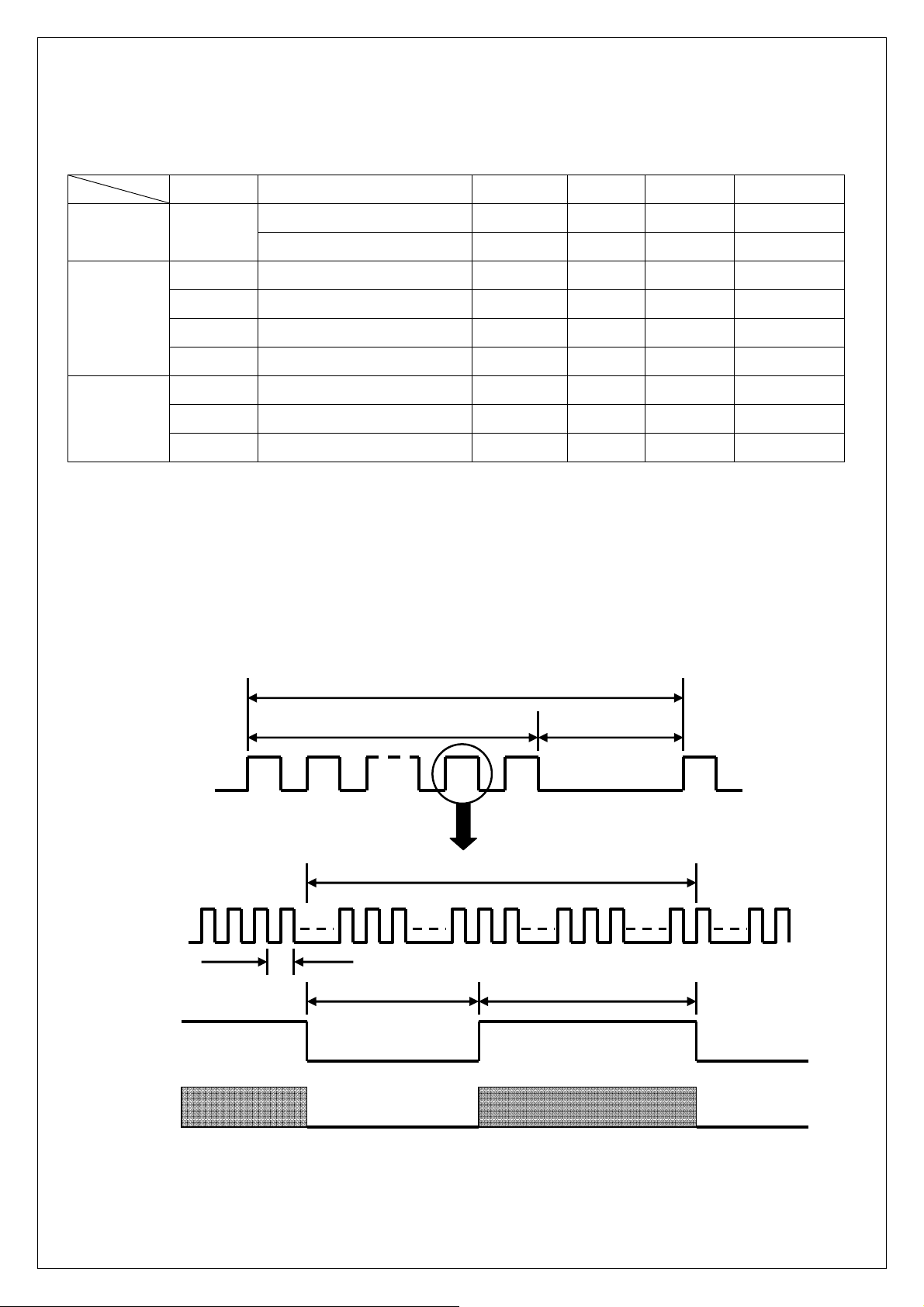

INPUT SIGNAL TIMING DIAGRAM

DE

DCLK

DE

DATA

Tc

Tv

Tvd Tvb

Thb Thd

d. Display Position

D(1, 1) D(2, 1) …… D(720, 1) …… D(1439, 1) D(1440, 1)

SPEC NO.

PAGE

MT190AW02 V.Y

13/23

D(1, 2) D(2, 2) …… D(720, 2) …… D(1439, 2) D(1440, 2)

. . .

D(1, 450) D(2, 450) …… D(720, 450) …… D(1439, 450) D(1440, 450)

. . .

D(1, 899) D(2, 899) …… D(720, 899) …… D(1439, 899) D(1440, 899)

D(1, 900) D(2, 900) …… D(720, 900) …… D(1439, 900) D(1440, 900)

……

. . .

……

. . .

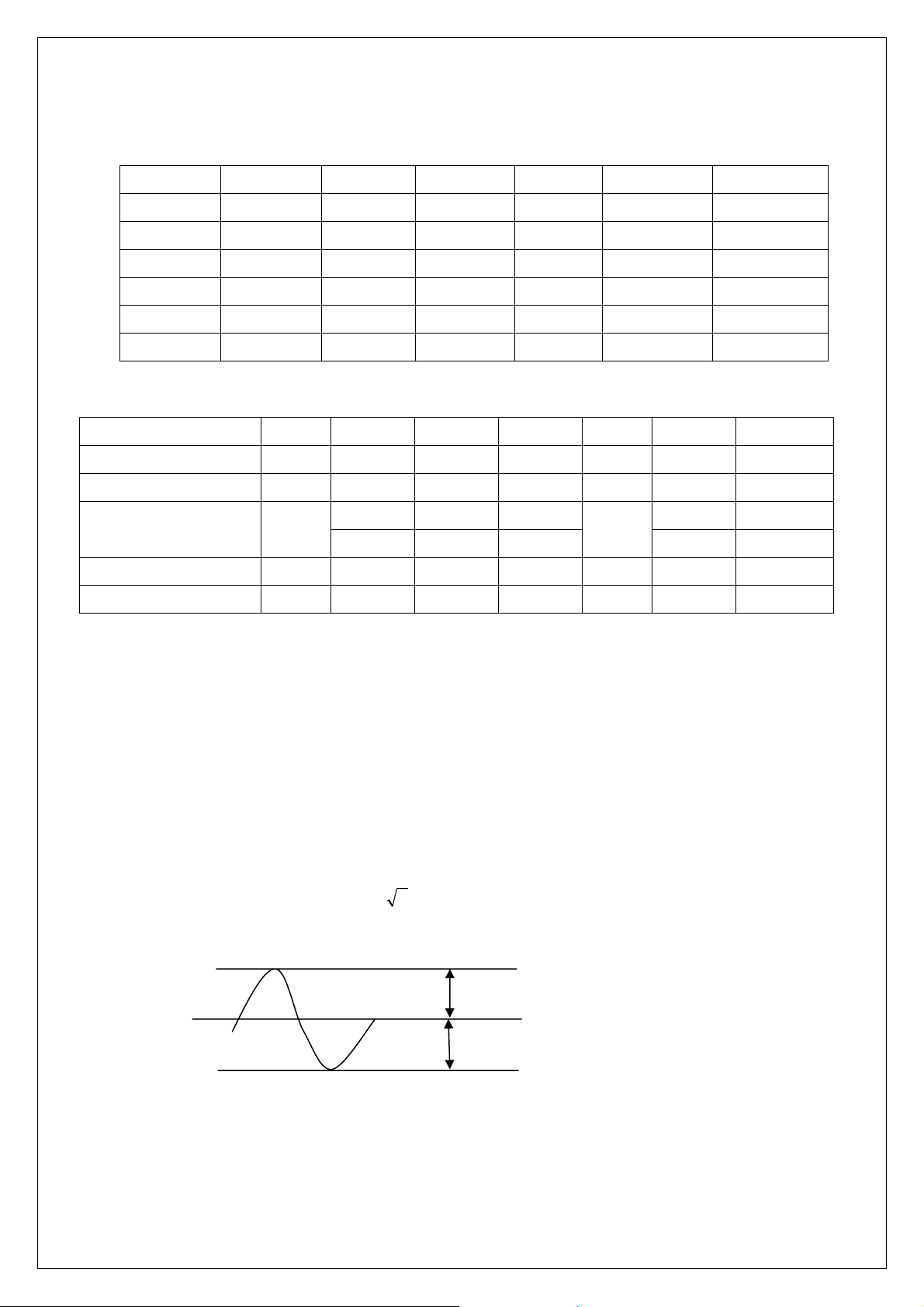

e. Backlight driving conditions

Parameter Symbol Min. Typ. Max. Unit Remark Remark

Lamp voltage VL 660 730 800 Vrms I=7.0mA Note 1

Lamp operation current

Lamp starting voltage VLstart

Frequency F 40 - 60 KHZ Note 6

Lamp life time - 50000 - Hr Note 7

IL 2.0 7.0 7.5 mArms Note 2

1450 - - T = 25°C Note 3,4,5,6

1700 - -

Vrms

T = 0°C Note 3,4,5,6

Note: The waveform of the voltage output of inverter must be area-symmetric and the design of the

inverter must have specifications for the modularized lamp. The performance of the Backlight,

such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter

for the lamp. All the parameters of an inverter should be carefully designed to avoid producing

too much current leakage from high voltage output of the inverter. When designing or ordering

the inverter please make sure that a poor lighting caused by the mismatch of the Backlight and

the inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the

module should be operated in the same manners when it is installed in your instrument.

Note 1: Lamp voltage is specified under

IL = 7.0mArms.

Note 2: The degree of unbalance: less than 10%

The ratio of wave height: less than

The degree of unbalance = |Ip-I-p| /Irms*100(%)

The ratio of wave height = Ip (or I-p)/Irms

10%2 ±

Ip

I-p

Ip: high side peak

I-p: low side peak

Lamp should be completely turned on.

Note 3: Test equipment: AS-114B

Note 4: The voltage shown above should be applied to the lamp for more than 1 second after startup. Otherwise, the lamp may not be turned on normally.

Note 5: Inverter should provide more than min. value, and then lamp could be completely turned on

Note 6: Lamp frequency may produce interference with horizontal synchronous frequency and this may

cause line flow on the display. Therefore lamp frequency shall be detached from the horizontal synchronous frequency and its harmonics as far as possible in order to avoid interference.

Note 7: Life time (Hr) is defined as the time when brightness of a lamp unit itself becomes 50% or less

SPEC NO.

PAGE

MT190AW02 V.Y

14/23

than its original value at the condition of Ta = 25±2°C and IL = 7.0mArms.

Backlight connecter: 3500IHS-02L

Pin no. Symbol Function Remark

1 VIH Lamp high voltage input Cable color: Pink

2 VIL Lamp low voltage input Cable color: White

3 VIH Lamp high voltage input Cable color: Blue

4 VIL Lamp low voltage input Cable color: Black

yp

C. Optical specifications

SPEC NO.

PAGE

MT190AW02 V.Y

15/23

Item Symbol Condition

Response time

Contrast ratio

Viewing angle

Tr

Tf

Tr+Tf

CR

Top

Bottom

Left

Right

= 0

θ

∘

= 0∘

θ

CR≧10

Specification

Min. T

- 1.5 4

- 3.5 6

- 5 10

700 1000 -

70 80 -

75 85 -

.Max.

Unit Remark

ms Note 4

deg. Note 3,5,7

Note 3,5

Brightness (Center)

Wx

Color chromaticity(CIE)

Wy

White uniformity (9) δW

Cross talk Ct

YL

Rx

Ry

Gx

Gy

Bx

By

θ

= 0∘

250 300 -

0.313

0.329

0.640

-0.03

0.75 0.80 -

- - 2%

0.349

0.284

0.617

0.142

0.067

+0.03

nit Note 3,6

Note 3

Note 3,8

Note 9

Note 1: Ambient temperature = 25°C. Note 2: To be measured in dark room after backlight warm up 30 minutes. Note 3: To be measured with a viewing cone of 2°by Topcon luminance meter BM-5A.

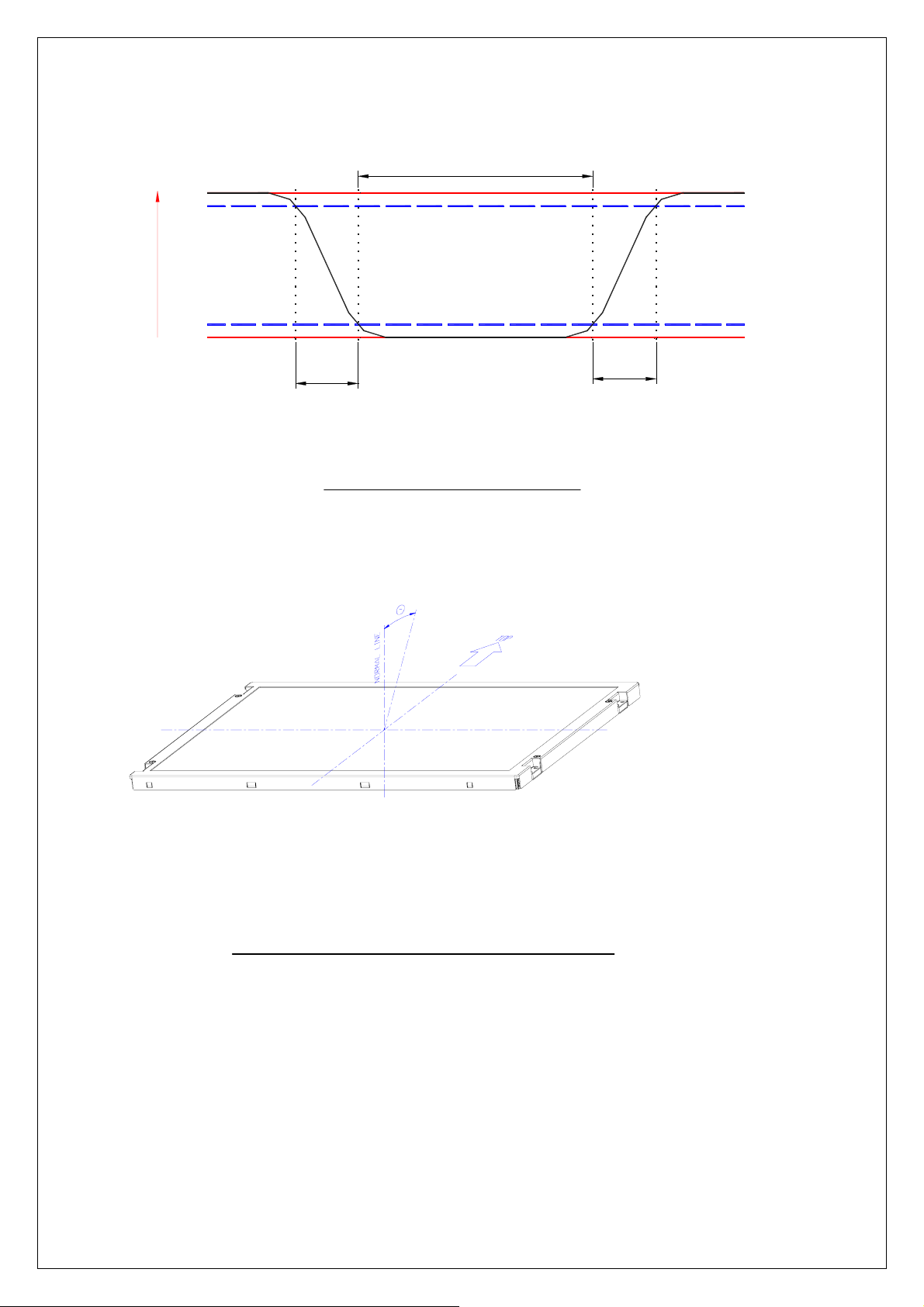

Note 4: Definition of response time:

The output signals of BM-7 are measured when the input signals are changed from “Black”

to “White” (falling time) and from “White” to “Black” (rising time), respectively. The response time

interval is between the 10% and 90% of amplitudes. Refer to figure as below.

SPEC NO.

PAGE

MT190AW02 V.Y

16/23

100%

S i

90%

g n a l

(

R e

l

a t

i

v e

v a l

u

10%

e )

0%

Note 5: Definition of contrast ratio:

Contrast ratio is calculated by the following formula.

Contrast ratio (CR)=

Note 6: Driving conditions for CCFL: I

Note 7: Definition of viewing angle

"Black"

Tr

Brightness on the "white" state Brightness on the "black" state

= 7.0 mA, 50 KHz Frequency.

L

"White""White"

Tf

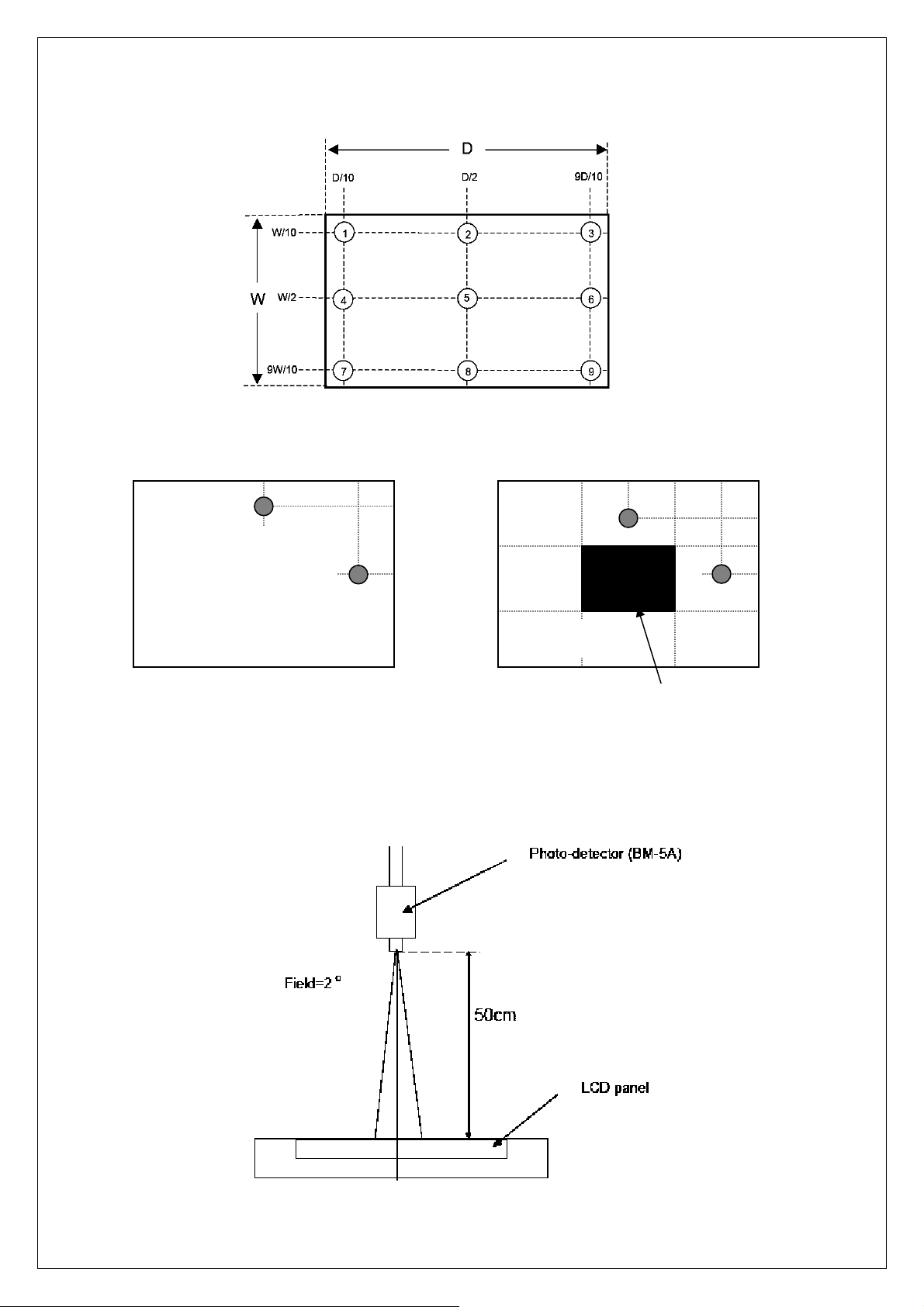

Note 8: Definition white uniformity:

Luminance are measured at the following nine points (P1~P9).

δ

Minimum Brightness of nine points(P1~P9).

=

Maximum Brightness of nine points (P1~P9).

Note 9:

SPEC NO.

1/2

1/6

PAGE

2/3 1/3

A

1/6

A’

127 gray level 127 gray level

B

1/2

MT190AW02 V.Y

17/23

1/6

1/6 1/3

1/2

B’

2/3

l LA-LA’ l / LA x 100%= 2% max., LA and LA’ are brightness at location A and A’

l LB-LB’ l / LB x 100%= 2% max., LB and LB’ are brightness at location B and B’

Note 10: Optical characteristic measurement setup.

0 gray level

D. Reliability test items

Test Item Test Condition Judgment Remark

SPEC NO.

PAGE

MT190AW02 V.Y

18/23

High temperature storage

Low temperature storage

High temperature & high

humidity operation

High temperature operation

Low temperature operation

Thermal Shock

(non-operation)

Electrostatic discharge (ESD)

Vibration

(non-operation)

60°C, 240Hrs

-20°C, 240Hrs

40°C, 90%RH, 240Hrs

(No condensation)

50°C, 240Hrs

0°C, 240Hrs

-20°C~60°C

1Hr, 1Hr, 100cycles

Contact:+/-8kV, 150pF(330ohms), 16 points,

10 times/1 point, 1 time/1 sec

Air discharge:+/-15kV, 150pF(330ohms),

9points, 10 times/1 point, 1 time/1 sec

Vibration level : 1.5G

Bandwidth : 10-300Hz

Note 1 Note 2

Mechanical Shock

(non-operation)

MTBF Demonstration 50,000 hours (Typ.) with confidence level 90% Note 1 Note 3

Waveform : sine wave,

sweep rate : 10min

30 min for each direction X, Y, Z

(1.5 Hrs in total)

Shock level : 50G, 11ms

Waveform : Half sine wave

Direction : ±X, ±Y, ±Z

One time each direction

Note 1 Note 2

Note1: Pass: Normal display image with no obvious non-uniformity and no line defect.

Partial transformation of the module parts should be ignored.

Fail: No display image, obvious non-uniformity, or line defects.

Note2: Evaluation should be tested after storage at room temperature for one hour.

Note 3: The MTBF calculation is based on the assumption that the failure rate distribution meets the

Exponential Model (CCFL excluded)

SPEC NO.

PAGE

MT190AW02 V.Y

19/23

E. Safety

(1) Sharp Edge Requirements

There will be no sharp edges or corners on the display assembly that could cause injury.

(2) Materials

a. Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic materials are

used, they will be reviewed and approved by the responsible InnoLux Toxicologist.

b. Flammability

All components including electrical components that do not meet the flammability grade UL94-V1 in

the module will complete the flammability rating exception approval process. The printed circuit

board will be made from material rated 94-V1 or better. The actual UL flammability rating will be

printed on the printed circuit board.

c. Capacitors

If any polarized capacitors are used in the display assembly, provisions will be made to keep them

from being inserted backwards.

F. Display quality

The display quality of the color TFT-LCD module should be in compliance with the

Innolux’s Incoming inspection standard.

G. Handling precaution

The Handling of the TFT-LCD should be in compliance with the Innolux’s handling principle standard.

m

H. Label

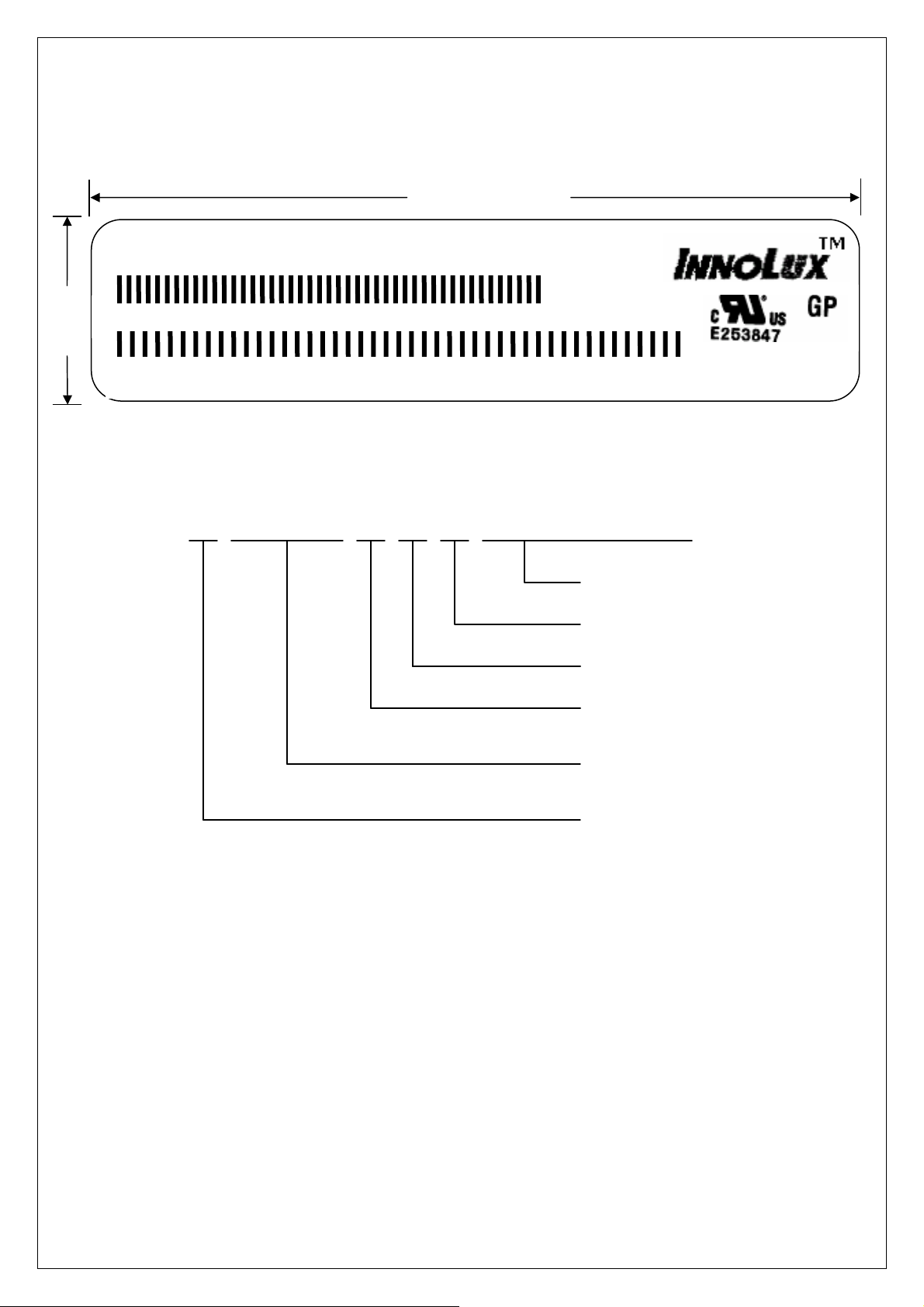

(1) Module Label

SPEC NO.

PAGE

MT190AW02 V.Y

20/23

18 mm

MT190AW02 V.Y AM1900006 Yxx

Z1 Z2 Z3 Z4 Z

Z1 'Z2'-Z3' Z4'Z 5'Z 6'Z7'-Z8' - Z9 '- Z10 '- Z11' Z12'-Z13'-Z14' Z15' -Z16 '-Z17 'Z18' Z19' -Z20'Z21'Z22 ' Z

--Z 7--Z8 Z9 Z10 Z

5 Z 6

(a) Model Number: MT190AW02

(b) Version: V.Y

(c) Serial ID I: Z1 Z2 Z3 Z4 Z 5

73 m

11 Z 12

Z 6

Z 7 Z8 Z

MADE IN XXX

12

9 Z10

'

23

Z

11

Serial No

Code of grade

INL internal use

Serial ID includes the information as below:

1. Manufactured Date: Year: 0~9, for 2000~2009

2. Month: 1~9 & A~C for Jan.~Dec.

3. Date: 1~9 & A~Z (exclude I, O, Q, U) for 1st~31th

4. Code of grade: 1, 2, 3, 5, E

5. Serial No: Module manufacture sequence no

(d) Serial ID II (INL internal use)

INL internal use

Year, Month, Date

INL internal use

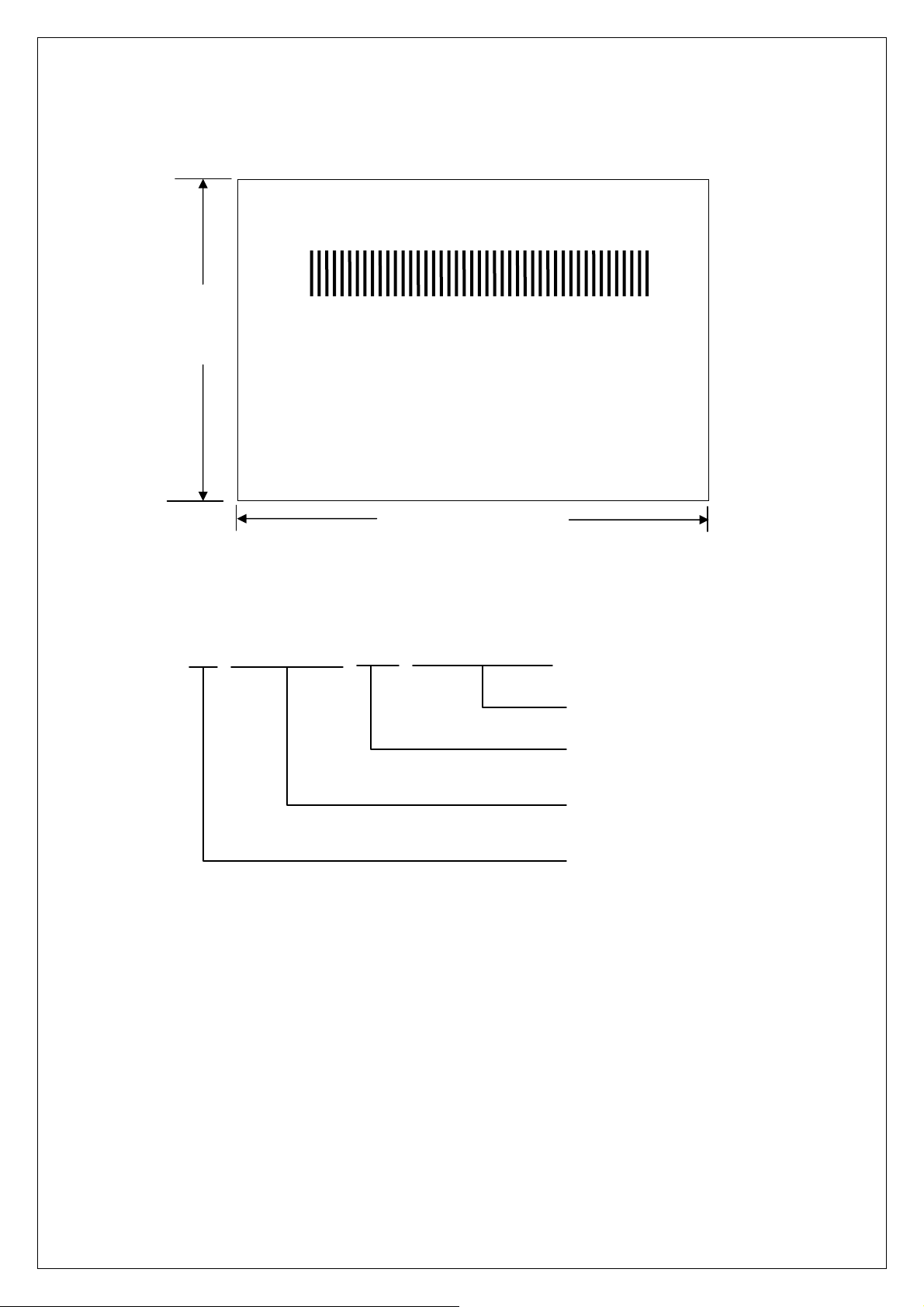

(2) Carton Label

SPEC NO.

PAGE

MT190AW02 V.Y

21/23

INNOLUX DISPLAY

BOX ID :

60 mm

Model No. MT190AW02 V.Y

AM1900006 YXX

Quantity : 7 PCS

MFG Date: 20XX/XX/XX

QC: Made in XXX

100 mm

(a) Model Number: MT190AW02

(b) Version: V.Y

(c) Packing quantity: 7 pcs

Z1 Z2 Z3 Z4 --Z 5--Z6 Z7 Z8 Z 9

(d) Serial ID: Z

Z2 Z3 Z4 Z 5 Z6 Z

1

7 Z8

Z 9

Serial No

Code of grade

Serial ID includes the information as below:

(a) Manufactured Date: Year: 0~9, for 2000~2009

Month: 1~9 & A~C for Jan.~Dec.

Date: 1~9 & A~Z (exclude I, O, Q, U) for 1st~31th

(b) Code of grade: 1,2, 3, 5, E

(c) Serial No: Module packing sequence no

Year, Month, Date

INL internal use

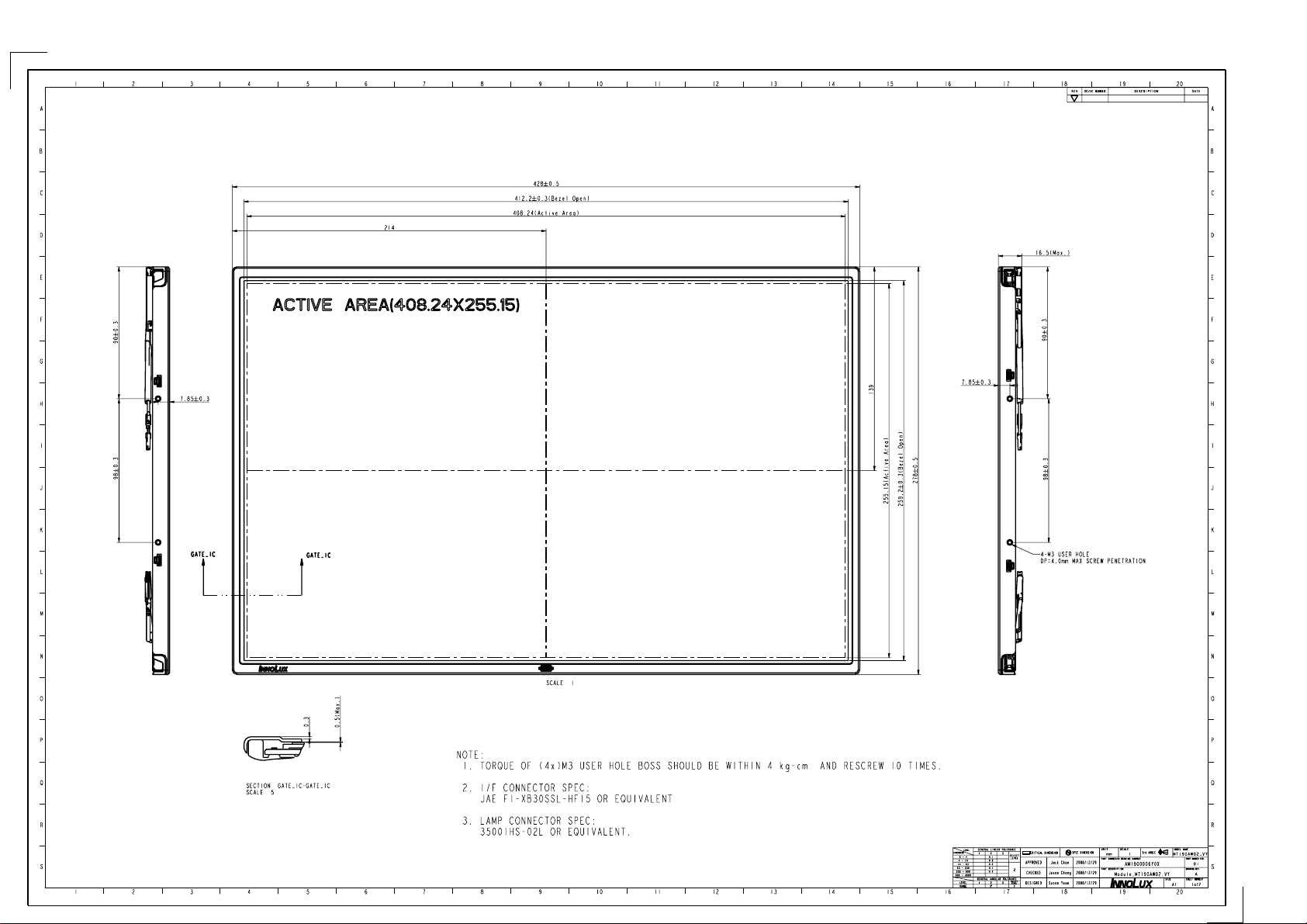

I. Mechanical drawing

INNOLUX MT190AW02 V.Y Specification

Specifications and Main Features
