INNOLUX MT190AW02 V.W Specification

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

Customer

Century

Prepared by

Prepared by

Approved by

Approved by

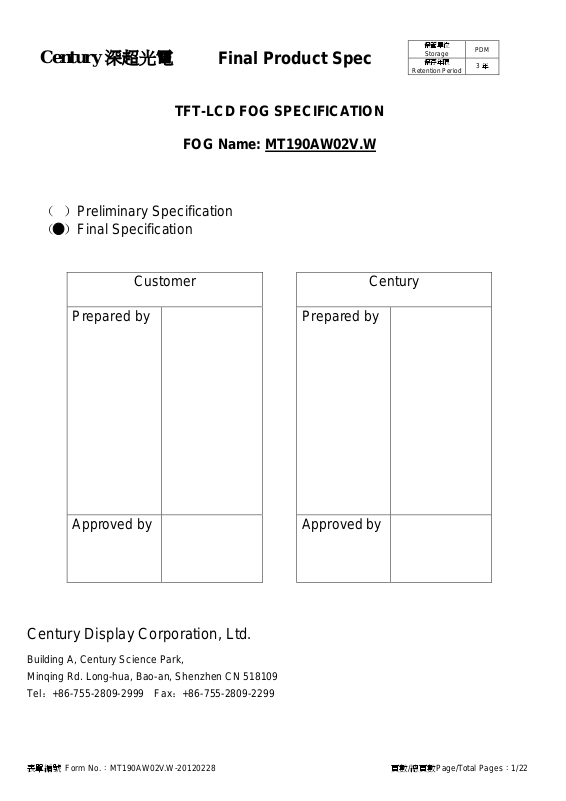

TFT-LCD FOG SPECIFICATION

FOG Name: MT190AW02V.W

（ ）Preliminary Specification
（ ）Final Specification

Century Display Corporation, Ltd.

Building A, Century Science Park,
Minqing Rd. Long-hua, Bao-an, Shenzhen CN 518109
Tel：[phone] Fax：[phone]

表單編號 Form No.：MT190AW02V.W-20120228 頁數/總頁數Page/Total Pages：1/22

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

Revision

Description

Page

Revision Date

1.0

First Revision

22

2012/02/28

2.0

Normal POL change optical SPEC.

13

2012/7/14

REVISION STATUS

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：2/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

Contents

Page

A. General Specification

4

B. Electrical Specifications

5

1. Pin assignment

5

2. Absolute maximum ratings

6

3. Electrical characteristics

7

a. Typical operating conditions

7

b. Display color vs. input data signals

10

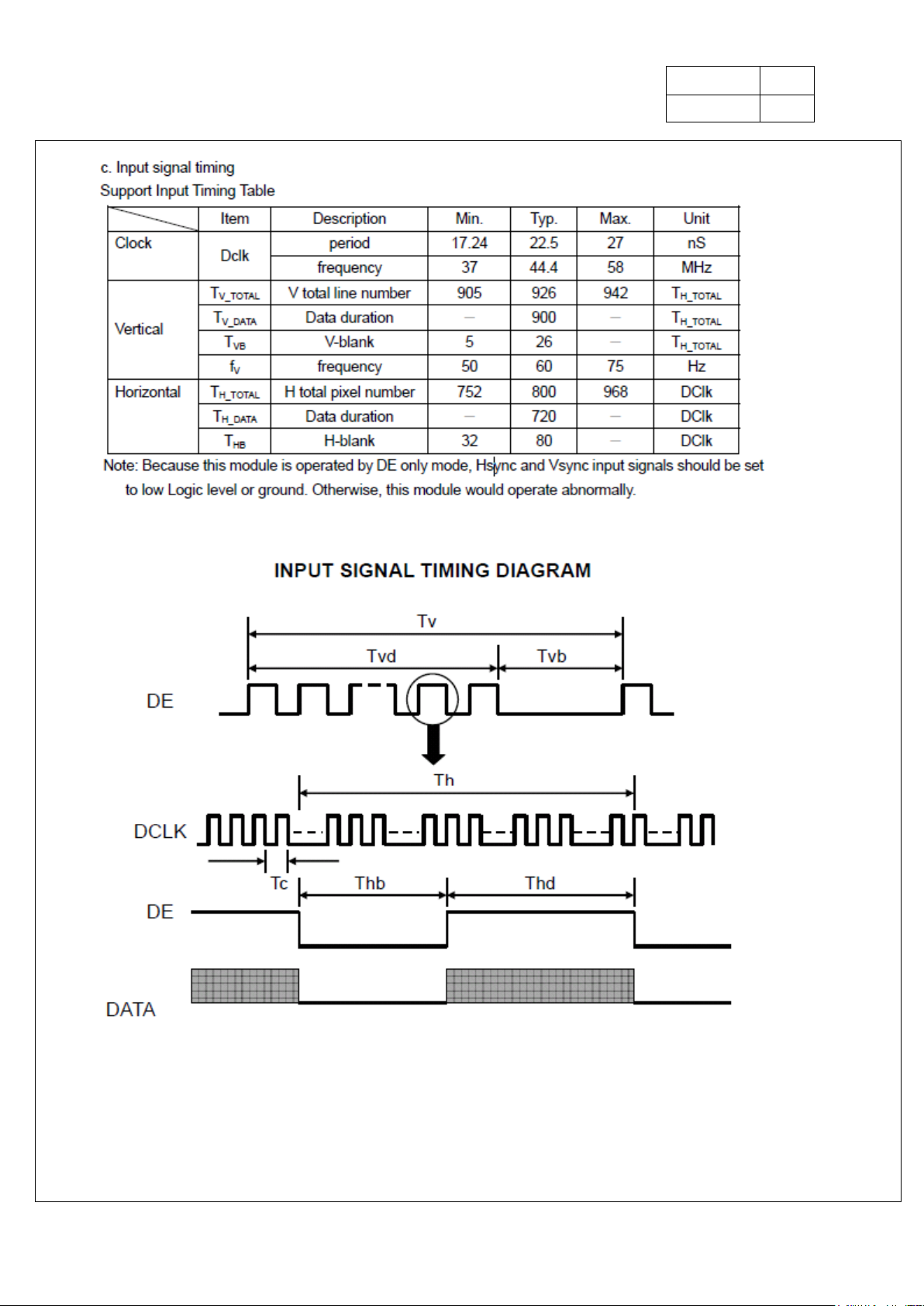

c. Input signal timing

11

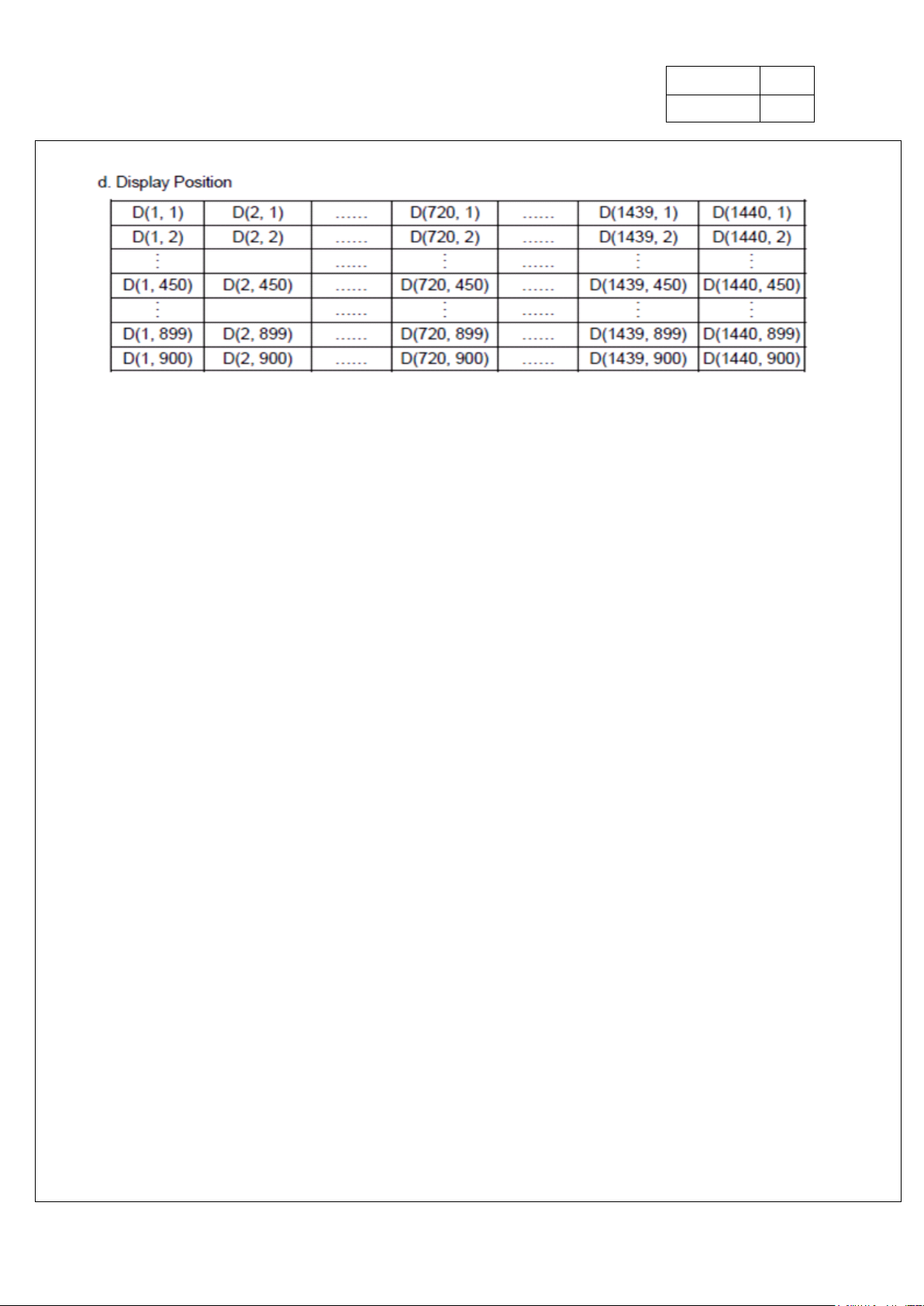

d. Display position

12

C. Optical specifications

13

D. Reliability test items

17

E. Safety

18

F. Display quality

18

G. Handling precaution

18

H. Label

19

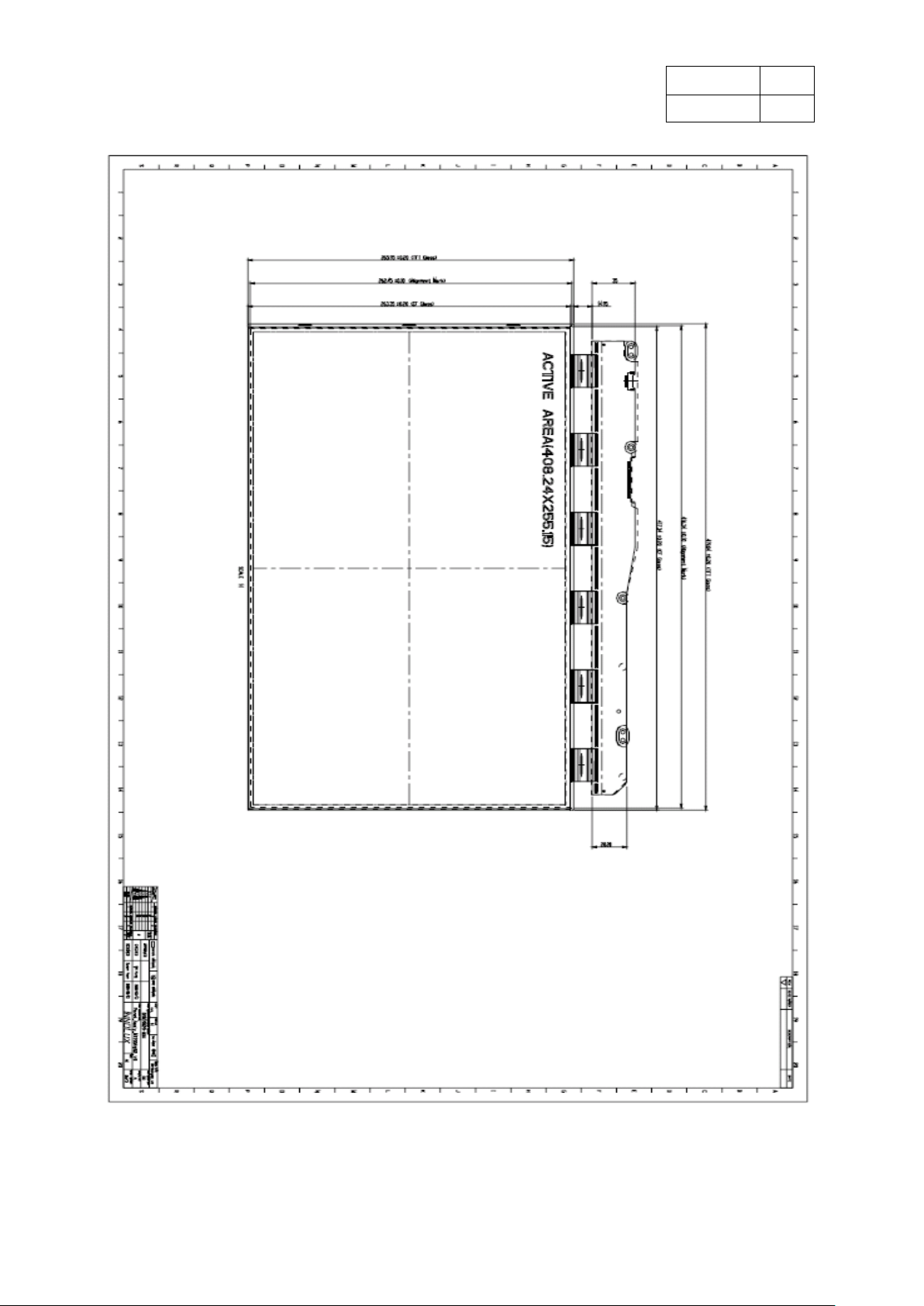

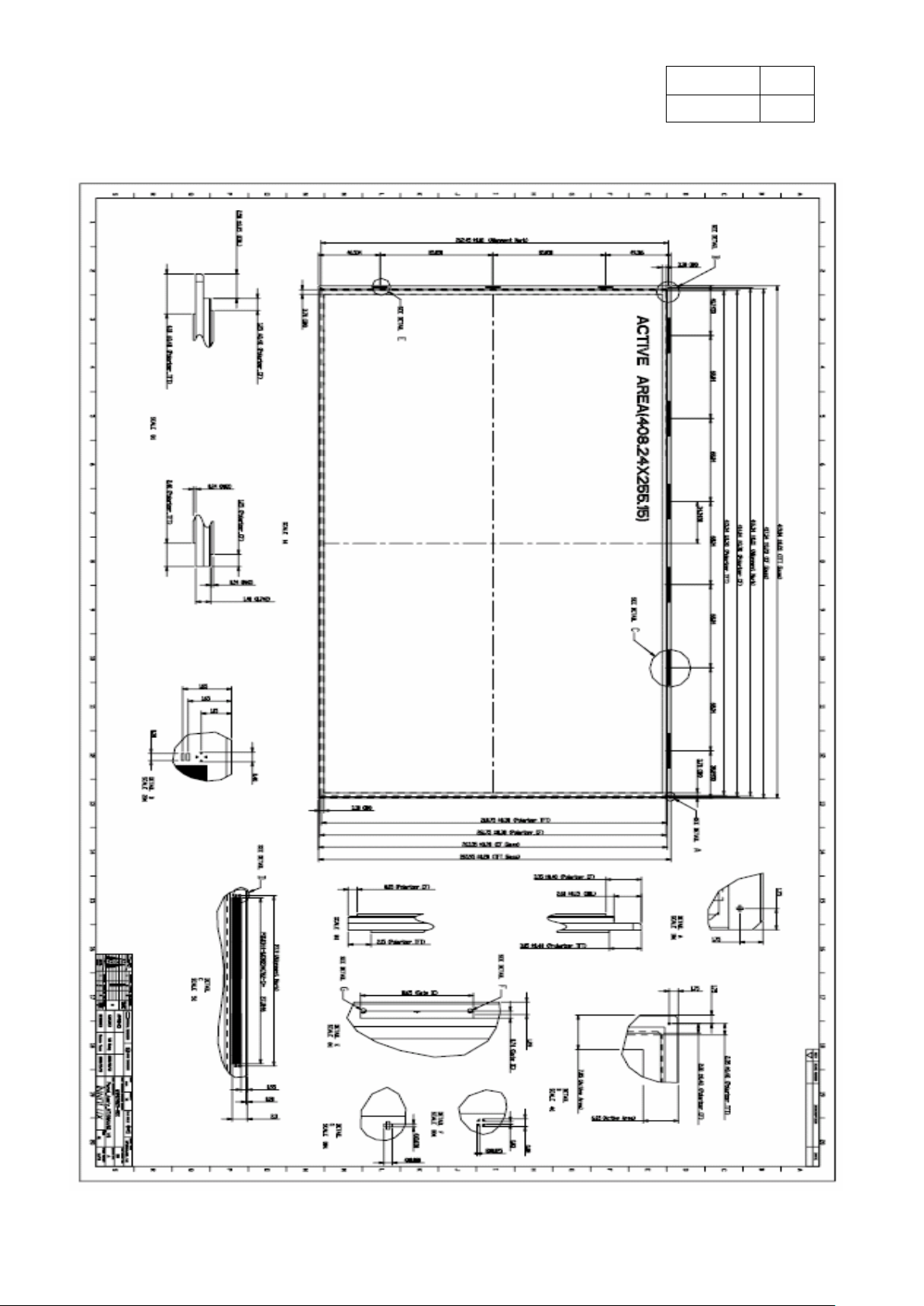

I. Mechanical drawings

21

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：3/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

A. General Specifications

NO.

Item

Specification

1

Display resolution (pixel)

1440(H) X 900(V), WXGA+ resolution

2

Active area (mm)

408.24(H) X 255.15(V)

3

Screen size (inch)

19 inches diagonal

4

Pixel pitch (mm)

0.2835(H) X 0.2835 (V)

5

Color configuration

R, G, B vertical stripe

6

Overall dimension (mm)

428 (W) X 278 (H) X 16 (D) (Typ.)

7

Surface treatment

Anti-Glare, Haze=25%, Hard coating (3H)

Note 1

8

Input color signal

8 bit LVDS

9

Display colors

16.7M (6 bit with Hi-FRC)

10

Color saturation

68% NTSC

11

Optimum viewing direction

6 o‟clock

12

RoHS&HF

RoHS & HF compliance

13

TCO‟03

TCO‟03 compliance

Note 2

Note 1: Glare Option available

Note 2：Only Anti-Glare model can meet TCO‟03 compliance

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：4/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

B. Electrical specifications

1. Pin assignment connector

1.1TFT LCD Module
FOXCONN GS23302-0311S-7F or mechanical interface equivalent connector.

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：5/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

2. Absolute maximum ratings

Ta=25±2℃

Parameter

Symbol

Values

Unit

Note

Min.

Typ.

Max.

Power voltage

Vcc

-0.3 - 6.0 V At25ºC

Input signal voltage

VLH

-0.3

-

4.3 V At25ºC

Storage temperature

TST

-20 - 60

°C

(1)

Operating Ambient temperature

Top

0 - 50

°C

(2)

Note 1: The unit should not be exposed to corrosive chemicals.

Note 2: The relative humidity must not exceed 90% non-condensing at temperatures of 40°C or

less. At temperatures greater than 40°C, the wet bulb temperature must not exceed 39°C.

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：6/22

版權屬於深超所有.禁止任何未經授權的使用.

The copyright belongs to Century. Any unauthorized use is prohibited.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

3. Electrical characteristics

a. Typical operating conditions

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Input Voltage

Vcc

4.5

5

5.5 V

Permissive Power Input Ripple

VRF

-

-

0.15 V

Input Current

Black

Icc

-

700

1000

mA

Note 1

White

Icc

-

500

700

Note 2

Mosaic

Icc

-

700

1000

Note 3

Rush Current

IRush

-

1.6

3

A

Note 4

Logic Input
Voltage
LVDS :
IN+, IN-

Common Mode Voltage

VCM

-

1.2

V

Differential Input Voltage

VID

100

-

600

mV

Threshold Voltage (High)

VTH

-

-

100

mV

Note 5

Threshold Voltage (Low)

VTL

-100 - -

mV

Note 5

Note 1 : The specified current is under the Vcc =5V, 25 °C, fv=60Hz (frame frequency) condition

whereas black pattern is displayed.

Note 2 : The specified current is under the Vcc =5V, 25 °C, fv=60Hz (frame frequency) condition

whereas white pattern is displayed.

Note 3 : The specified current is under the Vcc =5V, 25 °C, fv=60Hz (frame frequency) condition

whereas mosaic pattern(black & white [8*6] ) is displayed.

White : 255 Gray
Black : 0 Gray

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：7/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

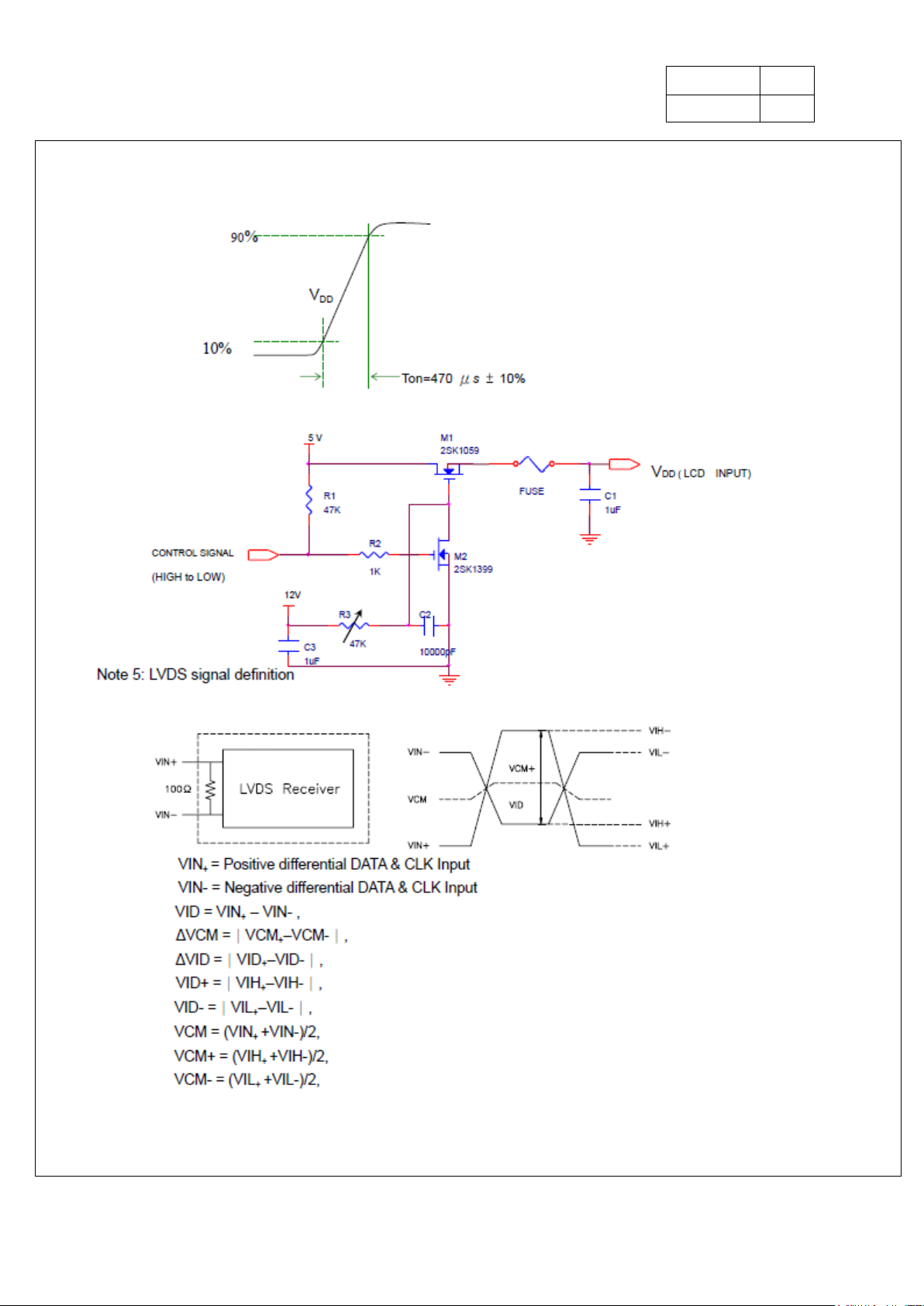

Note 4 : test condition :„

(1)VDD = 5 V, VDD rising time = 470 μs ± 10%

(2)Test Circle

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：8/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

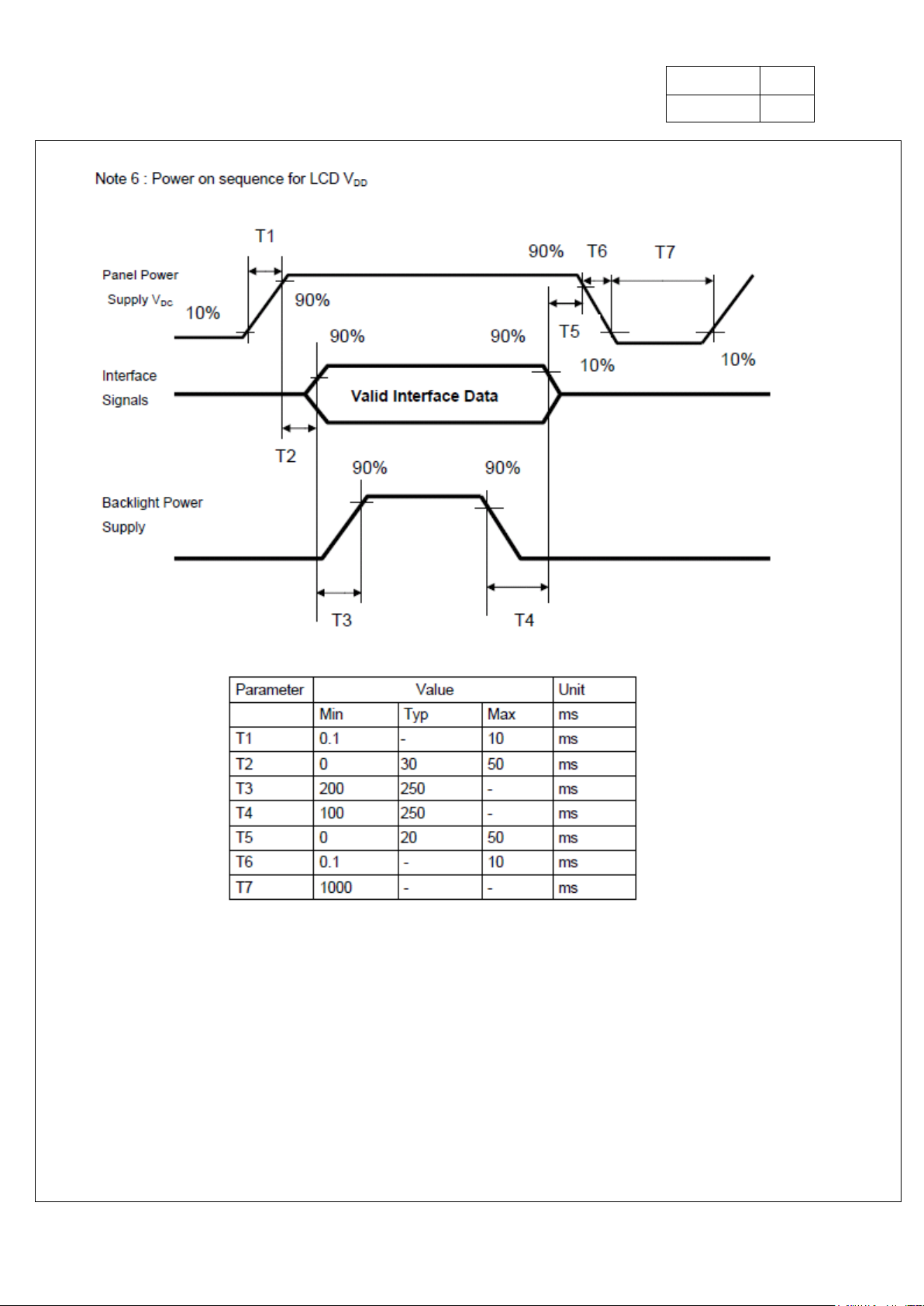

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：9/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

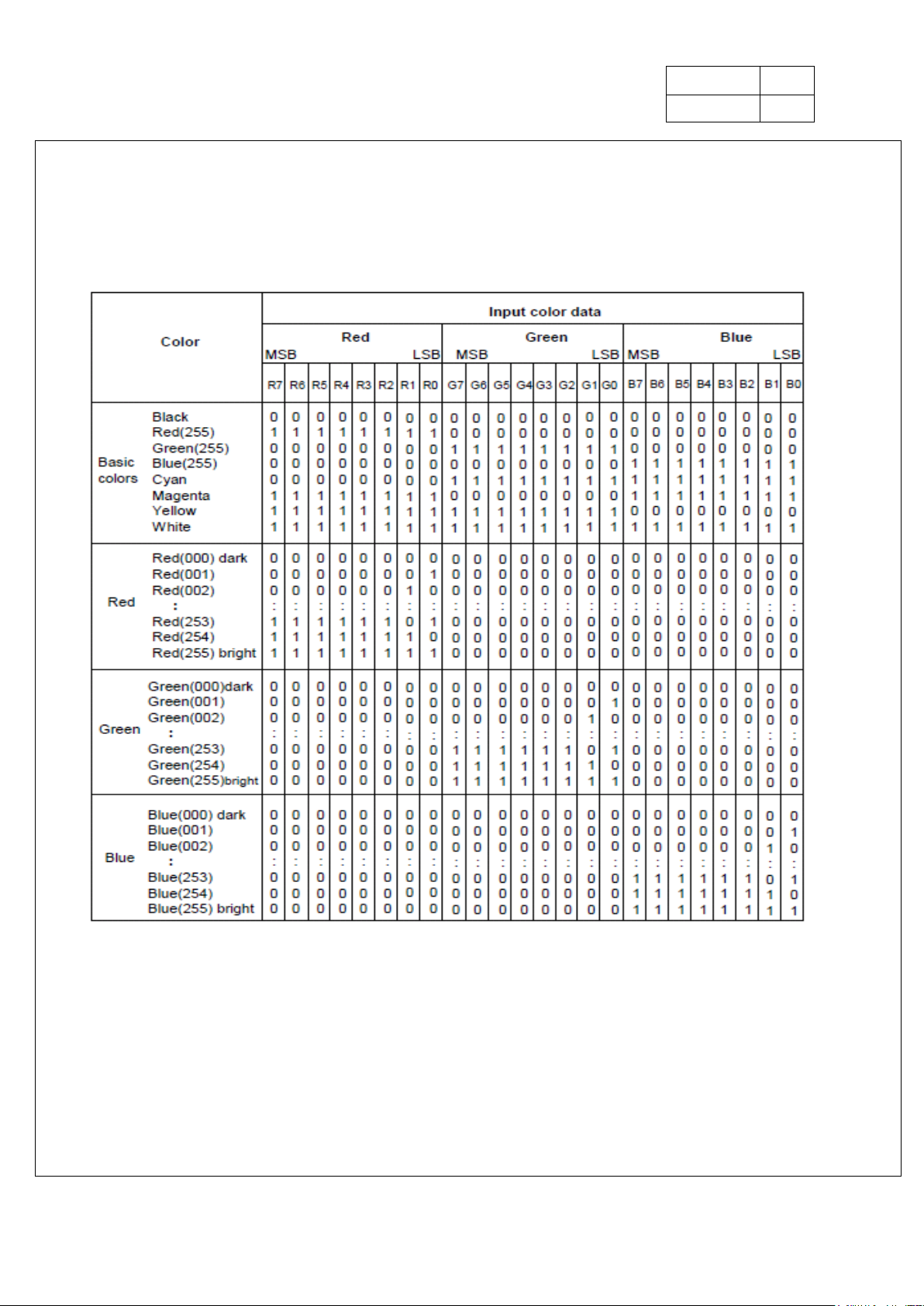

b. Display color vs. input data signals

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input
for the color; the higher the binary input, the brighter the color. The table below provides a reference for
color versus data input.

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：10/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：11/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：12/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

C. Optical specifications

Item

Symbol

Conditio
n

Specification

Unit

Remark
Min.

Typ.

Max.

Response time

Tr

θ= 0∘

-

1.5

4

ms

Note 3

Tf

-

3.5

6

Tr+Tf

- 5 10

Contrast ratio

CR

θ= 0∘

500

700 -

Note 1,3

Viewing angle

Top

CR≧10

15

20

-

deg.

Note 1,3,4

Bottom

CR≧10

30

40

-

Left

CR≧10

30

40

-

Right

CR≧10

30

40

-

Color chromaticity(CIE)

Wx

θ= 0∘

-0.03

0.308

+0.03

Note 1

Wy

0.325

Rx

0.647

Ry

0.330

Gx

0.289

Gy

0.588

Bx

0.140

By

0.090

Transmittance

Trans

5.0%

5.8%

Note6

Cross talk

Ct - 2%

Note6

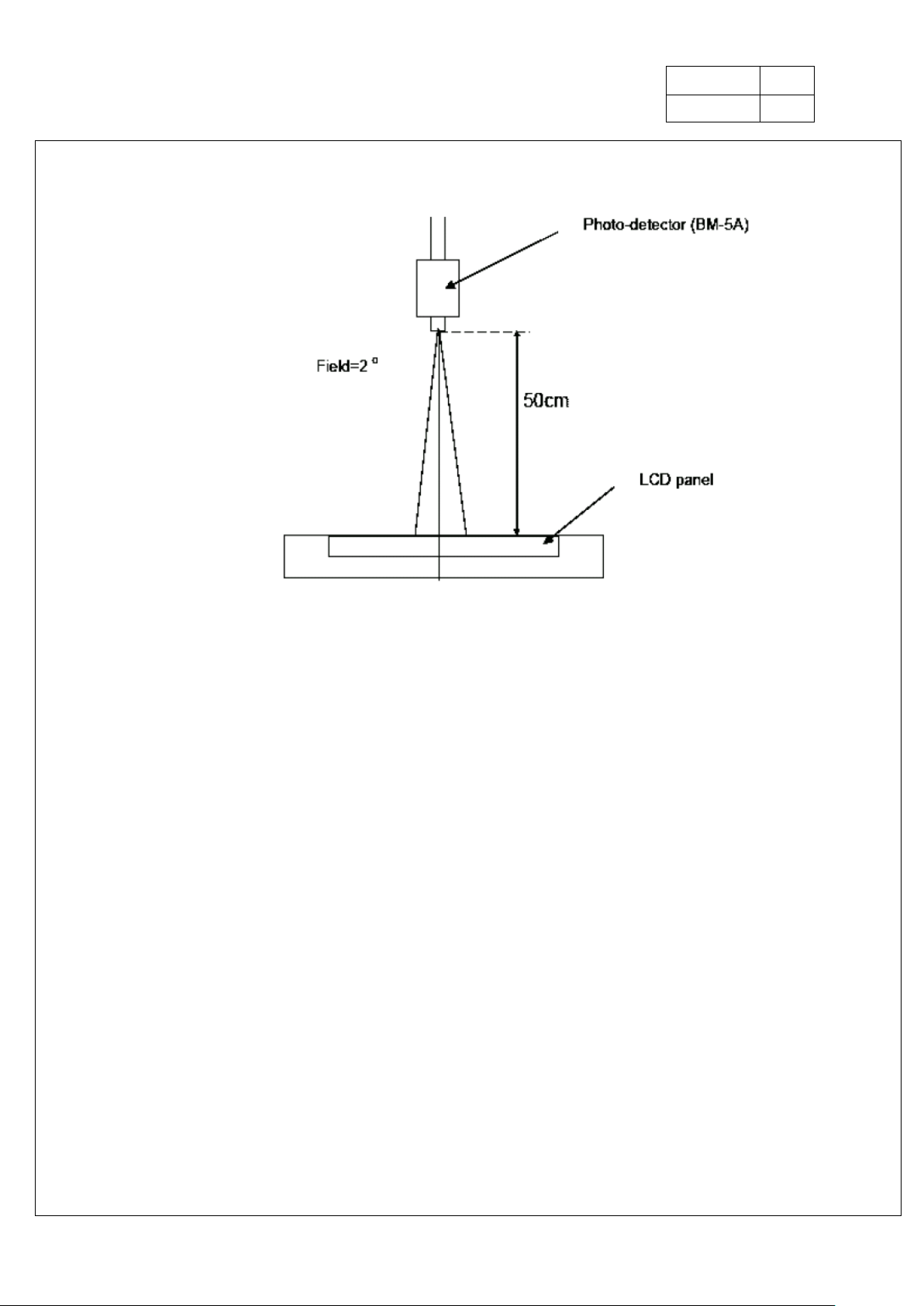

Note 1: Ambient temperature = 25°C.

To be measured in dark room after backlight warm up 30 minutes.

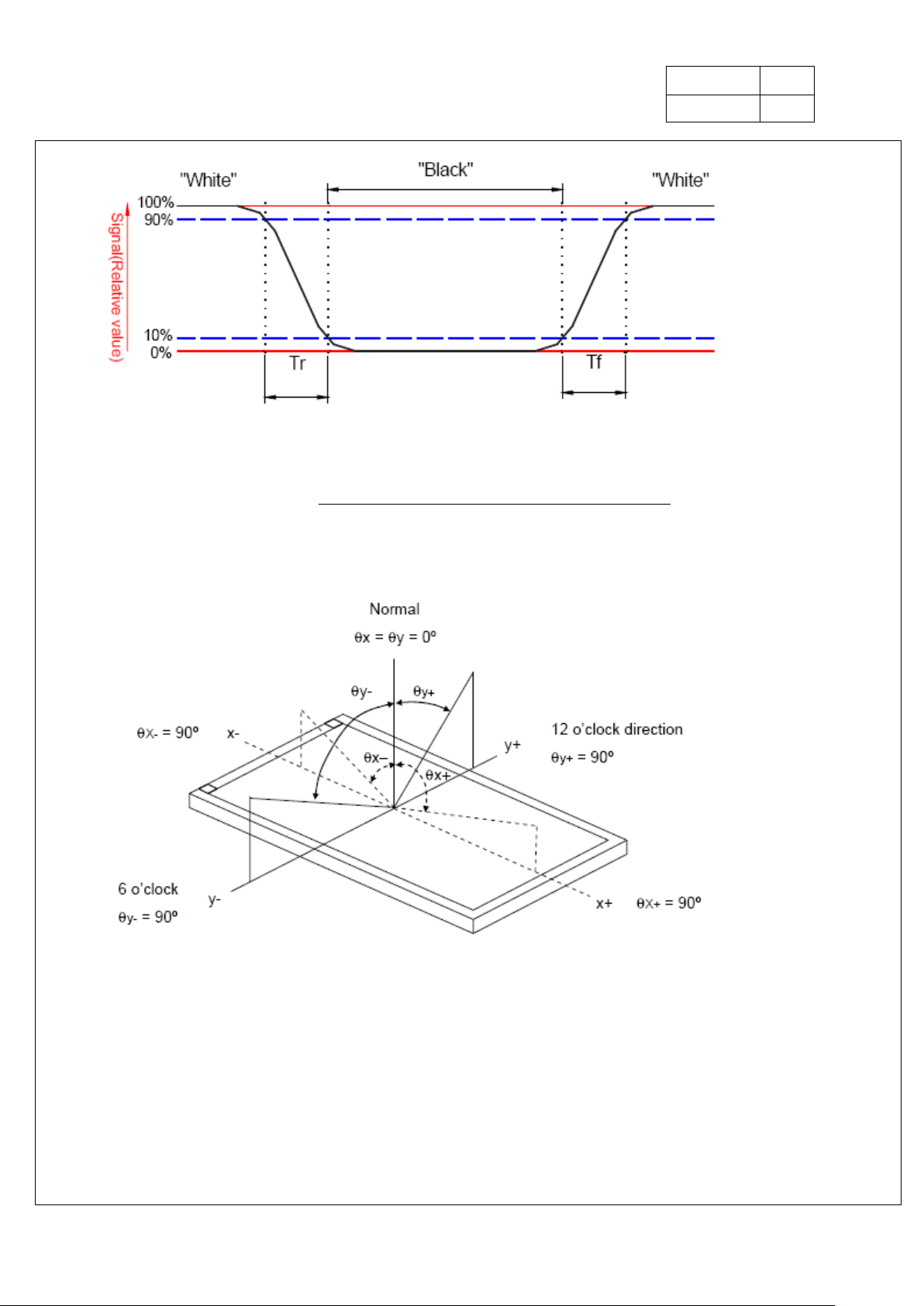

Note 2: Definition of response time:

The output signals of BM-5A are measured when the input signals are changed
to “White” (falling time) and from “White” to “Black” (rising time), respectively. The
interval is between the 10% and 90% of amplitudes. Refer to figure as below.

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：13/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

Note 3: Definition of contrast ratio:

Contrast ratio is calculated by the following formula.

Contrast ratio (CR)=
Brightness on the "white" state

Brightness on the "black" state

Note 4: Definition of viewing angle

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：14/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

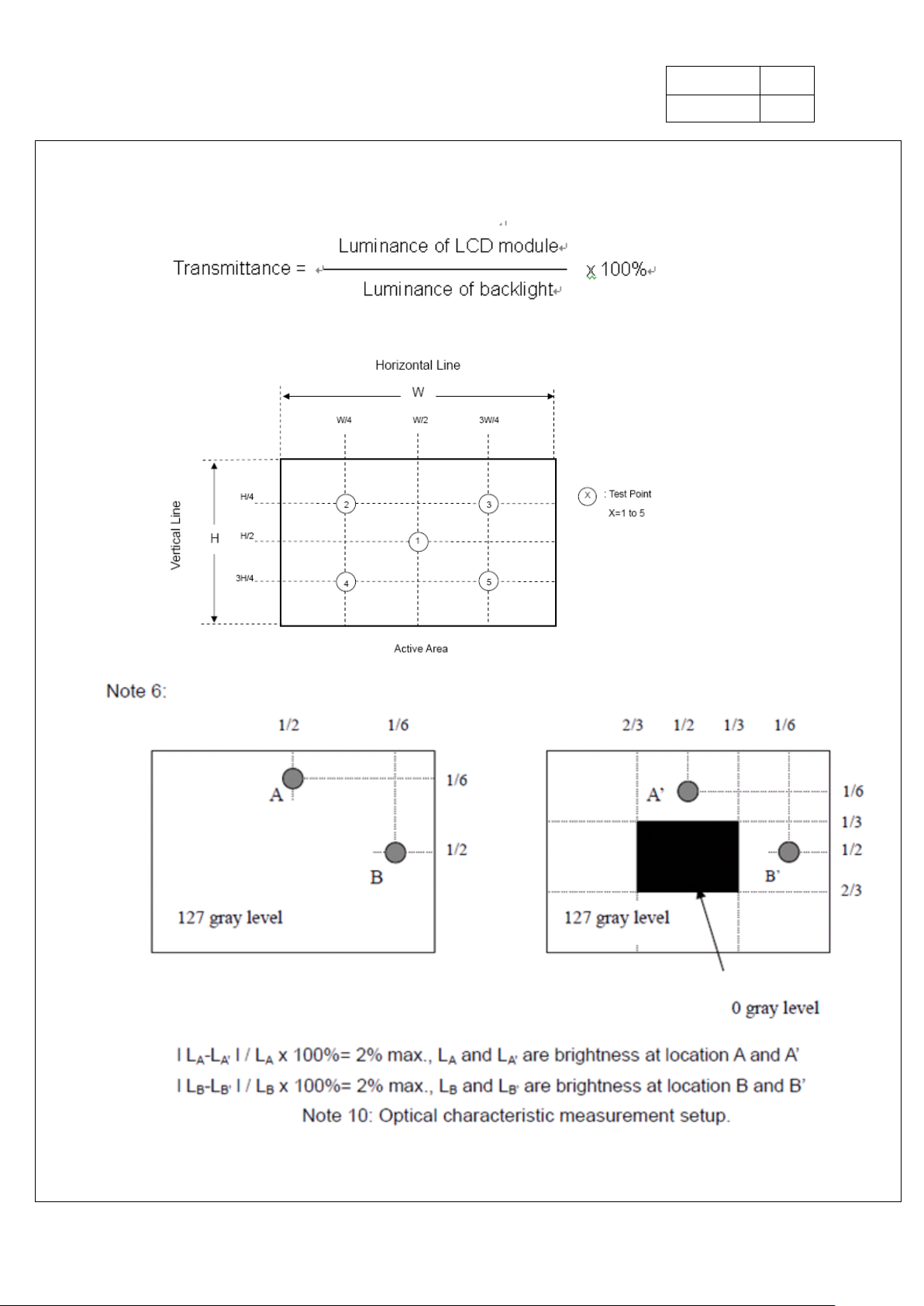

Note 5: Definition of Transmittance:

Panel is without signal input. Measure the Transmittance at 5 points. (at C light Source)

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：15/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：16/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

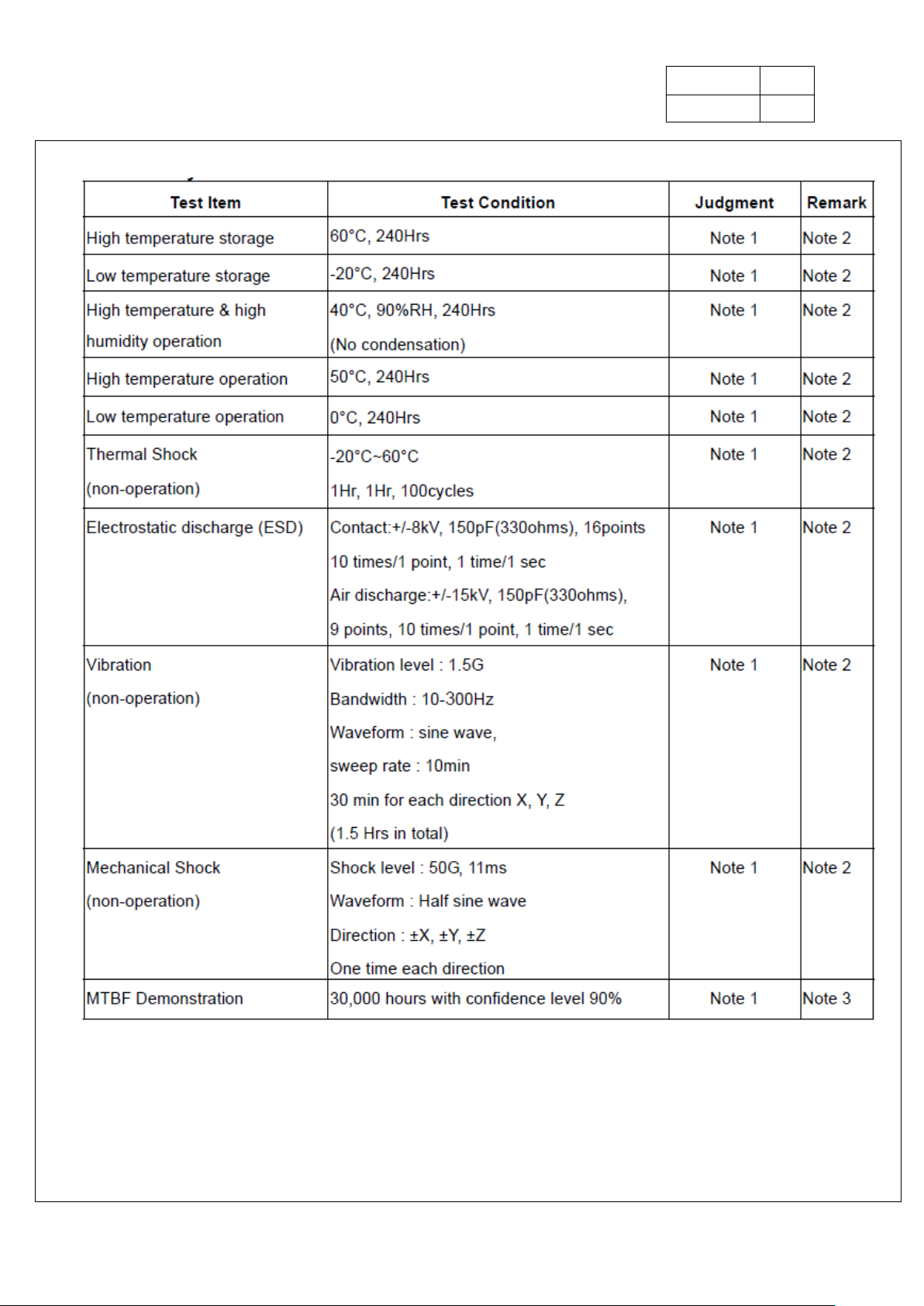

D. Reliability test item

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：17/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

Note1: Pass: Normal display image with no obvious non-uniformity and no line defect.

Partial transformation of the module parts should be ignored.

Fail: No display image, obvious non-uniformity, or line defects.
Note2: Evaluation should be tested after storage at room temperature for two hour.
Note3: The MTBF calculation is based on the assumption that the failure rate distribution meets the

Exponential Model

E. Safety

(1) Sharp Edge Requirements

There will be no sharp edges or corners on the display assembly that could cause injury.

(2) Materials

a. Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic materials are

used, they will be reviewed and approved by the responsible customer Toxicologist.

b. Flammability

All components including electrical components that do not meet the flammability grade UL94-V1 in the
module will complete the flammability rating exception approval process. The printed circuit board will
be made from material rated 94-V1 or better. The actual UL flammability rating will be printed on the
printed circuit board.

c. Capacitors

If any polarized capacitors are used in the display assembly, provisions will be made to keep them from
being inserted backwards.

F. Display quality

The display quality of the color TFT-LCD module should be in compliance with the customer‟s
Incoming inspection standard.

G. Handling precaution

The Handling of the TFT-LCD should be in compliance with the customer‟s handling principle standard.

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：18/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

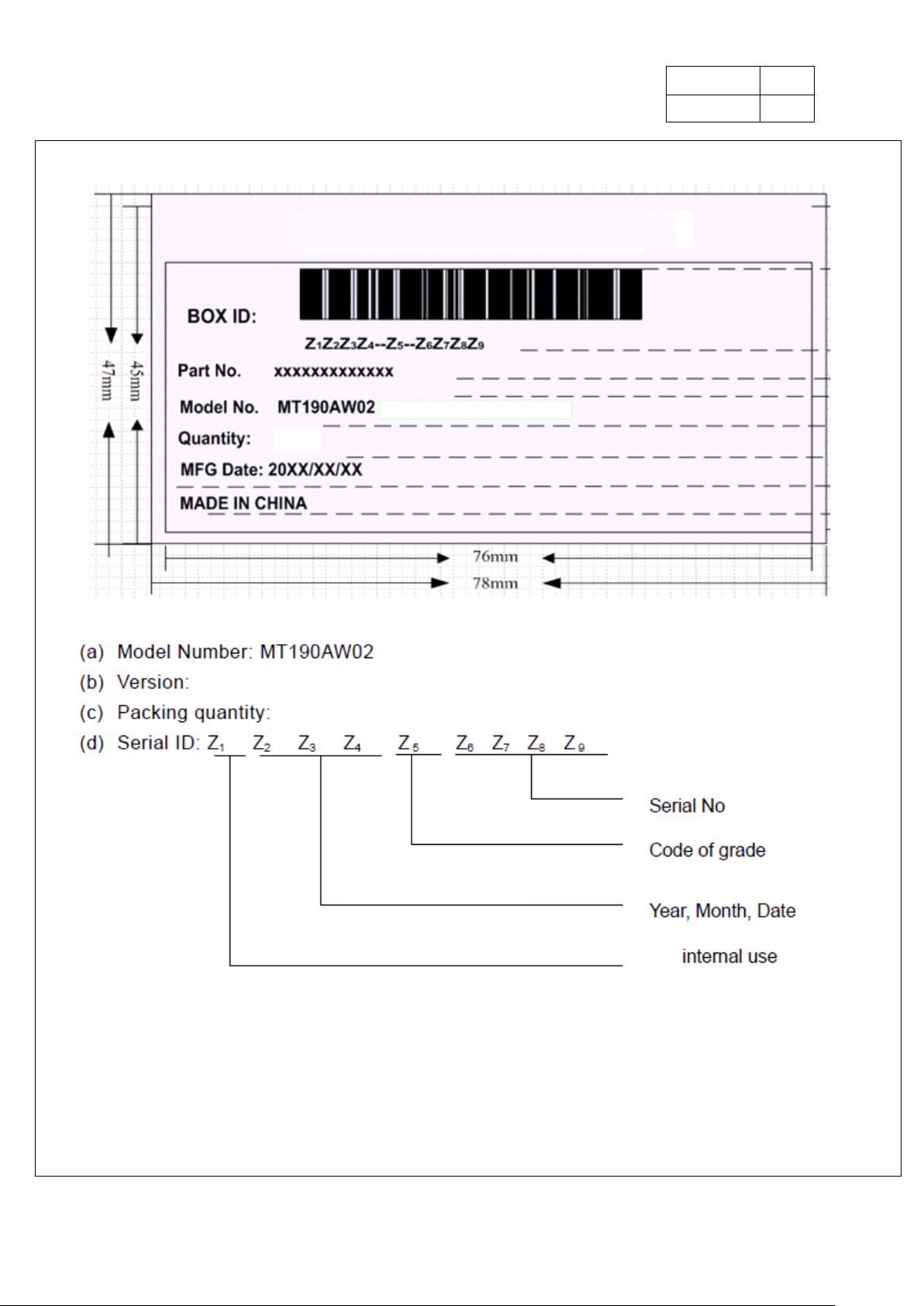

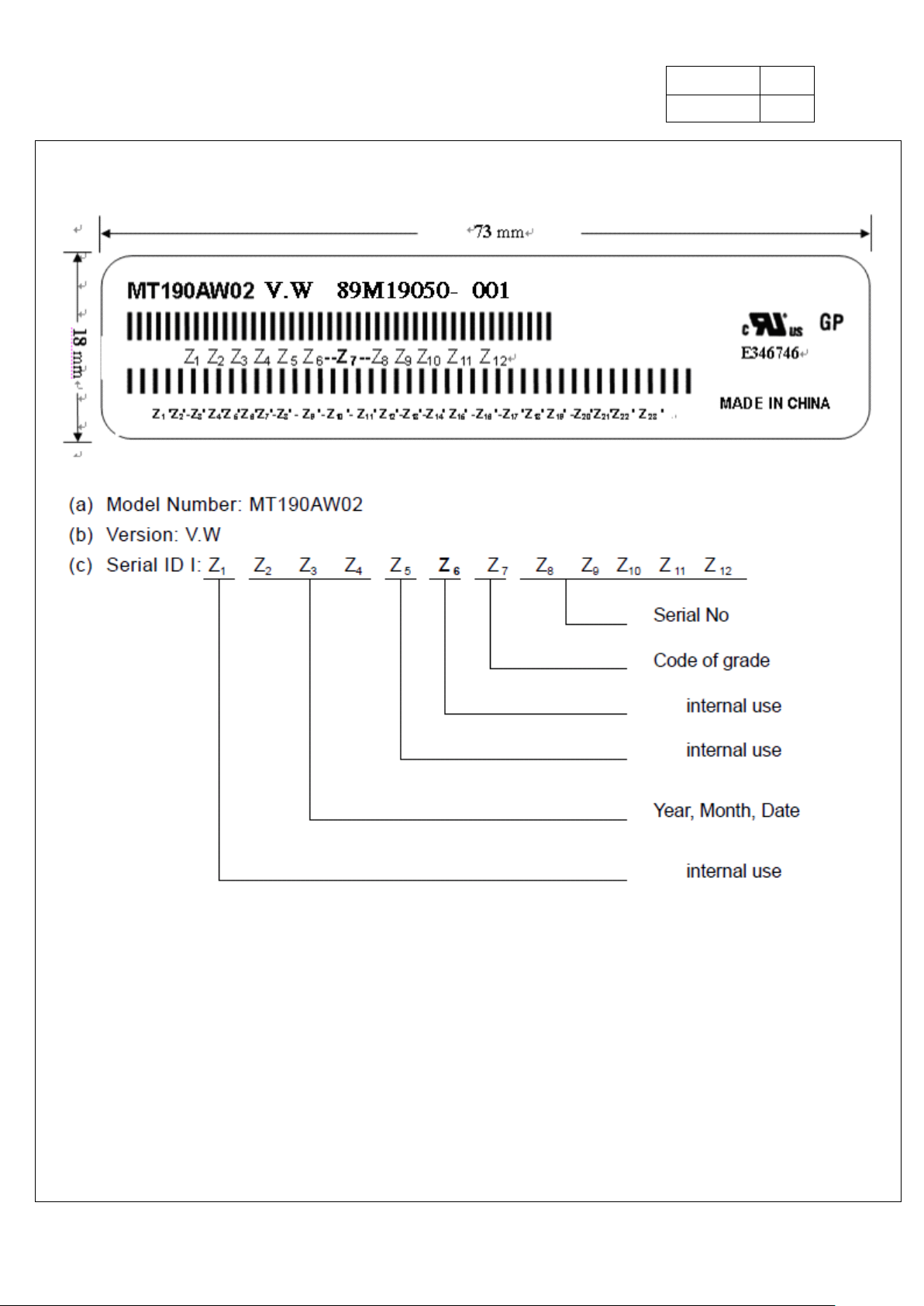

H. Label
(1) FOG成品 Label

Serial ID includes the information as below:

1. Manufactured Date: Year: 0~9, for 2010~2019

2. Month: 1~9 & A~C for Jan.~Dec.

3. Date: 1~9 & A~Z (exclude I, O, Q, U) for 1st~31th

4. Code of grade: 1, 2, 3, 5, E

5. Serial No: Module manufacture sequence no

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：19/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

(2) Carton Label

Serial ID includes the information as below:

(a) Manufactured Date: Year: 0~9, for 2010~2019

Month: 1~9 & A~C for Jan.~Dec.

Date: 1~9 & A~Z (exclude I, O, Q, U) for 1st~31th
(b) Code of grade: 1,2, 3, 5, E
(c) Serial No: Module packing sequence no

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：20/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

I. Mechanical Drawings

表單編號 Form No.：MT190AW02V.W-20120228 頁數/總頁數Page/Total Pages：21/22

Century 深超光電

Final Product Spec

保管單位

Storage

PDM

保存年限

Retention Period

3 年

表單編號 Form No.：MT190AW02V.W 頁數/總頁數Page/Total Pages：22/22

The copyright belongs to Century. Any unauthorized use is prohibited.

版權屬於深超所有.禁止任何未經授權的使用.
