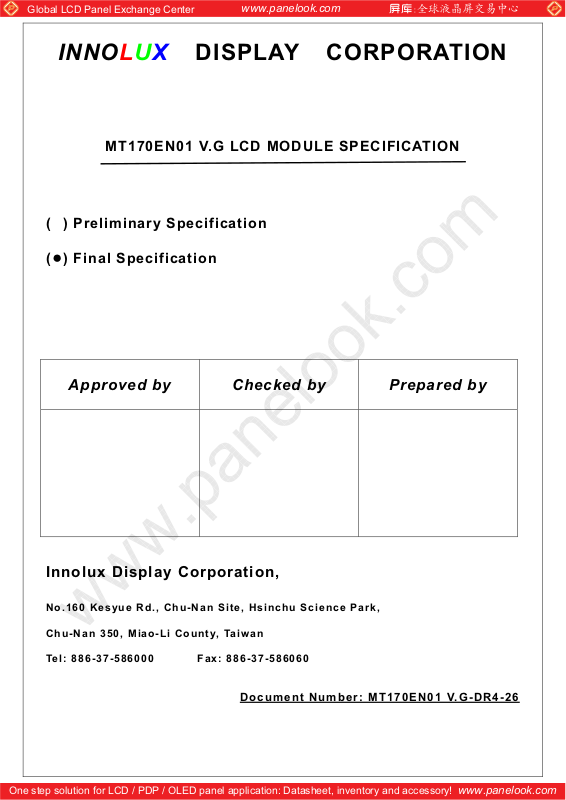

MT170EN01 V.G LCD MODULE SPECIFICATION

(

) Preliminary Specification

(

) Final Specification

www.panelook.com

Approved by Checked by Prepared by

Innolux Display Corporation,

No.160 Kesyue Rd., Chu-Nan Site, Hsinchu Science Park,

Chu-Nan 350, Miao-Li County, Taiwan

Tel: 886-37-586000 Fax: 886-37-586060

Document Number: MT170EN01 V.G-DR4-26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Version:05

Version Revise Date Page Content

www.panelook.com

Record of Revision

01 2010-05-05

All First edition to all

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT170EN01 V.G

3/22

Contents:

A. General Specification

B. Electrical Specifications

1. Pin assignment

2. Absolute maximum ratings

3. Electrical characteristics

a. Typical operating conditions

b. Display color v.s. input data signals

c. Input signal timing

d. Display position

e. Backlight driving conditions

C. Optical specifications

D. Reliability test items

E. Display quality

F. Handling precaution

G. Label

H. Mechanical drawings

Appendix

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

A. General specification

NO. Item Specification Remark

1 Display resolution (pixel) 1280(H) X 1024(V), SXGA resolution

2 Active area (mm) 337.92(H) X 270.336(V)

3 Screen size (inch) 17 inches diagonal

4 Pixel pitch (mm) 0.264(H) X 0.264(V)

5 Color configuration R, G, B vertical stripe

6 Overall dimension (mm) 358.5(W)x296.5(H)x16(D) (typ)

7 Weight (g) 2000 (max)

8 Surface treatment Anti-glare, Haze = 25%, Hard coating (3H)

SPEC NO.

PAGE

MT170EN01 V.G

4/22

9 Input color signal 8 bit LVDS

10 Color saturation 72% NTSC

11 Display colors 16.7M colors (6 bit with Hi-FRC)

12 Optimum viewing direction 6 o’clock

13 Backlight 2 CCFL, top & bottom edge side

14 RoHS RoHS compliance

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

B. Electrical specifications

1.Pin assignment

Connector JAE FI-X30SSL-HF or equivalent

Pin No Symbol Description

1 RxO0- LVDS Differential data input Channel 0(-)

2 RxO0+ LVDS Differential data input Channel 0(+)

3 RxO1- LVDS Differential data input Channel 1(-)

4 RxO1+ LVDS Differential data input Channel 1(+)

5 RxO2- LVDS Differential data input Channel 2(-)

6 RxO2+ LVDS Differential data input Channel 2(+)

7 GND Ground

MT170EN01 V.G

5/22

8 RxOC- LVDS Differential Clock input (-)

9 RxOC+ LVDS Differential Clock input (+)

10 RxO3- LVDS Differential data input Channel 3(-)

11 RxO3+ LVDS Differential data input Channel 3(+)

12 RxE0- LVDS Differential data input Channel 0(-)

13 RxE0+ LVDS Differential data input Channel 0(+)

14 GND Ground

15 RxE1- LVDS Differential data input Channel 1(-)

16 RxE1+ LVDS Differential data input Channel 1(+)

17 GND Ground

18 RxE2- LVDS Differential data input Channel 2(-)

19 RxE2+ LVDS Differential data input Channel 2(+)

20 RxEC- LVDS Differential Clock input (-)

21 RxEC+ LVDS Differential Clock input (+)

22 RxE3- LVDS Differential data input Channel 3(-)

23 RxE3+ LVDS Differential data input Channel 3(+)

24 GND Ground

25 GND Ground

26 GND Ground or Open

27 GND Ground

28 VCC Power supply (+5.0V)

29 VCC Power supply (+5.0V)

30 VCC Power supply (+5.0V)

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

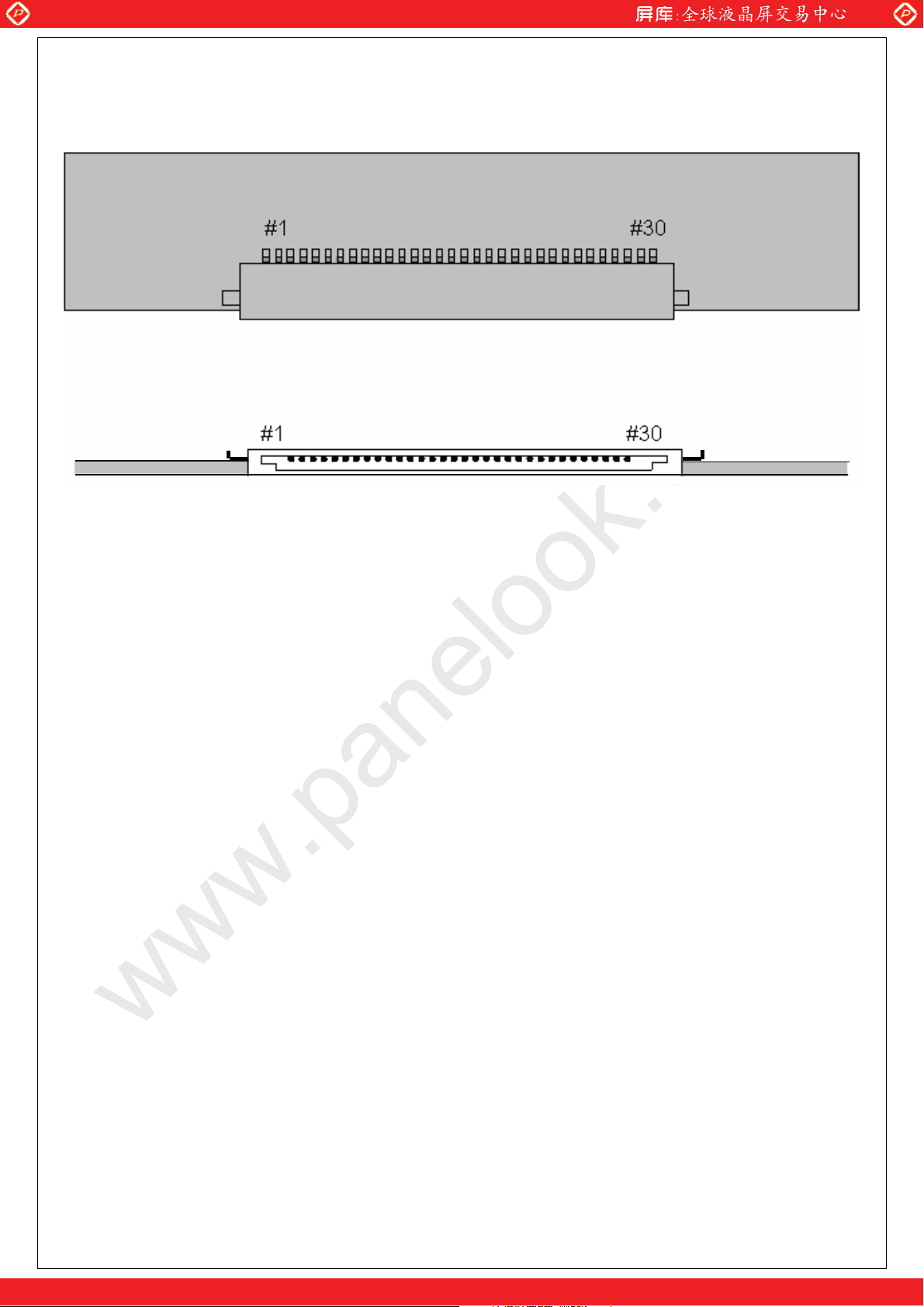

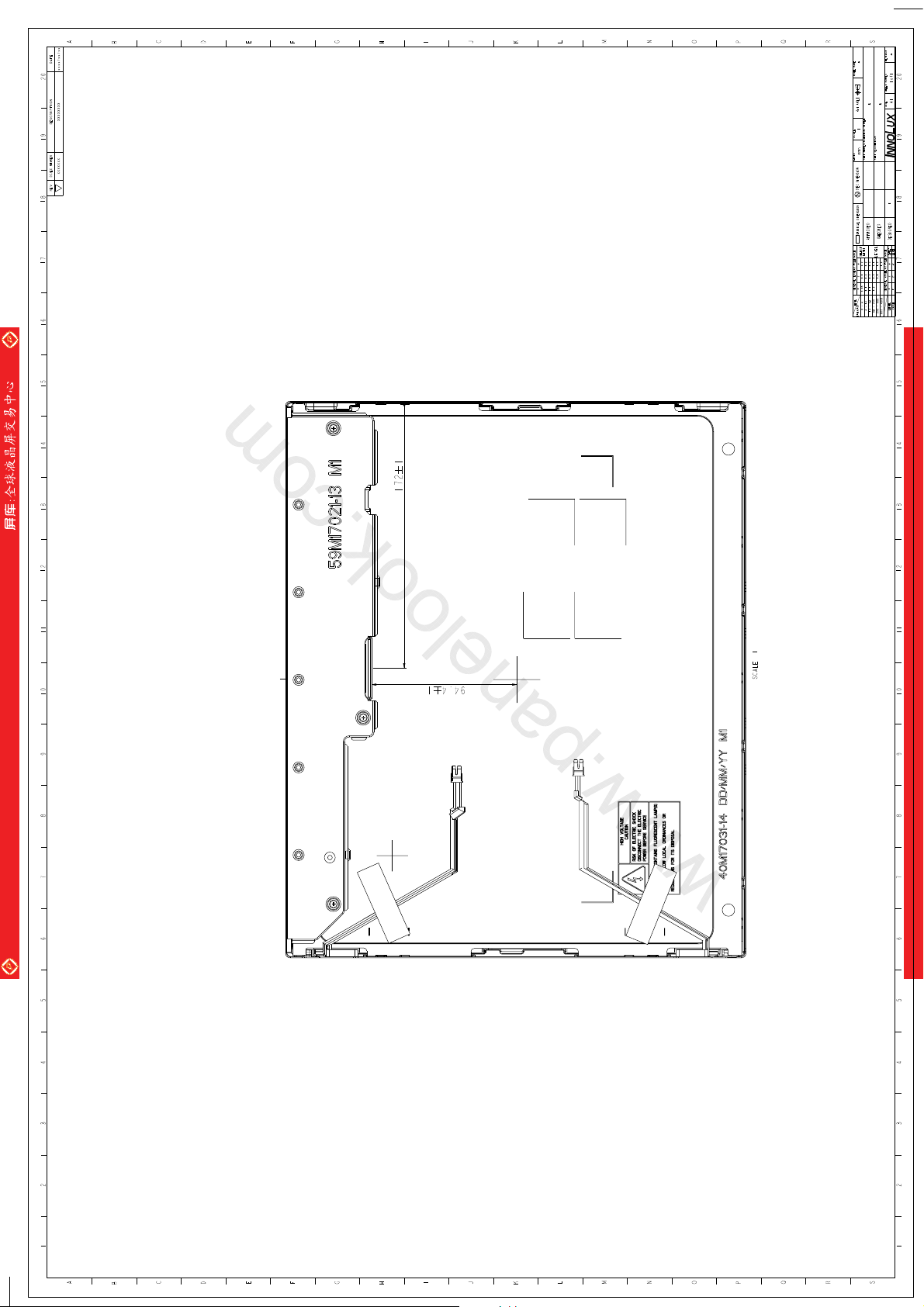

Rear view of LCM

SPEC NO.

PAGE

MT170EN01 V.G

6/22

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

A

p

[mA]

www.panelook.com

SPEC NO.

PAGE

MT170EN01 V.G

7/22

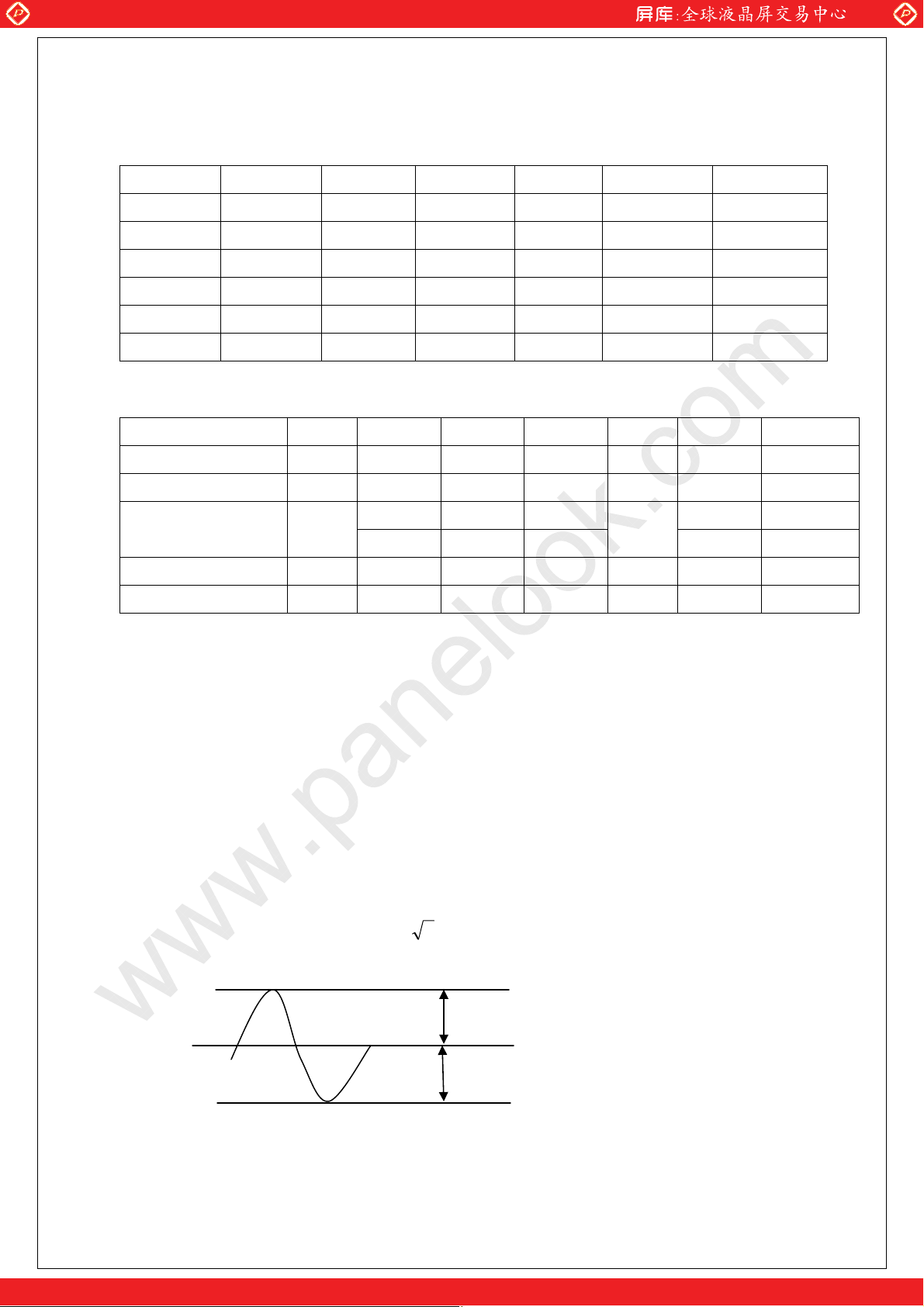

2. Absolute maximum ratings

Parameter Symbol

Power voltage

Input signal voltage V

Operating temperature To

Storage temperature T

CCFL Current ICFL 2 8.5

V

cc

LH

ST

Values

Min. Max.

-0.3 6.0 V

-0.3 3.6 V

050°C Note 1

-20 60 °C Note 2

Unit

rms

Remark

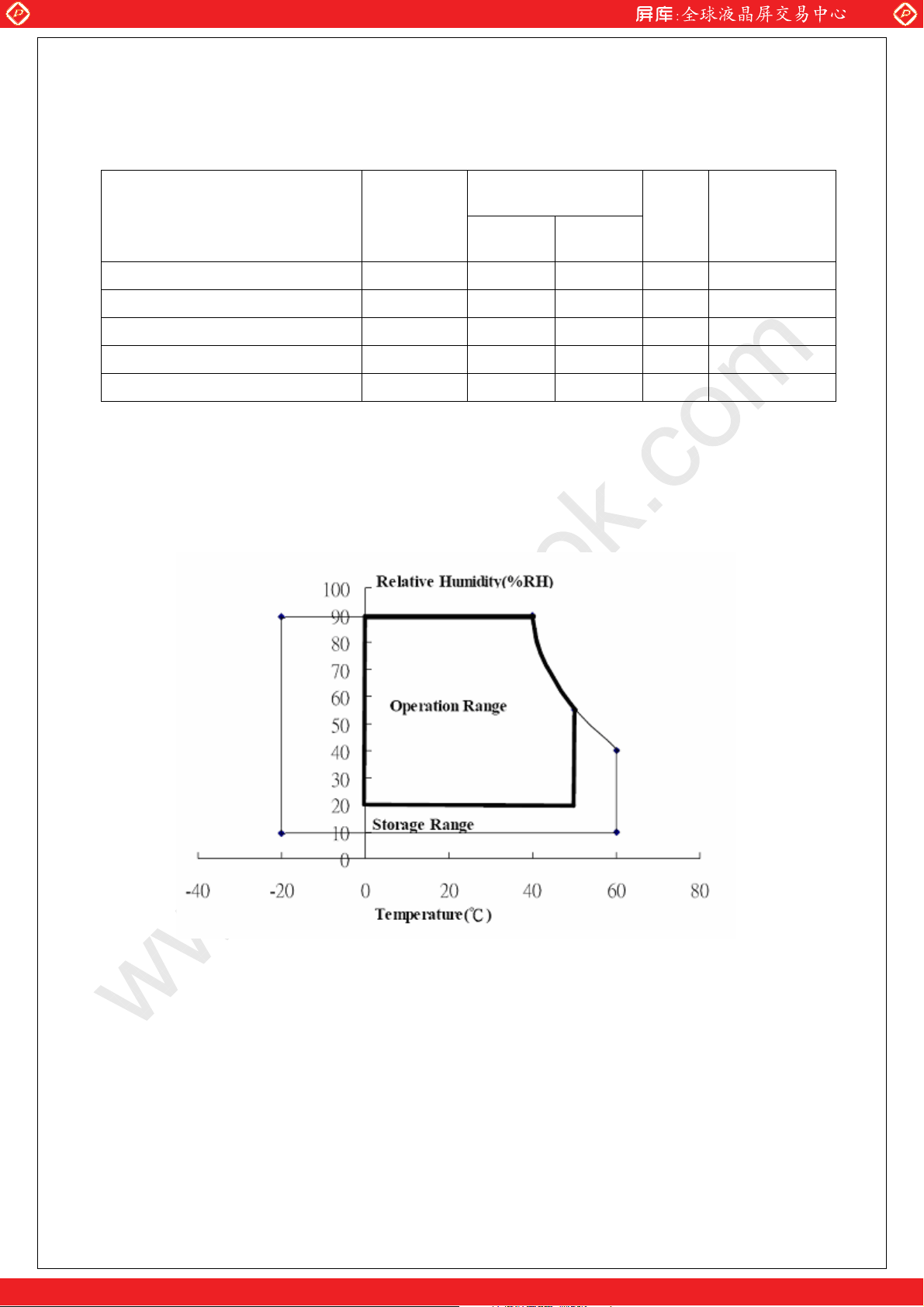

Note 1: The relative humidity must not exceed 90% non-condensing at temperatures of 40°C or

less. At temperatures greater than 40°C, the wet bulb temperature must not exceed 39°C.

Note 2: The unit should not be exposed to corrosive chemicals.

t 25°C

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3. Electrical characteristics a. Typical operating conditions

Item Symbol Min. Typ. Max. Unit Remark

Input Voltage

Permissive Power Input Ripple

Input Current

Differential Impedance

Rush Current

Logic Input

Voltage

LVDS:

IN+, IN-

Common Mode Voltage

Differential Input Voltage

Threshold Voltage (High)

Threshold Voltage (Low)

SPEC NO.

V

4.5 5.0 5.5

cc

V

- 0.15

RF

I

- 0.7 0.95

cc

Z

90 100 110

m

I

- - 3.0

Rush

VCM 1.125 1.25 1.375

VID 200 350 450

VTH - - 100

VTL -100

PAGE

MT170EN01 V.G

8/22

V

Vp-p

A Note 2

ohm

A Note 3

V

mV

mV Note 4

Note 1

Note 1: Power input ripple should not exceed max. value.

Note 2: The specified current is under the V

=5V, 25 C, fV=60Hz (frame frequency) condition

cc

whereas mosaic pattern (black & white [8*6] ) is displayed.

White : 255 Gray

Black : 0 Gray

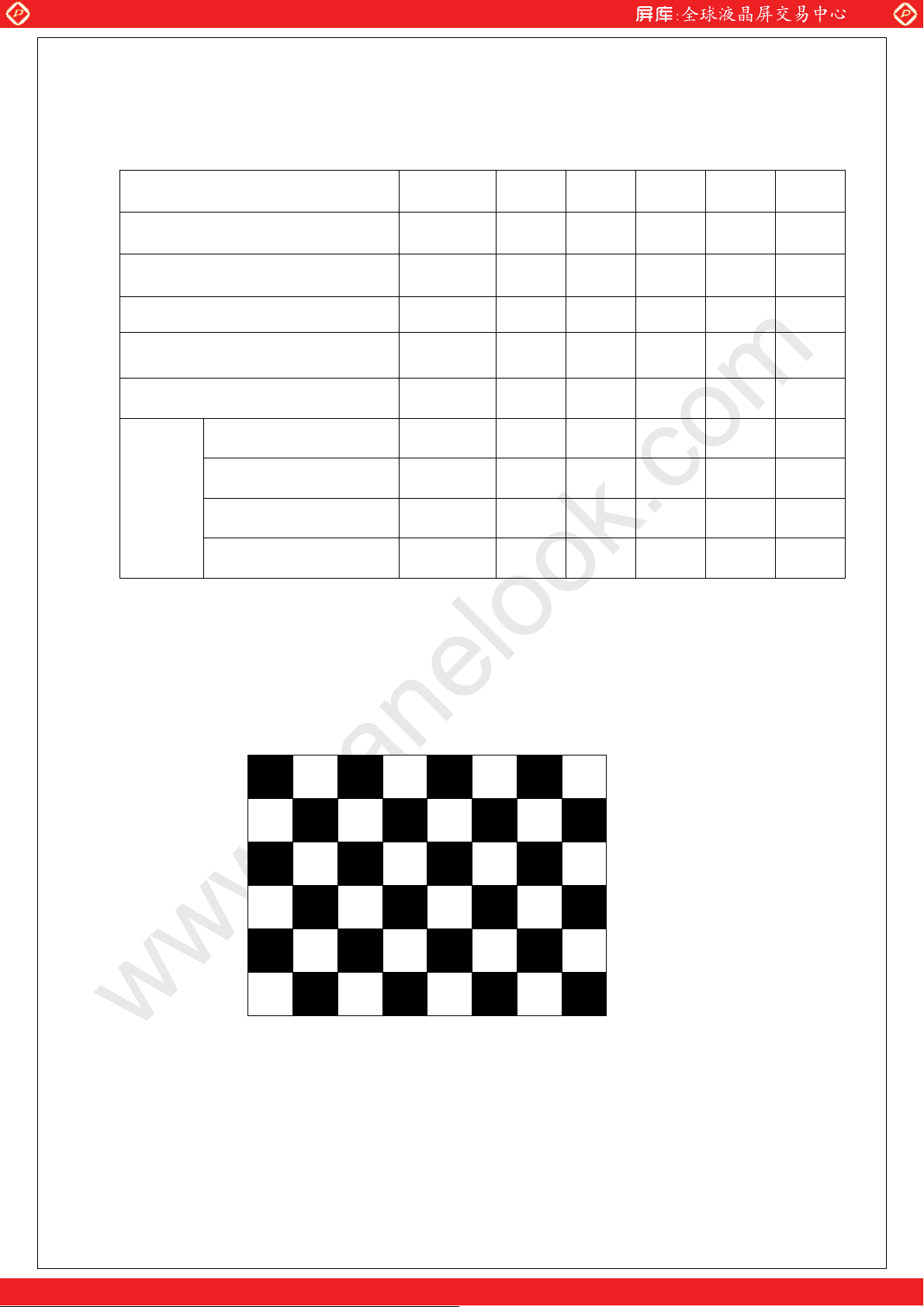

mosaic pattern (black & white [8*6] )

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

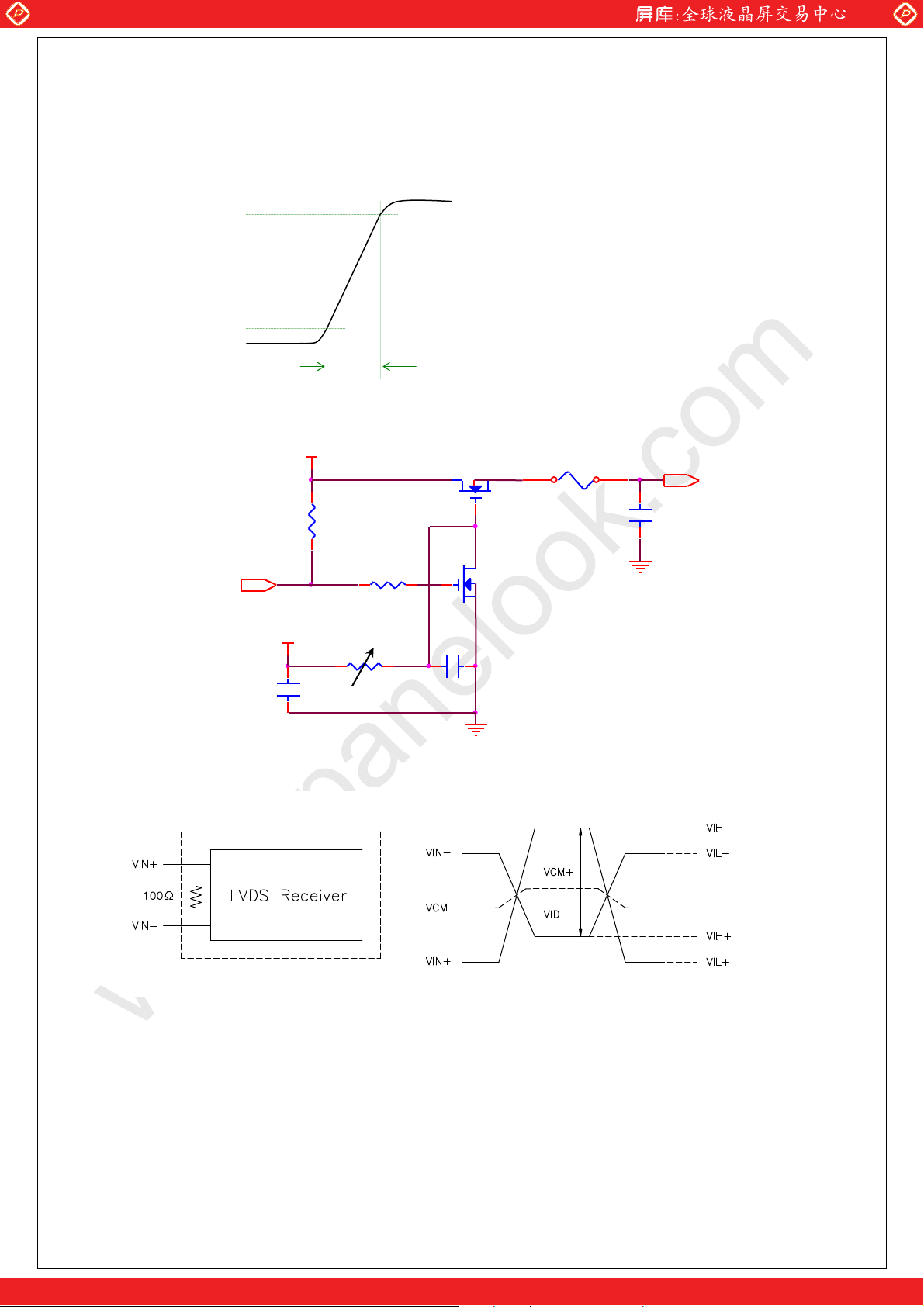

Note 3 : test condition :` (1) V (2) Pattern: Mosaic pattern

(3) Test circuit

CONTROL SIGNAL

(HIGH to LOW)

= 5 V, Vcc rising time = 470 μs ± 10%

cc

90

%

12V

V

5 V

cc

R1 47K

R3

Ton=470 μs ± 10%

M1 2SK1059

R2

1K

C2

M2 2SK1399

SPEC NO.

PAGE

FUSE

MT170EN01 V.G

9/22

Vcc ( LCD INPUT)

C 1uF

1

C3 1uF

47K

10000pF

Note 4 : LVDS signal definition

VID = VIN+ – VIN- ,

VCM =Ϧ ΨVCM

VID =Ϧ ΨVID

VID+ =ΨVIH

VID- =ΨVIL

VCM = (VIN

VCM+ = (VIH

VCM- = (VIL

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

–VCM-Ψ,

+

–VID-Ψ,

+

–VIH-Ψ,

+

–VIL-Ψ,

+

+VIN-)/2,

+

+VIH-)/2,

+

+VIL-)/2,

+

VIN+ = Positive differential DATA & CLK Input

VIN- = Negative differential DATA & CLK Input

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Note 5 : Power on sequence for LCD V

Panel Power

Supply V

Interface

Signals

Backlight Power

Supply

CC

10%

T1

T2

cc

90%

90% 90%

Valid Interface Data

90%

SPEC NO.

PAGE

90%

T6

T5

10%

MT170EN01 V.G

10/22

T7

10%

T3 T4

ʳ

Parameter Value Unit

Min Typ Max ms

T1 0.1 -- 10 ms

T2 0 -- 50 ms

T3 200 250 -- ms

T4 100 250 -- ms

T5 0 20 50 ms

T6 0.1 -- -- ms

T7 1000 -- -- ms

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT170EN01 V.G

11/22

b. Display color v.s. input data signals

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data

input for the color; the higher the binary input, the brighter the color. The table below provides a reference for color versus data input.

Color

MSB LSB MSB LSB MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0

Red Green Blue

Input color data

G7 G6 G5 G4 G3 G2 G1 G0

B7 B6 B5 B4 B3 B2 B1 B0

Basic colors

Black Red(255) Green(255) Blue(255) Cyan Magenta Yellow White

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

Red

Green

Red(000) dark Red(001) Red(002)

:

Red(253) Red(254) Red(255) bright

Green(000)dark Green(001) G

reen(002)

:

Green(253) Green(254) Green(255)

bright

0

:

1

0

:

0

:

0

1

0

:

0

1

0

:

0

1

0

:

1

0

1

0

:

1

0

1

0

1

0

:

1

0

0 0 0

:

: 0 0 0

0 0 0

:

1 1 1

0

:

0

1

0

:

0

1

0

1

0

:

0

:

0

:

0

:

0

Blue(000) dark Blue(001) Blue(002)

Blue

Blue(253) Blue(254) Blue(255) bright

0

:

0

:

0

:

0

:

0

0 0 0

:

: 0 0 0

0

1

:

0

1

0

1

0

1

0 0 0 1 1 1 0 1

0 0 0

: 0 0 0

0 0 0

: 0 0 0

0 1 0

: 1 0 1

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT170EN01 V.G

12/22

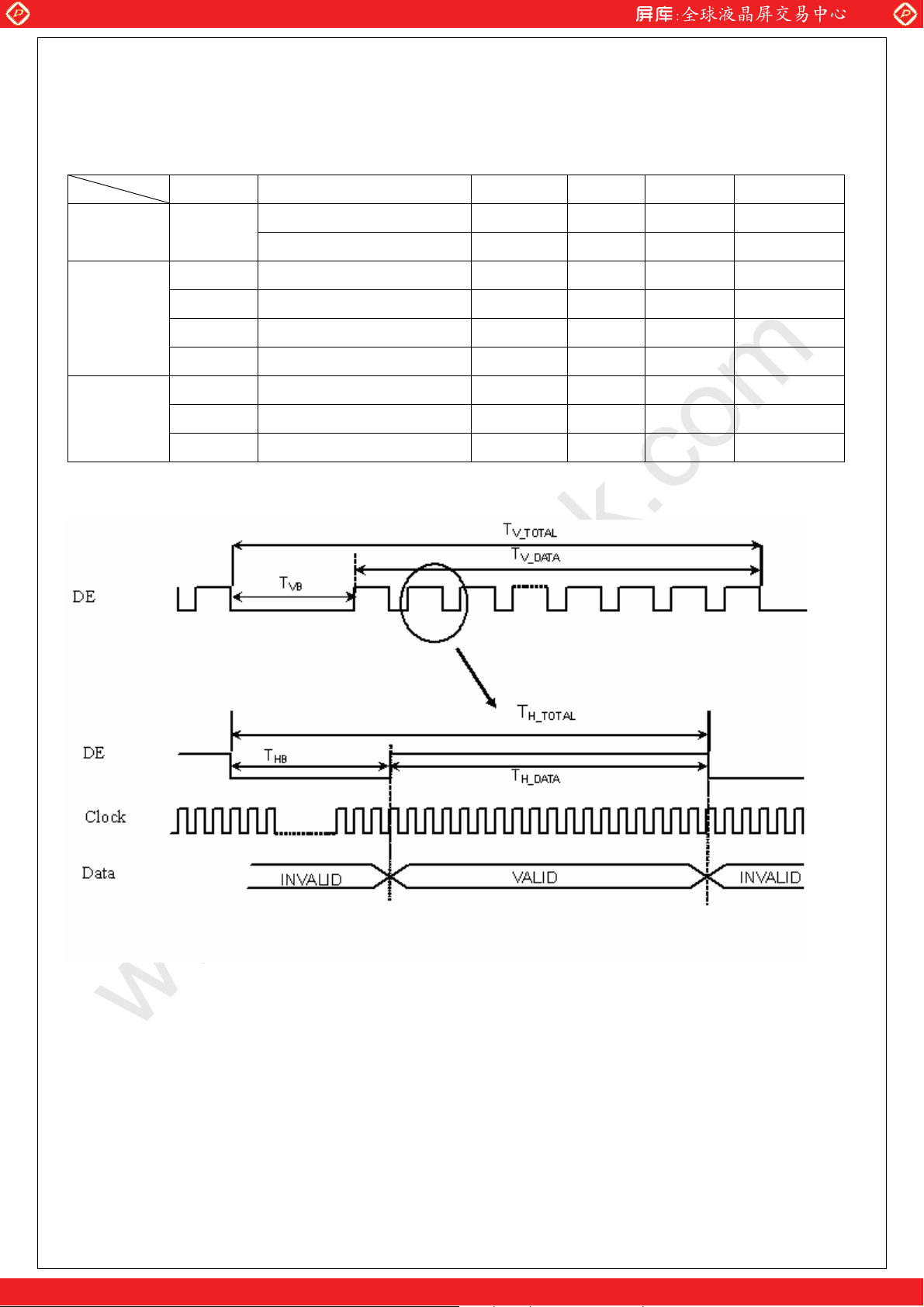

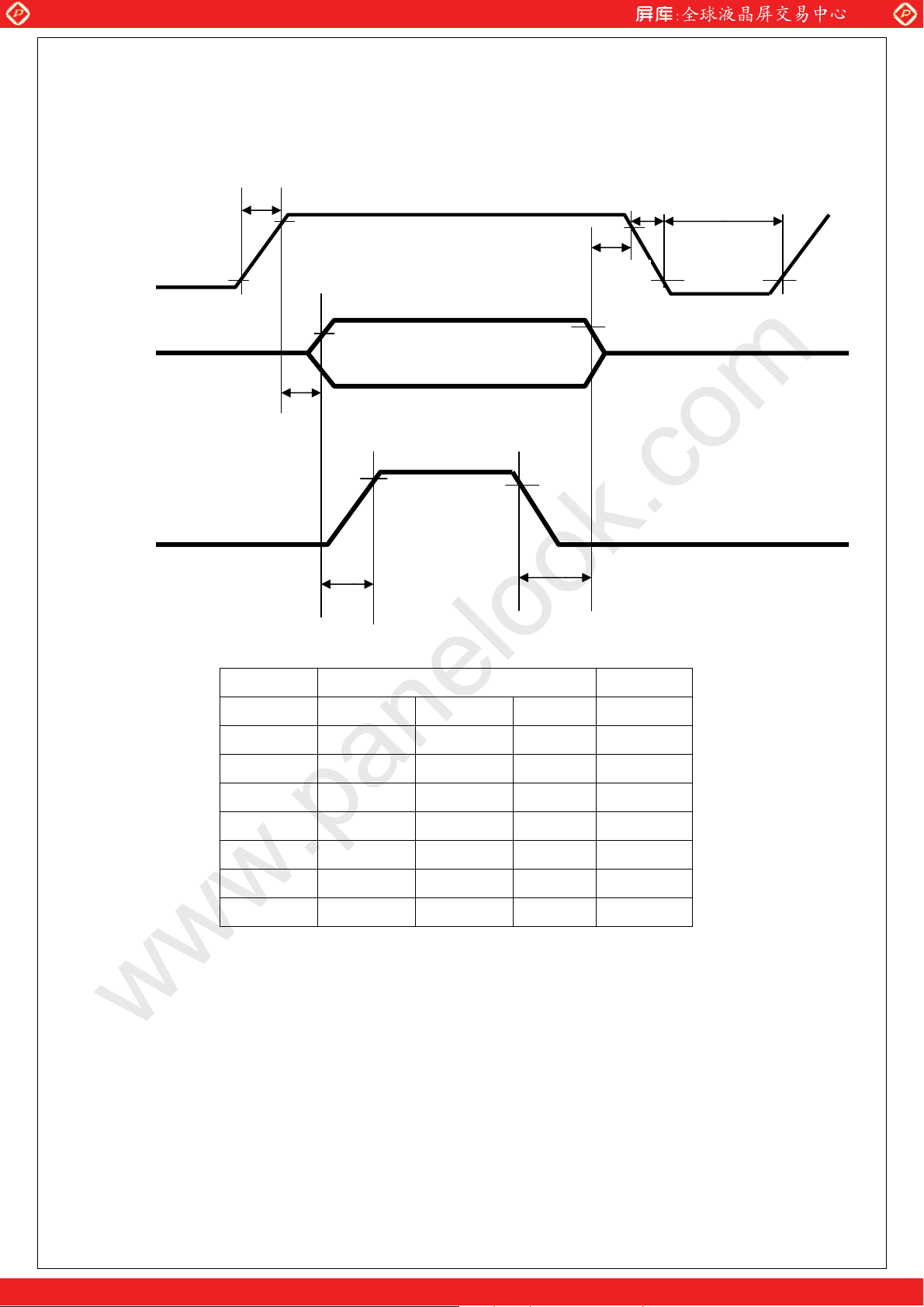

c. Input signal timing

Support Input Timing Table

Item Description Min. Typ. Max. Unit

period 14.43 18.52 22.22 nS Clock

Dclk

frequency 45 54 69.3 MHz

Vertical

Horizontal

T

H_TOTAL

T

V total line number 1044 1066 1100 T

V_TOTAL

Data duration

V_DATA

Ё

1024

Ё

TVB V-blank 20 42 T

frequency 50 60 77 Hz

f

V

H_TOTAL

T

H_TOTAL

H total pixel number 790 844 880 DClk

Data duration

H_DATA

H-blank 150 204 DClk

T

HB

Ё

640

Ё

DClk

Vertical signal

Horizontal signal

Note : DE is reference signal, DE means the display data valid.

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

d. Display Position

D(1, 1) D(2, 1) …… D(640, 1) …… D(1279, 1) D(1280, 1)

D(1, 2) D(2, 2) …… D(640, 2) …… D(1279, 2) D(1280, 2)

. . .

D(1, 512) D(2, 512) …… D(640, 512) …… D(1279, 512) D(1280, 512)

. . .

D(1, 1023) D(2, 1023) …… D(640, 1023) …… D(1279, 1023) D(1280, 1023)

D(1, 1024) D(2, 1024) …… D(640, 1024) …… D(1279, 1024) D(1280, 1024)

e. Backlight driving conditions

Parameter Symbol Min. Typ. Max. Unit Remark Remark

Lamp voltage VL 531 590 649 Vrms @8.0mA

Lamp operation current IL 2 8.0 8.5 mArms Note 1

……

SPEC NO.

. . .

PAGE

……

MT170EN01 V.G

13/22

. . .

Lamp starting voltage VLstart

Frequency F 40 55 60 KHZ Note 5

Lamp life time 50,000 Hr Note 6

1300 T = 25±D! Note 2,3,4,5

1600

Vrms

T = 0±D Note 2,3,4,5

Note: The waveform of the voltage output of inverter must be area-symmetric and the design of the

inverter must have specifications for the modularized lamp. The performance of the Backlight,

such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter

for the lamp. All the parameters of an inverter should be carefully designed to avoid producing too

much current leakage from high voltage output of the inverter. When designing or ordering the

inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the

inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module

should be operated in the same manners when it is installed in your instrument.

Note 1 : The degrees of unbalance: less than 10%

The ratio of wave height: less than

10%2 r

Ip: high side

I-p: low side

The degrees of unbalances =|

Ip

I-p

Ip-I-p| /Irms *100(%)

The ratio of wave height = Ip(or I-p)/Irms

Lamp should be completely turned on.

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Note 2: Test equipment: AS-114B, Output Capacitor =15pF, f=46KHz

Note 3: The voltage shown above should be applied to the lamp for more than 1 second after startup.

Otherwise, the lamp may not be turned on normally.

Note 4:

Inverter should provide more than min. value, and then lamp could be completely turned on

Note 5:

Lamp frequency may produce interference with horizontal synchronous frequency and this may cause line flow on the display. Therefore lamp frequency shall be detached from the horizontal synchronous frequency and its harmonics as far as possible in order to avoid interference.

Lamp Hi-POT test spec: The current leakage should not be more than (<=) 0.8mA under the conditions of “the frequency of the inverter output voltage keeping 60Hz, test voltage keeping 2.5KV and test time keeping 2sec”.

Note 6:

Lamp life definition:

The brightness of lamp becomes 50% of the initial brightness or not normal lighting.

SPEC NO.

PAGE

MT170EN01 V.G

14/22

Backlight connecter : 35001HS-02L

Pin no. Symbol Function Remark

1 VIH Lamp high voltage input(Upper) Cable color: Red

2 VIL Lamp low voltage input(Upper) Cable color: White

3 VIL Lamp High voltage input(Lower) Cable color: Blue

4 VIH Lamp low voltage input(Lower) Cable color: Black

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

yp

www.panelook.com

C. Optical specifications

Item Symbol Condition

Response time

Tr+Tf

Contrast ratio CR

Top

Bottom

Viewing angle

Left

SPEC NO.

PAGE

Specification

Min. T

Tr -

Tf -

= 0ш

CRЊ10

CRЊ5

CRЊ10

CRЊ5

CRЊ10

CRЊ5

-

700 1000

70

75

70

75

70

75

.Max.

1 4

4 6

5 10

80

85

80

85

80

85

MT170EN01 V.G

15/22

Unit Remark

ms Note 4

-

deg Note 3,5,7

-

Note 3,5

CRЊ10

Right

CRЊ5

Brightness (Center)

YL

Wx

Wy

Rx

Ry

Color chromaticity(CIE)

Gx

= 0ш

Gy

Bx

By

White uniformity (9) 

Cross talk Ct - - 2% Note 9

0.75 0.80 - Note 3,8

W

70

75

200 250 nit Note 3,6

-0.03

80

85

0.313

0.329

0.640

0.349

0.284

0.617

0.142

0.067

-

+0.03

Note 3

Note 1: Ambient temperature = 25°C. Note 2: To be measured in dark room after backlight warm up 30 minutes. Note 3: To be measured with a viewing cone of 2°by Topcon luminance meter BM-5A.

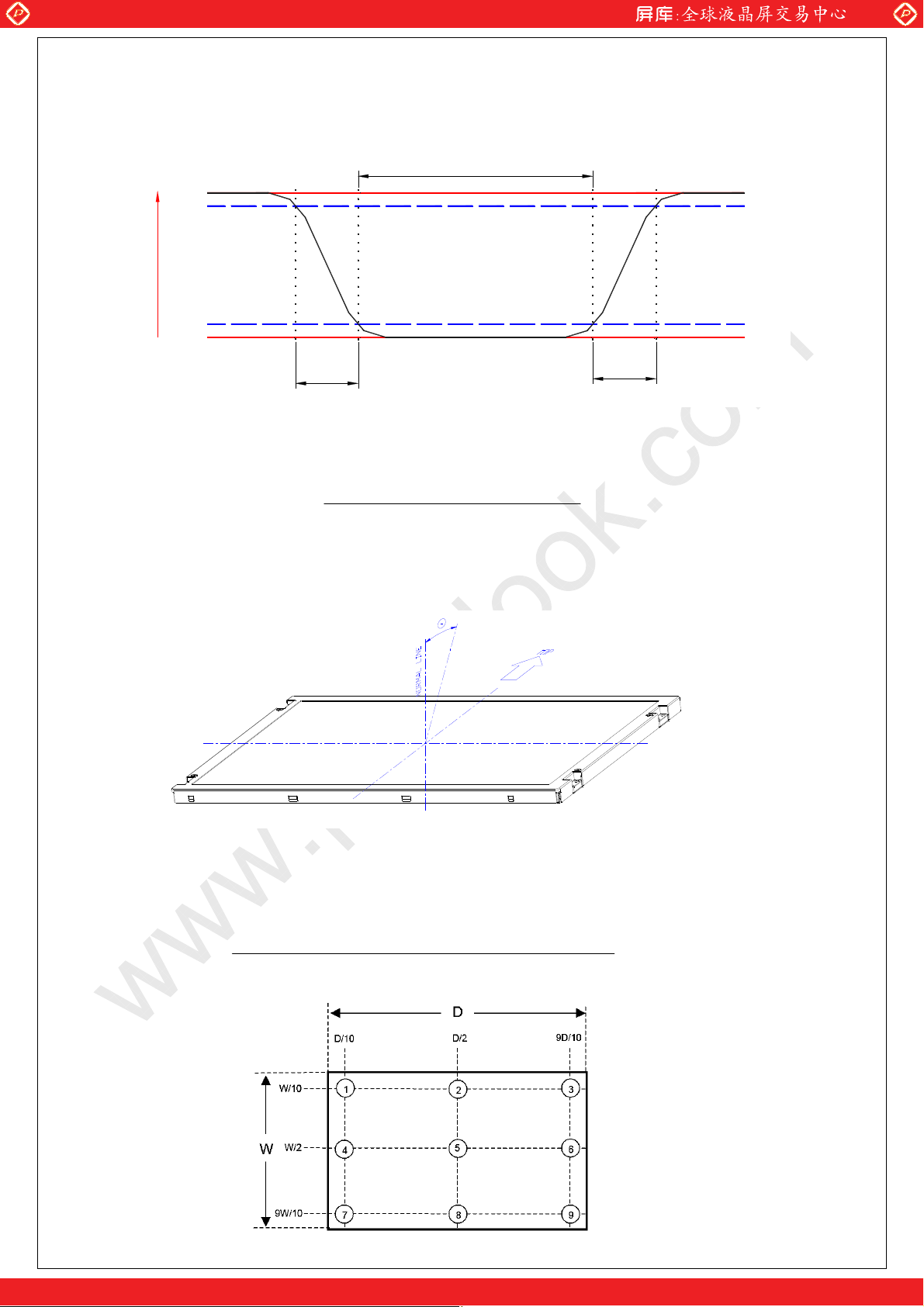

Note 4: Definition of response time: The output signals of BM-7 are measured when the input signals are changed from “Black” to

“White” (falling time) and from “White” to “Black” (rising time), respectively. The response time

interval between the 10% and 90% of amplitudes. Refer to figure as below.

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

100%

S ig

90%

n a l( R

e la

t

iv e

v a lu

10%

e )

0%

Note 5. Definition of contrast ratio:

Contrast ratio is calculated with the following formula.

Contrast ratio (CR)=

Tr

"Black"

Brightness on the "white" state Brightness on the "black" state

SPEC NO.

PAGE

Tf

MT170EN01 V.G

16/22

"White""White"

Note 6: Driving conditions for CCFL: I

= 8.0 mA, 50 KHz Frequency.

L

Note 7: Definition of viewing angle

Note 8: Definition white uniformity:

Luminance are measured at the following nine points (1~9).

Ӭ

Minimum Brightness of nine points

=

Maximum Brightness of nine points

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Note 9:

1/2

A

127 gray level 127 gray level

Unit: percentage of dimension of display area

l L

l / LA x 100%= 2% max., LA and LA’ are brightness at location A and A’

A-LA’

1/6

B

1/6

1/2

SPEC NO.

PAGE

1/2

2/3 1/3

A’

0 gray level

MT170EN01 V.G

17/22

1/6

1/3

1/2

B’

2/3

l L

l / LB x 100%= 2% max., LB’ and LB’ are brightness at location B and B’

B-LB’

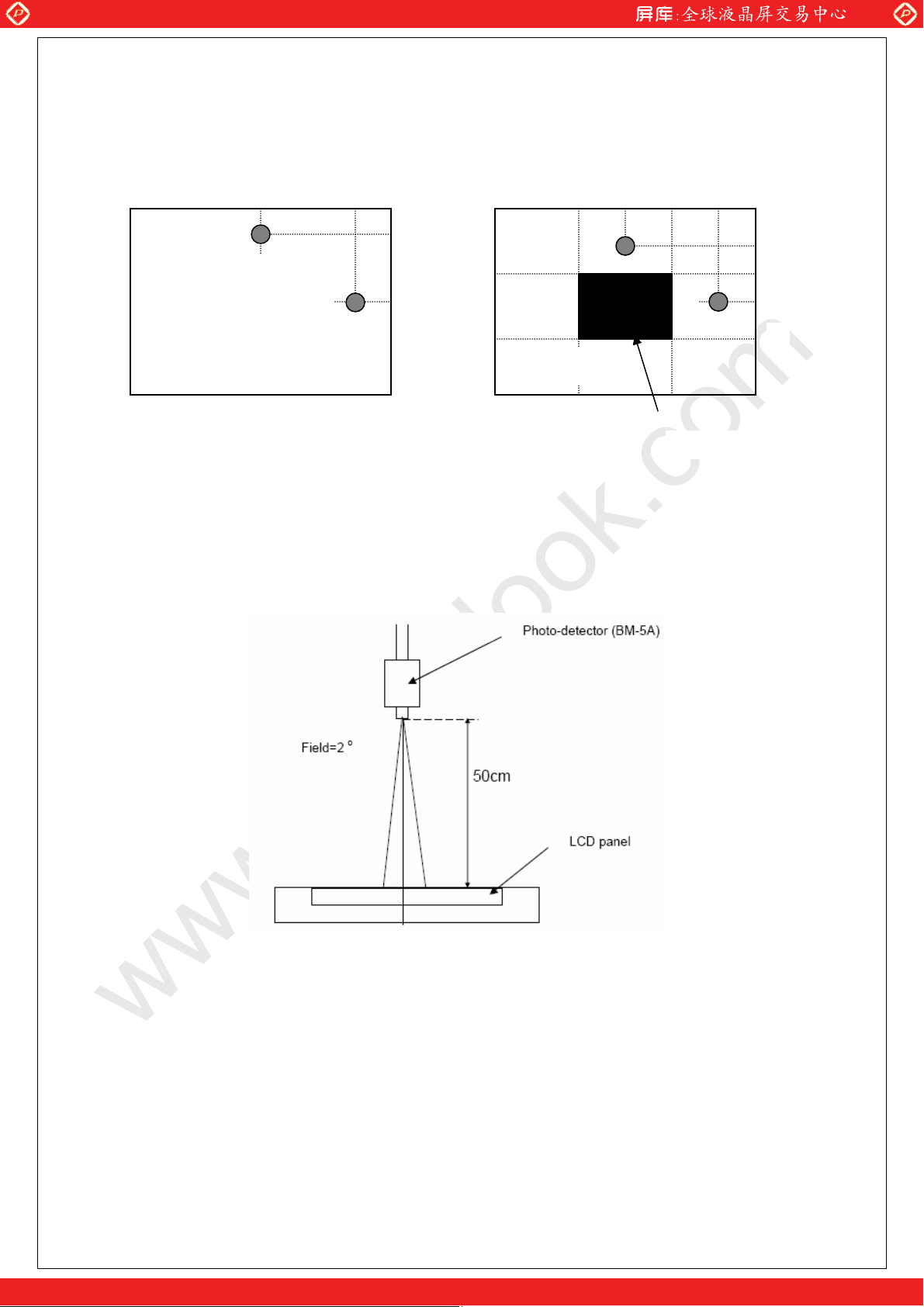

Note 10: Optical characteristic measurement setup

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

D. Reliability test items

Test Item Test Condition Judgement Remark

High temperature storage

Low temperature storage

High temperature & high

humidity operation

High temperature operation

Low temperature operation

Thermal Shock

(non-operation)

Electrostatic discharge (ESD)

(non-operation)

60°C, 240Hrs

-20°C, 240Hrs

40°C, 90%RH,240Hrs

(No condensation)

50°C, 240Hrs

0°C, 240Hrs

-20°C/1h~60°C/1h, 100cycles

Contact: +/-8kV, 150pF(330ohms),

10 times/1 point, 1 time/1 sec

SPEC NO.

PAGE

Note 1 Note 2

No te 1 Note 2

MT170EN01 V.G

18/22

Air discharge: +/-15kV, 150pF(330ohms),

10 times/1 point, 1 time/1 sec

Vibration

(non-operation)

Mechanical shock

(non-operation)

MTBF Demonstration 50,000 hours with confidence level 90% Note 1 Note 3

Vibration level : 1G

Bandwidth : 10-500Hz

Waveform : sine wave,

sweep rate : 30min

1H for each direction X, Y, Z

(3Hrs in total)

Shock level : 50G/11ms,

Waveform : Half sine wave

Direction: ±X, ±Y, ±Z

once for each direction

Note 1 Note 2

Note 1 :

Pass: Normal display image with no obvious non-uniformity and no line defect. Partial

transformation of the module parts should be ignored.

Fail: No display image, obvious non-uniformity, or line defects.

Note 2 :

Evaluation should be tested after storage at room temperature for two hours.

Note 3 :

The MTBF ( Exclude CCFL ) calculation is based on the assumption that the failure rate

distribution meets the Exponential Model.

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

SPEC NO.

PAGE

MT170EN01 V.G

19/22

E. Display quality

The display quality of the color TFT-LCD module should be in compliance with the Innolux’s Incoming inspection standard.

F.Handling precaution

The Handling of the TFT-LCD should be in compliance with the Innolux’s handling principle standard.

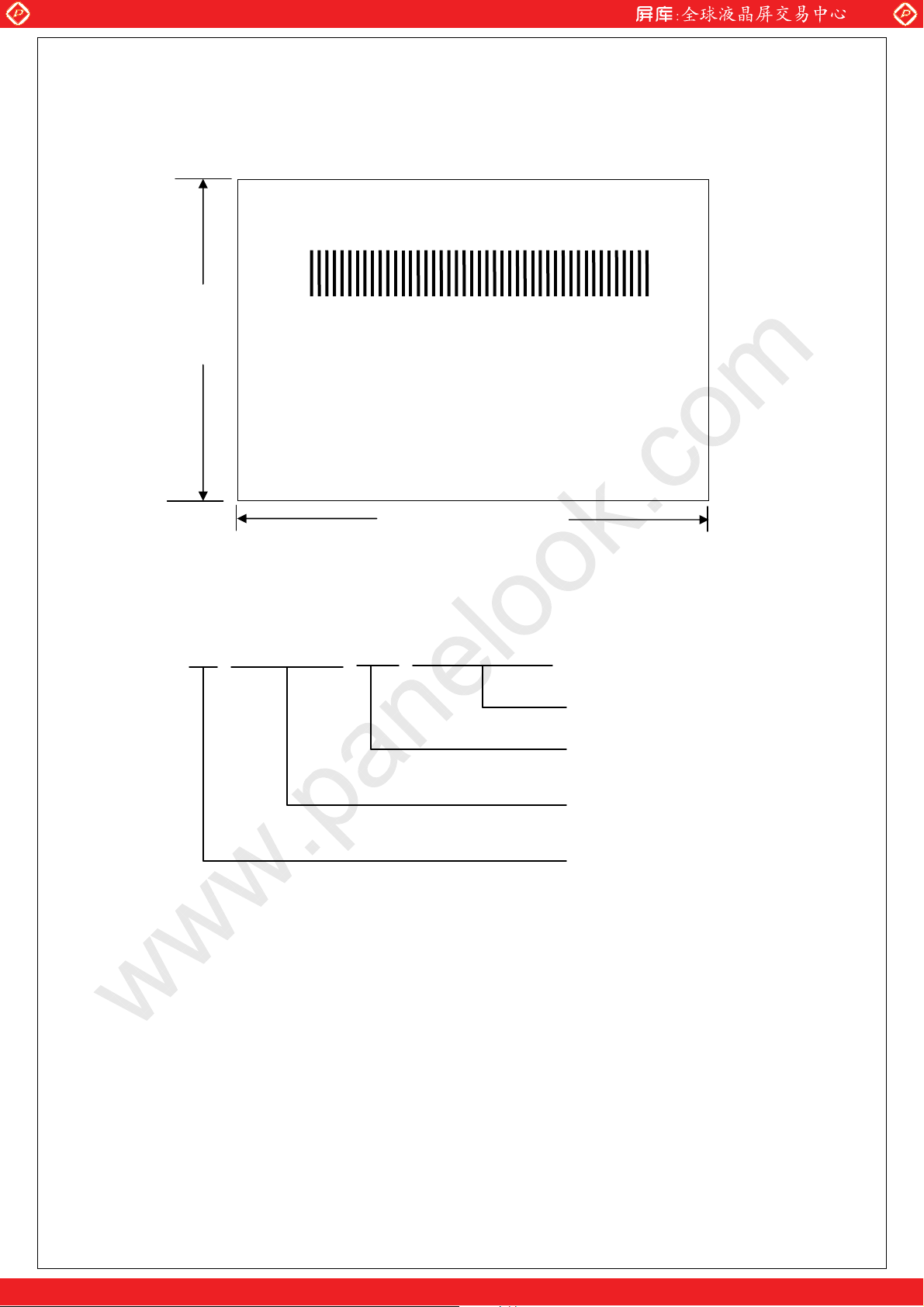

G. Label

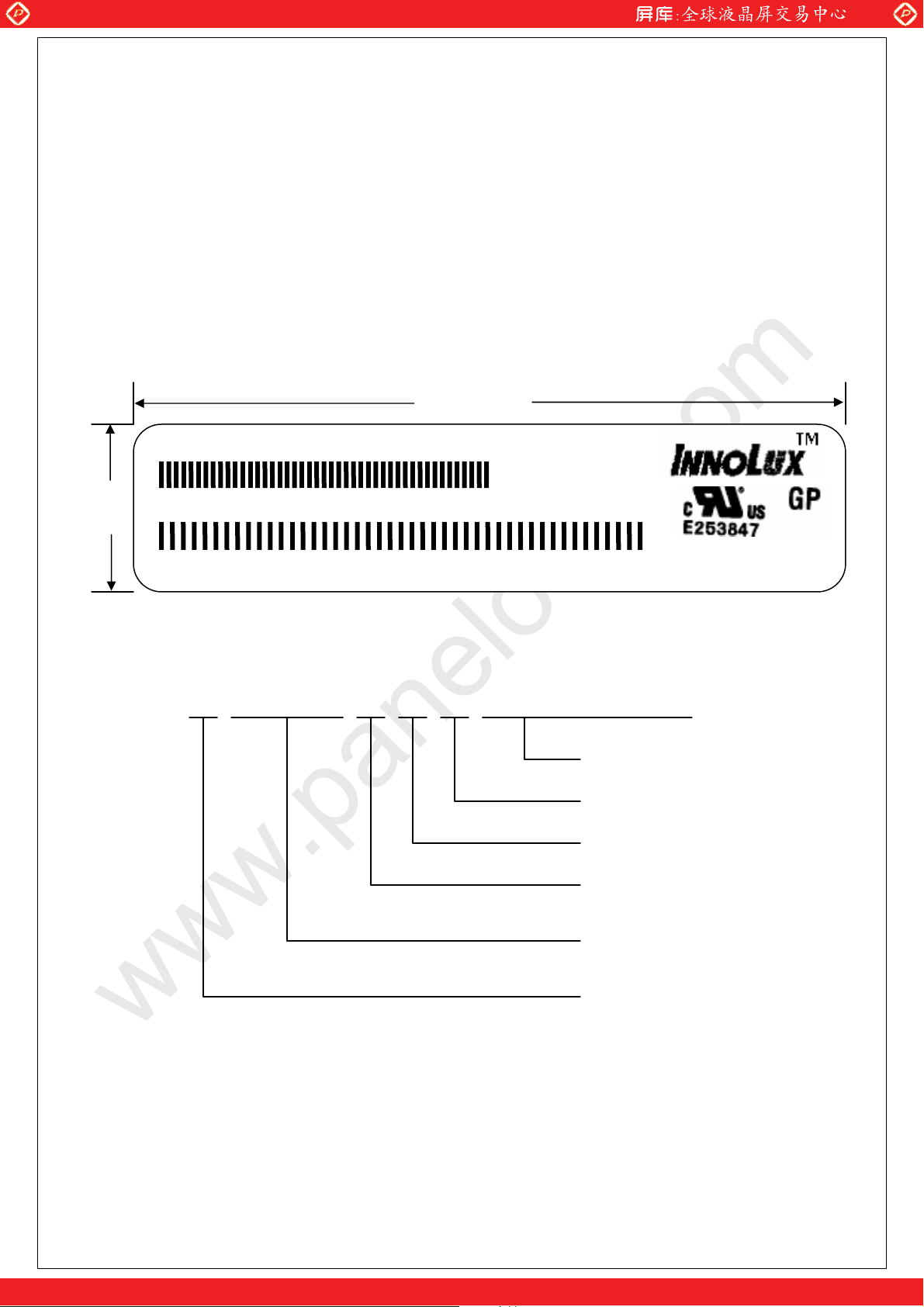

(1) Module Label

MT170EN01 V.G

Z

1 Z2 Z3 Z4 Z 5 Z 6

--Z 7--Z8 Z9 Z10 Z

11 Z 12

18 mm

73 mm

AM1700006 EXX

Z1 'Z2'-Z3' Z4'Z 5'Z 6'Z7'-Z8' - Z9 '- Z10 '- Z11' Z12'-Z13'-Z14' Z15' -Z16 '-Z17 'Z18' Z19' -Z20'Z21'Z22 ' Z

(a) Model Number : MT170EN01

(b) Version : V.G

(c) Serial ID I : Z

Z2 Z3 Z4 Z 5 Z 6 Z 7 Z8 Z

1

9 Z10

MADE IN XXX

'

23

Z

12

11

Serial No

Code of grade

INL internal use

Year, Month, Date

INL internal use

Serial ID includes the information as below :

1. Manufactured Date: Year: 0~9, for 2010~2019.

2. Month: 1~9 & A~C for Jan.~Dec.

3. Date: 1~9 & A~Z (exclude I, O, Q, U) for 1th~31th.

4. Code of grade: 1, 2,3, 5, 7, E

5. Serial No: Module manufacture sequential number.

(e) Serial ID II (INL internal use)

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

(2) Carton Label

INNOLUX DISPLAY

BOX ID :

60 mm

Model No. MT170EN01 V.G

AM1700006 EXX

Quantity : 7 PCS

MFG Date: 20XX/XX/XX

QC: Made in XXX

Z1 Z2 Z3 Z4 --Z 5--Z6 Z7 Z8 Z 9

SPEC NO.

PAGE

MT170EN01 V.G

20/22

100 mm

(a) Model Number: MT170EN01

(b) Version: V.G

(c) Packing quantity: 7 pcs

(d) Serial ID: Z

Z2 Z3 Z4 Z 5 Z6 Z

1

7 Z8

Z 9

Serial No

Code of grade

Serial ID includes the information as below:

(a) Manufactured Date: Year: 0~9, for 2010~2019

Month: 1~9 & A~C for Jan.~Dec.

Date: 1~9 & A~Z (exclude I, O, Q, U) for 1st~31th

Year, Month, Date

INL internal use

(b) Code of grade: 1,2, 3, 5, 7, E

(c) Serial No: Module packing sequential number.

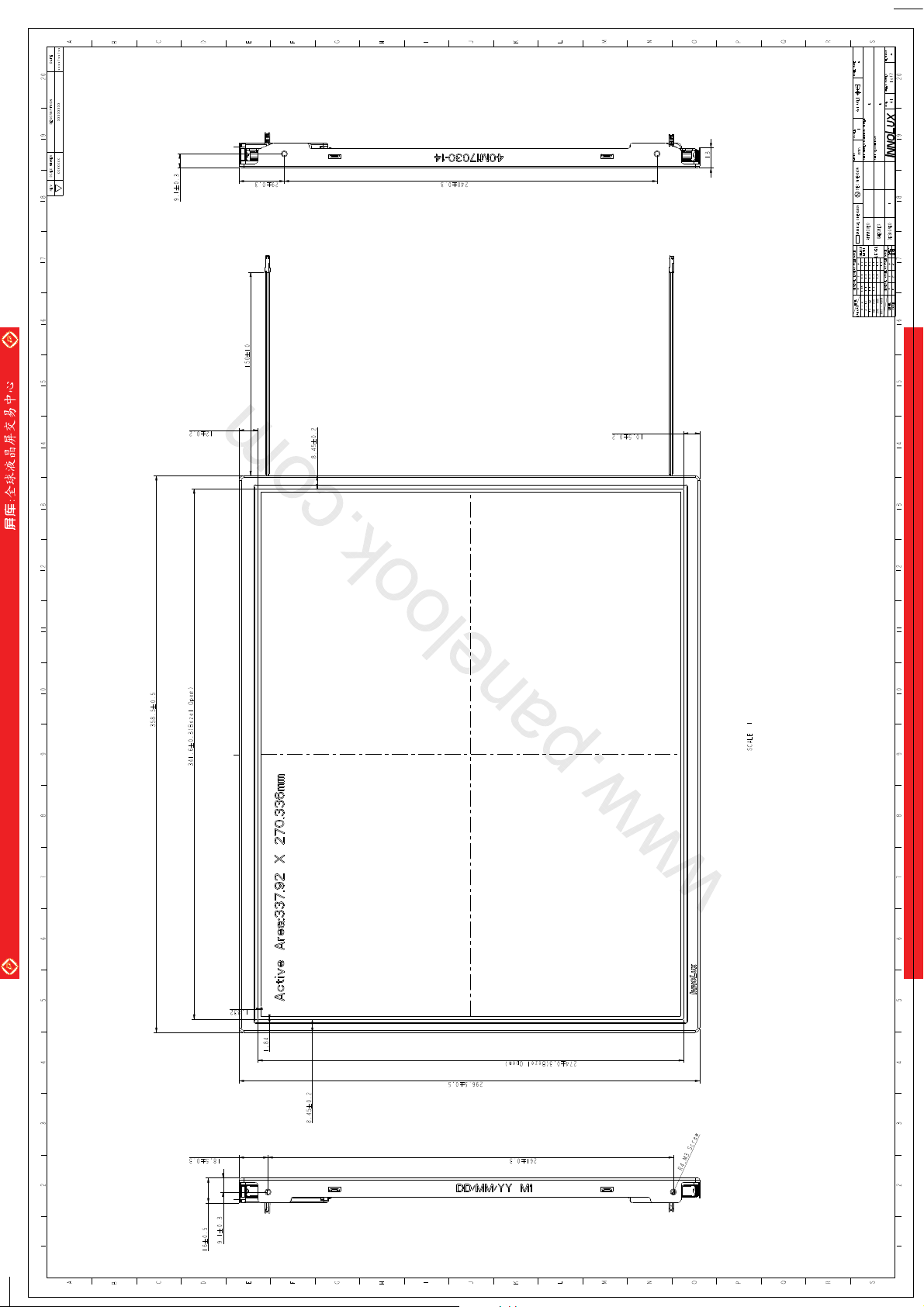

H. Mechanical drawings

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

INNOLUX MT170EN01 V.G Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
