INNOLUX MT170EN01 V.E Specification
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Version:04
Version Revise Date Page Content
www.panelook.com
Record of Revision
01 2008-07-23
02 2008-09-01
13
03 2008-10-07 12 Modify the maximum value of fv from 75Hz to 77Hz.
04 2009-05-13 04 Add Arsenic content in glass is N.D.
All First edition to all
4 Modify the weight from 2200g (max.) to 2000g (max.)
Update the parameters of the backlight driving conditions
Note 2: Update the storage time from one hour to two hours at
18
room temperature when evaluating the RA test result.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
SPEC NO.
PAGE
MT170EN01 V.E
3/23
Contents:
A. General Specification
B. Electrical Specifications
1. Pin assignment
2. Absolute maximum ratings
3. Electrical characteristics

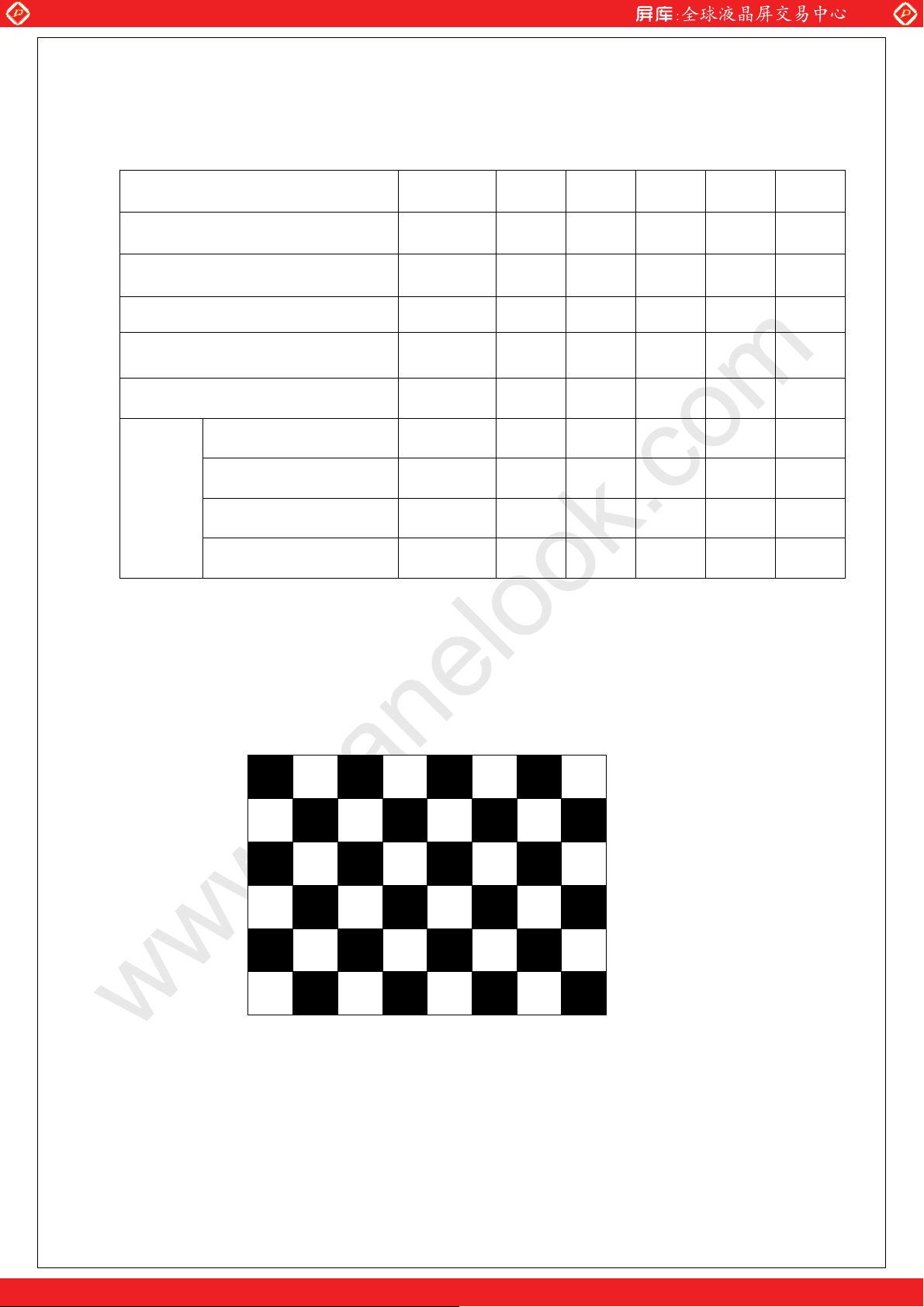

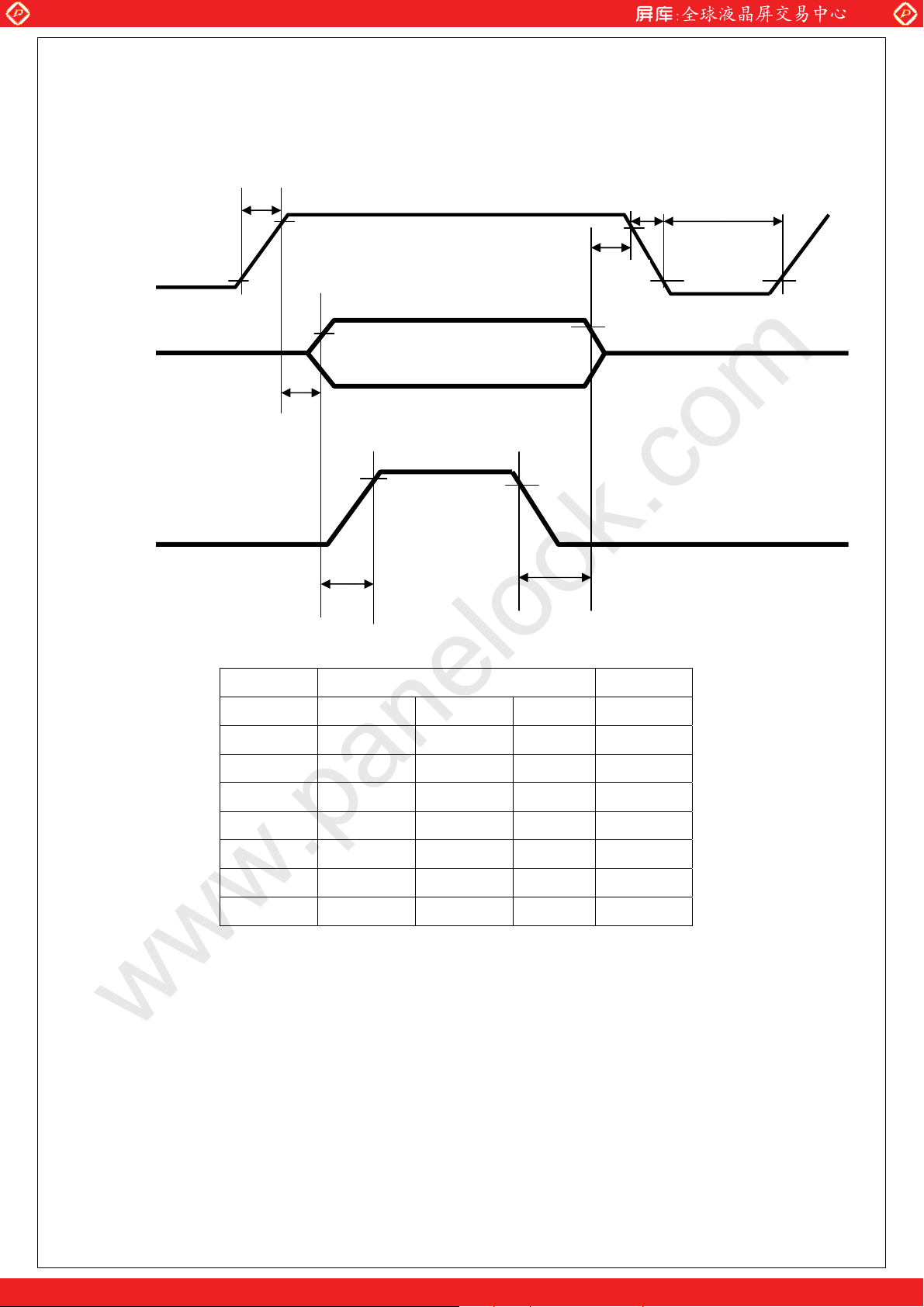

a. Typical operating conditions
b. Display color v.s. input data signals

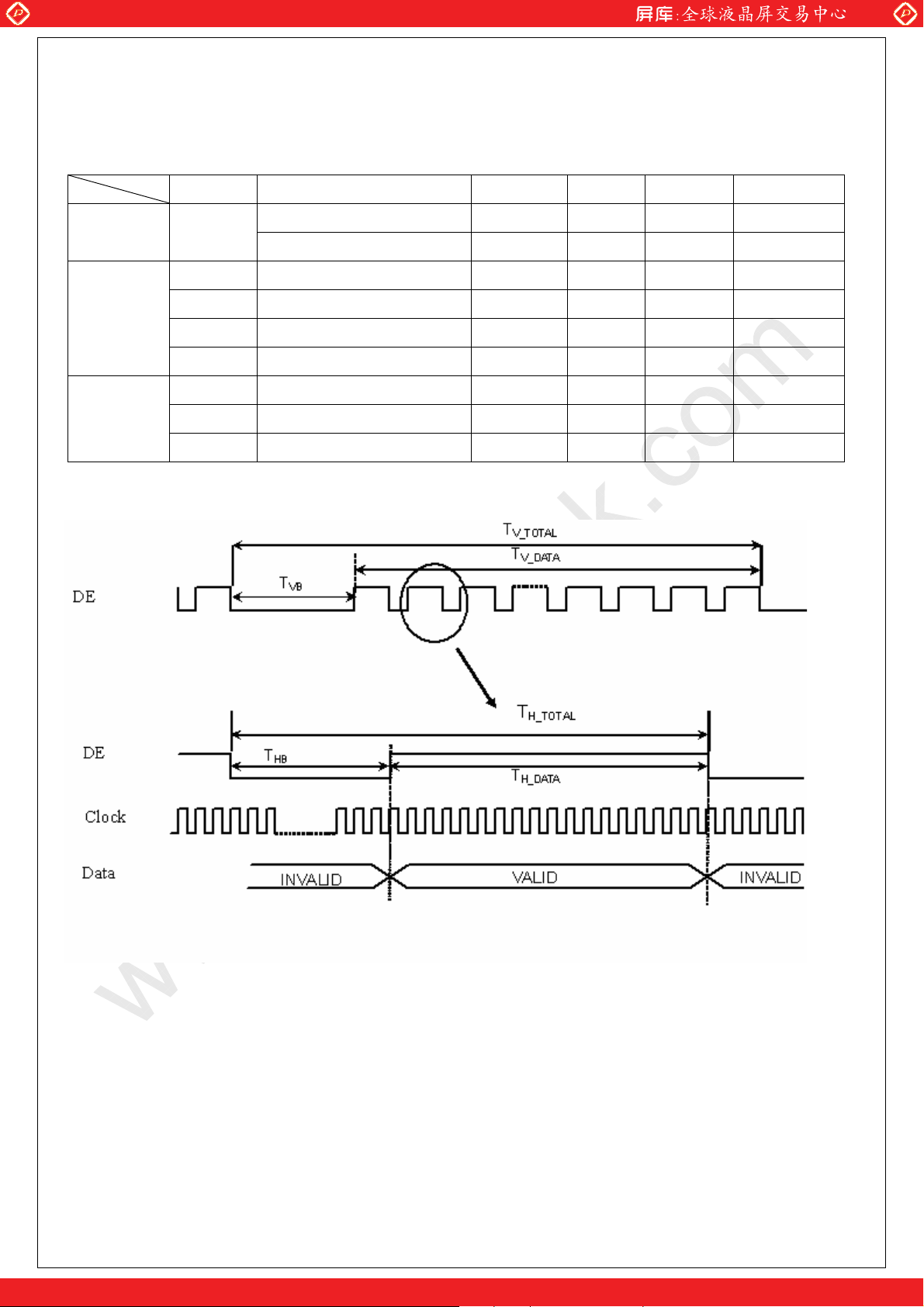

c. Input signal timing
d. Display position

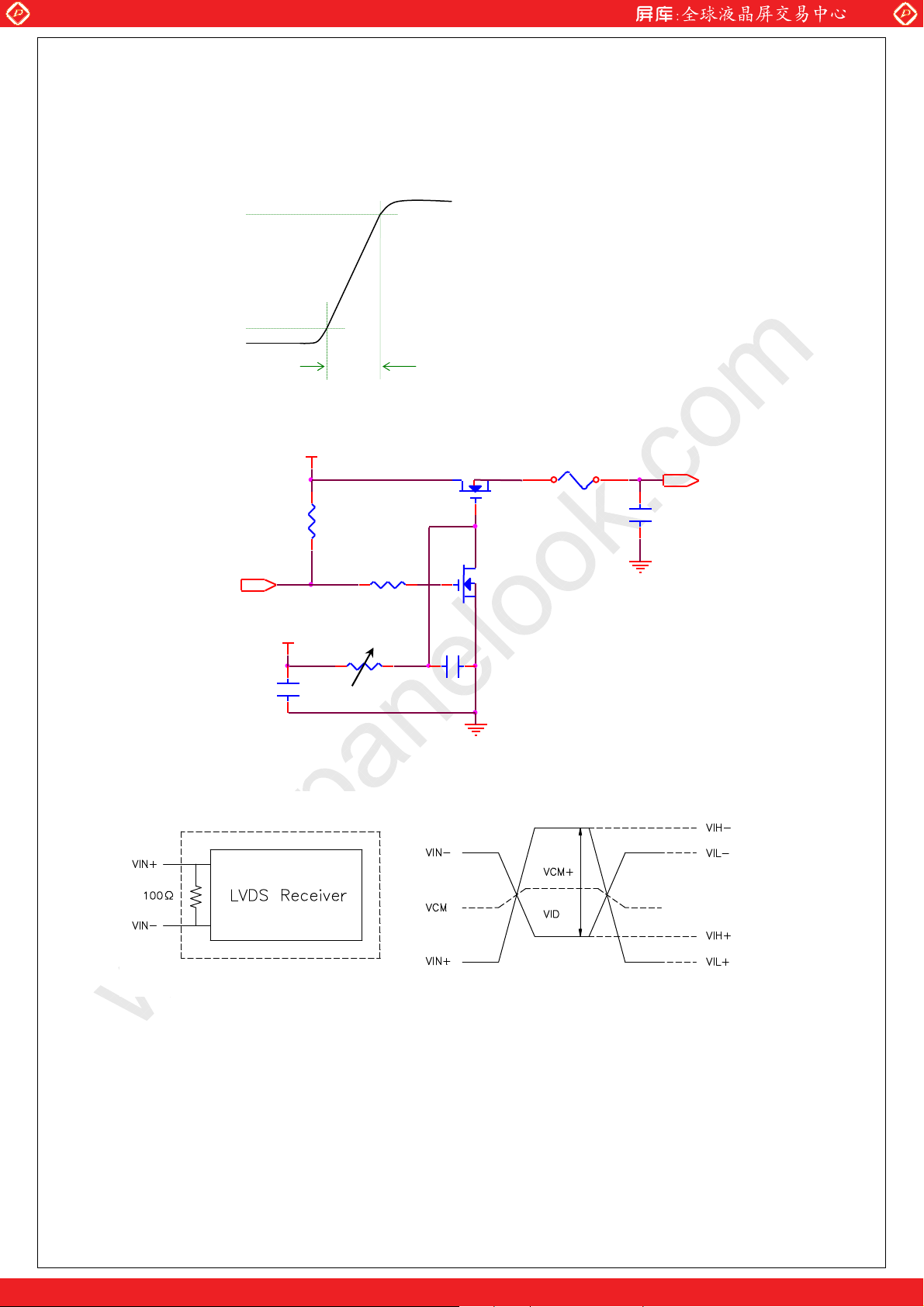

e. Backlight driving conditions

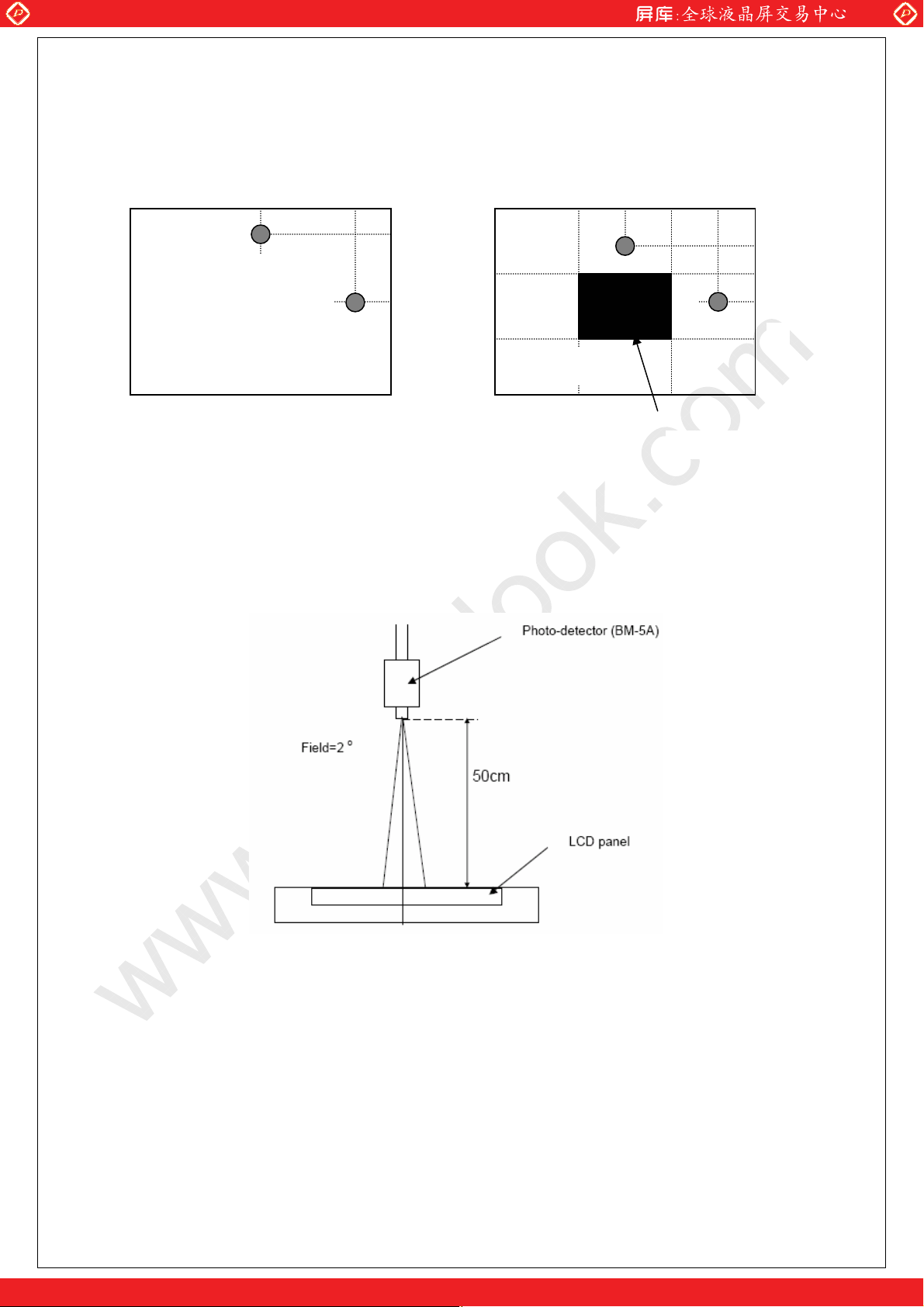

C. Optical specifications
D. Reliability test items
E. Safety
F. Display quality
G. Handling precaution

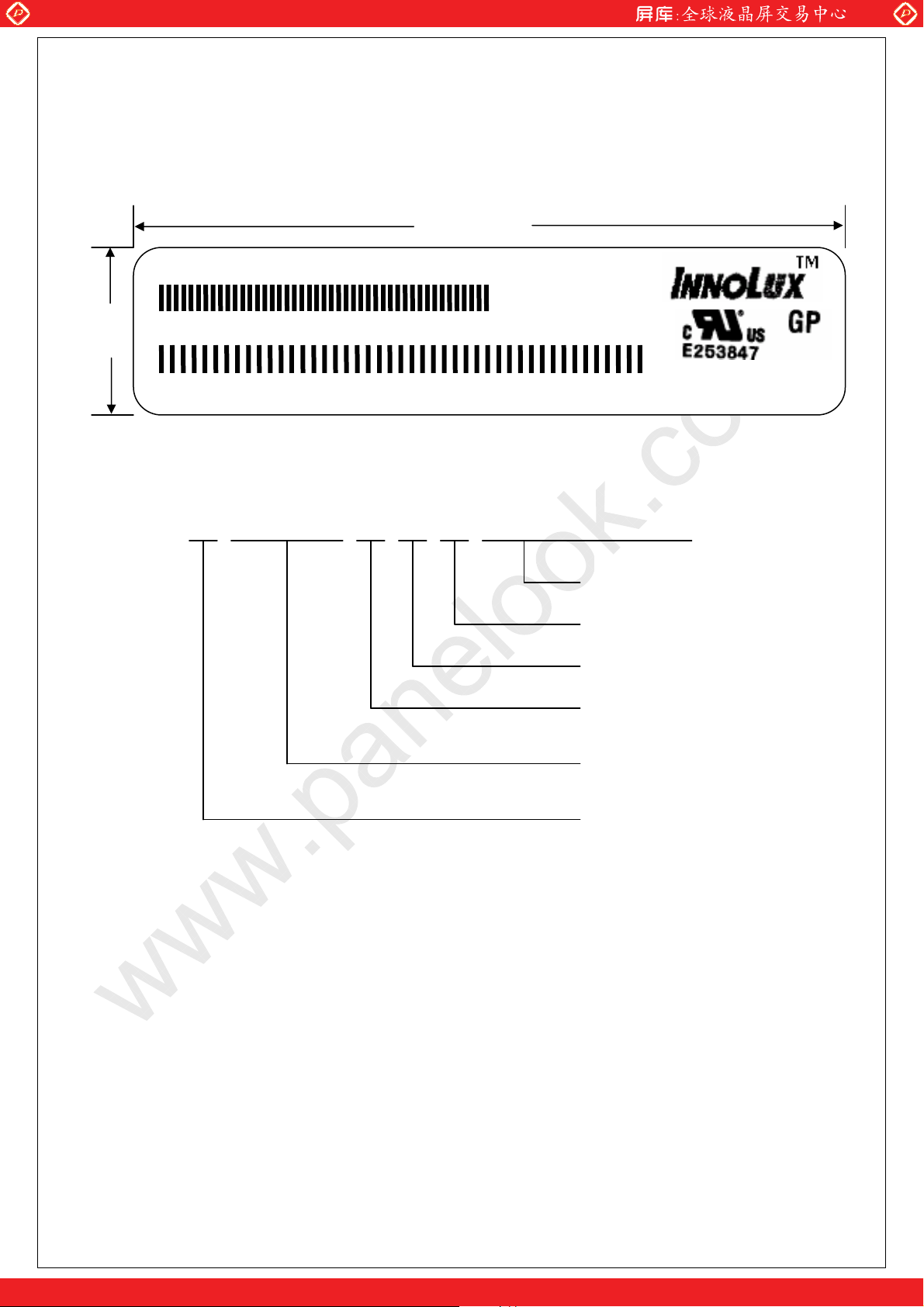

H. Label

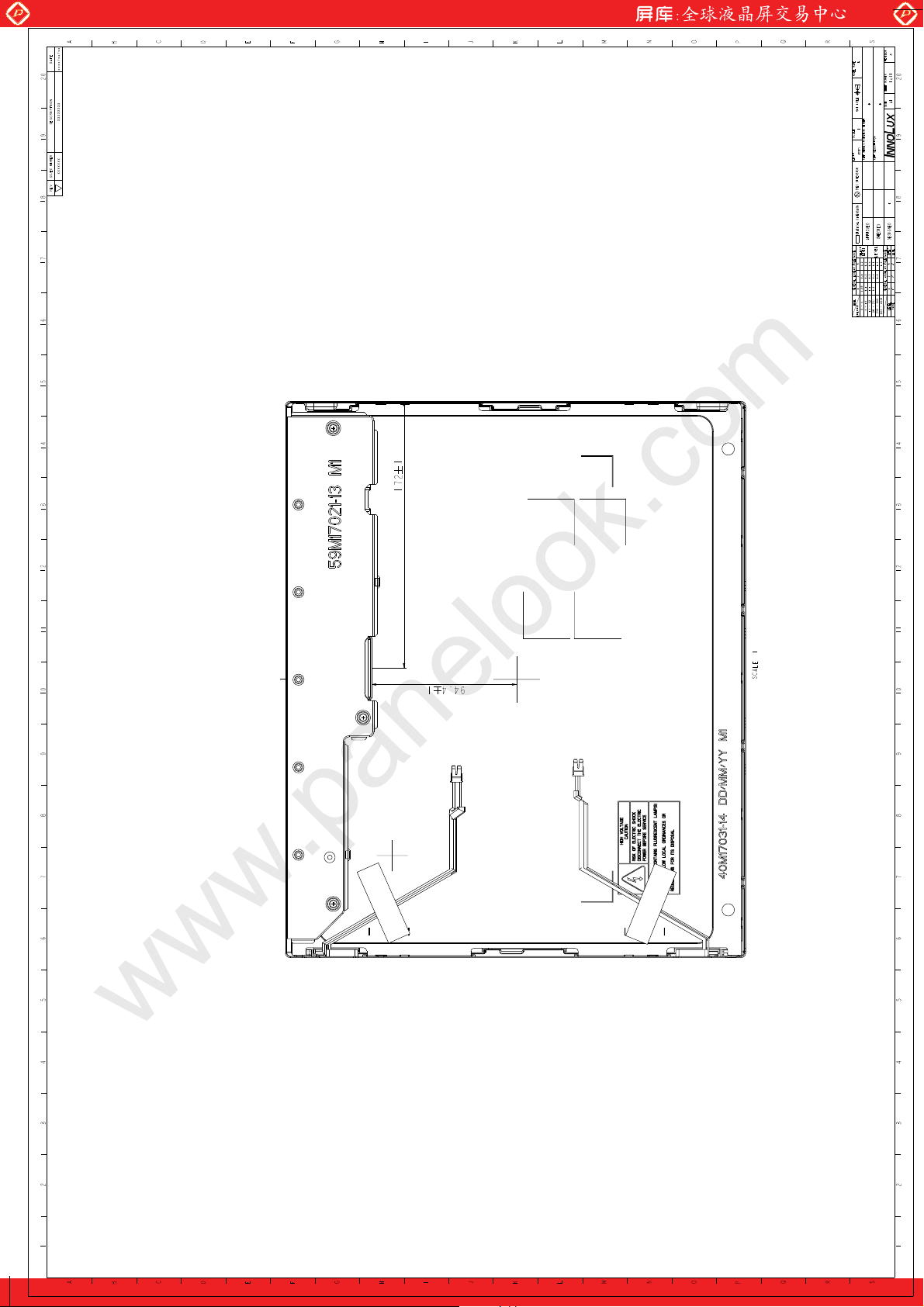

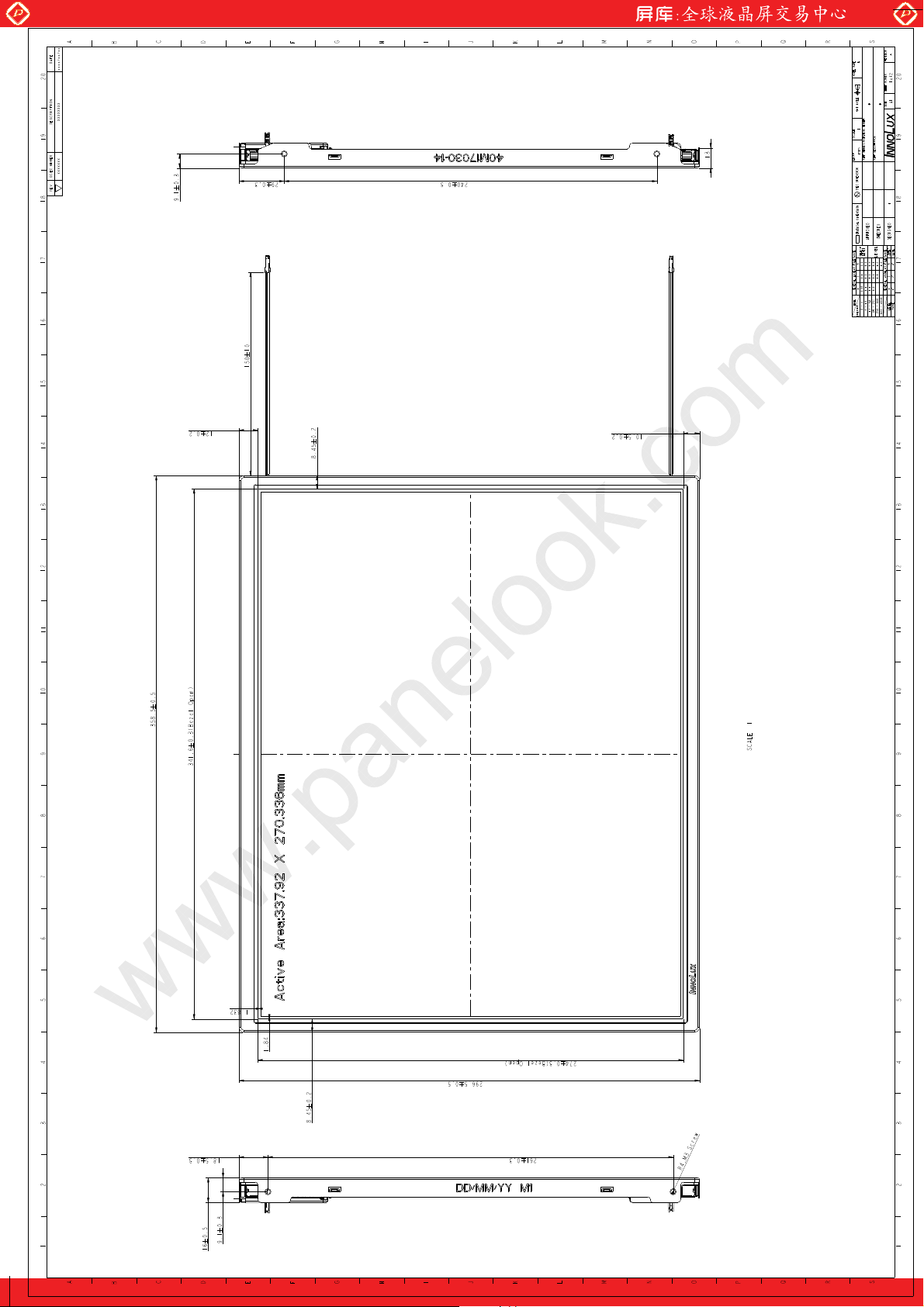

I. Mechanical drawings
Appendix
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
A. General specification
NO. Item Specification Remark
1 Display resolution (pixel) 1280(H) X 1024(V), SXGA resolution
2 Active area (mm) 337.92(H) X 270.336(V)
3 Screen size (inch) 17 inches diagonal
4 Pixel pitch (mm) 0.264(H) X 0.264(V)
5 Color configuration R, G, B vertical stripe
6 Overall dimension (mm) 358.5(W)x296.5(H)x16(D) (typ)
7 Weight (g) 2000 (max)
8 Surface treatment Anti-glare, Haze = 25%, Hard coating (3H)
SPEC NO.
PAGE
MT170EN01 V.E
4/23
9 Input color signal 8 bit LVDS
10 Color saturation 72% NTSC
11 Display colors 16.7M colors (6 bit with Hi-FRC)
12 Optimum viewing direction 6 o’clock
13 Backlight 2 CCFL, top & bottom edge side
14 RoHS RoHS compliance
15 Arsenic content Arsenic content in glass is N.D.
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
B. Electrical specifications
1.Pin assignment
Connector JAE FI-X30SSL-HF or equivalent
Pin No Symbol Description
1 RxO0- LVDS Differential data input Channel 0(-)
2 RxO0+ LVDS Differential data input Channel 0(+)
3 RxO1- LVDS Differential data input Channel 1(-)
4 RxO1+ LVDS Differential data input Channel 1(+)
5 RxO2- LVDS Differential data input Channel 2(-)
6 RxO2+ LVDS Differential data input Channel 2(+)
7 GND Ground
8 RxOC- LVDS Differential Clock input (-)
SPEC NO.
PAGE
MT170EN01 V.E
5/23
9 RxOC+ LVDS Differential Clock input (+)
10 RxO3- LVDS Differential data input Channel 3(-)
11 RxO3+ LVDS Differential data input Channel 3(+)
12 RxE0- LVDS Differential data input Channel 0(-)
13 RxE0+ LVDS Differential data input Channel 0(+)
14 GND Ground
15 RxE1- LVDS Differential data input Channel 1(-)
16 RxE1+ LVDS Differential data input Channel 1(+)
17 GND Ground
18 RxE2- LVDS Differential data input Channel 2(-)
19 RxE2+ LVDS Differential data input Channel 2(+)
20 RxEC- LVDS Differential Clock input (-)
21 RxEC+ LVDS Differential Clock input (+)
22 RxE3- LVDS Differential data input Channel 3(-)
23 RxE3+ LVDS Differential data input Channel 3(+)
24 GND Ground
25 GND Ground
26 GND Ground or Open
27 GND Ground
28 VCC Power supply (+5.0V)
29 VCC Power supply (+5.0V)
30 VCC Power supply (+5.0V)
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Rear view of LCM
SPEC NO.
PAGE
MT170EN01 V.E
6/23
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
A
A
p
[mA]
www.panelook.com
SPEC NO.
PAGE
MT170EN01 V.E
7/23
2. Absolute maximum ratings
Parameter Symbol
Power voltage
Input signal voltage V
Operating temperature To
Storage temperature T
CCFL Current ICFL 2 8.5
V
cc
LH
ST
Values
Min. Max.
-0.3 6.0 V
-0.3 3.6 V
050°C Note 1
-20 60 °C Note 2
Unit
rms
Remark
Note 1: The relative humidity must not exceed 90% non-condensing at temperatures of 40°C or
less. At temperatures greater than 40°C, the wet bulb temperature must not exceed
39°C.
Note 2: The unit should not be exposed to corrosive chemicals.
t 25°C
t 25°C
