INNOLUX DISPLAY CORPORATION
MT170EN01 V.D LCD MODULE SPECIFICATION
www.panelook.com
(
(
) Preliminary Specification
) Final Specification
Customer Checked & Approved by
Innolux Display Corporation,
No.160 Kesyue Rd., Chu-Nan Site, Hsinchu Science Park,
Chu-Nan 350 , Miao-Li County, Taiwan
Tel: 886-37-586000 Fax: 886-37-586060
Document Number: MT170EN01 V.D-DR4-03
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Version Revise Date Page Content
www.panelook.com
InnoLux copyright
All rights reserved,
Copying forbidden.
Record of Revision
01 2007-09-15
All First edition to all
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Contents:
A. General Specification
B. Electrical Specifications
1. Pin assignment
2. Absolute maximum ratings
3. Electrical characteristics
a. Typical operating conditions
b. Display color v.s. input data signals
SPEC NO.
PAGE
MT170EN01 V.D
3/24
c. Input signal timing
d. Display position
e. Backlight driving conditions
C. Optical specifications
D. Reliability test items
E. Safety
F. Display quality
G. Handling precaution
H. Label

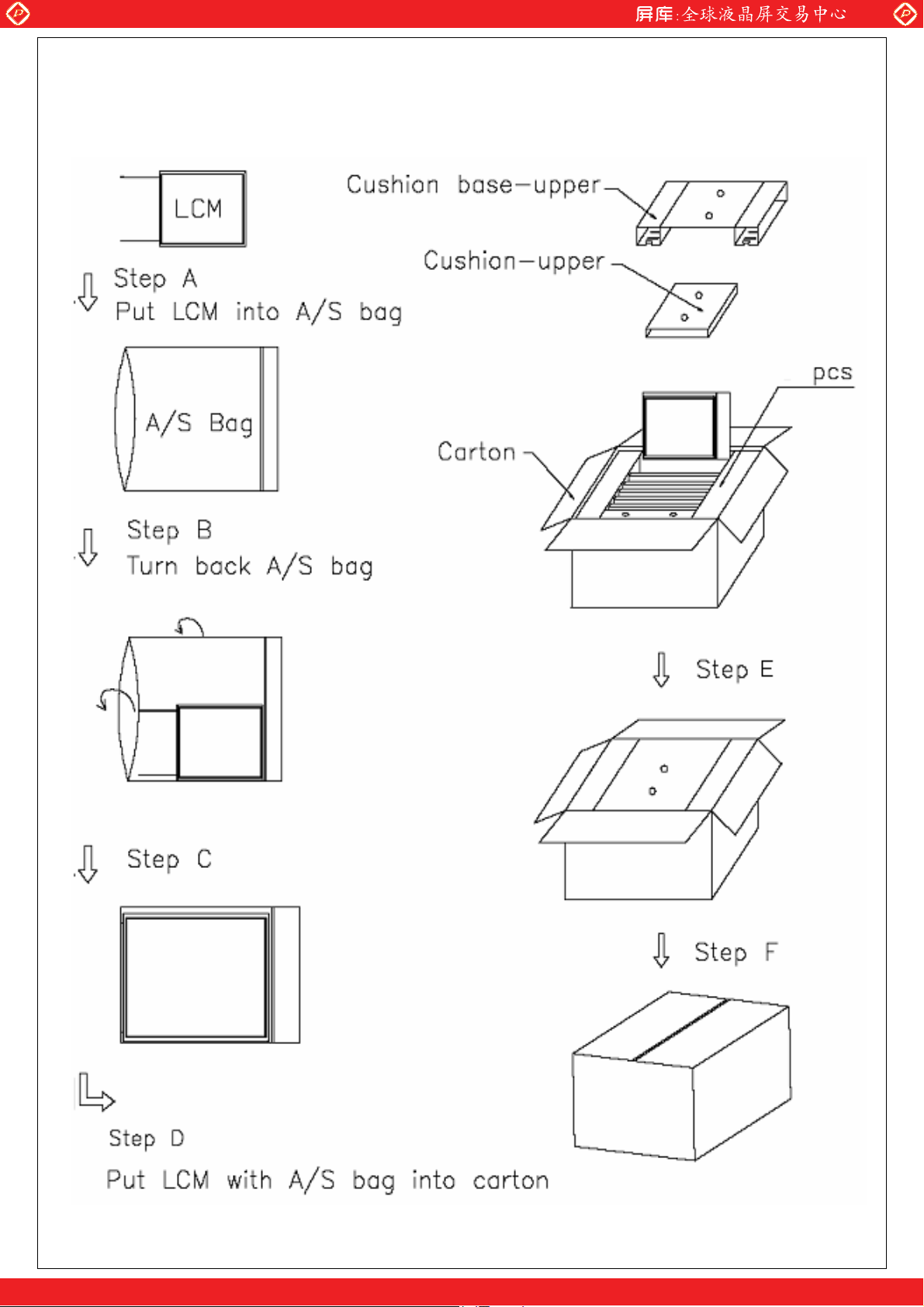

I. Packing form
J. Mechanical drawings
Appendix
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
A. General specification
NO. Item Specification Remark
1 Display resolution (pixel) 1280(H) X 1024(V), SXGA resolution
2 Active area (mm) 337.92(H) X 270.336(V)
3 Screen size (inch) 17 inches diagonal
4 Pixel pitch (mm) 0.264(H) X 0.264(V)
5 Color configuration R, G, B vertical stripe
6 Overall dimension (mm) 358.5(W)x296.5(H)x16(D) (typ)
7 Weight (g) 2000 (max)
8 Surface treatment Anti-glare, Haze = 25%, Hard coating (3H)
SPEC NO.
PAGE
MT170EN01 V.D
4/24
9 Input color signal 8 bit LVDS
10 Color saturation 72% NTSC
11 Display colors 16.7M colors (6 bit with Hi-FRC)
12 Optimum viewing direction 6 o’clock
13 Backlight 4 CCFL, top & bottom edge side
14 TCO’03 and RoHS TCO’03 and RoHS compliance
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
B. Electrical specifications
1.Pin assignment
Connector JAE FI-X30SSL-HF or equivalent
Pin No Symbol Description
1 RxO0- LVDS Differential data input Channel 0(-)
2 RxO0+ LVDS Differential data input Channel 0(+)
3 RxO1- LVDS Differential data input Channel 1(-)
4 RxO1+ LVDS Differential data input Channel 1(+)
5 RxO2- LVDS Differential data input Channel 2(-)
6 RxO2+ LVDS Differential data input Channel 2(+)
7 GND Ground
8 RxOC- LVDS Differential Clock input (-)
SPEC NO.
PAGE
MT170EN01 V.D
5/24
9 RxOC+ LVDS Differential Clock input (+)
10 RxO3- LVDS Differential data input Channel 3(-)
11 RxO3+ LVDS Differential data input Channel 3(+)
12 RxE0- LVDS Differential data input Channel 0(-)
13 RxE0+ LVDS Differential data input Channel 0(+)
14 GND Ground
15 RxE1- LVDS Differential data input Channel 1(-)
16 RxE1+ LVDS Differential data input Channel 1(+)
17 GND Ground
18 RxE2- LVDS Differential data input Channel 2(-)
19 RxE2+ LVDS Differential data input Channel 2(+)
20 RxEC- LVDS Differential Clock input (-)
21 RxEC+ LVDS Differential Clock input (+)
22 RxE3- LVDS Differential data input Channel 3(-)
23 RxE3+ LVDS Differential data input Channel 3(+)
24 GND Ground
25 GND Ground
26 GND Ground or Open
27 GND Ground
28 VCC Power supply (+5.0V)
29 VCC Power supply (+5.0V)
30 VCC Power supply (+5.0V)
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com

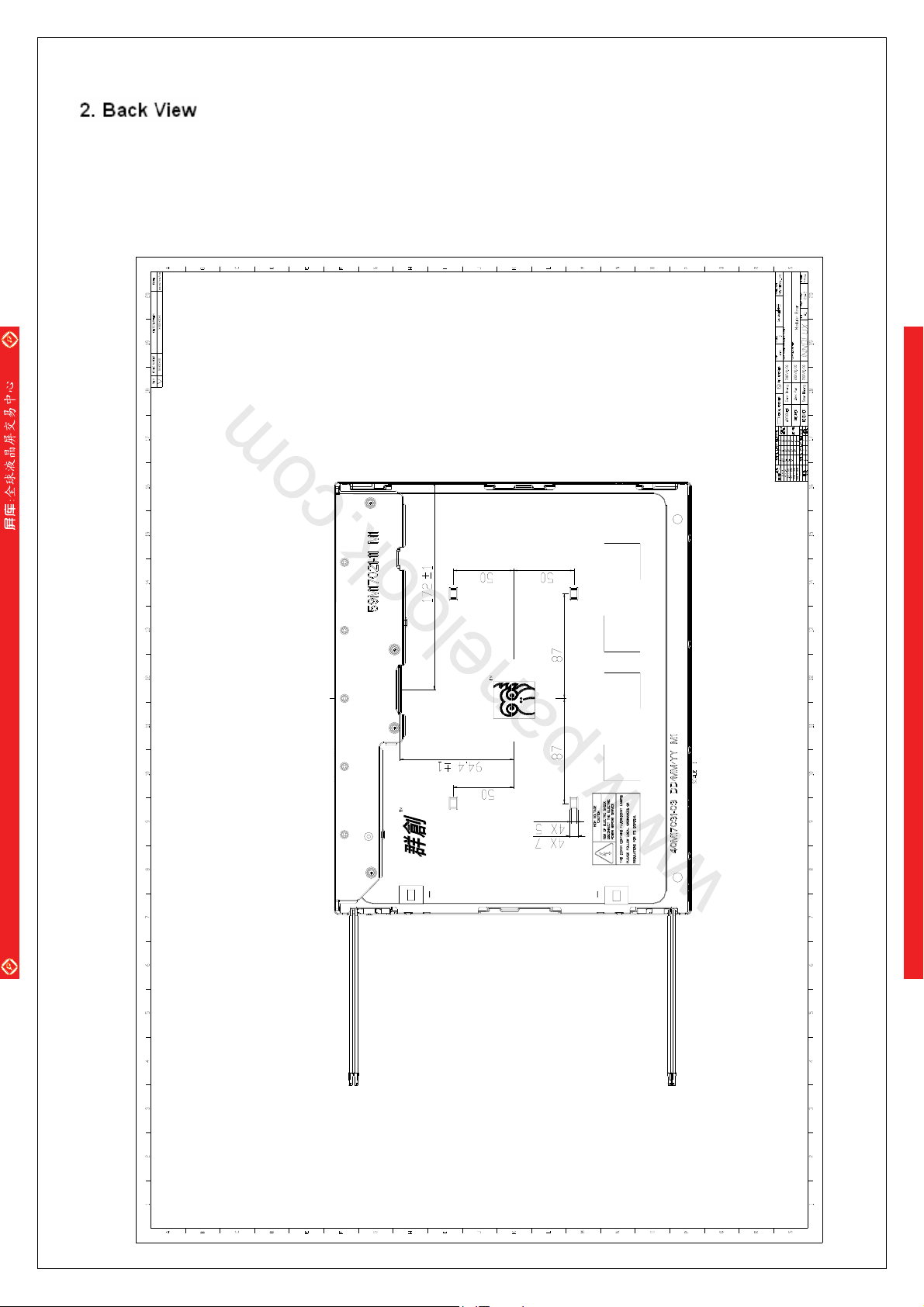

Rear view of LCM
SPEC NO.
PAGE
MT170EN01 V.D
6/24
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
A
A
p
[mA]
www.panelook.com
SPEC NO.
PAGE
MT170EN01 V.D
7/24
2. Absolute maximum ratings
Parameter Symbol
Min. Max.
Power voltage
Input signal voltage V
Operating temperature To
Storage temperature T
CCFL Current ICFL 3 8
V
cc
LH
ST
-0.3 6.0 V
-0.3 3.6 V
050°C Note 1
-20 60 °C Note 2
Values
Unit
rms
Remark
Note 1: The relative humidity must not exceed 90% non-condensing at temperatures of 40°C or
less. At temperatures greater than 40°C, the wet bulb temperature must not exceed
39°C.
Note 2: The unit should not be exposed to corrosive chemicals.
t 25°C
t 25°C
ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
3. Electrical characteristics
a. Typical operating conditions
Item Symbol Min. Typ. Max. Unit Remark
Input Voltage
Permissive Power Input Ripple
Input Current
Differential Impedance
Rush Current
Logic Input
Voltage
LVDS:
IN+, IN-
Common Mode Voltage
Differential Input Voltage
Threshold Voltage (High)
Threshold Voltage (Low)
SPEC NO.
PAGE
V
4.5 5.0 5.5
cc
V
- 0.15
RF
I
- 0.7 0.95
cc
Z
90 100 110
m
I
Rush
- -
MT170EN01 V.D
8/24
Vp-p
ohm
3.0
VCM 1.125 1.25 1.375
VID 250 350 450
VTH - - 100
VTL -100
mV
mV Note 4
mV Note 4
V
Note 1
A Note 2
A Note 3
V

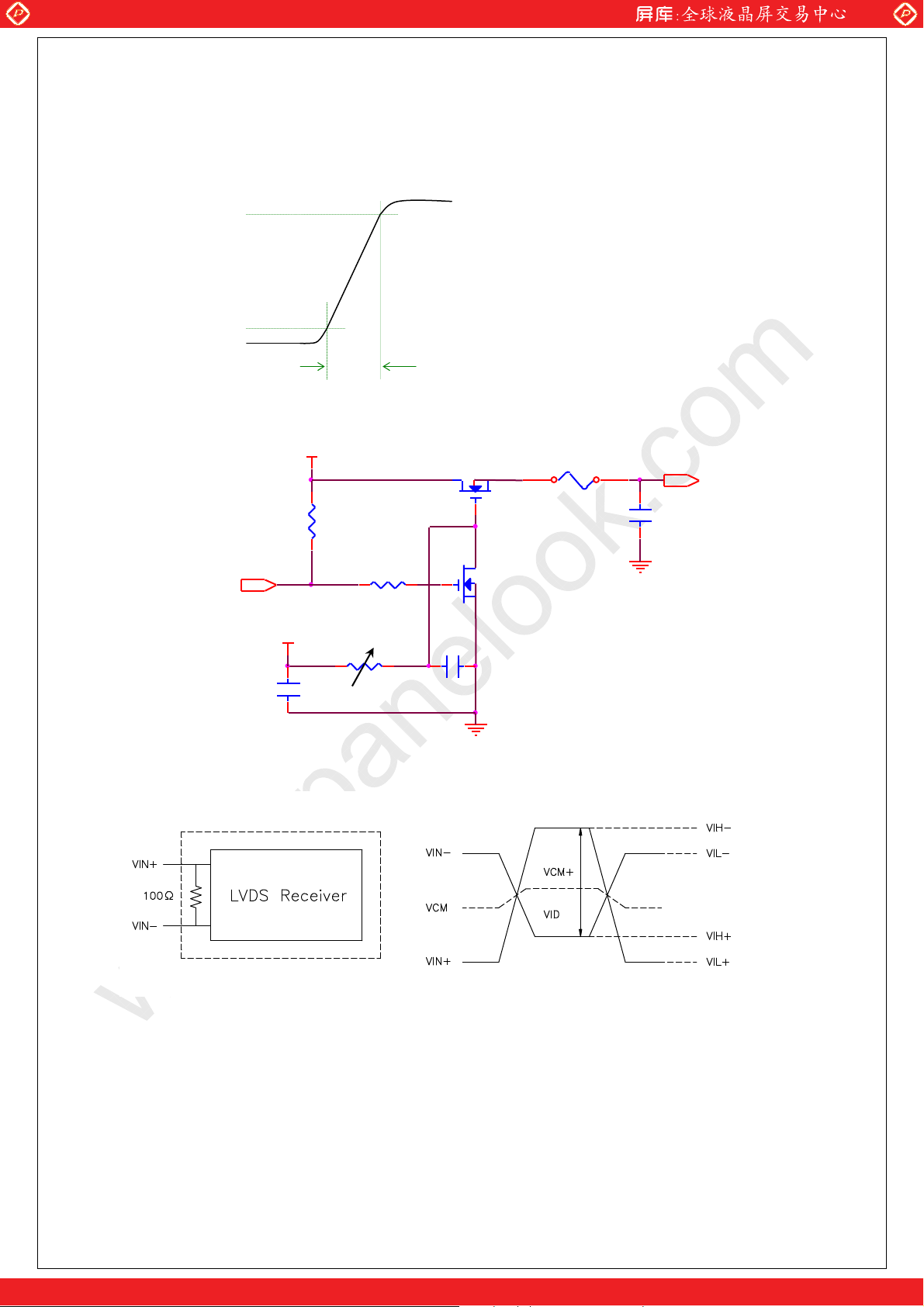

Note 1: Power input ripple should not exceed max. value.
Note 2: The specified current is under the V
=5V, 25 C, fV=60Hz (frame frequency) condition
cc
whereas mosaic pattern (black & white [8*6] ) is displayed.
White : 255 Gray
Black : 0 Gray
mosaic pattern (black & white [8*6] )
