INNOLUX M230WA01.ED Specification
Global LCD Panel Exchange Center
www.panelook.com

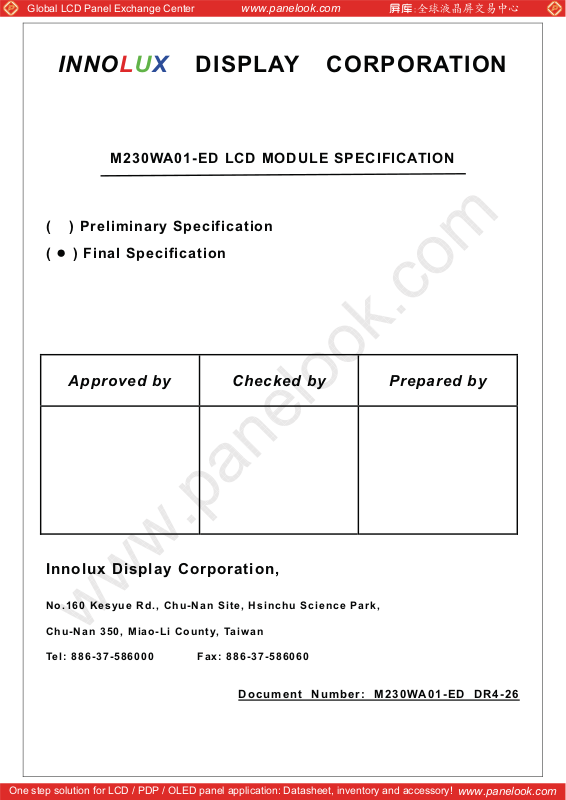

INNOLUX DISPLAY CORPORATION
M230WA01-ED LCD MODULE SPECIFICATION
( ) Preliminary Specification
(
) Final Specification
Approved by Checked by Prepared by
Innolux Display Corporation,
No.160 Kesyue Rd., Chu-Nan Site, Hsinchu Science Park,
Chu-Nan 350, Miao-Li County, Taiwan
Tel: 886-37-586000 Fax: 886-37-586060
Document Number: M230WA01-ED DR4-26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
InnoLux copyright
Record of Revision
Version Revise Date Page Content
1.0
1.1 2009/09/30 Final Spec
2009/08/15
Pre Spec.
All rights reserved,
Copying forbidden.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
SPEC NO.
PAGE
M230WA01-ED
3/23
Contents:
A. General Specification
B. Electrical Specifications
1. Pin assignment
2. Absolute maximum ratings

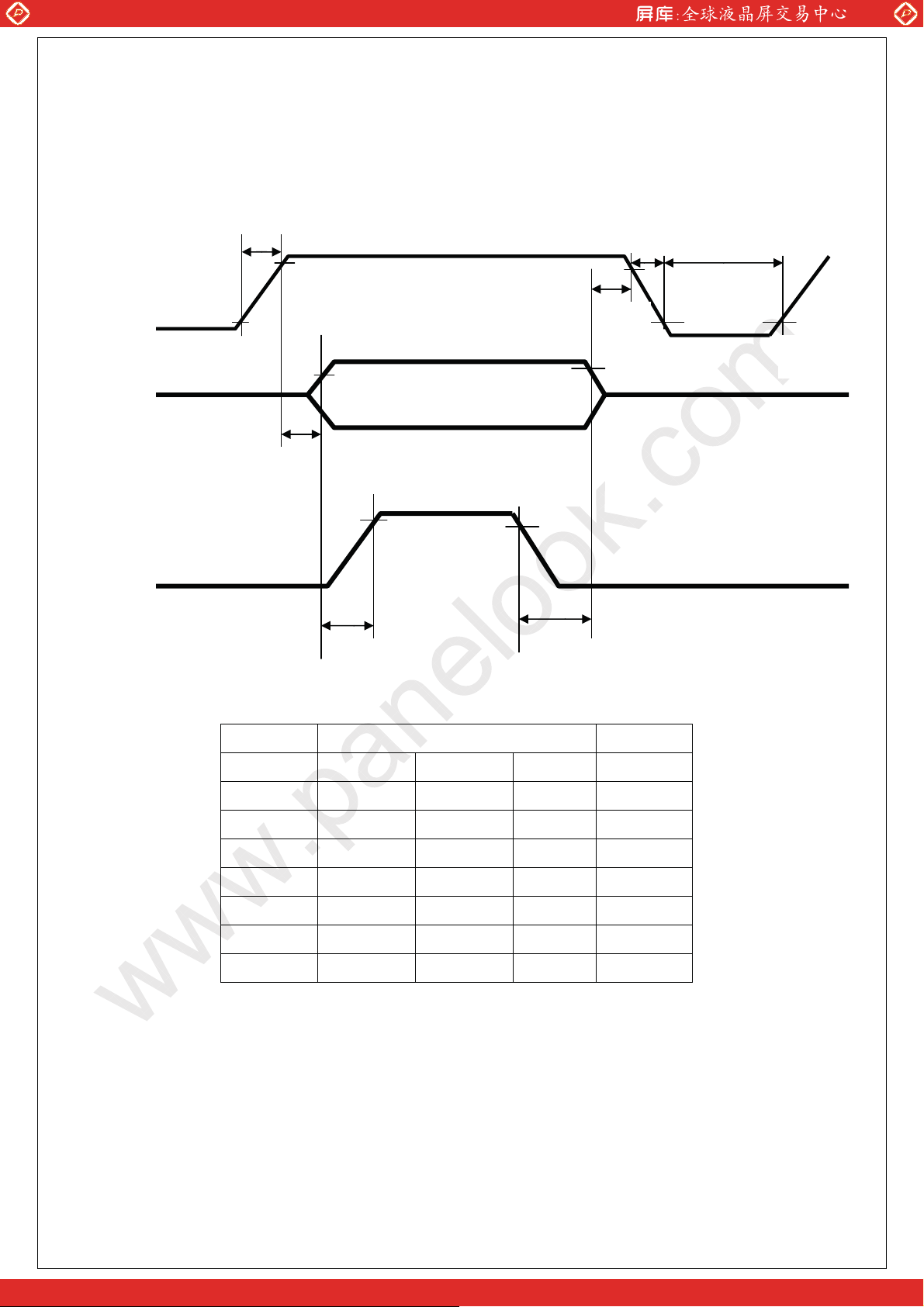

3. Electrical characteristics

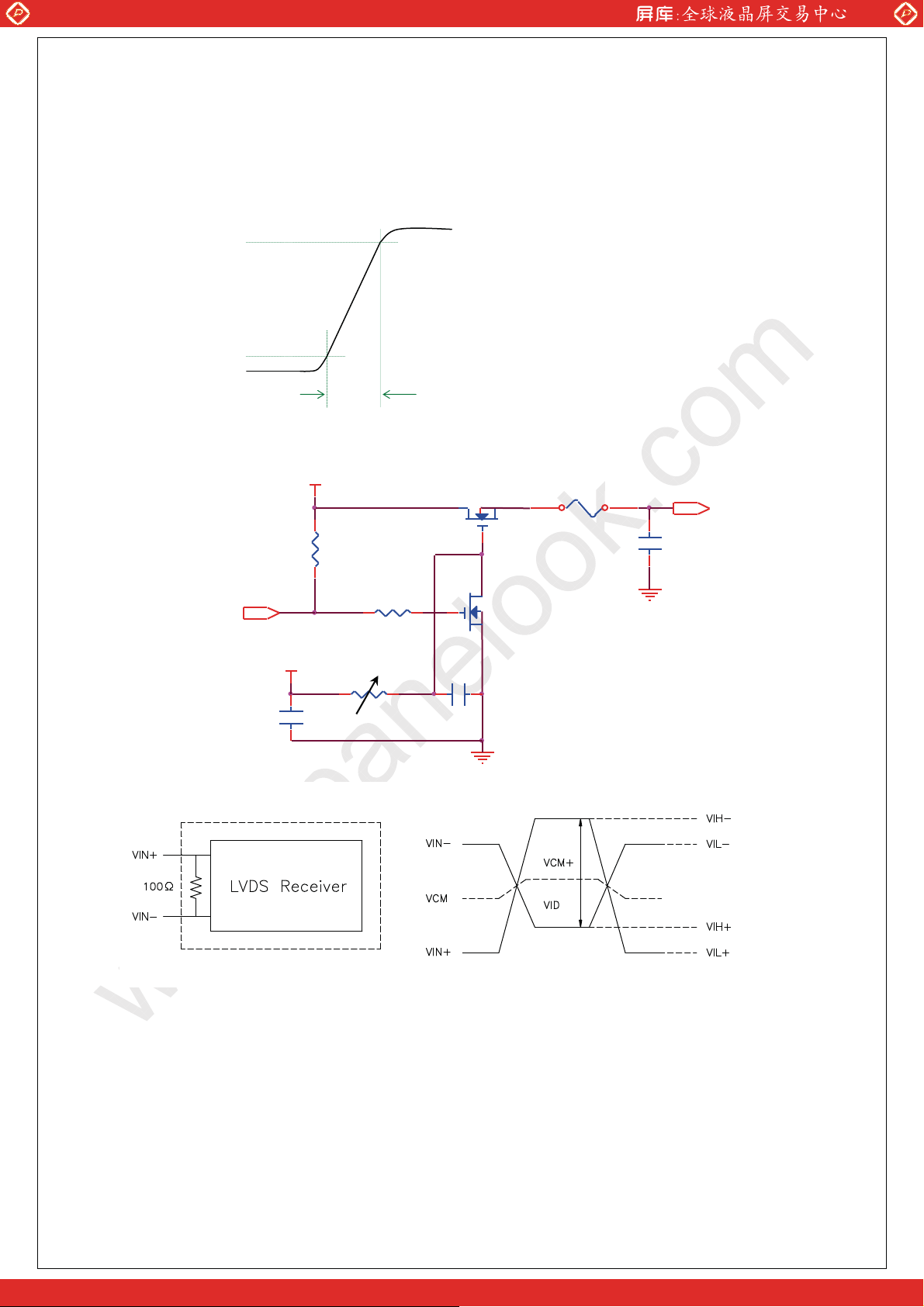

a. Typical operating conditions
b. Display color vs. input data signals

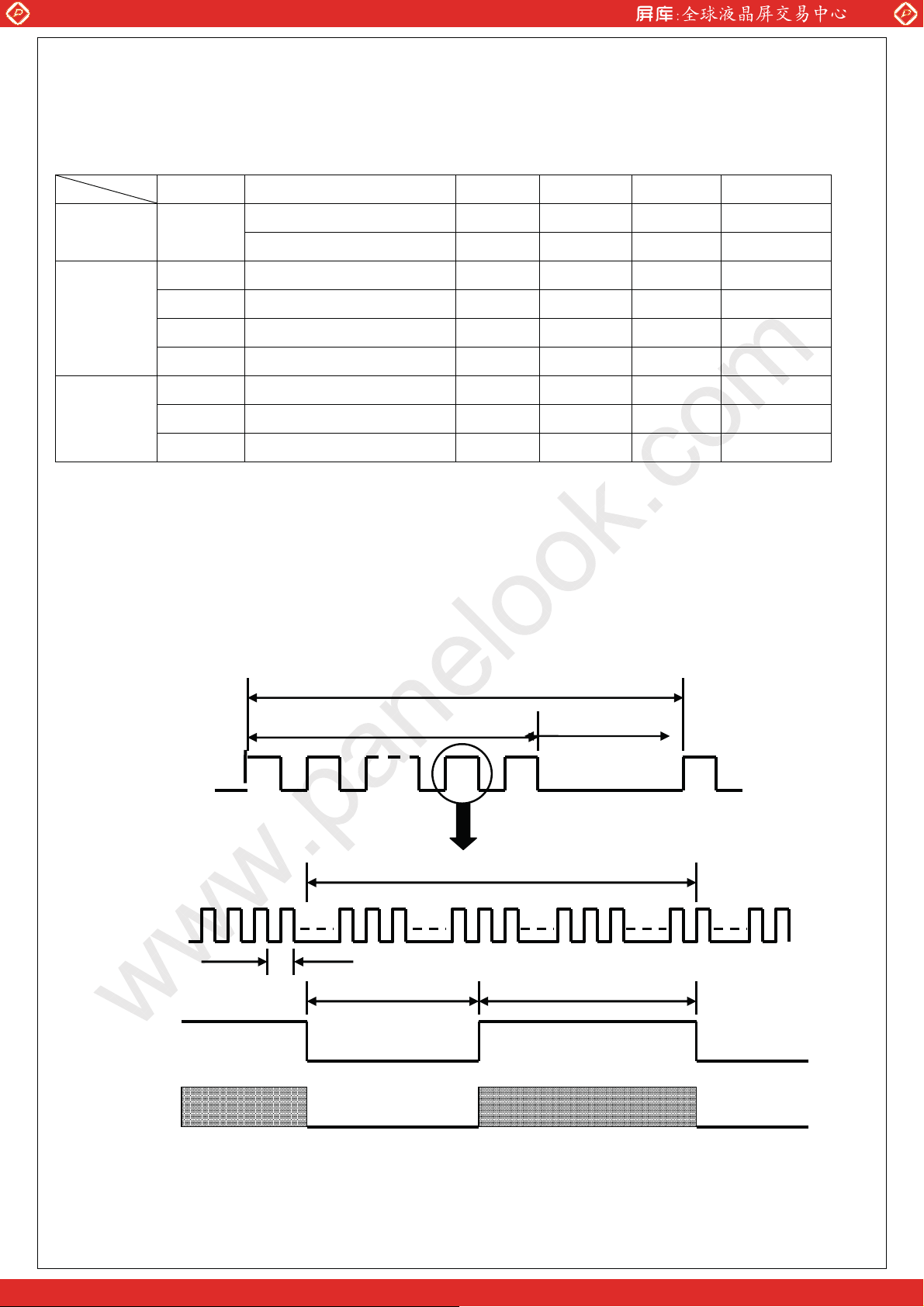

c. Input signal timing
d. Display position
e. Backlight driving conditions

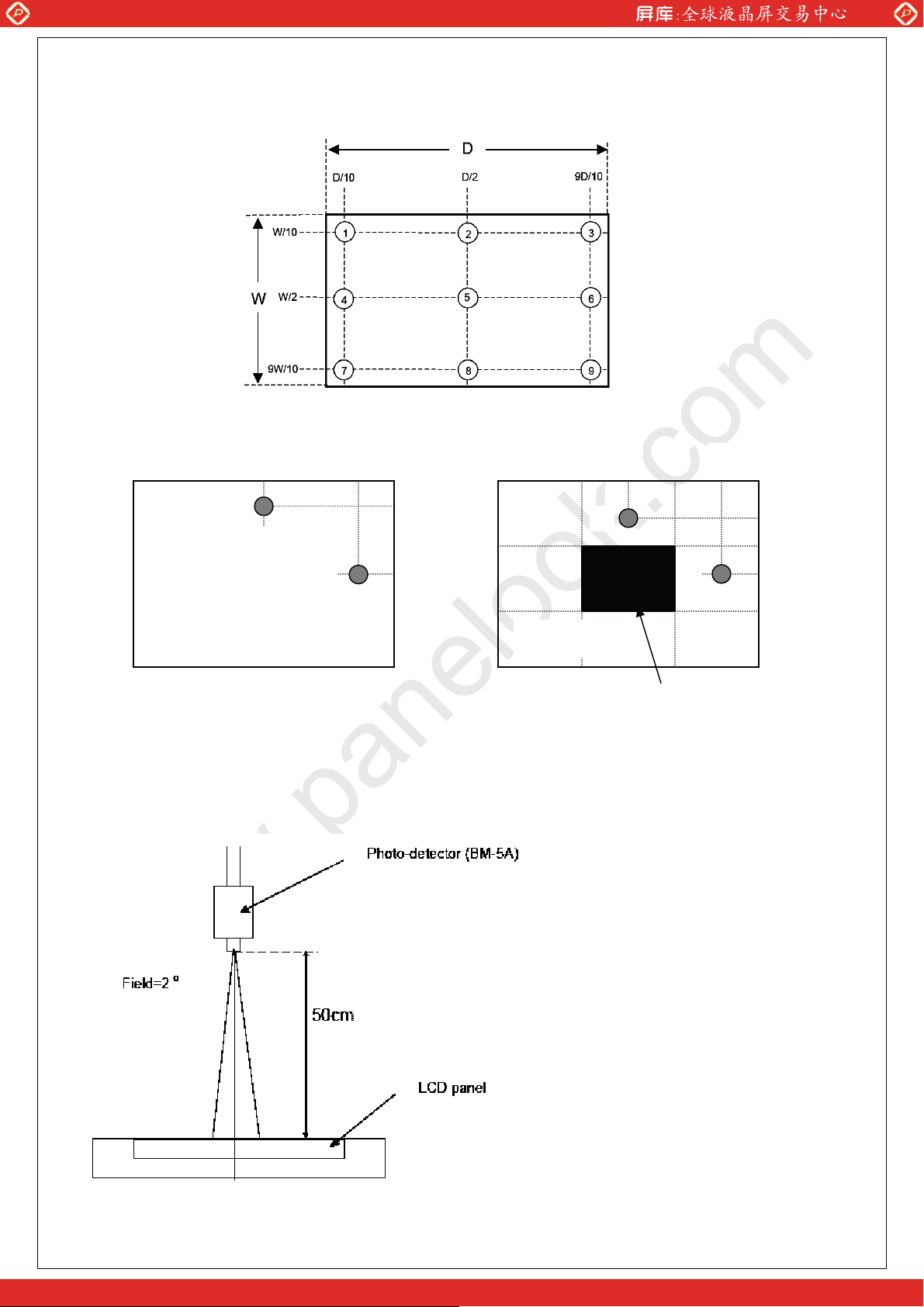

C. Optical specifications
D. Reliability test items
E. Safety
F. Display quality
G. Handling precaution

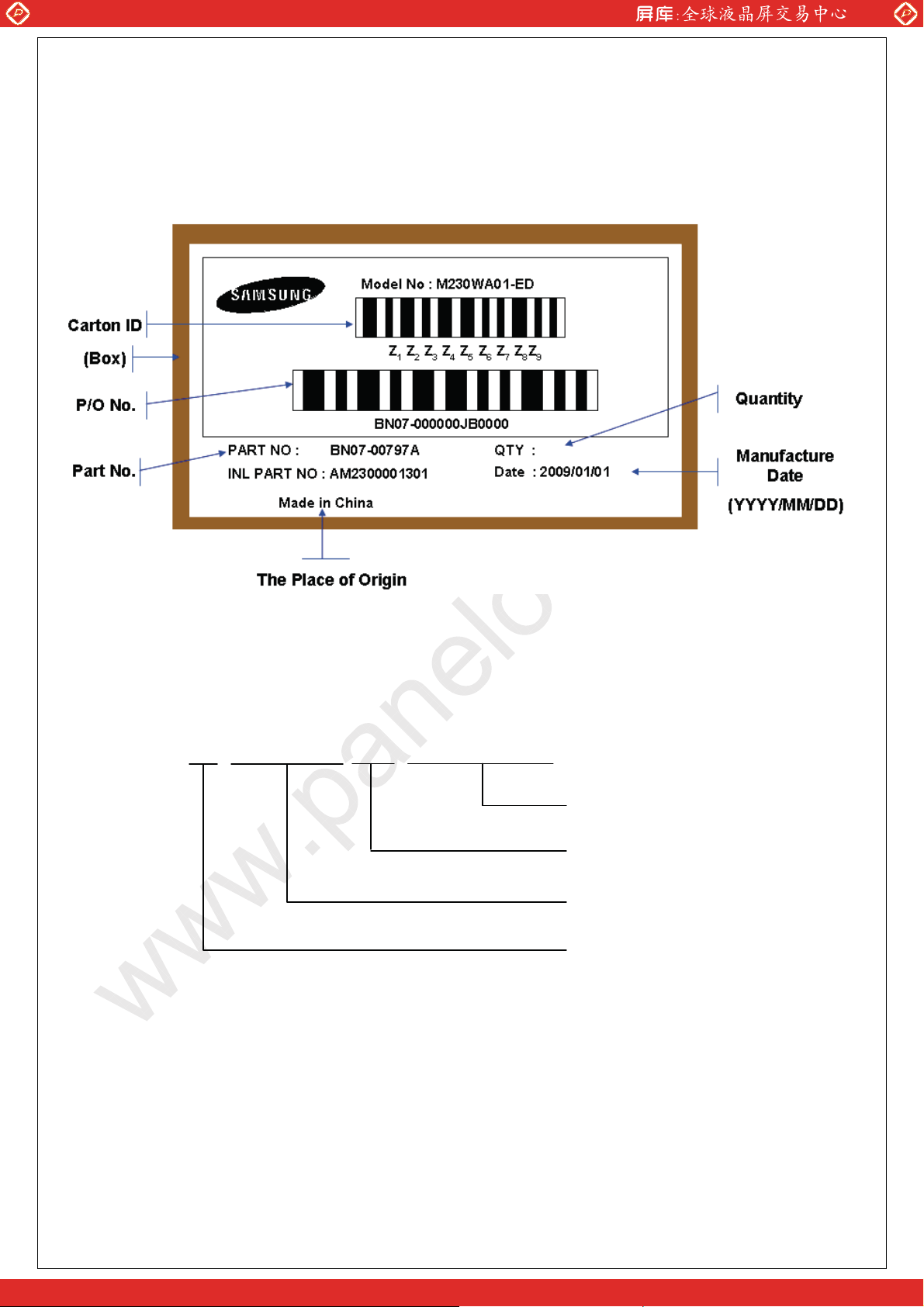

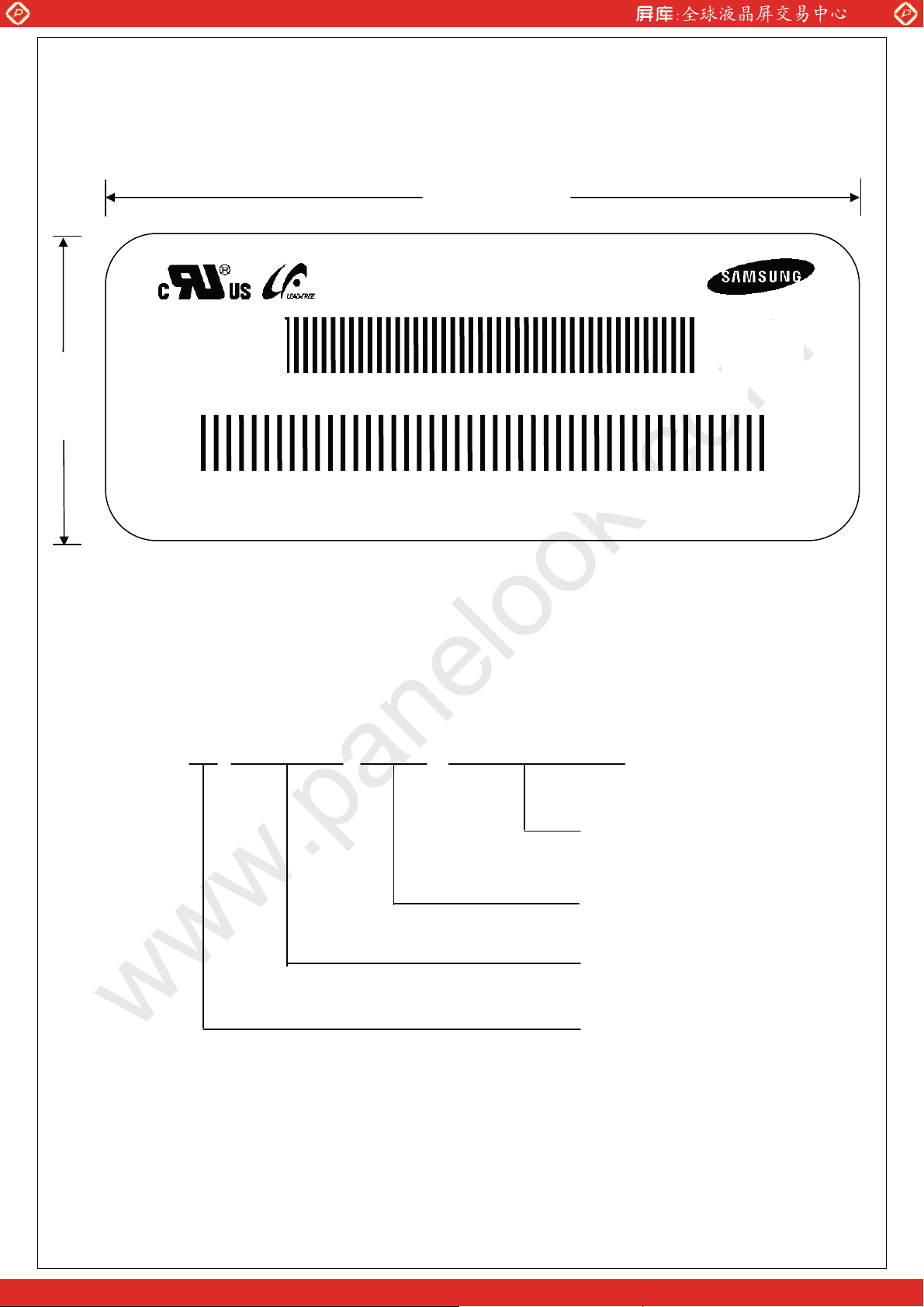

H. Label

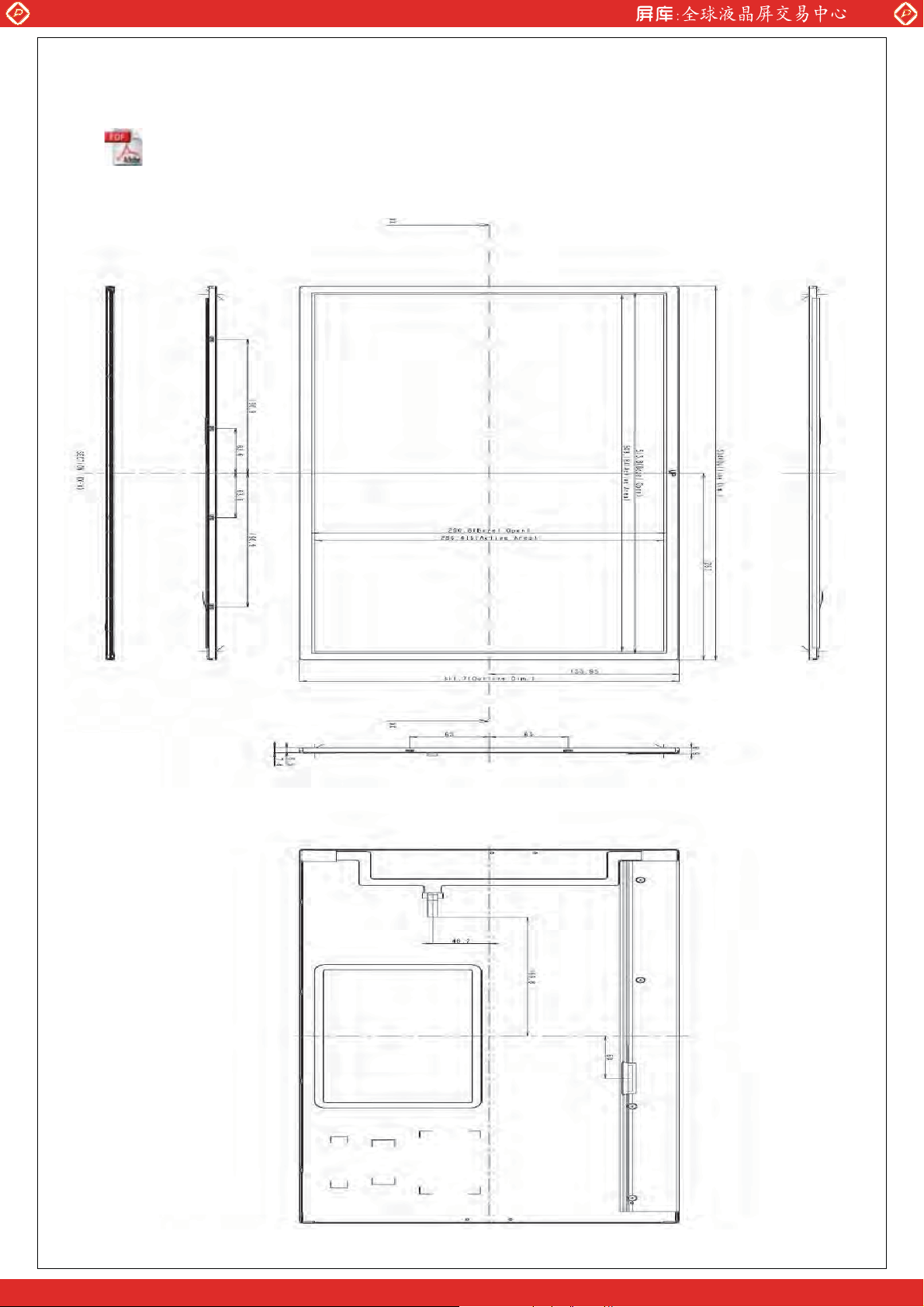

I. Mechanical drawings
Appendix
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
SPEC NO.
PAGE
M230WA01-ED
4/23
A. General specification
NO. Item Specification Remark
1 Display resolution (pixel)
2 Active area (mm)
3 Screen size (inch)
4 Pixel pitch (mm)
5 Color configuration
6 Overall dimension (mm)
7 Weight (g)
8 Surface treatment
1,920(H) X 1,080(V), Full HD
509.184(H) x 286.416(V)
23 inches diagonal
0.2652(H) X 0.2652(V)
R, G, B vertical stripe
534mm(H) x 311.7mm(V) 8.9mm(D) (Typ.)
2200 (Max)
Anti-Glare, Haze=25%, Hard coating (3H)
9 Input color signal
10 Display colors
11 Color Saturation
12 Optimum viewing direction
13 Backlight
14 RoHS & Halogen Free
8 bit LVDS
16.7M (6 bit with Hi-FRC)
80% NTSC
6 o’clock
White LED
RoHS & Halogen Free compliance
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
B. Electrical specifications
1. Pin assignment
1.1. LVDS Connector
FOXCONN GS23302-0311S-7F or mechanical interface equivalent connector.
No Symbol Description
1 RxO0- LVDS Differential data input Channel 0(-)
2 RxO0+ LVDS Differential data input Channel 0(+)
3 RxO1- LVDS Differential data input Channel 1(-)
4 RxO1+ LVDS Differential data input Channel 1(+)
5 RxO2- LVDS Differential data input Channel 2(-)
6 RxO2+ LVDS Differential data input Channel 2(+)
7 GND Ground
8 RxOC- LVDS Differential Clock input (-)
SPEC NO.
PAGE
M230WA01-ED
5/23
9 RxOC+ LVDS Differential Clock input (+)
10 RxO3- LVDS Differential data input Channel 3(-)
11 RxO3+ LVDS Differential data input Channel 3(+)
12 RxE0- LVDS Differential data input Channel 0(-)
13 RxE0+ LVDS Differential data input Channel 0(+)
14 GND Ground
15 RxE1- LVDS Differential data input Channel 1(-)
16 RxE1+ LVDS Differential data input Channel 1(+)
17 GND Ground
18 RxE2- LVDS Differential data input Channel 2(-)
19 RxE2+ LVDS Differential data input Channel 2(+)
20 RxEC- LVDS Differential Clock input (-)
21 RxEC+ LVDS Differential Clock input (+)
22 RxE3- LVDS Differential data input Channel 3(-)
23 RxE3+ LVDS Differential data input Channel 3(+)
24 GND Ground
25 NC No Connection
26 NC No Connection
27 NC No Connection
28 VCC Power supply (+5.0V)
29 VCC Power supply (+5.0V)
30 VCC Power supply (+5.0V)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
SPEC NO.
PAGE
M230WA01-ED
6/23
1st pin of LVDS
Connector
1st pin of FFC
Connector
1.2

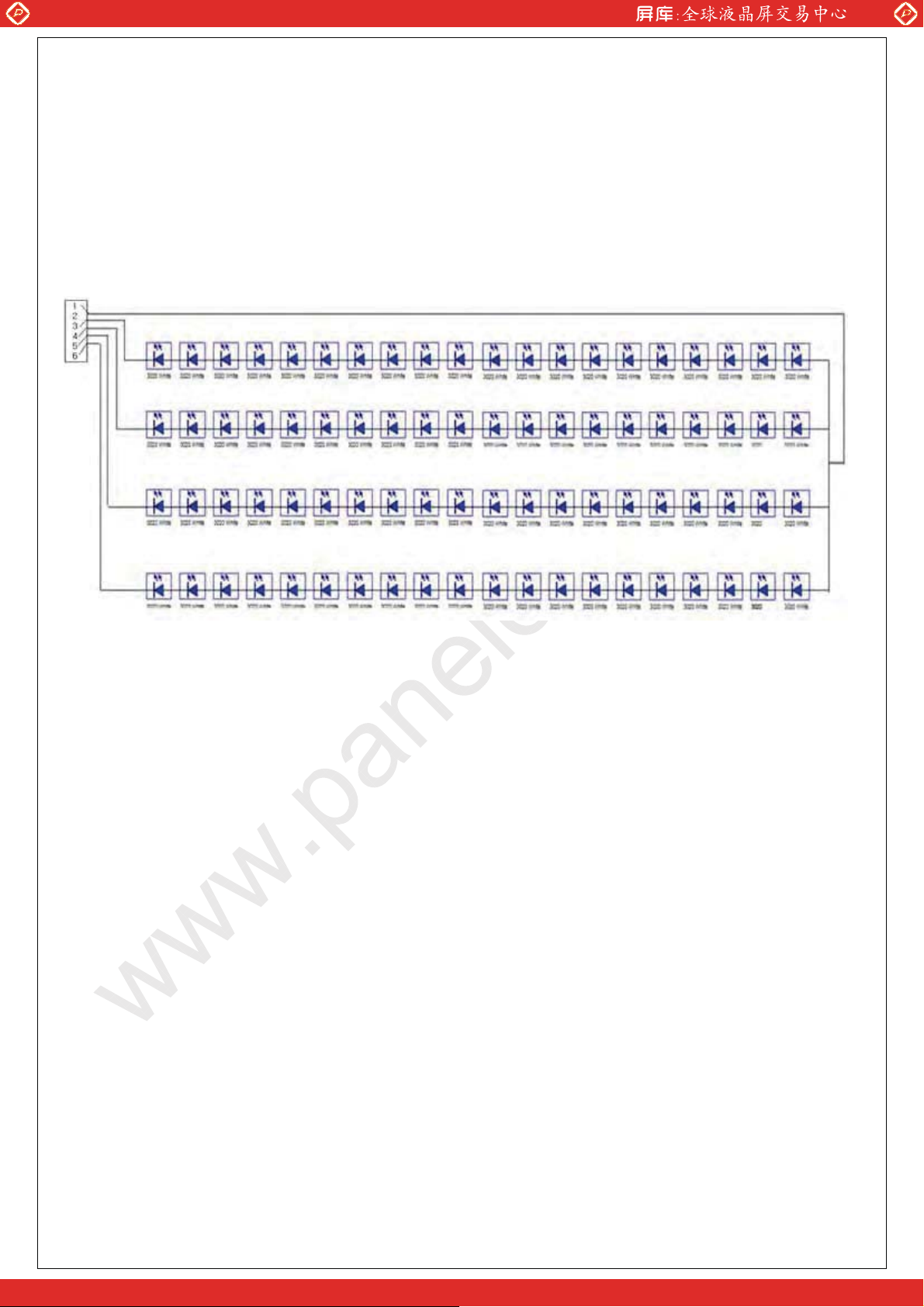

LED Light Bar FFC Cable
Pin No Symbol Description
1 RTN 1 Feedback
2 RTN 2 Feedback
3 RTN 3 Feedback
4 RTN 4 Feedback
5
6 VIN 1 LED power supply
7 VIN 2 LED power supply
8 NC
9 RTN 5 Feedback
10
11
12
NC
RTN 6 Feedback
RTN 7 Feedback
RTN 8 Feedback
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
SPEC NO.
PAGE
M230WA01-ED
7/23
2. Absolute maximum ratings
Values
Parameter Symbol
Min. Typ. Max.
Power voltage Vcc
Input signal voltage VLH
Operating temperature Top
Storage temperature TST
Note 1: The relative humidity must not exceed 90% non-condensing at temperatures of 40°C or less.
At temperatures greater than 40°C, the wet bulb temperature must not exceed 39°C.
Note 2: The unit should not be exposed to corrosive chemicals.
-0.3 -
-0.3 -
0 -
-20 -
6.0
4.3
50
60
Unit Remark
V
V
°C Note 1
°C Note 2
At 25к
At 25к
