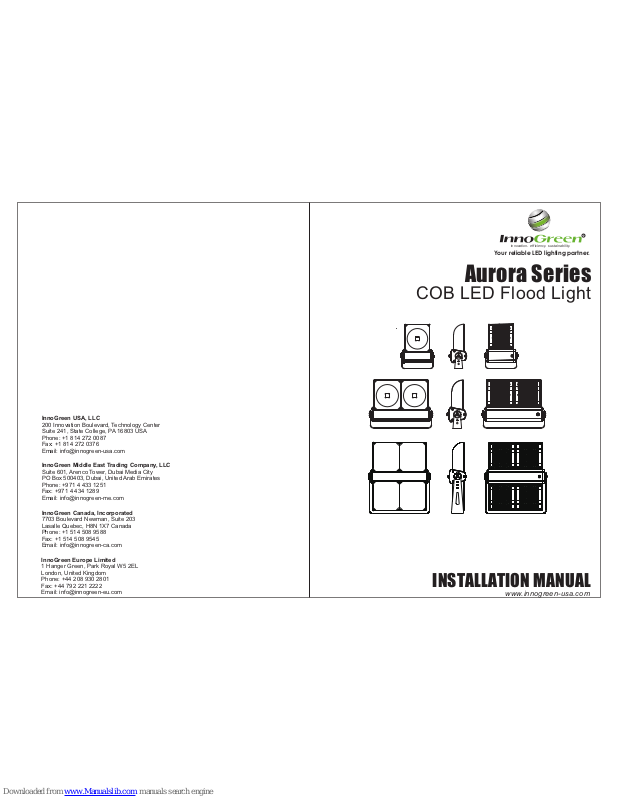

InnoGreen Aurora 150w, Aurora 200w, Aurora 100w, Aurora 300w, Aurora 400w Installation Manual

INSTALLATION MANUAL

Aurora Series

COB LED Flood Light

Your reliable LED lighting partner.

R

innovation. efficiency. sustainability.

www.innogreen-usa.com

InnoGreen USA, LLC

200 Innovation Boulevard, Technology Center
Suite 241, State College, PA 16803 USA
Phone: [phone]
Fax: [phone]
Email: [email protected]

InnoGreen Middle East Trading Company, LLC

Suite 601, Arenco Tower, Dubai Media City
PO Box 500403, Dubai, United Arab Emirates
Phone: [phone]
Fax: [phone]
Email: [email protected]

InnoGreen Canada, Incorporated

7703 Boulevard Newman, Suite 203
Lasalle Quebec, H8N 1X7 Canada
Phone: [phone]
Fax: [phone]
Email: [email protected]

InnoGreen Europe Limited

1 Hanger Green, Park Royal W5 2EL
London, United Kingdom
Phone: [phone]
Fax: [phone]
Email: [email protected]

DESCRIPTION

Inn oGree n LED flo od ligh t is idea l for com merci al and in dustr ial lig hting w ith mor e than 50 % energ y
sav ings co mpare d to trad ition al ligh ting. M odula r desig n for bet ter pow er, app earan ce, and
mai ntena nce fle xibil ity. Ad vance a ir flow t herma l manag ement f or bett er heat d issip ation .

DESCRIPTION

PARAMETERS

1.2A (10 0W)

Curren t (Max)

- 20 to 40 deg C

Applic ation Enviro nment

COB

LED Type :

IP65

IP Ratin g:

Beam Ang le:

INSTALLATION AND MAINTENANCE

1. Be sure to disconnect any power before installation.

2. Ensure that the mounting surface of the product can endure the weight; drill holes according to
the installation diagram; x the product on the mounting surface with 3 sets of M10 installation bolts
(bolt to be provided by customer).

3. Connect the product wire with matching power wire; seal the joint of installation.

SAFETY PRECAUTIONS

● Refer to product specications to ensure usage environment, proper input voltage and frequency.

● This product must only be installed by professionals.

● If there is any damage on the power line or the shell of the product, it should be taken as defective
and must not be used.

● High voltage product. Non-professinals are not allowed to maintain or install the product.

● Damaged external cables should be replaced by manufacturer, service agent or by trained professionals.

> 0.9

Power Fa ctor

120

O

Gross We ight:

1.8A (15 0W) 2.3A (20 0W)

3.4A (30 0W) 4.5A (400W) Other __ ________

5.0kg (1 00W) 9.5 kg (150W) 9.5kg ( 200W)

18.5kg ( 300W) 18.5kg ( 400W) Othe r __________

DESCRIPTIONDIMENSIONS

Units: (mm)

0 -265 Rotatable

o

0 -265 Rotatable

o

0 -355 Rotatable

o

Aurora 100W Aurora 150W & 200W

Aurora 300W & 400W

COB
