User Manual
InLine® PURE I, Bluetooth Over Ear Earphones with Active Noise Cancellation
1. Disclaimer ............................................................................................................................ 2
2. General Information ............................................................................................................. 3
3. Scope of Delivery ................................................................................................................. 3
4. Description of Warnings and Notes .................................................................................... 3
5. Technical Data ..................................................................................................................... 3
6. Intended Use ........................................................................................................................ 4
7. Improper Use ....................................................................................................................... 5
8. Radio Frequency Notes ....................................................................................................... 5
9. Operation of Earphones ...................................................................................................... 6
9.1 Rechar-ging the Battery....................................................................................................... 6
9.3 Bluetooth connection build-up ............................................................................................. 9
9.4 NFC connection build-up ................................................................................................... 10
9.5 ANC - Active Noise Cancellation....................................................................................... 10
9.6 Phone calls via Bluetooth .................................................................................................. 11
9.7 Phone calls via cable ......................................................................................................... 11
9.8 Listening to Music .............................................................................................................. 12
9.9 Discon-necting ................................................................................................................... 12
10. Changing Ear Pads............................................................................................................ 13
11. Troubleshooting ................................................................................................................. 13
12. Contact / Current Product Information .............................................................................. 14
13. Cleaning and Maintenance................................................................................................ 14
14. Optional Accessories ......................................................................................................... 14
15. Disposal ............................................................................................................................. 14
1. Disclaimer
1. Version English 44/2016 Documentation © 2016 INTOS ELECTRONIC AG All Rights Reserved. Without written consent of the publisher, this User Manual must not be replicated in any form, not even in parts, and it must not be duplicated or processed through use of electronic, mechanical or chemical processes. The present User Manual may contain printing defects or printing errors. All information in this manual is, however, reviewed regularly, and corrective changes will be implemented in the following edition. We do not accept liability for any technical or printing errors and their consequences. All trademarks and proprietary rights are herewith acknowledged. Any changes relating to technical progress may be implemented without prior notice. Our products including their packaging are not toys and may contain small or sharp objects. Keep away from children.
INTOS ELECTRONIC AG Siemensstrasse 11, D-35394 Giessen
www.inline-info.de
Page 2 of 14
2. General Information
Applicability
This User Manual describes the following products:
55359
55359B
InLine® PURE I, Bluetooth Over Ear Earphones with Active Noise Cancellation, black-anthracite
InLine® PURE I, Bluetooth Over Ear Earphones with Active Noise Cancellation, brown-silver
Manufacturer
INTOS ELECTRONIC AG Siemensstraße 11 D-35394 Gießen
Date
October 2016
3. Scope of Delivery
1 x 1 x 1 x 1 x 1 x 1 x 1 x 1 x
InLine® Pure I ANC-Earphones Micro-USB recharging cable, appr. 1m Audio cable (3.5mm) with microphone, appr. 1.3m Plane adapter cable (2x 3.5mm plugs to 1x 3.5mm jack) Transport box with storage mesh Velvet bag 13.5x8.5cm (LxW) User Manual Quick start guide
Please check whether items are complete. If individual items should be missing please contact your specialist retailer.
4. Description of Warnings and Notes
NOTE!
This symbol marks information which contributes to better understanding.
DANGER!
This symbol points out basic personal health risks which may arise. TIP!
This symbol highlights optional products we recommend for the purpose described in the respective chapter.
5. Technical Data
Colour:
Black-anthracite (Art. 55359) / brown-silver (Article 55359B)
Weight:
337g
Shape:
Half-open construction Over-Ear Round ear cup Speaker size: 40mm 90° rotation
Connections:
Stereo jack (3.5mm)
Including cable; length: appr. 1.3m, with integrated microphone
Micro-USB
Including cable; length: appr. 1m, Micro USB to USB A
Bluetooth
Version: 4.0 Profile: HSP v1.2, HFP v1.6, A2DP v1.2, AVRCP v1.4 Range: up to 10m (unimpeded view, w/o obstacles)
Page 3 of 14
NFC
Automatic pairing by wireless data exchange
Operation:
Battery life
Up to 10 hours, (7-8 hours at 100% volume and activated ANC) Standby: up to 200 hours Recharging time: appr. 3.5 hours (after full discharge)
Battery/battery capacity
Lithium-Polymer / 300mAh Frequency range
20 – 20,000 Hz
ANC
Chipset
Can be activated separately Sound isolation: appr. 80%
CSR8645with aptX®
6. Intended Use
InLine® Pure I are wireless earphones with hands-free speakerphone for Bluetooth devices such as mobile phones, tablet PCs or desktop PC, provided PC has Bluetooth connection functionality.
TIP!
Using our optional InLine® Art. No. 41321I InLine® Bluetooth 4.0 + EDR Tiny USB Adapter, you may easily update Bluetooth connectivity.
With function keys located on the right ear cup, volume, music playback, and phone calls can be easily controlled with a single hand. Smoothly padded ear cups remain agreeably but firmly attached to the ears. A high-quality rubber foam headband sheathed in durable protein leather provides additional wearing comfort. To ensure a relaxed listening enjoyment, InLine® Pure I Earphones use innovative technology for active ambient noise reduction (ANC). Miniature microphones integrated into each ear cup take away ambient noise and create a 180° phase-delayed disturbance noise which effectively reduces ambient noise levels. This makes our Earphones a perfect companion when traveling by plane or by train, since unwanted noise can be reduced practically at the push of a button without impairing playback audio quality. To recharge please use the included USB cable to connect the Earphones to your PC or another USB power source such as a power bank. Through the integrated stereo jack, you may connect Earphones to devices lacking Bluetooth technology. Use the audio cable to use Earphones even on an empty battery.
ANC noise insulation up to 80% ANC can be separately activated, resulting in less battery use Two separate LED lights signal operational status of ANC and
Bluetooth
Comfortable operation using one hand Comfortable wear thanks to high quality materials Huge battery capacity: up to 10 hours’ operation, 200 hours in standby
mode
Battery saving function: automatic shutdown upon loss of signal
Page 4 of 14
Suitable for all Bluetooth playback devices Saves space thanks to foldable design Including transportation bag and cable
WARNING!
Do not adjust volume too high. Long-term listening to loud volumes may lead to temporary or permanent hearing damage.
WARNING!
Never use the product in situations requiring listening ability and particular attention such as active participation in road traffic. Ensure you are always able to hear acoustic warnings, particularly in locations with increased risk such as construction sites or railroad crossings. Please note that perception of warning signals may be compromised by sound suppression, and that even familiar sounds can be significantly modified.
WARNING!
Users with pacemakers or implanted defibrillators are advised to take special care on account of the Bluetooth technology used. 1.
7. Improper Use
Improper Use within the meaning of foreseeable misuse is: Never disassemble Earphones, and entrust all repair work to expert
technicians.
Do not subject Earphones to excessive heat or solar radiation. Avoid humidity Never expose Earphones to strong shocks.
8. Radio Frequency Notes
General Allocation of Frequencies for Use in Local Networks; Wireless Local Area Networks (WLAN Radio Applications)
Based on § 55 of the German Telecommunications Act (Telekommunikationsgesetz - TKG) we herewith assign frequencies in the range 2400.0 – 2483.5 MHz for use of the general public in local networks, Wireless Local Area Networks (WLAN Radio Applications). With this General Allocation, we fulfil the compulsive implementation of the Decision by the European Commission on Harmonisation of the Radio Spectrum for Use by Short-Range Devices dated 2006/11/09 (2006/771/EG), as amended by implementing the decision of the Commission dated 2011/12/08 (2011/829/EU), published in the Official Journal of the European Union L 329, page 10 ff. dated 2011/12/13 in Germany.
If you intend to use this product outside of Germany, please read up in advance on the respective regulations in your host country.
Page 5 of 14
9. Operation of Earphones
9.1 Rechar­ging the Battery
For wireless use of Earphones and use of active ambient noise suppression you need to recharge the integrated battery first. Use the included Micro USB cable for this purpose. Recharging is possible in switched-on and in switched-off mode.
1) Connect the Micro USB plug into our Earphones‘ USB port.
2) Connect the USB A plug to a free USB port on your computer, or use any other USB power source.
3) Full recharge takes some 3.5 hours. Active recharging is signalled by a red LED light on the left side. After successful recharge, the red LED goes off again, and you can now disconnect.
4) An acoustic signal „Battery low“ is activated at low battery charge level (ca. 10-15% remaining), resounding in 60 second intervals, with the red right­hand side LED lighting every 3 seconds. Repeat steps 1-3 for recharging, or use the cable instead of a Bluetooth connection if you want to keep listening to music or are unable to recharge the device at this point.
NOTE!
Please be aware that recharging times may vary according to the power source output performance.
NOTE!
If you use a free USB port on your PC for recharging please ensure your PC is switched on and not running in power saving mode.
NOTE!
With an empty battery, the ANC function is not available.
TIP!
For recharging the battery we recommend using InLine® USB power supplies such as the InLine® USB Power Supply 2-fold, recharging device, power adapter, 100-240V to 5V/2.1A, available in black (Art. 31505S) and white (Art. 31505W)
Page 6 of 14

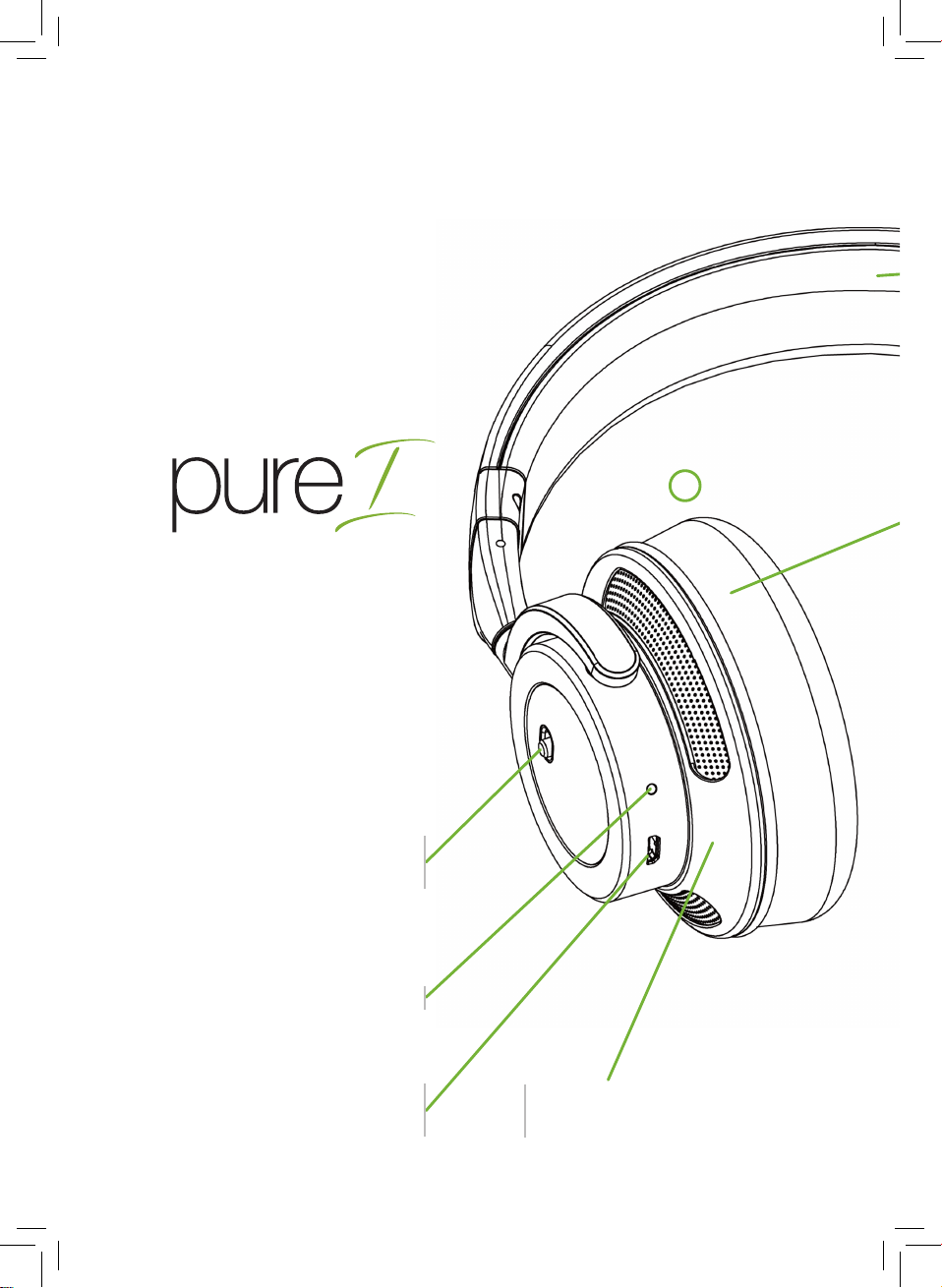

9.2 Operating elements
L
ANC EIN / AUS
ANC ON / OFF
ANC LED
MICRO USB LADEPORT
MICRO USB CHARGING PORT
NFC ANTENNE
NFC ANTENNA
KOPFBAND
HEADBAND
OHRPOLSTER
EAR CUSHIONS
R
TITEL
TITLE
LAUTSTÄRKE +
VOLUME +
MULTIFUNKTIONSTASTE
MULTIFUNCTION BUTTON
TITEL
TITLE
LAUTSTÄRKE -
VOLUME -
BLUETOOTH LED
MIKROFON
MICROPHONE
3,5MM KLINKENEINGANG
3,5MM AUDIO JACK
9.3 Bluetooth
connection build-up
You can build up a wireless connection between a playback device or PC and the Earphones via Bluetooth. The playback device must have its Bluetooth function switched on.
1) Put the Earphones in to Pairing mode. For this keep multifunction button pressed for at least 3 seconds. You will first hear the message „Power On“, and later „Pairing“. Alternative blue-and-red-blinking of the LED at the right Earphone side signals that Earphones are ready for connection build-up.
2) Open the Bluetooth settings of your playback device and search for available devices. Ensure that the distance between Earphones and the intended Bluetooth playback device is less than one meter. Please also follow the advice in your Bluetooth playback device’s User Manual, or contact the manufacturer if any problems should arise.
3) Select the device InLine ANC Headphoneson your
Bluetooth playback device to build up a connection.
4) Successful establishment of connection is signalled by a blue LED light on the right Earphone side, blinking in 5 second intervals.
NOTE!

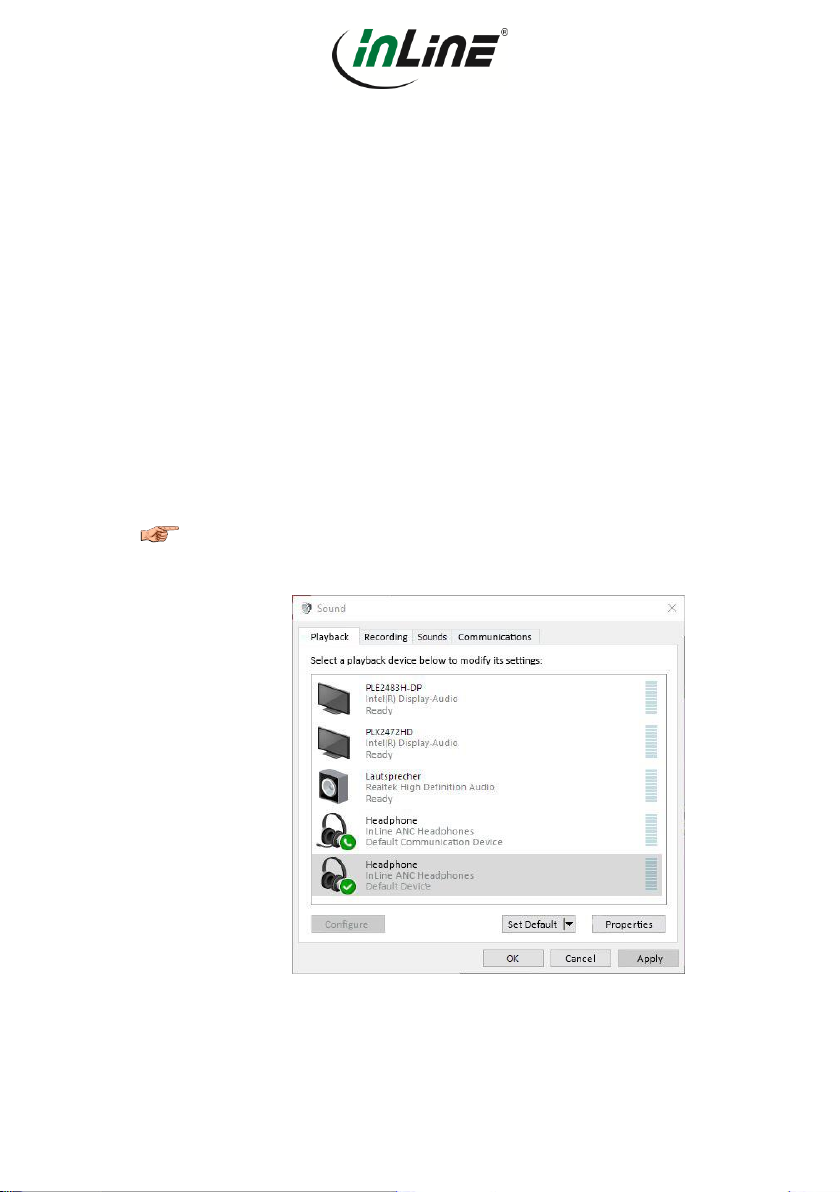

If you performed a Bluetooth connection between Earphones and a Windows PC, these will appear twice in the sound settings.
Use Standard Communication Devicee.g. for Skype™ Telephony and „Standard Device if you want to listen to music.
Page 9 of 14
9.4 NFC
connection build-up
If your playback device supports NFC you may quickly and easily build up a connection without having to perform the above steps:
1) Switch on NFC in your playback device. Refer to the respective User Manual.
2) Check in the User Manual where the NFC antenna of your playback device is situated.
3) Set your Earphones to Pairing mode. For this keep multifunction button pressed for at least
3 seconds. You will first hear the message „Power On“, and later „Pairing“.
Alternative blue-and-red-blinking of the LED at the right Earphone side signals that Earphones are ready for connection build-up.
4) Touch the NFC area at the left ear cup with the respective point of your playback device and wait for appr. 3 seconds.
5) Connection is established automatically, and you will receive feedback from your playback device.
6) If connection cannot be established please move your playback device slowly around the point of the Earphones described above. Repeat if necessary steps 1) to 3). If, after several attempts, no connection has been established, you may proceed as described in Bluetooth connection build-up“ at any time to establish the connection manually.
NOTE!
If no connection can be established within a timeframe of 15 minutes, Earphones switch off automatically.
NOTE!
If you want to connect Earphones with another Bluetooth playback device you need to disconnect the active connection first by deactivating Bluetooth at the first playback device (alternatively, disconnect Earphones in the Bluetooth settings of the playback device) and then build up a connection to the new device (see Bluetooth connection build-up or NFC
connection build-up).
NOTE!
If a given Pairing proves impossible, switch off the Earphones and then retry establishing a connection.
9.5 ANC -
Active Noise Cancel­lation
InLine® Pure I Earphones uses innovative technology for active reduction of ambient noise (ANC). This function may be switched on or off as required.
1) To activate noise suppression, move the slider at the left ear cup to the left. A red spot right next to the switch signals active noise suppression mode.
2) To deactivate noise suppression please move the slider at the left ear cup to the right.
Page 10 of 14
9.6 Phone
calls via Bluetooth
You may use InLine® Pure I Earphones for phone calls if the connected Bluetooth device has mobile phone functionality. Thanks to the integrated microphone you do not need any accessories. Use the function buttons of the Earphones to operate the phone, which are described below.
Redial
To redial the last phone connection, push the Earphones multifunction button quickly twice, which will be followed by the acoustic confirmation „last number redial“.
Accept call
For ingoing calls push the multifunction button briefly.
Decline call
For unwanted incoming calls push the multifunction button and keep pushed, until a short two-tone-sequence confirms the call has been declined. Then release the button immediately, since otherwise Earphones will disconnect the mobile phone connection.
Adjust volume
Adjust volume during phone calls using the Earphones‘ „+“ and „- buttons.
NOTE!
Please be aware that not all Bluetooth phones support the functions described above. Please also review the information in your mobile phone’s User Manual. Some functions and notification tones may vary.
NOTE! You may also use the audio stereo cable included in the Scope of Delivery for phone calls or playing music on a playback device with 3.5mm audio jack output. Please note that Earphone function buttons can be used with activated Bluetooth connection only.
NOTE! Please also be aware that not every mobile phone supports transmission of the ringtone. In such cases, a few bars of Wagners opera „Valkyrie“ will be played for any incoming call.
You may use InLine® Pure I Earphones for phone calls by connecting a mobile phone using the audio cable with microphone included within the Scope of Delivery.
NOTE! Take care to insert the plug near microphone and operating button into the Earphones, as otherwise full functionality cannot be ensured.
9.7 Phone calls via cable
Page 11 of 14
9.8 Listening
For operating the phone use the function button on the cable; functions are as follows:
Accept call
For incoming calls briefly push the function button.
Decline call
For unwanted incoming calls push the function button and keep pushed for 3 seconds. As soon as you release button, the call is declined.
Adjust volume
Adjust volume during the phone call by using the respective keys of your mobile phone.
You may use the following function buttons for music playback during active Bluetooth connection:
+
Increase volume by pushing here. Maximum volume is signalled by a specific tone.
-
Decrease volume by pressing here
For next title briefly push here
Starts current title with one brief push. Starts previous titles by additional short pushes (2x, 3x, …)
Multifunction button
Pauses or starts playback by single push.
9.9 Discon­necting
Use the following functions during playback with cable connection:
Push multifunction
button 1x
Pauses and starts playback
Push multifunction
button 2x
Next title
Push multifunction
button 3x
Previous title
Keep multifunction button pushed for some 5 seconds to disconnect the active Bluetooth link and switch off the Earphones.
to Music
Page 12 of 14
10. Changing Ear Pads
If an ear pad should become damaged, or if you consider replacing it for reasons of hygiene, just change ear pads without much ado. Grip the ear pad on one side and turn it counterclockwise for ca. 30°. To attach place into fitting and turn clockwise for ca. 30°.
TIP!
Replacement ear pads are available as options in both colours: Art. 55359O InLine® PURE I accessory 2x ear pads black Art. 55359P InLine® PURE I accessory 2x ear pads brown
11. Troubleshooting
Problem
Solution
Earphones cannot be switched on
Ensure Earphone battery is charged.
Battery cannot be charged
Ensure the USB power source is switched on and your PC is not in power saving mode. Check all connections of the USB cable at Earphones and at the USB power source.
No Bluetooth connection possible
Ensure Earphones and the Bluetooth device to be connected are both switched on. Check the available Bluetooth standard of your Bluetooth device. InLine® Pure I Earphones support Bluetooth profiles HSP v1.2, HFP v1.6, A2DP v1.2, AVRCP v1.4. Ensure the playback device‘s Bluetooth function has been switched on.
No audio output during playback
Ensure Earphones and Bluetooth playback device are both switched on and that an audio file is being played back.
Check the volume settings of Earphones and playback device.
Distorted sound
Check whether other Bluetooth devices are interfering with the used frequency within the 2.4 GHz band. Ensure no obstacles between Earphones and Bluetooth playback are interfering with signal transmission.
Control buttons non­functional
Check the Bluetooth profile. For some Bluetooth playback devices, there are operative limitations within the HFP and HSP Bluetooth profiles. Change the profile to A2DP manually, if necessary. Please see your playback device’s User Manual for details.
Low range
Check whether other Bluetooth devices are interfering with the used frequency within the 2.4 GHz band. Ensure no obstacles are interfering with signal transmission between Earphones and Bluetooth playback device.
Page 13 of 14
12. Contact / Current Product Information
In case of question on the product or if any issues occur please contact manufacturer via live.inline-info.com or by email to service@inline-
info.de.
Find the latest product information at www.inline-info.com/pure1
13. Cleaning and Maintenance
Always clean InLine® Pure I Earphones with a dry, soft cloth.
14. Optional Accessories
99201I
InLine® AmpEQ Earphones Amplifier and Equalizer, 3.5mm jack, USB powered
99204I
41321I
31505S
31505W
55359O
55359P
55359Q
55359R
55359S 55359T
InLine® AmpEQ mobile, Earphones Amplifier and Equalizer,
3.5mm jack, with battery InLine® Bluetooth 4.0 + EDR Tiny USB Adapter InLine® USB power adapter 2-fold, recharging device, power adapter, 100-240V to 5V/2.1A, black InLine® USB power adapter 2-fold, recharging device, power adapter, 100-240V to 5V/2.1A, white InLine® PURE I accessory 2x ear pads black InLine® PURE I accessory 2x ear pads brown InLine® PURE I accessory 3.5mm jack cable ST/ST with microphone, 1.3m, black-anthracite
InLine® PURE I accessory 3.5mm jack cable ST/ST with microphone, 1.3m, black-silver
InLine® PURE I accessory velvet bag black InLine® PURE I accessory transport box with storage mesh black
15. Disposal
Electrical and electronical devices and batteries may not be disposed of via regular household garbage. Consumers are obliged by law to return electrical and electronic devices and batteries to the public collection points or the sales point at the end of their working life. Please sort packaging garbage correctly when disposing of it.
Page 14 of 14
Bluetooth Over Ear Kopfhörer mit Active Noise Cancelling Bluetooth Over Ear Headphones with Active Noise Cancelling
www.inline-info.com
Loading...
